Targus AKM10US User Manual

Size:
2.05 Mb
Download

Wireless

Keypad and

Optical Mouse

Combo

USER GUIDE

TARGUS WIRELESS

KEYPAD AND

OPTICAL MOUSE

COMBO

Introduction

Congratulations on your purchase of the Targus wireless keypad and opitcal mouse combo. This combo set offers the latest technology for interference free operation with 2.4 GHz wireless connection. Both keypad and mouse feature on/off switch and power saving management for effective power conservation.

Contents

In addition to this user’s guide, this package contains:

Targus Wireless Keypad

Targus Wireless Optical Mouse

USB Receiver

2 AAA batteries (for mouse)

1 AA battery (for keypad)

System Requirements

Hardware

PC with an Intel® Pentium® processor or equivalent

USB 1.1 or 2.0 interface

1

Targus wireless keypad and opitcal mouse combo

Operating System

Windows® 2000/XP

Windows Vista™

Installing the Batteries

Optical Mouse

Removing the battery cover

1 Insert the supplied batteries , making sure that the positive

(+) and negative (-)ends of each battery match the polarity indicators inside the battery housing.

WARNINGS: WHEN REPLACING THE BATTERIES, YOU MAY USE ALKALINE OR OTHER HEAVY-DUTYNIMH BATTERIES. NEVER COMBINE AN ALKALINE WITH A NIMH BATTERY IN A DEVICE. AVOID MIXING NEW AND USED BATTERIES IN A DEVICE.

2 Slide the battery cover back in to position until it “clicks” firmly into place.

3 Turn on the mouse by sliding the on/off switch on the bottom of the mouse to the “on” position.

The optical sensor, located on the bottom of the mouse, glows red.

2

Targus wireless keypad and opitcal mouse combo

Wireless Keypad

1 Remove the battery cover located on the bottom of the keypad.

2 Insert the supplied batteries , making sure that the positive

(+) and negative (-)ends of each battery match the polarity indicators inside the battery housing.

3 Turn on the keypad by sliding the Power switch on the back side of the keypad to the “on” position.

Setup Key

Power

Switch

Connecting the Receiver

Plug the USB receiver into an available USB port on your computer.

You are now ready to set the identification code to establish a communication link with the receiver.

3

Targus wireless keypad and opitcal mouse combo

Setting the Identification Code

After your computer detects the USB receiver you must set the ID code between the receiver and the mouse as well as between the receiver and the keypad BEFORE you can use them. To do this, do the following:

NOTE: MAKE SURE THAT YOUR COMPUTER IS TURNED ON AND HAS DETECTED THE USB RECEIVER BEFORE YOU SET THE ID CODE.

Optical Mouse

1 Plug the USB receiver into an available USB port on your computer. The LED on the receiver will flash for 60 seconds to indicate ID search mode.

2 Press the setup key on the bottom of the mouse.

Setup Key

Power switch

When the LED on the receiver is lit, the mouse is set up with an ID and the receiver is locked.

You are now ready to use the mouse.

Proceed to setting the ID code with the keypad.

4

Targus wireless keypad and opitcal mouse combo

Wireless Keypad

1 The LED on the receiver will flash for 60 seconds to indicate ID search mode. During this time, press and release the connection button on the back of the keypad.

2 When the light emitter diode (LED) on the receiver is lit, the keypad is set up with an ID and the receiver is locked.

You are now ready to use the keypad.

Setup Key

Power switch

5

Targus wireless keypad and opitcal mouse combo

Using the Keypad

Definition of the Keypad Keys:

.

NumLock on - inserts a decimal point

Del

NumLock off - deletes a number





0

NumLock on - enters “0” on the display

Ins

NumLock off - emulates the Insert key





00

NumLock on - enters “00”

,

NumLock off - inserts a comma ( , )





1

NumLock on - enters “1” on the display

End

NumLock off - emulates the End key





2

NumLock on - enters “2” on the display

NumLock off - moves the cursor down one

line of text







3

NumLock on - enters “3” on the display

PgDn

NumLock off - emulates the Page Down key





4

NumLock on - enters “4” on the display

NumLock off - moves one character to the

left of the cursor position







5

NumLock on - enters “5” on the display

NumLock off - No function







6

NumLock on - enters “6” on the display

NumLock off - moves one character to the

right of the cursor position







6





Targus wireless keypad and opitcal mouse combo















7

NumLock on - enters “7” on the display



Home

NumLock off - emulates the Home key









8

NumLock on - enters “8” on the display



NumLock off - moves the cursor up one line





of text













9

NumLock on - enters “9” on the display



PgUp

NumLock off - emulates the Page Up key









+

NumLock on



=

NumLock off







NOTE: THE NUMLOCK KEY ON YOUR COMPUTER WILL NOT AFFECT THE NUMLOCK STATUS OF THE KEYPAD.

7

Targus wireless keypad and opitcal mouse combo

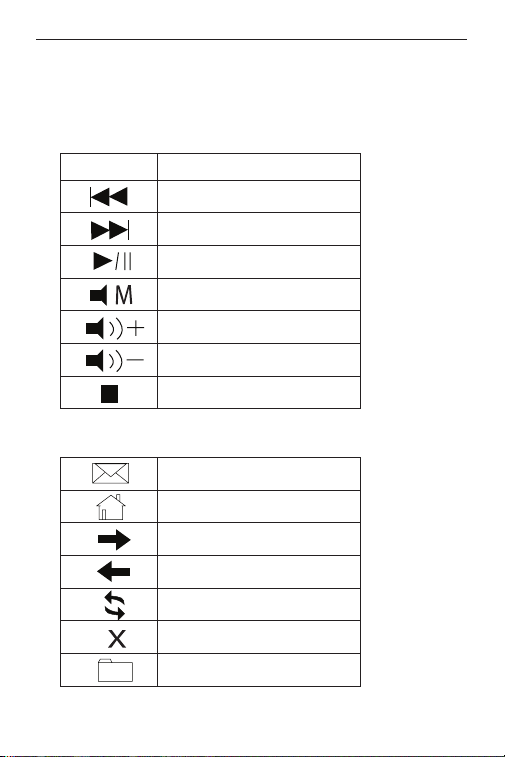

Using the multimedia/internet controls

To switch between the two modes, press the Mode key.

Media keys

Key Function

Previous Track

Next Track

Play / Pause

Mute

Volume Up

Volume Down

Stop

Internet keys

Default E-mailProgram

Default Internet browser

Internet page forward

Internet page backward

Refresh page

Stop page

Favorite

8

Targus wireless keypad and opitcal mouse combo

Power Management

To power the keypad and mouse on and off, slide the on/off switch to the desired position.

When power is on, the mouse goes into “power saving mode” after 4 minutes of inactivity. To activate the mouse, move the mouse or press any button.

To save battery power, turn off the keypad and mouse while traveling or when you’re not using them.

Operating Hints

For optimal performance and RF reception:

Place the receiver at least 20 cm away from all electrical devices, such as your monitor, speakers or external storage devices.

Avoid using the optical mouse on a metal surface. Metals, such as iron, aluminum or copper, shield the radio frequency transmission and may slow down the mouse’s response time or cause the mouse to fail temporarily.

The mouse will enter a suspend mode at the same time your computer does. To activate the mouse, press any of the buttons.

9
