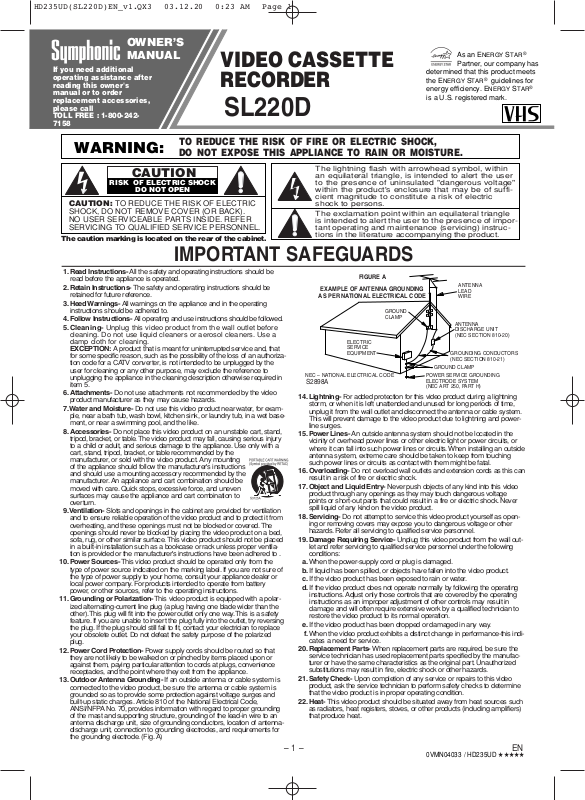

OWNER’S

MANUAL







As an ENERGYSTAR®

If you need additional







Partner, our company has









determined that this product meets

operating assistance after



the ENERGY STAR® guidelines for

reading this owner's



energy efficiency. ENERGY STAR®

manual or to order

SL220D

is a U.S. registered mark.

replacement accessories,

TOLL FREE : 1-800-242-













please call















7158





























TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, WARNING: DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The caution marking is located on the rear of the cabinet.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

IMPORTANT SAFEGUARDS

1.Read Instructions- All the safety and operating instructions should be read before the appliance is operated.

2.Retain Instructions- The safety and operating instructions should be retained for future reference.

3.Heed Warnings- All warnings on the appliance and in the operating instructions should be adhered to.

4.Follow Instructions- All operating and use instructions should be followed.

5.Cleaning- Unplug this video product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

EXCEPTION: A product that is meant for uninterrupted service and, that for some specific reason, such as the possibility of the loss of an authorization code for a CATV converter, is not intended to be unplugged by the user for cleaning or any other purpose, may exclude the reference to unplugging the appliance in the cleaning description otherwise required in item 5.

6.Attachments- Do not use attachments not recommended by the video product manufacturer as they may cause hazards.

7.Water and Moisture- Do not use this video product near water, for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.

8.Accessories- Do not place this video product on an unstable cart, stand, tripod, bracket, or table.The video product may fall, causing serious injury

to a child or adult, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the

manufacturer, or sold with the video product. Any mounting of the appliance should follow the manufacturer's instructionsand should use a mounting accessory recommended by themanufacturer. An appliance and cart combination should bemoved with care. Quick stops, excessive force, and unevensurfaces may cause the appliance and cart combination tooverturn.

9.Ventilation- Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the video product and to protect it from overheating, and these openings must not be blocked or covered.The openings should never be blocked by placing the video product on a bed, sofa, rug, or other similar surface.This video product should not be placed in abuilt-ininstallation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to .

10.Power Sources- This video product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

11.Grounding or Polarization- This video product is equipped with a polarizedalternating-currentline plug (a plug having one blade wider than the other).This plug will fit into the power outlet only one way.This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

12.Power Cord Protection- Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

13.Outdoor Antenna Grounding- If an outside antenna or cable system is connected to the video product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges andbuilt-upstatic charges. Article 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of thelead-inwire to an antenna discharge unit, size of grounding conductors, location of antennadischarge unit, connection to grounding electrodes, and requirements for the grounding electrode. (Fig. A)

FIGURE A

EXAMPLE OF ANTENNA GROUNDING

ANTENNA

LEAD

AS PER NATIONAL ELECTRICAL CODE

WIRE

GROUND



CLAMP





ANTENNA



DISCHARGE UNIT



(NEC SECTION 810-20)

ELECTRIC



SERVICE



EQUIPMENT

GROUNDING CONDUCTORS



(NEC SECTION 810-21)



GROUND CLAMP

NEC – NATIONAL ELECTRICAL CODE

POWER SERVICE GROUNDING

S2898A

ELECTRODE SYSTEM



(NEC ART 250, PART H)

14.Lightning- For added protection for this video product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the video product due to lightning and powerline surges.

15.Power Lines- An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits.When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

16.Overloading- Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

17.Object and Liquid Entry- Never push objects of any kind into this video product through any openings as they may touch dangerous voltage points orshort-outparts that could result in a fire or electric shock. Never spill liquid of any kind on the video product.

18.Servicing- Do not attempt to service this video product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19.Damage Requiring Service- Unplug this video product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a.When the power-supplycord or plug is damaged.

b.If liquid has been spilled, or objects have fallen into the video product.

c.If the video product has been exposed to rain or water.

d.If the video product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the video product to its normal operation.

e.If the video product has been dropped or damaged in any way.

f.When the video product exhibits a distinct change in performance-thisindicates a need for service.

20.Replacement Parts- When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

21.Safety Check- Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine that the video product is in proper operating condition.

22.Heat- This video product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

– 1 –

EN

0VMN04033 / HD235UD

PRECAUTIONS

Install Location

For safety and optimum performance of your VCR:

Install the VCR in a horizontal and stable position. Do not place anything directly on top of the VCR. Do not place the VCR directly on top of the TV.

Shield it from direct sunlight and keep it away from sources of intense heat. Avoid dusty or humid places. Avoid places with insufficient ventilation for proper heat dissipation. Do not block the ventilation holes on the sides of the VCR. Avoid locations subject to strong vibration or strong magnetic fields.

Avoid the Hazards of Electrical Shock and Fire

Do not handle the power cord with wet hands.

Do not pull on the power cord when disconnecting it from AC wall outlet. Grasp it by the plug.

Moisture Condensation Warning

Moisture condensation may occur inside the unit when it is moved from a cold place to a warm place, or after heating a cold room or under conditions of high humidity. Do not use the VCR at least for 2 hours until its inside is dry.

FCC Warning

This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

Important Copyright Information

Unauthorized recording or use of broadcast television programming, video tape, film or other copyrighted material may violate applicable copyright laws. We assume no responsibility for the unauthorized duplication, use, or other acts which infringe upon the rights of copyright owners.

A Note about Recycling

This product's packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations. Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

Note to the Cable TV System Installer

This reminder is provided to call the Cable TV system installer’s attention to Article 820-40of the National Electrical Code, which provides guidelines for proper grounding – in particular, specifying that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as possible.

CAUTION:

TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

DESCRIPTION OF CONTROLS

Front Panel









1





















POWER VCR/TV TAPE IN TIMER

REC











VIDEO

AUDIO



































REC/OTR STOP/EJECT

REW

PLAY

F.FWD







POWER CHANNEL









MENU







1 3

12

11 1 0

9



8



7 6 5

4

3 2



1. Cassette Compartment



18. Display Window





2. F.FWD button







19. Remote Sensor





3. PLAY button







10. CHANNEL (





)

buttons

4. REW button







11. POWER button





5. STOP/EJECT button





12. AUDIO Input jack



6. REC/OTR button





13. VIDEO Input jack



7. MENU button





















Display Window

























POWER

VCR/TV

TAPE IN

TIMER

REC















14

15

16

17

18









14. POWER indicator





17. TIMER indicator





15. VCR/TV indicator





18. REC indicator







16. TAPE IN indicator



















Rear Panel













19





20 21









































ANT























IN



















AUDIO



















OUT

IN

OUT









































VIDEO



25















24 23

22























19. AUDIO OUT jack





23. VIDEO IN jack







20. AUDIO IN jack





24. VIDEO OUT jack



21. ANT. IN jack







25. AC Power Cord





22. ANT. OUT jack



















Remote Control









POWER

1

EJECT



VCR/TV



1

2

3







2

4

5

6

CHANNEL



7

8

9

AUTO-



REPEAT



MENU

0

COUNTER

EXIT

3

MEMORY

RESET







PAUSE



RECORD

SPEED

DISPLAY

4

/STILL









5

REW

STOP

PLAY

F.FWD







6

7

1. EJECT button

172. NUMBER buttons

3. MENU button

164. RECORD button

5. SPEED button

156. REW button

7.STOP button

8.PLAY button

14

9. F.FWD button

13

10. DISPLAY button

12

11. PAUSE/STILL button

11

12. COUNTER MEMORY button

10

13. COUNTER RESET/EXIT button

914. AUTO REPEAT button

15. CHANNEL () buttons

816. POWER button

17. VCR/TV button

To insert the batteries

Install two AA batteries

(supplied) matching the

polarity indicated on the

bottom of the remote

control.

VIDEO OUT Jack

Connect a video cable going to the video in jack of a camcorder, another VCR, a TV, or an audiovisual system (laser disc player, video disc player, etc.) here.

AUDIO OUT Jack

Connect the audio cable going to the audio in jack of a camcorder, another VCR, a stereo amplifier, or an audio system here.

VIDEO IN Jack

Connect a video cable coming from the video out jack of a camcorder, another VCR, or an audio-visualsource (laser disc player, video disc player, etc.) here.

AUDIO IN Jack

Connect the audio cable coming from the audio out jack of a camcorder, another VCR, or an audio source here.

– 2 –

EN

PREPARATION FOR USE

Connecting to a TV without A/V Terminals

RF Output Channel

Connecting to a TV with A/V Terminals

Using Optional AUDIO/ VIDEO Output Jacks

With this connection, you can get better pictures and sounds when playing back a tape if your TV has A/V Input jacks. Please refer to your TV’s owner’s manual.

Using AUDIO/VIDEO Input Jacks

You can use the A/V input jacks on the front or the back of the VCR.

To use the input jacks on the back of the VCR, select "L1" posi-

tion by pressing [0], [0], [1] on the remote control or [CHANNEL () ].

To use the input jacks on the front of the VCR, select "L2" posi-

tion by pressing [0], [0], [2] on the remote control or [CHANNEL () ].

“L1” or “L2” is found before the lowest memorized channel. (Example: CH2)

[Playing VCR]

AUDIO

OUT IN

VIDEO

Audio/Video cables





(not supplied)





[TV A/V]



IN





L

R



AUDIO

VIDEO

SETUP

Automatic Channel Set Up

You can automatically program the tuner to scan only the channels you receive in your area.

Channel memory programming is NOT needed when you connect the VCR to a cable box or satellite box as in "Connect VCR to TV Connection". In this case, select the VCR and TV to channel 3 or 4 the same channel as the RF output channel of the VCR. Then, the channel you want to record or view may be selected at the cable box or satellite box.

Follow the steps below once. Repeat it only if there is a power failure or if the VCR is unplugged for more than 30 seconds. (In these cases, the programmed channels are erased.)

You must follow the steps below before attempting to play or record a video tape. If you want to play or record a video tape BEFORE programming the tuner, you can cancel it by pressing [COUNTER RESET/EXIT].

1

You need to connect the antenna or cable to the VCR



first. Then, connect the VCR power plug into a stan-







dard AC outlet.







2

Turn on the TV and set the TV to channel 3. If channel 3



is already occupied for broadcasting, change the RF output







to CH 4, and change the TV channel to CH4.







(See “RF Output Channel” on page 3 for the detail.)















3

Turn on the VCR by pressing [POWER]. When the



POWER is on, both the POWER and VCR/TV indicator on







the VCR will be on.





















4

Select the On Screen Language

LANGUAGE SELECT





("ENGLISH" , "FRANCAIS" or



ENGLISH







"ESPAÑOL") by pressing [PLAY] or

FRANCAIS







[STOP]. Then, press [F.FWD].







ESPAÑOL



5

Begin channel preset by pressing [F.FWD] once. The



tuner scans and memorizes all active





















channels in your area.



CH 01

















• The VCR distinguishes between standard



AUTO SET UP







TV channels and cable channels.

















6

After scanning, the tuner stops on the lowest memo-



rized channel. The TV screen returns to TV mode.



If "AUTO SET UP" appears on the TV screen again, check the cable connections. Press [F.FWD] once again and the VCR will begin preset again.

To Select a Desired Channel

You can select the desired channel by using [CHANNEL () ] or directly pressing [Number] on the remote control.

Note for using the Number buttons:

When selecting cable channels which are higher than 99, enter channel numbers as a three-digitnumber.(For example: 117, press 1,1,7)

You must precede single-digitchannel numbers with a zero (For example: 02, 03, 04 and so on).

To Preset the Channel Again







1

Press [MENU] until the main menu appears.







2

Select "CHANNEL SET UP" by pressing [PLAY] or

[STOP]. Then, press [F.FWD].







3

Select "AUTO SET UP" by pressing [PLAY] or [STOP].

Then, press [F.FWD]. After scanning, the tuner stops on

the lowest memorized channel.

– 3 –

EN

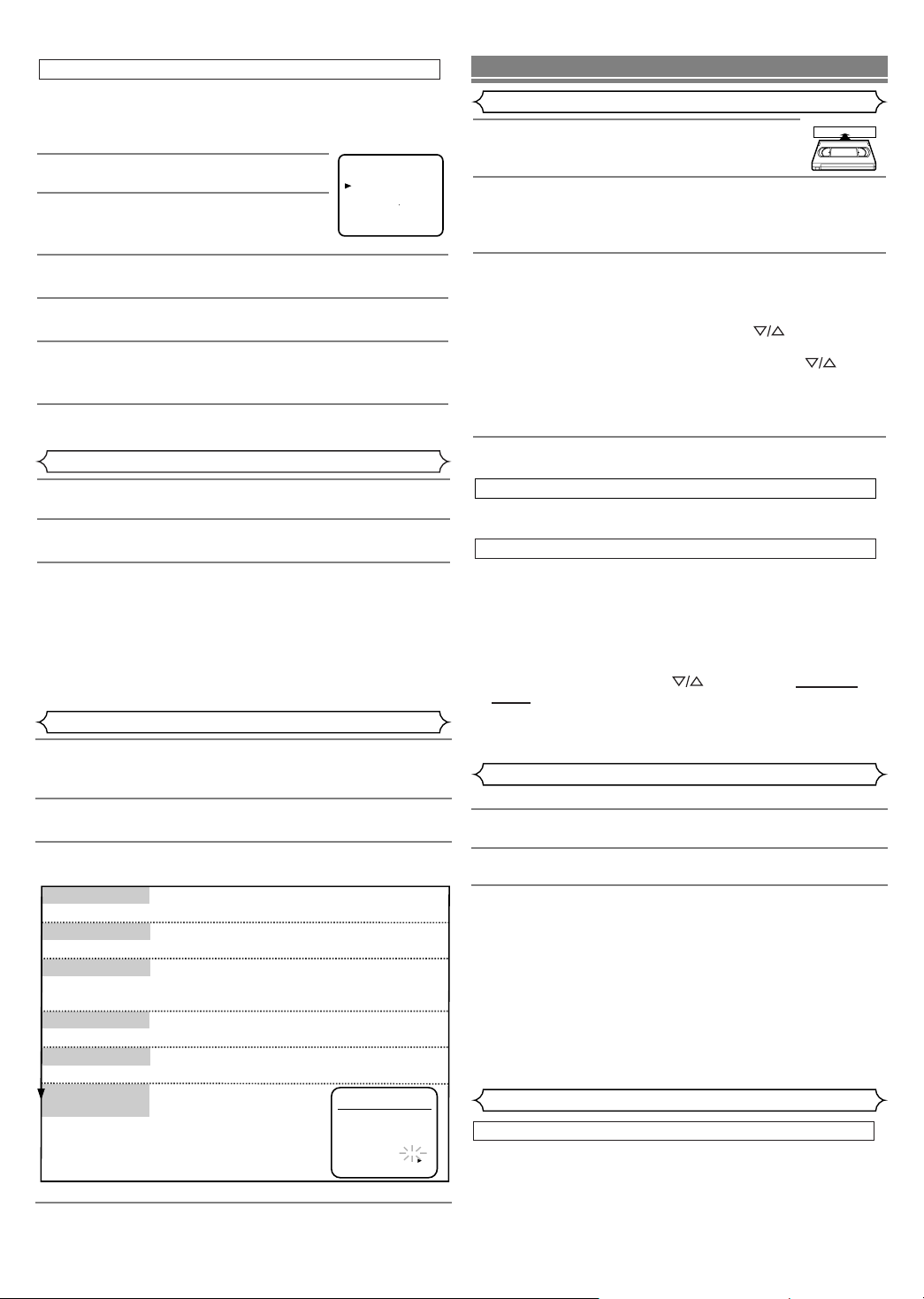

To Add/Delete Channels

When the VCR automatically program the tuner to scan only the channels you receive in your area, some channels may be skipped due to weak signal. You can manually add the channel in the VCR memory.

1

Press [MENU] until the main menu

- MENU -



appears.

TIMER PROGRAMMING

AUTO REPEAT [OFF]

CLOCK SET







CHANNEL SET UP

2

Select "CHANNEL SET UP" by

LANGUAGE SELECT



pressing [PLAY] or [STOP]. Then,







press [F.FWD].



3

Select "MANUAL SET UP" by pressing [PLAY] or

[STOP]. Then, press [F.FWD].









4

Enter the desired channel number by pressing [PLAY]

or [STOP].



5

Add or Delete it from memory by pressing [F.FWD] or

[REW] so that "ADD" or "DELETE" flashes on the TV





screen accordingly.



6

Exit the Preset mode by pressing [COUNTER

RESET/EXIT].



PLAYBACK FUNCTION

Normal Playback

To Change the On-ScreenLanguage





Clock Set Up





















































1

Select main menu by pressing [MENU].(If the clock is not





set, the CLOCK SET menu appears first. In this case, fol-





Auto Repeat Playback











low step [3].)





















2

Select "CLOCK SET" by pressing [PLAY] or [STOP].





















Then, press [F.FWD].





















3 Set the clock.









































Set the month



Press [PLAY] or [STOP] repeatedly.



























Then, press [F.FWD].























Set the day





Press [PLAY] or [STOP]repeatedly.



























Then, press [F.FWD].















































Set the year



Press [PLAY] or [STOP] repeatedly.



























Then, press [F.FWD].































The day of the week will appear automatically.



















Press [PLAY] or [STOP] repeatedly.



















Set the hour





























Then, press [F.FWD].



























Press [PLAY] or [STOP] repeatedly.



















Set the minute





























Then, press [F.FWD].



























Press [PLAY] or [STOP]























Set the AM



CLOCK SET









Search Functions









or PM





repeatedly.













































MONTH DAY

YEAR

















































03

/ 15 MON

2004







Picture Search



















HOUR

MINUTE AM/PM





























If you want to skip or repeat a scene during playback,















05

: 40

PM AM























PM





press [F.FWD] or [REW].





































• To go back one step, press [REW].













• Press it again and the VCR will now search in super















high speed. (in the LP/SLP modes only)





4

Start the clock by pressing [COUNTER RESET/EXIT] or



















[F.FWD].











– 4 –

EN























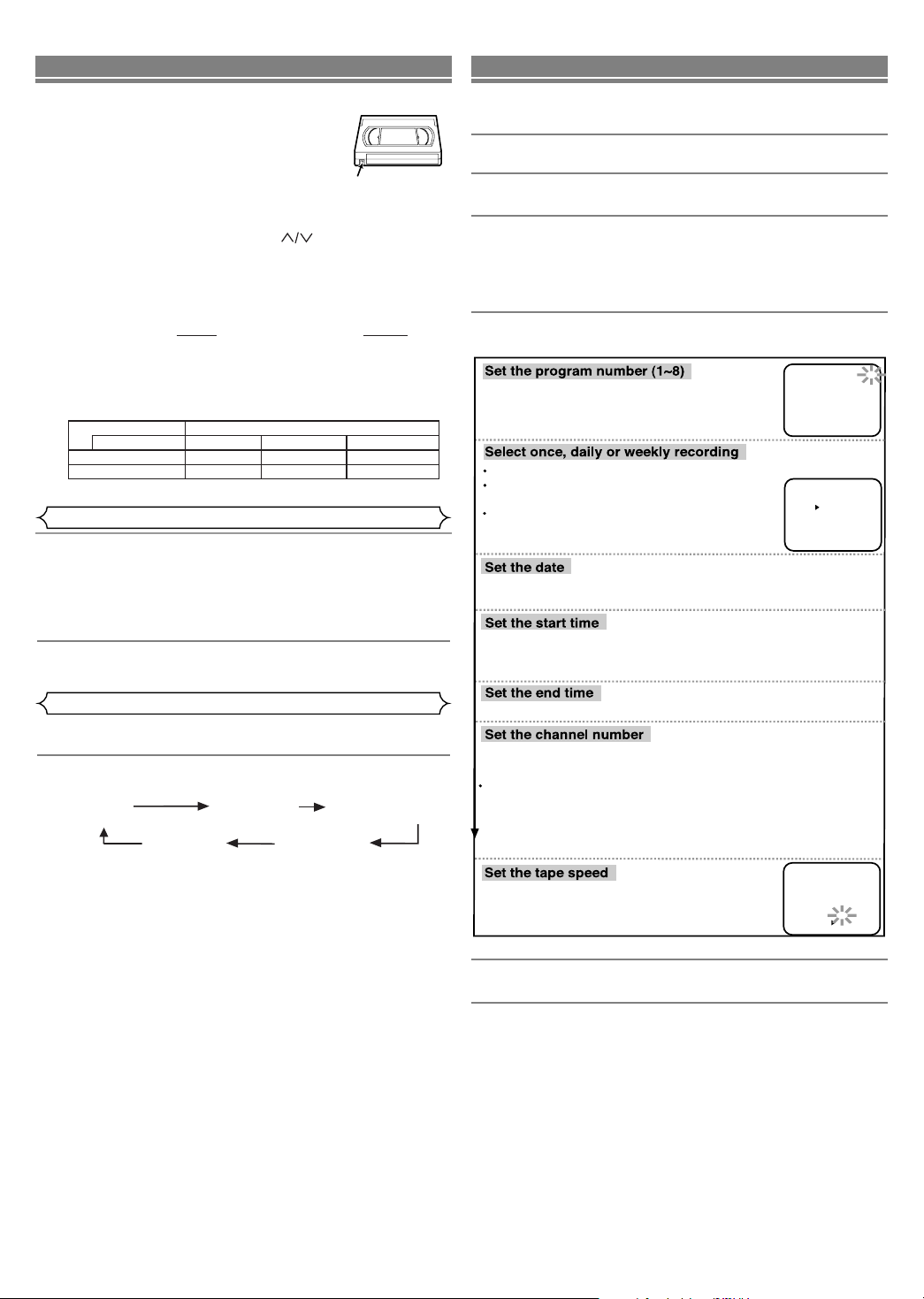

PROGRAM NUMBER 4
ONCE DAILY WEEKLY

RECORDING FUNCTION

Viewing and Recording the Same Program

OTR (One Touch Recording)

This feature allows you to set the recording length simply by pressing [REC/OTR] on the VCR.

1 Begin OTR by pressing [REC/OTR]on the VCR repeatedly until the desired recording length appears.

REC

OTR(0:30)

OTR(1:00).....

(Normal recording)





OTR(8:00)



OTR(7:30)

TIMER RECORDING

You may set the VCR to start recording while you are away. You can set eight programs to record on specific days, daily or weekly within a 1-yearperiod.

1

Insert a tape with its safety tab into the VCR.



2

Select main menu by pressing [MENU].

3

Select "TIMER PROGRAMMING" by pressing [PLAY] or

[STOP]. Then, press [F.FWD].

If you have not yet set the clock, "CLOCK SET" appears. If so, continue with the step [3] in "CLOCK SET UP" section. Then, set the timer recording.

4 Set the timer.













PROGRAM NUMBER

4

Program number which is not set up flashes.

DATE

- - /- -



START TIME - - :- -

- -

Press [PLAY] or [STOP] repeatedly for the

END TIME - - :- -

- -

CHANNEL

- -



desired program number.Then, press [F.FWD].

REC SPEED

- -













































For once: Press [PLAY] or [STOP] to point to "ONCE".

For daily (Monday~Friday):Press [PLAY] or

[STOP] to point to "DAILY".

For weekly: Press [PLAY] or [STOP] to point to "WEEKLY".

Then, press [F.FWD].

First, press [PLAY] or [STOP] for the month. Then, press [F.FWD]. Next, press [PLAY] or [STOP] for the day. Then, press [F.FWD].

First, press [PLAY] or [STOP] for the hour. Then, press [F.FWD]. Next, press [PLAY] or [STOP] for the minute. Then, press [F.FWD]. And then, press [PLAY] or [STOP] for AM or PM. Then, press [F.FWD].

Follow the instructions of "Set the start time" to set the end time.

Press [PLAY] or [STOP] repeatedly for the desired channel number. Then, press [F.FWD].

If you connected the VCR to a cable box or satellite box as in "Connecting to a TV without A/V Terminals" on page 3, select the VCR to channel 3 or 4 the same channel as RF output channel of the VCR.

Then, select the channel you want to record at the cable box or satellite box. Leave the cable box or satellite box on for timer recording.









ONE TIME PROGRAM









PROGRAM NUMBER 4



Press [PLAY] or [STOP] repeatedly for the



DATE

05/03 MON



START TIME 07:30

PM



desired tape speed.

END TIME 08:30

PM



CHANNEL

16





Then, press [F.FWD].

REC SPEED SP







SP













SLP



• To go back one step, press [REW].















5

To set another program, repeat step [4]. To exit, press



[COUNTER RESET/EXIT].







6

Press [POWER] to set the timer. The TIMER indicator on

the VCR comes on. TIMER RECORDING WILL NOT BE

ACTIVATED UNLESS YOU TURN THE VCR OFF.

– 5 –

EN

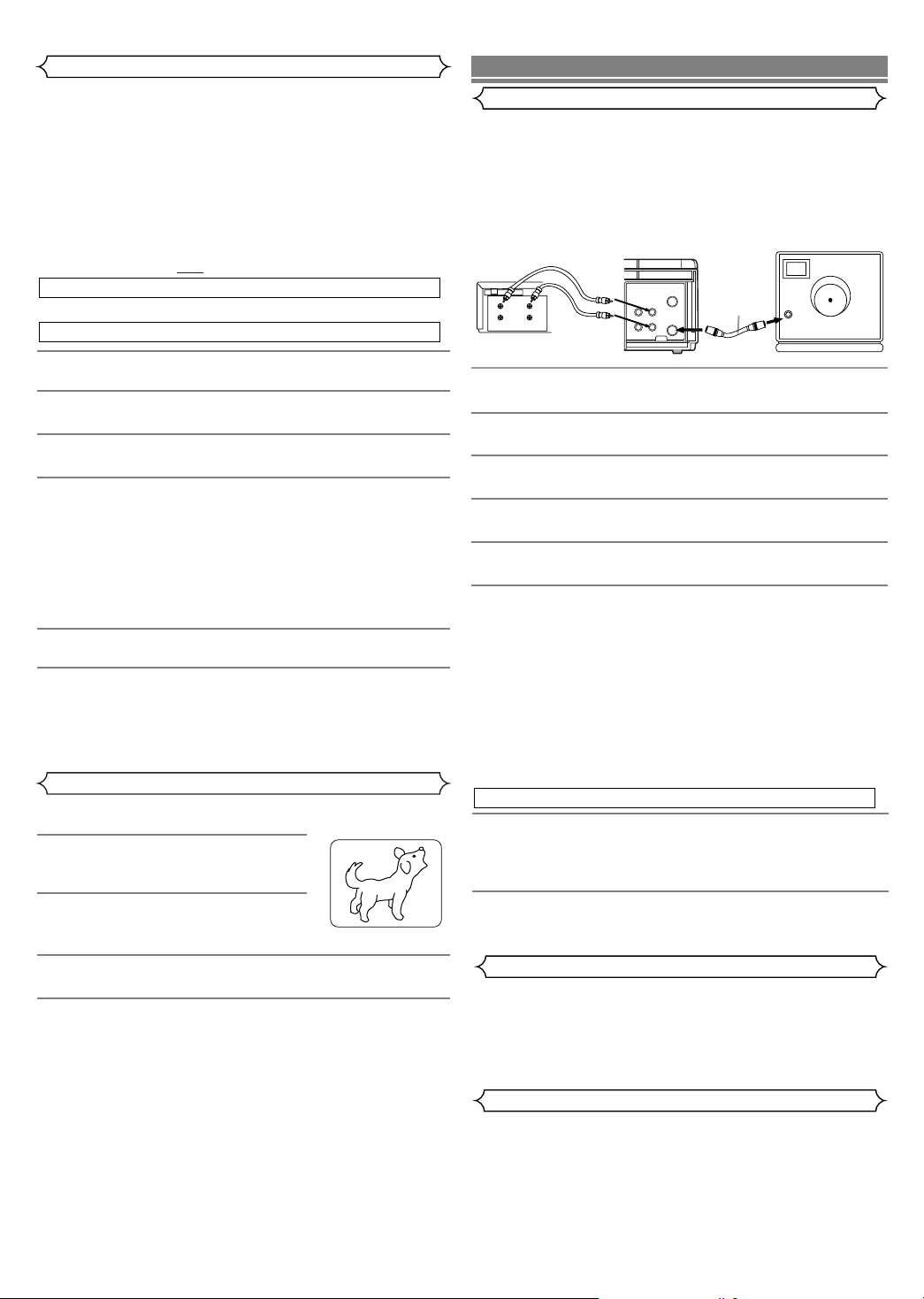

Hints for Timer Recording

Press [STOP/EJECT] on the VCR.

To Check, Correct, or Cancel an Automatic Timer Program

1

Turn the power on by pressing [POWER].



2

Select main menu by pressing [MENU].

3

Select "TIMER PROGRAMMING" by pressing [PLAY] or

[STOP]. Then, press [F.FWD].

4

Select the program number which you want to check

by pressing [PLAY] or [STOP]. The details of the selected

program appears on the TV screen.

Go to the digit you want to change by pressing [F.FWD] or [REW]. Then, enter correct numbers by pressing [PLAY] or [STOP].

You may cancel the entire program by pressing [REW] during the program number flashes.

5

Press [COUNTER RESET/EXIT] to exit.



6

Press [POWER] to return to timer stand-bymode.

Counter Memory Function

REC

SP M0:00:00

SPECIAL FEATURES

Copying a Video Tape

To Monitor the Recording

1

Turn on the TV and set the TV to channel 3. If channel 3

is already occupied for broadcasting, change the RF output





to CH 4, and change the TV channel to CH4.





(See “RF Output Channel” on page 3 for the detail.)

2

Press [VCR/TV] on the remote control of the recording

VCR so that the VCR/TV indicator comes on.













Real Time Tape Counter

This shows the elapsed recording or playback time in hours, minutes, and seconds. (The displayed time will not change during blank portions on the tape.)

The indication will appear when the tape is rewound further than “0:00:00” on the tape counter.

– 6 –

EN

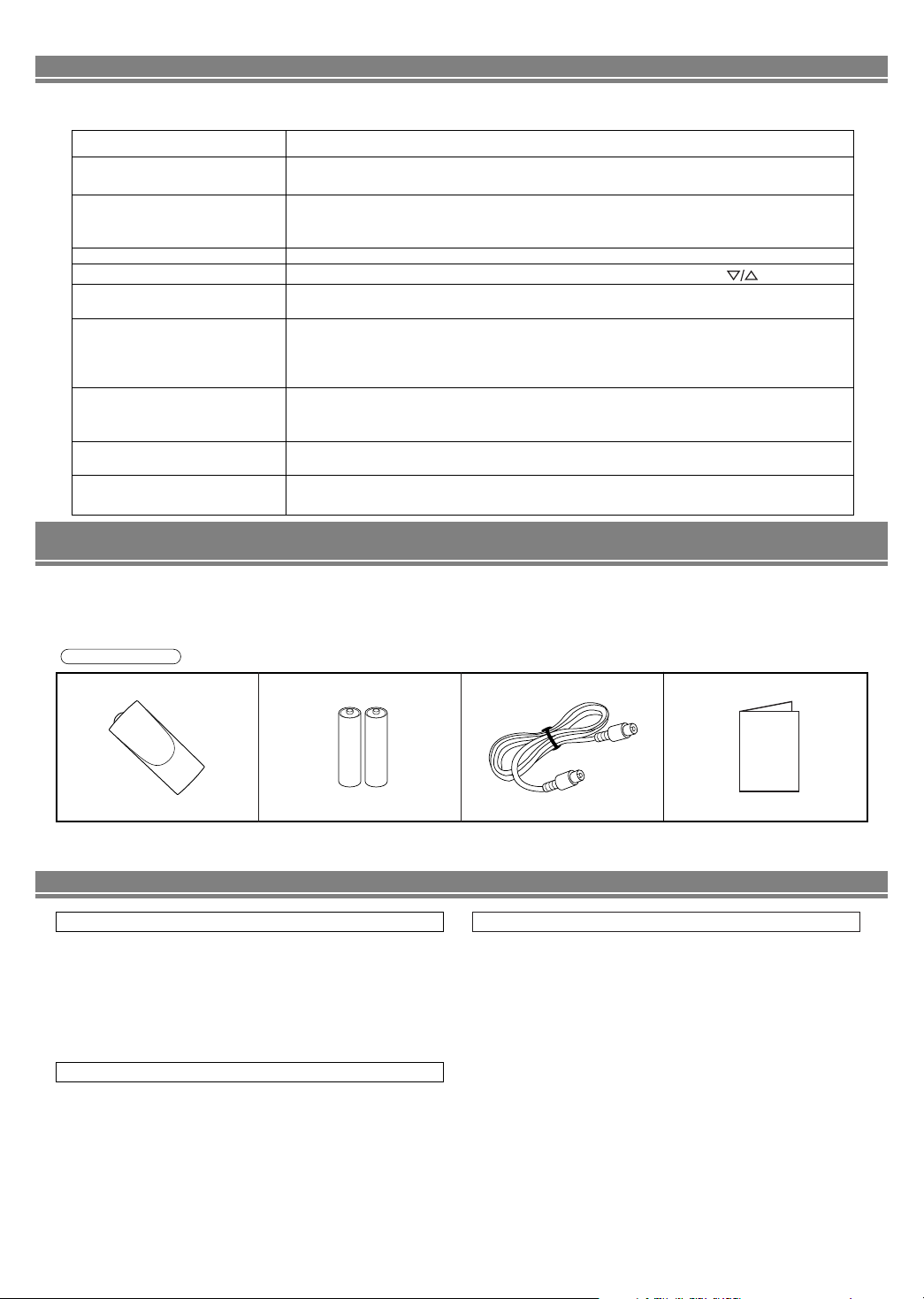

TROUBLESHOOTING GUIDE

If you have followed the instructions contained in this manual and have difficulty in operating your VCR, locate the PROBLEM in the left column below. Check the corresponding CORRECTIVE ACTION column to remedy the problem.

PROBLEM

CORRECTIVE ACTION













No power.

• Make sure the power plug is connected to an AC outlet.







• Make sure the power is turned on.





Timer recording is impossible.

• Make sure the timer recording is set correctly.







• Make sure the power is off.







• Make sure the VCR clock is set correctly.





Cannot go into Record mode.

• Make sure the tape has a safety tab. If needed, cover the hole with cellophane tape.

Playback picture is partially noisy.

• Adjust tracking control for a better picture by pressing [CHANNEL (

) ] on the VCR.

Cannot view a tape but the

• Head cleaning may be necessary. Refer to “AUTO HEAD CLEANING” .





audio is OK

• Make sure the VCR is not in the Menu mode.





No or poor playback picture.

•Turn on the TV and set the TV to channel 3. If channel 3 is already occupied for broad-



casting, change the RF output to CH 4, and change the TV channel to CH4.



(See “RF Output Channel” on page 3 for the detail.)







• Fine tune your TV.





TV programs cannot be seen

Re-checkthe ANT. IN and ANT. OUT connections. See page 3.





normally.

• Press [VCR/TV] on the remote control so that the VCR/TV indicator on the VCR dis-



appears.





No VCR operation from the

• Make sure the power plug is connected to an AC outlet.





infrared Remote Control.

• Check batteries in remote control.





Video or color fades in and out

• You cannot copy a copyrighted video tape. You are experiencing copy guard protection.

when making a copy of a video tape.















SPECIFICATIONS

Operating temperature : Converter output : Power requirement : Power consumption :

Supplied Accessories

41°F~104°F (5°C~40°C )

Dimensions :

W 14-3/16”(360mm)

VHF Channel 3 or 4.



H 3-5/8”(92mm)

120V, 60Hz



D 8-1/2”(216mm)

14 Watts

Number of video heads :

2



Weight :

3.97 lbs. (1.8 Kg.) (approx.)

Remote control

Two AA batteries

RF Cable

Owner’s Manual







Owner's Manual

(NA310UD/NA360UD)

(WPZ0901TM002)

(0VMN04033)

Designs and specifications are subject to change without notice and legal obligation.

If there is a discrepancy between languages, the default language will be English.

MAINTENANCE

Servicing

Should your VCR become inoperative, do not try to correct the problem by yourself. There are no user-serviceableparts inside. Turn off, unplug the power plug, and please call our

help line at

1-800-242-7158

to locate an Authorized Service Center.

Cabinet Cleaning

Wipe the front panel and other exterior surfaces of the VCR with a soft cloth immersed in lukewarm water and wrung dry.

Never use a solvent or alcohol. Do not spray insecticide liquid near the VCR. Such chemicals may cause damage and discoloration to the exposed surfaces.

Auto Head Cleaning

Automatically cleans video heads as you insert or remove a cassette, so you can see a clear picture.

Playback picture may become blurred or interrupted while the TV program reception is clear. Dirt accumulated on the video heads after long periods of use, or the usage of rental or worn tapes can cause this problem. If a streaky or snowy picture appears during playback, the video heads in your

VCR may need to be cleaned.

1.Please visit your local Audio/Video store and purchase a good quality VHS Video Head Cleaner.

2.If a Video Head Cleaner does not solve the problem, please call our help line at 1-800-242-7158to locate an

Authorized Service Center.

NOTES:

Remember to read the instructions included with the video head cleaner before use.

Clean video heads only when problems occur.

– 7 –

EN

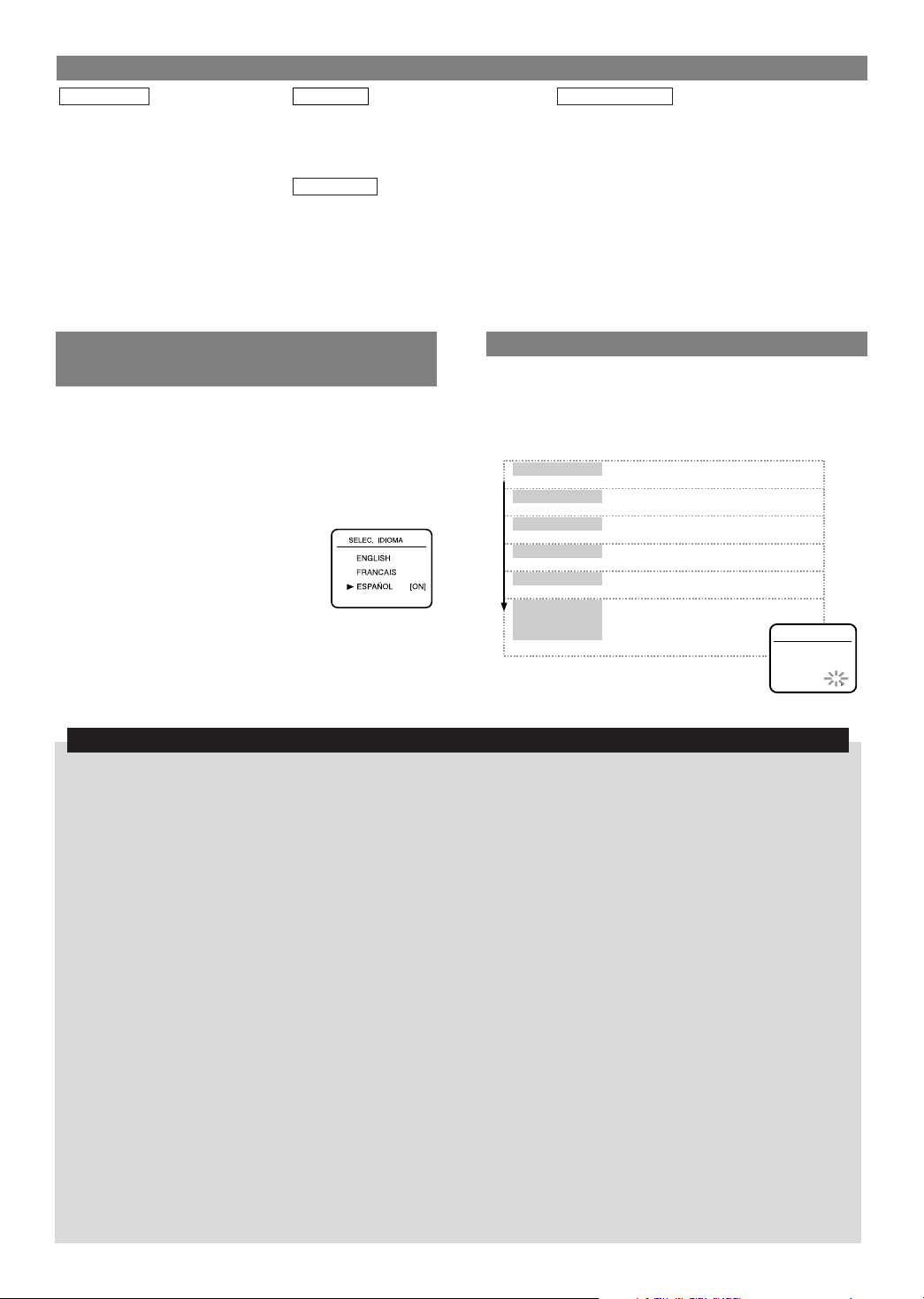

CONTROLES DE FUNCIONAMIENTO Y FUNCIONES

Panel frontal



Indicadores



Mando a distancia



1.

Compartimiento del videocasete

14. Indicador de alimentación

1. Botón de expulsión (EJECT)

2. Botón de avance rápido

15. Indicador de videograbadora/televisor

2. Botones de número (NUMBER)

3. Botón de reproducción

16. Indicador de videocasete introducido

3. Botón de menús (MENU)

4. Botón de rebobinado

17. Indicador del temporizador

4. Botón de grabación (RECORD)

5.

Botón de parada/expulsión

18. Indicador de grabación

5. Botón de velocidad (SPEED)

6. Botón de grabación con un toque







6. Botón de rebobinado (REW)

7. Botón de menús

Panel trasero



7. Botón de parada (STOP)

8.

Indicadores

19. Terminal de salida de audio

8. Botón de reproducción (PLAY)

9.

Sensor de control remoto

20. Terminal de entrada de audio

9. Botón de avance rápido (F.FWD)

10. Botones de selección de canales

21. Terminal de entrada de antena

10. Botón de visualizador (DISPLAY)

11. Botón de la alimentación

22. Terminal de salida de antena

11. Botón de pausa/imagen fija (PAUSE/STILL)

12. Terminal de entrada de audio

23. Terminal de entrada de vídeo

12.Botón de memoria del contador (COUNTER MEMORY)

13. Terminal de entrada de vídeo

24. Terminal de salida de vídeo

13.Botón de salida/reposición (COUNTER RESET/EXIT)







25. Cable de alimentación

14.Botón de repetición automática (AUTO REPEAT)













15.Botones de selección de canales (CHANNEL)













16.Botón de la alimentación (POWER)













17.Botón de videograbadora/televisor (VCR/TV)

PREPARACIÓN DE CANALES

(La antena o la caja de televisión por cable deberá estar conectada)

NOTA: Cuando utilice su nueva videograbadora por primera vez, o en el caso de ser necesario después de producirse un fallo en la alimentación, la videograbadora se pondrá inicialmente en el modo de preajuste cuando se pulse [POWER].

1.Encienda el televisor y ponga el televisor en el canal 3.

2.Pulse [POWER] para encender la videograbadora.

3.Seleccione "ENGLISH" , "FRANCAIS"(French) o "ESPAÑOL" (Spanish) pulsando [PLAY] o [STOP]. Y luego pulse [F.FWD].

4. Pulse una vez [F.FWD].

El sintonizador explora y memoriza todos los canales activos de su zona. Tras la exploración, el sintonizador se detiene en el canal memorizado más bajo.

PREPARACIÓN DEL RELOJ

1.Pulse [MENU] hasta que aparezca el menú principal. (Si el reloj no está puesto en hora y se pulsa [MENU], el menú AJUSTE DE RELOJ aparece en primer lugar. En este caso, siga el paso 3.)

2.Pulse [PLAY] o [STOP] para indicar a "AJUSTE DE RELOJ". Luego, pulse [F.FWD].

3.





Ajuste el mes.

Pulse repetidamente [PLAY] o [STOP].













Luego, pulse [F.FWD].















Ajuste el día.

Pulse repetidamente [PLAY] o [STOP].













Luego, pulse [F.FWD].

















Pulse repetidamente [PLAY] o [STOP].











Ajuste el año.













Luego, pulse [F.FWD].

















Pulse repetidamente [PLAY] o [STOP].











Ajuste la hora.













Luego, pulse [F.FWD].

















Pulse repetidamente [PLAY] o [STOP].











Ajuste el minuto.













Luego, pulse [F.FWD].

































Ajuste la

Pulse repetidamente [PLAY] o [STOP].





















mañana (AM) o











































la tarde (PM).





AJUSTE DE RELOJ





























MES

DIA

AÑO

• Para volver atrás un paso, pulse [REW].

03 /

15 LUN 2004



HORA MINUTO

AM/PM

4. Pulse [COUNTER RESET/EXIT] o [F.FWD]

05 :

40

PM AM







PM



















para poner en funcionamiento el reloj.

FUNAI CORPORATION LIMITED WARRANTY

Funai Corporation will exchange or repair this product, at its option, in the event of defect in materials or workmanship as follows:

EXCHANGE DURATION:

1-90 DAYS: FUNAI CORPORATION will exchange for a new unit without charge for a period of ninety (90) days from the date of original retail purchase.

91-365 DAYS: FUNAI CORPORATION will exchange for afactory-ser-vice-to-new-conditionunit for a charge of a retailed price unit for the period of ninety one (91) days to three hundred sixty five (365) days from the date of original retail purchase.

REPAIR DURATION:

LABOR: FUNAI CORPORATION will provide the labor without charge for a period of ninety (90) days from the date of original retail purchase.

PARTS: FUNAI CORPORATION will provide parts to replace defective parts without charge for a period of one (1) year from the date of original retail purchase. Certain parts are excluded from this warranty.

LIMITS AND EXCLUSIONS:

THIS WARRANTY IS EXTENDED ONLY TO THE ORIGINAL RETAIL PURCHASER. A PURCHASE RECEIPT OR OTHER PROOF OF ORIGINAL RETAIL PURCHASE WILL BE REQUIRED TOGETHER WITH THE PRODUCT TO OBTAIN EXCHANGE OR SERVICE UNDER THIS WARRANTY This warranty shall not be extended to any other person or transferee.

This warranty is void and of no effect if any serial numbers on the product are altered, replaced, defaced or missing. This FUNAI CORPORATION Limited warranty applies only to product purchased and used in the United States.

This warranty only covers failures due to defects in material or workmanship, which occur during normal use. It does not cover damage which occurs in shipment, or failures which are caused by repairs, alterations, or parts not supplied by FUNAI CORPORATION, or damage which results from accident, misuse, abuse, mishandling, misapplication, alteration, faulty installation, improper maintenance, commercial use such as hotel, rental or office use of this product, or damage which results from fire, flood, lightning or other acts of God.

THIS WARRANTY DOES NOT COVER PACKING MATERIALS, ANY ACCESSORIES (EXCEPT REMOTE CONTROL UNITS), ANY COSMETIC PARTS, COMPLETE ASSEMBLY PARTS, DEMONSTRATION OR FLOOR MODELS.

FUNAI CORPORATION AND ITS REPRESENTATIVES OR AGENTS SHALL IN NO EVENT BE LIABLE FOR ANY GENERAL, INDIRECT OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR OCCASIONED BY THE USE OF OR THE INABILITY TO USE THIS PRODUCT. THIS WARRANTY IS MADE IN LIEU OF ALL OTHER WARRANTIES INCLUDING THE WARRANTY OF MERCHANT ABILITY, AND FITNESS FOR A PARTICULAR PURPOSE, THAT ARE HEREBY DISCLAIMED BY FUNAI CORPORATION AND ITS REPRESENTATIVES OR AGENTS IN THE UNITED STATES.

ALL WARRANTY INSPECTIONS AND REPAIRS MUST BE PERFORMED BY A FUNAI AUTHORIZED CENTER. THIS WARRANTY IS VALID WHEN THE PRODUCT IS DELIVERED PREPAID TO A FUNAI AUTHORIZED SERVICE FACILITY.

IMPORTANT:

THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE, IF AT ANY TIME DURING THE WARRANTY PERIOD YOU ARE UNABLE TO OBTAIN SATISFACTION WITH THE EXCHANGE OR REPAIR OF THIS PRODUCT, PLEASE CONTACT FUNAI CORPORATION.

ATTENTION:

FUNAI CORPORATION RESERVES THE RIGHT TO MODIFY ANY DESIGN OF THIS PRODUCT WITHOUT PRIOR NOTICE. For information about your product, or for information on how to exchange or repair your product, telephone or write to the following:

FUNAI CORPORATION, INC.

SERVICE CENTER

19900 Van Ness Avenue, Torrance, CA 90501

Tel :1-800-242-7158http://www.funai-corp.com

Head Office: 100 North Street, Teterboro, NJ 07608

PLEASE DO NOT SHIP YOUR UNIT TO THE TETERBORO ADDRESS.

– 8 –

EN

Printed in China
