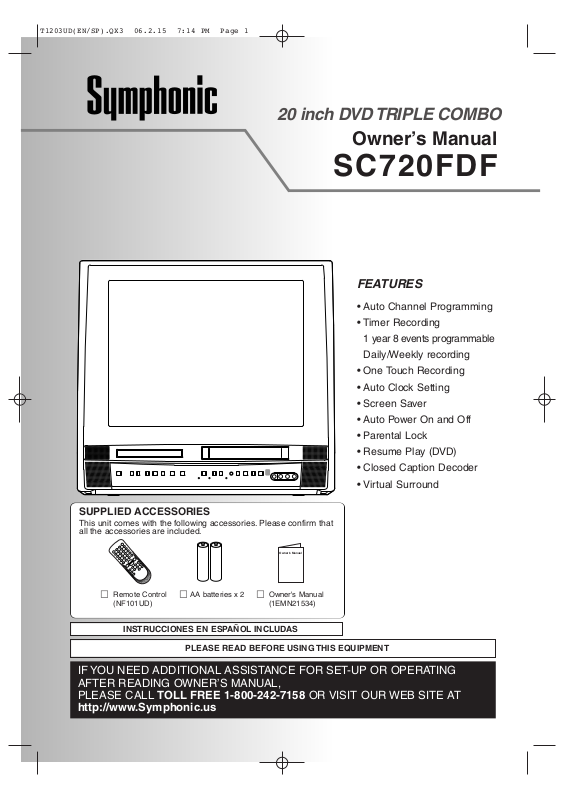

20 inch DVD TRIPLE COMBO

Owner’s Manual

SC720FDF

FEATURES

• Auto Channel Programming

• Timer Recording

1 year 8 events programmable Daily/Weekly recording

• One Touch Recording

• Auto Clock Setting

• Screen Saver

• Auto Power On and Off

• Parental Lock

• Resume Play (DVD)

• Closed Caption Decoder

• Virtual Surround

SUPPLIED ACCESSORIES

This unit comes with the following accessories. Please confirm that all the accessories are included.



Owner's Manual

P Remote Control

P AA batteries x 2P Owner's Manual

(NF101UD)

(1EMN21534)

IF YOU NEED ADDITIONAL ASSISTANCE FOR SET-UPOR OPERATING AFTER READING OWNER’S MANUAL,

PLEASE CALL TOLL FREE 1-800-242-7158 OR VISIT OUR WEB SITE AThttp://www.Symphonic.us

S3126A
SYMBOLE D'AVERTISSEMENT POUR
LES COMPOSANTES
APPAREIL ET MEUBLE A ROULETTES
PORTABLE CART WARNING
S3126A

PRECAUTIONS

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The caution marking is located on the rear of the cabinet.

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE.

IMPORTANT SAFEGUARDS

1.Read instructions - All the safety and operating instructions should be read before the appliance is operated.

2.Retain Instructions - The safety and operating instructions should be retained for future reference.

3.Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered to.

4.Follow Instructions - All operating and use instructions should be followed.

5.Cleaning - Unplug the unit from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.

Use a damp cloth for cleaning.

EXCEPTION: A product that is meant for uninterrupted service and, that for some specific reason, such as the possibility of the loss of an authorization code for a CATV converter, is not intended to be unplugged by the user for cleaning or any other purpose, may exclude the reference to unplugging the appliance in the cleaning description otherwise required in item 5.

6.Attachments - Do not use attachments not recommended by the unit manufacturer as they may cause hazards.

7.Water and Moisture - Do not use this unit near water - for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.

8.Accessories - Do not place this unit on an

unstable cart, stand, tripod, bracket, or table.

The unit may fall, causing serious injury to

someone, and serious damage to the appliance. Use only with a cart, stand, tripod, brack-

et, or table recommended by the manufacturer, or sold with the unit. Any mounting of the appli-

ance should follow the manufacturer’s instructions and should use a mounting accessory recommended by the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

Ameubles - Cet appareil ne doit être placé que sur un meuble (avec ou sans roulettes) recommandé par le fabricant. Si vous l’installez

sur un meuble à roulettes, déplacez les deux ensembles avec précaution. Un arrêt brusque, l’utilisation d’une force excessive et des sur-

faces irrégulières risquent de déstabiliser l’ensemble et de le renverser.

9.Ventilation - Slots and openings in the cabinet and the back or bottom are provided for ventilation and to ensure reliable operation of the unit and to protect it from overheating, and

2

these openings must not be blocked or covered. The openings should never be blocked by placing the unit on a bed, sofa, rug, or other similar surface. This unit should never be placed near or over a radiator or heat register. This unit should not be placed in a built-ininstallation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

10.Power Sources - This unit should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For the units intended to operate from battery power, or other sources, refer to the operating instructions.

11.Grounding or Polarization - This unit is equipped with a polarizedalternating-currentline plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

12.Power-Cord Protection - Power-supplycords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

13.Outdoor Antenna grounding - If an outside antenna or cable system is connected to the unit, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA No.

70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-inwire to an antenna discharge unit, size of grounding conductors, location ofantenna-dischargeunit, connection to grounding electrodes, and requirements for the grounding electrode. (Fig. A)

FIGURE A

EXAMPLE OF ANTENNA GROUNDING

AS PER NATIONAL ELECTRICAL CODE

ANTENNA

LEAD IN



GROUND

WIRE



CLAMP





ANTENNA



DISCHARGE UNIT



(NEC SECTION 810-20)

ELECTRIC



SERVICE



EQUIPMENT

GROUNDING CONDUCTORS





(NEC SECTION 810-21)



GROUND CLAMPS

NEC - NATIONAL ELECTRICAL CODE

POWER SERVICE GROUNDING

S2898A

ELECTRODE SYSTEM

(NEC ART 250, PART H)

EN

14.Lightning - For added protection for this unit receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the unit due to lightning andpower-linesurges.

15.Power Lines - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

16.Overloading - Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

17.Object and Liquid Entry - Never push objects of any kind into this unit through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the unit.

18.Servicing - Do not attempt to service this unit yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19.Damage Requiring Service - Unplug this unit from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a.When the power-supplycord or plug is damaged or frayed.

b.If liquid has been spilled, or objects have fallen into the unit.

c.If the unit has been exposed to rain or water.

d.If the unit does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions, as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the unit to its normal operation.

e.If the unit has been dropped or damaged in any way.

f.When the unit exhibits a distinct change in performance, this indicates a need for service.

20.Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, injury to persons or other hazards.

21.Safety Check - Upon completion of any service or repairs to this unit, ask the service technician to perform routine safety checks to determine that the unit is in proper operating condition.

22.Heat - This unit product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

IMPORTANT COPYRIGHT INFORMATION

Unauthorized copying, broadcasting, public performance and lending of discs are prohibited.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

RADIO-TVINTERFERENCE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1)Reorient or relocate the receiving antenna.

2)Increase the separation between the equipment and receiver.

3)Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4)Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003du Canada.

FCC WARNING- This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the owner’s manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

PRECAUTIONS / IMPORTANT SAFEGUARDS

3

EN

LASER SAFETY

This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to possible eye injury.

CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CAUTION: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. DO NOT STARE INTO BEAM.

LOCATION: INSIDE, NEAR THE DECK MECHANISM.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION: POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU'AU FOND.

Note to CATV system installer:

This reminder is provided to call the CATV system installer's attention to Article 820-40of the NEC that provides guidelines for proper grounding and in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.

LOCATION

For safe operation and satisfactory performance of the unit, keep the following in mind when selecting a place for its installation:

Shield it from direct sunlight and keep it away from sources of intense heat.

Avoid dusty or humid places.

Avoid places with insufficient ventilation for proper heat dissipation. Do not block the ventilation holes at the top and bottom of the unit. Do not place the unit on a carpet because this will block the ventilation holes.

Install unit in a horizontal position.

Avoid locations subject to strong vibration.

Do not place the unit near strong magnetic fields.

Avoid moving unit to locations where temperature differences are extreme.

Be sure to remove disc and unplug the AC power cord from the outlet before carrying the unit.

TO AVOID THE HAZARDS OF ELECTRICAL SHOCK AND FIRE

Do not handle the power cord with wet hands.

Do not pull on the power cord when disconnecting it from an AC wall outlet. Grasp it by the plug.

If, by accident, water is spilled on your unit, unplug the power cord immediately and take the unit to our Authorized Service Center for servicing.

Do not put your fingers or objects into the unit disc loading tray.

Do not place anything directly on top of the unit.

MOISTURE WARNING

Moisture condensation may occur inside the unit when it is moved from a cold place to a warm place, or after heating a cold room or under conditions of high humidity. If you play a videotape or DVD in a moist unit, it may damage the tape or DVD and the unit. When the condensation occurs inside the unit, turn the unit on and leave it at least 2 hours to dry out.

NOTE ABOUT RECYCLING

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

Manufactured under license from Dolby Laboratories.

"Dolby" and the double-Dsymbol are trademarks of Dolby Laboratories.

The serial number of this product may be found on the back of the unit. No other unit has the same serial number as yours. You should record the number and other vital information here and retain this book as a permanent record of your purchase to aid identification in case of theft. Serial numbers are not kept on file.

Date of Purchase

Dealer Phone No.

Dealer Purchase from

Model No.

Dealer Address

Serial No.

4

EN

TABLE OF CONTENTS

PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . .2 IMPORTANT SAFEGUARDS . . . . . . . . . . . . . . . .2 TABLE OF CONTENTS . . . . . . . . . . . . . . . . . . . .5

SYMBOLS USED IN THIS MANUAL . . . . . . . . . . . .5

PREPARATION FOR USE . . . . . . . . . . . . . . . . . .6

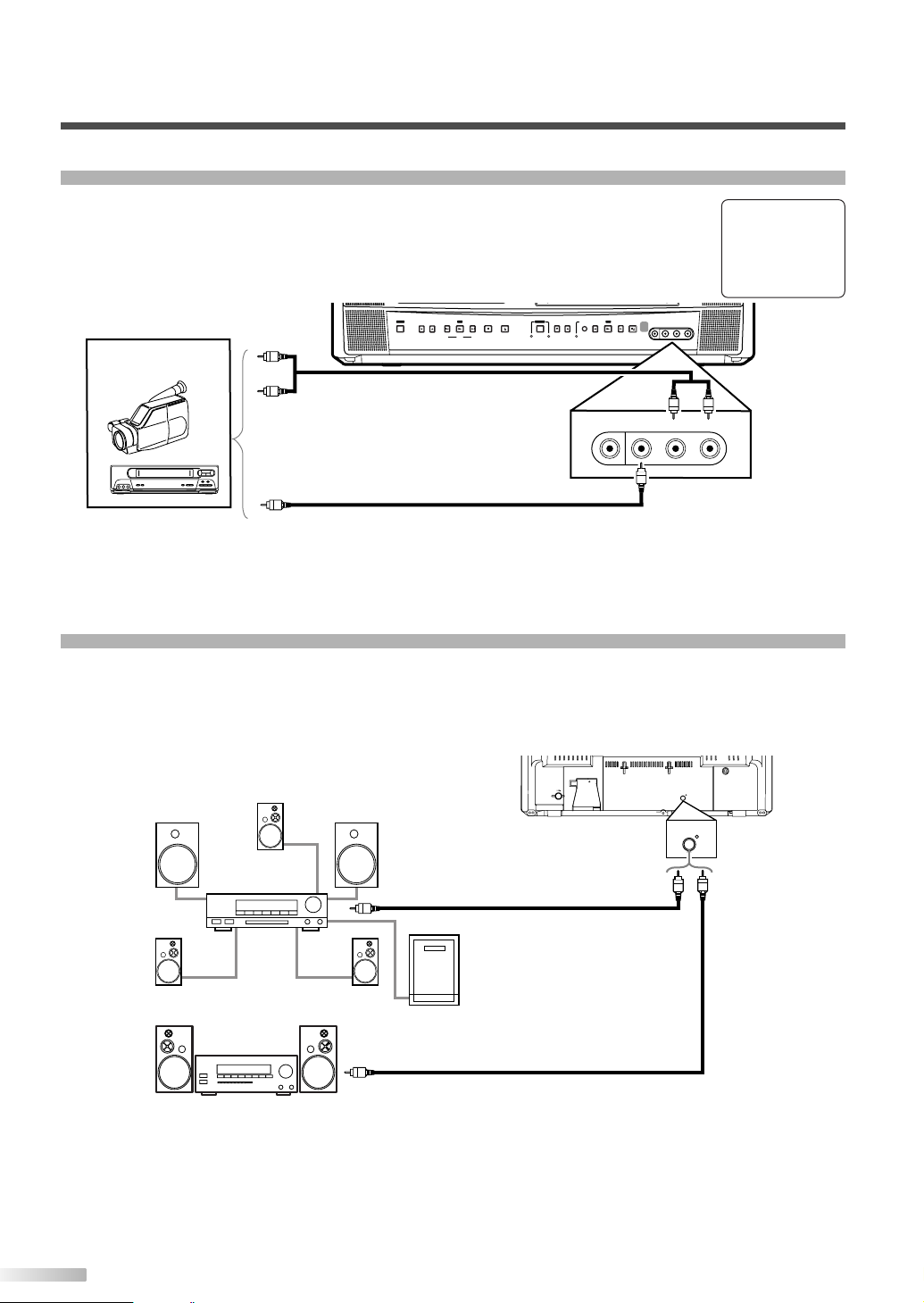

ANTENNA/CABLE CONNECTIONS . . . . . . . . . . . .6 CONNECTING TO AN EXTERNAL DEVICE (FRONT) . .6 CONNECTING TO A DIGITAL AUDIO DEVICE (REAR) .7 INSTALLING THE BATTERIES IN REMOTE CONTROL .7

OPERATING CONTROLS AND FUNCTIONS . . .8

TV/VCR SECTION

TV OPERATION AND SETTINGS . . . . . . . . . . . .9

WATCHING A TV PROGRAM . . . . . . . . . . . . . . . . .9 SLEEP TIMER / PICTURE CONTROL . . . . . . . . . . .9 CLOCK SET UP . . . . . . . . . . . . . . . . . . . . . . . . . .10 DAYLIGHT-SAVINGTIME . . . . . . . . . . . . . . . . . . .11

ON-SCREENMENU LANGUAGE . . . . . . . . . . . . .11 CLOSED CAPTION SYSTEM . . . . . . . . . . . . . . . .11V-CHIPSET UP . . . . . . . . . . . . . . . . . . . . . . . . . .12 CHANNEL SET UP . . . . . . . . . . . . . . . . . . . . . . . .13

ON-SCREENDISPLAY . . . . . . . . . . . . . . . . .

. .14

STATUS DISPLAY . . . . . . . . . . . . . . . . . . . . . . .

. .14

CHECKING THE STATUS . . . . . . . . . . . . . . . . . .

.14

MTS (Multi-channelTelevision Sound) SYSTEM

. .14

VIDEO CASSETTE . . . . . . . . . . . . . . . . . . . . . .15 PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

BASIC PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . .15

SPECIAL PLAYBACK . . . . . . . . . . . . . . . . . . . .16

RENTAL PLAYBACK . . . . . . . . . . . . . . . . . . . . . . .16 AUTO REPEAT PLAYBACK . . . . . . . . . . . . . . . . . .16

SEARCH FUNCTION . . . . . . . . . . . . . . . . . . . .16

ZERO RETURN . . . . . . . . . . . . . . . . . . . . . . . . . . .16 PICTURE SEARCH . . . . . . . . . . . . . . . . . . . . . . . .17 TIME SEARCH . . . . . . . . . . . . . . . . . . . . . . . . . . .17 INDEX SEARCH . . . . . . . . . . . . . . . . . . . . . . . . . .17

RECORDING . . . . . . . . . . . . . . . . . . . . . . . . . . .18

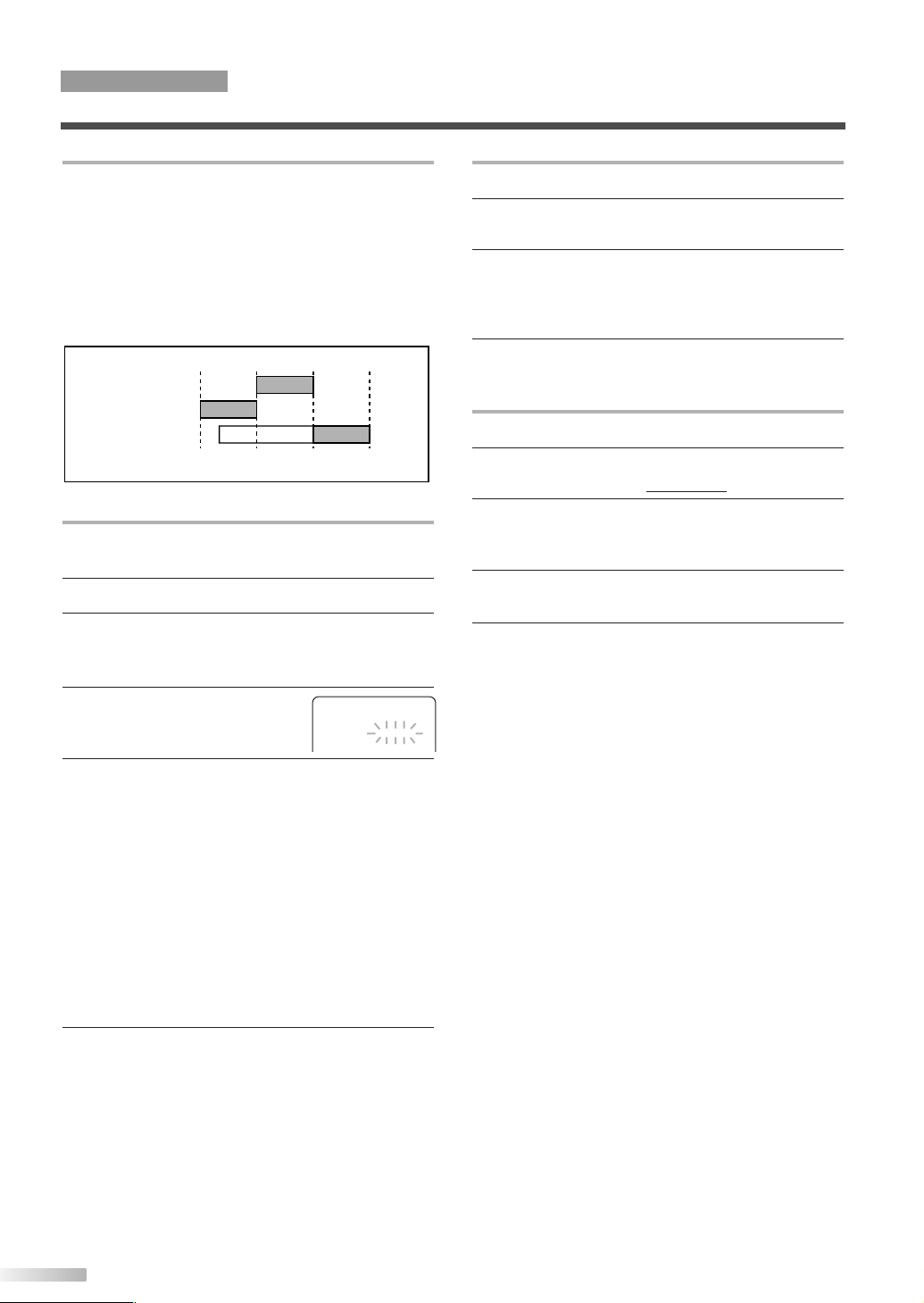

NORMAL RECORDING . . . . . . . . . . . . . . . . . . . . .18 OTR (One Touch Recording) . . . . . . . . . . . . . . . . .18 AUTOMATIC TIMER RECORDING . . . . . . . . . . . .19 AUTO RETURN . . . . . . . . . . . . . . . . . . . . . . . . . . .21 AUTO REWIND-EJECT . . . . . . . . . . . . . . . . . . . . .21COPYING A VIDEO CASSETTE (from another source) .21

DVD SECTION

ABOUT THE DISCS . . . . . . . . . . . . . . . . . . . . .

22

PLAYABLE DISCS . . . . . . . . . . . . . . . . . . . . . . . . .22 UNPLAYABLE DISCS . . . . . . . . . . . . . . . . . . . . . .22

PLAYING A DISC . . . . . . . . . . . . . . . . . . . . . . .23

BASIC PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . .23 DISC MENU / TITLE MENU . . . . . . . . . . . . . . . . . .23

SPECIAL PLAYBACK FUNCTIONS & SETTINGS . . .24

FUNCTION TABLE . . . . . . . . . . . . . . . . . . . . . . . .24 AUDIO MENU . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 SUBTITLE LANGUAGE . . . . . . . . . . . . . . . . . . . . .25 ANGLE MENU . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 ZOOM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 BLACK LEVEL MENU . . . . . . . . . . . . . . . . . . . . . .26 V.S.S(Virtual Surround System) . . . . . . . . . . . . . . .26 SEARCH MENU . . . . . . . . . . . . . . . . . . . . . . . . . .26 REPEAT PLAYBACK . . . . . . . . . . . . . . . . . . . . . . .27

PROGRAMMED PLAYBACK . . . . . . . . . . . . . . . . .28 RANDOM PLAYBACK . . . . . . . . . . . . . . . . . . . . . .28

ON-SCREENINFORMATION . . . . . . . . . . . . . .

28

CHANGING THE DVD SET UP ITEMS . . . . . . .

29

CUSTOM MENU . . . . . . . . . . . . . . . . . . . . . . . . . .29 INITIALIZE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

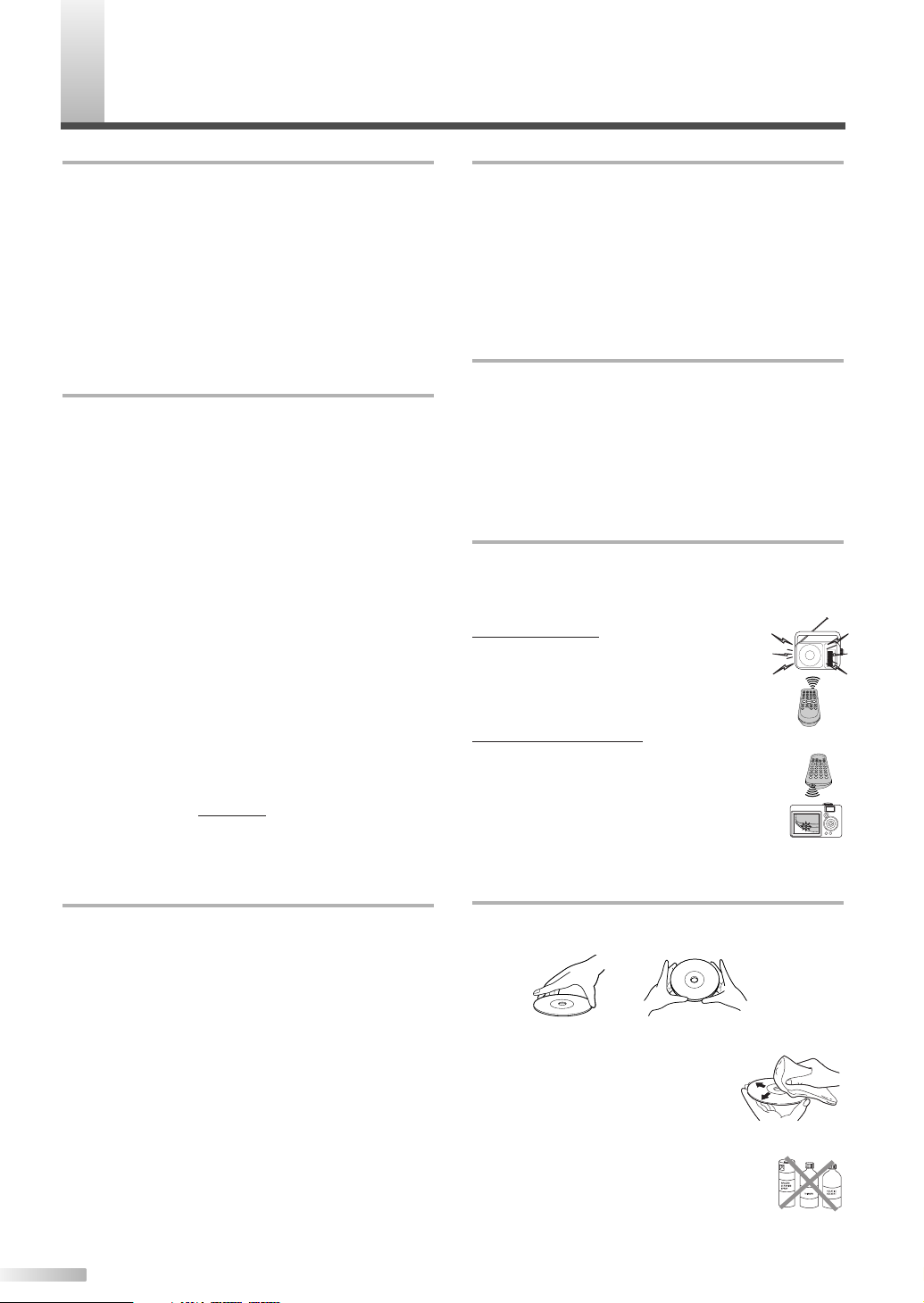

TROUBLESHOOTING GUIDE . . . . . . . . . . . . . .32 MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . .34 APPENDIX . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

CABLE CHANNEL DESIGNATIONS . . . . . . . . . . .35 LANGUAGE CODE LIST . . . . . . . . . . . . . . . . . . . .35

SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . .36

ESPAÑOL . . . . . . . . . . . . . . . . . . . . . . .37

WARRANTY . . . . . . . . . . . . . . . . . .BACK COVER

IMPORTANT SAFEGUARDS / TABLE OF CONTENTS

SYMBOLS USED IN THIS MANUAL

The following symbols below appear in some headings and notes in this manual, with the following meanings.













Description refers to TV/VCR



Description refers to playback of





TV/VCR







operation (in the TV/VCR mode).



audio CDs (in the DVD mode).













Description refers to playback of



Description refers to the items

























QUICK













DVD video discs (in the DVD mode).



to be set by the QUICK mode

















(in the DVD mode).



















5

EN

PREPARATION FOR USE

ANTENNA/CABLE CONNECTIONS

Plug the incoming cable into the ANT. jack on the rear of the unit.

If your cable service supplies you with a converter box or if you use a satellite system, connect the box with this unit as shown below.

Cable

or

Antenna

TV signal







Incoming cable from home Antenna / Cable Company (No Cable Box)

Cable Box or Satellite Box*

Rear of the unit

ANT.

*NOTE

OR

IN



OUT

Incoming cable from Cable Company or Satellite Antenna

(DO NOT DISCONNECT FROM BOX) Some cable TV systems use scrambled signals and require a special converter to receive these channels. Consult your local cable company.

NOTE:

Before plugging the antenna into the ANT. jack of the unit, check that the pin is not bent. If it is bent, straighten the pin as illustrated, then plug the pin into the ANT. jack of the unit.



Bent pin



For your safety and to







avoid damages to the unit,

Cable

Plug



unplug the antenna cable





from the ANT. jack before

(Needs to be

(Straight pin)

moving the unit.

straightened)



CONNECTING TO AN EXTERNAL DEVICE (FRONT)

When you watch a program recorded on another source (VCR or video camera), use the

AUDIO/VIDEO input jacks on the front of the unit. AUX Connect the Audio/Video output jacks of another source to the AUDIO L/R and VIDEO

jacks of this unit.

Then use [SELECT] or [CH. K /L] until "AUX" appears on the screen.

POWER





PLAY





OPEN/

SELECT







PLAY



STOP/



VOLUME

SKIP

SKIP

STOP

CLOSE

CHANNEL

REC/OTR

REW

F.FWD

EJECT





























HEADPHONE VIDEO

L - AUDIO - R





E

SEARCH

D

































DVD



TV/VCR













ex.









VCR or video



To the Audio output jacks





camera, etc.













Audio Cable (commercially available)

(IN)



(OUT)













HEADPHONE

– AUDIO – R







VIDEO





To the Video output jack



Front of the unit











(OUT)

Video Cable (commercially available)

(IN)











NOTE:









When you connect a monaural VCR (another source) to this unit, connect the Audio output jack of the monaural VCR (another source) to the AUDIO L jack of this unit. The audio will output in both L and R channel equally.

6

EN

CONNECTING TO A DIGITAL AUDIO DEVICE (REAR)

You can connect this unit to a digital audio device to enjoy the digital audio of DVD. Connect to an amplifier equipped with digital input jacks, such as MD deck or DAT deck. To play a DVD disc in a Dolby Digital Multichannel surround format in this unit, connect to a Dolby Digital decoder.

Use an audio coaxial digital cable (commercially available) for the audio connections.



AUDIO OUT



COAXIAL



(OUT)

Dolby Digital



decoder

To Coaxial digital



(IN)

Audio input jack



or



Audio coaxial digital cable



(commercially available)

MD deck,



DAT deck, etc.



To Coaxial digital

Audio input jack

(IN)



To AUDIO OUT COAXIAL jack

(DVD AUDIO OUT Only )

NOTES:

The audio source on a disc in a Dolby Digital Multi-channelsurround format cannot be recorded as digital sound by an MD or DAT deck.

Be sure to turn off the power to all devices in the system before connecting another device.

Refer to the Owner's Manuals for the devices to be connected to the unit.

To connect to a MD or DAT deck, set "DOLBY DIGITAL" to "PCM" for the audio output in the setup mode, and to connect to a Dolby Digital decoder, set to "BITSTREAM" (Refer to "AUDIO SETTING" on page 30). Playing a unit using incorrect settings may generate noise distortion and may also damage the speakers.

INSTALLING THE BATTERIES IN REMOTE CONTROL

1)Open the battery compartment cover by pressing the cover on the remote unit in the direction of the arrow.

2)Insert 2 “AA” penlight batteries into the battery compartment in the direction indicated by the polarity (+/-)markings.

3)Replace the cover.

1

2

3

[BATTERY PRECAUTIONS]

Be sure to follow the correct polarity as indicated in the battery compartment. Reversed batteries may cause damage to the device.

Do not mix different types of batteries together (e.g. Alkaline and Carbon-Zinc)or old batteries with fresh ones.

If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.

Do not try to recharge batteries not intended to be recharged; they can overheat and rupture.

PREPARATION FOR USE

7

EN

OPERATING CONTROLS AND FUNCTIONS

- FRONT PANEL -

DVD buttons

TV/VCR buttons

SEARCH

DVD TV/VCR



1

2

3

4

3

5

6

7

8 9 10

- REMOTE CONTROL -

















POWER

PICTURE/



REC















SELECT











22



SLEEP







34





















23

1

2

3







35





24







36











CH.











4

5

6















7

8

9







37





25

DISPLAY



+100

VOL.











0

+10













26

SPEED

TV/VCR Audio

SET-UP

MUTE





38





















27













39





28



PLAY





























29

REV





FWD





40







STOP





















41







SLOW















30

PAUSE

TITLE



DISC MENU





42





















31

CLEAR



ENTER







43





32













44







MODE





RETURN





45





33















[FRONT PANEL]















01

POWER Button [TV/VCR P.9 / DVD P.23]





02

VOLUME K /L Buttons[P.9]









03

SKIP H /G Buttons[DVD P.26]









SEARCH E /D Buttons[DVD P.23]







04

PLAY BButton [TV/VCR P.15 / DVD P.23]





05

STOP C Button[DVD P.23]











06

OPEN/CLOSE A Button[DVD P.23]







07

Disc loading tray













08

DVD Indicator















09

SELECT Button [TV/VCR P.9]









10TV/VCR Indicator

11CHANNEL K /L Buttons[TV/VCR P.9]

12Recording Indicator

13REC/OTR Button [TV/VCR P.18]

14REW EButton [TV/VCR P.15]

15F.FWD DButton [TV/VCR P.15]

16STOP/EJECT C/A Button[TV/VCR P.15]

8

11

1213 14

4

15

16 17

18 19

20

21

17Remote sensor window

18HEADPHONE Jack

19VIDEO input Jack [P.6]

20AUDIO L/R input Jacks [P.6]

21Cassette compartment

[REMOTE CONTROL]

22POWER Button [TV/VCR P.9 / DVD P.23]

23PICTURE/SLEEP Button [TV/VCR P.9]

24Number Buttons [TV/VCR P.9 / DVD P.26]

25DISPLAY Button [TV/VCR P.14 / DVD P.28]

26SPEED Button [TV/VCR P.18]

27TV/VCR Audio Button [TV/VCR P14]

28PLAY BButton [TV/VCR P.15 / DVD P.23]

29REV EButton [TV/VCR P.15 / DVD P.23]

SKIP H Button[DVD P.26]

30PAUSE FButton [TV/VCR P.15 / DVD P.23]

31TITLE Button [DVD P.23]

32CLEAR Button [TV/VCR P.9 / DVD P.26]

33MODE Button [DVD P.24]

34REC Button [TV/VCR P18]

35SELECT Button [TV/VCR P.9]

36CH. K /L Buttons[TV/VCR P.9]

37VOL. X /Y Buttons[TV/VCR P.9]

38MUTE Button [TV/VCR P.9]

39SET-UP Button [TV/VCR P.10 / DVD P.29]

40FWD DButton [TV/VCR P.15 / DVD P.23]

SKIP G Button[DVD P.26]

41STOP CButton [TV/VCR P.15 / DVD P.23]

42DISC MENU Button [DVD P.23]

43ENTER Button [TV/VCR P.10 / DVD P.23]

44K / L/{/ BButtons [TV/VCR P.9 / DVD P.23]

45RETURN Button [TV/VCR P.10 / DVD P.25]

NOTES:

We do not recommend the use of universal remote controls as it may not control all the functions. Note that the code number given by universal remote controls may not program with this unit. For more details, contact the manufacturer of the universal remote control.

Unless stated, all operations described are based on remote control use. Some operations can be carried out using the menu bar on the TV screen.

EN

TV/VCR SECTION

TV OPERATION AND SETTINGS

WATCHING A TV PROGRAM

1 After antenna or cable connection isTV/VCR completed, connect the power cord into

a standard AC outlet.

2Press [POWER] to turn on the unit.

3Use [CH.K /L]or the Number buttonsto select your desired channel number.

To use the number buttons

•Single digit channels: (Ex. 02, 03, 04 and so on) Press [0] first to select a single digit channel.

•Two digit channels: (Ex. 12, 38, 95 ...) Press two digits directly.

•Three digit channels: (Ex. 115, 125 ...)

Press [+100] first, then press the last two digits.

4 Use[VOL. X / Y] to adjust the volume.

Press [MUTE] to instantly

mute the sound. Press it again VOLUME 20

C C C C C C C C C C C C C C C C

to restore the previous sound level.

NOTE:

Even if you turn off the unit in the DVD mode, the unit will be in the TV/VCR mode when you turn it on again.

TO WATCH CABLE OR SATELLITE CHANNEL

If the unit is connected to a cable box or satellite box, use [CH. K / L] to select CH3 or CH4 according to the output channel setting of the device and select desired channel on that device.

TO WATCH EXTERNAL INPUT

When an external equipment is

AUX

connected to the front AUDIO/ VIDEO input jacks, press

[SELECT] or [CH.K /L]repeatedly until "AUX" appears on the screen.

NOTE:

If there is no signal input from the antenna terminal and no operation for 15 minutes, the unit will turn itself off automatically.

SLEEP TIMER / PICTURE CONTROL

You can set Sleep Timer and picture

TV/VCR



adjustment with [PICTURE / SLEEP].



The menu changes as described below every time you press [PICTURE / SLEEP].

Sleep Timer

BRIGHT

CONTRAST

SHARPNESS

TINT

COLOR

SLEEP TIMER SETTING

The Sleep Timer function is used to turn off the unit without pressing [POWERy] after a desired time.

1 Press [PICTURE / SLEEP]to

SLEEP 0 MINUTE

display the Sleep Timer menu.

2Within 5 seconds, set your desired sleep time using [s/ B].

[B]...Increase by 30 min. (Up to 120 min.)

[s]...Decrease by 30 min.

NOTE:

To cancel the Sleep Timer, use [CLEAR] or[s / B] to set the time to "0".

3To confirm the remainder time to shutdown, press [PICTURE / SLEEP].

PICTURE CONTROL

1 Press [PICTURE / SLEEP]

BRIGHT

repeatedly until desired control

P P P P P P P C P P P P P P P+

is displayed.



2Use [s/ B] to adjust to your desired level within 5 seconds.







BRIGHT

to decrease brightness

to increase brightness







CONTRAST

to decrease contrast

to increase contrast

COLOR

to pale

to brilliant

TINT

to purple

to green

SHARPNESS

to soft

to clear

Even if any power failure occurs, the unit will retain its memory for this feature.

OPERATING CONTROLS AND FUNCTIONS / TV OPERATION AND SETTINGS TV/VCR SECTION

9

EN

B MANUAL CLOCK SET D.S.T.

TV/VCR SECTION

TV OPERATION AND SETTINGS

CLOCK SET UP

Set the unit clock correctly for VCR timer TV/VCR recording. We suggest that you should

set the clock manually when you first set up the unit, then set the auto clock setting to "ON" to correct the time periodically.

NOTE:

If you cannot receive a station with time signals, auto clock setting is not available. Use manual setting only.

MANUAL CLOCK SETTING

In the example below, the clock is to be set to:

DATE:

May 5th, 2006

SETTING TIME:

5:40PM

AUTOMATIC CLOCK SETTING

NOTES:

If a cable converter box is being used, make sure it is turned on.

You must use the remote control for the clock setting.

If the unit is connected directly to a cable converter box or satellite box, the local PBS station must be selected on the cable box itself and the unit must be set to the output channel of the cable converter box or satellite box (usually channel 3 or 4), to enable to set up or correct the clock automatically.

1 Press [SET-UP].

- TV/VCR SETUP -

Using [K/ L] select "SETTING

TIMER PROGRAMMING

CHANNEL SET UP



B SETTING CLOCK

CLOCK", then press [ENTER].

USER’S SET UP

V-CHIPSET UP

LANGUAGE [ENGLISH]



2 Press[ENTER] to select "ON".

CAPTION [OFF]

ZERO RETURN

– SETTING CLOCK –



B AUTO CLOCK [ON]

1 Press [SET-UP].

- TV/VCR SETUP -

Use [K/ L] to point to

TIMER PROGRAMMING

B SETTING CLOCK



"SETTING CLOCK", then

CHANNEL SET UP



USER’S SET UP



V-CHIPSET UP



press [ENTER].



LANGUAGE [ENGLISH]

CAPTION [OFF]





ZERO RETURN



2 Use[K/ L] to point to

TIME SEARCH



– SETTING CLOCK –





AUTO CLOCK

[ON]

"MANUAL CLOCK SET", then

AUTO CLOCK CH SEARCH

press [ENTER].

AUTO CLOCK CH

[ 02 ]

• If there is no local PBS station in

[OFF]

your area or on your cable sys-

tem, select "AUTO CLOCK" and press [ENTER] to turn "OFF" the function before this step.

3 Use[K / L] to set your

– MANUAL CLOCK SET –

desired month, day, year, hour

MONTH DAY

YEAR

and minute.

0 5

/ 0 5 FRI

2 0 0 6



Use [s/ B] to move to

HOUR

MINUTE



another item.

0 5

: 4 0 PM









4 Press [SET-UP].

Although seconds are not

5:40 PM



displayed, they begin counting



from 00 when you press



[SET-UP].Use this feature to





synchronize the clock with the

correct time.









NOTE:

When unplugging the AC cord or if there is a failure for more than 3 seconds, you may have reset the clock.

TO CHANGE CLOCK SETTING

1Follow steps 1 to2 above.

2Select the item you want to change using [B].

3Enter correct numbers using [K / L].

4Press [SET-UP] to start the clock.

AUTO CLOCK CH SEARCH

AUTO CLOCK CH [ 02 ]

MANUAL CLOCK SET

3Press [L] to select

"AUTO CLOCK CH SEARCH". Then press [ENTER].

The unit begins searching for the station which contains the auto clock set signal. The search for a signal may take up to 20 seconds per channel.

When the search has finished, "_ _" appears at the lower left of the screen.

– SETTING CLOCK –

AUTO CLOCK

[ON]

B AUTO CLOCK CH SEARCH

AUTO CLOCK CH [ 02 ]

MANUAL CLOCK SET

D.S.T. [OFF]

AUTO CLOCK CH SEARCH –

08 10 13

_ _

NOTES:

During AUTO CLOCK CH SEARCH, be distorted.

If no number appears on the TV stations in your area which signal. Auto Clock Setting is not Manual Clock Setting on this

4Write down the numbers that screen. They are the auto clock area.

5Press [RETURN] to go back to

– SETTING CLOCK –

AUTO CLOCK

[ON]

AUTO CLOCK CH SEARCH

B AUTO CLOCK CH

[ 08 ]

MANUAL CLOCK SET



D.S.T.

[OFF]

6 Press[SET-UP] to exit the menu

NOTE:

Once the unit is turned off, it will and set the correct date and time.

10

EN
