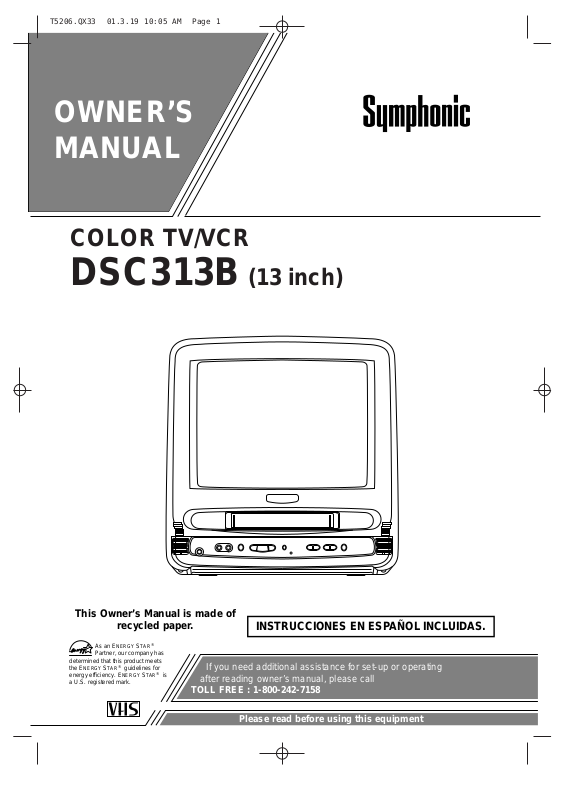

OWNER’S

MANUAL

COLOR TV/VCR

DSC313B (13 inch)

This Owner’s Manual is made of



recycled paper.

INSTRUCCIONES EN ESPAÑOL INCLUIDAS.

As an ENERGYSTAR®

Partner, our company has determined that this product meets the ENERGY STAR® guidelines for energy efficiency. ENERGY STAR® is a U.S. registered mark.

If you need additional assistance for set-upor operating after reading owner’s manual, please call

TOLL FREE : 1-800-242-7158

Please read before using this equipment

PORTABLE CART WARNING
S3126A
S3126A
SYMBOLE D'AVERTISSEMENT POUR
LES COMPOSANTES
APPAREIL ET MEUBLE A ROULETTES

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE

TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The caution marking is located on the rear of the cabinet.

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE.

IMPORTANT SAFEGUARDS

1.Read instructions-Allthe safety and operating instructions should be read before the appliance is operated.

2.Retain Instructions-Thesafety and operating instructions should be retained for future reference.

3.Heed Warnings-Allwarnings on the appliance and in the operating instructions should be adhered to.

4.Follow Instructions-All operating and use instructions should be followed.

5.Cleaning-UnplugTV/VCR from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

EXCEPTION: A product that is meant for uninterrupted service and, that for some specific reason, such as the possibility of the loss of an authorization code for a CATV converter, is not intended to be unplugged by the user for cleaning or any other purpose, may exclude the reference to unplugging the appliance in the cleaning description otherwise required in item 5.

6.Attachments-Donot use attachments not recommended by the TV/VCR manufacturer as they may cause hazards.

7.Water and Moisture-Donot use this TV/VCR near waterfor example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.

8.Accessories-Donot place this TV/VCR on an unstable cart, stand, tripod, bracket, or table. The TV/VCR may fall, causing serious injury to someone, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the TV/VCR. Any mounting of the

appliance should follow the manufacturer’s instructions and should use a mounting accessory recom-

mended by the manufacturer. An appliance and cart combination should be moved with care.

Quick stops, excessive force, and uneven surfaces may cause the

appliance and cart combination to overturn.

AMEUBLES- Cet appareil ne doit être placé que sur un meuble (avec ou sans roulettes) recommandé par le fabricant.

Si vous l’installez sur un meuble à roulettes, déplacez les deux ensembles

avec précaution. Un arrêt brusque, l’u-

tilisation d’une force excessive et des surfaces irrégulières risquent de déstabiliser l’ensemble et de le renverser.

9.Ventilation-Slotsand openings in the cabinet and the back or bottom are provided for ventilation and to ensure reliable operation of the TV/VCR and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the TV/VCR on a bed, sofa, rug, or other similar surface. This TV/VCR should never be placed near or over a radiator or heat register. This TV/VCR should not be placed in a builtin installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

10.Power Sources-ThisTV/VCR should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For TV/VCRs intended to operate from battery power, or other sources, refer to the operating instructions.

11.Grounding or Polarization-This TV/VCR is equipped with a polarized alternating-current line plug(a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

12.Power-Cord Protection-Power-supplycords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

- 2 -

EN

0B19

F IGURE A

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONA L ELECT RIC AL CODE



ANTENNA



LEAD I N



W I R E



GROUND



C L A M P



ANTENNA



DI SCHARGE UN I T



(NEC SECTION 810 -20)

ELECTRI C



SE RV I CE



EQU I PMEN T





GROUNDI NG CONDUCTORS



(NEC SECTION 810 -21)



GROUND CL AMPS

NEC - NATI O NAL ELECTRI CAL CODE

POWER SERVI C E GROUNDI NG



ELEC TR ODE SYSTEM

S2 8 9 8 A

(NEC ART 250 , PART H)

13.Outdoor Antenna grounding-If an outside antenna or cable system is connected to the TV/VCR, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. (Fig. A)

14.Lightning-Foradded protection for this TV/VCR receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the TV/VCR due to lightning andpower-linesurges.

15.Power Lines-Anoutside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

16.Overloading-Donot overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

17.Object and Liquid Entry-Never push objects of any kind into this TV/VCR through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the TV/VCR.

18.Servicing-Donot attempt to service this TV/VCR yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19.Damage Requiring Service-Unplug this TV/VCR from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a.When the power-supplycord or plug is damaged or frayed.

b.If liquid has been spilled, or objects have fallen into the TV/VCR.

c.If the TV/VCR has been exposed to rain or water.

d.If the TV/VCR does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions, as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the TV/VCR to its normal operation.

e.If the TV/VCR has been dropped or damaged in any way.

f.When the TV/VCR exhibits a distinct change in perfor- mance-thisindicates a need for service.

20.Replacement Parts-Whenreplacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, injury to persons or other hazards.

21.Safety Check-Uponcompletion of any service or repairs to this TV/VCR, ask the service technician to perform routine safety checks to determine that the TV/VCR is in proper operating condition.

22.Heat-ThisTV/VCR product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION: POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

- 3 -

EN

0B19

PRECAUTIONS

LOCATION

For safe operation and satisfactory performance of your TV/VCR, keep the following in mind when selecting a place for its installation:

Shield it from direct sunlight and keep it away from sources of intense heat.

Avoid dusty or humid places.

Avoid places with insufficient ventilation for proper heat dissipation. Do not block the ventilation holes at the top and bottom of the unit. Do not place the unit on a carpet because this will block the ventilation holes.

Install unit in a horizontal position.

Avoid locations subject to strong vibration.

Do not place the TV/VCR near strong magnetic fields.

Avoid moving TV/VCR to locations where temperature differences are extreme.

AVOID THE HAZARDS OF ELECTRICAL SHOCK AND FIRE

Do not handle the power cord with wet hands.

Do not pull on the power cord when disconnecting it from an AC wall outlet. Grasp it by the plug.

If, by accident, water is spilled on your unit, unplug the power cord immediately and take the unit to our Authorized Service Center for servicing.

Do not put your fingers or objects into the TV/VCR cassette holder.

Do not place anything directly on top of the unit.

WARNING

Moisture condensation may occur inside the unit when it is moved from a cold place to a warm place, or after heating a cold room or under conditions of high humidity. If a tape is played in a TV/VCR which has moisture, it may damage the tape and TV/VCR. Therefore when the condensation occurs inside the unit, turn the POWER button on and allow at least 2 hours for the unit to dry out.

IMPORTANT COPYRIGHT INFORMATION

Unauthorized recording or use of broadcast television programming, video tape, film or other copyrighted material may violate applicable copyright laws. We assume no responsibility for the unauthorized duplication, use, or other acts which infringe upon the rights of copyright owners.

FCC WARNINGThis equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1)Reorient or relocate the receiving antenna.

2)Increase the separation between the equipment and receiver.

3)Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4)Consult the dealer or an experienced radio/TV technician for help.

The serial number of this product may be found on the back of the unit. No other TV/VCR has the same serial number as yours. You should record the number and other vital information here and retain this book as a permanent record of your purchase to aid identification in case of theft. Serial numbers are not kept on file.

Date of Purchase

Dealer Purchase from

Dealer Address

Dealer Phone No.

Model No.

Serial No.

- 4 -

EN

0B19

TABLE OF CONTENTS

C IMPORTANT SAFEGUARDS . . . . . . . . . . . . .2

C PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . .4

C FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

C SUPPLIED ACCESSORIES . . . . . . . . . . . . . . .6

C OPERATING CONTROLS AND FUNCTIONS 7

C PREPARATION FOR USE . . . . . . . . . . . . . . . .9

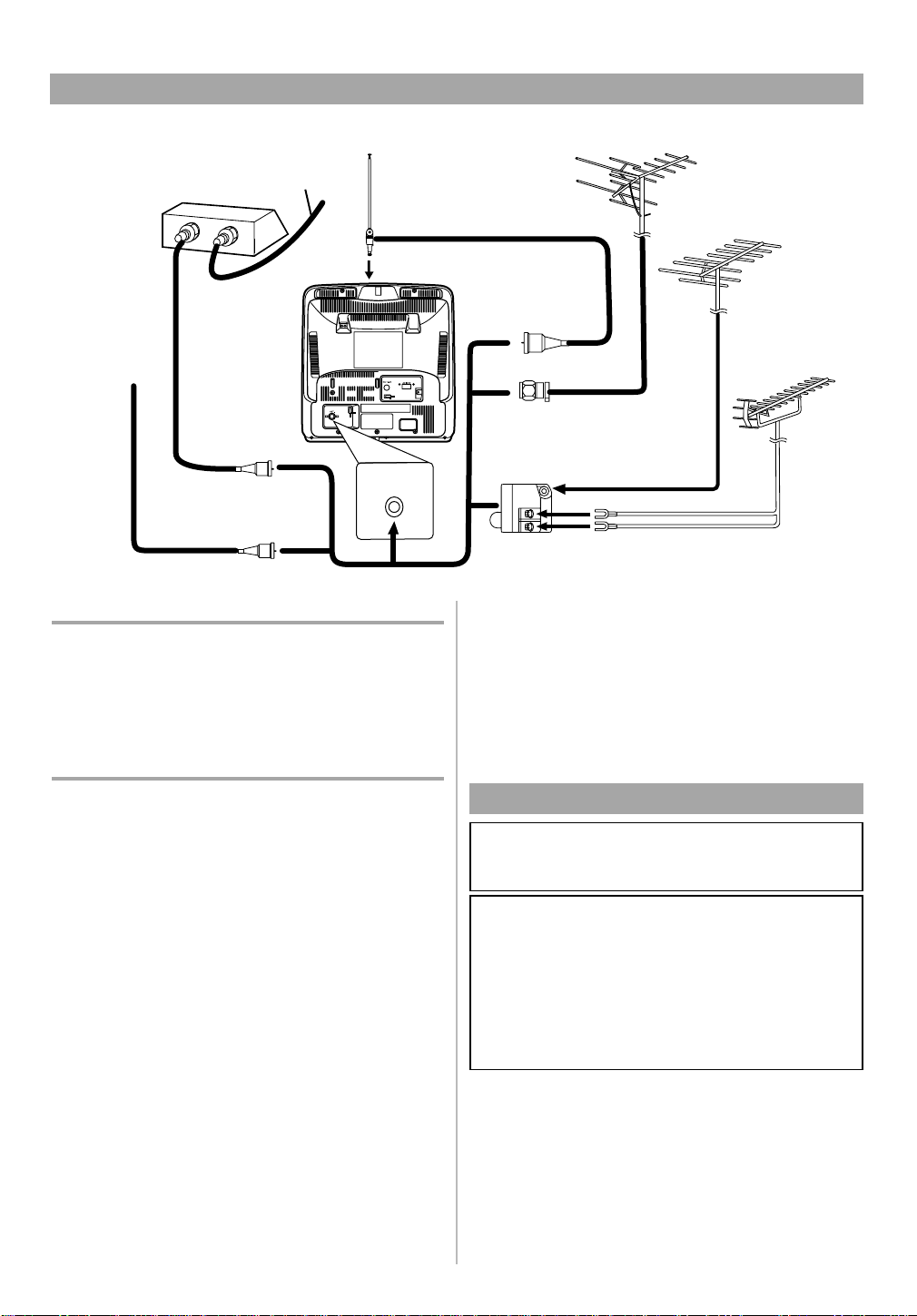

ANTENNA/CABLE CONNECTIONS . . . . . . .9 MOBILE CONNECTION . . . . . . . . . . . . . . . .10 EXTERNAL INPUT MODE . . . . . . . . . . . . . .10 INSTALLING THE BATTERIES . . . . . . . . . . .10

C SET UP FOR USE . . . . . . . . . . . . . . . . . . . . . .11

CHANNEL SET UP FOR THE FIRST TIME . .11 CLOCK SET UP (AUTO / MANUAL) . . . . . .12 CHANNEL SET UP AGAIN . . . . . . . . . . . . . .13 DELETING (OR ADDING) CHANNEL . . . . .13 SELECTING THE LANGUAGE . . . . . . . . . . .14 DAYLIGHT-SAVINGTIME . . . . . . . . . . . . . .14

C TV OPERATION . . . . . . . . . . . . . . . . . . . . . . .15

WATCHING A TV PROGRAM . . . . . . . . . . . .15 GAME MODE . . . . . . . . . . . . . . . . . . . . . . . . .15 DEGAUSSING . . . . . . . . . . . . . . . . . . . . . . . .15 PICTURE CONTROL . . . . . . . . . . . . . . . . . . .15 CLOSED CAPTION SYSTEM . . . . . . . . . . . .16 V-CHIPSET UP . . . . . . . . . . . . . . . . . . . . . . . .16

C PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . .18

NORMAL PLAYBACK . . . . . . . . . . . . . . . . . .18 AUTO REPEAT PLAYBACK . . . . . . . . . . . . .18 SEARCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

STILL PICTURE . . . . . . . . . . . . . . . . . . . . . . .19 NOISE CANCEL (in the Still mode) . . . . . . . .20 VERTICAL HOLD CONTROL . . . . . . . . . . . .20 TRACKING ADJUSTMENT . . . . . . . . . . . . . .20 RENTAL PLAYBACK . . . . . . . . . . . . . . . . . . .20

C RECORDING . . . . . . . . . . . . . . . . . . . . . . . . .20

NORMAL RECORDING . . . . . . . . . . . . . . . . .21

SKIPPING UNWANTED SCENES DURING RECORDING . . . . . . . . . . . . . . . . . . . . . . . . .21

OTR (One Touch Recording) . . . . . . . . . . . . . .21 TIMER RECORDING . . . . . . . . . . . . . . . . . . .22 TIMER PROGRAM EXTENSION . . . . . . . . .23

HINTS FOR AUTOMATIC TIMER RECORDING . . . . . . . . . . . . . . . . . . . . . . . . .24

AUTO RETURN . . . . . . . . . . . . . . . . . . . . . . .24 WAKE UP TIMER . . . . . . . . . . . . . . . . . . . . . .24 SLEEP TIMER . . . . . . . . . . . . . . . . . . . . . . . . .25

C COPYING A VIDEO TAPE . . . . . . . . . . . . . . .25

C ON SCREEN DISPLAY . . . . . . . . . . . . . . . . .26

C SPECIAL FEATURES . . . . . . . . . . . . . . . . . .26

REAL TIME TAPE COUNTER . . . . . . . . . . . .26 AUTO REWIND-EJECT . . . . . . . . . . . . . . . . .26

C MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . .26

C TROUBLESHOOTING GUIDE . . . . . . . . . . .27

C SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . .28

C CABLE CHANNEL DESIGNATIONS . . . . . .28

C WARRANTY . . . . . . . . . . . . . . . . . . .Back Cover

INDICE

CONTROLES DE OPERACIÓN Y

SUS FUNCIONES . . . . . . . . . . . . . . . . . . . . . . . .29 CONEXIONES DE ANTENA/CABLE . . . . . . . .31 RACCORDEMENT AUTOMOBILE . . . . . . . . . .31 MODO DE ENTRADA EXTERNA . . . . . . . . . . .32

INSTALACIÓN DE LAS PILAS . . . . . . . . . . . . .32

PREPARACIÓN DE CANALES POR

PRIMERA VEZ . . . . . . . . . . . . . . . . . . . . . . . . . .33 AJUSTE DEL RELOJ . . . . . . . . . . . . . . . . . . . . .33

A NOTE ABOUT RECYCLING

This product’s packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

- 5 -

EN

0B19

FEATURES

Infrared remote control

Bilingual on screen menu display selectable in English or Spanish

Real time counter–Thisshows the elapsed recording or playback time in hours, minutes, and seconds. The“–”indication will appear when the tape is rewound further than the tape counter position “0:00:00”.

181 channel capability PLL frequency synthesizer tuner with direct station call–(A converter may be necessary to view scrambled cable channels.)

Auto Clock Setting–Allowsyou to set the clock function from a PBS broadcast station.

Closed caption system–Youmay view specially labeled (cc) TV programs, movies, news, prerecorded tapes, etc. with either a dialogue caption or text display added to the program.

Game mode–Automaticallysets external input mode and allows TV/VCR display to be suitable for use with TV games.

Auto power on and off system–Automatically turns on the TV/VCR when you insert the cassette, turns off after auto-rewind, and ejects when the beginning of the tape is reached.

Auto rewind when the end of a tape is reached–This function doesn’t occur when using timer recording.

2 Step picture search operation–You can view a video program at a high speed or super high speed in either a forward or reverse direction in LP and SLP mode. For SP mode only high speed.

Three different playback tape speeds : SP/LP/SLP

Two different recording tape speeds : SP/SLP

Auto Head Cleaner–Automaticallycleans video heads as you insert or remove a cassette.

Zero Return–Thetape returns to counter of 0:00:00 by rewinding or fast forwarding.

Still–“Freeze”the picture at any time, for close viewing of a particular scene. Only tapes recorded in SLP mode will show a fairly clear picture.

Digital Auto Tracking (DTR)–Automatically adjusts the tracking for each tape you play.

Rental play mode–Improvesplayback picture quality from worn tapes, such as rental tapes.

Auto repeat–Allowsyou to repeat the playing of a tape indefinitely without pressing the PLAY button.

Time search–Letyou set the TV/VCR to advance the tape by entering the desired playback time you want to skip.

OTR (One Touch Recording)–Instant timed recording from 30 to 480 minutes is possible at the push of the REC/OTR button.

1 Year, 8 events (including Daily and Weekly Timer Recording)–The built-in timer allows you to record up to 8 programs at different times on different channels up to 1 year in advance. The Daily timer allows recordings to be made of daily broadcasts, and the Weekly timer allows recording to be made once a week up to the end of the tape.

Auto return–Aftertimer recording is finished, the TV/VCR can return to the beginning of the recording.

Wake-up/Sleep timer–Allowsyou to have the TV/VCR automatically turn on or off at a desired time.

Timer Program Extension–Allow you to shift the time schedule for automatic timer recording.

V-CHIP–Enablesparents to prevent their children from watching inappropriate material on TV.

TwoWay power–Allowsyou to power the TV/VCR with standard household AC or your vehicle’s battery, using the suppliedcar-batterycord.

SUPPLIED ACCESSORIES

Remote Control Unit 2 AA Batteries

Rod Antenna

Car Battery Cord



PART NO.





(0EMN00673 or

(WPC0192HD002)

PART NO.

0EMN01599 or

AC Cord

0EMN01755)



(N0107UD/N0150UD)



(WPV0182LW001/WPV0182HHH01)





If you need to replace these accessories, please refer to the PART NO. under the illustrations and call 1-800-242-7158.

Depending on your antenna system, you may need different types of Combiners (Mixer) or Separators (Splitter). Contact your local electronics store for these items.

We do not recommend the use of universal remote controls. Not all of the functions may be controlled with a universal remote control. If you decide to use a universal remote control with this unit, please be aware that the code number given may not operate this unit. In this case, please call the manufacturer of the universal remote control.

- 6 -

EN

0B19

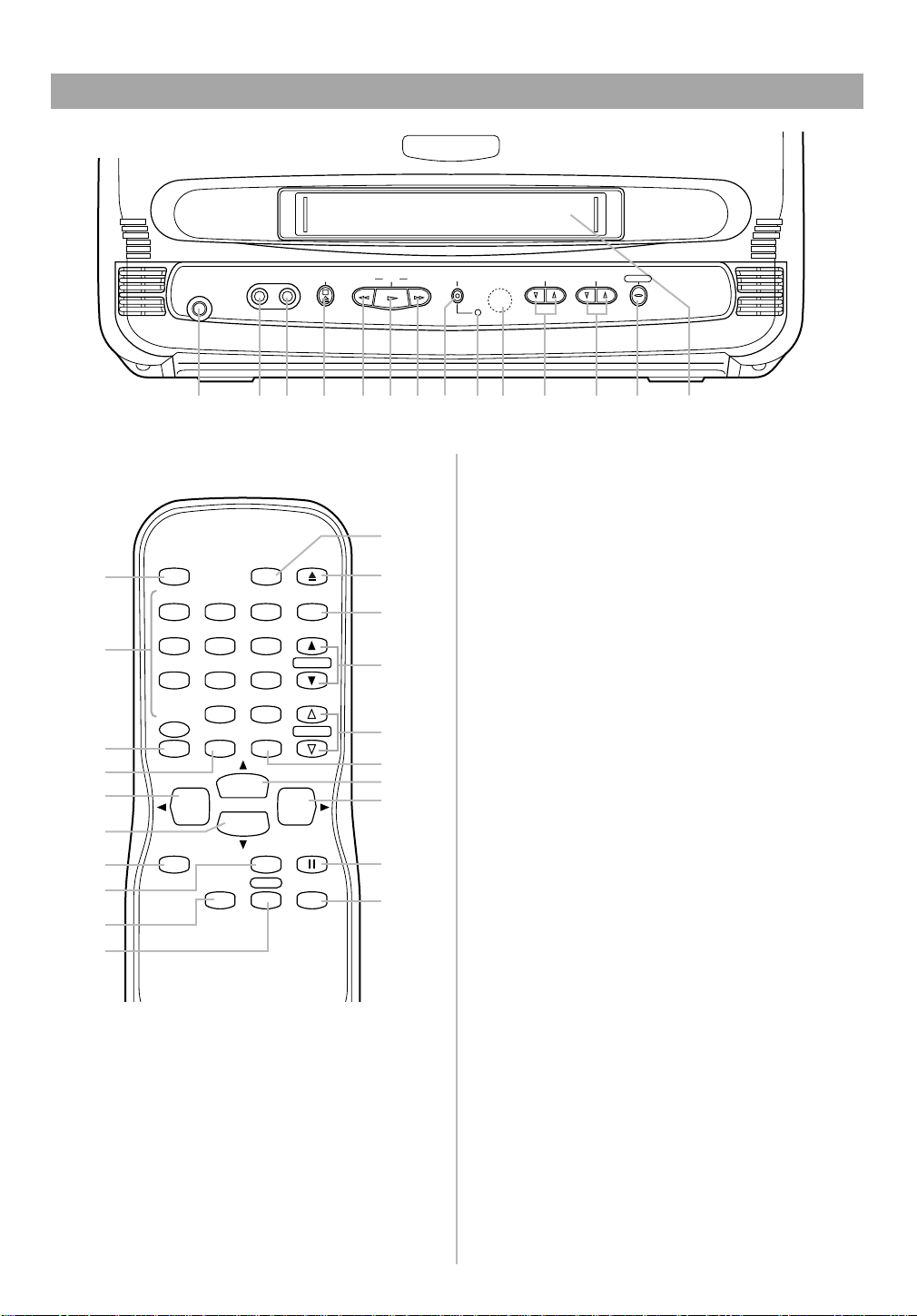

OPERATING CONTROLS AND FUNCTIONS

- TV/VCR FRONT PANEL -

AUDIO VIDEO STOP/EJECT rREW PLAY F.FWDq REC/OTR

CHANNEL

VOLUME

POWER

EARPHONE

1

2

3

4

5

6

7

8

9 10

11

12

13

14

- REMOTE CONTROL -







WAKE-UP

25









13

POWER



/SLEEP

EJECT

4







CHANNEL



















RETURN

24



1

2

3



15

4

5

6

CHANNEL

11











7

8

9









0

+100



12

16

MENU

DISPLAY

MUTE

VOLUME









23

17











PLAY



6

5





REW





F.FWD

7

4



STOP















8

RECORD



SPEED

PAUSE/STILL

22



T-PROG.





18



GAME

TIME SEARCH





CLEAR

21







19



COUNTER















RESET

















20











1EARPHONE jack–Connectsto earphones (not supplied) for personal listening. The size of jack is 1/8” monaural (3.5mm).

2AUDIO input jack–Connectto the audio output jack of your audio equipment, video camera or another VCR.

3VIDEO input jack–Connectto the video output jack of your video camera or another VCR.

4STOP button–Pressto stop the tape motion.EJECT button–Pressin the Stop mode to remove tape from TV/VCR.

L button–

Press to select setting modes from the on screen menu.

Press to enter digits when setting program. (for example: setting clock or timer program)

5REW button–Pressto rewind the tape, or to view the picture rapidly in reverse during playback mode. (Rewind Search)

s button–

Press to select a mode from a particular menu. (for example: LANGUAGE or USER’S SET UP)

6PLAY button–Pressto begin playback.

K button–

Press to select setting modes from the on screen menu.

Press to enter digits when setting program. (for example: setting clock or timer program)

- 7 -

EN

0B19

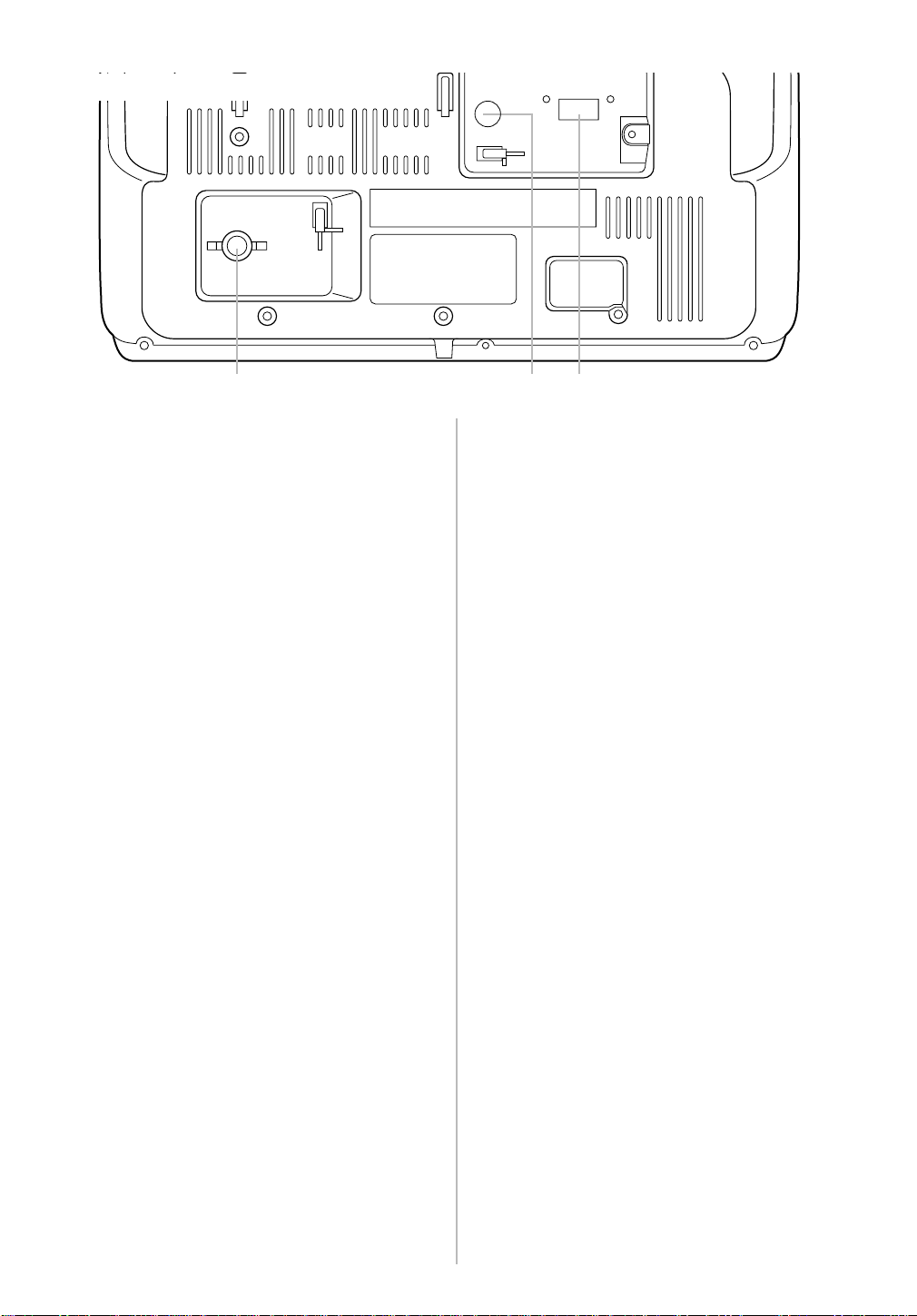

- REAR VIEW -

DC 13.2V

AC 120V



ANT.

26

7F.FWD button–Pressto rapidly advance the tape, or to view the picture rapidly in forward during playback mode. (Forward Search)

B button–

When setting program (for example: setting clock or timer program), press to determine your selection and proceed to the next step you want to input.

Press to determine setting modes from on screen menu.

Press to select a mode from a particular menu. (for example: LANGUAGE or USER’S SET UP)

8REC button–Pressfor manual recording.OTR button–ActivatesOne Touch Recording. (only on the TV/VCR)

9RECORD indicator–Flashesduring recording. Lights up in theStand-bymode for Timer Recording.

10 Remote Sensor Window–Receivesthe infrared signals from the remote control.

11 CHANNEL K / L buttons–Pressto select the desired channels for viewing or recording.

You may display the main menu on the TV screen by pressing repeatedly this button on the TV/VCR.

TRACKING function–Pressto minimize video ‘noise’ (lines or dots on screen) during playback mode. (See page 20.)

12 VOLUME X / Y buttons–Adjustthe volume level.

13 POWER button–Pressto turn TV/VCR on and off. Press to activate timer recording.

14 Cassette compartment

15 Number buttons–Pressto select desired channels for viewing or recording. To select channels from 1 to 9, first press the 0 button and then 1 to 9.

27 28

+100 button–Whenselecting cable channels which are higher than 99, press this button first, then press the last two digits. (To select channel 125, first press the “+100” button then press “2” and “5”.)

16 MENU button–Pressto display the main menu on the TV screen.

17 DISPLAY button–Displaythe counter or the current channel number and current time on the TV screen. (See page 26.)

18 SPEED button–Pressto choose the desired recording speed:SP/SLP.

19 T-PROG. CLEAR button–Pressto cancel a setting of timer program. (See page 24.)

COUNTER RESET button–Pressto reset counter to 0:00:00.

20 GAME button–Setsthe game mode and external input mode at the same time. (See page 15.)

21 TIME SEARCH button–Pressto activate Time Search mode.

22 PAUSE/STILL button–Pressto temporarily stop the tape during the recording or to view a still picture during playback.

23 MUTE button–Mutesthe sound. Press it again to resume sound.

24 CHANNEL RETURNbutton–Press to go back to the previously viewed channel. For example, pressing this button once will change channel display from 3 (present channel) to 10 (previously viewed channel), and pressing it a second time will return from 10 to 3.

25 WAKE-UP/SLEEPbutton–Sets the Wake up or Sleep Timer. (See page 24 and 25.)

26 ANT. terminal–Connectto an antenna or cable system.

27 DC 13.2V jack–Connectto the Car Battery Cord.28 AC 120V jack–Connectto the AC cord.

- 8 -

EN

0B19

PREPARATION FOR USE

ANTENNA/CABLE CONNECTIONS

Satellite Box or Cable Box (Not supplied)

From Cable System or Satellite Dish

OUT

IN

Rod Antenna

VHF/UHF Antenna

(Not supplied)

(Supplied)



VHF Antenna (Not supplied)

From





UHF Antenna



or

(Not supplied)

Cable System













VHF/UHF







or Combiner







(Not supplied)



75-ohmCoaxial

or

ANT.













Cable (Not supplied)











or

Flat twin-leadcable







VHF/UHF COMBINED ANTENNA

The VHF/UHF Rod Antenna (supplied) is detachable. Insert the stem of the antenna into the hole on the upper-backportion of the TV/VCR.Connect the VHF/UHF Rod Antenna or VHF/UHF Combination Antenna to the ANT. terminal of the TV/VCR as shown in the diagram. For the best reception, fully extend the VHF/UHF Rod Antenna and make the necessary adjustments. (Avoid touching the top section when adjusting.)

NOTE:

Before plugging the Rod antenna into antenna terminal, check that the pin is not bent. If it is bent, straighten the pin as illustrated, then plug the pin into antenna terminal.

Bent pin

Cable Plug

(Needs to be straightened)

(Straight pin)

NOTE:

The connection of an indoor antenna may not always give acceptable TV reception.

VHF/UHF SEPARATE ANTENNAS

In some areas it will be necessary to use an outdoor antenna.

CABLE WITHOUT CONVERTER/ DESCRAMBLER BOX

Use this connection if your cable system connects directly to your TV/VCR without a converter box. By using this connection you can:

1)Use the TV/VCR remote to select channels.

2)Program one or more unscrambled channels for Automatic Timer Recording.

NOTE: This unit willONLY record and view the same channel.

CABLE WITH CONVERTER/ DESCRAMBLER BOX OR SATELLITE BOX

If your cable service supplies you with a converter box or if you use a satellite system, you can use the basic connection shown in the diagram.

By using this connection you can also record scrambled channels. However, channel selection must be made with the converter box or satellite box. This means that channels cannot be changed using the TV/VCR Remote Control. Unattended timer recording is limited to one channel at a time.

Note to CATV system installer:

This reminder is provided to call the CATV system installer’s attention to Article 820-40of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.

- 9 -

EN

0B19

TO RECORD A SCRAMBLED/UNSCRAM-

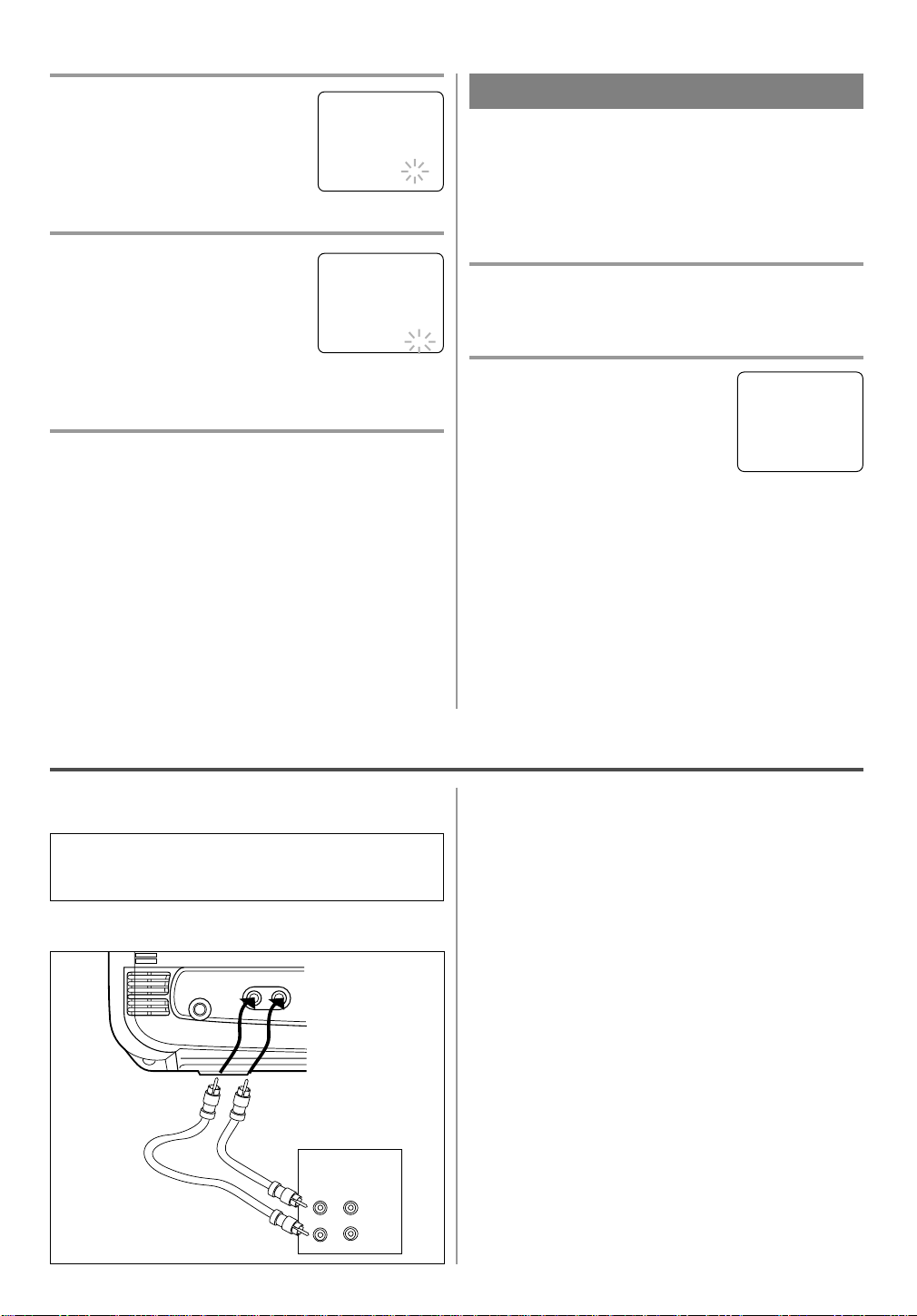

EXTERNAL INPUT MODE

BLED CHANNEL

1. Set the TV/VCR channel selector to the output

When using an external input signal (another VCR or

channel of the Cable Converter Box or Satellite

video camera), connect the player’s audio/video out-

Box. (Ex. CH3)

put cables to the AUDIO IN/ VIDEO IN jacks of

2.Select the channel to record from your Cable

your TV/VCR. Then press the CHANNEL K orL

Converter Box or Satellite Box.

button until “AUX” appears on the screen.

NOTE: “AUX” is found below the

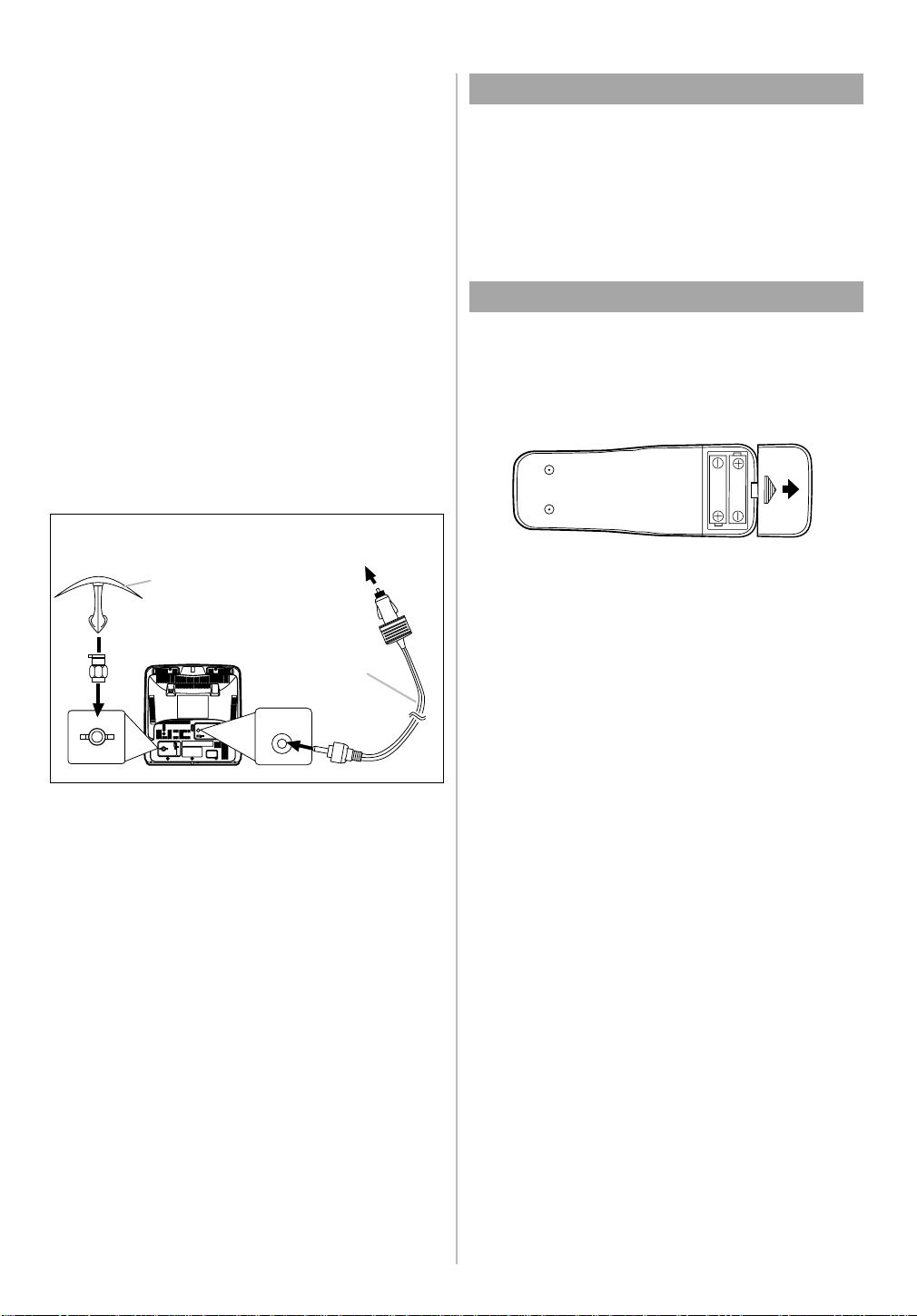

MOBILE CONNECTION lowest memorized channel.AUX (Example: CH2)

WARNING: The driver should never watch the TV/VCR while operating a motor vehicle.

CAUTION: If you use the TV/VCR with the





vehicle’s engine off, recharge the vehi-





INSTALLING THE BATTERIES

cle’s battery after about every 4 hours of



use to prevent it from running down. After







you finish using the TV/VCR be sure you



1)Open the battery compartment cover by pressing

unplug the car-batterycord from the ciga-





the cover on the remote unit in the direction of the

rette-lightersocket.





arrow.





1)The supplied indoor antenna is adequate when

2)Insert 2 “AA” penlight batteries into the battery

your vehicle is stationary. For best reception on

compartment in the direction indicated by the

the road, use a high-qualityVHF/UHF mobile TV

polarity (+/-)markings.

antenna.

3)Replace the cover.

2)Attach the car battery cord to the DC13.2V con-



nector on the back of the TV/VCR. Then, connect



the other end to your vehicle's cigarette-lighter



socket.



NOTES:

Be sure your vehicle has a13.2-volt,negativeground electrical system.

Be sure you use only the supplied car battery cord. Using another cord could damage the TV/VCR.

Be sure the socket is free of ashes and other debris.

Be sure to push the car battery cord’s plug completely into the cigarette-lightersocket.

Always unplug the car battery from the cigarettelighter socket before you unplug it from the TV/VCR.

You must disconnect the car battery cord from the TV/VCR before you can use the AC power.

Be sure to replace the fuse with only the same type, 5A, 250V.

Do not touch the metal parts of plug immediately after a car battery cord is disconnected. Because they become hot.



To the vehicle’s





cigarette-lightersocket





VHF/UHF Combination





Mobile Antenna





(Not supplied)





Car battery cord





(Supplied)



ANT.

DC13.2V









- 10 -

EN

0B19
