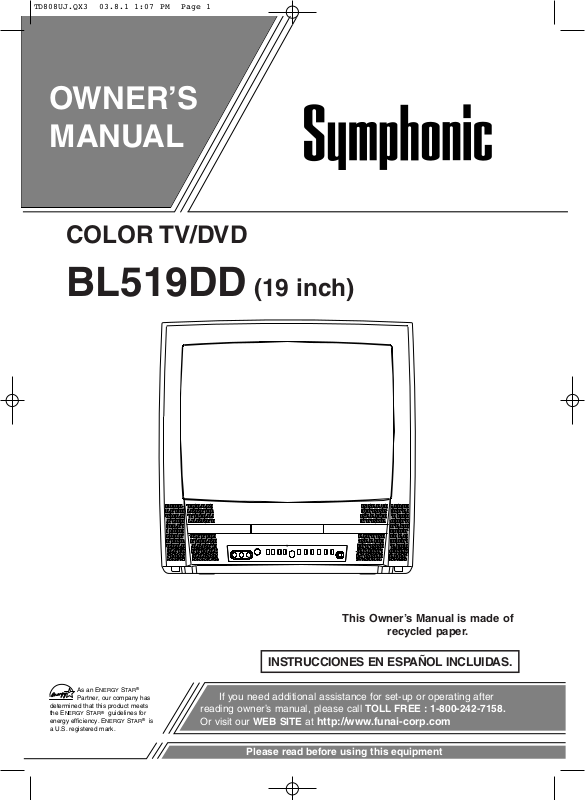

OWNER’S

MANUAL

COLOR TV/DVD

BL519DD (19 inch)

As an ENERGYSTAR®

Partner, our company has determined that this product meets the ENERGY STAR® guidelines for energy efficiency. ENERGY STAR® is a U.S. registered mark.

This Owner’s Manual is made of recycled paper.

INSTRUCCIONES EN ESPAÑOL INCLUIDAS.

If you need additional assistance for set-upor operating after reading owner’s manual, please callTOLL FREE : 1-800-242-7158.

Or visit our WEB SITE at http://www.funai-corp.com

Please read before using this equipment

AVERTISSEMENT POUR UNE TABLE ROULANTE PORTATIVE
S3126A
PORTABLE CART WARNING

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE

TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The caution marking is located on the rear of the cabinet.

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE.

IMPORTANT SAFEGUARDS

1.Read instructions-Allthe safety and operating instructions should be read before the appliance is operated.

2.Retain Instructions-Thesafety and operating instructions should be retained for future reference.

3.Heed Warnings-Allwarnings on the appliance and in the operating instructions should be adhered to.

4.Follow Instructions-All operating and use instructions should be followed.

5.Cleaning-UnplugTV/DVD from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

EXCEPTION: A product that is meant for uninterrupted service and, that for some specific reason, such as the possibility of the loss of an authorization code for a CATV converter, is not intended to be unplugged by the user for cleaning or any other purpose, may exclude the reference to unplugging the appliance in the cleaning description otherwise required in item 5.

6.Attachments-Donot use attachments not recommended by the TV/DVD manufacturer as they may cause hazards.

7.Water and Moisture-Donot use this TV/DVD near waterfor example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.

8.Accessories-Donot place this TV/DVD on an unstable cart, stand, tripod, bracket, or table. The TV/DVD may fall, causing serious injury to someone, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the TV/DVD. Any mounting of the

appliance should follow the manufacturer’s instructions and should use a mounting accessory recommended by the manufacturer. An appliance

and cart combination should be moved with care.

Quick stops, excessive force, and

uneven surfaces may cause the appliance and cart combination to over-

turn.

Accessoires- Ne placez pas cette TV/DVD sur une table roulante, un support, un trépied, une console ou une table instable. Cette TV/DVD risquerait de tomber, pouvant gravement blesser quelqu'un et l'appareil même pourrait être sérieusement endommagé. N'utilisez qu'une table roulante, un support, un trépied, une console ou une table recommandé par le fabriquant, ou vendu avec la TV/DVD. Pour n'importe quelle installation de l'appareil, on devra suivre les instructions du fabriquant et l'on devra utiliser les accessoires d'installation recommandés par le fabriquant. L'ensemble combiné de l'appareil avec une table roulante devra être déplacé avec précaution. Des arrêts brusques, une force excessive et des surfaces inégales peuvent provoquer le renversement de l'ensemble combiné de l'appareil/table roulante.

9.Ventilation-Slotsand openings in the cabinet and the back or bottom are provided for ventilation and to ensure reliable operation of the TV/DVD and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the TV/DVD on a bed, sofa, rug, or other similar surface. This TV/DVD should never be placed near or over a radiator or heat register. This TV/DVD should not be placed in a builtin installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

10.Power Sources-ThisTV/DVD should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For TV/DVDs intended to operate from battery power, or other sources, refer to the operating instructions.

11.Grounding or Polarization-This TV/DVD is equipped with a polarized alternating-current line plug(a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

– 2 –

EN

0C28

FIGURE A

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONAL ELECT RICAL CODE













ANTENNA













L EAD I N













W I R E



GROUND



C L A M P













ANTENNA





































DI SCHARG E UN I T













(NEC SECTION 8 10 -20)

EL ECTRI C













SE RV I CE













EQ U I PMEN T

























G RO UNDI NG CO NDUCTORS













(NEC SECTION 8 10 -21)











G RO UND CL AMPS

NEC - NATI O NAL EL ECTRI CAL CO DE





POWER SERVI C E G RO UNDI NG







EL EC TR O DE SYSTEM

S2 8 9 8 A





(NEC ART 2 50 , PART H)

12.Power-Cord Protection-Power-supplycords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

13.Outdoor Antenna grounding-If an outside antenna or cable system is connected to the TV/DVD, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. (Fig. A)

14.Lightning-Foradded protection for this TV/DVD receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the TV/DVD due to lightning andpower-linesurges.

15.Power Lines-Anoutside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

16.Overloading-Donot overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

17.Object and Liquid Entry-Neverpush objects of any kind into this TV/DVD through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the TV/DVD.

18.Servicing-Donot attempt to service this TV/DVD yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19.Damage Requiring Service-Unplug this TV/DVD from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a.When the power-supplycord or plug is damaged or frayed.

b.If liquid has been spilled, or objects have fallen into the TV/DVD.

c.If the TV/DVD has been exposed to rain or water.

d.If the TV/DVD does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions, as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the TV/DVD to its normal operation.

e.If the TV/DVD has been dropped or damaged in any way.

f.When the TV/DVD exhibits a distinct change in perfor- mance-thisindicates a need for service.

20.Replacement Parts-Whenreplacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, injury to persons or other hazards.

21.Safety Check-Uponcompletion of any service or repairs to this TV/DVD, ask the service technician to perform routine safety checks to determine that the TV/DVD is in proper operating condition.

22.Heat-ThisTV/DVD product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

– 3 –

EN

0C28

PRECAUTIONS

IMPORTANT COPYRIGHT INFORMATION

Unauthorized copying, broadcasting, public performance and lending of discs are prohibited.

FCC WARNINGThis equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

RADIO-TVINTERFERENCE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1)Reorient or relocate the receiving antenna.

2)Increase the separation between the equipment and receiver.

3)Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4)Consult the dealer or an experienced radio/TV technician for help.

LASER SAFETY

This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to possible eye injury.

CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CAUTION: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. DO NOT STARE INTO BEAM.

LOCATION: INSIDE, NEAR THE DECK MECHANISM.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003du Canada.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION: POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

A NOTE ABOUT RECYCLING

This product’s packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

The serial number of this product may be found on the back of the unit. No other TV/DVD has the same serial number as yours. You should record the number and other vital information here and retain this book as a permanent record of your purchase to aid identification in case of theft. Serial numbers are not kept on file.

Date of Purchase

Dealer Purchase from

Dealer Address

Dealer Phone No.

Model No.

Serial No.

– 4 –

EN

0C28

LOCATION

For safe operation and satisfactory performance of your TV/DVD, keep the following in mind when selecting a place for its installation:

Shield it from direct sunlight and keep it away from sources of intense heat.

Avoid dusty or humid places.

Avoid places with insufficient ventilation for proper heat dissipation. Do not block the ventilation holes at the top and bottom of the unit. Do not place the unit on a carpet because this will block the ventilation holes.

Install unit in a horizontal position.

Avoid locations subject to strong vibration.

Do not place the TV/DVD near strong magnetic fields.

Avoid moving TV/DVD to locations where temperature differences are extreme.

AVOID THE HAZARDS OF ELECTRICAL SHOCK AND FIRE

Do not handle the power cord with wet hands.

Do not pull on the power cord when disconnecting it from an AC wall outlet. Grasp it by the plug.

If, by accident, water is spilled on your unit, unplug the power cord immediately and take the unit to our Authorized Service Center for servicing.

Do not put your fingers or objects into the TV/DVD disc loading tray.

Do not place anything directly on top of the unit.

WARNING

Moisture condensation may occur inside the unit when it is moved from a cold place to a warm place, or after heating a cold room or under conditions of high humidity. If a DVD is played in a TV/DVD which has moisture, it may damage the DVD and TV/DVD. Therefore when the condensation occurs inside the unit, turn POWER on and allow at least 2 hours for the unit to dry out.

SUPPLIED ACCESSORY

Remote Control Unit (PART NO.: NE218UD)

2 AA Batteries

• Owner’s Manual

Manual



Owner’s

(PART NO.: 0EMN02251)



SYMBOLS USED IN THIS MANUAL

The following symbols below appear in some headings and notes in this manual, with the following meanings

TV

:Description refers to TV operation (in the TV mode).

DVD-V

:Description refers to playback of DVD video discs (in the DVD mode).

CD

:Description refers to playback of audio CDs (in the DVD mode).

MP3

:Description refers to playback of MP3 discs (in the DVD mode).

QUICK

:Description refers to the items to be set by the QUICK mode (in the DVD mode).

– 5 –

EN

0C28

TABLE OF CONTENTS

C IMPORTANT SAFEGUARDS . . . . . . . . . . . . .2

C PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . .4

C FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

C OPERATING CONTROLS AND FUNCTIONS . . .8

INSTALLING THE BATTERIES . . . . . . . . . . .9

C PREPARATION FOR USE . . . . . . . . . . . . . . .10

ANTENNA/CABLE CONNECTIONS . . . . . . .10

CONNECTING TO EXTERNAL INPUT JACKS .11

CONNECTING TO AN AMPLIFIER EQUIPPED WITH DIGITAL INPUT JACKS, MD DECK OR DAT DECK (for DVD only) . .11

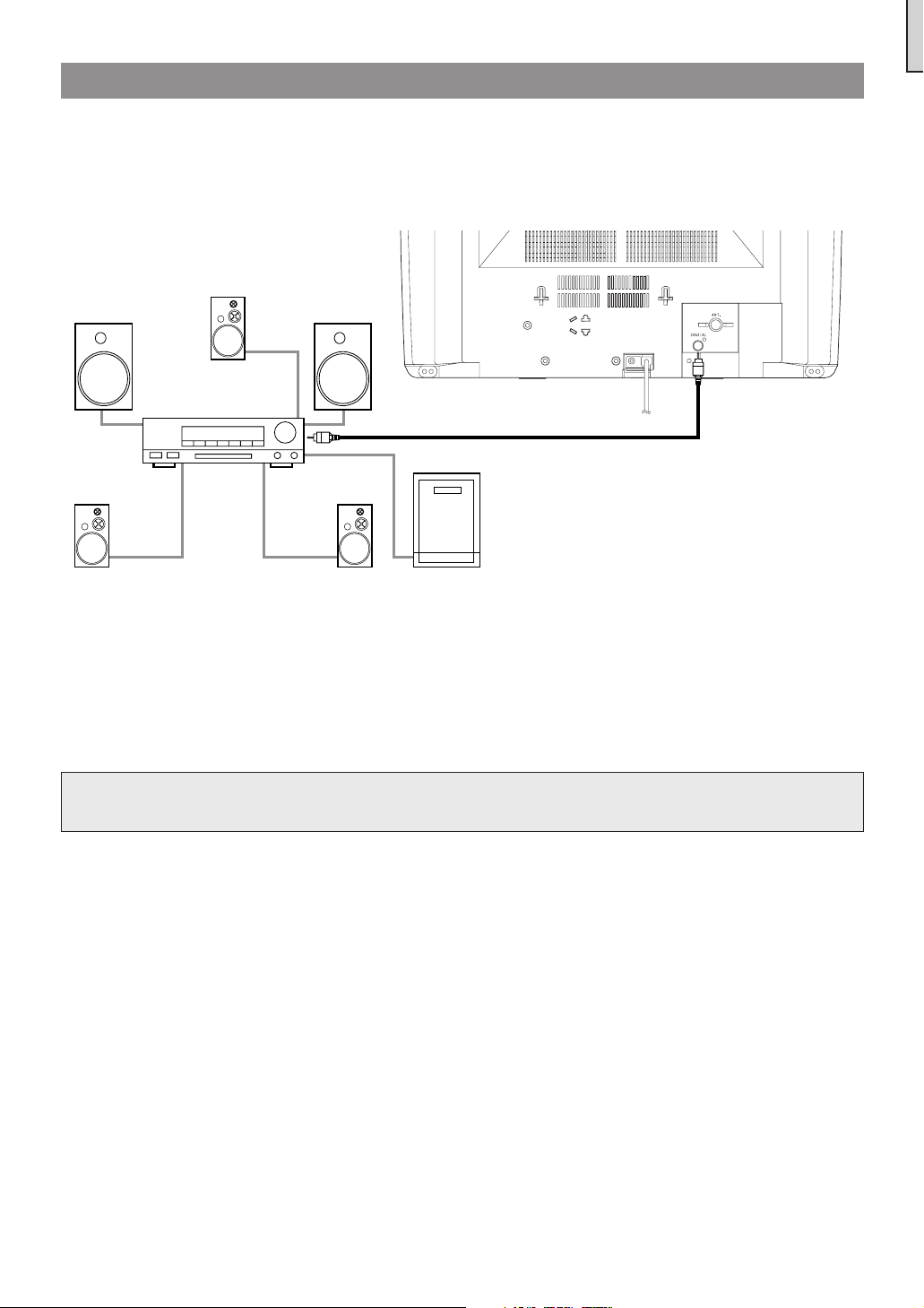

CONNECTING TO A DOLBY DIGITAL

DECODER (for DVD) . . . . . . . . . . . . . . . . . . .12

TV SECTION



C SET UP FOR USE . . . . . . . . . . . . . . . . . . . . .

13

CHANNEL SET UP FOR THE FIRST TIME . .13 DELETING (OR ADDING) CHANNEL . . . . .13 CHANNEL SET UP AGAIN . . . . . . . . . . . . . .14 SELECTING THE LANGUAGE . . . . . . . . . . .14

C TV OPERATION . . . . . . . . . . . . . . . . . . . . . . .15

WATCHING A TV PROGRAM . . . . . . . . . . . .15 DEGAUSSING . . . . . . . . . . . . . . . . . . . . . . . .15 PICTURE CONTROL . . . . . . . . . . . . . . . . . . .15 SLEEP TIMER . . . . . . . . . . . . . . . . . . . . . . . . .16 CLOSED CAPTION SYSTEM . . . . . . . . . . . .16 V-CHIPSET UP . . . . . . . . . . . . . . . . . . . . . . . .17

DVD SECTION

C ABOUT THE DISCS . . . . . . . . . . . . . . . . . . . .19

PLAYABLE DISCS . . . . . . . . . . . . . . . . . . . . .19 DISC TYPES . . . . . . . . . . . . . . . . . . . . . . . . . .19

C PLAYING A DISC . . . . . . . . . . . . . . . . . . . . . .20

BASIC PLAYBACK . . . . . . . . . . . . . . . . . . . .20 GENERAL FEATURES . . . . . . . . . . . . . . . . . .20 DISC MENU . . . . . . . . . . . . . . . . . . . . . . . . . .20 TITLE MENU . . . . . . . . . . . . . . . . . . . . . . . . .20 RESUME . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 PAUSE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 STEP BY STEP PLAYBACK . . . . . . . . . . . . .21 FAST FORWARD/REVERSE SEARCH . . . . .21 SLOW FORWARD / SLOW REVERSE . . . . .21 ZOOM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

C SEARCH FUNCTION . . . . . . . . . . . . . . . . . .22

TRACK SEARCH . . . . . . . . . . . . . . . . . . . . . .22 TITLE / CHAPTER SEARCH . . . . . . . . . . . . .22 TIME SEARCH . . . . . . . . . . . . . . . . . . . . . . . .22 MARKER SETUP SCREEN . . . . . . . . . . . . . .22

C SPECIAL PLAYBACK FUNCTION . . . . . . . .23

REPEAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 PROGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . .23 RANDOM PLAYBACK . . . . . . . . . . . . . . . . .23

C PLAYING A MP3 DISC . . . . . . . . . . . . . . . . . .24

MP3 PLAYBACK . . . . . . . . . . . . . . . . . . . . . .24 TRACK SELECTION . . . . . . . . . . . . . . . . . . .24 PROGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . .24 RANDOM PLAYBACK . . . . . . . . . . . . . . . . .24

C CHANGING THE SETTINGS . . . . . . . . . . . .25

SUBTITLE LANGUAGE . . . . . . . . . . . . . . . .25 AUDIO LANGUAGE . . . . . . . . . . . . . . . . . . .25 STEREO SOUND MODE . . . . . . . . . . . . . . . .25 CAMERA ANGLE . . . . . . . . . . . . . . . . . . . . . .25 BLACK LEVEL SETTING . . . . . . . . . . . . . . .25 VIRTUAL SURROUND . . . . . . . . . . . . . . . . .25

C THEON-SCREENINFORMATION . . . . . . .26

C CHANGING THE DVD SETUP ITEMS . . . .27

LANGUAGE SETTING . . . . . . . . . . . . . . . . .27 DISPLAY SETTING . . . . . . . . . . . . . . . . . . . .28 AUDIO SETTINGS . . . . . . . . . . . . . . . . . . . . .28 PARENTAL CONTROL . . . . . . . . . . . . . . . . .29

C TROUBLESHOOTING GUIDE . . . . . . . . . . .30

C MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . .32

DISC HANDLING . . . . . . . . . . . . . . . . . . . . . .32

C SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . .33

C WARRANTY . . . . . . . . . . . . . . . . . . .Back Cover

– 6 –

EN

0C28

FEATURES

TV Mode











DVD Mode





181 channel capability PLL frequency synthesiz-







¡Dolby Digital sound



er tuner with direct station call

This player can handle Dolby Digital surround sound

(A converter may be necessary to view scrambled

having 5.1 channels when connected to a Dolby Digital

decoder.



cable channels.)



¡Still/fast/slow/step playback



Infrared remote control



Various playback modes are available including still pic-

Trilingual on screen menu display selectable in

tures, fast forward/reverse, slow motion and step frames.

English, Spanish, or French

¡Random playback for audio CD and MP3









¡Sleep Timer

This player can shuffle the order of tracks to play them in

The Sleep Timer function enables you to shut off the power

random order.



without pressing POWER after a desired time period.

¡Program playback for audio CD and MP3









¡Closed Caption Decoder

You can program the order of tracks to play them in any

You may view specially labeled (cc) TV programs,

desired order.



movies, news, etc. with either a dialogue caption or text

¡DVD menus in a desired language



display added to the program.



You can display DVD menus in a desired language, if





¡Auto Shut Off Function

available on a DVD.



If there is no air signal input from the antenna terminal and

¡Screen saver/Autopower-offfunctions



no operation for 15 minutes, the TV will turn itself off



The screen saver program starts when there is no input

automatically.

from the player for five minutes in the stop mode. When





¡V-CHIP

the screen saver program is activated for 15 minutes, the

Enables parents to prevent their children from watching

power is automatically turned off.



inappropriate material on TV.

¡Subtitles in a desired language













You can select a desired language for the display subtitles,





if that language is available on a disc.







¡Selecting a camera angle







You can select the desired camera angle, if a disc contains





sequences recorded from different angles.







¡Choices for audio language and sound mode







You can select the desired audio language and sound mode,





if different languages and modes are available on a disc.





¡Parental lock







You can set the control level to limit playback of discs





which may not be suitable for children.







¡Automatic detection of discs







This player automatically detects if the loaded disc is





DVD, audio CD or MP3 on disc.







¡On-screendisplay







Information about the current operation can be displayed





on a TV screen, allowing you to confirm the currently





active functions (such as program playback), on the TV





screen using the remote control.







¡Search







Chapter search / Title search / Track search / Time search





¡Repeat







Chapter / Title / Track / Group / All / A-B







¡Zoom







Magnified screen can be displayed.







¡Marker







The part designated by user can be called back.







¡Resume Play







User can resume to playback from the part at which the





play was stopped.







¡Virtual Surround







¡Bit rate indication







¡DRC (Dynamic range control)





– 7 – You can control the range of sound volume.

EN

0C28

OPERATING CONTROLS AND FUNCTIONS

TV/DVD FRONT PANEL [Fig. 1]

VIDEO

L AUDIO R

POWER

VOLUME

CHANNEL

STOP

SKIP

PLAY

SKIP

PAUSE

OPEN/CLOSE HEADPHONE

1

2

3

4

5

6

REMOTE CONTROL

[Fig. 2]







36







34



4







13



16







6













17







5













9







35



11







19



10















18





















8



12







33



23







32



20







31









30



21















29



22









15







28



24







27



25







26



1.Disc loading tray

2.VIDEO input Jack [page 11]

Connect to the video output jack of a video camera or VCR.

3.AUDIO L/R input Jacks [page 11]

Connect to the audio output jacks of a video camera or VCR.

4.POWER Button [page 13]

Press to turn the power on and off.

5.VOLUME K/L (VOL.m/n) Buttons

Press to control the volume level for the DVD and TV.

6.CHANNEL K/L (CH.K/L) Buttons [page 13]

Press to select memorized channel.

Press to change to TV mode when DVD mode.

7.Remote Sensor Window

8.STOP Button [page 20]

Stops operation of the disc.

78 9 10111213 14

9.SKIP H Button [page 22]

Plays back from the beginning of the current chapter or track.

SEARCH (REV) E Button (Front Panel)

[page 21]

During playback or in the pause mode, press and hold button down for a few seconds to change reverse playback speed.

10.PLAY Button [page 20]

Starts playback of the disc contents.

Press to change to DVD mode when TV mode.

11.SKIP G Button [page 22]

Plays back from the beginning of the next chapter or track.

SEARCH (FWD) D Button (Front Panel)

[page 21]

During playback or in the pause mode, press and hold button down for a few seconds to change forward playback speed.

12.PAUSE Button [page 21]

Pauses the current disc operation.

13.OPEN/CLOSE Button [page 20]

Press to insert discs into or remove them from the tray.

14.HEADPHONE Jack

To connect headphone (not supplied) for personal listening.

15.MODE Button [pages 23-25]

Activates program playback or random playback mode when playing CDs or MP3.

16.Number Button

TV Mode: [page 15]

Press two digits to directly access the desired channel.

Remember to press a "0" before a single digit channel.

+100 Button–

Press to select cable channels which are equal or greater than number 100.

DVD Mode: [page 22]

Press to enter the desired number.

+10 Button–

Press to enter the desired numbers which are equal or greater than number 10.

17.SLEEP Button [page 16]

Press SLEEP to display the sleep timer and start the function. The shut off time can be determined by the number of times you press this button. (0, 30, 60, 90, or 120 minutes)

– 8 –

EN

0C28

TV/DVD REAR VIEW

[Fig. 3]





37

38

39





18.

REV h Button [page 21]



DVD Mode: [page 20]



Press to view the DVD picture in fast reverse motion.



Use when making settings while watching the



Press PAUSE, then press this button to begin slow



display on a TV screen.



motion playback. Press this button repeatedly to change

33. DISC MENU Button [page 20]



the reverse speed of slow motion.



Displays the menus in the DVD.



FWD g Button [page 21]

34. SELECT Button [pages 11, 20]



Press to fast forward the Disc. Press PAUSE, then



Press to change to TV mode, external input mode or



press this button to begin slow motion playback. Press







DVD mode.









this button repeatedly to change the forward speed of















NOTE: When you select the DVD mode by this





slow motion.







19.

ZOOM Button [page 21]





button, press PLAY or OPEN/CLOSE first.







Otherwise, the DVD features are not operated.





Expands the picture to fill the entire screen.























20.

SETUP Button [pages 13,27-29]















35. MUTE Button









Press to enter or exit the TV menu or DVD setup











Press MUTE to turn off the sound



mode.







portion of the TV program. (Volume level display

21.

TITLE Button [page 20]





turns LIGHT RED from LIGHT BLUE.) Press



Displays the title menu.



MUTE again or press VOL. m ornto restore

22.

CLEAR Button [pages 22-24]



sound.











Resets a setting.

36. PICTURE Button [page 15]

23.

DISPLAY Button



Press to enter picture adjustment mode.



TV Mode:

37. Power cord









Press to display the channel number on the screen.



Connect to a standard AC outlet (120V/60Hz).



If you press it again, the channel number will disap-



NOTE: Remove the power cord from the hook to



pear.







avoid breaking a wire before you connect to



DVD Mode: [page 26]







a standard AC outlet.



Displays the current status on the TV screen for

38. COAXIAL digital audio out Jack (DVD Audio



checking purposes.



Only)









24.

SEARCH MODE Button [page 22]



Connect to the digital input of an external



Press to locate a desired point.



amplifier or decoder.

25.

AUDIO Button [page 25]

39. ANT. in Jack









Press to select a desired audio language or sound



Connect to an antenna, cable system, or satellite sys-



mode.



tem.









26.

SUBTITLE Button [page 25]

















Press to select a desired subtitle language.



















INSTALLING THE BATTERIES

27.

REPEAT Button [page 23]





Repeats playback of the current disc, title, chapter



1)Open the battery compartment cover by pressing the



or track.







cover on the remote unit in the direction of the arrow.

28.

ANGLE Button [page 25]





2)Insert 2 “AA” penlight batteries into the battery



Press to change the camera angle to see the sequence





being played back from a different angle.



compartment in the direction indicated by the

29.

REPEAT A-BButton [page 23]



polarity (+/-)markings.



Repeats playback of a selected section.



3)Replace the cover.





30.

RETURN Button [page 25]





















Returns to the previous operation in the DVD setup



NOTES











mode.











31.

ENTER Button [pages 13, 20]



¡Do not mix alkaline and manganese batteries.



Press to accept a setting.



¡Do not mix old and new batteries.

32.Arrow Buttons

TV Mode: [page 13]

Press to select a setting mode from the menu on the TV screen.

Press to select or adjust from a particular menu.

– 9 –

EN

0C28

PREPARATION FOR USE

ANTENNA/CABLE CONNECTIONS

Satellite Box or



Cable Box

IN



OUT

(Not supplied)



From

Cable System

75-ohmCoaxialrom Cable (Not supplied)

Note to CATV system installer:

From Cable System or

VHF/UHF Antenna

Satellite Dish

(Not supplied)



VHF Antenna



(Not supplied)



UHF Antenna



(Not supplied)



VHF/UHF

or

Combiner



(Not supplied)

ANT.



or

Flat twin-leadcable

or



[Fig. 4]

This reminder is provided to call the CATV system installer’s attention to Article 820-40of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.

NOTE:

Before plugging the an antenna into the ANT. IN jack of the TV/DVD, check that the pin is not bent. If it is bent, straighten the pin as illustrated, then plug the pin into the ANT. IN jack of the TV/DVD.

Bent pin

Cable Plug

(Needs to be straightened)(Straight pin)

VHF/UHF COMBINED ANTENNA

A VHF UHF 75 ohm combination antenna can be connected to ANT terminal.

VHF/UHF SEPARATE ANTENNAS

In some areas it will be necessary to use an outdoor antenna.

CABLE WITHOUT CONVERTER/ DESCRAMBLER BOX

Use this connection if your cable system connects directly to your TV/DVD without a converter box. Use the TV/ DVD Remote Control to select channels.

CABLE WITH CONVERTER/DESCRAMBLER BOX OR SATELLITE BOX

If your cable service supplies you with a converter box or if you use a satellite system, you can use the basic connection shown here.

Channel selection must be made with the converter box or satellite box. This means that channels cannot be changed using the TV/ DVD Remote Control.

TO VIEW A SCRAMBLED/UNSCRAMBLED CHANNEL

1.Set the TV/DVD channel selector to the output channel of the Cable Converter Box or Satellite Box. (Ex. CH3)

2.Select the channel to view at your Cable Converter Box or Satellite Box.

– 10 –

EN

0C28
