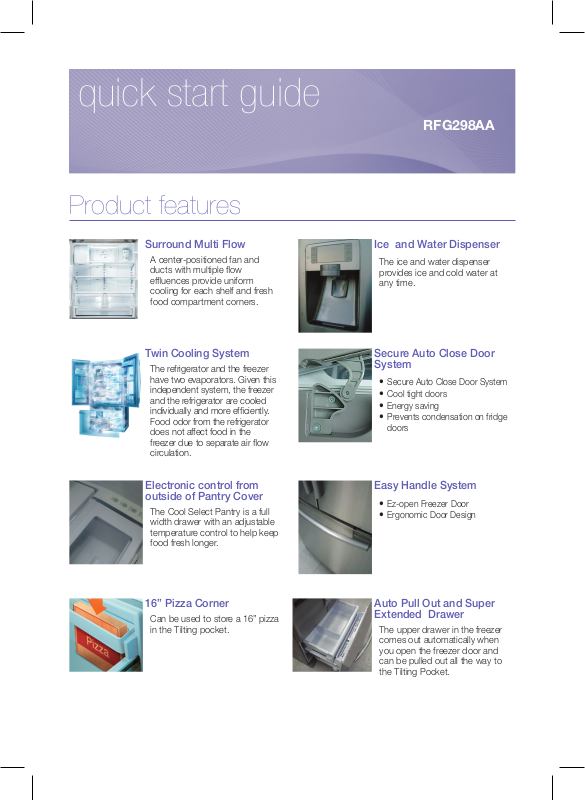

quick start guide
RFG298AA
Product features
Surround Multi Flow
A center-positioned fan and ducts with multiple flow effluences provide uniform cooling for each shelf and fresh food compartment corners.
Twin Cooling System
The refrigerator and the freezer have two evaporators. Given this independent system, the freezer and the refrigerator are cooled individually and more efficiently. Food odor from the refrigerator does not affect food in the freezer due to separate air flow circulation.
Ice and Water Dispenser
The ice and water dispenser provides ice and cold water at any time.
Secure Auto Close Door
System
•Secure Auto Close Door System
•Cool tight doors
•Energy saving
•Prevents condensation on fridge doors
Electronic control from outside of Pantry Cover
The Cool Select Pantry is a full width drawer with an adjustable temperature control to help keep food fresh longer.
16” Pizza Corner
Can be used to store a 16” pizza in the Tilting pocket.
Easy Handle System
•Ez-open Freezer Door
•Ergonomic Door Design
Auto Pull Out and Super Extended Drawer
The upper drawer in the freezer comes out automatically when you open the freezer door and can be pulled out all the way to the Tilting Pocket.
The Installation Space
2 inches
33/4 inches
2 inches
Selecting the best location for the Refrigerator
•A Location with easy access to the water supply.
•A Location without direct exposure to sunlight.
•A Location with level (or nearly level) flooring.
•A Location with enough space for the Refrigerator doors to open easily.
•Allow sufficient space for air circulation of the internal cooling system.
If the Refrigerator does not have enough space, the internal cooling system may not work properly.
First thing! Make sure that you can easily move your Refrigerator to its final location by measuring doorways (both width and height), thresholds, ceilings, stairways, etc.
The following chart details the exact height and depth of Samsung French Door Refrigerator.
|
|
|
|
|
|
|
B |
|
Depth |
Width |
Height |
Overall |
Depth |
|
A |
Model |
|
|
|||||
“A” |
“B” |
“C” |
Height “D” |
“E” |
|
|
|
|
|
|
|||||
RFG298AA |
33” |
35-3/4” |
68-3/5” |
69-3/4” |
35-5/8” |
|
E |
(83.8cm) |
(90.8cm) |
(174.4cm) |
(177.1cm) |
(90.5cm) |
|
||
|
|
||||||
|
C |
D |
• Allow clearance to the right, left, back and top when installing. This will help reduce power consumption and keep your energy bills lower.
•Do not install the Refrigerator where the temperature will go below 50ºF (10ºC).
•Do not locate the refrigerator where it may become wet.
FLOORING
CAUTION For proper installation, this refrigerator must be placed on a level surface of hard material that is the same height as the rest of the flooring. This surface should be strong enough to support a fully loaded refrigerator, or approximately 660lbs(299kg). Protect the finish of the flooring. Cut a large section of the cardboard carton and place under the refrigerator where you are working. When moving, be sure to pull the unit straight out and push back in straight.
Operating your French Door Refrigerator
Using the control panel
1 |
4 |
2 |
5 |
3 |
6 |
|
|
|
|
|
|
|
|
|
7 |
8 |
|||
|
|
Press the Energy Saver button for better energy efficiency. If water drops appear on the doors, turn the |
||||
( 1 |
) Energy Saver |
|||||
Energy Saver function off. |
|
|
||||
|
|
|
|
|||
|
|
|
||||
|
|
Press the Freezer / hold 3 sec for Power Freezer button to set the Freezer to your desired |
||||
( 2 |
) Freezer/hold |
temperature. |
|
|
||
You can set the temperature between -8°F and 8°F. Press and hold the Freezer/hold 3 sec for Power |
||||||
3 sec for |
freezer button for 3 seconds to speed up the time needed to freeze products in the Freezer. It can be |
|
Power Freezer |
||
helpful if you need to quickly freeze easily spoiled items or if the temperature in the Freezer has warmed |
||
|
dramatically (For example, if the door was left open).
( 3 ) Alarm / hold 3 sec for Filter Reset
Press the Alarm / hold 3 sec for Power Freezer button to turn off the door open alarm.
(At first, alarm mode is On ) After removing the old water filter and installing a new one, reset the indicator by pressing and holding this button for 3 seconds. (The indicator is lit at first and will light again in about 6 months to let you know it is time to change your water filter.)
( 4 ) Lighting |
Press the Lighting button to turn on the Dispenser LED lamp. |
|
|
( 5 ) Fridge / hold
3 sec for Power Cool
Press the Fridge / hold 3 sec for Power Cool button to set the fridge to your desired temperature. You can set the temperature between 34°F and 46°F.
Press and hold the Fridge / hold 3 sec for Power Cool button for 3 seconds to speed up the time needed to cool products in the Refrigerator. It can be helpful if you need to quickly cool easily spoiled items or if the temperature in the fridge has warmed dramatically (For example, if the door was left open).
( 6 ) Ice off / Hold 3 sec for Child Lock
Press the Ice OFF / hold 3 sec for Child Lock button to turn the fridge or freezer ice making function off. If you press and hold this button for 3 seconds, the display and dispenser will be locked.
Press the Ice Type button to select your desired ice type. Cubed and crushed ice modes will be
( 7 ) Ice Type alternatively changed whenever you press the button. This mode can not be used with the Water mode simultaneously.
( |
8 ) Water |
Press the Water button to dispense water. This mode can not be used with the Ice Type mode |
|
simultaneously. Water mode will be off if you press the Ice Type button. |
|||
|
|
||
|
|
|
Some functions are activated after a few-second delay when the buttons are pressed, while others operate immediately. This is normal operation.
