LCD TV

user manual

imagine the possibilities

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/global/register

Model



Serial No.

BN68-01717L-00

Without producing harmful VOC (Volatile Organic Compounds), Samsung’s Eco-friendly “Crystal Design” expresses color gradation thanks to our dual injection technology.

Precautions When Displaying a Still Image

A still image may cause permanent damage to the TV screen.

Do not display a still image on the LCD panel for more than 2 hours as it can cause screen image retention. This image retention is also known as "screen burn". To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.

Watching the LCD TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and center of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause a similar effect to the screen. Damages caused by the above effect are not covered by the Warranty.

Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images. To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images.

©2008 Samsung Electronics Co., Ltd. All rights reserved.

Contents

Connecting and Preparing Your TV

List of Parts.........................................................

2

Installing the Wall Mount Kit................................

2

Viewing the Control Panel...................................

3

Viewing the Connection Panel............................

4

Viewing the Remote Control...............................

6

Installing Batteries in the Remote Control..........

7

Switching On and Off..........................................

7

Placing Your Television in Standby Mode...........

7

Viewing the Menus..............................................

8

Using the TOOLS Button....................................

8

Plug & Play.........................................................

9

Setting the Channels



Storing Channels Automatically........................

10

Storing Channels Manually................................

11

Adding / Locking Channels...............................

12

Sorting the Stored Channels.............................

13

Assigning Channels Names..............................

13

Fine Tuning Channel Reception.......................

14

Setting the Picture



Changing the Picture Standard.........................

15

Adjusting the Custom Picture...........................

16

Configuring Detailed Settings on the Picture....

16

Configuring Picture Option................................

18

Resetting the Picture Settings to the Factory



Defaults.............................................................

19

Viewing the Picture In Picture (PIP)..................

20

Setting the Sound



Sound Features................................................

21

Selecting the Sound Mode................................

22

Connecting Headphones (Sold separately)......

22

Setting the Time



Setting and Displaying the Current Time..........

23

Setting the Sleep Timer....................................

23

Switching the Television On and Off



Automatically.....................................................

24

Function Description



Choosing Your Language.................................

24

Melody / Entertainment / Energy Saving .........

25

Network Settings



Network Connection.........................................

27

Cable Network Setup........................................

29

Selecting the Source.........................................

30

Editing the Input Source Names.......................

31

Product Guide...................................................



Setting the PC





Setting up Your PC Software



(Based on Windows XP)...................................



33

Display Modes..................................................



33

Setting up the TV with your PC.........................

34

WISELINK Pro





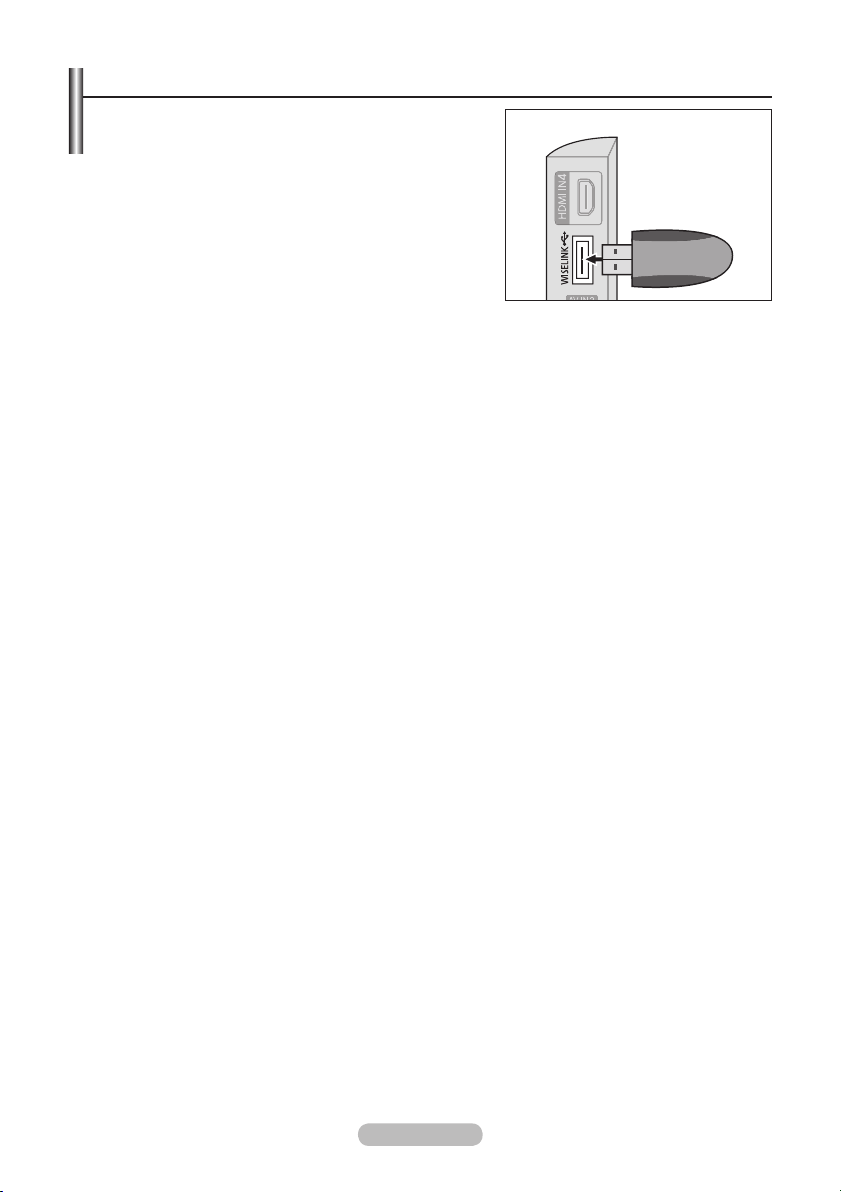

Connecting a USB Device................................



35

Using the WISELINK Pro Function...................

36

Using and Sorting Photo List............................

38

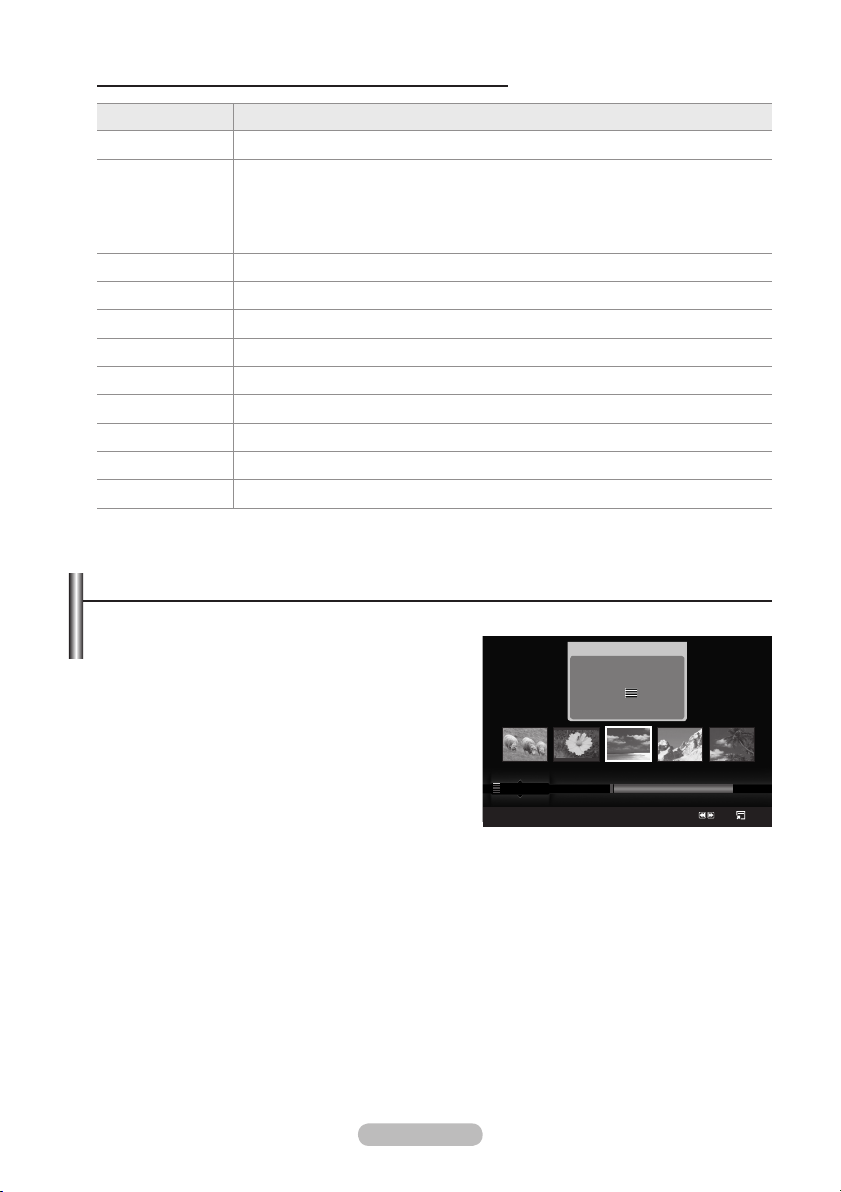

Viewing a Photo or Slide Show ........................

40

Using and Sorting the Music List......................

42

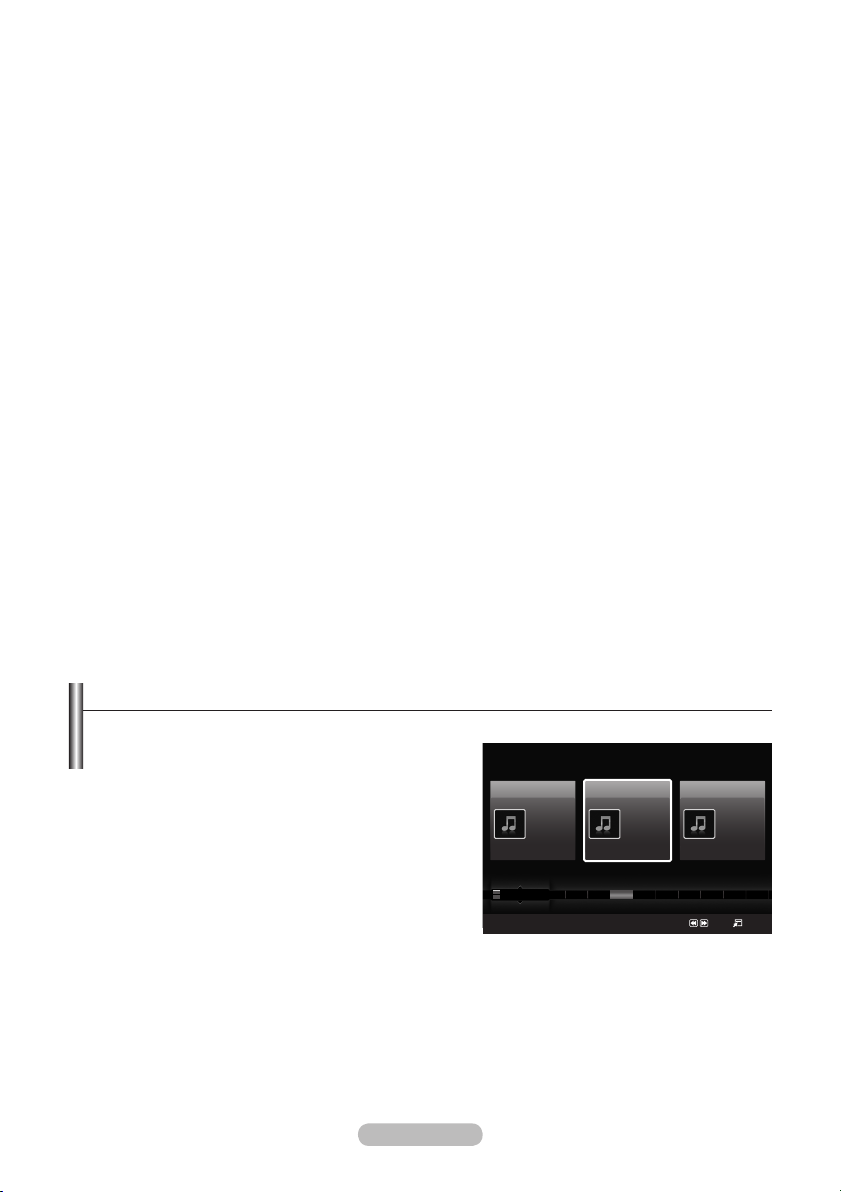

Playing a Music ................................................



44

Using and Sorting the Movie List......................

45

Playing a Movie File .........................................



46

Deleting the Photo/Music/Movie File ...............

49

Using the Setup Menu......................................



49

WISELINK Pro-DLNA





Setting the DLNA Network................................



50

Installing the DLNA Application.........................

50

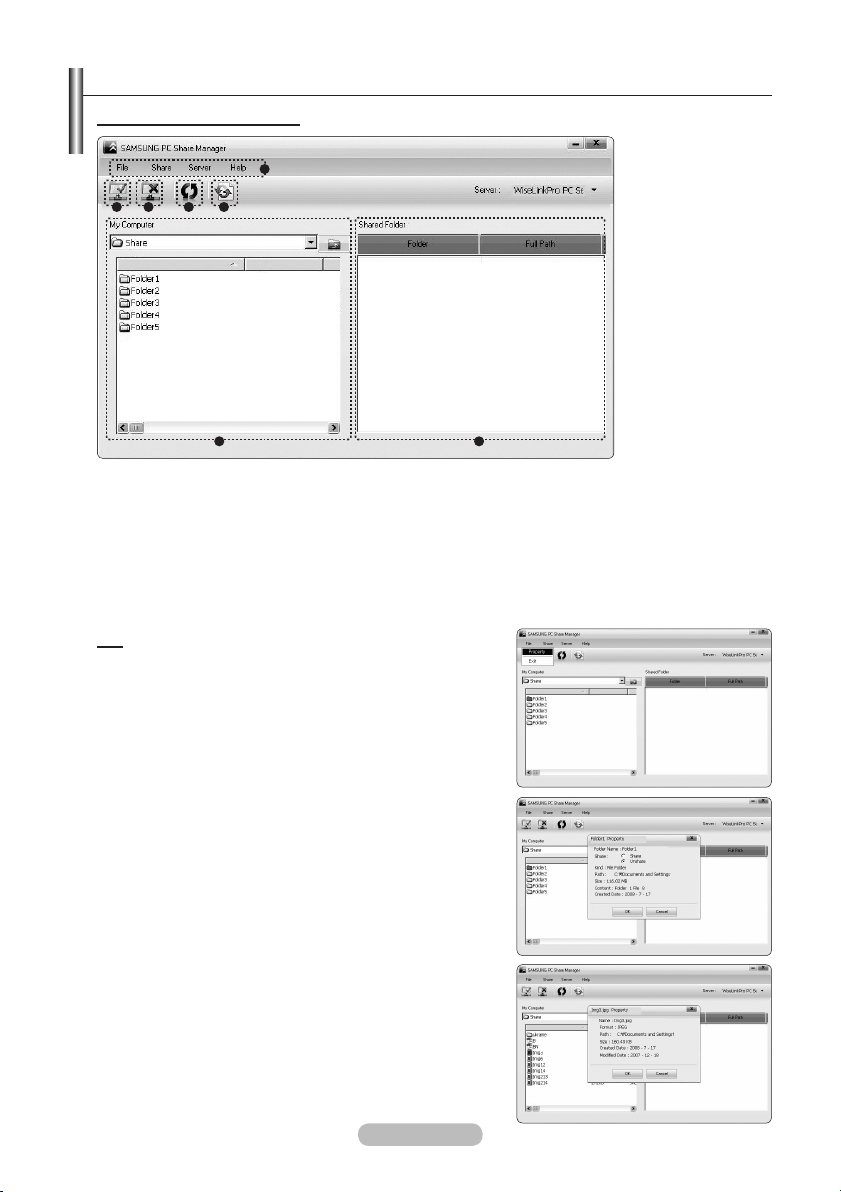

Using the DLNA Application..............................



52

Using the DLNA Function.................................



56

Content Library





Activating the Content Library...........................

57

Using the Content Library.................................



58

Using Additional Content Using External



USB Memory Storage.......................................



59

About Anynet+





What is Anynet+? .............................................



61

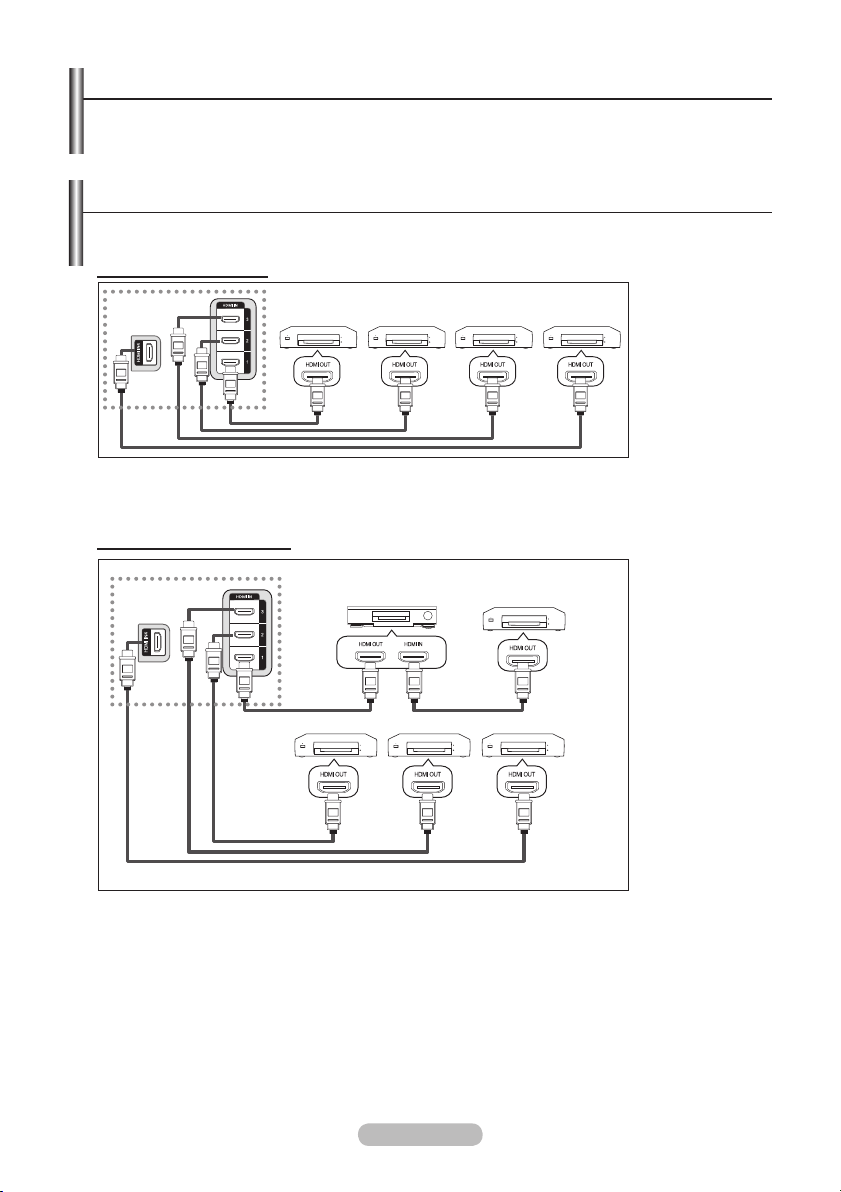

Connecting Anynet+ Devices............................

61

Setting Up Anynet+...........................................



62

Scanning and Switching between Anynet+

Devices.............................................................





63

Recording..........................................................





65

Listening through a Receiver............................

65

Check Points before Requesting Service.

........ 66

Recommendations For Use



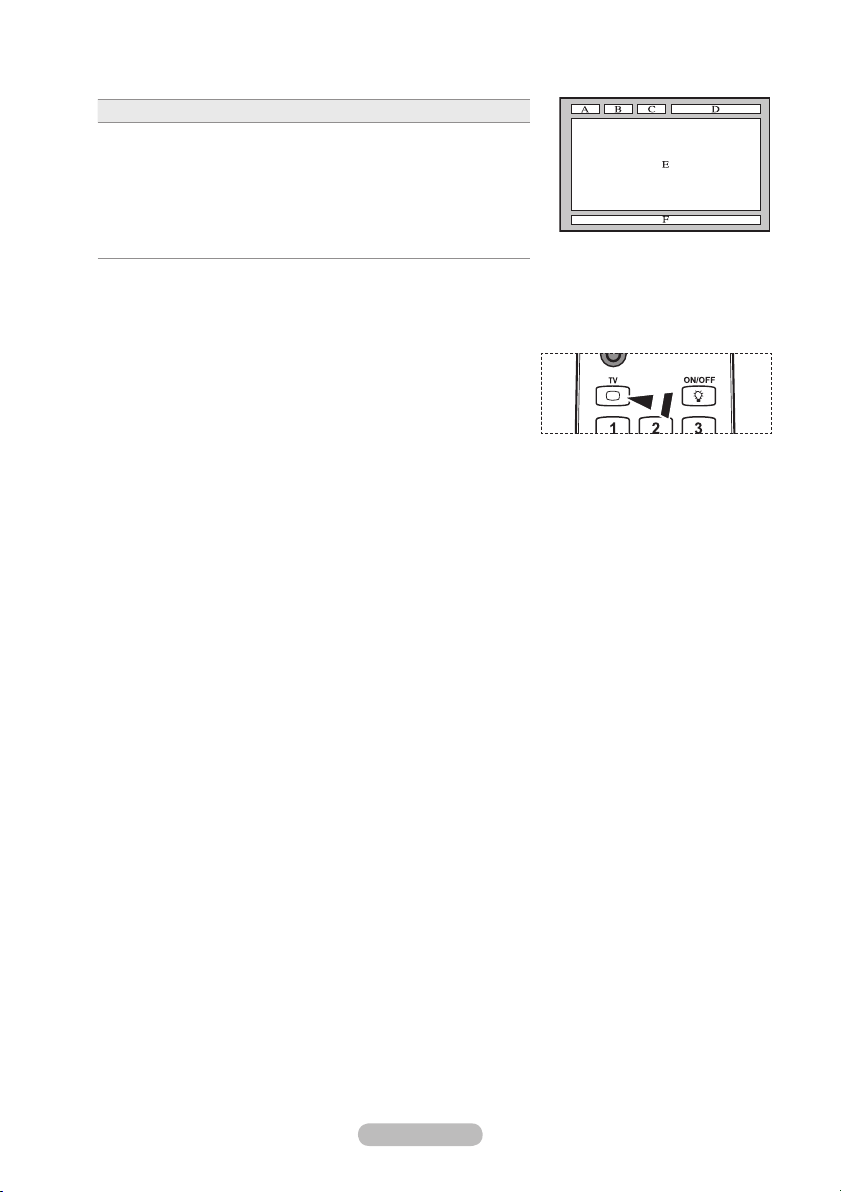

Teletext Feature................................................



67

Auto Wall-Mount (Sold separately)



(depending on the model).................................



69

Using the Anti-Theft Kensington Lock



(depending on the model).................................



70

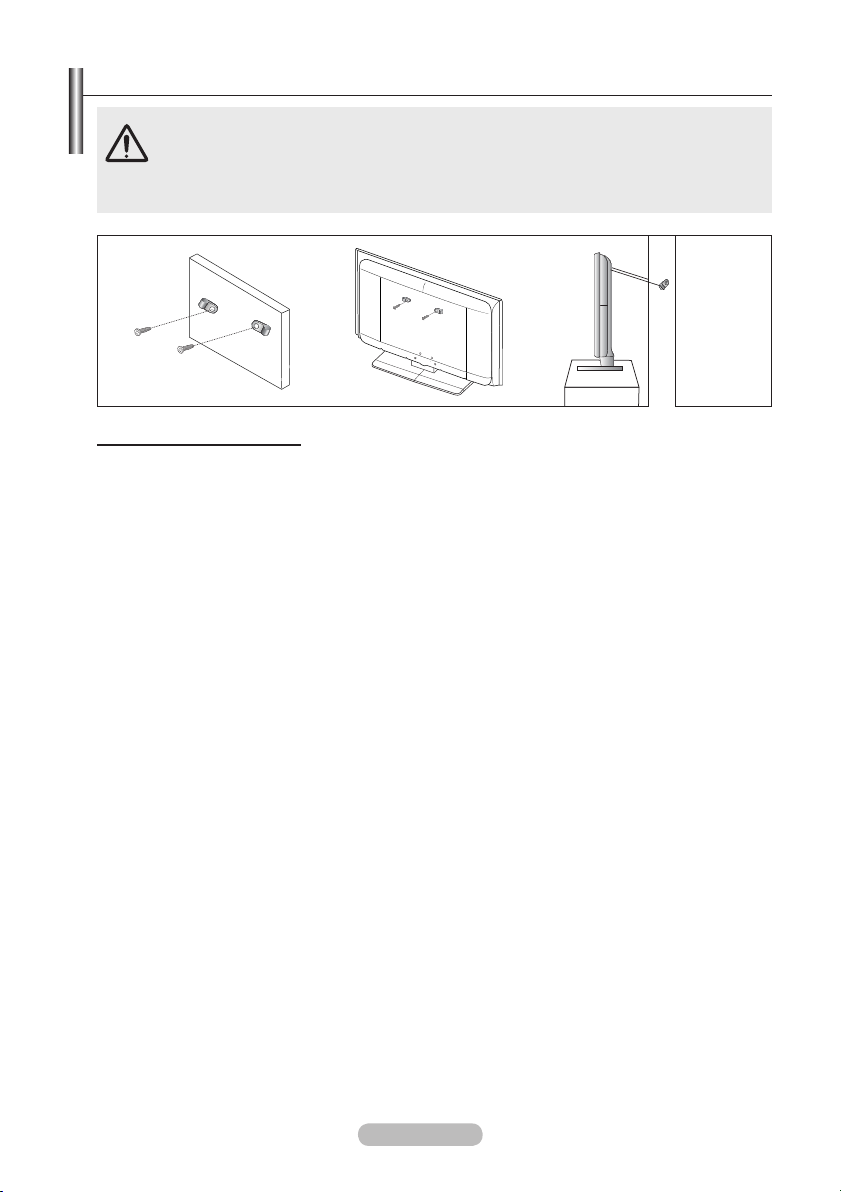

Securing the TV to the Wall..............................



71

Troubleshooting: Before Contacting



Service Personnel.............................................



72

Specifications....................................................





73

Symbol

Press

Note









Button

English - 1

List of Parts

Please make sure the following items are included with your LCD TV.

If any items are missing, contact your dealer.

Remote Control &

Power Cord

Program CD

Cover-Bottom

Cleaning Cloth

Batteries (AAA x 2)

















• Owner’s Instructions

• Warranty card

• Safety Guide

• Registration Cards











Warranty card / Safety Guide / Registration Cards (Not available in all locations)

Installing the Wall Mount Kit

Wall mount items (sold separately) allow you to mount the TV on the wall.

For detailed information on installing the wall mount, see the instructions provided with the Wall Mount items. Contact a technician for assistance when installing the wall mounted bracket.

Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV on your own.

Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock.

Remove the stand and cover the bottom hole with a cap and fasten with two screws.

English -

Viewing the Control Panel

1

2

3

4

5

6 8 78

Front Panel buttons

Touch each button to operate.

The product colour and shape may vary depending on the model.

1SOURCE

Toggles between all the available input sources (TV, AV1, AV2, S-Video, Component1, Component2, PC, HDMI1, HDMI2, HDMI3, HDMI4). In the on-screen menu, use this button

as you use the ENTER button on the remote control.

2MENU

Press to see an on-screen menu of your TV’s features.

3- VOL +

Press to decrease or increase the volume.

In the on-screen menu, use the - VOL + buttons as you use the ◄ and ► buttons on the remote control.

4

Press to change channels.

In the on-screen menu, use the buttons as you use the ▼ and ▲ buttons on the remote control.

(Without the Remote Control, you can turn on the TV by using the Channel buttons.)

5Power Indicator

Blinks and turns off when the power is on and lights up in stand-by mode.

6 Power

Press to turn the TV on and off.

7Remote Control Sensor

Aim the remote control towards this spot on the TV.

8Speakers

English -

Viewing the Connection Panel













[Side Panel Jacks]

1

2

3

4

5









3









6









7









8

@

!

0

Power Input

9



The product colour and shape may vary depending on the model.

Whenever you connect an external device to your TV, make sure that power on the unit is turned off.

When connecting an external device, match the colour of the connection terminal to the cable.

1PC IN [PC] / [AUDIO]

-Connect to the video and audio output jack on your PC.

2Connecting External A/V Devices (AV IN 1)

-Connect RCA cable to an appropriate external A/V device such as VCR, DVD or Camcorder.

-Connect RCA audio cables to [R - AUDIO - L] on the rear of your set and the other ends to corresponding audio out connectors on the A/V device.

3HDMI IN 1, HDMI IN 2, HDMI IN 3, HDMI IN 4

-Supports connections between HDMI-connection-enabled AV devices (Set-Top Boxes, DVD players)

-No additional Audio connection is needed for an HDMI to HDMI connection.

-When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.

What is HDMI?

-“High Definition Multimedia interface” allows the transmission of high definition digital video data and multiple channels of digital audio.

-The HDMI/DVI terminal supports DVI connection to an extended device with the appropriate cable (not supplied). The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed, and supports multi - channel digital audio.

The TV may not output sound and pictures may be displayed with abnormal colour when DVD players/Cable Boxes/Satellite receivers supporting HDMI versions older than 1.3 are connected. When connecting an older HDMI cable and there is no sound, connect the HDMI cable to the HDMI IN 2 jack and the audio cables to the DVI IN (HDMI2) [R-AUDIO-L] jacks on the back of the TV. If this happens, contact the company that provided the DVD player/Cable Box/Satellite receiver to confirm the HDMI version, then request a firmware update. HDMI cables that are not 1.3 may cause annoying flicker or no screen display.

English -

DVI IN(HDMI2) [R-AUDIO-L]

-DVI audio outputs for external devices.

Supported modes for HDMI/DVI and Component



480i

480p

576i

576p

720p

1080i

1080p

HDMI/DVI 50Hz

X

X

X

O

O

O

O

HDMI/DVI 60Hz

X

O

X

X

O

O

O

Component

O

O

O

O

O

O

O

4 ANT IN

To view television channels correctly, a signal must be received by the set from one of the following sources:

- An outdoor aerial / A cable television network / A satellite network

5SERVICE

Connect this to the jack on the optional wall mount bracket. This will allow you to adjust the TV viewing angle using your remote control.

6WISELINK

-Connect a USB mass storage device to view movies and photos and listen to music files.

7S-VIDEO or VIDEO / R-AUDIO-L

-Connect RCA or S-VIDEO cable to an appropriate external A/V device such as VCR, DVD or Camcorder.

-Connect RCA audio cables to [R-AUDIO-L] on your set and the other ends to corresponding audio out connectors on the A/V device.

8Headphones jack

-Headphone may be connected to the headphone output on your set. While the head phone is connected, the sound from the built-in speakers will be disabled.

9AUDIO OUT [R-AUDIO-L]

-Connect RCA audio cables to AUDIO OUT [R-AUDIO-L] on the rear of your set and the other ends to corresponding audio in connectors on the Amplifier or DVD Home Theatre.

0COMPONENT IN 1,2

-Connect component video cables (optional) to component connector ("PR", "PB", "Y") on the rear of your set and the other ends to corresponding component video out connectors on the DVD.

-If you wish to connect both the Set-Top Box and DVD, you should connect the Set-Top Box to the DVD and connect the DVD to component connector ("PR", "PB", "Y") on your set.

-The PR, PB and Y connectors on your component devices (DVD) are sometimes labeled Y, B-Y and R-Y or Y, Cb and Cr.

-Connect RCA audio cables (optional) to [R - AUDIO - L] on the rear of your set and the other ends to corresponding audio out connectors on the DVD.

! LAN

-Connect a LAN cable to this port to connect to the Network.

@Kensington Lock (depending on the model)

-The Kensington Lock (optional) is a device used to physically fix the system when used in a public place.

-If you want to use a locking device, contact the dealer where you purchased the TV.

-The location of the kensington lock may be different depending on its model.

English -

Samsung LA52A750R1R, LA46A750R1R, LA40A750R1R User Manual

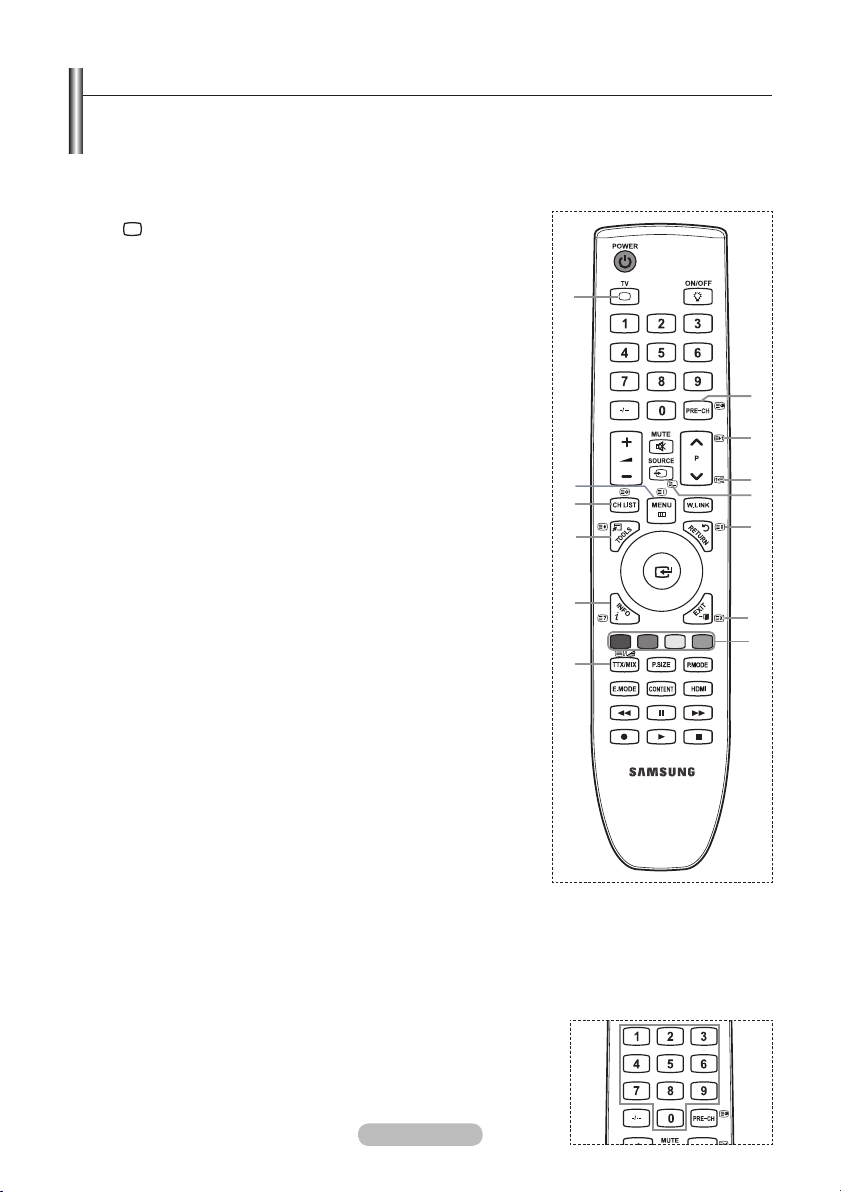

Viewing the Remote Control

1Television Standby button

2Selects the TV mode directly

3Number buttons for direct channel access

4One/Two-digit channel selection

5+ : Volume increase

– : Volume decrease

6Available source selection

7It display "Channel List" on the screen.

8Use to quickly select frequently used functions.

9Use to see information on the current broadcast

0Colour buttons : Use these buttons in the Channel list and WISELINK, etc.

@Press to select the optional display and sound modes for sports, cinema and games.

#Use these buttons in the DMA, WISELINK and Anynet+. (: This remote can be used

to control recording on Samsung recorders with the Anynet+ feature)

$ Press to backlight the buttons on the remote.

This function is convenient for using at night or when the room is dark. (Using the remote control with the ON/OFF light button set to On will reduce the battery usage time.)

% Previous channel

^Temporary sound switchoff

&P : Next channel

P : Previous channel

*Displays the main onscreen menu

( This function enables you to view and play photo and music files from an external device.

) Returns to the previous menu

aControl the cursor in the menu. Use wheel button in the Content

Library,WISELINK Pro, Product Guide menus.

bExit the on-screen menu

cPicture effect selection

dPicture size selection

eSelects the HDMI mode directly.

fThis function enables you to view “Content Library”.

Teletext Functions

2 Exit from the teletext display

6 Teletext mode selection (LIST/FLOF)

7 Teletext store

8 Teletext size selection

9 Teletext reveal

0 Fastext topic selection

!Alternately select Teletext, Double, or Mix.

% Teletext sub page

&P : Teletext next page P : Teletext previous

page

* Teletext index ) Teletext hold b Teletext cancel

The performance of the remote control may be affected by bright light.

English -

Installing Batteries in the Remote Control

1.Lift the cover at the back of the remote control upward as shown in the figure.

2. Install two AAA size batteries.

Make sure to match the "+" and "–" ends of the batteries with the diagram inside the compartment.

3.Replace the cover.

Remove the batteries and store them in a cool, dry place if you won’t be using the remote control for a long time.

Using the remote control with the ON/OFF light button set to On will reduce the battery usage time.

If the remote control doesn’t work, check the following:

1.Is the TV power on?

2.Are the plus and minus ends of the batteries reversed?

3.Are the batteries drained?

4.Is there a power outage, or is the power cord unplugged?

5.Is there a special fluorescent light or neon sign nearby?

Switching On and Off

The mains lead is attached to the rear of your set.

1.Plug the mains lead into an appropriate socket.

The standby indicator lights up on your set.

2.Press the Pbutton on your set.

You also can press the POWERPbutton or the TV button on the remote control to turn the TV on.

The programme that you were watching last is reselected automatically.

3. Press the numeric button (0~9) or channel up/down (/ ) button on the remote control or button on your set.

When you switch the set on for the very first time, you will be asked to choose language in which the menus are to be displayed.

4.To switch your set off, press the POWERPbutton again.

Placing Your Television in Standby Mode

Your set can be placed in standby mode in order to reduce the power consumption. The standby mode can be useful when you wish to interrupt viewing temporarily (during a meal, for example).

1.Press the POWERPbutton on the remote control.

The screen is turned off and a red standby indicator appears on your set.

2.To switch your set back on, simply press the POWERP, numeric buttons (0~9), TV button or channel

up/down ( / ) button again.

Do not leave your set in standby mode for long periods of time (when you are away on holiday, for example).

It is best to unplug the set from the mains and aerial. 

English -

Viewing the Menus

1.With the power on, press the MENU button.

The main menu appears on the screen. The menu’ s left side has icons: Picture, Sound, Channel, Setup, Input.

2.Press the ▲ or ▼ button to select one of the icons.

Then press the ENTER button to access the icon’s sub-menu.

3.Press the EXIT button to exit.

The on-screen menus disappear from the screen after about one minute.

Using the TOOLS Button

You can use the TOOLS button to select your frequently used functions quickly and easily. The “Tools” menu change depending on which external input mode you are viewing.

1.Press the TOOLS button.

The “Tools” menu will appear.

2.Press the ▲ or ▼ button to select a menu.

3.Press the ▲/▼/◄/►/ENTER buttons to display, change, or use the selected items. For a more detailed description of each function, refer to the corresponding page.

Anynet+ (HDMI-CEC), see page 62

Picture Mode, see page 15

Sound Mode, see page 21

Sleep Timer, see page 23

SRS TS XT, see page 21

Energy Saving, see page 26

Dual l-ll, see page 22

PIP, see page 20

Auto Adjustment, see page 34

TV




Mode

: Standard

Backlight



7

Contrast



95

Brightness



40

Sharpness



50

Colour



50

Tint

G50

R50

Detailed Settings

sMore





Move

Enter

Return



Tools



Anynet+ (HDMI-CEC)



Picture Mode

: Standard

Sound Mode

:

Custom

Sleep Timer

:

Off

SRS TS XT

:

Off

Energy Saving

:

Off

Dual l-ll

:

Mono

Move

Enter

Exit

English -

Plug & Play

When the TV is initially powered on, several basic settings proceed automatically and subsequently. The following settings are available.

1.

Press the POWER button on the remote control.



2.

The message "Start Plug & Play" is displayed with "OK" selected.



Select the appropriate language by pressing the ▲ or ▼ button.



3.

Press the ENTER button to confirm your choice.

Enter

Press the ◄ or ► button to select “Store Demo” or “Home Use”,



then the ENTER button.

Plug & Play

Start Plug & Play.

OK

We recommend setting the TV to "Home Use" mode for the best picture in your home environment.

"Store Demo" mode is only intended for use in retail environments.

If the unit is accidentally set to “Store Demo” mode and you want to return to “Home Use” (Standard): Press the Volume button on the TV. When the volume OSD is displayed, press and hold the MENU button on the TV for 5 seconds.

4.The message "Check antenna input." is displayed with "OK" selected.

Press the ENTER button.

Please check that the antenna cable is connected correctly.

5.Select the appropriate area by pressing the▲ or ▼ button. Press the ENTER button to confirm your choice.

6.The "Auto Store" menu is displayed with the "Start" selected. Press the ENTER button.

The channel search will start and end automatically.

Press the ENTER button at any time to interrupt the memorization process.

After all the available channels are stored, the "Clock Set" menu appears.

7.Press the ENTER button.

Select the "Month", "Day" , "Year", "Hour", "Minute", or "am/pm" by pressing the ◄ or ► button.

Set the "Month", "Day" , "Year", "Hour", "Minute", or "am/pm" by pressing the ▲ or ▼ button.

You can also set the “Month”, “Day”, “Year”, “Hour” and "Minute" by pressing the number buttons on the remote control.

8.Press the ENTER button to confirm your setting. The message “Enjoy your viewing” is displayed. When you have finished, press the ENTER button.

Even if the ENTER button is not pressed, the message will automatically disappear after several seconds.

Language: Select your language.

Area: Select your area.

Auto Store: Automatically scans for and stores channels available in the local area.

Clock Set: Sets the current time for the TV clock.

English -

If you want to reset this feature...

1.Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Setup", then press the

ENTER button.

2.Press the ENTER button again, to select "Plug & Play". For further details on setting up options, refer to the page 9.

The “Plug & Play” feature is only available in the TV mode.

TV

Setup



Plug & Play

:English

Language

Time



Cable Network Setup

Auto Wall-Mount

: Off

Melody

Entertainment

: Off

Energy Saving

: Off

PIP



Move

Enter

Return

Plug & Play

Start Plug & Play.

OK

Enter Return

Storing Channels Automatically

You can scan for the frequency ranges available to you (and availability depends on your area). Automatically allocated programme numbers may not correspond to actual or desired programme numbers. However, you can sort numbers manually and clear any channels you do not wish to watch.

1.Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Channel", then press the

ENTER button.

2.Press the ENTER button to select "Area".

3.Select the appropriate area by pressing the ▲ or ▼ button. Press the ENTER button to confirm your choice.

4.Press the ▲ or ▼ button to select "Auto Store", then press the

ENTER button.

TV

Channel





Area

: Asia/W.Europe

Auto Store





Manual Store





Channel Manager



Sort





Name





Fine Tune





Move

Enter

Return

5.Press the ENTER button.

The TV will begin memorizing all of the available channels.

Press the ENTER button at any time to interrupt the memorization process and return to the "Channel" menu.

6.After all the available channels are stored, the "Sort" menu appears. (refer to page 13)

English - 10

Storing Channels Manually











You can store television channels, including those received via

TV



Channel





cable networks.







Area

: Asia/W.Europe

When storing channels manually, you can choose:



Manual Store

















Auto Store





Whether or not to store each of the channels found.



Channel Manager



The programme number of each stored channel which you wish



Sort







Name







to identify.









Fine Tune























1.

Press the MENU button to display the menu.













Press the ▲ or ▼ button to select "Channel", then press the



Move

Enter

Return

2.

ENTER

button.



TV

Manual Store





Press the ▲ or ▼ button to select "Manual Store", then press







Programme

: P 2







the ENTER

button.











Colour System

: Auto



3.

Select the required option by pressing the ▲ or ▼ button, then



Sound System

: BG





Channel

: C 3







press the ENTER

button.



Search

: 77 MHz





4.



Store

: ?





When you are satisfied with your setting, press the













ENTER

button.













5.

Press the EXIT button to exit.



Move

Enter

Return













Programme (Programme number to be assigned to a channel)

-Press the ▲ or ▼ button until you find the correct number.

You can also select the channel number directly by pressing the numeric buttons (0~9).

Colour System: Auto/PAL/SECAM/NTSC4.43/NTSC3.58

-Press the ▲ or ▼ button to select the required colour standard.

Sound System: BG/DK/I/M

-Press the ▲ or ▼ button to select the required sound standard.

Channel (When you know the number of the channel to be stored)

-Press the ▲ or ▼ button to select C (Air channel) or S (Cable channel).

-Press the ► button, then press the ▲ or ▼ button to select the required number.

You can also select the channel number directly by pressing the numeric buttons (0~9).

If there is abnormal sound or no sound, re-select the sound standard required.

Search (When you do not know the channel numbers)

-Press the ▲ or ▼ button to start the search.

-The tuner scans the frequency range until the first channel or the channel that you selected is received on the screen.

Store (When you store the channel and associated programme number)

-Set to "OK" by pressing the ENTER button.

Channel mode

-P (Programme mode): When completing tuning, the broadcasting stations in your area have been assigned to position numbers from P00 to P99. You can select a channel by entering the position number in this mode.

-C (Air channel mode): You can select a channel by entering the assigned number to each air broadcasting station in this mode.

-S (Cable channel mode): You can select a channel by entering the assigned number for each cable channel in this mode.

English - 11

Adding / Locking Channels

Using the Channel Manager, you can conveniently lock or add channels.

1.Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Channel", then press the

ENTER button.

2.Press the ▲ or ▼ button to select "Channel Manager", then press the ENTER button.

TV

Channel





Area

: Asia/W.Europe

Auto Store





Manual Store





Channel Manager



Sort





Name





Fine Tune





Move

Enter

Return

Adding channels

Using the Channel List, you can add channels.

3.Select Channel List by pressing the ENTER button.

4.Move to the () field by pressing the ▲, ▼, ◄ or ► button, select a channel to be added, and press the ENTER button to add the channel.

If you press the ENTER button again, the ( ) symbol next to the channel disappears and the channel is not added.

” is active when "Child Lock" is selected to "On".

TV

Channel Manager





Channel List





Child Lock

: Off



Move

Enter

Return

Locking channels





Channel List



This feature allows you to prevent unauthorized users, such as

P

1 C3





children, from watching unsuitable programmes by muting out





1 / 10



video and audio.

Prog.



5.

Press the ▲ or ▼ button to select "Child Lock", then press the

0

C--



6.

ENTER

button.

1

C3



Select "On" by pressing the ▲ or ▼ button, then press the

2

BBC 1





ENTER

button.

3

C74



7.

Press the ▲ or ▼ button to select "Channel List", then press

4

C75





the ENTER button.

5

C76



8.

Move to the ( ) field by pressing the ▲, ▼, ◄ or ► button,

6

S3





select a channel to be locked, and press the ENTER

7

S4





8

S6





button.









9

S7





If you press the ENTER button again, the ( ) symbol







Add

Lock



next to the channel disappears and the channel lock is





cancelled.



Move

Enter



A blue screen is displayed when "Child Lock" is activated.



Page

Return

9.Press the EXIT button to exit.

Select "On" or "Off" in "Child Lock" to easily turn the channels which selected on "" to be active or inactive.

You can select these options by simply pressing the CH LIST button on the remote control.

English - 12

Sorting the Stored Channels

This operation allows you to change the programme numbers of the stored channels.

This operation may be necessary after using the auto store.

1.Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Channel", then press the

ENTER button.

2.Press the ▲ or ▼ button to select "Sort", then press the

ENTER button.

3.Select the channel number that you wish to change by pressing the ▲ or ▼ button.

Press the ENTER button.

The selected channel number and name are moved to right side.

4.Select the number of the programme to which the channel is to be moved by pressing the ▲ or ▼ button.

5.Press the ENTER button. The channel is moved to its new position and all other channels are shifted accordingly.

6.Repeat steps 3 to 5 for another channel to be sorted.

7.Press the EXIT button to exit.

TV

Channel





Area

: Asia/W.Europe

Auto Store





Manual Store





Channel Manager



Sort





Name





Fine Tune





Move

Enter

Return

TV



Sort



Prog.

Ch.

Name









0

C--





1

C23



2

C16





3

C3





4

S1













Move

Enter

Return

Assigning Channels Names

Channel names will be assigned automatically when channel information is broadcast. These names can be changed,

allowing you to assign new names.

1.Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Channel", then press the ENTER button.

2.Press the ▲ or ▼ button to select "Name", then press the

ENTER button.

3.If necessary, select the channel to be assigned to a new name by pressing the ▲ or ▼ button. Press the ENTER button

The selection bar is displayed around the name box.

4.





To...

Then...





Select a letter, number or symbol

Press the ▲ or ▼ button









Move on the next letter

Press the ► button



Move back the previous letter

Press the ◄ button



Confirm the name

Press the ENTER button

TV

Channel





Area

: Asia/W.Europe

Auto Store





Manual Store





Channel Manager



Sort





Name





Fine Tune





Move

Enter

Return

TV



Name



Prog.

Ch.

Name









0

C--

-----



1

C23

-----



2

C16

-----



3

C3

-----



4

S1

-----











Move

Enter

Return

The following characters are available: Letters of the alphabet (A~Z) / Numbers (0~9) / Special characters (+, -, *, /, space)

5.Repeat steps 3 to 4 for each channel to be assigned to a new name.

6.Press the EXIT button to exit.

English - 13

Fine Tuning Channel Reception

Use fine tuning to manually adjust a particular channel for optimal reception.

1.Use the number buttons to directly select the channel that you want to fine tune.

2.Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Channel", then press the ENTER button.

3.Press the ▲ or ▼ button to select "Fine Tune", then press the ENTER button.

4.Press the ◄ or ► button to adjust the fine tuning.

Press the ENTER button.

5.Press the EXIT button to exit.

Fine tuned channels that have been saved are marked with an asterisk "*" on the right-hand side of the channel number in the channel banner. And the channel number turns red.

To reset the fine-tuning, select "Reset" by pressing the ▲ or ▼ button and then press the ENTER button.

TV

Channel





Area

: Asia/W.Europe

Auto Store





Manual Store





Channel Manager



Sort





Name





Fine Tune





Move

Enter

Return



Fine Tune



P 1









0



Reset



Adjust

Save

Return

English - 14

Changing the Picture Standard

You can select the type of picture which best corresponds to your viewing requirements.

1.Press the MENU button to display the menu. Press the ENTER button, to select "Picture".

2.Press the ENTER button again, to select "Mode".

3.Press the ▲ or ▼ button to select the desired picture effect.

Press the ENTER button.

4.Press the EXIT button to exit.

Dynamic: Selects the picture for high-definition in a bright room.

Standard: Selects the picture for optimum display in a normal environment.

Movie: Selects the picture for comfortable display in a dark room.

The Picture mode must be adjusted separately for each input source.

You can also press the P.MODE button on the remote control to select one of the picture settings.

TV




Mode

: Standard

Backlight



7

Contrast



95

Brightness



40

Sharpness



50

Colour



50

Tint

G50

R50

Detailed Settings

sMore





Move

Enter

Return

TV




Mode

Dynamic

Backlight

Standard

Contrast

Movie

5

Brightness



40

Sharpness



50

Colour



50

Tint

G50

R50

Detailed Settings



sMore





Move

Enter

Return

Easy Setting

1.Press the TOOLS button on the remote control.

2.Press the ▲ or ▼ button to select “Picture Mode”.

3.Press the ◄ or ► button to select the desired picture mode.

4.Press the EXIT or TOOLS button to exit.



Tools



Anynet+ (HDMI-CEC)



Picture Mode

Standard ►

Sound Mode

:

Custom

Sleep Timer

:

Off

SRS TS XT

:

Off

Energy Saving

:

Off

Dual l-ll

:

Mono

Move

Adjust

Exit

English - 15

Adjusting the Custom Picture

Your set has several settings which allow you to control picture quality.

1.To select the desired picture effect, follow the

"Changing the Picture Standard" instructions number 1 to 3.

2.Press the ▲ or ▼ button to select a particular item. Press the

ENTER button.

3.Press the ◄ or ► button to decrease or increase the value of a particular item. Press theENTER button.

4.Press the EXIT button to exit.

Backlight: Adjusts the screen brightness by adjusting the LCD backlight brightness. (0~10)

Contrast: Adjusts the lightness and darkness between objects and the background.

Brightness: Adjusts the brightness of the whole screen.

Sharpness: Adjusts the outline of objects to either sharpen them or make them more dull.

Colour: Adjusts the colours, making them lighter or darker.

Tint: Adjusts the colour of objects, making them more red or green for a more natural look.

TV




Mode

: Standard

Backlight



7

Contrast



95

Brightness



40

Sharpness



50

Colour



50

Tint

G50

R50

Detailed Settings

sMore





Move

Enter

Return





Backlight



7







Move

Adjust

Return

The adjusted values are stored according to the selected Picture mode.

In PC mode, you can only make changes to "Backlight”, “Contrast" and “Brightness”.

TV, AV1, AV2, S-Video modes of the PAL system, you cannot use the "Tint" Function.

You can return to the factory defaults picture settings by selecting the "Reset". (Refer to "Resetting the Picture Settings to the Factory Defaults" on page 19)

The energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced, and then this will reduce the overall running cost.

Configuring Detailed Settings on the Picture

You can set detailed picture settings.

1.Press the MENU button to display the menu. Press the ENTER button, to select "Picture".

2.Press the ENTER button to select “Mode”.

Press the ▲ or ▼ button to select “Standard” or “Movie”, then press the ENTER button.

3.Press the ▲ or ▼ button to select "Detailed Settings", then press the ENTER button.

4.Select the required option by pressing the ▲ or ▼ button, then press the ENTER button.

5.When you are satisfied with your setting, press the ENTER button.

6.Press the EXIT button to exit.

"Detailed Settings" is available in "Standard" or "Movie" mode.

In PC mode, you can only make changes to “Dynamic Contrast”, “Gamma” and “White Balance” from among the “Detailed Settings” items.

TV




Mode

: Standard

Backlight



7

Contrast



95

Brightness



40

Sharpness



50

Colour



50

Tint

G50

R50

Detailed Settings

sMore





Move

Enter

Return

TV

Detailed Settings





Black Adjust

: Off



Dynamic Contrast : Medium



Gamma

: 0



Colour Space

: Native



White Balance





Flesh Tone

: 0



Edge Enhancement : Off



xvYCC

: Off



Move

Enter

Return

Black Adjust: Off/Low/Medium/High

You can directly select the black level on the screen to adjust the screen depth.

Dynamic Contrast: Off/Low/Medium/High

You can adjust the screen contrast so that the optimal contrast is provided.

English - 16

Gamma: -3 ~ +3

You can adjust the Primary Colour (Red, Green, Blue) Intensity.

Press the ◄ or ► button until you reach the optimal setting.

Colour Space: Auto/Native/Custom

Colour space is a Colour matrix composed of “Red”, “Green” and “Blue” Colours. Select your favourite Colour space to experience the most natural Colour.

Auto: Auto Colour Space automatically adjusts to the most natural colour tone based on programme sources.

Native: Native Colour Space offers deep and rich colour tone.

Custom: Adjusts the colour range to suit your preference.

Customizing the Colour Space

Colour: Red/Green/Blue/Yellow/Cyan/Magenta

Adjusts the Colour range to suit your preference.

“Colour” is available when “Colour Space” is set to “Custom”.

Press the ▲ or ▼ button to select “Red”, “Green”, “Blue”, “Yellow”, “Cyan” or “Magenta”.

Press the ENTER button.

Red/Green/Blue: In “Colour”, you can adjust the RGB values for the selected colour.

Press the ▲ or ▼ button to select "Red", "Green" or "Blue" to change it.

Press the ENTER button.

Press the ◄ or ► button to decrease or increase the value of a particular item. Press the

ENTER button.

Reset: Resets the colour space to the default values.

White Balance: R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain/Reset

You can adjust the colour temperature for more natural picture colours.

R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain: Changing the adjustment value will refresh the adjusted screen.

Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. Press the ◄ or ► button until you reach the optimal setting.

Reset: The previously adjusted white balance will be reset to the factory defaults.

Flesh Tone: -15 ~ +15

You can emphasize the pink 'flesh tone' in the picture.

Press the ◄ or ► button until you reach the optimal setting.

Changing the adjustment value will refresh the adjusted screen.

Edge Enhancement: Off/On

You can emphasize object boundaries in the picture.

xvYCC: Off/On

Setting the xvYCC mode to On increases detail and colour space when watching movies from an external device (ie. DVD player) connected to the HDMI or Component IN jacks. You must set the Picture Mode to Movie to enjoy this feature.

Only available in "HDMI" and "Component" on "Movie" mode.

If xvYCC function is active, PIP cannot be selected.

English - 17

Configuring Picture Option







1.

Press the MENU button to display the menu.

TV






Press the ENTER button, to select "Picture".

More





2.

Picture Options

Press the ▲ or ▼ button to select "Picture Options", then press

Reset

: OK

3.

the ENTER

button.







Select the required option by pressing the ▲ or ▼ button, then







4.

press the ENTER

button.







When you are satisfied with your setting, press the ENTER

Move

Enter

Return



button.

















5.

Press the EXIT button to exit.

TV

Picture Options



In PC mode, you can only make changes to the “Colour

Colour Tone

: Normal

Size

: 16:9

Tone” and “Size” from among the items in “Picture Options”.

Digital NR

: Auto



DNIe

: Off



HDMI Black Level : Normal



120Hz Motion Plus : Off

Colour Tone: Cool2/Cool1/Normal/Warm1/Warm2

Blue Only Mode

: Off







You can select the most comfortable colour tone to your eyes.

Move

Enter

Return

The adjusted values are stored according to the selected







"Picture" mode.







When the picture mode is set to Dynamic or Standard, Warm1 and Warm2 cannot be selected.

Size: 16:9/Wide Zoom/Zoom/4:3/Just Scan

You can select the picture size which best corresponds to your viewing requirements.

16:9: Adjusts the picture size to 16:9 appropriate for DVDs or wide broadcasting.

Wide Zoom: Magnify the size of the picture more than 4:3.

Zoom: Magnifies the 16:9 wide picture (in the vertical direction) to fit the screen size.

4:3: This is the default setting for a video movie or normal broadcasting.

Just Scan: Use the function to see the full image without any cutoff when HDMI (720p/1080i/ 1080p) or Component (1080i/1080p) signals are input.

In PC Mode, only "16:9" and "4:3" mode can be adjusted.

Settings can be adjusted and stored for each external device you have connected to an input of the TV.

Temporary image retention may occur when viewing a static image on the set for more than two hours.

"Wide Zoom": Move the screen up/down using the ▲ or ▼ button after selecting the by pressing the ► or ENTER button.

"Zoom": Select by pressing the ◄ or ►button. Use the ▲ or ▼ button to move the picture up and down. After selecting , use the ▲ or ▼ button to magnify or reduce the picture size in the vertical direction.

When Double ( , ) mode has been set in PIP, the Picture Size cannot be set.

After selecting “Just Scan” in HDMI (1080i/1080p) or Component (1080i/1080p) mode:

Select by pressing the ◄ or ►button. Use the ▲, ▼, ◄ or ► button to move the picture. Reset: Press the ◄ or ► button to select “Reset”, then press the ENTER button.

You can initialize the setting.

If you use the “Just Scan” function with HDMI 720p input, 1 line will be cut at the top, bottom, left and right as in the overscan function.

You can select these options by simply pressing the P.SIZE button on the remote control.

English - 18

Digital NR: Off/Low/Medium/High/Auto

If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static and ghosting that may appear on the screen.

When the signal is weak, select one of the other options until the best picture is displayed.

DNIe: Off/ Demo/On

This TV includes the DNIe function so as to provide a high visual quality. If you set DNIe to on, you can view the screen with the DNIe feature activated. If you set the DNIe to Demo, you can view the applied

DNIe and normal pictures on the screen, for demonstration purposes. Using this function, you can view the difference in the visual quality.

DNIe™ (Digital Natural Image engine)

This feature brings you more detailed image with 3D noise reduction, detail enhancement,

contrast enhancement and white enhancement. New image compensation Algorithm gives brighter, clearer, more detailed image to you. DNIe™ technology will fit every signal into your eyes.

This function is not available in "Movie" and "Standard" mode.

HDMI Black Level: Normal/Low

You can directly select the black level on the screen to adjust the screen depth.

This function is active only when the external input connects to HDMI(RGB signals).

120Hz Motion Plus: Off/Low/Medium/High/Demo

Removes drag from fast scenes with a lot of movement to provide a clearer picture.

This function is not available in PC mode.

If you enable "120Hz Motion Plus", noise may appear on the screen.

If this occurs, set "120Hz Motion Plus" to "Off" or select one of the other options.

Blue Only Mode: Off/On

This function is for AV device measurement experts. This function displays the blue signal only by removing the red and green signals from the video signal so as to provide a Blue Filter effect that is used to adjust the Colour and Tint of video equipment such as DVD players, Home Theaters, etc.

Using this function, you can adjust the Colour and Tint to preferred values appropriate to the signal level of each video device using the Red/Green/Blue/ Cyan/Magenta/Yellow Colour Bar Patterns, without using an additional Blue Filter.

“Blue Only Mode” is available when the picture mode is set to “Movie” or “Standard”.

Resetting the Picture Settings to the Factory Defaults

You can return to the factory defaults picture settings.

1.To select the desired picture effect, follow the "Changing the

Picture Standard" instructions number 1 to 3 (On page 15).

2.Press the ▲ or ▼ button to select "Reset", then press the

ENTER button.

3.Press the ▲ or ▼ button to select "OK" or "Cancel".

Press the ENTER button.

4.Press the EXIT button to exit.

The "Reset" will be set for each "Picture" mode.

TV




More





Picture Options





Reset

:

OK





Cancel

Move

Enter

Return

English - 19

Viewing the Picture In Picture (PIP)

You can display a sub picture within the main picture of set programme or video input. In this way, you can watch the picture of set programme or video input from any connected equipment while watching the main picture.

1.Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Setup", then press the

ENTER button.

2.Press the▲ or ▼ button to select "PIP", then press the

ENTER button.

3.Press the ENTER button to select “PIP”.

Press the▲ or ▼ button to select "On", then press the

ENTER button.

4.Select the required option by pressing the ▲ or ▼ button, then press the ENTER button.

5.When you are satisfied with your setting, press the ENTER button.

6.Press the EXIT button to exit.

You may notice that the picture in the PIP window becomes slightly unnatural when you use the main screen to view a game or karaoke.

Easy Setting

1.Press the TOOLS button on the remote control.

2.Press the ▲ or ▼ button to select “PIP”, then press the

ENTER button.

3.Press the ◄ or ► button to select the “On”.

4.Press the ▲ or ▼ button to select a particular item.

5.Press the ◄ or ► button to select the required option.

6.Press the EXIT or TOOLS button to exit.

PIP: On/Off

You can activate or deactivate the PIP function.

Main picture

Sub picture





Component 1, 2

TV, AV1, AV2





HDMI 1, 2, 3, 4

TV, AV1, AV2

PC

TV, AV1, AV2





TV

Setup



Plug & Play

:English

Language

Time



Cable Network Setup

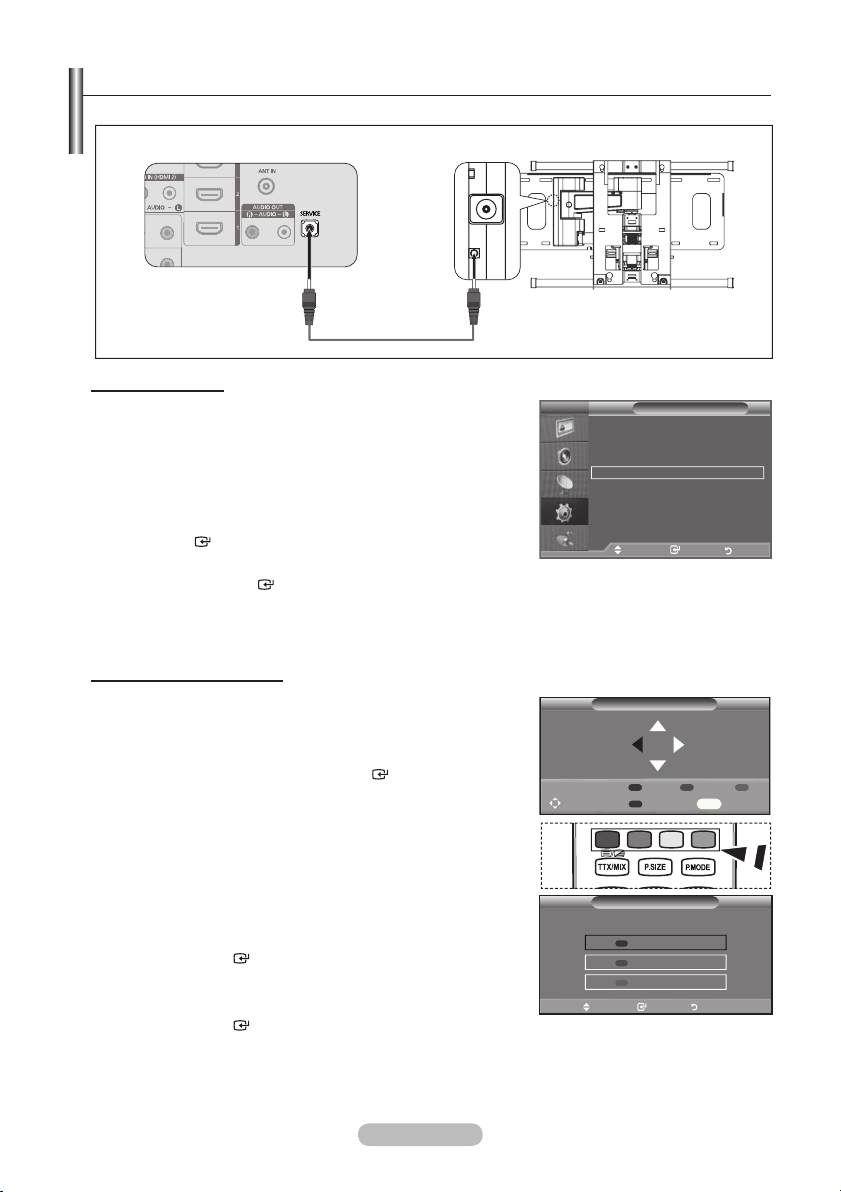

Auto Wall-Mount

:Off

Melody

Entertainment

: Off

Energy Saving

: Off

PIP



Move

Enter

Return

TV

Mode

: Custom

Equalizer

PIP



: On



PIP



SRS TS XT

: Off



Source

: TV



Auto Volume

: Off



Size

:



Internal Mute

: Off



Position

:



Reset

: P 1



Programme



Move

Enter

Return



Move

Enter

Return





Tools



Anynet+ (HDMI-CEC)



Picture Mode



: Standard

Sound Mode



:

Custom

Sleep Timer



:

Off

SRS TS XT



:

Off

Energy Saving



:

Off

PIP







Move



Enter

Exit













PIP



PIP

:

On ►

Source

:



tV

Programme

:



P 1

Size

:





Position

:





Move



Adjust

Return

Source

You can select a source of the sub-picture.

Size: / /

You can select a size of the sub-picture.

If main picture is in "HDMI" mode, "Size" is available.

Position:// /

You can select a position of the sub-picture.

In Double ( , ) mode, "Position" cannot be selected.

Programme

You can select a channel of the sub-picture only when the "Source" is set to "TV".

English - 20

Sound Features

1.Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Sound", then press the ENTER button.

2.Select the required option by pressing the ▲ or ▼ button, then press the ENTER button.

3.When you are satisfied with your setting, press the ENTER button.

4.Press the EXIT button to exit.

Mode: Standard/Music/Movie/Speech/Custom

You can select the type of special sound effect to be used when watching a given broadcast.

Easy Setting

1.Press the TOOLS button on the remote control.

2.Press the ▲ or ▼ button to select "Sound Mode".

3.Press the ◄ or ► button to select the desired sound mode.

4.Press the EXIT or TOOLS button to exit.

TV

Sound



Mode

: Custom

Equalizer



SRS TS XT

: Off

Auto Volume

: Off

TV Speaker

: On

Sound Select

: Main

Move

Enter

Return

Tools





Anynet+ (HDMI-CEC)



Picture Mode

: Standard

Sound Mode

Custom ►

Sleep Timer

:

Off

SRS TS XT

:

Off

Energy Saving

:

Off

Dual l-ll

:

Mono

Move

Adjust

Exit

Equalizer: Balance/100Hz/300Hz/1kHz/3kHz/10kHz

The sound settings can be adjusted to suit your personal preferences.

If you make any changes to these settings, the sound mode is automatically switched to "Custom".

TV



Equalizer



Balance

100Hz 300Hz 1kHz 3kHz 10kHz

Move

Adjust

Return

SRS TS XT: Off/On

TruSurround XT is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two speakers. TruSurround delivers a compelling, virtual surround sound experience through any two-speaker playback system, including internal television speakers. It is fully compatible with all multichannel formats.

Easy Setting

1.Press the TOOLS button on the remote control.

2.Press the ▲ or ▼ button to select “SRS TS XT”.

3.Press the ◄ or ► button to select the "Off" or "On".

4.Press the EXIT or TOOLS button to exit.



Tools





Anynet+ (HDMI-CEC)





Picture Mode

: Standard



Sound Mode

:

Custom



Sleep Timer

:

Off



SRS TS XT

Off

Energy Saving

:

Off



Dual l-ll

:

Mono



Move

Adjust



Exit

TruSurround XT, SRS and Symbol are trademarks of SRS Labs, Inc.

TruSurround XT technology is incorporated under license from SRS Labs,

Inc.

Auto Volume: Off/On

Each broadcasting station has its own signal conditions, and so it is not easy to adjust the volume

every time the channel is changed. This feature lets you automatically adjust the volume of the desired channel by lowering the sound output when the modulation signal is high or by raising the sound output when the modulation signal is low.

English - 21

Loading...
+ 52 hidden pages
