Introduction
Congratulations on your purchase of the Samson MDR8 mixer! The MDR8 is an eight channel mixer, with six low noise microphone pre-amps, and built-in 24 BIT DSP effects processor. The MDR8 also features HDM (Hard Disk Mode), which when engaged, provides a special monitoring and bussing mode ideal for interfacing with a computer based hard disk recorder. Clean, clear sound reproduction with dazzling digital effects including Delay, Chorus and lush Reverb, packaged in a rugged enclosure, ensure reliable high quality sound from performance to performance. Optimized for recording, live sound reinforcement and commercial installations, the MDR8 is an ideal mixer solution offering big sound in a compact package.
In these pages, you’ll find a detailed description of the features of the MDR8 mixer, as well a description of its front and rear panels, step-by-step instructions for its setup and use, and full specifications. You’ll also find a warranty card enclosed—please don’t forget to fill it out and mail it in so that you can receive online technical support and so we can send you updated information about these and other Samson products in the future.
With proper care and adequate air circulation, your MDR8 will operate trouble free for many years. We recommend you record your serial number in the space provided below for future reference.
Serial number:
Date of purchase:
Should your unit ever require servicing, a Return Authorization number (RA) must be obtained before shipping your unit to Samson. Without this number, the unit will not be accepted. Please call Samson at 1-800-3SAMSON (1-800-372-6766) for a Return Authorization number prior to shipping your unit. Please retain the original packing materials and if possible, return the unit in the original carton and packing materials.
2
MDR8 Features
The Samson MDR8, eight channel mixer with onboard 24 BIT DSP is a comprehensive, all-in-one solution for live sound, recording, fixed installation and post production applications. Here are some of its main features:
•Eight Channels – Four Mic/Line plus two Stereo inputs with mic pre’s.
•Flexible design topology ideal for live sound, recording and post production.
•On-board 24 BIT DSP (Digital Signal Processor) multi-effects processor with eight great sounding presets including REVERB, DELAY AND CHORUS.
•Unique monitoring and bussing in HDM (HARD DISK MODE) provides a seamless interface with computer based, hard disk recording systems.
•60 mm audio taper faders on all channels and the master Mix outputs.
•2T LEVEL control allows you to mix in a CD, DAT, Cassette, Computer Sound Card or Mini Disk with the channel faders.
•Three-band channel equalizer, +/-15dB at 80Hz, 2.5 KHz and 12KHz provides precise and musical results in sound shaping.
•Two Auxiliary Sends for built-in or external effects, on stage monitor mix, or headphone mixing.
•Five segment LED Meter with VU ballistics displays the main MIX output.
•High quality, low noise, discrete microphone pre-amplifiers with 48-Volt phantom power, provide Maximum Dynamic Range and transparent audio.
•Advanced circuit design using discrete components and high quality, low noise op-amps carefully selected at each stage of the signal path.
•Quality built and rugged construction ensure reliable performance from venue to venue and session to session.
•Three-year extended warranty.
3
Front and Rear Panel Layout
4
Front and Rear Panel Layout
FRONT PANEL

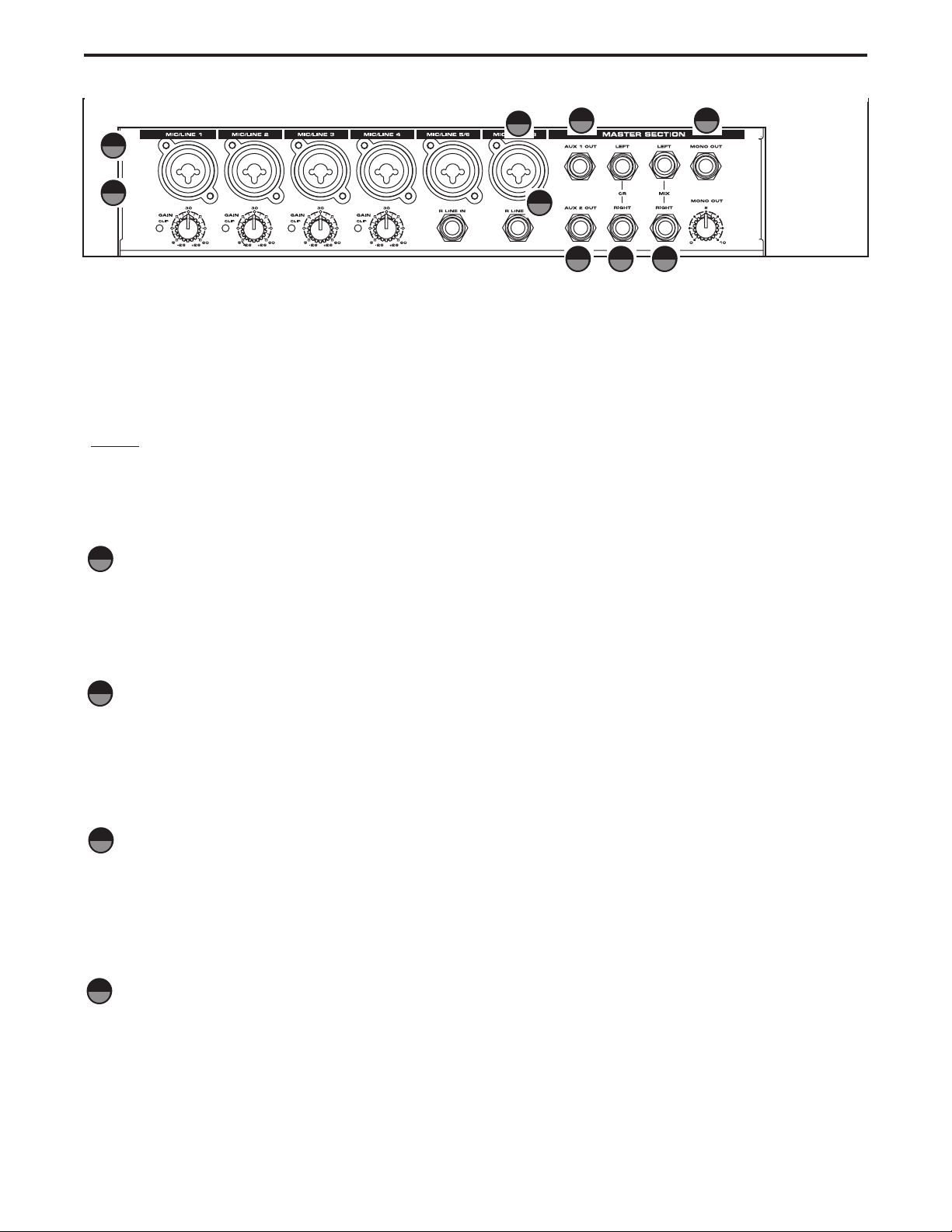

1MIC/LINE – Combination Input connector for Low-Noise Microphone pre-amp and Line level inputs.
2GAIN – Used to set the input level of the mic pre and line input.
3CLIP – Red LED will illuminate indicating when the mic GAIN has been adjusted too high.
4HIGH FREQUENCY - Controls the high band of the Channel Equalizer, +/- 15 dB at 12KHz.
5MID FREQUENCY - Controls the mid band of the Channel Equalizer, +/- 15 dB at 2.5KHz.
6LOW FREQUENCY - Controls the low band of the Channel Equalizer, +/- 15 dB at 80Hz.
7LOW CUT – Bass roll off switch at 80Hz used to eliminate unwanted low end rumble and hum.
8AUX 1/MONITOR – Pre fader auxiliary send that can be used with an external effects processor, or to create a cue or monitor mix.
9AUX 2/DSP – Post fader auxiliary send connected to the internal 24 BIT DSP effect processor and can also be used with an external effects processor.
10PAN – Controls the channel’s balance between left and right in the stereo bus.

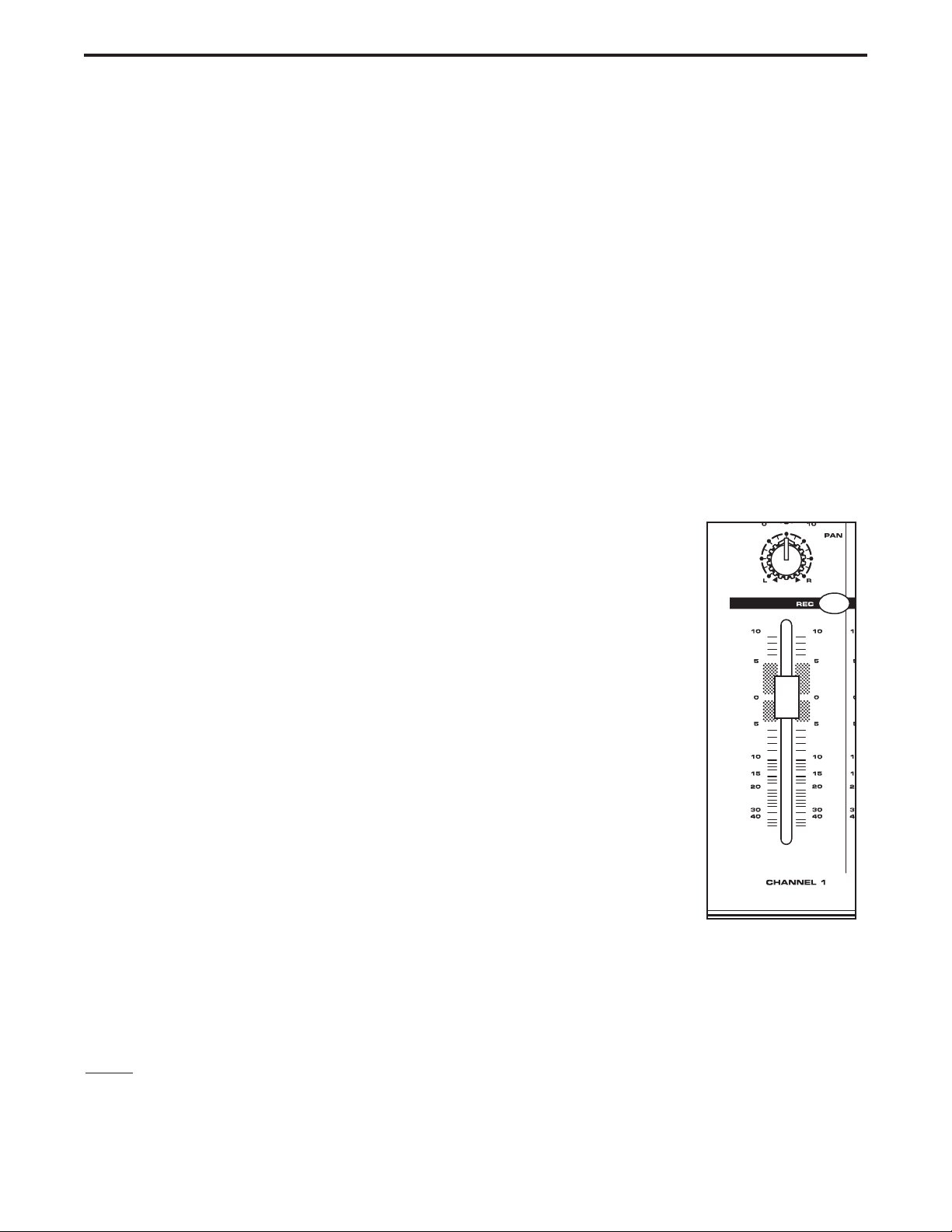

11RECORD – Used in the HDM (HARD DISK MODE) to assign the channel to the Record bus.
12FADER – 60 mm audio taper fader provides smooth control over level changes.
13STEREO RIGHT LINE – Right Line Input connector on the stereo channels.
14STEREO MIC/LINE - Combination Input connector for LowNoise Microphone pre-amp and Left Line Inputs for the stereo channels.
15AUX 2– Output connector for Auxiliary 2.
16AUX 1 - Output connector for Auxiliary 1.
17CONTROL ROOM – Left and Right output connectors for connecting a monitor system.
18MIX – Left and Right main Mix output connectors.
19MONO OUT – The Left and Right main Mix outputs are summed together to a monaural signal and sent out this connector.
20MONO OUT LEVEL – Used to set the volume of the MONO mix.
212TK LEVEL (2T TO MIX) - Level control used to mix the 2 track input.
222 TRACK INPUTS & OUTPUTS – Connect a DAT, Cassette, Mini Disk or Hard Disk Recording system.
23HDM ( Hard Disk Mode) - Switch configures the mixer for recording and overdubbing on a computer based hard disk recording system.
24PHANTOM – Indicates that the 48 Volt Phantom Power is on.
25POWER – Indicates the MDR8 is powered up.
26OUTPUT METER - Five segment display with VU ballistics indicates main Mix level.
27DSP PEAK LED - LED light illuminates when the signal sent to the internal DSP is clipped.
28AUX 1 RETURN – Used to mix in level of the external effects.
29AUX 2 RETURN – Used to mix in level of the internal DSP effects return.
30SELECT - Used to switch between the 8 pre-sets of the internal DSP effects processor.
312TRACK/MIX – Switches between the main Mix and the 2 Track in the Control Room output.
32C ROOM/HEADPHONE – Adjusts the volume of the control room speakers or headphones.
33HEADPHONE JACK – Connect stereo headphones here.
34MIX FADERS- Used to control the overall volume of the Left and Right main Mix outputs.
REAR PANEL
AAC ADAPTER INLET – Connect External AC power supply here.
BPOWER – Switches on the MDR8’s main power.
CPHANTOM – Engages the 48-Volt Phantom power supply to microphone preamps.
DAUX 1 RETURN – Connectors for stereo effects return.
EAUX 2 RETURN – Connectors for stereo effects return.
5

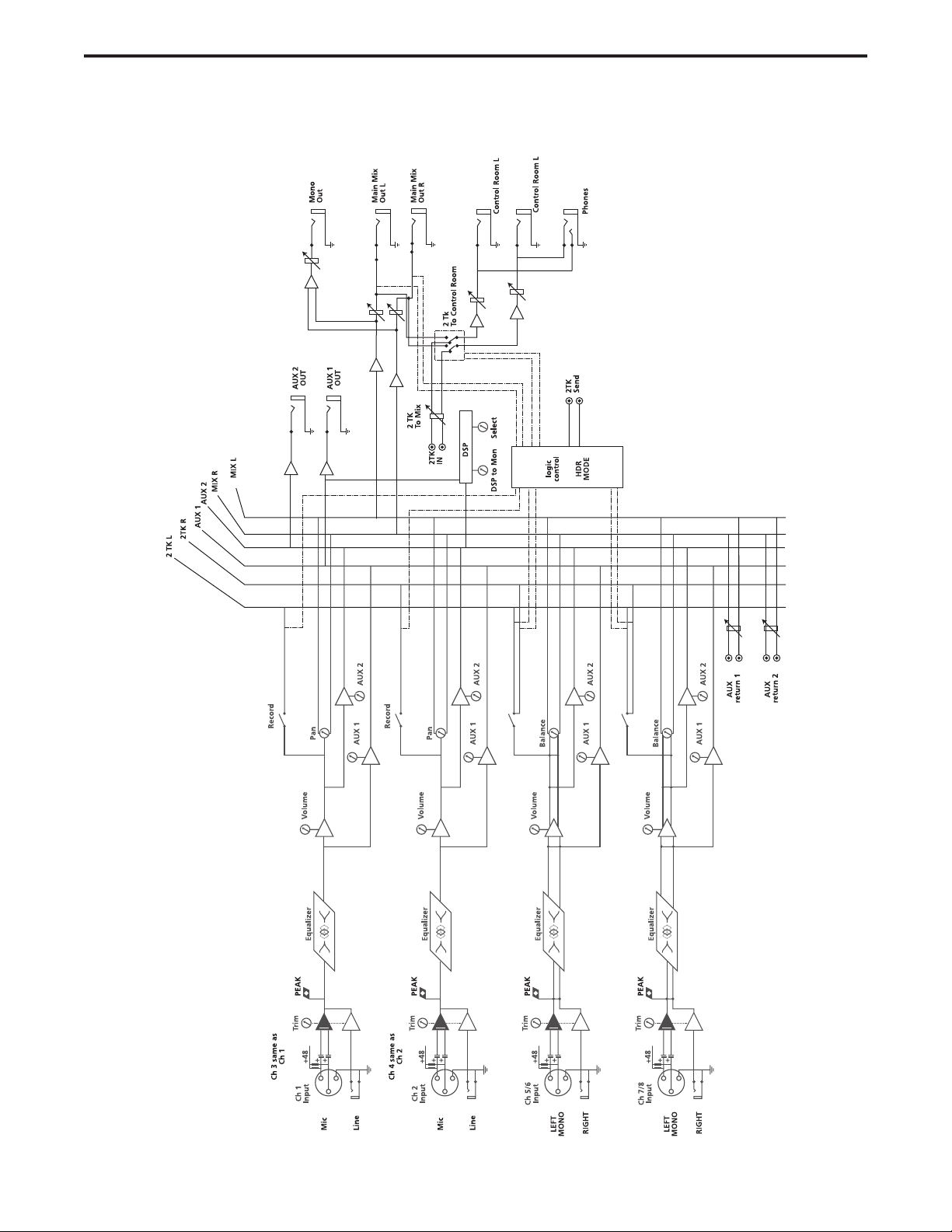

Controls and Functions
MONO INPUT CHANNEL SECTION
The following section details each part of the MDR8’s MONO INPUT CHANNELS including the GAIN control, 3- BAND EQ, AUX sends, RECORD, PAN and LEVEL controls. The input channels one through four on the MDR8 feature high quality, discrete transistor pre-amp providing transparency and extended dynamic range. The combination connector accepts a standard XLR mic cable for microphone level signals, or a standard 1/4" phone cable,either balanced (TRS – TIP/ RING/SLEEVE) or unbalanced (TS – TIP/SLEEVE) for line level signals.
1 |
GAIN |
|
|
|
The MDR8’s pre-amp stage has a variable GAIN control with a range of 5 to |
|
|
|
60dB on the MIC input and –26 to +26dB on the LINE input. |
|
|
2 |
CLIP LED |
|
1 |
|
The MDR8’s MIC/LINE pre-amp also includes a CLIP LED which, when illumi- |
2 |
|
|
nated, indicates that the signal is peaking or overloading. To reduce distortion, |
|
|
|
|
|
|
|
lower the GAIN control to keep this LED from staying on. |
|
|
3 |
CHANNEL EQUALIZER |
|
|
|
The MDR8 input channels feature a 3-band equalizer allowing you to adjust the |
|
|
|
high, mid, and low frequencies independently on each channel. The channel’s |
|
|
|
frequency response is flat when the knobs are in the "12:00" position. Rotating |
|
|
|
the knob towards the right will boost the corresponding frequency band by |
|
|
|
15dB, and rotating it towards the left will cut the frequency by 15dB. The fre- |
3 |
|
|
quency centers, range of boost or cut, and equalizer type for each band are as |
|
|
|
follows: |
|
|
|
High: 12KHz +/- 15dB shelving type |
|
|
|
Mid: 2.5KHz +/- 15dB peaking type |
|
|
|
Low: 80Hz +/- 15dB shelving type |
|
|
4 |
LOW CUT FILTER |
5 |
4 |
|
|
|
|
|
Each of the MDR8’s channels include a LOW CUT (or high pass) filter which |
|
|
|
rolls off the low frequencies from 80Hz and below at the rate of 12dB per |
6 |
|
|
octave. |
|
|
|
|
|
|
5 |
AUX 1/MON SEND |
|
|
The MDR8 has two auxiliary sends which can be used for sending signals to the external effects devices or for creating a monitor mix. The AUX1/MON section is often used for a monitor mix in a live sound mixing, or for a headphone mix in a recording application. Each input channel includes an AUX 1/Mon send which controls the amount of that channel’s signal that is sent to the AUX 1/Mon bus. The Input channel’s AUX 2/Mon sends are mixed together and are sent to the AUX 1 OUT jack.
6 AUX 2 / DSP Send
The MDR8 provides high quality, 24 Bit digital effects, and the level of effects can be set independently on each channel. The channel’s AUX 2/DSP knob controls the amount of signal that is sent to the AUX 2/DSP bus. The signal of the AUX 2/DSP bus is routed to the internal DSP effects section for onboard signal processing. The AUX 2/DSP signal can also be sent to an external effect device connected to the AUX 2 OUT jacks located in the MASTER SECTION jack field.
6
