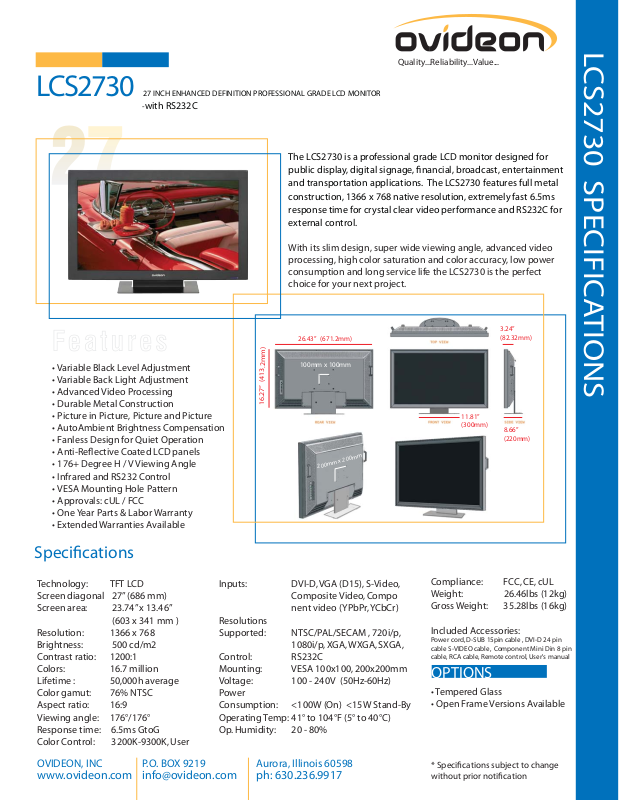

LCS2730 27 INCH ENHANCED DEFINITION PROFESSIONAL GRADE LCD MONITOR

-withRS232C















The LCS2730 is a professional grade LCD monitor designed for





























public display, digital signage, financial, broadcast, entertainment















and transportation applications. The LCS2730 features full metal















construction, 1366 x 768 native resolution, extremely fast 6.5ms















response time for crystal clear video performance and RS232C for















external control.





























With its slim design, super wide viewing angle, advanced video















processing, high color saturation and color accuracy, low power















consumption and long service life the LCS2730 is the perfect















choice for your next project.



















































































































































3.24”

















26.43”

(671.2mm)





(82.32mm)







• Variable Black Level Adjustment



(413.2mm)





100mm x 100mm













































































• Variable Back Light Adjustment



































16.27”































• Advanced Video Processing

































• Durable Metal Construction

































• Picture in Picture, Picture and Picture



















11.81”





































• AutoAmbient Brightness Compensation



















(300mm)





























8.66”







• Fanless Design for Quiet Operation























(220mm)







Anti-ReflectiveCoated LCD panels













m



















• 176+ Degree H / V Viewing Angle











x

200m





























200mm























• Infrared and RS232 Control



































• VESA Mounting Hole Pattern



































• Approvals: cUL / FCC



































• One Year Parts & Labor Warranty



































• Extended Warranties Available































































Specifications

























































Technology:

TFT LCD

Inputs:



DVI-D,VGA(D15),S-Video,

Screen diagonal

27” (686 mm)







Composite Video, Compo

Screen area:

23.74” x 13.46”







nent video (YPbPr,YCbCr)



(603 x 341 mm )

Resolutions



Resolution:

1366 x 768

Supported:

NTSC/PAL/SECAM , 720i/p,

Brightness:

500 cd/m2







1080i/p, XGA,WXGA, SXGA,

Contrast ratio:

1200:1

Control:



RS232C

Colors:

16.7 million

Mounting:

VESA 100x100, 200x200mm

Lifetime :

50,000h average

Voltage:



100 - 240V (50Hz-60Hz)

Color gamut:

76% NTSC

Power





Aspect ratio:

16:9



Consumption:

<100W (On) <15W Stand-By

Viewing angle:

176°/176°

Operating Temp: 41° to 104°F (5° to 40°C)

Response time:

6.5ms GtoG

Op. Humidity:

20 - 80%

Color Control:

3200K-9300K,User









OVIDEON, INC



P.O. BOX 9219





Aurora, Illinois 60598







www.ovideon.com

info@ovideon.com



ph: 630.236.9917















Compliance:

FCC, CE, cUL

Weight:

26.46lbs (12kg)

Gross Weight:

35.28lbs (16kg)

Included Accessories:

Power cord, D-SUB15pin cable ,DVI-D24 pin cableS-VIDEOcable, Component Mini Din 8 pin cable, RCA cable, Remote control, User's manual

OPTIONS

Tempered Glass

Open Frame Versions Available

* Specifications subject to change without prior notification

SPECIFICATIONS LCS2730
