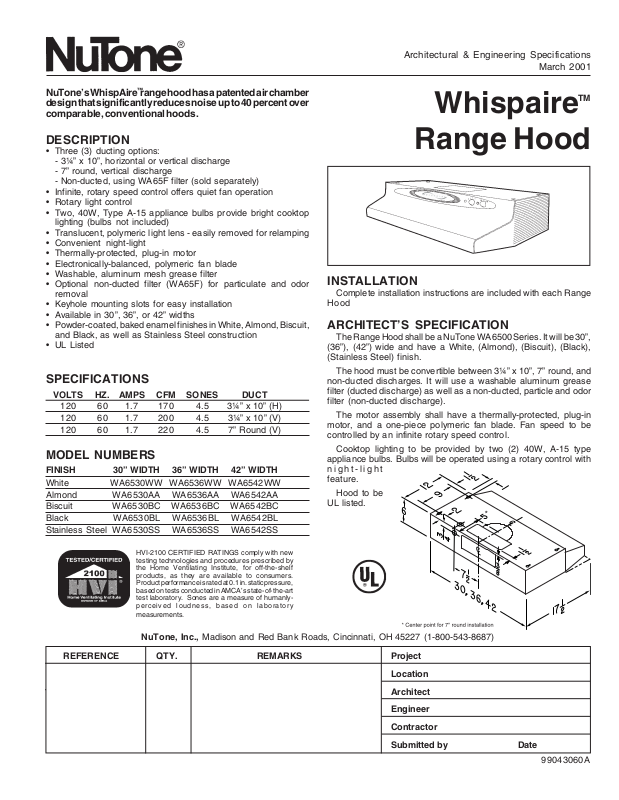

Architectural & Engineering Specifications
March 2001
NuTone’sWhispAire™rangehoodhasapatentedairchamber designthatsignificantlyreducesnoiseupto40percentover comparable,conventionalhoods.
DESCRIPTION
•Three (3) ducting options:
-3¼” x 10”, horizontal or vertical discharge
-7” round, vertical discharge
-Non-ducted, using WA65F filter (sold separately)
•Infinite, rotary speed control offers quiet fan operation
•Rotary light control
•Two, 40W, Type A-15 appliance bulbs provide bright cooktop lighting (bulbs not included)
•Translucent, polymeric light lens - easily removed for relamping
•Convenient night-light
•Thermally-protected, plug-in motor
•Electronically-balanced, polymeric fan blade
•Washable, aluminum mesh grease filter
•Optional non-ducted filter (WA65F) for particulate and odor removal
•Keyhole mounting slots for easy installation
•Available in 30”, 36”, or 42” widths
•Powder-coated, baked enamel finishes in White, Almond, Biscuit, and Black, as well as Stainless Steel construction
•UL Listed
SPECIFICATIONS
VOLTS |
HZ. |
AMPS |
CFM |
SONES |
DUCT |
120 |
60 |
1.7 |
170 |
4.5 |
3¼” x 10” (H) |
120 |
60 |
1.7 |
200 |
4.5 |
3¼” x 10” (V) |
120 |
60 |
1.7 |
220 |
4.5 |
7” Round (V) |
MODEL NUMBERS
FINISH |
30” WIDTH |
36” WIDTH |
42” WIDTH |
White |
WA6530WW WA6536WW WA6542WW |
||
Almond |
WA6530AA |
WA6536AA |
WA6542AA |
Biscuit |
WA6530BC |
WA6536BC |
WA6542BC |
Black |
WA6530BL |
WA6536BL |
WA6542BL |
Stainless Steel WA6530SS |
WA6536SS |
WA6542SS |
|
HVI-2100 CERTIFIED RATINGS comply with new testing technologies and procedures prescribed by the Home Ventilating Institute, for off-the-shelf products, as they are available to consumers. Product performance is rated at 0.1 in. static pressure, based on tests conducted in AMCA’s state-of-the-art test laboratory. Sones are a measure of humanlyperceived loudness, based on laboratory measurements.
WhispaireTM
Range Hood
INSTALLATION
Complete installation instructions are included with each Range Hood
ARCHITECT’S SPECIFICATION
The Range Hood shall be a NuTone WA6500 Series. It will be 30”, (36”), (42”) wide and have a White, (Almond), (Biscuit), (Black), (Stainless Steel) finish.
The hood must be convertible between 3¼” x 10”, 7” round, and non-ducted discharges. It will use a washable aluminum grease filter (ducted discharge) as well as a non-ducted, particle and odor filter (non-ducted discharge).
The motor assembly shall have a thermally-protected, plug-in motor, and a one-piece polymeric fan blade. Fan speed to be controlled by an infinite rotary speed control.
Cooktop lighting to be provided by two (2) 40W, A-15 type appliance bulbs. Bulbs will be operated using a rotary control with n i g h t - l i g h t
feature.
Hood to be
UL listed.
NuTone, Inc., Madison and Red Bank Roads, Cincinnati, OH 45227 (1-800-543-8687)
REFERENCE |
QTY. |
REMARKS |
Project |
Location
Architect
Engineer
Contractor
Submitted by |
Date |
99043060A
