Portable Projector

NP215/NP210/NP115/NP110

User’s Manual

The NP210 and NP115 are not distributed in North America.

1st edition, August 2009

DLP and BrilliantColor are trademarks of Texas Instruments.

IBM is a trademark or registered trademark of International Business Machines Corporation.

Macintosh, Mac OS X and PowerBook are trademarks of Apple Inc., registered in the U.S. and other countries.

Microsoft, Windows, Windows Vista, and PowerPoint are either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

MicroSaver is a registered trademark of Kensington Computer Products Group, a division of ACCO Brands.

Other product and company names mentioned in this user’s manual may be the trademarks or registered trademarks of their respective holders.

NOTES

(1)The contents of this user’s manual may not be reprinted in part or whole without permission.

(2)The contents of this user’s manual are subject to change without notice.

(3)Great care has been taken in the preparation of this user’s manual; however, should you notice any questionable points, errors or omissions, please contact us.

(4)Notwithstanding article (3), NEC will not be responsible for any claims on loss of profit or other matters deemed to result from using the Projector.

Important Information

Safety Cautions

Precautions

Please read this manual carefully before using your NEC NP215/NP210/NP115/NP110 projector and keep the manual handy for future reference.

CAUTION

To turn off main power, be sure to remove the plug from power outlet.

The power outlet socket should be installed as near to the equipment as possible, and should be easily accessible.

CAUTION

TO PREVENT SHOCK, DO NOT OPEN THE CABINET.

THERE ARE HIGH-VOLTAGE COMPONENTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol warns the user that uninsulated voltage within the unit may be sufficient to cause electrical shock. Therefore, it is dangerous to make any kind of contact with any part inside of the unit.

This symbol alerts the user that important information concerning the operation and maintenance of this unit has been provided.

The information should be read carefully to avoid problems.

WARNING: TO PREVENT FIRE OR SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

DO NOT USE THIS UNIT’S PLUG WITH AN EXTENSION CORD OR IN AN OUTLET UNLESS ALL THE PRONGS CAN BE FULLY INSERTED.

DOC Compliance Notice (for Canada only)

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Machine Noise Information Regulation - 3. GPSGV,

The highest sound pressure level is less than 70 dB (A) in accordance with EN ISO 7779.

Disposing of your used product

EU-wide legislation as implemented in each Member State requires that used electrical and electronic products carrying the mark (left) must be disposed of separately from normal household waste. This includes projectors and their electrical accessories or lamps. When you dispose of such products, please follow the guidance of your local authority and/or ask the shop where you purchased the product.

After collecting the used products, they are reused and recycled in a proper way. This effort will help us reduce the wastes as well as the negative impact such as mercury contained in a lamp to the human health and the environment at the minimum level.

The mark on the electrical and electronic products only applies to the current European Union Member States.

WARNING TO CALIFORNIA RESIDENTS:

Handling the cables supplied with this product will expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm. Wash hands after handling.

i

Important Information

RF Interference (for USA only)

WARNING

The Federal Communications Commission does not allow any modifications or changes to the unit EXCEPT those specified by NEC Display Solutions of America, Inc. in this manual. Failure to comply with this government regulation could void your right to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio / TV technician for help.

For UK only: In UK, a BS approved power cable with moulded plug has a Black (five Amps) fuse installed for use with this equipment. If a power cable is not supplied with this equipment please contact your supplier.

Important Safeguards

These safety instructions are to ensure the long life of your projector and to prevent fire and shock. Please read them carefully and heed all warnings.

Installation

Do not place the projector in the following conditions:

-on an unstable cart, stand, or table.

-near water, baths, or damp rooms.

-in direct sunlight, near heaters, or heat radiating appliances.

-in a dusty, smoky or steamy environment.

-on a sheet of paper or cloth, rugs or carpets.

If you wish to have the projector installed on the ceiling:

-Do not attempt to install the projector yourself.

-The projector must be installed by qualified technicians in order to ensure proper operation and reduce the risk of bodily injury.

-In addition, the ceiling must be strong enough to support the projector and the installation must be in accordance with any local building codes.

-Please consult your dealer for more information.

WARNING

Do not cover the lens with the lens cap or equivalent while the projector is on. Doing so can lead to melting of the cap due to the heat emitted from the light output.

Do not place any objects, which are easily affected by heat, in front of the projector lens. Doing so could lead to the object melting from the heat that is emitted from the light output.

ii

Important Information

Place the projector in a horizontal position

The tilt angle of the projector should not exceed 10 degrees, nor should the projector be installed in any way other than the desktop and ceiling mount, otherwise lamp life could decrease dramatically.

10˚

Fire and Shock Precautions

Ensure that there is sufficient ventilation and that vents are unobstructed to prevent the build-up of heat inside your projector. Allow at least 4 inches (10cm) of space between your projector and a wall.

Do not try to touch the ventilation outlet on the front side as it can become heated while the projector is turned on and immediately after the projector is turned off.

Prevent foreign objects such as paper clips and bits of paper from falling into your projector.Do not attempt to retrieve any objects that might fall into your projector. Do not insert any metal objects such as a wire or screwdriver into your projector. If something should fall into your projector, disconnect it immediately and have the object removed by a qualified service personnel.

Do not place any objects on top of the projector.

Do not touch the power plug during a thunderstorm. Doing so can cause electrical shock or fire.

The projector is designed to operate on a power supply of 100-240V AC 50/60 Hz. Ensure that your power supply fits this requirement before attempting to use your projector.

Do not look into the lens while the projector is on. Serious damage to your eyes could result.

Keep any items such as magnifying glass out of the light path of the projector.The light being projected from the lens is extensive, therefore any kind of abnormal objects that can redirect light coming out of the lens, can cause unpredictable outcome such as fire or injury to the eyes.

Do not place any objects, which are easily affected by heat, in front of a projector exhaust vent.

Doing so could lead to the object melting or getting your hands burned from the heat that is emitted from the exhaust.

Handle the power cable carefully. A damaged or frayed power cable can cause electric shock or fire.

-Do not use any power cables than the supplied one.

-Do not bend or tug the power cable excessively.

-Do not place the power cable under the projector, or any heavy object.

-Do not cover the power cable with other soft materials such as rugs.

-Do not heat the power cable.

-Do not handle the power plug with wet hands.

Turn off the projector, unplug the power cable and have the projector serviced by a qualified service personnel under the following conditions:

-When the power cable or plug is damaged or frayed.

-If liquid has been spilled into the projector, or if it has been exposed to rain or water.

iii

Important Information

-If the projector does not operate normally when you follow the instructions described in this user's manual.

-If the projector has been dropped or the cabinet has been damaged.

-If the projector exhibits a distinct change in performance, indicating a need for service.

Disconnect the power cable and any other cables before carrying the projector.

Turn off the projector and unplug the power cable before cleaning the cabinet or replacing the lamp.

Turn off the projector and unplug the power cable if the projector is not to be used for an extended period of time.

When using a LAN cable (NP215 only):

For safety, do not connect to the connector for peripheral device wiring that might have excessive voltage.

CAUTION

Do not use the tilt-foot for purposes other than originally intended. Misuses such as using the tilt foot to carry or hang (from the wall or ceiling) the projector can cause damage to the projector.

Do not send the projector in the soft case by parcel delivery service or cargo shipment.The projector inside the soft case could be damaged.

Select [HIGH] in Fan mode if you continue to use the projector for consecutive days. (From the menu, select [SETUP] → [OPTIONS(1)] → [FAN MODE] → [HIGH].)

Do not try to touch the ventilation outlet on the left front (when seen from the front) as it can become heated while the projector is turned on and immediately after the projector is turned off.

Do not turn off the AC power for 60 seconds after the lamp is turned on and while the POWER indicator is blinking green.

Doing so could cause premature lamp failure.

Remote Control Precautions

Handle the remote control carefully.

If the remote control gets wet, wipe it dry immediately.

Avoid excessive heat and humidity.

Do not heat, take apart, or throw batteries into fire.

If you will not be using the remote control for a long time, remove the batteries.

Ensure that you have the batteries' polarity (+/–) aligned correctly.

Do not use new and old batteries together, or use different types of batteries together.

Dispose of used batteries according to your local regulations.

Lamp Replacement

To replace the lamp, follow all instructions provided on page 65.

Be sure to replace the lamp when the message [THE LAMP HAS REACHED THE END OF ITS USABLE LIFE. PLEASE REPLACE THE LAMP.] appears. If you continue to use the lamp after the lamp has reached the end of its usable life, the lamp bulb may shatter, and pieces of glass may be scattered in the lamp case. Do not touch them as the pieces of glass may cause injury.

If this happens, contact your dealer for lamp replacement.

A Lamp Characteristic

The projector has a high-pressure mercury lamp as a light source.

A lamp has a characteristic that its brightness gradually decreases with age. Also repeatedly turning the lamp on and off will increase the possibility of its lower brightness.

iv

Important Information

CAUTION:

DO NOT TOUCH THE LAMP immediately after it has been used. It will be extremely hot. Turn the projector off and then disconnect the power cable. Allow at least one hour for the lamp to cool before handling.

When removing the lamp from a ceiling-mounted projector, make sure that no one is under the projector. Glass fragments could fall if the lamp has been burned out.

Note for US Residents

The lamp in this product contains mercury. Please dispose according to Local, State or Federal Laws.

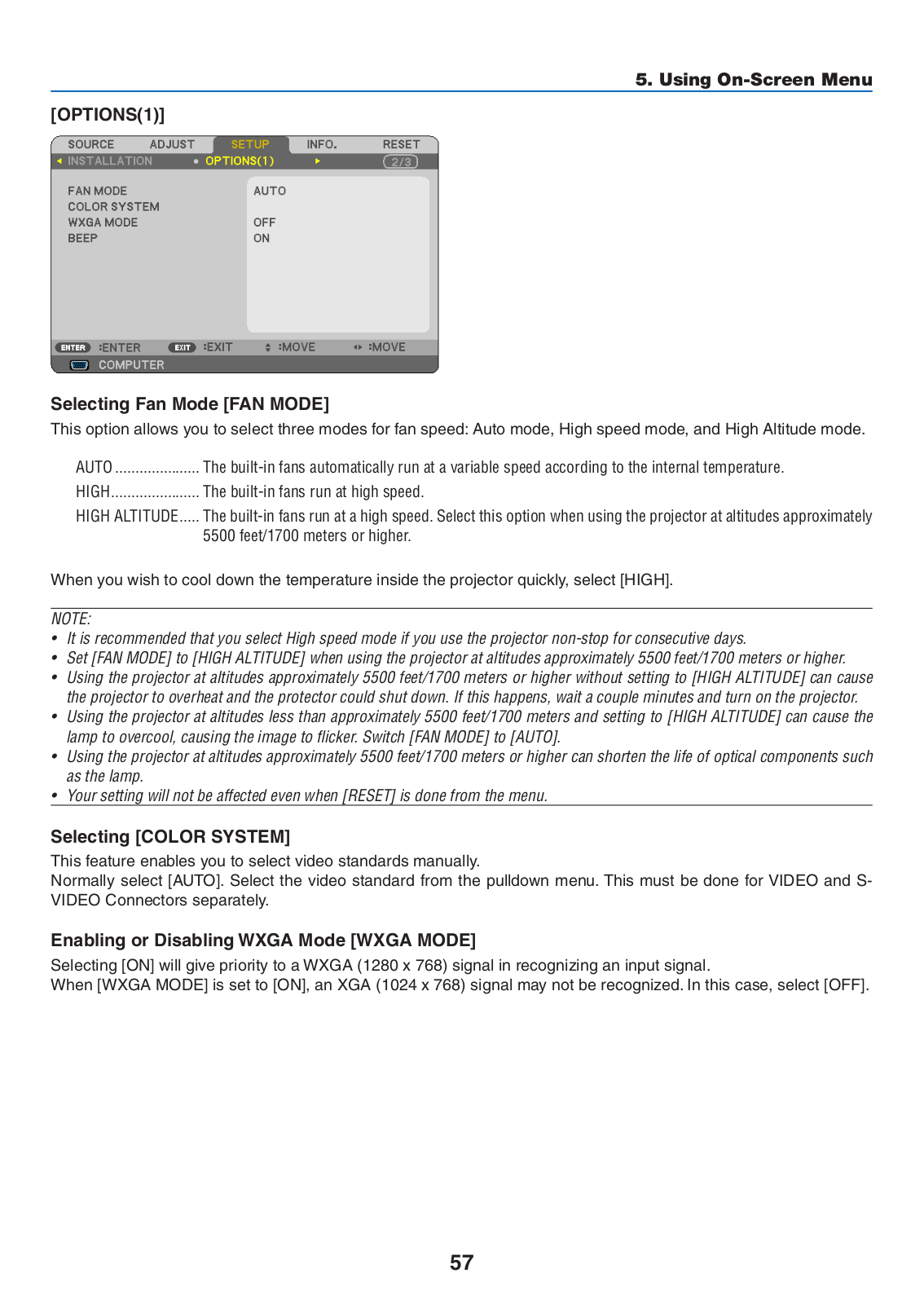

About High Altitude mode

Set [FAN MODE] to [HIGH ALTITUDE] when using the projector at altitudes approximately 5500 feet/1700 meters or higher.

Using the projector at altitudes approximately 5500 feet/1700 meters or higher without setting to [HIGH ALTITUDE] can cause the projector to overheat and the protector could shut down. If this happens, wait a couple minutes and turn on the projector.

Using the projector at altitudes less than approximately 5500 feet/1700 meters and setting to [HIGH ALTITUDE] can cause the lamp to overcool, causing the image to flicker. Switch [FAN MODE] to [AUTO].

Using the projector at altitudes approximately 5500 feet/1700 meters or higher can shorten the life of optical components such as the lamp.

About Copyright of original projected pictures:

Please note that using this projector for the purpose of commercial gain or the attraction of public attention in a venue such as a coffee shop or hotel and employing compression or expansion of the screen image with the following functions may raise concern about the infringement of copyrights which are protected by copyright law.

[ASPECT RATIO], [KEYSTONE], Magnifying feature and other similar features.

v

Table of Contents



Important Information............................................................................................

i

1. Introduction...........................................................................................................

1

1 What’s in the Box?..........................................................................................................

1

Introduction to the Projector...........................................................................................

2

Congratulations on Your Purchase of the Projector..................................................

2

Features you'll enjoy:................................................................................................

2

About this user's manual..........................................................................................

3

Part Names of the Projector...........................................................................................

4

Front/Top...................................................................................................................

4

Rear..........................................................................................................................

4

Top Features.............................................................................................................

5

Terminal Panel Features...........................................................................................

5

Part Names of the Remote Control................................................................................

6

Battery Installation....................................................................................................

7

Remote Control Precautions....................................................................................

7

Operating Range for Wireless Remote Control........................................................

7

2. Installation and Connections......................................................................

8

Setting Up the Screen and the Projector........................................................................

8

Selecting a Location.................................................................................................

8

Throw Distance and Screen Size.............................................................................

9

Making Connections.....................................................................................................

11

Connecting Your PC or Macintosh Computer.........................................................

11

Connecting an External Monitor.............................................................................

12

Connecting Your DVD Player with Component Output...........................................

13

Connecting Your VCR.............................................................................................

14

Connecting to a Network (NP215 only)..................................................................

15

Connecting the Supplied Power Cable...................................................................

16

3. Projecting an Image (Basic Operation)...............................................

17

Turning on the Projector...............................................................................................

17

Note on Startup screen (Menu Language Select screen)......................................

18

Selecting a Source.......................................................................................................

19

Selecting the computer or video source.................................................................

19

Adjusting the Picture Size and Position........................................................................

20

Adjust the Tilt Foot..................................................................................................

21

Zoom......................................................................................................................

22

Focus......................................................................................................................

22

Correcting Keystone Distortion....................................................................................

23

Correcting Keystone Distortion...............................................................................

23

Adjusting with buttons on the cabinet.....................................................................

23

Adjusting with the remote control...........................................................................

24

Optimizing Computer Signal Automatically..................................................................

25

Adjusting the Image Using Auto Adjust..................................................................

25

Turning Up or Down Volume.........................................................................................

25

7 Turning off the Projector...............................................................................................

26

After Use......................................................................................................................

27

vi



Table of Contents

4. Convenient Features......................................................................................

28

1 Turning off the Image and Sound.................................................................................

28

2 Freezing a Picture........................................................................................................

28

Enlarging a Picture.......................................................................................................

28

Changing Eco Mode.....................................................................................................

29

5 Checking Energy-Saving Effect [CARBON METER]....................................................

30

6 Preventing the Unauthorized Use of the Projector [SECURITY].......................................

31

7 Using the Optional Remote Mouse Receiver (NP01MR).............................................

34

8 Network Setting by Using an HTTP Browser (NP215 only).........................................

36

5. Using On-Screen Menu................................................................................

39

Using the Menus..........................................................................................................

39

2 Menu Elements............................................................................................................

40

3 List of Menu Items........................................................................................................

41

4 Menu Descriptions & Functions [SOURCE].................................................................

43

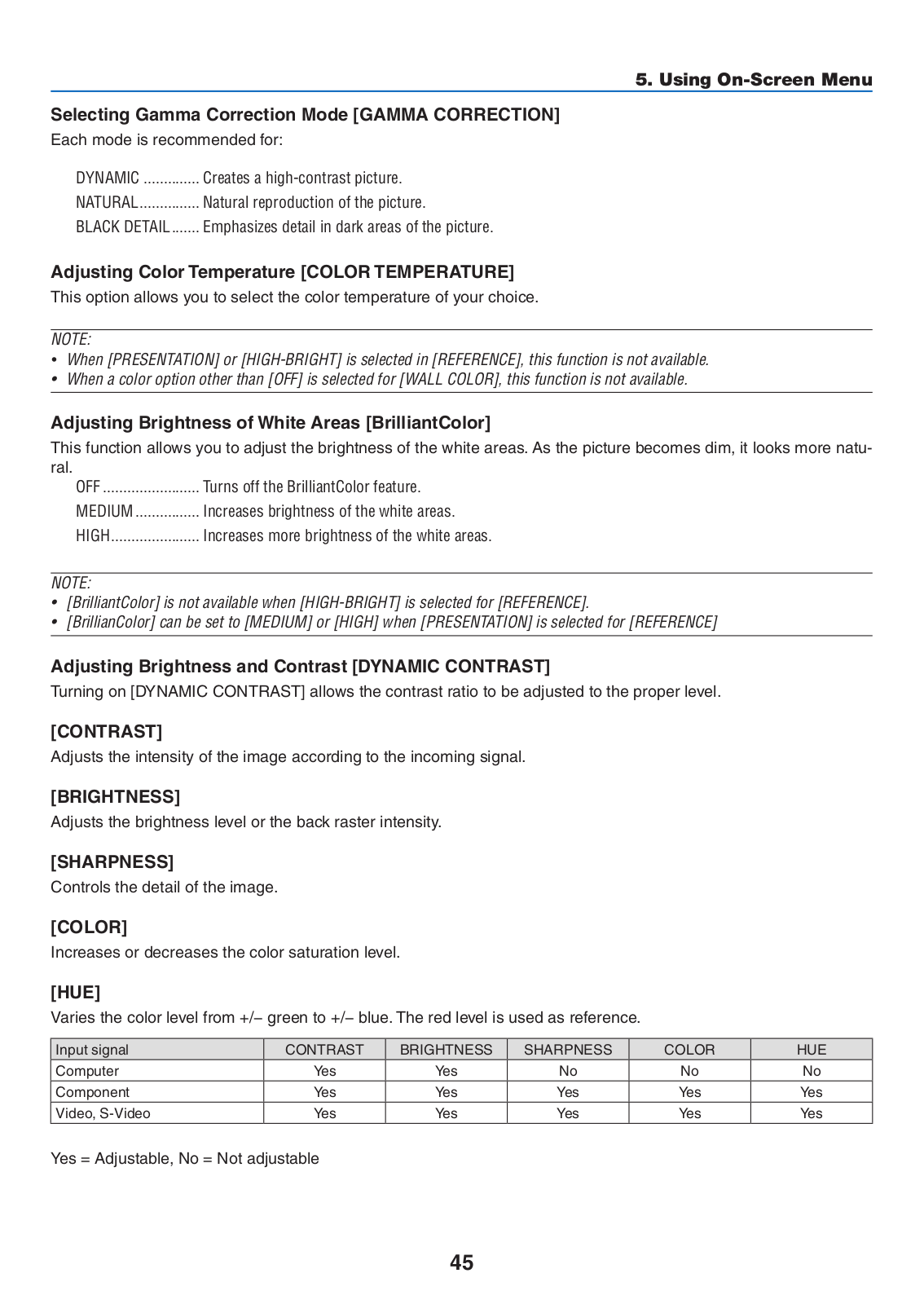

5 Menu Descriptions & Functions [ADJUST]..................................................................

44

6 Menu Descriptions & Functions [SETUP]....................................................................

51

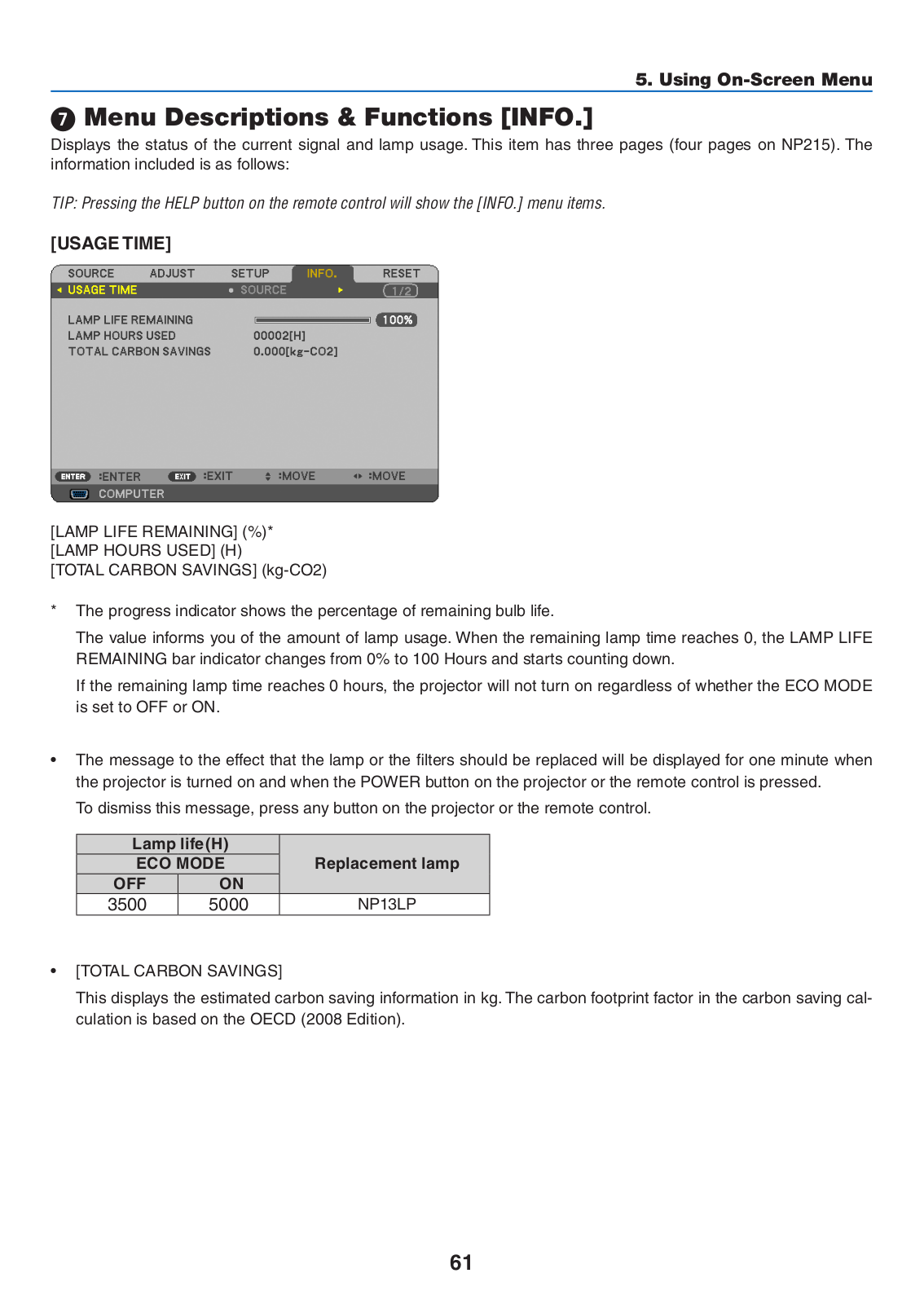

7 Menu Descriptions & Functions [INFO.].......................................................................

61

8 Menu Descriptions & Functions [RESET]....................................................................

63

6. Maintenance.......................................................................................................

64

Cleaning the Cabinet and the Lens..............................................................................

64

Replacing the Lamp.....................................................................................................

65

7. Appendix...............................................................................................................

68

Troubleshooting............................................................................................................

68

Indicator Messages................................................................................................

68

Specifications...............................................................................................................

71

Cabinet Dimensions.....................................................................................................

73

Pin Assignments of D-Sub COMPUTER Input Connector...........................................

74

Mini D-Sub 15 Pin Connector.................................................................................

74

Compatible Input Signal List........................................................................................

75

PC Control Codes and Cable Connection....................................................................

76

PC Control Codes...................................................................................................

76

Cable Connection...................................................................................................

76

PC Control Connector (D-SUB 9P)........................................................................

76

Troubleshooting Check List..........................................................................................

77

TravelCare Guide..........................................................................................................

79

vii

1. Introduction

1 What’s in the Box?

Make sure your box contains everything listed. If any pieces are missing, contact your dealer. Please save the original box and packing materials if you ever need to ship your projector.

Projector

Lens cap

(24F45801)

Power cable

VGA signal cable

Remote control

Batteries (AAAx2)

(US: 7N080236)

(7N520073)

(7N900881)



(EU: 7N080022)







Quick Setup Guide

NEC Projector CD-ROM

(7N8P9791)

User’s manual

Important Infomation

(7N951371)

(For North America: 7N8P9801)



(For Other countries than North



America: 7N8P9801 and 7N8P9811)



For North America only

Registration card

Limited warranty

For customers in Europe:

You will find our current valid Guarantee Policy on our Web Site: www.nec-display-solutions.com

1

1. Introduction

Introduction to the Projector

This section introduces you to your new projector and describes the features and controls.

Congratulations on Your Purchase of the Projector

This DLP™ projector is one of the very best projectors available today. The projector enables you to project precise images up to 300 inches (measured diagonally) from your PC or Macintosh computer (desktop or notebook), VCR, DVD player or document camera.

You can use the projector on a tabletop or cart, you can use the projector to project images from behind the screen, and the projector can be permanently mounted on a ceiling*1. The remote control can be used wirelessly.

*1 Do not attempt to mount the projector on a ceiling yourself.

The projector must be installed by qualified technicians in order to ensure proper operation and reduce the risk of bodily injury.

In addition, the ceiling must be strong enough to support the projector and the installation must be in accordance with any local building codes. Please consult your dealer for more information.

Features you'll enjoy:

Quick start & Quick Power Off

7 seconds after turning on the power, the projector is ready to display PC or video images.

The projector can be put away immediately after the projector is powered down. No cool down period is required after the projector is turned off from the remote control or cabinet control panel.

Direct Power Off

The projector has a feature called “Direct Power Off”. This feature allows the projector to be turned off (even when projecting an image) by disconnecting the AC power supply.

To turn off the AC power supply when the projector is powered on, use a power strip equipped with a switch and a breaker.

Less than 1W in standby condition with energy saving technology

Selecting [POWER-SAVING] for [STANDBY MODE] from the menu can put the projector in power-saving mode that consumes only 0.49W (100-130V AC)/0.71W (200-240V AC).

Carbon Meter

This feature will show energy-saving effect in terms of CO2 emission reduction (kg) when the projector’s [ECO MODE] is set to [ON].

The amount of CO2 emission reduction will be displayed in the confirmation message at the time of power-off and in the INFO of the on-screen menu.

7W built-in speaker for an integrated audio solution

Powerful 7 watt speaker provides volume need for large rooms.

AUTO POWER ON and AUTO POWER OFF features

The AUTO POWER ON(AC), AUTO POWER ON(COMP.), AUTO POWER OFF, and OFF TIMER features eliminate the need to always use the POWER button on the remote control or projector cabinet.

Preventing unauthorized use of the projector

Enhanced smart security settings for keyword protection, cabinet control panel lock, security slot, chain opening to help prevent unauthorized access, adjustments and theft deterrence.

The supplied remote control allows you to assign a CONTROL ID to the projector

Multiple projectors can be operated separately and independently with the same single remote control by assigning an ID number to each projector.

Integrated RJ-45 connector for wired networking capacity (NP215 only)

An RJ-45 connector is equipped as standard feature.

2

1. Introduction

About this user's manual

The fastest way to get started is to take your time and do everything right the first time. Take a few minutes now to review the user's manual. This may save you time later on. At the beginning of each section of the manual you'll find an overview. If the section doesn't apply, you can skip it.

In this user's manual the drawings of the projector show an example of NP215.

3

1. Introduction

Part Names of the Projector

Front/Top

Zoom Lever





(page 22)





Focus Ring



Controls



(page 5)

(page 22)







Remote Sensor





(page 7)





Ventilation (outlet)





Heated air is ex-





hausted from here.



Ventilation (inlet)

Lens





Built-in Security Slot ( )*





Adjustable Tilt Foot Lever



Security chain opening

(page 21)





Attach an anti-theft device.





Adjustable Tilt Foot

Lens Cap

The security chain opening accepts

(page 21)

security wires or chains up to 0.18



inch/4.6 mm in diameter.

*This security slot supports the MicroSaver ® Security System.

Rear

Terminal Panel

(page 5)

AC Input

Connect the supplied power cable's three-pin plug here, and plug the other end into an active wall outlet. (page 16)

Monaural Speaker (7W)

Lamp Cover (page 66)

Ventilation (inlet)

Spacer (black rubber)

To fine-adjust the height of the rear foot, remove the spacer and rotate

the rear foot to the desired height.

Rear Foot (page 21)

4

1. Introduction

Top Features

7

8

9

10

5

6

1

2

3

4

1.POWER Button (ON / STAND BY) () (→ page 17, 26)

2.POWER Indicator (→ page 16, 17, 26, 68)

3.STATUS Indicator (→ page 68)

4.LAMP Indicator (→ page 65, 68)

5.AUTO ADJ. Button (→ page 25)

Terminal Panel Features

NP215

6.SOURCE Button (→ page 19)

7.MENU Button (→ page 39)

8./ Keystone / Volume Buttons

(→ page 23, 25, 28)

9.ENTER Button

10.EXIT Button

1

2

3

4

5

6

7

NP210/NP115/NP110

































1

2

3

4

1.COMPUTER OUT Connector (Mini D-Sub 15 Pin)

(→ page 12)

2.COMPUTER IN/ Component Input Connector (Mini D-Sub 15 Pin) (→ page 11, 12, 13)

3.VIDEO IN Connector (RCA) (→ page 14)

4.S-VIDEO IN Connector (Mini DIN 4 Pin)

(→ page 14)

56

5.AUDIO IN Mini Jack (Stereo Mini)

(→ page 11, 12, 13, 14)

6.PC CONTROL Port (D-Sub 9 Pin) (→ page 76) Use this port to connect a PC or control system. This enables you to control the projector using serial communication protocol. If you are writing your own program, typical PC control codes are on page 76.

7.LAN Port (RJ-45) (NP215 only) (→ page 15)

5

1. Introduction

Part Names of the Remote Control



1



3









2



7



4



5



8



6



9



10





12



11











13



14





15



16



18



17





22



19







24









20



21





25



23







26









29



27







28

1.

Infrared Transmitter





(→ page 7)





2.POWER ON Button

(→ page 17)

3.POWER OFF Button

(→ page 26)

4, 5, 6. COMPUTER 1/2/3 Button

(→ page 19)

(COMPUTER 2/3 button is not available on this series of projectors)

7.AUTO ADJ. Button

(→ page 25)

8.VIDEO Button

(→ page 19)

9.S-VIDEO Button

(→ page 19)

10.VIEWER Button

(not available on this series of projectors)

11.ID SET Button

(→ page 56)

12.Numeric Keypad Button/CLEAR Button

(→ page 56)

13.FREEZE Button

(→ page 28)

14.AV-MUTE Button

(→ page 28)

15.MENU Button

(→ page 39)

16.EXIT Button (→ page 39)

17.Button (→ page 39)

18.ENTER Button (→ page 39)

19.MAGNIFY (+)(–) Button

(→ page 28)

20.MOUSE L-CLICK Button*

(→ page 34, 35)

21.MOUSE R-CLICK Button*

(→ page 34, 35)

22.PAGE / Button*

(→ page 34, 35)

23.ECO MODE Button (→ page 29)

24.KEYSTONE Button

(→ page 24)

25.PICTURE Button

(→ page 44, 45)

26.VOL. (+)(–) Button

(→ page 25)

27.ASPECT Button

(→ page 48)

28.FOCUS/ZOOM Button

(not available on this series of projectors)

29.HELP Button

(→ page 61)

*The PAGE / , MOUSE L-CLICK and MOUSE R-CLICK buttons work only when the optional remote mouse receiver (NP01MR) is connected with your computer.

6





1. Introduction

Battery Installation





1 Press firmly and slide the battery

2 Install new batteries (AAA). Ensure

3 Slip the cover back over the bat-

cover off.

that you have the batteries’polarity

teries until it snaps into place. Do



(+/−) aligned correctly.

not mix different types of batteries





or new and old batteries.

Remote Control Precautions

Handle the remote control carefully.

If the remote control gets wet, wipe it dry immediately.

Avoid excessive heat and humidity.

Do not heat, take apart, or throw batteries into fire.

If you will not be using the remote control for a long time, remove the batteries.

Ensure that you have the batteries’ polarity (+/−) aligned correctly.

Do not use new and old batteries together, or use different types of batteries together.

Dispose of used batteries according to your local regulations.

Operating Range for Wireless Remote Control

7 m/22 feet

Remote control

30°





30°

Remote sensor on projector cabinet

Remote control

30°

30°

7 m/22 feet

The infrared signal operates by line-of-sight up to a distance of about 22 feet/7 m and within a 60-degree angle of the remote sensor on the projector cabinet.

The projector will not respond if there are objects between the remote control and the sensor, or if strong light falls on the sensor. Weak batteries will also prevent the remote control from properly operating the projector.

7

NEC NP215, NP210, NP115, NP110 User Manual
3m/49" .5" 5" 5" . .3m/1312m/164"0m/197" 1. 1.7m/652.5m/98. 4. 5. 3
3040" "
609.6(W) x 457.2(H) / 240(W) x 180(H)
Screen Size (Unit: cm/inch)

2. Installation and Connections

This section describes how to set up your projector and how to connect video and audio sources. Your projector is simple to set up and use. But before you get started, you must first:

1

3

Set up a screen and the projector.

Connect your computer or video equipment to the projector. See pages 11, 12, 13, 14, 15.

Connect the supplied power cable. See page 16.

NOTE: Ensure that the power cable and any other cables are disconnected before moving the projector. When moving the projector or when it is not in use, cover the lens with the lens cap.

To the wall outlet.

Setting Up the Screen and the Projector

Selecting a Location

The further your projector is from the screen or wall, the larger the image.The minimum size the image can be is 30" (0.76 m) measured diagonally when the projector is roughly 49 inches (1.3 m) from the wall or screen. The largest the image can be is 300" (7.6 m) when the projector is about 493 inches (12.5 m) from the wall or screen. Use the chart below as a rough guide.

300"

Screen Size (diagonal: inch)

487.7(W) x 365.8(H) / 192(W) x 144(H)

240"

406.4(W) x 304.8(H) / 160(W) x 120(H)

365.8(W) x 274.3(H) / 144(W) x 108(H)

200" 180"

304.8(W) x 228.6(H) / 120(W) x 90(H)

150"

243.8(W) x 182.9(H) / 96(W) x 72(H)

120"

203.2(W) x 152.4(H) / 80(W) x 60(H)





100"

162.6(W) x 121.9(H) / 64(W) x 48(H)



80"

121.9(W) x 91.4(H) / 48(W) x 36(H)

60"



81.3(W) x 61.0(H) / 32(W) x 24(H)







61.0(W) x 45.7(H) / 24(W) x 18(H)

Lens center













.5"

m/inch)

.3/246"

.3m/328"

.0m/394"

.5m/492

12







.5"











75m/295

10





(Unit:

6 .

8





Distance













NOTE:

The distances are indicated by intermediate values between tele and wide. Use as a rule of thumb.

The Zoom lever adjusts the image size up to +/-5%

For more details on throw distance, see next page.

8

2. Installation and Connections

Throw Distance and Screen Size

The following shows the proper relative positions of the projector and screen. Refer to the table to determine the position of installation.

Distance Chart

C































Screen center



































































B













































Screen bottom





























































































































































2.7"/68 mm





Lens center

D































































































































































































































































Installation surface





















































































































Screen Size













B







C







D(WIDE)



a



Diagonal

Width

Height







Wide

-

Tele



Wide

-

Tele





























inch

mm

inch

mm

inch



mm

inch



mm

inch

mm

-

inch

mm



inch



mm

degree

-

degree

30

762

24

610

18



457

12



297

46

1180

-

52

1320



3



69

14.0

-

12.7

40

1016

32

813

24



610

16



396

62

1573

-

69

1760



4



91

14.0

-

12.7

60

1524

48

1219

36



914

23



594

93

2360

-

104

2640



5



137

14.0

-

12.7

70

1778

56

1422

42



1067

27



693

108

2753

-

121

3080



6



160

14.0

-

12.7

80

2032

64

1626

48



1219

31



792

124

3147

-

139

3520



7



183

14.0

-

12.7

90

2286

72

1829

54



1372

35



891

139

3540

-

156

3960



8



206

14.0

-

12.7

100

2540

80

2032

60



1524

39



990

155

3933

-

173

4400



9



228

14.0

-

12.7

120

3048

96

2438

72



1829

47



1188

186

4720

-

208

5280



11



274

14.0

-

12.7

150

3810

120

3048

90



2286

58



1486

232

5900

-

260

6600



13



343

14.0

-

12.7

180

4572

144

3658

108



2743

70



1783

279

7080

-

312

7920



16



411

14.0

-

12.7

200

5080

160

4064

120



3048

78



1981

310

7867

-

346

8800



18



457

14.0

-

12.7

240

6096

192

4877

144



3658

94



2377

372

9440

-

416

10560



22



548

14.0

-

12.7

270

6858

216

5486

162



4115

105



2674

418

10620

-

468

11880



24



617

14.0

-

12.7

300

7620

240

6096

180



4572

117



2971

465

11800

-

520

13200



27



685

14.0

-

12.7

B = Vertical distance between lens center and screen center C = Throw distance

D = Vertical distance between lens center and bottom of screen(top of screen for ceiling application) α = Throw angle

NOTE: The values in the tables are design values and may vary.

9

2. Installation and Connections

WARNING

*Installing your projector on the ceiling must be done by a qualified technician. Contact your NEC dealer for more information.

*Do not attempt to install the projector yourself.

Only use your projector on a solid, level surface. If the projector falls to the ground, you can be injured and the projector severely damaged.

Do not use the projector where temperatures vary greatly. The projector must be used at temperatures between 41˚F (5˚C) and 104˚F (40˚C).([ECO MODE] is set automatically to [ON] at 95°F to 104°F/35°C to 40°C. Note that [ECO] mode will be set to [ON] automatically at 86°F to 104°F/30°C to 40°C when used in [HIGH ALTITUDE].)

Do not expose the projector to moisture, dust, or smoke. This will harm the screen image.

Ensure that you have adequate ventilation around your projector so heat can dissipate. Do not cover the vents on the side or the front of the projector.

Reflecting the Image

Using a mirror to reflect your projector's image enables you to enjoy a much larger image when a smaller space is required. Contact your NEC dealer if you need a mirror system. If you're using a mirror system and your image is inverted, use the MENU and buttons on your projector cabinet or your remote control to correct the orientation. (→ page 55)

10

2. Installation and Connections

Making Connections

Connecting Your PC or Macintosh Computer

NOTE: When using with a notebook PC, be sure to connect the projector and notebook PC while the projector is in standby mode and before turning on the power to the notebook PC.

In most cases the output signal from the notebook PC is not turned on unless connected to the projector before being powered up.

*If the screen goes blank while using your remote control, it may be the result of the computer's screen-saver or power management software.

Enabling the computer’s external display

Displaying an image on the notebook PC’s screen does not necessarily mean it outputs a signal to the projector. When using a PC compatible laptop, a combination of function keys will enable/disable the external display. Usually, the combination of the ‘Fn” key along with one of the 12 function keys gets the external display to come on or off. For example, NEC laptops use Fn + F3, while Dell laptops use Fn + F8 key combinations to toggle through external display selections.

COMPUTER IN

AUDIO IN













































VGA signal cable (supplied) To mini D-Sub 15-pin connector on the projector. It is recommended that you use a commercially available distribution amplifier if connecting a

signal cable longer than the cable supplied.

Stereo mini-plug audio cable (not supplied)

PHONE

PHONE

IBM VGA or Compatibles (Notebook type) or Macintosh (Notebook type)

NOTE: For older Macintosh, use a commercially available pin adapter (not supplied) to connect to your Mac's video port.

NOTE: An image may not be displayed correctly when a Video or S-Video source is played back via a commercially available scan converter.

This is because the projector will process a video signal as a computer signal at the default setting. In that case, do the following.

When an image is displayed with the lower and upper black portion of the screen or a dark image is not displayed correctly: Project an image to fill the screen and then press the AUTO ADJ. button on the remote control or the projector cabinet.

The COMPUTER IN connector supports Plug & Play (DDC2B).

11

2. Installation and Connections

Connecting an External Monitor

COMPUTER OUT

VGA signal cable (not supplied)

VGA signal cable (supplied)

PHONE

You can connect a separate, external monitor to your projector to simultaneously view on a monitor the computer analog image you’re projecting.

NOTE: Daisy chain connection is not possible.

12

2. Installation and Connections

Connecting Your DVD Player with Component Output

COMPUTER IN





AUDIO IN





















































































































Optional 15-pin - to - RCA (female) ×3 cable (ADP-CV1E)

Stereo mini plug - to - RCA audio cable

(not supplied)

Audio Equipment Component video RCA×3 cable

(not supplied)

AUDIO IN

L R

DVD player

L R

Component

AUDIO OUT

Audio cable (not supplied)

NOTE: Refer to your DVD player's owner's manual for more information about your DVD player's video output requirements.

13

2. Installation and Connections

Connecting Your VCR

S-VIDEO IN

AUDIO IN

S-Video cable (not supplied)



Stereo mini plug - to - RCA audio cable





(not supplied)

Video cable (not supplied)









Audio equipment

VCR





L R

VIDEO S-VIDEO

AUDIO IN

AUDIO OUT

VIDEO OUT

L R

Audio cable (not supplied)

NOTE: Refer to your VCR owner's manual for more information about your equipment's video output requirements.

NOTE: An image may not be displayed correctly when a Video or S-Video source is played back in fast-forward or fast-rewind via a scan converter.

14

2. Installation and Connections

Connecting to a Network (NP215 only)

The projector comes standard with a LAN port (RJ-45) which provides a LAN connection using a LAN cable.

Using a LAN cable allows you to specify the Network Settings and the Alert Mail Settings for the projector over a LAN.

To use a LAN connection, you are required to assign an IP address to the projector on the [PROJECTOR NETWORK SETTINGS] screen of the web browser on your computer. For setting, see page 36, 37, 38.

Example of LAN connection

Example of wired LAN connection

Server

Hub

NOTE: Use a Category 5 or higher LAN cable.

LAN cable (not supplied)

LAN

15

2. Installation and Connections

Connecting the Supplied Power Cable

Connect the supplied power cable to the projector.

First connect the supplied power cable's three-pin plug to the AC IN of the projector, and then connect the other plug of the supplied power cable in the wall outlet.

The projector will go into standby mode. When in standby mode, the POWER indicator will light orange and the STATUS indicator will light green when [NORMAL] is selected for [STANDBY MODE].

To wall outlet

Make sure that the prongs are fully inserted into both the power plug and the wall outlet.

CAUTION:

Do not try to touch the ventilation outlet on the front side as it can become heated while the projector is turned on and immediately after the projector is turned off.

16

3. Projecting an Image (Basic Operation)

This section describes how to turn on the projector and to project a picture onto the screen.

Turning on the Projector

1.Remove the lens cap

•  Donotremovethelenscapbypullingonthestring.Doing so can cause mechanical damage to the part around the lens.

2.Press the (POWER) button on the projector cabinet or the POWER ON button on the remote control for 1 second.

The POWER indicator will turn to green and the projector will become ready to use.

NOTE: When the projector is turned on, it may take some time before the lamp light becomes bright.

TIP:

When the STATUS indicator lights orange, it means that the [CONTROL PANEL LOCK] is turned on. (page 55)

When the message “Projector is locked! Enter your password.” is displayed, it means that the [SECURITY] is turned on. (page 31)

After you turn on your projector, ensure that the computer or video source is turned on and that your lens cap is removed.

NOTE: When no signal is available, the NEC logo (default), blue, or black screen will be displayed. After a lapse of 45 seconds from when the projector displays a blue, black or logo screen, [ECO MODE] will always switch to [ON]. This is done only when [ECO MODE] is set to [OFF].

Standby Blinking Power On

Steady orange light

Blinking green light

Steady green light

(→ page 68)

17

3. Projecting an Image (Basic Operation)

Note on Startup screen (Menu Language Select screen)

When you first turn on the projector, you will get the Startup menu. This menu gives you the opportunity to select one of the 21 menu languages.

To select a menu language, follow these steps:

1.Use the , , or button to select one of the 21 languages from the menu.

2. Press the ENTER button to execute the selection.

After this has been done, you can proceed to the menu operation.

If you want, you can select the menu language later.

(→ [LANGUAGE] on page 41 and 52)

NOTE: Immediately after turning on the projector, screen flicker may occur. This is normal. Wait 3 to 5 minutes until the lamp lighting is stabilized.

NOTE: If you turn on the projector immediately after the lamp is turned off, the fans run without displaying an image for some time and then the projector will display the image.

CAUTION:

The projector cannot be turned off for 60 seconds after the lamp is turned on and while the POWER indicator is blinking green. Doing so could cause premature lamp failure.

When the [ECO MODE] is set to [ON], the LAMP indicator will light green.

If one of the following things happens, the projector will not turn on.

If the internal temperature of the projector is too high, the projector detects abnormal high temperature. In this condition the projector will not turn on to protect the internal system. If this happens, wait for the projector’s internal components to cool down.

When the lamp reaches its end of usable life, the projector will not turn on. If this happens, replace the lamp.

If the lamp fails to light, and if the STATUS indicator flashes on and off in a cycle of six times, wait a full minute and then turn on the power.

18

3. Projecting an Image (Basic Operation)

Selecting a Source

Selecting the computer or video source

NOTE: Turn on the computer or video source equipment connected to the projector.

Selecting from Source List

Press and quickly release the SOURCE button on the projector cabinet to display the Source list. Each time the SOURCE button is pressed, the input source will change as follows:“COMPUTER”, ”VIDEO”, “S-VIDEO”. To display the selected source, press the ENTER button or allow 2 seconds to elapse.

Detecting the Signal Automatically

Press and hold the SOURCE button for a minimum of 2 seconds, the projector will search for the next available input source. Each time you press and hold the SOURCE button for a minimum of 2 seconds, the input source will change as follows:

COMPUTER → VIDEO → S-VIDEO → COMPUTER → ...

TIP: If no input signal is present, the input will be skipped.

Using the Remote Control

Press any one of the COMPUTER1, VIDEO, and S-VIDEO buttons.

Selecting Default Source

You can set a source as the default source so that it will be displayed each time the projector is turned on.

1.Press the MENU button.

The menu will be displayed.

2.Press the button twice to select [SETUP] and press the button or the ENTER button to select [GENERAL].

3.Press the button four times to select [OPTIONS(2)].

4.Press the button six times to select [DEFAULT SOURCE SE-

LECT] and press the ENTER button.

The [DEFAULT SOURCE SELECT] screen will be displayed. (page 60)

5.Select a source as the default source, and press the ENTER button.

6.Press the EXIT button a few times to close the menu.

7.Restart the projector.

The source you selected in step 5 will be projected.

TIP: When the projector is in Standby mode, applying a computer signal from a computer connected to the COMPUTER IN input will power on the projector and simultaneously project the computer’s image.

([AUTO POWER ON(COMP.)] page 60)

19

Loading...
+ 64 hidden pages
