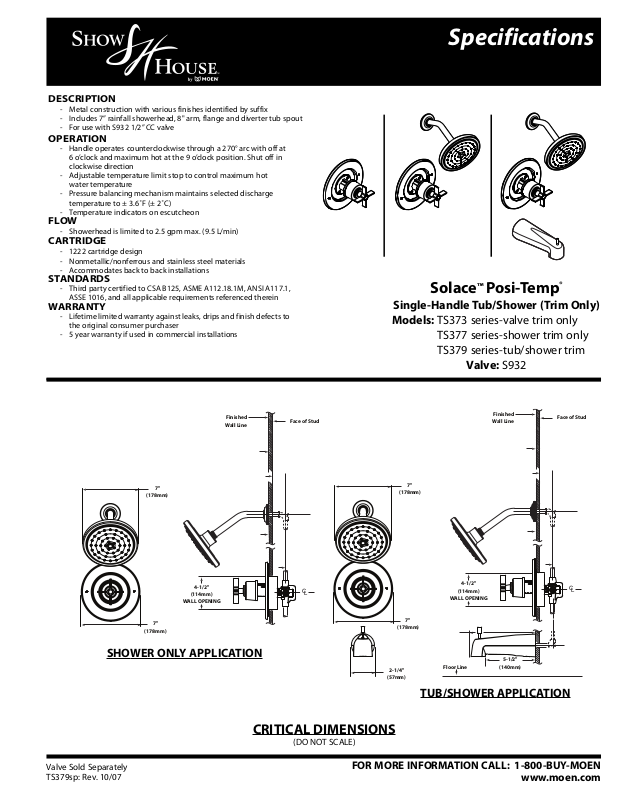

Specifications

DESCRIPTION

-Metal construction with various finishes identified by suffix

-Includes 7” rainfall showerhead, 8" arm, flange and diverter tub spout

-For use with S932 1/2” CC valve

OPERATION

-Handle operates counterclockwise through a 270° arc with off at 6 o’clock and maximum hot at the 9 o’clock position. Shut off in clockwise direction

-Adjustable temperature limit stop to control maximum hot water temperature

-Pressure balancing mechanism maintains selected discharge temperature to ± 3.6˚F (± 2˚C)

-Temperature indicators on escutcheon

FLOW

- Showerhead is limited to 2.5 gpm max. (9.5 L/min)

CARTRIDGE

-1222 cartridge design

-Nonmetallic/nonferrous and stainless steel materials

-Accommodates back to back installations

STANDARDS

-Third party certified to CSA B125, ASME A112.18.1M, ANSI A117.1, ASSE 1016, and all applicable requirements referenced therein

WARRANTY

-Lifetime limited warranty against leaks, drips and finish defects to the original consumer purchaser

-5 year warranty if used in commercial installations

SolacePosi-Temp®

Single-HandleTub/Shower (Trim Only) Models:TS373 series-valve trim only

TS377 series-showertrim only TS379series-tub/showertrim

Valve: S932

Finished



Finished

Face of Stud

Face of Stud

Wall Line

Wall Line









7"

7"

(178mm)

(178mm)

4-1/2"



4-1/2"

C

C

(114mm)

(114mm)

L

L

WALL OPENING



WALL OPENING











7"



7"





(178mm)



(178mm)











SHOWER ONLY APPLICATION





5-1/2"











Floor Line

(140mm)





2-1/4"







(57mm)



TUB/SHOWER APPLICATION

CRITICAL DIMENSIONS

(DO NOT SCALE)

Valve Sold Separately

TS379sp: Rev. 10/07
