Install with confidence.

Moen has created this useful guide to assist you when installing a Moen® Vertical Spa. You’ll find detailed guidelines,color-codedpiping diagrams­ and FAQs for some of the most popular configurations.

For additional information not contained within this general guide, refer to the Moen Vertical Spa Design Guide (MF2816), contact your Moen ­representative, visit moen.com or call Customer Support at 1-800-BUY-MOEN.

ioDIGITALValve

ioDIGITAL uses a digital valve to control temperature and flow. This valve plugs into a standard 110v power outlet that can be located in a linen closet, under the tub—upto 30 feet from the bathroom — for easier installation and retrofit flexibility. The innovative design can also store up to 4 temperature and spray outlet flow combinations into memory with instant,one-touchactivation.

1.Is a digital valve easier or more difficult to install compared to a regular thermostatic valve?

•All ioDIGITAL valves include push-fitconnectors that work easily and quickly with traditional plumbing supply tubes (PEX, CPVC and copper).

•ioDIGITAL vertical spa systems require fewer trim components (handles/knobs) to install.

•Adjustingthemaximumtemperatureallowableis easily done on ioDIGITAL valves via a dial control. Such calibration of standard thermostatic cartridges is a more time-consumingprocess.

2.How does the life expectancy of the digital valve compare with other thermostatic valves?

•The Moen ioDIGITAL system is certified to cUPC with applicable standardsASSE 1016 and

ASME A112.18.1M/CSA B125.1 (shower valves), and UL1951.

•All of the ioDIGITAL system components are backed by a five-yearlimited warranty, and the finishes and mechanical components feature a Limited Lifetime Warranty.

3.How many spray outlets can be used in a digital vertical spa?

•TheMoenverticalspafeaturesfoursprayoutlets and a maximum flow rate of approximately 17.5 gpm at 45 psi flowing—configurationexamples to follow.

Always cap unused outlets.

4.Do you need a larger hot water tank? What are the drainage requirements?

The vertical spa will work with standard hot water tanks and typical drainage.

•If your shower layout includes two vertical spa ioDIGITAL spa valves, an 80-gallonor larger hot water tank is recommended. The vertical spa system works with plumbing and drainage that are common to most households.

5.What is the minimum water pressure needed for a digital valve?

•20 psi, which is a code requirement.

•WiththeMoenioDIGITALverticalspa,apressure of at least 40 psi is recommended for optimal performance and satisfaction.

ioDIGITAL 3/4"

EXACTTEMP® 3/4"

MOENTROL® WITHBUILT-IN

VERTICAL SPA VALVE

THERMOSTATIC CONTROL

3-FUNCTIONTRANSFER VALVE

2

6.Will the digital valves work with existing showerheads, hand showers and body sprays?

Yes, the ioDIGITAL system works with all Moen fixtures.

7.Will the valve fit within a regular 2" x 4" framed wall?

Yes.

8. Does the valve need to have ventilation?

No. The valve should be mounted in an interior wall to eliminate extreme temperature conditions. It should not be installed in locations that exceed the range of 40°F–104°F.

9.Do I have to plug the valve in, and is an electrician required for the installation?

Yes, the valve needs to be plugged into a 110v AC supply on a GFCI circuit. A certified electrician should install the initial GFCI outlet.

10.Is the valve compatible with PEX, copper and CPVC?

The push-fitconnectors supplied with ioDIGITAL

valves work well with each of these pipes— seals on the outside diameter.

11.Do you need an access panel for the valve?

•Yes. A minimum of 14-1/2"x 30" access panel is required.

•The valve must be installed with the front facing

the access panel.

12. Can the controller be installed outside the shower?

Yes. A 30-footdata cable connects the valve and controller, which gives you the ability to mount the controller at a convenient location within the home.

13.How does the controller mount to the wall?

The controller mounts simply with two screws in a standard 2" x 4" wall. Refer to instruction sheets INS1663 and INS1666.

14.What are the inlet sizes?

3/4".

15.What are the outlet sizes?

1/2".

16.Are water hammer arresters required?

Water hammer arresters are highly recommended, similar to other high- water-flowinghome appliances.

17.Are stops required?

Yes, stops upstream of the water hammer arresters to allow for servicing.

Note: Outlets A and B constitute





one valve body. Outlets C and D

A

B C D

constitute another valve body.





High-flowdevices (e.g., tub spouts,





multiple body sprays) should be split





up between the A/B and C/D outlet





pairs. For example, if a tub spout is





connected to outlet B, 3 body sprays





should connect to C or D, not A.





ExactTemp® 3/4" Thermostatic Control Moentrol® withBuilt-In3-FunctionTransfer Valve

The ExactTemp Thermostatic Control uses a mechanical system within the valve body to

­automatically adjust hot and cold water delivery and maintain consistent water temperature. The Moentrol valve lets users turn their spa on and off without changing the temperature position, so they can easily return to their last temperature setting.

Q:If the hot and cold inlets are mistakenly reversed, is the ExactTemp 3/4" cartridge reversible?

A:NO. Hot and cold inlets will have to be corrected­ for proper installation.

Q:Does the ExactTemp 3/4" cartridge need to be removed when soldering the valve?

A:NO. Neither the temperature nor flow cartridge needs to be removed. The cartridges will not overheat as a result of normal soldering process.

Q:Can components (body sprays, hand showers, etc.) be installed on a different wall than the transfer valve?

A:YES, but it is important to follow two basic principles­ to maximize performance: 1) minimize the distance between components and the transfer­ valve; 2) minimize the number of turns in the plumbing lines from the transfer valve to the component.

Q:Do I need to use 3/4" tubing between components?

A:It is recommended that you install 3/4" tubing between thermostatic and flow valves, and 1/2" pipe everywhere else. If 3/4" inlets are available,­ that is preferred. However, 1/2" will not diminish performance.

3

One-WallioDIGITAL 3/4"

applies to Moen®

This configuration

ioDIGITAL3/4" de pulgada en una pared

ioDIGITAL vertical



spas.



Esta configuración de



bañera de hidromasaje



aplica a Moen®.



Always cap unused outlets.

Siempre cubra las conexiones sin usar.

78"

Optional remote with holder bracket.

Control remoto opcional con montaje.



Note: Outlets A and B



constitute one valve body.

60"

Outlets C and D constitute

another valve body.



High-flowdevices (e.g., tub spouts, multiple body sprays) should be split up between the A/B and C/D outlet pairs. For example, if a tub spout is connected to outlet B, 3 body sprays

GFCI should connect to C or D, not A.









Nota: Las entradas A y B









constituyen una sola

D

C

B

A

válvula. Las entradas C y D

constituyen otra válvula.







Para dispositivos de alto













flujo(tinasyspasverticales)













divida la conexión entre

back of valve

los pares de entradas A/B

faces into

y C/D. Por ejemplo, si la

shower

tina esta conectada a la







entrada B, conecte el spa







vertical a la entrada C o







D, no a la entrada A.

Water inlets are opposite of how



typical plumbing is installed.e

Z

COLD WATER INLET

HOT WATER INLET

Entrada de agua fría

Entrada de agua caliente

Vertical spa trim is compatible with the M•PACT® Common Valve System.



Todos los componentes de la

All vertical dimensions (italicized) measured from floor. Dimensions listed are suggested.

bañera de hidromasaje vertical

están basados en el sistema

Todas las dimensiones verticales (en cursivas) están medidas desde el suelo. Las dimensiones mencionadas son sugeridas.

común de válvulas M•PACT®.

4

One-WallExactTemp® 3/4"

ExactTemp® 3/4" de pulgada en una pared



78"

16"

48"



40"

Z

e

HOT WATER INLET

COLD WATER INLET

Entrada de agua caliente

Entrada de agua fría

All vertical dimensions (italicized) measured from floor. Dimensions listed are suggested.

Todas las dimensiones verticales (en cursivas) están medidas desde el suelo. Las dimensiones mencionadas son sugeridas.

This configuration applies to Moen® vertical spas.

Esta configuración de bañera de hidromasaje aplica a Moen®.

Arrow on volume control valve should always point in direction of flow.

La flecha en la válvula de control­ de volumen

deberá siempre apuntaren la dirección del flujo.

Always cap the tub port when using the ExactTemp 3/4" valve in a vertical spa configuration.

Siempre tape el terminal de la bañera cuando utilice la válvula ExactTemp de 3/4 de pulgada en una ­configuración de bañera de hidromasaje vertical.

Vertical spa trim is compatible with the M•PACT® Common Valve System.

Todos los componentes de la bañera de hidromasaje vertical están basados en el sistema común de válvulas M•PACT®.

5

One-WallioDIGITAL3/4" with tub spout

ioDIGITAL3/4" de pulgada en una pared con pico de bañera

78"

60"

54"

42"

30"

Water inlets are opposite of how typical plumbing is installed.

GFCI

e

Z

COLD WATER INLET

HOT WATER INLET

Entrada de agua fría

Entrada de agua caliente

All vertical dimensions (italicized) measured from floor. Dimensions listed are suggested.

Todas las dimensiones verticales (en cursivas) están medidas desde el suelo. Las dimensiones mencionadas son sugeridas.

This configuration applies to Moen® ioDIGITAL vertical spas.

Esta configuración de bañera de hidromasaje aplica a Moen®.

BODY SPRAYS:

gotAorigpressure. file,-balancingbut needlooporigmust. graphicsalways be. maryused withann?body sprays to allow for

equal supply of water to each spray.

ROCÍOS PARA EL CUERPO: Siempre se deberá utilizar un distribuidor equilibrado con los rocíos para el cuerpo­ que permita el flujo igual de agua para cada rocío.

Optional remote with holder bracket.

Control remoto opcional con montaje.

Note: Outlets A and B constitute one valve body. Outlets C and D constitute another valve body.

High-flowdevices (e.g., tub spouts, multiple body sprays) should be split up between the A/B and C/D outlet pairs. For example, if a tub spout is connected to outlet B, 3 body sprays should connect to C or D, not A.

Nota: Las entradas A y B constituyen una sola válvula. Las entradas C y D constituyen otra válvula.

Para dispositivos de alto flujo(tinasyspasverticales) divida la conexión entre los pares de entradas A/B y

C/D. Por ejemplo, si la tina esta conectada a la entrada B, conecte el spa vertical a la entrada C o D, no a la entrada A.

Vertical spa trim is compatible with the M•PACT® Common Valve System.

Todos los componentes de la bañera de hidromasaje vertical están basados en el sistema común de válvulas M•PACT®.

6

One-WallExactTemp® 3/4" with tub spout

ExactTemp® 3/4" de pulgada en una pared con pico de bañera





78"





48"

16"

40"





From Flow





Valve





To Shower





Head

Z

e



HOT WATER INLET

COLD WATER INLET



Entrada de agua caliente

Entrada de agua fría



All vertical dimensions (italicized) measured from floor. Dimensions listed are suggested.

Todas las dimensiones verticales (en cursivas) están medidas desde el suelo. Las dimensiones mencionadas son sugeridas.

This configuration applies to Moen® vertical spas.

Esta configuración de bañera de hidromasaje aplica a Moen®.

When using a tub spout with a volume control valve, plumb the flow valve outlet to the twin ell front vertical inlet. Plumb the twin ell rear vertical­ outlet to the showerhead. Plumb the twin ell front horizontal­ outlet

to the tub spout.

Cuando utilice un pico de bañera con una válvula de ­control de ­volumen, conecte la salida de la válvula de ­ control de flujo a la ­entrada vertical frontal del codo doble. Conecte la salida ­vertical trasera del codo doble al cabezal de la ducha. Conecte la ­salida horizontal frontal el codo doble al pico de la bañera.

Always cap the showerhead port when using the ExactTemp 3/4" valve in a ­vertical spa configuration that includes a tub spout.

Siempre tape el terminal de la bañera cuando utilice­ la válvula ExactTemp de 3/4 de pulgada en una ­configuración de bañera de hidromasaje vertical.

Arrow on volume control valve should always point in direction of flow.

La flecha en la válvula de ­control de volumen deberá siempre apuntar en la dir­ ección del flujo.

Vertical spa trim is compatible with the M•PACT® Common Valve System.

Todos los componentes de la bañera de hidromasaje vertical están basados en el sistema común de válvulas M•PACT®.

7

One-WallioDIGITAL 3/4"

applies to Moen®

This configuration

ioDIGITAL3/4" de pulgada en una pared

ioDIGITAL vertical



spas.



Esta configuración de



bañera de hidromasaje



aplica a Moen®.



BODY SPRAYS:

A pressure-balancingloop must always be used with body sprays to allow for equal supply of water to each spray.

ROCÍOS PARA EL CUERPO: Siempre se deberá utilizar 78" un distribuidor equilibrado

con los rocíos para el cuerpo­ que permita el flujo igual de agua para cada rocío.















Optional remote















with holder bracket.















Control remoto opcional















con montaje.















Note: Outlets A and B



































60"



constitute one valve body.









Outlets C and D constitute





















another valve body.











54"



High-flowdevices (e.g., tub







spouts, multiple body sprays)















should be split up between















the A/B and C/D outlet pairs.















For example, if a tub spout is















connected to outlet B, 3 body















sprays should connect to C





























or D, not A.

Nota: Las entradas A y B 34" constituyen una sola

válvula. Las entradas C y D constituyen otra válvula.







GFCI

Para dispositivos de alto







flujo(tinasyspasverticales)

12" Min.







divida la conexión entre los

16" Recommended

D

C B

A

pares de entradas A/B y

20" Max.

back of valve

C/D. Por ejemplo, si la tina



esta conectada a la entrada





faces into



B, conecte el spa vertical





shower









a la entrada C o D, no a la

















entrada A.

Water inlets are opposite of how typical plumbing is installed.

e

Z



COLD WATER INLET

HOT WATER INLET



Entrada de agua fría

Entrada de agua caliente







Vertical spa trim is compatible





with the M•PACT® Common





Valve System.





Todos los componentes de la

All vertical dimensions (italicized) measured from floor. Dimensions listed are suggested.

bañera de hidromasaje vertical

están basados en el sistema

Todas las dimensiones verticales (en cursivas) están medidas desde el suelo. Las dimensiones mencionadas son sugeridas.

común de válvulas M•PACT®.

8

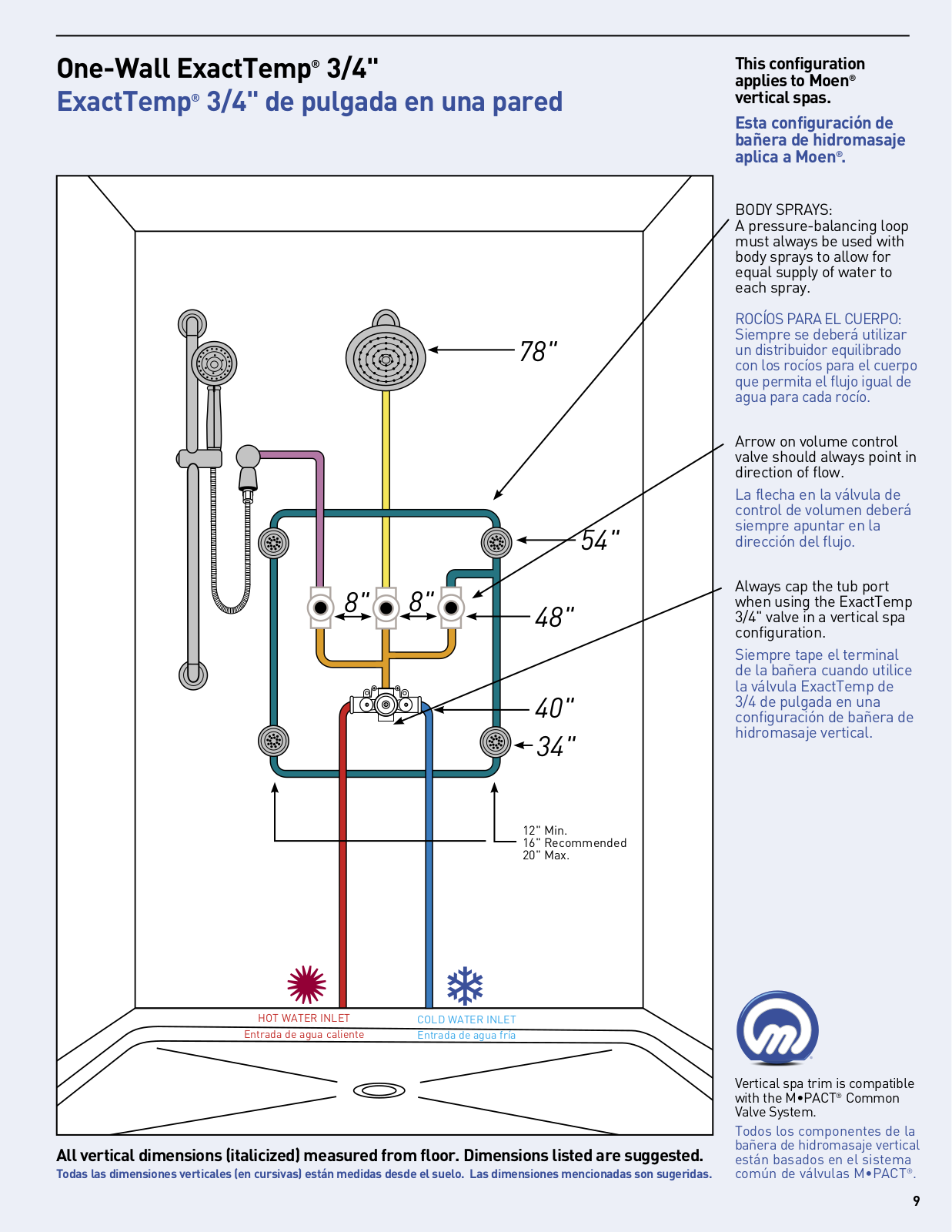

One-WallExactTemp® 3/4"

ExactTemp® 3/4" de pulgada en una pared

This configuration applies to Moen® vertical spas.

Esta configuración de bañera de hidromasaje aplica a Moen®.

78"

54"

8"

8"

48"









40"





34"

12" Min.

16" Recommended

20" Max.

Ze

HOT WATER INLET

COLD WATER INLET

Entrada de agua caliente

Entrada de agua fría

All vertical dimensions (italicized) measured from floor. Dimensions listed are suggested.

Todas las dimensiones verticales (en cursivas) están medidas desde el suelo. Las dimensiones mencionadas son sugeridas.

BODY SPRAYS:

A pressure-balancingloop must always be used with body sprays to allow for equal supply of water to each spray.

ROCÍOS PARA EL CUERPO: Siempre se deberá utilizar un distribuidor equilibrado con los rocíos para el cuerpo­ que permita el flujo igual de agua para cada rocío.

Arrow on volume control valve should always point in direction of flow.

La flecha en la válvula de ­control de volumen deberá siempre apuntar en la

­dirección del flujo.

Always cap the tub port when using the ExactTemp 3/4" valve in a vertical spa configuration.

Siempre tape el terminal de la bañera cuando utilice la válvula ExactTemp de 3/4 de pulgada en una ­configuración de bañera de hidromasaje vertical.

Vertical spa trim is compatible with the M•PACT® Common Valve System.

Todos los componentes de la bañera de hidromasaje vertical están basados en el sistema común de válvulas M•PACT®.

9

One-WallioDIGITAL3/4" with ceiling mount

ioDIGITAL3/4" de pulgada para montaje en el techo

78"

60" 54"

42"

30"GFCI

D C B A

back of valve faces into shower

Water inlets are opposite of how typical plumbing is installed.

e

Z

COLD WATER INLET

HOT WATER INLET

Entrada de agua fría

Entrada de agua caliente

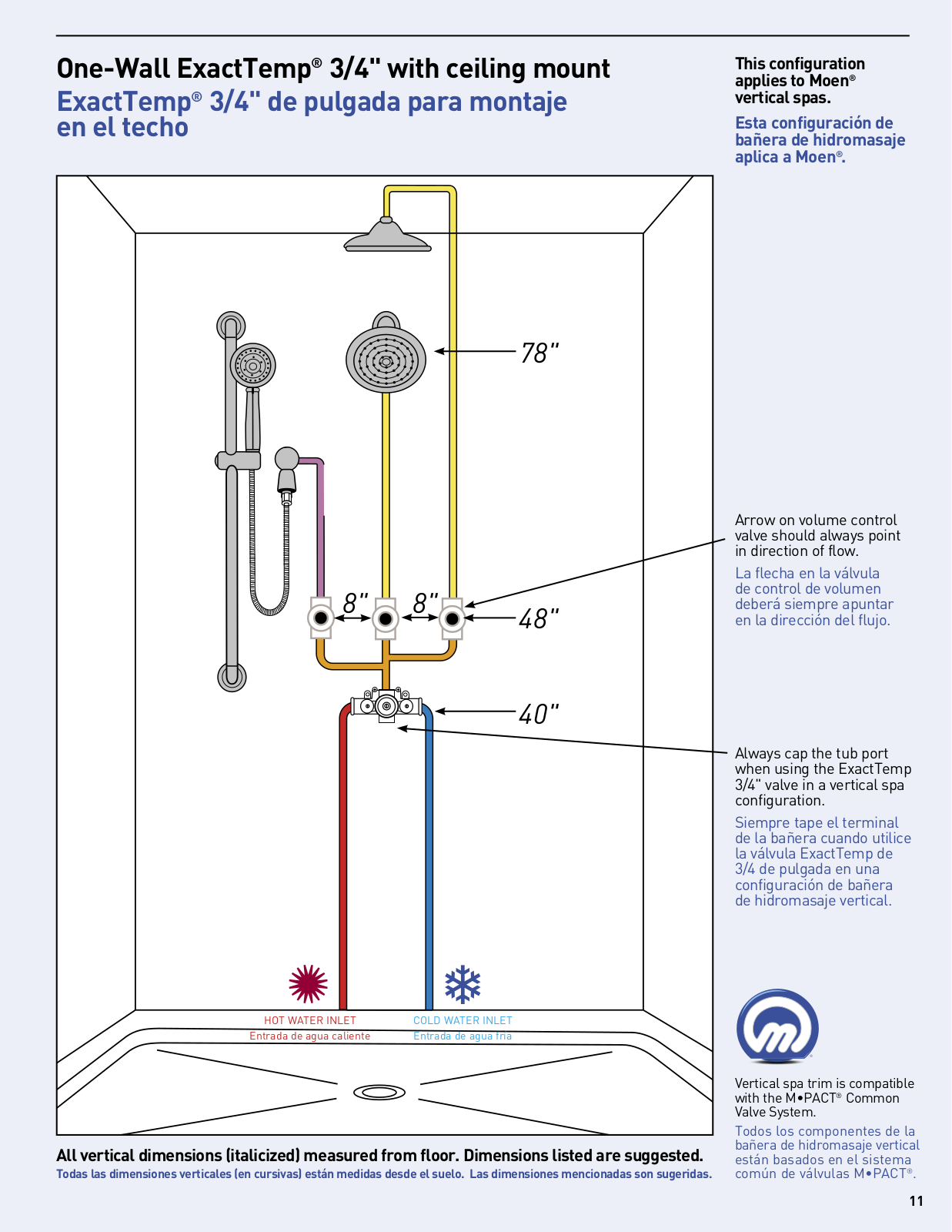

All vertical dimensions (italicized) measured from floor. Dimensions listed are suggested.

Todas las dimensiones verticales (en cursivas) están medidas desde el suelo. Las dimensiones mencionadas son sugeridas.

This configuration applies to Moen® ioDIGITAL vertical spas.

Esta configuración de bañera de hidromasaje aplica a Moen®.

BODY SPRAYS:

A pressure-balancingloop must always be used with body sprays to allow for equal supply of water to each spray.

ROCÍOS PARA EL CUERPO: Siempre se deberá utilizar un distribuidor equilibrado con los rocíos para el cuerpo­ que permita el flujo igual de agua para cada rocío.

Optional remote with holder bracket.

Control remoto opcional con montaje.

Note: Outlets A and B constitute one valve body. Outlets C and D constitute another valve body.

High-flowdevices (e.g., tub spouts, multiple body sprays) should be split up between the A/B and C/D outlet pairs. For example, if a tub spout is connected to outlet B, 3 body sprays should connect to C or D, not A.

Nota: Las entradas A y B constituyen una sola válvula. Las entradas C y D constituyen otra válvula.

Para dispositivos de alto flujo(tinasyspasverticales) divida la conexión entre los pares de entradas A/B y C/D. Por ejemplo, si la tina esta conectada a la entrada B, conecte el spa vertical

a la entrada C o D, no a la entrada A.

Vertical spa trim is compatible with the M•PACT® Common Valve System.

Todos los componentes de la bañera de hidromasaje vertical están basados en el sistema común de válvulas M•PACT®.

10
