Lift Rod Assembly

116733 Chrome

116733BN Brushed Nickel

116733ORB Oil Rubbed Bronze

Plug Button

114324

Handle Insert

116737 Chrome

116737BN Brushed Nickel

116737ORB Oil Rubbed Bronze



Handle Hub Kit



116735

Hot



116736

Cold



116735BN

Hot



116736BN

Cold

Ceramic Handle Insert

116735ORB

Hot

116738

116736ORB Cold







Replacement Cartridge



1224



Mounting Hardware

13678

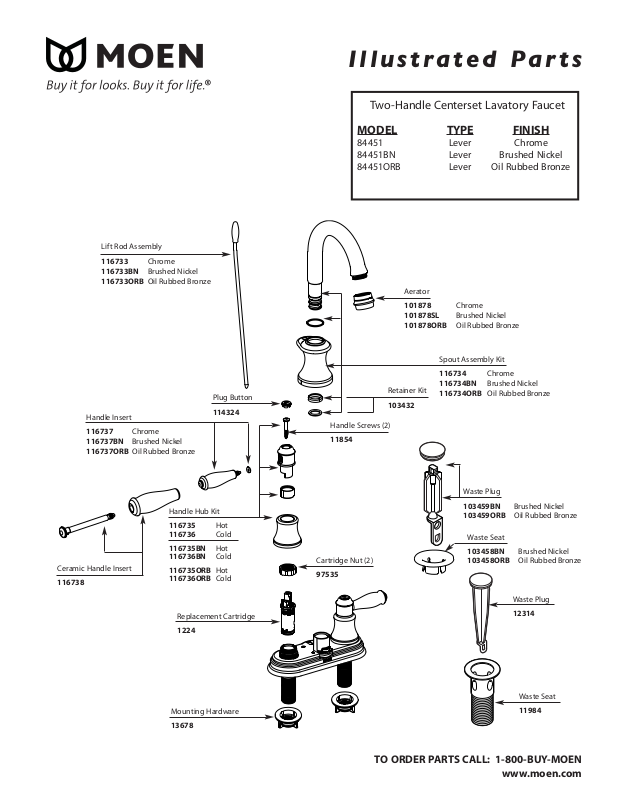

Illustrated Par ts

Two-HandleCenterset Lavatory Faucet

MODEL

TYPE

FINISH









84451

Lever

Chrome

84451BN

Lever

Brushed Nickel

84451ORB

Lever

Oil Rubbed Bronze

Aerator







101878



Chrome



101878SL

Brushed Nickel

101878ORB

Oil Rubbed Bronze



Spout Assembly Kit



116734

Chrome

Retainer Kit

116734BN

Brushed Nickel

116734ORB

Oil Rubbed Bronze



103432







Handle Screws (2)







11854









Waste Plug





103459BN

Brushed Nickel



103459ORB

Oil Rubbed Bronze



Waste Seat





103458BN

Brushed Nickel

Cartridge Nut (2)

103458ORB

Oil Rubbed Bronze

97535





Waste Plug

12314

Waste Seat

11984

TO ORDER PARTS CALL: 1-800-BUY-MOENwww.moen.com
