Miele G848 User Manual

Operating instructions

for G 848 dishwasher

To prevent accidents and machine damage, read the Operating Instructions before installing or using the machine.

ö]

M.-Nr. 05 419 790

Contents

Guide to the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 View of the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

INSTRUCTIONS IMPORTANTES SUR LA SÉCURITÉ . . . . . . . . . . . . . . . . . . . . . 8

Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Disposal of the packing material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Disposal of an old appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Energy saving washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 To open the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

To close the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Child Safety Lock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Water softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Programming and setting the water hardness level . . . . . . . . . . . . . . . . . . . . . . . 14 Programming and changing the water hardness level. . . . . . . . . . . . . . . . . . . 14 Setting the water hardness level selector in the wash cabinet. . . . . . . . . . . . . 15 Checking the programmed water hardness. . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Filling the salt reservoir . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Salt indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Adding rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Rinse aid indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Setting the dosage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

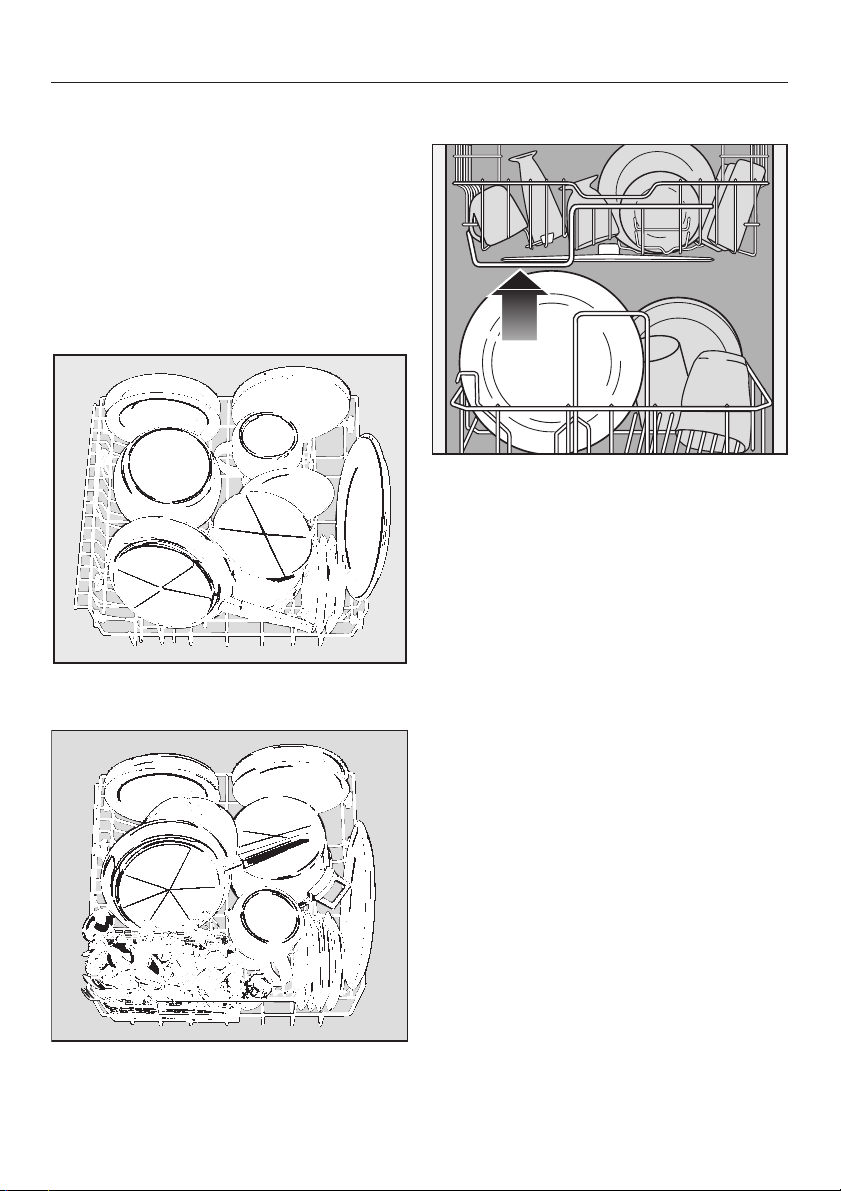

Loading the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Loading examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Upper basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Adjustable cup rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Coffee bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Adjusting the upper basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Lower basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Bottle holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Cutlery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Items not suitable for dishwashers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

2

Contents

Operating the dishwasher. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Adding detergent. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Program selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Turning on the dishwasher. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Starting a program. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Program sequence indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 At the end of a program. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Turning off the dishwasher. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Interrupting a program. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Changing a program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Unloading the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Cleaning the filters in the wash cabinet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

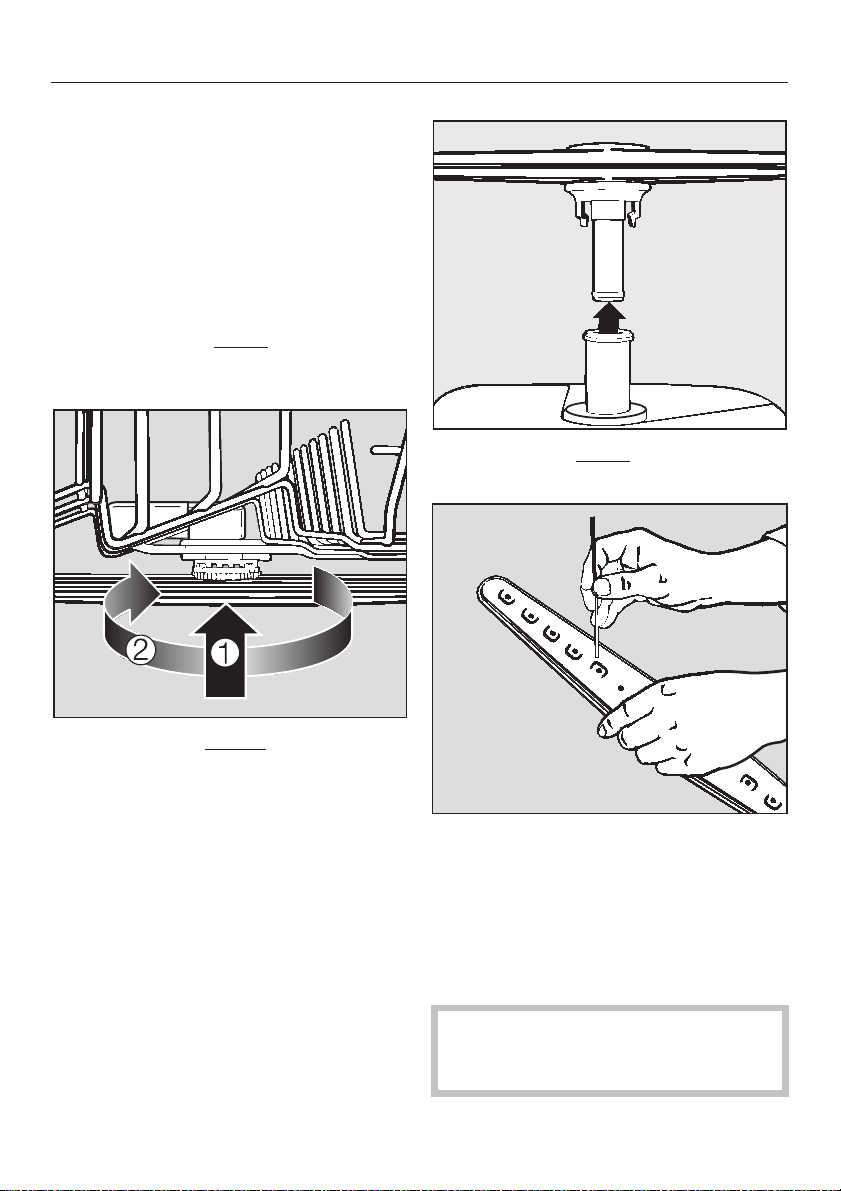

Cleaning the spray arms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Cleaning the wash cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Cleaning the door and the door seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Cleaning the control panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Cleaning the door panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Problem solving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Solving problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Cleaning the water intake filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

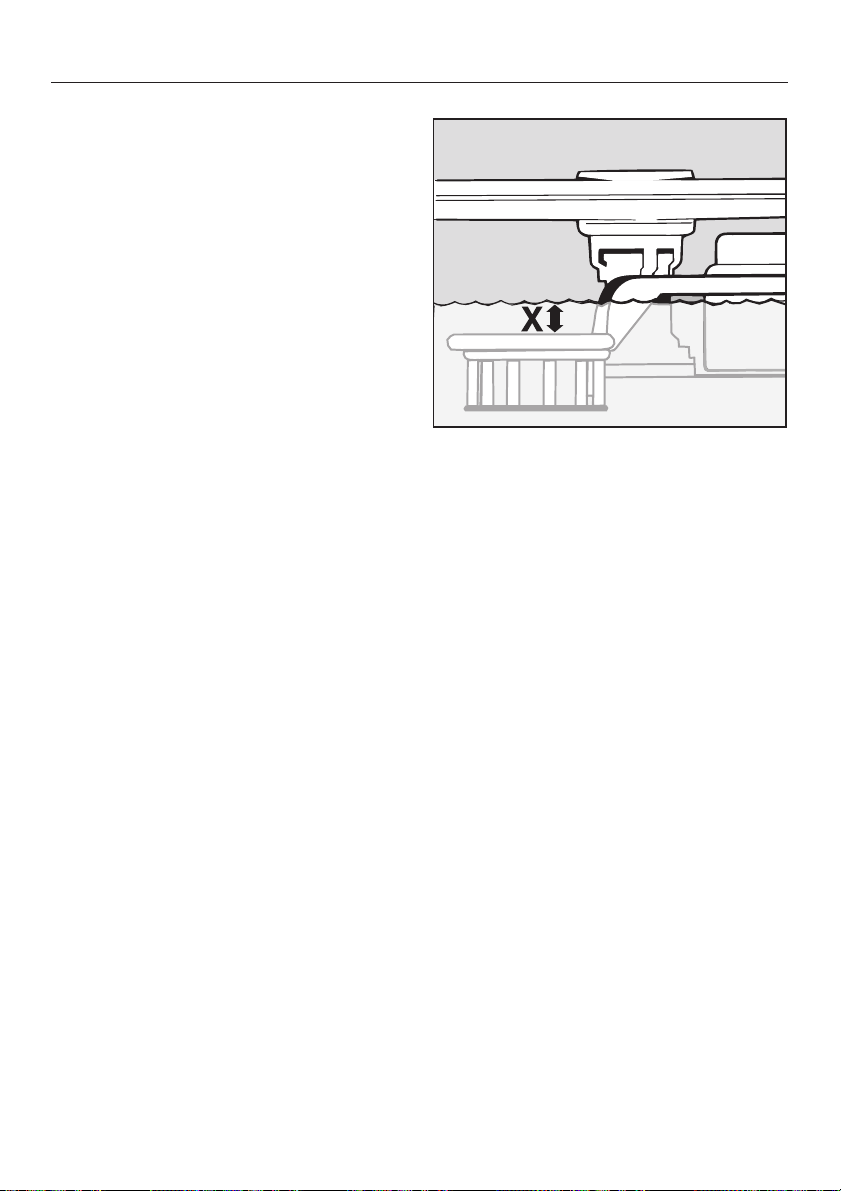

Checking the water level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Increasing the water intake time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 Cleaning the drain pump and non-return valve . . . . . . . . . . . . . . . . . . . . . . . . . . 50

After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Special accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Program chart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

3

Guide to the appliance

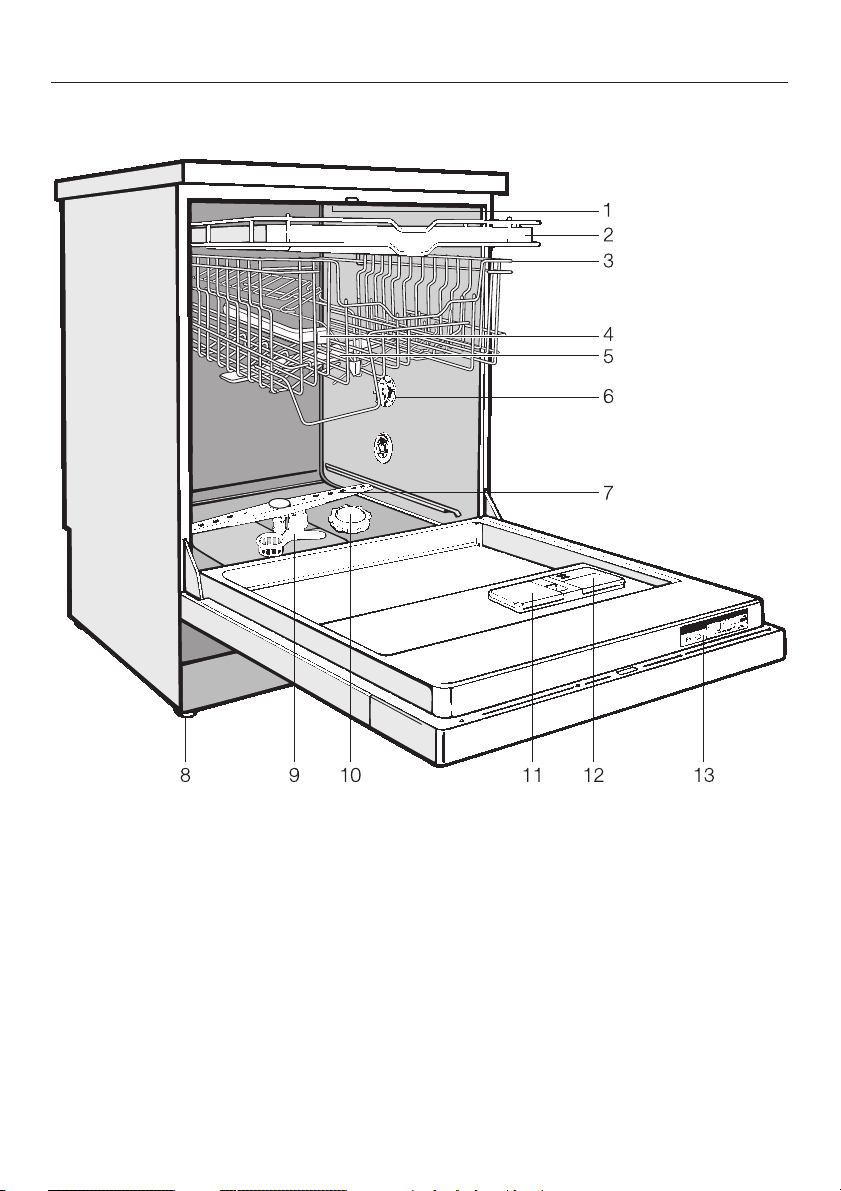

View of the dishwasher

1

Upper spray arm (not visible)

8

Four height adjustable feet

2

Cutlery tray (select models)

9

Filter combination

3

Upper basket

10

Salt reservoir

4

Waterfeed for middle spray arm

11

Dual compartment detergent

5

Middle spray arm



dispenser





6

Water hardness selector

12

Rinse aid reservoir



(with dose selector)







7

lower spray arm

13

Data plate





4

Guide to the appliance

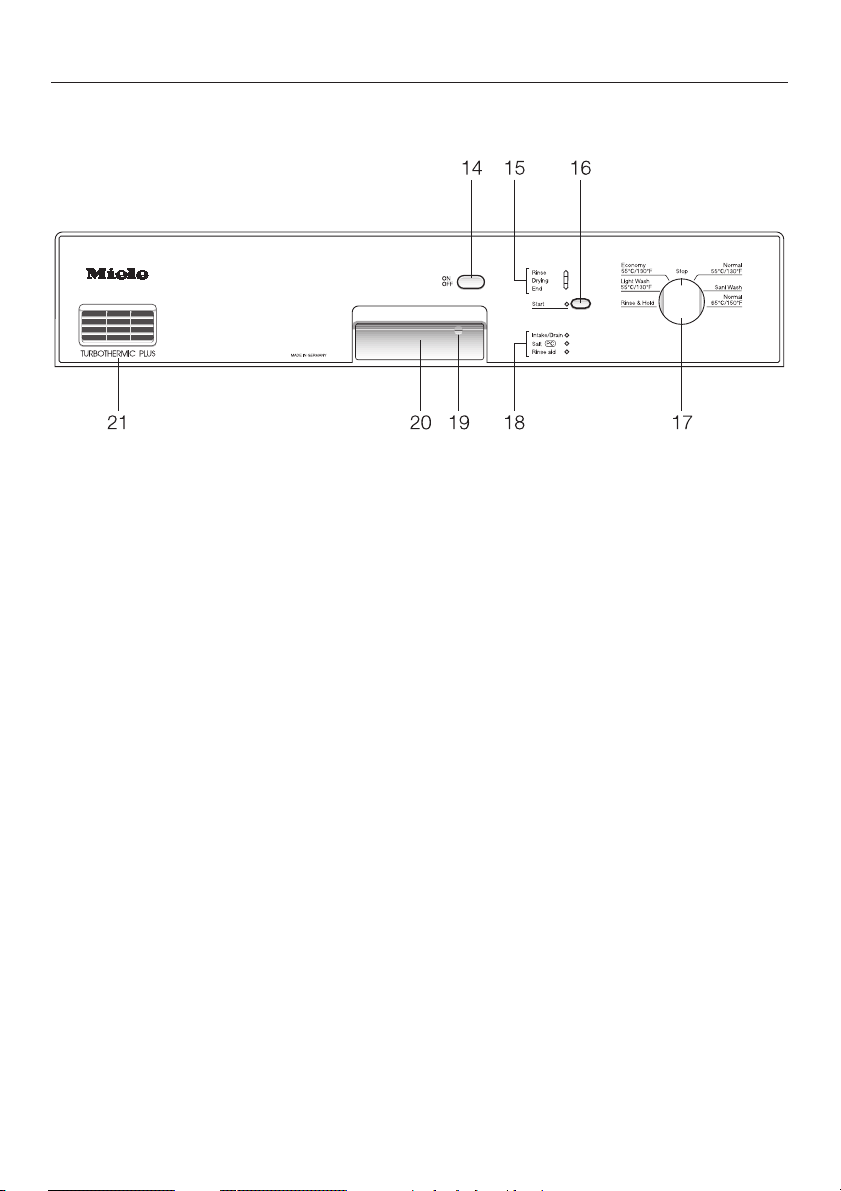

Control panel

14

“On/Off” button

18

Check/Refill indicators

15

Program sequence display

19

Child safety lock

16

“Start” button

20

Door release

17

Program selector

21

Vent for drying fan

5

IMPORTANT SAFETY INSTRUCTIONS

WARNING

Please follow all basic safety precautions when operating this dishwasher.

This appliance conforms with all uniform safety codes and regulations. To avoid injury and machine damage, read the operating instructions carefully.

The manufacturer cannot be held responsible for damage or injury caused by improper use or for uses other than those for which the appliance is intended.

Repairs should only be performed by a qualified and competent person. Disconnect the appliance from the power supply before servicing (pull out

the plug or “trip” the circuit breaker).

This dishwasher should only be installed under a continuous

countertop secured to adjacent cabinetry.

The dishwasher must be electrically grounded. Install the dishwasher as outlined in the included In-

stallation instructions.

Only use detergents and rinse aids recommended for residential dish-

washers.

Do not use the dishwasher unless all panels are in place.

Do not allow children to play in or on the dishwasher.

Keep all detergents and rinse aids out of the reach of children.

Dishwasher detergents contain Sodium Silicate and Sodium

Carbonate. In case of eye contact, immediately flush with water.

Call a physician or poison control.

Do not tamper with the controls.

Do not drink water from the dishwasher.

6

IMPORTANT SAFETY INSTRUCTIONS

When loading dishes and cutlery:

Place sharp items away from the door seal to prevent damaging the seal.

Load knives pointing down to prevent injuries.

Do not wash plastic items unless they are labeled “dishwasher safe”.

For items not labeled, check the manufacturer’s recommendations.

Do not abuse, sit, or stand on the door or baskets of the dishwasher.

When disposing of a dishwasher, unplug it from the outlet, remove

the front door and cut off the power cord. This will help protect children from injury and accidentally locking themselves in.

Under certain conditions, hydrogen gas may be produced in a hot wa-

ter system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, turn on all hot water faucets and let the water flow from each for several minutes before using the dishwasher. This will release any accumulated hydrogen gas. Do not smoke or use an open flame during this time.

SAVE THESE INSTRUCTIONS

7

INSTRUCTIONS IMPORTANTES SUR LA SÉCURITÉ

AVERTISSEMENT

Au moment d’utiliser votre lave-vaisselle, veuillez observer toutes les mesures de sécurité de base.

Cet appareil électroménager est conforme à tous les règlements et codes sur la sécurité. Pour éviter de vous blesser et d’endommager l’appareil, veuillez lire soigneusement les instructions sur l’utilisation.

Le fabricant ne peut être tenu responsable des dommages ou blessures causés par une utilisation inadéquate ou par des utilisations autres que celles auxquelles l’appareil est destiné.

Les réparations doivent être effectuées uniquement par une

personne compétente. Débrancher l’appareil de la prise de courant avant d’en faire l’entretien (enlever la fiche de la prise ou fermer le disjoncteur).

Installer uniquement ce lave-vaisselle sous un comptoir

continu qui est fixé à des meubles adjacents.

Vous devez mettre le lave-vaisselle à la terre. Installer le lave-vaisselle

en observant les instructions pour l’installation ci-jointes.

Utiliser uniquement des détersifs et des produits de rinçage

recommandés pour les lave-vaisselle domestiques.

Ne pas utiliser le lave-vaisselle à moins que tous les panneaux

soient bien en place.

Ne pas permettre aux enfants de jouer dans ou sur le lave-vaisselle.

Ranger tous les détersifs et produits de rinçage hors de la

portée des enfants.

Les détersifs pour lave-vaisselle contiennent du silicate de soude et

du carbonate de soude. En cas de contact avec les yeux, les rincer immédiatement à grande eau. Téléphoner à un médecin ou à un centre de traitement antipoison.

Ne pas modifier les commandes.

Ne pas boire l’eau du meuble de lavage.

8

INSTRUCTIONS IMPORTANTES SUR LA SÉCURITÉ

Au moment de remplir le lave-vaisselle :

Mettre les articles pointus de manière à ce qu’ils n’endommagent pas le seau étanche de la porte.

Mettre le tranchant des couteaux vers le bas afin d’éviter les risques de blessure.

Ne pas laver les articles en plastique à moins qu’ils n’indiquent

‘’Va au lave-vaisselle’’. Vérifier les recommandations du fabricant pour les articles non étiquetés.

Ne pas abuser et ne pas vous asseoir ni vous tenir sur la porte ou

sur les paniers du lave-vaisselle.

Enlever la porte et couper le cordon du lave-vaisselle avant de

l’enlever aux déchets afin d’empêcher les enfants de se blesser ou de s’enfermer dans l’appareil par accident.

Dans certaines conditions, un système d’eau chaude qui n’a pas

été utilisé pendant plus de deux semaines, peut dégager de l’azote. L’AZOTE EST EXPLOSIF. Si le système d’eau chaude n’a pas été utilisé pendant une telle période de temps, ouvrir tous les robinets d’eau chaude et laisser l’eau couler pendant plusieurs minutes avant d’utiliser le lave-vaisselle. Ceci dissipera tout l’azote accumulé. Ne pas fumer ni utiliser une flamme nue durant ce temps.

CONSERVER CES INSTRUCTIONS.

9

Caring for the environment

Disposal of the packing material

The cardboard box and packing material protects the appliance during shipping. These materials are biodegradable and recyclable, please recycle.

Disposal of an old appliance

Before disposing of an old appliance, please make safe as outlined in the “Important Safety Instructions” by removing power cords and doors.

Energy saving washing

This dishwasher is exceptionally economical in the use of water and electricity. For best results follow these tips:

The dishwasher can internally heat water to the temperatures required by the wash program. This capability allows the option of connecting the machine to either a hot or cold water source.

^For lowest energy consumption and the gentlest washing of china and crystal, connect the dishwasher to a cold water source.

^For fastest possible wash times, yet higher energy consumption, connect the dishwasher to a hot water source.

^For most economical dishwashing make full use of the baskets without overloading the dishwasher.

^Choose the program to suit the type of dishware being washed and the degree of soiling.

^Select the Economy 55° C/130° F program for energy saving dishwashing.

^Use the correct amounts of detergent.

^Only use 2/3 of the amount of detergent if baskets are only half full.

10

Before using for the first time

Before using for the first time, please note the following.

Setting the water softener

The water softener must be set to correspond to the water hardness in your area. The water hardness can be determined by calling your local water company, or by using a test kit that can be purchased from the Miele Technical service Department.

The salt reservoir must only be filled with water and salt. Never fill it with detergent.

Adding rinse aid

Accidentally filling the rinse aid reservoir with detergent will damage the reservoir.

Only use detergents and rinse aids formulated for domestic dishwashers.

Choose the correct program

Wash programs should be selected depending on load size and degree of soiling. See the Program Chart for program descriptions.

Add correct detergent amount

Generally, 1 ½ tablespoons (25 ml) of detergent is enough for most normally soiled loads. Not enough or too much detergent can lead to poor wash results. See “Adding detergent”.

Cleaning results vary among detergent brands. If you are not satisfied with the wash results, try another brand of detergent.

Load dishes correctly

Load dishes so that water can reach all surfaces. Check that the spray arms are not blocked by tall or large items. If necessary, manually rotate the spray arms to check clearance.

The combination filter in the base of the wash cabinet and the spray arms must be kept clean.

These should be regularly inspected and cleaned.

See the “Cleaning and care” section for more detailed information.

Every dishwasher is tested before leaving the factory. Any water remaining in the machine is from these tests and does not indicate that the machine has been used.

11

Before using for the first time

To open the door

Child Safety Lock

^Press the release catch inside the door grip.

If the door is opened during operation, all functions will be interrupted.

To close the door

^Push the baskets in.

^Lift the door and push until it clicks into position.

The yellow key for the Child Safety Lock is shipped on one of the spikes at the front of the upper basket. Remove the key before using the dishwasher.

The Child Safety Lock is designed to prevent children from opening the dishwasher.

^Use the provided key to lock or unlock the Child Safety Lock.

Horizontal =

the door is locked

Vertical =

the door can be opened

12

Before using for the first time

Water softener

To achieve good cleaning results, the dishwasher needs soft water. Hard water results in the build up of calcium deposits on dishes and in the dishwasher. If your tap water hardness is above

8 gr/gal (140 ppm), the water should be softened. This takes place automatically in the integrated water softener.

The water softener must be filled with dishwasher salt for reactivation.

The dishwasher must be programmed to correspond to the water hardness in your area.

Your local water authority will be able to advise you of the water hardness level in your area.

If your tap water hardness is consistently lower than 8 gr/gal (= 140 ppm) do not add dishwasher salt. However, the dishwasher must still be programmed to correspond to the water hardness level in your area.

Where the water hardness fluctuates (e. g. 9 - 17 gr/gal) always program the machine to the higher value (in this example 17 gr/gal).

If there is a fault, it will help the service technician to know the hardness of your tap water.

^ Enter the water hardness below:

gr/gal (ppm)

13

Before using for the first time

Programming and setting the water hardness level

Your water hardness level must be programmed into the machine using the buttons on the control panel. The water hardness level selector in the wash cabinet is then also set to the water hardness level in your area.

Programming and changing the water hardness level

^Turn off the dishwasher with the “On/Off” button.

^Turn the program selector to “Stop”.

^Hold the “Start” button in and at the same time turn the dishwasher on with the “On/Off” button. Release the “Start” button within 2 seconds.

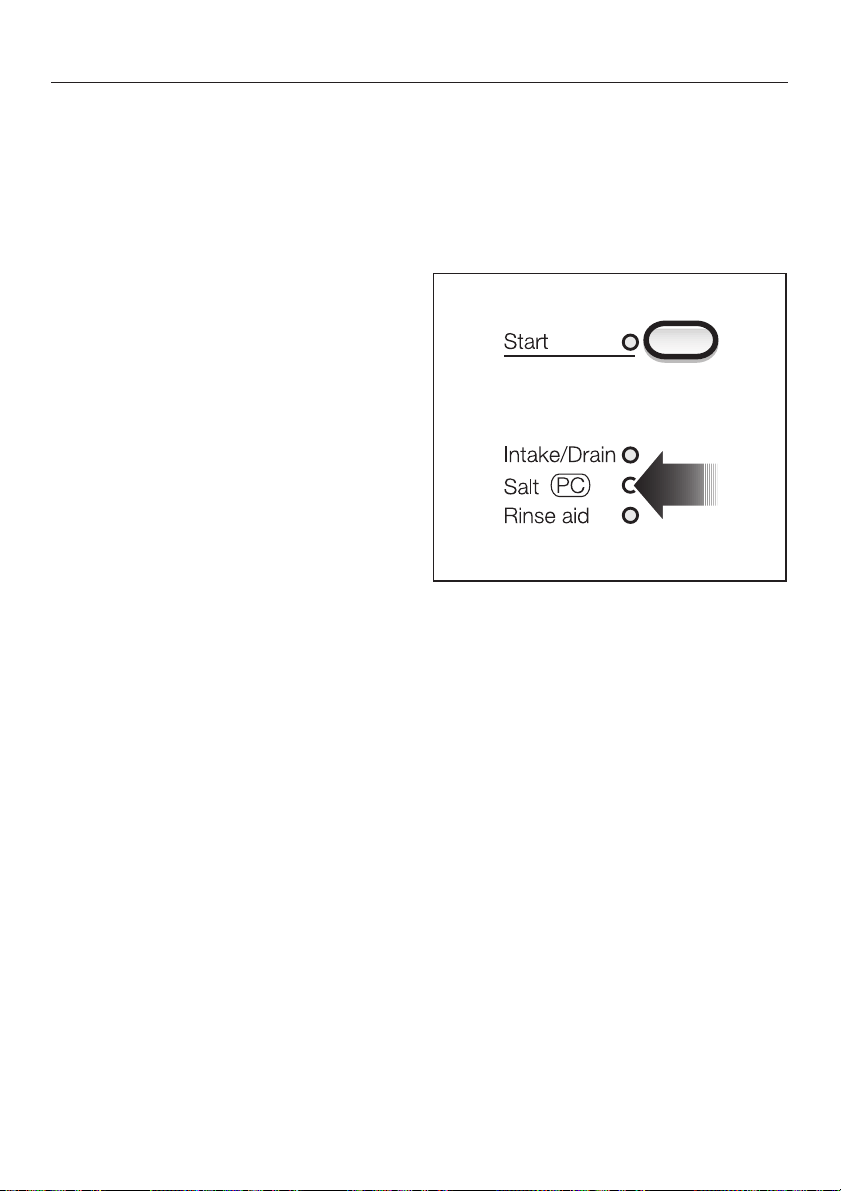

The “Salt” indicator flashes.

Note:

If any other indicator lights flash or light the process must be repeated.

Except:

If the “Rinse aid” indicator flashes or lights then rinse aid was never added or needs to be refilled.

^Turn the program selector to your corresponding water hardness level (see table below).

gr/gal

ppm

Selector











Settings













1

-

4

20

- 70

Normal 55 °C/130 °F













5

-

7

90

- 130

Sani Wash











8

- 10

140

- 180

Normal 65 °C/150 °F











11

- 14

200

- 250

“4 o’clock” position











15

- 17

270

- 310

“5 o’clock” position











18

- 21

320

- 380

“6 o’clock” position











22

- 35

400

- 630

“7 o’clock” position









36

- 70

650 - 1260

“8 o’clock” position













The water hardness selector is preset to 1 - 4 gr/gal (20 – 70 ppm).

Example:

For a water hardness level of 20 gr/gal.

Turn the program selector to the “6 o’clock” position.

14

Before using for the first time

^Press the “Start” button. The “Start” indicator lights.

^Turn the program selector to “Stop”.

^Turn off the dishwasher with the “On/Off” button.

The water hardness level is now stored in the program memory.

Setting the water hardness level selector in the wash cabinet

The water hardness level selector in the wash cabinet must be set according to the following table.

Selecting the correct setting will help minimize the effects of dishwashing on glass surfaces. Too high a setting will lead to poor cleaning results and an increase in water spots left on dishes and cutlery.

^Use a screwdriver to take the cover off the water hardness level selector in the wash cabinet.

^Use a coin or screwdriver to adjust the water hardness level selector in the wash cabinet. There is a click as each setting is reached.

gr/gal

ppm

Selector Setting











1- 7

20

-

130

3

8-10

140

-

180

2

11-14

200

-

250

1

15-70

270

- 1260

0











The selector setting is preset to “3”.

Example:

The water hardness level is 8 gr/gal. The selector setting is 2 (8 - 10 gr/gal).

^Replace the cover on the water hardness level selector.

15

Before using for the first time

Checking the programmed water hardness

^Turn off the dishwasher with the “On/Off” button.

^Turn the program selector to “Stop”.

^Hold the “Start” button in and at the same time turn the dishwasher on with the “On/Off” button. With in

2 seconds release the “Start” button.

The “Salt” indicator flashes.

Note:

If any other indicators light or flash the process must be repeated.

Except:

If the “Rinse aid” indicator lights rinse aid was never added or needs to be refilled.

^Turn the program selector slowly past “Normal 55 °C/130 °F” to the “8 o’clock” position.

The “Start” indicator will light when the programmed water hardness setting is reached. The water hardness level corresponds to the position of the program selector (see the table “Programming and setting the water hardness level”).

^Turn the program selector to “Stop”.

^Turn off the dishwasher with the “On/Off” button.

16

Before using for the first time

Filling the salt reservoir

If your water hardness level is greater than 8 gr/gal, the salt reservoir should be filled before the first use and when the “Salt” indicator lights. Only use water softener reactivation salt (1 - 4 mm grain size); other salts may contain insoluble additives which can impair the water softener.

The salt reservoir holds approximately 4 lbs (2 kg) of salt.

Inadvertently filling the salt reservoir with dishwashing detergent will damage the water softener. Make sure that only water softener reactivation salt of the proper grain size is used.

To fill the salt reservoir:

^Remove the lower basket.

^Unscrew and remove the salt reservoir cap.

Before adding salt for the first time, fill the reservoir with approximately 2 quarts (2 l) of water.

^Place the provided funnel over the salt reservoir.

^Carefully fill with salt, grain size of

1 - 4 mm. The salt reservoir holds approximately 4 lbs (2 kg) of salt depending of the brand used. As it is filled, water will run out.

^Clean any excess salt from the threads of the reservoir opening.

^Screw the cap on firmly.

If the dishwasher will not be used immediately after reactivation, run the “Rinse & Hold” program. This will remove any traces of salt from inside the wash cabinet.

17

Before using for the first time

Salt indicator

When the salt reservoir is empty, the “Salt-PC” indicator will light, indicating that it should be refilled with reactivation salt.

After the reservoir has been filled, the water softener is automatically reactivated the next time the dishwasher is started. The “Softener” indicator will light during this process.

Note:

If your water is soft (below 8 gr/gal) the salt reservoir should not be filled with salt. The indicator will remain lit and should be disregarded or deactivated.

The “Salt-PC” indicator has also been designed so that future program updates can be entered into the dishwasher. See the “After Sales Service”.

Bypassing the Salt indicator

To bypass the salt indicator, you will need a screwdriver and needle nose pliers.

^ Remove the salt reservoir cap.

Looking into the salt reservoir, you will see the top of the float chamber on the right hand side b.

^Using a screwdriver, carefully pivot the float chamber towards the center of the reservoir.

^Using needle nose pliers, pull off the cap c from the float chamber and remove the float d.

^Replace the float chamber cap, push the chamber back into its upright position, and replace the salt reservoir cap. The indicator should now remain off.

18

Loading...
+ 42 hidden pages
