MONITOR WITH DVD RECEIVER
DDX6019
DDX6039
INSTRUCTION MANUAL
Take the time to read through this instruction manual.
Familiarity with installation and operation procedures will help you obtain the best performance from your new DVD Receiver.
For your records
Record the serial number, found on the back of the unit, in the spaces designated on the warranty card, and in the space provided below. Refer to the model and serial numbers whenever you call upon your Kenwood dealer for information or service on the product. Model DDX6019/DDX6039 Serial number
US Residence Only
Register Online
Register your Kenwood product at www.kenwoodusa.com
© B64-3367-00/00 (KV/RV)
Contents
Before Use .................................................... |
4 |
Notes on playing MP3/WMA/JPEG/MPEG.. 6
Basic operations .......................................... |
8 |
Basic Operations of Remote Controller ... 10
About discs................................................. |
13 |
Controlling during DVD Video, Video CD, |
|
JPEG or MPEG Playback ......................... |
14 |
Displaying the DVD/VCD/JPEG/MPEG Playback screen
Displaying the Easy Control Panel Displaying the DVD/VCD Control screen DVD Disc Menu
VCD Zoom Control Picture Control Information Display Direct Search
CD/MP3/WMA/JPEG/MPEG/Disc Changer |
|
Play Control ............................................ |
20 |
Displaying the Easy Control Panel
Displaying the CD/MP3/WMA/JPEG/MPEG/Disc Changer Control screen
Displaying the CD/MP3/WMA/JPEG/MPEG/Disc Changer Menu screen
Set Disc Name
Select Folder (during MP3/WMA/JPEG/MPEG play) ID3/WMA TAG Display (during MP3/WMA play) Disc Select (during play by disc changer)
Direct Search.
Tuner Control ............................................. |
28 |
Displaying the Easy Control Panel
Displaying the Tuner Control screen
Displaying the Tuner Menu screen
Seek Mode
Auto Memory
Manual Memory
Preset Select
Set Station Name
Direct Search
Traffic Information
Search for Program Type
Radio Text
2 | English
TV/ Video Control ...................................... |
34 |
Displaying the TV Picture screen
Displaying the Easy Control Panel
Displaying the TV Control screen
Displaying the TV Menu screen
Seek Mode
Auto Memory
Manual Memory
Preset Select
Set Station Name
Direct Search
SIRIUS Tuner Control <North American |
|
sales only>.............................................. |
38 |
Displaying the Easy Control Panel Displaying the SIRIUS Tuner Control screen Displaying the SIRIUS Tuner Menu Channel Search
Channel Memory Direct Channel Search Information Display
HD Radio Control <North American sales |
|
only> ....................................................... |
42 |
Displaying the Easy Control Panel |
|
Displaying the HD Radio Control screen |
|
Displaying the HD Radio Menu screen |
|
Seek Mode |
|
Auto Memory |
|
Manual Memory |
|
Receive Mode |
|
Title Display. |
|
DAB Tuner control ..................................... |
46 |
Displaying the Easy Control Panel |
|
Displaying the DAB Tuner Control screen |
|
Displaying the DAB Tuner Menu screen |
|
Seek Mode |
|
Auto Ensemble Memory |
|
Service Preset Memory |
|

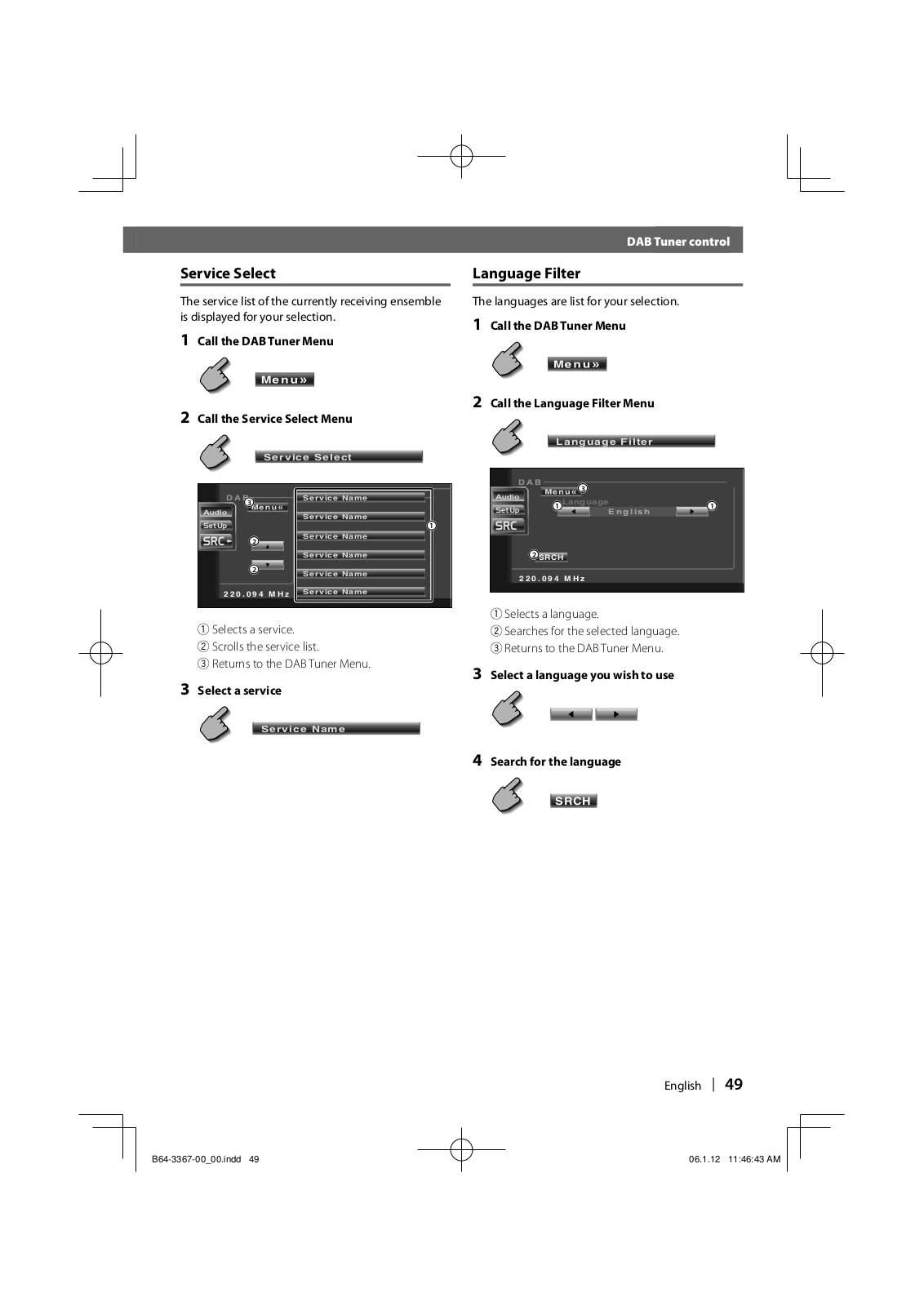

Service Select |
|
Language Filter |
|
Search for Program Type |
|
DAB Information |
|
DAB Announcement |
|
Weather Band Tuner Control .................... |
52 |
Displaying the Easy Control Panel |
|
Displaying the Weather Band Tuner Control screen |
Character Entry.......................................... |
53 |
How To Use the Character Entry screen |
|
Source Select.............................................. |
54 |
Displaying the Control screen |
|
Displaying the Source Select screen |
|
Adjusting the Picture Quality ................... |
55 |
Displaying the Screen Control screen |
|
Setup Menu................................................ |
56 |
Setup Menu............................................................ |
56 |
Displaying the Control screen |
|
Displaying the Setup Menu screen |
|
Audio Set Up .......................................................... |
57 |
Displaying the Audio Set Up screen |
|
Crossover Network Setup |
|
DVD Setup .............................................................. |
59 |
Displaying the DVD SETUP 1 screen |
|
Displaying the DVD SETUP 2 screen |
|
Displaying the DVD SETUP 3 screen |
|
Language Setup |
|
Parental Level Setup |
|
System Setup ......................................................... |
63 |
Displaying the System Set Up screen |
|
AV Interface............................................................ |
64 |
Displaying the AV I/F 1 screen |
|
Displaying the AV I/F 2 screen |
|
Displaying the AV I/F 3 screen |
|
User Interface ........................................................ |
66 |
Displaying the User I/F 1 screen |
|
Displaying the User I/F 2 screen. |
|
Touch Panel Adjustment...................................... |
67 |
Clock........................................................................ |
67 |
Monitor Set UP ...................................................... |
68 |
Displaying the Screen Adjust screen |
|
Displaying the Tilt Adjust screen |
|
Displaying the MODE Select screen |
|
Security Code Setup ............................................. |
70 |
Deactivate Security Code .................................... |
71 |
Set Up Memory...................................................... |
72 |
SIRIUS Setup <North American sales only>..... |
73 |
Displaying the SIRIUS Set Up screen |
|
DAB Set Up ............................................................. |
74 |
Displaying the DAB Set Up screen |
|
Announcement Selection |
|
Sound Effects Menu................................... |
76 |
Sound Effects Menu.............................................. |
76 |
Displaying the Control screen |
|
Displaying the Sound Effects Menu screen |
|
Audio Control ........................................................ |
77 |
Displaying the Audio Control 1 screen |
|
Displaying the Audio Control 2 screen |
|
Equalizer ................................................................. |
78 |
Displaying the Equalizer screen |
|
Tone curve setup |
|
Zone Control .......................................................... |
80 |
Displaying the Zone Control screen |
|
Muting Audio Volume upon Reception of |
|
Phone call ............................................... |
81 |
Muting Audio Volume upon Reception of Phone |
|
call |
|
Glossary...................................................... |
82 |
Troubleshooting Guide ............................. |
83 |
Specifications............................................. |
87 |
English | 3
Before Use
2WARNING |
|
Audio units you can control from the |
|||
|
|
DDX6019/DDX6039 Receiver (As of Janualy, |
|||
To prevent injury or fire, take the following |
|||||
2006): |
|
|
|||
precautions: |
|
KTC-SR901, KTC-SR902, KTC-SR903, KTC-HR100, KTC-HR100MC, |
|||
• To prevent a short circuit, never put or leave any metallic |
|
KTC-HR100TR, KHD-CX910, KHD-C710, KTC-WB100, KDC-C719, |
|||
objects (such as coins or metal tools) inside the unit. |
|
KDC-C669, KDC-C469, KDV-C810, KDC-CX89, KDC-CX87, |
|||
• Do not touch the liquid crystal fluid if the LCD is damaged |
|
KDC-C717, KDC-C667, KDC-C467, KDC-D301, KDC-CX85, |
|||
|
KDC-C715, KDC-C665, KDC-C465, KDC-CX82, KDC-C712, |
||||
or broken due to shock. The liquid crystal fluid may be |
|
||||
|
KDC-662, KDC-D300, KMD-D400, KTC-9090DAB, KTC-V300N, |
||||
dangerous to your health or even fatal. |
|
||||
If the liquid crystal fluid from the LCD contacts your body or |
|
KTC-V500N (Set the "O-N" switch to "N" position if provided.) |
|||
clothing, wash it off with soap immediately. |
|
|
|
|
|
• Mounting and wiring this product requires skills and |
|
Navigation units you can control from the |
|||
experience. For safety’s sake, leave the mounting and wiring |
|
DDX6019/DDX6039 Receiver (As of Janualy, |
|||
work to professionals. |
|
||||
2CAUTION |
2006): |
|
|
||
|
KNA-DV2100, KNA-DV3100, KNA-DV4100 |
|
|||
To prevent damage to the machine, take |
|
Loading and Replacing the battery |
|||
the following precautions: |
|
Use one lithium battery (CR2025). |
|
||
• Make sure to ground the unit to a negative 12V DC power |
|
Insert the batteries with the +and |
Keep on slide |
||
supply. |
|
-poles aligned properly, following |
|||
• Do not install the unit in a spot exposed to direct sunlight |
|
the illustration inside the case. |
|
||
|
|
|
|
||
or excessive heat or humidity. Also avoid places with too |
|
|
|
|
|
much dust or the possibility of water splashing. |
|
|
Pull out |
|
|
• Do not place the faceplate or the faceplate case in areas |
|
|
|
||
|
2WARNING |
|
|
||
exposed to direct sunlight, excessive heat or humidity. Also |
|
Store unused batteries out of the reach of children. Contact a |
|||
avoid places with too much dust or the possibility of water |
|
||||
|
doctor immediately if the battery is accidentally swallowed. |
||||
splashing. |
|
||||
|
|
|
|
||
• To prevent deterioration, do not touch the terminals of the |
|
|
|
|
|
unit or faceplate with your fingers. |
|
• Do not set the remote control on hot places such as above the |
|||
• Do not subject the faceplate to excessive shock, as it is a |
|
||||
|
dashboard. |
|
|||
piece of precision equipment. |
|
|
|
|
• When replacing a fuse, only use a new fuse with the
prescribed rating. Using a fuse with the wrong rating may
cause your unit to malfunction. • The provided batteries are intended for use in operation checking, and their service life may be short.
• Do not use your own screws. Use only the screws provided. |
• When the remote controllable distance becomes short, replace |
|||||||
If you use the wrong screws, you could damage the unit. |
||||||||
the battery with new one. |
||||||||
• You cannot view video pictures whilst the vehicle is moving. |
||||||||
|
||||||||
To enjoy TV/video pictures, find a safe place to park and |
Cleaning the panel and monitor |
|||||||
engage the parking brake. |
When the operator panel and monitor panels are dirty, wipe |
|||||||
|
|
|
|
|
|
|
||
NOTE |
and clean them using a soft cloth (such as a commercially |
|||||||
available silicon coated cloth). When contaminated |
||||||||
• If you experience problems during installation, consult your |
excessively, clean them using a cloth dipped in a neutral |
|||||||
detergent first, then remove the detergent using a dry cloth. |
||||||||
Kenwood dealer. |
||||||||
Do not use a hard cloth and a volatile chemical (such as |
||||||||
• When you purchase optional accessories, check with your |
||||||||
an alcohol). If used, the panel surface may be scratched or |
||||||||
Kenwood dealer to make sure that they work with your |
||||||||
printed letters may be erased. |
||||||||
model and in your area. |
||||||||
|
||||||||
• If the unit fails to operate properly, press the Reset button |
Cleaning the disc slot |
|||||||
to restore factory settings. |
||||||||
As dust can accumulate in the disc slot, clean it occasionally. |
||||||||
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
Your discs can get scratched if you put them in a dusty disc |
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
slot. |
|
|
|
|
|
|
|
|
Lens Fogging |
|
|
|
|
|
|
|
|
Right after you turn on the car heater in cold weather, dew |
|
|
|
|
|
|
|
|
or condensation may form on the lens in the disc player of |
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
the unit. Called lens fogging, discs may be impossible to |
|
|
|
Reset button |
play. In such a situation, remove the disc and wait for the |
|||||
Screen brightness during low temperatures |
condensation to evaporate. If the unit still does not operate |
|||||||
normally after a while, consult your Kenwood dealer. |
||||||||
When the temperature of the unit falls such as during winter, |
||||||||
|
||||||||
the liquid crystal panel's screen will become darker than usual. |
|
|||||||
Normal brightness will return after using the monitor for a |
|
|||||||
while. |
|
4 | English
Region codes in the world
The DVD players are given a region code according to the country or area it is marketed, as shown in the following map.
1 |
|
5 |
|
2 |
|
1 |
6 |
2 |
|
|
|
|
3 |
|
4 |
|
1 |
|
|
|
|
5 |
|
|
2 |
|
|
|
4 |
Icons on the DVD discs
Icon |
Description |
Indicates the region code where the disc can be played.
8 |
Number of voice languages recorded with the audio function. The number in the icon indicates the number |
||
of voice languages. (Max. 8 languages) |
|
||
|
|
||
|
|
||
32 |
Number of subtitle languages recorded with the subtitle function. The number in the icon indicates the |
||
|
number of subtitle languages. (Max. 32 languages) |
||
|
|
||
9 |
Number of angles provided by the angle function. The number in the icon indicates the number of angles. |
||
(Max. 9 angles) |
|
||
|
|
||
16:9 LB |
Aspect ratios that can be selected. "LB" stands for Letter Box and "PS" for Pan/Scan. In the example on the left, |
||
the 16:9 video can be converted into letter box video. |
|||
|
|||
|
|
||
Unplayable discs |
|
||
This player cannot play back any of the following discs. |
|
||
• DVD-ROM/DVD-RAM discs |
• HQ-VCD/SVCD discs |
||
• CDV discs (Only the audio part can be reproduced) |
• CD-G/CD-EG/CD-EXTRA discs (Only the audio can be reproduced) |
||
• Photo CD discs |
|
• DVD-Audio |
Also, you cannot play back the DVD-R/RW and DVD+R/RW discs if not recorded in the DVD-Video format.
Restrictions due to difference between discs
Inhibition |
Some DVD and VCD discs can be played |
|
only in certain playback modes according |
||
icon |
||
|
to the intentions of the software producers. |
|
|
As this player plays discs according to their |
|
|
intentions, some functions may not work as |
|
|
intended by you. Please be sure to read the |
|
|
instructions provided with each disc. When an |
|
|
inhibition icon is displayed on the monitor, it |
|
|
indicates that the disc being played is under |
|
|
the restriction as described above. |
The illustrations of the display and the panel appearing in this manual are examples used to explain more clearly
how the controls are used. Therefore, what appears on the display in the illustrations may differ from what appears on the display on the actual equipment, and some of
the illustrations on the display may represent something impossible in actual operation.
Explanation of icons used on this manual
Indicates the key operation on the receiver.
Indicates the button you must touch.
Indicates the key or joystick operation on the remote controller.
The initial value of each setup is shown.
Gives an additional information or an operation advice.
Time is displayed on each control screen in the 12-hour clock display type (with AM/PM displayed) or in the
24 hour clock display type (without AM/PM displayed) depending on the sales area. The display type cannot be changed. In this instruction manual, screens of the 24-hour display type are used as examples.
English | 5
Notes on playing MP3/WMA/JPEG/MPEG
This unit can play MP3 (MPEG1 Audio Layer 3)/ WMA/JPEG/MPEG (MPEG 1/MPEG 2). Note, however, that the MP3/WMA/JPEG/MPEG recording media and formats acceptable are limited. When writing MP3/WMA/JPEG/MPEG, pay attention to the following restrictions.
Acceptable media
The MP3/WMA/JPEG/MPEG recording media acceptable to this unit are CD-ROM, CD-R, CD-RW,DVD-R/RW and DVD+R/ RW.
When using CD-RW, do full format not quick format to prevent malfunction.
Acceptable medium formats
The following formats are available for the media used in this unit. The maximum number of characters used for file name including the delimiter (".") and three-character extension are indicated in parentheses.
•ISO 9660 Level 1 (12 characters)
•ISO 9660 Level 2 (31 characters)
•Joliet (64 characters)
•Romeo (128 characters)
Up to 200 characters can be displayed in the long file name format. For a list of available characters, see the instruction manual of the writing software and the section Entering file and folder names below.
The media reproducible on this unit has the following limitations:
•Maximum number of directory levels: 8
•Maximum number of files per folder: 255
•Maximum number of characters for folder name: 200
•Maximum number of folders: 254
MP3/WMA/JPEG/MPEG written in the formats other than the above may not be successfully played and their file names or folder names are not properly displayed.
Settings for your MP3/WMA/JPEG/MPEG encoder and CD/DVD writer
Do the following setting when compressing audio data in MP3/WMA data with the MP3/WMA encoder.
MP3/WMA
• Transfer bit rate: MP3: 32 —320 kbps WMA: 48 —192 kbps
• Sampling frequency: MP3: 32, 44.1, 48 kHz WMA: 32, 44.1, 48 kHz
Do the following setting when compressing video/audio data in JPEG/MPEG data with the JPEG/MPEG encoder.
JPEG
• Picture size: Baseline format: 5,120 (W) x 3,840 (H) pixels
(Maximum size)*1
Progressive format: 2,048 (W) x 1,536 (H) pixels
(Maximum size)*2
MPEG
•Video format: MPEG1, MPEG2
•Picture size: MPEG1: 320x240, 352x240 (NTSC), 352x288 (PAL)
MPEG2: 720x480 (NTSC), 720x576 (PAL)
•Audio format: MPEG1 Audio Layer2
•Transfer bit rate: 32—384 kbps CBR
•Sampling frequency: 32, 44.1,48 kHz
When you use your CD/DVD writer to record MP3/WMA/JPEG/ MPEG up to the maximum disc capacity, disable additional writing. For recording on an empty disc up to the maximum capacity at once, check Disc at Once.
•Play mode may not be possible when portions of the functions of Windows Media Player 9 or higher are used.
•*1 A part of picture will not be displayed if the size of a picture exceeds maximum.
•*2 A picture will not be displayed if the size of a picture exceeds maximum.
•When you write for MPEG 2 data, please be sure to use DVD media.
•When you write data in DVD media, please be sure to set a setup of a DVD writer to "Disc at once".
Entering ID3 tag
The Displayable ID3 tag is ID3 version 1.x.
For the character code, refer to the List of Codes.
Entering file and folder names
You can use only characters shown on the code table for file name and folder name.
If you use any other character for entry, the file and folder names are not displayed correctly. They may neither be displayed correctly depending on the CD/DVD writer used. The MP3/WMA/JPEG/MPEG file must have the MP3/WMA/ JPEG/MPEG extension (.mp3/.wma/.jpg/.mpg).
•A file with a name entered with characters not on the code list may not play correctly.
Writing files into a medium
When a medium containing MP3/WMA/JPEG/MPEG data is loaded, the unit checks all the data on the medium. If the medium contains a lot of folders or non-MP3/WMA/JPEG/ MPEG files, therefore, it takes a long time until the unit starts playing MP3/WMA/JPEG/MPEG.
In addition, it may take time for the unit to move to the next MP3/WMA/JPEG/MPEG file or a File Search or Folder Search may not be performed smoothly.
Loading such a medium may produce loud noise to damage the speakers.
•Do no attempt to play a medium containing a non-MP3/WMA/ JPEG/MPEG file with the MP3/WMA/JPEG/MPEG extension. The unit mistakes non-MP3/WMA/JPEG/MPEG files for MP3/ WMA/JPEG/MPEG data as long as they have the MP3/WMA/ JPEG/MPEG extension.
•Do not attempt to play a medium containing non MP3/WMA/ JPEG/MPEG.
6 | English
MP3/WMA/JPEG/MPEG playing order
When selected for play, Folder Search, File Search, or for Folder Select, files and folders are accessed in the order in which they were written by the CD/DVD writer.
Because of this, the order in which they are expected to be played may not match the order in which they are actually played. You may be able to set the order in which MP3/WMA/ JPEG/MPEG are to be played by writing them onto a medium such as a CD-R with their file names beginning with play sequence numbers such as "01" to "99", depending on your CD/DVD writer.
JPEG
JPEG is a standardized image compression mechanism. JPEG stands for Joint Photographic Experts Group, the original name of the committee that wrote the standard. JPEG is designed for compressing either full color or gray scale images.
MPEG 1
The most common implementations of the MPEG 1 standard provide a video resolution of 352-by- 240 at 30 frames per second (fps). This produces video quality slightly below the quality of conventional VCR videos.
MPEG 2
MPEG 2 offers resolutions of 720x480 and 1280x720 at 60 fps (NTSC), with full CD-quality audio. This is sufficient for all the major TV standards, including NTSC, and even PAL. MPEG 2 is used by DVD-ROMs. MPEG-2 can compress a 2- hour video into a few gigabytes.
English | 7
Basic operations
SRC |
8 | English
1Attenuator/Loudness [ATT] key
Attenuates the volume.
Press it again to cancel muting.
Press it for more than 1 second to turn the Loudness function on or off.
If turned on, high and low tones are enhanced during low volume.
2Volume Controls [d] / [u] key
Adjusts the volume.
3Function/ AV OUT SEL [FNC] key
The video source function changes in the following order each time you press the key.
Switches the source that is output at the AV OUTPUT terminal when it is pressed more than 1 second.
4Video Source Selection/ V.OFF [V.SEL] key
Video source selection changes in the following order each time you press the key.
TV */Video
R-CAM *
Navigation *
* Optional accessory
You can also turn off the video display by pressing the key longer than 1 second.
When you press the key again, the previous video display comes back on.
5Audio Source Selection/ Power Supply [SRC] key
Audio source selection changes in the following order each time you press the key.
TV */Video
AUX EXT *
Navigation *
* Optional accessory
You can also turn off the power by pressing the key longer than 1 second.
When you press the key again, the power turns on.
6Eject Disc [0] key
The disc is ejected.
7Play Disc
[Disc insertion slot]
A disc is played when you insert it.
•Aside from the navigation system, the display turns on when you apply the parking brake.
•It is necessary to set "Navigation Source" of <AV Interface> to "On" to add Navigation as an audio source that can be selected the with [SRC] key. (page 65)
•It is necessary to engage the shift knob of car to "Reverse" to switch to rear view camera (R-CAM) video display.
English | 9
Basic Operations of Remote Controller
11
12
13
2
14
15
16
17
18
19
21
22
23
25
26
10
9
8
7
1
20
3
24
4
5
6
27
DVD : An operation during DVD playback
VCD : An operation during VCD playback
DISC : An operation during DVD, VCD, CD, MP3/WMA/JPEG/MPEG or MD playback TV : An operation during TV source
TUNER : An operation during FM/AM broadcasting source
10 | English
1Remote Control Mode selector switch
Selects one of the following remote control modes.
AUD: Tuner source or attached disc changer source DVD: Built-in DVD/VCD/CD/MP3/WMA/JPEG/MPEG
player source TV: TV source
2[SRC] key
Audio source changes each time you press the key.
3[] / [] key
DISC TV TUNER
Adjusts the volume.
4 [2-ZONE] key
DISC TV TUNER
Turns Zone function on or off each time you press the key.
(page 80 for the <Zone Control>)
5 [] / [ ] key
DISC TV TUNER
Adjusts the volume of the rear channel. You can adjust the rear channel volume when Zone function is on.
6 [ATT] key
DISC TV TUNER
When you press the key, the volume attenuates. When you press the key again, the volume returns to the previous level.
7 Joystick
DVD
Enters your selection from the DVD Disc Menu.
8 [DISP] key
DISC TV TUNER
(When 1 is set to "AUD" or "TV")
Video source selection changes in the following order each time you press the key.
TV */Video
R-CAM *
Navigation *
* Optional accessory
•It is necessary to engage the shift knob of car to "Reverse" to switch to rear view camera (R-CAM) video display.
9 [TOP MENU] key
DVD (When 1 is set to "DVD")
Calls the Top menu of DVD Disc Menu.
|
DISC |
|
TV |
|
TUNER |
(When 1 is set to "TV" or |
|
"AUD") |
|
|
|
|
|
|
Switches the Screen mode. (page 68) |
|||||
p [RETURN] key |
|
|
|
|||
|
|
|
|
(When 1 is set to "DVD") |
||
|
DVD |
|
VCD |
Returns to the previous screen when the DVD/VCD Disc Menu is displayed.
q [MENU] key
DVD (When 1 is set to "DVD") Calls the DVD Disc Menu.
VCD (When 1 is set to "DVD")
Turns the PBC (Playback Control) function On or Off.
w [SUB TITLE] key
DVD (When 1 is set to "DVD") Switches a subtitle language.
e [ANGLE] key
DVD (When 1 is set to "DVD") Switches the view angle.
r [ZOOM] key
DVD VCD (When 1 is set to "DVD")
Each time you press the button, the zoom ratio switches.
t[DVD SETUP] key
Not used.
y [] key
DISC TV TUNER
Each time the key is pressed, the panel slides.
u [AM–] / [FM+] key
DISC (When 1 is set to "DVD" or "AUD") FM+: Selects next disc.
AM–: Selects previous disc.
TV (When 1 is set to "TV" or "AUD")
FM+: Switches to TV1, TV2, VIDEO1, or VIDEO2. TUNER (When 1 is set to "AUD")
FM+: Switches to the FM1, FM2, or FM3 band.
AM–: Switches to the AM band.
i [38] key
DISC (When 1 is set to "DVD" or "AUD")
Plays or pauses.
TV (When 1 is set to "TV" or "AUD")
TUNER (When 1 is set to "AUD")
Selects the Seek mode.
(page 30, 36, 44, 48 for the <Seek Mode>)
o [7] key
DISC (When 1 is set to "DVD") Stops to play the built in disc player.
English | 11
; [AUDIO] key
DVD (When 1 is set to "DVD")
Switches an audio language.
a [4] / [¢] key
DISC (When 1 is set to "DVD" or "AUD") Selects a song.
TV (When 1 is set to "TV" or "AUD")
Selects a channel.
TUNER (When 1 is set to "AUD")
Selects a station
s [1] / [¡] key
DISC (When 1 is set to "DVD" or "AUD")
1: Fast Backward. The speed changes each time it is pressed. (Except JPEG file)
¡: Fast Forward. The speed changes each time it is pressed. (Except JPEG file)
d [ ] / [ ] key
DVD (When 1 is set to "DVD") : Slow Backward.
: Slow Forward.
Basic Operations of Remote Controller
f[ ] key
Not used.
g[0] – [9] key
TV (When 1 is set to "TV")
TUNER (When 1 is set to "AUD")
— : Recall the stations on memory.
h[DIRECT] key
Selects the Direct Search mode. (page 19, 32, 37 for <Direct Search>)
j [CLEAR] key
DVD (When 1 is set to "DVD")
Clears a numeric value you have entered in the built-in disc player during direct search.
TV (When 1 is set to "TV") TUNER (When 1 is set to "AUD")
Selects an AV source to be output at the AV OUTPUT port.
12 | English
About discs
Handling discs
• Do not touch the recording surface of the disc.
•CD-R/RW, DVD-R/RW, and DVD+R/RW discs are easier to be damaged than a ordinary music CD. Use a CD-R/RW, DVD- R/RW, or DVD+R/RW disc after reading the cautions on the package.
•Do not stick a tape, sticker, etc., on the disc.
Also, do not use a disc with those materials pasted on it.
When using a new disc
If the disc center hole or outside rim has burrs, use it after removing them with a ballpoint pen etc.
Burrs
Burrs
Disc shaped accessory
Do not insert a disc shape accessory into the unit.
Disc cleaning
Wipe from the center of the disc to outward.
Removing discs
When removing discs from this unit pull them out horizontally.
Discs that can not be used
• Discs that are not round can not be used.
• Discs with coloring on the recording surface or that are dirty cannot be used.
• This unit can only play the CDs with one of labels.
Discs without the label may not be played on the unit.
•A CD-R or CD-RW that hasn’t been finalized can not be played. (For the finalization process refer to your CD-R/CD- RW writing software, and your CD-R/CD-RW recorder instruction manual.)
Disc storage
•Do not leave discs place them in direct sunlight (On the seat or dashboard etc.) and where the temperature is high.
•Put discs in their cases and store them in such a storage as disc cabinet.
English | 13
Controlling during DVD Video, Video CD, JPEG or MPEG Playback
Various control screens appear when you play back a DVD Video (DVD), a Video CD (VCD) disc, a JPEG or a MPEG files.
Displaying the DVD/VCD/JPEG/MPEG Playback screen
You can use the following operations when displaying DVD/VCD/JPEG/MPEG images.
Plays back the DVD/ VCD or JPEG/MPEG files.
DVD playback screen
DVD VIDEO |
1 |
Title 1 |
Chap 3 |
2 |
T |
0:02:37 |
3 |
MODE: F U L L AV-OUT: AV - I N
5 |
6 |
4 |
7 |
1Title Number Display
2Chapter Number Display
3Play Time Display
4Forward Chapter Search Area
Selects the next chapter.
5Backward Chapter Search Area
Selects the previous chapter.
6DVD Disc Menu Control Buttons Area
Displays the Disc Menu Control buttons (page 18).
•When you touched during DVD menu played it will change to Highlight screen. (page 18).
7 Information Display Button Area (page 19)
VCD playback screen |
|
|
|||
DVD VCD |
8 |
Scene |
2 |
P 2:37 3 |
|
PBC |
VER2 |
|
MODE: FU L L |
AV-OUT: AV - I N |
|
|
|
|
10 |
11 |
9 |
12 |
8Scene/Track Number Display
9Forward Scene/Track Search Area
Selects the next scene (when PBC is On) or track (when PBC is Off ).
pBackward Scene/Track Search Area
Selects the previous scene (when PBC is On) or track (when PBC is Off ).
qZoom Control Button Area
Displays the Zoom Control buttons (page 19).
w Information Display Button Area (page 19)
•For DVD/VCD playback, DVD/VCD picture selection, or controller key operations, see <Basic operations> (page 8).
•The information display is cleared automatically after approximately 5 seconds. Also, the information can be displayed automatically when it is updated (page 66).
14 | English
JPEG/MPEG playback screen
DVD MEDIA |
|
|
|
P 0:01:48 |
|
|
13 |
3 |
1 |
18 |
|
||
|
|
MODE: FU L L |
AV-OUT: AV - I N |
|
|
15 |
16 |
14 |
17
e Folder/File Number Display
rForword File Search Area
Selects the next file.
tBackword File Search Area
Selects the previous file.
yPicture Control Button Area (page 19) JPEG playback only.
u Information Display Button Area (page 19) i Play Time Display
• The Easy control panel functions are seeing page 20.
Displaying the Easy Control Panel
The Control Panel is displayed in a floating position of the DVD/VCD screen.
Displaying the Easy Control Panel
DVD VIDEO T i t l e 1 C h a p 3 |
T 0 : 0 5 : 3 2 |
MODE: FU L L AV-OUT: AV - I N
24 SCRN
19 |
20 |
21 |
21 |
22 |
|
22 |
23 |
SRC |
|
|
|
|
|
|
|
DVD VIDEO |
T i t l e |
1 |
C h a p |
3 |
T |
0 : 0 5 : 3 2 |
|
|
|
|
IN |
|
|
|
|
o Switches the source.
;Stops to play.
When pressed twice, the disc is played from its beginning when you play it in the next time.
a Fast Forwards or Fast Backwards. s Chapter Search DVD
Searches for a chapter.
Scene/Track Search VCD
Selects a scene (when PBC is On) or a track (when PBC is Off ).
d Plays or pauses.
fDisplays the Screen Control screen.
(page 55 for the <Adjusting the picture quality>)
•The Easy Control Panel is hidden when you touch a central part of the monitor.
English | 15
Displaying the DVD/VCD Control |
|
|
|||||||
screen |
|
|
|
|
|
|
|
g Ejects the disc from the built-in disc player. |
|
Plays a DVD/VCD using various functions. |
|
|
|||||||
|
|
h Calls the Sound Effects Menu. (page 76) |
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
j Calls the Setup Menu. (page 56) |
|
|
|
|
|
|
|
|
|
k Displays the Source Select screen. (page 54) |
|
|
|
|
|
|
|
|
|
l Fast Forwards or Fast Backwards. |
DVD/VCD Control screen |
|
|
|
|
/ Stops to play. |
||||
|
DVD VIDEO |
33 |
|
33 |
30 |
13:50 |
|
When pressed twice, the disc is played from its |
|
|
|
|
beginning when you play it in the next time. |
||||||
|
26 |
|
|
|
|
|
|
|
|
|
|
|
|
32 |
|
|
|
|
|
|
27 |
|
31 |
|
|
31 |
|
z Selects a chapter, a scene or a track. |
|
|
|
|
|
|
|
|
|
||
|
28 |
29 |
|
|
29 |
|
41 |
IN |
When the DVD/VCD is paused, touch this button to |
|
34 |
35 |
|
|
36 |
|
|
start single-frame stepping. |
|
N ex t |
PBC |
REP |
|
|
SCRL |
TIME 37 |
x Plays or pauses. |
||
38 |
T i t l e 1 |
C h a p |
3 39 |
40 T 0 : 0 5 : 2 0 |
|
|
|||
43 K E N WO O D |
|
|
|
|
25 |
|
c Slow Forwards or Backwards. DVD |
||
|
|
T-REP |
42 |
|
|
|
|
v Turns the PBC function of VCD On or Off. (only |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
when VCD Ver 2.0 is in use) |
|
|
|
|
|
|
|
|
|
b Switches the Repeat Play operations in the |
|
|
|
|
|
|
|
|
|
following sequence. |
|
|
|
|
|
|
|
|
|
DVD: Title Repeat, Chapter Repeat, Repeat Off |
|
|
|
|
|
|
|
|
|
VCD: Track Repeat, Repeat Off (Available when the |
|
|
|
|
|
|
|
|
|
PBC is off ) |
|
|
|
|
|
|
|
|
|
n Scrolls the display text. |
|
|
|
|
|
|
|
|
|
m Switches the play time display in the following |
|
|
|
|
|
|
|
|
|
sequence. |
|
|
|
|
|
|
|
|
|
DVD: Title, chapter, remaining titles |
|
|
|
|
|
|
|
|
|
VCD: Track, disc, remaining discs (Effective only |
|
|
|
|
|
|
|
|
|
when the PBC function is off ) |
|
|
|
|
|
|
|
|
|
, Title Number Display DVD |
. Chapter/Scene/Track Number Display
P Play Time Display
Q Appears when a disc is inserted.
W Function Indicator
E Volume Label Display
16 | English
Controlling during DVD Video, Video CD, JPEG or MPEG Playback
English | 17
|
|
DVD Disc Menu |
2 Select Disc Menu options |
Selects an option from the DVD Disc Menu. |
Disc Menu |
1 Display the Disc Menu Control screen |
Cancel |
|
DVD Disc Menu Control Buttons
Area (page 14)
1 |
MenuCtrl |
3 SUB |
1 0 / 1 0 |
4Audio |
1 / 1 |
MenuCtrl |
6 |
Top |
Menu |
Return |
3 |
1 |
|
5 |
3 |
3 |
5 |
2 |
6 |
Zoom |
Angle 1 / 1 |
Exit |
4 |
7 |
Highlight |
3 |
2 |
8 |
Enter |
|
Cancel |
Exit |
|
1 Calls the Menu Control. |
|
|
||
1 Calls the Menu. |
2 Switches the picture angle. |
|
(during program playback only) |
||
2 Returns to the Disc Menu screen. |
||
3 Switches the subtitle language. |
||
3 Selects a menu option. |
||
(during program playback only) |
||
4 Enters your menu selection. |
||
4 Switches the voice language. |
||
5 Returns to the previous menu screen. |
||
(during program playback only) |
||
6 Displays the Top Menu. |
5 Displays the Zoom Control screen. |
|
7 Highlight Control. |
6 Clears the Disc Menu Control. |
|
8 Clears the Disc Menu Control. |
|
Highlight Control
You can select a chapter and title for the DVD Menu screen. When you touch the screen, you can select the DVD menu.
Highlight
Highlight On
DVD Menu
1. KENWOOD
2. KENWOOD
3.KENWOOD
4.KENWOOD
5.KENWOOD
6.KENWOOD
Zoom Control
|
Zoom |
ZoomCtrl |
2 |
|
|
2 |
2 |
1 |
x 2 |
2 |
3 |
4 |
Zoom |
|
Cancel |
Exit |
1 Changes the zoom ratio at 4 levels (2 times, 3 times, 4 times, or off ) each time you touch.
2 Scrolls the screen in the direction you touch.
3 Returns to the Disc Menu Control screen.
4 Clears the Disc Menu Control.
• To cancel Highlight Control, press [V.SEL] key. (page 8)
18 | English
Controlling during DVD Video, Video CD, JPEG or MPEG Playback
VCD Zoom Control
Displays an enlarged VCD screen.
1 Display the Zoom Control screen
|
Zoom Control Button Area |
|
(page 14) |
ZoomCtrl |
2 |
|
|
2 |
2 |
1 |
x 2 |
2 |
3 |
Zoom |
|
Exit |
1 Changes the zoom ratio at 4 levels (2 times, 3 times, 4 times, or off ) each time you touch.
2 Scrolls the screen in the direction you touch.
3 Clears the Zoom Control button.
Picture Control
Rotates picture for JPEG files.
1 Display the Picture Control screen
Picture Control Button Area (page 15)
PictureCtrl |
1 |
|
|
|
|
3 |
|
4 |
|
2 |
5 |
Exit
1 Switches the picture flip horizontal.
2 Switches the picture flip vertical.
3 Rotates the picture counter clockwise.
4 Rotates the picture clockwise.
5 Hides the Picture Control button.
Information Display
Displays the DVD and AV information.
Information Display Button Area (page 14, 15)
The information is displayed for 5 seconds.
Direct Search
You can search for a DVD/VCD chapter, scene or track by entering its number.
1Select the Direct Search mode
The following items can be searched directly each time it is pressed.
DVD: Title, Chapter, Time, Direct number VCD (when PBC is On): Scene, Direct number VCD (when PBC is Off ): Track, Time
However, the direct search may not be supported for some discs.
2Enter a number or time
—
When playing back a VCD, enter a PBC scene number (if PBC is On) or a track number (if PBC is Off ).
• To clear your incorrect entry, press (CLEAR).
3 Search
•The operation ends automatically if you do not operate within 10 seconds.
•The time search function cannot be searched correctly at the time set up depending of particular disc.
English | 19
CD/MP3/WMA/JPEG/MPEG/Disc Changer Play Control
You can recall various control screens during CD/MP3/WMA/JPEG/MPEG/Disc Changer playback.
Displaying the Easy Control Panel
The CD/MP3/WMA/JPEG/MPEG/Disc Changer Play Control Panel is displayed in a floating position of the selected picture.
Displaying the Easy Control Panel
During CD playback
DVD CD
|
|
|
MODE: FU L L |
AV-OUT: AV - I N |
|||
|
|
|
|
|
|
|
8 SCRN |
1 |
2 |
3 |
3 |
4 |
4 |
5 |
|
SRC |
|
|
|
|
|
|
|
DVD CD |
|
T r a c k |
3 |
|
P 0 5 : 3 2 |
||
|
|
|
|
|
IN |
|
|
During MP3/WMA/JPEG/MPEG playback |
|||||||
|
2 |
6 |
6 |
4 |
4 |
5 |
|
SRC |
|
|
– |
|
+ |
|
|
DVD MEDIA |
|
|
3 |
1 |
P |
0 : 0 5 : 3 2 |
|
|
|
||||||
During playback on disc changer |
|
||||||
|
|
7 |
7 |
4 |
4 |
5 |
|
SRC |
|
|
D - |
D |
+ |
|
|
CD CH |
|
D 1 |
T 3 |
P 5 : 3 2 |
|
||
During playback on CD player |
|
||||||
|
|
|
|
|
4 |
4 |
5 |
SRC |
|
|
|
|
|
|
|
CD |
|
|
|
T 3 |
P |
5 : 3 2 |
|
|
|
|
|
|
|
|
|
1Switches the source.
2Stops to play the built-in disc player.
3Fast Forwards or Fast Backwards. (only when a CD is played back on the built-in disc player).
4Selects a track or file.
When you continue to touch button: Fast Forwards or Fast Backwards.
Disabled when a JPEG and CD (built-in disc player) are being played.
5Plays or pauses.
6Selects a folder. (only when an MP3/WMA/JPEG/ MPEG is played back on the built-in disc player)
7Selects a disc. (only when a disc is played back on the disc changer)
8Displays the Screen Control screen.
(page 55 for the <Adjusting the picture quality>)
•For CD/MP3/WMA/JPEG/MPEG/Disc Changer playback and receiver key operations, see <Basic operations> (page 8).
•The Easy Control Panel is hidden when you touch a central part of the monitor.
20 | English
Displaying the CD/MP3/WMA/JPEG/ MPEG/Disc Changer Control screen
You can play the CD/MP3/WMA/JPEG/MPEG/Disc changer using various functions.
CD Control screen
DVD CD |
9 |
13:50 |
|
|
Menu |
26 |
|
10 |
|
|
|
|
|
|
12 |
14 |
16 |
14 |
11 |
15 |
|
|
15 |
25 |
IN |
|
|
|
|
|||
|
|
|
|
|
||
17 |
18 |
19 |
20 |
21 |
22 |
|
SCN |
REP |
RDM |
DISP |
SCRL |
TIME |
|
23 |
Tr a ck 4 |
P 2 : 0 9 |
24 |
|
K E N WO O D |
|
13 |
|
|
|
|
|
REP |
27 |
|
During CD playback
9Calls the CD/MP3/WMA/JPEG/MPEG/Disc Changer Menu.
pCalls the Sound Effects Menu. (page 76)
qDisplays the Source Select screen. (page 56)
wCalls the Setup Menu. (page 54)
eEjects the disc from the built-in disc player.
rSelects a track.
tFast Forwards or Fast Backwards.
yPlays or pauses.
uStarts or stops Scan Play (that plays the beginning of each song one after the other).
i Repeats to play (the present track).
oStarts or stops Random Play (to play songs in random order).
;Selects the Disc Name (see <Set Disc Name>, page 25), Disc Text, or Track Text mode for text display.
a Scrolls the display text.
sSwitches the play time display between Track, Disc, and Disc Remaining Time.
d Track Number Display
fPlay Time Display
gAppears when a disc is inserted.
hStops to play the built-in disc player.
When pressed twice, the disc is played from its beginning when you play it in the next time.
j Function Indicator
English | 21
MP3/WMA/JPEG/MPEG Control screen
DVD MEDIA |
33 |
33 |
13:50 |
|
30 |
||
Menu |
|
+ |
|
31 |
32 |
31 |
|
|
29 |
|
|
29 |
43 |
IN |
|
|
|
|
|
|
||
39 |
34 |
35 |
36 |
37 |
38 |
|
|
N ex t |
SCN |
REP |
RDM |
DISP |
SCRL |
|
|
41 |
3 |
|
1 |
P 0 : 0 0 : 3 8 |
|
|
|
K E N W O O D |
|
42 |
28 |
|
|
||
|
|
|
|
|
|
||
|
|
REP |
44 |
|
|
|
|
40 |
FREP |
During MP3/WMA/JPEG/MPEG play
kEjects a disc.
lFast Forwards or Fast Backwards.
( Disabled when a JPEG is being played.)
/Stops to play.
When pressed twice, the disc is played back from its beginning in the next time.
z Selects a file. x Plays or pauses. c Selects a folder.
vStarts or stops Scan Play (that plays the beginning of each song or data one after the other).
b Repeats to play (the preset files or data).
nStarts or stops Random Play (to play files of the present folder in random order).
mSelects the Folder name, File name, Title (ID3/WMA tag), Artist name (ID3/WMA tag), or Album name (ID3 tag) for text display.
, Scrolls the display text.
. Switches the button display.
PRepeats to play the song or data of the present folder.
QFolder and File Number Display
W Play Time Display
E Appears when a disc is inserted.
R Function Indicator
22 | English
CD/MP3/WMA/JPEG/MPEG/Disc Changer Play Control
Disc changer/CD player Control screen
CD-CH |
|
|
46 |
13:50 |
|
|
Menu |
|
D i s c + |
|
|
|
|
|
|
|
|
|
45 |
|
|
47 |
45 |
|
|
|
D i s c |
- |
46 |
|
|
|
|
|
|
|
|||
53 |
48 |
49 |
50 |
54 |
|
55 |
56 |
N ex t |
SCN |
REP |
RDM |
DISP |
SCRL |
TIME |
|
|
57 D 3 |
|
T 7 58 |
|
|
P 3 : 2 5 59 |
|
|
|
REP |
60 |
|
|
|
|
51 DREP MRDM 52
During play by the disc changer/CD player
TSelects a track.
Starts Fast Forward or Fast Backward when it is held down.
Y Selects a disc. (Function of Disc Changer) U Plays or pauses.
IStarts or stops Scan Play (that plays the beginning of each song one after the other).
O Repeats to play (the present current track).
:Starts or stops Random Play (to play songs in random order).
ARepeats to play a disc (the present current disc). (Function of Disc Changer)
SStarts or stops Magazine Random Play (to play songs of the disc changer in random order). (Function of Disc Changer)
D Switches the button display.
FSelects the Disc Name (see <Set Disc Name>, page 25), Disc Text, or Track Text mode for text display.
GScrolls the display text.
HSwitches the play time display between Track, Disc, and Disc Remaining Time.
JDisc Number Display (Function of Disc Changer)
KTrack Number Display
LPlay Time Display
Function Indicator
•The functions that can be used and the information that can be displayed will differ depending on the models being connected.
•The information shown will be different depending on the Disc Changer being used.
English | 23
Displaying the CD/MP3/WMA/JPEG/ MPEG/Disc Changer Menu screen
You can select menu options using various functions.
Selects option from various function menus.
Returns to the CD/MP3/WMA/JPEG/MPEG/Disc Changer Control screen.
CD Menu screen
D V D C D Name Set
62 |
• The available functions vary depending on the source used.
61 |
24 | English
Before Use |
CD/MP3/WMA/JPEG/MPEG/Disc Changer Play Control |
Set Disc Name
Names a CD.
1Play a CD you wish to name
2Call the CD/Disc Changer Menu
3Select the Set Name mode
Select Folder (during MP3/WMA/JPEG/ MPEG play)
The folders of an MP3/WMA/JPEG/MPEG disc are listed for quick search.
1Call the MP3/WMA/JPEG/MPEG Menu
2Start the Directory List
Name Set |
Directory List |
|
|
DVD MEDIA |
Upper Fo l d e r |
Name |
||||
• The Name Set |
position varies |
|
7 |
Fo l d e r |
Name |
3 |
|
|
|
||||||
|
|
|
|
|
|||
depending on the disc you are playing. |
|
|
Fo l d e r |
Name |
4 |
||
|
|
|
|
|
|||
4 Enter a name |
|
|
7 |
F i l e |
Name |
5 |
|
1 |
2 |
|
|||||
|
|
||||||
|
Root |
|
Fol |
F i l e |
Name |
|
|
For character entry details, see <Character Entry> |
6 |
|
|
||||
Open |
|
|
|
|
|||
(page 53). |
|
|
0 : 35 : 27 |
F i l e |
Name |
|
5 Exit the Set Name mode
O k
•You cannot name an MD or MP3/WMA/JPEG/MPEG disc.
•Number of discs that can be stored in memory Built-in disc player: 10
External CD changer/ player:
Varies depending on the CD changer/ player. Refer to the CD changer/ player manual.
1 Returns to the root directory.
2 Displays the next higher level of hierarchy.
3 Displays a directory if the subdirectory has a directory. When you touch the directory, it opens.
4 Displays a directory if the subdirectory has files without a directory. When you touch the directory, it opens and files in the directory are played.
5 Displays the MP3/WMA/JPEG/MPEG files. When you touch a file, its file is played back.
6 Plays the selected directory.
7 Scrolls the list.
3 Select a file
F i l e Name
Display the desired file and touch the file display.
English | 25
ID3/WMA TAG Display (during MP3/ WMA play)
The ID3/WMA TAG information of MP3/WMA file is listed.
1 Call the MP3/WMA/JPEG/MPEG Menu
Disc Select (during play by disc changer)
The discs loaded on the disc changer are listed for quick disc selection.
1 Call the Disc Changer Menu
2 Display the ID3/WMA TAG |
2 Call the Disc Select Menu |
Information |
|
DVD MEDIA |
ALBUM: |
|
|
|
Title: |
1 |
Artist: |
|
|
1 |
Album: |
|
1 Scrolls the list.
Disc Select
C D C H |
1. Disc Name |
1 |
|
|
|||
|
2 DISP |
2. Disc Name |
|
|
|
|
|
|
3 |
3. Disc Name |
|
|
|
|
|
|
|
4. Disc Name |
|
|
3 |
5. Disc Name |
|
|
|
|
|
P |
2 : 3 5 |
6. Disc Name |
|
1 Plays the displayed disc.
2 Selects the Disc Name or Disc Text mode for text display.
3 Scrolls the list.
(It is not displayed when a disc changer having 6 or less discs is used.)
3 Select the desired disc
1. Disc Name
Touch the desired disc display.
26 | English
CD/MP3/WMA/JPEG/MPEG/Disc Changer Play Control
Direct Search
Searches for a disc or a track when its number is entered.
During play on the built-in disc player
1 Select the Direct Search mode
2
3
The following items can be searched directly each time it is pressed.
CD: Track number, Total play time MP3/WMA/JPEG/MPEG: Folder, File
Enter a track number
—
Search
When searching for a track:
During play on an external in disc player or disc changer
1 Enter a disc or track number
—
2Search
When searching for a track:
When searching for a disc:
•The operation ends automatically if you do not operate within 10 seconds.
English | 27
