CRT900

Owner's Manual / 96093001700 / 2009-11

532 43 23-78

SAFETY RULES

Safe Operation Practices for Walk-Behind Powered Rotary Tillers

TRAINING

Read the Owner’s Manual carefully. Be thoroughly familiar with the controls and the proper use of the equipment. Know how to stop the unit and disengage the controls quickly.

Never allow children to operate the equipment. Never allow adults to operate the equipment without proper instruction.

Keep the area of operation clear of all persons, particularly small children, and pets.

PREPARATION

Thoroughly inspect the area where the equipment is to be used and remove all foreign objects.

Disengage all clutches and shift into neutral before starting the engine (motor).

Do not operate the equipment without wearing adequate outer garments. Wear footwear that will improve footing on slippery surfaces.

Handle fuel with care; it is highly flammable.

Use an approved fuel container.

Never add fuel to a running engine or hot engine.

Fill fuel tank outdoors with extreme care. Never fill fuel tank indoors.

Replace gasoline cap securely and clean up spilled fuel before restarting.

Use extension cords and receptacles as specified by the manufacturer for all units with electric drive motors or electric starting motors.

Never attempt to make any adjustments while the engine (motor) is running (except where specifically recommended by manufacturer).

OPERATION

Do not put hands or feet near or under rotating parts.

Exercise extreme caution when operating on or crossing gravel drives, walks, or roads. Stay alert for hidden hazards or traffic. Do not carry passengers.

After striking a foreign object, stop the engine (motor), remove the wire from the spark plug, thoroughly inspect the tiller for any damage, and repair the damage before restarting and operating the tiller.

Exercise caution to avoid slipping or falling.

If the unit should start to vibrate abnormally, stop the engine (motor) and check immediately for the cause. Vibration is generally a warning of trouble.

Stop the engine (motor) when leaving the operating position.

Take all possible precautions when leaving the machine unattended. Disengage the tines, shift into neutral, and stop the engine.

Before cleaning, repairing, or inspecting, shut off the engine and make certain all moving parts have stopped. Disconnect the spark plug wire, and keep the wire away from the plug to prevent accidental starting. Disconnect the cord on electric motors.

Do not run the engine indoors; exhaust fumes are dangerous.

Never operate the tiller without proper guards, plates, or other safety protective devices in place.

Keep children and pets away.

Do not overload the machine capacity by attempting to till too deep at too fast a rate.

Never operate the machine at high speeds on slippery surfaces. Look behind and use care when backing.

Never allow bystanders near the unit.

Use only attachments and accessories approved by the manufacturer of the tiller.

Never operate the tiller without good visibility or light.

Be careful when tilling in hard ground. The tines may catch in the ground and propel the tiller forward. If this occurs, let go of the handlebars and do not restrain the machine.

MAINTENANCE AND STORAGE

Keep machine, attachments, and accessories in safe working condition.

Check shear pins, engine mounting bolts, and other bolts at frequent intervals for proper tightness to be sure the equipment is in safe working condition.

Never store the machine with fuel in the fuel tank inside a building where ignition sources are present, such as hot water and space heaters, clothes dryers, and the like. Allow the engine to cool before storing in any enclosure.

Always refer to the operator’s guide instructions for important details if the tiller is to be stored for an extended period.

- IMPORTANT -

CAUTIONS, IMPORTANTS, AND NOTES ARE A MEANS OF ATTRACTING ATTENTION TO IMPORTANT OR CRITICAL INFORMATION IN THIS MANUAL.

IMPORTANT: USED TO ALERT YOU THAT THERE IS A POSSIBILITY OF DAMAGING THIS EQUIPMENT.

NOTE: Gives essential information that will aid you to better understand, incorporate, or execute a particular set of instructions.

Look for this symbol to point out important safety precautions. It means CAUTION!!! BECOME ALERT!!! YOUR SAFETY IS INVOLVED.

CAUTION: Always disconnect spark plug wire and place wire where it cannot contact spark plug in order to prevent accidental starting when setting up, transporting, adjusting or making repairs.

WARNING

The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

2

PRODUCT SPECIFICATIONS

Gasoline Capacity:

3 Quarts

Unleaded Regular

(2,8L)





OIL (API-SG-SL):

SAE 30 Above 32°F/0°C

(Capacity 20 oz/0,6L)

SAE 5w30 Below 32°F/0°C





Spark Plug:

Champion



RC12YC



(Gap: .030"/0.76mm)

CONGRATULATIONS on your purchase of a new tiller. It has been designed, engineered and manufactured to give you the best possible dependability and performance.

Should you experience any problems you cannot easily remedy, please contact your nearest authorized service center. We have competent, well-trained technicians and the proper tools to service or repair this unit.

Please read and retain this manual. The instructions will enable you to assemble and maintain your tiller properly. Always observe the “SAFETY RULES”.

CUSTOMER RESPONSIBILITIES

Read and observe the safety rules.

Follow a regular schedule in maintaining, caring for and using your tiller.

Follow instructions under “Maintenance” and “Storage” sections of this Owner’s Manual.

IMPORTANT: THIS UNIT IS EQUIPPED WITH AN INTERNAL COMBUSTION ENGINE AND SHOULD NOT BE USED ON OR NEAR ANY UNIMPROVED FOREST-COVERED, BRUSHCOVERED OR GRASS COVERED LAND UNLESS THE ENGINE'S EXHAUST SYSTEM IS EQUIPPED WITH A SPARK ARRESTER MEETING APPLICABLE LOCAL LAWS (IF ANY). IF A SPARK ARRESTER IS USED, IT SHOULD BE MAINTAINED IN EFFECTIVE WORKING ORDER BY THE OPERATOR.

IN THE STATE OF CALIFORNIA, A SPARK ARRESTER IS REQUIRED BY LAW (SECTION 4442 OF THE CALIFORNIA PUBLIC RESOURCES CODE). OTHER STATES MAY HAVE SIMILARLAWS. FEDERALLAWSAPPLYONFEDERALLANDS. SEE YOUR AUTHORIZED SERVICE CENTER/DEPARTMENT FOR SPARK ARRESTER.

TABLE OF CONTENTS

SAFETY RULES ..........................................................

2

CUSTOMER RESPONSIBILITIES...............................

3

PRODUCT SPECIFICATIONS.....................................

3

ASSEMBLY...............................................................

4-6

OPERATION ...........................................................

7-10

MAINTENANCE SCHEDULE ....................................

11

MAINTENANCE ...................................................

11-13

SERVICE & ADJUSTMENTS ...............................

14-17

STORAGE..................................................................

18

TROUBLESHOOTING...............................................

19

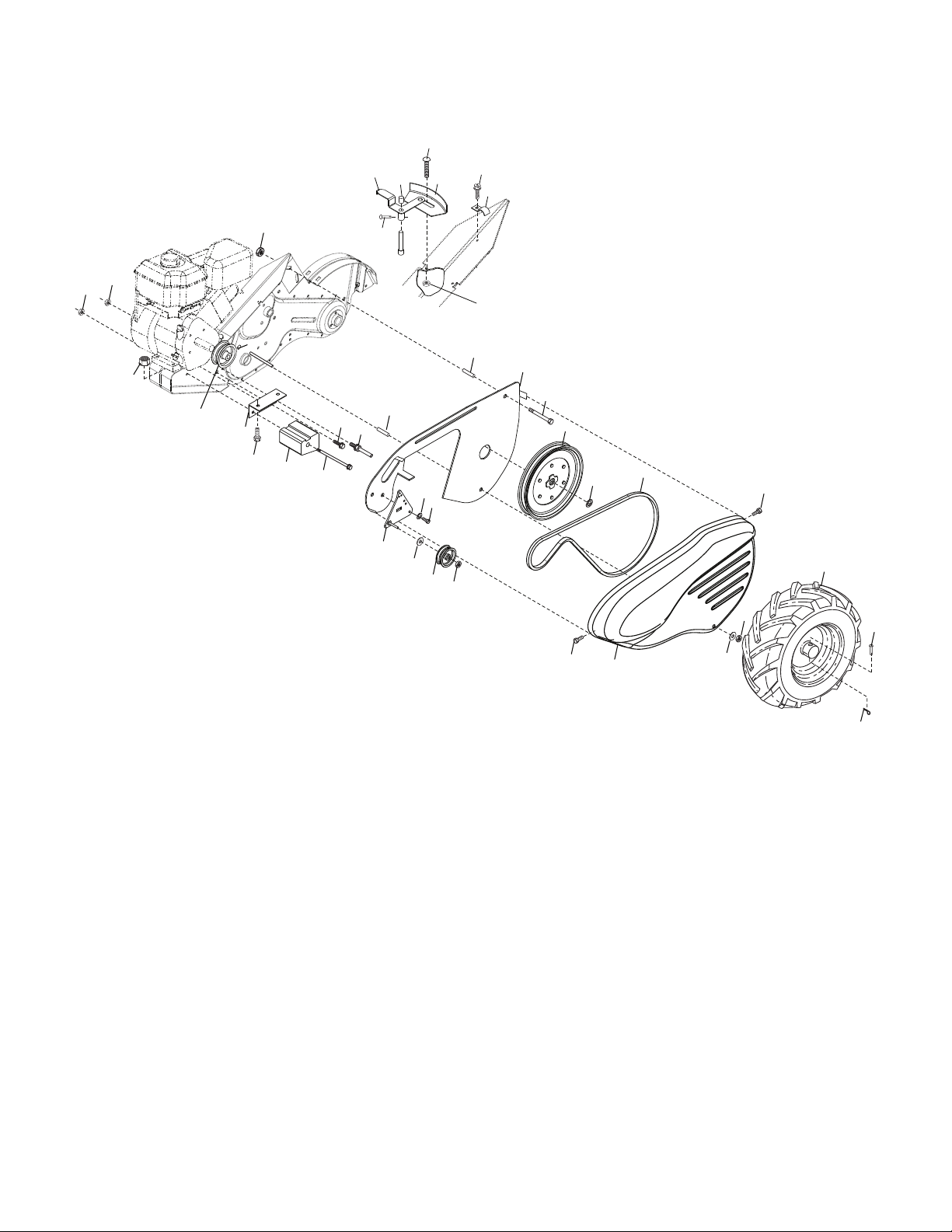

REPAIR PARTS-TILLER.......................................

20-26

WARRANTY...........................................

BACK COVER

3

ASSEMBLY

Your new tiller has been assembled at the factory with exception of those parts left unassembled for shipping purposes. To ensure safe and proper operation of your tiller all parts and hardware you assemble must be tightened securely. Use the correct tools as necessary to insure proper tightness.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly easier. Standard wrench sizes are listed.

(1) Utility knife

(1) Tire pressure gauge

(1) Pair of pliers

(1) 9/16" wrench

OPERATOR’S POSITION (See Fig. 1)

When right or left hand is mentioned in this manual, it means when you are in the operating position (standing behind tiller handles).

FRONT

LEFT RIGHT

OPERATOR’S

POSITION

Fig. 1

CONTENTS OF HARDWARE PACK



(2) Handle Locks

(1) Carriage Bolt

(1) Center Locknut



3/8-16 UNC x 1 Grade 5

3/8-16 UNC

(1) Flat Washer 13/32 x 1 x 11 Gauge

(1) Handle Lock Lever

(1) Hairpin Clip

(1) Pivot Bolt





3/8-16 UNC Grade 5

Extra Shear Pins & Clips



4











ASSEMBLY

UNPACKING CARTON (See Fig. 2)

Grasp handle assembly. Hold in “up” position. Be sure













handle lock remains in gearcase notch. Slide handle

CAUTION:

Be careful of exposed



assembly into position.

staples when handling or disposing of





cartoning material.









HANDLE ASSEMBLY













"UP" POSITION

IMPORTANT: WHEN UNPACKING AND ASSEMBLING TILLER,





BE CAREFUL NOT TO STRETCH OR KINK CABLES.



TIGHTEN HANDLE LOCK

• While holding handle assembly, cut cable ties securing



LEVER TO HOLD

handle assembly to top frame and depth stake. Let





handle assembly rest on tiller.











• Remove top frame of carton.











• Slowly ease handle assembly up and place on top of





carton.













• Cut down right hand front and right hand rear corners



LOOSEN HANDLE

of carton, lay side carton wall down.

















LOCK LEVER TO MOVE

• Remove packing material from handle assembly.





HANDLE











Fig. 4













ASSEMBLY









• Rotate handle assembly down. Insert rear carriage bolt























first, with bolt head on L.H. side of tiller and loosely













assemble locknut (See Fig. 5).











• Insert pivot bolt in front part of plate and tighten.











• Cut down remaining corners of carton and lay panels













flat.



c





3

• Lower the handle assembly. Tighten nut on carriage







_









n











rto











a





















bolt so handle moves with some resistance. This will



SHIFT ROD



allow for easier adjustment.



• Place flat washer on threaded end of handle lock le-













ver.











• Insert handle lock lever through handle base and



Fig. 2









gearcase. Screw in handle lock lever just enough to











hold lever in place.













INSTALL HANDLE (See Figs. 3, 4, and 5)

• Insert second handle lock (with teeth inward) in the

slot of the handle base (just inside of washer).

• Insert one handle lock (with teeth facing outward) in

• With handle assembly in lowest position, securely

gearcase notch. (Apply grease on smooth side of

tighten handle lock lever by rotating clockwise. Leaving

handle lock to aid in keeping lock in place until handle

handle assembly in lowest position will make it easier

assembly is lowered into position.)

to remove tiller from carton.



VIEWED FROM R.H. SIDE OF TILLER







HANDLE









HANDLE ASSEMBLY







LOCK



GEARCASE

FLAT

GEARCASE







WASHER

NOTCH

SLOT



HANDLE LOCK

HANDLE













LEVER

LOCK











CARRIAGE









BOLT













4





h

_3

PIVOT BOLT



dles





an





handles_10

HANDLE



LOCKNUT

Fig. 3

BASE













Fig. 5









5

ASSEMBLY

ATTACH CLUTCH CABLE (See Fig. 6)

Hook end of clutch cable through hole in control bar bracket.

CONTROL BAR

BRACKET

END OF CLUTCH

CABLE

Fig. 6

CONNECT SHIFT ROD (See Fig. 7)

Insert end of shift rod into hole of shift lever indicator.

Insert hairpin clip through hole of shift rod to secure.

SHIFT

HAIRPIN

SHIFT

CLIP

LEVER

ROD



INDICATOR





Fig. 7

REMOVE TILLER FROM CRATE

Make sure shift lever indicator is in “N” position (See Fig. 7)

Tilt tiller forward by lifting handle. Separate cardboard cover from leveling shield.

Rotate tiller handle to the right and pull tiller out of carton.

CHECK TIRE PRESSURE

The tires on your unit were overinflated at the factory for shipping purposes. Correct and equal tire pressure is important for best tilling performance.

Reduce tire pressure to 20 PSI (1.4 kg/cm2).

HANDLE HEIGHT

Handle height may be adjusted to better suit operator. (See “TO ADJUST HANDLE HEIGHT” in the Service and Adjustments section of this manual).

6

Husqvarna CRT900 User Manual

OPERATION

KNOW YOUR TILLER

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TILLER.

Compare the illustrations with your tiller to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference.

These symbols may appear on your Tiller or in literature supplied with the product. Learn and understand their meaning.

SHIFT LEVER

CHOKE CONTROL

THROTTLE

CONTROL

SHIFT LEVER INDICATOR

DRIVE

CONTROL

BAR

DEPTH STAKE

LEVELING

SHIELD

RECOIL

STARTER

HANDLE

Fig. 8

MEETS ANSI SAFETY REQUIREMENTS

Our tillers conform to the safety standards of the American National Standards Institute.

CHOKE CONTROL - Used when starting a cold engine. DEPTH STAKE - Controls depth at which tiller will dig. DRIVE CONTROL BAR - Used to engage tines. LEVELING SHIELD - Levels tilled soil.

RECOIL STARTER HANDLE - Used to start the engine.

SHIFT LEVER - Used to shift transmission gears.

SHIFT LEVER INDICATOR - Shows which gear the transmission is in.

THROTTLE CONTROL - Controls engine speed.

7

OPERATION

The operation of any tiller can result in foreign objects thrown into the eyes, which can

result in severe eye damage. Always wear safety glasses or eye shields before starting your tiller and while tilling. We recommend a wide vision safety mask for over spectacles

or standard safety glasses.

00155

HOW TO USE YOUR TILLER

Know how to operate all controls before adding fuel and oil or attempting to start engine.

STOPPING (See Fig. 9)

TINES AND DRIVE

Release drive control bar to stop movement.

Move shift lever to “N” (neutral) position.

ENGINE

Move throttle control to “STOP” position.

Never use choke to stop engine.

SHIFT LEVER

DRIVE CONTROL BAR “ENGAGED” POSITION

DRIVE CONTROL BAR “DISENGAGED” POSITION

Fig. 9

TINE OPERATION - WITH WHEEL DRIVE

Always release drive control bar before moving shift lever into another position.

Tine movement is achieved by moving shift lever to

( ) till position and engaging drive control bar.

FORWARD - WHEELS ONLY/TINES STOPPED

Release drive control bar and move shift lever indicator to “F” (forward) position. Engage drive control bar and tiller will move forward.

REVERSE - WHEELS ONLY/TINES STOPPED

DO NOT STAND DIRECTLY BEHIND TILLER.

Release the drive control bar.

Move throttle control to “SLOW” position.

Move shift lever indicator to “R” (reverse) position.

Hold drive control bar against the handle to start tiller movement.

HARD TO SHIFT GEARS

Briefly engage drive control bar and release or rock tiller forward and backward until are able to shift gears.

DEPTH STAKE (See Fig. 10)

The depth stake can be raised or lowered to allow you more versatile tilling and cultivating, or to more easily transport your tiller.

SHALLOWEST



TILLING

TRANSPORT

(CULTIVATING)

POSITION

DEEPEST

TILLING

DEPTH









s









STAKE















2



















_

















e

















k













_

ta













h

















pt

















e



















d



















Fig. 10

TILLING (See Fig. 11)

Release depth stake pin. Pull the depth stake up for increased tilling depth. Place depth stake pin in hole of depth stake to lock in position.

Place shift lever indicator in tilling position.

Hold the drive control bar against the handle to start tilling movement. Tines and wheels will both turn.

Move throttle control to “FAST” position for deep tilling. To cultivate, throttle control can be set at any desired speed, depending on how fast or slow you wish to cultivate.

IMPORTANT: ALWAYS RELEASE DRIVE CONTROL BAR BEFORE MOVING SHIFT LEVER INTO ANOTHER POSITION.

DEPTH STAKE PIN “RELEASED” POSITION









“LOCKED”



NUT





POSITION











“B”









SIDE SHIELD

ta



6





1









_







e



NUT

k





pt









s









_









h







“A”

de

















Fig. 11



TURNING









• Release the drive control bar.



• Move throttle control to “SLOW” position.



• Place shift lever indicator in “F” (forward) position.



Tines will not turn.









• Lift handle to raise tines out of ground.



• Swing the handle in the opposite direction you wish



to turn, being careful to keep feet and legs away from

8

tines.















OPERATION

When you have completed your turn-around, release the drive control bar and lower handle. Place shift lever in till position and move throttle control to desired speed. To begin tilling, hold drive control bar against the handle.

TO TRANSPORT

CAUTION: Before lifting or transporting, allow tiller engine and muffler to cool. Disconnectsparkplug wire. Drain gasoline from fuel tank.

AROUND THE YARD

Release the depth stake pin. Move the depth stake down to the top hole for transporting the tiller. Place depth stake pin in hole of depth stake to lock in position. This prevents tines from scuffing the ground.

Place shift lever indicator in “F” (forward) position for transporting.

Hold the drive control bar against the handle to start tiller movement. Tines will not turn.

Move throttle control to desired speed.

AROUND TOWN

Disconnect spark plug wire.

Drain fuel tank.

Transport in upright position to prevent oil leakage.

BEFORE STARTING ENGINE

IMPORTANT: BE VERY CAREFUL NOT TO ALLOW DIRT TO ENTER THE ENGINE WHEN CHECKING OR ADDING OIL OR FUEL. USE CLEAN OIL AND FUEL AND STORE IN APPROVED, CLEAN, COVERED CONTAINERS. USE CLEAN FILL FUNNELS.

CHECK ENGINE OIL LEVEL (See Fig.12)

The engine in your unit has been shipped, from the factory, already filled with SAE 30 summer weight oil.

With engine level, clean area around oil filler plug and remove plug.

Engine oil should be to point of overflowing when engine is level. For approximate capacity see “PRODUCT SPECIFICATIONS” on page 3 of this manual. All oil must meet A.P.I. Service Classification SG-SL.

For cold weather operation you should change oil for easier starting (See oil viscosity chart in the Maintenance section of this manual).

To change engine oil, see the Maintenance section in this manual.

OIL

LEVEL











4









_







rt







a







_







e









in











ng











e











OIL FILLER

OIL DRAIN PLUG PLUG

Fig. 12

9



ADD GASOLINE

Fill fuel tank to bottom of filler neck. Do not overfill. Use fresh, clean, regular unleaded gasoline with a minimum of 87 octane. (Use of leaded gasoline will increase carbon and lead oxide deposits and reduce valve life). Do not mix oil with gasoline. Purchase fuel in quantities that can be used within 30 days to assure fuel freshness.

CAUTION: Fill to within 1/2 inch of top of fuel tank to prevent spills and to allow for fuel expansion. If gasoline is accidentally spilled, move machine away from area of spill. Avoid creating any source of ignition until gasoline vapors have disappeared.

Wipe off any spilled oil or fuel. Do not store, spill or use gasoline near an open flame.

IMPORTANT: WHEN OPERATING IN TEMPERATURES BELOW32°F(0°C), USE FRESH, CLEAN WINTER GRADE GASOLINE TO HELP INSURE GOOD COLD WEATHER STARTING.

CAUTION: Alcohol blended fuels (called gasohol or using ethanol or methanol) can attract moisture which leads to separation and formation of acids during storage. Acidic gas can damage the fuel system of an engine while in storage. To avoid engine problems, the fuel system should be emptied before storage of 30 days or longer. Drain the gas tank, start the engine and let it run until the fuel lines and carburetor are empty. Use fresh fuel next season. See Storage Instructions for additional information. Never use engine or carburetor cleaner products in the fuel tank or permanent damage may occur.

TO START ENGINE (See Fig. 13)

CAUTION: Keep drive control bar in “DISENGAGED” position when starting engine.

When starting engine for the first time or if engine has run out of fuel, it will take extra pulls of the recoil starter to move fuel from the tank to the engine.

Make sure spark plug wire is properly connected.

Move shift lever indicator to “N” (neutral) position.

Place throttle control in “FAST” position.

Turn fuel shut-off valve 1/4 turn to open position.

Move choke control to choke position.

Grasp recoil starter handle with one hand and grasp tiller handle with other hand. Pull rope out slowly until engine reaches start of compression cycle (rope will pull slightly harder at this point).

Pull recoil starter handle quickly. Do not let starter handle snap back against starter.

If engine fires but does not start, move choke control to half choke position. Pull recoil starter handle until engine starts.

Loading...
+ 19 hidden pages
