Installation Manual

Guide d’installation

Guía de instalación

Série PRO TH1000 / TH2000 Series

Programmable and Non-programmable Thermostats

Thermostats programmables et non programmables

Termostatos programables y no programables

PRO/ TH1000 / TH2000 Series

Programmable and Non-programmable Thermostats

This manual covers the following models:

TH1110D and TH1210D

TH2110D and TH2210D

non-programmable thermostats

programmable thermostats

ENGLISH

(Remove thermostat from wallplate and turn over to find model number.)

System Types



TH1110D and TH2110D:

TH1210D and TH2210D:

• Central heating (gas, oil, electric or high-

• 2-Heat/1-Cool heat pumps

efficiency furnace)



Central heating (see above) with air conditioning

Hot water system (steam or gravity) with or without pump

Central air conditioners

750 mV heating systems

1-Heat/1-Cool heat pumps

Must be installed by a trained, experienced technician

Read these instructions carefully. Failure to follow these instructions can damage the product or cause a hazardous condition.

Need Help?

For assistance with this product please visit http://yourhome.honeywell.com or call Honeywell Customer Care toll-free at 1-800-468-1502.

1

Installation Guide

Wallplate installation

CAUTION: ELECTRICAL HAZARD

Can cause electrical shock or equipment damage. Disconnect power before beginning installation.



n Loosen the locking screw at the bottom of the thermostat. Note that the screw is



captive and cannot be removed from the wallplate.

ENGLISH

o Separate the thermostat from the wallplate as per Figure 1.

p Position the wallplate against the wall and mark hole positions with a pencil.





NOTE: Levelling is for esthetics only and will not affect the performance of the



thermostat.



q Drill holes at the marked positions and insert supplied wall anchors.



rPass the wires through the large opening located at the bottom center of the wallplate as per Figure 2.

s Secure the wallplate to the wall with supplied mounting screws as per Figure 3. t Connect the wires to the terminals.

Figure 2

Figure 3

Figure 1

MERCURY NOTICE

If this product is replacing a control that contains mercury in a sealed tube, do not place the old control in the trash. Contact your local waste management authority for instructions regarding recycling and proper disposal.

2

Honeywell TH2000, TH1000 User Manual

PRO TH1000 / TH2000 Series

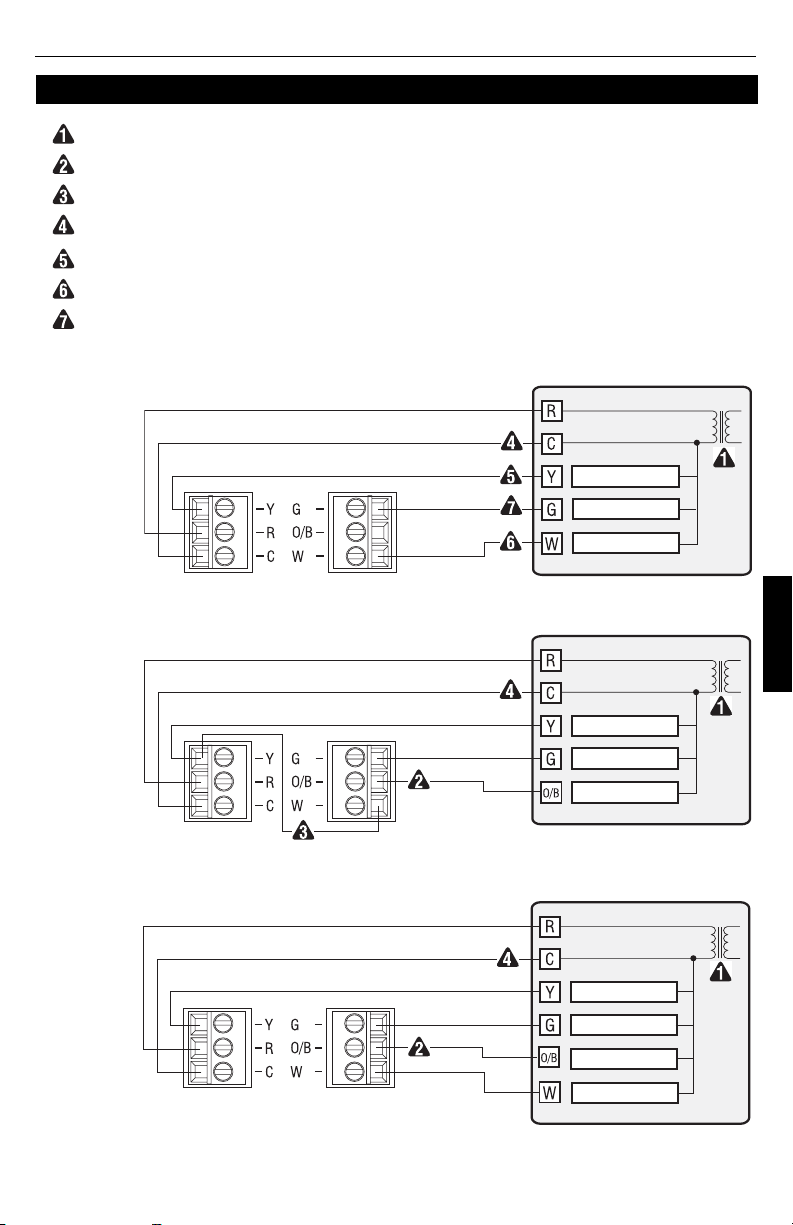

Wiring

Power supply. Provide disconnect means and overload protection as required. Set the O/B jumper according to the type of reversing valve (see page 4). Use a piece of wire (not supplied) to connect W and Y terminals to each other.

Optional 24 VAC common connection. If this connection is not made, use batteries to power the thermostat.

This connection is not required for systems that provide heating only This connection is not required for systems that provide cooling only

This connection is not required for systems that do have an air recirculating fan.

Gas, oil or electric heating and/or air conditioning (1H / 1C / 1H1C)

Use TH1110D or TH2110D

Compressor

Fan

Heat

ENGLISH

Heat pump without auxiliary heating (1H1C)

Use TH1110D or TH2110D

Compressor

Fan

Reversing valve

Heat pump with auxiliary heating (2H1C)

Use TH1210D or TH2210D

Compressor

Fan

Reversing valve

Heat

3

Installation Guide

ENGLISH

Reversing valve setting

NOTE: This setting is necessary only if the thermostat is connected to a heat pump.

The jumper is located on the back of the thermostat faceplate. Set it according to the type of reversing (changeover) valve used by the heat pump.

O (factory setting): The reversing valve is energized when the System switch is set to Cool (cooling mode).

B: The reversing valve is energized when the System switch is set to Heat (heating mode).

Incorrect jumper setting: The heat pump operation will be reversed; i.e., it will cool in Heat mode and will heat in Cool mode.

Fan operation setting

NOTE: This setting is not applicable if a fan is not connected to the G terminal.

The jumper is located on the back of the thermostat faceplate. It determines how the fan operates when placed in Automatic mode.

HG (factory setting): Leave the jumper in this position for gas or oil heating systems. In this position, the heating system controls the fan operation and activates the fan only when the plenum air is sufficiently warm.

HE: Place the jumper to this position for heat pump or electric heating systems. In this position, the thermostat activates the fan only when there is a call for heat.

Incorrect jumper setting: An incorrect setting is noticeable in a gas or oil heating system. When heating starts, you will initially feel cold air coming out of the vents as the fan is running before the furnace has enough time to heat up the air.

Battery installation

If 24 VAC common wire is connected to the C terminal, batteries are optional and serve to provide backup power.

If 24 VAC common wire is not connected to the C terminal, batteries are necessary to power the thermostat.

Install 2 AAA batteries on the back of the thermostat faceplate as shown.

Thermostat mounting

n

o p

Align the two brackets on the top of the thermostat with the corresponding slots on the top of the wallplate.

Push the faceplate against the wallplate.

Tighten the screw at the bottom of the thermostat.

4



PRO TH1000 / TH2000 Series

Installer setup



Follow the procedure below to personalize and



configure the thermostat according to the heating/



cooling system.



n Press S and T for three seconds. The display



will appear as shown on the right.

Function

o Press S or T to change the option.

number

p Press S and T for three seconds to advance to

Option

the next function.

number



q Press Run to exit the menu and save any

ENGLISH

NOTE: You will also exit the menu if you press S and

changes.



T for three seconds when the last function is



displayed.





Function

Default

Options



setting







1

Temperature display format

0

0: Fahrenheit

1: Celsius







2

Time display format1

0

0: 12-hour display

1: 24-hour display













2 to 6 cycles per hour







• 2: 30 min (steam, gravity)

3

Heating cycles per hour

5

• 3: 20 min (hot water, 90%+ high-efficiency furnace)

• 4: 15 min (gas or oil)













• 5: 12 min (gas or oil)







• 6: 10 min (electric)

4

Cooling cycles per hour

3

2 to 6 cycles per hour

5

Compressor protection2

0

0: enabled (for systems without a compressor))

1: disabled (for systems equipped with a compressor)







6

Adaptive Intelligent Recovery3

1

0: Off

1: On







1Applicable to programmable models (TH2110D & TH2210D) only.

2Damage can occur if the compressor is restarted too soon after shutdown. This feature forces the compressor to wait 5 minutes before restarting. During the wait time, the message Cool On or Heat On flashes on the screen. When the safe wait time has elapsed, the message stops flashing and the compressor turns on.

3Applicable to programmable models (TH2110D & TH2210D) only.

Adaptive Intelligent Recovery™ allows the thermostat to “learn” how long your furnace or air conditioner takes to reach the set temperature. Simply program the desired times and desired temperatures into the schedule. The thermostat will determine when to activate heating or cooling so that the desired temperature is attained at the desired time.

5

Installation Guide

Specifications



Temperature Ranges



• Heat: 40 °F to 90 °F (4.5 °C to 32 °C)



• Cool: 50 °F to 99 °F (10 °C to 37 °C)



Operating Ambient Temperature



• 32 °F to 122 °F (0 °C to 50 °C)



Shipping Temperature

ENGLISH

• -40 °F to 130 °F (-40 °C to 55 °C)

Operating Relative Humidity





• 5% to 90% (non-condensing)



Physical Dimensions



• 4.7” H x 2.9” W x 1.1” D (120 mm H x 74 mm W x 28 mm D)



Power Supply



• 24 VAC or 2 AAA batteries



Maximum Load



• 1 A @ 24 VAC per output

6
