Hitachi 57S715, 51S715 User Manual

5 (1)

PROJECTION COLOR TV

Operating Guide for 57S715, 51S715

IMPORTANT SAFETY INSTRUCTIONS

................................................................................ 2-3

FIRST TIME USE ..................................................................................................................

4-19

THE REMOTE CONTROL ..................................................................................................

20-39

ON-SCREEN DISPLAY........................................................................................................

40-71

USEFUL INFORMATION INDEX ........................................................................................

72-78

As an ENERGY STAR® Partner, Hitachi, Ltd. has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

IMPORTANT SAFETY INSTRUCTIONS

SAFETY POINTS YOU SHOULD KNOW ABOUT

YOUR HITACHI TELEVISION

Our reputation has been built on the quality, performance, and ease of service of HITACHI televisions.

Safety is also foremost in our minds in the design of these units. To help you operate these products properly, this section illustrates safety tips which will be of benefit to you. Please read it carefully and apply the knowledge you obtain from it to the proper operation of your HITACHI television.

Please fill out your warranty card and mail it to HITACHI. This will enable HITACHI to notify you promptly in the improbable event that a safety problem should be discovered in your product model.

Follow all warnings and instructions marked on this television.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of a sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle, is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: • TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

THE TELEVISION SHOULD NOT BE EXPOSED TO DRIPPING OR SPLASHING AND OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHOULD NOT BE PLACED ON THE TELEVISION.

NOTE: • There are no user serviceable parts inside the television.

• Model and serial numbers are indicated on back side of the television.

CAUTION: Adjust only those controls that are covered in the instructions, as improper changes or modifications not expressly approved by HITACHI could void the user’s authority to operate the television.

MODIFICATIONS: The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Hitachi America, Ltd. Home Electronics Division may void the user’s authority to operate the equipment.

POWER SOURCE

THIS TELEVISION IS DESIGNED TO OPERATE ON 120 VOLTS 60Hz, AC CURRENT. INSERT THE POWER CORD INTO A 120 VOLT 60Hz OUTLET.

TO PREVENT ELECTRIC SHOCK, DO NOT USE THE TELEVISION’S (POLARIZED) PLUG WITH AN EXTENSION CORD, RECEPTACLE, OR OTHER OUTLET UNLESS THE BLADES AND GROUND TERMINAL CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

NEVER CONNECT THE TELEVISION TO 50Hz, DIRECT CURRENT, OR ANYTHING OTHER THAN THE SPECIFIED VOLTAGE.

NOTE: This television receiver will display television closed captioning, ( or ), in accordance with paragraph 15.119 and 15.122 of the FCC rules.

CAUTION: Never remove the back cover of the television as this can expose you to very high voltages and other hazards. If the television does not operate properly, unplug the television and call your authorized dealer or service center.

2

IMPORTANT SAFETY INSTRUCTIONS

Read before operating equipment

Follow all warnings and instructions marked on this television.

1.Read these instructions.

2.Keep these instructions.

3.Heed all warnings.

4.Follow all instructions.

5.Do not use this apparatus near water.

6.Clean only with a dry cloth.

7.Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8.Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9.Do not defeat the safety purpose of the polarized or ground- ing-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10.Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11.Only use the attachments/accessories specified by the manufacturer.

12.

Use only with the cart, stand, tripod, brack-



et, or table specified by the manufacturer,



or sold with the apparatus. When a cart is

used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13.Unplug this apparatus during lightning storms or when unused for long periods of time.

14.Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15.Televisions are designed to comply with the recommended safety standards for tilt and stability.

Do not apply excessive pulling force to the front, or top, of the cabinet which could cause the product to overturn resulting in product damage and/or personal injury.

16.Follow instructions for wall, shelf or ceiling mounting as recommended by the manufacturer.

17.An outdoor antenna should not be located in the vicinity of overhead power lines or other electrical circuits.

18.If an outside antenna is connected to the receiver be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. Section 810 of the National Electric Code, ANSI/NFPA No. 70-1984, provides information with respect to proper grounding for the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding connectors, location of antenna-discharge unit, connection to grounding electrodes and requirements for the grounding electrode.

Note to the CATV system installer: This reminder is provided to call the CATV system installer’s attention to Article 82040 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

This digital television is capable of receiving analog basic, digital basic and digital premium cable television programming by direct connection to a cable system providing such programming. A CableCARD provided by your cable operator is required to view encrypted digital programming. Certain advanced and interactive digital cable services such as video-on-demand, a cable operator’s enhanced program guide and data-enhanced television services may require the use of a set-top box. For more information call your local cable company.”

Do not place any objects on the top of the television which may fall or cause a child to climb to retrieve the objects.

Projection TV’s are heavy and can mark or damage floor surfaces (especially wood flooring) if moved improperly. Do not slide or force TV into position. Always roll TV allowing casters at bottom of unit to help steer and position the TV.

PREVENTION OF SCREEN BURN

This Wide Screen TV is designed to display wide screen pictures. Images should be viewed mostly in wide screen format or zoomed to fit the screen with moving pictures. Use of side panels, top and bottom panels of standard picture formats should only be 15% of your total viewing time to prevent uneven aging of the phosphors. Phosphors in the lighted area of the picture will age more rapidly than the gray areas. Continuous on-screen displays such as video games, stock market quotations, computer generated graphics, and other fixed (non-moving) patterns can cause permanent damage to television receivers. Such “SCREEN BURNS” constitute misuse and are NOT COVERED by your HITACHI Factory Warranty.

PUBLIC VIEWING OF COPYRIGHTED MATERIAL

Public viewing of programs broadcast by TV stations and cable companies, as well as programs from other sources, may require prior authorization from the broadcaster or owner of the video program material.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited consumer uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

This product contains lead. Dispose of this product in accordance with applicable environmental laws. For product recycling and disposal information, contact your local government agency or the Electronic Industries Alliance at www.eiae.org (in the US) or the Electronic Product Stewardship Canada at www.epsc.ca (in Canada). For more information, call “1-800-HITACHI.

3

ACCESSORIES

FIRST TIME USE

Check to make sure you have the following accessories before disposing of the packing material.

REMOTE CONTROL

BATTERIES



(“AA”)

GUIDE

C.C.

1. 2.

1.Remote Control Unit CLU-3842WL (Part No. HL02062).

2.Two “AA” size, 1.5V batteries (For Remote Control Unit).

REMOTE CONTROL BATTERY INSTALLATION AND REPLACEMENT

1.Open the battery cover of the remote control by pushing down and sliding the back cover off.

2.Insert two new “AA” size batteries for the remote control. When replacing old batteries, push them towards the springs and lift them out.

3.Match the batteries to the (+) and (-) marks in the battery compartment.

4.Replace the cover.

BOTTOM VIEW

(Remote Control)

Press down and slide back to remove.

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace with the same or equivalent type.

4

HOW TO SET UP YOUR NEW HITACHI PROJECTION TV

ANTENNA

Unless your TV is connected to a cable TV system or to a centralized antenna system, a good outdoor TV antenna is recommended for best performance. However, if you are located in an exceptionally good signal area that is free from interference and multiple image ghosts, an indoor antenna may be sufficient.

LOCATION

Select an area where sunlight or bright indoor illumination will not fall directly on the picture screen. Also, be sure that the location selected allows a free flow of air to and from the perforated back cover of the set.

To avoid cabinet warping, cabinet color changes, and increased chance of set failure, do not place the TV where temperatures can become excessively hot, for example, in direct sunlight or near a heating appliance, etc.

NOTE: Your new HDTV has a built-in high definition television signal processor. This television includes a fan to cool the processor. The sound of moving air from the fan is normal and maybe noticeable in very quiet environments.

VIEWING

The major benefit of the HITACHI Projection Television is its large viewing screen. To see this large screen at its best, test various locations in the room to find the optimum spot for viewing.

The best picture is seen by sitting directly in front of the TV and about 10 to 18 feet from the screen. Picture brightness decreases as the viewer moves to the left and right of the receiver.

During daylight hours, reflections from outside light may appear on the screen. If so, drapes or screens can be used to reduce the reflection or the TV can be located in a different section of the room.

If the TV’s audio output will be connected to a Hi-Fi system’s external speakers, the best audio performance will be obtained by placing the speakers equidistant from each side of the receiver cabinet and as close as possible to the height of the picture screen center. For best stereo separation, place the external speakers at least four feet from the side of the TV, place the surround speakers to the side or behind the viewing area. Differences in room sizes and acoustical environments will require some experimentation with speaker placement for best performance.

USE TIME FIRST











R







S





























4" Minimum

50

BEST



















HORIZONTAL









BEST



















VERTICAL VIEWING

5’



10’

15’

20’





20

ANGLE















VIEWING ANGLE















50





3’







4" Minimum























0’

5’

10’

15’

20’

L







S

















CAUTION: Magnetic fields, such as those of external speakers, may cause the picture to distort if they are placed too close to the television. Move the magnetic field source away from the television until there is no picture distortion.

5

HOOK-UP CABLES AND CONNECTORS

FIRST TIME USE

Most video/audio connections between components can be made with shielded video and audio cables that have phono connectors. For best performance, video cables should use 75-Ohm coaxial shielded wire. Cables can be purchased from most stores that sell audio/video products. Below are illustrations and names of common connectors. Before purchasing any cables, be sure of the output and input connector types required by the various components and the length of each cable.

300-Ohm Twin Lead Connector

This outdoor antenna cable must be connected to an antenna adapter (300-Ohm to 75-Ohm).

Phono Connector

Used on all standard video and audio cables which connect to inputs and outputs located on the television’s rear jack panel and front control panel.

“F” Type 75-Ohm Coaxial Antenna Connector

For connecting RF signals (antenna or cable TV) to the antenna jack on the television.

S-Video (Super Video) Connector

This connector is used on camcorders, VCRs and laserdisc players with an S-Video feature in place of the standard video cable to produce a high quality picture.

Optical Cable

This cable is used to connect to an audio amplifier with an Optical Audio In jack. Use this cable for the best sound quality.

1 2 3 4 5

6 7 8 9

D-SUB MINI 9-Pin Cable

This cable is used to connect to the RS232C input located on the rear panel so you can control some of your TV functions from an external home control system.

HDMI Cable

This cable is used to connect your external devices such as Set- Top-Boxes or DVD players equipped with an HDMI output connection to the TV’s HDMI input.

USB Cable

This cable is used to connect your digital camera to the Photo Input.

ANTENNA CONNECTIONS TO REAR JACK PANEL

VHF (75-Ohm) antenna/CATV (Cable TV)

When using a 75-Ohm coaxial cable system, connect CATV coaxial cable to the ANT A (75-Ohm) terminal. If you have an antenna, connect the coaxial cable to the ANT B terminal.

To outdoor antenna or CATV cable

To antenna

To outdoor VHF or UHF antenna

VHF (300-Ohm) antenna/UHF antenna

When using a 300-Ohm twin lead from an outdoor antenna, connect the VHF or UHF antenna leads to screws of the VHF or UHF adapter. Plug the adapter into the antenna terminal on the TV.

From UHF antenna

When both VHF and UHF antennas are connected

Attach an optional antenna cable mixer to the TV antenna terminal, and connect the cables to the antenna mixer. Consult your dealer or service store for the antenna mixer.

ANT A

From outdoor



antenna or



CATV System

Antenna Mixer

6

FRONT PANEL CONTROLS

USE TIME FIRST



INPUT 5















MAGIC


AUDIO



VOL-

VOL+

CH-

CH+

INPUT

MENU

FOCUS

INPUT























S-VIDEO VIDEO L/MONO

R









EXIT

SELECT



























CURSOR









































MENU/SELECT button

This button allows you to enter the MENU, making it possible to set TV features to your preference without using the remote. This button also serves as the SELECT button when in MENU mode.

INPUT/EXIT button

Press this button to display the input menu, Ant A/B, INPUT:1,2,3,4,5 or Photo Input. This button also serves as the EXIT button when in MENU mode.

CHANNEL selector

Press these buttons until the desired channel appears in the top right corner of the TV screen. These buttons also serve as the cursor down ( ) and up ( ) buttons when in MENU mode.

VOLUME level

Press these buttons for your desired sound level. The volume level will be displayed on the TV screen. These buttons also serve as the cursor left ( ) and right ( ) buttons when in MENU mode. When the TV power is turned OFF at a volume level 31 or greater, the volume level will default to 30 when the TV is turned ON. However, if it is set to a level 30 or less, the volume level will be at the level it was set when the TV is turned ON.

POWER button/ POWER LED

Press this button to turn the TV on or off. This LED light is on during normal operation.

MAGIC FOCUS

Use this button to automatically adjust your picture quality to optimum performance (see page 62).

FRONT INPUT JACKS (INPUT 5)

Use these audio/video jacks for a quick hook-up from a camcorder or VCR to instantly view your favorite show or new recording. Press the INPUT button and select Input 5. If you have mono sound, insert the audio cable into the left audio jack.

IR RECEIVER Sensor (1)

The screen area acts as one of the IR receivers (remote sensor) of the TV. When using the remote control, point it towards the screen for best response.

PHOTO INPUT

Insert USB cable from your Digital Camera to view your digital still pictures (see pages 8 and 24-26).

IR RECEIVER Sensor (2)

This is an additional remote sensor for a better remote control range of response.

7

FRONT PANEL JACKS AND CONNECTORS

FIRST TIME USE

The front panel jacks are provided as a convenience to allow you to easily connect a camcorder or VCR as shown in the following examples:

INPUT 5

INPUT 5

AUDIO

AUDIO

S-VIDEO VIDEO L/MONO R

S-VIDEO VIDEO L/MONO R

NOTE: 1. Completely insert connection cord plugs when connecting to front panel jacks. If you do not, the played back picture may be abnormal.

2.If you have a S-VHS VCR, use the S-INPUT cable in place of the standard video cable.

3.If you have a mono VCR, insert the audio cable into the left audio jack of your TV.

PHOTO INPUT

The front panel USB slot is provided to view digital still pictures from your digital camera using a USB cable and displaying them on the TV screen.


INPUT

USB CABLE

First, connect your digital camera to the Photo Input using a USB cable. Turn on the power of your digital camera. Press the INPUTS button and select Photo Input (see pages 24-27).

8

REAR PANEL JACKS































CableCARD













(Top of card faces right)





ANT A

























HDMI 1













ANT B



INPUT 2

INPUT 1















Y/

Y/

























MONITOR OUT

INPUT 4

INPUT 3

VIDEO

VIDEO

























S-VIDEO

























PB

PB



















OPTICAL OUT













PR

Digital Audio













PR



















Upgrade Card







VIDEO







Apparatus Claims of U.S. Patent Nos.









4,631,603; 4,577,216; 4,819,098;











4,907,093; and 6,381,747 licensed





(MONO)

(MONO)

(MONO)

for limited viewing uses only.





(MONO)











L



















AUDIO



TV AS CENTER

RS232C

























1

2

3

4

5



R









6

7

8

9





















AUDIO



















TO HI-FI

















Antenna Input

ANT A- A 75-Ohm RF antenna or CATV (Cable TV) input. ANT A can be displayed as a main picture or sub-picture. ANT B- A 75-Ohm RF antenna input. ANT B can only be displayed as a main picture. ANT B cannot be displayed as a

sub-picture.

NOTE: You may ask your local cable company whether DTV services are available.

Audio/Video Inputs 1, 2, 3 and 4

By using the INPUTS button and CURSOR PAD of the remote control you can select each video source. Use the audio and video inputs to connect external devices, such as VCRs, camcorders, laserdisc players, DVD players etc. (If you have mono sound, insert the audio cable into the left audio jack.)

USE TIME FIRST

NOTE: You may use VIDEO or S-VIDEO inputs to connect to INPUT 3 and 4, but only one of these inputs may be used at a time.

MONITOR OUT

These jacks provide fixed or variable audio and video signals which are used for recording. Use the S-VIDEO Output for high quality video output (see page 70).

S-VIDEO Inputs 3 and 4

Inputs 3 and 4 provide S-VIDEO (Super Video) jacks for connecting equipment with S-VIDEO output capability.

Component: Y-PBPR Inputs

Inputs 1 and 2 provide Y-PBPR jacks for connecting equipment with this capability, such as a DVD player or Set Top Box. You may use composite video signal for both inputs.

NOTES: 1. Do not connect composite VIDEO and S-VIDEO to Input 3, 4 or 5 at the same time. S-VIDEO has priority over VIDEO input.

2.Your component outputs may be labeled Y, B-Y, and R-Y. In this case, connect the components B-Y output to the TV’s PB input and the components R-Y output to the TV’s PR input.

3.Your component outputs may be labeled Y-CBCR. In this case, connect the component CB output to the TV’s PB input and the component CR output to the TV’s PR input.

4.It may be necessary to adjust TINT to obtain optimum picture quality when using the Y-PBPR inputs (see page 44).

5.To ensure no copyright infringement, the MONITOR OUT output will be abnormal, when using the Y-PBPR jacks.

6.Input 1 and Input 2 (Y/VIDEO) can be used for composite video and component video input.

9

REAR PANEL JACKS

FIRST TIME USE

HDMI1 (High Definition Multimedia Interface) (INPUT 1)

About HDMI

HDMI is the next-generation all digital interface for consumer electronics. HDMI enables the secure distribution of uncompressed high-definition video and multi-channel audio in a single cable. Because digital television (DTV) signals remain in digital format, HDMI assures that pristine high-definition images retain the highest video quality from the source all the way to your television screen.

Use the HDMI input for your external devices such as Set-Top-Boxes or DVD players equipped with an HDMI output connection.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

NOTES: 1. The HDMI input is not intended for use with personal computers.

2.Only DTV formats such as 1080i, 720p, 480i and 480p are available for HDMI input.

Optical Out (Digital Audio)

This jack provides Digital Audio Output for your audio device that is Dolby® Digital and PCM compatible, such as an audio amplifier.

NOTE: *Manufactured under license from Dolby Laboratories. ìDolbyî and the double-D symbol are trademarks of Dolby Laboratories.

Upgrade Card

This card slot is for future software upgrades. Hitachi will notify you if a software upgrade is required for your TV. In order to receive written notification, please complete and return your warranty card.

RS232C Input

For use with third party home Audio/Video control systems which are commercially available. Please see your dealer regarding these “non Hitachi” home control systems (see page 71 to activate this input).

TV AS CENTER (INPUTS 1-4)

These jacks are for stereo amplifiers with center signal output capability. This feature allows the TV speakers to be used as a center speaker. The TV must be set as a center channel by selecting “TV as Center” on the Internal Speakers Settings of the Audio Menu (see page 48).

10

REAR PANEL JACKS

CableCARD Slot

This slot is for the CableCARD that will be provided by your local cable operator to gain access to chosen cable channels. The CableCARD will allow you to tune digital and high definition cable channels. Please call your local cable operator if this service is available before requesting a CableCARD (also known as Point of Deployment (POD) module).

Connect a coaxial cable to ANT A terminal of the Rear Panel Jacks.

Insert the CableCARD into the slot (Top of card should be facing right as shown).

Digital Cable

CableCARD

(Top of card faces right)

ANT A



ANT B



INPUT 2

INPUT 1





Y/

Y/







MONITOR OUT

INPUT 4

INPUT 3

VIDEO

VIDEO





S-VIDEO















PB

PB







PR

PR

VIDEO











(MONO)

(MONO)

(MONO)

(MONO)

L









AUDIO



TV AS CENTER



R









AUDIO

TO HI-FI

THIS

END



INSERT



CableCARD

OPTICAL OUT

Digital Audio

Upgrade Card

Claims of U.S. Patent Nos. 4,577,216; 4,819,098; and 6,381,747 licensed

limited viewing uses only.

RS232C

1 2 3 4 5

6 7 8 9

USE TIME FIRST

If the CableCARD is properly installed or not installed, the TV will display the following respective screens.

















CableCARD is installed



OR



CableCARD











is not installed





































After the CableCARD is installed, wait until the second screen below appears. The third screen below will appear if a channel is not authorized for viewing. Press the EXIT button to exit the second screen.

Acquiring Data.

Please wait.

In order to start cable service for this device, please contact your cable provider

CableCARD(tm): 123-456-789-1

Host: 123-456-789-1

Data: 123-456-789-1

UnitAddress: 123-456-789-1

Press EXIT to return

Not an Authorized Channel

Please take note of all information on the screen (you will provide this information to your cable operator). Call your cable operator and give them the information from the card to start your cable service.

NOTES: 1. A digital cable subscription is required.

2.Antenna B will not be available when CableCARD is inserted.

3.Do not insert a PCMCIA card into the CableCARD slot.

11

Hitachi 57S715, 51S715 User Manual

FIRST TIME USE

REAR PANEL CONNECTIONS

TYPICAL FULL-FEATURE SETUP

Outside antenna or digital cable

DVD Player

OUTPUT

Y PB/CB PR/CR L R











External Digital











Component with









CableCARD

HDMI output









(Top of card faces right)

capability



ANT A

















HDMI











OUT









HDMI 1





ANT B

INPUT 2

INPUT 1







Y/

Y/













MONITOR OUT

INPUT 4

VIDEO

VIDEO





INPUT 3







S-VIDEO









To an amplifier/receiver





PB

PB



with optical input capability.





OPTICAL OUT











Digital Audio







PR

PR

Upgrade Card











Apparatus Claims of U.S. Patent Nos. VIDEO 4,631,603; 4,577,216; 4,819,098;

4,907,093; and 6,381,747 licensed for limited viewing uses only.

(MONO) (MONO) (MONO) (MONO)



L











AUDIO

TV AS CENTER

RS232C















1

2

3

4

5



R



6

7

8

9













AUDIO

TO HI-FI

INPUT

OUTPUT

OUTPUT

S-VIDEO V L R

S-VIDEO V L R

S-VIDEO V L R

VCR #2 VCR #1

Laserdisc player, VCR, camcorder, etc.

NOTES: 1. Connect only 1 component to each input jack.

2.Follow connections that pertain to your personal entertainment system.

3.Inputs 1 and 2 can accomodate Composite and Component video signals.

4.Cables are not included with the purchase of this TV, except when noted as “provided”.

12

TIPS ON REAR PANEL CONNECTIONS

• S-VIDEO connections are provided for high performance laserdisc players, VCRs etc. that have this feature. Use these



connections in place of the standard video connection if your device has this feature.



• If your device has only one audio output (mono sound), connect it to the left audio jack on the television.

FIRST

• Refer to the operating guide of your other electronic equipment for additional information on connecting your hook-up cables.



• A single VCR can be used for VCR #1 and VCR #2, but note that a VCR cannot record its own video or line output (INPUT: 3 in

TIME

• You may use VIDEO or S-VIDEO inputs to connect to Input 3, Input 4 or Input 5, but only one of these may be used at a time.



the example on page 12). Refer to your VCR operating guide for more information on line input-output connections.



• Connect only 1 component (VCR, DVD player, camcorder, etc.) to each input jack.

USE



• COMPONENT: Y-PBPR (Input 1 & 2) connections are provided for high performance components, such as DVD players and set-





top-boxes. Use these connections in place of the standard video connection if your device has this feature. Input 2 accepts





both composite and component video signals.



Your component outputs may be labeled Y, B-Y, and R-Y. In this case, connect the components B-Y output to the TV’s PB input





and the components R-Y output to the TV’s PR input.



• Your component outputs may be labeled Y-CBCR. In this case, connect the components CB output to the TV’s PB input and





the components CR output to the TV’s PR input.



• You may use composite and component video signals for Inputs 1 and 2.



• It may be necessary to adjust TINT to obtain optimum picture quality when using the Y-PBPR inputs (see page 44).



To ensure no copyright infringement, the MONITOR OUT output may be abnormal, when using the Y-PBPR jacks.



• When using an HDMI input from a Set-Top-Box, it is recommended that a 1080i or 720p input signal is used.



13

CONNECTING EXTERNAL AUDIO SOURCES

FIRST TIME USE

Match the numbers below to the diagram for speaker placement.

The televisionís internal speakers will act as center speaker (select Audio-Internal Speakers-TV as Center).

These FRONT left and right speakers are connected to the FRONT output of a separate audio amplifier.

These REAR left and right speakers are connected to the REAR output of a separate audio amplifier.

This subwoofer is connected to the LFE/Sub Out output of a separate audio amplifier.

REAR PANEL OF TELEVISION

CableCARD

(Top of card faces right)

ANT A

HDMI 1



ANT B

INPUT 2

INPUT 1



Y/

Y/





MONITOR OUT

INPUT 4

VIDEO

VIDEO

INPUT 3



S-VIDEO







PB PB

OPTICAL OUT

Digital Audio

Upgrade Card

PR PR

Apparatus Claims of U.S. Patent Nos. VIDEO 4,631,603; 4,577,216; 4,819,098;

4,907,093; and 6,381,747 licensed for limited viewing uses only.

(MONO)

(MONO)

(MONO)

(MONO)











L

















AUDIO

TV AS CENTER



RS232C









R







1

2

3

4

5









6

7

8

9

AUDIO

















TO HI-FI























CENTER

OPTICAL















OUT

INPUT









Stereo System Amplifier

or DVD Player

NOTES: 1. The Optical Out (Digital Audio) provides a fixed digital audio output to your external component such as an A/V receiver with optical input capability. The audio level can only be controlled through the volume control of the external audio amplifier.

2.See page 49 for AUDIO-Digital Output.

14

CONNECTING EXTERNAL VIDEO SOURCES

The exact arrangement you use to connect the VCR, camcorder, laserdisc player, DVD player, or HDTV Set Top Box to your TV set is dependent on the model and features of each component. Check the owner’s manual of each component for the location of video and audio inputs and outputs.

The following connection diagrams are offered as suggestions. However, you may need to modify them to accommodate your particular assortment of components and features. For best performance, video and audio cables should be made from coaxial shielded wire.

Before Operating External Video Source

Connect an external source to the INPUT terminal, then press the INPUTS button to show the INPUTS menu. Use the CURSOR PAD to select the Antenna and Input of your choice. Then press the SELECT button to confirm your choice (see page 24).

INPUTS

Photo Input

Ant B

Ant A

Input 1

Input 2

USE TIME FIRST

NOTE: When the TV is set to VIDEO and a video signal is not received from the VIDEO INPUT JACK on the back panel

of the TV (i.e., VCR/laserdisc player, etc. is not connected or the video device is OFF), the set will appear to be OFF.

CONNECTING A MONAURAL AUDIO SOURCE TO INPUT1~INPUT5

1.Connect the cable from the VIDEO OUT of the VCR or the laserdisc player to the INPUT (VIDEO) jack, as shown on the TV set below.

2.Connect the cable from the AUDIO OUT of the VCR or the laserdisc player to the INPUT (MONO)/L(AUDIO) jack.

3.Press the INPUTS button, then select INPUT 1 from the INPUTS menu to view the program from the VCR or the laserdisc player. The VIDEO OSD label disappears automatically after approximately four seconds.

4.Select Antenna from the INPUTS menu to return to the previous channel.

CableCARD

(Top of card faces right)

ANT A

HDMI 1



ANT B

INPUT 2

INPUT 1



Y/

Y/





MONITOR OUT

INPUT 4

VIDEO

VIDEO

INPUT 3



S-VIDEO







PB

PB



OPTICAL OUT



Digital Audio

Upgrade Card

PR PR

Apparatus Claims of U.S. Patent Nos. VIDEO 4,631,603; 4,577,216; 4,819,098;

4,907,093; and 6,381,747 licensed for limited viewing uses only.

(MONO)

(MONO)

(MONO)

(MONO)









L















AUDIO

TV AS CENTER

RS232C

















1

2

3

4

5

R







6

7

8

9















AUDIO















TO HI-FI















Audio Video

OUTPUT

VCR

15





CONNECTING EXTERNAL VIDEO SOURCES



CONNECTING A STEREO SOURCE TO INPUT1~INPUT5



1.

Connect the cable from the VIDEO OUT of the VCR or the laserdisc player to the INPUT (VIDEO) jack, as shown on the TV set

USE



below.

2.

Connect the cable from the AUDIO OUT R of the VCR or the laserdisc player to the INPUT (AUDIO/R) jack.



TIME

3.

Connect the cable from the AUDIO OUT L of the VCR or the laserdisc player to the INPUT (AUDIO/L) jack.

4.

Press the INPUTS button, then select INPUT 3 from the INPUTS menu to view the program from the VCR or laserdisc player.



FIRST



The VIDEO OSD label disappears automatically after approximately four seconds.

5.

Select Antenna from the INPUTS menu to return to the previous channel.











CableCARD











(Top of card faces right)



ANT A























HDMI 1











ANT B



INPUT 2

INPUT 1













Y/

Y/























MONITOR OUT

INPUT 4

INPUT 3

VIDEO

VIDEO





















S-VIDEO























PB

PB

















OPTICAL OUT















Digital Audio















PR

Upgrade Card











PR









VIDEO







Apparatus Claims of U.S. Patent Nos.







4,631,603; 4,577,216; 4,819,098;









4,907,093; and 6,381,747 licensed









for limited viewing uses only.



(MONO)

(MONO)

(MONO)

(MONO)









L

















AUDIO



TV AS CENTER

RS232C





















1

2

3

4

5

R









6

7

8

9

















AUDIO

















TO HI-FI

















OUTPUT

R L V

VCR

NOTES: 1. Completely insert the connection cord plugs when connecting to rear panel jacks. The picture and sound that is played back will be abnormal if the connection is loose.

2.A single VCR can be used for VCR #1 and VCR #2 (see page 12), but note that a VCR cannot record its own video or line output. Refer to your VCR operating guide for more information on line input-output connections.

16

CONNECTING EXTERNAL VIDEO SOURCES

CONNECTING AN S-VIDEO SOURCE TO INPUT 3, 4 AND 5



1.

Connect the cable from the S-VIDEO OUT of the VCR or the laserdisc player to the INPUT (S-VIDEO) jack, as shown on the TV





set below.

FIRST

3.

Connect the cable from the AUDIO OUT L of the VCR or the laserdisc player to the INPUT (AUDIO/L) jack.

2.

Connect the cable from the AUDIO OUT R of the VCR or the laserdisc player to the INPUT (AUDIO/R) jack.



4.

Press the INPUTS button, then select INPUT 3 from the INPUTS menu to view the program from the VCR or laserdisc player.

TIME





The VIDEO OSD label disappears automatically after approximately four seconds.

USE

5.

Select Antenna from the INPUTS menu to return to the previous channel.











CableCARD











(Top of card faces right)



ANT A























HDMI 1











ANT B



INPUT 2

INPUT 1













Y/

Y/























MONITOR OUT

INPUT 4

INPUT 3

VIDEO

VIDEO





















S-VIDEO























PB

PB

















OPTICAL OUT















Digital Audio















PR

Upgrade Card











PR









VIDEO







Apparatus Claims of U.S. Patent Nos.







4,631,603; 4,577,216; 4,819,098;









4,907,093; and 6,381,747 licensed



(MONO)

(MONO)

(MONO)

for limited viewing uses only.



(MONO)









L

















AUDIO



TV AS CENTER

RS232C





















1

2

3

4

5

R









6

7

8

9

















AUDIO

















TO HI-FI

















R L V

S-VIDEO

VCR

NOTES: 1. Completely insert the connection cord plugs when connecting to rear panel jacks. The picture and sound that is played back will be abnormal if the connection is loose.

2.A single VCR can be used for VCR #1 and VCR #2 (see page 12), but note that a VCR cannot record its own video or line output. Refer to your VCR operating guide for more information on line input-output connections.

17

CONNECTING EXTERNAL VIDEO SOURCES

FIRST TIME USE

CONNECTING A COMPONENT SOURCE WITH HDMI or DVI CAPABILITY TO INPUT 1

1.Connect the HDMI or DVI to HDMI connection cable from the output of the HDTV set top box or DVD player to the HDMI input as shown on the TV set below. When using a component with DVI output, you also have to connect the AUDIO OUT (R/L) of the component to the AUDIO IN (R/L) of INPUT 1.

2.Press the INPUTS button, then select INPUT 1 from the INPUTS menu to view the program from the HDTV set top box or DVD player. The VIDEO OSD label disappears automatically after approximately four seconds.

3.Select Antenna from the INPUTS menu to return to the previous channel.

HDMI-HDMI







CableCARD







(Top of card faces right)



ANT A











HDMI 1



ANT B

INPUT 2

INPUT 1



Y/

Y/





MONITOR OUT

INPUT 4

VIDEO

VIDEO

INPUT 3



S-VIDEO











PB

PB







OPTICAL OUT







Digital Audio





PR

Upgrade Card





PR

Apparatus Claims of U.S. Patent Nos. VIDEO 4,631,603; 4,577,216; 4,819,098;

4,907,093; and 6,381,747 licensed for limited viewing uses only.

(MONO)

(MONO)

(MONO)

(MONO)









L















AUDIO

TV AS CENTER

RS232C





















1

2

3

4

5

R







6

7

8

9















AUDIO















TO HI-FI















HDMI Cable

DVI-HDMI







CableCARD







(Top of card faces right)



ANT A











HDMI 1



ANT B

INPUT 2

INPUT 1



Y/

Y/





MONITOR OUT

INPUT 4

VIDEO

VIDEO

INPUT 3



S-VIDEO











PB

PB







OPTICAL OUT







Digital Audio





PR

Upgrade Card





PR

Apparatus Claims of U.S. Patent Nos. VIDEO 4,631,603; 4,577,216; 4,819,098;

4,907,093; and 6,381,747 licensed for limited viewing uses only.

(MONO)

(MONO)

(MONO)

(MONO)









L















AUDIO

TV AS CENTER

RS232C





















1

2

3

4

5

R







6

7

8

9















AUDIO















TO HI-FI















DVI to HDMI

Cable

HDMI Output

DIGITAL OUTPUT

R L

AUDIO OUT

DVD Player or HDTV STB

DVD Player or HDTV STB

NOTES: 1. Completely insert the connection cord plugs when connecting to rear panel jacks. The picture and sound that is played back will be abnormal if the connection is loose.

2.The HDMI input on INPUT 1 contains the copy protection system called High-bandwidth Digital Content Protection (HDCP). HDCP is a cryptographic system that encrypts video signals when using HDMI connections to prevent illegal copying of video contents.

3.HDMI is not a “NETWORK” technology. It establishes a one-way point-to-point connection for delivery of uncompressed video to a display.

4.The connected digital output device controls the HDMI interface so proper set-up of device user settings determines final video appearance.

18

CONNECTING EXTERNAL VIDEO SOURCES

CONNECTING A COMPONENT SOURCE TO INPUT 1 OR 2: Y-PBPR.



1.

Connect the cable from the Y OUT of the Laserdisc/DVD player or HDTV set top box to the INPUT (Y) jack, as shown on the TV





set below.

FIRST

2.

Connect the cable from the CB/PB OUT or B-Y OUT of the Laserdisc/DVD player or HDTV set top box to the INPUT (PB) jack.



3.

Connect the cable from the CR/PR OUT or R-Y OUT of the laserdisc/DVD player or HDTV set top box to the INPUT (PR) jack.

TIME

4.

Connect the cable from the AUDIO OUT R of the Laserdisc/DVD player or HDTV set top box to the INPUT (AUDIO/R) jack.

USE

5.

Connect the cable from the AUDIO OUT L of the Laserdisc/DVD player or HDTV set top box to the INPUT (AUDIO/L) jack.



6.

Press the the INPUTS button, then select INPUT 1 from the INPUTS menu to view the program from the Laserdisc/DVD player





or HDTV set top box. The VIDEO OSD label disappears automatically after approximately four seconds.



7.

Select Antenna from the INPUTS menu to return to the previous channel.



CableCARD

(Top of card faces right)

ANT A

HDMI 1



ANT B

INPUT 2

INPUT 1



Y/

Y/





MONITOR OUT

INPUT 4

VIDEO

VIDEO

INPUT 3



S-VIDEO







PB

PB



OPTICAL OUT



Digital Audio

Upgrade Card

PR PR

Apparatus Claims of U.S. Patent Nos. VIDEO 4,631,603; 4,577,216; 4,819,098;

4,907,093; and 6,381,747 licensed for limited viewing uses only.

(MONO)

(MONO)

(MONO)

(MONO)









L















AUDIO

TV AS CENTER

RS232C

















1

2

3

4

5

R







6

7

8

9















AUDIO















TO HI-FI















OUTPUT

R L PR PB Y

DVD Player

NOTES: 1. Completely insert the connection cord plugs when connecting to rear panel jacks. The picture and sound that is played back will be abnormal if the connection is loose.

2. See page 13 for tips on REAR PANEL CONNECTIONS.

19

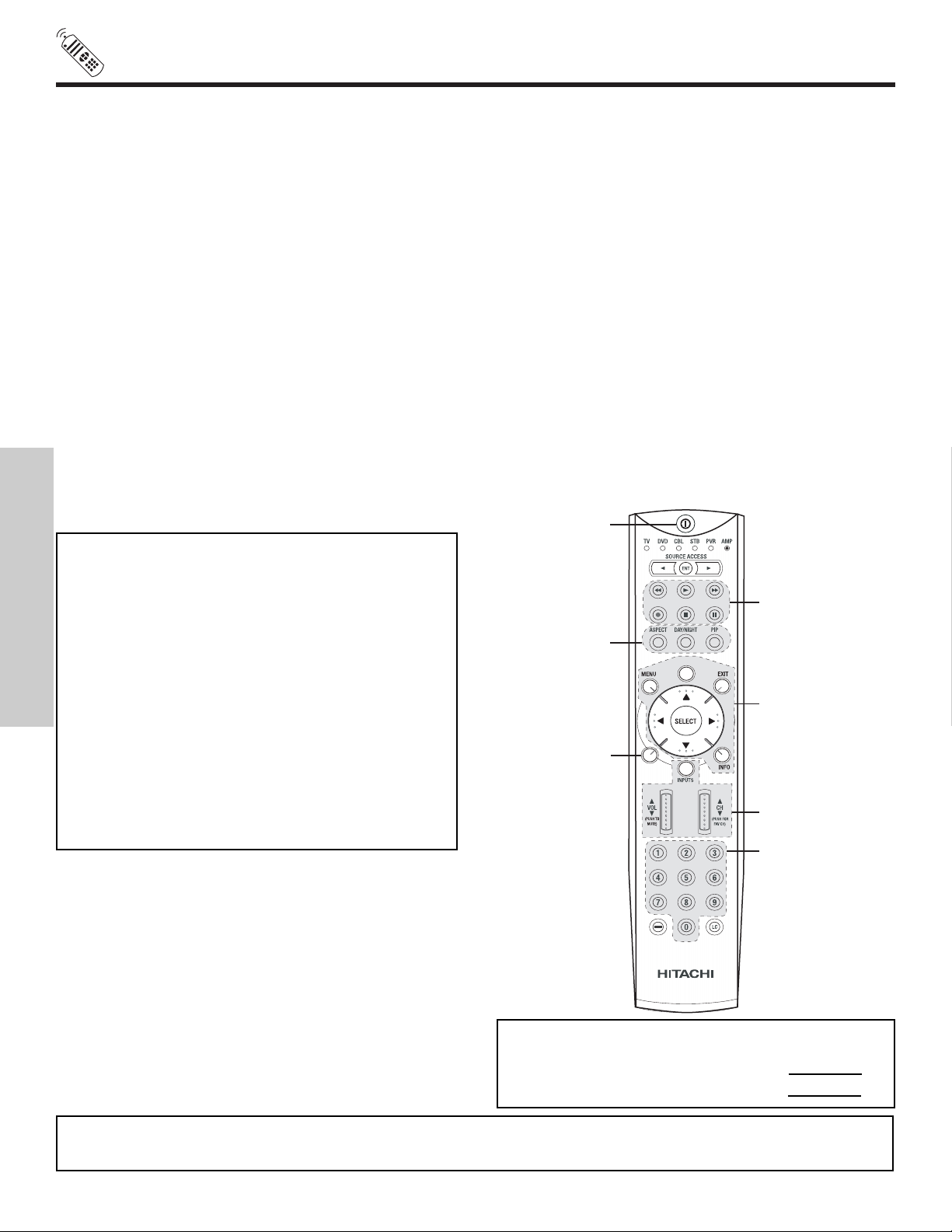

THE REMOTE CONTROL

THE REMOTE CONTROL

In addition to controlling all the functions on your HITACHI Projection TV, the new remote control is designed to operate different types of VCRs, CATV (Cable TV) converters, set-top-box, satellite receiver, DVD players, and other audio/video equipment with one touch. Basic operation keys are grouped together in one area.

To operate your TV, point the remote control at the screen of the TV and select the TV by pressing the or button of the Source Access on the remote.

To operate your VCR, point the remote at the remote sensor of the VCR and select PVR by pressing the or button of the Source Access on the remote (see page 35 for instructions on how to program the remote to control your VCR).

To operate your cable box, point the remote at the remote sensor of the cable box and select the CABLE (CBL) by pressing theor button of the Source Access on the remote (see page 32 for instructions on how to program the remote to control your cable box).

To operate your set-top-box or satellite receiver point the remote at the remote sensor of the set-top-box and select the SET- TOP-BOX (STB) by pressing the or button of the Source Access on the remote. If you have a satellite receiver, use this button to program your satellite receiver (see page 33 for instructions on how to program the remote to control your set-top-box).

To operate your DVD player, point the remote at the remote sensor of the DVD player and select DVD by pressing the or button of the Source Access on the remote (see page 34 for instruction on how to program the remote to control your DVD player).

To operate your PVR (Personal Video Recorder), point the remote at the remote sensor of the PVR and select PVR by pressing the or button of the Source Access on the remote (see page 35 for instruction on how to program the remote to control your PVR).

To operate additional audio equipment, point the remote at the remote sensor of the component you wish to control and select AMP by pressing the or button of the Source Access on the remote (see page 36 for instructions on how to program the remote to control additional Audio/Video equipment).

GUIDE

C.C.

NOTE: When you are in a dark room, press any button on the remote to light up the buttons. The illumination will light for 8 seconds during this time and the current mode indicator will flash one time. These buttons will not appear to light if the room is too bright.

20

HOW TO USE THE REMOTE TO CONTROL YOUR TV

























GUIDE

























C.C.





















CONTROL REMOTE THE

POWER button

Press this button to turn the TV set on or off when the remote is in TV mode. (See page 20 for instructions on how to set the remote control to TV mode.)

MODE Indicator

Turns on or blinks to show remote control mode.

SOURCE ACCESS ( , ) buttons

Press these buttons to select remote control mode.

SOURCE ACCESS (ENT) button

Hold down this button while entering your device code to program the remote (see pages 32-39). You can also use this button in an optional Input access feature (see page 37).

PAUSE button

Press the PAUSE button to freeze the picture. Press the EXIT button to return the picture to motion. Press the PAUSE button repeatedly to cycle through the three different freeze modes (see page 31).

Freeze

Freeze

Freeze

Freeze

Freeze

21

HOW TO USE THE REMOTE TO CONTROL YOUR TV

THE REMOTE CONTROL

ASPECT button

Press this button to quickly change the picture format ASPECT ratio.

Depending on the input signal format received, the picture format ratio allows you to adjust the images through the following options.

4:3

STANDARD

Use this aspect mode to display conventional (4:3) images. Side panels (gray areas) are placed to the





left and right of the image to preserve the original aspect ratio of the source. Note: Use this mode for





only 15% of your total viewing time to prevent uneven aging of the phosphors. Phosphors in the lighted





area of the picture will age more rapidly than the gray areas.

4:3

EXPANDED

Use this aspect mode to display conventional (4:3) sources by linearly increasing image expansion from





the center towards the edges of the display area in order to fill it.

4:3

Zoom1/Zoom2

Use these aspect modes to zoom in on conventional (4:3) sources.

16:9 STANDARD

Use this aspect mode to display 16:9 sources like HDTV and DVD’s preserving the original 16:9 aspect





ratio.

16:9 Zoom

Use this aspect to Zoom-in once while in 16:9 aspect.

(1)NTSC/480i/480P Input

4:3







INPUT

4:3 STANDARD

4:3 EXPANDED

4:3 ZOOM1



16:9 ZOOM

16:9 STANDARD

4:3 ZOOM2

(2)480i/480P Input

16:9

INPUT

4:3 STANDARD

4:3 EXPANDED

4:3 ZOOM1



16:9 ZOOM

16:9 STANDARD

4:3 ZOOM2

(3)HDMI/720P/1080i Input

16:9

INPUT

16:9 STANDARD

16:9 ZOOM

4:3 EXPANDED

























NOTES: 1. The Aspect Style setting you select for an ANT input will automatically be set for the other ANT inputs. However, all five video inputs have independent Aspect Style settings.

2.Vertical position adjustments are directly available when you choose 4:3 EXPANDED/ZOOM1/ZOOM2 or 16:9 ZOOM aspect style (see also page 50).

22

HOW TO USE THE REMOTE TO

CONTROL YOUR TV

DAY/NIGHT button

Press this button to toggle between Day and Night picture mode settings. Select Day for day time viewing with more brightness and contrast to compete with room light. Select Night for night time viewing with less brightness and contrast for a more detailed picture (see page 41 for settings changes).

NOTE: For automatic DAY/NIGHT picture mode settings, see page 59.

PICTURE-IN-PICTURE button

See separate section on pages 29-30 for a description.

MENU button

The MENU button will start the On-Screen Display.

GUIDE button

Press this button to access the Channel Guide. Press the GUIDE button again to return to normal viewing.

Select CHANNEL GUIDE to display available program information. Only scanned programs that are available at the present time will show in the Channel Guide (see Auto Channel Scan on page 51).

Channel Guide (Cable)

--:--AM







KGTV-DT

KPBS-HD

KNSD-DT



Smart Travels

15-1

GUIDE

GUIDE

KPBS-HD



3:00PM

3:30PM







CC



Draon Tales



15-2





3:00PM

3:30PM



Move SEL Tune

INFO Detail





Use the CURSOR PAD , , , to highlight the channel of choice (example: KPBS-HD).

Press the CURSOR PAD , , to highlight the subchannel of choice (example: 15-1).

Press the SELECT button to tune the subchannel of choice.

NOTE: The availability of Channel Guide Information will depend on the type of Antenna input (Analog, Digital) and Cable subscription.

EXIT button

This button will exit all On-Screen Displays.

CURSOR PAD/SELECT button

All the On-Screen Display features can be set or adjusted by using the CURSOR PAD, except for numeric entries.

The CURSOR PAD will highlight functions or adjust and set different features. Press the CURSOR PAD toward desired direction and press the SELECT button to select.

C.C. button

Press this button to turn the Closed Caption feature on, off or auto. You can also access this feature on the setup menu (see page 69).

CONTROL REMOTE THE

23

HOW TO USE THE REMOTE TO

CONTROL YOUR TV

INPUTS button

When the remote control is in TV mode, press this button to access the INPUTS menu. Use the CURSOR PAD and SELECT button to select the inputs that are being used. Pressing the INPUTS button repeatedly will also toggle between the Inputs menu items. Then press the SELECT button to select.

THE REMOTE CONTROL

Photo Input

Ant B

Ant A

Input 1

Input 2

Input 3

Input 4

Input 5

Photo Input

Ant B

Ant A

Input 1

Input 2

Select to access your pictures from a digital camera connected to the Photo Input in the front panel of the TV (see page 25).

Select to choose Antenna B.

Select to choose Antenna A.

Select to choose Input 1 for Video 1.

Select to choose Input 2 for Video 2.

Select to choose Input 3 for Video 3.

Select to choose Input 4 for Video 4.

Select to choose Input 5 for Video 5.

24

HOW TO USE THE REMOTE TO

CONTROL YOUR TV

PHOTO INPUT

This feature is useful for viewing digital still pictures from your digital camera using the Photo Input in the front panel of the TV.

Photo Input

Ant B

Ant A

Input 1

Input 2

No. 7/10 Picture No.

03/04/03 Date

1632x1232 Resolution

Vacation File Name

JUMP

Select this menu item to view the chosen picture number.

Jump

Slideshow

Rotate

Jump

Please Enter

Picture Number

- -

7 0

CONTROL REMOTE THE

NOTES: 1. Contrast will decrease automatically if stationary images such as digital still photos are left on the screen for more than 3 minutes.

2.The maximum number of digital Photos that can be displayed is 999.

3.Press INFO button to show Picture Numbers in Thumbnail view, plus other information in individual photos.

4.Digital photos recorded on a DVD-RAM disc may not work with this Photo Input.

5.Digital cameras with low battery power may not properly display your photos in this input.

25

HOW TO USE THE REMOTE TO

CONTROL YOUR TV

SLIDESHOW

Select this menu item to start a slideshow of the Photos in the memory card. Time interval selections can be set from 5, 10 and 30 seconds.

Jump

Jump



Slideshow

Slideshow

Start

Rotate

Rotate

Interval 5 sec





Slideshow



THE REMOTE CONTROL

5 seconds











5 seconds.. etc.























































Use CURSOR PAD , to highlight Slideshow item.

While interval is highlighted, press SELECT to change interval time from 5, 10 and 30 seconds. Each press will change interval time from the three mentioned choices.

Press SELECT to stop on a chosen picture of the slideshow. After 30 seconds, the slideshow will resume, or press SELECT again to continue the slideshow.

Press EXIT to exit the slideshow.

ROTATE

Select this menu item to rotate selected photos either clockwise (CURSOR PAD ) and counterclockwise (CURSOR PAD ). Rotate menu item is also avaiable in THUMBNAIL view.

Jump

Slideshow

Rotate

Rotate

1/10

1/10

1/10



NOTES: 1. Automatic contrast reduction also applies during SLIDESHOW, then press any button to continue.

2.Photo file names modified on a computer should be 8 characters (Ex. ABCD1234.jpg). 1st character: letters; 2nd to 4th: letters or numbers; 5th to 8th: numbers. Photo files should be first placed on a sub directory name

with 8 characters (Ex. 123ABCDE). 1st to 3rd: number; 4th to 8th: letters. The sub directory then should be placed on a main directory with a “dcim” file name format.

3.Supported image types are up to 3072 x 2304; JPEG format should conform with DCF Standard (Design rule for Camera File System).

4.This TV set displays only digital pictures from digital cameras which meet DCF Standard. Pictures that were copied, edited or modified on a computer may not be displayed on the TV set.

5.The Rotate feature can also be used in THUMBNAIL view.

26

Loading...
+ 58 hidden pages
