Frigidaire DGHF2360PF User Manual

Size:
6.42 Mb
Download

All about the

Use&Care

of your Refrigerator

TA B L E O F C O N T E N T S

Important Safety Instructions......................

2

Features at a Glance...................................

5

Installation.................................................

6

Door Removal Instructions.........................

10

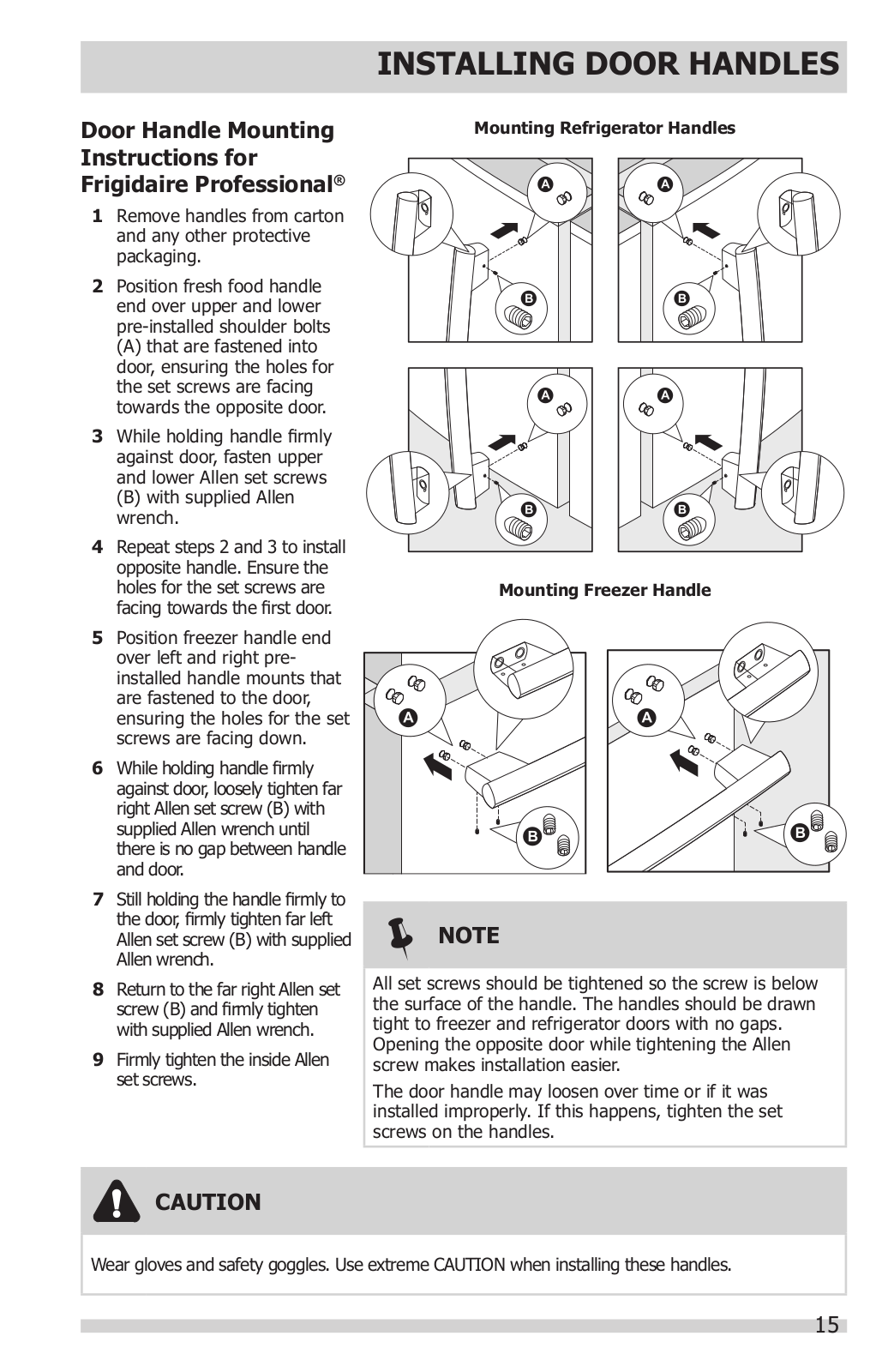

Installing Door Handles.............................

13

Connecting Water Supply..........................

16

Controls...................................................

18

Automatic Ice & Water Dispenser...............

21

www.frigidaire.com USA 1-800-944-9044

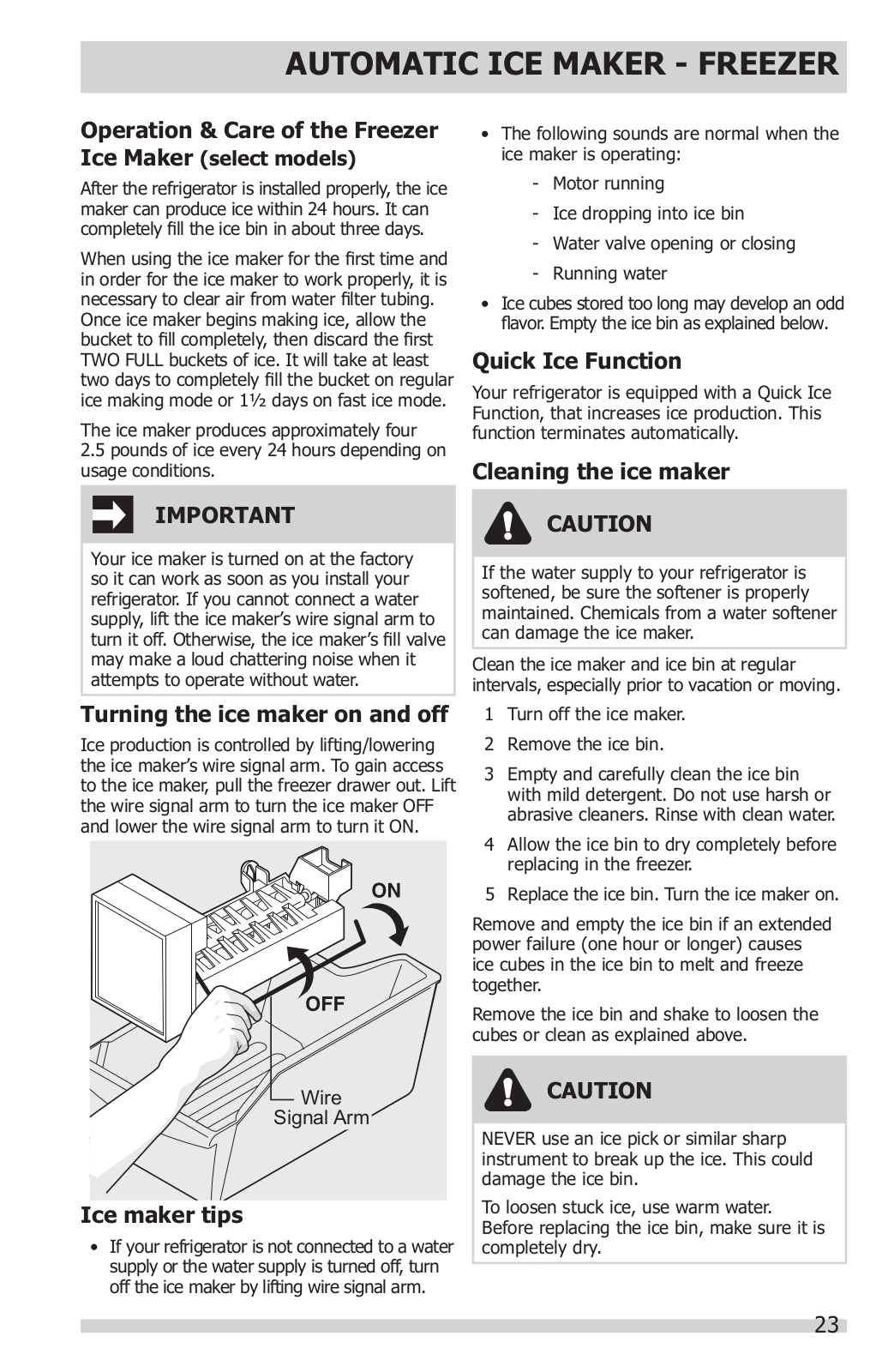

Automatic Ice Maker - Freezer...................

23

Storage Features......................................

24

Storing Food and Saving Energy................

28

Normal Operating Sounds and Sights.........

29

Changing the Filter...................................

30

Care and Cleaning.....................................

32

Before you Call.........................................

36

Major Appliance Warranty..........................

40

www.frigidaire.ca Canada 1-800-265-8352

2012) (December 242291901

IMPORTANT SAFETY INSTRUCTIONS

WARNING

Please read all instructions before using this refrigerator.

For your Safety

DO NOT store or use gasoline, or other flammable liquids in the vicinity of this or any other appliance. Read product labels for warnings regarding flammability and other hazards.

DO NOT operate the refrigerator in the presence of explosive fumes.

Avoid contact with any moving parts of automatic ice maker.

Remove all staples from the carton. Staples can cause severe cuts, and also destroy finishes if they come in contact with other appliances or furniture.

Definitions

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

DANGER

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Installation Checklist

Doors

Handles are secure and tight

Door seals completely to cabinet on all sides

Freezer drawer is level across the top

Leveling

Refrigerator is level, side-to-sideand tilted ¼” (6 mm)front-to-back

Toe grille is properly attached to refrigerator

Cabinet is setting solid on all corners

Electrical Power

House power turned on

Refrigerator plugged in

Ice Maker

House water supply connected to refrigerator

No water leaks present at all connections - recheck in 24 hours

Ice maker is turned ON

Ice & water dispenser operates correctly

Final Checks

Shipping material removed

Fresh food and freezer temperatures set

Crisper humidity controls set

Registration card sent in

CAUTION

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

IMPORTANT

IMPORTANT indicates installation, operation or maintenance information which is important but not hazard-related.

Child Safety

Destroy or recycle the carton, plastic bags, and any exterior wrapping material immediately after the refrigerator is unpacked. Children should NEVER use these items to play. Cartons covered with rugs, bedspreads, plastic sheets or stretch wrap may become airtight chambers, and can quickly cause suffocation.

2

IMPORTANT SAFETY INSTRUCTIONS

Proper Disposal of your Refrigerator or Freezer

Risk of child entrapment

Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators or freezers are still dangerous

– even if they will sit for “just a few days”. If you are getting rid of your old refrigerator or freezer, please follow the instructions below to help prevent accidents.

Proper Disposal of Refrigerators/ Freezers

We strongly encourage responsible appliance recycling/disposal methods. Check with your utility company or visit www.energystar.gov/recycle for more information on recycling your old refrigerator.

Before you throw away your old refrigerator/ freezer:

Remove doors.

Leave

shelves in place so children may not easily climb inside.

• Have refrigerant removed by

a qualified service technician.

Electrical information

The refrigerator must be plugged into its own dedicated 115 Volt, 60 Hz., 15 Amp, AC only electrical outlet. The power cord of the appliance is equipped with a threeprong grounding plug for your protection against electrical shock hazards. It must be plugged directly into a properly grounded three prong receptacle. The receptacle must be installed in accordance with local codes and ordinances. Consult a qualified electrician. Avoid connecting refrigerator to a Ground Fault Interrupter (GFI) circuit. Do not use an extension cord or adapter plug.

If the power cord is damaged, it should be replaced by an authorized service technician to prevent any risk.

Never unplug the refrigerator by pulling on the power cord. Always grip the plug firmly, and pull straight out from the receptacle to prevent damaging the power cord.

Unplug the refrigerator before cleaning and before replacing a light bulb to avoid electrical shock.

Performance may be affected if the voltage varies by 10% or more. Operating the refrigerator with insufficient power can damage the compressor. Such damage is not covered under your warranty.

Do not plug the unit into an electrical outlet controlled by a wall switch or pull cord to prevent the refrigerator from being turned off accidentally.

IMPORTANT

CFC/HCFC Disposal

Your old refrigerator may have a cooling system that used CFCs or HCFCs (chlorofluorocarbons or hydrochlorofluorocarbons). CFCs and HCFCs are believed to harm stratospheric ozone if released to the atmosphere. Other refrigerants may also cause harm to the environment if released to the atmosphere.

If you are throwing away your old refrigerator, make sure the refrigerant is removed for proper disposal by a qualified technician. If you intentionally release refrigerant, you may be subject to fines and imprisonment under provisions of environmental legislation.

IMPORTANT

Pressing and holding the On/Off button for three seconds, located on the temperature control panel, will disable your refrigerator’s cooling system but does not disconnect the power to the light bulb and other electrical components. To turn off power to your refrigerator you must unplug the power cord from the electrical outlet.

3

IMPORTANT SAFETY INSTRUCTIONS

Grounding type wall receptacle

Do not, under

any circumstances, cut, remove,

or bypass the grounding prong.

Power cord with 3-pronggrounded plug

CAUTION

To avoid personal injury or property damage, handle tempered glass shelves carefully. Shelves may break suddenly if nicked, scratched, or exposed to sudden temperature change.

4

FEATURES AT A GLANCE

*Features may vary according to model





*LED

*Dairy

*Air

Ice

*Fresh Food

Cluster Lights

Water Compartment



Filter

Filter

Bin

Ice Maker

Flipper









Guide



Flipper

*Can Rack













Mullion









Flip Shelf







Spillsafe®







Shelves









*LED Cluster









Light

*LED Cluster







Slide-Under

Light







Shelf









*LED Cluster









Light









Crisper









Drawer

*Store-







*Door Bin

MoreTM







Drawer









Adjustable Hinges







*Freezer Ice



Freezer Baskets

Maker









Removable









Ice Bin







Toe Grille

IMPORTANT

Features not purchased with your refrigerator can be purchased at www.frigidaire.com or by calling 1-800-944-9044.

5

INSTALLATION





Tools Necessary:









(OR)

OR

OR

Phillips Head

AND



3/8" Fixed









Wrench

or



Adjustable

#2 Square

Socket



Drive Head

Wrench Set

Wrench



Components Provided:

CAUTION



Top Hinge

Top Hinge



Cover Front

Cover Rear





Screw

Screw

Do Not install the refrigerator where





the temperature will drop below 55° F





(13° C) or rise above 110° F (43° C). The





compressor will not be able to maintain

Top

Lower

proper temperatures inside the refrigerator.

Do Not block the toe grille on the lower front

Hinge

Hinge

Screw

Screw

of your refrigerator. Sufficient air circulation





is essential for the proper operation of your





refrigerator.



This Use & Care Guide provides general installation and operating instructions for your model. We recommend using a service or kitchen contracting professional to install

your refrigerator. Use the refrigerator only as instructed in this Use & Care Guide. Before starting the refrigerator, follow these important first steps.

Installation

Allow the following clearances for ease of installation, proper air circulation, and plumbing and electrical connections:

Sides & Top

⅜ inch (9.5 mm)

Back

1 inch (25.4 mm)

Location

Choose a place that is near a grounded, non-GFCI,electrical outlet.Do Not use an extension cord or an adapter plug.

If possible, place the refrigerator out of direct sunlight and away from the range, dishwasher, or other heat sources.

The refrigerator must be installed on a floor that is level and strong enough to support a fully loaded refrigerator.

Consider water supply availability for models equipped with an automatic ice maker.

NOTE

If your refrigerator is placed with the door hinge side against a wall, you may have to allow additional space so the door can be opened wider.

Door opening

Your refrigerator should be positioned to allow easy access to a counter when removing food. For best use of refrigerator drawers and freezer baskets, the refrigerator should be in a position where both can be fully opened.

6

INSTALLATION

Leveling Freezer Drawer (if necessary)

To level the freezer drawer:

1Check gasket seal around top, bottom, and sides of freezer drawer.

2If gasket is not sealed, open drawer and slightly loosen four drawer screws (two on each side) to allow drawer to rotate.

Remove Hex

Head Drawer

Screw

Do Not Remove

Other Screws

Remove Hex

Head Drawer

Screw

Do Not Remove

Other Screws

Remove Hex

Remove Hex

Head Drawer

Head Drawer

Screw

Screw

3Close drawer and recheck the seal on the gasket (A). Open the drawer grabbing by the sides in the center (B). Be careful not to rotate the drawer.

Push

Grab Drawer

At Center

Against

From Both

Freezer

Sides Then

Drawer

Pull Drawer



Out

A B

4Tighten four drawer screws.

5Recheck gasket seal.

Level Refrigerator & Adjust Doors

(if necessary)

Guidelines for final positioning of your refrigerator:

All four corners of the cabinet must rest firmly on the floor.

The sides should tilt ¼ inch (6 mm) from front to back (to ensure that doors close and seal properly).

Doors should align with each other and be level.

Most of these conditions can be met by raising or lowering the adjustable front rollers.

To level the cabinet using the front rollers:

Toe Grille Must

Fit in Slot on

Anti-tipBracket

Screw/Washer

Assembly

(3) Retaining Clips

1Slightly open freezer drawer. Lift the toe grille and gently pull forward (see illustration).

2You can raise or lower each door. Use a ⅜ inch socket wrench to turn the adjustment screws (one per side).

To raise: turn adjustment screw clockwise.

To lower: turn adjustment screw counterclockwise.

3Ensure both doors are bind-freewith their seals touching the cabinet on all four sides and that cabinet is stable.

7

INSTALLATION

4 After unit is leveled, lower anti-tipleg until

1

Open door to provide access to screw.

it contacts the floor.

2

Loosen screw.



Door

Door



Raise

Anti-tip



Leg





Lower

5 Install the toe grille by fitting into place.

To adjust the door stop:

3 Adjust door to desired location.

Rotate

Door to Desired

Location

Adjusting Door

4Rotate door stop until it makes contact with the lower hinge.

5Re-tightenscrew.

Door stop is adjustable between 85 to 145 degrees.

NOTE

View shown is looking up at the bottom of the refrigerator door.

Lower

Door

Stop

Hinge



Min



Open

Screw

Max



Open



Rotate

Door

Stop

Re-tighten

Screw

Re-tightenScrew

6Ensure door stops in desired location before resuming normal use.

Adjustable Door Stop

8

To level the doors using the adjustable lower hinge (select models):

1Remove all food items from door bins on door being adjusted.

2Open doors to 90 degrees.

3Loosen or remove screw.

Loosen or Remove

Screw

Open

Door

90

Degrees

Bottom of Door

Loosen/Remove Screw (where applicable)

NOTE

Adjustable hinge should only be used after doors have been leveled with rollers.

4Lift the door while adjusting the washer. To raise the door, rotate washer clockwise (when viewed from the bottom). To lower door, rotate washer counter-clockwise(when viewed from the bottom).

Lower

Door

Hinge

Raise

Door

Washer



Raising/Lowering Door

INSTALLATION

To adjust the flipper mullion:

1Loosen the screw located on the flipper mullion hinge.

Flipper

Mullion

Screw

Flipper

Mullion

Hinge

Adjusting Flipper Mullion Screw

2Adjust flipper mullion height. For proper connection with the flipper mullion guide, there should be a separation about the thickness of a coin (0.060 inches, or

1.5 mm) between the guide and flipper mullion.

Mullion

Guide

Flipper

Mullion

Thickness

of a Coin

Adjusting Flipper Mullion Height

3 Re-tightenscrew.

9

DOOR REMOVAL INSTRUCTIONS

Getting through narrow spaces

If your refrigerator will not fit through an entrance area, you can remove the doors.

Check first by measuring the entrance.

To prepare for removing the doors:

1Make sure the electrical power cord is unplugged from the wall outlet.

2Open the freezer drawer and remove the toe grille (see “Installation” section).

3Remove any food from the door shelves and close the doors.

To remove the top hinge covers:

1Remove the two screws from each cover over the top door hinges.

2Lift inside edge of hinge cover and tilt back.



Front

Rear



Cover Screw



Cover

Top Hinge



Screw

Cover







Hinge



Ground

Screws



Screw

Multi-wire





Cables





Top

Leave





Hinge







Hinge





Water

With





Door





Line

Rear



Front





Cover Screw



Cover





Screw





Top Hinge













Cover

Top

Ground

Hinge

Screws

Screw



Hinge



Two Wire







Cables







Leave







Hinge







With







Door

To remove the refrigerator doors:

1Trace lightly around the door’s top hinges with a pencil. This makes reinstallation easier.

2Disconnect the harness by grasping both sides of the connector firmly, depress the latch, and pull apart. Remove the two screws from the top hinge. Lift the door off of the bottom hinge and set it aside.

3Detach the water tube from the connector located behind the refrigerator and pull the tube back out to the front of the unit. The connector releases when you press inward on the outer sleeve while pushing the tube toward the connector then while continuing to hold in the sleeve, pull the tube away.

NOTE

Use care while pulling the water tube from the unit to be sure that you do not kink the tube.

NOTE

DO NOT remove the ground screw from hinge.

10

DOOR REMOVAL INSTRUCTIONS

Press

Press

Water

Line

Approximately

5 Feet

NOTE

You will be pulling approximately five feet of water tube from the back of the refrigerator.

4Unscrew the three lower hinge screws and hinge if necessary.

To reinstall the right door, reverse the above steps.

Lower Hinge Removal

Once both doors are in place, ensure they are aligned with each other and level (Please see the “Installation” section for more details), and replace the top hinge cover.

NOTE

When reinserting the water tube and replacing the top hinge cover, use care to be sure you do not kink the tube.

CAUTION

Be sure doors are set aside in a secure position where they cannot fall and cause personal injury, or damage to the doors or handles.

11

DOOR REMOVAL INSTRUCTIONS

Removing Freezer Drawer

1Open freezer drawer.

2Remove drawer screws on right and left sides (two screws on each side).

Remove Hex

Head Drawer

Screw

Do Not Remove

Other Screws

Remove Hex

Head Drawer

Screw

Do Not Remove

Other Screws

Remove Hex

Remove Hex

Head Drawer

Head Drawer

Screw

Screw

NOTE

Do not remove center screw from freezer drawer. This is a factory adjustment.

CAUTION

Drawer is heavy. Use caution when lifting. 3 Lift drawer up and out to remove.

Installing Freezer Drawer

1With lower slides pulled out, hang drawer onto slide brackets ensuring pins on each side are fully inserted into slots on each side.

Drawer

Fully Extend

Assembly



Drawer Slides

Pin

Cabinet





Slot

2Reinstall four drawer screws (two per side), tighten down, and close drawer (C).

Install Screws

(2) Each Side

3Check gasket seal around top, bottom, and sides of freezer drawer.

4If gasket is not sealed, open drawer and slightly loosen four drawer screws (two on each side) to allow drawer to rotate.

5Close drawer and recheck the seal on the gasket (A). Open the drawer grabbing by the sides in the center (B). Be careful not to rotate the drawer.

Push

Grab Drawer

At Center

Against

From Both

Freezer

Sides Then

Drawer

Pull Drawer



Out

A B

6Tighten four drawer screws.

7Recheck gasket seal.

8 Install the toe grille by fitting into place.

12

INSTALLING DOOR HANDLES

Door Handle Mounting Instructions for Frigidaire

1Remove handles from carton and any other protective packaging.

2Position fresh food handle end caps over upper and lower pre-installedshoulder bolts (A) that are fastened into door, ensuring the holes for the set screws are facing towards the opposite door.

3While holding handle firmly against door, fasten upper and lower Allen set screws

(B) with supplied Allen wrench.

4Repeat steps 2 and 3 to install opposite handle. Ensure the holes for the set screws are facing towards the first door.

5Position freezer handle end caps over left and right pre-installedshoulder bolts that are fastened to the door, ensuring the holes for the set screws are facing down.

6While holding handle firmly against door, loosely tighten right Allen set screw (B) with supplied Allen wrench until there is no gap between handle and door.

7Still holding the handle firmly to the door, firmly tighten left Allen set screw (B) with supplied Allen wrench.

8Return to the right Allen set screw (B) and firmly tighten with supplied Allen wrench.

Mounting Refrigerator Handles

Mounting Freezer Handle

NOTE

All set screws should be tightened so the screw is below the surface of the handle. The handles should be drawn tight to freezer and refrigerator doors with no gaps.

Opening the opposite door while tightening the Allen screw makes installation easier.

The door handle may loosen over time or if it was installed improperly. If this happens, tighten the set screws on the handles.

CAUTION

Wear gloves and safety goggles. Use extreme CAUTION when installing these handles.

13

INSTALLING DOOR HANDLES

Door Handle Mounting Instructions for Frigidaire Gallery®

1Remove handles from carton and any other protective packaging.

2Position fresh food handle end over upper and lower pre-installedshoulder bolts

(A) that are fastened into door, ensuring the holes for the set screws are facing towards the opposite door.

3While holding handle firmly against door, fasten upper and lower Allen set screws

(B) with supplied Allen wrench.

4Repeat steps 2 and 3 to install opposite handle. Ensure the holes for the set screws are facing towards the first door.

5Position freezer handle end over left and right preinstalled handle mounts that are fastened to the door, ensuring the holes for the set screws are facing down.

6While holding handle firmly against door, loosely tighten far right Allen set screw

(B) with supplied Allen wrench until there is no gap between handle and door.

7Still holding the handle firmly to the door, firmly tighten far left Allen set screw (B) with supplied Allen wrench.

8Return to the far right Allen set screw (B) and firmly tighten with supplied Allen wrench.

Mounting Refrigerator Handles

Mounting Freezer Handle

NOTE

All set screws should be tightened so the screw is below the surface of the handle. The handles should be drawn tight to freezer and refrigerator doors with no gaps.

Opening the opposite door while tightening the Allen screw makes installation easier.

The door handle may loosen over time or if it was installed improperly. If this happens, tighten the set screws on the handles.

CAUTION

Wear gloves and safety goggles. Use extreme CAUTION when installing these handles.

14

Door Handle Mounting Instructions for Frigidaire Professional®

1Remove handles from carton and any other protective packaging.

2Position fresh food handle end over upper and lower pre-installedshoulder bolts

(A)that are fastened into door, ensuring the holes for the set screws are facing towards the opposite door.

3While holding handle firmly against door, fasten upper and lower Allen set screws

(B)with supplied Allen wrench.

4Repeat steps 2 and 3 to install opposite handle. Ensure the holes for the set screws are facing towards the first door.

5Position freezer handle end over left and right preinstalled handle mounts that are fastened to the door, ensuring the holes for the set screws are facing down.

6While holding handle firmly against door, loosely tighten far right Allen set screw (B) with supplied Allen wrench until there is no gap between handle and door.

7Still holding the handle firmly to the door, firmly tighten far left

Allen set screw (B) with supplied Allen wrench.

8Return to the far right Allen set screw (B) and firmly tighten with supplied Allen wrench.

9Firmly tighten the inside Allen set screws.

INSTALLING DOOR HANDLES

Mounting Refrigerator Handles

Mounting Freezer Handle

NOTE

All set screws should be tightened so the screw is below the surface of the handle. The handles should be drawn tight to freezer and refrigerator doors with no gaps.

Opening the opposite door while tightening the Allen screw makes installation easier.

The door handle may loosen over time or if it was installed improperly. If this happens, tighten the set screws on the handles.

CAUTION

Wear gloves and safety goggles. Use extreme CAUTION when installing these handles.

15

CONNECTING THE WATER SUPPLY

WARNING

To avoid electric shock, which can cause death or severe personal injury, disconnect the refrigerator from electrical power before connecting a water supply line to the refrigerator.

A shutoff valve to connect the water supply line to your household water system. DO NOT use a self-piercingtype shutoff valve.

Do not re-usecompression fitting or use thread seal tape.

A compression nut and ferrule (sleeve) for connecting a copper water supply line to the ice maker inlet valve.

CAUTION

To Avoid Property Damage:

Copper or Stainless Steel braided tubing is recommended for the water supply line. Water supply tubing made of ¼ inch plastic is not recommended to be used. Plastic tubing greatly increases the potential for water leaks, and the manufacturer will not be responsible for any damage if plastic tubing is used for the supply line.

DO NOT install water supply tubing in areas where temperatures fall below freezing.

Chemicals from a malfunctioning water softener can damage the ice maker. If your home has a water softening system, ensure the softener is maintained and working properly.

NOTE

Check with your local building authority for recommendations on water lines and associated materials prior to installing your new refrigerator. Depending on your local/

state building codes, Frigidaire recommends for homes with existing valves its Smart Choice® water line kit 5305513409 (with

a 6 ft. Stainless Steel Water Line) and for

homes without an existing valve, Frigidaire recommends its Smart Choice® water line

kit 5305510264 (with a 20 ft. Copper Water Line with self-tappingsaddle valve). Please refer to www.frigidaire.com/store for more information.

IMPORTANT

Ensure that your water supply line connections comply with all local plumbing codes.

Before Installing The Water

Supply Line, You Will Need:

Basic Tools: adjustable wrench, flat-bladescrewdriver, and PhillipsTM screwdriver

Access to a household cold water line with water pressure between 30 and 100 psi.

A water supply line made of ¼ inch (6.4 mm) OD, copper or stainless steel

tubing. To determine the length of tubing needed, measure the distance from the ice maker inlet valve at the back of the refrigerator to your cold water pipe. Then add approximately 7 feet (2.1 meters), so the refrigerator can be moved out for cleaning (as shown).

16

CONNECTING THE WATER SUPPLY

To Connect Water Supply Line To

Ice Maker Inlet Valve

1Disconnect refrigerator from electric power source.

2Place end of water supply line into sink or bucket. Turn ON water supply and flush supply line until water is clear. Turn OFF water supply at shutoff valve.

3Remove plastic cap from water valve inlet and discard cap.

4If you use copper tubing - Slide brass compression nut, then ferrule (sleeve) onto water supply line. Push water supply line into water valve inlet as far as it

will go (¼ inch/6.4 mm). Slide ferrule

(sleeve) into valve inlet and finger tighten compression nut onto valve. Tighten another half turn with a wrench; DO NOT over tighten. See Figure 1.

If you use stainless steel tubing - The nut and ferrule are already assembled on the tubing. Slide compression nut onto valve inlet and finger tighten compression nut onto valve. Tighten another half turn with a wrench; DO NOT over tighten. See Figure 1.

5With steel clamp and screw, secure water supply line (copper tubing only) to rear panel of refrigerator as shown.

6Coil excess water supply line (copper tubing only), about 2½ turns, behind refrigerator as shown and arrange coils so they do not vibrate or wear against any other surface. Do not kink tubing.

7Turn ON water supply at shutoff valve and tighten any connections that leak.

8Reconnect refrigerator to electrical power source.

9To turn ice maker on, lower wire signal arm (freezer ice maker) or set the ice maker’s On/Off power switch to the “On” position (fresh food ice maker).

Plastic Water Tubing

Steel

to Ice Maker

Clamp

Fill Tube

Brass





Compression



Nut



Ferrule



(Sleeve)



Water Line



Water Valve



Bracket



Valve Inlet



Water Valve

Water line from household water supply

(Include enough tubing in loop to allow moving refrigerator out for cleaning.)

Figure 1

IMPORTANT

After connecting the water supply, refer to “How to Prime the Water Supply System” for important information about priming an empty water supply system.

Your refrigerator’s water supply system includes several tubing lines, a water filter, a water valve, and a water tank. To ensure

that your water dispenser works properly, this system must be completely filled with water when your refrigerator is first connected to the household water supply line.

17

CONTROLS

User Interface (options may vary)

Enlarged view of user interface display menu (options may vary)

18

Options May Vary

options

Used to enter and exit the

( or )

options menu and make





selections.

exit

Toggles the options and run





modes.

control

While in the locked state,

locked

you will not be able to





change any settings on the





display nor dispense ice and





water. The “Control Locked”





indicator will flash and an





audible warning tone is





played.

quick

Activates a faster rate for

freeze on

freezing food and increases

off

ice production in the freezer.





Deactivates after 12 hours.

ice maker

Toggles the ice maker “ON”

on off

or “OFF”. In the “Ice Off”





state, indicator will blink





when ice is dispensed.

display

Toggles the temperature

on off



displays On and Off.







refrigerator Allows the temperature set-temp points to be adjusted. Control

temperatures range from +33° F / +1° C to +47° F / +8° C.

freezer

Allows the temperature

temp

set-pointsto be adjusted.



Control temperatures range



from -6°F /-21°C to +6° F



/ -15°C.

mode ° F

Toggles display from

° C

Fahrenheit to Celsius.

light

Toggles dispenser light On



and Off.

power off

Press and hold for three



seconds to turn off the



cooling system. It also turns



off the ice maker and all



dispenser functions. The



display will read “power off”.

water filter Displays the current status of the water filter (Good, Order, or Replace). To reset the filter status to “Good”, press and hold the “set” key for three seconds.

CONTROLS

air filter Displays the current status of the air filter (Good, Order, or Replace). To reset the filter status to “Good”, press and hold the “set” key for three seconds.

default While in the default option,settings press and hold the set key

for three seconds to reset all refrigerator settings to their factory default settings.

set (+ or -) Selects the current menu selection option.

water

Press the “water” key



to select water. A green



indicator light will be



illuminated above the active



feature.

cube

Press the “cube” key to



select cubed ice. A green



indicator light will be



illuminated above the active



feature.

crush

Press the “crush” key



to select crushed ice. A



green indicator light will be



illuminated above the active



feature.

Setting cooling temperatures

(options may vary)

NOTE

When you first power on the refrigerator, the temperature displays 0° F and 37° F. After a few seconds, both of the displays will switch to “HI”. The displays will continue to show “HI” for 20 minutes. After 20 minutes, the High Temp alarm will sound and both displays will show the actual temperature.

1Plus (+) and Minus (-)indicators are located on the right side of the control panel.

2Press the + or - indicator to adjust the temperature to the desired setting.

19

CONTROLS

Alarms

Power Failure

In the event of a power failure, the power fail alert will be illuminated. Press alarm reset to acknowledge the alarm. Other modes may be turned off until the alarm is acknowledged.

When the power fail alert is acknowledged, the refrigerator will resume normal operation. The high temp alarm may also be illuminated until a safe operating range temperature has been reached.

Freezer Temp

If the freezer temperature reaches 26° F or greater, the alarm will sound and the temperature will flash. You can disable the alarm by pressing the set key but the “High Temp” indicator will illuminate until the temperature goes below 26° F.

Fresh Food Temp

If the fresh food temperature reaches 55° F or greater, the alarm will sound and the temperature will flash. You can disable the alarm by pressing the set key but the “High Temp” indicator will illuminate until the temperature goes below 55° F.

Door Ajar

If the freezer or fresh food doors have been left open for five minutes or more, an alarm will sound and the door ajar indicator will illuminate on the display. Press the set key to reset any system alarms.

Flapper

When “Cube” or “Crush” is selected, if the flapper (or ice chute door) is being held open by a jammed ice cube, an alarm will sound for two minutes. The alarm will reset after two minutes or when the ice cube is removed and the set key is pressed to reset.

Sabbath Mode

The Sabbath Mode is a feature that disables portions of the refrigerator and its controls in accordance with observance of the weekly Sabbath and religious holidays within the Orthodox Jewish community.

Sabbath Mode is turned ON and OFF by pressing and holding both the “ ” and “+” for five seconds. The display shows “Sb” while in

Sabbath mode.

In the Sabbath Mode, the High Temp alarm is active for health reasons. If a high temperature alarm is activated during this time, for example due to a door left ajar, the alarm will sound intermittently for about two minutes. The alarm will then silence on its own and a red high temperature icon will display. The high temp icon will continue to display, even if

the door is closed, until the Sabbath mode is exited and the icon reset. The refrigerator

will function normally once the door is closed, without any violation of the Sabbath/Holidays.

For further assistance, guidelines for proper usage and a complete list of models

with the Sabbath feature, please visit the web at http:\\www.star-k.org.

NOTE

While in Sabbath Mode, neither the lights, dispenser, nor the control panel will work until Sabbath Mode is deactivated.

Refrigerator stays in Sabbath Mode after power failure recovery. It must be

deactivated with the buttons on the control panel.

NOTE

Although you have entered the Sabbath Mode, the ice maker will complete the cycle it had already initiated. The ice cube compartment will remain cold and new ice cubes can be made with standard trays.

20

AUTOMATIC ICE & WATER DISPENSER

Priming the water supply system

CAUTION

For proper dispenser operation, recommended water supply pressure should fall between

30 psi and 100 psi. Excessive pressure may cause water filter to malfunction.

1Begin filling the tank by pressing and holding a drinking glass against the water dispenser paddle.

2 Keep the glass in this position until water comes out of the dispenser. It may take about 1½ minutes.

3Continue dispensing water for about four minutes to

flush the system and plumbing connections of any impurities (stopping to empty the glass as necessary).

NOTE

The water dispenser has a built-indevice that shuts off the water flow after three minutes of continuous use. To reset this shutoff device, simply release the dispenser paddle.

NOTE

Dispensed water is chilled. For colder water, add ice to cup or container before dispensing water.

Ice maker operation & care

After the refrigerator is installed properly and has cooled for several hours, the ice maker can produce ice within 24 hours. The ice maker will fill the ice bin from the rear. You must dispense some ice to force the ice forward in the bin. This will allow the bin to fill completely.

IMPORTANT

Your ice maker is turned on at the factory so it can work as soon as you install your refrigerator. If you cannot connect a water supply, set the ice maker’s On/Off icon to Off and turn off the water supply valve; otherwise, the ice maker’s fill valve may make a loud chattering noise when it attempts to operate without water.

Turning the fresh food ice maker on and off

Ice production is controlled by the ice maker’s On/Off icon on the control panel. Press and hold the “Ice Off” icon for three seconds to turn the ice maker “ON” or “OFF”. The ice maker is turned off when the LED above the “Ice Off” icon is illuminated.

IMPORTANT

Turning off the ice maker will disable the ice dispenser. You will still be able to dispense water.

NOTE

The ice maker also has a built-inplastic signal bale arm that automatically stops ice production when the ice bin is full. This signal arm should not be used to manually stop the ice maker.

Using the ice maker after installation

Before making ice for the first time, be sure to prime the water supply system. Air in new plumbing lines can result in two or three empty ice maker cycles. Furthermore, if the system

is not flushed, the first ice cubes may be discolored or have an odd flavor.

IMPORTANT

On occasion, unusually small ice cubes may be noticed in the bucket or in dispensed ice. This could occur in normal operation of the ice maker. If you start seeing these more frequently, it may be an indication of low water pressure or the water filter needs to be

replaced. As the water filter nears the end of its useful life and becomes clogged with particles, less water is delivered to the ice maker during each cycle. Remember, if it’s been six months or longer since you last changed your water filter, replace the water filter with a new one. Poor quality household water may require the filter to be changed more frequently.

21

AUTOMATIC ICE & WATER DISPENSER

Ice maker/dispenser tips

If your refrigerator is not connected to a water supply or the water supply is turned off, turn off the ice maker by holding the On/Off soft-touchicon for three seconds.

The following sounds are normal when the ice maker is operating:

-Motor running

-Ice dropping into ice bin

-Water valve opening or closing

-Running water

When dispensing ice, you will hear a snapping or clicking sound when the ice chute opens and closes.

If you need a large quantity of ice at one time, it is best to get cubes directly from the ice bin.

Ice cubes stored too long may develop an odd flavor. Empty the ice bin as explained below.

When dispensing cubed ice, it is normal to have a small quantity of little pieces along with the whole cubes.

CAUTION

If the water supply to your refrigerator is softened, be sure the softener is properly maintained. Chemicals from a water softener can damage the ice maker.

Cleaning the ice maker

Clean the ice maker and ice bin at regular intervals, especially prior to vacation or moving.

1Turn off the ice maker.

2Remove the ice bin by pulling straight out.

3 Empty and

carefully

clean the



ice bin



with mild



detergent.



Do not use

Removing Ice Bin

harsh or



abrasive cleaners. Rinse with clear water.

4Allow the ice bin to dry completely before replacing in the freezer.

5Replace the ice bin. Turn the ice maker on.

Remove and empty the ice bin if:

An extended power failure (one hour or longer) causes ice cubes in the ice bin to melt and freeze together, jamming the dispenser mechanism.

You do not use the ice dispenser frequently.

Ice cubes will freeze together in the bin, jamming the dispenser mechanism.

Remove the ice bin and shake to loosen the cubes or clean as explained above.

CAUTION

NEVER use an ice pick or similar sharp instrument to break up the ice. This could damage the ice bin and dispenser mechanism.

To loosen stuck ice, use warm water. Before replacing the ice bin, make sure it is completely dry.

IMPORTANT

When removing or replacing the ice bin, DO NOT rotate the auger in the ice bin. If the auger is accidentally rotated, you must realign the auger by turning it in 45 degree turns (see below) until the ice bin fits into place with the drive mechanism. If the

auger is not properly aligned when replacing the ice bin, the refrigerator will not dispense ice. The fresh food door also may not close properly causing warm air to leak into the fresh food compartment.

Auger

Adjusting Ice Bin Auger

22

AUTOMATIC ICE MAKER - FREEZER

Operation & Care of the Freezer Ice Maker (select models)

After the refrigerator is installed properly, the ice maker can produce ice within 24 hours. It can completely fill the ice bin in about three days.

When using the ice maker for the first time and in order for the ice maker to work properly, it is necessary to clear air from water filter tubing.

Once ice maker begins making ice, allow the bucket to fill completely, then discard the first

TWO FULL buckets of ice. It will take at least two days to completely fill the bucket on regular ice making mode or 1½ days on fast ice mode.

The ice maker produces approximately four 2.5 pounds of ice every 24 hours depending on usage conditions.

IMPORTANT

Your ice maker is turned on at the factory so it can work as soon as you install your refrigerator. If you cannot connect a water supply, lift the ice maker’s wire signal arm to

turn it off. Otherwise, the ice maker’s fill valve may make a loud chattering noise when it attempts to operate without water.

Turning the ice maker on and off

Ice production is controlled by lifting/lowering the ice maker’s wire signal arm. To gain access to the ice maker, pull the freezer drawer out. Lift the wire signal arm to turn the ice maker OFF and lower the wire signal arm to turn it ON.

Wire

Signal Arm

Ice maker tips

If your refrigerator is not connected to a water supply or the water supply is turned off, turn off the ice maker by lifting wire signal arm.

The following sounds are normal when the ice maker is operating:

-Motor running

-Ice dropping into ice bin

-Water valve opening or closing

-Running water

Ice cubes stored too long may develop an odd flavor. Empty the ice bin as explained below.

Quick Ice Function

Your refrigerator is equipped with a Quick Ice

Function, that increases ice production. This function terminates automatically.

Cleaning the ice maker

CAUTION

If the water supply to your refrigerator is softened, be sure the softener is properly maintained. Chemicals from a water softener can damage the ice maker.

Clean the ice maker and ice bin at regular intervals, especially prior to vacation or moving.

1Turn off the ice maker.

2Remove the ice bin.

3Empty and carefully clean the ice bin with mild detergent. Do not use harsh or abrasive cleaners. Rinse with clean water.

4Allow the ice bin to dry completely before replacing in the freezer.

5Replace the ice bin. Turn the ice maker on.

Remove and empty the ice bin if an extended power failure (one hour or longer) causes ice cubes in the ice bin to melt and freeze together.

Remove the ice bin and shake to loosen the cubes or clean as explained above.

CAUTION

NEVER use an ice pick or similar sharp instrument to break up the ice. This could damage the ice bin.

To loosen stuck ice, use warm water. Before replacing the ice bin, make sure it is completely dry.

23

STORAGE FEATURES

CAUTION

To avoid personal injury or property damage, handle tempered glass shelves carefully. Shelves may break suddenly if nicked, scratched, or exposed to sudden temperature change. Allow the glass shelves to stabilize to room temperature before cleaning. Do not wash in dishwasher.

Drawers

Your refrigerator includes a variety of storage drawers. These drawers are located in fixed positions at the bottom of the fresh food compartment.

Crispers

Crisper drawers are designed for storing fruits, vegetables, and other fresh produce.

NOTE

Features may vary according to model.

Your refrigerator includes SpillSafeTM glass shelves that are designed to catch and hold accidental spills.

You can easily adjust shelf positions in the fresh food compartments to suit your needs. The shelves have mounting brackets that attach to slotted supports at the rear of each compartment.

To change the position of a shelf:

1Remove all food from shelf.

2Lift the front edge up and pull the shelf out.

3Replace by inserting the mounting bracket hooks into the desired support slots.

4Lower the shelf and lock into position.

Shelf features

Opening Crisper Drawer

Crisper humidity control

Crisper drawers include a sliding control for adjusting the humidity inside the crisper. Leafy vegetables keep best when stored with the Humidity Control set on Higher Humidity. Fresh fruits keep best when stored with the Humidity Control set on Lower Humidity.

Vegetables

Fruits

Humidity Control

Higher Lower

Humidity Humidity

Adjusting Crisper Humidity

Flip Shelf

To remove the Crisper Drawer for



cleaning:



1 Pull the drawer out until it stops.

Slide-UnderShelf

24





STORAGE FEATURES

2 Lift the front slightly and remove the

4

Place the bin just above desired position.

drawer.

5

Lower the bin onto supports until locked in







place.

Removing Crisper Drawer

Deli drawer

Ideal for storage of deli meats and cheese.

Doors

Storage bins

The doors to your fresh food compartment use a system of modular storage bins. All of these bins are removable for easy cleaning. Some of them have fixed positions, while others can be adjusted to your needs.

Door bins are ideal for storing jars, bottles, cans, and large drink containers. They also enable quick selection of frequently used items.

To change the position of an adjustable door bin:

1 Remove all food from door bin.

2Grip the bin firmly with both hands and lift it upward.

3 Remove the bin.

Adjustable Door Bin

6 Place bin liner into bin.

Accessories (varies by model)

Removable Can Dispenser

The can

dispenser holds six (12 ounce) cans. Insert

cans into top of bin and dispense from the

bottom.

Can Dispenser

25

STORAGE FEATURES

Dairy compartment

Use the dairy



compartment,



at the top of



the fresh food



compartment



door, for short-



term storage



of cheese,



spreads,



or butter.



The dairy



compartment

Dairy Compartment

is designed to



be warmer than the open area and includes a lift-upcover and a dairy divider (select models).

Freezer Features (varies by model)

Stabilizer Bar

Basket

Retainer

Clips

Two Freezer Baskets

To Remove Upper Basket

1Remove all items from basket.

2 Remove basket by

pulling baskets

out to their full

extension

and lift out. Removing Upper Basket

To reinstall upper basket, position basket onto the retainer clips making sure the front of the basket rests in the retainer clips on the stabilizer bar.

NOTE

If basket is not resting on stabilizer bar retainer clips, the drawer will not close properly.

To Remove Lower Basket

1Remove all items from basket.

2Remove the basket by tilting it forward and lifting it from the retainer clips.

Basket

Retainer

Removing Lower Basket

To reinstall lower basket, insert basket into retainer clips.

26

STORAGE FEATURES

Dividers Removal

Lift up on the front of the divider and pull out.

Basket Divider

Retainers

Stabilizer

Bar

Basket Divider

Lift up on the rear of the lower divider and pull out.

Lower Basket

Divider

Lower Basket Divider & Spill Guard Tray

NOTE

Spill Guard Tray should be hand washed in warm water.

27

STORING FOOD AND SAVING ENERGY

Ideas for storing foods

Fresh food storage

Keep the fresh food compartment between 34° F and 40° F with an optimum temperature of 37° F.

Avoid overcrowding the refrigerator shelves, which reduces air circulation and causes uneven cooling.

Fruits and vegetables

Store fruits and vegetables in crisper drawers, where trapped moisture helps preserve food quality for longer time periods.

Wash items and remove excess water.

Wrap any items that have strong odors or high moisture content.

Meat

Wrap raw meat and poultry separately and securely to prevent leaks and contamination of other foods or surfaces.

Use the deli drawer to store meat/poultry for short-termstorage. Any meat to be kept longer than two days should be frozen.

Frozen food storage

Keep the freezer compartment at 0° F or lower.

A freezer operates most efficiently when it is at least ⅔ full.

Packaging foods for freezing

To minimize food dehydration and quality deterioration, use aluminum foil, freezer wrap, freezer bags, or airtight containers. Force as much air out of the packages as possible and seal them tightly. Trapped air can cause food to dry out, change color, and develop an off-flavor(freezer burn).

Wrap fresh meats and poultry with suitable freezer wrap prior to freezing.

Do not refreeze meat that has completely thawed.

Loading the freezer

Prior to grocery shopping, activate

“quick freeze” so that on your return you can ensure your newly purchased food designated for the freezer will be preserved as quickly as possible.

Activating “quick freeze” also will help your freezer more efficiently maintain the selected temperature after placing new purchases with pre-existingfrozen foods.

Avoid adding too much warm food to the freezer at one time. This overloads the freezer, slows the rate of freezing, and can raise the temperature of frozen foods.

Leave a space between packages, so cold air can circulate freely, allowing food to freeze as quickly as possible.

Ideas for saving energy

Installation

Locate the refrigerator in the coolest part of the room, out of direct sunlight, and away from heating ducts or registers.

Do not place the refrigerator next to heatproducing appliances such as a range, oven, or dishwasher. If this is not possible, a section of cabinetry or an added layer of insulation between the two appliances will help the refrigerator operate more efficiently.

Level the refrigerator so that the doors close tightly.

Temperature settings

Refer to the “Controls” section for procedures on temperature settings.

Food storage

Avoid overcrowding the refrigerator or blocking cold air vents. Doing so causes the refrigerator to run longer and use more energy.

Cover foods and wipe containers dry before placing them in the refrigerator. This cuts down on moisture build-upinside the unit.

Organize the refrigerator to reduce door openings. Remove as many items as needed at one time and close the door as soon as possible.

Do not place a hot container directly on a cold shelf. Remember, such an extreme temperature change may damage the glass.

28

NORMAL OPERATING SOUNDS AND SIGHTS

Understanding the sounds you may hear

Your new, high-efficiencyrefrigerator may introduce unfamiliar sounds. These sounds normally indicate your refrigerator is operating correctly. Some surfaces on floors, walls, and kitchen cabinets may make these sounds more noticeable.

The following is a list of major components in your refrigerator and the sounds they can cause:

AEvaporator Refrigerant through the evaporator may create a boiling or gurgling sound.

BEvaporator fan You may hear air being forced through the refrigerator by the evaporator fan.

CDefrost heater During defrost cycles, water dripping onto the defrost heater may cause a hissing or sizzling sound. After defrosting, a popping sound may occur.

DAutomatic ice maker When ice has been produced, you will hear ice cubes falling into the ice bin. Ice maker fan, water valve activation, and refrigerant gas fluid may create sounds from its operation.

EElectronic control & automatic defrost control These parts can produce a snapping or clicking sound when turning the cooling system on and off.

FCondenser fan You may hear air being forced through the condenser.

GCompressor Modern,high-efficiencycompressors run much faster than older models. The compressor may have a highpitched hum or pulsating sound.

HWater valve Makes a buzzing sound each time it opens to fill the ice maker.

IDrain pan (not removable) You may hear water dripping into the drain pan during the defrost cycle.

JCondenser May create minimal sounds from forced air.

LIce dispensing paddle When dispensing ice, you will hear a snapping, clicking, or popping sound when the solenoid opens and closes the ice chute.

MMotorized damper May produce a light humming during operation.

NOTE

Energy efficient foam in your refrigerator is not a sound insulator.

NOTE

During automatic defrost cycle, a red glow in the back wall vents of your freezer compartment is normal.

29

CHANGING THE FILTER

Locating the Filters

Your refrigerator is equipped with water filtering system. The water filter system filters all dispensed drinking water, as well as the water used to produce ice.

Water Filter

The water filter is located at the top right side of the fresh food compartment.

Replacing the Water Filter

In general, you should change the water filter

every six months to ensure the highest possible water quality. Water Filter Status on the user

interface prompts you to replace the filter after

a standard amount of water (200 gallons/757 liters for PureSource UltraTM) has flowed

through the system.

If your refrigerator has not been used for a period of time (during moving for example), change the filter before reinstalling the refrigerator.

Filter Cartridge

Ordering Replacement Filters

To order your replacement filters, please visit our online store at www.frigidaire.com/store, by calling toll-freeat877-808-4195,or by visiting the dealer where you purchased your refrigerator. Frigidaire recommends that you order extra filters when you first install your refrigerator, and that you replace your filters at least once every six months.

Here is the product number to request when ordering:

PureSource UltraTM Water Filter Part #ULTRAWF

NOTE

When ordering your replacement filter, please reorder the same filter type that is currently in your refrigerator.

More about your Advanced Water Filter

The PureSource UltraTM ice and water filter system is tested and certified to NSF/ANSI Standards 42 and 53 for the reduction of claims specified on the performance data sheet.

Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.

Test & certification results:

Rated Capacity - 200 gallons/757 liters for

PureSource UltraTM ice and water filter

Rated service flow - .50gallons per minute

Operating Temp: Min. 33° F, Max. 100° F

Maximum Rated Pressure - 100 pounds per square inch

Recommended Minimum Operating

Pressure: 30 pounds per square inch

To replace your PureSource UltraTM water filter:

It is not necessary to turn the water supply off to change the filter. Be ready to wipe up any small amounts of water released during the filter replacement.

1 Turn Off the ice maker power switch.

2Remove the filter by pushing on the end/face of the filter.

3Slide the old water filter cartridge straight out of the housing and discard it.

4Unpackage the new filter cartridge. Using the alignment guide, slide it gently into the filter housing until it stops against the snap-inconnector at the back of the housing.

5Push firmly until the cartridge snaps into place (you should hear a click as the cartridge engages the snap-inconnector).

6Press a drinking glass against the water dispenser while checking for any leaks at the filter housing. Any spurts and sputters that occur as the system purges air out of the dispenser system are normal.

7After filling one glass of water, continue flushing the system for about four minutes.

8Turn On the ice maker.

9Press and hold the Water Filter button on the Ice & Water Dispenser control panel for three seconds. When the display changes from Red to Green, the status has been reset.

30

CHANGING THE FILTER

Air filter (select models)

The air filter is located under the utility bin.

Replacing your PureAdvantageTM air filter

To ensure optimal filtering of refrigerator odors, you should change the air filter every six months (the filter status light on the Touch Panel prompts you to replace the filter after six months).

1 Open the air filter door.

2 Remove the old filter and discard it.

3Unpack the new filter and slide it into the housing. The open face of the filter should be installed facing downward.

4To close the air filter door, push the top and bottom to lock the door closed.

5Press and hold the Air Filter Reset button on the control panel for three seconds. When the display changes from “Replace” to “Good,” the status has been reset.

6The Air Filter Reset will turn itself off after a few seconds.

Ordering replacement filters

Order new filters by calling 877-808-4195,online at www.frigidaire.com/store, or through the dealer where you bought your refrigerator. You may want to consider ordering extra filters when you first install your refrigerator.

Air Filter Replacement cartridge, part #PAULTRA

31

CARE & CLEANING

Protecting your investment

Keeping your refrigerator clean maintains its appearance and prevents odor build-up.Wipe up any spills immediately and clean the freezer and fresh food compartments at least twice a year.

NOTE

Do not use abrasive cleaners such as window sprays, scouring cleansers, flammable fluids, cleaning waxes, concentrated detergents, bleaches, or cleansers containing petroleum products on plastic parts, interior doors, gaskets, or cabinet liners. Do not use paper towels, scouring pads, or other abrasive cleaning materials.

Never use metallic scouring pads, brushes, abrasive cleaners, or strong alkaline solutions on any surface.

Never use CHLORIDE or cleaners with bleach to clean stainless steel.

Do not wash any removable parts in a dishwasher.

Always unplug the electrical power cord from the wall outlet before cleaning.

NOTE

If you set your temperature controls to turn off cooling, power to lights and other electrical components will continue until you unplug the power cord from the wall outlet.

Remove adhesive labels by hand. Do not use razor blades or other sharp instruments which can scratch the appliance surface.

Do not remove the serial plate. Removal of your serial plate voids your warranty.

Before moving your refrigerator, raise the anti-tipbrackets so the rollers will work correctly.

This will prevent the floor from being damaged.

Refer to the guide on the next page for details on caring and cleaning specific areas of your refrigerator.

CAUTION

Pull the refrigerator straight out to move it. Shifting it from side to side may damage flooring. Be careful not to move the refrigerator beyond the plumbing connections.

Damp objects stick to cold metal surfaces. Do not touch refrigerated surfaces with wet or damp hands.

IMPORTANT

If you store or move your refrigerator in freezing temperatures, be sure to completely drain the water supply system. Failure to do so could result in water leaks when the refrigerator is put back into service. Contact a service representative to perform this operation.

Vacation and moving tips

Occasion

Tips

Short

• Leave refrigerator operating during vacations of three weeks or less.

Vacations

• Use all perishable items from refrigerator compartment.



Turn automatic ice maker off and empty ice bucket, even if you will only be gone

Long



a few days.

Remove all food and ice if you will be gone one month or more.

Vacations

• Turn the cooling system off (see “Controls” section for location of On/Off button)





and disconnect power cord.

Turn water supply valve to closed position.

Clean interior thoroughly.

Leave both doors open to prevent odors and mold build-up.Block doors open if necessary.

Moving • Remove all food and ice.

If using a handcart, load from the side.

Adjust rollers all the way up to protect them during sliding or moving.

Pad cabinet to avoid scratching surface.

32







CARE & CLEANING





















Care & Cleaning Tips









Part



What To Use

Tips and Precautions









Interior & Door

Soap and water

Use two tablespoons of baking soda in

Liners

Baking soda and water

one quart of warm water. Be sure to



wring excess water out of sponge or













cloth before cleaning around controls,







light bulb or any electrical part.









Door Gaskets

Soap and water

Wipe gaskets with a clean soft cloth.









Drawers & Bins

Soap and water

Use a soft cloth to clean drawer runners







and tracks.









Glass Shelves

Soap and water

Allow glass to warm to room temperature



Glass cleaner

before immersing in warm water.







Mild liquid sprays











Toe Grille

Soap and water

Vacuum dust from front of toe grille.



Mild liquid sprays

Remove toe grille (see Installation



Instructions). Vacuum backside, wipe with



Vacuum attachment



sudsy cloth or sponge. Rinse and dry.









Exterior &

Soap and water

Do not use commercial household

Handles

Non Abrasive Glass

cleaners containing ammonia, bleach or



alcohol to clean handles. Use a soft cloth





Cleaner





to clean smooth handles. DO NOT use a













dry cloth to clean smooth doors.









Exterior &

Soap and water

Never use CHLORIDE or cleaners

Handles

Stainless Steel Cleaners

with bleach to clean stainless steel.

(Stainless Steel





Clean stainless steel front and handles

Models Only)





with non-abrasivesoapy water and a







dishcloth. Rinse with clean water and a







soft cloth. Use a non-abrasivestainless







steel cleaner. These cleaners can be







purchased at most home improvement or







major department stores. Always follow







manufacturer’s instructions. Do not use







household cleaners containing ammonia







or bleach.







NOTE: Always clean, wipe and dry







with the grain to prevent scratching.







Wash the rest of the cabinet with warm







water and mild liquid detergent. Rinse







well, and wipe dry with a clean soft cloth.









Replacing Light

Unplug refrigerator

CAUTION: Wear gloves when

Bulbs

Wear gloves

replacing light bulbs to avoid getting



cut.



Remove light cover



Use same wattage when replacing bulb.



Replace old bulb







Replace light cover





Plug in the refrigerator











33

CARE & CLEANING

Ice Chute Extension (select models)

The ice chute extension is designed to better direct ice flow into containers.

Removing the Ice Chute

Extension For Cleaning

1Turn the refrigerator off using the button on the control panel (refer to the “Controls” section of this Manual).

2Press inward firmly on the front of the chute and pull down.

3 Turn your refrigerator back on.

Press Here

Firmly

Pull Down

Installing the Ice Chute Extension

1Turn the refrigerator off using the button on the control panel (refer to the “Controls” section of this Manual).

2Align the extension with the ice chute so that the snap clips are just inside the front edge of the chute.

3Push upward until the extension snaps into place.

4Turn your refrigerator back on.

Push Upward Until the

Extension Snaps In Place

34

Replacing LED Lights(select models)

The fresh food compartments of your refrigerator may have LED lights. Always use Frigidaire parts for replacement.

To replace LED Lights:

1Unplug your refrigerator’s power cord.

2Remove lens cover.

3Remove LED board.

4Replace LED board and snap in place assuring the light is facing in toward the unit (inside fresh food).

5Replace lens cover.

Lens Removal

LED Light Board Removal

NOTE

LED lights are in series so if one is bad or unplugged, several lights may not light up.

CARE & CLEANING

Replacing Light Bulbs (select models)

CAUTION

Wear gloves when replacing incandescent light bulbs to avoid getting cut.

1Unplug your refrigerator’s power cord.

2Wear protective gloves.

3Remove light cover, if necessary.

4Unscrew and replace old bulb with an appliance bulb of the same type and wattage (normally 40 watts).

5Replace light cover, if necessary.

6Plug in the refrigerator’s power cord.

Light

Light Sockets

Located Behind

Bulb

Glass Shelves

Refigerator

Light

Light Cover

Bulb

Refrigerator Light

Light Socket

Located in Upper

Freezer Section

Light

Bulb

Light

Bulb

Freezer

Light Cover

Freezer Light

Ordering Replacement LED Lights

Order new LEDs by calling 877-808-4195,online at www.frigidaire.com/store, or through the dealer where you bought the refrigerator. Here is the product number to request when ordering:

LED Light, Part #242196201

Incandescent Lights (40-wattbulb), Part #5305514148

35

BEFORE YOU CALL

1-800-944-9044(United States)



Visit our web site at

1-800-265-8352(Canada)



www.frigidaire.com

CONCERN

POTENTIAL CAUSE

COMMON SOLUTION

AUTOMATIC ICE MAKER



Ice maker is

Ice maker is turned off.

• Turn on ice maker. For the fresh food ice maker,

not making





press and hold the “Ice Off” button for three

any ice.





seconds until the indicator light is off. For the







freezer ice maker, lower the wire signal arm.



Refrigerator is not

• Connect the unit to the household water





connected to water line or

supply and ensure the water valve is open.





water valve is not open.





• The water supply line is

• Ensure that the supply line does not kink





kinked.

when the refrigerator is pushed into place







against the wall.



• The water filter is not

• Remove and re-installthe water filter. Be sure





seated properly.

to push the filter firmly so that you hear it lock







solidly into position.



• The water filter may be

• If water dispenses slowly or not at all, or if





clogged with foreign

the filter is six months old or older, it should





material.

be replaced.



• Freezer ice maker wire

• Move any item or frozen ice cubes that may





signal arm is being

block the signal arm from being in the on or





held up by an item not

down position. See Automatic Ice Maker-





allowing it to go in the on

Freezer section in manual.





or down position.



Ice maker is

Ice maker is producing

• The fresh food and freezer ice makers will each

not making



less ice than you expect.

produce approximately 2.5 pounds of ice every

enough ice.





24 hours depending on usage conditions.



• The water filter may be

• If water dispenses slower than normal, or if





clogged with foreign

the filter is six months old or older, it should





material.

be replaced.



• The water supply line is

• Ensure that the supply line does not kink





kinked.

when the refrigerator is pushed into place







against the wall.



• Saddle valve on cold

• Turn off household water line valve. Remove





water pipe is clogged

valve. Ensure that valve is not a self-piercing





or restricted by foreign

saddle valve. Clean valve. Replace valve if





material.

necessary.



Heavy traffic, opening

• Press Fast Freeze to temporarily increase ice





or closing of the doors

production rate.





excessively.





• Freezer control is set too

• Set freezer control to colder setting to improve





warm (freezer ice maker).

performance of the ice maker (freezer ice maker).







Allow 24 hours for temperature to stabilize.

Freezer ice

Ice maker wire signal arm

• Move any item or frozen ice cubes that may

maker will



is being held down by a

block the signal arm from being in the off or

not stop



package in the freezer

upward position. See Automatic Ice Maker-

making



that has fallen against ice

Freezer section in manual.

ice (select



maker.



models).







36







BEFORE YOU CALL













CONCERN

POTENTIAL CAUSE

COMMON SOLUTION

AUTOMATIC ICE MAKER (continued)



Ice cubes

Ice cubes are not being

• Remove ice container and discard ice. The ice

are freezing



used frequently enough

maker will produce fresh supply. Ice should be

together.



or interruption of power

used at least twice weekly to keep the cubes





for prolonged time.

separated.



• Ice cubes are hollow

• This generally occurs when the ice maker





(shells of ice with water

does not get enough water. This is usually the





inside). The hollow cubes

result of a clogged water filter or restricted





break open in the bin

water supply. Replace the water filter and if





and leak their water onto

the condition still occurs check for a Saddle





existing ice, which causes

Valve, water valve not turned on all the way





it to freeze together.

or kinked water supply line.

DISPENSER (Ice & Water)



Dispenser

Dispenser lock out is

• Press and hold control lock for three seconds.

will not



engaged.



dispense ice.

There is no ice in the bin

• See the “Ice maker is not making any ice”





to be dispensed.

section above.



• The refrigerator doors are

• Be sure the refrigerator doors are completely





not completely closed.

closed.



Dispenser paddle has

• The motor overload protector will reset in





been pressed too long

about three minutes and then ice can be





and the dispenser motor

dispensed.





has overheated.



Ice dispenser

Ice has melted and

• Remove ice container, thaw, and empty the

is jammed.



frozen around auger

contents. Clean container, wipe dry, and





due to infrequent use,

replace in proper position. When new ice is





temperature fluctuations,

made, dispenser should operate.





and/or power outages.





• Ice cubes are jammed

• Remove ice cubes that are jamming the





between ice maker and

dispenser.





back of ice container.



Dispenser

Dispenser lock out is

• Press and hold control lock for three seconds.

will not



engaged.



dispense

Water filter not seated

• Remove and reinstall the water filter. Be sure

water.



properly.

to push the filter firmly so that you hear it lock











solidly into position.



• Water filter is clogged.

• Replace filter cartridge. Be sure to remove







protective caps and push the filter firmly so







that you hear it lock solidly into position.



Household water line

• Open household water line valve. See





valve is not open.

CONCERN column AUTOMATIC ICE MAKER.

Water has

Water has not been

• Draw and discard 10-12glasses of water to

an odd taste



dispensed for an extended

freshen the supply.

and/or odor.



period of time.





• Unit not properly connected

• Connect unit to cold water line that supplies





to cold water line.

water to the kitchen faucet.

37

BEFORE YOU CALL

CONCERN

POTENTIAL CAUSE

COMMON SOLUTION

DISPENSER (Ice & Water) (continued)



Water

Cut-offandcut-on

• Have someone turn up the cut-offandcut-on

pressure is



pressures are too low

pressure on the water pump system (well

extremely



(well systems only).

systems only).

low.

Reverse osmosis system

• It is normal for a reverse osmosis system to be







is in regenerative phase.

below 20 psi during the regenerative phase.

Water not

• As warmer tap water goes

• Add ice to cup or container before dispensing

cold enough.



through the filter and enters

water.





the water tank, chilled







water is pushed through to







the dispenser. Once chilled







water is used up, it will take







several hours to bring the







freshly replaced water to a







cooler temperature.



OPENING/CLOSING OF DOORS/DRAWERS

Door(s) will

• Door was closed too hard,

• Close both doors gently.

not close.



causing other door to







open slightly.





• Refrigerator is not level.

• Ensure floor is level and solid, and can





It rocks on the floor when

adequately support the refrigerator. Contact a





moved slightly.

carpenter to correct a sagging or sloping floor.

Refrigerator is touching a • Ensure floor is level and solid, and can

wall or cabinet. adequately support the refrigerator. Contact a







carpenter to correct a sagging or sloping floor.

Drawers are

Food is touching shelf on

• Remove top layer of items in drawer.

difficult to



top of drawer.



move.

Track that drawers slide

• Ensure drawer is properly installed on track.







on is dirty.

• Clean drawer, rollers, and track. See Care &













Cleaning.

RUNNING OF REFRIGERATOR



Compressor

Freezer control is set to

• Set freezer control.

does not run.



“OF” or “0”.





Refrigerator is in defrost

• This is normal for a fully automatic defrost





cycle.

refrigerator. The defrost cycle occurs







periodically, lasting about 30 minutes.

Plug at electrical outlet is • Ensure plug is tightly pushed into outlet. disconnected.

House fuse blown or • Check/replace fuse with a 15 amp time-delay

tripped circuit breaker.

fuse. Reset circuit breaker.

• Power outage.

• Check house lights. Call local electric company.

38







BEFORE YOU CALL













CONCERN

POTENTIAL CAUSE

COMMON SOLUTION

RUNNING OF

REFRIGERATOR (continued)



Refrigerator

Room or outside weather

• It’s normal for the refrigerator to work longer

runs too



is hot.

under these conditions.

much or too

• Doors are opened too

• Warm air entering the refrigerator causes it to

long.



frequently or too long.

run more. Open doors less often.







Fresh Food/freezer door

• Ensure refrigerator is level. Keep food and





may be slightly open.

contains from blocking door. See CONCERN







column OPENING/CLOSING OF DOORS/







DRAWERS.



• Freezer control is set too

• Set Fresh Food control to warmer setting until





cold.

refrigerator temperature is satisfactory. Allow







24 hours for temperature to stabilize.



Fresh Food/freezer gasket

• Clean or change gasket. Leaks in door seal





is dirty, worn, cracked, or

will cause refrigerator to run longer in order to





poorly fitted.

maintain desired temperatures.



Condenser is dirty.

• Clean condenser. See Care & Cleaning.

Compressor

Thermostat keeps the

• This is normal. Refrigerator goes on and off to

goes off



refrigerator at a constant

keep temperature constant.

and on



temperature.



frequently.







DIGITAL TEMPERATURE DISPLAY



Digital

Electronic control

• Call your Frigidaire service representative,

temperature



system has detected a

who can interpret any messages or number

displays are



performance problem.

codes flashing on the digital displays.

flashing.







WATER/MOISTURE/FROST INSIDE REFRIGERATOR

Moisture

Weather is hot and

• The rate of frost buildup and internal sweating

collects on



humid.

increases.

inside of

• Door is slightly open.

• See CONCERN column OPENING/CLOSING OF

refrigerator





DOORS/DRAWERS.

walls.











Water

Vegetables contain and

• It is not unusual to have moisture on the

collects on



give off moisture.

bottom side of the cover.

bottom side





• Move humidity control (some models) to

of drawer









lower setting.

cover.











Water

Washed vegetables and

• Dry items before putting them in the drawer.

collects in



fruit drain while in the

Water collecting in bottom of drawer is

bottom of



drawer.

normal.

drawer.







WATER/MOISTURE/FROST OUTSIDE REFRIGERATOR

Moisture collects on outside of refrigerator or between doors.

Weather is humid.

Door is slightly open, causing cold air from inside refrigerator to meet warm air from outside.

This is normal in humid weather. When humidity is lower, the moisture should disappear.

See CONCERN column OPENING/CLOSING OF DOORS/DRAWERS.

39

MAJOR APPLIANCE WARRANTY

Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used and maintained in accordance with the provided instructions.

Exclusions

This warranty does not cover the following:

1.Products with original serial numbers that have been removed, altered or cannot be readily determined.

2.Product that has been transferred from its original owner to another party or removed outside the USA or Canada.

3.Rust on the interior or exterior of the unit.

4.Products purchased “as-is”are not covered by this warranty.

5.Food loss due to any refrigerator or freezer failures.

6.Products used in a commercial setting.

7.Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances not in ordinary household use or used other than in accordance with the provided instructions.

8.Service calls to correct the installation of your appliance or to instruct you how to use your appliance.

9.Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc., which are not a part of the appliance when it is shipped from the factory.

10.Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or knobs, handles, or other cosmetic parts.

11.Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service calls to remote areas, including the state of Alaska.

12.Damages to the finish of appliance or home incurred during installation, including but not limited to floors, cabinets, walls, etc.

13.Damages caused by: services performed by unauthorized service companies; use of parts other than genuine Electrolux parts or parts obtained from persons other than authorized service companies; or external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE

YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH

AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO

NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES,

OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

If You Need Service

Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period should service be required. If service is performed, it is in your best interest to obtain and keep all receipts. Service under this warranty must be obtained by contacting Electrolux at the addresses or phone numbers below.

This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances North America, a division of Electrolux Home Products, Inc. In

Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service company. Product features or specifications as described or illustrated are subject to change without notice.

USA

Canada

1.800.944.9044

1.800.265.8352

Frigidaire

Electrolux Canada Corp.

10200 David Taylor Drive

5855 Terry Fox Way

Charlotte, NC 28262

Mississauga, Ontario, Canada



L5V 3E4

40
