All about the

Use&Care

of your Gas Range

TA B L E O F C O N T E N T S

Important Safety Instructions ...........................

3-6

Setting Oven Controls ..................................

13-19

Features at a Glance .........................................

7

Self-Cleaning ..............................................

20-21

Before Setting Oven Controls ...........................

8-9

Care & Cleaning ..........................................

22-24

Before Setting Surface Controls ........................

10

Before You Call ............................................

25-26

Setting Surface Controls ...................................

11

Major Appliance Warranty ................................

27

Oven Control Functions (330/330i) ....................

12





www.frigidaire.com USA 1-800-944-9044

www.frigidaire.ca Canada 1-800-265-8352

2010) (Oct C Rev 316901203

PRODUCT RECORD AND REGISTRATION

Contents



Product Registration ......................................................

2

Important Safety Instructions ............................

3-6

Features at a Glance ..............................................

7

Before Setting Oven Controls ...............................

8-9

Removing, replacing & arranging the oven racks ...........

8

Effortless™ Oven Rack system and assembly ................

9

Before Setting Surface Controls ............................

10

Cookware material types ..........................................

10

Setting Surface Controls .......................................

11

Setting a surface burner ...........................................

11

Home canning .........................................................

11

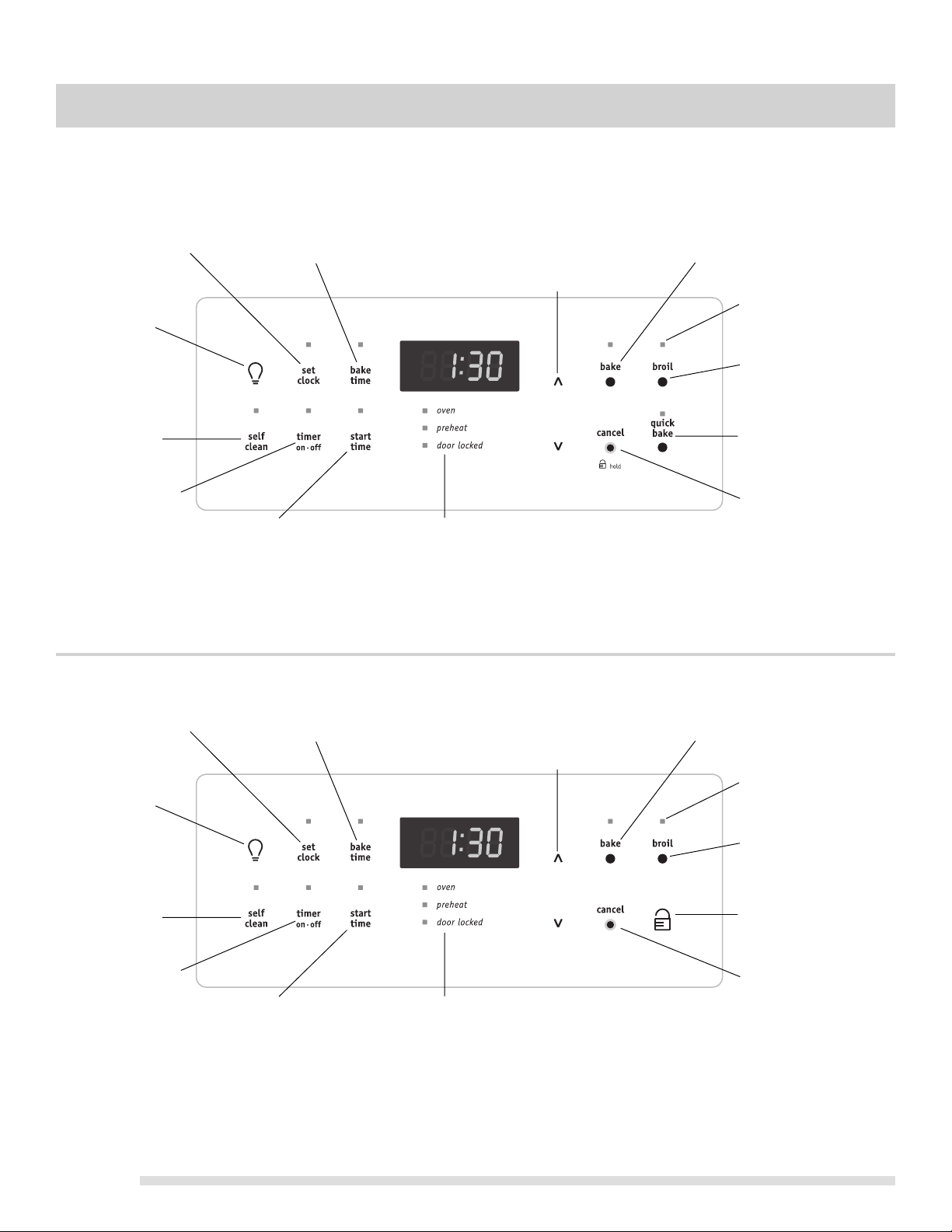

Oven Controls Functions ........................................

12

Setting Oven Controls ......................................

13-19

Setting the clock ......................................................

13

Changing between continuous bake or 12-Hour



Energy Saving features ............................................

13

Changing temperature display (F° or C°) ....................

13

Setting silent control feature .....................................

13

Setting oven lockout feature .....................................

14

Setting minute timer ................................................

14

Setting bake ...........................................................

15

Setting timed bake and delayed timed bake ............

15-16

Setting Quick Bake (some models) ............................

17

Setting broil ............................................................

18

Adjusting oven temperature .....................................

19

Operating oven light .................................................

19

Self-Cleaning ....................................................

20-21

Care & Cleaning ...............................................

22-24

Cleaning recommendations table ...............................

22

Cleaning the cooktop and surface burners ..................

23

Replacing the oven light ...........................................

23

Removing & replacing oven door ...............................

24

Before You Call - Solutions to common problems ...

25-26

Appliance Warranty ..............................................

27

Thank you for choosing Frigidaire.

This Use & Care Guide is part of our commitment to customer satisfaction and product quality throughout the service life of your new appliance.We view your purchase as the beginning of a relationship. To ensure our ability to continue serving you, please use this page to record important product information.

Need help??

Visit the Frigidaire web site at www.frigidaire.com

Before you call for service, there are a few things you can do to help us serve your better.

Read this Use & Care manual.

It contains instructions to help you use and maintain your range properly.

If you received a damaged range ...

immediately contact the dealer (or builder) that sold you the range.

Save time and money.

Check the section titled “Before You Call”. This section helps step you through some common problems that might occur.

If you do need service, help is only a phone call away. Call Frigidaire Customer Services at 1-800-944-9044.

Product Registration

Registering your product with Frigidaire enhances our ability to serve you. You can register online at www.frigidaire.com or by dropping your Product Registration Card in the mail.

Serial plate location

Serial plate location:

open storage drawer (some models) or remove lower front panel (some models).

Record model & serial numbers here

Purchase date

Model number

Serial number

2

©2009 Electrolux Home Products, Inc.

All rights reserved. Printed in the USA













IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance.

Do not attempt to install or operate your appliance until you have read the safety precautions in this manual. Safety items throughout this manual are labeled with a WARNING or CAUTION statement based on the risk type.

Definitions

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

WARNING

WARNING indicates a potentially hazardous situation which, if not avoided, may result in death or serious injury.

CAUTION

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

IMPORTANT

IMPORTANT indicates installation, operation, maintenance or valuable information that is not hazard related.

Important Safety Instructions

•Remove all tape and packaging before using the range. Destroy the carton and plastic bags after unpacking the range. Never allow children to play with packaging material.

•Proper Installation—Besure your appliance is properly installed and grounded by a qualified technician in accordance with the National Fuel Gas Code ANSI Z223.- latest edition, or in Canada CAN/ CGA B149.1, and CAN/CGA B149.2, and the theNationalElectricalCodeANSI/NFPANo.70-latestedition, or in Canada CSA Standard C22.1, Canadian Electrical Code, Part 1, and local code requirements.

Install only per installation instructions provided in the literature package for this range. Ask your dealer to recommend a qualified technician and an authorized repair service. Know how to disconnect the power to the range at the circuit breaker or fuse box in case of an emergency.

WARNING

If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death.

FORYOURSAFETY:

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

WHATTODOIFYOUSMELLGAS:

Do not try to light any appliance.

Do not touch any electrical switch; do not use any phone in your building.

Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.

If you cannot reach your gas supplier, call the fire department.

Installation and service must be performed by a qualified installer, servicer or the gas supplier.

WARNING

All ranges can tip.

Injury to persons could result.

• Install anti-tipdevice packed

with range.

• See Installation Instructions.

To reduce the risk of tipping, the range must be secured by properly installed anti-tipbracket provided with the range. To check if the bracket is installed properly, visually check that

rear leveling leg is inserted into and fully secured by the anti-tipbracket by

removing lower front panel or storage drawer from the range.

For models equipped with a warmer drawer or lower oven, grasp the top rear edge of the range and carefully attempt to tilt it forward. Refer to the installation instructions for proper antitip bracket installation.

•Never modify or alter the construction of a range by removing the leveling legs, panels, wire covers, anti-tipbrackets/screws, or any other part of the range.

Save these instructions for future reference.

3



IMPORTANT SAFETY INSTRUCTIONS

WARNING

NEVER use this appliance as a space heater to heat or warm the room. Doing so may result in carbon monoxide poisoning.

NEVER cover any slots, holes or passages in the oven bottom or cover an entire rack with materials such as aluminum foil. Doing so blocks air flow through the oven and may cause carbon monoxide poisoning. Aluminum foil linings may trap heat, causing a fire hazard.

Stepping, leaning or sitting on the door or drawers of a range can result in serious injuries and also cause damage to the appliance. DO NOT allow children to climb or play around the range. The weight of a child on an open oven door may cause the range to tip, resulting in serious burns or other injury.

Storage in or on appliance—flammablematerials should not be stored in an oven, near surface units or in the storage drawer, warmer drawer or lower oven.This includes paper, plastic and cloth items, such as cookbooks, plasticware and towels, as well as flammable liquids. Do not store explosives, such as aerosol cans, on or near the range.

DONOTLEAVECHILDRENALONE—childrenshouldnot be left alone or unattended in the area where appliance is in use.They should never be allowed to sit or stand on any part of the appliance, including the storage drawer, lower broiler drawer, warmer drawer or lower double oven.

CAUTION

Do not store items of interest to children in the cabinets above a range or on the backguard of the range. Children climbing on the range to reach items could be seriously injured.

• Remove the oven door from any unused range if it is to be stored or discarded.

•User servicing—Donot repair or replace any part of the appliance unless specifically recommended in the manuals.All other servicing should be done only by a qualified technician, This may reduce the risk of personal injury and damage to the range.

IMPORTANT

For electric ignition models only: Do not attempt to operate the range during a power failure. If the power fails, always turn off the range. If the range is not turned off and the power resumes, the range will begin to operate again. Once the power resumes, reset the clock and oven function.

CAUTION

DO NOT TOUCH SURFACE BURNERS, AREAS NEAR THESEBURNERS,OVENBURNERSORINTERIOR SURFACES OF THE OVEN. Both surface and oven burners may be hot even though flames are not visible. Areas near surface burners may become hot enough to cause burns. During and after use, do not touch, or let clothing or other flammable materials touch these areas until they have had sufficient time to cool. Among these areas are the cook top, surfaces facing the cook top, the oven vent openings and surfaces near these openings, oven door and window.

Wear proper apparel—loose-fittingor hanging garments should never be worn while using the appliance.Do not let clothing or other flammable materials contact hot surfaces.

Do not use water or flour on grease fires— smother the fire with a pan lid, or use baking soda, a dry chemical or foam-typeextinguisher.

When heating fat or grease, watch it closely. Fat or grease may catch fire if allowed to become too hot.

Use dry potholders - moist or damp potholders on hot surfaces may result in burns from steam.

Do not let potholders touch hot heating elements. Do not use a towel or other bulky cloth instead of a potholder.

Do not heat unopened food containers - buildup of pressure may cause container to burst and result in injury.

4

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT INSTRUCTIONS FOR USING YOUR COOKTOP

WARNING

Use Proper Flame Size—Adjustflame size so it does not extend beyond the edge of the utensil. The use of undersized utensils will expose a portion of the burner flame to direct contact and may result in ignition of clothing. Proper relationship of utensil to flame will also improve efficiency.

Know which knob controls each surface burner.

Place a pan of food on the burner before turning it on, and turn the burner off before removing the pan.

Always turn knob to the full LITE position when igniting top burners. Visually check that burner has lit. Then adjust the flame so it does not extend beyond the edge of the utensil.

Utensil handles should be turned inward and not extend over adjacent surface burners—To reduce the risk of burns, ignition of flammable materials, and spillage due to unintentional contact with the utensil, the handle of the utensil should be positioned so that it is turned inward, and does not extend over adjacent surface burners.

Never leave surface burners unattended at high heat settings—Boilovers cause smoking and greasy spillovers that may ignite, or a pan that has boiled dry may melt.

Glazed cooking utensils—Onlycertain types of glass, glass/ceramic, ceramic, earthenware, or other glazed utensils are suitable for cook top service without breaking due to the sudden change in temperature. Check the manufacturer’s recommendations for cook top use.

When flaming foods under a ventilating hood, turn the fan on.

Air curtain or other overhead range hoods, which operate by blowing a downward air flow on to a range, shall not be used in conjunction with gas ranges other than when the hood and range have been designed, tested and listed by an independent test laboratory for use in combination with each other.

IMPORTANT INSTRUCTIONS FOR USING YOUR OVEN

Use care when opening oven door , warmer drawer or lower oven door—Stand to the side of the range when opening the door of a hot oven. Let hot air or steam escape before you remove or replace food in the oven.

Keep Oven Vent Ducts Unobstructed. The oven vent is located below the backguard. Touching the surfaces in this area when the oven is operating may cause severe burns. Also, do not place plastic or heat-sensitive items on or near the oven vent. These items could melt or ignite.

Placement of Oven Racks. Always place oven racks in desired location while oven is cool. If rack must be moved while oven is hot use extreme caution. Use potholders and grasp the rack with both hands to reposition. Do not let potholders contact the hot heating elements in the oven. Remove all utensils from the rack before moving.

Do not use the broiler pan without its insert. The broiler pan and its insert allow dripping fat to drain and be kept away from the high heat of the broiler.

Do not cover the broiler insert with aluminum foil. Exposed fat and grease could ignite.

Protective liners—Donot use aluminum foil to line the oven bottom. Only use aluminum foil as recommended in this manual. Improper installation of these liners may result in risk of electric shock, or fire.

IMPORTANT SAFETY NOTICE

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn customers of potential exposure to such substances.

5

IMPORTANT SAFETY INSTRUCTIONS

SELF-CLEANINGOVENS

Clean in the self-cleaningcycle only the parts listed in this Use & Care Manual.Before self-cleaning the oven, remove the broiler pan and any utensils or foods from the oven.

Do Not Use Oven Cleaners—No commercial oven cleaner or oven liner protective coating of any kind should be used in or around any part of the oven.

Do Not Clean Door Gasket—The door gasket is essential for a good seal. Care should be taken not to rub, damage or move the gasket.

The health of some birds is extremely sensitive to the fumes given off during the self-cleaningcycle of any range. Move birds to anotherwell-ventilatedroom.

IMPORTANT INSTRUCTIONS FOR CLEANING YOUR RANGE

Clean the range regularly to keep all parts free of grease that could catch fire. Pay particular attention to the area around each surface element. Do not allow grease to accumulate.

Kitchen cleaners and aerosols—Alwaysfollow the manufacturer’s recommended directions for use.

Be aware that excess residue from cleaners and aerosols may ignite causing damage and injury.

Clean ventilating hoods frequently—Greaseshould not be allowed to accumulate on the hood or filter.

Follow the manufacturer’s instructions for cleaning hoods.

Grounding Instructions

WARNING

Avoid fire hazard or electrical shock. Do not use an adapter plug, an extension cord, or remove grounding prong from electrical power cord. Failure to follow this warning can cause serious injury, fire or death.

This appliance is equipped with a 3-pronggrounding plug for your protection against shock hazard and should be plugged directly into a properly grounded receptacle.DO NOT cut or remove the grounding prong from this plug.

For personal safety, the range must be properly grounded. For maximum safety, the power cord must be plugged into an electrical outlet that is correctly polarized and properly grounded.

If a 2-prongwall receptacle is the only available outlet, it is the personal responsibility of the consumer to have it replaced with a properly grounded3-prongwall receptacle installed by a qualified electrician.

SeetheINSTALLATIONINSTRUCTIONSpackagedwiththis range for complete installation and grounding instructions.

Conversion to Liquefied Petroleum Gas

WARNING

Personal injury or death from electrical shock may occur if the range is not installed by a qualified installer or electrician.

Any additions, changes or conversions required in order for this appliance to satisfactorily meet the application needs must be made by a qualified technician.

If your gas range model is designed to allow for L.P. conversion, the L.P. conversion kit may be obtained from your local appliance dealer and should be installed by a qualified service technician. Before installing the kit be sure to follow the L.P. Installation Instructions carefully.

6

FEATURES AT A GLANCE

1

Your gas range features include:

1.Electronic oven control with kitchen timer.

2.Quick Bake Cooking System control (some models).

3.Left front burner valve and control knob.

4.Left rear burner valve and control knob.

5.Center accent burner valve and control knob (some models).

6.Right front burner valve and control knob.

7.Right rear burner valve and control knob.

8.Burner grates (colors vary with model).

9.Center burner grate (some models).

10.Oven interior light with removable cover.

11.Automatic oven door light switch (some models).

12.Self-cleaningoven interior.

13.Self-cleandoor latch.

14.Adjustable interior oven rack(s). Effortless Oven Rack™ system (not shown-somemodels).

15.Quick Bake cooking system fan (some models).

16.Large 1-pieceoven door handle.

17.Full width oven door with window.

18.Storage drawer with large 1-piecedoor handle (some models) or lower cover panel (some models).

19.Easy to clean upswept cooktop.

20.

5,000 BTU simmer burner (some models).

29

21. 9,500 BTU standard burner (some models).





22.

9,500 BTU center or accent burner (some models).





23.

12,000

BTU Quick Boil burner (some models).





24.

14,000

BTU Quick Boil burner (some models) or







17,000

BTU Quick Boil burner (some models).





25.

Burner drip pan (not shown-somemodels).









26.

Broil pan (some models).





27.

Broil pan insert (some models).

28

28.

Roasting rack (optional-somemodels).





29.Cast-irongriddle grate (in place of middle grate;optional-somemodels).

30. Leveling legs and anti-tip bracket (included).

27

NOTE

The features shown for your appliance may



vary according to model type & color.

26

2









19

8



9

8











5



11

3

4

6

7







13





10



12







15



















14

17





16

















18



30









21







20

23













21

24





















22











21

21







23









24









7

BEFORE SETTING OVEN CONTROLS

Oven vent location

The oven vent is located below the control panel (See Fig. 1). When the oven is on, warm air passes through this vent. This venting is necessary for proper air circulation in the oven and good baking results.Do not block the oven vent.

oven vent location

Fig. 1

Removing, replacing & arranging racks

To remove - pull the rack forward until it stops. Lift up front of rack and slide out.

To replace - fit the rack onto the guides on the oven walls. Tilt the front of the rack upward and slide the rack back into place.

Arranging - always arrange the oven racks when the oven is cool (prior to operating the oven).

CAUTION

Always use oven mitts when using the oven. When using the appliance, oven racks and cooktop will become very hot which can cause burns.

6

5

4

3

2

1

Fig. 2

Recommended rack positions by food type

Food type

Position





Broiling meats

See broil

Cookies, cakes, pies, biscuits & muffins

3 or 4

Frozen pies, angel food cake, yeast, bread



and casseroles

1 or 2

Small cuts of meat or poultry

1 or 2

Turkey, roast or ham

1





Types of oven racks

flat handle oven rack

flat

oven rack

offset

Effortless™

oven rack

Oven



Rack

bottom oven rack

The flat oven rackor flat handle oven rack(some models) may be used for most cooking needs. The Effortless™ Oven Rack(some models) is described later in this section. The offset oven rack(some models) is designed to place the base of the rack about 1/2 of a rack position lower than normal. This rack design provides several additional possible positions between the standard positions.To maximize oven cooking space place the bottom oven rack(some models) in the lowest rack position for baking or and when roasting large cuts of meat.

Air circulation in the oven

For best baking results allow 2-4"(5-10cm) around the cookware for proper air circulation and be sure pans and cookware do not touch each other, the oven door, sides or back of the oven cavity. Hot air must be able to circulate around the pans and cookware in the oven for even heat to reach around the food.

Baking layer cakes with 1 or 2 oven racks

For best results when baking cakes using 2 oven racks, place cookware on rack positions 2 & 5 (See Figs. 2 & 3). For best results when using a single oven flat rack, place cookware on rack positions 2, 3 or 4 (See Figs. 2 & 4).

Fig. 3

Fig. 4

8

Effortless™ Oven Rack system

Some models are equipped with a special oven rack system that automatically partially extends the oven rack from the interior oven glides to assist in easier access to your food items. This feature works whenever the oven door is opened or closed.

To assemble the Effortless™ Oven Rack system:

1.Locate all required parts. You will need the supplied oven rack (Effortless™ Oven Rack is a flat rack with a special dark coating on theleft and right rack sides) and the 2 supplied chrome connector arms.

2.Open the oven door. Be sure the oven is completely cool before proceeding.

3.Place the oven rack in positions 2, 3 or 4 only (see previous page to verify positions).Be sure the rack connector brackets are at the rear of the range and pointing towards oven bottom (See Fig. 2).

4.Assemble one connector arm at a time. With the oven door open and the oven rack in place, install one end of the connector arm to the hole in the door connector bracket (Fig. 1) and the other end in the hole in therack connector bracket (Fig. 2 and as in Fig. 3). The oven rack may need to be adjusted in or out in the rack position to match the length of the connector arm.

5.While holding the connector arm in place, twist the connector arm so the ends of the connector arm point upwards (See Figs. 4 & 5). The connector arm should now be locked into position.

6.Repeat steps 4 and 5 for the other connector arm.

7.Once both connector arms are properly in place, be sure to test the oven rack operation by gently closing the oven door. The oven rack should move in and out of the oven freely when the door is opened or closed.

BEFORE SETTING OVEN CONTROLS

IMPORTANT

Only the Effortless™ Oven Rack system should be used in oven rack position 2. Placing ANY other rack in oven rack position 2 will prevent the oven door from fully closingand maydamage the oven door, oven cavity or the door connector brackets.

If the rack system is not assembled with the connector arms the Effortless™ Oven rack may be used in oven rack positions 2 thru 6. Do not attempt to use the Effortless™ Oven rack in rack position 1.

door

rack connector

connector

bracket

bracket



Fig. 1

connector arm

Fig. 3 - assembly of the Effortless™ Oven Rack

Fig. 2

oven rack

open oven

connector

door

arm

CAUTION

REMOVE ALL OVEN RACKS and accessories before starting a self-cleancycle.If the oven racks are left in the oven during the self-clean cycle, the glide ability of the Effortless™ Oven Rack system will be damaged and will cause oven racks to loose their shiny finish and or turn blue. Remove ALLoven racks and clean according to instructions provided in the Care & Cleaning section of this manual.

Make sure the oven and oven racks are COMPLETLY cool and safe to touch before attempting to assemble or disassemble the Effortless™ Oven Rack system. Never pick up hot oven rack parts.

connector arm

Fig. 4

connector arm

Fig. 5

left and right

door connector brackets

with connector arm ends shown in locked position (pointing upwards)

Fig. 6 - Effortless™ Oven Rack after assembly

9

BEFORE SETTING SURFACE CONTROLS

Using proper cookware



Set proper burner flame size

For best cooking results,



The color of the flame is the key to proper burner adjustment.

cookware should have flat



A good flame is clear, blue and hardly visible in a well-lighted

bottoms that rests level on the



room. Each cone of flame should be steady and sharp. Adjust

burner grate. Before using



or clean burner if flame is yellow-orange.

cookware, check for flatness by



For most cooking; start on the highest setting and then

rotating a ruler across the





turn to a lower setting to complete the process. Use the

bottom of the cookware (Fig. 1).



Fig. 1

recommendations below as a guide for determining proper





flame size for various types of cooking (Fig. 2)





CAUTION

Do not place flammable items such as plastic salt and pepper shakers, spoon holders or plastic wrappings on the cooktop when it is in use. These items could melt or ignite. Potholders, towels or wooden spoons could catch fire if placed too close to the range cooktop.

IMPORTANT

Do not place aluminum foil, or ANY material that can melt on the range cooktop. If these items melt they may damage the cooktop.

NOTE

The size and type of utensil used, and the amount and type of food being cooked will influence the setting needed for best cooking results.

Cookware material types

The most popular materials available are:

Aluminum - Excellent heat conductor. Some types of food will cause it to darken (Anodized aluminum cookware resists staining & pitting).

Copper - Excellent heat conductor but discolors easily.

Stainless - Slow heat conductor with uneven cooking results. Is durable, easy to clean and resists staining.

Cast Iron - A slow heat conductor however will retain heat very well. Cooks evenly once cooking temperature is reached.

Porcelain-enamel on metal - Heating characteristics will vary depending on base material.

Glass - Slow heat conductor.

For deep fat frying; use a thermometer and adjust the surface knob accordingly. If the fat is too cool, the food will absorb the fat and be greasy. If the fat is too hot, the food will brown so quickly that the center will be undercooked. Do not attempt to deep fat fry too much food at once as the food will neither brown or cook properly.

FlameSize*

Type of Cooking





High Flame

Start most foods; bring water to a boil;



pan broiling.





Medium Flame

Maintain a slow boil; thicken sauces,



gravies; steaming.





Low Flame

Keep foods cooking; poach; stewing.

*These settings are based for medium-weightmetal or aluminum pans with lids. Settings may vary when using other types of pans.

Fig. 2

CAUTION

Never extend the flame beyond the outer edge of the cooking utensil. A higher flame wastes energy, and increases your risk of being burned by the flame (Fig. 3).

Correct flame setting

Incorrect

flame setting

Fig. 3

10
