Electric

Cooktop

Questions?

1-800-944-9044(United States)

1-800-668-4606(Canada)

Visit the Frigidaire Elements Web Site at:

http://www.frigidaireelements.com

Welcome ..................................

2

Important Safety Instructions ..

3-4

Setting Surface Controls ....

4-7

Surface Cooking.....................

8

Care & Cleaning.................

9-10

Before You Call



Solutions to



Common................................................Problems

11

Warranty ................................

12

READ AND SAVE THESE INSTRUCTIONS

318200633 (0604) Rev. A

Welcome & Congratulations

Questions? 1-800-944-9044

(United States)

1-800-668-4606

(Canada)

Please attach sales receipt here for future reference.

Versión en español

Si desea obtener una copia en español de este Manual del Usuario, sírvase escribir a la dirección que se incluye a continuación. Solicite la P/N 318200628E.

Spanish Use & Care Manual

Electrolux Home Products

P. O. Box 212378

Augusta, GA 30917

©2006 Electrolux Canada Corp. All rights reserved

Printed in United States

Congratulations on your purchase of a new appliance! At Electrolux Home Products, we are very proud of our product and are completely committed to providing you with the best service possible.Your satisfaction is our number one priority.

We know you’ll enjoy your new appliance and ThankYou for choosing our product. We hope you consider us for future purchases.

PLEASE CAREFULLY READ AND SAVE THESE INSTRUCTIONS

This Use & Care Manual contains general operating instructions for your appliance and feature information for several models. Your product may not have all the described features. The graphics shown are representative.The graphics on your appliance may not look exactly like those shown. These instructions are not meant to cover every possible condition and situation that may occur. Common sense and caution must be practiced when installing, operating and maintaining any appliance.

Please record your model and serial numbers below for future reference.

Model Number:

Serial Number:

Purchase Date:

Product Registration

Register Your Product

The PRODUCT REGISTRATION CARDshould be filled in completely, signed and returned to Electrolux Home Products.

Serial Plate Location

Cooktop Serial

Plate Location

2

Important Safety Instructions

Read all instructions before using this appliance. Save these instructions for future reference.

This manual contains important safety symbols and instructions. Please pay attention to these symbols and follow all instructions given.

This symbol will help alert you to situations that may cause serious bodily harm, death or property damage.

This symbol will help alert you to situations that may cause bodily injury or property damage.

Remove all tape and packaging wrap before using the appliance. Destroy the carton and plastic bags after unpacking the appliance. Never allow children to play with packaging material.

Proper Installation. Be sure your appliance is properly installed and grounded by a qualified technician in accordance with the National Electrical Code No. 70 - latest edition in the United States, or CSA C22.1, Part 1 in Canada, and local code requirements. Install only per installation instructions provided in the literature package for this appliance.

Ask your dealer to recommend a qualified technician and an authorized repair service. Know how to disconnect the electrical power to the appliance at the circuit breaker or fuse box in case of an emergency.

User Servicing. Do not repair or replace any part of the appliance unless specifically recommended in the manuals. All other servicing should be done only by a qualified technician to reduce the risk of personal injury and damage to the appliance.

Never modify or alter the construction of an appliance such as removal of panels, wire covers or any other permanent part of the appliance.

Storage on Appliance. Flammable materials should not be stored near surface units. This includes paper, plastic and cloth items, such as cookbooks, plasticware and towels, as well as flammable liquids. Do not store explosives, such as aerosol cans, on or near the appliance. Flammable materials may explode and result in fire or property damage.

or let clothing or other flammable materials touch these areas until they have had sufficient time to cool. Among these areas are the cooktop and areas facing the cooktop.

Wear Proper Apparel. Loose-fittingor hanging garments should never be worn while using the appliance.Do not let clothing or other flammable materials contact hot surfaces.

Never use your appliance for warming or heating the room.

Do Not Use Water or Flour on Grease Fires. Smother the fire with a pan lid, or use baking soda, a dry chemical or foam-typeextinguisher.

When heating fat or grease, watch it closely. Fat or grease may catch fire if allowed to become too hot.

Use Only Dry Pot holders. Moist or damp pot holders on hot surfaces may result in burns from steam. Do not let the pot holders touch hot surface units. Do not use a towel or other bulky cloth instead of a pot holder.

Do Not Heat Unopened Food Containers. Buildup of pressure may cause the container to burst and result in injury.

IMPORTANT. Do not attempt to operate the cooktop during a power failure. If the power fails, always turn off the cooktop. If the cooktop is not turned off and the power resumes, the cooktop will not operate and an error message will be displayed.

Do not store items of interest to children in the cabinets above the appliance.Children climbing on the cooktop to reach items could be seriously injured.

Do not leave children alone. Children should not be left alone or unattended in the area where an appliance is in use. They should never be allowed to sit or stand on any part of the appliance.

DO NOT TOUCH SURFACE UNITS OR AREAS NEAR THESE UNITS. Surface units may be hot even though they are dark in color. Areas near surface units may become hot enough to cause burns. During and after use, do not touch,

IMPORTANT SAFETY INSTRUCTIONS FOR USING YOUR COOKTOP

Know which knob controls each surface unit.

Clean the appliance regularly to keep all parts free of grease that could catch fire. Exhaust fan ventilation hoods and grease filters should be kept clean. Do not allow grease to accumulate on hood or filter. Greasy deposits in the fan could catch fire. When flaming food under the hood, turn fan on. Refer to hood manufacturer's instructions for cleaning.

Use Proper Pan Size. This appliance is equipped with one or more surface units of different sizes. Select utensils having flat bottoms large enough to cover the surface unit.

3

Important Safety Instructions

The use of undersized utensils will expose a portion of the surface heating unit to direct contact and may result in ignition of clothing. Proper relationship of utensil to element will also improve efficiency.

Utensil Handles Should Be Turned Inward and Not Extend Over Adjacent Surface Units. To reduce the risk of burns, ignition of flammable materials, and spillage due to unintentional contact with the utensil.

Never Leave Surface Units Unattended. Boilovers cause smoking and greasy spillovers that may ignite, or a pan that has boiled dry may melt.

Protective Liners. Do not use aluminum foil to line any part of the appliance. Only use aluminum foil as recommended for baking if used as a cover placed on the food. Any other use of protective liners or aluminum foil may result in a risk of electric shock or fire or short circuit.

Glazed Cooking Utensils. Only certain types of glass, glass/ceramic, ceramic, earthenware, or other glazed utensils are suitable for range top service without breaking due to the sudden change in temperature. Check the manufacturer's recommendations for cooktop use.

Do Not Use Decorative Surface Element Covers. If an element is accidentally turned on, the decorative cover will become hot and possibly melt. Burns will occur if the hot covers are touched. Damage may also be done to the appliance.

FOR CERAMIC-GLASSCOOKTOP ONLY

Do Not Clean or Operate a Broken Cooktop. If cooktop should break, cleaning solutions and spillovers may penetrate the broken cooktop and create a risk of electric shock. Contact a qualified technician immediately.

Clean Cooktop with Caution. If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid a steam burn. Some cleaners can produce harmful fumes if applied to a hot surface.

Do Not Place Hot Cookware on Cold Cooktop Glass. This could cause glass to break.

Do not slide pan across the cooktop surface. They may scratch the cooktop surface.

Do Not Let Pans Boil Dry. This may cause permanent damage in the form of breakage, fusion, or marking that can affect the ceramic-glass cooktop. (This type of damage is not covered by your warranty).

IMPORTANT SAFETY NOTICE

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn customers of potential exposure to such substances.

Setting Surface Controls

About the Ceramic Glass Cooktop

The ceramic cooktop has radiant surface elements located below the surface of the glass. The design of the ceramic cooktop outlines the area of the surface element underneath. Make sure the diameter of the pan matches the diameter of the element outline on the cooktop (See Figs. 1 & 2).

Heat is transferred up through the surface of the cooktop to the cookware. Only flatbottom cookware should be used. The type and size of cookware, the number of surface elements in use and their settings are all factors that will affect the amount of heat that will spread to areas beyond the surface elements. The areas surrounding the elements may become hot enough to cause burns.

About the Radiant Surface Elements

The element temperature rises gradually and evenly. As the temperature rises, the element will glow red. To maintain the selected setting, the element will cycle ON and OFF. The heating element retains enough heat to provide a uniform and consistent heat during the OFF cycle. For efficient cooking, turn OFF the element several minutes before cooking is complete. This will allow residual heat to complete the cooking process.

4

Fig.1 - 30” Model - Cooktop

Appearance

expandable element







s













p













e













e













d













e l











b r i d g e

e





ex p a n d a b l e





e l e m e n t

m

e

n

e l e m e n t









t



Left

Center



Right



Left

Front

Rear



Front

Right

Rear











Rear

Fig. 2 - 36” Model - Cooktop Appearance

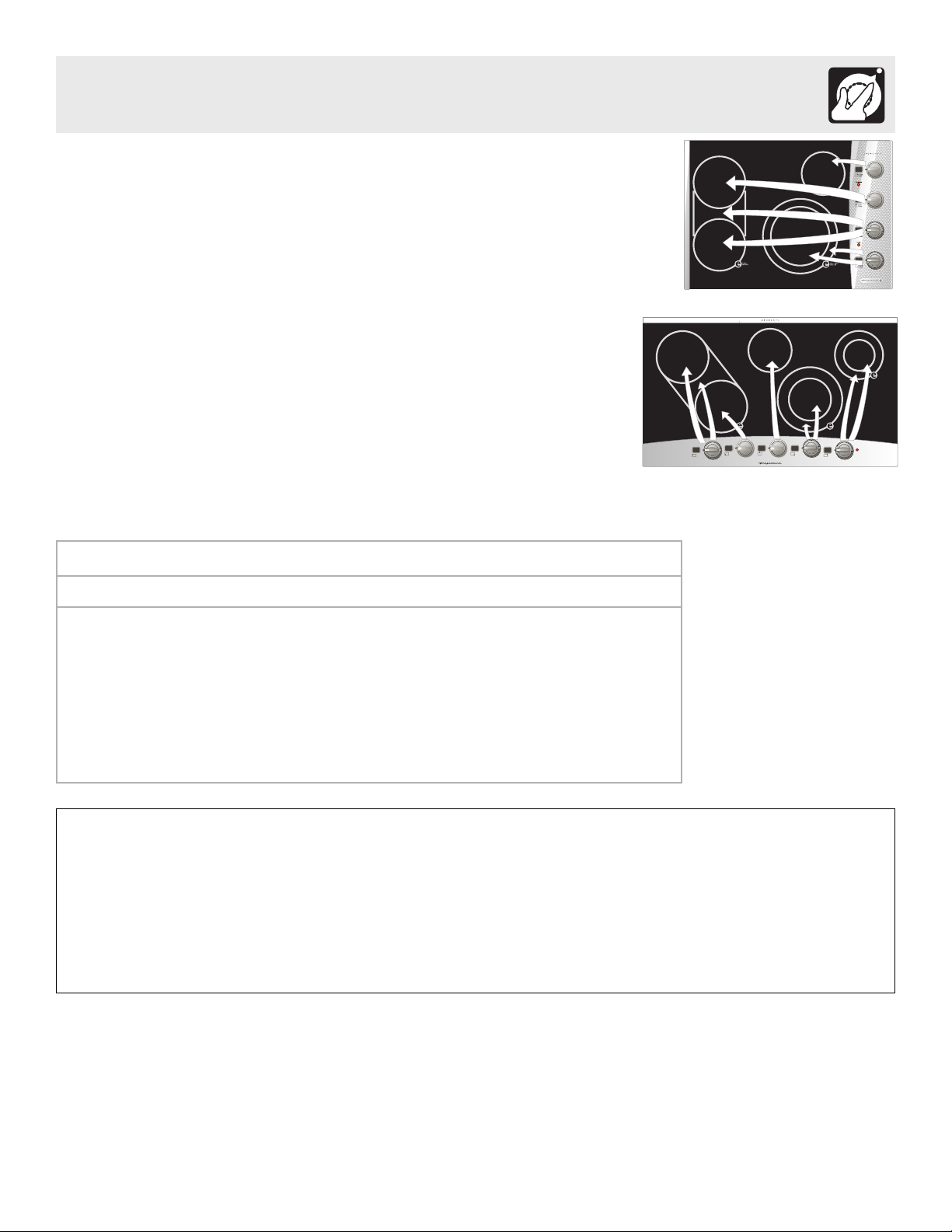

Setting Surface Controls

locations of the surface radiant elements

Your cooktop is equipped with radiant surface radiant elements with different wattage ratings. The ability to heat food quicker and in larger volumes increases as the element wattage increases.

The radiant surface elements are located on the 30” cooktop as follows:

-1 dual 6 to 9 inch radiant element located at the right front position;

-1 bridge radiant element located on the left front and rear positions;

-1 small 6 inch radiant element located at the right rear position.

The radiant surface elements are located on the 36” cooktop as follows:

-1 small 6 inch radiant elements located at the center rear position;

-1 dual 5 to 7 inch radiant elements located at the right rear position;

-1 dual 6 to 9 inch radiant elements located at the right front position;

-1 bridge radiant element located on the left front and rear positions;

Surface cooking settings

Use the chart to determine the correct setting for the type of food you are preparing. Note: The size and type of cookware used will influence the setting needed for best cooking results.



Recommended Settings for Surface Elements

Setting

Type of Cooking

HIGH(HI)

Start most foods; bring water to a boil and pan broiling.

MEDIUM HIGH (8-10)Continue a rapid boil; frying, deep fat frying.

MEDIUM (6)

Maintain a slow boil; thicken sauces and gravies; steaming



vegetables.

MEDIUM LOW (2 - 4) Keep foods cooking; poaching and stewing.

LOW (LO)

Keep warm, melting and simmering.





30” cooktop

s

p

e

e

d

e

l

e

m

e









n

t

36” cooktop

NOTE: PleasereaddetailedinstructionsforceramicglasscooktopcleaningintheGeneralCare&CleaningsectionandBefore You Call checklist section of this Use and Care Guide.

NOTE: Radiant elements have a limiter that allows the element to cycle on and off, even at the HI setting. This helps to prevent damage to the ceramic smooth top. Cycling at the HI setting is normal and can occur if the cookware is too small for the radiant element or if the cookware bottom is not flat (Refer to page 12 under Selecting Surface Cooking Utensils).

NOTE: Due to the high intensity of heat generated by the surface elements, the glass surface will turn green when the element will be turned off. This phenomenon is normal and the glass will come back to its original white color after it has completely cooled down. (White glass cooktops only).

5

Setting Surface Controls

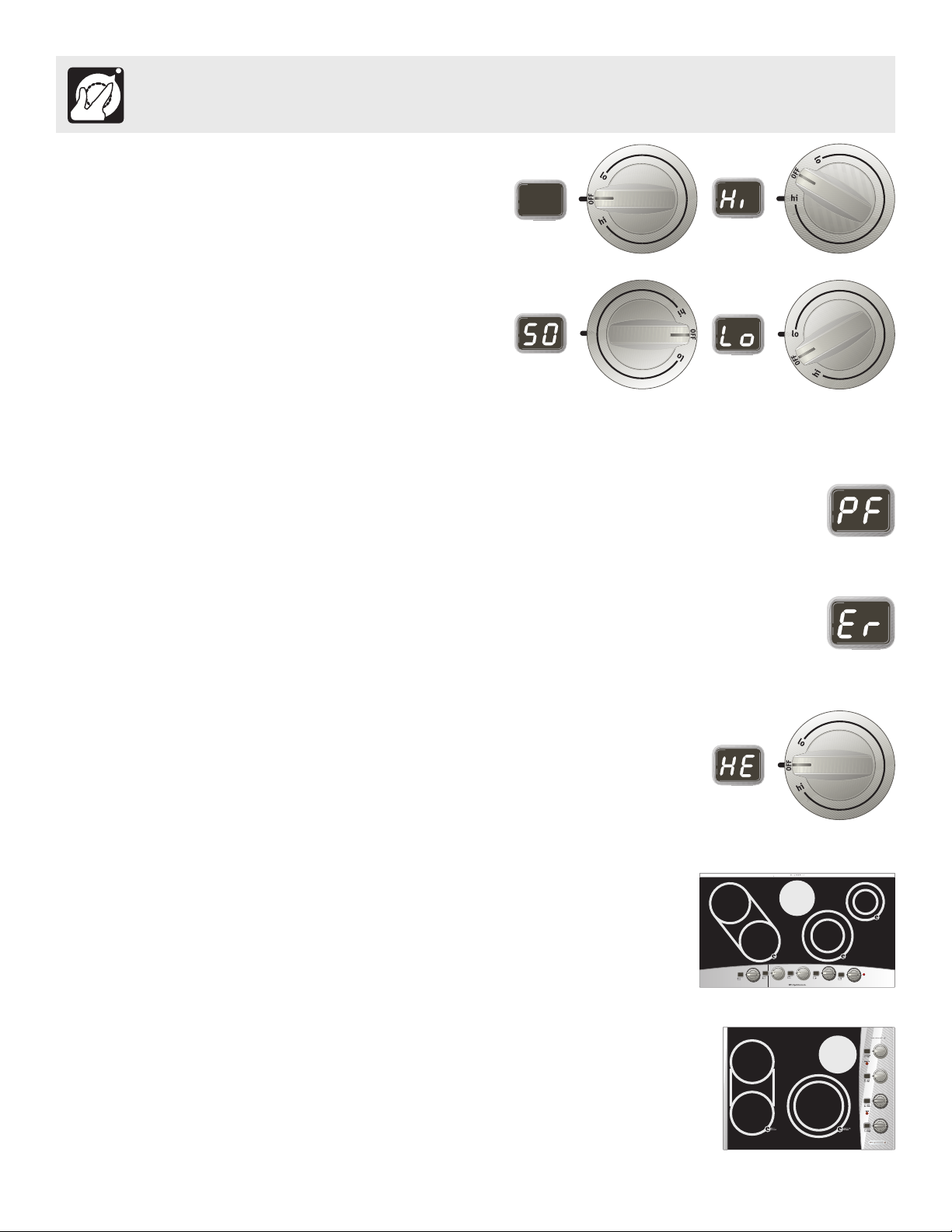

The electronic surface element control (esec)

The Electronic Surface Element Control (“ESEC”) feature includes





5 digital display windows. The ESEC feature provides a numeric





digital setting for the 5 radiant surface element positions on the





cooktop. These settings work the same way as normal knob





setting indicators work except the settings are displayed in digital

Fig. 1

Fig. 2

windows (Figs. 1 thru 4).





The available ESEC Display Settings

The ESEC control provides various heat levels from Hi (Fig. 2) toLo (Fig. 4) and OFF (Fig. 1). The settings between9.5 and3.0 decrease or increase in increments of .5 (1/2). The settings between3.0 and1.2 are Simmer settings which decrease or increase in increments of .2 (1/5) toLo (Figure 4; lowest Simmer setting) for more precise settings at lower heat levels. Use the Recommended Surface Setting Chart to determine the correct setting for the kind of food you are preparing.

.

Fig. 3

Fig. 4

Control knobs shown are typical only.

Note: The size and type of cookware used will influence the setting needed for best cooking results.

ESEC Power Failure Indicator Message (PF)

When the range is first plugged in or when the power supply to the range has been interrupted, the ESEC control will display the message "PF" (Power Failure; See Fig. 5). After a few seconds the"PF" message will disappear

from the display.

Fig. 5

ESEC Error Indicator Message (Er)

An error message will be displayed (glowing “Er”) at power up (or after a power failure) if ANY of the surface control knobs were left in the ON positions (See Fig. 6). If a power failure should occur, be sure to set all of the surface

control knobs to the OFF position. This will reset the surface controls. Once the surface controls have been set to the OFF positions, the surface controls should return to normal operation. If the surface controls do not function and the “Er” message remains in any display after following theseFig. 6 procedures, contact your authorized servicer for assistance.

ESEC Hot Element Indicator Message (HE)

After using any of the single, dual or triple radiant element positions the cooktop will become very

hot. Even after turning the control knob to OFF, the cooktop will remain hot for some time. The ESEC control monitors the temperature of the cooktop and displays the message “HE” (hot element) warning when the cooktop is still too hot to touch (See Fig. 7). If theHE message appears

in the window, the control can still be turned ON again for use.

Fig. 7

Operating the Single Surface Radiant Elements

The cooktop has a single radiant surface element located as shown on Figures 8 & 9.

To Operate the Single Surface Element

1.Place correctly sized cookware on the radiant surface element.

2.Push in and turn the surface control knob in either direction to the desired setting using

the ESEC digital display window to verify (Fig. 2). Turn the knob to adjust the setting as needed.

3.Start most cooking operations on a higher setting and then turn to a lower setting to finish cooking. Each surface element provides a constant amount of heat at each setting. A glowing red surface heating area extending beyond the bottom edge of the cookware indicates the cookware is too small for the surface heating area.

4.When cooking has completed, turn the surface control knob to OFF before removing the cookware. Note: The surface “Element On” indicator lights will glow when one or more elements are turned on. A quick glance at these indicator lights when cooking is finished

is an easy check to be sure all surface elements are turned off. Also, the HE message will appear in the display after turning the control knob to OFF if the cooktop is still hot and remain on until the heating surface area has cooled sufficiently.

6

Fig. 8

Fig. 9

Setting Surface Controls

Operating the Dual Surface Radiant Elements

30” cooktop is equipped with dual radiant elements at the right front position (see Fig. 1). 36” cooktop is equipped with dual radiant surface elements located at the right front and right rear positions (See Fig 2).

To Operate the Dual Surface Element:

Fig. 1

1.Place correctly sized cookware on the dual surface element.

2.Push in and turn the control knob counterclockwise (See Figs. 3 & 5) for smaller cookware orclockwise (See Figs. 4 & 6) for larger cookware to the desired setting using the ESEC digital display window for the desired setting.

3.Turn the knob to adjust the setting as needed. Start most cooking operations on a higher setting and then turn to a lower setting to finish cooking. Each surface element provides a constant amount of heat at each setting. A glowing red surface heating area extending beyond the bottom edge of the cookware indicates the cookware is too small for the surface heating area.

4.When cooking has completed, turn the surface control knob to OFF before removing the cookware. Note: The surface “Element On” indicator lights will glow when one or more elements are turned on. A quick glance at these indicator lights when cooking is finished is an easy check to be sure all surface elements are turned off. Also, theHE message will appear in the display after turning the control knob to OFF if the cooktop is still hot and remain on until the heating surface area has cooled sufficiently.

Note: See recommended Setting for Surface Element table on page 5.

Radiant surface elements may appear to have cooled after they have been turned OFF. HE (Hot Element) message will turn ON and will continue to glow until the glass cooktop has cooled down to a moderate level. The glass surface may still be hot and burns may occur if the glass surface is touched before the indicator light has turned OFF.

s

p

e

e

d

e

l

e

m

e







n

Fig. 2

Fig. 3

Fig. 4

Fig. 5

Fig. 6

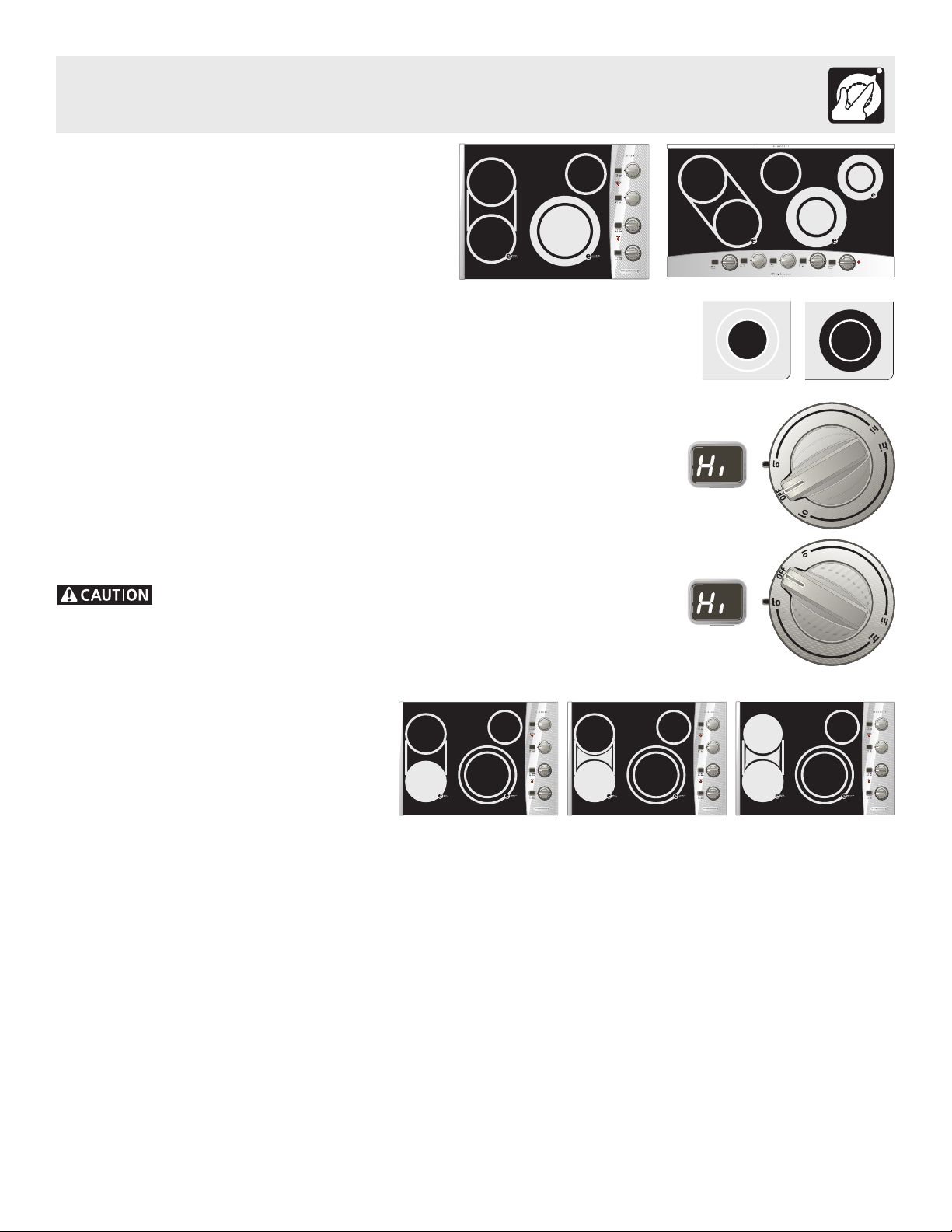

Operating the Bridge Radiant Element

This cooktop is equipped with a "Bridge" surface

element located at the left front and middle (see







Figs 7 & 8) positions. The Bridge can be used







when cooking with rectangular (like a griddle) or







oval shaped cookware (Fig. 8) The element will







maintain an even temperature setting across







both portions of the Bridge. If needed for normal

Fig. 7

Fig. 8

Fig. 9

cookware, the bridge element can work like a



(30" cooktop model shown only)



single element without the Bridge (Fig.7).











To Operate the Dual Surface Element:

1.Place correctly sized cookware on the Bridge surface element.

2.Push in and turn the control knob counterclockwise (See Figs. 5 & 7) to heat the portion of the Bridge element for normal shaped cookware orclockwise (See Figs. 6 & 8) for larger or rectangular shaped cookware.

3.Use the ESEC digital display window for the desired setting. Turn (do not push) the knob to adjust the setting as needed. Start most cooking operations on a higher setting and then turn to a lower setting to finish cooking. Each surface element provides a constant amount of heat at each setting. A glowing red surface heating area extending beyond the bottom edge of the cookware indicates the cookware is too small. Please note that not all cookware will fit the Bridge element correctly.

4.When cooking has completed, turn the surface control knob to OFF before removing the cookware. Note: The surface “Element On” indicator lights will glow when one or more elements are turned on. A quick glance at these indicator lights when cooking is finished is an easy check to be sure all surface elements are turned off. Also, theHE message will appear in the display after turning the control knob to OFF if the cooktop is still hot and remain on until the heating surface

area has cooled sufficiently.

The bridge element may also be used in combination with the left rear single element. Because these element have 2

different controls, one element can be used to cook while the other element may be used to keep food warm (see Fig. 9).

7

Surface cooking

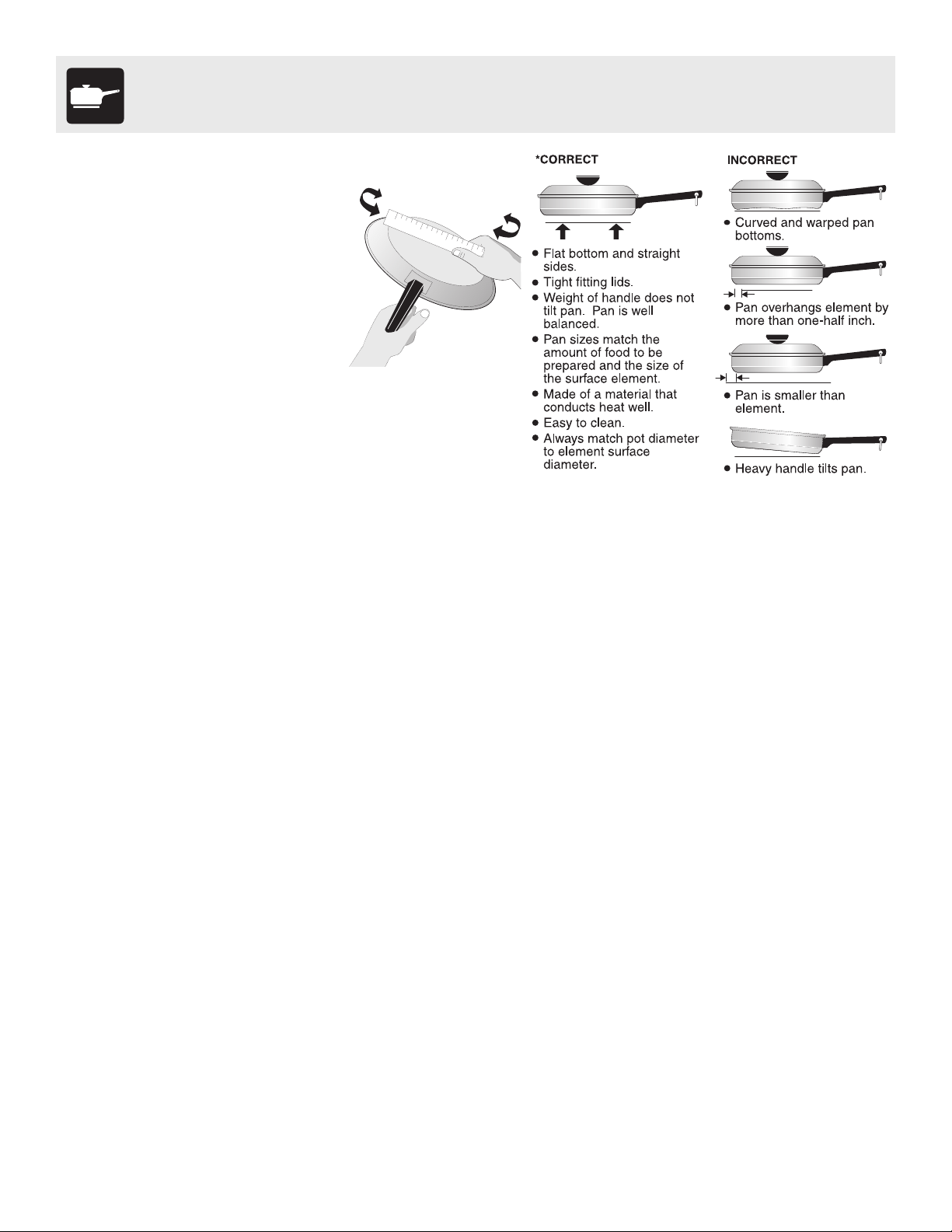

Selecting Surface Cooking Cookware

Cookware should have flat bottoms that make good contact with the entire surface heating element. Check for flatness by rotating a ruler across the bottom of the cookware (See Figure 1). Be sure to follow the recommendations for using cookware as shown in Figure 2.

Note: The size and type of cookware used will influence the setting needed for best cooking results.

Figure 1

Figure 2

Cookware Material types

The cookware material determines how evenly and quickly heat is transferred from the surface element to the pan bottom. The most popular materials available are:

ALUMINUM - Excellent heat conductor. Some types of food will cause it to darken (Anodized aluminum cookware resists staining & pitting). If aluminum pans slide across the ceramic glass cooktop, they may leave metal marks which will resemble scratches. Remove these marks immediately.

COPPER - Excellent heat conductor but discolors easily. May leave metal marks on ceramic glass (see Aluminum above).

STAINLESS STEEL - Slow heat conductor with uneven cooking results. Is durable, easy to clean and resists staining.

CAST IRON - A poor heat conductor however will retain heat very well. Cooks evenly once cooking temperature is reached. Not recommended for use on ceramic cooktops.

PORCELAIN-ENAMEL on METAL - Heating characteristics will vary depending on base material.Porcelain-enamelcoating must be smooth to avoid scratching ceramic cooktops.

GLASS - Slow heat conductor. Not recommended for ceramic cooktop surfaces because it may scratch the glass.

8

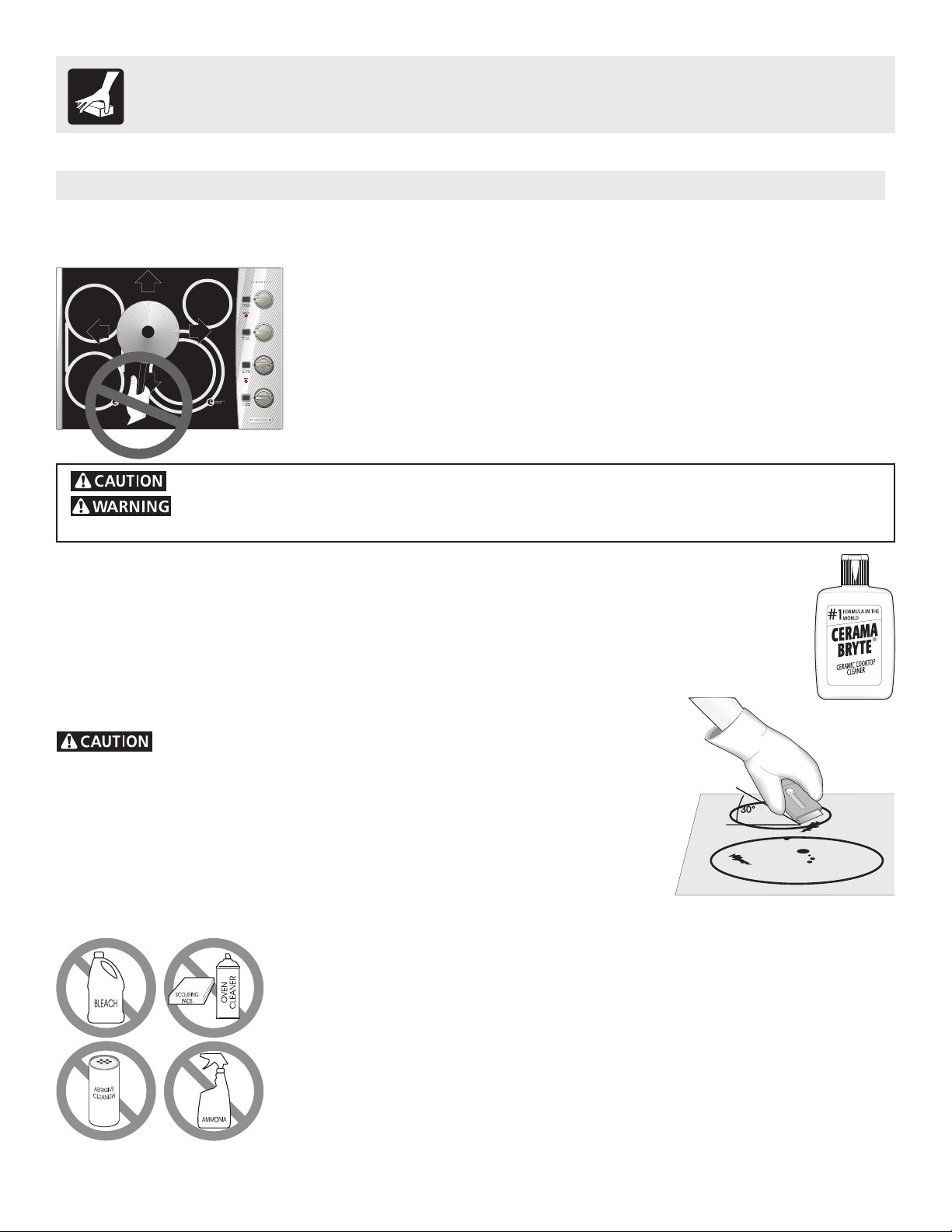

Care & Cleaning

(Cleaning Chart)

Cleaning Various Parts of Your Cooktop

Before cleaning any part of the cooktop, be sure all controls are turned OFF and the cooktop is COOL. REMOVE SPILLOVERS AND HEAVY SOILING AS SOON AS POSSIBLE. REGULAR CLEANING WILL REDUCE THE NUMBER OF MAJOR CLEANING LATER.

Surfaces

How to Clean

Aluminum (Trim Pieces)

Use hot, soapy water and a cloth or paper towel. Dry with a clean cloth.





Painted and Plastic

Using a soft cloth, clean with mild dish detergent and water or a 50/50 solution of vinegar

Control Knobs, Body Parts,

and water. Follow by rinsing the area with clean water; dry and polish with a soft cloth.

and Decorative Trim

Glass cleaners may be used if sprayed on a soft cloth first. DO NOT spray liquids directly



on the control pad and display area. Do not use large amounts of water on the control panel



- excess water on the control area may cause damage to the appliance. Do not use other



liquid cleaners, abrasive cleaners, scouring pads, or some paper towels - they will damage



the finish.





Control Panel

Wipe the control panel clean after each use. Before cleaning the control panel, turn all



controls to OFF and remove the control knobs. To remove, pull each knob straight off the



shaft. Clean using hot, soapy water and a cloth. Be sure to squeeze excess water from the



cloth before wiping the panel; especially when wiping around the controls. Excess water



in or around the controls may cause damage to the appliance. To replace knobs after



cleaning, line up the flat sides of both the knob and the shaft; then push the knob into place.

Stainless Steel, Chrome (brushed)

Decorative Trim Cooktop

Clean stainless steel with hot, soapy water and a dishcloth. Rinse with clean water and a cloth.Do not use cleaners with high concentrations of chlorides or chlorines. Do not use harsh scrubbing cleaners. Only use kitchen cleaners that are especially made for cleaning stainless steel. Always be sure to rinse the cleaners from the surface as bluish stains may occur during heating that cannot be removed.

Ceramic -Glass

See Ceramic-Glass Cooktop in this Owner's Guide.

Cooktop







9

Care & Cleaning

Ceramic Glass Cooktop Cleaning & Maintenance

Consistent and proper cleaning is essential to maintaining your Ceramic glass cooktop

Prior to using your cooktop for the first time, apply the recommended CERAMA BRYTE® Cleaning Creme to the ceramic surface. Clean and buff with a non abrasive cloth or pad. This will make cleaning easier when soiled from cooking. The special cooktop cleaning cream leaves a protective finish on the glass to help prevent scratches and abrasions.

Sliding aluminum or copper clad bottom pans on the cooktop can cause metal markings on the cooktop surface. These marks should be removed immediately after the cooktop has cooled using the cooktop cleaning cream. Metal marks can become permanent if not removed prior to future use.

Cookware (cast iron, metal, ceramic or glass) with rough bottoms can mark or scratch the cooktop surface. Do not slide anything metal or glass across the cooktop.Do not use your cooktop as a cutting board or work surface in the kitchen.Do not cook foods directly on the cooktop surface without a pan.Do not drop heavy or hard objects on the glass cooktop, or they may crack it.

Before cleaning the cooktop, be sure the controls are turned toOFF and the cooktop is COOL.

DO NOT use a cooktop cleaner on a hot cooktop. The fumes can be hazardous to your health, and can chemically damage the ceramic glass surface.

Cleaning Recommendations for the Ceramic Glass Cooktop

For light to moderate soil:

Apply a few drops of CERAMA BRYTE® Cleaning Creme directly to the cooktop. Use a paper towel or a MultiPurpose No Scratch Scrub Sponge to clean the entire cooktop surface. Make sure the cooktop is cleaned thoroughly, leaving no residue. Do not use the sponge you use to clean the cooktop for any other purpose.

For heavy, burned on soil:

First, clean the surface as described above. Then, if soils remain, carefully scrape soils with a metal razor blade scraper, holding scraper at a 30 degree angle to the surface. Remove loosened soils with

cooktop cleaning cream and buff surface clean.

Damage to the ceramic glass cooktop may occur if you use any scrub pad other than aMulti-PurposeNo Scratch Scrub Sponge.

Plastic or foods with a high sugar content:

These types of soils need be removed immediately if spilled or melted onto the ceramic cooktop surface. Permanent damage (such as pitting of the cooktop surface) may occur if not removed immediately. After turning the surface elements OFF, use a razor blade scraper or a metal spatula with a mitt and scrape the soil from the hot surface (as illustrated). Allow the cooktop to cool, and use the same method for heavy or burned on soils.

Do not use the following on the ceramic glass cooktop:

Do not use abrasive cleaners and scouring pads, such as metal and some nylon pads. They may scratch the cooktop, making it more difficult to clean.

• Do not use harsh cleaners, such as chlorine bleach, ammonia or oven cleaners, as they may etch or discolor the cooktop.

Do not use dirty sponges, cloths or paper towels, as they can leave soil or lint on the cooktop which can burn and cause discoloration.

Special Caution for Aluminum Foil and Aluminum Cooking Utensils

• Aluminum foil: Use of aluminum foil will damage the cooktop. Do not use under any circumstances.

Aluminum utensils: Since the melting point of aluminum is much lower than that of other metals, care must be taken when aluminum pots or pans are used. Pans that boil dry may

permanently damage cooktop by breaking, fusing to, or marking it.

10
