PERFORMANCE DATA NO LOAD & NO DOOR OPENINGS AT MID-POINT

CONTROL SETTING

Type A with Run/Start

65°F (18°C) Ambient

90°F (32°C) Ambient









Capacitor

Variable Speed

Standard

Variable Speed

Standard













Operating Time

74 to 84%

32 to 40%

100%

55 to 65%











Freezer Temperature

-2°to 2° F

0° to 4° F

-1°to 3° F

-1°to 3° F

-19°to-17°C

-18°to-16°C

-18°to-16°C

-18°to-16°C













Refrigerator Temperature

34° to 39° F

34° to 39° F

34° to 39° F

34° to 39° F

1° to 4° C

1° to 4° C

1° to 4° C

1° to 4° C













Low Side Pressure

5 to 12 psig

5 to 12 psig

N/A

5 to 12 psig

(cut-in)

43 to 83 kPa

43 to 83 kPa

43 to 83 kPa













Low Side Pressure

-2to 2 psig

-2to 2 psig

-2to 2 psig

-2to 2 psig

(cut-out)

-14to 14 kPa

-14to 14 kPa

-14to 14 kPa

-14to 14 kPa











High Side Pressure

90 to 105 psig

90 to 115 psig

120 to 135 psig

130 to 155 psig

(last 1/3 cycle)

621 to 724 kPa

621 to 793 kPa

827 to 931 kPa

896 to 1069 kPa











Wattage (last 1/3 cycle)

60 to 65

120 to 150

65 to 80

130 to 160











Amps (running)

.7 to 1.1

1.0 to 1.4

.9 to 1.3

1.1 to 1.5











Base Voltage

115 vac (127 vac max)

















DEFROST SPECIFICATIONS









Cabinet Size

Thermostat

Heater









Cut-in

Cut-out

Watts

Ohms













23’, 23’ CD, 26’

25° F (-4°C)

47° F (8° C)

450

30











Elecrttonic Timer - (ADC) Defrost 24 minutes every 6-96hours of compressor run time.

CONDENSER FAN MOTOR

Watts



RPM



Amps











3.1



1100 CW Opposite Shaft



0.03 Running















ICE MAKER SPECIFICATIONS











Electrical



115 vac (127 vac max)









Thermostat



Opens at 48° F ( 9° C), Closes at 15° F ( -9°C)









Heater Voltage



85 vac











ICE MAKER CONNECTOR PLUG CONNECTIONS









Wire Number



Wire Color



Connects to:











1



Green/Yellow



Ground











2



Yellow



Water Valve











3



Black



Line











4



Light Blue



Neutral











IMPORTANT: PLEASE RETURN THIS SHEET TO IT’S ORIGINAL LOCATION

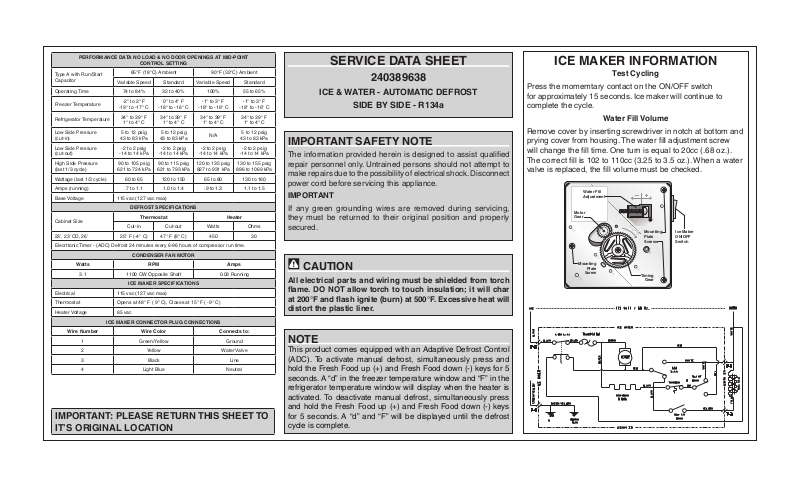

service data sheet

240389638

ICE & WATER - AUTOMATIC DEFROST

SIDE BY SIDE - R134a

important safety NOTE

The information provided herein is designed to assist qualified repair personnel only. Untrained persons should not attempt to make repairs due to the possibility of electrical shock. Disconnect power cord before servicing this appliance.

IMPORTANT

If any green grounding wires are removed during servicing, they must be returned to their original position and properly secured.

Caution

All electrical parts and wiring must be shielded from torch flame. DO NOT allow torch to touch insulation; it will char at 200°F and flash ignite (burn) at 500°F. Excessive heat will distort the plastic liner.

NOTE

This product comes equipped with an Adaptive Defrost Control (ADC). To activate manual defrost, simultaneously press and hold the Fresh Food up (+) and Fresh Food down (-)keys for 5 seconds. A “d” in the freezer temperature window and “F” in the refrigerator temperature window will display when the heater is activated. To deactivate manual defrost, simultaneously press and hold the Fresh Food up (+) and Fresh Food down(-)keys for 5 seconds. A “d” and “F” will be displayed until the defrost cycle is complete.

ice maker information

Test Cycling

Press the momemtary contact on the ON/OFF switch for approximately 15 seconds. Ice maker will continue to complete the cycle.

Water Fill Volume

Remove cover by inserting screwdriver in notch at bottom and prying cover from housing. The water fill adjustment screw will change the fill time. One turn is equal to 20cc (.68 oz.). The correct fill is 102 to 110cc (3.25 to 3.5 oz.). When a water valve is replaced, the fill volume must be checked.

Water Fill

Adjustment

Motor

Gear

T





U





R

Mounting

Ice Maker

N



Plate

ON/OFF



Screws

Switch

Mounting





Plate





Screw

Timing









Gear
