ROOM AIR CONDITIONER

SP05A10

SERVICE Manual

AIR CONDITIONER

CONTENTS

11.

Precautions

12.

Product Specifications

13.

Installation and Operating



Instructions

14.

Disassembly and Reassembly

15.

Troubleshooting

16.

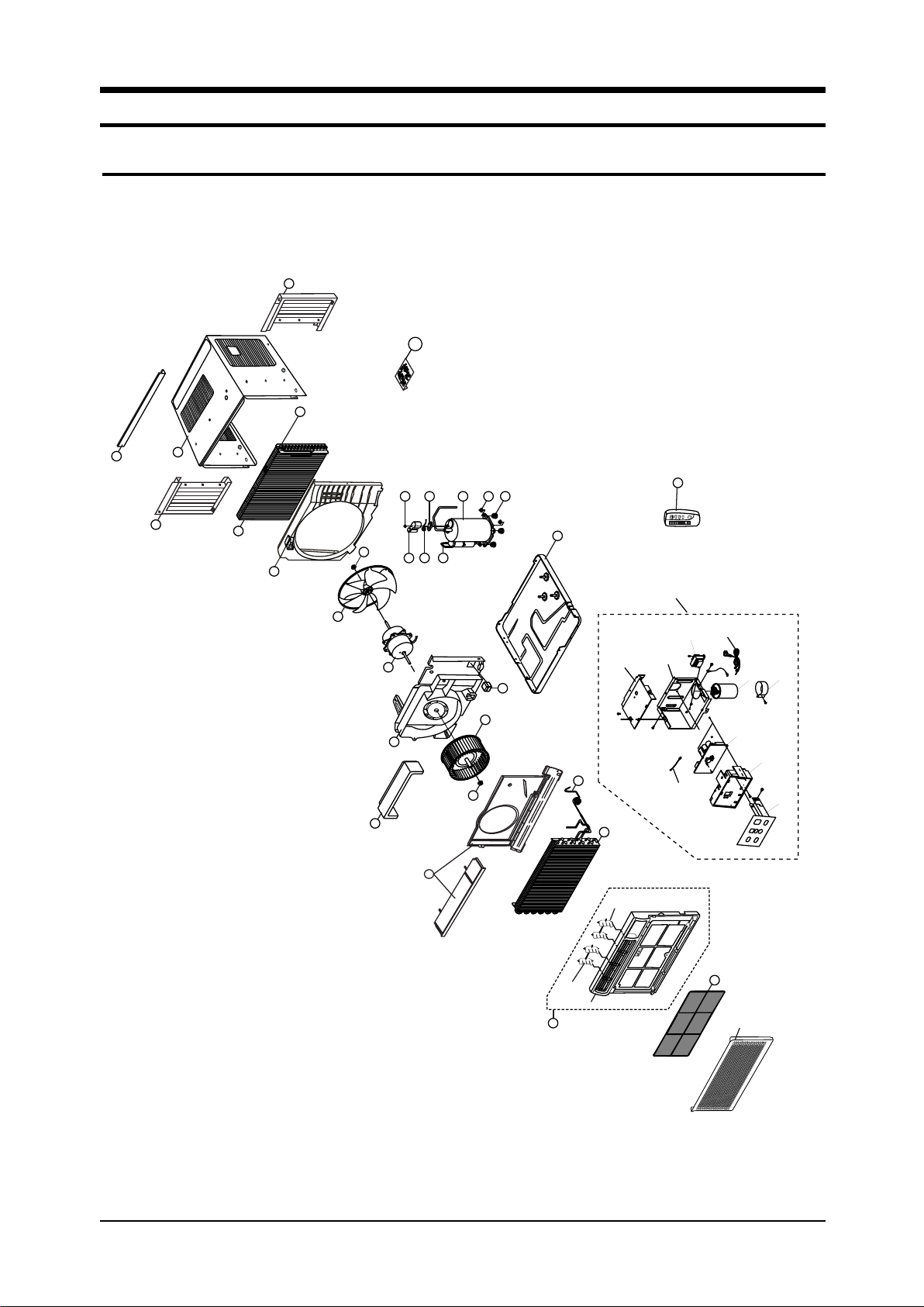

Exploded Views and Parts List

17.

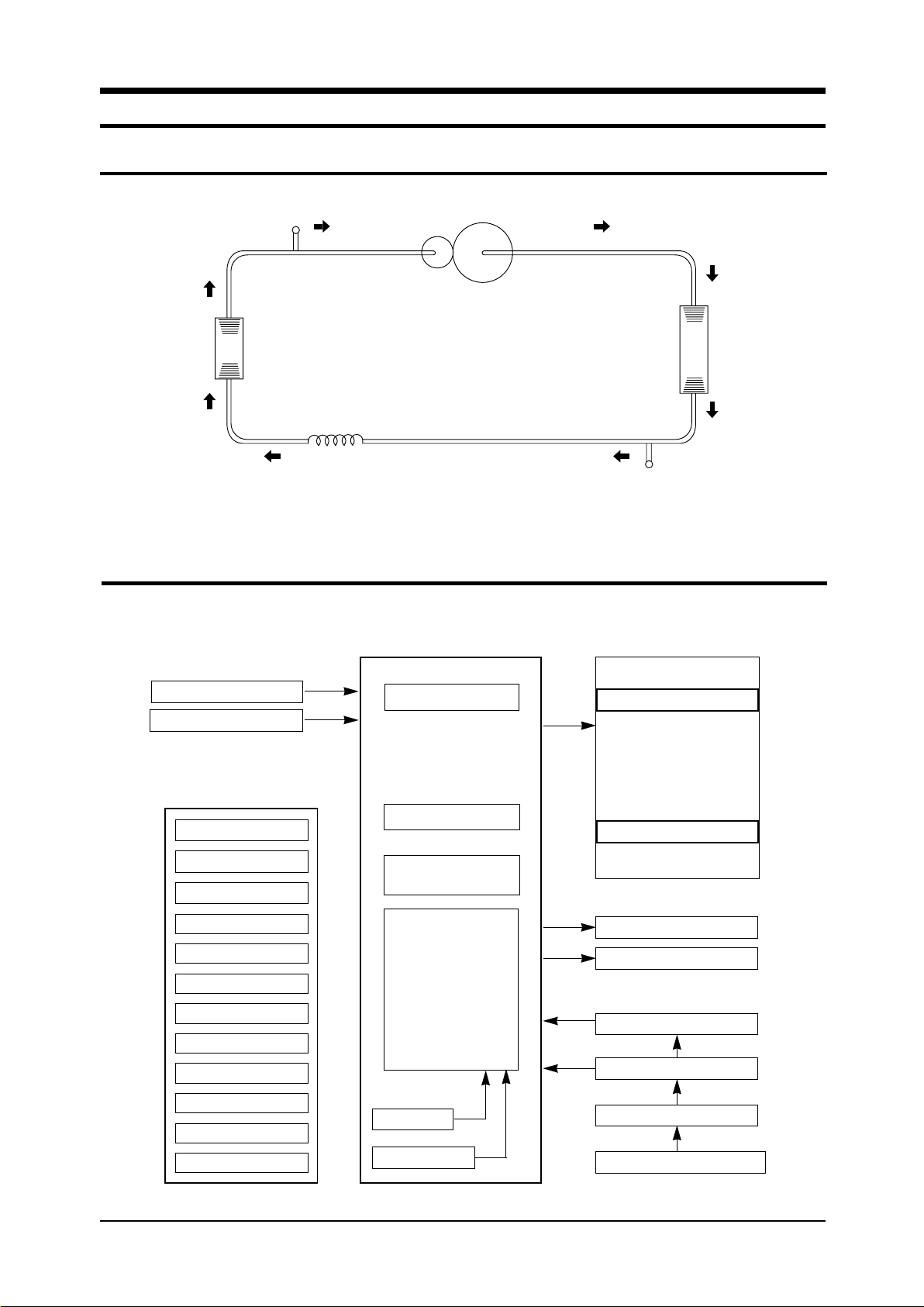

Block Diagram

18.

PCB Diagram

19.

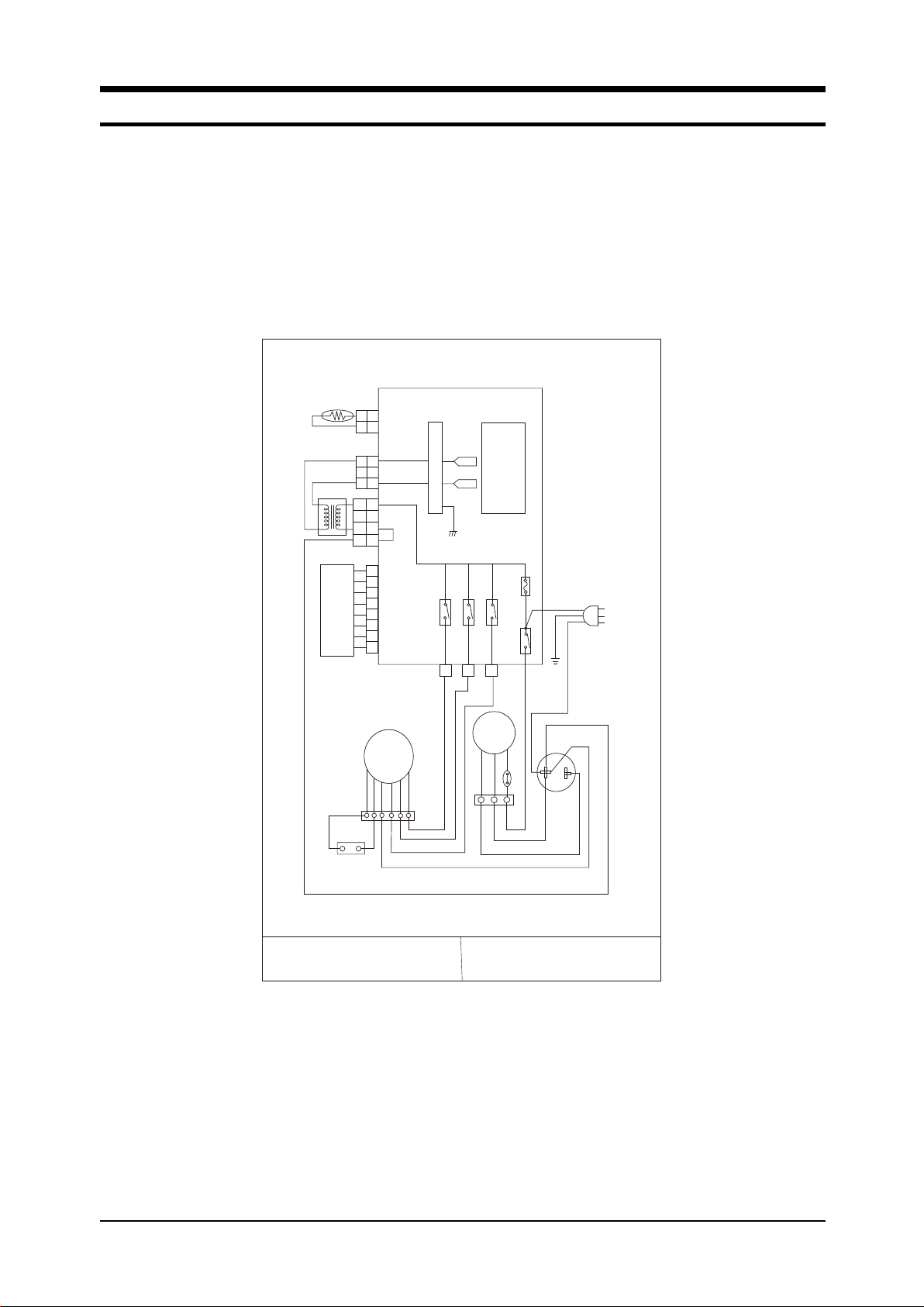

Wiring Diagram

10.

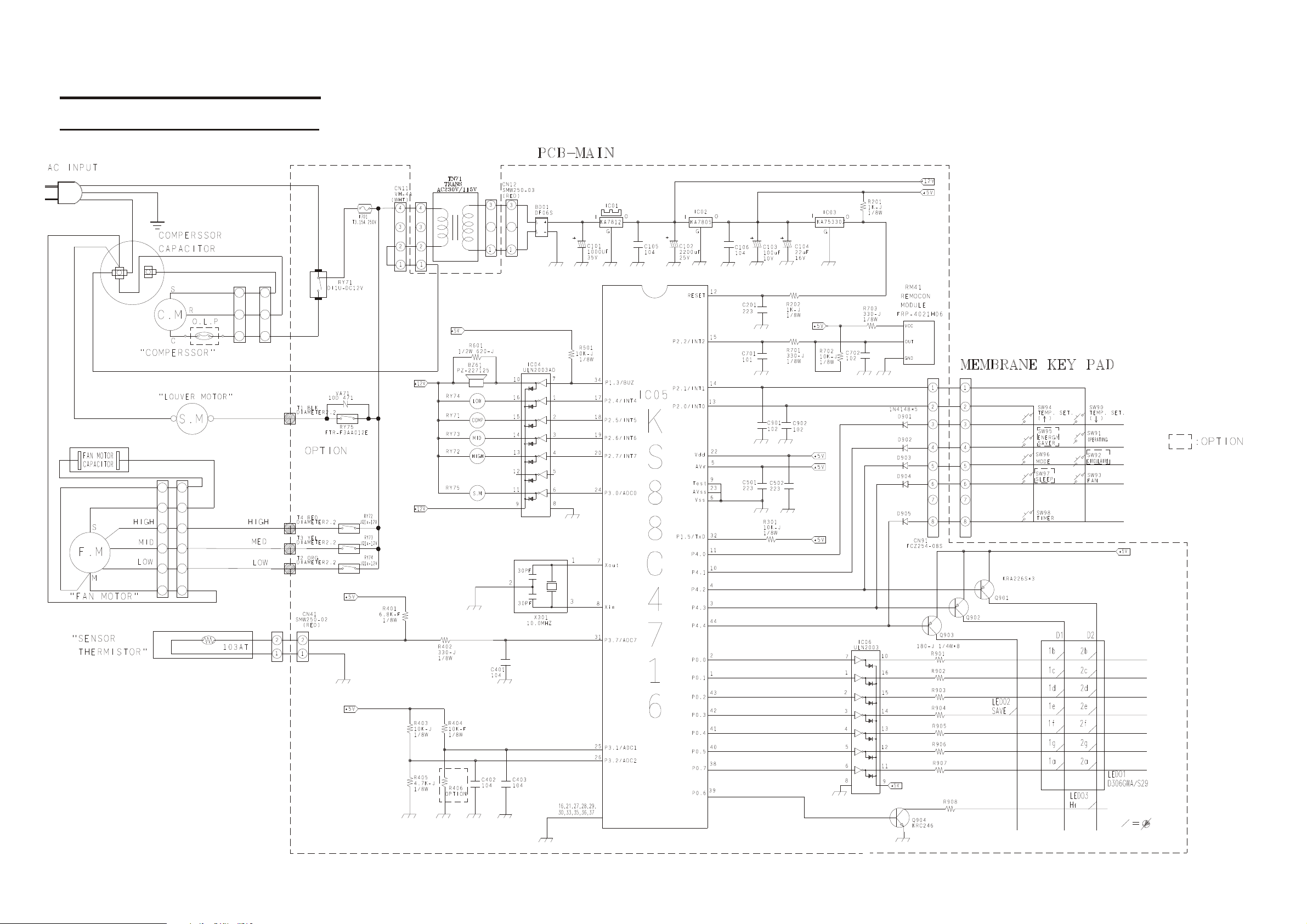

Schematic Diagram

1. Precautions

1.Warning: Prior to repair, disconnect the power cord from the circuit breaker.

2.Use proper parts: Use only exact replacement parts. (Also, we recommend replacing parts rather than repairing them.)

3.Use the proper tools: Use the proper tools and test equipment, and know how to use equipment may cause problems laterintermittent contact, for example.

4.Power Cord: Prior to repair, check the power cord and replace it if necessary.

5.Avoid using an extension cord, and avoid tapping into a power cord. This practice may result in malfunction or fire.

6.After completing repairs and reassembly, check the insulation resistance.

Procedure: Prior to applying power, measure the resistance between the power cord and the ground terminal. The resistance must be greater than 30 megaohms.

7.Make sure that the grounds are adequate.

8.Make sure that the installation conditions are satisfactory.

Relocate the unit if necessary.

9.Keep children away from the unit while it is being repaired.

10.Be sure to clean the unit and its surrounding area.

Fig. 1-1Avoid Dangerous Contact

Fig. 1-2No Tapping and No Extension Cords

Fig. 1-3No Kids Nearby!

Fig. 1-4Clean the Unit

FRIEDRICH AIR CONDITIONING CO.

1-1

2.Product Specifications

2-1Table

Item

Unit of

SP05A10

REMARK

Measure















Type



WINDOW



Dimension:

mm

424×310×326



(Width×Height×Depth)

















Voltage

Volt

115



Phase

-

SINGLE



Frequency

Hz

60



Operation Current

A

4.6



Power Consumption

W

500



Refrigerant Type

FREON

R22



Refrigerant Change

g

300



Capacity

BTU/h

5400



EER

BTU/h.W

10.8



Net Weight

Kg

18.5



Condenser

Row

2×15



Condenser Fan

Type

Propeller Fan



Evaporator

Row

2×10



Evaporator Fan

Type

Blower



Fan Motor

MODEL

YGN50-6K(E)



Compressor(Rotary)

MODEL

39A050HS1KA



Overload Protect

-

MRA12145-12008



Compressor Capacitor

μF/VAC

35/270

Two Capacitor combined to be the one









Fan Motor Capacitor

μF/VAC

3.5/270

with below spec: 35/3.5µF 270VAC

Fan Speed

RPM

1060/1010/960



Thermo Control

-

THERMISTOR



FRIEDRICH AIR CONDITIONING CO.

2-1

MEMO

2-3

FRIEDRICH AIR CONDITIONING CO.

2-2Dimensions

2-2-1Main Unit

(Unit : mm)

326

Front view

Side view

310

310

424

2-2-2Remote Control

Remote control



transmission indicator

Mode selection button





Operating mode

(Cool, Fan, Dry)

( Cool, Dry,

Fan)



Temperature setting

Temperature adjustment





buttons

Sleep mode

Sleep timer setting button



Energy Saving mode

Fan speed adjustment



Fan speed

button

Energy Saving button



On Timer setting

Timer setting button



Off Timer setting

Timer Set/Cancel button



Battery discharge indicator





On/Off button

2-4

FRIEDRICH AIR CONDITIONING CO.

3. Installation and Operating Instructions

3-1Installation

3-1-1Selecting Area for Installation

1.Make sure that you install the unit in an area providing good ventilation. The air conditioner must not be blocked by any obstacle affecting the air flow near the air inlet and air outlet.

2.Make sure that you install the unit in an area that allow good air handling. The installation area must be able to endure vibration from the unit.

3.Make sure that you install the unit away from heat or vapor.

4.Make sure that you install the unit in an area which is cool and has adequate space.

5.Make sure that you install the unit in an area away from TVs, audio units, cordless phones, fluorescent lighting fixtures and other electrical appliances (obtain a clearance of at least one meter).

6.Make sure that you install the unit in an area which provides easy drainage for condensed water.

7.Make sure that you install the unit in an area not exposed to rain or direct sunlight.

(Install a separate sunblind if exposed to direct sunlight.)

8.Make sure that you install the unit in an area allowing good air movement. Do not install it in a space that would cause noise amplification of noise.

9.Fix the unit firmly if mounted in a high place.

Caution:

Do not use the air conditioner in the following environments : greasy areas (including areas near machines), or marine areas. Contact your local dealer for advice.

FRIEDRICH AIR CONDITIONING CO.

3-1

3-2Function Description

3-2-1Cooling operation mode

The compressor is turned on and off according to the ambient temperature and set temperature.

1)Compressor on and off control

Compressor on and off control according to the ambient temperature

*The compressor is turned off when "ambient temperature = set temperature

*The compressor is turned on when "ambient temperature = set temperature +1˚C"

2)Default value after power reset set temperature = 75˚F

Fan speed = High

3) Set temperature indicating (setting) range : 1˚F interval from 64˚F to 86˚F.

3-2-2Fan operation mode

1)If "Fan operation mode" signal is received from remocon or panel.

the compressor is immediately turned off and only fan motor is operated at set blowing speed.

it changes such as "High Med Low High"( if Fan speed is selected).

2)The initial Fan motor speed is set to "High".

3)The set temperature can not be indicated and set.

3-2-3Energy saver operation mode

*If the compressor turn off at the cooling operation, the fan motor turn off after operation during the fixation time only, and operation that energy saver by turn off the fixation time only, and operation that energy saver by turn off the motor continuously before the condition of the compressor on.

*The fan motor is not operated at flow wind operation.

*Energy saver operation specification at the cooling operation.

1)Fan motor control in compressor on : operate with setting wind speed

2)Fan motor control in compressor off : After compressor off, the fan motor is operated breeze for 2 minutes and then it turn off.

3)After the fan motor off, the compressor and fan motor is operated normally when the compressor on.

3-2

FRIEDRICH AIR CONDITIONING CO.

Installation and Operating Instructions

3-2-4Sleep operation mode

1)Enable to sleep operation only when cooling operation.

2)First, 7-SEGLED DISPLAY "SLEEP" while 15 second, Second,7-SEGLED DISPLAY "8Hr" And, automatically SET OFF after operated while 8 Hour

3)If sleep operation, setting Temperature rise 1˚C after 1 Hour

4)ON TIMER operation, not operation, ENERGY SAVER operation, not sleep operation.

3-2-5Dry operation mode

If the atmosphere in the room is very humid or damp,use this operation mode. It can remove excess humidity without lowering the room temperature too much.

1) The quantity of air is adjusted automatically.

3-2-6LED display indication in case of error detection

ERROR OPERATION

7-SEG

LED DISPLAY



ROOM THERMISTOR

E1 displayed

(OPEN or SHORT)



1)Set operation in case of error occurrence.

Malfunction of each temperature sensor (open, short)

-Error mode display, warning sound.

-The operation status is off.

FRIEDRICH AIR CONDITIONING CO.

3-3

MEMO

3-4

FRIEDRICH AIR CONDITIONING CO.

4. Disassembly and Reassembly

4-1Compressor Replacement Flow Chart





Locate cause of defect







Release refrigerant







Disconnect electrical wiring







from compressor







Cut refrigerant lines







from compressor







Plug disconnected lines







Replace compressor



Inspect electrical

Solder discharge line

Solder suction line

Use nitrogen gas

wiring for defects,







and terminals for







correct and secure







connections













Perform soldering function

Y







Problem?













Fill system with







nitrogen gas

N













Check for leakage

Corrective action





Y

Check refrigerant oil level

Leakage?











N

Release nitrogen gas?

Y N

Low oil level?

Evacuate system

Add oil as necessary

Recharge system

Pinch and braze filling tube

FRIEDRICH AIR CONDITIONING CO.

4-1

4-2Checking the oil

Fill the transparent container with 10cc of oil, and then conduct the test.

4-2-1Oil quality

Condition of



Oil Condition

Remarks

Refrigerant Cycle

Color



Odor















Normal

Straw Yellow



No Odor

Return with the system











Over-heated

Brown Color



-

Change the oil











Compressor Damage

Dark Brown



Pungent oil

Change the oil











4-2-2Replacing and refilling the refrigerant oil

1. Change the compressor - DO NOT recharge the oil as the compressor itself is already charged.

2.Change the condenser .... add 50cc

3.Change the evaporator .... add 50cc

4.When the refrigerant is replaced .... add 30cc oil.

5.After vacuum is completed, the oil is filled through the high pressure side.

6.In the event of a refrigerant leak, generally it is not necessary to add oil. (Unless the oil has leaked significantly.)

4-2

FRIEDRICH AIR CONDITIONING CO.

4-3.Disassemblyand Reassembly Procedure(SP05A10)

Stop operating the air conditioner, and pull out the power cord before repair.

No.

Part Name

Procedures

Remarks











1

Ass’y Grille

1.Pull the Grille air inlet and Guard air filter out.









2.Remove the screw on the panel front.









3.Hold the lower part of panel with two hands









while pressing down on both sides of the lower









part of the cabinet, pull it forward by about









30mm,and then lift it up carefully for removal.















2

Ass’y Cabinet

1.Remove all screws on the both side of the









cabinet .









2.Take the cabinet upward.















3

Ass’y Control

1.Remove the earth screw fixed on the base.









2.Remove 3 screws fixed on the partition.









3.Remove the screw fixed for the power cord.









4.Un-connectthe motor wire and comp lead









wire, then take out the control box upward.











(The picture maybe have a little







different from actual product)

















FRIEDRICH AIR CONDITIONING CO.

4-3

Disassembly and Reassembly Procedure(SP05A10)



No.

Part Name

Procedures

Remarks















4

CASE EVAP

1.Take the case evap up forward carefully.









UP & ASSY

(tear all the seal on it before )









EVAP













2.Pull the frame up upward.



















5

Blower

1.Remove all screws on the evaporator.











2.Pull the evaporator from frame low carefully.











3.Remove the nut and remove the Blower.



















6

Case Cond &

1.Remove 2 screws on the rear side of the









Fan Propeller

base pan, and all screws fixed on case cond.









& Motor Fan













2.Pull up the condenser from the base pan.











3.Remove the nut and remove the Propeller











fan.











4.Remove the screw fixed on the partition and











earth screw fixed on the base pan, then take











out the motor backward.



























4-4



FRIEDRICH AIR CONDITIONING CO.

5. Troubleshooting

Check the basic checkpoints first to determine whether it is machine trouble or a problem in the operation method. When it is not related to the basic checkpoints, perform checking in accordance with the procedures of troubleshooting by symptom.

5-1Basic Checkpoints for Troubleshooting

1)Is the voltage of the power source appropriate ?

(1)It should be within the rating voltage ±10% range.

(2)The air conditioner may not operate properly when the voltage is out of this range.

2)Is the connection with the fan motor, compressor wire, and starting condenser appropriately made ?

3)The symptoms listed in the table below are not indicative of machine trouble.

Symptom

Cause and check





No operation

• Check whether there is power failure or the power plug is pulled out.



• Check whether the unit is stopped as a result of completion



of the sleep time.



• Pull out the power plug for ten seconds, and then insert it again.





Air flows, but

• Check whether the Air filter is clogged with dust or is dirty.

no cooling

• Check whether the desired temperature is too high. Set the desired



temperature to a lower level than the current temperature.



• Check whether it is in "FAN" mode.





The remocon does

• Check whether battery is completely depleted.

not operate

• Check whether the battery is properly inserted.



• Check whether the receiving window of the remocon for the assembly



main PCB is blinded.



• Check whether the remocon is affected by jamming due to a neon sign.





No temperature

• Check whether the unit is in "FAN" mode.

setting

(In "FAN" mode, only the current temperature is displayed, and the



desired temperature is not set.)





Checking and Display of Fault Area

ERROR OPERATION

ERROR OPERATION

ROOM THERMISTOR (OPEN OR SHORT)

E1 displayed

FRIEDRICH AIR CONDITIONING CO.

5-1

5-2Troubleshooting by Symptom

5-2-1No power

1)Check points

(1)Is the voltage of the power source normal ? (the rating voltage ±10% range.)

(2)Is the electric wire in good contact ?(CN 71, RY 71)

(3)Is the output voltage of the IC01(KA 7812) normal ?(DC 11.5V ~ DC 12.5V)

(4)Is the output voltage of the IC02(KA 7805) normal ?(DC 4.5V ~ DC 5.5V)

Turn off the power, and then turn it on again five seconds later.

Dose the buzzer sound, when the power on?

N

Check whether the "COOLING ICON" LED lamp is on, and the operation starts when pressing the ON/OFF button of the remocon.

N

Is the F701(3.15A) fuse blown?

N

Is the primary voltage of the transformer normal? (the rating voltage ±10% range.)

Y

Is the secondary voltage of the transformer normal? (AC 13V ~ AC 17V)

Y

Is the rectifier diode bridge(BD61) normal?

Y

-Is the voltage of DC 17V ~ DC 23V applied at both ends of the C101 electrolytic condenser?

-Is the voltage of DC 12V applied at both ends of the C102 electrolytic condenser?

-Is the voltage of DC 5V applied at both ends of the C103 electrolytic condenser?

Y

Are the IC01(KA7812) or IC02(KA7805) normal?

Y

Y

Normal operation.

Y

Normal operation.

Y









Replace the fuse.





N





















Check the power cord and electric wire.





N





















Check and replace the trans.





N













• Check the BD61 for cold









soldering.

















• Replace the rectifier diode





























• Check both ends of the C101 for





N

short and cold soldering.









• Check the +12V for a short.

















• Check the +5V for a short.









• Check and replace the C101~104.





N













• Check the IC01 or IC02 for cold









soldering and a short.

















• Replace the IC01 or IC02.











Replace the assembly main PCB.

5-2

FRIEDRICH AIR CONDITIONING CO.

5-2-2When the Touch Key pad and Led Display

1)Check points

(1)Is the voltage of the power source normal ? (the rating voltage ±10% range.)

(2)Is the electric wire in good contact ?(CN71, RY71)

(3)Is the connection of the assembly main PCB, and TOUCH KEY PAD in good contact? (SW01-SW05)

Turn off the power, and then turn it on again five seconds later.

Normal operation

Check the micom (IC05) for a short, and replace it.

Check the micom (IC05) for a short, and replace it.

Check the Q901~ Q905 for a short, and replace it.

Check the IC06 for a short, and replace it.

N



When the LED display is







not operated.









Y









N



Is the voltage of the micom



(IC05) No.1, 2, 38~43 port a

















square wave?









Y









N



Is the voltage of the micom







(IC05) No.3, 4, 10, 11, 44 port











a square wave?









Y









N



Is the voltage of the













Q901 ~ Q905 square wave?









Y























N





Is the voltage of the







IC06 No. 10~16 a square













value?











When the membrane key is



N



not operated.















Y

























Is the voltage of the



N



micom (IC05) No.13, 14 port













a square wave?









Y















Is the voltage of the micom



N



(IC05) No.3, 4, 10, 11, 44













port a square wave?









Y







































Replace the membrane









key pad.





















Y

Replace the membrane key pad

Troubleshooting

Normal operation

Check the micom (IC05) for a short, and replace it.

Check the micom (IC05) for a short, and replace it.

FRIEDRICH AIR CONDITIONING CO.

5-3

Troubleshooting

5-2-3When the remocon is not operated

1)Check points

(1)Is the voltage of the power source normal ? (the rating voltage ±10% range. )

(2)Is the electric wire in good contact ? (CN71, RY71)

(3)Is the assembly main PCB in good contact with the TOUCH KEY PAD(SW01-SW05)

(4)Is the battery voltage of the remocon above DC 2.7V?

Turn off the power, and then turn it on again five seconds later.

Dose the Buzzer sound, when the power on?

Y

Check whether the "COOLING ICON" LED lamp is on and th operation starts when pressing the

on/off button of the remocon.

N

Is the battery voltage of the remocon above DC 2.7V?

Y

Does the X-TAL(RJ455JB) oscillate normally?

Y

Is the collector voltage of the remocon Q1, Q2 a square wave?

Y

Is the input voltage of the micom(IC05) No.15 pin of the assembly main PCB a aquare wave?

Y

N

Y

N

N

N

N

Go to the clause "No power".

The remocon is normally operated.

Replace the battery.

Check the X-TALfor cold soldering and a short.

Replace relevant components.

Check the micom(ICT1) Q1, and Q2 for cold soldering and a short.

Replace relevant components.

Check the R415 components.

Check the assembly main PCB micom(IC05).

Replace the assembly main PCB.

5-4

FRIEDRICH AIR CONDITIONING CO.

Troubleshooting

5-2-4When the compressor is not operated

1)Check points

(1)Is the voltage of the power source normal ? (the rating voltage ±10% range. )

(2)Is the desired temperature lower than the indoor temperature in the “COOL” mode? (Compressor stopped)

(3)Is the starting condenser in good contact?

(4)Is the electric wire in good contact ? (CN71, RY71)

(5)Is the output voltage of the IC01(KA7812) and IC02(KA7805) normal ?

Turn off the power, and then turn it on again five seconds later.

Dose the Buzzer sound, when the power on?

Y

Check whether the "COOLING ICON" LED lamp is on and the operation starts when pressing the on/off button of the remocon.

Y

Check whether the compressor is activated in three minutes after turning on the power with the "CoolING ICON" LED lamp being switched on when selecting the

cool mode of the remocon.

N

Is the IC03 output normal?

- When the compressor is on, IC03 No. 13 pin → Low.

Y

Does the relay(RY71) operate normally?

- When the compressor is ON, the RY71 should operate.

Y

Is the compressor normal?

Y

N

N

Y

N

N

N

Go to the clause "No power".

Go to the clause "when he remocon does not operate".

Normal operation.

Check the IC03 for short and cold soldering.

Replace the IC03.

Check the relay coil resistance.

(resistance : About 150Ω ±20Ω )

Replace the relay.

Check the operation of the O.L.P, and replace it if necessary.

Check the compressor

resistance.(0Ω : short, ∞Ω : open)

Replace the compressor.

FRIEDRICH AIR CONDITIONING CO.

5-5

Troubleshooting

5-2-5When the fan motor does not operated

1)Check points

(1)Is the voltage of the power source normal ? (the rating voltage ±10% range. )

(2)Is the electric wire in good contact ?(CN71, RY71)

(3)Is the starting condenser(FAN MOTOR) in good contact?

(4)Is the fan motor connector in good contact?(CN73)

(5)Is the output voltage of the IC01(KA7812) and IC02(KA7805) normal ?

Turn off the power, and then turn it on again five seconds later.

Dose the buzzer sound, when the power on?

Y

Check whether the "COOLING ICON" LED lamp is on and the operation starts when pressing the

on/off button of the remocon.

Y

Is the IC03 output normal?



- When the fan motor is High, IC03 No. 12 pin →

Low.

- When the fan motor is Med, IC03 NO. 14 pin →

LOW.

- When the fan motor is Low, IC03 No. 15 pin →

Low.

Y

Does the relay(RY 72, 73,74) operate normally?

-When the fan motor is High, RY74 should operate.

-When the fan motor is Med, RY73 should operate.

-When the fan motor is Low, RY72 should operate.

Y

Is the fan motor normal?

Y

N

N

N

N

N

Go to the clause "No power".

Go to the clause of "when the remocon does not operated".

Check the IC03 for a short and cold soldering.

Replace the IC03.

Check the relay coil resistance. (Normal: About 400Ω )

Replace the relay.

Check the fan motor resistance.

(0Ω : short, ∞Ω : open)

• Check the fan motor thermal fuse?

Replace the fan motor.

FRIEDRICH AIR CONDITIONING CO.

5-7

.CO CONDITIONING AIR FRIEDRICH

1-6

EXPLODED VIEW

18

ViewExploded.6

SP05A10

unitMain16-







16





17





15

and



20



14





19

Parts



12







13

List



9



8





11









25

23







32

5





28





24





21











6





22











7





26













10



27









1

31

1-3

301-1

4

1-2

2



29-2



29-5

29

33

29-9





3







29-4



1-4

29-6









29-8





29-7



29-1

29-3







Exploded View and Parts List

■Part List

No

Description

Code No.

Specification

Q'TY







SP05A10

























1

ASSY PANEL FRONT

DB92-00393B

ASSY,TOP,SEA

1



1-1

PANEL FRONT

DB64-00680A

HIPS,T2

1



1-2

BLADE V

DB66-00367A

HIPS,T2.0

4



1-3

LINK BLADE

DB66-00368A

PP,L82,T1.3

2



1-4

GRILLE AIR INLET

DB64-00681B

HIPS,T2

1



2

CASE CONTROL UP

DB61-00933A

SGCC-M,T0.7

1



3

FILTER

DB63-00600A

HIPS,T2.5

1



4

EVAPORATOR

DB96-01972A

2R×10S,FP1.3

1



5

ASSY-PLATEEVAP CASING

DB90-00898A

ASSY

1



6

NUT-FRANGE

DB60-30004A

2C M6 SM20C NTR

1



7

BLOWER

DB67-00099A

ABS,-,OK_TOP-P/J

1



8

ASSY-EVAPCASE UP

DB90-00944A

25FO-PS

1



9

PLATE-PARTITION

DB70-00219A

ABS,-,T2.5

1



10

INSULATION-TUBE

DB72-50178A

T30,W36,L34,NBR

1



11

MOTOR

DB31-00035K

YGN50-6K

1



12

FAN-PROPELLER

DB67-00014A

ABS,290,OK-PJT

1



13

NUT-FRANGE

DB60-30020A

M6,LEFT

1



14

CASE COND

DB61-00932A

PP,T2,W378,L308

1



15

ASSY-COND

DB96-02044A

2R×15S,FP1.5

1



16

ASSY SHUTTER-LF

DB92-00336A

PVC,SC-94445R

1



17

ASSY CABINET

DB90-00912A

Y-PJT,TOP

1



18

SHUTTER-ANGLEUP

DB64-00518A

SECC-P,T1,W8

1



19

ASSY SHUTTER-RH

DB92-00337A

PVC,SC-94445R

1



20

TUBE DISCHARGE

DB62-01349A

C1220T-0

1



21

TUBE SUCTION

DB62-01314A

C1220T-0

1



22

COMPRESSOR

39A050HS1KA

115V 60Hz 1Ph

1



23

NUT-TERMINALCOVER

DB60-30001A

M5,-,SM20C

1



24

GASKET

DB63-20003A

EPDM,T0.8

1



25

COVER-TERMINAL

DB63-10026A

GE,-,NORYL,-,SEI-701

1



26

NUT WASHER

DB60-30028A

M8,ZPC

3



27

GROMMET-ISOLATOR

DB73-00016A

EPDM,-,BLK,OK-PJT

3



28

O.L.P

DB35-00006F



1



29

ASSY CONTROL BOX

DB93-01357G

5K,ELEC,A

1



29-1

SWITCH MEMBRANE

DB34-00019F

76.8*114.5

1



29-2

CASE CONTROL-LOW

DB61-00934A

Y-PJT,SGCC-M,T0.7

1



29-3

CLIP-CAPACITOR

DB65-00031A

SGCC-M,T0.45

1



29-4

POWER CORD

DB39-00343G

125V,15,AWG18

1



29-5

THERMISTOR

DB32-10051D

10K/25,-,3425K

1



29-6

ASSY PCB MAIN

DB93-00874U

SEA 5K TOP,ELECTRONIC

1



29-7

PANEL CONTROL

DB64-00571A

ABS(V5),T2

1



29-8

C-OIL

2501-001290

3.5/35µF,270VAC

1



29-9

TRANSFORMER

DB26-00006G

AC115V,50/60HZ,DC17V

1



30

TUBE CAPILLARY

DB62-01315A

C1220T-H

1



31

ASSY BASE

DB90-00897A

MSWR10,M8,L10

1



32

ASSY-SCREW

DB97-90014K

OK-P/J

1



33

ASSY REMOCON

DB93-01433F

OK-PJT,ARC-724

1



























6-2

FRIEDRICH AIR CONDITIONING CO.

7. Block Diagram

7-1Refrigerating Cycle Block Diagram

PINCH PIPE

SUCTION LINE

DISCHARGE LINE

(SERVICE VALVE)



ACCUMULATOR/COMPRESSOR



EVAPORATOR



CONDENSER

CAPILLARY TUBE

PINCH PIPE (SERVICE VALVE)

7-2Basic Structure





7-2-1Micom Control Diagram







MAIN MICOM



Room Temperature sensor

A/D converter

Membrane Pad control

(Key operation)



Receiving Unit of Remocon



• Energe saver





• Temp.set(↑ , ↓ )





• Operation, Mode





• Swing, Sleep

(Remote Control)



• Fan select, Timer

Operation

Led display control

(Remocon control)



Dry

Remocon Single

• Remocon single control

Timer

Receiving







Sleep



Compressor

Fan speed (high)

• Compressor control

Fan motor



Fan speed (med)

• Buzzer control







Fan speed (low)

• Temperature control

Power circuit (DC 5V)



Fan

• Fan motor control







Cool



Powercircuit (DC 12V)





Energy saver



Down Trans (AC15V)



Reset Circuit

Temp.setting(↑ )







Temp.setting(↓ )

Oscillation Circuit

Power input (AC220V)



FRIEDRICH AIR CONDITIONING CO.

7-1

Block Diagram

7-2-2Micom pin assignment

KS88C4716

SEG-DATA(c)



1

P0.1

P4.4

44



GRID5





SEG-DATA(b)



2

P0.0

P0.2

43



SEG-DATA(d)





GRID4



3

P4.3

P0.3

42



SEG-DATA(e)





GRID3



4

P4.2

P0.4

41



SEG-DATA(f)





Vcc



5

VDD

P0.5

40



SEG-DATA(g)





Vss



6

VSS

P0.6

39



SEG-DATA(h)





10MHz RESONATOR



7

Xout

P0.7

38



SEG-DATA(a)





10MHz RESONATOR



8

Xin

P1.0

37



EEPROM CLK





TEST



9

TEST

P1.1

36



EEPROM IN





GRID2



10

P4.1

P1.2

35



EEPROM OUT





GRDI1



11

P4.0

P1.3

34



BUZZER





RESET IC OUTPUT



12

RESET

P1.4

33



OPTION





KEY-IN1



13

P2.0

P1.5

32



JIG OUTPUT





KEY-IN2



14

P2.1

P3.7

31



OPTION





REMOCON



15

P2.2

P3.6

30



SENSOR THERMIS-





EEPROM CS



16

P2.3

P3.5

29



TOR(103AT)





LOW FAN



17

P2.4

P3.4

28



OPTION





COMPERSSOR



18

P2.5

P3.3

27



OPTION





MIDDLE FAN



19

P2.6

P3.2

26



OPTION





HIGH FAN



20

P2.7

P3.1

25



OPTION





4-WAYVALVE



21

P4.5

P3.0

24



SAVE OPTION





Vcc



22

AVref

AVss

23



SWING MOTOR



















GND















7-2

FRIEDRICH AIR CONDITIONING CO.

8. PCB DIGRAM

8-1ASSY MAIN PCB

MAIN PCB:DB93-00874U

Front Side

Back Side

8-1

FRIEDRICH AIR CONDITIONING C0.

PCB PARTS

■Part List DB93-00874U

NO.

DESCRIPTION

SPECIFICATION

Q'TY

REMARK

1

DIODE BRIDGE

DE06S

1

BD01

2

VARISTOR

10D 471

1

VA71

3

IC DRIVE

ULN2003AD

2

IC04,IC06

4

IC

KA7533OZ

1

IC03

5

IC-VOLTREGU

KA7805

1

IC02

6

IC-VOLTREGU

KA7812

1

IC01

7

SCREW TAPPING

PH3*8

1

IC01

8

HEAT SINK

L15 W15 H25

1

IC01

9

C-AL

2200uF 25V

1

C102

10

C-AL

1000uF 35V

1

C101

11

C-AL

100uF 10V

1

C103

12

C-AL

22uF 16V

1

C104

13

CONNECTOR WAFER

FCZ254-08SL

1

CN91

14

CONNECTOR WAFER

VH-4A,WHT

1

CN11

15

CONNECTOR WAFER

TJC3-2A,RED

1

CN41

16

CONNECTOR WAFER

TJC3-3A,RED

1

CN12

17

FUSE

250V 3015A

1

F701

18

FUSE HOLDER

HF-004/J

2

F701

19

BUZZER

PZ-227125

1

BZ61

20

R-CARBON

620 OHM 1/2W

1

R601

21

REMOCON MODULE

FRP-4021H6

1

RM41

22

JUMPER WIRE

PH0.6 7.5mm

17

JP3~JP10,JP12,JP14~JP18,JP21,JP24,JP25

23

JUMPER WIRE

2012 TYPE

2

JP11,JP22

24

JUMPER WIRE

3216 TYPE

5

JP1,JP2,JP19,JP20,JP23

25

PCB-MAIN

FR-1112*65*1.6mm

1

-

26

R-CHIP

180,3216,10%

8

R90~R908

27

R-CHIP

330,2012,5%

3

R402,R701,R703

28

R-METAL

10K,1/8W 1%

1

R404

29

R-METAL

6,8K,1/8W 1%

1

R401

30

R-CARBON

10K,2012,5%

4

R301,R403,R501,R502

31

R-CARBON

1K,2012,5%

2

R201,R202

32

R-METAL

5.4K,1/8W,1%

1

R406

33

C-CHIP

104Z,2012,50V

5

C105,C106,C401~C403

34

C-CHIP

223Z,2012,50V

3

C201,C501,C502

35

C-CHIP

101K,2012,50V

1

C701

36

C-CHIP

102K,2012,50V

3

C702,C901,C902

37

CHIP-TRANSISTOR

KRA226S

3

Q901~Q903

38

CHIP-TRANSISTOR

KRC246S

1

Q904

39

DIODE-SWITCHING

1N4148(SMALL)

5

D901~D905

40

IC-MCU

STM0013-BA

1

IC05

41

RELAY-POWER

D11U,12VDC

1

RY71

42

CERAMIC RESONATOR

10MHz

1

X301

43

LED DISPLAY

D306GWA/S29

1

LED01

44

RELAY

JQ1A12V

3

RY72~RY74

45

RELAY

F3A

1

RY75

46

ASSY HARNESS

EL2-06V

1

T1~T4

47

LED LAMP

B5054D3,GREEN

2

LED02,LED03

48

R-CHIP

4,7K,2012,5%

1

R405

49

JUMPER WIRE

PH0.6 15mm

1

JP13

8-2

FRIEDRICH AIR CONDITIONING CO.

9. Wiring Diagram

SENSOR





















THERMISTOR

CN41







































1

1



















2

2





RECTIFIER





LED DISPLAY























CN12









LED LAMP





1

1





+5V





























BUZZER













CIRCUIT









3

3





+12V

REMOCON





TRANSFORMER

CN11





















MODULE





1

1





























2

2



















3

3



















4

4





















CN91





















1













F701







2





























250V AC







3













3.15A

P/GRAY

MEMBRANE

4





























(LIVE)

PAD

5









































6

















P/GRAY



7











RY74











RY72

RY73



(NEUTRAL)



8















































RY71

(RIB)









T4

T3

T2



GRN









RED

YEL

ORG































COMP-

















RESSOR

CAPACITOR





FAN





S

R

C















MOTOR



WHT

RED

BLK







M1





H









S



M







L . O







M L





























W W B

O

Y

R







P .

















H H L

R

E

E













T T K G L D













WHT























W













BLK

















RED





CAPACITOR H

















T









WHT





























BLK

















RED





















DIAGRAM









SP05A10

FRIEDRICH AIR CONDITIONING CO.

9-1

10 Schematic Diagrams

10-1MAIN PCB

FRIEDRICH AIR CONDITIONING CO.

Post Office Box 1540 l San Antonio, Texas78295-1540

4200 N. Pan Am Expressway l San Antonio, Texas78218-5212(210)357-4400l FAX (210)357-4480

www.friedrich.com

Printed in China
