UNVENTED (VENT-FREE)GAS FIREPLACE SYSTEM OWNER’S OPERATION AND INSTALLATION MANUAL

PFS ®

US

MODELS VSGF36NRC AND VSGF36PRC

WARNING: If the information in this manual is not followedexactly, a fire orexplosion may resultcausing property damage, personal injury or loss of life.

Do not store or use gasoline or other ­flammable vapors and liquids in the ­vicinity of this or any other appliance.

WHAT TO DO IF YOU SMELL GAS

Do not try to light any appliance.

Donottouchanyelectricalswitch;donotuseany phone in your building.

Immediatelycallyourgassupplierfromaneighbor’s phone. Follow the gas supplier’s instructions.

If you cannot reach your gas supplier, call the fire department.

Installationandservicemustbeperformedbyaqualified installer, service agency or the gas supplier.

INSTALLER: Leave this manual with the appliance. CONSUMER: Retain this manual for future reference.

For more information, visit www.fmiproducts.com

TABLE OF CONTENTS

Safety...................................................................

2

Cleaning and Maintenance

................................ 25

Local Codes.........................................................

4

Troubleshooting.................................................

26

Product Identification............................................

5

Specifications.....................................................

30

Unpacking............................................................

5

Technical Service...............................................

30

Product Features..................................................

5

Service Hints......................................................

30

Locating Firebox...................................................

6

Wiring Diagram..................................................

30

Product Specifications..........................................

6

Replacement Parts.............................................

31

Air For Combustion and Ventilation......................

7

Accessories........................................................

31

Installation............................................................

9

Parts...................................................................

32

Operation...........................................................

20

Warranty...............................................

Back Cover

Inspecting Burners ............................................

24





SAFETY

WARNING: Improper installation, adjustment, alteration,serviceormaintenance can cause injury or property damage. Refer to this manual for correct installationandoperational procedures. For assistance or additional information consult a qualified installer, service agency or the gas supplier.

WARNING: This is an unventedgas-firedheater. It uses air (oxygen) from the room in which it is installed. Provisions for adequate combustion and ventilation air must be provided. Refer toAir for Combustion and Ventilation section on page 7 of this manual.

WARNING: For use only withalisteddecorativetype unvented room heater. Do not build a wood fire.

This firebox has been tested and approved by the PFS Corporation under ANSI Z21.11.2 as a decorative type unvented room heater.

This appliance may be installed in an aftermarket*, permanently located, manufactured (mobile) home, where not prohibited by local codes.

This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.

*Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer

2

www.fmiproducts.com

121082-01K

SAFETY

Continued

WARNING:Thisproductcontainsand/orgenerateschemicals known to the state of California to cause cancer or birth defects or other reproductive harm.

IMPORTANT: Read this owner’s manualcarefullyandcompletely before trying to assemble, operate or service this heater. Improper use of this heater can cause serious injury or death from burns, fire, explosion, electrical shock and carbon monoxide poisoning.

DANGER: Carbon monoxide poisoning may lead to death!

Carbon Monoxide Poisoning: Early signs of carbon monoxide poisoning resemble the flu, with headaches, dizziness or nausea. If you have these signs, heater may not be working properly. Get fresh air at once!Have heater serviced. Some people are more affected by carbon monoxide than others. These include pregnant women, people with heart or lung disease or anemia, those under the influence of alcohol and those at high altitudes.

Natural and Propane/LP Gas: Natural and propane/LP gases are odorless. An odormaking agent is added to gas. The odor helps you detect a gas leak. However, the odor added to the gas can fade. Gas may be present even though no odor exists.

Make certain you read and understand all warnings. Keep this manual for reference. It is your guide to safe and proper operation of this heater.

WARNING: Any change to this heater or its controls can be dangerous.

WARNING: Do not use a blower insert, heat exchanger insertorotheraccessorynotapproved for use with this heater.

WARNING: Do not allow fans to blow directly into fireplace. Avoidanydraftsthatalterburner flame patterns. Ceiling fans can create drafts that alter burner flame patterns. Altered burner patterns can cause sooting.

Due to high temperatures, the applianceshouldbelocatedout oftrafficandawayfromfurniture and draperies.

Do not place clothing or other flammable material on or near the appliance. Never place any objects on heater.

Fireplace front and screen becomeveryhotwhenrunningfireplace. Keep children and adults away from hot surfaces to avoid burns or clothing ignition. Fireplace will remain hot for a time after shutdown. Allow surfaces to cool before touching.

Carefully supervise young children when they are in the room with fireplace. When using optional hand-heldremote accessory,keepselectorswitch in OFF position to prevent children from turning on burners with remote.

You must operate this fireplace with the fireplace screen and hood in place. Make sure fireplace screen and hood are in place before running heater.

Keep appliance area clear and freefromcombustiblematerials, gasoline and other flammable vapors and liquids.

121082-01K

www.fmiproducts.com

3

SAFETY

Continued

1.This appliance is only for use with type of gas indicated on rating plate. This appliance is not convertible for use with other gases.

2.Do not place propane/LP supply tank(s) inside any structure. Locate propane/LP supply tank(s) outdoors (propane/LP units only).

3.If you smell gas

shut off gas supply

do not try to light any appliance

do not touch any electrical switch; do not use any phone in your building

immediately call your gas supplier from a neighbor’s phone. Follow gas supplier’s instructions

if you cannot reach your gas supplier, call the fire department

4.This fireplace shall not be installed in a bedroom or bathroom.

5.Do not use this fireplace as a woodburning fireplace. Use only logs provided with fireplace.

6.Do not add extra logs or ornaments such as pine cones, vermiculite or rock wool.

Using these added items can cause sooting. Do not add lava rock around base. Rock and debris could fall into control area of fireplace.

7.To prevent creation of soot, follow instructions in Cleaning and Maintenance, page 25.

8.Before using furniture polish, wax, carpet cleaner or similar products, turn heater off. If heated, vapors from these products may create a white powder residue within burner box or on adjacent walls or furniture.

9.This fireplace needs fresh air ventilation to run properly. This fireplace has an Oxygen

Depletion Sensing (ODS) safety shutoff system. The ODS shuts down the fireplace if enough fresh air is not available.

See Air for Combustion and Ventilation, page 7. If fireplace keeps shutting off, see

Troubleshooting, page 26.

10.Do not run fireplace

where flammable liquids or vapors are used or stored

under dusty conditions

11.Do not use this fireplace to cook food or burn paper or other objects.

12.Do not use fireplace if any part has been exposed to or under water. Immediately call a qualified service technician to inspect fireplace and to replace any part of control system and any gas control which has been under water.

13.Do not operate fireplace if any log is broken. Do not operate fireplace if a log is chipped (dime-sizedor larger).

14.Turn fireplace off and let cool before servicing. Only a qualified service person should service and repair fireplace.

15.Operating fireplace above elevations of 4,500 feet could cause pilot outage.

16.To prevent performance problems in propane/LP units, do not use propane/LP fuel tanks of less than 100 lbs. capacity

(propane/LP units only).

17.Provide adequate clearances around air openings.

LOCAL CODES

Install and use fireplace with care. Follow all local codes. In the absence of local codes, use the latest edition of The National Fuel

Gas Code ANSI Z223.1/NFPA 54*. *Available from:

American National Standards Institute, Inc.

1430 Broadway

New York, NY 10018

National Fire Protection Association, Inc.

Batterymarch Park

Quincy, MA 02269

Note: Where listed vented decorative logs are required, thermostat operation is not permitted.

State of Massachusetts: The installation must be made by a licensed plumber or gas fitter in the Commonwealth of

Massachusetts.

Sellers of unvented propane or natural gas-firedsupplemental room heaters shall provide to each purchaser a copy of 527

CMR 30 upon sale of the unit.

Vent-freegas products are prohibited for bedroom and bathroom installation in the

Commonwealth of Massachusetts.

4

www.fmiproducts.com

121082-01K



PRODUCT IDENTIFICATION



Rear

Top Outer Casing



Top Louver



Burner

Log Set

Assembly



Fireplace

Hood

Remote

Front



Burner



Control

Base









Assembly

Screen

Figure 1 - Log Base Assembly

Assembly





Bottom Louver Assembly

Figure 2 - Fireplace

UNPACKING

CAUTION: Do not remove data plates attached to heater base assembly. The data plates contain important warranty and safety information.

1.With utility knife, cut carton all the way around above staples on bottom tray. Lift carton off of heater. Remove packing.

Note: Hood is located on top of fireplace in a carton.

2.Locate one screw above top left corner of fireplace screen. Remove and discard screw. Lift fireplace screen up and pull out to remove.

3.Remove protective packaging applied to logs, log base assembly and fireplace.

4.Check heater for any shipping damage. If heater is damaged call FMI PRODUCTS,

LLC at 1-866-328-4537for replacement parts before returning to dealer.

PRODUCT FEATURES

OPERATION

This vent-freefireplace is clean burning. It requires no outside venting.There is no heat loss out a vent or up a chimney. Heat is generated by both realistic flames and glowing embers. When used without blower, fireplace requires no electricity making it ideal for emergency backup heat.

SAFETY DEVICE

This fireplace has a pilot with an Oxygen

Depletion Sensing (ODS) safety shutoff system. ODS/pilot is a required feature for ventfree room heaters. ODS/pilot system shuts off fireplace if there is not enough fresh air.

IGNITION SYSTEM

This fireplace has an electronic ignitor to light heater fuel supply.

REMOTE CONTROL

This fireplace is equipped with a thermostat remote control. Remote can also be used manually. Use this remote to control temperature and flame height.

121082-01K

www.fmiproducts.com

5

LOCATING FIREBOX

PLANNING

Plan where you will install firebox. This will save time and money later when you install your firebox. Before installation, consider the following:

1.Where firebox will be located. Allow for wall and ceiling clearances (see Installation Clearances, page 10).

2.Everything needed to complete installation.

3.These models CANNOT be installed in a bedroom unless maximum Btu rating of installed vent-freelog set is less than

10,000 Btu/hr.

4.Proper air for combustion and ventilation (page 7).

PRODUCT SPECIFICATIONS

Left Side View

Firebox Top View

Right Side View

Front View

Figure 3 - Firebox Dimensions

6

www.fmiproducts.com

121082-01K

AIR FOR COMBUSTION AND VENTILATION

WARNING: This heater shall not be installed in a room or space unless the required volume of indoor combustion air is provided by the method described in theNational Fuel Gas Code, ANSI Z223.1/NFPA 54, theInternational Fuel Gas Code, or applicablelocalcodes.Readthe following instructions to insure proper fresh air for this and otherfuel-burningappliances in your home.

Today’s homes are built more energy efficient than ever. New materials, increased insulation and new construction methods help reduce heat loss in homes. Home owners weather strip and caulk around windows and doors to keep cold air out and warm air in. During heating months, home owners want their homes as airtight as possible.

While it is good to make your home energy efficient, your home needs to breathe. Fresh air must enter your home. All fuel-burningappliances need fresh air for proper combustion and ventilation.

Exhaust fans, fireboxes, clothes dryers and fuel burning appliances draw air from house to operate. You must provide adequate fresh air for these appliances. This will insure proper venting of vented fuel-burningappliances.

PROVIDING ADEQUATE

VENTILATION

The following are excerpts from National Fuel

Gas Code, ANSI Z223.1/NFPA 54, Air for

Combustion and Ventilation.

All spaces in homes fall into one of these three following ventilation classifications:

1.Unusually Tight Construction

2.Unconfined Space

3.Confined Space

The information on pages 7 through 9 will help you classify your space and provide adequate ventilation.

Unusually Tight Construction

The air that leaks around doors and windows may provide enough fresh air for combustion and ventilation. However, in buildings of unusually tight construction, you must provide additional fresh air.

Unusually tight construction is defined as construction where:

a.walls and ceilings exposed to the outside atmosphere have a continuous water vapor retarder with a rating of one perm (6 x 10-11 kg perpa-sec-m2)or less with openings gasketed or sealedand

b.weather stripping has been added on openable windows and doors and

c.caulking or sealants are applied to areas such as joints around window and door frames, between sole plates and floors, between wall-ceilingjoints, between wall panels, at penetrations for plumbing, electrical and gas lines and at other openings.

If your home meets all of the three criteria above, you must provide additional fresh air. See Ventilation Air From Outdoors, page 9.

If your home does not meet all of the three criteria above, proceed to Determining Fresh-Air Flow for Heater Location, page 8.

Confined and Unconfined Space

The National Fuel Gas Code, ANSI Z223.1/

NFPA 54 defines a confined space as a space whose volume is less than 50 cubic feet per

1,000 Btu per hour (4.8 m3 per kw) of the aggregate input rating of all appliances installed in that space and an unconfined space as a space whose volume is not less than 50 cubic feet per 1,000 Btu per hour (4.8 m3 per kw) of the aggregate input rating of all appliances installed in that space. Rooms communicating directly with the space in which the appliances are installed*, through openings not furnished with doors, are considered a part of the unconfined space.

* Adjoining rooms are communicating only if there are doorless passageways or ventilation grills between them.

121082-01K

www.fmiproducts.com

7

AIR FOR COMBUSTION AND VENTILATION

Continued

DETERMINING FRESH-AIRFLOW FOR HEATER LOCATION

Determining if You Have a Confined or Unconfined Space

Use this work sheet to determine if you have a confined or unconfined space.

Space: Includes the room in which you will install heater plus any adjoining rooms with doorless passageways or ventilation grills between the rooms.

1.Determine the volume of the space (length x width x height).

Length x Width x Height =__________cu. ft. (volume of space)

Example: Space size 22 ft. (length) x 18 ft.

(width) x 8 ft. (ceiling height) = 3168 cu. ft. (volume of space)

If additional ventilation to adjoining room is supplied with grills or openings, add the volume of these rooms to the total volume of the space.

2.Multiply the space volume by 20 to determine the maximum Btu/Hr the space can support.

_ ________ (volume of space) x 20 = (Maximum Btu/Hr the space can support)

Example: 3168 cu. ft. (volume of space) x 20

= 63,360 (maximum Btu/Hr the space can support)

3.Add the Btu/Hr of all fuel burning appliances in the space.

Vent-freefireplace

___________ Btu/Hr

Gas water heater*

___________ Btu/Hr

Gas furnace

___________ Btu/Hr

Vented gas heater

___________ Btu/Hr

Gas fireplace logs

___________ Btu/Hr

Other gas appliances*__________ + Btu/ Hr

Total =__________ Btu/Hr

* Do not include direct-ventgas appliances.Direct-ventdraws combustion air from the outdoors and vents to the outdoors.

Example:



40,000



Gas water heater



Btu/Hr

Vent-freefireplace

+

39,000

Btu/Hr

Total

=

79,000

Btu/Hr

4.Compare the maximum Btu/Hr the space can support with the actual amount of Btu/ Hr used.

_ _______ Btu/Hr (maximum the space can support)

_ _______ Btu/Hr (actual amount of Btu/Hr used)

Example: 63,360 Btu/Hr (maximum the space can support)

79,000 Btu/Hr (actual amount of

Btu/Hr used)

The space in the above example is a confined space because the actual Btu/Hr used is more than the maximum Btu/Hr the space can support. You must provide additional fresh air. Your options are as follows:

A.Rework worksheet, adding the space of an adjoining room. If the extra space provides an unconfined space, remove door to adjoining room or add ventilation grills between rooms. See Ventilation Air From Inside Building, page 9.

B.Vent room directly to the outdoors. See

Ventilation Air From Outdoors,page 9.

C.Install a lower Btu/Hr fireplace, if lower Btu/ Hr size makes room unconfined.

If the actual Btu/Hr used is less than the maximum Btu/Hr the space can support, the space is an unconfined space. You will need no additional fresh air ventilation.

WARNING:Iftheareainwhich theheatermaybeoperateddoes notmeettherequiredvolumefor indoorcombustionair,combustion and ventilation air shall be provided by one of the methods described in theNational Fuel GasCode,ANSIZ223.1/NFPA54, theInternational Fuel Gas Code, or applicable local codes.

8

www.fmiproducts.com

121082-01K

AIR FOR COMBUSTION AND VENTILATION

Continued

VENTILATION AIR

Ventilation Air From Inside Building

This fresh air would come from an adjoining unconfined space. When ventilating to an adjoining unconfined space, you must provide two permanent openings: one within 12" of ceiling and one within 12" of floor on wall connecting two spaces (see options 1 and

2, Figure 4). You can also remove door into adjoining room (see option 3, Figure 3). Follow the National Fuel Gas Code, ANSI Z223.1/

NFPA 54, Air for Combustion and Ventilation for required size of ventilation grills or ducts.



Outlet

Ventilated



Attic



Air





Outlet





Air



To Attic









To





Crawl

Inlet



Space





Air







Inlet Air

Ventilated



Crawl Space





Figure 5 - Ventilation Air from Outdoors





12"

Ventilation



Ventilation Grills

Grills



Into

Or

Into Adjoining Room,

Adjoining

Option 2

Remove

Room,



Door into



Option 1



Adjoining









Room,





Option





3







12"

Figure 4 - Ventilation Air from Inside Building

Ventilation Air From Outdoors

Provide extra fresh air by using ventilation grills or ducts. You must provide two permanent openings: one within 12" of the ceiling and one within 12" of the floor. Connect these items directly to the outdoors or spaces open to the outdoors. These spaces include attics and crawl spaces. Follow the National Fuel Gas Code, ANSI Z223.1/NFPA 54, Air for

Combustion and Ventilation for required size of ventilation grills or ducts.

IMPORTANT: Do not provide openings for inlet or outlet air into attic if attic has a thermo-stat-controlledpower vent. Heated air entering the attic will activate the power vent.

INSTALLATION

NOTICE: This heater is intended for use as supplemental heat. Use this heater along with your primary heating system. Do not install this heater as your primary heat source. If you have a centralheatingsystem,youmay run system’s circulating blower whileusingheater.Thiswillhelp circulatetheheatthroughoutthe house. In the event of a power outage, you can use this heater as your primary heat source.

WARNING:Aqualifiedservice person must install fireplace. Follow all local codes.

WARNING: Never install the fireplace

in a bedroom or bathroom

in a recreational vehicle

where curtains, furniture, clothing or other flammable objects are less than 36" from the top and 42" from front of heater.Forsideclearancessee Figure 6, page 10

in high traffic areas

in windy or drafty areas

121082-01K

www.fmiproducts.com

9

INSTALLATION

Continued

CAUTION:Thisfireplacecreates warm air currents. These currents move heat to wall surfacesnexttofireplace.Installing fireplace next to vinyl or cloth wall coverings or operating heater where impurities (such as, but not limited, to tobacco smoke,aromaticcandles,cleaningfluids,oilorkerosenelamps, etc.)intheairexist,maydiscolor walls or cause odors.

Note: Your fireplace is designed to be used in zero clearance installations. Wall or framing material can be placed directly against any exterior surfaceontherear,sidesortopofyourfireplace, except where standoff spacers are integrally attached. If standoff spacers are attached to your fireplace, these spacers can be placed directly against wall or framing materials.

Use dimensions shown for rough openings to create easiest installation. See Built-In Firebox Installation, page 11.

IMPORTANT: Vent-freeheaters add moisture to air. Although this is beneficial, installing fireplace in rooms without enough ventilation air may cause mildew to form from too much moisture. SeeAir for Combustion and

Ventilation, page 7.

IMPORTANT: Make sure fireplace is level.

If fireplace is not level, log set will not work properly.

CHECK GAS TYPE

Use correct gas type (natural or propane/

LP) for your fireplace. If your gas supply is not correct, do not install fireplace. Call dealer where you bought fireplace for proper type fireplace.

WARNING:Thisapplianceis equipped for either natural gas or propane/LP gas but not both. Gas type is indicated on the ratingplate.Fieldconversionisnot permitted.

INSTALLATION CLEARANCES

WARNING: Maintain the minimum clearances. If you can, provide greater clearances from floor, ceiling and adjoining wall.

Carefully follow the instructions below. This will ensure safe installation.

Minimum Wall and Ceiling Clearances (see Figure 6)

A.Clearances from the side of the fireplace cabinet to any combustible material and wall should follow diagram in Figure 6.

Example: The face of a mantel, bookshelf, etc. is made of combustible material and protrudes 31/2" from the wall. This combustible material must be 4" from the side of the fireplace cabinet (see Figure 6).

B.Clearances from top of firebox opening to ceiling should not be less than 42".

C.When firebox is installed on carpeting or other combustible material, other than wood flooring, firebox should be installed on a metal or wood panel extending full width and depth of the enclosure.

D.Clearances from bottom of firebox to floor is 0".

These fireboxes can be installed as freestanding units against a wall with approved, optional cabinet mantels (see Accessories, page 31) or as abuilt-inunit. Clearances are the same for either installation method.

CAUTION: Do not install the firebox directly on carpet or vinyl.

Example

*

*Minimum 16" from Side Wall

Figure 6 - Minimum Clearance for Combustible to Wall

10

www.fmiproducts.com

121082-01K

INSTALLATION

Continued

Mantel Clearances for Built-In

Installation

If placing custom mantel above built-infirebox, you must meet minimum allowable clearance between mantel shelf and top of firebox opening shown in Figure 7. These are minimum allowable mantel clearances for a safe installation. Use larger clearances wherever possible to minimize heating of objects and

materials placed on mantel.

CAUTION: Do not allow ventfreegaslogheatertotouchorextend beyond fireplace screen.

NOTICE: Surface temperatures of adjacent walls and mantels become hot during operation. Wallsandmantelsabovefirebox may become hot to the touch. If installed properly, these temperatures meet the requirement ofthenationalproductstandard.

Follow all minimum clearances shown in this manual.

NOTICE: If your installation does notmeettheminimumclearances shown, you must do one of the following:

raise the mantel to an acceptable height

remove the mantel

BUILT-INFIREBOX INSTALLATION

Built-ininstallation of this firebox involves installing firebox into aframed-inenclosure.

This makes front of firebox flush with wall.

Optional brass trim accessories are available (see Accessories, page 31). Brass trim will extend past sides of firebox approximately 1/2".

This will cover rough edges of wall opening.

If installing a mantel above firebox, you must follow clearances shown in Figure 6, page 10. Follow instructions below to install firebox in this manner.

1.Frame in rough opening. Firebox framing should be constructed of 2 x 4 lumber or heavier. Use dimensions in Table 1 and rough opening layout in Figure 8, page

12. Adjust framing so that firebox flushes with finished wall surface. If installing in a corner, use dimensions in Figures 8 and 9, page 12 for rough opening.

Wall board or facing material (above firebox) may be of combustible material, including decorative mantel ornaments or other similar projections off of the facing material.

Framing

Material

Firebox



Mantel Shelf



Note: Any portion of the



mantel shelf must NOT

12"

extend beyond this profile.



6 3/4"



1 1/2"



Noncombustible Material May

Project Off this 12" 16" 20" Surface above

the Firebox Hood





Note: All vertical

Wire-mesh

Supplied

measurements are

Screen

from top of fireplace

Firebox Hood



hood opening to



Must Be Used bottom of mantel shelf.



at All Times

These minimum









clearances replace any





other recommended





clearances supplied





with your ANSI Z21.11.2





approved gas logs.

Figure 7 - Minimum Mantel Clearances for Built-InInstallation

121082-01K

www.fmiproducts.com

11

INSTALLATION

Continued

2.Install gas piping to firebox location. See

Installing Gas Piping to Fireplace Location on page 13 and Connecting Fireplace to Gas Supply,page 15.

IMPORTANT: If installing blower accessory

(circulating models with louvers only), see

Hard-Wiring Firebox, page 19.

3.Carefully set firebox in front of rough opening with back of firebox inside wall opening. IMPORTANT: If installing a perimeter trim kit, see instructions included with trim accessory. You must install shoulder screws from trim kit now.

WARNING: Use only noncombustiblemortaroradhesiveswhen overlapping the front facing with noncombustible facing material.

Rough Opening Dimensions for

Built-inInstallation

Front Width



Depth

(Inside to

Height

(Minimum)

Inside)







41 1/2"

40 1/2"

20 3/4"

4.Carefully insert firebox into rough opening.

5.Attach firebox to wall studs using nails or wood screws through holes in nailing flange (see Figure 10).

6.If using an optional perimeter trim kit, install the trim after final finishing and/or painting of wall. See instructions included with trim accessory for attaching trim.

7.Install and properly test gas log heater.

Follow installation instructions included with the vent-freegas log heater that is being installed.

Depth(Minimum)

Height

Width (InsidetoInside)

Figure 8 - Rough Opening for Installing in Wall

IMPORTANT: When finishing your firebox, combustible materials such as wall board, gypsum board, sheet rock, drywall, plywood, etc. may be butted up next to the sides and top of the firebox. Combustible materials should never overlap the firebox front facing.

WARNING: Do not allow any combustiblematerialstooverlap the firebox front facing.

IMPORTANT: Noncombustible materials such as brick, tile, etc. may overlap front facing, but should never cover any necessary openings like louvered slots.

WARNING: Do not allow noncombustible materials to cover any necessary openings like louvered slots.







FOR 36"





"

MODELS





2







/3







11



37"

2



5











45°







411/2"







74"







TOP VIEW

Figure 9 - Rough Opening for Installing in Corner Wall

Nails or

Wood

Screws

Nailing

Flange

Figure 10 - Attaching Firebox to Wall Studs

12

www.fmiproducts.com

121082-01K

INSTALLATION

Continued

INSTALLING FIREBOX USING

OPTIONAL ACCESSORY MANTELS

WARNING:Aqualifiedservice personmustinstallfirebox.Follow all local codes.

This firebox may be installed using the corner or cabinet mantel with hearth base accessories against a wall in your home. A trim kit is included with mantel accessories (see

Accessories,page 31).

1.Assemble cabinet mantel, hearth base, and trim accessories. Assembly instructions are included with each accessory.

2.Install gas piping to firebox location. See

Installing Gas Piping to Fireplace Location.

You may have to cut a hole in the floor or wall to run gas line to firebox. Make sure to locate access hole so it is covered by mantel/base when installed.

3.Place hearth base against wall at installation location. Cut an access hole in hearth top to runflexiblegaslinetofirebox(seeFigure11).

Make sure to locate access hole so cabinet mantel will cover it when installed.

Note: You can secure base to floor using wood screws. Countersink screw heads and putty over.

4.Route flexible gas line through access hole in hearth base.

5.Center cabinet mantel on hearth base

(see Figure 12). Make sure mantel is flush against wall.

6.Install trim kit furnished with mantel. See instruction sheet included with mantel.

7.Carefully insert firebox into cabinet mantel. Be careful not to scratch firebox, mantel, base, etc. when installing (see Figure 13).

Hearth

Rigid Pipe and

Gas Line

Base

Gas Shutoff

Access Hole



Valve





Figure 11 - Placing Hearth Base

Accessory Against Wall

Mantel

Hearth

Base

Figure 12 - Center Mantel on Hearth Base

Figure 13 - Inserting Firebox Into

Cabinet Mantel (Model May Vary From

Illustration)

INSTALLING GAS PIPING TO

FIREPLACE LOCATION

WARNING: This appliance requires a 1/2" NPT (National PipeThread)inletconnectionto the pressure regulator.

WARNING:Aqualifiedservice person must connect fireplace to gas supply. Follow all local codes.

CAUTION:Neverconnectpropane/LP fireplace directly to the propane/LPsupply.Thisfireplace requires an external regulator (notsupplied).Installtheexternal regulator between the fireplace and propane/LP supply.

121082-01K

www.fmiproducts.com

13

INSTALLATION

Continued

WARNING: Never connect natural gas fireplace to private(non-utility)gas wells. This gas is commonly known as wellhead gas.

Installation Items Needed

Before installing fireplace, make sure you have the items listed below.

external regulator for propane/LP unit only

(supplied by installer)

piping (check local codes)

sealant (resistant to propane/LP gas)

equipment shutoff valve *

test gauge connection *

sediment trap (optional)

tee joint

pipe wrench

approved flexible gas line with gas connector (if allowed by local codes) (not provided)

* A equipment shutoff valve with 1/8" NPT tap is an acceptable alternative to test gauge connection. Purchase the optional equipment shutoff valve from your dealer.

For propane/LP units, the installer must supply an external regulator. The external regulator will reduce incoming gas pressure. You must reduce incoming gas pressure to between 11" and 14" of water. If you do not reduce incoming gas pressure, heater regulator damage could occur. Install external regulator with the vent pointing down as shown in Figure 14. Pointing the vent down protects it from freezing rain or sleet.

Propane/LP

Supply Tank External Regulator

with Vent Pointing Down

Figure 14 - External Regulator With Vent

Pointing Down

CAUTION: Use only new, black iron or steel pipe. Inter-nally-tinnedcopper tubing may be used in certain areas. Check your local codes. Use pipe of 1/2"diameterorgreatertoallow proper gas volume to fireplace. If pipe is too small, undue loss of volume will occur.

Installation must include an equipment shutoff valve, union and plugged 1/8" NPTtap. Locate

NPT tap within reach for test gauge hook up.

NPT tap must be upstream from fireplace

(see Figure 15).

IMPORTANT: Install equipment shutoff valve in an accessible location. The equipment shutoff valve is for turning on or shutting off the gas to the appliance.

Check your building codes for any special requirements for locating equipment shutoff valve to fireplaces.

Apply pipe joint sealant lightly to male NPT threads. This will prevent excess sealant from going into pipe. Excess sealant in pipe could result in clogged fireplace valves. Never use sealant on flare threads.

Equipment Shutoff Valve

With 1/8" NPT Tap*



Natural Gas



From Gas Meter



(5" W.C.** to 10.5"



W.C. Pressure)



Propane/LP



From External



Regulator



(11" W.C.** to 14"

3" Minimum

W.C. Pressure)



Cap Pipe Tee

Nipple Joint

Sediment Trap

Figure 15 - Gas Connection

*Purchase the optional shutoff valve from your dealer.

**Minimum inlet pressure for purpose of input adjustment.

14

www.fmiproducts.com

121082-01K

INSTALLATION

Continued

WARNING: Use pipe joint sealantthatisresistanttoliquid petroleum (LP) gas.

We recommend that you install a sediment trap in supply line as shown in Figure 15, page 14. Locate sediment trap where it is within reach for cleaning. Install in piping system between fuel supply and fireplace.

Locate sediment trap where trapped matter is not likely to freeze. A sediment trap traps moisture and contaminants. This keeps them from going into fireplace gas controls. If sediment trap is not installed or is installed wrong, fireplace may not run properly.

CONNECTING FIREPLACE TO GAS SUPPLY

Installation Items Needed

5/16" hex socket wrench or nut-driver

Phillips screwdriver

sealant (resistant to propane/LP gas, not provided)

1.Remove fireplace screen. Remove one screw that holds fireplace screen in place for shipping. This screw is located near top left side of screen. Discard screw.

Lift fireplace screen up and pull out to remove.

2.Remove screws that attach log base assembly to fireplace (see Figure 16).

Carefully lift up log base assembly and remove from fireplace (see Figure 16).

Figure 16 - Removing Log Base

Assembly From Fireplace

Note: If adding the G8007 series brick liner accessory, install it now. Follow instructions in G8007 accessory kit.

CAUTION: Do not pick up log base assembly by burner. Thiscoulddamageburner.Only handle base by grates.

3.Route gas line (provided by installer) from equipment shutoff valve to fireplace.

Route flexible gas supply line through one of the access holes.

NOTICE: Most building codes do not permit concealed gas connections. A flexible gas line isprovidedtoallowaccessibility fromthefireplace(seeFigure17). The flexible gas supply line connectiontotheequipmentshutoff valve should be accessible.

4.Attach flexible gas line to gas supply (see Figure 17). Check tightness of flexible gas line attached to gas regulator of fireplace

(see Figure 17).

5.Check all gas connections for leaks. See

Checking Gas Connections,page 16.

6.Replace log base assembly back into fireplace. Feed flexible gas line into fireplace base area while replacing log base assembly. Make sure the entire flexible gas line is in fireplace base area. Reattach log base assembly to fireplace with screws removed in step 2.

To Fireplace

Equipment

Shutoff Valve

Gas Regulator

Provided by





Installer



Propane/LP

Flexible Gas Line

To External

Regulator

from Fireplace



Gas Regulator





Natural Gas



To Gas Meter

Figure 17 - Attaching Flexible Gas Lines

Together

121082-01K

www.fmiproducts.com

15

INSTALLATION

Continued

CHECKING GAS CONNECTIONS

WARNING: Test all gas piping and connections, internal and external to unit, for leaks afterinstallingorservicing.Correct all leaks at once.

WARNING: Never use an open flame to check for a leak. Apply a noncorrosive leak detection fluid to all joints. Bubbles forming show a leak. Correct all leaks at once.

Test Pressures Equal To or Less Than 1/2 PSIG (3.5 kPa)

1.Close equipment shutoff valve (see

Figure 18).

2.Pressurize supply piping system by either opening propane/LP supply tank valve for propane/LP gas or opening main gas valve located on or near gas meter for natural gas or using compressed air.

3.Check all joints from gas meter to equipment shutoff valve for natural gas or propane/LPsupply to equipment shutoff valve for propane/LP (see Figures 19 and 20).

Apply noncorrosive leak detection fluid to all joints. Bubbles forming show a leak.

4.Correct all leaks at once.

CAUTION: Make sure external regulator has been installed betweenpropane/LPsupplyand fireplace. See guidelines under

Connecting Fireplace to Gas Supply, page 15.

Open

Equipment

Shutoff Valve

Closed

Figure 18 - Equipment Shutoff Valve

PRESSURE TESTING GAS SUPPLY PIPING SYSTEM

Test Pressures In Excess Of 1/2 PSIG (3.5 kPa)

1.Disconnect fireplace with its main gas valve (control valve) and equipment shutoff valve from gas supply piping system. Pressures in excess of 1/2 psig will damage fireplace regulator.

2.Cap off open end of gas pipe where equipment shutoff valve was connected.

3.Pressurize supply piping system by either opening propane/LP supply tank valve for propane/LP gas or opening main gas valve located on or near gas meter for natural gas or using compressed air.

4.Check all joints of gas supply piping system.

Apply noncorrosive leak detection fluid to all joints. Bubbles forming show a leak.

5.Correct all leaks at once.

6.Reconnect fireplace and equipment shutoff valve to gas supply. Check reconnected fittings for leaks.

Equipment

Shutoff

Valve

Gas Meter

Gas Control Valve

Figure 19 - Checking Gas Joints for Natural Gas

Equipment Shutoff Valve

Propane/LP

Supply Tank

Gas Control Valve

Figure 20 - Checking Gas Joints for

Propane/LP Gas

16

www.fmiproducts.com

121082-01K

INSTALLATION

Continued

PRESSURE TESTING FIREPLACE GAS

CONNECTIONS

1.Open equipment shutoff valve (see Figure 18, page 16).

2.Open main gas valve located on or near gas meter for natural gas or open propane/LP supply tank valve.

3.Make sure control knob of fireplace is in the OFF position.

4.Check all joints from equipment shutoff valve to gas control valve (see Figures

19 or 20, page 16). Apply noncorrosive leak detection fluid to all joints. Bubbles forming show a leak.

5.Correct all leaks at once.

6.Light fireplace (see Operation, page 20.)

Check all other internal joints for leaks.

3. Replace battery housing cover.

When batteries are installed, the "little house" icon with current room temperature will be displayed (see Figure 22). This icon will always show in the control window as long as the batteries have power.

Figure 22 - Remote Display

7.Turn off fireplace (see To Turn Off Gas to

Appliance, page 21.

INSTALLING BATTERIES IN REMOTE CONTROL AND RECEIVER

Remote Receiver

The remote receiver uses 4 AA batteries (not included). To install or replace batteries:

1.Open lower louver to gain access to receiver.

WARNING: Make sure your selector switch is in OFF position before installing or changing batteries in yourhand-heldremote or receiver.

Hand-HeldRemote Control

The hand-heldremote control uses 3 AAA batteries (not included).

To install batteries:

1.Remove battery housing cover from back of hand-heldremote (see Figure 21).

2.Install or replace batteries.

Battery Housing

Cover











-

AAA

+











+

AAA

-













-

AAA

+

2.Remove screws from cover place.

3.Remove battery housing cover.

4.Install or replace batteries.

5.Replace battery housing cover.

6.Replace cover plate.

Receiver

Battery Housing

Cover

Cover Plate

Screws

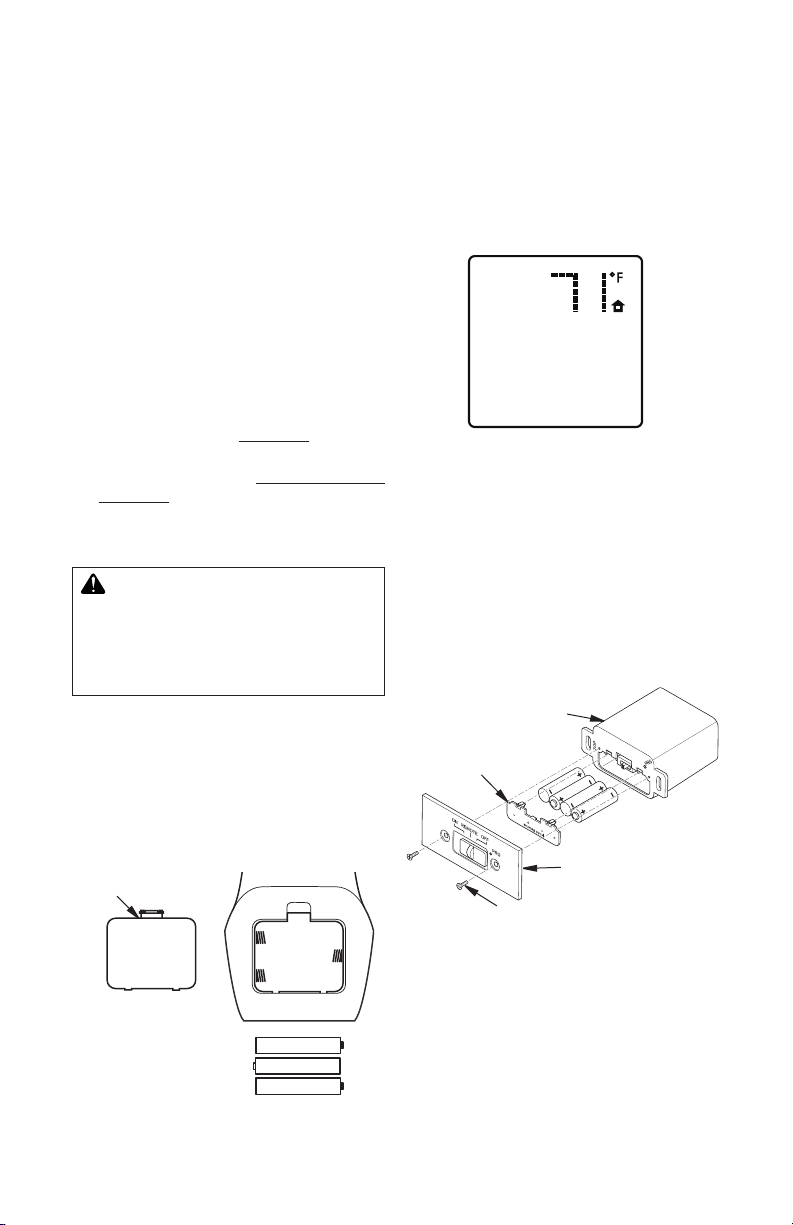

Figure 23 - Battery Install Remote

Control Receiver

Figure 21 - Battery Install Hand-Held

Remote Control

121082-01K

www.fmiproducts.com

17

INSTALLATION

Continued

INSTALLING LOGS

WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this heater may result in property damage or personal injury.

CAUTION: Do not remove the data plates attached to the heater base assembly. The data plates contain important safety and warranty information.

It is very important to install these logs exactly as instructed. Do not modify logs. Only use logs supplied with heater.

1.Place bottom log in center of the base assembly as shown in Figure 24.

2.Rest rear log in back corner sections of base assembly as shown in Figure 24.

Make sure log is completely vertical and not leaning in toward burner where the flame will touch the log.

3.Position front right log against right side of grate prongs (see Figure 24).

4.Position front left log against left side of grate prongs (see Figure 24).

Front

Rear Log

Left Log



5.Place middle right log over front right and bottom logs as shown in Figure 25. Be sure hole in middle right log seats over pin in bottom log.

6.Place middle left log over front left and bottom logs as show in Figure 25. Be sure hole in middle left log seats over pin in front left log.

WARNING:Youmustoperate this fireplace with the fireplace screen in place. Make sure fireplace screen is in place before running fireplace.

Middle Right Log

Middle Left Log

Pin on Front



Left Log

Bottom





Log

Figure 25 - Installing Top Logs

Grate

Bottom

Log

Prongs

Front Right

Base Assembly

Log



Figure 24 - Installing Bottom Logs

18

www.fmiproducts.com

121082-01K

INSTALLATION

Continued

HARD-WIRINGFIREBOX

NOTICE: A qualified electrician mustconnectelectricalwiringto duplex outlet for built-ininstallation. Follow all local codes. In absence of local codes follow

TheNationalElectricCodeANSI/ NFPA 70.

The “Handy Box” with duplex outlet is provided in the firebox located in the lower right base area.

1.Remove screw holding duplex outlet cover to handy box. Remove duplex outlet.

2.Route electrical cable through strain relief and handy box (see Figure 26). Tighten screws on strain relief.

3.Connect electrical cable to duplex outlet. Match wire colors to those on duplex outlet. Be sure to connect the ground wire.

4.Place duplex outlet back into handy box and secure with screws. Replace outlet cover.

Duplex Box/Handy Box

Screws

Strain Relief

Figure 26 - Hard-WiringFirebox

INSTALLING FIREPLACE HOOD

AND SCREEN

1.Loosen screws inside top edge of firebox.

Slide notches in hood over screws and tighten screws (see Figure 27).

2.Install fireplace screen by slipping notches of fireplace screen over screws on front of fireplace (see Figure 28).

Screw

Hood

Figure 27 - Hood Placement

(Model May Vary From Illustration)

Screw

Screen

Figure 28 - Screen Placement

(Model May Vary From Illustration)

121082-01K

www.fmiproducts.com

19

OPERATION















FOR YOUR SAFETY













NOTICE:Duringinitialoperation



READ BEFORE LIGHTING











of new fireplace, burning logs











WARNING: If you do not fol-



will give off a paper-burning

low these instructions exactly,



smell. Open damper or window

a fire or explosion may result



to vent smell. This will only last

causing property damage, per-





a few hours.

sonal injury or loss of life.

















1. STOP! Read the safety information, col-

A. This appliance has a pilot which must

be lighted by hand. When lighting



umn 1.

2.

Make sure equipment shutoff valve is

the pilot, follow these instructions

exactly.



fully open.

B. BEFORE LIGHTING smell all around

3.

Set remote selector switch in OFF

the appliance area for gas. Be sure to



position.

smell next to the floor because some







WARNING: Burners will come

gas is heavier than air and will settle



on the floor.

onautomaticallywithinoneminute

WHAT TO DO IF YOU SMELL GAS

when the selector switch is in the

Do not touch any electric switch; do ON position after the pilot is lit. not use any phone in your building.4. Press in and turn control knob clockwise• Do not try to light any appliance.

Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

If you cannot reach your gas supplier, call the fire department.

C.Use only your hand to push in or turn the gas control knob. Never use tools. If the knob will not push in or turn by hand, don’t try to repair it, call a qualified service technician or gas supplier. Force or attempted repair may result in a fire or explosion.

D.Do not use this appliance if any part has been under water. Immediately call a qualified service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.

LIGHTING

INSTRUCTIONS

WARNING:Youmustoperate this fireplace with the fireplace screen in place. Make sure fireplace screen is installed before running fireplace.

to the OFF position.

5.Wait five (5) minutes to clear out any gas. Then smell for gas, including near the floor. If you smell gas, STOP! Follow “B” in the safety information, column 1. If you don’t smell gas, go to the next step.

6.Press in and turn control knob counterclockwise to the PILOT position.

Press in control knob for five (5) seconds

(see Figure 29).

Note: You may be running this heater for the first time after hooking up to gas supply. If so, the control knob may need to be pressed in for 30 seconds or more. This will allow air to bleed from the gas system.

CAUTION: Do not try to adjust heating levels by using the equipment shutoff valve.

Blower Control Knob

Ignitor Button

OFF HI



PILOT

F

O

F

O

N

LO

Control Knob

Figure 29 - Control Knob and Ignitor

Button Location

20

www.fmiproducts.com

121082-01K

OPERATION

Continued

7.With control knob pressed in, press and release ignitor button. This will light pilot.

The pilot is attached to the front burner.

If needed, keep ignitor button pressed in until pilot lights.

Note: If pilot does not stay lit, contact a qualified service person or gas supplier for repairs. Until repairs are made, light pilot with match. To light pilot with match, see Manual Lighting Procedure.

8.Keep control knob pressed in for 30 seconds after lighting pilot.After 30 seconds, release control knob.

If control knob does not pop out when released, contact a qualified service person or gas supplier for repairs.

Note: If pilot goes out, repeat steps 4 through 8.

9.Slightly push in and turn control knob counterclockwise to the ON position.

10.Wait one minute and switch selector switch to the ON position to light burners

(see Figure 30). When using in the ON position (without remote) burners will light on high. There is no adjustment to the flames without using remote.

11.To leave pilot lit and shut off burners only,

turn control knob clockwise to the

PILOT position, or use remote control manual OFF button, or set selector switch in the OFF position.

WARNING: Make sure the selectorswitchisintheOFFposition whenyouareawayfromhomefor long periods of time. Heater will comeonautomaticallywithselector switch in the ON position.

Pilot

Ignitor

Pilot

Ignitor

Burner

Electrode

Burner

Electrode

Figure 31 - Pilot

Figure 32 - Pilot

(Natural)

(Propane/LP)

TO TURN OFF GAS

TO APPLIANCE

1.Turn control knob clockwise to the OFF position.

2.Set selector switch in the OFF position.

3.Close equipment shutoff valve (see Figure 18, page 16).

MANUAL LIGHTING

PROCEDURE

1.Follow steps 1 through 6 under Lighting Instructions, page 20.

2.Depress control knob and light pilot with match.

3.Keep control knob pressed in for 30 seconds after lighting pilot.After 30 seconds, release control knob. Now follow steps 9 through 11 under Lighting Instructions.

BLOWER

OPERATION

WARNING: This fireplace hasathree-prong,groundedelectricalplug. This plug helps protect you againstelectricalshock.Onlyconnectplugtoaproperlygrounded,three-prongreceptacle.Donotcutor remove the grounding prong from this plug.

ON REMOTE OFF

PRG

Figure 30 - Remote Selector Switch in

ON Position

Locate the blower switch by opening lower louver on fireplace. Blower switch is located at lower center inside louver door.

Note: It is safe to operate fireplace with blower turned off. However, the blower helps distribute heated air from the fireplace.

Note: Periodically check the louvers of the firebox and remove any dust, dirt or other obstructions.

121082-01K

www.fmiproducts.com

21

OPERATION

Continued

HAND-HELD

REMOTE OPERATION

BATTERIES

WARNING: Make sure your selector switch is in OFF position before installing or changing batteries in yourhand-heldremote or receiver.

For installing or replacing batteries in remote control or receiver, see Installing Batteries in

Remote Control and Receiver on page 17.

Low Battery - Hand-HeldRemote Control

When batteries in hand-heldremote control are low, an icon will appear on display.

Low Battery - Remote Receiver

When batteries in receiver are low, no acoustic signal will be given when ON/OFF button is pressed. If batteries in receiver are low, fireplace can be switched on manually by moving remote selector switch to ON (see Figure 33).

ON

Figure 33 - Low Battery Display

FAHRENHEIT/CELSIUS INDICATOR

You can set your hand-heldremote control to display the temperature in either Fahrenheit or Celsius. With remote control off, press

THERMOSTAT button and MODE button at the same time. This will toggle the display from °F to °C.

OPERATING REMOTE CONTROL

WARNING: Fireplace can turn on suddenly. Keep away from burner.

After lighting pilot, let pilot flame burn for about one minute. Slide remote selector switch to REMOTE position. You can now turn burner on and off with remote.

IMPORTANT: Do not leave selector switch in REMOTE or ON position when pilot is not lit.

This will drain batteries.

When any button is pushed on remote control,

LCD display will glow blue. Blue glow will go off after several seconds if no action is being taken with remote.

ON/OFF

Push ON/OFF button and burners will come on in high position (see Figure 35). An acoustic signal from the receiver confirms the command.

Push ON/OFF button again and burners will turn off. A beep from receiver confirms the command.

LCD

Display

ON/OFF

THERMOSTAT

UP/ DOWN

Arrows

MODE

Figure 34 - Remote Control Display

Figure 35 - Hand-HeldRemote Control



Fahrenheit to Celsius



22

www.fmiproducts.com

121082-01K

OPERATION

Continued

FLAME HEIGHT

This function allows you to control height of flames through 5 levels (see Figure 36). Select manual flame height function by pressing

MODE button until a flame is shown in lower left corner of display. Use UP/DOWN arrow button to set desired flame height (see Figure

35, page 22). A beep from receiver confirms the command.

To activate this function, press THERMOSTAT button until the word SMART appears to the right of temperature bulb graphic on display.

Use UP/DOWN arrow button to set desired room temperature. The control system will cycle the fireplace on or off to maintain selected temperature.

SMART

ON

ON

MAX

MAX

MINIMUM MAXIMUM

Figure 36 - Remote Control Display of Flame Height Minimum and Maximum

ROOM THERMOSTAT

The remote control can operate as a room thermostat. The thermostat can be set to a desired temperature to control the comfort level in the room.

To activate, press THERMOSTAT button on remote control (see Figure 35, page 22). The word ON will appear to the right of temperature bulb graphic on display (see Figure 37). Use

UP/DOWN arrow button to set desired room temperature. Control system will cycle fireplace on or off to maintain selected temperature.



Room

ON

Temperature

Set

Temperature

Figure 37 - Room Temperature Setting

SMART THERMOSTAT

The Smart Thermostat adjusts flame height in accordance to differences between set temperature and room temperature. As room temperature gets closer to set temperature the smart function will modulate the flame lower. As room temperature cools, it will modulate the flame higher.

Figure 38 - Smart Thermostat Setting

CHILD SAFETY LOCK-OUT

This function lets you deactivate the remote control buttons. It is active when the lock icon is lit on the display.

To activate, press MODE button and UP arrow button at the same time. To deactivate, press again.

ON

Figure 39 - Child Safety Lock-Out

REPLACING HAND-HELDREMOTE

CONTROL ONLY

If your remote ever needs to be replaced you will not need to replace the receiver.

To program receiver with a new hand-heldremote, insert a small pin or paper clip into hole on receiver face plate marked PRG. The receiver will beep 3 times to indicate it is ready to accept a new remote transmitter. Press the ON/OFF button on your remote and the receiver will beep 4 times to confirm it receives commands from the new remote.

ON REMOTE OFF

PRG

To

Program

Receiver

Figure 40 - Programing Remote Control

to Receiver

121082-01K

www.fmiproducts.com

23

INSPECTING BURNERS

Check pilot flame pattern and burner flame patterns often.

PILOT FLAME PATTERN

Figure 41 shows a correct pilot flame pattern. Figure 42 shows an incorrect pilot flame pattern. The incorrect pilot flame is not touching the thermocouple. This will cause the thermocouple to cool. When the thermocouple cools, the fireplace will shut down.

If pilot flame pattern is incorrect, as shown in Figure 42

turn fireplace off (see To Turn Off Gas to

Appliance, page 21)

see Troubleshooting, page 26

Note: The correct pilot flame on natural gas units will have a slight curve, but flame should be blue and have no yellow or orange color.

(Pilot May Vary From Ones Shown)

Pilot

Pilot Burner

Burner

Thermocouple

Figure 41 - Correct

Figure 42 - Incorrect

Pilot Flame Pattern

Pilot Flame Pattern

MAIN BURNER

Periodically inspect all burner flame holes with the heater running. All slotted burner flame holes should be open with yellow flame present. All round burner flame holes should be open with a small blue flame present. Some burner flame holes may become blocked by debris or rust, with no flame present. If so, turn off heater and let cool. Remove blockage. Blocked burner flame holes may create soot.

FRONT BURNER FLAME PATTERN

Figure 43 shows correct front burner flame pattern. Figure 44 shows incorrect front burner flame pattern. The incorrect burner flame pattern shows yellow tipping at top of blue flame.

If front burner flame pattern is incorrect, as shown in Figure 44

turn fireplace off (see To Turn Off Gas to

Appliance, page 21)

see Troubleshooting, page 26

Figure 43 - Correct Burner Flame Pattern

Yellow Tipping

At Top of Blue

Flame

Figure 44 - Incorrect Burner Flame

Pattern

24

www.fmiproducts.com

121082-01K

CLEANING AND MAINTENANCE

WARNING: Turn off fireplace and let cool before cleaning.

CAUTION: You must keep control areas, burner and circulating air passageways of fireplace clean. Inspect these areas of fireplace before each use. Have fireplace inspected yearly by a qualified service person. Fireplace may need more frequent cleaning due to excessive lint from carpeting, bedding material, pet hair, etc.

WARNING: Failure to keep the primary air opening(s) of theburner(s)cleanmayresultin sooting and property damage.

BURNER INJECTOR HOLDER AND

PILOT AIR INLET HOLE

The primary air inlet holes allow the proper amount of air to mix with the gas. This provides a clean burning flame. Keep these holes clear of dust, dirt, lint and pet hair. Clean these air inlet holes prior to each heating season. Blocked air holes will create soot. We recommend that you clean the unit every three months during operation and have heater inspected yearly by a qualified service person.

We also recommend that you keep the burner tube and pilot assembly clean and free of dust and dirt. To clean these parts we recommend using compressed air no greater than 30 PSI.

Your local computer store, hardware store or home center may carry compressed air in a can. If using compressed air in a can, please follow the directions on the can. If you don’t follow directions on the can, you could damage the pilot assembly.

1.Shut off unit, including pilot. Allow unit to cool for at least thirty minutes.

2.Inspect burner, pilot and primary air inlet holes on injector holder for dust and dirt (see Figure 45).

3.Blow air through the ports/slots and holes in burner.

4.Check injector holder located at end of burner tube again. Remove any large particles of dust, dirt, lint or pet hair with a soft cloth or vacuum cleaner nozzle.

5.Blow air into primary air holes on injector holder.

6.In case any large clumps of dust have now been pushed into burner repeat steps 3 and 4.

Clean pilot assembly also. A yellow tip on pilot flame indicates dust and dirt in pilot assembly.

There is a small pilot air inlet hole about two inches from where pilot flame comes out of pilot assembly (see Figure 46). With unit off, lightly blow air through air inlet hole. You may blow through a drinking straw if compressed air is not available.

Injector

Ports/ Holder

Slots

Burner

Tube

Primary Air

Inlet Holes

Figure 45 - Injector Holder On Outlet

Burner Tube

Ports/Slots

Burner

Tube

Pilot

Assembly

Pilot Air

Inlet Hole

Figure 46 - Pilot Inlet Air Hole

121082-01K

www.fmiproducts.com

25

TROUBLESHOOTING

WARNING: Turn off heater and let cool before servicing. Only a qualified service person should service and repair heater.

CAUTION: Never use a wire, needle or similar object to clean ODS/pilot. This can damage ODS/pilot unit.

Note: All troubleshooting items are listed in order of operation.

OBSERVED PROBLEM

POSSIBLE CAUSE

REMEDY

Whenignitorbuttonispressed,

1.

Ignitor electrode not con-

1.

Reconnect ignitor cable.

there is no spark at ODS/



nected to ignitor cable.





pilot.

2.

Ignitor cable pinched or

2.

Free ignitor cable if pinched





wet.



by any metal or tubing. Keep









ignitor cable dry.



3.

Broken ignitor cable.

3.

Replace ignitor cable.



4.

Bad ignitor.

4.

Replace ignitor.



5.

Ignitor electrode positioned

5.

Replace pilot assembly.





wrong.







6.

Ignitor electrode broken.

6.

Replace pilot assembly.



7.

Battery not installed, battery

7.

Install new alkaline battery in





power low or battery not



electronic ignitor. Verify bat-





installed correctly.



tery is installed correctly.

Whenignitorbuttonispressed,

1.

Gas supply turned off or

1.

Turn on gas supply or open

there is spark at ODS/pilot but



equipment shutoff valve



equipment shutoff valve.

no ignition.



closed.

2.

Turn control knob to PILOT



2.

Control knob not in PILOT





position.



position.



3.

Control knob not pressed in

3.

Press in control knob while





while in PILOT position.



in PILOT position.



4.

Air in gas lines when

4.

Continue holding down





installed.



control knob. Repeat ignit-









ing operation until air is









removed.



5.

Depleted gas supply (pro-

5.

Contact local propane/LP





pane/LP only).



gas company.



6.

ODS/pilot is clogged.

6.

Clean ODS/pilot (see Clean-









ing and Maintenance, page









25) or replace ODS/pilot









assembly.



7.

Gas regulator setting is not

7.

Replace gas regulator.





correct.





26

www.fmiproducts.com

121082-01K

TROUBLESHOOTING

Continued

OBSERVED PROBLEM

POSSIBLE CAUSE

REMEDY

ODS/pilot lights but flame

1.

Control knob not fully

1.

Press in control knob fully.

goes out when control knob



pressed in.





is released.

2.

Control knob not pressed in

2.

After ODS/pilot lights, keep





long enough.



control knob pressed in 30









seconds.



3.

Equipment shutoff valve not

3.

Fully open equipment shut-





fully open.



off valve.



4.

Pilot flame not touching

4.

A) Contact local natural or





thermocouple, which allows



propane/LP gas company.





thermocouple to cool, caus-









ing pilot flame to go out. This



B) Clean ODS/pilot (see





problem could be caused by



Cleaning and Maintenance,





one or both of the following:



page 25) or replace ODS/





A) Low gas pressure



pilot assembly .





B) Dirty or partially clogged









ODS/pilot







5.

Thermocouple connection

5.

Hand tighten until snug, then





loose at control valve.



tighten 1/4 turn more.



6.

Thermocouple damaged.

6.

Replace pilot assembly.



7.

Control valve damaged.

7.

Replace control valve.



8.

Safety interlock system has

8.

Wait one minute for safety





been triggered.



interlock system to reset.









Repeat ignition operation.

Burner does not light after

1.

Inlet gas pressure is too

1.

Contact local natural or

ODS/pilot is lit.



low.



propane/LP gas company.



2.

Burner orifice(s) clogged.

2.

Clean burner(s) (see









Cleaning and Maintenance,









page 25) or replace burner









orifice(s).



3.

Thermopile leads disconnect-

3.

Reconnect leads (see Wir-





ed or improperly connected.



ing Diagram,page 30).



4.

Burner will not come on in

4.

Replace battery in transmit-





remote position.



ter and receiver.



5.

Wire disconnected from gas

5.

See Wiring Diagram, page 30.





control.





Delayed ignition of one or both

1.

Manifold pressure is too

1.

Contact local natural or

burners.



low.



propane/LP gas company.



2.

Burner orifice(s) clogged.

2.

Clean burner(s) (see Cleaning









and Maintenance, page 25)









or replace burner orifice(s).



3.

Mislocated crossover

3.

Contact qualified service





tube.



person.

Burner backfiring during com-

1.

Burner orifice is clogged or

1.

Clean burner (see Cleaning

bustion.



damaged.



and Maintenance, page 25)









or replace burner orifice(s).



2.

Damaged burner.

2.

Replace damaged burner.



3.

Gas regulator defective.

3.

Replace gas regulator.

121082-01K

www.fmiproducts.com

27

TROUBLESHOOTING

Continued

OBSERVED PROBLEM

POSSIBLE CAUSE

REMEDY

Slight smoke or odor during

1.

Not enough air.

1.

Check burner for dirt and

initial operation.







debris. If found, clean burner









(see Cleaning and Mainte-









nance, page 25).



2.

Gas regulator defective.

2.

Replace gas control.



3.

Residues from manufac-

3.

Problem will stop after a few





turing processes and logs



hours of operation.





curing.





Moisture/condensation no-

1.

Not enough combustion/

1.

Refer to Air for Combus-

ticed on windows.



ventilation air.



tion and Ventilation require-









ments (page 7).

Heater produces a whistling

1.

Turning control knob to HI

1.

Turn control knob to LO

noise when burners are lit.



position when burners are



position and let warm up for





cold.



a minute.



2.

Air in gas line.

2.

Operate burners until air is









removed from line. Have gas









line checked by local natural









or propane/LP gas company.



3.

Air passageways on heater

3.

Observe minimum installation





blocked.



clearances (see page 10).



4.

Dirty or partially clogged

4.

Clean burners (see Cleaning





burner orifice(s).



and Maintenance, page 25)









or replace burner orifice(s).

White powder residue forming

1.

When heated, vapors from

1.

Turn heater off when using

within burner box or on adja-



furniture polish, wax, carpet



furniture polish, wax, carpet

cent walls or furniture.



cleaners, etc. may turn into



cleaners or similar products.





white powder residue.





Remote does not function.

1.

Battery is not installed. Bat-

1.

Replace batteries (4-AAin





tery power is low.



receiver and 3-AAAin hand









set) in receiver and remote









control.



2.

Wire connection loose or

2. Check wiring connections





wire broken.



(see Wiring Diagram, page









30). Replace wiring harness









if necessary.

Yellow flame in front burner

1.

Not enough air.

1.

Check burner(s) for dirt

during burner combustion.







and debris. If found, clean









burner(s) (see Cleaning and









Maintenance, page 25).



2.

Gas regulator defective.

2.

Replace gas regulator.

Fireplace produces a clicking/

1.

Metal expanding while

1.

This is normal with most

ticking noise just after burner



heating or contracting while



heaters. If noise is exces-

is lit or shut off.



cooling.



sive, contact qualified ser-









vice person.

28

www.fmiproducts.com

121082-01K

TROUBLESHOOTING

Continued

WARNING: If you smell gas

Shut off gas supply.

Do not try to light any appliance.

Do not touch any electrical switch; do not use any phone in your building.

Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

If you cannot reach your gas supplier, call the fire department.

IMPORTANT: Operating fireplace where impurities in air exist may create odors. Cleaning supplies, paint, paint remover, cigarette smoke, cements and glues, new carpet or textiles, etc., create fumes. These fumes may mix with combustion air and create odors. These odors will disappear over time.

OBSERVED PROBLEM

POSSIBLE CAUSE

REMEDY

Fireplace produces unwanted

1.

Heater burning vapors from

1.

Open window to ventilate

odors.



paint, hair spray, glues,



room. Stop using odor caus-





cleaners, chemicals, new



ing products while heater is





carpet, etc. (See IMPOR-



running.





TANT statement above).







2.

Low fuel supply (propane/

2.

Refill supply tank (propane/





LP only).



LP only).



3.

Gas leak. See Warning

3.

Locate and correct all leaks





statement at top of page.



(see Checking Gas Connec-









tions, page 16).

Fireplace shuts off in use (ODS

1.

Not enough fresh air is

1.

Open window and/or door

operates).



available.



for ventilation.



2.

Low line pressure.

2.

Contact local natural or









propane/LP gas company.



3.

ODS/pilot is partially

3.

Clean ODS/pilot (see Cleaning





clogged.



and Maintenance, page 25).

Gas odor even when control

1.

Gas leak. See Warning

1.

Locate and correct all leaks

knob is in OFF position.



statement at top of page.



(see Checking Gas Connec-









tions, page 16).



2.

Control valve or gas control

2.

Replace control valve or gas





defective.



control.

Gas odor during combustion.

1.

Foreign matter between

1.

Take apart gas tubing and





control valve and burner.



remove foreign matter.



2.

Gas leak. See Warning

2.

Locate and correct all leaks





statement at top of page.



(see Checking Gas Connec-









tions, page 16).

Dark residue on logs inside

1.

Improper log placement.

1.

Properly locate logs (see

of their fireplace. Note: After







Installing Logs, page 18).

removing all causes of residue

2.

Drafts or other air currents

2.

Eliminate source of drafts

deposits,completelycleanfire-



affecting flame pattern.



around heater.

placeandapplianceoffresidue

3.

Air holes at burner inlet

3.

Clean out air holes at burner

before reusing appliance.



blocked.



inlet. Periodically repeat as









needed.



4.

Burner flame holes blocked.

4.

Remove blockage.

Logsetcyclestopilot,butroom

1.

Hand-heldremote control is

1.

Move hand-heldremote

temperature drops to a lower



too close to heater.



control unit farther away

than ideal level before log set







from the heater.

comes back on.









121082-01K

www.fmiproducts.com

29

SPECIFICATIONS

Model VSGF36NRC

Rating (Variable): 33,000/21,500 Btu/Hr

Type Gas: Natural Gas

Ignition: Electronic

Pressure Manifold: 3.5" W.C.

Inlet Gas Pressure (in. of water): Maximum 10.5" W.C., Minimum* 5" W.C.

Shipping Weight: 120 lbs.

* For input adjustment

TECHNICAL SERVICE

You may have further questions about installation, operation or troubleshooting. If so, contact FMI PRODUCTS, LLC at 1-866-328-4537.When calling, please have your model and serial numbers of your firebox ready.

You can also visit FMI PRODUCTS, LLC’s web site at www.fmiproducts.com.

Model VSGF36PRC

Rating (Variable): 33,000/21,500 Btu/Hr

Type Gas: Propane/LP

Ignition: Electronic

Pressure Manifold: 7.9" W.C.

Inlet Gas Pressure (in. of water):

Maximum 13" W.C. Minimum* 11" W.C.

Shipping Weight: 120 lbs.

* For input adjustment

SERVICE HINTS

When Gas Pressure Is Too Low

pilot will not stay lit

burners will have delayed ignition

heater will not produce specified heat

propane/LP gas supply may be low for propane/LP unit

You may feel your gas pressure is too low. If so, contact your local gas supplier.

WIRING DIAGRAM

Note: For proper operation of remote control, wires from thermopile to control receiver must be connected exactly as shown.

Black Connectors

Receiver



White

To Thermopile

Red

Figure 47 - Remote Control Wiring Diagram

30

www.fmiproducts.com

121082-01K

REPLACEMENT PARTS

Note: Use only original replacement parts. This will protect your warranty coverage for parts replaced under warranty.

Contact authorized dealers of this product.

If they can’t supply original replacement part(s), call FMI PRODUCTS, LLC at

1-866-328-4537for referral information. A list of authorized dealers can be found by visitingwww.fmiproducts.com.

When calling FMI PRODUCTS, LLC have ready

your name

your address

model and serial numbers of your firebox

how firebox was malfunctioning

type of gas used (propane/LP or natural gas)

purchase date

Usually, we will ask you to return the part to the factory.

Note:Thefireboxidentificationlabel(including model number, serial number, clearances, etc.) is located on the right front edge of the firebox.

ACCESSORIES

Purchase these firebox accessories from your local dealer. If they can not supply these accessories, call FMI PRODUCTS, LLC at

1-866-328-4537for information. You can also write to the address listed on the back page of this manual.

FIREBOX BRICK LINER - HFL401

All Models. Ceramic fiber firebox liner adds the look of real brick. Aged red color panels with black mortar and straight brick pattern.

MANTELS

W36TO - Cabinet Mantel & Base, Stained Oak, Traditional Design

W36TU - Cabinet Mantel & Base, Unfinished, Traditional Design

C36TO - Corner Mantel & Base, Stained Oak, Traditional Design

C36TU - Corner Mantel & Base, Unfinished,

Traditional Design

PERIMETER TRIM

PT36 - Black

PT36B - Brushed BrassPT36P - Platinum

FIREPLACE HANDLES - FPH

2 handles per kit.

121082-01K

www.fmiproducts.com

31

PARTS

MODELS VSGF36PRC, VSGF36NRC

36

38

34

35

33



6





37









7

2



LPG

3 (NG Only)







1



22



8



4









28









10







11











12









5



32













9







14







Install Battery















According to









23





this Illustration







26





















25









29



























17

30

12



24











14

AAA

27



























Battery

13

23







31

21

Negative

15







UP





18



(NG Only)







16



19

20











(NG Only)















32

www.fmiproducts.com

121082-01K

PARTS

This list contains replaceable parts used in your firebox. When ordering parts, follow the instructions listed under Replacement Parts on page 31 of this manual.

KEY







SGF36PRCVSGF36NRCV











NO.

PART NO.

DESCRIPTION





1

112466-02

Rear Burner Assembly

2

112465-02

Front Burner Assembly

3

107634-01

NG Conversion Plate



4

101004-15

Rear Burner Injector





101004-14

Rear Burner Injector



5

101004-01

Front Burner Injector





101004-08

Front Burner Injector



6

112713-03

Pilot Bracket

7

103778-01

ODS Pilot





103779-01

ODS Pilot



8

098249-01

ODS Nut

9

112708-07

Burner Tube

10

112705-03

Base Assembly

11

**



Firebox Bottom

12

115410-01

Magnet and Bracket Kit

13

103650-01

Knob

14

**



Firebox Support Leg

15

104241-03

Valve Bracket

16

111440-04

Gas Valve





111440-03

Gas Valve



17

103782-01

Valve Bracket

18

098265-02

Male Elbow

19

099387-09

Pilot Tube





099387-12

Pilot Tube



20

099918-02

Pilot Regulator



21

099387-14

Pilot Tube



22

M11084-26

Screw

23

111435-01

Electronic Ignitor

24

14500



Male Fitting

25

101628-03

Flex Hose

26

105649-01

Blower Speed Control

27

103651-01

Lock Nut

28

098271-10

Ignitor Cable

29

120657-03

Proflame Receiver Bracket

30

121129-05

Proflame Receiver

31

121129-03

Proflame Receiver Plate

32

121129-01

Proflame Remote

33

121699-11

Front Log Right

34

121699-10

Front Log Left

35

125683-01

Middle Right Log

36

121699-09

Middle Left Log

37

121699-13

Bottom Log

38

121699-12

Back Log





PARTS AVAILABLE — NOT SHOWN















100563-01

Warning Plate



123482-01

Lighting Instructions Plate



121129-04

Proflame Wire Harness

** Not a field replaceable part

QTY.

1

1

1

1

1

1

1

1

1

1

2

1

1

1

2

1

2

1

1

1

1

1

1

1

1

1

4

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

121082-01K

www.fmiproducts.com

33

PARTS

MODELS VSGF36PRC AND VSGF36NRC







16











15













14













13



















17







11

12























10













9















27





29

























18













20



28



6

























7



19

21

5























4







26 25











8

22

























23







3





24















2

1

34

www.fmiproducts.com

121082-01K

PARTS

MODELS VSGF36PRC AND VSGF36NRC

This list contains replaceable parts used in your firebox. When ordering parts, follow the instructions listed under Replacement Parts on page 31 of this manual.

KEY







NO. PART NO.

DESCRIPTION

QTY.

1

113190-01CK

Screen

2

2

116865-01CK

Bottom Louver Assembly

1

3

**

Face Weldment

1

4

101355-03CK

Hood

1

5

116864-01CK

Louver Assembly

1

6

**

Firebox Bottom Bracket

1

7

**

Right Firebox Support Leg

1

8

**

Left Firebox Support Leg

2

9

**

Firebox Surround

1

10

**

Firebox Top Shield

1

11

**

Firebox Top

1

12

**

Damper Can Collar

1

13

**

Insulation Pan

1

14

**

Fireplace Top Insulation

1

15

**

Fireplace Top

1

16

20280

Top Spacer

4

17

**

Fireplace Surround

1

18

107128-01

Gas Conduit

2

19

115408-01

Receptacle Plate

1

20

21171

Gas Knock-OutCover

4

21

103771-01

Strain Relief

1

22

115402-01

Steel Receptacle Box

1

23

119943-01

Blower

1

24

M11084-38

Hex Screw, #8

3

25

GA3555

Duplex Outlet

1

26

115403-01

Steel Receptacle Cover

1

27

101378-01

Thermostat Switch

1

28

117539-01

Brick Refractory Kit

1

29

117891-01

FPH Handle Bracket

4

** Not a field replaceable part.

121082-01K

www.fmiproducts.com

35

WARRANTY

KEEP THIS WARRANTY

Model (located on product or identification tag)______________________________

Serial No. (located on product or identification tag)___________________________

Date Purchased ___________________________

Keep receipt for warranty verification.

FMI PRODUCTS, LLC LIMITED WARRANTIES

New Products

Standard Warranty: FMI PRODUCTS, LLC warrants this new product and any parts thereof to be free from defects in material and workmanship for a period of four (4) years from the date of first purchase from an authorized dealer provided the product has been installed, maintained and operated in accordance with FMI PRODUCTS, LLC’s warnings and instructions.

For products purchased for commercial, industrial or rental usage, this warranty is limited to 90 days from the date of first purchase.

Factory Reconditioned Products

Limited Warranty: FMI PRODUCTS, LLC warrants factory reconditioned products and any parts thereof to be free from defects in material and workmanship for 30 days from the date of first purchase from an authorized dealer provided the product has been installed, maintained and operated in accordance with FMI PRODUCTS, LLC’s warnings and instructions.

Terms Common to All Warranties

The following terms apply to all of the above warranties:

Always specify model number and serial number when contacting the manufacturer. To make a claim under this warranty the bill of sale or other proof of purchase must be presented.

This warranty is extended only to the original retail purchaser when purchased from an authorized dealer, and only when installed by a qualified installer in accordance with all local codes and instructions furnished with this product.

This warranty covers the cost of part(s) required to restore this product to proper operating condition and an allowance for labor when provided by a FMI PRODUCTS, LLC Authorized Service Center or a provider approved by FMI PRODUCTS, LLC. Warranty parts must be obtained through authorized dealers of this product and/or FMI PRODUCTS, LLC who will provide original factory replacement parts. Failure to use original factory replacement parts voids this warranty.

Travel, handling, transportation, diagnostic, material, labor and incidental costs associated with warranty repairs, unless expressly covered by this warranty, are not reimbursable under this warranty and are the responsibility of the owner.

Excluded from this warranty are products or parts that fail or become damaged due to misuse, accidents, improper installation, lack of proper maintenance, tampering, or alteration(s).

This is FMI PRODUCTS, LLC’s exclusive warranty, and to the full extent allowed by law; this express warranty excludes any and all other warranties, express or implied, written or verbal and limits the duration of any and all implied warranties, including warranties of merchantability and fitness for a particular purpose to four (4) years on new products and 30 days on factory reconditioned products from the date of first purchase. FMI PRODUCTS, LLC makes no other warranties regarding this product.

FMI PRODUCTS, LLC’s liability is limited to the purchase price of the product, and FMI PRODUCTS, LLC shall not be liable for any other damages whatsoever under any circumstances including indirect, incidental, or consequential damages.

Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

For information about this warranty contact:

2701 S. Harbor Blvd.

Santa Ana, CA 92704

1-866-328-4537121082-01

www.fmiproducts.com Rev. K

01/11
