Outdoor Wood Burning Fireplace

OWNER’S OPERATION AND INSTALLATION MANUAL

ICC-ES#ESR-2542

(V)JM36, (V)JM42, (V)JM50 Series, WCM-36J,WCM-42JANDWCM-50JWood Burning Masonry Fireplaces with Insulation

SAVE THIS BOOK

This book is valuable. In addition to instructing you on how to install and maintain your appliance, it also contains information that will enable you to obtain replacement parts or accessory items when needed. Keep it with your other important papers.

This fireplace is approved for use as a wood burning fireplace or for use with a vented gas log approved to ANS Z21.60, Z21.84 standards or for use with a vent-freegas log heater approved to ANS Z21.11.2 standard.

This wood burning fireplace complies with UL127- CAN/ULS-S610-M87standard as a FACTORY BUILT APPLIANCE.

FOR CANADA: The authority having jurisdiction (such as the municipal building department, fire department, etc.) should be contacted before installation to deter-

mine the need to obtain a permit.

INSTALLER: Leave this manual with the appliance. CONSUMER: Retain this manual for future reference.

For more information, visit www.fmiproducts.com

WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury, property damage or loss of life. Refer to this manual for assistance or additional information. Consult a qualified

installer or local distributor.

Table of Contents

Safety...................................................................

2

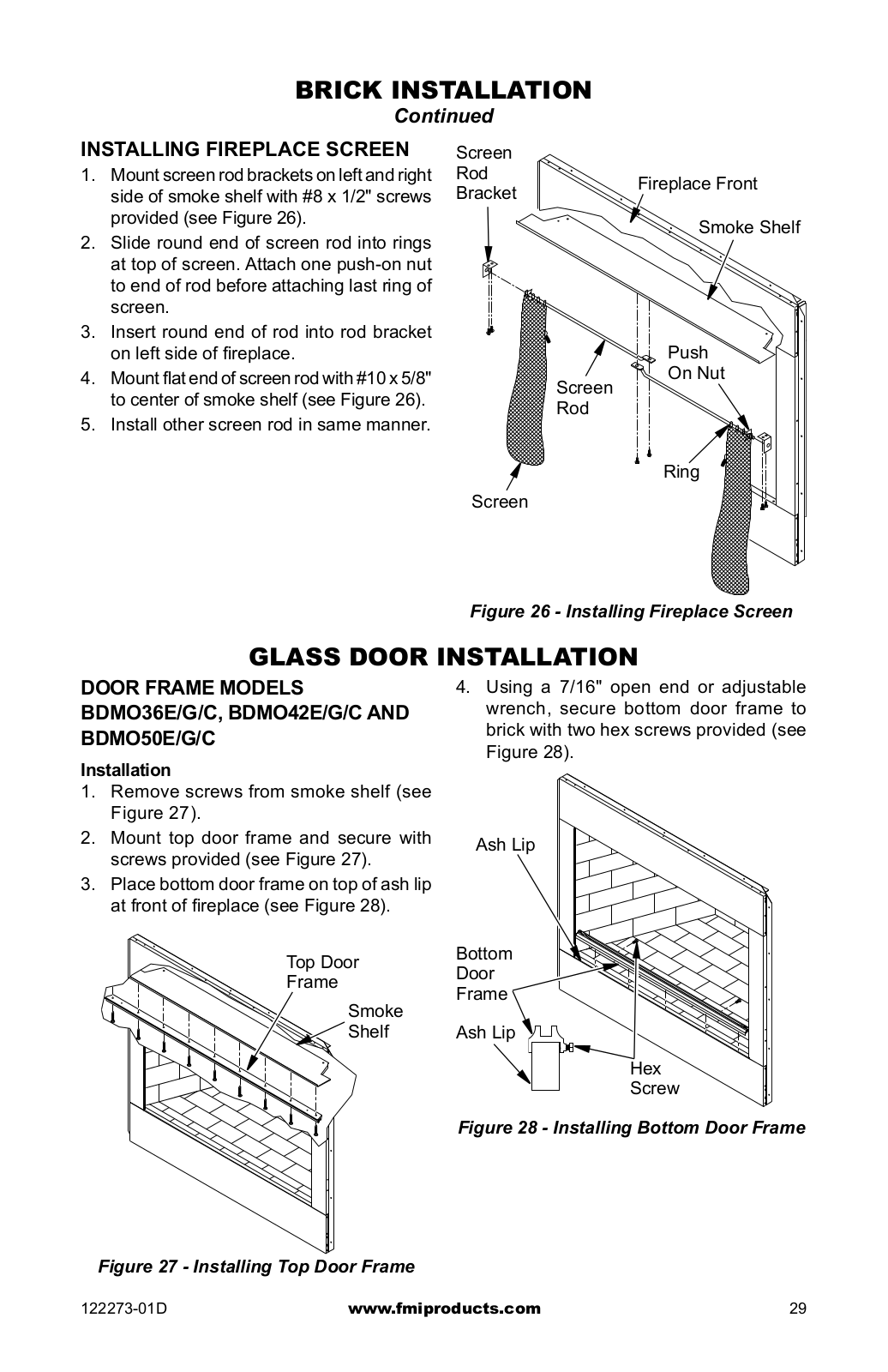

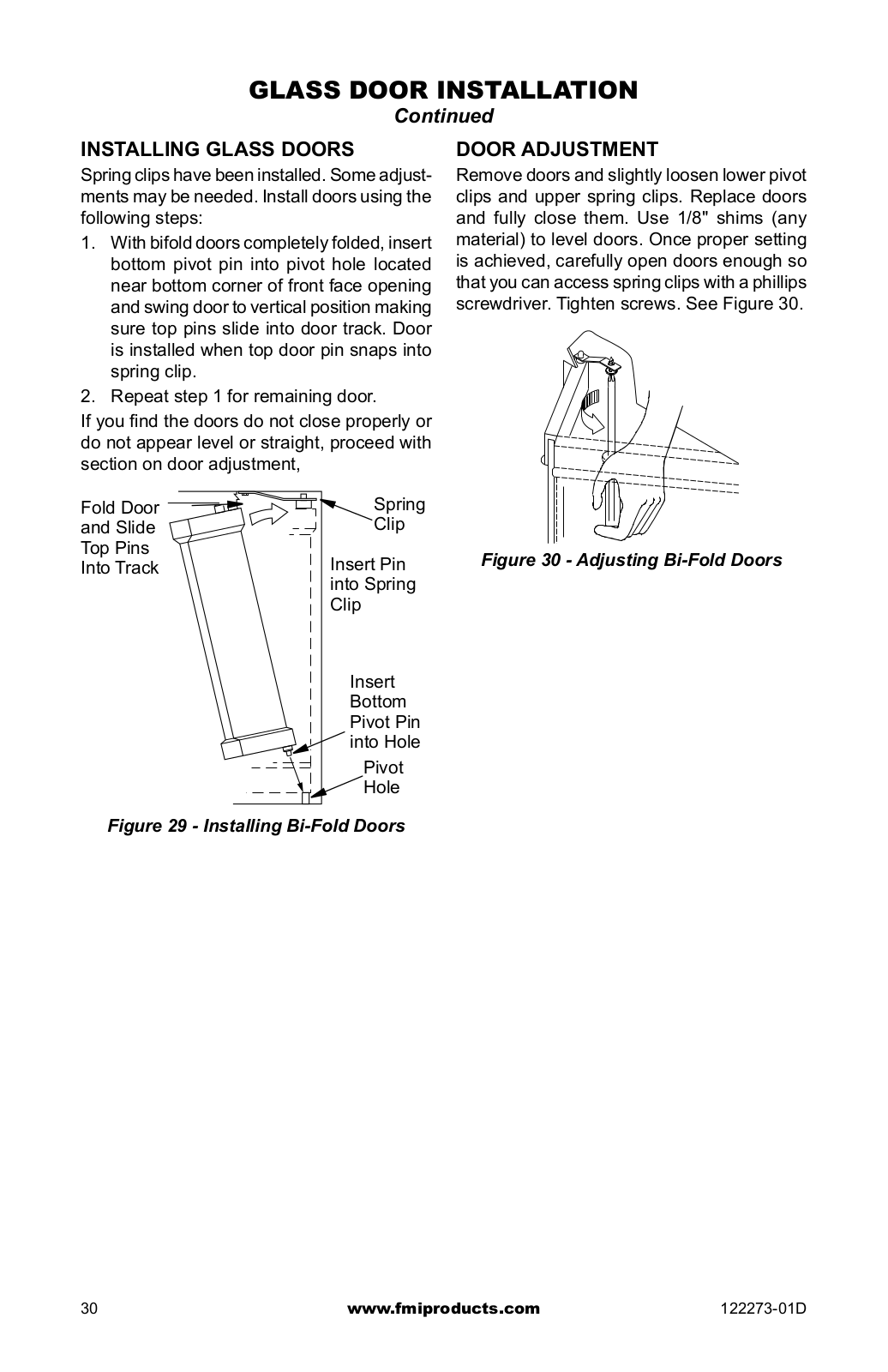

Glass Door Installation.......................................

29

Specifications.......................................................

3

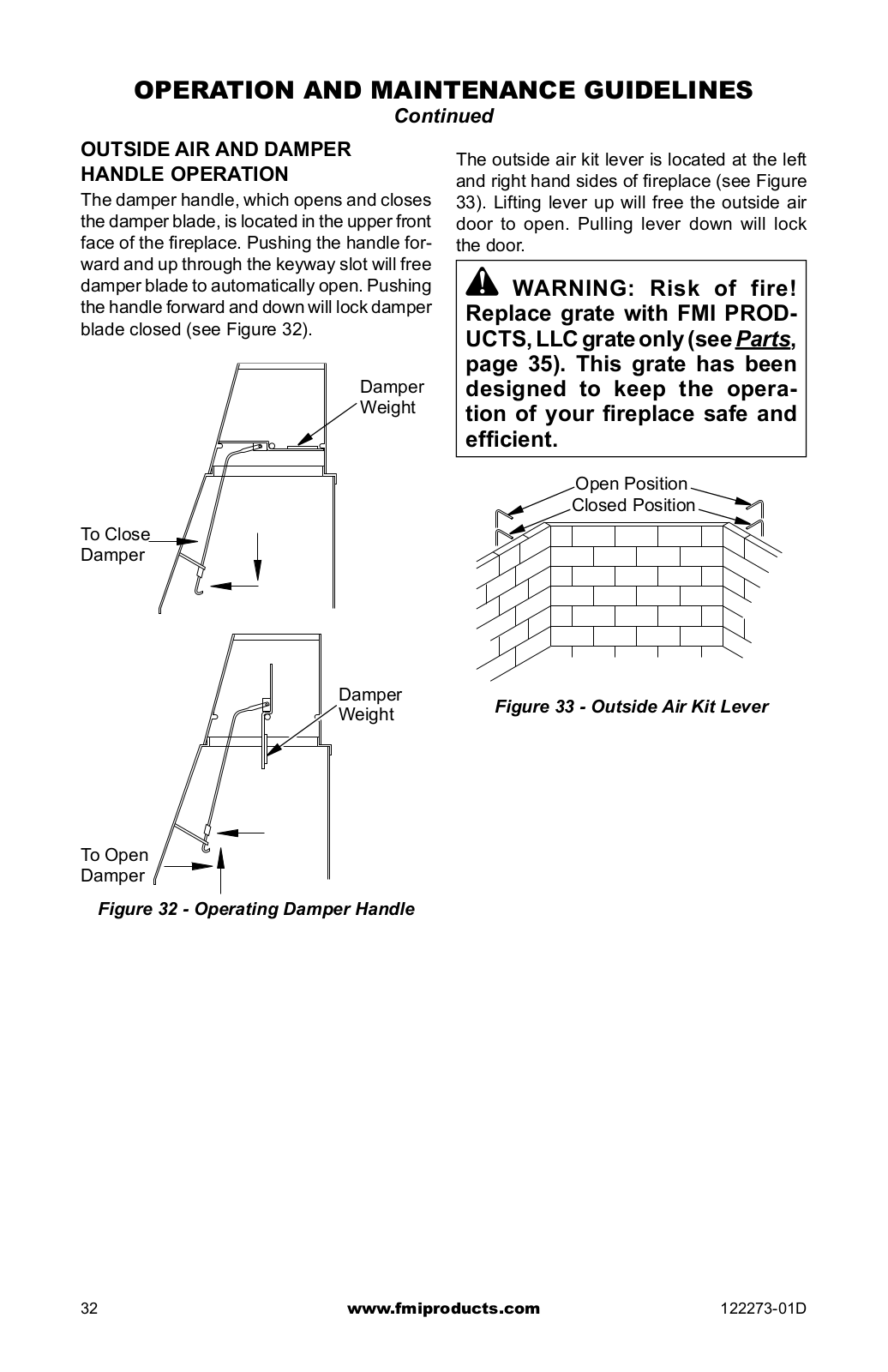

Operation and Maintenance Guidelines.............

31

Fireplace Installation............................................

6

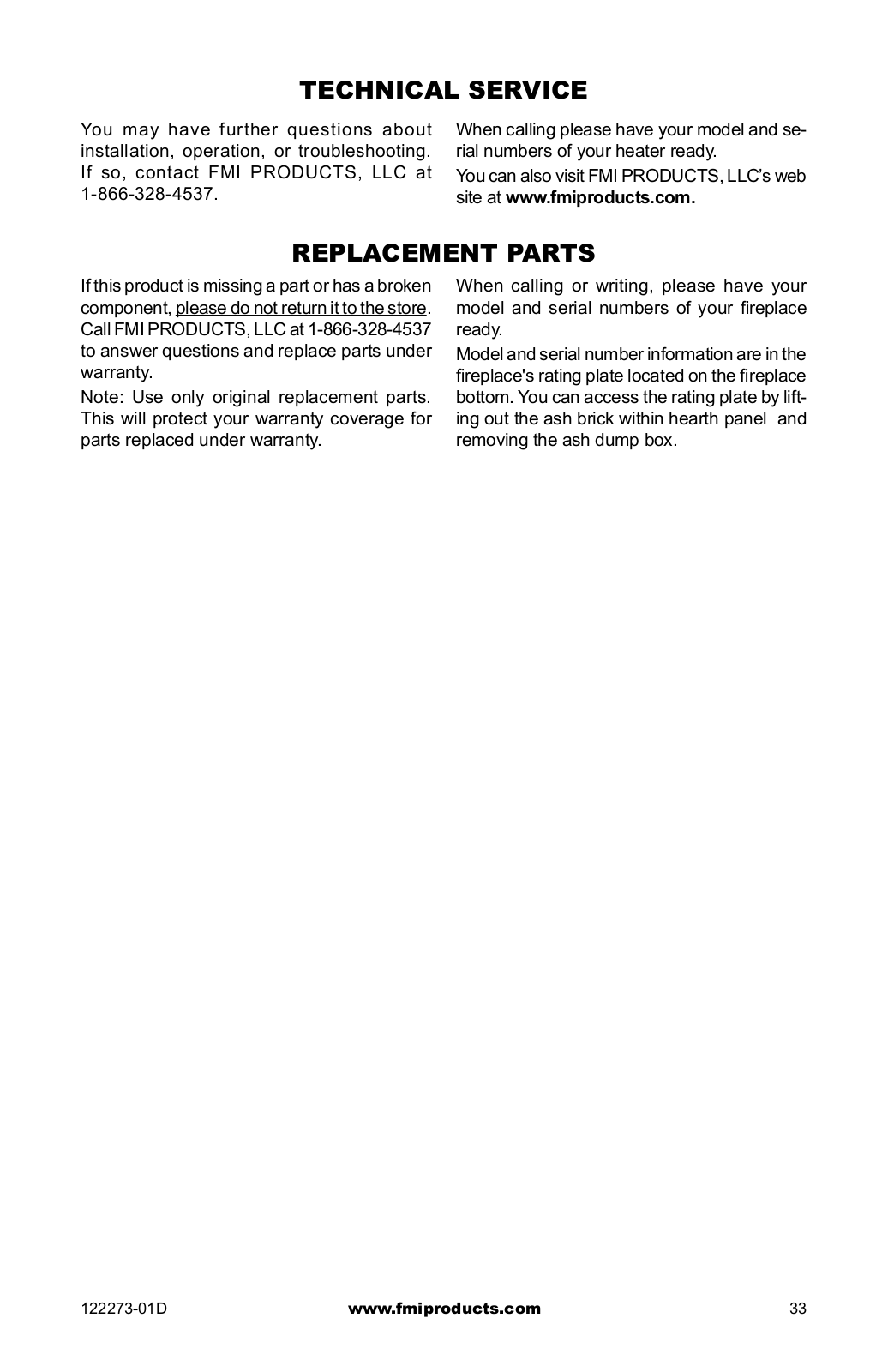

Technical Service...............................................

33

Venting Installation...............................................

8

Replacement Parts.............................................

33

Optional Gas Line Installation............................

13

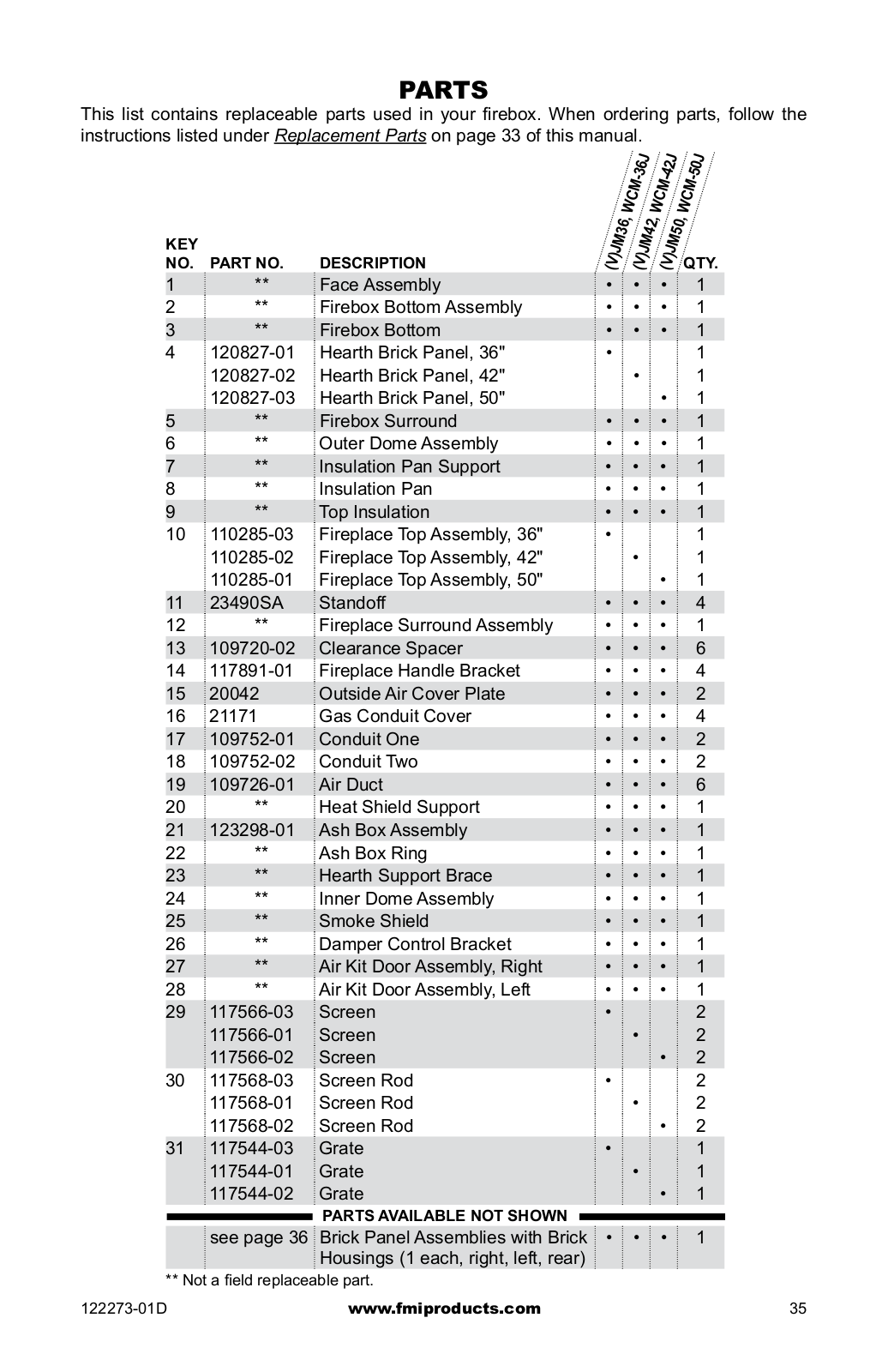

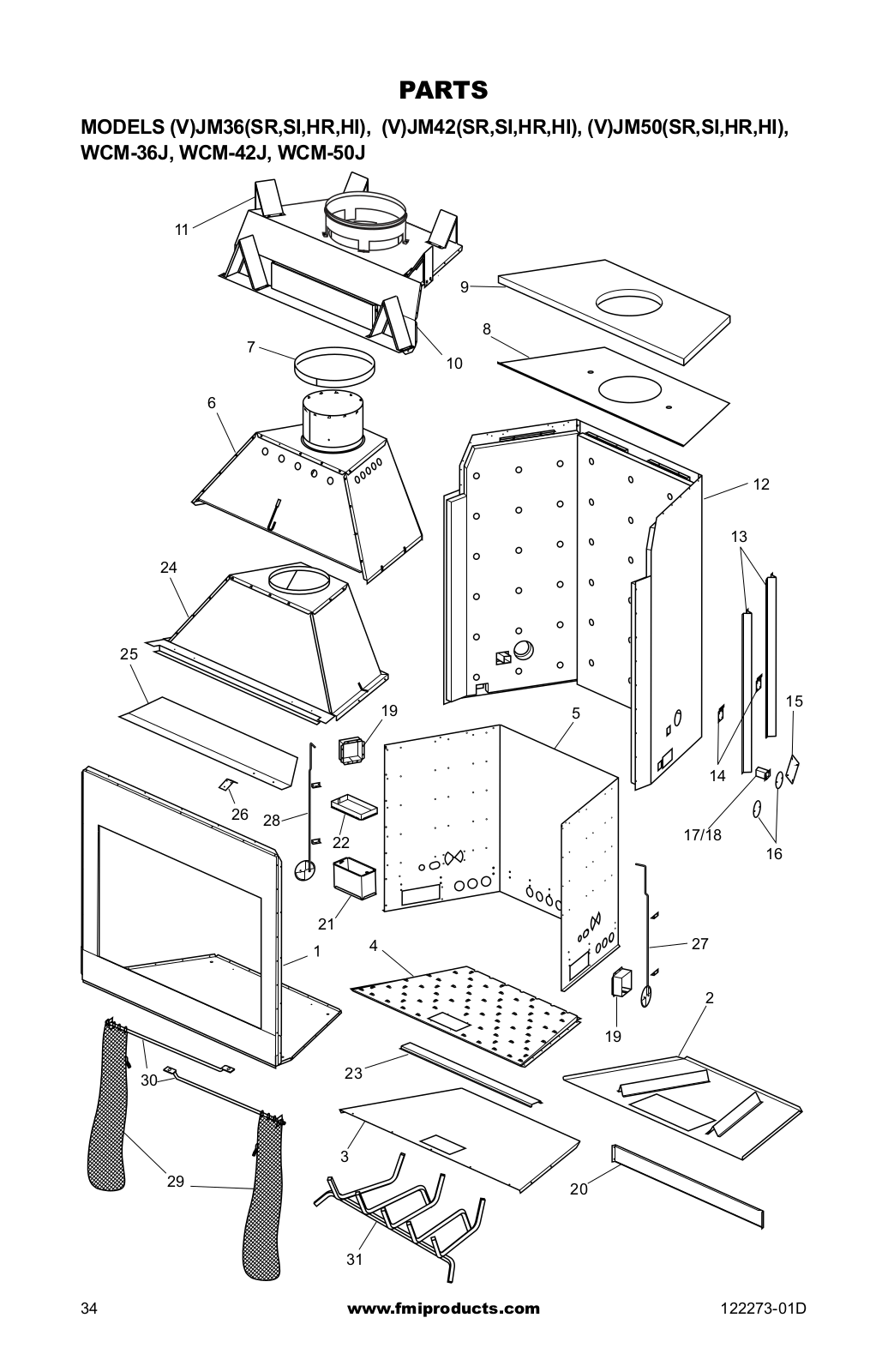

Parts ..................................................................

34

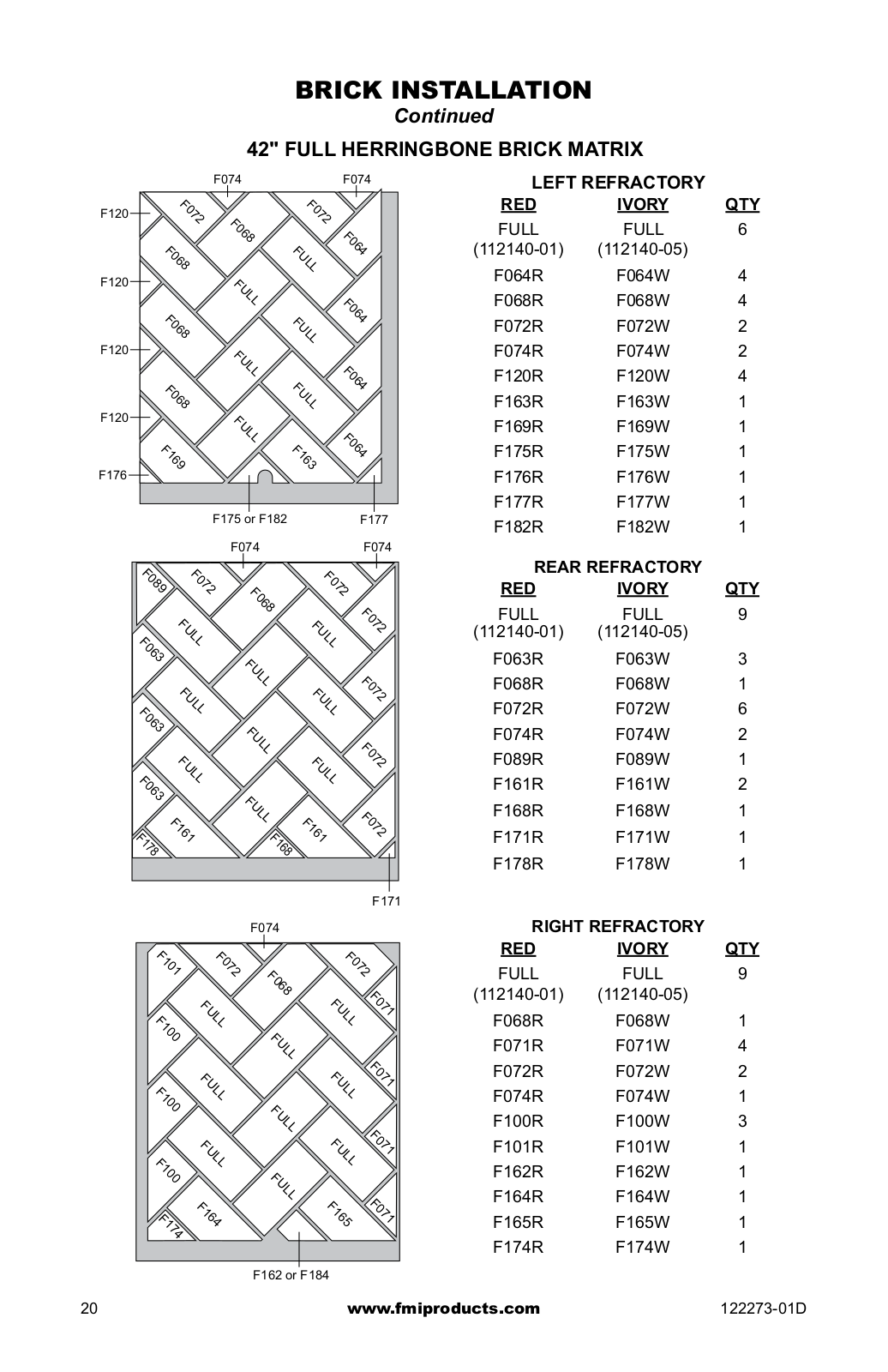

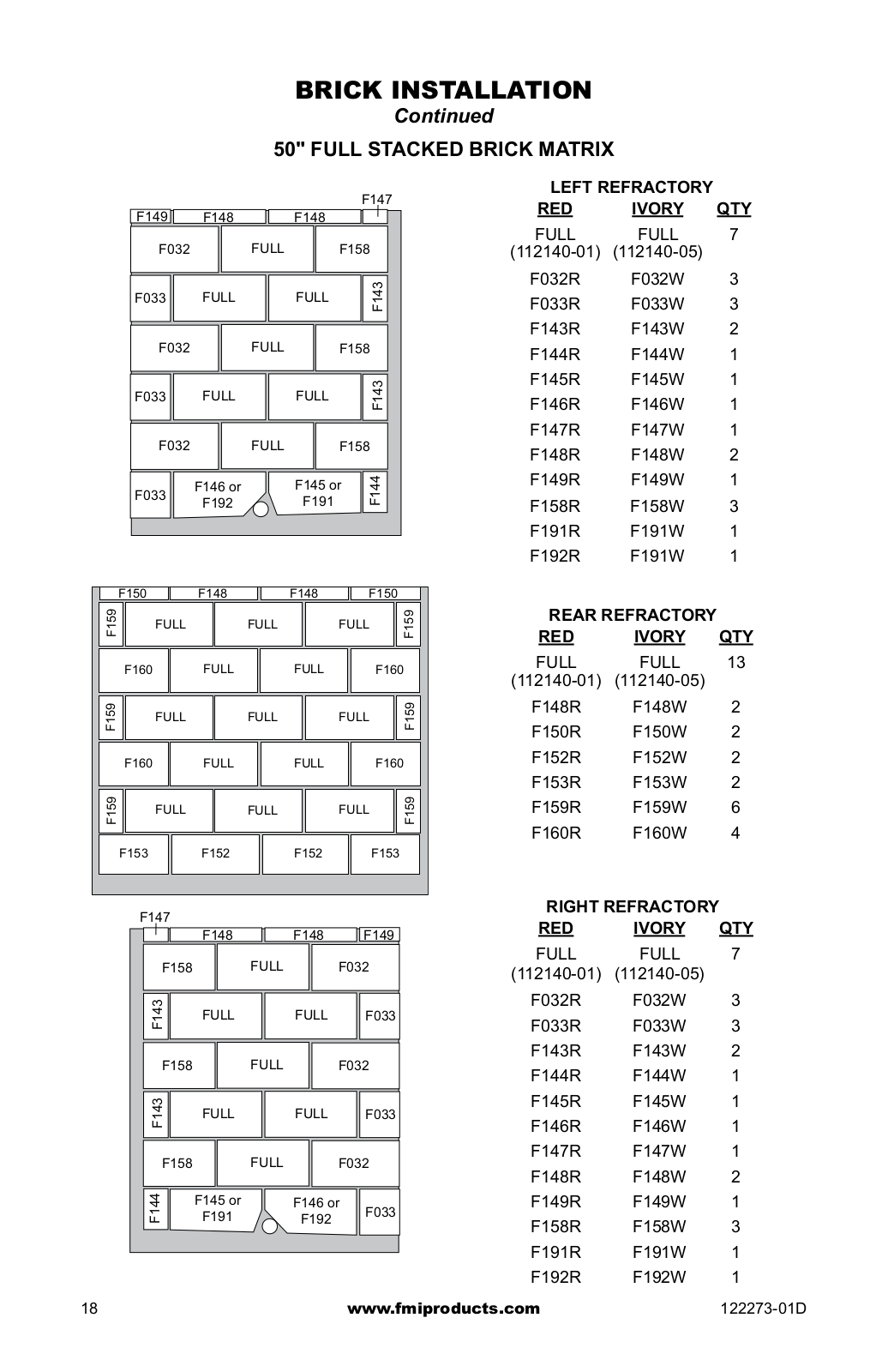

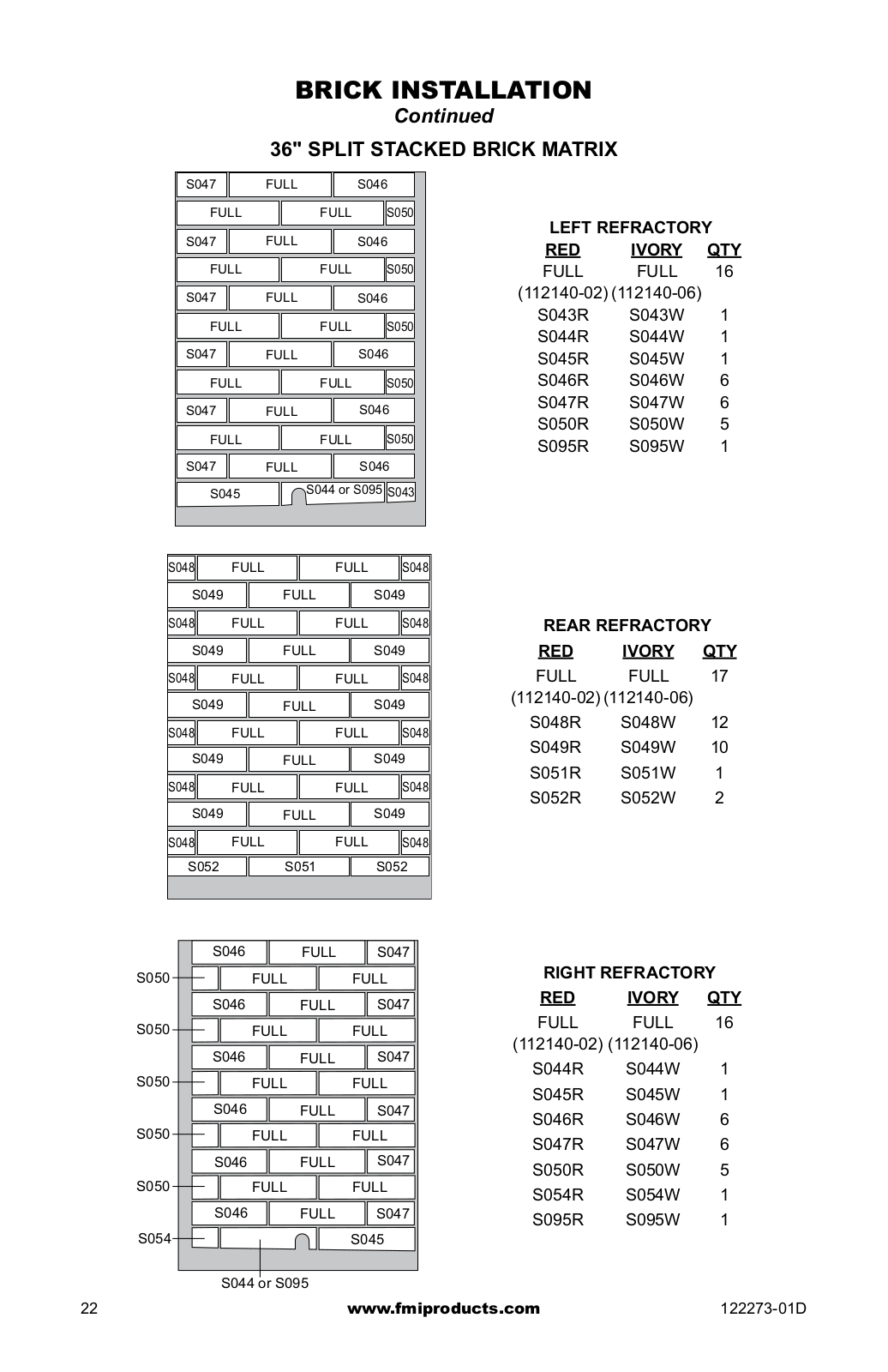

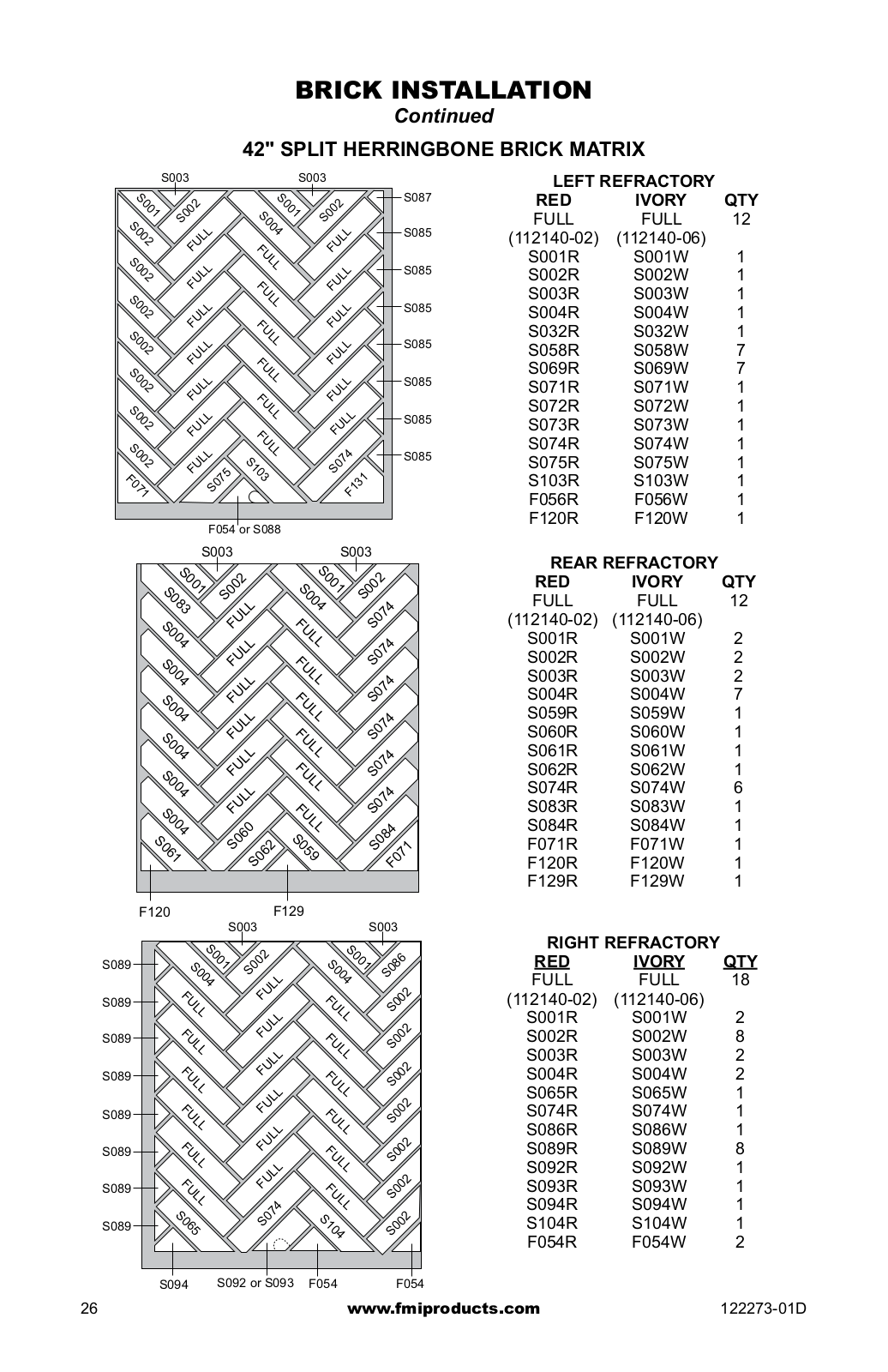

Brick Installation.................................................

14

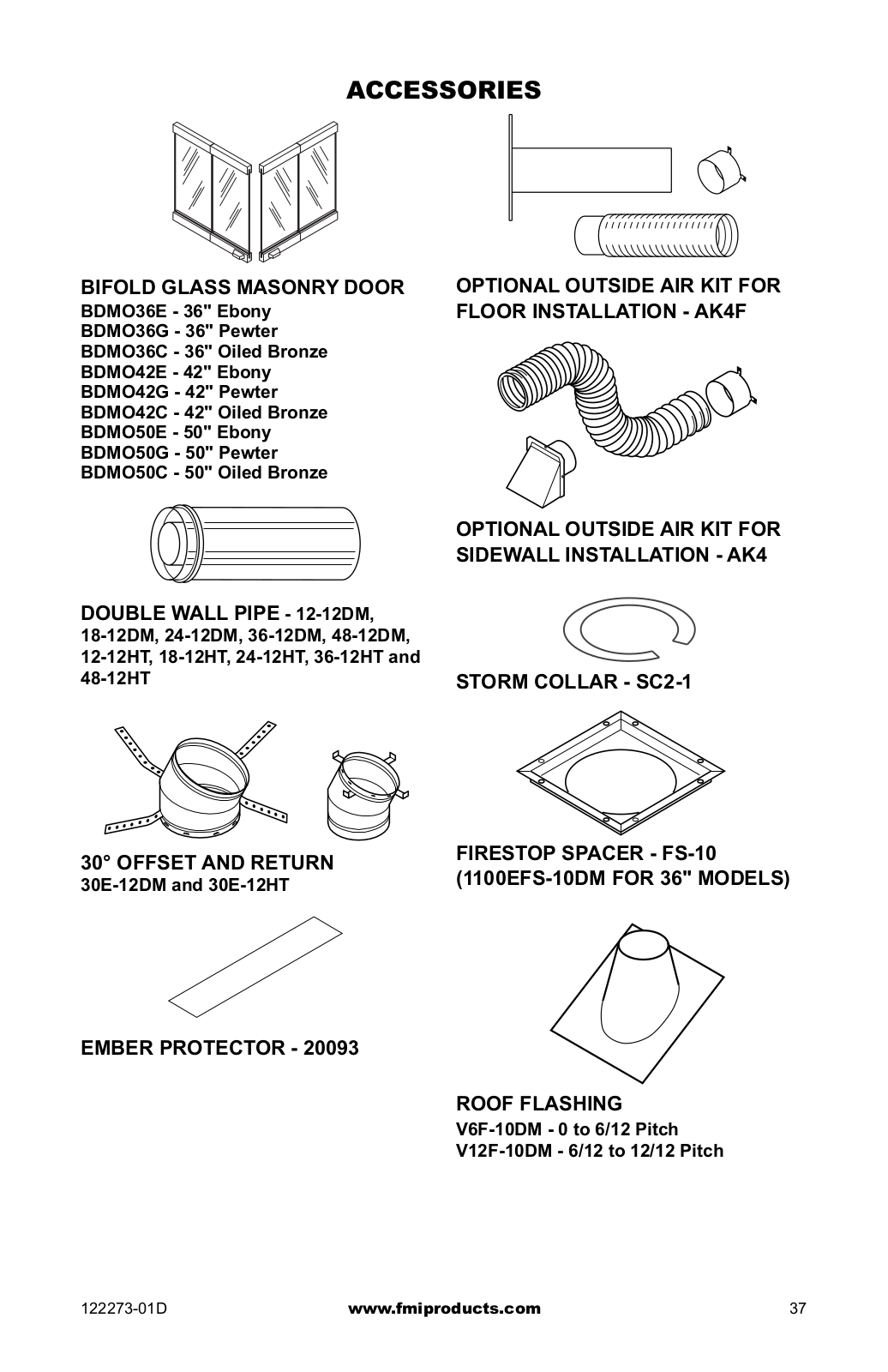

Accessories........................................................

37

Safety

IMPORTANT: Check local codes before installing this fireplace.

Before beginning the installation of the fireplace, read these instructions through completely.

ThisFMIPRODUCTS,LLCfireplaceandits componentsaresafewheninstalledaccording to this installation manual. Unless you use FMI PRODUCTS, LLC components, which have been designed and tested for the fireplace system, you may cause a fire hazard.

The FMI PRODUCTS, LLC warranty will be voided by and FMI PRODUCTS, LLC disclaims any responsibility for the following actions.

a.Modification of the fireplace, components, doors, air inlet system and damper control.

b.Use of any component part not manufactured or approved by FMI PROD-

UCTS, LLC in combination with a FMI

PRODUCTS, LLC fireplace system.

Proper installation is the most important step in ensuring safe and continuous operation of the fireplace. Consult the local building codes as to the particular requirements concerned with the installation of all factory built fireplaces.

WARNING: Do not install a fireplaceinsertinthisboxunless the manufacturer's instructions with the insert specifically state thisfireplacehasbeentestedfor use with this insert.

FOR YOUR SAFETY

Do not store or use gasoline oranyotherflammablevapors or liquids in the vicinity of this or any other appliance.

Due to high temperatures, the appliance should be located out of traffic and away from furniture and draperies.

Do not place clothing or other flammablematerialsonornear the appliance.

Never leave children unattended when a fire is burning in the fireplace.

WARNING: Use solid wood or processed solid fuel firelogs only. When processed wood fuel fire logs are used, do not poke or stir the logs while they are burning. Use only fire logs that have beenevaluatedfortheapplication in fireplace and refer to fire log warnings and caution markings on packaging prior to use.

Thisfireplaceisnotintendedtobe used as a substitute for a furnace to heat an entire home. Use for supplemental heat only.

2

www.fmiproducts.com

122273-01D

Specifications

36" mODELS

29"

22

1/2"



14 1/2"



22"

26 5/8"

18 3/8" 1913/16"



(Ref.)

15 5/8"





4 1/2"

35 3/8"

1 5/16"



36" HEARTH



11"



67"



61"



49"

58"

30"



7"

1"

1"

36"

4 1/2"

45 1/8"



OUTSIDE AIR

ACCESS

GAS LINE

ACCESS

10 1/2"9 1/2"

3 1/2"

71/4"

11"151/4"

Figure 1 - 36" Models (V)JM36 Series and WCM-36J

122273-01D

www.fmiproducts.com

3

Specifications Continued

42" Models

30 1/2"









22 3/4"

25"







15 3/4"











22 1/2"







23 13/16"

29"





(Ref.)

17 5/8"









4 3/8"

41 3/8"

1

5

/16"







5/8"

42" HEARTH











OUTSIDE



11"

AIR



ACCESS

67"

58"



61"

GAS LINE



49"



30"

ACCESS





7"





42"

1"

51 1/8"

10 1/2"9 1/2"



3 1/2"



4 1/2"

81/2"



13"



17"

Figure 2 - 42" Models (V)JM42 Series and WCM-42J

4

www.fmiproducts.com

122273-01D

Specifications Continued

50" Models

38 1/2"





24"

33"



19 1/4"







22

23 13/16"



1/2"





(Ref.)

28 1/2"





17 5/8"





43/8"

49 3/8"

1 5/16"

50" HEARTH











OUTSIDE



11"



AIR





ACCESS







67"

58"



GAS LINE





61"

49"



ACCESS



30"







7"



10 1/2"9 1/2"







3 1/2"



1"

4 1/2"





50"

8 1/2"



59"



13"







17"

Figure 3 - 50" Models (V)JM50 Series and WCM-50J

122273-01D

www.fmiproducts.com

5

Fireplace Installation

selecting location

To determine the safest and most efficient location for the fireplace, you must take into consideration the following guidelines:

1.The location must allow for proper clearances (see Figures 4 and 5).

2.Consider a location where fireplace will not be affected by drafts, air conditioning ducts, windows or doors.

3.A location that avoids cutting of joists or roof rafters will make installation easier.

4.An outside air kit is available with this fireplace (see Optional Outside Air Kit on page 8).

Minimum clearance to combustibles

Back and sides of fireplace

1 1/2" min.*

Front of fireplace



48" min.

Floor**



0" min.

Perpendicular wall to opening

18" min.

36" Models



12" min.

Top spacers



0" min.

Mantel clearances

see Mantels, page 7

Chimney outer pipe surface

2" min.

36" Model



1" min.

* Not required at nailing flanges ** See step 2 of Framing

Framing

1.Frame opening for fireplace using dimensions shown in Figures 4 and 5.

2.If fireplace is to be installed directly on carpeting, tile (other than ceramic) or any combustible material other than wood flooring, fireplace must be installed upon a metal or wood panel extending full width and depth of fireplace.

3.Set fireplace directly in front of this opening and slide unit back until nailing flanges touch side framing.

4.Check level of the fireplace and shim with sheet metal if necessary.

5.Before securing fireplace to prepared framing, ember protector (provided) must be placed between hearth extension (not supplied) and under bottom front edge of fireplacetoprotectagainstglowingembers falling through. If fireplace is to be installed on a raised platform, a Z-typeember protector (not supplied) must be fabricated to fit your required platform height. Ember protector should extend under fireplace a

minimum of 1 1/2". Ember protector should be made of galvanized sheet metal (28 gauge minimum to prevent corrosion.

6.Using screws or nails, secure fireplace to framing through flanges located on sides of fireplace.

WARNING: Do not pack required air spaces with insulation or other materials.

Minimum/Maximum Chimney Height for Residential Installation

Minimum height of chimney, measured from base of fireplace to flue gas outlet of termination, is 16 feet for straight flue or a flue with one elbow set. Maximum distance between elbows is 6 feet. For systems with two elbow sets, minimum height is 22 feet. Maximum height of any system is 50 feet.This measurement includes fireplace, chimney sections and height of termination assembly at level of the flue gas outlet (see Figure 15, page 11).

Minimum/Maximum Chimney Height for

Outdoor Installation

Minimum height of chimney, measured from base of fireplace to flue gas outlet of termination, is 9.5 feet (minimum of 4 feet of chimney pipe sections required for outdoor installation).

45.25" (36" Models)

51.25" (42" Models)

59" (50" Models)

67.125"

58.125"

30.125"28.250" (36" Models)

Figure 4 - Framing Dimensions



Maintain 1 1/2"

61" (36" Models)

Clearance

at Sides and

65" (42" Models)

Back of Fireplace

71" (50" Models)





1 1/2" Clearance



Not Required at



Nailing Flanges

86.5" (36" Models)

92" (42" Models)

100" (50" Models)

Figure 5 - Corner Installation

6

www.fmiproducts.com

122273-01D

Fireplace Installation

Continued

Note: For outdoor installations, fireplace enclosure must allow for adequate drainage and fresh air ventilation. It is recommended that a sealed, corrosion resistant catch pan with provision for drainage be installed under

fireplace within fireplace enclosure.

Hearth Extension

A hearth extension projecting a minimum of 20" in front of and a minimum of 12" beyond each side of fireplace opening is required to protect combustible floor construction in front of fireplace. Fabricate a hearth extension using a material which meets the following specifications: a layer of noncombustible, inorganic material having a thermal conductivity of K=0.84 BTU IN/FT, HR. F (or less) at

1" thick. For example, if the material selected has a K factor of 0.25, such as glass fiber, the following formula would apply:

0.25 x 1.0" = 0.30" thickness required

0.84

Thermal conductivity "K" of materials can be obtained from manufacturer or supplier of noncombustible material. If hearth extension is to be covered, use noncombustible material such as tile, slate, brick, concrete, metal, glass, marble, stone, etc. Provide a means to prevent hearth extension from shifting and seal gap between fireplace frame and hearth extension with a noncombustible material (see Figure 6).

WARNING:Hearthextension

is to be installed only as shown

in Figure 6.

Mantels

Amantelmaybeinstalledifdesired(seeFigure

7). Woodwork such as wood trims, mantels or any other combustible material projecting from front face must not be placed within 12" (36" Models) or 18" (42/50" Models) of fireplace opening.Combustiblematerialsabove12"(36"

Models) or 18" (42/50" Models) and projecting more than 1 1/2" from fireplace must not be placedlessthan15"(36"Models)or21"(42/50" Models) from the top opening of the fireplace (NFPA STD 211, Sec.7-3.3.3).

Mantels or any other combustible material also may come up to side edge of black metal face of fireplace as long as projections from front face fall within limit shown in Figure 7.





12 1/4" Ref.

6"







Ref.

33°



Models)



3" Nom.



11/2" Max.

(36" (42/50"Min. Models)

Min.

Min.

(42/50"

Min.

Models)



15"

(36"

18"

Models)

21"

12"



Fireplace Opening

Combustible

Material

Safe

Zone for Projection of Combustible Materials

Upper

Section of

Fireplace

Fireplace Front

Seal Gap

Top View of Fireplace











7.75" (36" Models)

FIREBOX



Ember Protector



11.5" (42/50" Models)











3" Max.

Fireplace Front



SAFE ZONE

4.5"

Combustible





Material

Raised Hearth



33°





Must Not





Min. to



Ember Protector

Hearth



Overlap



Extension

Perpendicular



Front Face



Side Wall













Fireplace Front

Seal Gap

12" - 36" Models





18" - 42/50" Models



Elevated







Figure 7 - Mantel Clearances to





Ember Protector



Combustible Material











Figure 6 - Hearth Extension







122273-01D

www.fmiproducts.com

7

Venting Installation

Optional Outside air Kit (Model ak4/ak4f)

The installation of an outside air kit should be performed during the rough framing of the fireplace due to the nature of it's location.

Outside combustion air is accessed through a vented crawl space (AK4F) or through a sidewall (AK4).

CAUTION: Combustion air inlet ducts shall not terminate in attic space.

The maximum height for the air vent can not exceed 3 feet below the flue gas outlet of the termination.

Secure to Collars with Metal Tape, Screws or Straps (Min. of 1/4" x 20" in size)

Air Inlet

Location Must Allow

For Bushes or Snow



Air Inlet



Eyebrow

Vented Crawl Space

Vent Hood

Required for

(Check Local Codes

Wall Installation

Before Installing in a



Vented Crawl Space)



Figure 8 - Outside Air Kit

Chimney Pipe

The FMI PRODUCTS, LLC chimney system consists of 12", 18", 24", 36" and 48" snaplock, double-wallpipe segments, planned for maximum adaptability to individual site requirements. Actual lengths gained after fitting overlaps must be taken into consideration (lineal gain) and are given in the lineal gain chart (see Figure 9). Lineal Gain is the actual measurable length of a part after two or more parts are connected. For Canada, use chimney parts designated "HT".

WARNING: The opening in the collar around the chimney at the top of the fireplace must not be obstructed. Never use blown insulation to fill the chimney enclosure.

LINEAL GAIN

PART NO.

DESCRIPTION

GAIN

Georgian

Fireplace

66 1/2"

12-12DM

Pipe Section

10 5/8"

12-12HT





18-12DM

Pipe Section

16 5/8"

18-12HT





24-12DM

Pipe Section

23 5/8"

24-12HT





36-12DM

Pipe Section

34 5/8"

36-12HT





48-12DM

Pipe Section

46 5/8"

48-12HT





RLT-12D

Round Termination

7 3/4"*

RLT-12HT





STL-12D

Square Chase-Top

7" to 15"*



with Slip Section



* The lineal gain for the terminations is measured to the flue gas outlet height.

15" Galvanized Outer Pipe

12 3/8"

Hemmed

Stainless

End



Inner Pipe



Figure 9 - Lineal Gain

Assembly and installation of double wall chimney system

Each double wall chimney section consists of a galvanizedouterpipe,astainlesssteelinnerflue pipe and a wire spacer.The pipe sections must be assembled independently as the chimney is installed. When connecting chimney directly to the fireplace, the inner flue pipe section must be installed first with the lanced side up. The outer pipe section can then be installed over 5 the flue pipe section with the hemmed end up. Press down on each pipe section until the lancessecurelyengagethehemonthefireplace starter. The wire will assure the proper spacing between the inner and outer pipe sections.

8

www.fmiproducts.com

122273-01D

Venting Installation

Continued

Continue to assemble chimney sections as outlined above, making sure that both the inner and outer pipe sections are locked together. When installing double wall snap-lockchimney together, it is important to assure the joint between the chimney sections is locked. Check by pulling chimney upward after locking. The chimney will not come apart

OFFSET

RISE



CHIMNEY LENGTH



A

B

12"

18"

24"

36"

48"

4 3/8"

16 3/8"





ELBOW

SET

ONLY





9 3/4"

25 1/2"

1













12 3/4"

30 3/4"





1









15"

34 3/4"







1







18"

40"

1



1









21 1/4"

46 1/4"









1





23 3/4"

49 1/4"





1

1







27 3/4"

56 3/4"













1

30"

60 3/4"





1



1





33"

66"













1

36"

71"





1







1

38 1/4"

75"









2





41 1/4"

80 1/4"

1



1



1





45"

86 3/4"









2





46 3/4"

89 1/2"

1



1







1

51"

97"









1



1

53 1/4"

101"









2





56 1/4"

106 1/4"













2

59 1/4"

111 1/2"





1



1



1

61 3/4"

115 1/2"

1











2

64 3/4"

120 3/4"





1







2

68 1/4"

127"









2



1

70"

130"

1



1







2

74 1/4"

137 1/2"

1







2



1

76 3/4"

141 1/2"





1



2



1

79 3/4"

146 3/4"









4





OFFSET CHART (22-50FT. SYSTEM HEIGHT)

Screws

B

if properly locked. It is not necessary to add screws to keep the chimney together (exception, see Figure 10).

Using ELBOW offsets (30E-12DM)

1.To achieve desired offset, you may install combinations of 12", 18", 24", 36" and 48" length of double wall pipe (see offset chart and Figure 10).

2.Chimney weight above offset rests on return elbow. Straps must be securely nailed to rafters or joists (see Figure 11, details A and B).

3.Maximum length of pipe between supports (return elbow or 12S-12DM)is 6' of angle run. Maximum of two 6' angle run sections per chimney system (see

Figure 12, page 10).

4.All pipe connections between the offset and return must be secured with two screws on the outer pipe only (see Figure 10). Do not penetrate the inner stainless.

See Detail A

2" Min.

Straps

Detail BStraps

See Detail B

Angle Firestop



Straps

Straps

Detail A

Return Elbow

Figure 11 - Ceiling Support Pipe

12S-12DM

A

Figure 10 - Elbow Offset

122273-01D

www.fmiproducts.com

9

Venting Installation

Continued

Return





Return



Elbow





Elbow



Offset

Offset



Return



Elbow



Elbow



Elbow

6' Max.



6' Max.

Ceiling







Return





Support Pipe



Return



12S-12DM

6' Max.

Elbow





Elbow







6' Max.

Offset

Offset







Offset

Elbow

6' Max. Elbow

6' Max.

Elbow







A



B

C

Figure 12 - Typical Offset Terminations

Firestop Spacers (FS-10,1100EFS-10DMfor 36" Models)

Firestop spacers are required at each point where the chimney penetrates a floor space.

Their purpose is to establish and maintain the required clearance between the chimney and the combustible materials. When the pipe passes through a framed opening into a living space above, the firestop must be placed onto the ceiling from below as shown in Figure 13.

They also provide complete separation from one floor space to another or attic space as required by most codes. When the double wall pipe passes through a framed opening into an attic space, the firestop must be placed into an attic floor as shown in Figure 14.

Existing

Ceiling

Frame

Firestop

Spacer

Screws or Staples

(Min. of 8)

Figure 13 - Firestop Spacer with Living Space Above Ceiling

Screws or Staples Firestop (Min. of 8)

Spacer

Existing

Ceiling

Frame

Figure 14 - Firestop Spacer with Attic Space Above Ceiling

Penetrating roof

To maintain a 1" (36" Models) or 2" (42/50"

Models) clearance to the pipe on a roof with a pitch, a rectangular opening must be cut.

1.Determine center point through which pipe will penetrate roof.

2.Determine center point of roof. Pitch is distance the roof drops over a given span, usually 12". A 6/12 pitch means that roof drops 6" for each 12" measured horizontally down from roof rafters.

3.Use roof opening chart (Figure 15, page

11)to determine correct opening length and flashing required.

4.Remove shingles around opening measured. Cut out this section.

10

www.fmiproducts.com

122273-01D

Venting Installation

Continued

5.Add next sections of pipe until end penetrates roof line. Check to see that proper clearances are maintained. Extend chimney by adding sections of double wall pipe until pipe is minimum of 30" above highest point of roof cutout. Termination and chimney must extend a minimum of 36" above highest point where it passes through roof.

Flashing installation (v6f-10dmorv12f-10dm)

Determine the flashing to be used with the roof opening chart. Slide flashing over pipe until base is flat against roof. Replace as many shingles as needed to cover exposed area and flashing base. Secure in position by nailing through shingles (see Figure 16). DO NOT NAIL THROUGH FLASHING CONE.

17" Min.

30" Min.





1" Min.



1" Min.



1" Min.



Opening "A"

Pitch

Slope

Opening

Used Flashing





"A" Max.

Model No.

Flat

17"

V6F-10DM

0-6/12

26.6°

19"

V6F-10DM

6/12-

45.0°

24"

V12F-10DM

12/12







Roof Opening 36" Models

Installing Flashing on a Metal Roof

When installing the flashing on a metal roof, it is required that putty tape be used between the flashing and the roof.The flashing must be secured to the roof using #8 x 3/4" screws and then sealed with roof coating to prevent leakage through the screw holes. A roof coating must also be applied around the perimeter of the flashing to provide a proper seal.

Storm Collar

Overlap

Shingles Top

Flashing

and Sides Only

Cone



Nail Only

Outer

Perimeter

of Flashing

19.5" Min.

30" Min.



2" Min.

2" Min.

2" Min.

Opening "A"

Underlap Shingles

at Bottom

Figure 16 - Flashing Installation

Storm Collar Installation (SC2-1)

Place storm collar over pipe and slide down until it is snug against the open edge of the flashing (see Figure 17). Apply waterproof caulk around the perimeter of the collar to provide a proper seal.

Pitch

Slope

Opening

Used Flashing





"A" Max.

Model No.

Flat

19.5"

V6F-10DM

0-6/12

26.6°

22'

V6F-10DM

6/12-

45.0°

27"

V12F-10DM

12/12







Roof Opening 42" and 50" Models

Figure 15 - Roof Opening Measurements

Chimney

Waterproof

Pipe

Caulk

Storm

Flashing

Collar

Figure 17 - Storm Collar

122273-01D

www.fmiproducts.com

11

Venting Installation

Continued

Terminations/Spark Arrestor

The fireplace system must be terminated with the listed round top or chase terminations. In any case, refer to the installation instructions supplied with the termination.

CAUTION:Donotsealopen-



ingsontherooftopflashing.Fol-



low the installation instructions



provided with the termination

24" Min.

being used.



18"

Min.

Typ.

Stainless

RTL-10D

Level of

Inner Flue

Pipe

Flue Gas



Outlet

Secure



Termination



to Outer

Waterproof

Pipe with 3

Caulking

Screws

Storm





Collar



Flashing

Overlap



Shingles (Top

Underlap

and Sides of

Shingles

Flashing Base)



Figure 18 - Termination

Chase installations

Instructions for chase installations are included with the chase style termination chosen. In a multiple chase installation, be sure to provide adequate distance between terminations to prevent smoke spillage from one termination to another. We suggest that terminations be separated at least 24", center to center and stacked at a vertical height difference of 18" (see Figure 19).

Note: If a decorative shroud is to be installed, contact the manufacturer for specifications.

24" Min.

Figure 19 - Multiple Chase Installation

10 foot rule

All flue gas outlet chimney terminations must extend a minimum of 3 feet in height above the highest point where it passes through the roof and must be at least 2 feet above the highest point of the roof that is within a horizontal distance of 10 feet (see Figure 20).

Level of 10' Flue Gas

Outlet 10'

2' Min.

3' Min.



2' Min.

3' Min.



Figure 20 - 10 Foot Rule

finishing fireplace

Combustible materials, such as wallboard, gypsum board, sheet rock, drywall, plywood, etc.maymakedirectcontactwithsidesandtop around the fireplace face. It is important that combustible materials do not overlap the face itself. Brick, glass, tile or other noncombustible materials may overlap the front face provided they do not obstruct essential openings like louvered slots or any other opening. When overlapping with a noncombustible facing material, use only noncombustible mortar or adhesive.

12

www.fmiproducts.com

122273-01D

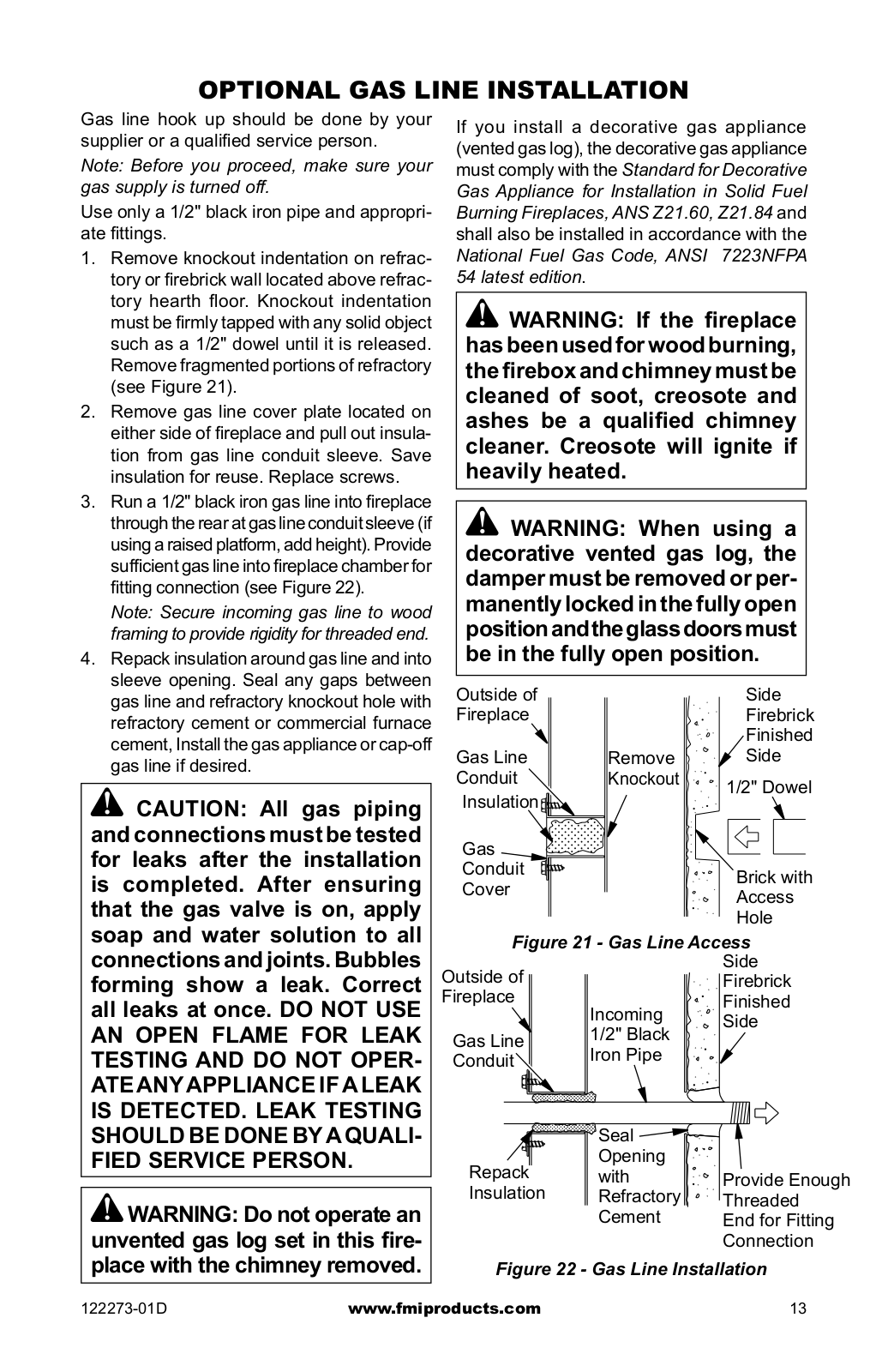

Optional Gas Line Installation

Gas line hook up should be done by your supplier or a qualified service person.

Note: Before you proceed, make sure your gas supply is turned off.

Use only a 1/2" black iron pipe and appropriate fittings.

1.Remove knockout indentation on refractory or firebrick wall located above refractory hearth floor. Knockout indentation must be firmly tapped with any solid object such as a 1/2" dowel until it is released.

Remove fragmented portions of refractory (see Figure 21).

2.Remove gas line cover plate located on either side of fireplace and pull out insulation from gas line conduit sleeve. Save insulation for reuse. Replace screws.

3.Run a 1/2" black iron gas line into fireplace throughtherearatgaslineconduitsleeve(if usingaraisedplatform,addheight).Provide sufficientgaslineintofireplacechamberfor fitting connection (see Figure 22).

Note: Secure incoming gas line to wood framing to provide rigidity for threaded end.

4.Repack insulation around gas line and into sleeve opening. Seal any gaps between gas line and refractory knockout hole with refractory cement or commercial furnace cement,Installthegasapplianceorcap-offgas line if desired.

CAUTION: All gas piping and connections must be tested for leaks after the installation is completed. After ensuring that the gas valve is on, apply soap and water solution to all connectionsandjoints.Bubbles forming show a leak. Correct all leaks at once. DO NOT USE AN OPEN FLAME FOR LEAK TESTING AND DO NOT OPERATEANYAPPLIANCEIFALEAK IS DETECTED. LEAK TESTING SHOULDBEDONEBYAQUALIFIED SERVICE PERSON.

WARNING: Do not operate an unvented gas log set in this fireplace with the chimney removed.

If you install a decorative gas appliance

(vented gas log), the decorative gas appliance must comply with the Standard for Decorative

Gas Appliance for Installation in Solid Fuel

Burning Fireplaces, ANS Z21.60, Z21.84 and shall also be installed in accordance with the

National Fuel Gas Code, ANSI 7223NFPA

54 latest edition.

WARNING: If the fireplace hasbeenusedforwoodburning, thefireboxandchimneymustbe cleaned of soot, creosote and ashes be a qualified chimney cleaner. Creosote will ignite if heavily heated.

WARNING: When using a decorative vented gas log, the damper must be removed or permanently locked in the fully open positionandtheglassdoorsmust be in the fully open position.

Outside of



Side

Fireplace



Firebrick





Finished

Gas Line

Remove

Side

Conduit

Knockout

1/2" Dowel

Insulation







Gas





Conduit



Brick with

Cover





Access









Hole

Figure 21 - Gas Line Access

Outside of



Side



Firebrick

Fireplace

Incoming

Finished



Side

Gas Line

1/2" Black



Iron Pipe



Conduit









Seal



Repack

Opening



with

Provide Enough

Insulation

Refractory

Threaded



Cement

End for Fitting

Connection

Figure 22 - Gas Line Installation

122273-01D

www.fmiproducts.com

13

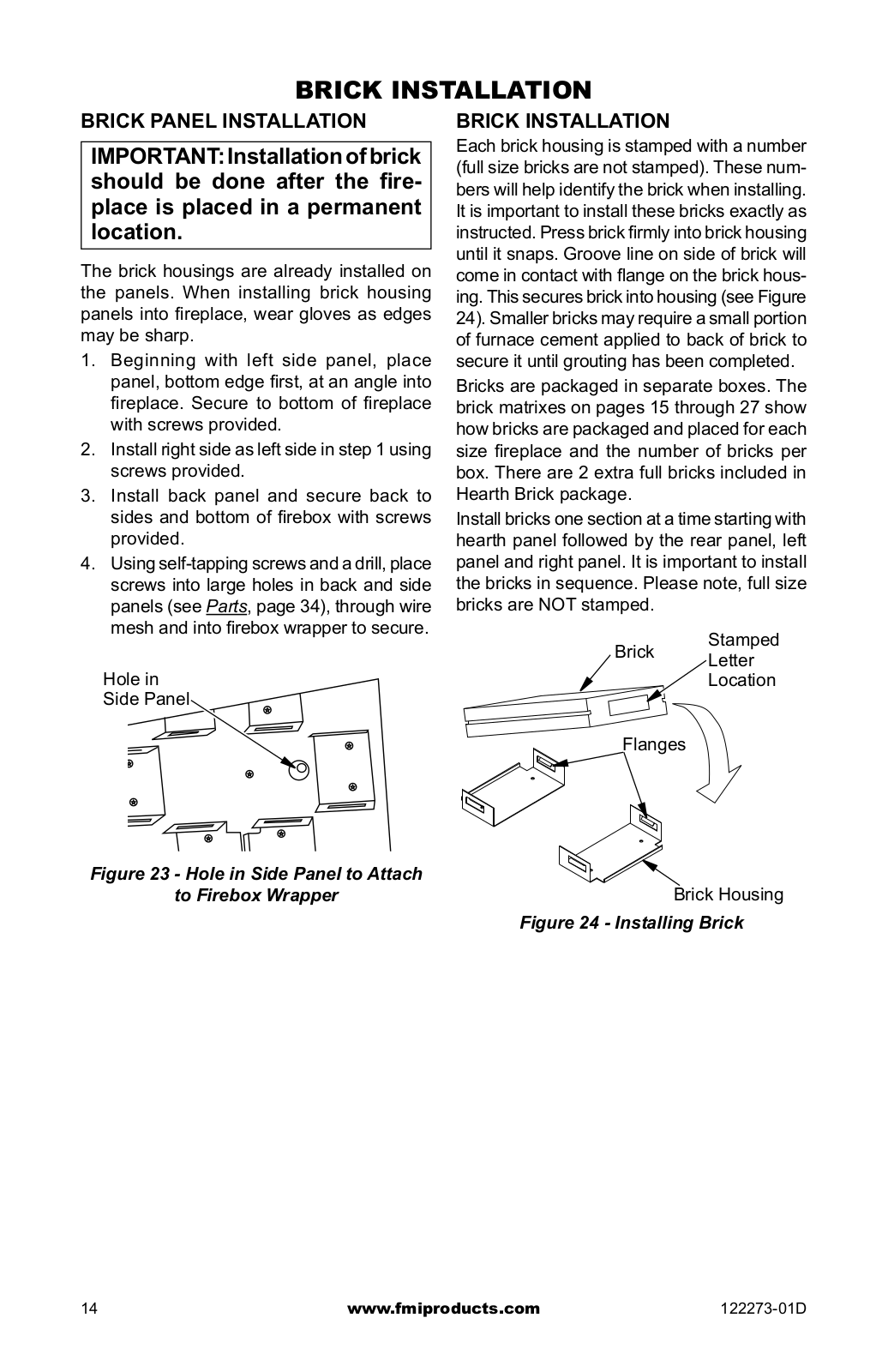

Brick Installation

Brick Panel Installation

IMPORTANT:Installationofbrick should be done after the fireplace is placed in a permanent location.

The brick housings are already installed on the panels. When installing brick housing panels into fireplace, wear gloves as edges may be sharp.

1.Beginning with left side panel, place panel, bottom edge first, at an angle into fireplace. Secure to bottom of fireplace with screws provided.

2.Install right side as left side in step 1 using screws provided.

3.Install back panel and secure back to sides and bottom of firebox with screws provided.

4.Using self-tappingscrewsanda drill,place screws into large holes in back and side panels (seeParts, page 34), through wire mesh and into firebox wrapper to secure.

Hole in

Side Panel

Figure 23 - Hole in Side Panel to Attach to Firebox Wrapper

Brick Installation

Each brick housing is stamped with a number

(full size bricks are not stamped). These numbers will help identify the brick when installing.

It is important to install these bricks exactly as instructed. Press brick firmly into brick housing until it snaps. Groove line on side of brick will come in contact with flange on the brick housing.Thissecuresbrickintohousing(seeFigure 24). Smaller bricks may require a small portion of furnace cement applied to back of brick to secure it until grouting has been completed.

Bricks are packaged in separate boxes. The brick matrixes on pages 15 through 27 show how bricks are packaged and placed for each size fireplace and the number of bricks per box. There are 2 extra full bricks included in Hearth Brick package.

Install bricks one section at a time starting with hearth panel followed by the rear panel, left panel and right panel. It is important to install the bricks in sequence. Please note, full size bricks are NOT stamped.

Stamped Brick Letter

Location

Flanges

Brick Housing

Figure 24 - Installing Brick

14

www.fmiproducts.com

122273-01D

Brick Installation

Continued

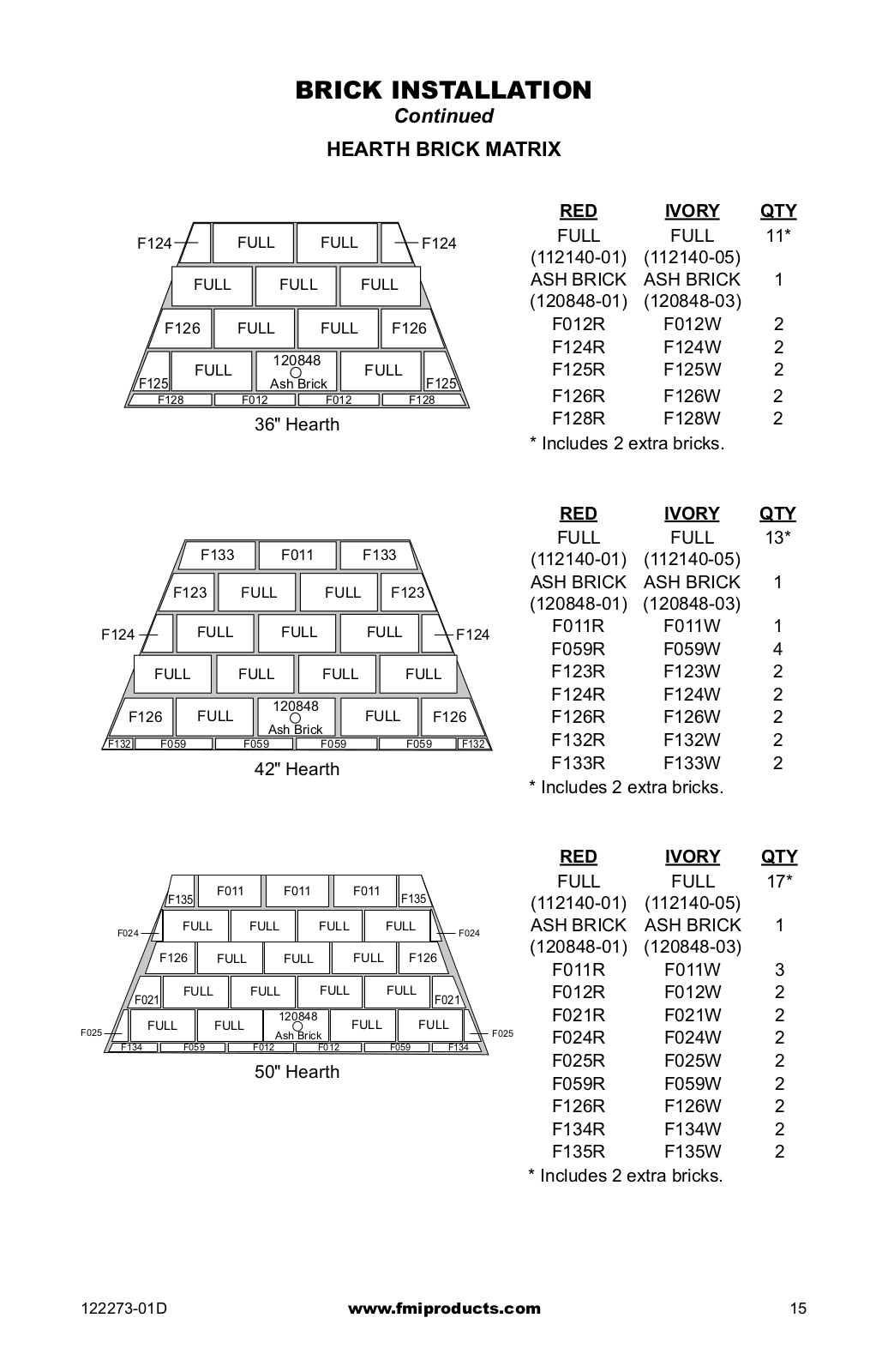

HEARTH BRICK MATRIX

F124









FULL



FULL







F124













































































FULL







FULL



FULL

































F126



















F126





FULL



FULL





























































FULL





120848



FULL



F125





Ash Brick



F125



















F128

















F128



F012



F012



36" Hearth

RED

IVORY

QTY

FULL

FULL

11*

(112140-01)(112140-05)



ASH BRICK

ASH BRICK

1

(120848-01)(120848-03)



F012R

F012W

2

F124R

F124W

2

F125R

F125W

2

F126R

F126W

2

F128R

F128W

2

* Includes 2 extra bricks.









F133





F011







F133









F123



















F123





































FULL



FULL























































































F124







FULL





FULL







FULL





F124







































































































FULL









FULL



FULL



FULL



















































































F126



FULL





120848







FULL



F126







Ash Brick









































F132

























F132



F059









F059



F059



F059



42" Hearth

RED

IVORY

QTY

FULL

FULL

13*

(112140-01)(112140-05)



ASH BRICK

ASH BRICK

1

(120848-01)(120848-03)



F011R

F011W

1

F059R

F059W

4

F123R

F123W

2

F124R

F124W

2

F126R

F126W

2

F132R

F132W

2

F133R

F133W

2

* Includes 2 extra bricks.













































RED

IVORY

QTY













































FULL

FULL

17*













F011



F011







F011



















F135













F135



(112140-01)(112140-05)

















































































ASH BRICK

ASH BRICK

1



F024



FULL





FULL



FULL





FULL



F024















































(120848-01)(120848-03)







F126

FULL



FULL







FULL

F126



















F011R

F011W

3





























































































F021



FULL





FULL



FULL





FULL



F021



F012R

F012W

2













































































F021R

F021W

2





FULL





FULL



120848







FULL





FULL





F025









Ash Brick











F025

F024R

F024W

2





































F134



F059





F012



F012





F059



F134



F025R

F025W

2

















50" Hearth

















































F059R

F059W

2

























































































F126R

F126W

2













































F134R

F134W

2













































F135R

F135W

2

* Includes 2 extra bricks.

122273-01D

www.fmiproducts.com

15

Brick Installation

Continued

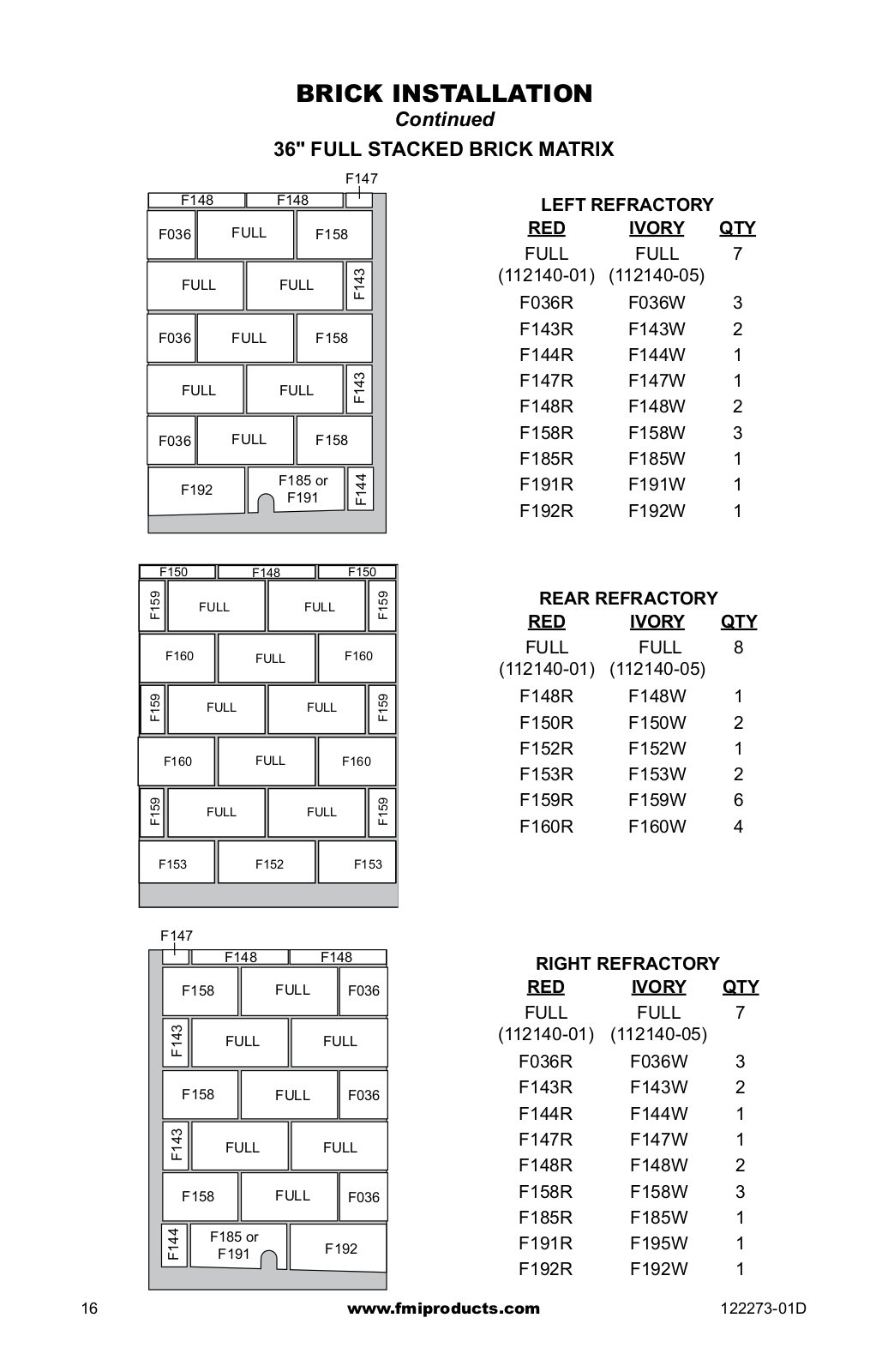

36" FULL STACKED BRICK MATRIX





















F147

































F148





F148















F036



FULL





F158





































FULL





FULL





F143























































F036



FULL





F158





































FULL





FULL





F143























































F036



FULL





F158





































F192





F185 or



F144













F191























































































































F150





F148





F150



F159



FULL



FULL







F159



















































F160





FULL





F160



































F159



FULL



FULL







F159

















































F160





FULL



F160



































F159



FULL



FULL







F159















































F153





F152





F153





























































F147























































F148





F148









F158





FULL





F036



































F143



FULL





FULL

















































F158





FULL





F036



































F143



FULL





FULL

















































F158





FULL





F036































F144



F191





F192











F185 or









































































LEFT REFRACTORY RED IVORY QTY

FULL

FULL

7

(112140-01)(112140-05)



F036R

F036W

3

F143R

F143W

2

F144R

F144W

1

F147R

F147W

1

F148R

F148W

2

F158R

F158W

3

F185R

F185W

1

F191R

F191W

1

F192R

F192W

1

REAR REFRACTORY



RED

IVORY

QTY

FULL

FULL

8

(112140-01)(112140-05)



F148R

F148W

1

F150R

F150W

2

F152R

F152W

1

F153R

F153W

2

F159R

F159W

6

F160R

F160W

4

RIGHT REFRACTORY



RED

IVORY

QTY

FULL

FULL

7

(112140-01)(112140-05)



F036R

F036W

3

F143R

F143W

2

F144R

F144W

1

F147R

F147W

1

F148R

F148W

2

F158R

F158W

3

F185R

F185W

1

F191R

F195W

1

F192R

F192W

1

16

www.fmiproducts.com

122273-01D

Brick Installation

Continued

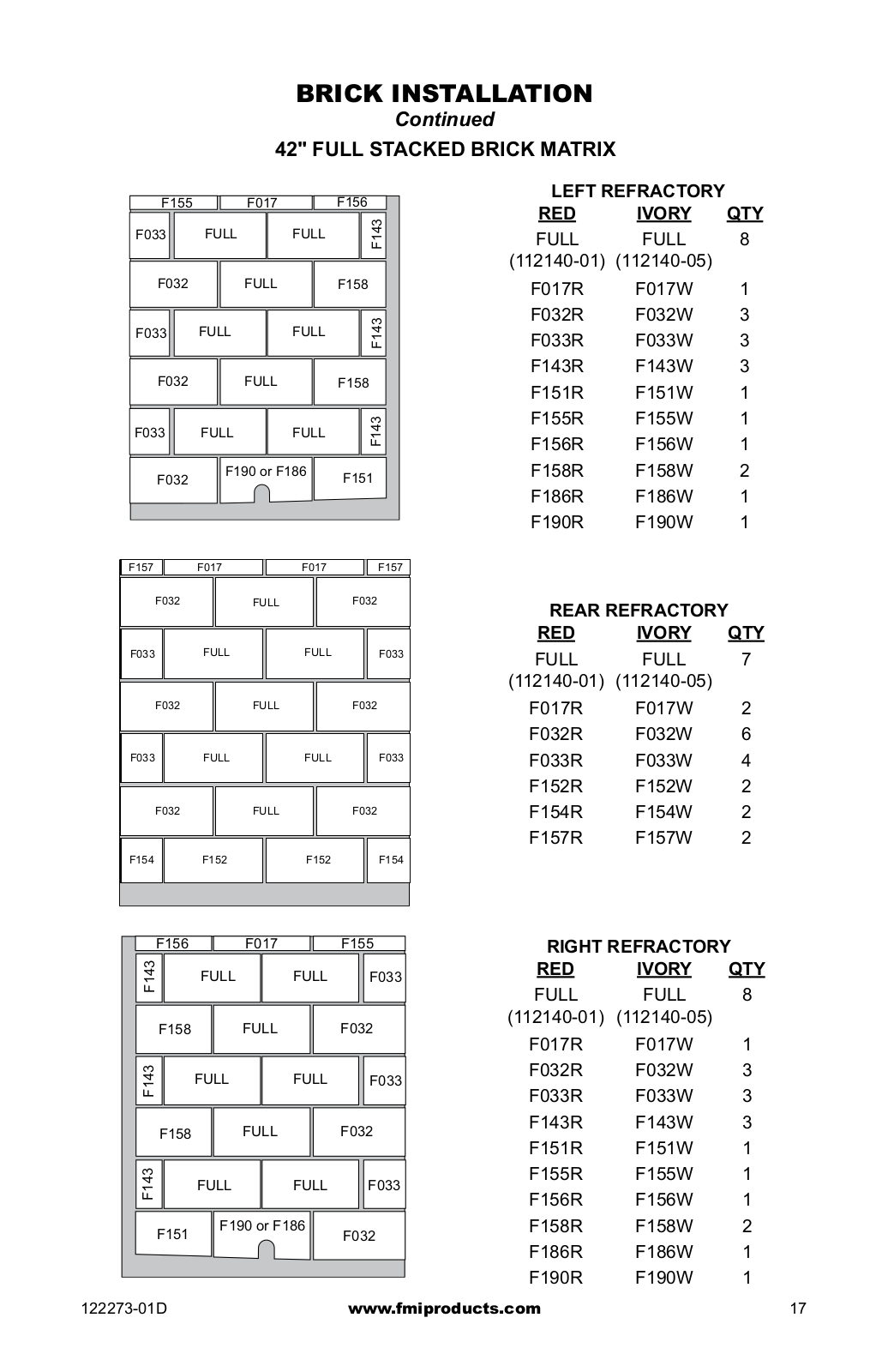

42" FULL STACKED BRICK MATRIX

F155



F017





F156

F033



FULL



FULL



F143



























F032



FULL





F158



















F033



FULL



FULL



F143



















F032



FULL





F158



















F033



FULL



FULL



F143

























F032



F190 or F186

F151





























LEFT REFRACTORY



RED

IVORY

QTY

FULL

FULL

8

(112140-01)(112140-05)



F017R

F017W

1

F032R

F032W

3

F033R

F033W

3

F143R

F143W

3

F151R

F151W

1

F155R

F155W

1

F156R

F156W

1

F158R

F158W

2

F186R

F186W

1

F190R

F190W

1

F157



F017



F017



F157

F032



FULL





F032



















F033



FULL



FULL



F033



















F032



FULL





F032















F033



FULL



FULL



F033



















F032



FULL





F032















F154



F152



F152



F154









































F156





F017



F155



F143





FULL



FULL



F033







































F158





FULL



F032

























F143





FULL



FULL



F033

























F158





FULL



F032

























F143





FULL



FULL



F033





































F151



F190 or F186

F032





































REAR REFRACTORY RED IVORY QTY

FULL

FULL

7

(112140-01)(112140-05)



F017R

F017W

2

F032R

F032W

6

F033R

F033W

4

F152R

F152W

2

F154R

F154W

2

F157R

F157W

2

RIGHT REFRACTORY RED IVORY QTY

FULL

FULL

8

(112140-01)(112140-05)



F017R

F017W

1

F032R

F032W

3

F033R

F033W

3

F143R

F143W

3

F151R

F151W

1

F155R

F155W

1

F156R

F156W

1

F158R

F158W

2

F186R

F186W

1

F190R

F190W

1

122273-01D

www.fmiproducts.com

17







Brick Installation















Continued













50" FULL STACKED BRICK MATRIX













F147



LEFT REFRACTORY















RED

IVORY

QTY



F149

F148

F148













FULL







FULL

FULL

7



F032



F158



(112140-01)

(112140-05)







FULL

FULL



F143



F032R

F032W

3



F033





F033R

F033W

3

















F032



FULL







F143R

F143W

2





F158



F144R

F144W

1

















F033

FULL

FULL



F143



F145R

F145W

1







F146R

F146W

1

















F032



FULL

F158



F147R

F147W

1







F148R

F148W

2

















F033

F146 or

F145 or

F144



F149R

F149W

1



F192

F191





F158R

F158W

3









































F191R

F191W

1















F192R

F191W

1



F150

F148

F148



F150









F159

FULL



FULL

FULL

F159

REAR REFRACTORY





RED

IVORY

QTY

















F160

FULL

FULL



F160

FULL

FULL

13















(112140-01)(112140-05)



F159

FULL



FULL

FULL

F159

F148R

F148W

2



F150R

F150W

2

















F160

FULL

FULL



F160

F152R

F152W

2















F153R

F153W

2

F159

FULL



FULL

FULL

F159

F159R

F159W

6











F160R

F160W

4

















F153

F152

F152



F153











F147











RIGHT REFRACTORY













RED

IVORY

QTY





F148

F148



F149





F158



FULL

F032



FULL

FULL

7







(112140-01)(112140-05)





















F143

FULL

FULL



F033



F032R

F032W

3







F033R

F033W

3

























F158



FULL

F032



F143R

F143W

2







F144R

F144W

1

















F143

FULL

FULL



F033



F145R

F145W

1







F146R

F146W

1

















F158



FULL

F032



F147R

F147W

1







F148R

F148W

2

















F144

F145 or

F146 or

F033



F149R

F149W

1



F191

F192





F158R

F158W

3





























F191R

F191W

1















F192R

F192W

1

18

www.fmiproducts.com

122273-01D

Brick Installation

Continued

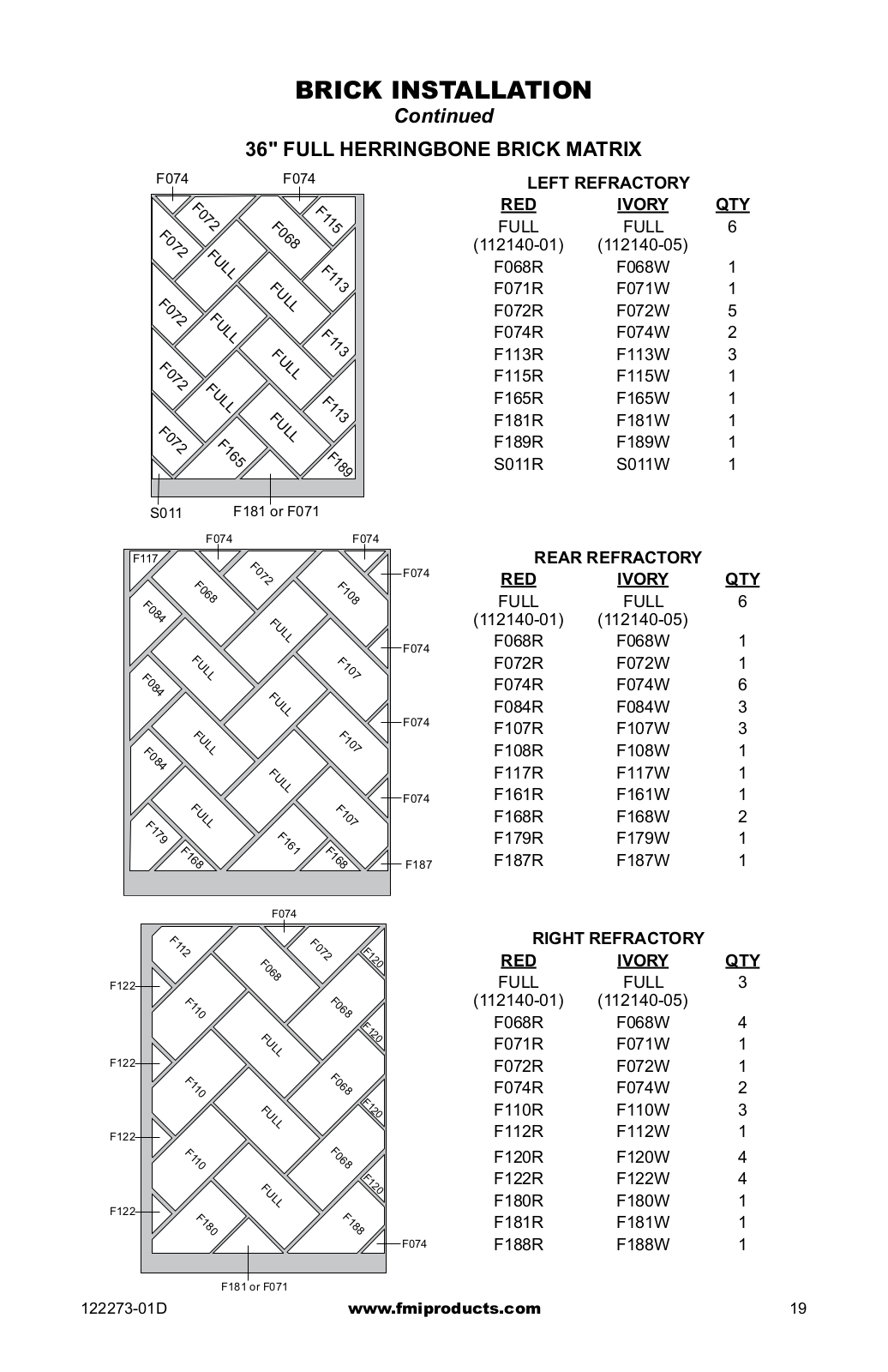

36" FULL HERRINGBONE BRICK MATRIX

F074

2

F074





LEFT REFRACTORY

QTY



2F07



F1





RED

IVORY









FULL

FULL

6

F07

L

F068

15













(112140-01)

(112140-05)







FUL















L

F1





F068R

F068W

1















2



FUL

13





F071R

F071W

1

F07

L













F072R

F072W

5

FUL













L

F113





F074R

F074W

2



2











FUL





F113R

F113W

3

F07

L













F115R

F115W

1























FUL













L

F1





F165R

F165W

1



2











FUL

13





F181R

F181W

1

F07









F16









F189R

F189W

1







F189















S011R

S011W

1





5

















S011

F181 or F071















F074



F074









F117





2







REAR REFRACTORY





8

F07

8

F074







RED

IVORY

QTY

4











F06



F10















FULL

FULL

6

F08

























(112140-01)

(112140-05)









FULL





















F068R

F068W

1









7

F074

4

FULL



F10





F072R

F072W

1









F08









F074R

F074W

6



















FULL













7

F074

F084R

F084W

3









F107R

F107W

3













4



FULL



F10





F08









F108R

F108W

1



















FULL







F117R

F117W

1







7





F161R

F161W

1











F074



FULL



F10



9







F168R

F168W

2



1





F17









8

F16

8





F179R

F179W

1











F16

F16











F187

F187R

F187W

1



















F074













F1





F072





RIGHT REFRACTORY





12



F120



RED

IVORY

QTY







F068





























FULL

FULL

3

F122















F110



F068





(112140-01)

(112140-05)











F068R

F068W

4











F120









FULL





F071R

F071W

1













F122













F072R

F072W

1



F110



F068













F074R

F074W

2







F120









FULL





F110R

F110W

3













F112R

F112W

1

F122















F110



F068





F120R

F120W

4







FULL



F120



F122R

F122W

4













F180R

F180W

1

F122















F180



F188



F181R

F181W

1





















F074

F188R

F188W

1





F181 or F071













122273-01D







www.fmiproducts.com



19

Brick Installation

Continued

42" FULL HERRINGBONE BRICK MATRIX







F074





F074

F120

F072

F068



F072













F064

F068







FULL











F120







FULL





















F064

F068







FULL











F120







FULL





















F064

F068







FULL











F120







FULL





















F064

F169







F163











F176























F175 or F182







F177









F074







F074

F089

F072

F068





F072







L







L

F072



FUL







FUL

F063















L





























L



FUL





L

F072



FUL







FUL











F063







L















FUL













L







L

F072















FUL







FUL

F063















L















FUL











1









F072

F16





F168

F161

F178





























F171









F074









F101



F072





F072









F068





F071





FULL







FULL

F100













FULL

























FULL







FULL

F071

F100













FULL

























FULL







FULL

F071

F100













FULL





















F174

F164







F165

F071























F162 or F184



LEFT REFRACTORY

RED

IVORY

QTY

FULL

FULL

6

(112140-01)

(112140-05)



F064R

F064W

4

F068R

F068W

4

F072R

F072W

2

F074R

F074W

2

F120R

F120W

4

F163R

F163W

1

F169R

F169W

1

F175R

F175W

1

F176R

F176W

1

F177R

F177W

1

F182R

F182W

1

REAR REFRACTORY



RED

IVORY

QTY

FULL

FULL

9

(112140-01)

(112140-05)



F063R

F063W

3

F068R

F068W

1

F072R

F072W

6

F074R

F074W

2

F089R

F089W

1

F161R

F161W

2

F168R

F168W

1

F171R

F171W

1

F178R

F178W

1

RIGHT REFRACTORY



RED

IVORY

QTY

FULL

FULL

9

(112140-01)

(112140-05)



F068R

F068W

1

F071R

F071W

4

F072R

F072W

2

F074R

F074W

1

F100R

F100W

3

F101R

F101W

1

F162R

F162W

1

F164R

F164W

1

F165R

F165W

1

F174R

F174W

1

20

www.fmiproducts.com

122273-01D

Brick Installation

Continued

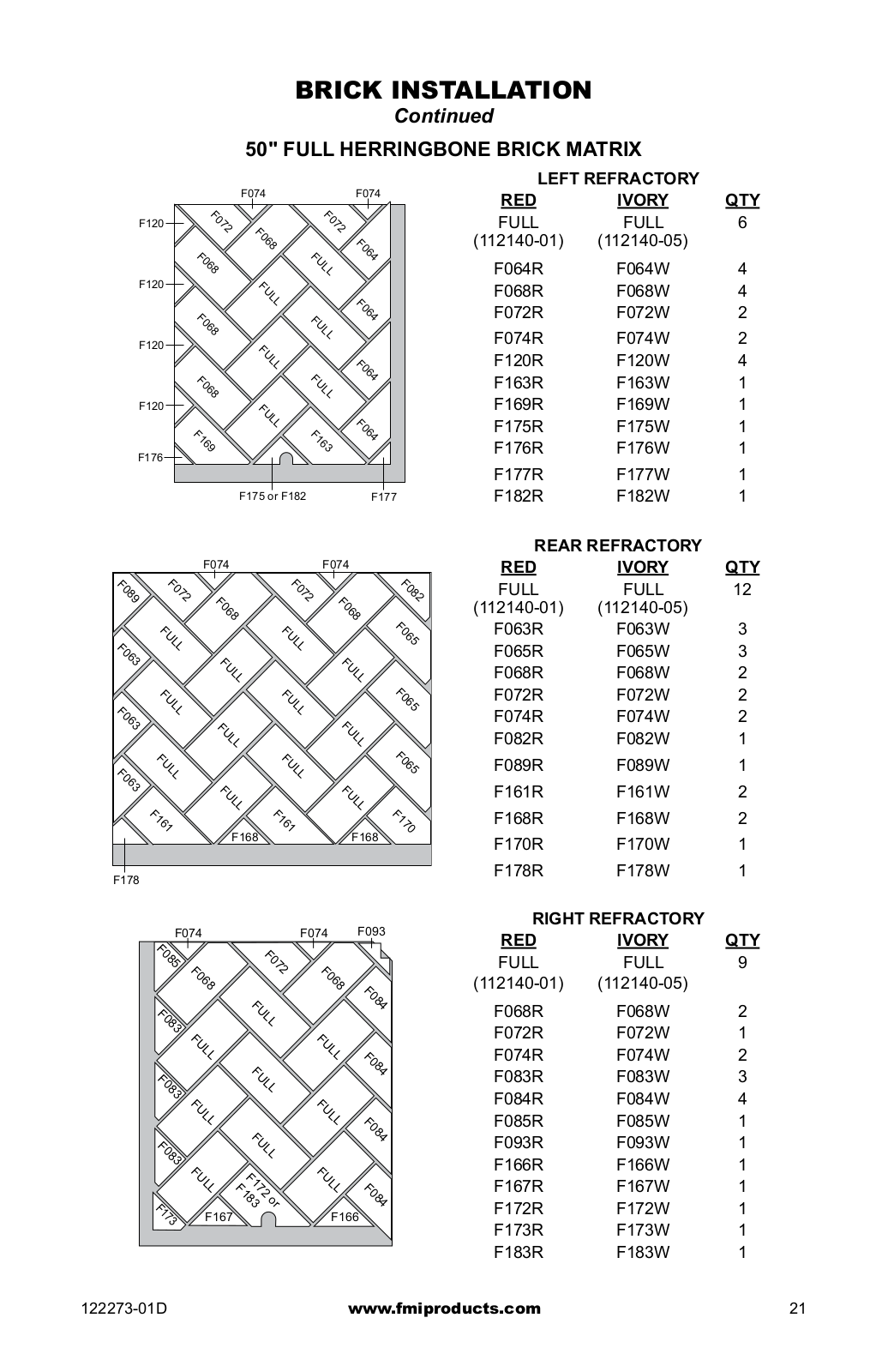

50" FULL HERRINGBONE BRICK MATRIX









F074



F074



F120

F072

F068

F072













F064





F068



FULL











F120



FULL















F064





F068



FULL











F120



FULL















F064





F068



FULL











F120



FULL















F064





F169



F163









F176

















F175 or F182



F177







F074



F074



F089



F072



F072

F082







F068

F068

F063

FULL



FULL



F065



FULL

FULL







F063

FULL



FULL



F065



FULL

FULL







F063

FULL



FULL



F065



FULL

FULL











F161



F161



F170









F168



F168

F178















F074



F074

F093





F085



F072









F068

F068









F084









FULL







F083























FULL



FULL

F084









FULL







F083























FULL



FULL

F084









FULL







F083























FULL

F172

FULL

F084





F17



F183 or







F167

F166





3

LEFT REFRACTORY



RED

IVORY

QTY

FULL

FULL

6

(112140-01)

(112140-05)



F064R

F064W

4

F068R

F068W

4

F072R

F072W

2

F074R

F074W

2

F120R

F120W

4

F163R

F163W

1

F169R

F169W

1

F175R

F175W

1

F176R

F176W

1

F177R

F177W

1

F182R

F182W

1

REAR REFRACTORY



RED

IVORY

QTY

FULL

FULL

12

(112140-01)

(112140-05)



F063R

F063W

3

F065R

F065W

3

F068R

F068W

2

F072R

F072W

2

F074R

F074W

2

F082R

F082W

1

F089R

F089W

1

F161R

F161W

2

F168R

F168W

2

F170R

F170W

1

F178R

F178W

1

RIGHT REFRACTORY



RED

IVORY

QTY

FULL

FULL

9

(112140-01)

(112140-05)



F068R

F068W

2

F072R

F072W

1

F074R

F074W

2

F083R

F083W

3

F084R

F084W

4

F085R

F085W

1

F093R

F093W

1

F166R

F166W

1

F167R

F167W

1

F172R

F172W

1

F173R

F173W

1

F183R

F183W

1

122273-01D

www.fmiproducts.com

21

BRICK Installation

Continued

36" SPLIT STACKED BRICK MATRIX

S047



FULL





S046

















FULL





FULL



S050

















S047



FULL





S046

















FULL





FULL



S050















S047



FULL





S046

















FULL





FULL



S050















S047



FULL





S046

















FULL





FULL



S050















S047



FULL





S046

















FULL





FULL



S050

S047



FULL





S046













S045





S044 or S095 S043

















S048



FULL



FULL



S048





















S049





FULL



S049























S048



FULL



FULL



S048

















S049





FULL



S049





















S048



FULL



FULL



S048

















S049





FULL



S049





















S048



FULL



FULL



S048

















S049





FULL



S049





















S048



FULL



FULL



S048

















S049





FULL



S049





















S048



FULL



FULL



S048

















S052





S051



S052























S046

FULL

S047

S050

FULL

FULL

S046

FULL

S047

S050

FULL

FULL

S046

FULL

S047

S050

FULL

FULL

S046

FULL

S047

S050

FULL

FULL

S046

FULL

S047

S050

FULL

FULL

S046

FULL

S047

S054



S045

LEFT REFRACTORY

RED

IVORY

QTY

FULL

FULL

16

(112140-02)(112140-06)



S043R

S043W

1

S044R

S044W

1

S045R

S045W

1

S046R

S046W

6

S047R

S047W

6

S050R

S050W

5

S095R

S095W

1

REAR REFRACTORY

RED IVORY QTY

FULL FULL 17 (112140-02)(112140-06)

S048R

S048W

12

S049R

S049W

10

S051R

S051W

1

S052R

S052W

2

RIGHT REFRACTORY RED IVORY QTY

FULL FULL 16 (112140-02)(112140-06)

S044R

S044W

1

S045R

S045W

1

S046R

S046W

6

S047R

S047W

6

S050R

S050W

5

S054R

S054W

1

S095R

S095W

1

S044 or S095

22

www.fmiproducts.com

122273-01D

Brick Installation

Continued

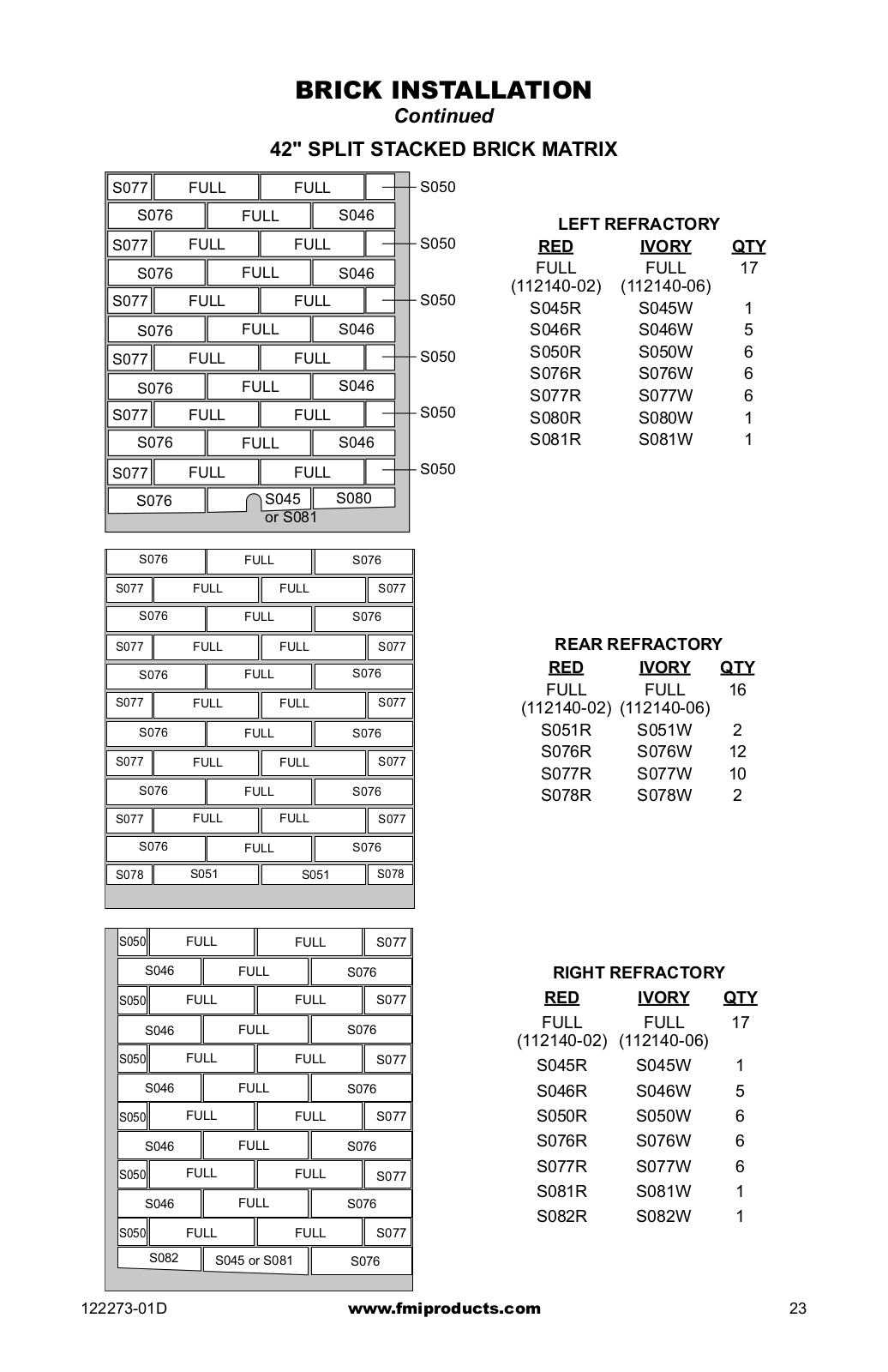

42" SPLIT STACKED BRICK MATRIX

S077



FULL



FULL









S050































S076





FULL



S046

































S050

S077



FULL



FULL











S076





FULL



S046







S077



FULL



FULL









S050































S076





FULL



S046







S077



FULL



FULL









S050































S076





FULL



S046







S077



FULL



FULL









S050































S076





FULL



S046

































S050

S077



FULL



FULL







































S076







S045

S080



















or S081







































S076





FULL



S076































S077



FULL



FULL



S077

































S076





FULL



S076





























S077



FULL



FULL



S077

































S076





FULL



S076





























S077



FULL



FULL



S077

































S076





FULL



S076





























S077



FULL



FULL



S077

































S076





FULL



S076





























S077



FULL



FULL



S077

































S076





FULL



S076





























S078



S051



S051



S078





















































































S050





FULL



FULL



S077































S046





FULL



S076







S050





FULL



FULL



S077





























S046





FULL



S076







S050





FULL



FULL



S077





























S046





FULL



S076







S050





FULL



FULL



S077





























S046





FULL



S076







S050





FULL



FULL



S077





























S046





FULL



S076







S050



FULL



FULL



S077





























S082



S045 or S081



S076





























































LEFT REFRACTORY



RED

IVORY

QTY

FULL

FULL

17

(112140-02)(112140-06)



S045R

S045W

1

S046R

S046W

5

S050R

S050W

6

S076R

S076W

6

S077R

S077W

6

S080R

S080W

1

S081R

S081W

1

REAR REFRACTORY

RED IVORY QTY

FULL FULL 16 (112140-02)(112140-06)

S051R

S051W

2

S076R

S076W

12

S077R

S077W

10

S078R

S078W

2

RIGHT REFRACTORY

RED IVORY QTY

FULL FULL 17 (112140-02)(112140-06)

S045R

S045W

1

S046R

S046W

5

S050R

S050W

6

S076R

S076W

6

S077R

S077W

6

S081R

S081W

1

S082R

S082W

1

122273-01D

www.fmiproducts.com

23

brick Installation

Continued

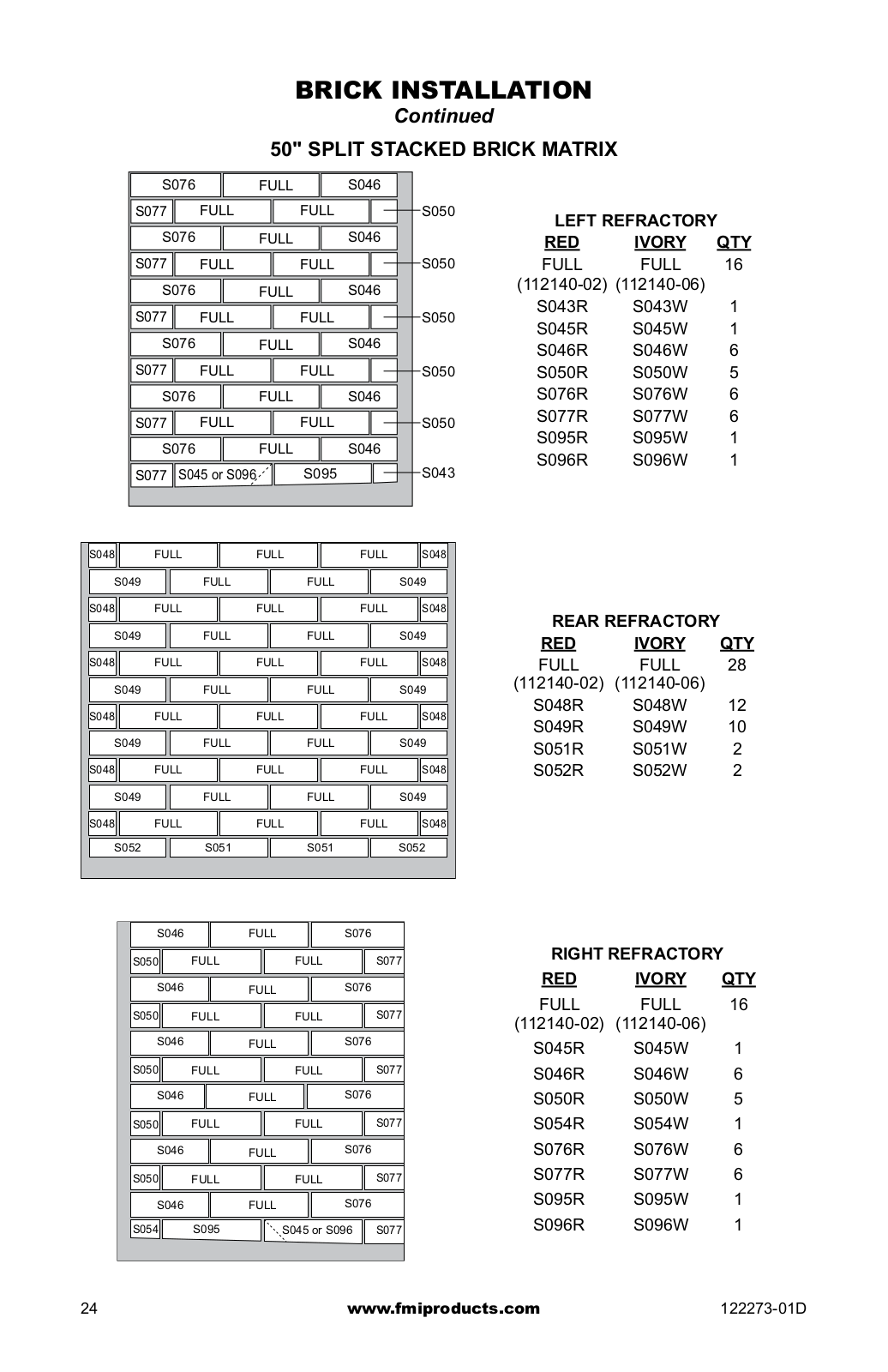

50" SPLIT STACKED BRICK MATRIX









S076



FULL







S046























































S077

FULL







FULL









S050



















































S076



FULL







S046











S077

FULL







FULL









S050



















































S076



FULL







S046























































S077

FULL







FULL









S050





























S076



FULL







S046











S077

FULL







FULL









S050





























S076



FULL







S046























































S077

FULL







FULL









S050







































































S076



FULL







S046













































S043







S077

S045 or S096



S095











































































































S048



FULL



FULL







FULL



S048













































S049



FULL









FULL







S049









































S048



FULL



FULL







FULL



S048











































S049



FULL









FULL







S049







































S048



FULL



FULL







FULL



S048











































S049



FULL









FULL







S049







































S048



FULL



FULL







FULL



S048











































S049



FULL









FULL







S049







































S048



FULL



FULL







FULL



S048











































S049



FULL









FULL







S049







































S048



FULL



FULL







FULL



S048











































S052





S051









S051







S052



















































































S046



FULL







S076











































S050



FULL







FULL



S077











































S046



FULL







S076











































S050



FULL







FULL



S077











































S046



FULL







S076











































S050



FULL







FULL



S077











































S046



FULL







S076











































S050



FULL







FULL



S077











































S046



FULL







S076











































S050



FULL







FULL



S077











































S046



FULL







S076







































S054

S095





S045 or S096

S077





























































































LEFT REFRACTORY

RED IVORY QTY

FULL FULL 16 (112140-02)(112140-06)

S043R

S043W

1

S045R

S045W

1

S046R

S046W

6

S050R

S050W

5

S076R

S076W

6

S077R

S077W

6

S095R

S095W

1

S096R

S096W

1

REAR REFRACTORY

RED IVORY QTY

FULL FULL 28 (112140-02)(112140-06)

S048R

S048W

12

S049R

S049W

10

S051R

S051W

2

S052R

S052W

2

RIGHT REFRACTORY

RED IVORY QTY

FULL FULL 16 (112140-02)(112140-06)

S045R

S045W

1

S046R

S046W

6

S050R

S050W

5

S054R

S054W

1

S076R

S076W

6

S077R

S077W

6

S095R

S095W

1

S096R

S096W

1

24

www.fmiproducts.com

122273-01D









brick Installation























Continued

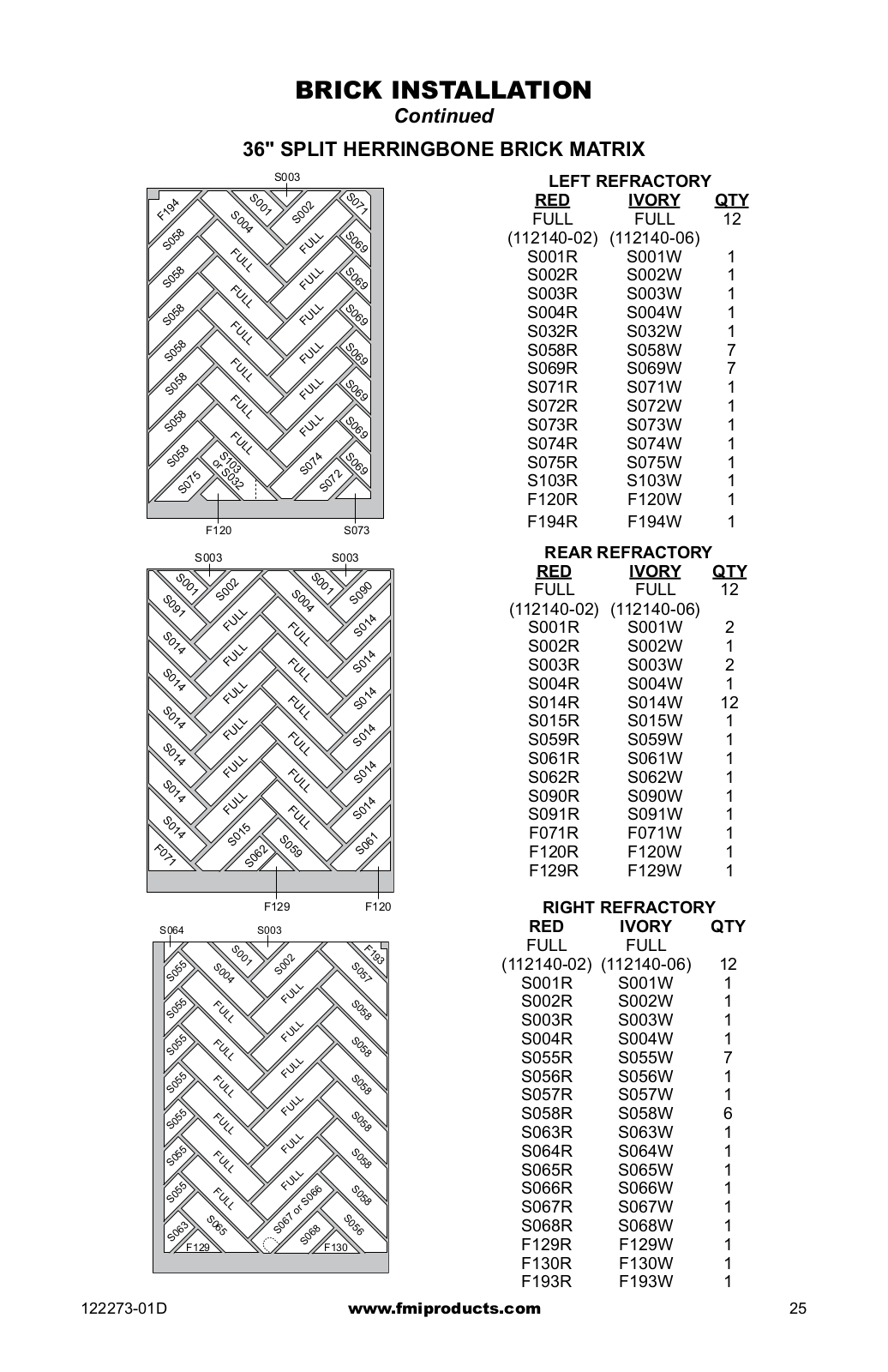

36" SPLIT HERRINGBONE BRICK MATRIX









S003







1

LEFT REFRACTORY



4



S001



S002





S07

RED

IVORY

QTY

F19



S004







9

FULL

FULL

12

8



L







L



S06

(112140-02)

(112140-06)



S05



FUL





FUL



9

S001R

S001W

1











8



L







L



S06

S002R

S002W

1

S05



FUL





FUL



9

S003R

S003W

1

8



L







L



S06

S004R

S004W

1

S05



FUL





FUL



9

S032R

S032W

1















8



L







L



S06

S058R

S058W

7

S05



FUL





FUL



9

S069R

S069W

7

8



L







L





S071R

S071W

1

S05











S06









FUL







FUL







9

S072R

S072W

1

8















L







L





S073R

S073W

1

S05



2





FUL



S06

8

FUL













S074R

S074W

1

S05



3











9

S075R

S075W

1



orS10







4



S06









S07













5

S03







2

S103R

S103W

1

S07











S07











F120R

F120W

1























F120











S073

F194R

F194W

1























1S003









1S003

REAR REFRACTORY

S00







4





RED

IVORY

QTY

2





S00

S090

FULL

FULL

12

S091



S00

S00







L





L





(112140-02)(112140-06)







FUL









S014







S014



FUL





S001R

S001W

2



L





L







S002R

S002W

1

S014



FUL

FUL





S014

S003R

S003W

2



L





L







S004R

S004W

1

S014



FUL

FUL





S014

S014R

S014W

12



L





L







S015R

S015W

1

S014



FUL

FUL





S014

S059R

S059W

1



L





L







S061R

S061W

1

S014



FUL

FUL





S014

S062R

S062W

1



L





L







S090R

S090W

1

S014



FUL

FUL





S014

S091R

S091W

1



S015

S059





S061

F071R

F071W

1









F07







F120R

F120W

1



S062





















F129R

F129W

1























F129









F120

RIGHT REFRACTORY

S064



S003









3

RED

IVORY

QTY





S001











F197

FULL

FULL



5



S002









S05

(112140-02)(112140-06)

12



S004









S05



L



L





8

S001R

S001W

1

5



FUL

FUL







S05

S002R

S002W

1

S05















S003R

S003W

1



L



L





8

5



FUL

FUL







S05

S004R

S004W

1

S05















S055R

S055W

7





L



L





8

5



FUL

FUL







S05

S056R

S056W

1

S05















S057R

S057W

1



L



L





8

5



FUL

FUL







S05

S058R

S058W

6

S05















S063R

S063W

1



L



L





8

5





FUL







S05

S064R

S064W

1

S05



FUL













S065R

S065W

1





















L



L





8

5





FUL

S066



S05

S066R

S066W

1

S05



5







6









FUL













S067R

S067W

1

















3



S067

or



8





S06







S05

S068R

S068W

1

S06

F129





S06

F130

F129R

F129W

1



















F130R

F130W

1



















F193R

F193W

1

122273-01D

www.fmiproducts.com

25





















brick Installation































Continued



















42" SPLIT HERRINGBONE BRICK MATRIX







S003















S003







LEFT REFRACTORY



S001

S002













S001

S002





S087

RED

IVORY

QTY









































FULL

FULL

12

S002



L







S004







S085













L





(112140-02)

(112140-06)















L













FUL













FUL













S002











FUL









S001R

S001W

1





L









L



L





S085

S002R

S002W

1

S002



FUL









FUL



FUL







S003R

S003W

1





L









L



L





S085

S004R

S004W

1





FUL















FUL







S002











FUL









S032R

S032W

1





L









L



L





S085

S058R

S058W

7





FUL









FUL



FUL







S002



















S069R

S069W

7





L









L





S085













L







S071R

S071W

1

S002



FUL









FUL



FUL







S072R

S072W

1





L









L



L





S085

S073R

S073W

1





FUL









FUL



FUL



























S074R

S074W

1



























S002





L







3



4





S085







S10









S075R

S075W

1

1



FUL



5





S07



































S103R

S103W

1

F07







S07













1























F13





F056R

F056W

1







































F054 or S088











F120R

F120W

1































S003











S003





REAR REFRACTORY







S001















S001







QTY

























RED

IVORY





3





S002











S002













S08





L



S004L

4



FULL

FULL

12



S004





FUL





FUL

S07



(112140-02)(112140-06)

























S001R

S001W

2











L





L



4



































S004





FUL





FUL

S07



S002R

S002W

2











L





4



S003R

S003W

2















L







S004





FUL





FUL

S07



S004R

S004W

7











L





4



S059R

S059W

1















L







S004





FUL





FUL

S07



S060R

S060W

1











L





4



S061R

S061W

1















L







S004





FUL





FUL

S07



S062R

S062W

1











L





L



4



S074R

S074W

6



S004





FUL





FUL

S07



S083R

S083W

1











0





4



S084R

S084W

1















9









1





























S06





S06

2

S05

S08

1

F071R

F071W

1

















S06









F07

F120R

F120W

1































F129R

F129W

1

F120













F129

























S003







S003

RIGHT REFRACTORY







S001











S001







S089





S002







6

RED

IVORY

QTY





S004L





L



S004



S08

FULL

FULL

18















L



S089



FUL











FUL



FUL



S002

(112140-02)(112140-06)







L











L





S001R

S001W

2

















L







S089



FUL











FUL



FUL



S002

S002R

S002W

8





L











L









S003R

S003W

2

















L







S089



FUL











FUL



FUL



S002

S004R

S004W

2





L











L





S065R

S065W

1

















L







S089



FUL











FUL



FUL



S002

S074R

S074W

1





L











L



L







S086R

S086W

1

S089



FUL











FUL



FUL



S002

S089R

S089W

8





L











L





S092R

S092W

1

















L







S089



FUL











FUL



FUL



S002

S093R

S093W

1





5













4





S094R

S094W

1





















4























S07















S089



S06













S10



S002

S104R

S104W

1

















































F054R

F054W

2





S094





S092 or S093

F054





F054







26

www.fmiproducts.com

122273-01D

brick Installation

Continued

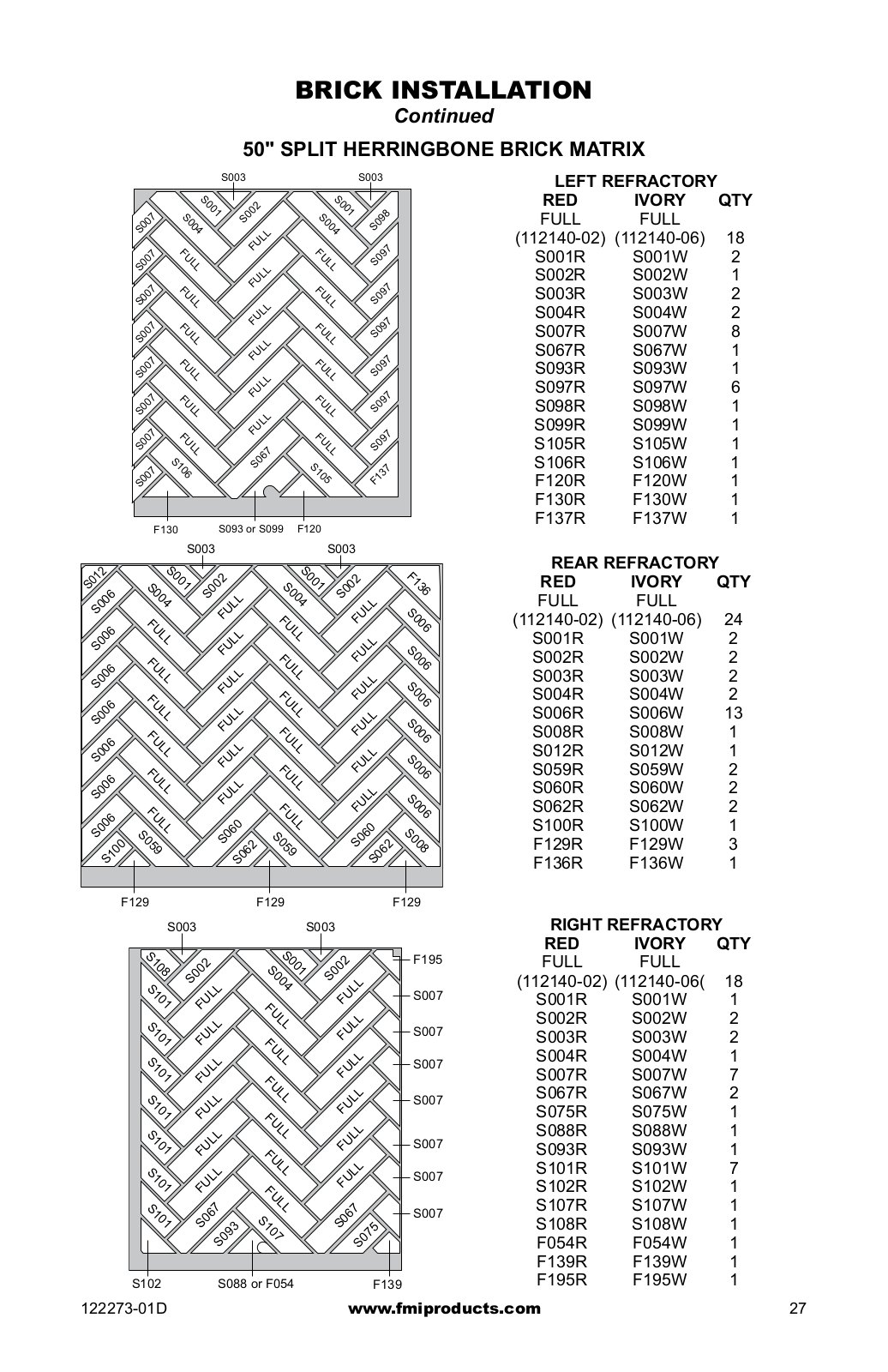

50" SPLIT HERRINGBONE BRICK MATRIX

















S003















S003



LEFT REFRACTORY



















































S001



S002





S001

8



RED

IVORY

QTY





S007



S004











S004







FULL

FULL























S09





















L











(112140-02)

(112140-06)

18







L















L



























FUL













7











FUL















FUL









S001R

S001W

2





S007



























S09









L











L





L







S002R

S002W

1





















FUL





















S007



FUL















FUL







7



S003R

S003W

2































S09









L











L





L







S004R

S004W

2



















































FUL













7











FUL















FUL









S007R

S007W

8





S007















L











S09









L















L









S067R

S067W

1





















FUL













7







S007



FUL















FUL









S093R

S093W

1



















L











S09









L















L







S097R

S097W

6





















FUL













7







S007



FUL















FUL









S098R

S098W

1































S09









L











L





L





































S099R

S099W

1





S007















FUL













7









FUL















FUL









S105R

S105W

1



















7











S09









6

















5













S007

S10











S06





S10







7



S106R

S106W

1

































F13



F120R

F120W

1













































































F130R

F130W

1





F130





S093 or S099

F120











F137R

F137W

1

































S003













S003



6

REAR REFRACTORY







































2



S001

















S001





































F13

RED

IVORY

QTY

S01



S002









S002



S006



S004



L





S004

L



FULL

FULL





L

















L















FUL









FUL





FUL







FUL

S006

(112140-02)(112140-06)

24

S006















L

















S001R

S001W

2



L

















L









L





FUL









FUL





FUL







FUL

S006

S002R

S002W

2

S006















L

















S003R

S003W

2



L

















L









L





FUL









FUL





FUL







FUL

S006

S004R

S004W

2

S006















L













L



S006R

S006W

13



L

















L























FUL





FUL







FUL

S006

S008R

S008W

1





FUL



















S006















L

















S012R

S012W

1



L

















L









L





FUL









FUL





FUL







FUL

S006

S059R

S059W

2

S006















L







L













S060R

S060W

2



L

























L















FUL





FUL







FUL

S006

S062R

S062W

2





9

































































S006



FUL













0





9







0



S100R

S100W

1

0

S05









S06

2

S05









S06

2

S008

F129R

F129W

3

S10















S06















S06



F136R

F136W

1



F129

















F129













F129













S003



















S003











RIGHT REFRACTORY





8

































RED

IVORY

QTY

























S001

















S10



S002













S002







F195

FULL

FULL







1











S004











(112140-02)(112140-06(

18





S10



L











L























L





FUL



S007

S001R

S001W

1





1



FUL









FUL





















L















L





S002R

S002W

2





















L

















S10





FUL









FUL





FUL



S007

S003R

S003W

2





1































L















L



S007

S004R

S004W

1





S10















L



















FUL

















FUL





S007R

S007W

7





1











FUL





















L















L



S007

S067R

S067W

2





S10















L



















FUL

















FUL





S075R

S075W

1





1











FUL













S10







L















L





S088R

S088W

1



















L





















FUL

















FUL



S007

S093R

S093W

1





1











FUL









































L















L





S101R

S101W

7





S10















L





















FUL

















FUL



S007

S102R

S102W

1





1











FUL













































S107R

S107W

1





S10







7









7







7



S007









S06







S10





S06





S108R

S108W

1















3







5

















S09















S07



F054R

F054W

1









































F139R

F139W

1





S102









S088 or F054









F139

F195R

F195W

1

122273-01D



























www.fmiproducts.com



27

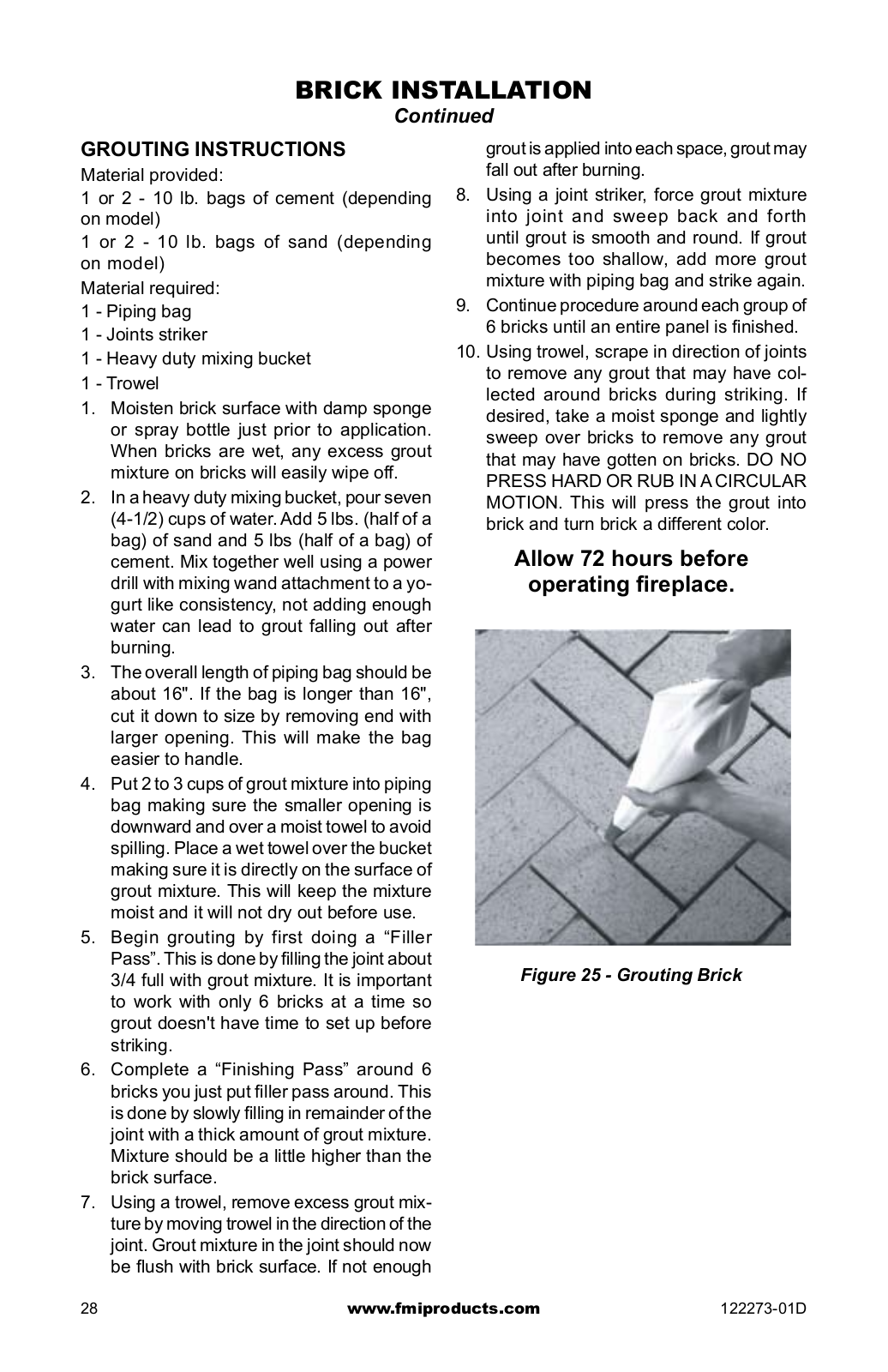

Brick Installation

Continued

Grouting instructions

Material provided:

1 or 2 - 10 lb. bags of cement (depending on model)

1 or 2 - 10 lb. bags of sand (depending on model)

Material required: 1 - Piping bag

1 - Joints striker

1 - Heavy duty mixing bucket

1 - Trowel

1.Moisten brick surface with damp sponge or spray bottle just prior to application.

When bricks are wet, any excess grout mixture on bricks will easily wipe off.

2.In a heavy duty mixing bucket, pour seven (4-1/2)cups of water. Add 5 lbs. (half of a bag) of sand and 5 lbs (half of a bag) of cement. Mix together well using a power drill with mixing wand attachment to a yogurt like consistency, not adding enough water can lead to grout falling out after burning.

3.The overall length of piping bag should be about 16". If the bag is longer than 16", cut it down to size by removing end with larger opening. This will make the bag easier to handle.

4.Put 2 to 3 cups of grout mixture into piping bag making sure the smaller opening is downward and over a moist towel to avoid spilling. Place a wet towel over the bucket making sure it is directly on the surface of grout mixture. This will keep the mixture moist and it will not dry out before use.

5.Begin grouting by first doing a “Filler

Pass”.This is done by filling the joint about

3/4 full with grout mixture. It is important to work with only 6 bricks at a time so grout doesn't have time to set up before striking.

6.Complete a “Finishing Pass” around 6 bricks you just put filler pass around. This is done by slowly filling in remainder of the joint with a thick amount of grout mixture.

Mixture should be a little higher than the brick surface.

7.Using a trowel, remove excess grout mixture by moving trowel in the direction of the joint. Grout mixture in the joint should now be flush with brick surface. If not enough

groutisappliedintoeachspace,groutmay fall out after burning.

8.Using a joint striker, force grout mixture into joint and sweep back and forth until grout is smooth and round. If grout becomes too shallow, add more grout mixture with piping bag and strike again.

9.Continue procedure around each group of 6 bricks until an entire panel is finished.

10.Using trowel, scrape in direction of joints to remove any grout that may have collected around bricks during striking. If desired, take a moist sponge and lightly sweep over bricks to remove any grout that may have gotten on bricks. DO NO PRESS HARD OR RUB INACIRCULAR

MOTION. This will press the grout into brick and turn brick a different color.

Allow 72 hours before operating fireplace.

Figure 25 - Grouting Brick

28

www.fmiproducts.com

122273-01D

Brick Installation

Continued

INSTALLING FIREPLACE SCREEN

1.Mountscreenrod bracketsonleftand right side of smoke shelf with #8 x 1/2" screws provided (see Figure 26).

2.Slide round end of screen rod into rings at top of screen. Attach one push-onnut to end of rod before attaching last ring of screen.

3.Insert round end of rod into rod bracket on left side of fireplace.

4.Mountflatendofscreenrodwith#10x5/8" to center of smoke shelf (see Figure 26).

5.Install other screen rod in same manner.

Screen

Rod Fireplace Front

Bracket

Smoke Shelf

Push

On Nut

Screen

Rod

Ring

Screen

Figure 26 - Installing Fireplace Screen

Glass Door Installation

door frame MODELS BDMO36E/G/C, BDMO42E/G/C AND BDMO50E/G/C

Installation

1.Remove screws from smoke shelf (see

Figure 27).

2.Mount top door frame and secure with screws provided (see Figure 27).

3.Place bottom door frame on top of ash lip at front of fireplace (see Figure 28).

Top Door

Frame

Smoke

Shelf

4.Using a 7/16" open end or adjustable wrench, secure bottom door frame to brick with two hex screws provided (see Figure 28).

Ash Lip

Bottom

Door

Frame

Ash Lip

Hex

Screw

Figure 28 - Installing Bottom Door Frame

Figure 27 - Installing Top Door Frame

122273-01D

www.fmiproducts.com

29

Glass Door Installation

Continued

Installing glass doors

Spring clips have been installed. Some adjustments may be needed. Install doors using the following steps:

1.With bifold doors completely folded, insert bottom pivot pin into pivot hole located near bottom corner of front face opening and swing door to vertical position making sure top pins slide into door track. Door is installed when top door pin snaps into spring clip.

2.Repeat step 1 for remaining door.

If you find the doors do not close properly or do not appear level or straight, proceed with section on door adjustment,

Fold Door

Spring

and Slide

Clip

Top Pins

Insert Pin

Into Track



into Spring



Clip



Insert



Bottom



Pivot Pin



into Hole



Pivot



Hole

Figure 29 - Installing Bi-FoldDoors

Door Adjustment

Remove doors and slightly loosen lower pivot clips and upper spring clips. Replace doors and fully close them. Use 1/8" shims (any material) to level doors. Once proper setting is achieved, carefully open doors enough so that you can access spring clips with a phillips screwdriver. Tighten screws. See Figure 30.

Figure 30 - Adjusting Bi-FoldDoors

30

www.fmiproducts.com

122273-01D

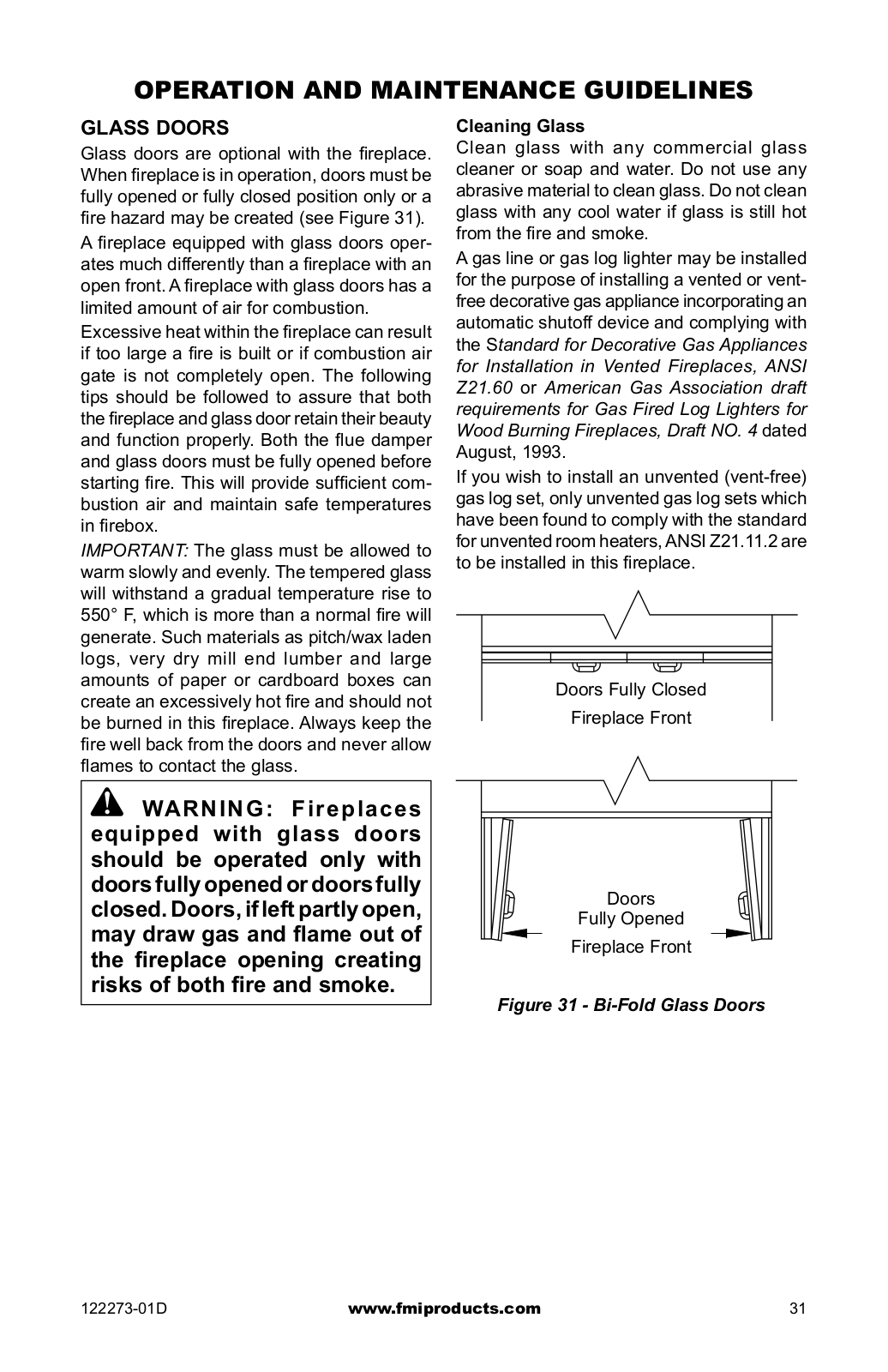

Operation and Maintenance Guidelines

Glass Doors

Glass doors are optional with the fireplace. When fireplace is in operation, doors must be fully opened or fully closed position only or a fire hazard may be created (see Figure 31).

A fireplace equipped with glass doors operates much differently than a fireplace with an open front. A fireplace with glass doors has a limited amount of air for combustion.

Excessive heat within the fireplace can result if too large a fire is built or if combustion air gate is not completely open. The following tips should be followed to assure that both the fireplace and glass door retain their beauty and function properly. Both the flue damper and glass doors must be fully opened before starting fire. This will provide sufficient combustion air and maintain safe temperatures in firebox.

IMPORTANT: The glass must be allowed to warm slowly and evenly. The tempered glass will withstand a gradual temperature rise to 550° F, which is more than a normal fire will generate. Such materials as pitch/wax laden logs, very dry mill end lumber and large amounts of paper or cardboard boxes can create an excessively hot fire and should not be burned in this fireplace. Always keep the fire well back from the doors and never allow flames to contact the glass.

Cleaning Glass

Clean glass with any commercial glass cleaner or soap and water. Do not use any abrasive material to clean glass. Do not clean glass with any cool water if glass is still hot from the fire and smoke.

A gas line or gas log lighter may be installed for the purpose of installing a vented or ventfree decorative gas appliance incorporating an automatic shutoff device and complying with the Standard for Decorative Gas Appliances for Installation in Vented Fireplaces, ANSI Z21.60 orAmerican Gas Association draft requirements for Gas Fired Log Lighters for

Wood Burning Fireplaces, Draft NO. 4 dated

August, 1993.

If you wish to install an unvented (vent-free)gas log set, only unvented gas log sets which have been found to comply with the standard for unvented room heaters,ANSI Z21.11.2 are to be installed in this fireplace.

Doors Fully Closed

Fireplace Front

WARNING: Fireplaces equipped with glass doors should be operated only with doors fully opened or doors fully closed.Doors,ifleftpartlyopen, may draw gas and flame out of the fireplace opening creating risks of both fire and smoke.

Doors

Fully Opened

Fireplace Front

Figure 31 - Bi-FoldGlass Doors

122273-01D

www.fmiproducts.com

31

Operation and Maintenance Guidelines

Continued

outside air and damper handle operation

The damper handle, which opens and closes the damper blade, is located in the upper front face of the fireplace. Pushing the handle forward and up through the keyway slot will free damper blade to automatically open. Pushing the handle forward and down will lock damper blade closed (see Figure 32).

Damper

Weight

To Close

Damper

Damper

Weight

The outside air kit lever is located at the left and right hand sides of fireplace (see Figure

33). Lifting lever up will free the outside air door to open. Pulling lever down will lock the door.

WARNING: Risk of fire! Replace grate with FMI PRODUCTS,LLCgrateonly(seeParts, page 35). This grate has been designed to keep the operation of your fireplace safe and efficient.

Open Position

Closed Position

Figure 33 - Outside Air Kit Lever

To Open

Damper

Figure 32 - Operating Damper Handle

32

www.fmiproducts.com

122273-01D

Technical Service

You may have further questions about installation, operation, or troubleshooting.

If so, contact FMI PRODUCTS, LLC at

1-866-328-4537.

When calling please have your model and serial numbers of your heater ready.

You can also visit FMI PRODUCTS, LLC’s web site at www.fmiproducts.com.

Replacement Parts

If this product is missing a part or has a broken component, please do not return it to the store.CallFMIPRODUCTS,LLCat1-866-328-4537to answer questions and replace parts under warranty.

Note: Use only original replacement parts.

This will protect your warranty coverage for parts replaced under warranty.

When calling or writing, please have your model and serial numbers of your fireplace ready.

Model and serial number information are in the fireplace's rating plate located on the fireplace bottom. You can access the rating plate by lifting out the ash brick within hearth panel and removing the ash dump box.

122273-01D

www.fmiproducts.com

33

Parts

Models (V)Jm36(Sr,SI,HR,HI), (V)Jm42(Sr,SI,HR,HI), (V)Jm50(Sr,SI,HR,HI),

WCM-36J,WCM-42J,WCM-50J

11

9

8

7

10

6

12

13

24

25

26 28

22

21

1

30

23



3

19

5

15







14





17/18





16

4



27





2





19



29

20







31



34

www.fmiproducts.com

122273-01D

Parts

This list contains replaceable parts used in your firebox. When ordering parts, follow the instructions listed under Replacement Parts on page 33 of this manual.

KEY





NO.

PART NO.

DESCRIPTION

1

**

Face Assembly

2

**

Firebox Bottom Assembly

3

**

Firebox Bottom

4

120827-01

Hearth Brick Panel, 36"





120827-02Hearth Brick Panel, 42"





120827-03Hearth Brick Panel, 50"

5

**

Firebox Surround

6

**

Outer Dome Assembly

7

**

Insulation Pan Support

8

**

Insulation Pan

9

**

Top Insulation

10

110285-03

Fireplace Top Assembly, 36"





110285-02

Fireplace Top Assembly, 42"





110285-01

Fireplace Top Assembly, 50"

11

23490SA

Standoff

12

**

Fireplace Surround Assembly

13

109720-02

Clearance Spacer

14

117891-01

Fireplace Handle Bracket

15

20042

Outside Air Cover Plate

16

21171

Gas Conduit Cover

17

109752-01

Conduit One

18

109752-02

Conduit Two

19

109726-01

Air Duct

20

**

Heat Shield Support

21

123298-01

Ash Box Assembly

22

**

Ash Box Ring

23

**

Hearth Support Brace

24

**

Inner Dome Assembly

25

**

Smoke Shield

26

**

Damper Control Bracket

27

**

Air Kit Door Assembly, Right

28

**

Air Kit Door Assembly, Left

29

117566-03

Screen





117566-01

Screen





117566-02

Screen

30

117568-03

Screen Rod





117568-01

Screen Rod





117568-02

Screen Rod

31

117544-03

Grate





117544-01

Grate





117544-02

Grate







PARTS AVAILABLE NOT SHOWN











see page 36 Brick Panel Assemblies with Brick







Housings (1 each, right, left, rear)

** Not a field replaceable part.

122273-01D



www.fmiproducts.com





J



J



J





36



42



50



-

-

-

M36,

WCM

JM42,

WCM

JM50,

WCM











J









)



)



)

QTY.

(

(

(

V



V



V











1







1







1











1











1











1







1







1







1







1







1











1











1











1







4







1







6







4







2







4







2







2







6







1







1







1







1







1







1







1







1







1











2











2











2











2











2











2











1











1











1







1

35

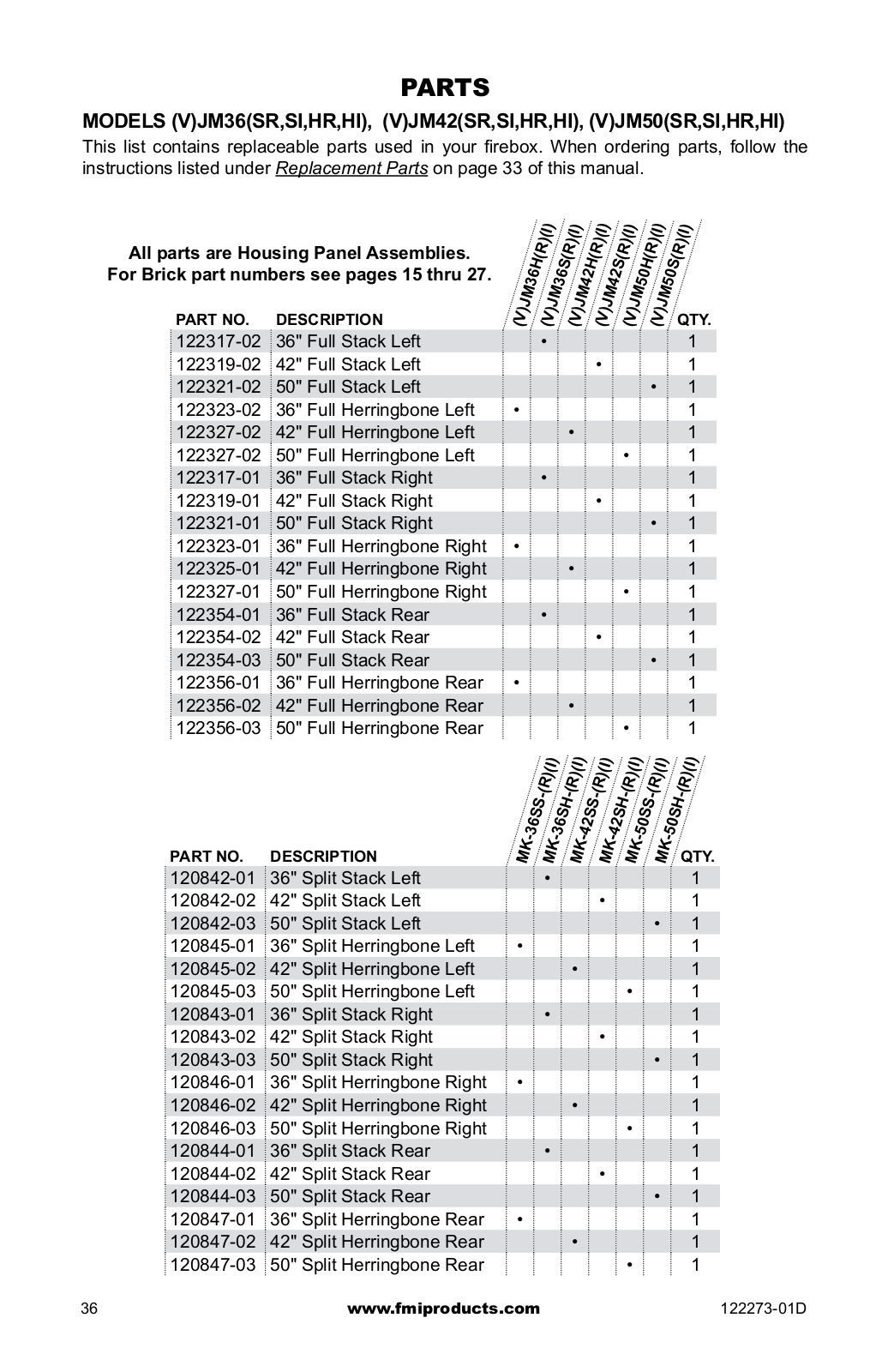

Parts

Models (V)Jm36(Sr,SI,HR,HI), (V)Jm42(Sr,SI,HR,HI), (V)Jm50(Sr,SI,HR,HI)

This list contains replaceable parts used in your firebox. When ordering parts, follow the instructions listed under Replacement Parts on page 33 of this manual.

All parts are Housing Panel Assemblies.

For Brick part numbers see pages 15 thru 27.

PART NO.

DESCRIPTION

122317-02

36" Full Stack Left

122319-02

42" Full Stack Left

122321-02

50" Full Stack Left

122323-02

36" Full Herringbone Left

122327-02

42" Full Herringbone Left

122327-02

50" Full Herringbone Left

122317-01

36" Full Stack Right

122319-01

42" Full Stack Right

122321-01

50" Full Stack Right

122323-01

36" Full Herringbone Right

122325-01

42" Full Herringbone Right

122327-01

50" Full Herringbone Right

122354-01

36" Full Stack Rear

122354-02

42" Full Stack Rear

122354-03

50" Full Stack Rear

122356-01

36" Full Herringbone Rear

122356-02

42" Full Herringbone Rear

122356-03

50" Full Herringbone Rear

JM36H(R)(I) JM36S(R)(I) JM42H(R)(I) M42S(R)(I)J

JM50H(R)(I) JM50S(R)(I)

)

)

)

)



)

)



V

V

V

V



V

V

QTY.

(

(

(

(

(

(













1













1













1













1













1













1













1













1













1













1













1













1













1













1













1













1













1













1

PART NO.

DESCRIPTION

120842-01

36" Split Stack Left

120842-02

42" Split Stack Left

120842-03

50" Split Stack Left

120845-01

36" Split Herringbone Left

120845-02

42" Split Herringbone Left

120845-03

50" Split Herringbone Left

120843-01

36" Split Stack Right

120843-02

42" Split Stack Right

120843-03

50" Split Stack Right

120846-01

36" Split Herringbone Right

120846-02

42" Split Herringbone Right

120846-03

50" Split Herringbone Right

120844-01

36" Split Stack Rear

120844-02

42" Split Stack Rear

120844-03

50" Split Stack Rear

120847-01

36" Split Herringbone Rear

120847-02

42" Split Herringbone Rear

120847-03

50" Split Herringbone Rear



(R)(I)

(R)(I)

(R)(I)

(R)(I)

(R)(I)

-36SS

-

-

-

-

-

-36SH

-42SS

-42SH

-50SS

-50SH

MK

MK

MK

MK

MK

MK



















































































































































-(R)(I)

QTY.

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

36

www.fmiproducts.com

122273-01D

Accessories

BiFold Glass Masonry Door

BDMO36E - 36" Ebony

BDMO36G - 36" Pewter

BDMO36C - 36" Oiled Bronze

BDMO42E - 42" Ebony

BDMO42G - 42" Pewter

BDMO42C - 42" Oiled Bronze

BDMO50E - 50" Ebony

BDMO50G - 50" Pewter

BDMO50C - 50" Oiled Bronze

Double Wall Pipe -12-12DM,18-12DM,24-12DM,36-12DM,48-12DM,

12-12HT,18-12HT,24-12HT,36-12HTand48-12HT

30° Offset and Return

30E-12DMand30E-12HT

Ember Protector - 20093

Optional Outside air kit for floor installation - ak4f

Optional Outside Air Kit for Sidewall Installation - AK4

Storm Collar - SC2-1

Firestop Spacer - FS-10(1100EFS-10DMfor 36" Models)

Roof Flashing

V6F-10DM- 0 to 6/12 PitchV12F-10DM- 6/12 to 12/12 Pitch

122273-01D

www.fmiproducts.com

37

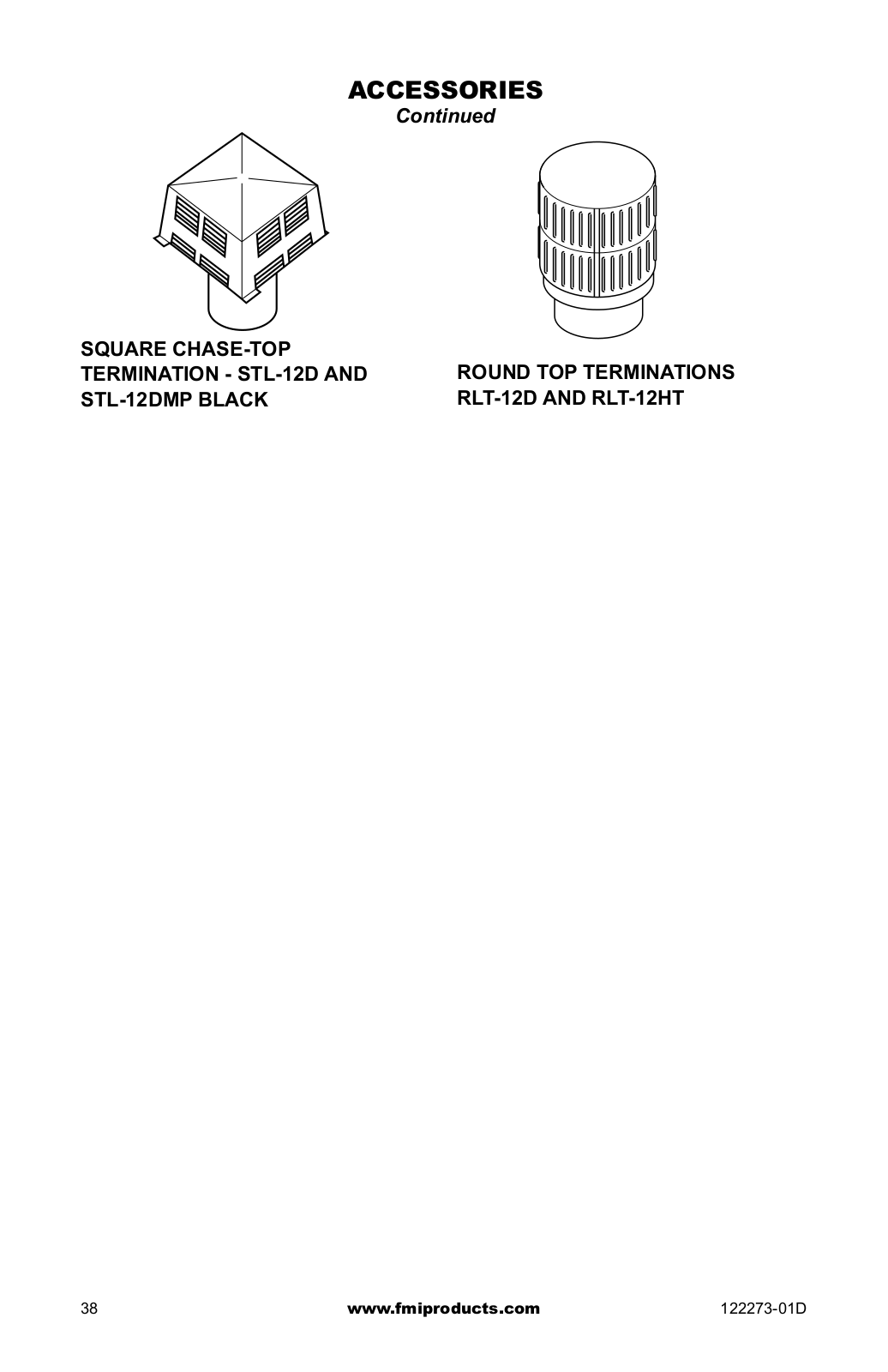

AccessorIES

Continued

SQUARE CHASE-TOP

Round ToP TErminations

TERMINATION - STL-12DAND

STL-12DMPBLACK

RLT-12DandRLT-12HT

38

www.fmiproducts.com

122273-01D

NOTES

_____________________________________________________

______________________________________________________

______________________________________________________

______________________________________________________

______________________________________________________

______________________________________________________

______________________________________________________

______________________________________________________

______________________________________________________

______________________________________________________

______________________________________________________

______________________________________________________

______________________________________________________

_____________________________________________________

______________________________________________________

______________________________________________________

______________________________________________________

______________________________________________________

______________________________________________________

______________________________________________________

______________________________________________________

______________________________________________________

______________________________________________________

______________________________________________________

______________________________________________________

______________________________________________________

_____________________________________________________

______________________________________________________

______________________________________________________

______________________________________________________

______________________________________________________

______________________________________________________

______________________________________________________

______________________________________________________

______________________________________________________

122273-01D

www.fmiproducts.com

39







2701 S. Harbor Blvd.



Santa Ana, CA 92704

122273-01

1-866-328-4537

Rev. D

www.fmiproducts.com

01/10
