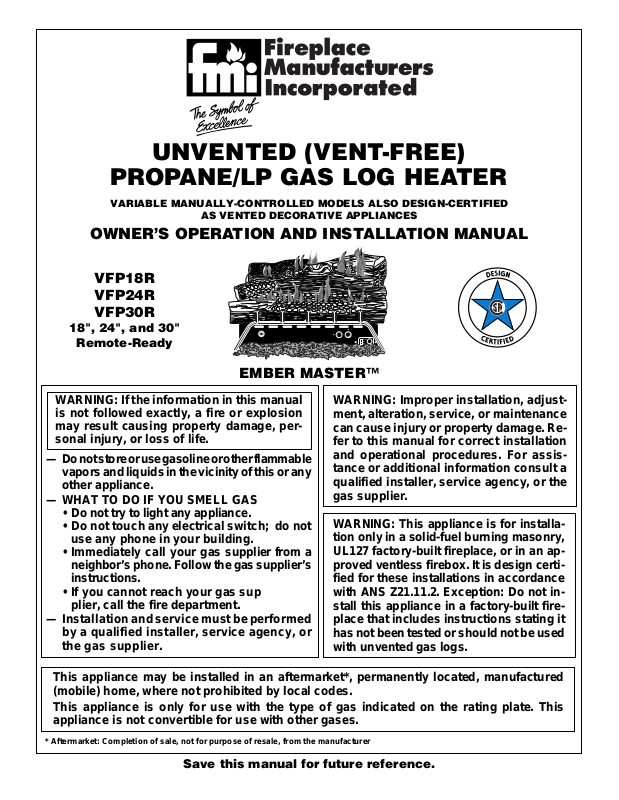

UNVENTED (VENT-FREE)PROPANE/LP GAS LOG HEATER

VARIABLE MANUALLY-CONTROLLEDMODELS ALSODESIGN-CERTIFIED

AS VENTED DECORATIVE APPLIANCES

OWNER’S OPERATION AND INSTALLATION MANUAL

VFP18R

VFP24R

VFP30R

18", 24", and 30" Remote-Ready

ILOT

F

O

FO

N

LO

HI

EMBER MASTER™

WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury, or loss of life.

Donotstoreorusegasolineorotherflammable vapors and liquids in the vicinity of this or any other appliance.

WHAT TO DO IF YOU SMELL GAS

Do not try to light any appliance.

Do not touch any electrical switch; do not use any phone in your building.

Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

If you cannot reach your gas sup

plier, call the fire department.

— Installation and service must be performed by a qualified installer, service agency, or the gas supplier.

WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage. Refer to this manual for correct installation and operational procedures. For assistance or additional information consult a qualified installer, service agency, or the gas supplier.

WARNING: This appliance is for installation only in a solid-fuelburning masonry, UL127factory-builtfireplace, or in an approved ventless firebox. It is design certified for these installations in accordance with ANS Z21.11.2. Exception: Do not install this appliance in afactory-builtfireplace that includes instructions stating it has not been tested or should not be used with unvented gas logs.

This appliance may be installed in an aftermarket*, permanently located, manufactured (mobile) home, where not prohibited by local codes.

This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.

* Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer

Save this manual for future reference.

FIREPLACE MANUFACTURERS INC.

UNVENTED PROPANE/LP GAS LOG HEATER

SAFETY

INFORMATION

WARNINGS

IMPORTANT: Read this owner’s manual carefully and completely before trying to assemble, operate, or service this heater. Improperuseofthisheatercancause serious injury or death from burns, fire, explosion, electrical shock, and carbon monoxide poisoning.

DANGER: Carbon monoxide poisoning may lead to death!

Carbon Monoxide Poisoning: Early signs of carbon monoxide poisoning resemble the flu, with headaches, dizziness, or nausea. If you have these signs, the heater may not be working properly. Get fresh air at once! Have heater serviced. Some people are more affected by carbon monoxide than others. These include pregnant women, people with heart or lung disease or anemia, those under the influence of alcohol, and those at high altitudes.

Propane/LP Gas: Propane/LP gas is odor-less.Anodor-makingagentisaddedtothegas.The odor helps you detect a gas leak. However, the odor added to the gas can fade. Gas may be present even though no odor exists.

Make certain you read and understand all warnings. Keep this manual for reference. It is your guide to safe and proper operation of this heater.

WARNING: Any change to this heater or its controls can be dangerous.

WARNING: Do not allow fans to blow directly into the fireplace. Avoid any drafts that alter burner flame patterns. Ceiling fans can create drafts that alter burner flame patterns. Altered burner patterns can cause sooting.

WARNING: Do not use a blower insert, heat exchanger insert, or other accessory not approved for use with this heater.

Due to high temperatures, the appliance should be located out of traffic and away from furniture and draperies.

Do not place clothing or other flammable material on or near the appliance. Never place any objects on the heater.

Heater base assembly becomes veryhotwhenrunningheater.Keep children and adults away from hot surface to avoid burns or clothing ignition. Heater will remain hot for a time after shutdown. Allow surface to cool before touching.

Carefully supervise young children when they are in the room with heater. When using the handheld remote accessory, keep selector switch in the OFF position to prevent children from turning on burners with remote.

You must operate this heater with a fireplace screen in place. Make sure fireplace screen is closed before running heater.

Keep the appliance area clear and free from combustible materials, gasoline, and other flammable vapors and liquids.

1.This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.

2.Do not place propane/LP supply tank(s) inside any structure. Locate propane/LP supply tank(s) outdoors.

3.If you smell gas

shut off gas supply

do not try to light any appliance

do not touch any electrical switch; do not use any phone in your building

immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions

if you cannot reach your gas supplier, call the fire department

4.This heater shall not be installed in a bedroom or bathroom, unless installed as a vented appliance (see Installing Damper Clamp Accessory for Vented Operation, page 10).

5.Before installing in a solid fuel burning fireplace, the chimney flue and firebox must be cleaned of soot, creosote, ashes, and loose paint by a qualified chimney cleaner. Creosote will ignite if highly heated. Inspect chimney flue for damage. If damaged, operate heater with flue damper closed.

6.If fireplace has glass doors, never operate this heater with glass doors closed. If you operate heater with doors closed, heat buildup inside fireplace will cause glass to burst. Also if fireplace opening has vents at the bottom, you must open the vents before operating heater.

7.To prevent the creation of soot, follow the instructions in Cleaning and Maintenance, page 17.

8.This log heater is designed to be smokeless. If logs ever appear to smoke, turn off heater and call a qualified service person. Note: During initial operation, slight smoking may occur due to log curing and heater burning manufacturing residues.

9.Before using furniture polish, wax, carpet cleaner, or similar products, turn heater off. If heated, the vapors from these products may create a white powder residue within burner box or on adjacent walls or furniture.

10.This heater needs fresh, outside air ventilation to run properly. This heater has an Oxygen Depletion Sensing (ODS) safety shutoff system. The ODS shuts down the heater if not enough fresh air is available. See Air for Combustion and Ventilation, pages 4 through 6. If heater keeps shutting off, seeTroubleshooting, pages 18 through 20.

11.Do not run heater

where flammable liquids or vapors are used or stored

under dusty conditions

12.Do not use this heater to cook food or burn paper or other objects.

13.Do not use heater if any part has been exposed to or under water. Immediately call a qualified service technician to inspect the room heater and to replace any part of the control system and any gas control which has been under water.

2

105073

OWNER’S MANUAL

SAFETY

INFORMATION

Continued

14.Do not operate heater if any log is broken. Do not operate heater if a log is chipped (dime-sizedor larger).

UNPACKING

CAUTION: Do not remove the metal data plates from the grate assembly. The dataplates contain important product information.

15.Turn heater off and let cool before servicing, installing, or repairing. When using the hand-heldremote accessory, make sure the selector switch is in the OFF position. Only a qualified service person should install, service, or repair heater.

16.When using the hand-heldremote accessory, make sure the selector switch is in the OFF position when you are away from home for long periods of time.

17.This heater must not be connected to any external electrical source.

18.Operating heater above elevations of 4,500 feet may cause pilot outage.

19.To prevent performance problems, the use of a propane/LP fuel tank of less than 100 lb. capacity is not recommended.

PRODUCT IDENTIFICATION

1.Remove logs and heater base assembly from carton. Note: Do not pick up heater base assembly by the burner. This could damage heater. Always handle base assembly by grate.

2.Remove all protective packaging applied to logs and heater for shipment.

3.Check all items for any shipping damage. If damaged, promptly inform dealer where you bought heater.

Top Middle Log

Crossover Log

Rear Log

Front

Logs

Rear

Burner

Front

Burner

Piezo

Bottom

Middle

Ignitor

Log





Control Knob



Flame





Adjustment

Base



Knob

Figure 1 - Ember Master

Selector Switch

Assembly

(Optional)



LOCAL CODES

Install and use heater with care. Follow all local codes. In the absence of local codes, use the latest edition of The National Fuel Gas Code, ANS Z223.1, also known as NFPA 54*.

*Available from:

American National Standards Institute, Inc.

Batterymarch Park

New York, NY 10018

National Fire Protection Association, Inc.

1430 Broadway

Quincy, MA 02269

Note: Where listed vented decorative logs are required, thermostat operation is not permitted.

PRODUCT

FEATURES

OPERATION

This heater is clean burning. It requires no outside venting. There is no heat loss out a vent or up a chimney. Heat is generated by both realistic flames and glowing coals. This heater is designed for vent-freeoperation with flue damper closed. It has been tested and approved to ANS Z21.11.2 standard for unvented heaters. State and local codes in some areas prohibit the use ofvent-freeheaters. This heater may also be operated as a vented decorative (ANS Z21.60) product by opening the flue damper(non-thermostatoperation only).

SAFETY PILOT

This heater has a pilot with an Oxygen Depletion Sensing(ODS) safety shutoff system. The ODS/pilot is a required feature for vent-freeroom heaters. The ODS/pilot shuts off the heater if there is not enough fresh air.

PIEZO IGNITION SYSTEM

This heater has a piezo ignitor. This system requires no matches, batteries, or other sources to light heater.

Continued

105073

3

FIREPLACE MANUFACTURERS INC.

UNVENTED PROPANE/LP GAS LOG HEATER

PRODUCT

FEATURES

Continued

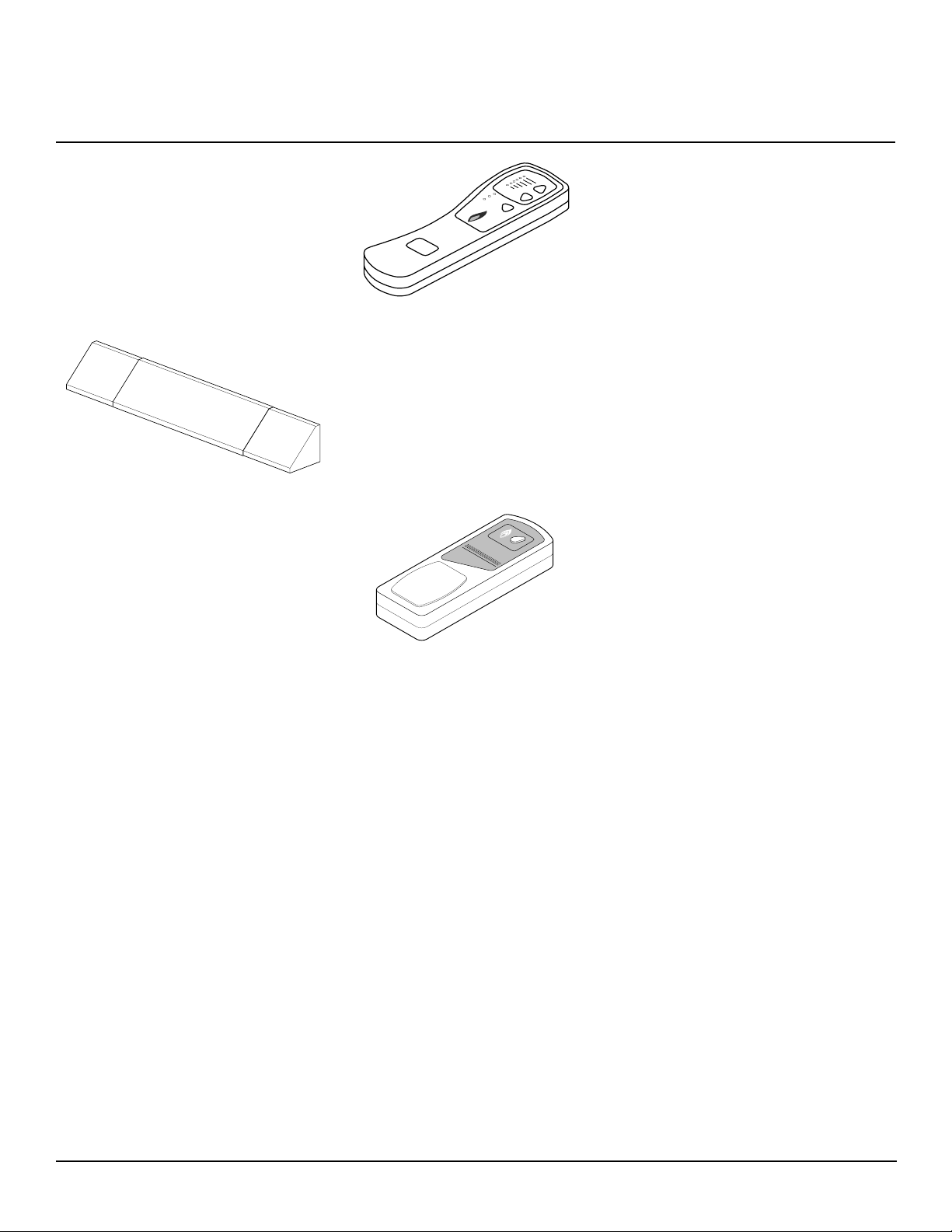

OPTIONAL REMOTE CONTROL ACCESSORIES

There are four optional remote controls that canbepurchasedseparatelyforthislogheater:

wall switch

wall thermostat

hand-heldON/OFF remote

hand-heldthermostat remote

See Accessories, page 24.

The wall thermostat or hand-heldthermostat control may not be used where vented decorative listing is required.

AIR FOR COMBUSTION AND VENTILATION

WARNING: This heater shall notbeinstalledinaconfinedspace or unusually tight construction unless provisions are provided for adequate combustion and ventilation air. Read the following instructions to insure proper fresh air for this and otherfuel-burningappliances in your home.

Today’s homes are built more energy efficient than ever. New materials, increased insulation, and new construction methods help reduce heat loss in homes. Home owners weather strip and caulk around windows and doors to keep the cold air out and the warm air in. During heating months, home owners want their homes as airtight as possible.

While it is good to make your home energy efficient, your home needs to breathe. Fresh air must enter your home. All fuel-burningappliances need fresh air for proper combustion and ventilation.

Exhaust fans, fireplaces, clothes dryers, and fuel burning appliances draw air from the house to operate. You must provide adequate fresh air for these appliances. This will insure proper venting of vented fuelburning appliances.

PROVIDING ADEQUATE VENTILATION

The following are excerpts from National Fuel Gas Code, NFPA 54/ANS Z223.1, Section 5.3, Air for Combustion and Ventilation.

All spaces in homes fall into one of the three following ventilation classifications:

1.Unusually Tight Construction

2.Unconfined Space

3.Confined Space

The information on pages 4 through 6 will help you classify your space and provide adequate ventilation.

Unusually Tight Construction

The air that leaks around doors and windows may provide enough fresh air for combustion and ventilation. However, in buildings of unusually tight construction, you must provide additional fresh air.

Unusually tight construction is defined as construction where:

a.walls and ceilings exposed to the outside atmosphere have a continuous water vapor retarder with a rating of one perm (6 x 10-11 kg perpa-sec-m2)or less with openings gasketed or sealedand

b.weather stripping has been added on openable windows and doors and

c.caulking or sealants are applied to areas such as joints around window and door frames, between sole plates and floors, between wall-ceilingjoints, between wall panels, at penetrations for plumbing, electrical, and gas lines, and at other openings.

If your home meets all of the three criteria above, you must provide additional fresh air. See Ventilation Air From Outdoors, page 6.

If your home does not meet all of the three criteria above, proceed to Determining Fresh-Air Flow for Heater Location, page 5.

Confined and Unconfined Space

The National Fuel Gas Code, ANS Z223.1 defines a confined space as a space whose volume is less than 50 cubic feet per 1,000 Btu per hour (4.8 m3 per kw) of the aggregate input rating of all appliances installed in that space and an unconfined space as a space whose volume is not less than 50 cubic feet per 1,000 Btu per hour (4.8 m3 per kw) of the aggregate input rating of all appliances installed in that space. Rooms communicating directly with the space in which the appliances are installed*, through openings not furnished with doors, are considered a part of the unconfined space.

This heater shall not be installed in a confined space or unusually tight construction unless provisions are provided for adequate combustion and ventilation air.

* Adjoining rooms are communicating only if there are doorless passageways or ventilation grills between them.

4

105073

OWNER’S MANUAL

AIR FOR

COMBUSTION AND

VENTILATION

Continued

DETERMINING FRESH-AIRFLOW FOR HEATER LOCATION

Determining if You Have a Confined or Unconfined Space

Use this work sheet to determine if you have a confined or unconfined space.

Space: Includes the room in which you will install heater plus any adjoining rooms with doorless passageways or ventilation grills between the rooms.

1.Determine the volume of the space (length x width x height).

Length x Width x Height = _________________ cu. ft. (volume of space)

Example: Space size 20 ft. (length) x 16 ft. (width) x 8 ft. (ceiling height) = 2560 cu. ft. (volume of space)

If additional ventilation to adjoining room is supplied with grills or openings, add the volume of these rooms to the total volume of the space.

2.Divide the space volume by 50 cubic feet to determine the maximum Btu/Hr the space can support.

____________ (volume of space) ÷ 50 cu. ft. = (Maximum Btu/Hr the space can support)

Example: 2560 cu. ft. (volume of space) ÷ 50 cu. ft. = 51.2 or 51,200 (maximum Btu/Hr the space can support)

3.Add the Btu/Hr of all fuel burning appliances in the space.

Vent-freeheater



______________ Btu/Hr











Gas water heater*



______________ Btu/Hr

Example:









Gas furnace



______________ Btu/Hr











Gas water heater



40,000



Btu/Hr

Vented gas heater



______________ Btu/Hr







Vent-freeheater

+

33,000



Btu/Hr

Gas fireplace logs



______________ Btu/Hr







=









Total

73,000



Btu/Hr

Other gas appliances* +

______________ Btu/Hr























Total

=

______________ Btu/Hr











*Do not include direct-ventgas appliances.Direct-ventdraws combustion air from the outdoors and vents to the outdoors.

4.Compare the maximum Btu/Hr the space can support with the actual amount of Btu/Hr used.

_________________ Btu/Hr (maximum the space can support)

_________________ Btu/Hr (actual amount of Btu/Hr used)

Example: 51,200 Btu/Hr (maximum the space can support)

73,000 Btu/Hr (actual amount of Btu/Hr used)

The space in the above example is a confined space because the actual Btu/Hr used is more than the maximum Btu/Hr the space can support. You must provide additional fresh air. Your options are as follows:

A.Rework worksheet, adding the space of an adjoining room. If the extra space provides an unconfined space, remove door to adjoining room or add ventilation grills between rooms. See Ventilation Air From Inside Building, page 6.

B.Vent room directly to the outdoors. See Ventilation Air From Outdoors, page 6.

C.Install a lower Btu/Hr heater, if lower Btu/Hr size makes room unconfined.

If the actual Btu/Hr used is less than the maximum Btu/Hr the space can support, the space is an unconfined space. You will need no additional fresh air ventilation.

WARNING: If the area in which the heater may be operated is smaller than that defined as an unconfined space or if the building is of unusually tight construction, provide adequate combustion and ventilation air by one of the methods described in theNational Fuel Gas Code, ANS Z223.1, Section 5.3 or applicable local codes.

Continued

105073

5

FIREPLACE MANUFACTURERS INC.

UNVENTED PROPANE/LP GAS LOG HEATER

AIR FOR COMBUSTION AND VENTILATION

Continued

VENTILATION AIR

Ventilation Air From Inside

Building

This fresh air would come from an adjoining unconfined space. When ventilating to an adjoining unconfined space, you must provide two permanent openings: one within 12" of the ceiling and one within 12" of the floor on the wall connecting the two spaces (see options 1 and 2, Figure 2). You can also remove door into adjoining room (see option 3, Figure 2). Follow the National Fuel Gas Code, NFPA 54/ANS Z223.1, Section 5.3, Air for Combustion and Ventilation for required size of ventilation grills or ducts.

WARNING: Rework worksheet, adding the space of the adjoining unconfined space. The combined spaces must have enough fresh air to supply all appliances in both spaces.

Ventilation Air From Outdoors

Provide extra fresh air by using ventilation grills or ducts. You must provide two permanent openings: one within 12" of the ceiling and one within 12" of the floor. Connect these items directly to the outdoors or spaces open to the outdoors. These spaces include attics and crawl spaces. Follow the

National Fuel Gas Code, NFPA 54/ANS Z223.1, Section 5.3, Air for Combustion and Ventilation for required size of ventilation grills or ducts.

IMPORTANT: Do not provide openings for inlet or outlet air into attic if attic has athermostat-controlledpower vent. Heated air entering the attic will activate the power vent.





12"

Ventilation



Ventilation Grills

Grills



Into Adjoining

Or

Into Adjoining Room,

Room,

Option 2

Remove

Option 1



Door into









Adjoining





Room,





Option





3







12"

Figure 2 - Ventilation Air from Inside Building

Ventilated

Outlet Attic

Air

Outlet

Air

To Attic

To

Crawl

Space

Inlet

Air





Inlet Air



Ventilated













Crawl Space

















Figure 3 - Ventilation Air from Outdoors

6

105073

OWNER’S MANUAL

INSTALLATION

NOTICE: This heater is intended for use as supplemental heat. Use this heater along with your primary heating system. Do not install this heater as your primary heat source. If you have a central heating system, you may run system’s circulating blower while using heater. This will help circulate the heat throughout the house. In the event of a power outage, you can use this heater as your primary heat source.

WARNING: A qualified service person must install heater. Follow all local codes.

NOTICE: State or local codes may only allow operation of this appliance in a vented configuration. Check your state or local codes.

WARNING: Make sure the selector switch is in the OFF position before installing heater.

WARNING: Before installing in a solid fuel burning fireplace, the chimney flue and firebox must be cleaned of soot, creosote, ashes and loose paint by a qualified chimney cleaner. Creosote will ignite if highly heated. A dirty chimney may create and distribute soot within the house. Inspect chimney flue for damage. If damaged, operate heater with flue damper closed.

WARNING: Seal any fresh air vents or ashclean-outdoors located on floor or wall of fireplace. If not, drafting may cause pilot outage or sooting. Use a heatresistant sealant. Do not seal chimney flue damper.

WARNING: Never install the heater

in a bedroom or bathroom unless installed as vented appliance, see page 10

in a recreational vehicle

where curtains, furniture, clothing, or other flammable objects are less than 42 inches from the front, top, or sides of the heater

in high traffic areas

in windy or drafty areas

CAUTION: This heater creates warm air currents. These currents move heat to wall surfaces next to heater. Installing heater next to vinyl or cloth wall coverings or operating heater where impurities (such as tobacco smoke, aromatic candles, cleaning fluids, oil or kerosene lamps, etc.) in the air exist, may discolor walls.

IMPORTANT: Vent-freeheaters add moisture to the air. Although this is beneficial, installing heater in rooms without enough ventilation air may cause mildew to form from too much moisture. SeeAir for Combustion and Ventilation, pages 4 through 6.

CHECK GAS TYPE

Use only propane/LP gas. If your gas supply is not propane/LP gas, do not install heater. Call dealer where you bought heater for proper type heater.

INSTALLATION AND CLEARANCES

(Vent-FreeOperation Only)

WARNING: Maintain the minimum clearances. If you can, provide greater clearances from floor, ceiling, and adjoining wall.

MINIMUM FIREPLACE CLEARANCE TO COMBUSTIBLE MATERIALS

Log Size Side Wall Ceiling Floor*

18", 24", 30”

16"

42"

5"

*See Floor Clearances,page 9.

LOG SIZING REQUIREMENTS



Minimum Firebox Size

Log













Front

Rear*

Size

Height

Depth

Width

Width











18"

17"

14"

20"

14"

24"

17"

14"

26"

18"

30"

17"

14"

32"

22"











*Measured at 14” depth

Carefully follow the instructions below. This will ensure safe installation into a masonry, UL127-listedmanufactured fireplace, or listedvent-freefirebox.

Minimum Clearances For Side

Combustible Material, Side Wall,

and Ceiling

A.Clearances from the side of the fireplace cabinet to any combustible material and wall should follow the diagram in Figure 4.

Example: The face of a mantel, bookshelf, etc. is made of combustible material and protrudes 31/2" from the wall. This combustible material must be 4" from the side of the fireplace opening (see Figure 4).

Note: When installing your gas logs into a manufactured firebox, follow firebox manufacturer’s instructions for minimum clearances to combustible materials.

B.Clearances from the top of the fireplace opening to the ceiling should not be less than 42 inches.



Example













121/4

















101/2























8 3/4























7

INCHES





















51/4





















31/2





















13/4











































7/8























7/16



FIREBOX

.5

1

2

4

6

8

10

12

14

16*











INCHES











*Minimum 16 inches from Side Wall

Figure 4 - Minimum Clearance for Combustible to Wall

Continued

105073

7

FIREPLACE MANUFACTURERS INC.

UNVENTED PROPANE/LP GAS LOG HEATER

INSTALLATION

Continued

NOTICE: Manual control heaters may be used as a vented product. If so, you must always run heater with chimney flue damper open. If running heater with damper open, noncombustible material above fireplace opening is not needed. Go to Installing Damper Clamp Accessory for Vented Operation, page 10.

Minimum Noncombustible

Material Clearances

If Not Using Mantel

Note: If using a mantel, seeIf Using Mantel. If not using a mantel, follow the information below.

You must have noncombustible material(s) above the fireplace opening. Noncombustible materials (such as slate, marble, tile, etc.) must be at least 1/2 inch thick. With sheet metal, you must have noncombustible material behind it. Noncombustible material must extend at least 8" up (for all models). If noncombustible material is less than 12", you must install the fireplace hood accessory. See Figure 5 for minimum clearances.

IMPORTANT: If you cannot meet these minimum clearances, you must operate heater with chimney flue damper open. SeeInstalling Damper Clamp Accessory for Vented Operation, page 10.

If Using Mantel

You must have noncombustible material(s) above the fireplace opening. Noncombustible materials (such as slate, marble, tile, etc.) must be at least 1/2 inch thick. With sheet metal, you must have noncombustible material behind it. Noncombustible material must extend at least 8 inches up. If noncombustible material is less than 12", you must install the fireplace hood accessory. Even if noncombustible material is more than 12", you may need the hood accessory to deflect heat away from your mantel shelf. See Figure 5 and Figures 6 and 7, page 9 for minimum clearances.

IMPORTANT: If you cannot meet these minimumclearances,youmustoperateheater with chimney flue damper open. SeeInstalling Damper Clamp Accessory for Vented Operation, page 10.

Noncombustible

Requirements for

Material Distance (A)

Safe Installation











12" or more

Noncombustible material OK.

Between 8" and 12"

Install fireplace hood accessory (HDABK or





HDABR, see Accessories, page 24).





18" model: Noncombustible material OK.

Less than 8"

Noncombustible material must be extended to at





least 8". See Between 8" and 12", above. If you





cannot extend material, you must operate heater





with flue damper open.











Heat Resistant

























Material















(A)











Figure 5 - Heat Resistant Material (Slate, Marble, Tile, etc.) Above Fireplace

8

105073

OWNER’S MANUAL

INSTALLATION

Continued

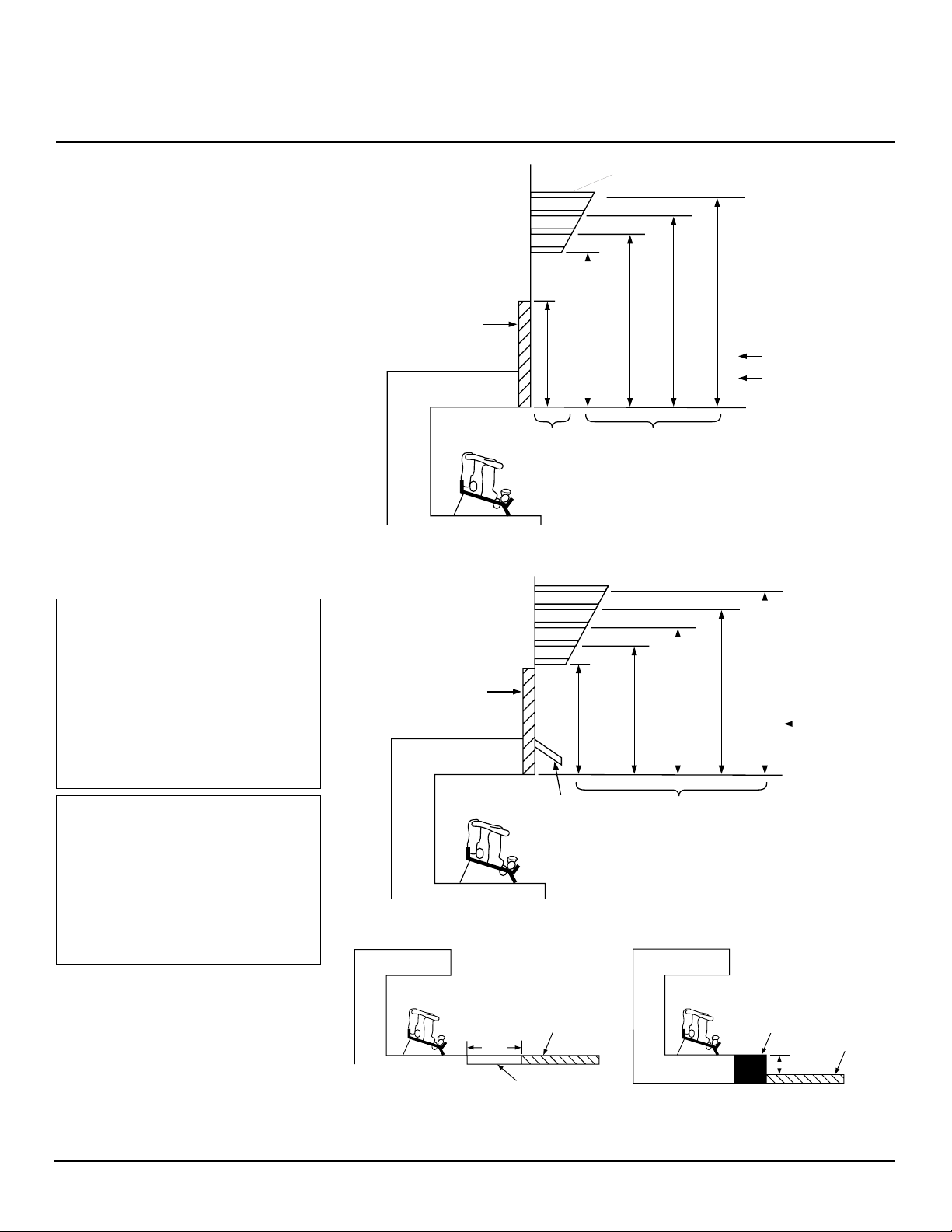

MANTEL CLEARANCES

In addition to meeting noncombustible material clearances, you must also meet required clearances between fireplace opening and mantel shelf. If you do not meet clearances listed in Figure 6 you will need a hood.

Determining Minimum Mantel

Clearance

If you meet minimum clearance between mantel shelf and top of fireplace opening, a hood is not required (see Figure 6).

Determining Minimum Mantel

Clearance When Using a Hood

If minimum clearances in Figure 6 are not met, you must have a hood. When using a hood there are still certain minimum mantel clearances required. Follow minimum clearances shown in Figure 7, page 9 when using hood.

NOTICE: Surface temperatures of adjacent walls and mantels become hot during operation. Walls and mantels above the firebox may become hot to the touch. If installed properly, these temperatures meet the requirement of the national product standard. Follow all minimum clearances shown in this manual.

NOTICE: If your installation does not meet the minimum clearances shown, you must do one of the following:

operate the logs only with the flue damper open

raise the mantel to an acceptable height

remove the mantel

Mantel Shelf

10"

Underside of



8"









Mantel Shelf















6"













2 1/2"























All minimum













distances are













in inches

Minimum Non-

(A)











Combustible









Log Set











Material











12"

18"

20"

22"

24"

24"&Models30" Models





8"

14"

16 3/4"

18 1/2"

20"

18" Model













Top of Fireplace













Opening



Minimum Non-

Distances to







Combustible



Underside of







Material Height

Mantel







Figure 6 - Minimum Mantel Clearances Without Using Hood

12"

Underside of



10"











Mantel Shelf



















8"

































6"

































2 1/2"











All minimum













































distances are

Minimum Non-















in inches



















Combustible

















Log Sets

Material





8"

12"

15"

18"

20"



18"All Models& 24" Models













Min.





























Top of Fireplace

































Opening

Hood

Distances to

(HDABK,HDABR)

Underside of





Mantel

Figure 7 - Minimum Mantel Clearances When Using Hood

FLOOR CLEARANCES

A.If installing appliance on the floor level, you must maintain the minimum distance of 14" to combustibles (see Figure 8).

B.If combustible materials are less than 14" to the fireplace, you must install appliance at least 5" above the combustible flooring (see Figure 9).



Combustible





14"

Combustible

HearthHearth



Material

Combustible

14"





Min..





Combustible



5" MaterialMaterial









5"







Min. .



Non-Combustible





Noncombustible Material







Material

Figure 9 - Minimum Fireplace Clearances

Figure 8 - Minimum Fireplace Clearances

If Installed at Floor Level



Above Combustible Flooring

Continued

105073

9

FIREPLACE MANUFACTURERS INC.

UNVENTED PROPANE/LP GAS LOG HEATER

INSTALLATION

Continued

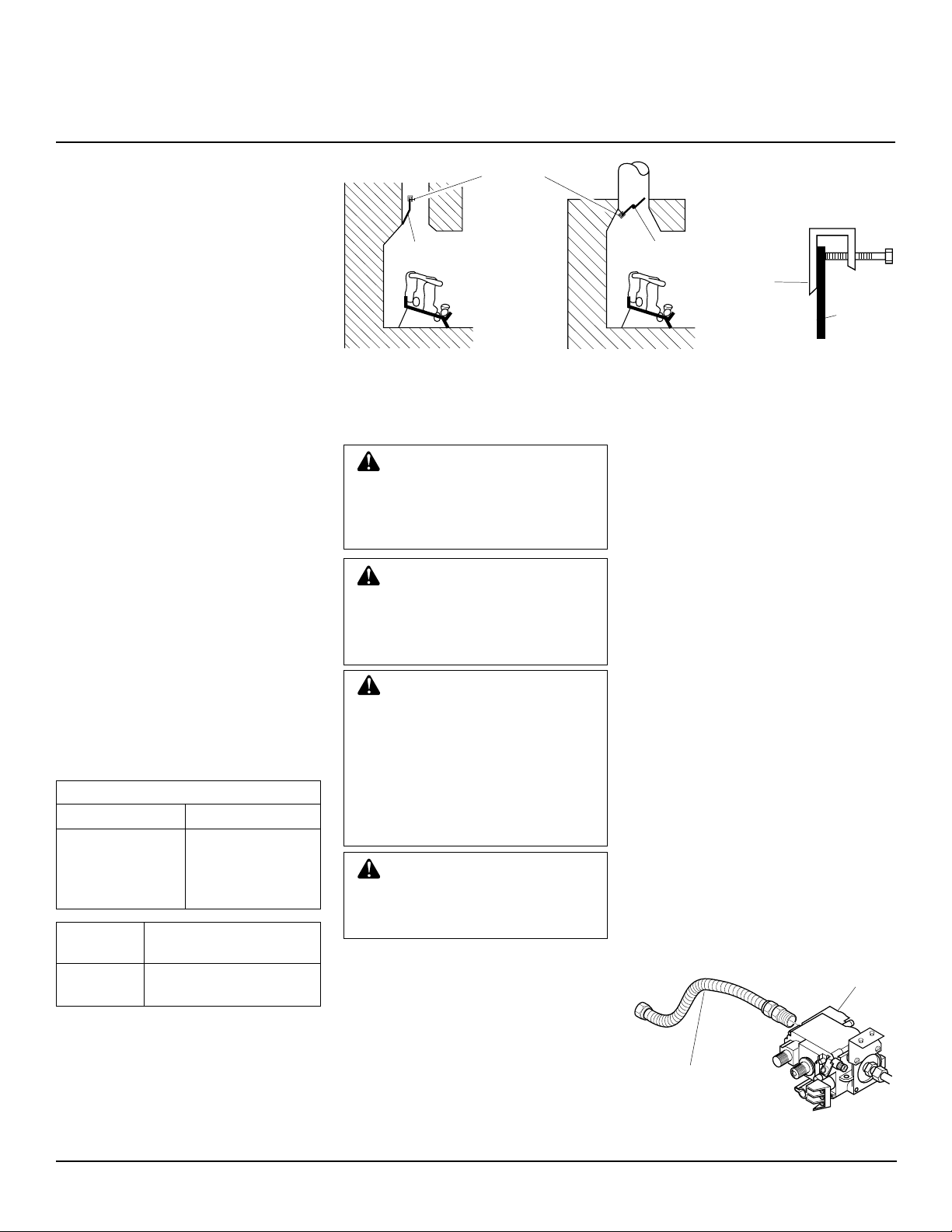

INSTALLING DAMPER CLAMP ACCESSORY FOR VENTED OPERATION

Note: When used as a vented heater, appliance must be installed only in asolid-fuelburning fireplace with a working flue and constructed of noncombustible material.

If your heater is a manually-controlledmodel, you may use this heater as a vented product. There are three reasons for operating your heater in the vented mode.

1.The fireplace does not meet the clearance to combustibles requirements for vent-freeoperation.

2.State or local codes do not permit ventfree operation.

3.You prefer vented operation.

If reasons number 1 or 2 above apply to you, you must permanently open chimney flue damper. You must install the damper clamp accessory (to order, see Accessories, page 24). This will insure vented operation (see Figure 10). The damper clamp will keep damper open. Installation instructions are included with clamp accessory.

See chart below for minimum permanent flue opening you must provide. Attach damper clamp so the minimum permanent flue opening will be maintained at all times.

Area of Various Standard Round Flues

Diameter (ins.)

Area (sq. ins.)





5"

20 sq. inches

6"

29 sq. inches

7"

39 sq. inches

8"

51 sq. inches





Chimney

Minimum Permanent

Height (ft.)

Flue Opening (sq. ins.)





6' to 15'

39 sq. inches

15' to 30'

29 sq. inches





Damper Clamp

Damper

Damper

Damper

Clamp

Damper

Masonry Fireplace

Manufactured Fireplace

Figure 10 - Attaching Damper Clamp

INSTALLING HEATER BASE ASSEMBLY

CAUTION: Do not remove the metal data plates attached to the heater base assembly. The data plates contain important warranty information.

WARNING: You must secure this heater to fireplace floor. If not, heater will move when you adjust controls. Moving heater may cause a gas leak.

WARNING: If installing in a sunken fireplace, special care is needed. You must raise the fireplace floor to allow access to heater control panel. This will insure adequate air flow and guard against sooting. Raise fireplace floor with noncombustible material. Make sure material is secure.

CAUTION:Donotpickupheater base assembly by burners. This could damage heater. Only handle base assembly by grates.

IMPORTANT: Make sure the heater burners are level. If heater is not level, heater will not work properly.

Installation Items Needed

hardware package (provided with heater)

approved flexible gas hose (not provided) (if allowed by local codes)

sealant (resistant to propane/LP gas, not provided)

electric drill with 3/16" drill bit

Note: Install optional FHRC or FHRCT Receiver andHand-HeldRemote Control Kit (seeAccessories, page 24) before installing gas log heater. See installation instructions included with the kit.

1.Apply pipe joint sealant lightly to male threads of gas fitting. Connect approved flexible gas hose to inlet side of gas control (see Figure 11).

2.Locate two masonry screws in the hardware package.

3.Position heater base assembly in fireplace.

4.Place logs in their proper position on heater base.

5.Center heater base and logs, front-to-back andside-to-sidein fireplace.

6.Carefully remove logs without moving heater base.

7.Mark screw locations through holes in front panel of base (see Figure 12, page 11). If installing in a brick-bottomfireplace, mark screw locations in mortar joint of bricks.

8.Remove heater base from fireplace.

9.Drill holes at marked locations using 3/16" masonary drill bit.

10.Attach base to fireplace floor using masonry screws (in hardware package).

Gas Control

Flexible Gas Hose (if allowed by local codes)

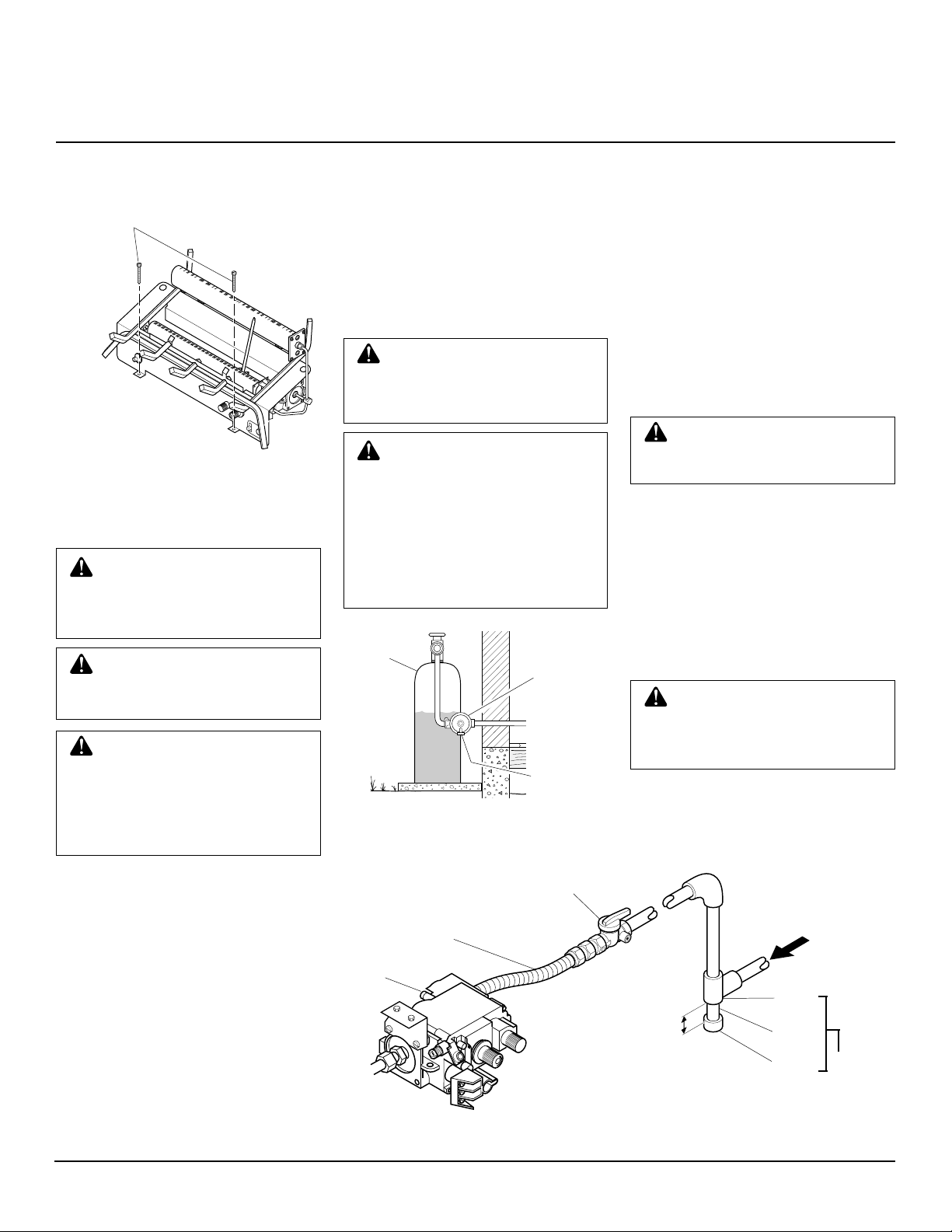

Figure 11 - Attaching Flexible Gas Hose to Heater Gas Regulator

10

105073

OWNER’S MANUAL

INSTALLATION

Continued

Masonry Screw

Figure 12 - Attaching Base Assembly to Fireplace Floor

CONNECTING TO GAS SUPPLY

WARNING: This appliance requires a 1/2" NPT (National Pipe Thread) inlet connection to the pressure regulator.

WARNING: A qualified service person must connect heater to gas supply. Follow all local codes.

CAUTION: Never connect heater directly to the propane/LP supply. This heater requires an external regulator (not supplied). Installtheexternalregulatorbetween the heater and propane/LP supply.

The installer must supply an external regulator. The external regulator will reduce incoming gas pressure. You must reduce incoming gas pressure to between 11 and 14 inches of water. If you do not reduce incoming gas pressure, heater regulator damage could occur. Install external regulator with the vent pointing down as shown in Figure 13. Pointing the vent down protects it from freezing rain or sleet.

WARNING: Never connect heater to private(non-utility)gas wells. This gas is commonly known as wellhead gas.

CAUTION: Use only new, black iron or steel pipe. Inter-nally-tinnedcopper tubing may be used in certain areas. Check your local codes. Use pipe of 1/2" diameter or greater to allow proper gas volume to heater. If pipe is too small, undue loss of pressure will occur.

Propane/



LP Supply

External

Tank



Regulator



Vent



Pointing



Down

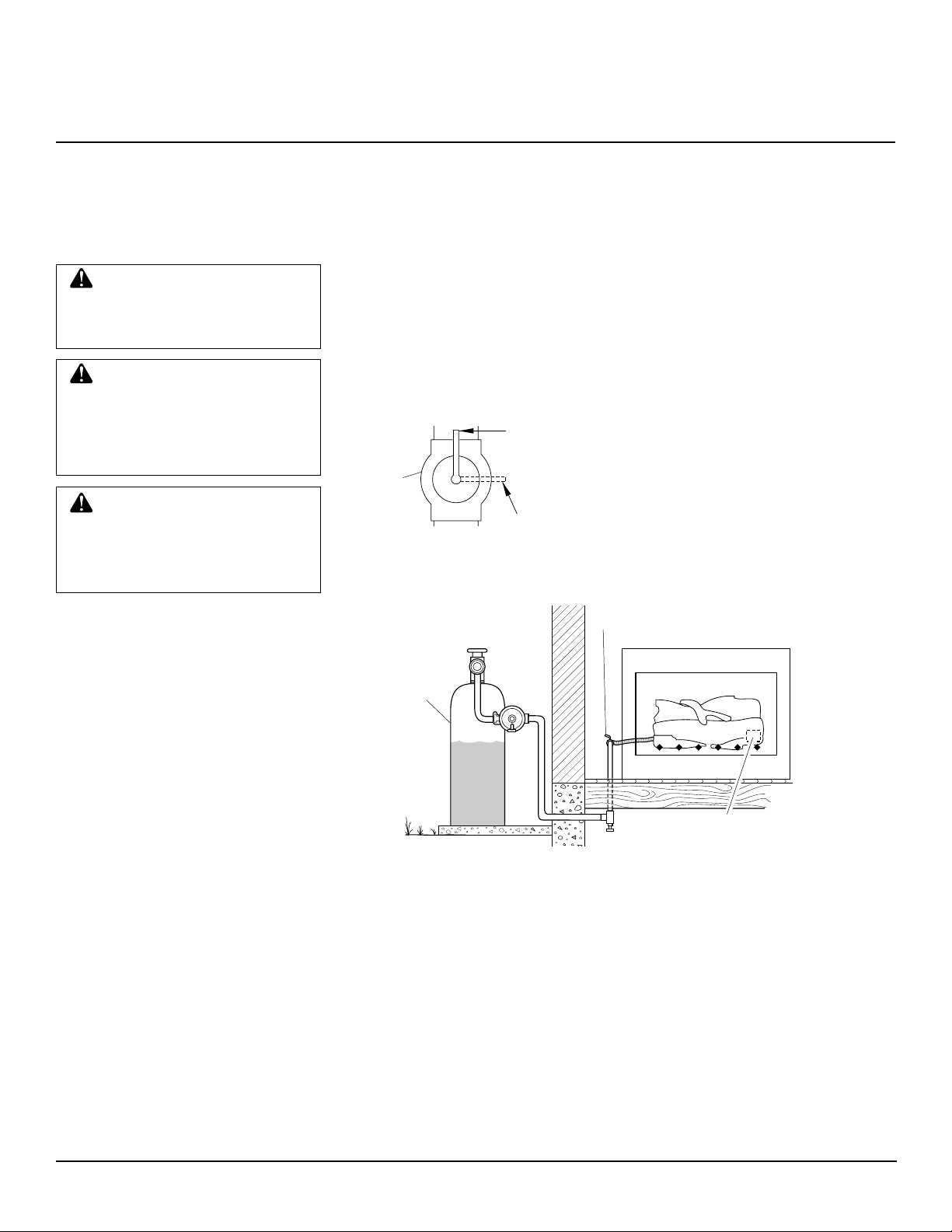

Figure 13 - External Regulator With Vent

Pointing Down

Installation must include an equipment shutoff valve, union, and plugged 1/8" NPT tap. Locate NPT tap within reach for test gauge hook up. NPT tap must be upstream from heater (see Figure 14).

IMPORTANT: Install an equipment shutoff valve in an accessible location. The equipment shutoff valve is for turning on or shutting off the gas to the appliance.

Apply pipe joint sealant lightly to male threads. This will prevent excess sealant from going into pipe. Excess sealant in pipe could result in clogged heater valves.

CAUTION: Use pipe joint sealant that is resistant to liquid petroleum (LP) gas.

We recommend that you install a sediment trap in supply line as shown in Figure 14. Locate sediment trap where it is within reach for cleaning. Install in piping system between fuel supply and heater. Locate sediment trap where trapped matter is not likely to freeze. A sediment trap traps moisture and contaminants. This keeps them from going into heater controls. If sediment trap is not installed or is installed wrong, heater may not run properly.

CAUTION: Avoid damage to gas control. Hold gas control with wrench when connecting it to gas piping and/or fittings.

Installation Items Needed

Before installing heater, make sure you have the items listed below.

external regulator (supplied by installer, see Figure 13)

piping (check local codes)

sealant (resistant to propane/LP gas)

equipment shutoff valve *

test gauge connection *

sediment trap

tee joint

pipe wrench

* An CSA/AGA design-certifiedequipment shutoff valve with 1/8" NPT tap is an acceptable alternative to test gauge connection.

CSA/AGA Design-CertifiedEquipment

Shutoff Valve With 1/8" NPT Tap

Approved Flexible Gas Hose (if allowed by local codes)

Gas

Control

3" Minimum

Figure 14 - Gas Connection

* Minimum inlet pressure for purpose of input adjustment.

From External Regulator (11" W.C.* to

14" W.C. Pressure)

Tee

Joint

Pipe

Nipple

Sediment

Cap Trap

Continued

105073

11

FIREPLACE MANUFACTURERS INC.

UNVENTED PROPANE/LP GAS LOG HEATER

INSTALLATION

Continued

CHECKING GAS

CONNECTIONS

WARNING: Test all gas piping and connections for leaks after installing or servicing. Correct all leaks at once.

WARNING: Never use an open flame to check for a leak. Apply a mixture of liquid soap and water to all joints. Bubbles forming show a leak. Correct all leaks at once.

CAUTION: Make sure external regulator has been installed between propane/LP supply and heater. See guidelines underConnecting to Gas Supply, page 11.

Pressure Testing gas Supply Piping system

Test Pressures In Excess Of 1/2 PSIG (3.5 kPa)

1.Disconnect appliance with its appliance main gas valve (control valve) and equipment shutoff valve from gas supply piping system. Pressures in excess of 1/2 psig will damage heater regulator.

2.Cap off open end of gas pipe where equipment shutoff valve was connected.

3.Pressurize supply piping system by either using compressed air or opening propane/LP supply tank valve.

4.Check all joints of gas supply piping system. Apply mixture of liquid soap and water to gas joints. Bubbles forming show a leak.

5.Correct all leaks at once.

6.Reconnect heater and equipment shutoff valve to gas supply. Check reconnected fittings for leaks.

Test Pressures Equ al To or Less Than 1/2 PSIG (3.5 kPa)

1.Close equipment shutoff valve (see Figure 15).

2.Pressurize supply piping system by either using compressed air or opening propane/LP supply tank valve.

3.Check all joints from propane/LP supply tank to equipment shutoff valve (see Figure 16). Apply mixture of liquid soap and water to gas joints. Bubbles forming show a leak.

4.Correct all leaks at once.

OpenN

POSITI

Equipment

Shutoff

Valve

O

ClosedPOSI

Figure 15 - Equipment Shutoff Valve

Pressure Testing Heater Gas

Connections

1.Open equipment shutoff valve (see Figure 15).

2.Open propane/LP supply tank valve.

3.Make sure control knob of heater is in the OFF position.

4.Check all joints from equipment shutoff valve to gas control (see Figure 15). Apply mixture of liquid soap and water to gas joints. Bubbles forming show a leak.

5.Correct all leaks at once.

6.Light heater (see Operating Heater, pages 14 through 16). Check all other internal joints for leaks.

7.Turn off heater (see To Turn Off Gas to Appliance, page 15).

Equipment

Shutoff Valve

Propane/LP

Supply

Tank

Control Valve

Location

Figure 16 - Checking Gas Joints

12

105073

OWNER’S MANUAL

INSTALLATION

Continued

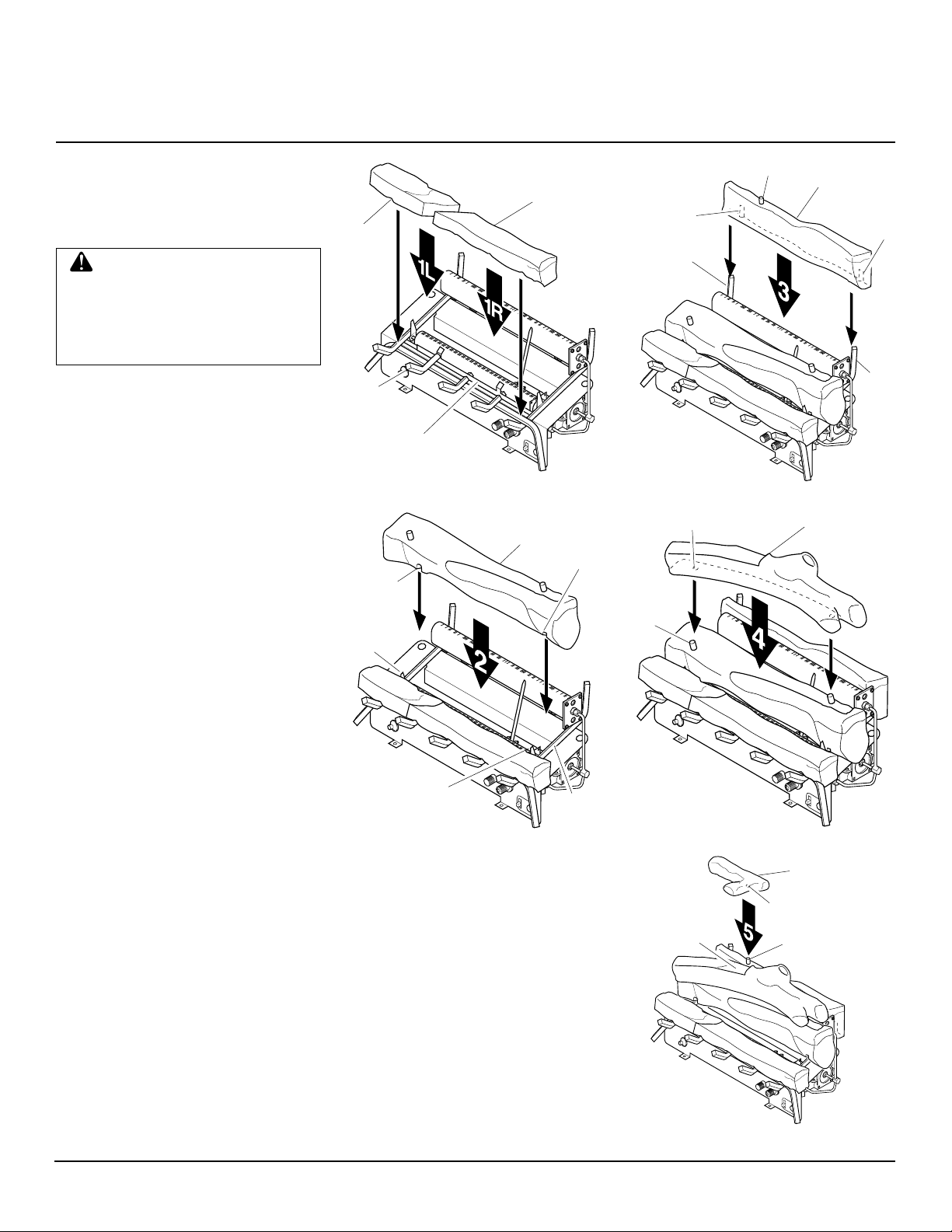

INSTALLING LOGS

WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this heater may result in property damage or personal injury.

Each log is marked with a number. These numbers will help you identify the log when installing. It is very important to install these logs exactly as instructed. Do not modify logs. Only use logs supplied with heater.

1.Place front logs (#1L and #1R) on top of the grate. Make sure the notches in the bottom of the logs fit over the grate prongs (see Figure 17). Push back of logs flush with metal grate bar. Note: 18" model has only one front log.

2.Rest bottom middle log (#2) behind metal posts on front burner. Make sure the grooves in the bottom of the log fit over the grate. Bring the log forward next to the metal posts. The pegs on the log must be on top (see Figure 18).

3.Slide the grooves in the back of the rear log (#3) against the rear grate prongs. Make sure the peg on the log is on top (see Figure 19).

4.Place the top middle log (#4) on the bottom middle log (#2). Make sure the pegs of the bottom middle log fit securely in the holes of the top middle log (see Figure 20).

5.Place the crossover log (#5) on the back log and the top middle log. Make sure the peg on the rear log is in the hole in the bottom of the crossover log. The crossover log should fit in the cutout of the top middle log (see Figure 21).

Front Log (#1)

Notch

Grate

Prongs

Metal Grate Bar

Figure 17 - Installing Front Log (#1)

Bottom Middle

Log (#2)

Groove

Groove

Metal

Post

Metal Post

Grate

Figure 18 - Installing Bottom Middle

Log (#2)

Peg



Rear Log (#3)

Groove in

Groove

in Back

Back of Log

of Log



Grate Prong



Grate

Prong

Figure 19 - Installing Rear Log (#3)

Hole

Top Middle



Log (#4)

Peg

Figure 20 - Installing Crossover Log (#4)

Crossover

Log (#5)

Hole

Cutout

Peg

Figure 21 - Installing Crossover Log (#5)

105073

13

FIREPLACE MANUFACTURERS INC.

UNVENTED PROPANE/LP GAS LOG HEATER

OPERATING

HEATER

FOR YOUR SAFETY

READ BEFORE

LIGHTING

WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life.

A.This appliance has a pilot which must be lighted by hand. When lighting the pilot, follow these instructions exactly.

B.BEFORE LIGHTING smell all around the appliance area for gas. Be sure to smell next to the floor because some gas is heavier than air and will settle on the floor.

WHAT TO DO IF YOU SMELL GAS

Do not try to light any appliance.

Do not touch any electric switch; do not use any phone in your building.

Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

If you cannot reach your gas supplier, call the fire department.

C.Use only your hand to push in or turn the gas control knob. Never use tools. If the knob will not push in or turn by hand, don’t try to repair it, call a qualified service technician or gas supplier. Force or attempted repair may result in a fire or explosion.

D.Do not use this appliance if any part has been under water. Immediately call a qualified service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.

LIGHTING

INSTRUCTIONS

WARNING

If fireplace has glass doors, never operate this heater with glass doors closed. If you operate heater with doors closed, heat buildup inside fireplace will cause glass to burst. Also if fireplace opening has vents at the bottom, you must open the vents before operating heater.

You must operate this heater with a fireplace screen in place. Make sure fireplace screen is closed before running heater.

NOTICE: During initial operation of new heater, burning logs will give off a paper-burningsmell. Orange flame will also be present. Open damper or window to vent smell. This will only last a few hours.

Note: Home owners generally prefer to operate their heater with the chimney damper closed. This will put all the heat into the room. However, there may be times you will desire the full flames of the Hi heat setting but will find the heat output excessive. You can open the chimney damper (if you have one) fully or partially to release some of the heat.

WARNING: Damper handle will be hot if heater has been running.

Control Knob

1.STOP! Read the safety information, column 1.

2.Make sure equipment shutoff valve is fully open.

3.Set selector switch in the OFF position.

WARNING: Burners will come on automatically within one minute when the selector switch is in the ON position after the pilot is lit.

4.Press in and turn control knob clock-

wise to the OFF position (see Figure 22).

5.Wait five (5) minutes to clear out any gas. Then smell for gas, including near the floor. If you smell gas, STOP! Follow “B” in the safety information above. If you don’t smell gas, go to the next step.

6.Press in and turn control knob coun-

terclockwise to the PILOT position. Press in control knob for five (5) seconds (see Figure 22).

Note: You may be running this heater for the first time after hooking up to gas supply. If so, the control knob may need to be pressed in for 30 seconds or less. This will allow air to bleed from the gas system.

7.With control knob pressed in, press and release ignitor button. This will light pilot. The pilot is attached to the front burner. If needed, keep pressing ignitor button until pilot lights.

Note: If pilot does not stay lit, contact a qualified service person or gas supplier for repairs. Until repairs are made, light pilot with match. To light pilot with match, seeManual Lighting Procedure, page 15.

O

O

L

IL T

O

P



F

N



F





O







HI

AUTO





OFF





ON

Ignitor Button

Flame Adjustment Knob

Selector Switch





in OFF Position

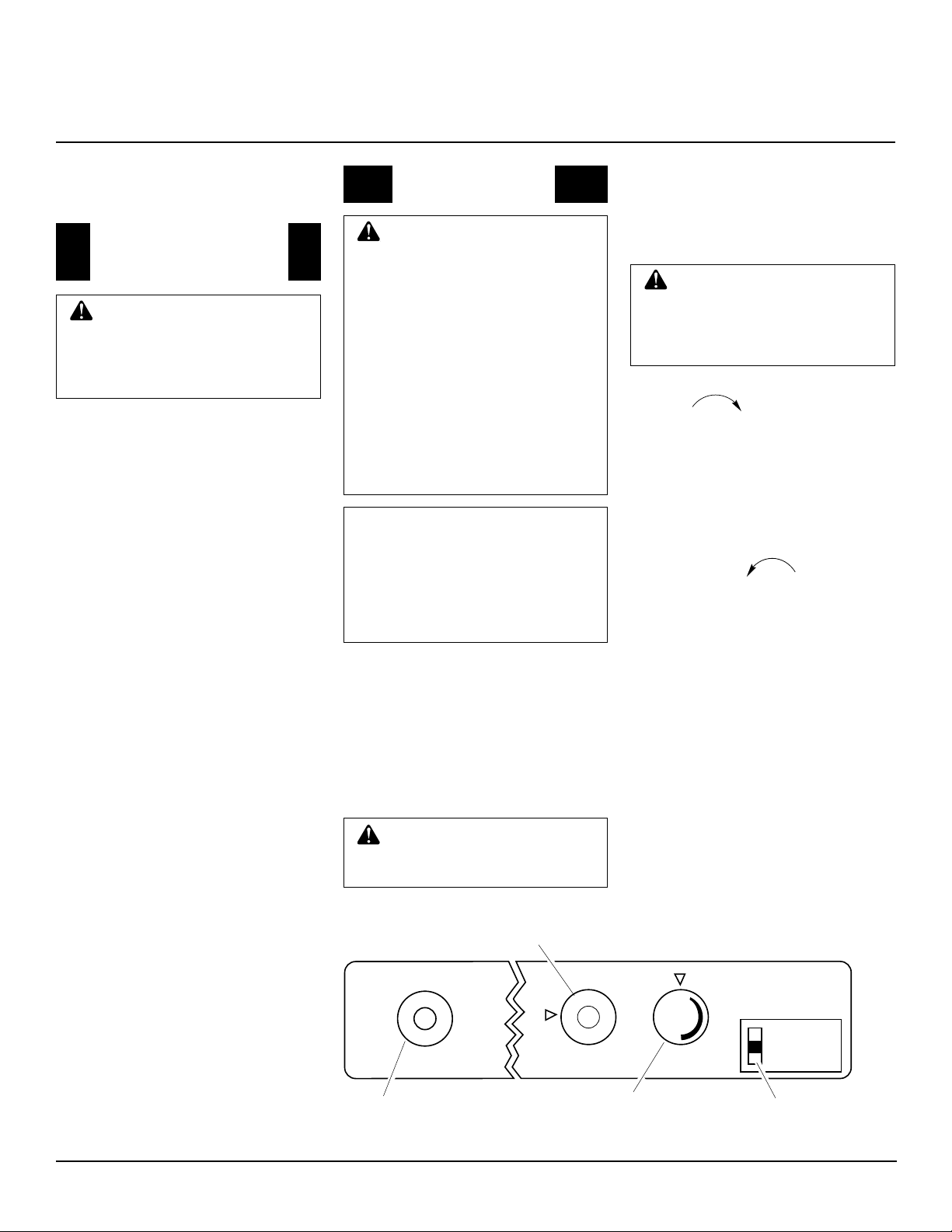

Figure 22 - Control Knob and Ignitor Button Location

14

105073

OWNER’S MANUAL

OPERATING

HEATER

Continued

8.Keep control knob pressed in for 30 seconds after lighting pilot. After 30 seconds, release control knob.

If control knob does not pop out when released, contact a qualified service person or gas supplier for repairs.

Note: If pilot goes out, repeat steps 4 through 8.

9.Slightly push in and turn control

knob counterclockwise to the ON position.

10.Wait one minute and switch selector switch to the ON position to light burner. Note: AUTO is only functional when using GWMT1 or GWMS2 optional accessories.

11.Set flame adjustment knob to any level between HI and LO.

CAUTION: Do not try to adjust heating levels by using the equipment shutoff valve.

WARNING: Make sure the selector switch is in the OFF position when you are away from home for long periods of time. Heater will come on automatically with selector switch in the ON position.

Pilot Burner

Ignitor

Electrode

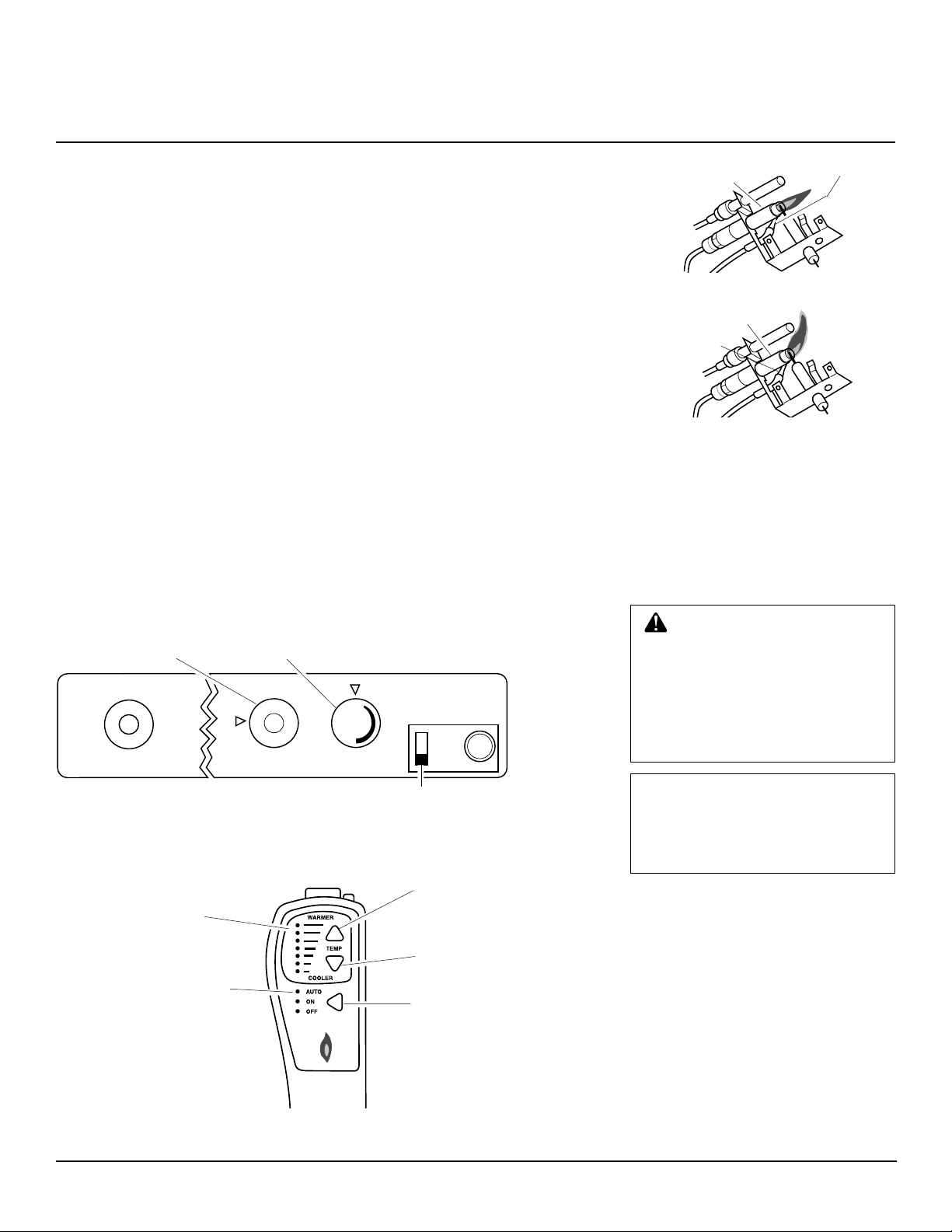

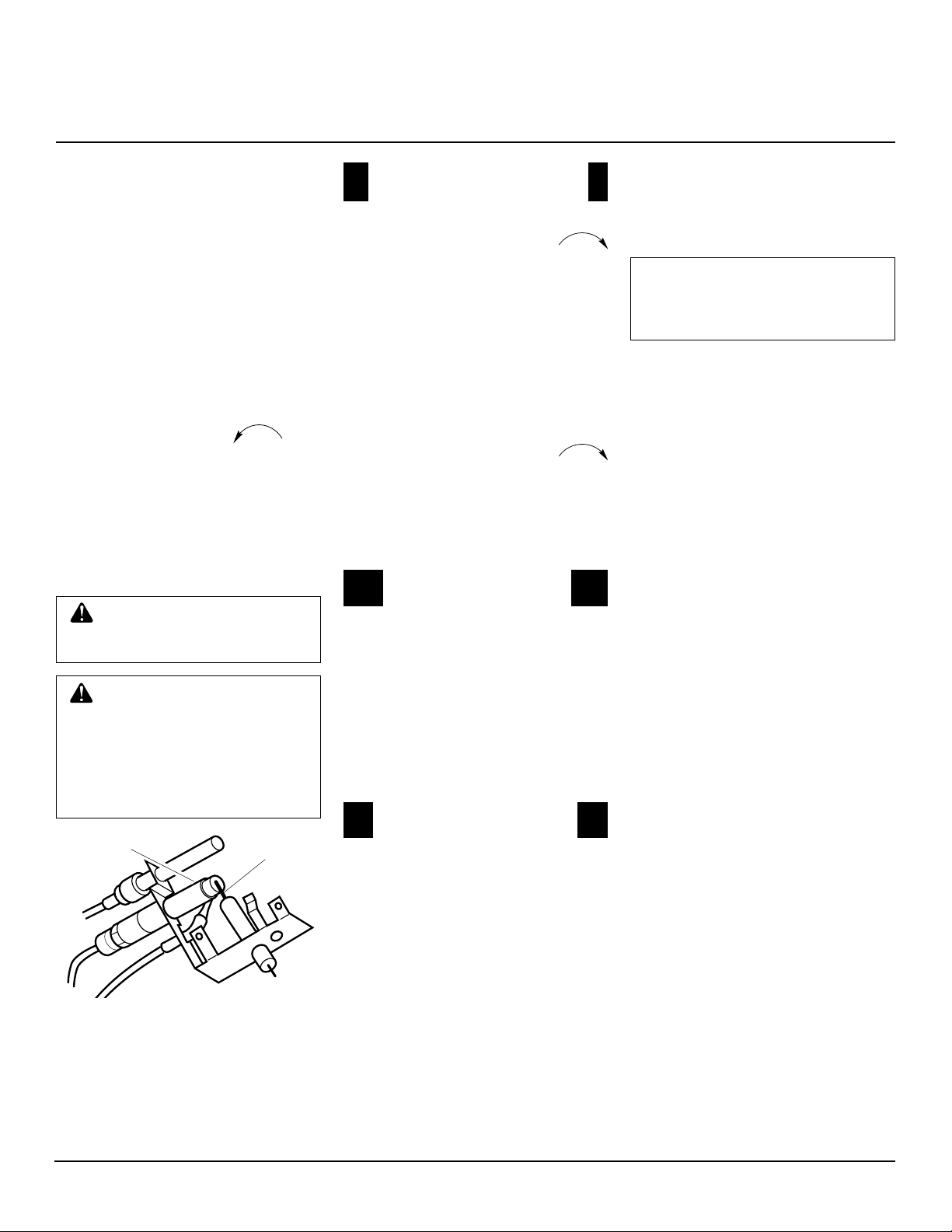

Figure 23 - Pilot

TO TURN OFF GAS TO

APPLIANCE

Shutting Off Heater

1.Turn control knob clockwise to the OFF position.

2a. Set selector switch in the OFF position.

2b. If Using OptionalHand-HeldRemote:Set selector switch in the OFF position to prevent draining battery.

Shutting Off Burners Only (pilot stays lit)

You may shut off the burners and keep the pilot lit by doing one of the following:

1.Turn control knob clockwise to the PILOT position.

2.Use remote control manual OFF button.

3.Set selector switch in the OFF position.

MANUAL LIGHTING

PROCEDURE

1.Follow steps 1 through 6 under Lighting Instructions, page 14.

2.Depress control knob and light pilot with match.

3.Keep control knob pressed in for 30 seconds after lighting pilot. After 30 seconds, release control knob. Now follow steps 9 through 11, Lighting Instructions, column 1.

OPTIONAL REMOTE

OPERATION

Note: All remote control accessories must be purchased separately (seeAccessories, page 24). Follow instructions included with the remote control.

Thermostat Control Operation

(Optional GHRCTA Series Only) The thermostat control setting on the remote control unit can be set to any comfort level between WARMER and COOLER. The burners will turn on and off automatically to maintain the comfort level you select. The ideal comfort setting will vary by household depending upon the amount of space to be heated, the output of the central heating system, etc.

For wall thermostat operation, follow instruction supplied with thermostat accessory GWMT1. For wall switch operation follow instructions supplied with GWMS2.

NOTICE: You must light the pilot before using the remote control unit. See Lighting Instructions on page 14.

1.After lighting, let pilot flame burn for about one minute. Turn control knob to ON position. Adjust flame adjustment knob anywhere between HI and LO. Slide the selector switch to the REMOTE position. Note: The burners may light ifhand-heldremote ON button was on when selector switch was last turned off. You can now turn the burners on and off with the handheld remote control unit.

IMPORTANT: Do not leave the selector switch in the REMOTE or ON position when the pilot is not lit. This will drain the battery.

IMPORTANT: Be sure to press the ON/ OFF buttons on thehand-heldremote control unit for up to 3 seconds to assure proper operation

GHRC Series Operation:

2a. Press ON/OFF button to turn the burner on and off. When turning burner off, the pilot will remain lit.

GHRCTA Series Operation:

2b. Press the AUTO/ON/OFF button on the hand-heldremote control (see Figure 25, page 16). The lights to the left of the button will show AUTO, ON, or OFF.

In the ON mode, the burners will ignite. The heater is in manual mode when ON is lit.

In the AUTO mode, the thermostat in the hand-heldremote unit controls the room temperature. To increase the room temperature, press the top arrow of the TEMP button. To lower the room temperature, press the bottom arrow of the TEMP button. At higher settings the heater will run longer.

Continued

105073

15

FIREPLACE MANUFACTURERS INC.

UNVENTED PROPANE/LP GAS LOG HEATER

OPERATING

HEATER

Continued

IMPORTANT: This remote control has been specially engineered to take an air temperature sample every 5.5 minutes in the auto mode. It will not respond immediately to the temperature setting being turned up or down.

IMPORTANT: Thehand-heldremote control unit must be near the heater. Do not keep thehand-heldremote control unit too close to the heater. The thermostat on thehand-heldremote control unit will heat up too quickly and turn the heater off.

3.To turn the burner off, press the AUTO/ON/OFF button until OFF lights. The pilot will remain lit.

IMPORTANT: To turn the pilot off, manually turn the control knob on the heater to the OFF position.

INSPECTING

BURNERS

Check pilot flame pattern and burner flame patterns often.

PILOT FLAME PATTERN

Figure 26 shows a correct pilot flame pattern. Figure 27 shows an incorrect pilot flame pattern. The incorrect pilot flame is not touching the thermocouple. This will cause the thermocouple to cool. When the thermocouple cools, the heater will shut down.

If pilot flame pattern is incorrect, as shown in Figure 27

turn heater off (see To Turn Off Gas to Appliance, page 15)

seeTroubleshooting, pages 18 through 20

Pilot Burner

Thermocouple

Figure 26 - Correct Pilot Flame Pattern

Pilot Burner

Thermocouple

Figure 27 - Incorrect Pilot Flame Pattern

FRONT BURNER FLAME PATTERN

Figure 28, page 17, shows correct front burner flame pattern. Figure 29, page 17, shows incorrect front burner flame pattern. The incorrect burner flame pattern shows yellow tipping at top of blue flame.

Control Knob in

Flame

Adjustment

On Position

Knob









OL



N





O



O



F









T

F

HI

ON

OLIP













OFF

REMOTE

Selector Switch in Remote Position

Figure 24 - Setting the Remote Selector Switch, Control Knob, and Flame Adjustment Knob for Remote Operation



Increases Room

Shows

Temperature in

AUTO Mode

Temperature



Setting

Decreases Room



The Log Heater

Temperature in

AUTO Mode

will Automatically



Cycle between

Turns Burners

Pilot and the Heat

On or Off and

Setting that has

Allows You to

been Selected

Choose the Auto





Setting

WARNING: If yellow tipping occurs, your heater could produce increased levels of carbon monoxide. If front burner flame pattern shows yellow tipping, follow instructions at bottom of this page. Yellow flame on rear burner is normal.

NOTICE: Do not mistake orange flames with yellow tipping. Dirt or other fine particles are burned by heater, causing brief patches of orange flame.

If front burner flame pattern is incorrect, as shown in Figure 29, page 17.

turn heater off (see To Turn Off Gas to Appliance, page 15)

seeTroubleshooting, pages 18 through 20

Figure 24 - Thermostat Hand-HeldRemote Control Unit Selections

(GHRCTA Series Only)

16

105073

OWNER’S MANUAL

INSPECTING

BURNERS

Continued

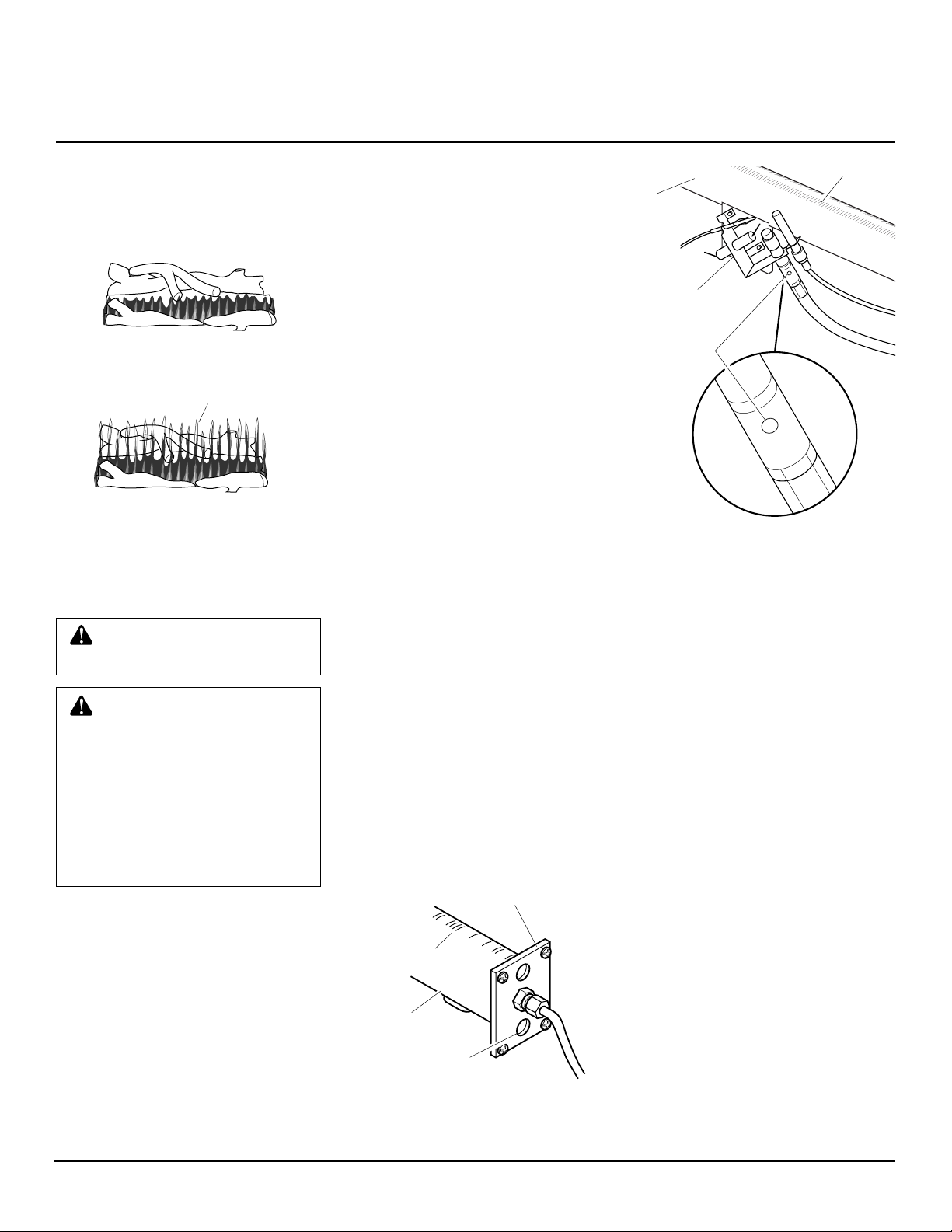

Figure 28 - Correct Front Burner Flame

Pattern

Yellow Tipping At

Top of Blue Flame

Figure 29 - Incorrect Front Burner Flame

Pattern

CLEANING AND MAINTENANCE

WARNING: Turn off heater and let cool before cleaning.

CAUTION: You must keep control areas, burners, and circulating air passageways of heater clean. Inspect these areas of heater before each use. Have heater inspected yearly by a qualified service person. Heater may need more frequent cleaning due to excessive lint from carpeting, bedding material, pet hair, etc.

CLEANING BURNERS INJECTOR HOLDER AND PILOT AIR INLET HOLE

The primary air inlet holes allow the proper amount of air to mix with the gas. This provides a clean burning flame. Keep these holes clear of dust, dirt, lint, and pet hair. Clean these air inlet holes prior to each heating season. Blocked air holes will create soot. We recommend that you clean the unit every three months during operation and have heater inspected yearly by a qualified service person.

We also recommend that you keep the burner tube and pilot assembly clean and free of dust and dirt. To clean these parts we recommend using compressed air no greater than 30 PSI. Your local computer store, hardware store, or home center may carry compressed air in a can. You can use a vacuum cleaner in the blow position. If using compressed air in a can, please follow the directions on the can. If you don't follow directions on the can, you could damage the pilot assembly.

1.Shut off the unit, including the pilot. Allow the unit to cool for at least thirty minutes.

2.Inspect burners, pilot, and primary air inlet holes on injector holder for dust and dirt (see Figure 30).

3.Blow air through the ports/slots and holes in the burners.

4.Check the injector holder located at the end of the burner tube again. Remove any large particles of dust, dirt, lint, or pet hair with a soft cloth or vacuum cleaner nozzle.

5.Blow air into the primary air holes on the injector holder.

6.In case any large clumps of dust have now been pushed into the burner repeat steps 3 and 4.

Clean the pilot assembly also. A yellow tip on the pilot flame indicates dust and dirt in the pilot assembly. There is a small pilot air inlet hole about two inches from where the pilot flame comes out of the pilot assembly (see Figure 31). With the unit off, lightly blow air through the air inlet hole. You may blow through a drinking straw if compressed air is not available.

Injector Holder

Ports/Slots

Burner

Tube

Primary Air Inlet

Holes

Figure 30 - Injector Holder On Outlet

Burner Tube

Ports/Slots

Burner

Tube

Pilot

Assembly

Pilot Air

Inlet Hole

Figure 31 - Pilot Inlet Air Hole

LOGS

If you remove logs for cleaning, refer to Installing Logs, page 13, to properly replace logs.

Replace log(s) if broken or chipped (dime-sizedor larger).

105073

17

FIREPLACE MANUFACTURERS INC.

UNVENTED PROPANE/LP GAS LOG HEATER

TROUBLESHOOTING

Note: For additional help, visit DESA International’s technical service web site atwww.desatech.com.

Note: All troubleshooting items are listed in order of operation.

OBSERVED PROBLEM

WARNING: Turn off and unplug heater and let cool before servicing. Only a qualified service person should service and repair heater.

POSSIBLE CAUSE

CAUTION: Never use a wire, needle, or similar object to clean ODS/pilot. This can damage ODS/ pilot unit.

REMEDY

When ignitor button is pressed, there is no

1.

Ignitor electrode not connected to igni-

1.

Reconnect ignitor cable

spark at ODS/pilot



tor cable







2.

Ignitor cable pinched or wet

2.

Free ignitor cable if pinched by any









metal or tubing. Keep ignitor cable dry



3.

Piezo ignitor nut is loose

3.

Tighten nut holding piezo ignitor to base









panel of log set. Nut is located behind









base panel



4.

Broken ignitor cable

4.

Replace ignitor cable



5.

Bad piezo ignitor

5.

Replace piezo ignitor



6.

Ignitor electrode positioned wrong

6.

Replace ignitor



7.

Ignitor electrode broken

7.

Replace ignitor











When ignitor button is pressed, there is

1.

Gas supply turned off or equipment

1.

Turn on gas supply or open equipment

spark at ODS/pilot but no ignition



shutoff valve closed



shutoff valve



2.

Control knob not in PILOT position

2.

Turn control knob to PILOT position



3.

Control knob not pressed in while in

3.

Press in control knob while in PILOT





PILOT position



position



4.

Air in gas lines when installed

4.

Continue holding down control knob.









Repeat igniting operation until air is re-









moved



5.

Depleted gas supply

5.

Contact local propane/LP gas company



6.

ODS/pilot is clogged

6.

Clean ODS/pilot (see Cleaning and









Maintenance, page 17) or replace ODS/









pilot assembly



7.

Gas control setting is not correct

7.

Replace gas control











ODS/pilot lights but flame goes out when

1.

Control knob not fully pressed in

1.

Press in control knob fully

control knob is released

2.

Control knob not pressed in long enough

2.

After ODS/pilot lights, keep control









knob pressed in 30 seconds



3.

Equipment shutoff valve not fully open

3.

Fully open equipment shutoff valve



4.

Pilot flame not touching thermocouple,

4.

A) Contact local propane/LP gas





which allows thermocouple to cool,



company





causing pilot flame to go out. This prob-



B) Clean ODS/pilot (see Cleaning and





lem could be caused by one or both of



Maintenance, page 17) or replace ODS/





the following:



pilot assembly





A) Low gas pressure









B) Dirty or partially clogged ODS/pilot







5.

Thermocouple connection loose at con-

5.

Hand tighten until snug, then tighten 1/4





trol valve



turn more



6.

Thermocouple damaged

6.

Replace thermocouple



7.

Gas control damaged

7.

Replace gas control

www.desatech.com

18

105073

OWNER’S MANUAL

TROUBLESHOOTING

Continued

OBSERVED PROBLEM

POSSIBLE CAUSE

REMEDY

One or both burners do not light after ODS/

1.

Inlet gas pressure is too low

1.

Contact local propane/LP gas company

pilot is lit

2.

Burner orifice(s) clogged

2.

Clean burner(s) (see Cleaning and Main-









tenance, page 17) or replace burner









orifice(s)



3.

Mislocated crossover tube

3.

Contact qualified service person



4.

Burner orifice(s) diameter is too small

4.

Replace burner orifice(s)



5. Selector switch in OFF position

5.

Put selector switch in ON position



6.

Wire disconnected from gas control

6.

See Wiring Diagram,page 21











Delayed ignition of one or both burners

1.

Manifold pressure is too low

1.

Contact local propane/LP gas company



2.

Burner orifice(s) clogged

2.

Clean burner(s) (see Cleaning and Main-









tenance, page 17) or replace burner









orifice(s)



3.

Mislocated crossover tube

3.

Contact qualified service person











Burner backfiring during combustion

1.

Burner orifice is clogged or damaged

1.

Clean burner (see Cleaning and Mainte-









nance, page 17) or replace burner orifice



2.

Damaged burner

2.

Replace damaged burner



3.

Gas control defective

3.

Replace gas control











Yellow flame in front burner during burner

1.

Not enough air

1.

Check burner(s) for dirt and debris. If

combustion







found, clean burner(s) (see Cleaning and









Maintenance, page 17)



2.

Gas control defective

2.

Replace gas control











Slight smoke or odor during initial operation 1. Residues from manufacturing processes and logs curing

1.Problem will stop after a few hours of operation

Moisture/condensation noticed on windows

1.

Not enough combustion/ventilation air

1.

Refer to Air for Combustion and Venti-









lation requirements (page 4)











Heater produces a whistling noise when

1.

Turning control knob to HI position

1.

Turn control knob to LO position and

burners are lit



when burners are cold



let warm up for a minute



2.

Air in gas line

2.

Operate burners until air is removed









from line. Have gas line checked by lo-









cal Propane/LP gas company



3.

Air passageways on heater blocked

3.

Observe minimum installation clear-









ances (see pages 7 through 9)



4.

Dirty or partially clogged burner

4.

Clean burners (see Cleaning and Main-





orifice(s)



tenance, page 17) or replace burner









orifice(s)











White powder residue forming within burner box or on adjacent walls or furniture

1.When heated, vapors from furniture polish, wax, carpet cleaners, etc. turn into white powder residue

1.Turn heater off when using furniture polish, wax, carpet cleaners, or similar products

Remote does not function (GHRC Series and GHRCT Series only)

1.Battery is not installed. Battery power is low

1.Replace 9-voltbatteries in receiver and remote control

www.desatech.com

Continued

105073

19

FIREPLACE MANUFACTURERS INC.

UNVENTED PROPANE/LP GAS LOG HEATER

TROUBLESHOOTING

Continued

WARNING: If you smell gas

Shut off gas supply.

Do not try to light any appliance.

Do not touch any electrical switch; do not use any phone in your building.

Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

If you cannot reach your gas supplier, call the fire department.

IMPORTANT: Operating heater where impurities in air exist may create odors. Cleaning supplies, paint, paint remover, cigarette smoke, cements and glues, new carpet or textiles, etc., create fumes. These fumes may mix with combustion air and create odors. These odors will disappear over time.

OBSERVED PROBLEM

POSSIBLE CAUSE

REMEDY

Heater produces a clicking/ticking noise

1. Metal expanding while heating or con-

just after burners are lit or shut off

tracting while cooling

1.This is common with most heaters. If noise is excessive, contact qualified service person

Heater produces unwanted odors

1.

Heater burning vapors from paint, hair





spray, glues, cleaners, chemicals, new





carpet, etc. (See IMPORTANT state-





ment above)



2.

Low fuel supply



3.

Gas leak. See Warning statement





above

1.Open window to ventilate room. Stop using odor causing products while heater is running

2.Refill supply tank

3.Locate and correct all leaks (see Checking Gas Connections, page 12)

Heater shuts off in use (ODS operates)

1.

Not enough fresh air is available

1.

Open window and/or door for ventilation



2.

Low line pressure

2.

Contact local propane/LP gas company



3.

ODS/pilot is partially clogged

3.

Clean ODS/pilot (see Cleaning and









Maintenance, page 17)











Gas odor even when control knob is in OFF

1.

Gas leak. See Warning statement

1.

Locate and correct all leaks (see Check-

position



above



ing Gas Connections, page 12)



2.

Gas control defective

2.

Replace gas control











Gas odor during combustion

1.

Foreign matter between control valve





and burner



2.

Gas leak. See Warning statement





above

1.Take apart gas tubing and remove foreign matter

2.Locate and correct all leaks (see Checking Gas Connections, page 12)

Log set cycles to pilot, but room temperature drops to a lower than ideal level before log set comes back on (GHRCT Series only)

1.Hand-heldremote control unit needs to be moved away from heater

1.Move hand-heldremote control unit farther away from the heater

www.desatech.com

20

105073

OWNER’S MANUAL

SPECIFICATIONS



18" Variable

24" Variable

30" Variable

Btu (Variable)

16,000/26,000

20,000/33,000

21,5000/36,000

Type Gas

Propane/LP Only

Propane/LP Only

Propane/LP Only

Ignition

Piezo

Piezo

Piezo

Manifold Pressure

7.9" W.C.

7.9" W.C.

7.9" W.C.

Inlet Gas Pressure







(in. of water)







Maximum

14"

14"

14"

Minimum*

11"

11"

11"

Shipping Weight

32 lbs.

34 lbs.

36 lbs.

* For purpose of input adjustment

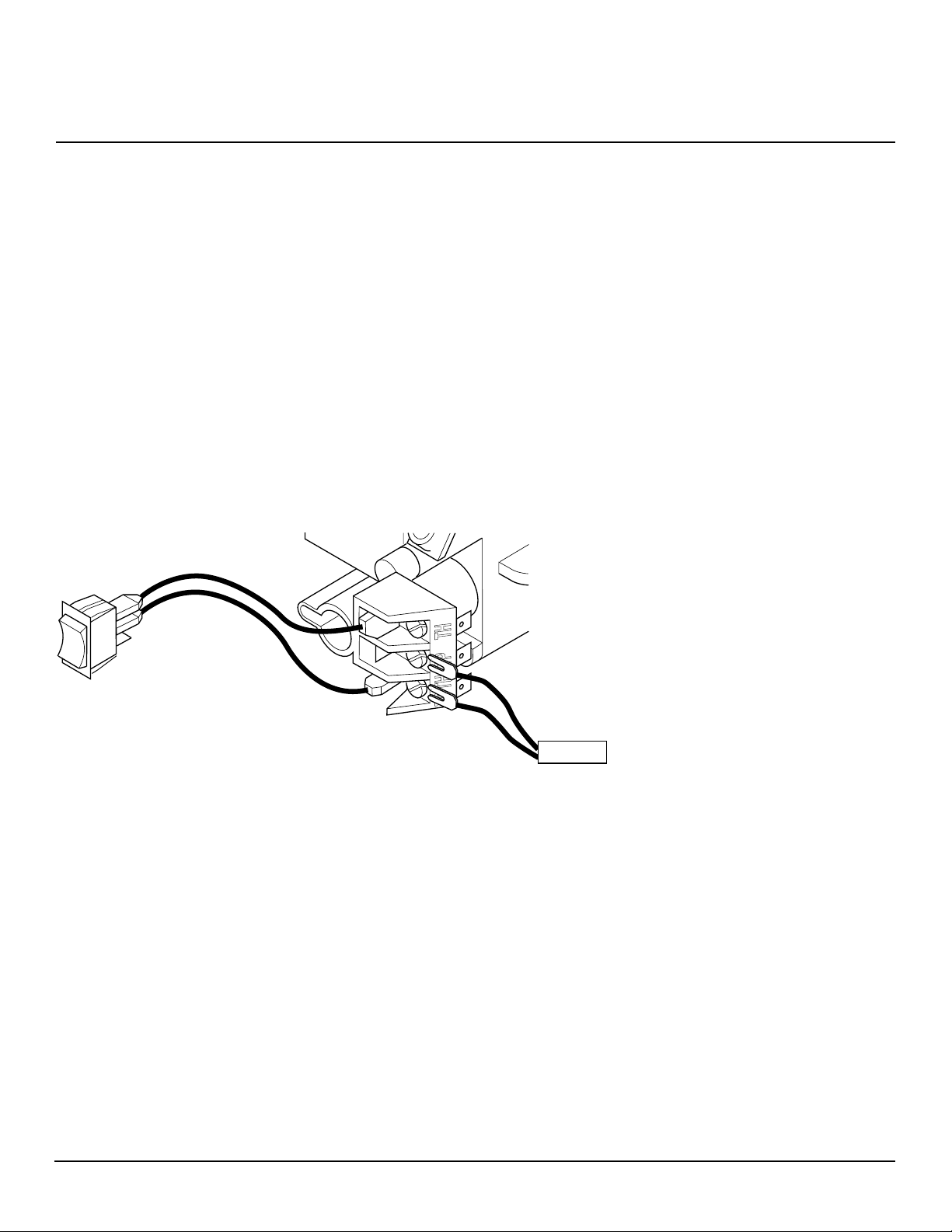

WIRING DIAGRAM

AUTO

OFF

ON

Thermopile

SERVICE HINTS

When Gas Pressure Is Too Low

pilot will not stay lit

burners will have delayed ignition

heater will not produce specified heat

propane/LP gas supply may be low

When Gas Quality Is Bad

pilot will not stay lit

burners will produce flames and soot

heater will backfire when lit

You may feel your gas pressure is too low or gas quality is bad. If so, contact your local propane/LP gas supplier.

TECHNICAL

SERVICE

You may have further questions about installation, operation, or troubleshooting.

If so, contact DESA International’s Technical Service Department at 1-800-DESALOG(1-800-337-2564).

You can also visit DESA International’s technical services web site at www.desatech.com.

REPLACEMENT PARTS

Note: Use only original replacement parts. This will protect your warranty coverage for parts replaced under warranty.

PARTS UNDER WARRANTY

Contact authorized dealers of this product. If they can’t supply original replacement part(s), call Fireplace Manufacturers Incorporated’s Technical Service Department at 1-888-427-8322.

When calling Fireplace Manufacturers Incorporated, have ready

your name and address

model and serial numbers of your heater

how heater was malfunctioning

type of gas used (propane/LP or natural gas)

purchase date

Usually, we will ask you to return the defective part to the factory.

PARTS NOT UNDER

WARRANTY

Contact authorized dealers of this product. If they can’t supply original replacement part(s), call Fireplace Manufacturers Incorporated’s Parts Department at 1-800-888-2050for referral information.

When calling Fireplace Manufacturers Incorporated, have ready

model and serial numbers of your heater

the replacement part number

105073

21

FIREPLACE MANUFACTURERS INC.

UNVENTED PROPANE/LP GAS LOG HEATER

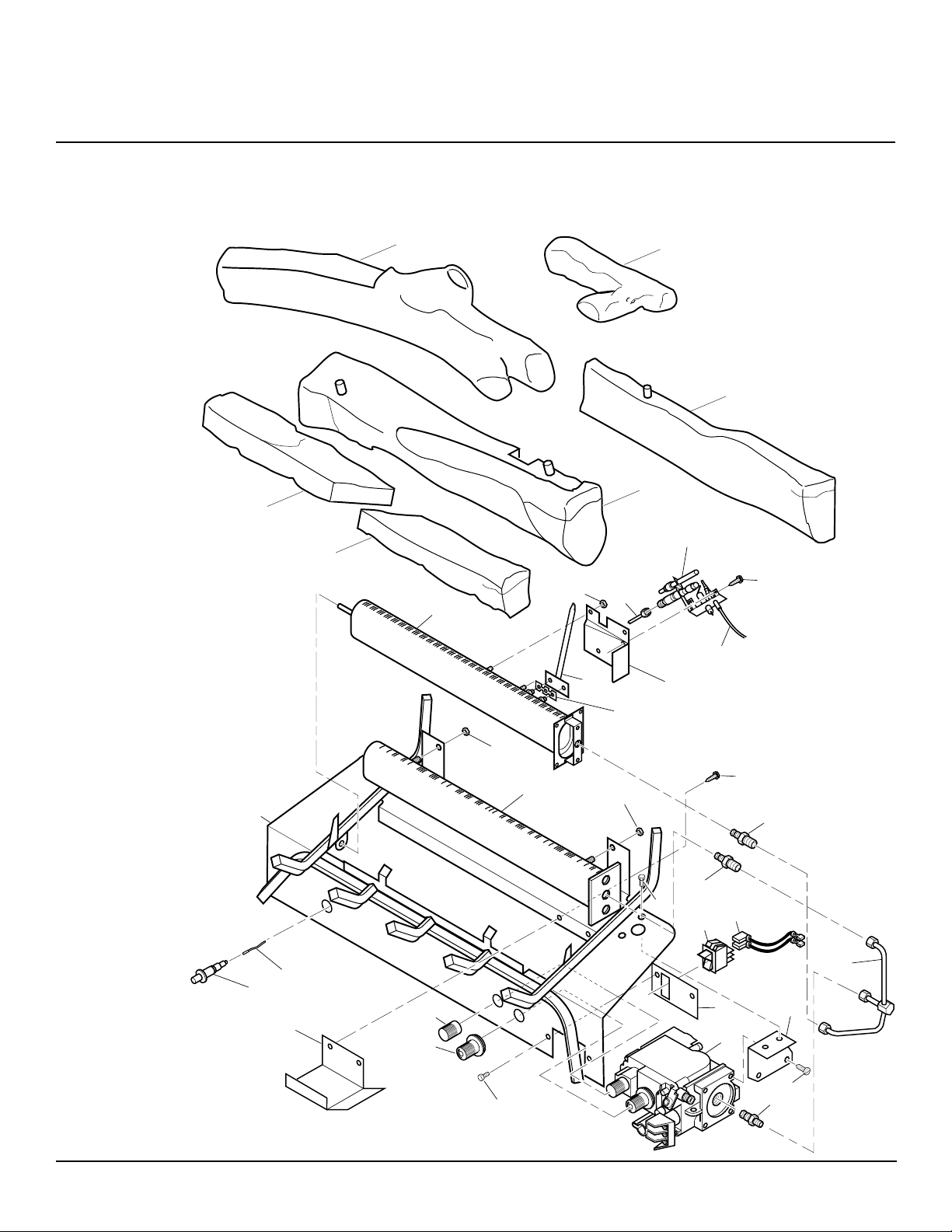

ILLUSTRATED PARTS BREAKDOWN

4

5



VFP18R

VFP24R

VFP30R

3



2





1L









6





1R







7

24



29





9













12



9-2

8







9-1





7







10



29



7





11









26









25







29

23





28









12





27







13







20



21

15

14



17



19

















16

22





18







22

105073

OWNER’S MANUAL

PARTS LIST



This list contains replaceable parts used in your heater. When ordering parts, follow the

















instructions listed under Replacement Parts on page 21 of this manual.





VFP18R













VFP24R













VFP30R

















KEY





PART NUMBERS

























NO.



VFP18R

VFP24R

VFP30R

DESCRIPTION

QTY.





1L



105241-01

105241-02

105998-01

Left Front Log (#1L)

1





1R



_____

105241-03

105999-01

Right Front Log (#1R)

1













2



105243-01

105243-02

106000-01

Bottom Middle Log (#2)

1





3



105245-01

105245-02

106001-01

Rear Log (#3)

1





4



105249-01

105249-02

106002-01

Top Middle Log (#4)

1





5



105247-01

105247-02

106003-01

Crossover Log (#5)

1





6



103778-01

103778-01

103778-01

O.D.S. Pilot

1





7



098249-01

098249-01

098249-01

Nut

6





8



103780-01

103780-01

103780-01

Pilot Bracket

1





9



101330-01

101330-05

101330-06

Front Burner Assembly

1





9-1



101008-01

101008-01

101008-01

Crossover Burner Gasket

1





9-2



101007-01

101007-01

101007-01

Crossover Burner

1





10



100999-02

100999-02

100999-03

Rear Burner Assembly

1





11



103984-01

103984-02

103984-03

Base Assembly and Decal

1





12



098271-06

098271-06

098271-06

Ignitor Cable

1





13



102445-01

102445-01

102445-01

Piezo Ignitor

1





14



103588-01

103588-01

103588-01

Heat Shield

1





15



103782-01

103782-01

103782-01

Valve Bracket

1





16



M12461-26

M12461-26

M12461-26

Screw

5





17



103781-02

103781-02

103781-02

Gas Control

1





18



098264-02

098264-02

098264-02

Male Fitting

1





19



103784-02

103784-02

103784-02

Flame Adjustment Knob

1





20



103784-01

103784-01

103784-01

Control Knob

1





21



103587-01CK

103587-01CK

103587-01CK

Switch Plate

1





22



M11084-26

M11084-26

M11084-26

Screw

2





23



103284-02

103284-02

103284-02

Wiring Harness

1





24



099387-09

099387-09

099387-09

Pilot Tube

1





25



101004-10

101004-01

101004-02

Rear Burner Injector

1





26



101004-10

101004-02

101004-06

Front Burner injector

1





27



103783-01

103783-01

103783-01

Remote Burner Tube

1





28



099998-01

099998-01

099998-01

Switch

1





29



M11084-26

M11084-26

M11084-26

Screw

6





























PARTS AVAILABLE — NOT SHOWN





























100563-01

100563-01

100563-01

Warning Plate

1









103877-01

103877-01

103877-01

Lighting Instructions Plate

1









100565-01

100565-01

100565-01

Warning Plate Fastener

1









100639-01

100639-01

100639-01

Caution Decal

1









101137-02

101137-02

101137-02

Hardware Kit

1









GA6060

GA6060

GA6060

Lava Rock

1





















105073

23

FIREPLACE MANUFACTURERS INC.

UNVENTED PROPANE/LP GAS LOG HEATER

ACCESSORIES

Purchase these heater accessories from your local dealer. If they can not supply these accessories, call Fireplace Manufacturers Incorporated’s Parts Department at 1-800-888-2050for referral information. You can also write to the address listed on the back page of this manual.

FIREPLACE HOOD

Black - HDABK

Brass - HDABR

For all models. Helps deflect heat away from mantel or wall above fireplace. Fits openings 28” and 49” wide.

LAVA ROCK - GA6060

(Not Shown)

For all models. Order when additional rock is desired. (31/2 lb. bag)





WARMER

ON AUTO

COOLER

TEMP





OFF





RECEIVER AND HAND-HELDTHERMOSTAT REMOTE CONTROL KIT - GHRCT SERIES

For all models. Allows the gas log heater to be operated in a manually or thermostati- cally-controlledmode. You can turn the gas log heater on and off without ever leaving the comfort of your easy chair.

RECEIVER AND HANDHELD REMOTE CONTROL KIT - GHRC SERIES

For all models. Allows the gas log heater to be turned on and off by using a hand-heldremote control.

WALL-MOUNTTHERMOSTAT SWITCH - GWMT1

(Not Shown)

For all models. The desired comfort setting can be selected on the wall thermostat and the log heater will automatically cycle from pilot to the heat setting selected.

WALL-MOUNTON/OFF SWITCH - GWMS2

(Not Shown)

For all models. Allows the gas log heater to be turned on and off with a wall switch.

DAMPER CLAMP - 02017

(Not Shown)

Permanently opens chimney flue damper for vented operation. Can be used only with non-thermostataccessories.

24

105073

OWNER’S MANUAL

NOTES

_______________________________________________________________________________________________

_______________________________________________________________________________________________

_______________________________________________________________________________________________

_______________________________________________________________________________________________

_______________________________________________________________________________________________

_______________________________________________________________________________________________

_______________________________________________________________________________________________

_______________________________________________________________________________________________

_______________________________________________________________________________________________

_______________________________________________________________________________________________

_______________________________________________________________________________________________

_______________________________________________________________________________________________

_______________________________________________________________________________________________

_______________________________________________________________________________________________

_______________________________________________________________________________________________

_______________________________________________________________________________________________

_______________________________________________________________________________________________

_______________________________________________________________________________________________

_______________________________________________________________________________________________

_______________________________________________________________________________________________

_______________________________________________________________________________________________

_______________________________________________________________________________________________

_______________________________________________________________________________________________

_______________________________________________________________________________________________

_______________________________________________________________________________________________

_______________________________________________________________________________________________

_______________________________________________________________________________________________

_______________________________________________________________________________________________

_______________________________________________________________________________________________

_______________________________________________________________________________________________

_______________________________________________________________________________________________

_______________________________________________________________________________________________

_______________________________________________________________________________________________

_______________________________________________________________________________________________

105073

25

WARRANTY INFORMATION

KEEP THIS WARRANTY

Model

Serial No.

Date Purchased

Always specify model and serial numbers when communicating with the factory.

We reserve the right to amend these specifications at any time without notice. The only warranty applicable is our standard written warranty. We make no other warranty, expressed or implied.

LIMITED WARRANTY

VENT-FREEPROPANE/LP GAS LOG HEATERS

DESA International warrants this product to be free from defects in materials and components for one (1) year from the date of first purchase, provided that the product has been properly installed, operated and maintained in accordance with all applicable instructions. To make a claim under this warranty the Bill of Sale or cancelled check must be presented.

This warranty is extended only to the original retail purchaser. This warranty covers the cost of part(s) required to restore this heater to proper operating condition and an allowance for labor when provided by a DESA International Authorized Service Center. Warranty part(s) MUST be obtained through authorized dealers of this product and/or DESA International who will provide original factory replacement parts. Failure to use original factory replacement parts voids this warranty. The heater MUST be installed by a qualified installer in accordance with all local codes and instructions furnished with the unit.

This warranty does not apply to parts that are not in original condition because of normal wear and tear, or parts that fail or become damaged as a result of misuse, accidents, lack of proper maintenance or defects caused by improper installation. Travel, diagnostic cost, labor, transportation and any and all such other costs related to repairing a defective heater will be the responsibility of the owner.

TO THE FULL EXTENT ALLOWED BY THE LAW OF THE JURISDICTION THAT GOVERNS THE SALE OF THE PRODUCT; THIS EXPRESS WARRANTY EXCLUDES ANY AND ALL OTHER EXPRESSED WARRANTIES AND LIMITS THE DURATION OF ANY AND ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE TO ONE (1) YEAR ON ALL COMPONENTS AND FROM THE DATE OF FIRST PURCHASE; AND DESA INTERNATIONAL’S LIABILITY IS HEREBY LIMITED TO THE PURCHASE PRICE OF THE PRODUCT AND DESA INTERNATIONAL SHALL NOT BE LIABLE FOR ANY OTHER DAMAGES WHATSOEVER INCLUDING INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES.

Some states do not allow a limitation on how long an implied warranty lasts or an exclusion or limitation of incidental or consequential damages, so the above limitation on implied warranties, or exclusion or limitation on damages may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.

For information about this warranty write:

INTERNATIONAL

2701 Industrial Drive

P.O. Box 90004

Bowling Green, KY 42102-9004

www.desatech.com

















































105073-01

















































105073 01





































Rev. C













NOT A UPC













04/00
