WOOD BURNING FIREPLACE

OWNER’S OPERATION AND INSTALLATION MANUAL

PFS ®

C US

ICC-ES#ESR-2542

MODELS (V)B42, (V)B42I, (V)B42L AND (V)B42LI

SAVE THIS BOOK

This book is valuable. In addition to instructing you on how to install and maintain your appliance, it also contains information that will enable you to obtain replacement parts or accessory items when needed. Keep it with your other important papers.

This fireplace is approved for use as a wood burning fireplace or for use with a vented gas log approved to ANS Z21.60 or Z21.84 standards or for use with a vent-freegas logheaterapprovedtoANSZ21.11.2standard.AFMIPRODUCTS, LLC hood must be installed when using avent-freelog heater (see , page 18).

This wood burning fireplace complies with UL127- CAN/ULC-S610-M87standard as a FACTORY BUILT

APPLIANCE.

FOR CANADA: The authority having jurisdiction (such as the municipal building department, fire department, etc.) should be contacted before installation to determine the need to obtain a permit.

INSTALLER: Leave this manual with the appliance. CONSUMER: Retain this manual for future reference.

For more information, visit www.fmiproducts.com

TABLE OF CONTENTS

Safety...................................................................

2

Operation and Maintenance...............................

14

Specifications.......................................................

3

Technical Service...............................................

15

Fireplace Installation............................................

4

Replacement Parts.............................................

15

Venting Installation...............................................

7

Parts...................................................................

16

Optional Gas Line Installation............................

13

Accessories........................................................

18

SAFETY

WARNING: Improper installation, adjustment, alteration, service or maintenance can causeinjury,propertydamageor loss of life. Refer to this manual for assistance or additional information. Consult a qualified installer or local distributor.

IMPORTANT: Check local codes before installing this fireplace.

Before beginning installation of this fireplace, read these instructions through completely.

This FMI PRODUCTS, LLC fireplace and its components are safe when installed according to this installation manual. Unless you use FMI PRODUCTS, LLC components, which have been designed and tested for the fireplace system, you may cause a fire hazard.

The FMI PRODUCTS, LLC warranty will be voided by and FMI PRODUCTS, LLC disclaims any responsibility for the following actions.

a.Modification of the fireplace, com - ponents, doors, air inlet system and damper control.

b.Use of any component part not manufactured or approved by FMI PRODUCTS,

LLC in combination with a FMI PRODUCTS, LLC fireplace system.

Proper installation is the most important step in ensuring safe and continuous operation of fireplace. Consult the local building codes as to the particular requirements concerned with the installation of all factory built fireplaces.

WARNING: Do not install a fireplaceinsertinthisboxunless the manufacturer's instructions with the insert specifically state thisfireplacehasbeentestedfor use with this insert.

FOR YOUR SAFETY

Do not store or use gasoline oranyotherflammablevapors or liquids in the vicinity of this or any other appliance.

Due to high temperatures, the appliance should be located out of traffic and away from furniture and draperies.

Do not place clothing or other flammablematerialsonornear the appliance.

Never leave children unattended when a fire is burning in the fireplace.

WARNING: Use solid wood or processed solid fuel fire logs only. When processed wood fuel fire logs are used, do not poke or stir the logs while they are burning. Use only fire logs that have been evaluated for the application in fireplace and refer to fire log warnings and caution markings on packaging prior to use.

This fireplace is not intended to be used as a substitute for a furnace to heat an entire home. Use for supplemental heat only.

2

www.fmiproducts.com

109036-01M

0" TO

TOP SPACERS

3/4" AIR

SPACE

BACK

AND

SIDES

OUTSIDE AIR (LEFT SIDE ONLY)

0" TO BOTTOM

21.125"

0.625"

37.5"

33"

6.5"

1"

SPECIFICATIONS

1" AIRSPACE

TO COMBUSTIBLE MATERIAL



GAS LINE

RIGHT SIDE



KNOCK OUTS





NO COMBUSTIBLE





MATERIAL ON FACE









8.25"



COMBUSTIBLE



7"



WALL BOARD









AIR KIT

GAS LINE





KNOCK OUTS





KNOCK OUT





NOT LESS

LEFT SIDE









THAN 14" TO







PERPENDICULAR





SIDEWALL







HEARTH

10.375"

8.25"



EXTENSION









12"

66" X 20"









7"

EACH SIDE











13"

28.5"



25.375"









14.438"



14"





44"



38.85"

1.375"







ROUND TOP TERMINATION

1"

32"



SQUARE CHASE-TOP

21.5"

TERMINATION

42"

44"

1.75"



109036-01M

www.fmiproducts.com

3

FIREPLACE INSTALLATION

SELECTING LOCATION

To determine safest and most efficient location for fireplace, you must take into consideration the following guidelines:

1.Location must allow for proper clearances

(see Figures 1 and 2).

2.Consider a location where fireplace will not be affected by drafts, air conditioning ducts, windows or doors.

3.A location that avoids cutting of joists or roof rafters will make installation easier.

4.An outside air kit is available with this fireplace (see Optional Outside Air Kit on page 7).

MINIMUM CLEARANCE TO

COMBUSTIBLES

Back and sides of fireplace

3/4" minimum*

Floor**

0" minimum

Perpendicular wall to opening

12" minimum

Top spacers



0" minimum

Mantel clearances

see Mantels, page 6

Chimney outer pipe surface

1" minimum

* Not required at nailing flanges



** See step 2 of Framing





WARNING: Do not pack required air spaces with insulation or other materials.

Minimum/Maximum Chimney Height

Minimum height of chimney, measured from base of fireplace to flue gas outlet of termination, is 14.5 feet for straight flue or a flue with one elbow set. Maximum distance between elbows is 6 feet. For systems with two elbow sets, minimum height is 22 feet. Maximum height of any system is 50 feet. This measurement includes fireplace, chimney sections and height of termination assembly at level of flue gas outlet (see Figure 18, page 11).

FRAMING

1.Frame opening for fireplace using dimensions shown in Figures 1 and 2.

2.If fireplace is to be installed directly on carpeting, tile (other than ceramic) or any combustible material other than wood flooring, fireplace must be installed upon a metal or wood panel extending full width and depth of fireplace.

3.Set fireplace directly in front of this opening and slide unit back until nailing flanges touch side framing.

4.Check level of fireplace and shim with sheet metal if necessary.

5.Before securing fireplace to prepared framing, ember protector must be placed between hearth extension (not included) and under bottom front edge of fireplace to protect against glowing embers falling through. If fireplace is to be installed on a raised platform, a Z-typeember protector (not included) must be fabricated to fit your required platform height. Ember protector should extend under fireplace a

minimum of 1 1/2". Ember protector should be made of galvanized sheet metal (28 gauge minimum) to prevent corrosion.

6.Using screws or nails, secure fireplace to framing through flanges located on sides of fireplace.



37.625"

44.25"

22"

Figure 1 - Framing Dimensions

Maintain 3/4"

Clearance at

15 7/8" Sides and

Back of

Fireplace 22 1/2" 521/2"

3/4" Clearance Not Required at Nailing Flanges

72 7/8"

Figure 2 - Corner Installation

4

www.fmiproducts.com

109036-01M

FIREPLACE INSTALLATION

HEARTH EXTENSION

A hearth extension projecting a minimum of 20" in front of and a minimum of 12" beyond each side of fireplace opening is required to protect combustible floor construction in front of fireplace. Fabricate a hearth extension using a material which meets the following specifications: a layer of noncombustible, inorganic material having a thermal conductivity of K=0.84 BTU IN/FT, HR. F (or less) at 1" thick. For example, if material selected has a K factor of 0.25, such as glass fiber, the following formula would apply:

0.25 x 1.0" = 0.30" thickness required

0.84

Thermal conductivity "K" of materials can be obtained from manufacturer or supplier of noncombustible material. If hearth extension is to be covered, use noncombustible material such as tile, slate, brick, concrete, metal, glass, marble, stone, etc. Provide a means to prevent hearth extension from shifting and seal gap between fireplace frame and hearth extension with a noncombustible material

(see Figure 3).

WARNING:Hearthextension

is to be installed only as shown

in Figure 3.

Seal Gap

Fireplace Front

Ember Protector

NO



Do Not Block Louver

Hearth



Extension

Fireplace Front

Seal Gap

Elevated



Ember Protector

Hearth Extension, Circulating Modes

Fireplace Front

Seal Gap



Ember Protector



Fireplace Front



Raised Hearth



Ember Protector

Hearth



Extension

Fireplace Front

Seal Gap

Elevated



Ember Protector

Hearth Extension, Noncirculating Models

Figure 3 - Hearth Extension

109036-01M

www.fmiproducts.com

5

Sheet
Metal
Screws

FIREPLACE INSTALLATION

Continued

MANTELS

A mantel may be installed if desired (see Figure 4). Woodwork such as wood trims, mantels or any other combustible material projecting from front face must not be placed within 12" of fireplace opening (and within 9" of top louver opening). Combustible materials above 12" and projecting more than 1 1/2" from fireplace must not be placed less than

12" from top opening of fireplace (NFPA STD

211, Sec. 7-3.3.3).

Mantels or any other combustible material may come up to side edge of black metal face of fireplace if projection from front face falls within limits shown in Figure 5.



12 1/4" Ref.

Combustible







Material

6"





Safe Zone For





Projection of

Ref.

33°

Combustible



Materials











3" Nom.

*Note: Drawing







Not To Scale

15"



1 1/2"



Min.







9" Max.











12"

Min.





Min.

Top of







Upper Section





Louvered





of Circulating





Opening





Fireplace







Fireplace Opening



Figure 4 - Mantel Clearances to



Combustible Material







FIREBOX

Top View of Fireplace









0.625" Max.

8"

SAFE ZONE

1"

33°











Min. 12" from Perpendicular Side Wall

Figure 5 - Side Mantel Clearance

FAN/BLOWER KIT ASSEMBLY

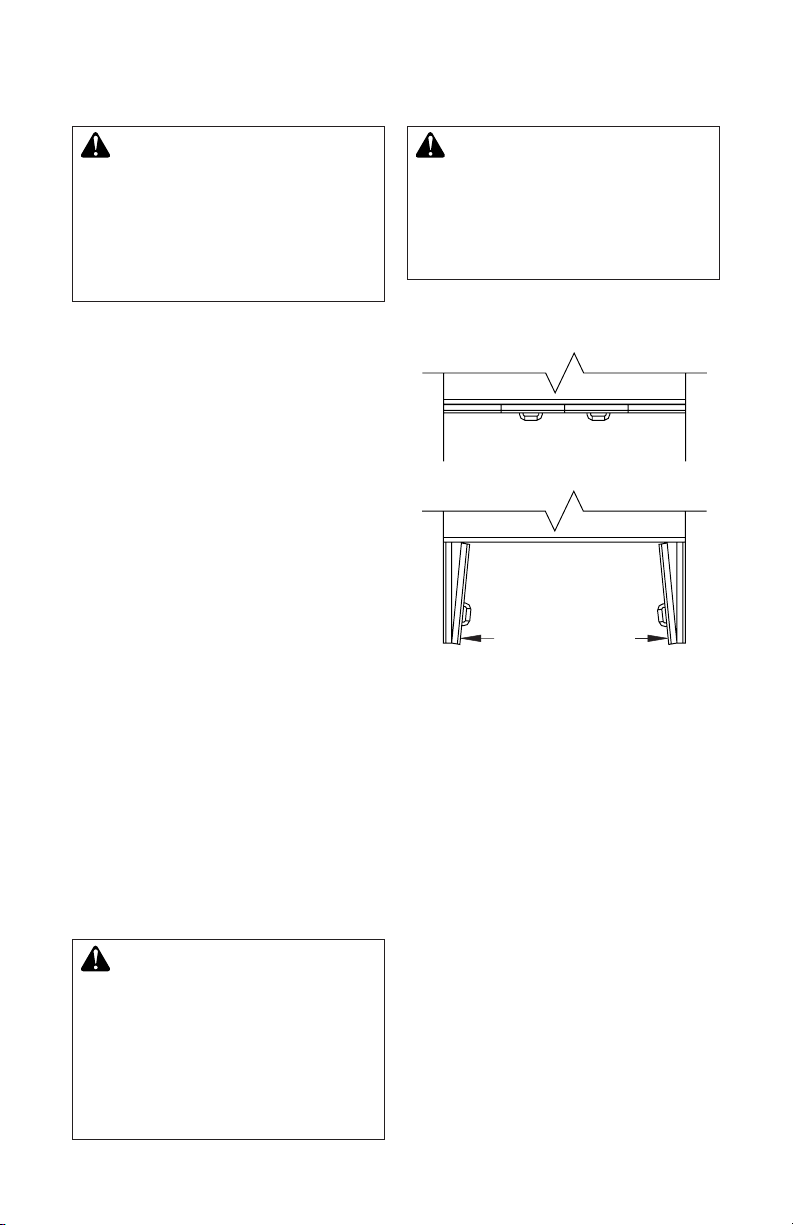

Fan or blower kit is optional with this fireplace (for circulating models only). Use of blowers or fans other than those manufactured by

FMI PRODUCTS, LLC voids warranty. Fan is operated by pressing rocker switch (see Figure 6) in lower right hand corner of fireplace face. Blower is operated by turning control knob (not shown).

Fan/blower kit electrical connections are made through electrical cover plate on side of fireplace a shown in Figure 6.

Rocker

Electrical

Electrical

Switch

Bushing

Cover





Plate

Electrical

Wire Nut (3x)

Outer Wrapper

(Not Supplied) of Fireplace

Housing



Power Source Wiring









(Not Supplied)





To Power





Source





Electrical Cover

Receptacle

Plate and

Electrical Bushing

(Supplied)

Fireplace Chassis

Prewired Receptacle

Ground

and Ground



Figure 6 - Fan Switch-ElectricalBushing

Wiring Instructions

1.Remove electrical cover plate with bushing from fireplace by removing 2 sheet metal screws as shown in Figure 6.

2.Slide power source wiring through electrical bushing opening and electrical cover plate and make all necessary connections.

3.Slide all wiring connections in electrical housing as shown in Figure 6.

4.Secure electrical cover plate with screws previously removed.

Note: Electrical housing and cover plate have sharp edges. Wear protective gloves.

6

www.fmiproducts.com

109036-01M

VENTING INSTALLATION

OPTIONAL OUTSIDE AIR KIT (MODEL AK4/AK4F)

Installation of outside air kit should be performed during rough framing of fireplace due to the nature of it's location. Outside combustion air is accessed through a vented crawl space (AK4F) or through a sidewall (AK4).

See Figure 24 on page 15 for instruction of operating air kit.

CAUTION: Combustion air inlet ducts shall not terminate in attic space.

The maximum height for the air vent can not exceed 3 feet below the flue gas outlet of the termination.

Secure to Collars with Metal Tape, Screws or Straps (Min. of 1/4" x 20" in size)



Air Inlet



Location



Must Allow



For Bushes



or Snow



Air Inlet

Vented Crawl Space

Eyebrow



Vent Hood

(Check Local Codes

Required for

Before Installing in a

Wall Installation

Vented Crawl Space)



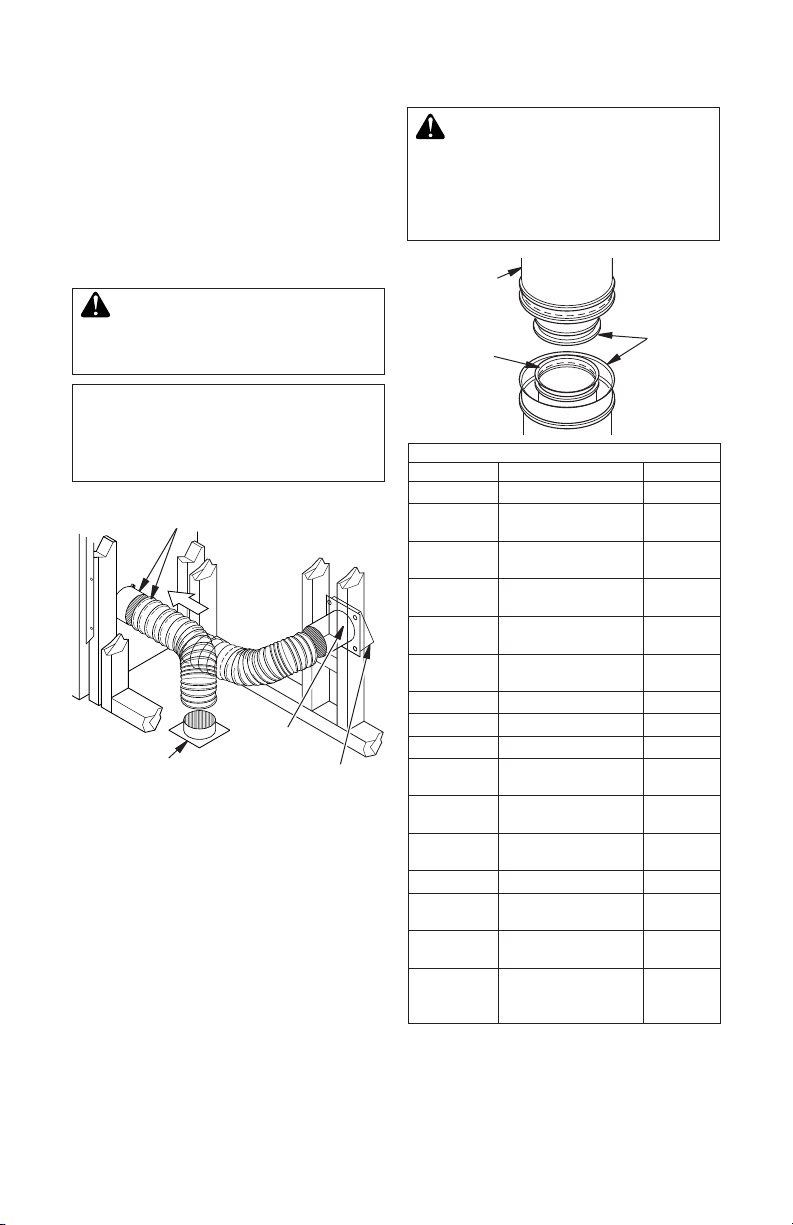

Figure 7 - Outside Air Kit

CHIMNEY PIPE

FMI PRODUCTS, LLC chimney system consists of 12", 18", 24", 36" and 48" snaplock, double-wallpipe segments, planned for maximum adaptability to individual site requirements. Actual lengths gained after fitting overlaps must be taken into consideration (lineal gain) and are given in lineal gain chart (see Figure 8).

Lineal gain is actual measurable length of a part after two or more parts are connected.

WARNING: The opening in collar around chimney at top of fireplacemustnotbeobstructed. Neveruseblowninsulationtofill chimney enclosure.

12 3/8" GalvanizedOuter Pipe













Hemmed

8" Stainless











End













Inner Pipe











































































LINEAL GAIN



PART NO.

DESCRIPTION

GAIN

36"





Fireplace

37 1/2"

12-8DM



Pipe Section

10 5/8"

12-8HT















18-8DM



Pipe Section

16 5/8"

18-8HT















24-8DM



Pipe Section

23 5/8"

24-8HT















36-8DM



Pipe Section

34 5/8"

36-8HT















48-8DM



Pipe Section

46 5/8"

48-8HT















RT-8DM

Round Termination

6 7/8"*

RTL-8DM

Round Termination

7 3/4"*

RLT-8DM

Round Termination

7 1/2"*

RTT-8DM

Round Termination

6 7/8" to

with Slip Section

23 1/8"*



RTTL-8DM

Round Termination

8 1/2" to

with Slip Section

21 1/2"*



RLTT-8DM

Round Termination

7 1/2" to

with Slip Section

21 1/4"*



ET-8DM

Square Chase-Top

12"*

ETO-8DM

Square Chase-Top

12"*





with Mesh



ETL-8DM

Square Chase-Top

7" to 15"*



with Slip Section





Square Chase-Top

12" to

ETLO-8DM

with Mesh & Slip

25 1/2"*







Section









* The lineal gain for the terminations is measured to the flue gas outlet height.

Figure 8 - Lineal Gain

109036-01M

www.fmiproducts.com

7

VENTING INSTALLATION

Continued

ASSEMBLY AND INSTALLATION OF DOUBLE WALL CHIMNEY SYSTEM

Each double wall chimney section consists of a galvanized outer pipe, a stainless steel inner flue pipe and a wire spacer. Pipe sections must be assembled independently as chimney is installed. When connecting chimney directly to fireplace, inner flue pipe section must be installed first with lanced side up. Outer pipe section can then be installed over flue pipe section with hemmed end up.

Press down on each pipe section until lances securely engage hem on fireplace starter.

Wire will assure proper spacing between inner and outer pipe sections.

Note: For Canada, use chimney parts designated HT.

Opening in collar around chimneyattopoffireplacemust not be obstructed. Never use blown insulation to fill chimney enclosure.

Continue to assemble chimney sections as outlined, making sure that both inner and outer pipe sections are locked together. When

installing double wall snap-lockchimney together, it is important to assure joint between chimney sections is locked. Check by pulling chimney upward after locking. Chimney will not come apart if properly locked. It is not necessary to add screws to keep chimney together (exception - see Figure 11, page 9).

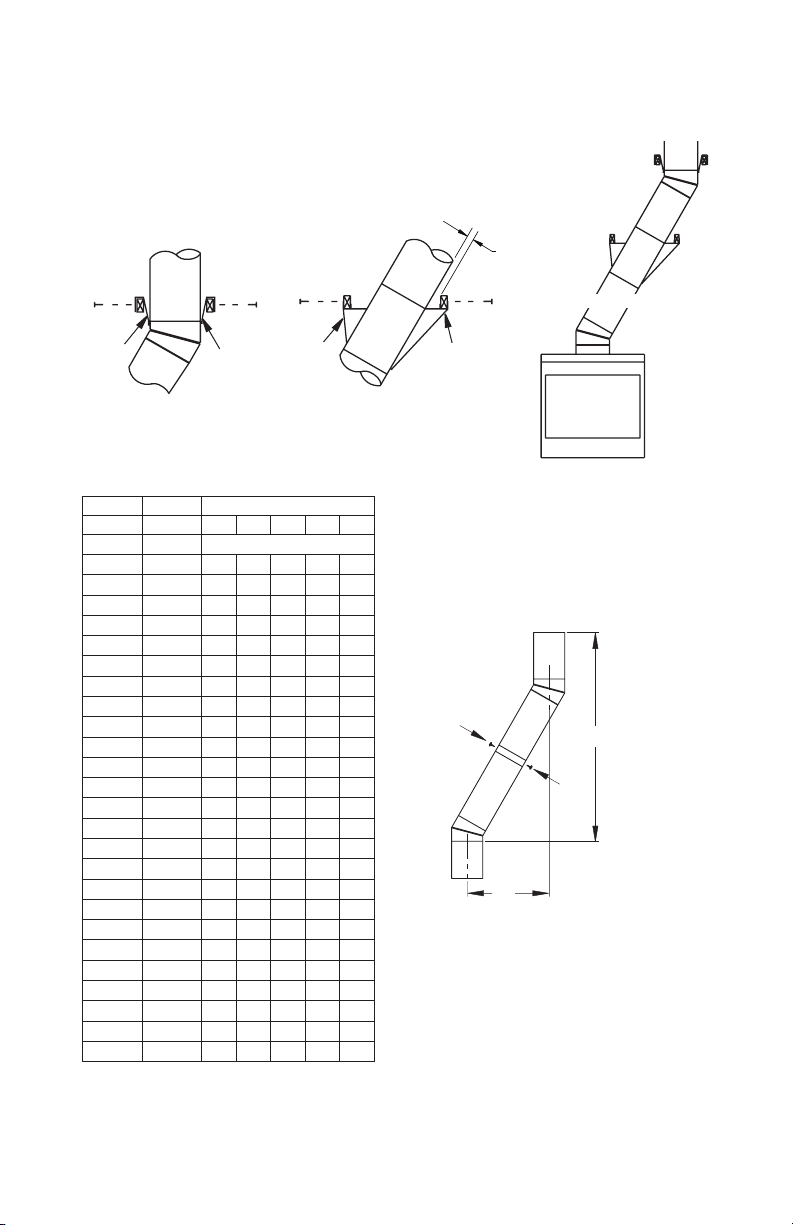

USING ELBOW OFFSETS (30E-8DM)

1.To achieve desired offset, you may install combinations of 12", 18", 24", 36" and

48" length of double wall pipe (see offset chart, page 7, and Figure 9).

Note: For systems with 2 elbow sets, minimum height is 22 feet. Maximum height for any system is 50 feet.

2.Chimney weight above offset rests on return elbow. Straps must be securely nailed to rafters or joists (see Figure 10, details A and B, page 9).

3.Maximum length of pipe between supports

(return elbow or 12S-8DM)is 6' of angle run. Maximum of two 6' angle run sections per chimney system (see Figure 9).

4.All pipe connections between offset and return must be secured with two screws on outer pipe only (see Figure 11, page 9). Do not penetrate inner stainless.



Return



Return







Elbow





Elbow













Offset



Offset

Return



Elbow



Elbow



6' Max.

Elbow





6' Max. Ceiling













Return

Support Pipe







Elbow

12S-8DM

6' Max.

Return

6' Max.

Offset

Offset





Elbow

Elbow



Elbow

Offset

6' Max.



6' Max.



Elbow









A

B



C

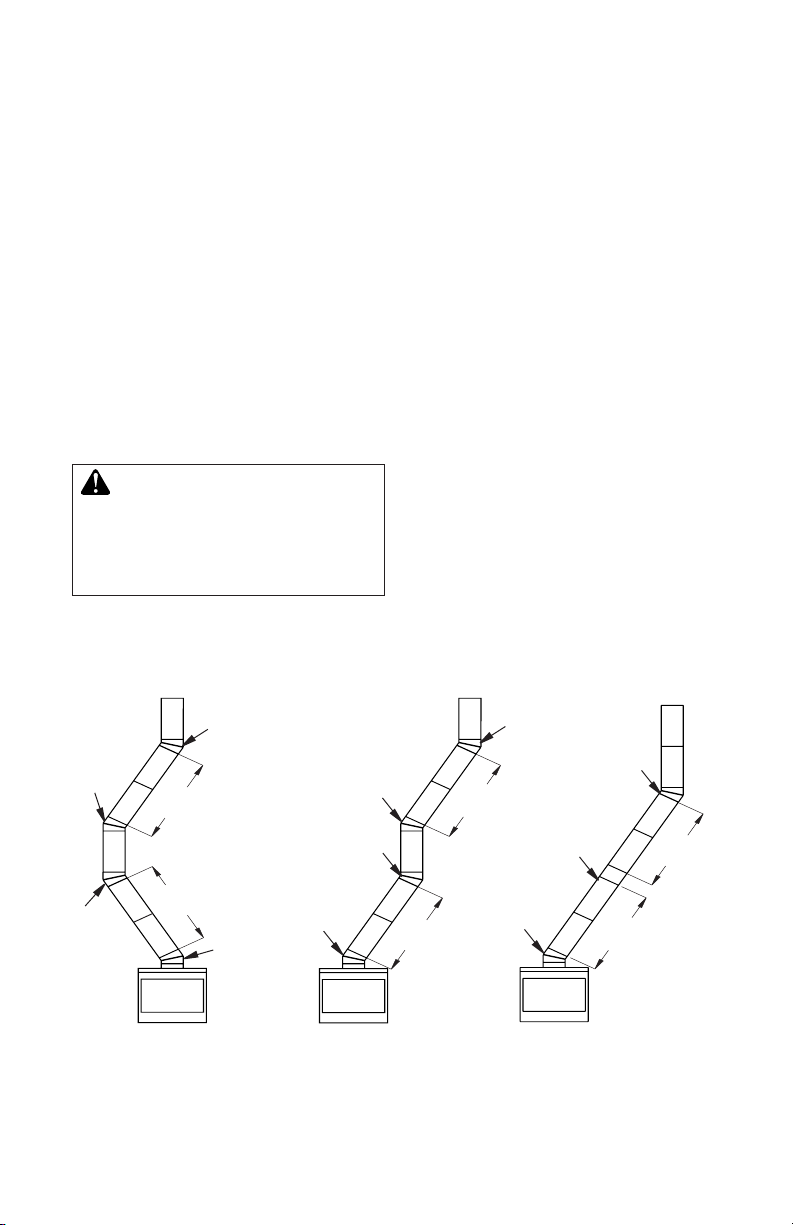

Figure 9 - Typical Offset Installation

8

www.fmiproducts.com

109036-01M

VENTING INSTALLATION

Continued

See Detail A

Ceiling Support

Pipe 12S-8DM

2" Min.

See Detail B

Straps





Straps

Straps





Straps































Detail A











Detail B













Return Elbow









Angle



























Firestop





















Figure 10 - Ceiling Support Pipe 12S-8DM



































OFFSET

RISE



CHIMNEY LENGTH















A

B

48"

36"

24"

18"

12"















4 3/8"

16 3/8"



ELBOW SET ONLY















9 3/4"

25 1/2"











1















12 3/4"

30 3/4"









1

















15"

34 3/4"







1



















18"

40"









1

1















21 1/4"

46 1/4"





1





















23 3/4"

49 1/4"







1

1

















27 3/4"

56 3/4"



1























30"

60 3/4"





1



1





Screws





33"

66"



1







1

























B



36"

71"



1





1





































38 1/4"

75"





2





















41 1/4"

80 1/4"





1



1

1















45"

86 3/4"





2





















46 3/4"

89 1/2"



1





1

1





























51"

97"



1

1









































53 1/4"

101"





2



1

















56 1/4"

106 1/4"



2













A





59 1/4"

111 1/2"



1

1



1

















61 3/4"

115 1/2"



2







1















64 3/4"

120 3/4"



2





1

















68 1/4"

127"



1

2





















70"

130"



2





1

1















74 1/4"

137 1/2"



1

2





1















76 3/4"

141 1/2"



1

2



1

















79 3/4"

146 3/4"





4



















OFFSET CHART (22-50FT. SYSTEM HEIGHT)

Figure 11 - Elbow Offset

109036-01M

www.fmiproducts.com

9

VENTING INSTALLATION

Continued

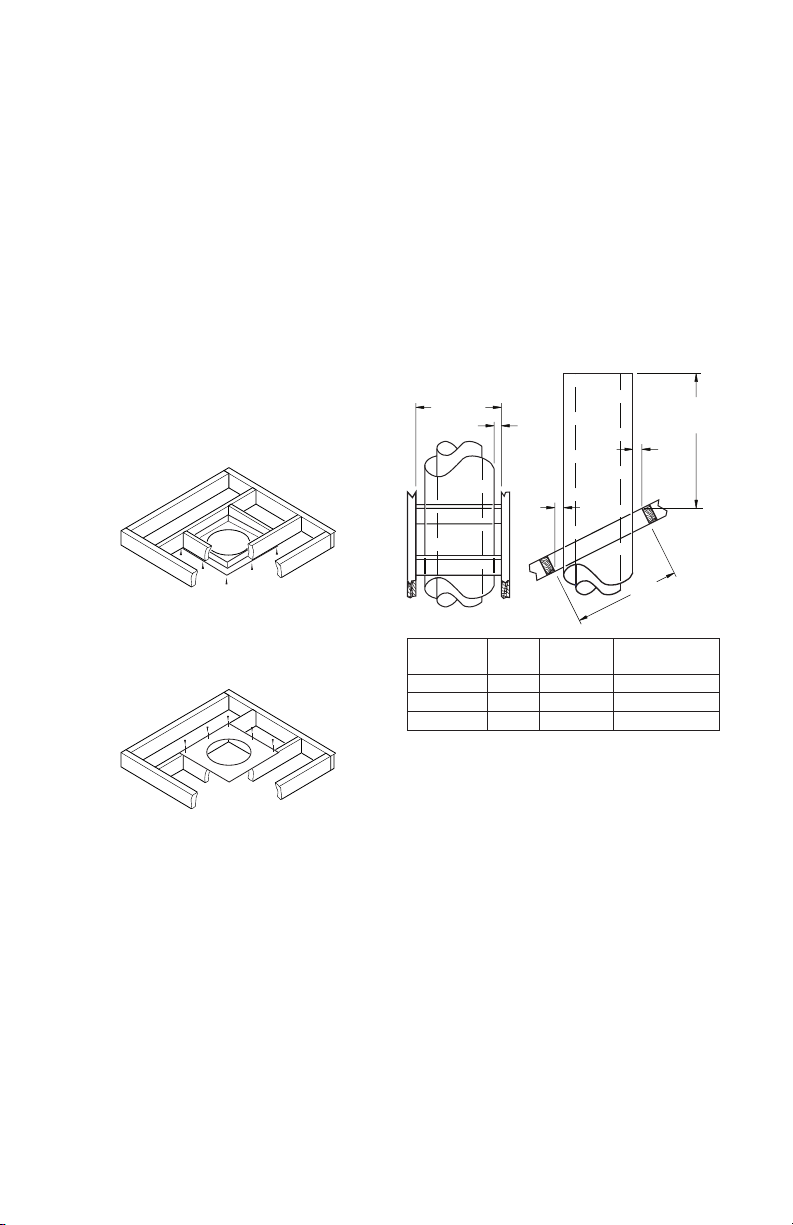

FIRESTOP SPACERS (3600FS-8DM-1)

Firestop spacers are required at each point where chimney penetrates a floor space. Their purpose is to establish and maintain required clearance between chimney and combustible materials. When pipe passes through a framed opening into a living space above, firestop must be placed onto ceiling from below as shown in Figure 12.

They also provide complete separation from one floor space to another or attic space as required by most codes. When double wall pipe passes through a framed opening into an attic space, firestop must be placed into an attic floor as shown in Figure 13.

If area above is a living space, install firestop below framed hole.

4.Remove shingles around opening measured. Cut out this section.

5.Add next sections of pipe until end penetrates roof line. Check to see that proper clearances are maintained. Extend chimney by adding sections of double wall pipe until pipe is minimum of 30" above highest point of roof cutout. Termination and chimney must extend a minimum of 36" above highest point where it passes through roof.

Minimum Measurements



16 3/8"



(48.3 cm)

30"

2"

(76.2 cm)

(5.1

2"

cm)

(5.1 cm)



2"



(5.1



cm)



Opening "A"

Figure 12 - Firestop Spacer with Living Space Above Ceiling

If area above is an attic or insulated area, install firestop above framed hole.

Figure 13 - Firestop Spacer with Attic Space Above Ceiling

PENETRATING ROOF

To maintain a 2" clearance to pipe on a roof with a pitch, a rectangular opening must be cut.

1.Determine center point where pipe will penetrate the roof.

2.Determine center point of the roof. Pitch is the distance the roof drops over a given span, usually 12".A6/12 pitch means that the roof drops 6" for each 12" measure horizontally down from roof rafters.

3.Use roof opening chart (Figure 14) to determine correct opening length and flashing required.

Pitch

Slope

Opening

Used Flashing





"A" Max.

Model No.

Flat

15"

V6F-8DM

0-6/12

26.6°

16 1/8"

V6F-8DM

6/1212/12

45.0°

20 3/8"

V12F-8DM

Figure 14 - Roof Opening Measurements

FLASHING INSTALLATION (V6F-8DMORV12F-8DM)

Determine flashing to be used with roof opening chart. Slide flashing over pipe until base is flat against roof. Replace as many shingles as needed to cover exposed area and flashing base. Secure in position by nailing through shingles (see Figure 15, page 11). DO NOT NAIL THROUGH FLASHING CONE.

Installing Flashing on a Metal Roof

When installing flashing on a metal roof, it is required that putty tape be used between flashing and roof. Flashing must be secured to roof using #8 x 3/4" screws and then sealed with roof coating to prevent leakage through screw holes. A roof coating must also be applied around perimeter of flashing to provide a proper seal.

10

www.fmiproducts.com

109036-01M

VENTING INSTALLATION

Continued

Storm Collar

Overlap

Flashing

Shingles Top

Cone

and Sides Only

Nail Only



Outer



Perimeter



of Flashing



Underlap Shingles

at Bottom

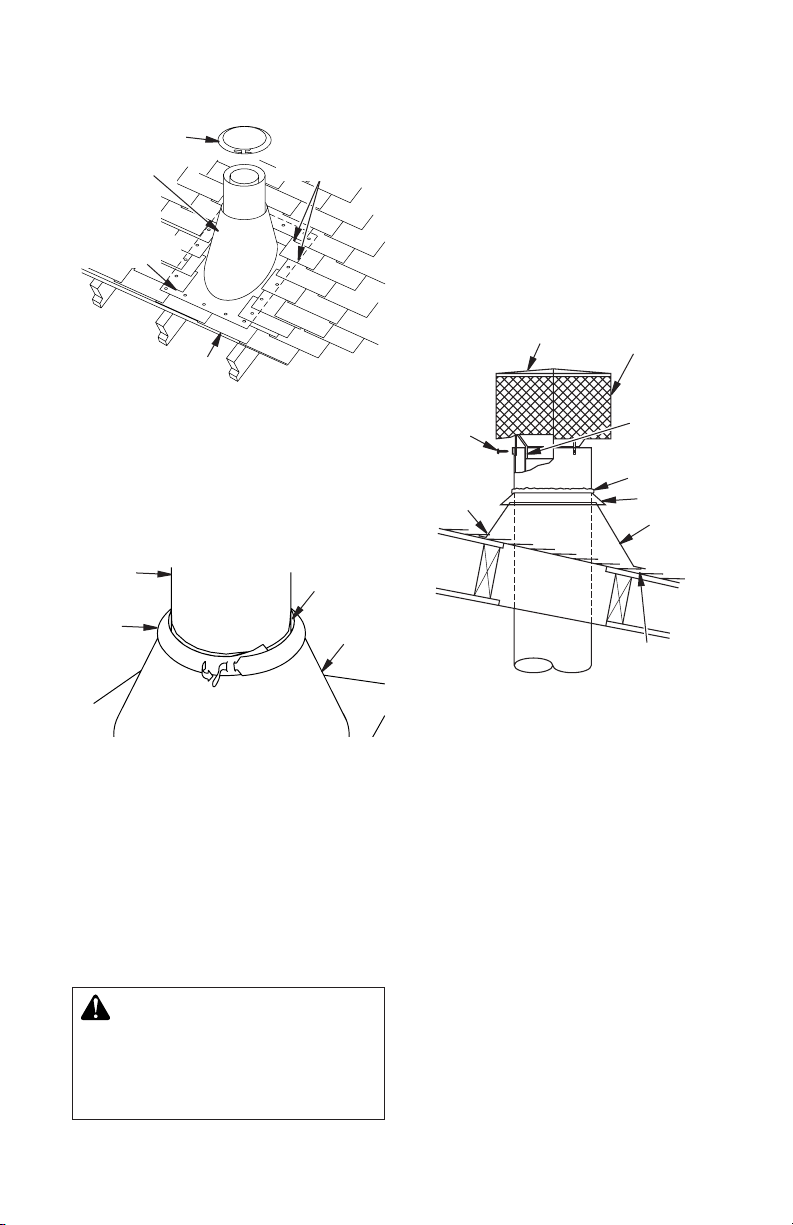

Figure 15 - Flashing Installation

Storm Collar Installation (SC1)

Place storm collar over pipe and slide down until it is snug against open edge of flashing (see Figure 16). Use SC1 for all round terminations. Apply waterproof caulk around perimeter of collar to provide a proper seal.

Chimney

Waterproof

Pipe

Caulk

Storm

Flashing

Collar

Figure 16 - Storm Collar

Terminations/Spark Arrestor

Fireplace system must be terminated with listed round top or chase terminations. In any case, refer to installation instructions supplied with termination. Terminations approved for this fireplace are RT-8DM,RTL-8DMand

RLT-8DMthat can be used for flashing or chase andET-8DM,ETO-8DM,ETL-8DMandETLO-8DMfor chase style termination only. Figure 17 shows anRTL-8DMround top termination.

Terminations with 16" slip pipe sections are available. RTT-8DM,RTTL-8DMand RLTT-

8DM are approved for flashing installations. When needed, these adjustable terminations may be used in combination with pipe assembly to achieve correct chimney height.

Note: In the rare instance there is a problem with side driven rain or wind or chimney is not drafting properly, an ADS-8DM(Anti-DraftShield) can be used with round terminations.

Attach Bracket

RTL-8DM

Level of Flue



Gas Outlet

Tabs to



Flue Pipe of

Outer Pipe





RTL-8DM

(3 Places)





Inside Inner

Secure with





Pipe of

Screws





Chimney

Overlap





Caulk

Shingles Top



Collar

and Sides







Flashing

Underlap Shingles Bottom Only

Figure 17 - Termination

CHASE INSTALLATIONS

Instructions for chase installations are included with chase style termination chosen. In a multiple chase installation, be sure to provide adequate distance between terminations to prevent smoke spillage from one termination to another. We suggest that terminations be separated at least 24", center to center and stacked at a vertical height difference of 18" (see Figure 18), page 12.

Note: If a decorative shroud is to be installed, contact manufacturer for specifications.

CAUTION: Do not seal openingsontherooftopflashing.Follow the installation instructions provided with the termination being used.

109036-01M

www.fmiproducts.com

11

VENTING INSTALLATION

Continued

10 FOOT RULE

All flue gas outlet chimney terminations must extend a minimum of 3 feet in height above highest point where it passes through roof and must be at least 2 feet above highest point of the roof that is within a horizontal distance of 10 feet (see Figure 19).

10'

Level of



Flue Gas









Outlet





10'



2' Min.

3' Min.









2' Min.

3' Min.





18"

Min.

Typ.

24" Min.

24" Min.

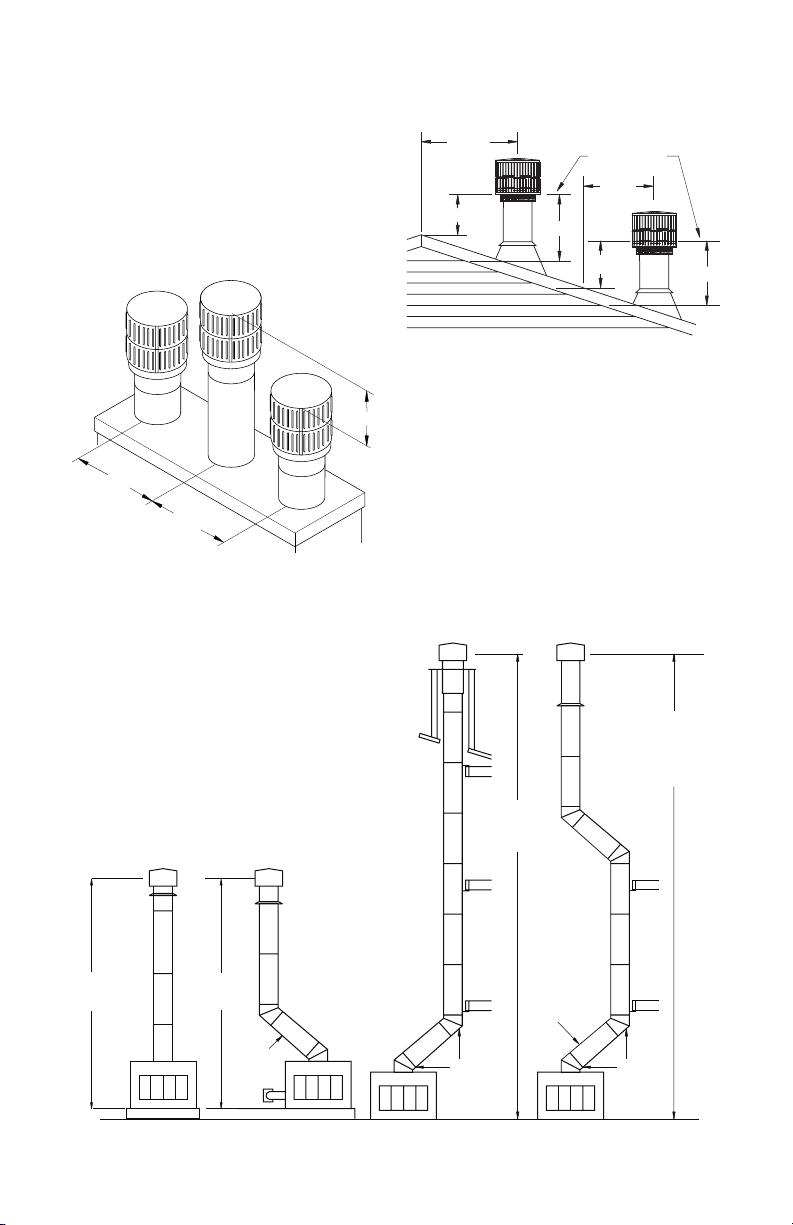

Figure 18 - Multiple Chase Installation

Figure 19 - 10 Foot Rule

FINISHING FIREPLACE

Combustible materials, such as wallboard, gypsum board, sheet rock, drywall, plywood, etc., may make direct contact with sides and top around fireplace face. It is important that combustible materials do not overlap face itself. Brick, glass, tile or other noncombustible materials may overlap front face provided they do not obstruct essential openings such as louvered slots. When overlapping with a noncombustible facing material, use only noncombustible mortar or adhesive.

EFFECTIVE HEIGHT

EFFECTIVE HEIGHT

OF TERMINATION CAP

OF TERMINATION CAP































MIN. HEIGHT OF 22 FT. (WITH 2 ELBOW SETS) MAX. HEIGHT OF 50 FT.





MAX. HEIGHT







50 FT.



EFFECTIVE HEIGHT

EFFECTIVE HEIGHT

(ANY SYSTEM)







OF TERMINATION CAP OF TERMINATION CAP





14.5 FT.

14.5 FT.





MINIMUM

MINIMUM

UP TO



HEIGHT

HEIGHT



6FT. MAX.











UP TO







6FT. MAX.

30E-8DM

30E-8DM





Figure 20 - Typical Residential Installations

12

www.fmiproducts.com

109036-01M

OPTIONAL GAS LINE INSTALLATION

Gas line hook up should be done by your supplier or a qualified service person.

Note: Before you proceed, make sure your gas supply is turned off.

Use only a 1/2" black iron pipe and appropriate fittings.

1.Remove knockout indentation on refractory or firebrick wall located above refractory hearth floor. Knockout indentation must be firmly tapped with any solid object, such as a 1/2" dowel, until it is released.

Remove fragmented portions of refractory (see Figure 21).

2.Remove gas line cover plate located on either side of fireplace and pull out insulation from gas line conduit sleeve. Save insulation for reuse.

3.Run a 1/2" black iron gas line into fireplace through rear at gas line conduit sleeve (if using a raised platform, add height). Provide sufficient gas line into fireplace chamber for fitting connection

(see Figure 22).

Note: Secure incoming gas line to wood framing to provide rigidity for threaded end.

4.Repack insulation around gas line and into sleeve opening. Seal any gaps between gas line and refractory knockout hole with refractory cement or commercial furnace cement. Install gas appliance or cap off gas line if desired.

CAUTION:All gas piping and connections must be tested for leaks after installation is completed. After ensuring that gas valve is on,apply soapandwater solution to all connections and joints. Bubbles forming show a leak. Correct all leaks at once. DO NOT USE AN OPEN FLAME FOR LEAK TESTING AND DO

NOTOPERATEANYAPPLIANCE

IF A LEAK IS DETECTED. LEAK TESTING SHOULD BE DONE

BY A QUALIFIED SERVICE

PERSON.

Note: A FMI PRODUCTS, LLC hood must be installed when using an unvented gas log set

(see Accessories on page 18).

WARNING: Do not operate an unvented gas log set in this fireplace with chimney removed.

If you install a decorative gas appliance

(vented gas log), decorative gas appliance must comply with the Standard for Decorative Gas Appliance for Installation in Solid Fuel Burning Fireplaces, ANS Z21.60 or Z21.84 and shall also be installed in accordance with theNational Fuel Gas Code, ANSI 7223NFPA

54 latest edition.

WARNING: To avoid the risk of damaging fireplace materials andincreasingtheriskofspreading a fire, do not use fireplace to cook or warm food.

Outside of



Side

Fireplace



Firebrick

Gas Line



Finished



Side

Conduit





Insulation



1/2" Dowel





Gas



Refractory

Conduit



Cover



Knockout





Plug

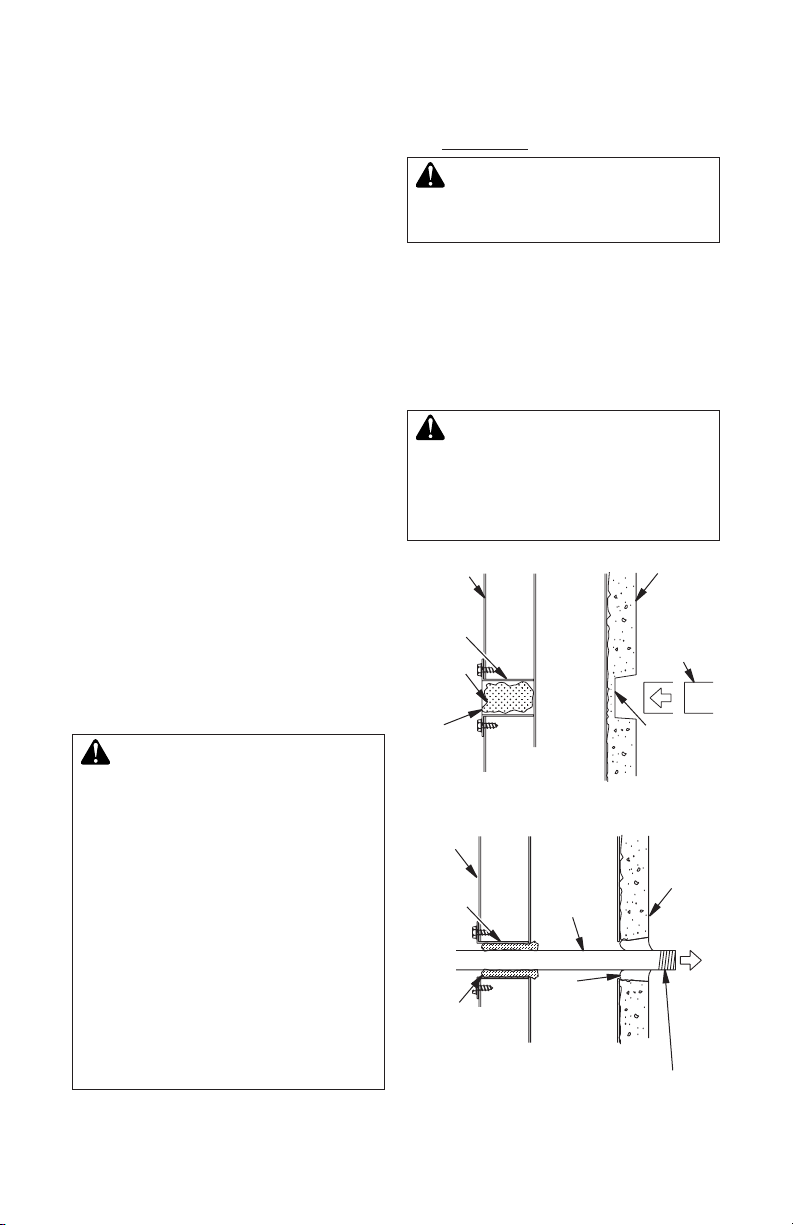

Figure 21 - Gas Line Knockout

Outside of



Side

Fireplace



Firebrick

Gas

Incoming

Finished

Side

Line

1/2" Black



Conduit

Iron Pipe



Seal

Opening Repack with Insulation Refractory

Cement

Provide Enough Threaded End for Fitting Connection

Figure 22 - Gas Line Installation

109036-01M

www.fmiproducts.com

13

OPTIONAL GAS LINE INSTALLATION

Continued

WARNING: If the fireplace has been used for wood burning, firebox and chimney must be cleaned of soot, creosote and ashes be a qualified chimney cleaner. Creosote will ignite if heavily heated.

WARNING: When using a decorative vented gas log, damper must be removed or permanentlylockedinfullyopen position and glass doors must be in fully open position.

OPERATION AND MAINTENANCE

GLASS DOORS

Glass doors are optional with this fireplace.

When fireplace is in operation, doors must be fully opened or fully closed position only or a fire hazard may be created (see Figure 23).

A fireplace equipped with glass doors operates much differently than a fireplace with an open front. A fireplace with glass doors has a limited amount of air for combustion. Excessive heat within fireplace can result if too large a fire is built or if combustion air gate is not completely open.

The following tips should be used to assure that both fireplace and glass door retain their beauty and function properly. Both the flue damper and glass doors must be fully opened before starting a fire. This will provide sufficient combustion air and maintain safe temperatures in firebox.

IMPORTANT: The glass must be allowed to warm slowly and evenly. Tempered glass will withstand a gradual temperature rise to

550° F, which is more than a normal fire will generate. Such materials as pitch/wax laden logs, very dry mill end lumber and large amounts of paper or cardboard boxes can create an excessively hot fire and should not be burned in this fireplace. Always keep fire back from doors and never allow flames to contact glass.

WARNING: Fireplaces equipped with glass doors should be operated only with doors fully opened or doors fully closed. Doors, if left partly open, may draw gas and flame out of the fireplace opening creating risks of both fire and smoke.

Doors Fully Closed

Fireplace Front

Doors Fully Opened

Fireplace Front

Figure 23 - Glass Doors

Cleaning Glass

Clean glass with any commercial glass cleaner or soap and water. Do not use any abrasive material to clean the glass. Do not clean glass with any cool water if glass is still hot from fire and smoke.

A gas line or gas log lighter may be installed for the purpose of installing a vented or ventfree decorative gas appliance incorporating an automatic shutoff device and complying with the Standard for Decorative Gas Appliances for Installation in Vented Fireplaces, ANSI

Z21.60 or American Gas Association draft requirements for Gas Fired Log Lighters for Wood Burning Fireplaces, Draft NO. 4dated

August, 1993.

If you wish to install an unvented (vent-free)gas log set, only unvented gas log sets which have been found to comply with the standard for unvented room heaters,ANSI Z21.11.2 are to be installed in this fireplace.

14

www.fmiproducts.com

109036-01M

OPERATION AND MAINTENANCE

Continued

DAMPER HANDLE OPERATION

Damper handle, which opens and closes damper blade, is located inside firebox at center towards back wall (see Figure 24).

Pushing handle back into keyway slot will free damper blade to automatically open. To close, push handle back into keyhole slot then pull down and forward to lock it in place

(see Figure 25).

WARNING: Risk of fire! ReplacegratewithFMIPRODUCTS,

LLC model 107001-02only. This grate has been designed to keep the operation of your fireplace safe and efficient.

Damper

Handle

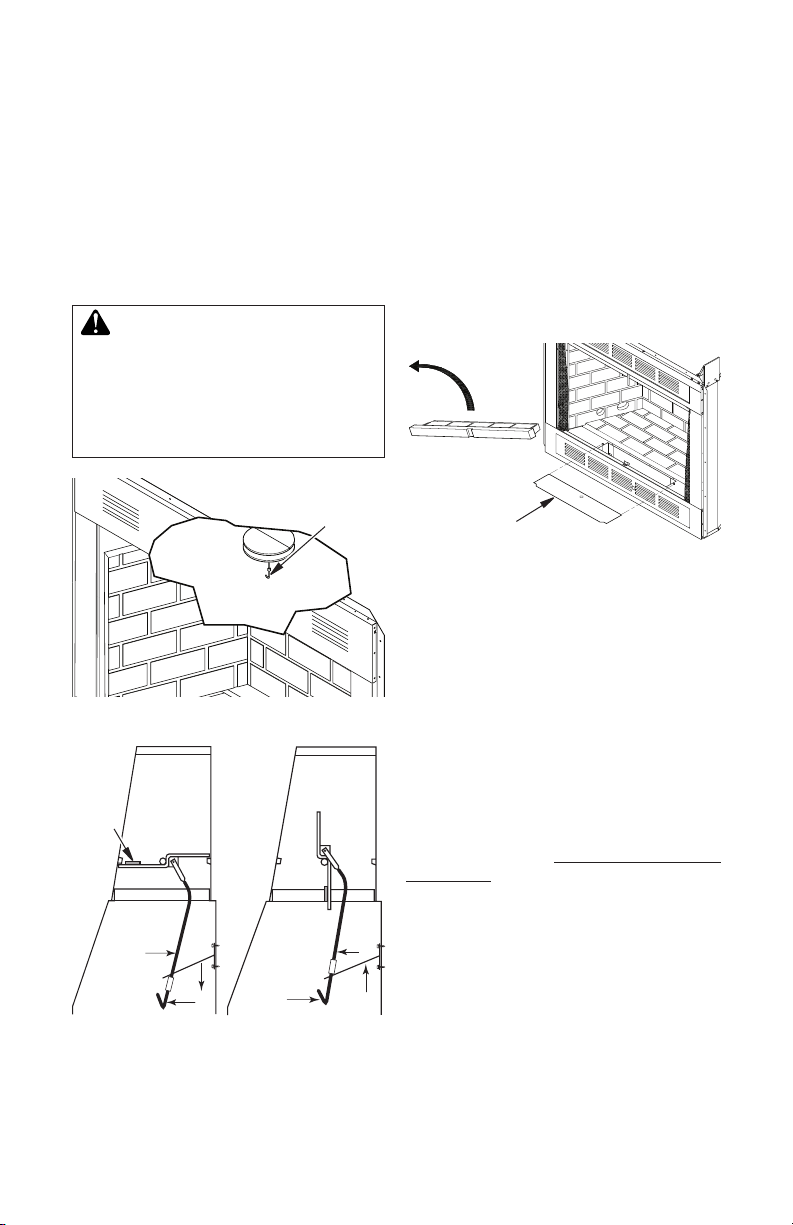

Figure 24 - Damper Handle Location

Damper

Weight

1

2



3



3

1

2

To Close Damper

To Open Damper

Figure 25 - Damper Rod

LOCATING ACCESS COVER PLATE

Sheet metal cover plates located underneath fronthearthrefractorymayhaveshiftedormoved out of place while fireplace was in transit. These cover plates must be kept in the proper location prior to using the fireplace (See Figure 26).

For further operating guidelines, instructions and warranty information, please refer to your homeowner's guide or contact your authorized dealer.

Access

Panel

Figure 26 - Locating Access Cover Plate

TECHNICAL SERVICE

You may have further questions about installation, operation, or troubleshooting. If so, contact FMI PRODUCTS, LLC at 1-866-328-4537.When calling please have your model and serial numbers of your heater ready.

You can also visit our web site at www.fmiproducts.com.

REPLACEMENT PARTS

If this product is missing a part or has a broken component, please do not return it to the store. Call FMI PRODUCTS, LLC at

1-866-328-4537to answer questions and replace parts under warranty.

Note: Use only original replacement parts.

This will protect your warranty coverage for parts replaced under warranty.

When calling or writing, please have your model and serial numbers of your fireplace ready.

Model and serial number information are in the fireplace's rating plate located in the screen pocket to the left or right of the face opening.

109036-01M

www.fmiproducts.com

15

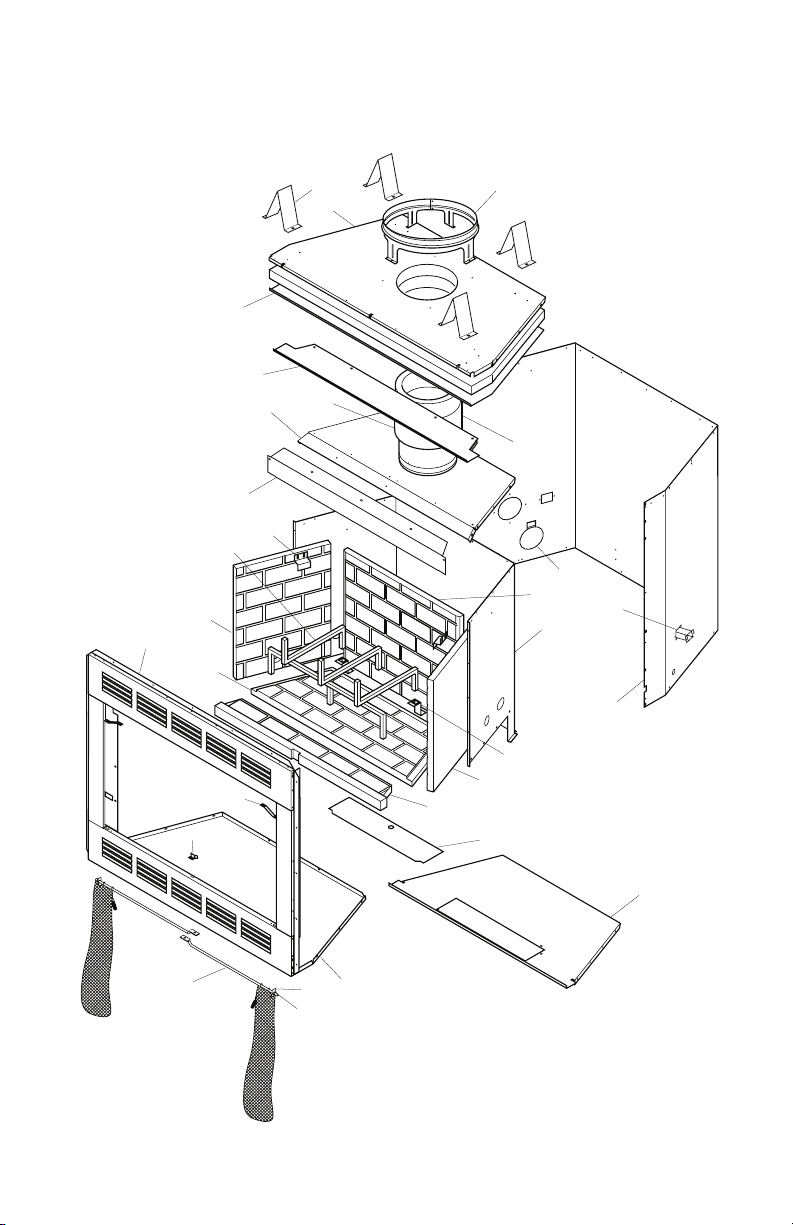

PARTS

WOOD BURNING FIREPLACE MODELS (V)B42, (V)B42I, (V)B42L, (V)B42LI

20

21

5





1





2





3

18









19



4





17





25







28





12

11



29



6

10







14









7





26





13



24

15





22



16





8

30

23

9



27



16

www.fmiproducts.com

109036-01M

PARTS

WOOD BURNING FIREPLACE MODELS (V)B42, (V)B42I, (V)B42L, (V)B42LI

This list contains replaceable parts used in your fireplace. When ordering parts, see Replacement Parts on page 15 of this manual.

NO. PART NO.

DESCRIPTION



(V)B42(I)



(V)B42L(I)

KEY













1

**

Insulation Pan





2

**

Air Separator





3

**

Firebox Top





4

108302-01

Air Deflector





5

**

Wrapper Top





6

**

Firebox Wrapper





7

108304-01

Outer Wrapper/Insulation Assembly





8

**

Firebox Floor





9

**

Wrapper Bottom





10

108298-01

Front Face Weldment, Smooth









108298-02

Front Face Weldment, Louvered







11

106971-01

Left Side Brick Liner





12

108310-01

Rear Brick Liner





13

106970-01

Right Side Brick Liner





14

106972-01

Bottom Brick Liner





15

106973-01

Front Bottom Brick Liner





16

21198

Blower Access Plate





17

20027

Refractory Retainer





18

20060

Circulation Plate





19

21366

Insulation Retainer





20

106959-01

Top Standoff





21

20023

Chimney Starter Collar





22

20088

Door Stop





23

11418

Push On Nut





24

20090

Spring Clip





25

107001-02

Wood Burning Grate





26

106539-02

Grate Retainers





27

108424-01

Screen





28

**

Side Damper Weldment





29

107128-01

Gas Conduit





30

108780-01

Screen Rod









PARTS AVAILABLE - NOT SHOWN























106685-01

Male Polarized 1.4" Plug







14607

Rocker Switch







110037-01

Electrical Duct Assembly







20093

Ember Protector





** Not a field replaceable part

QTY.

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

2

1

1

4

1

1

2

2

1

2

2

1

4

2

1

1

1

1

109036-01M

www.fmiproducts.com

17

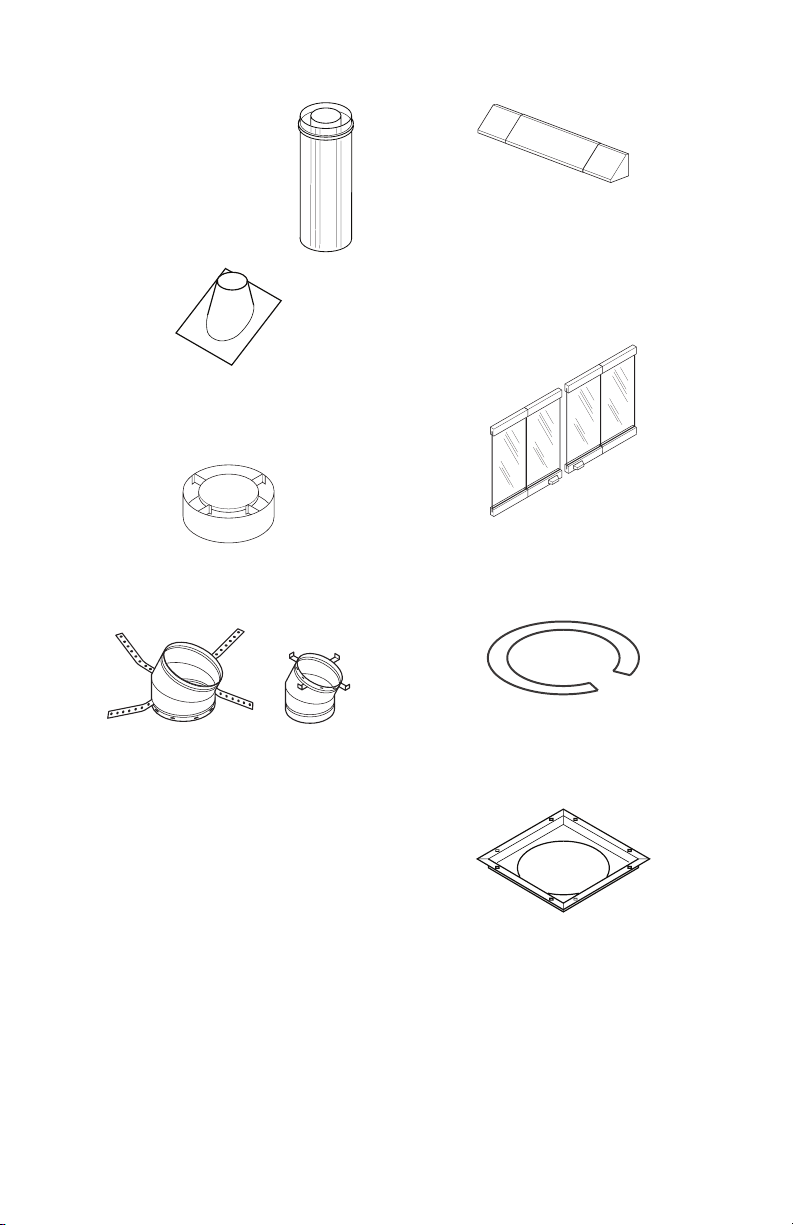

ACCESSORIES

DOUBLE WALL PIPE

12-8DM12-8HT

18-8DM18-8HT

24-8DM24-8HT

36-8DM36-8HT

48-8DM48-8HT

ROOF FLASHING

0 TO 6/12 PITCH - V6F-8DM6/12 TO 12/12 PITCH -V12F-8DM

ADJUSTABLE HOOD

Antique Brass Finish - GA6053

Black Painted Finish - GA6050

Required when installing a vent-freegas log in this fireplace.



BI-FOLDGLASS DOOR

ANTI-DRAFTSHIELD

BDB42 - Black

(Round Top Termination Only)

BDB42B - Brushed Brass

BDB42P - Platinum

ADS-8DM





STORM COLLAR

30° OFFSET AND RETURN

SC1-1



30E-8DM



1" FIRESTOP SPACER

3600FS-8DM-1

18

www.fmiproducts.com

109036-01M

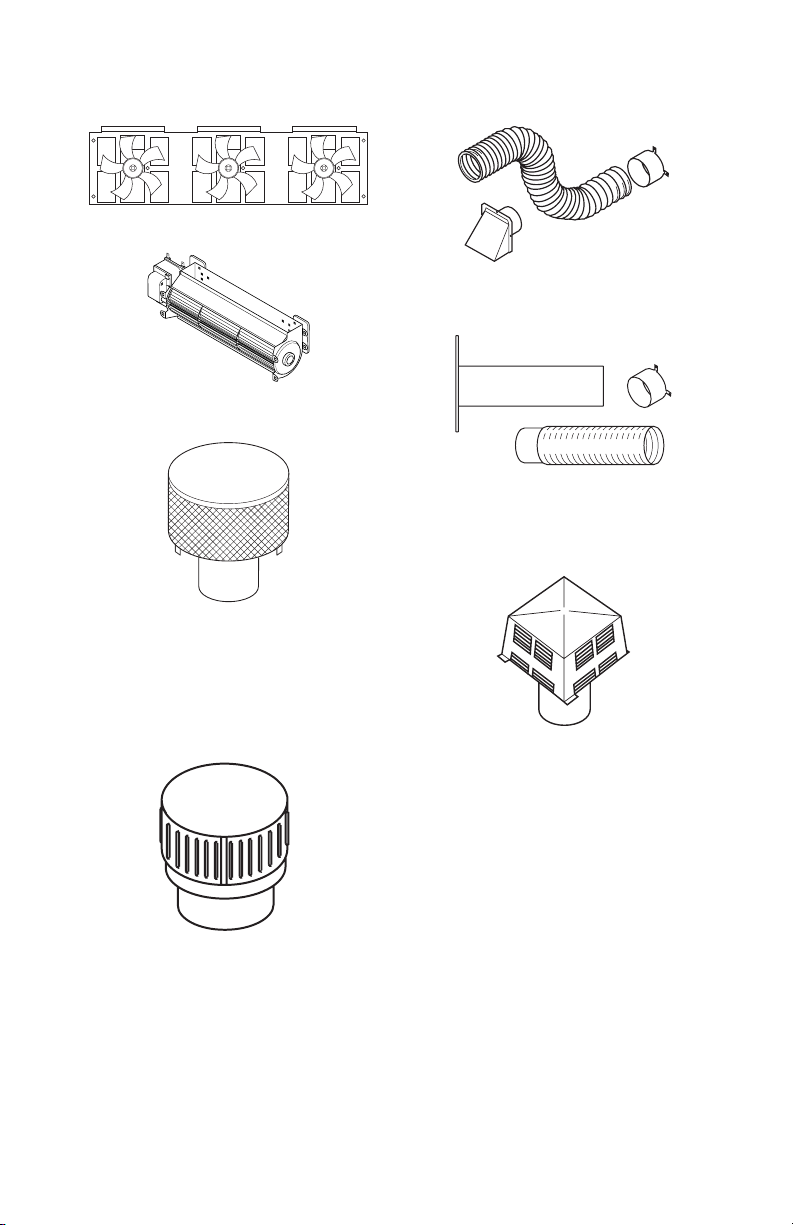

ACCESSORIES

Continued

FAN KIT - BK3

OUTSIDE AIR KIT FOR SIDE WALL

INSTALLATION - AK4

BLOWER KIT - BK

MESH ROUND TOP TERMINATIONS

RT-8DM,RT-8HT,RTL-8DMANDRTL-8HT

MESH ROUND TOP TERMINATIONS WITH SLIP SECTION

RTT-8DM,RTT-8HT,RTTL-8DMANDRTTL-8HT

ROUND TOP TERMINATIONS WITH LOUVERS

RLT-8DM,RLT-8HT

ROUND TOP TERMINATIONS WITH LOUVERS WITH SLIP SECTION

RLTT-8DM,RLTT-8HT

OUTSIDE AIR KIT FOR FLOOR INSTALLATION

AK4F

SQUARE TOP TERMINATION WITH

LOUVERS

ET-8DM,ET-8HT

SQUARE TOP TERMINATION WITH

LOUVERS AND SLIP SECTION

ETL-8DM,ETL-8HT

MESH SQUARE TOP TERMINATION

ETO-8DM

MESH SQUARE TOP TERMINATION

WITH SLIP SECTION

ETLO-8DM

109036-01M

www.fmiproducts.com

19







2701 S. Harbor Blvd.



Santa Ana, CA 92704

109036-01

1-866-328-4537

Rev. M

www.fmiproducts.com

03/11
