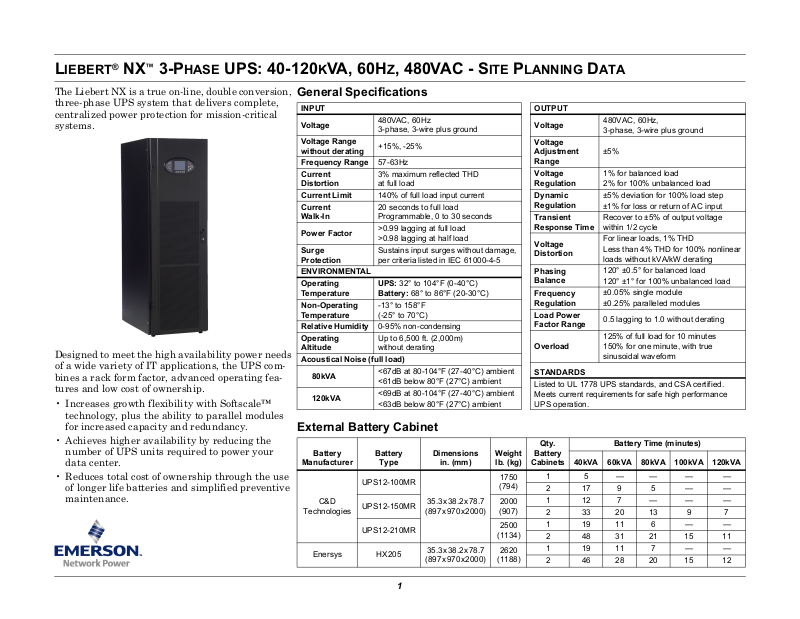

LIEBERT® NX3-PHASE UPS: 40-120KVA, 60HZ, 480VAC - SITE PLANNING DATA

The Liebert NX is a true on-line, double conversion, three-phase UPS system that delivers complete, centralized power protection for mission-critical systems.

Designed to meet the high availability power needs of a wide variety of IT applications, the UPS combines a rack form factor, advanced operating features and low cost of ownership.

Increases growth flexibility with Softscale™ technology, plus the ability to parallel modules for increased capacity and redundancy.

Achieves higher availability by reducing the number of UPS units required to power your data center.

Reduces total cost of ownership through the use of longer life batteries and simplified preventive maintenance.

General Specifications

INPUT

Voltage

480VAC, 60Hz

3-phase, 3-wire plus ground



Voltage Range

+15%, -25%

without derating



Frequency Range

57-63Hz

Current

3% maximum reflected THD

Distortion

at full load

Current Limit

140% of full load input current

Current

20 seconds to full load

Walk-In

Programmable, 0 to 30 seconds

Power Factor

>0.99 lagging at full load

>0.98 lagging at half load



Surge

Sustains input surges without damage,

Protection

per criteria listed in IEC 61000-4-5

ENVIRONMENTAL



Operating

UPS: 32° to 104°F (0-40°C)

Temperature

Battery: 68° to 86°F (20-30°C)

Non-Operating

-13° to 158°F

Temperature

(-25° to 70°C)

Relative Humidity

0-95% non-condensing

Operating

Up to 6,500 ft. (2,000m)

Altitude

without derating

Acoustical Noise (full load)

80kVA

<67dB at 80-104°F (27-40°C) ambient

<61dB below 80°F (27°C) ambient



120kVA

<69dB at 80-104°F (27-40°C) ambient

<63dB below 80°F (27°C) ambient



OUTPUT

Voltage

480VAC, 60Hz,

3-phase, 3-wire plus ground



Voltage



Adjustment

±5%

Range



Voltage

1% for balanced load

Regulation

2% for 100% unbalanced load

Dynamic

±5% deviation for 100% load step

Regulation

±1% for loss or return of AC input

Transient

Recover to ±5% of output voltage

Response Time

within 1/2 cycle

Voltage

For linear loads, 1% THD

Less than 4% THD for 100% nonlinear

Distortion

loads without kVA/kW derating



Phasing

120° ±0.5° for balanced load

Balance

120° ±1° for 100% unbalanced load

Frequency

±0.05% single module

Regulation

±0.25% paralleled modules

Load Power

0.5 lagging to 1.0 without derating

Factor Range



Overload

125% of full load for 10 minutes

150% for one minute, with true



sinusoidal waveform

STANDARDS

Listed to UL 1778 UPS standards, and CSA certified. Meets current requirements for safe high performance UPS operation.

External Battery Cabinet









Qty.



Battery Time (minutes)



Battery

Battery

Dimensions

Weight

Battery





















Manufacturer

Type

in. (mm)

lb. (kg)

Cabinets

40kVA

60kVA

80kVA

100kVA

120kVA























UPS12-100MR



1750

1

5





(794)

2

17

9

5







C&D

UPS12-150MR

35.3x38.2x78.7

2000

1

12

7

Technologies

(897x970x2000)

(907)

2

33

20

13

9

7





UPS12-210MR



2500

1

19

11

6





(1134)

2

48

31

21

15

11







Enersys

HX205

35.3x38.2x78.7

2620

1

19

11

7

(897x970x2000)

(1188)

2

46

28

20

15

12





1
