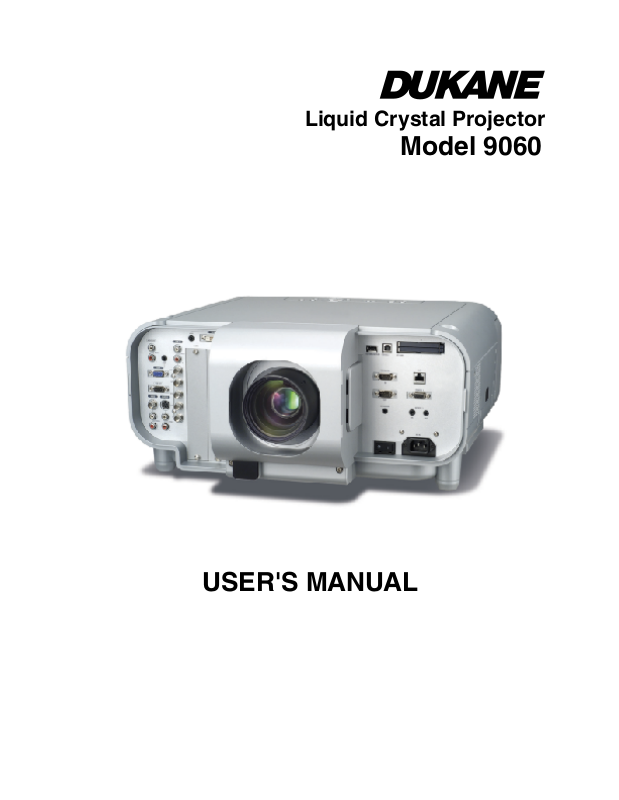

Liquid Crystal Projector

Model 9060

USER'S MANUAL

Important Information

Precautions

Please read this manual carefully before using your 9060 Projector. And keep this manual handy for future reference.

Your serial number is located on the bottom of your 9060.

Record it here:

CAUTION

To turn off main power, be sure to remove the plug from power outlet.

The power outlet socket should be installed as near to the equipment as possible, and should be easily accessible.

CAUTION

TO PREVENT SHOCK, DO NOT OPEN THE CABINET.

NO USER-SERVICEABLEPARTS INSIDE. REFER SERVICING TO QUALIFIED NEC SER-

VICE PERSONNEL.

This symbol warns the user that uninsulated voltage within the unit may be sufficient to cause electrical shock. Therefore, it is dangerous to make any kind of contact with any part inside of the unit.

This symbol alerts the user that important information concerning the operation and maintenance of this unit has been provided. The information should be read carefully to avoid problems.

RF Interference

WARNING

The Federal Communications Commission does not allow any modifications or changes to the unit EXCEPT those specified by

NEC Solutions, Inc. in this manual. Failure to comply with this government regulation could void your right to operate this equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio / TV technician for help.

Important Safeguards

These safety instructions are to ensure the long life of your projector and to prevent fire and shock. Please read them carefully and heed all warnings.

WARNING

TO PREVENT FIRE OR SHOCK, DO NOT EXPOSE THIS UNIT

TO RAIN OR MOISTURE.

DO NOT USE THIS UNIT’S GROUNDED PLUG WITH AN EX-

TENSION CORD OR IN AN OUTLET UNLESS ALL THREE

PRONGS CAN BE FULLY INSERTED.

DO NOT OPEN THE CABINET. THERE ARE HIGH-VOLTAGECOMPONENTS INSIDE. ALL SERVICING MUST BE DONE BY

QUALIFIED NEC SERVICE PERSONNEL.

DOC Compliance Notice

This Class B digital apparatus meets all requirements of the Canadian Interference-CausingEquipment Regulations.

3. GSGV Acoustic Noise Information Ordinance:

The sound pressure level is less than 70 dB (A) according to ISO 3744 or ISO 7779.

In UK, a BS approved power cable with moulded plug has a Black (five Amps) fuse installed for use with this equipment. If a power cable is not supplied with this equipment please contact your supplier.

IBM is a registered trademark of International Business Machines Corporation.

Macintosh and PowerBook are registered trademarks of Apple Computer, Inc.

Other product and company names mentioned in this user's manual may be the trademarks of their respective holders.

Installation

1.For best results, use your projector in a darkened room.

2.Place the projector on a flat, level surface in a dry area away from dust and moisture. Tilting the front of the projector up or down by more than 45° from level could reduce lamp life by up to 20%.

3.Do not place your projector in direct sunlight, near heaters or heat radiating appliances.

4.Exposure to direct sunlight, smoke or steam can harm internal components.

5.Handle your projector carefully. Do not hold the lens hood and the terminal covers. Dropping or jarring can damage internal components.

6.Do not place heavy objects on top of the projector.

7.If you wish to have the projector installed on the ceiling:

a.Do not attempt to install the projector yourself.

b.The projector must be installed by qualified technicians in order to ensure proper operation and reduce the risk of bodily injury.

c.In addition, the ceiling must be strong enough to support the projector and the installation must be in accordance with any local building codes.

d.Please consult your dealer for more information.

To Dealer or Installer:

To prevent the projector from falling, install it in a place and fasten it in a way with sufficient strength to support the combined weight (24.0 kg/53.0 lbs) of the projector (18.4 kg/40.6 lbs), the lens (2.0 kg/4.4 lbs) and the ceiling mount(3.2 kg/7.1 lbs) for an extended period of time as well as to withstand earthquakes.

ii

Important Information

Power Supply

1.The projector is designed to operate on a power supply of 100120 or 200-240V 50/60 Hz AC. Ensure that your power supply fits this requirement before attempting to use your projector.

2.Handle the power cable carefully and avoid excessive bending. A damaged cord can cause electric shock or fire.

3.If the projector is not to be used for an extended period of time, disconnect the plug from the power outlet.

4.Do not touch the power plug with wet hand. Doing so can cause electrical shock or fire.

5.Do not touch the power plug during a thunder storm. Doing so can cause electrical shock or fire.

Cleaning

1.Unplug the projector before cleaning.

2.Clean the cabinet periodically with a damp cloth. If heavily soiled, use a mild detergent. Never use strong detergents or solvents such as alcohol or thinner.

3.Use a blower or lens paper to clean the lens, and be careful not to scratch or mar the lens.

CAUTION

Do not unplug the power cable from the wall outlet under any one of the following circumstances. Doing so can cause damage to the projector:

While the message "Please wait a moment." appears. This message will be displayed after the projector is turned off.

Immediately after the power cable is plugged into the wall outlet (the POWER indicator has not changed to a steady orange glow).

Immediately after the cooling fan stops working (The cooling fan continues to work for 90 seconds (2 minutes in the optional extended life lamp) after the projector is turned off with the

POWER button).

CAUTION

Do not try to touch the ventilation outlets as they can become heated while the projector is turned on.

Do not put the projector on its side when the lamp is turned on. Doing so may cause damage to the projector.

Before shipping this projector, remove the lens and attach the lens hood cap.

The Lens Shift mechanism may encounter damage caused by improper handling during transportation.

Do not eject a PC card or LAN card while its data is being accessed. Doing so can damage your PC card or LAN card.

Lamp Replacement

To replace the lamp, follow all instructions provided on page 9-2.

Be sure to replace the lamp when the message "The Lamp has reached the end of its usable life. Please replace the lamp." appears. If you continue to use the lamp after the lamp has reached the end of its usable life, the lamp bulb may shatter, and pieces of glass may be scattered in the lamp case. Do not touch them as the pieces of glass may cause injury. If this happens, contact your NEC dealer for lamp replacement.

Allow a minimum of 90 seconds (2 minutes in the optional extended life lamp) to elapse after turning off the projector. Then turn off the main power and disconnect the power cable and allow

60 minutes to cool the projector before replacing the lamp.

The projector must be operated with two lamp housings installed regardless of whether or not the lamp is active. Failure to do so may degrade the performance of the projector such as screen flicker or loss of lamp life. If one lamp has reached the end of its usable life, replace it with a new one as soon as possible.

Fire and Shock Precautions

1.Ensure that there is sufficient ventilation and that vents are unobstructed to prevent the build-upof heat inside your projector. Allow at least 3 inches (10 cm) of space between your projector and a wall. Allow at least 12 inches (30cm) of space between the outlets on the left side (when viewed from the front) and the wall.

2.Prevent foreign objects such as paper clips and bits of paper from falling into your projector. Do not attempt to retrieve any objects that might fall into your projector. Do not insert any metal objects such as a wire or screwdriver into your projector. If something should fall into your projector, disconnect it immediately and have the object removed by a qualified service personnel.

3.Do not place any liquids on top of your projector.

4.When using a LAN cable:

For safety, do not connect to the connector for peripheral device wiring that might have excessive Voltage.

CAUTION

Do not look into the lens while the projector is on. Serious damage to your eyes could result.

Keep any items such as magnifying glass out of the light path of the projector. The light being projected from the lens is extensive, therefore any kind of abnormal objects that can redirect light coming out of the lens, can cause unpredictable outcome such as fire or injury to the eyes.

Do not cover the lens with the supplied lens hood cap or equivalent while the projector is on. Doing so can lead to melting of the cap and possibly burning your hands due to the heat emitted from the light output.

iii

Table of Contents

1. Introduction

z What's in the Box? ....................................................................

1-2

x Introduction to the Projector ...................................................

1-3

c Getting to Know Your Projector ...............................................

1-4

Attaching the lens hood cap to the lens hood with the supplied



string and rivet ............................................................................

1-6

Carrying the Projector .................................................................

1-6

Top Features ...............................................................................

1-7

Terminal Panel Features .............................................................

1-8

v Remote Control Features .......................................................

1-10

Remote Control Precautions .....................................................

1-12

Remote Control Battery Installation ..........................................

1-12

Operating Range for Wireless Remote Control ........................

1-12

Using the Remote Control in Wired Operation .........................

1-13

2. Installation

z Setting Up Your Projector ........................................................

2-2

Screen Size and Projection Distance .........................................

2-2

x Lens Shift Adjustable Range ...................................................

2-4

c Optional Lens Installation .......................................................

2-6

v Making Connections ................................................................

2-8

Connecting Your PC or Macintosh ..............................................

2-8

To connect Scart Output .............................................................

2-9

Connecting an External Monitor .................................................

2-9

Connecting Your DVD Player ....................................................

2-10

Connecting Your VCR or Laser Disc Player ..............................

2-11

Connecting to a Network ..........................................................

2-12

Connecting the Supplied Power Cable .....................................

2-13

3. Projecting an Image (Basic Operation)

z Turning on the Projector ..........................................................

3-2

x Selecting a Source ...................................................................

3-3

c Adjusting the Picture Size and Position .................................

3-3

v Correcting the Horizontal and Vertical Keystone Distortion (3D

Reform) .....................................................................................

3-4

b Optimizing RGB Picture Automatically ..................................

3-6

n Turning Up or Down Volume ....................................................

3-6

m Turning off the Projector ..........................................................

3-7

4. Convenient Features

z Turning Off the Image and Sound ...........................................

4-2

x Enlarging and Moving a Picture ..............................................

4-2

c Getting theOn-lineHelp and Information ..............................

4-2

v Using a USB Mouse .................................................................

4-3

b Using a USB HUB Function .....................................................

4-3

n Changing Background Logo ...................................................

4-4

m Making Freehand Drawings on



, Projected Image (ChalkBoard) ................................................

4-4

. Lens Memory ............................................................................

4-5

5. Using the Viewer

z Making the Most out of the Viewer Function .........................

5-2

x Operating the Viewer Function from the Projector



(playback) .................................................................................

5-3

6. Using the Projector in a Network

z End User License Agreement .................................................

6-2

x Introduction ...............................................................................

6-3

c Supported Projectors ...............................................................

6-4

v Equipment Connections and Settings ....................................

6-5

b Software Installation ................................................................

6-6

n Starting/Exiting the Software ..................................................

6-7

m Troubleshooting ........................................................................

6-8

7. Setting Up for Double Stacking in Link Mode

z Stacking and Connecting the Projectors ...............................

7-2

x Adjusting and Registering Signals to Be Projected ..............

7-5

c Adjusting the Lens Shift, Zoom and Focus to Clearly Display

all projected patterns ..............................................................

7-5

v Link Mode Setting ....................................................................

7-5

b List of Menu Items Available in Link Mode ............................

7-6

8. Using On-ScreenMenu

z Basic Menu Operation ..............................................................

8-2

x List of Direct Button Combinations ........................................

8-3

c Menu tree ...................................................................................

8-4

v Menu Descriptions & Functions ..............................................

8-7

Adjust (Source) ...........................................................................

8-8

Picture .................................................................................

8-8

Video Adjust ........................................................................

8-8

Picture Management ...........................................................

8-9

Image Options ...................................................................

8-10

Option Adjust .....................................................................

8-10

Lens Memory .....................................................................

8-11

Signal Type ........................................................................

8-11

Sound .......................................................................................

8-11

Ref. Adjust ................................................................................

8-12

Using 3D Reform ...............................................................

8-12

Screen Type .......................................................................

8-12

Reference White Balance ..................................................

8-12

Reference Color Correction ...............................................

8-12

Reference Lens Memory ...................................................

8-13

Factory Default .........................................................................

8-13

Projector Options ......................................................................

8-13

Menu .................................................................................

8-13

Setup .................................................................................

8-15

Lamp Settings ...................................................................

8-18

Link Mode ..........................................................................

8-18

LAN Mode .........................................................................

8-19

Setting a Password ............................................................

8-23

Security .............................................................................

8-24

Tools .........................................................................................

8-25

Timer .................................................................................

8-25

Using Capture (GT5000 only) ...........................................

8-27

Using PC Card Files ..........................................................

8-27

Using ChalkBoard .............................................................

8-27

Help ..........................................................................................

8-27

Contents ............................................................................

8-27

Source Information ............................................................

8-27

Projector Information .........................................................

8-28

Test Pattern ...............................................................................

8-28

9. Maintenancez Replacing the Lamp .........

9-2

z Replacing or Cleaning the Filter .............................................

9-3

x Cleaning the Cabinet and the Lens .........................................

9-4

10. Appendix



z USB Memory Device or USB Memory Card Reader Support ........

10-2

xTroubleshooting ......................................................................

10-3

c Specifications .........................................................................

10-5

v Cabinet Dimensions ...............................................................

10-7

b Pin Assignments ofD-SubRGB Input Connector ...............

10-7

n Compatible Input Signal List .................................................

10-8

m REMOTE 1 Connector ............................................................

10-9

, PC Control Codes and Cable Connection ..........................

10-10

Cable Connection ...................................................................

10-10

PC Control Connector (D-SUB9P) .........................................

10-10

. Using Software Keyboard ....................................................

10-10

⁄0Operation Using an HTTP Browser .....................................

10-11

iv

1

Introduction

z What's in the Box? ....................................................

1-2

x Introduction to the Projector .....................................

1-3

c Getting to Know Your Projector .................................

1-4

Attaching the lens hood cap to the lens hood with the supplied string and rivet . 1-6

Carrying the Projector .........................................................................................

1-6

Top Features ........................................................................................................

1-7

Terminal Panel Features ......................................................................................

1-8

v Remote Control Features .......................................

1-10

Remote Control Precautions .............................................................................

1-12

Remote Control Battery Installation ...................................................................

1-12

Operating Range for Wireless Remote Control .................................................

1-12

Using the Remote Control in Wired Operation ..................................................

1-13

1. Introduction

z What's in the Box?

Make sure your box contains everything listed. If any pieces are missing, contact your dealer. Please save the original box and packing materials if you ever need to ship your Projector.

NOTE: Lenses are optional. Order lenses from your Dukane dealer.

Terminal cover (Left and Right)

String (024C04541)and rivet (024C04531)

Projector

Remote control (079646633) andLens hood cap batteries (AAA 2)

(024F37661)

Remote cable

(073499391)

Power cable for Europe (AC 230V)

Power cable for North America (AC 120V)

Power cable for Japan (AC 100V)

(07N080003)

(07N080208)

(07N080113)

InformationImportant

Document

User's Manual

1-2

1. Introduction

x Introduction to the Projector

This chapter introduces you to the 9060 high end

fixed installation projector and describes key features and controls.

Congratulations on Your Purchase of the projector

The 9060 is a sophisticated three panel, dual

lamp XGA LCD projector. With the 9060 you will be

able to project images up to 500" (measured diagonally) from your DVD player, VCR, satellite hookup, HDTV source, PC, Workstation or Macintosh computer (desktop or notebook) and images from you digital camera PC Card or compact flash memory. The Dukane 9060 incorporates integrated networking access through the RJ45 input or provides for wireless network connectivity from an optional wireless network PC card. With extensive input and output panels, optional long life lamp, full suite of quickchange lenses and a full function remote, the 9060

will let you immerse yourself in large screen viewing.

Features you’ll enjoy on the 9060:

Integrated RJ45 connector for wired networking ability

Two optional modular card slots allow for future projector growth with the ability to add additional input cards

Dual PC card slots provide for optional wireless/wired network connectivity or PC Card usage

Email projector error status information to selected individuals

Power Horizontal and Vertical lens shift for optical display corrections

Lens memory controls lens attributes (zoom, focus, shift) depending on input resolution and input selected for fast and easy source transitions

Designed and developed SweetVisionTM technology for enhanced video image display, more vibrant colors and blacks richer with detail

3D Reform enhanced image technology for increased projector versatility that provides for horizontal, vertical and diagonal keystone correction (allows for positioning the projector in off center locations in the room and still get aligned images)

Display 16:9 or 4:3 information and fill the screen

HDTV (1080p, 1080i, 720p) and SDTV (576p, 576i, 480p, 480i) compatibility

9060 supports a native resolution of XGA (1024 768) and

Intelligent lamp technology offers up to six user lamp settings to maximize light output or lamp life and provide for built in redundancy

Smart security settings for password protection, control panel lock, menu lock and PC card protection key to help prevent unauthorized access and adjustments to the projector

ADA508 and Executive Order 13221 Federal Government compliance *1

NEC 3D 10-bitvideo decoder for expanded black levels and adaptive gamma correction

High performance optional long life lamp for low total operating costs

Digital photo viewer to display larger than life images from your digital cameras PC card or compact flash card

Double stackable for built in redundancy and high light output requirements

Built in 5W 2 speakers for an integrated audio solution

Two timer settings - On/Off with programming or Sleep timer that counts down at selected intervals

12V low voltage Screen Trigger output

Easy set up and operation

Eco-mode™lamp technology for increased lamp life and energy savings

VORTEX Technology Plus™ for uncompromising display of video and data. Improves white level, color accuracy, dynamic range, and display of varying levels of black in an image

Wireless remote control operation

External control via RS232, USB or Network

Advanced AccuBlend intelligent pixel blending technology provides for extremely accurate image compression and HDTV (1920 1080) display resolution*2.

Supports most IBM VGA, SVGA, XGA, Macintosh, component signal (YCbCr/YPbPr) or other RGB signals within a horizontal frequency range of 15 to 100 kHz and a vertical frequency range of 48 to 120 Hz. This includes NTSC, NTSC4.43, PAL, PAL-M,PAL-N,PAL60 and SECAM standard video signals

NOTE: Composite video standards are as follows: NTSC: U.S. TV standard for video in U.S. and Canada.

NTSC4.43: TV standard used in Middle East countries. PAL: TV standard used in Western Europe.

PAL-M:TV standard used in Brazil.

PAL-N:TV standard used in Argentine, Paraguay and Uruguay. PAL60: TV standard used for NTSC playback on PAL TVs. SECAM: TV standard used in France and Eastern Europe.

*1 The 9060 meets ADA508 compliance, the latest American government regulation which provides for closed captioning, including a menu system that can be viewed by colorblind users. This model also meets Executive Order 13221 requirement for standby operation, which consumes less than 1 watt.

*2 HDTV 1080P (1920 1080), HDTV 1080i (1920 1080), HDTV

720 p (1280 720) and 1600 1200 are displayed with Advanced AccuBlend technology on the 9060.

1-3

1. Introduction

c Getting to Know Your Projector

Terminal panel (Left)

Lens hood

Controls

ADJUST



YB D



REW OP

















AUTO

NAT

/SNO

















A





SU

















MROFER

D3



LECNAC



TATS















3D





2

PMAL























R



















SELECT



E





PMAL



















T



1













U













2

DRACCP









M





















NE

































RIGHT

SHIFT



DOWN



1DRAC

CP

















LENS





















UP





LEFT



ZOOM









































Z



FOCUS























F



Lens (optional)

AUDIO







OUT







L/MONO



RGB1

AUDIO











R





DVI





L/MONO

RGB



AUDIO

SLOT1



2

R







R/Cr

SLOT2

RGB







OUT







G/Y



VIDEO

S-











VIDEOB/Cb







H/



L/MONO



HV









L/MONO

V



R









R





Terminal panel (Right)

USB(







MOUSE/HUB)

USB(PC)









2





PC

CARD







PC

CONTROL



1









IN





LAN

SC

OUT

RE

TRIGGER



MOTE1

REMOTE2

IN

OUT

ACIN

Lamp cover 1 (Right)

Built-inSecurity Slot ()*

Remote sensor

Carrying handle

Air filter (Right)

Lens hood cap

AC INPUT

Connect the supplied power cable’s three-pinplug here.

Speaker 5W (Stereo)

Foot (four)

Rotate to fine-adjustthe height of each foot (max. 0.6”/15mm).

*NOTE: Slot for Kensington MicroSaver Security System This security slot supports the MicroSaver® Security System.

MicroSaver® is a registered trademark of Kensington Microware Inc. The logo is trademarked and owned by Kensington Microware Inc.

Attaching and Removing the Terminal Covers

To remove the terminal cover, push and hold the latch.

To attach the terminal cover, align the protrusions inside and push it until you feel it click into place.

2

1

1-4

1. Introduction

Depression for foot (4 locations)





F







FO





Z







CUS











ZO



LEFT







OM





UP



PCC





LENSSH









IFT



ARD

1

DO

WN

RIGHT





PCC

















ARD2











LA

MP1











T











E









LA

R











MP 2











STA











TUS

SE

LECT



CANCEL

P



OWER

MENU

3D ON/STAND BY

RE

3D



FORM

AUTO

A

ADJUST

Speaker 5W (Stereo)

Remote sensor

Remote sensor

Ventilation (outlet)

Air filter (Left)

Lamp cover 2 (Left)

Ventilation (outlet)

Remote sensor

Air filter (Right)

Ventilation (inlet)

Remote sensor

1-5

1. Introduction

Attaching the lens hood cap to the lens hood with the supplied string and rivet

1. Thread the string through the hole on the lens hood cap.

Lens hood cap

String

2. Use the rivet to attach the string to the bottom of the projector.

Rivet

Carrying the Projector

Always carry your projector by the handle.

Ensure that the power cable and any other cables connecting to video sources are disconnected before moving the projector.

When moving the projector or when it is not in use, cover the lens with the lens hood cap.

CAUTION: Do not put the projector on its side when the lamp is on.

Doing so may cause damage to the projector.



RIGHT



NTE





RE





CA

SELECT



NC



EL

M





E





NU

BY ON/STAND



3D









A

1-6

1. Introduction

Top Features

14 13 12

10

9

8

11

6

7







MENU







F Z

UP



















3D

A











LEFT

LENS SHIFT RIGHT



SELECT



3D REFORM AUTO ADJUST

FOCUS ZOOM

DOWN

E NTE

R





L





E





C



N

A



C





ON/STAND BY

PC CARD 1 PC CARD 2 LAMP 1

LAMP 2

STATUS

POWER

5

4

3

2

1

1. POWER Button (ON / STAND BY)( )

Use this button to turn the power on and off when the main power is supplied and the projector is in standby mode or idle mode.

NOTE: To turn on or off the projector, press and hold this button for a minimum of two seconds.

2. POWER Indicator

When this indicator is green, the projector is on; when this indicator is orange, it is in standby or idle mode. See the Power Indicator section on page 10-3for more details.

3. STATUS Indicator

If this light blinks red rapidly, it indicates that an error has occurred, the lamp cover is not attached properly or the projector has overheated. If this light remains orange, it indicates that you have pressed a cabinet key while the Control Panel Key Lock is enabled. See the Status Indicator section on page 10-

3 for more details.

4.LAMP Indicator 1/2

If this light blinks red rapidly, it's warning you that the lamp has reached the end of its usable life. After this light appears, replace the lamp as soon as possible (See page 9-2).See the Lamp Indicator section on page10-3for more details.

5.PC CARD Access Indicator 1/2

Lights while accessing a PC card.

6.3D REFORM Button

Press this button to enter 3D Reform mode to correct the keystone (trapezoidal) distortion, and make the image square. Press to toggle between Cornerstone and Keystone adjustment mode.

NOTE: Pressing and holding this button for a minimum of 2 seconds will reset 3D Reform correction setting values to zero.

7. AUTO ADJUST Button

Use this button to adjust Position-H/Vand Pixel Clock/Phase for an optimal picture. See page3-6.

8.MENU Button

Displays the menu.

9.SELECT (+) (–) /Volume Buttons

: Use these buttons to select the menu of the item you

wish to adjust. When no menus appear, these buttons work as a volume control.

: Use these buttons to change the level of a selected menu item. A press of the button executes the selection.When the menus or the Viewer tool bar is not displayed, these buttons can be used to select a slide, or to move the cursor in Folder List or Slide List.

10.ENTER Button

Executes your menu selection and activates items selected from the menu.

11. CANCEL Button

Press this button to exit "Menus". Press this button to return the adjustments to the last condition while you are in the adjustment or setting menu.

12. LENS SHIFT Button

Adjust the lens offset by shifting the projected image position horizontally and / or vertically.

13. ZOOM Button (+/-)

Zoom the lens in and out.

14. FOCUS Button (+/-)

Adjust the lens focus.

1-7

1. Introduction

Terminal Panel Features







2

1









AUDIO

DVI











AUDIO OUT



RGB 1



7





SLOT 1

SLOT 2

L/MONO



L/MONO





R

AUDIO

R











RGB 2

R/Cr

G/Y

RGB OUT

4

B/Cb

VIDEO S-VIDEO

H/

HV

V

L/MONO L/MONO

R R

DVI AUDIO Input Mini Jack (Stereo Mini)

This is where you connect the audio output from your computer when connected to the DVI input. A commercially available audio cable is required.

4. RGB OUT Connector (Mini D-Sub15 Pin)

3 You can use this connector to loop your computer image to an external monitor from the RGB 1 or 2 input source.

5.VIDEO IN Connector (BNC)

Connect a VCR, DVD player, laser disc player, or document

8 camera here to project video.

VIDEO AUDIO Input Jacks R/L (RCA)

These are your left and right channel audio inputs for stereo sound from a Video source.

6.S-VIDEOIN Connector (Mini DIN 4 Pin)

Here is where you connect the S-Videoinput from an external source like a VCR.

NOTE: S-Videoprovides more vivid color and higher resolution than the traditional composite video format.

S-VIDEOAUDIO Input Jacks R/L (RCA)

These are your left and right channel audio inputs for stereo sound from an S-Videosource.

56

1.RGB 1 Connectors [R/Cr, G/Y, B/Cb, H/V, V] (BNC)

Connect R,G,B,H (Horizontal sync) and V (Vertical sync) outputs of external equipment.

If using a component with a combined sync (SYNC) output, connect it to the H/V terminal.When using luminance and colordifference signals of HDTV and DVD, connect Pr/Cr to the R, Y to the G and Pb/Cb to the B input of the projector.

RGB 1 Audio Input Jacks (RCA)

L/MONO: This is your left channel audio input for stereo sound coming from the RGB Input 1 source.

This also serves as your monaural audio input.

R:This is your right channel audio input for stereo sound from the RGB Input 1 source.

2.RGB 2 Connector (Mini D-sub15 Pin)

Connect your computer or other analog RGB equipment such as IBM compatible or Macintosh computers. This also serves as a component input connector that allows you to connect a component video output of component equipment such as a

DVD player. This connector also supports SCART output signal. See page 2-9for more details.

RGB 2 Audio Iput Mini Jack (Stereo Mini)

This is where you connect audio output from your computer or DVD player connected to the RGB2 input. A commercially available audio cable is required.

3.DVI IN Connector (DVI-D24 Pin)

This connector can be used to accept digital signal output from a computer with a DVI connector.

7.AUDIO OUT Jacks R/L (RCA)

You can use this connector to output sound from the currently selected input source (RGB 1, RGB 2, DVI (DIGITAL), Video or S-Video).

Output sound level can be adjusted in accordance with the sound level of the internal speaker.

8.Slot 1/2

For optional RGB, SDI or DVI board.

1-8

1. Introduction

Terminal Panel Features





1

2

3



4







2



USB (MOUSE/HUB) USB(PC)

PC CARD

1





PC CONTROL



LAN









7

5

IN















REMOTE 1

8



OUT











9

6

SC TRIGGER



REMOTE 2



IN

OUT









AC IN

1011

1.USB Port [MOUSE/HUB] (Type A)

Connect a USB mouse. You can operate the menu or Viewer with a USB mouse via this port.

A USB-supportedscanner or PC peripheral can be connected to this port. (USB Hub Function. See page4-3)

2.USB Port [PC] (Type B)

Connect this port to the USB port (type A) of your PC using a

USB cable.This port also serves as a PC Control port by using Dynamic Image Utility 2.0 included on the supplied CD-ROM.

3.PC CARD Slot 1/2

Insert a PC card, commercially available flash memory card or optional wireless LAN card here.

There are two slots: Slot 1 and Slot 2.

4.PC CARD Eject Button 1/2

Press to eject a PC card partially. Each slot has its own eject button: 1 and 2.

5.PC CONTROL Connectors (Mini D-Sub9 pin)

For system expansion such as PC-Controlusing Dynamic Image Utility included on the supplied User Supportware CDROM or RS232C control from an external control system.

IN: connect to the external equipment such as a PC or control system.

OUT: for daisy-chainingmultiple projectors and operating them with the same external equipment. To do so, connect to a second projector’ s IN terminal to relay the input at the IN terminal of the first projector until all the projectors are connected.

6.SC. TRIGGER Mini Jack

When the projector is powered ON the screen trigger output sends a low voltage trigger to the screen controller and the screen will go down. When the projector is powered OFF the screen trigger stops sending a low voltage trigger to the screen controller and the screen will go up.

NOTE: To use this feature, you must turn on the Screen Trigger function. See page 8-17.

Stereo mini cable





Tip (12V)

(not supplied)























Ring (0V)

























































Sleave (ground. 0V)

NOTE: Screen controllers are supplied and supported by screen manufacturers.

NOTE: Do not use this jack for anything other than intended use. Connecting wired remote control to the SC. TRIGGER Mini Jack causes damage to the remote control.

7.LAN Port (RJ-45)

This port is typically used for UTP Ethernet/Fast Ethernet. Use this connector to control the projector on a LAN. See page

2-12.

8.REMOTE 1 (Mini D-Sub15 Pin)

This terminal allows external control of the projector by use of contact closure. See page 10-9.

9.REMOTE 2 Mini Jacks (IN/OUT)

IN: wired remote control input.

OUT: for daisy-chainingmultiple projectors and operating them with the same remote control. To do so, connect to a second projector’ s IN terminal to relay the input at the IN terminal of the first projector until all the projectors are connected.

10.Main Power Switch

When you plug the supplied power cable into an active wall outlet and turn on the Main Power switch, the POWER indicator turns orange and the projector is in standby mode. See page 3-2.

11. AC IN

Connect the supplied power cable’s three-pinplug here.

Three types of power cable are supplied with this projector: three-pintype for U. S. A. andCanada.Two-pintype for Europe and Japan.

1-9

1. Introduction

v Remote Control Features



OFF

POWER

ON

2















MENU

5

BS -

+

ADDRESS



ENTER







6

ADJUST


7

PICTURE WHITE BAL. PROJECTOR





ABC

DEF

GHI



1

2

3



JKL

MNO

PQR

9

4

5

6

STU

VWX

YZ/

10

7

8

9

,.

UNDO

CANCEL

12

0





TEST

INFO.

HELP

13







17

POSITION

PIXEL

AUTO

LENS





20

SHUTTER

MUTE




SOUND

OSD



21

KEYSTONE

AMPLITUDE ENTRYLIST

R

G

B

22



MAGNIFY



+

+





24



-

-





26

FOCUS

ZOOM



LENS









CTL

1. POWER ON



Press and hold this button for a minimum of two seconds to



turn on the projector when the main power is supplied and the



projector is in standby mode or idle mode.



2. POWER OFF



Press and hold this button for a minimum of two seconds to



turn off the projector.

1

3. MENU



Press to display the main menu.

3

While pressing and holding CTL, press this button to display

the Remote Control ID dialog box to specify the remote control



ID. See page 7-2.

4

4. ENTER



Executes the menu selection and activates items selected from

8

the menu. When the slider or dialog box is displayed:

Pressing this button confirms adjustments/setting and returns





to the previous menu display.



5. Select (Up/Down/Left/Right)



: Use these buttons to select the menu of the item you



wish to adjust.



When no menus appear, these buttons work as a volume



control.



: Use these buttons to change the level of a selected



menu item.

11

A press of the button executes the selection.

Pressing and holding CTL, then pressing button works as a

14

Back Space key in the entry screen.

15

Pressing and holding CTL, then pressing this button moves

the menu, slider, toolbar or dialog box.



16

6. ADJUST WHITE BAL.

18

Press to display the Picture Management screen.



19

7. ADJUST PICTURE



Press to display the Picture adjustment screen. Pressing this

23

button sequentially selects adjustment screens.



8.IMAGE/PROJECTOR

Press to display the Image Option screen. Pressing this button

sequentially selects Image Options screens.

25 While pressing and holding CTL, pressing this button rotates Projector Options screens.

9.Source / Input

Press to select input or to name a signal.

1Selects RGB 1 input.

2Selects RGB 2 input.

3Selects DVI (DIGITAL) input.

4Selects VIDEO input.

5Selects S-VIDEOinput.

6Selects Viewer input

7Selects LAN input

8Selects OPTION SLOT 1* (available for optional SDI board)

9Selects OPTION SLOT 2* (available for optional SDI board)

0Sequentially selects: RGB1 (VIDEO) RGB1(S-VIDEO) .

*This button toggles between input 1 and 2.

NOTE: While pressing and holding CTL, pressing this button switches to the selected signal found in the Entry List.

1-10

1. Introduction

10. UNDO

Press to return the adjustments and settings to the previous condition. While pressing and holding CTL, pressing this button clears the entire menus or adjustment/setting screen. At this time the adjustments/settings are stored in memory except the items on the setting screen with "OK" and "Cancel" buttons such as the Menu and the Setup screen.

11. CANCEL

Press to exit the menu.

Press this button with CTL to return to the previous menu without closing adjustment/setting screen while the menus appear. This feature allows you to adjust or set several items concurrently.

12. INFO

Displays the "Source Information" or "Projector Information" window. This button toggles between these two windows. While pressing and holding CTL, pressing this button stores lens position settings.

13. TEST

Press to display the test pattern. Pressing this button sequentially selects test patterns.

14. HELP

Provides online help.

15. PIXEL

Displays the Position/Clock screen to adjust the clock and phase.

16. AUTO (RGB only)

Press to adjust Position-H/Vand Pixel Clock for an optimal picture.

17. POSITION

Press to display the Position screen; press again to display the Blanking screen.

While pressing and holding CTL, pressing this button displays the Lens Shift adjustment screen.

22.AMPLITUDE (G) Service personnel only.

When the test pattern is displayed, while pressing and holding

CTL, pressing this button displays a green test pattern.

23.ENTRY LIST (B)

Press to display the Entry List screen.

Pressing and holding CTL and then ENTRY LIST buttons simultaneously, enters a signal in the Entry List when you are not displaying a test pattern.

When the test pattern is displayed, while pressing and holding

CTL, pressing this button displays a blue test pattern.

24. FOCUS (+/–)

While pressing and holding CTL, pressing this button allows you to adjust the lens focus.

25. MAGNIFY/ZOOM (+/–)

Magnify the size of a target portion.

While pressing and holding CTL, pressing this button allows you to zoom the lens in and out.

26. CTL

Used in conjunction with other buttons, similar to a shift key on a computer.









R





2









.












P

BAL

DEF

















ENTER







WHITE

C















ADDRESS





ADJUST

TURE



MENU



+



















ON







-









POWER







BS







OFF

























27

28

27. Remote Jack

Connect your remote cable here for wired operation.

18. MUTE SOUND

Turns off the sound for a short period of time. Press again to restore the sound.

19. MUTE OSD

Press to turn off the on-screendisplay. Press again to restore theon-screendisplay.

NOTE: You can also turn off the on-screendisplay forcibly by pressing and holding CTL and then pressing MUTE OSD (ForcedOn-ScreenMute Mode) ; doing this again restores it. In this case any adjustment will still change the projector's memory settings. This mode is available even when input is switched to another or the power is turned off the main power.

20. MUTE PICTURE

Press to turn off the picture for a short period of time. Press again to restore the picture.

21. KEYSTONE (R)

Press to display the Keystone Correction (3D Reform) screen.

This button toggles between “Cornerstone” and “Keystone”. When the test pattern is displayed, while pressing and holding CTL, pressing this button displays a red test pattern.

NOTE: Pressing and holding this button for a minimum of two seconds will reset 3D Reform correction setting values to zero.

28. Infrared Transmitter

Direct the remote control toward the remote sensor on the projector cabinet.

1-11

1. Introduction

Remote Control Precautions

The remote control system may not function when direct sunlight or strong illumination strikes the remote control sensor of the main unit, or when there is an obstacle in the path.

When remote control buttons are pressed and held, projector’s function keys may not operate.

Do not subject to strong shock.

Do not allow water or other liquid to splash on the remote control. If the remote control gets wet, wipe it dry immediately.

Avoid exposure to heat and steam.

Remove the batteries from the remote control when the remote control is not going to be used for a long period.

Remote Control Battery Installation

Installing the Remote Control Batteries

When it comes time to replace the batteries, two "AAA" type will be required.

1. Press and open the cover.

2.Align and insert the batteries according to the (+) and (-)indications inside the case.

Operating Range for Wireless Remote Control

The infrared signal operates by line-of-sightup to a distance of approximately 7m (20 feet) and a 60 degree angle of the remote sensor.

The projector will not function if there are objects between the remote sensor and the remote control or if strong light falls on the remote sensor. Weak batteries will also prevent the projector from operating properly.

Side View

30˚

7m

30˚

Remote sensors on the projector cabinet

7m

Remote control

NOTE: You cannot operate the projector using the remote control if:

• The remote control ID is not set to [None].

• The remote ID is not the same as the projector ID. See page 7-2for setting remote ID and projector ID.

3. Replace the cover.

1-12

1. Introduction

Using the Remote Control in Wired Operation

Connect one end of the supplied remote cable to the REMOTE 2 IN mini jack and the other end to the remote jack on the remote control.

NOTE: Do not use this jack for anything other than intended use. Connecting the wired remote control to the SC. TRIGGER Mini Jack causes damage to the remote control.





DVI





AUDIO OUT

RGB 1









SLOT 1

SLOT 2

USB MOUSE/HUB USB PC

PC CARD





PC CONTROL

RGB 2







IN

RGB OUT







OUT

VIDEO

S-VIDEO

SC TRIGGER

2

1

REMOTELAN 2

IN

REMOTE 1

REMOTE 2

IN OUT

AC IN

Terminal panel (Right)

ZOOMFOCUS

- -

+ +

MAGNIFY

MUTE

AUTOPIXEL POSITION

HELP.INFO TEST

0

CANCELUNDO

98 7

/YZVWX STU

65 4

PQRMNO JKL

32 1

DEFGHI ABC

ENTER

MENU

POWER ON

















. ,













-



OFF































+





Remote cable (supplied)

1-13

2

Installation

z Setting Up Your Projector ..........................................

2-2

Screen Size and Projection Distance ..................................................................

2-2

x Lens Shift Adjustable Range ....................................

2-4

c Optional Lens Installation .........................................

2-6

v Making Connections .................................................

2-8

Connecting Your PC or Macintosh .......................................................................

2-8

To connect Scart Output .................................................................................

2-9

Connecting an External Monitor ..........................................................................

2-9

Connecting Your DVD Player .............................................................................

2-10

Connecting Your VCR or Laser Disc Player .......................................................

2-11

Connecting to a Network ...................................................................................

2-12

Connecting the Supplied Power Cable ..............................................................

2-13

2-1

2. Installation

This chapter describes how to set up your projector and how to connect video and audio sources.

z Setting Up Your Projector

Your Projector is simple to set up and use. But before you get started, you must first:

1.Determine the image size

2.Set up a screen or select a non-glossywhite wall onto which you can project your image.

3.Install the optional lens to the projector.

4.Connect the supplied power cable.

5.Set up the projector.

6.Connect a PC, VCR, DVD player, or other equipment.

7.Make settings or adjustments on the projector.

Screen Size and Projection Distance

Applicable lens and throw distance/ List of screen sizes

Height

Screen size (Diagonal)





Width

List of Screen Sizes

Screen size

Width (H)





Height (V)



m



inch

m



inch

40"

0.8



31.5

0.6



23.6

60"

1.2



47.2

0.9



35.4

80"

1.6



63.0

1.2



47.2

100"

2.0



78.7

1.5



59.1

120"

2.4



94.5

1.8



70.9

150"

3.0



118.1

2.3



90.6

200"

4.1



161.4

3.0



118.1

250"

5.1



200.8

3.8



149.6

300"

6.1



240.2

4.6



181.1

400"

8.1



318.9

6.1



240.2

500"

10.2



401.6

7.6



299.2

Formulas: Screen width H (m)= Screen size 4/5 0.0254 Screen height V (m)= Screen size 3/5 0.0254 Screen width H (inch)= Screen size 4/5 Screen height V (inch)= Screen size 3/5

Table of Throw Distances and Screen Sizes for Optional Lenses



GT10RLB



GT13ZLB





GT19ZL





GT20ZL





GT24ZLB



GT34ZLB





1.0



1.2-1.5







1.7-2.2





2.0-2.6





2.2-3.2





3.2-4.8































(m)

(inches)

(m)

(inches)

(m)

(inches)

(m)

(inches)

(m)

(inches)

(m)

(inches)

40"

0.76

30.0

0.91

- 1.15

36.0

-

45.2

1.30

- 1.74

51.0

- 68.4

1.53

- 2.03

60.1

- 80.0

––



––

––

––

60"

1.17

46.1

1.40

- 1.75

55.2

-

69.0

1.99

- 2.65

78.3

- 104.2

2.34

- 3.10

92.1

- 122.0

2.58

- 3.86

101.6

- 152.0

––

––

67"

1.31

51.7

1.57

- 1.97

62.0

-

77.4

2.23

- 2.97

87.8

- 116.7

2.62

- 3.47

103.3

- 136.7

2.90

- 4.32

114.0

- 170.3

––

––

72"

1.41

55.7

1.70

- 2.12

66.8

-

83.3

2.40

- 3.19

94.6

- 125.7

2.83

- 3.74

111.3

- 147.2

3.12

- 4.66

122.9

- 183.3

––

––

80"

1.58

62.1

1.89

- 2.36

74.5

-

92.9

2.68

- 3.56

105.5

- 140.0

3.15

- 4.16

124.1

- 164.0

3.48

- 5.19

137.1

- 204.3

5.10

- 7.81

200.6

- 307.6

84"

1.66

65.3

1.99

- 2.48

78.3

-

97.6

2.82

- 3.74

110.9

- 147.2

3.32

- 4.38

130.6

- 172.4

3.66

- 5.45

144.2

- 214.7

5.36

- 8.21

211.0

- 323.3

90"

1.78

70.2

2.14

- 2.66

84.1

- 104.8

3.02

- 4.01

119.1

- 158.0

3.56

- 4.70

140.2

- 185.0

3.93

- 5.85

154.8

- 230.4

5.76

- 8.81

226.6

- 346.9

100"

1.99

78.2

2.38

- 2.96

93.7

- 116.7

3.37

- 4.47

132.7

- 175.9

3.97

- 5.23

156.2

- 205.9

4.38

- 6.52

172.6

- 256.5

6.41

- 9.81

252.5

- 386.2

120"

2.39

94.2

2.87

- 3.57

112.9

- 140.5

4.06

- 5.38

159.9

- 211.7

4.78

- 6.30

188.2

- 247.9

5.28

- 7.84

208.0

- 308.8

7.73

-11.81

304.5

- 464.8

150"

3.01

118.3

3.60

- 4.48

141.8

- 176.2

5.10

- 6.74

200.7

- 265.4

6.00

- 7.90

236.3

- 310.9

6.64

- 9.83

261.3

- 387.2

9.71

-14.80

382.3

- 582.7

180"

3.62

142.4

4.33

- 5.38

170.6

- 212.0

6.14

- 8.11

241.6

- 319.2

7.22

- 9.50

284.3

- 373.9

7.99

-11.83

314.5

- 465.6

11.69

-17.80

460.2

- 700.6

200"

4.02

158.5

4.82

- 5.99

189.9

- 235.8

6.83

- 9.02

268.8

- 355.0

8.04

-10.56

316.3

- 415.8

8.89

-13.15

350.0

- 517.9

13.01

-19.79

512.1

- 779.2

210"

4.23

166.5

5.07

- 6.29

199.5

- 247.7

7.17

- 9.47

282.4

- 372.9

8.44

-11.10

332.4

- 436.8

9.34

-13.82

367.7

- 544.0

13.67

-20.79

538.1

- 818.5

240"

4.84

190.6

5.80

- 7.20

228.4

- 283.4

8.21

-10.84

323.2

- 426.7

9.66

-12.69

380.4

- 499.8

10.69

-15.81

421.0

- 622.4

15.64

-23.79

615.9

- 936.5

250"

5.04

198.6

6.04

- 7.50

238.0

- 295.4

8.56

-11.29

336.8

- 444.6

10.07

-13.23

396.4

- 520.8

11.14

-16.47

438.7

- 648.6

16.30

-24.78

641.9

- 975.8

270"

––

––

6.53

- 8.11

257.2

- 319.2

9.25

-12.20

364.0

- 480.4

10.88

-14.29

428.5

- 562.8

12.04

-17.80

474.2

- 700.8

17.62

-26.78

693.8

-1,054.4

300"

––

––

7.27

- 9.01

286.1

- 354.9

10.28

-13.57

404.9

- 534.1

12.10

-15.89

476.5

- 625.7

13.40

-19.79

527.4

- 779.2

19.60

-29.78

771.7

-1,172.3

400"

––

––



––



––



––



––

––



––

17.90

-26.43

704.9

-1,040.6

26.19

-39.76

1,031.2

-1,565.3

500"

––

––



––



––



––



––

––



––

––



––

32.79

-49.74

1,290.8

-1,958.4

2-2

2. Installation

GT24ZLB (H 2.2) -(H3.2)

GT19ZL (H 1.7) -(H2.2)

GT10RLB (H 1.0)

GT13ZLB (H 1.2) -(H1.5)

GT20ZL (H 2.0) -(H2.6)

Throw distance

GT34ZLB (H 3.2) -(H4.8)

For screen sizes between 40" and 500" not indicated on the above table, use formulas below.

Projection Distance= Screen Width (H) Lens Magnification

Throw distance for GT10RLB (m/inch)=H 1.0 Distance from 0.8m to 5.0m/31.5" to 196.9"

Throw distance for GT13ZLB (m/inch)=H 1.2 through H 1.5 Distance from 1.0m to 9.0m/39.37" to 354.3"

Throw distance for GT19ZL (m/inch)=H 1.7 through H 2.2 Distance from 1.4m to 13.5m/55.12" to 531.5" Throw distance for GT20ZL (m/inch)=H 2.0 through H 2.6 Distance from 1.7m to 15.8m/66.93" to 622"

Throw distance for GT24ZLB (m/inch)=H 2.2 through H 3.2 Distance from 2.6m to 26.4m/102.4" to 1039"

Throw distance for GT34ZLB (m/inch)=H 3.2 through H 4.8 Distance from 5.1m to 49.7m/200.8" to 1957"

NOTE: Distances may vary +/-5%.

NOTE: GT10RLB should be used only for “zero degree/no-offset”applications.

To set zero degree/no-offset,reset the lens position by using "Return to Factory Default" in "Ref. Lens Memory."

See page 8-13for using "Return to Factory Default" to reset the lens position.

After resetting, perform fine adjustment on the lens position by using the LENS SHIFT button .

NOTE: When using the projector with either the GT13ZLB or GT13ZL lens, it is recommended to select "Dual" in the Lamp Settings menu. This will provide the best performance when operating the projector.

2-3

2. Installation

x Lens Shift Adjustable Range

The top right diagram shows the location of the image position in the lens. The lens can be shifted within the shaded area as shown using the normal projection position as a starting point.

Maximum Possible Range for GT20ZL:

Up:

0.5 V

(V: height of projected image)

Down:

0.5 V



Right:

0.32 H

(H: width of projected image)

Left:

0.32 H



NOTE: Lens shift is not available on the GT10RLB rear lens. The GT10RLB should be used only for “zero degree/no-offset”applications.

NOTE: If lens is shifted in two directions combined, maximum range in either direction cannot be obtained due to rounded off area of lens. (example: shift up and right) See top right diagram.

0.32H 1H 0.32H

Desktop/Front

0.5V

0.5V

Vertical







1V

1V



Normal position





Normal projection position

0.5V







0.32H

1H

0.32H

Ceiling/Front

Normal position





Vertical













1V







0.5V





Normal position

Horizontal

WARNING

*Installing the projector on the ceiling must be done by a qualified technician.

Tilting the front of the projector up or down by more than 45° from level could reduce lamp life by up to 20%.

Only use your projector on a solid, level surface. If the projector falls, you could be injured and the projector severely damaged.

Do not use the projector where temperatures vary greatly. The projector must be used at temperatures between 32°F (0°C) and 95°F (35°C).

Do not expose the projector to moisture, dust, or smoke. This will reduce the quality of the image.

Ensure that you have adequate ventilation around your projector so heat can dissipate. Do not cover the vents on the projector.

2-4

2. Installation

Lens Shift Adjustable Range (continued)

The top right diagram shows the location of the image position in the lens. The lens can be shifted within the shaded area as shown using the normal projection position as a starting point.

Maximum Possible Range for GT13ZLB/GT19ZL/GT24ZLB/GT34ZLB:

Values in parentheses for GT13ZLB.

Up:

0.39V (0.32V)

(V: height of projected image)

Down:

0.39V (0.32V)



Right:

0.24H (0.19H)

(H: height of projected image)

Left:

0.24H (0.19H)



NOTE: Lens shift is not available on the GT10RLB rear lens. The GT10RLB should be used only for “zero degree/no-offset”applications.

NOTE: If lens is shifted in two directions combined, maximum range in either direction cannot be obtained due to rounded off area of lens. (example: shift up and right) See top right diagram.



0.24H

1H

0.24H



(0.19H)

(0.19H)

Desktop/Front

0.39V



0.39V

(0.32V)



(0.32V)

Vertical









1V



1V



Normal position



0.39V









Normal projection position



(0.32V)









0.24H



0.24H



(0.19H)

1H

(0.19H)

Ceiling/Front

Normal position

Vertical





1V



0.39V



(0.32V)

Normal position

Horizontal

WARNING

*Installing the projector on the ceiling must be done by a qualified technician.

Tilting the front of the projector up or down by more than 45° from level could reduce lamp life by up to 20%.

Only use your projector on a solid, level surface. If the projector falls, you could be injured and the projector severely damaged.

Do not use the projector where temperatures vary greatly. The projector must be used at temperatures between 32°F (0°C) and 95°F (35°C).

Do not expose the projector to moisture, dust, or smoke. This will reduce the quality of the image.

Ensure that you have adequate ventilation around your projector so heat can dissipate. Do not cover the vents on the projector.

2-5

2. Installation

c Optional Lens Installation

This section describes how to install the lens.

Before installation

*Determine the optional lens to be used to obtain a desired projection distance. There are six optional lenses available: GT13ZLB, GT19ZL, GT20ZL, GT24ZLB and GT34ZLB (Zoom lens)

GT10RLB (Short throw fixed-focuslens)

*Press the power button (ON/STAND BY) on the projector or POWER OFF button on the remote control for a minimum of two seconds to turn off the power, wait 90 seconds (2 minutes in the optional extended life lamp) for the cooling fan to stop, turn off the main power switch then disconnect the power cable.

Check that the projector has cooled off sufficiently before proceeding.

CAUTION

*The projector and lens contain high-precisionparts. Do not induce shock to the projector or the lens.

*Do not touch the lens surface. Doing so can degrade the optical performance.

Preparation: Tools needed for installation:

A hexagonal driver and dust-protectivesheets are supplied with the optional lens.

1.Remove the lens hood cap and lens hood. q Remove the lens hood cap.

w Loosen and remove the 2 screws on the lens hood using the hexagonal driver. e Remove the lens hood by pushing down and pulling the top toward you.

Lens hood

Lens hood cap

3

1

3 2

2. Attach a dust-protectivesheet.

q Remove the shipping tape on the back of the lens hood. w Insert the dust-protectivesheet included with your optional lens. Be careful not to fold the sheet.

Hole

1

Align the holes on the right.

Shipping tape

Insert the dust-protec-tive sheet with the aluminum side up while bending it.

2-6

2. Installation

3.Mount the lens unit on the projector and connect the extension cable attached to the projector. q Remove the lens cap from the rear end of the lens unit.

NOTE: Leave the front lens cap for protection while mounting the lens unit.

w Insert the lens unit so that the 4 screws on the lens unit are properly lined up with the 4 holes on the lens mount. e Secure the 4 screws using the hexagonal driver.

r Insert the connector of the lens unit fully into the socket of the extension cable attached to the projector.

NOTE: The GT13ZL, GT19ZL, GT24ZL and GT34ZL optional lenses have one connector. The B type lenses (GT13ZLB, GT24ZLB and GT34ZLB) and GT20ZL have two connectors.

To insert the connector into the 4-pinsocket on the right side.

1

AUDIO





OUT





L/MONO

RGB1

AUDIO

R



DVI



AUDIO

L/MONO

SLOT1

RGB2







R/Cr

R

SLOT2

RGB

OUT







G/Y





V







IDEO

S-V







IDEOB/Cb







H/HV





L/MONO



V

R

L/MONO



R

2

Lens shift defection switch

AUDIO OUT

L/MONO

RGB1

AUDIO

R



DVI



AUDIO



L/MONO

SLOT1

RGB2











R/Cr

R

S







LOT2

RGB

OUT









G/Y













V









IDEO

S-









V

B/Cb







IDEO











H/HV





L/MONO



V

R

L/MONO



R

3

4

CAUTION: There is a lens shift detection switch for the moving gears of the lens shift motors used to reduce the risk of pinching fingers. Do not defeat this feature.

4. Reinstall the lens hood.

q Remove the front lens cap from the lens unit.

w Insert the lens hood so that the grooves on the 4 corners of the lens hood are properly lined up with the 4 catches on the projector.

e Secure the 2 screws using the hexagonal driver.

This completes installation. If necessary, put the lens hood cap on the lens hood.

2

1

3

2-7

2. Installation

v Making Connections

NOTE: When using with a notebook PC, be sure to connect between the projector and the notebook PC before turning on the power to the notebook PC. In most cases signal cannot be output from RGB output unless the notebook PC is turned on after connecting with the projector.

*If the screen goes blank while using your remote control, it may be the result of the computer's screen-saveror power management software.

*If you accidentally hit the POWER button on the remote control, wait 90 seconds (2 minutes in the optional extended life lamp) and then press the POWER button again to resume.

When Viewing a DVI Digital Signal:

To project a DVI digital signal, be sure to connect the PC and the projector using a DVI-Dsignal cable (not supplied) before turning on your PC or projector. Turn on the projector first and select DVI (DIGITAL) from the source menu before turning on your PC.

Failure to do so may not activate the digital output of the graphics card resulting in no picture being displayed. Should this happen, restart your PC. Do not disconnect the DVI-Dsignal cable while the projector is running. If the signal cable has been disconnected and thenre-connected,an image may not be correctly displayed. Should this happen, restart your PC.

NOTE:

Use the DVI-Dcable compliant with DDWG (Digital Display Working Group) DVI (Digital Visual Interface) revision 1.0 standard. TheDVI-Dcable should be within 5 m (196") long.

The DVI (DIGITAL) connector accepts VGA (640x480), SVGA (800x600), 1152x864, XGA (1024x768) and SXGA (1280x1024 @ up to 60Hz).

Connecting Your PC or Macintosh Computer

DVI

RGB 2







DVI







2

AUDIO OUT



RGB 1















SLOT 1

SLOT 2

USB A

USB B

PC CARD

1











PC CONTROL



LAN

RGB 2



















RGB 1



IN





RGB OUT









REMOTE 1











OUT





VIDEO

S-VIDEO







SC TRIGGER



REMOTE 2













IN

OUT















AC IN

Audio cable (not supplied)

RGB signal cable (not supplied)

To mini D-Sub15-pinconnector on the projector.

PHONE

IBM VGA or Compatibles (Notebook type) or Macintosh (Notebook type)

BNC 5 cable (not supplied)

Audio cable (not supplied)

IBM PC or Compatibles (Desktop type) or Macintosh (Desktop type)

PHONE

DVI-Dcable with ferrite core (not supplied)

Audio cable (not supplied)

NOTE: For older Macintosh, use a commercially available pin adapter (not supplied) to connect to your Mac's video port.

Connecting your PC or Macintosh computer to your projector will enable you to project your computer's screen image for an impressive presentation.

To connect to a PC or Macintosh, simply:

1.Turn off the power to your projector and computer.

2.Use a commercially available signal cable to connect your PC or Macintosh to the projector.

3.Turn on the projector and the computer.

4.If the projector goes blank after a period of inactivity, it may be caused by a screen saver installed on the computer you've connected to the projector.

Connecting to RGB 1 IN connectors (BNC)

Use a BNC 5 cable (not supplied) to connect your PC and the RGB 1 IN connectors on your projector.

Connecting to RGB2 IN connector (D-Sub15 Pin)

Use an RGB signal cable (not supplied) to connect your PC and the RGB2 IN connector on your projector.

Connecting Your PC with a DVI Connector

Use a DVI-Dsignal cable (not supplied) to connect a DVI connector of your PC to the projector.

2-8

2. Installation

To connect SCART output (RGB)

Before connections: An exclusive SCART adapter (ADP-SC1)and a commercially available SCART cable are required for this connection.

NOTE:

Audio signal is not available for this connection.

The RGB 1 IN connector does not support Plug & Play.

Video equipment

Projector

such as DVD player



RGB 2





To RGB 2 IN

Commercially available Female

ADP-SC1

SCART cable



Connecting an External Monitor







AUDIO

DVI

AUDIO OUT



RGB 1









SLOT 1

SLOT 2

L/MONO





L/MONO



R



AUDIO

R





RGB 2

R/Cr





RGB OUT

G/Y















B/Cb



VIDEO

S-VIDEO

HVRGB OUT













H/









V



L/MONO

L/MONO





R



R





RGB signal cable (not supplied)To miniD-Sub15-pinconnec-tor on the projector.

Audio cable (not supplied)

PHONE

You can connect a separate, external monitor to your projector to simultaneously view on a monitor the RGB analog image you're projecting. To do so:

1.Turn off the power to your projector, monitor and computer.

2.Use a 15-pincable to connect your monitor to the RGB OUT (MiniD-Sub15 pin) connector on your projector.

3.Turn on the projector, monitor and the computer.

1.Turn off the power to the projector and your video equipment.

2.Use the ADP-SC1SCART adapter and a commercially available SCART cable to connect the RGB 2 input of your projector and a SCART output (RGB) of your video equipment.

3.Turn on the power to the projector and your video equipment.

4.Use the RGB 2 button on the remote control to select the RGB 2 input.

5.Press the MENU button on the remote control to display the menu.

6.From the Advanced menu, select [Projector Options] [Setup]

[Page 3][Signal Select RGB2][Scart].

SCART is a standard European audio-visualconnector for TVs, VCRs and DVD players. It is also referred to asEuro-connec-tor.

NOTE: The ADP-SC1SCART adapter is obtainable from your dealer in Europe. Contact your dealer in Europe for more information.

USB A

USB B

PC CARD





PC CONTROL



LAN



IN











REMOTE 1



OUT







SC TRIGGER



REMOTE 2





IN

OUT







AC IN

Audio cable (not supplied)

LINE IN

RGB signal cable (not supplied)

To mini D-Sub15-pinconnector on the projector.

NOTE:

The RGB OUT connector outputs RGB signal during idle mode (See page 8-15).When the projector goes into idle mode, the image on an external monitor disappears for a moment. Note that the RGB OUT connector will not output RGB signal during Standby mode.

When the projector is in the Idle mode, the image may not be correctly displayed while the cooling fans are running immediately after turning on or off the power. Note that the RGB OUT connector will not output RGB signal during Standby mode.

Daisy chain connection is not possible.

2-9

2. Installation

Connecting Your DVD Player

Optional 15-pin-to-RCA(female) 3 cable(ADP-CV1)



AUDIO



DVI







AUDIO OUT

RGB 1













SLOT 1

SLOT 2

USB A

USB B

PC CARD

L/MONO

L/MONO

RGB 1









R



R

PC CONTROL

LAN



AUDIO





RGB 2

R/Cr













IN













REMOTE 1



RGB OUT

G/Y













RGB 2







OUT







B/Cb

SC TRIGGER

REMOTE 2

VIDEO

S-VIDEO









H/

IN

OUT







HV







V







L/MONO

L/MONO





AC IN



R

R







RCA(female)-to-BNC(male)

adapter (not supplied)

Component video RCA 3 cable (not supplied)

Audio cable (not supplied)

Audio Equipment

DVD player

AUDIO IN



L R

L R

Y Cb Cr

AUDIO OUT

Component



Audio cable (not supplied)

You can connect your projector to a DVD player with component output or Video output. To do so, simply:

1.Turn off the power to your projector and DVD player.

2.If your DVD player has the component video (Y,Cb,Cr) output, use a commercially available component video cable (RCAX3) and the optional 15-pin-to-RCA(female) 3 cable to connect your DVD player to the RGB 1 IN or 2 IN connector on the projector.

For a DVD player without a component video (Y,Cb,Cr) output, use an S-Videocable (not supplied) to connect anS-Videooutput of the DVD player to theS-Videoinput of the projector.

Use an appropriate type of audio cable (not supplied) to connect the desired type of audio from your DVD player to your audio equipment.

3. Turn on the projector and DVD player.

NOTE: Refer to your DVD player's owner's manual for more information about your DVD player's video output requirements,

2-10

2. Installation

Connecting Your VCR or Laser Disc Player

VIDEO







AUDIO

DVI







AUDIO OUT



RGB 1

















SLOT 1

SLOT 2

USB A

USB B

PC CARD

L/MONO



L/MONO











R



R







PC CONTROL

LAN

AUDIO









RGB 2

R/Cr























IN

















REMOTE 1

RGB OUT

G/Y























VIDEO

S-VIDEO



S-VIDEO



OUT



B/Cb



SC TRIGGER

REMOTE 2















H/

IN

OUT



HV



V





L/MONO

L/MONO



AC IN

R

R







Video cable (not supplied)

Audio cable (not supplied)





S-videocable (not supplied)



Audio equipment

VCR/ Laser disc player

AUDIO IN



L R

L R

S-VIDEOVIDEO

AUDIO OUT

VIDEO OUT



Audio cable (not supplied)

Use common RCA cables (not provided) to connect your VCR, laser disc player or document camera to your projector.

To make these connections, simply:

1.Turn off the power to the projector and VCR, laser disc player or document camera.

2.Connect one end of an RCA cable (not supplied) to the video output connector on the back of your VCR or laser disc player, connect the other end to the Video input on your projector (an RCA to BNC adapter is necessary). Use an audio cable (not supplied) to connect the audio from your VCR or laser disc player to your audio equipment (if your VCR or laser disc player has this capability). Be careful to keep your right and left channel connections correct for stereo sound.

3.Turn on the projector and the VCR or laser disc player.

NOTE: Refer to your VCR or laser disc player owner's manual for more information about your equipment's video output requirements.

NOTE: An image may not be displayed correctly when a Video or S-Videosource is played back infast-forwardorfast-rewindvia a scan converter.

2-11

2. Installation

Connecting to a Network

With the LAN connection, you can control the projector over the network using a computer to switch the unit on/off, select the input and others.

*To control the projector over the network using a computer, use the Dynamic Image Utility 2.0 contained on the User Supportware CD-ROMor the HTTP Server feature.

*With the Image Express Utility 1.0 contained on the supplied User Supportware CD-ROM,you can project your PC screen image to the projector over the network.

*With a use of the supplied User Supportware CD-ROMand the optional wireless LAN card(SWL-2100-N*),you can control the projector wirelessly or send your PC screen image to the projector over the network using a computer.

Example of LAN connection

Server

Hub

LAN cable (not supplied)





AUDIO

DVI





2



AUDIO OUT



RGB 1









LAN





OPTION 1

OPTION 2

USB (MOUSE/HUB) USB (PC)

PC CARD

1

L/MONO



L/MONO

















PC CONTROL



LAN



R

AUDIO

R









RGB 2

R/Cr







IN









REMOTE 1

RGB OUT

G/Y











OUT







B/Cb

REMOTE 2

VIDEO

S-VIDEO

SC TRIGGER



H/HV

IN

OUT



V





L/MONO

L/MONO



AC IN

R

R





Using the HTTP Server function

1.Configure your LAN settings such as IP address on the projector. (See “LAN Mode” on page 8-19)

2.Start the Web browser on the computer connected to the network and execute HTTP server functions. (See “Operation

Using an HTTP Browser” on page 10-11)

Using the User Supportware

1.Configure your LAN settings such as IP address on the projector. (See “LAN Mode” on page 8-19)

2.Install the software contained on the User Supportware CD-

ROM into the computer connected to the network. See “6 Using the Projector in a Network” on page 6-1.

2-12

2. Installation

Connecting the Supplied Power Cable

Connect the supplied power cable to the projector.

First connect the supplied power cable's three-pinplug to the AC IN of the projector, and then connect the other plug of the supplied power cable in the wall outlet.

2-13

3

Projecting an Image

(Basic Operation)

z Turning on the Projector............................................

3-2

x Selecting a Source ...................................................

3-3

c Adjusting the Picture Size and Position ....................

3-3

v Correcting the Horizontal and



Vertical Keystone Distortion (3D Reform) ................

3-4

b Optimizing RGB Picture Automatically .....................

3-6

n Turning Up or Down Volume .....................................

3-6

m Turning off the Projector............................................

3-7

3. Projecting an Image

This chapter describes how to turn on the projector and to project a picture onto the screen.

z Turning on the Projector

NOTE:

When plugging in or unplugging the supplied power cable, make sure that the main power switch is pushed to the off[O] position. Failure to do so may cause damage to the projector.

The projector has two power switches: main power switch and POWER button (POWER ON and OFF on the remote control)

The projector has a feature to prevent itself from being used by unauthorized individuals. To use this feature, register your PC card as a protect key. See "Security" in "Projector Options" on page 8-23for more details.

To turn on the main power to the projector, press the Main Power switch to the ON position ( I ).

Standby or Idle

Flashing for 1

Steady light



minute.



POWER

POWER

POWER



ON/STAND BY



Steady orange

Flashing green

Steady green

light

light

light

Before you turn on your projector, ensure that the computer or video source is turned on and that your lens hood cap is removed.

Only after you press the ON/STAND BY button on the projector cabinet or POWER ON button on the remote control for a minimum of 2 seconds will the power indicator turn to green and the projector become ready to use.







MENU

















3D

A





SELECT



3D REFORM AUTO ADJUST











E







L





N







E





T





C

ON/STAND BY





E

R

N







CA







LAMP 2



STATUS

POWER



NOTE: You cannot turn off the projector for 60 seconds immediately after turning on the projector.

Note on Startup screen (Menu Language Select screen)

When you first turn on the projector, you will get the Startup screen. This screen gives you the opportunity to select one of the seven menu languages: English, German, French, Italian, Spanish, Swedish and Japanese.

To select a menu language, follow these steps:

1.Use the SELECT or button to select one of the seven languages for the menu.







MENU

















3D

A





SELECT



3D REFORM AUTO ADJUST

E







L





N







E





T





C

ON/STAND BY





E

R

N







CA







LAMP 2



STATUS

POWER



2. Press the ENTER button to execute the selection.







MENU

















3D

A





SELECT



3D REFORM AUTO ADJUST

E







L





N







E





T





C

ON/STAND BY





E

R

N







CA







LAMP 2



STATUS

POWER



3. The Basic menu will be displayed in the language you have selected.

To close the menu, press the CANCEL button.







MENU

















3D

A





SELECT



3D REFORM AUTO ADJUST

E







L





N







E





T





C

ON/STAND BY





E

R

N







CA







LAMP 2



STATUS

POWER



After this has been done, you can proceed to the advanced menu operation.

If you want, you can select the menu language later. See "Language" on page 8-13.

NOTE: To turn the projector on by plugging in the power cable, first turn on the Main Power switch to ON and use the menu and enable the "Auto Start" feature. (See page 8-16.)Immediately after turning on the projector, screen flicker may occur. This is not a fault. Wait 3 to 5 minutes until the lamp lighting is stabilized.

• If one of the following things happens, the projector will not turn on.

*If the internal temperature of the projector is too high, the projector detects abnormal high temperature. In this condition the projector will not turn on to protect the internal system. If this happens, wait for the projector's internal components to cool down.

*When the lamp reaches its end of usable life, the projector will not turn on. If this happens, replace the lamp.

*If the lamp fails to light, and if the LAMP indicator 1 or 2 flashes on and

off in a cycle of six times, wait a full minute and then turn on the power.

3-2

3. Projecting an Image

x Selecting a Source

c Adjusting the Picture Size and Position

Selecting the computer or video source

Using the Remote Control

OFF

POWER

ON







MENU

BS -

+

ADDRESS

ENTER





ADJUST


PICTURE WHITE BAL.

PROJECTOR

ABC

DEF

GHI

1

2

3

JKL

MNO

PQR

4

5

6

STU

VWX

YZ /

7

8

9

,.

UNDO

CANCEL

0





TEST

INFO.

HELP

POSITION PIXEL AUTO

LENS

SHUTTER MUTE

PICTURE SOUND OSD KEYSTONE AMPLITUDE ENTRYLIST

R

G

B



MAGNIFY

+



+

-



-

FOCUS



ZOOM

LENS

Press the Source/Number button (0-9)to select input.

1 ......

RGB 1 input

2 ......

RGB 2 input

3 ......

DVI (DIGITAL) input

4 ......

VIDEO input

5 ......

S-VIDEOinput

6 ......

Viewer

7 ......

LAN

8 ......

SLOT 1

9 ......

SLOT 2

0 ......

Sequentially selects:

RGB1 (VIDEO) → RGB2 (S-VIDEO)

RGB1 (VIDEO) ........

CTL

NOTE: If no input signal is available, the projector will display a blue background (factory preset).

Using the menu

You can also select the computer or video source using the menu.













OFF

POWER

ON





















MENU





















3D

A



MENU



















SELECT



3D REFORM AUTO ADJUST



ADDRESS









BS -

+













ENTER

E







L









N







E









T





C

ON/STAND BY









E

R

N











CA











LAMP 2



STATUS

POWER







1.Turn on the projector

2.Select your type of projector orientation.

Desktop front, ceiling rear, desktop rear, and ceiling front.

3.Display the test pattern by pressing the TEST button on the remote control or using the menu.

TEST

4.Adjust the image position and the image size.

(1)Press and hold the CTL button and press the POSITION button to display the Lens Shift adjustment screen.

Use the SELECT button on the remote control or the LENS SHIFT button on the projector cabinet to move the image horizontally and vertically.

To close the Lens Shift adjustment screen, press the CANCEL button. See pages 2-4and2-5for “Lens Shift Adjustable Range”.

POSITION

LENS

CTL

-

3-3

3. Projecting an Image

(2)Press and hold the CTL and press the ZOOM + or - button to adjust the image size. You can also adjust the image size by using the ZOOM + or - button on the projector cabinet.

MAGNIFY

+

-

FOCUS ZOOM

LENS

(3)Press and hold the CTL button and press the FOCUS + or - button to obtain the best focus.You can also adjust the focus by using the FOCUS + or - button on the projector cabinet.

MAGNIFY

++

-

FOCUS ZOOM

CTL

Tips on Adjusting Focus

Optimum focus adjustments can be achieved on the projector by paying special attention in a few areas.

Focus adjustment after the projector has warned up to normal operating temperature is better than doing so when the projector is cold.

Lens mechanism interacts differently when adjusting focus from one direction to the other.

For this reason final focus adjustments should be done in a specific direction.

For optimum focus, follow the steps below.

For the zoom and the lens shift adjustment, perform the normal procedures.

Preparation (Recommended):

Warm up the projector for about 60 minutes.

Adjusting the Focus

1.Practice focusing

Use the FOCUS (+) or (-)button on the projector or the remote control to increase or decrease the focus values to verify the accuracy of focusing.

2.Try optimizing defocus

Use the FOCUS button (-)to decrease the focus values until pixel patterns are too blurry to be visible.

3.Obtain correct focus

Use the FOCUS button (+) to obtain the best focus. Do not use the FOCUS (-)button at this time.

Finally store the adjustments in memory.

If you adjust beyond the best focus point, go back to step 2 and repeat the procedures. Always adjust the focus from the negative direction towards the positive direction.

Geometric Correction Tool

If you use a special shaped screen such as a cylindrical or spherical screen, a downloadable program, Geometric Correction Tool is available.This program (Geometric Correction Tool) enables the geometrical distortion correction of an image when projected onto a special shaped screen with a projector. Additionally, this program al-

lows control of the projector via a computer. For additional information visit:

US : http://www.necvisualsystems.com Europe : http://www.nec-europe.com/Global :http://www.nec-pj.com/

vCorrecting the Horizontal and Vertical Keystone Distortion (3D Reform)

Use the 3D Reform feature to correct keystone (trapezoidal) distortion to make the top or bottom and the left or right side of the screen longer or shorter so that the projected image is rectangular.

In the following description, 3D Reform (Cornerstone) correction can be done with the USB mouse, remote control or cabinet buttons.

When using the USB mouse connected to the projector

Preparation: Connect the USB mouse to the projector. See page 4-3.

1.Project an image so that the screen is smaller than the area of the raster.

2.Pick up any one of the corners and align the corner of the screen with the one of the image. (The drawing shows the upper right corner.)

Projected image

Screen

3-4

3. Projecting an Image

3.Press the 3D REFORM button on the remote control. The Cornerstone adjustment screen is displayed.

The Cornerstone adjustment screen will disappear when you move the USB mouse cursor.

4.Point to one of the remaining 3 corners and left-clickon it.

Left-clickon the corner.

Screen

5.Do the above step 4 for the other two corners so that the projected area becomes smaller than the screen.

Screen

When using the remote control or cabinet buttons:

1.Project an image so that the screen is smaller than the area of the raster.

2.Pick up any one of the corners and align the corner of the screen with the one of the image.

Projected image

Screen

(The drawing shows the upper right corner.)

3.Press the 3D REFORM button on the projector or the KEYSTONE button on the remote control.

Left-clickon each corner.

6.To complete the procedure, right-clickanywhere on the screen. The confirmation screen is displayed.

7.Left-clickon "OK".

This completes the Cornerstone adjustment.

*To return the Cornerstone adjustment to the default settings, left-clickon "Reset" in Step 7.

You can save your Cornerstone changes. The changes are saved when you turn off the projector. To do so, select [Projector Options] → [Setup] → [Page 4]. Select the 3D Reform Save check box. This is not selected at the time of shipment.

The Cornerstone adjustment screen is displayed.

NOTE: Press the 3D REFORM button to toggle between "Cornerstone" and "Keystone."

4.Use the SELECT button to select one icon which points in the direction you wish to move the projected image frame.

Screen

*There are limitations of shapes which can be corrected using the Cornerstone adjustment.

When adjusting the Cornerstone beyond these limits, you will get the message "Out of adjustment range!" and no correction can be done. Should this happen, do the Cornerstone adjustment again within the allowable range.

*Due to limitations of accuracy within internal processes, there may be some discrepancy of positions between the mouse cursor and corrected shape or one corner and the other 3 corners.

5.Press the ENTER button.

6.Use the SELECT button to move the projected image frame as shown on the example.

7.Press the ENTER button.

Screen

3-5

3. Projecting an Image

8.Use the SELECT button to select another icon which points in the direction.

Screen

On the Cornerstone adjustment screen, select “Exit” and then “OK”, or press the CANCEL button on the remote control.

The confirmation screen is displayed.

9.Press the SELECT or button to highlight the [OK] and press the ENTER button.

b Optimizing RGB Picture Automatically

Adjusting the Image Using Auto Adjust

Optimizing RGB image automatically

Press the Auto Adjust button to optimize an RGB image automatically.

[Poor picture]







MENU

















3D

A





SELECT



3D REFORM AUTO ADJUST

E







L





N







E





T





C

ON/STAND BY





E

R

N







CA







LAMP 2



STATUS

POWER



4

5

6



STU

VWX

YZ /



7

8

9

[Normal picture]

,.

UNDO

CANCEL

0







TEST

INFO.

HELP



POSITION

PIXEL

AUTO



LENS







This completes the keystone correction.

Selecting “Cancel” will return to the adjustment screen without saving changes (Step 3).

Selecting "Reset" will return to the factory default. Selecting "Undo" will exit without saving changes.

NOTE: To return the 3D Reform correction setting values to the factory default, press and hold the 3D REFORM button on the projector cabinet or the KEYSTONE button on the remote control for a minimum of 2 seconds.

NOTE: During 3D Reform adjustment, "Aspect Ratio" and "Screen" may not be available. Should this happen, first reset the 3D Reform data and then do each setting. Second repeat the 3D Reform adjustment. Changing Aspect Ratio and/or Screen setting can limit 3D Reform in its adjustable range.

The adjustable ranges for 3D Reform are as follows:

Horizontal ...........

Max ±30° approx.

Vertical ...............

Max ±40° approx.

*The following are conditions at the above maximum angle when all of the following are met

Image is projected in Wide (Zoom)

The lens is positioned at the center (when not, adjustable range increases or decreases)

Resolution is XGA

Higher resolution than XGA limits 3D Reform in its adjustable range.

Menu items should be set as follows:

Aspect Ratio ...............................

1.33:1 (4:3)

Screen Type ................................

1.33:1 (4:3)

Horizontal and Vertical are adjusted separately.

A combination of both adjustments limits 3D Reform in its adjustable range.

When “Native” is selected in “Resolution”, “3D Reform” is not available.

Press the AUTO ADJUST or AUTO button to fine-tunethe computer image or to remove any vertical banding that might appear and to reduce video noise, dot interference or cross talk (this is evident when part of your image appears to be shimmering).This function adjusts the clock frequencies that eliminate the horizontal banding in the image. This function also adjusts the clock phase to reduce video noise, dot interference or cross talk. (This is evident when part of your image appears to be shimmering.) This adjustment may be necessary when you connect your computer for the first time.

NOTE:

Some signals may not be displayed correctly or take time.

The Auto Adjust function does not work for component and video signal.

If the Auto Adjust operation cannot optimize the RGB signal, try to adjust Clock and Phase manually. See page 8-10.

n Turning Up or Down Volume

Sound level from the speaker and the AUDIO OUT jack (RCA) on the projector can be adjusted.

-

increase volume





decrease volume

NOTE: The SELECT or button works as a volume control only when no menu appears.

Volume bar

NOTE: The volume bar can be displayed by selecting “Sound” from “Basic Menu” or “Advanced Menu”.

3-6

3. Projecting an Image

m Turning off the Projector

To turn off the projector:

First press the POWER (ON/STAND BY) button on the projector cabinet or the POWER OFF button on the remote control for a minimum of two seconds. The POWER indicator will glow orange. After the projector turns off, the cooling fans keep operating for 90 seconds (2 minutes in the optional extended life lamp) (Cooling-offtime).

Second, turn off the Main Power switch. The power indicator will go out. Last unplug the power cable.

POWER





OFF

ON





MENU



BS - +

ADDRESS



ENTER







Power on

Fan working

Standby or Idle

POWER

POWER

POWER



ON/STAND BY



Steady green

Flashing orange

Steady orange

light

light

light

NOTE: You cannot turn off the projector for 1 minute immediately after turning on the projector.

CAUTION

Do not unplug the power cable from the wall outlet or do not turn off the main power under any one of the following circumstances. Doing so can cause damage to the projector:

While the Hour Glass icon appears.

While the message "Please wait a moment." appears. This message will be displayed after the projector is turned off.

While the cooling fans are running. (The cooling fans continue to work for 90 seconds (2 minutes in the optional extended life lamp) after the projector is turned off).

While accessing a PC card or LAN card. (The PC Card Access indicator lights.)

3-7

4

Convenient Features

z Turning Off the Image and Sound .............................

4-2

x Enlarging and Moving a Picture ................................

4-2

c Getting the On-lineHelp and Information .................

4-2

v Using a USB Mouse .................................................

4-3

b Using a USB HUB Function ......................................

4-3

n Changing Background Logo .....................................

4-4

m Making Freehand Drawings on



a Projected Image (ChalkBoard) ..............................

4-4

, Lens Memory ............................................................

4-5

4. Convenient Features

z Turning Off the Image and Sound

x Enlarging and Moving a Picture

Press the MUTE PICTURE button to turn off the image and sound for a short period of time. Press again to restore the image and sound.

You can enlarge the area you want up to 400 percent. To do so:

MUTE

PICTURE SOUND OSD

Press the MUTE SOUND button to turn off the sound for a short period of time. Press again to restore the sound.

MUTE

PICTURE SOUND OSD

Press the MUTE OSD button to turn off the on-screendisplay. Press again to restore theon-screendisplay.

MUTE

PICTURE SOUND OSD

NOTE: You can also turn off the on-screendisplay forcibly by pressing and holding CTL and then pressing MUTE OSD (ForcedOn-ScreenMute Mode) ; doing this again restores it. In this case any adjustment will still change the projector's memory settings. This mode is available even when input is switched to another or the main power is turned off.

Press the MAGNIFY button.

Enlarge the selected area.

When the MAGNIFY (+) button is pressed, the image is magnified. To move the magnified image, use the SELECT button.

MAGNIFY

ZOOM

Return the image to the original size.

MAGNIFY

+

c Getting theOn-lineHelp and Information

You get the contents about Help.

HELP

SELECT

Display Help

Exit Help

You get the source and projector information.

INFO.

Press this button once to display “Source Information” and press twice to display “Projector Information”.

Press third time to close it.

4-2

4. Convenient Features

v Using the USB Mouse

Using a commercially available USB mouse gives you smooth operation.







USB(MOUSE/HUB)







DVI



2

AUDIO OUT

RGB 1









OPTION 1

OPTION 2

USB MOUSE/HUB USB PC PC CARD

1







PC CONTROL

LAN

RGB 2













IN











REMOTE 1

RGB OUT













OUT



VIDEO

S-VIDEO



SC TRIGGER

REMOTE 2







IN

OUT









AC IN

NOTE: There may be some brands of USB mouse that the projector does not support.

Operate the Projector Menus using the USB mouse

Mouse Cursor

When connecting a USB mouse to the projector, you get a mouse cursor on the screen.

Unless you use your USB mouse within 10 seconds, the mouse cursor disappears.

Menu Display

Clicking with a mouse button displays the menu.

Clicking displays the pull-downmenu. To close the menu, click anywhere in the background.

Adjusting and Setting Display

You can select a menu item and click with a mouse button to make adjustments and setting.

Examples

Click (or press and hold) the mouse button or to adjust the brightness. Or click and drag the mouse button on the slide bar horizontally to adjust it.

To save the adjustments, click . This closes the menu. If you click anywhere in the background while displaying an adjustment and setting menu or dialog box, you will go to the main menu after clicking with the mouse.

Clicking displays help.

Using the Middle Button/Wheel on a Mouse (when available)

The projector supports the middle button/wheel on a mouse. With the middle button/wheel you can use a scroll bar or click the middle button/wheel to display or hide the Chalkboard toolbar.

Operate the PC mouse using the USB mouse

USB(PC)





DVI





2

AUDIO OUT

RGB 1











OPTION 1

OPTION 2

USB MOUSE/HUB USB PC

PC CARD

1







PC CONTROL



LAN

RGB 2















IN















REMOTE 1

RGB OUT















OUT





VIDEO

S-VIDEO



SC TRIGGER



REMOTE 2









IN

OUT











AC IN

NOTE: You can select the operation mode of the USB mouse connected to the USB port of the projector.

b Using the USB HUB Function

When using the projector with a PC via the supplied USB cable, both the USB port(type A) on the projector can be connected to a USB-supportedscanner or otherUSB-supporteddevice. (USB Hub Function)

Example: When connecting a PC and a scanner to each USB port respectively

USB(MOUSE/HUB) USB(PC)

An example of how a scanned image is projected

1.Install the Dynamic Image Utility on your PC.

NOTE: The Dynamic Image Utility is contained on the supplied CD-ROM.See “6-b Software Installation” for the installation procedure.

2.Use your scanner to scan an image.

NOTE: A scanner driver must be installed on your PC before use.

3.Load the scanned image on your PC using the Dynamic Image Utility.

4.Transmit the scanned image from your PC to the projector via the USB cable and project the image on the screen.

NOTE:

The USB HUB function is effective only when “Auto” is selected in Operation Mode Select.

The PCs using the USB Host Controller may not be available.

When connecting a USB hub to the USB port (type B) on the projector, be sure to use a USB hub capable of supplying 500mA per port of downstream current.

4-3

4. Convenient Features

n Changing Background Logo

You can change the default background logo using the PC Card Files feature.

NOTE: File size must be 256KB or less. Other file formats than JPEG and BMP are not available.

1.From the menu, select [Tools] [PC Card Files] to display a list of all the files stored in the PC card so that you can select a file you want to use as a background logo.

m Making Freehand Drawings on a Projected

Image (ChalkBoard)

The ChalkBoard feature allows you to write and draw messages on a projected image.

NOTE: The ChalkBoard feature is available only when a USB mouse is used.

From the menu, select [Tools] → [ChalkBoard] to display the ChalkBoard tool bar that contains the following icons.

NOTE: You can also display the ChalkBoard tool bar by clicking the scroll button on your USB mouse.

Pen

Eraser

Drive

Exit

2.The Logo button allows you to select a background logo from graphic files on a PC card and change to it as the background logo.

3.Use the SELECT or button to select a JPEG or BMP file for your background logo.

4.Use the SELECT and then button to select "Logo".

5.Press the ENTER button on the remote control or the cabinet. You will get the confirmation dialog box.

6.Select "OK" and press the ENTER button. This completes changing a logo for the background.

*Once you have changed the background from the logo to another, you cannot return the logo to background even by using Factory Default. To do so, repeat the above steps. The logo file is

included on the supplied CD-ROMProjector User Supportware (“/Logo/nec_bb_x.jpg” for 9060.



Color

Capture

Clear

Hide

Pen ..............

Left-clickand drag to draw.Left-click[ ] orright-clickthe



pen icon to display the pen palette containing four lines of



different thickness from which you can select a line you pre-



fer by left-clicking.





Color ...........

Selects a color. Left-clickto display the color palette from



which you can select a color you prefer by left-clicking.

Capture .......

Left click to capture and save freehand drawings in the PC



card. (GT5000 only)





Eraser .........

Left-clickand drag to erase part of a drawing.Left-click[ ]



or right-clickthe eraser icon to display the eraser palette



containing four eraser of different thickness from which you



can select an eraser you prefer by left-clicking.

Clear ...........

Left-clickto clear the drawing completely from the



ChalkBoard screen.





Drive ............

Switches between PC Card slot. (GT5000 only)

Hide .............

Hides the tool bar by left-clicking.Right-clickinganywhere



on the screen displays the ChalkBoard tool bar again.

Exit ..............

Clears the complete drawing and exits the ChalkBoard.

NOTE:

The menu is not available while you display the ChalkBoard screen.

Switching slides clears a drawing completely.

4-4

4. Convenient Features

, Lens Memory

This function serves to store the adjusted value when using the Shift, Focus, and

Zoom buttons of the projector or the remote control.

Reference memory:

Reference Point ....... Adjusted settings are stored in memory as a reference common to all the input sources. If no setting is stored in Custom Point, the adjusted settings in Reference Point will be applied.

Custom memory:

Custom Point ........... Adjusted settings are stored in memory for each input signal.

Usage Example

When you wish to display on a screen having a 4:3 aspect ratio an NTSC or other

4:3 aspect ratio signal and an SXGA or other 5:4 aspect ratio signal:

Perform shift, focus, and zoom adjustments to set the vertical screen size of the vertically tall 5:4 aspect ratio signal to standard.

Both 4:3 apsect ratio signals and 5:4 aspect ratio signals can now be displayed. Note that with these shift, focus, and zoom adjustments, the 4:3 aspect ratio signal will become smaller on the screen.

To eliminate this size reduction, adjust the shift, focus and zoom to the optimum condition for each of the 4:3 aspect ratio signal and the 5:4 aspect ratio signal. Memory (storage) of each of these values will permit projection at an optimum condition upon signal switching.

1.Perform Zoom, Focus and Lens Shift adjustments and store them in memory using “Set Custom Point”.

Another way to store your adjustments is to use the CTL and INFO buttons on the remote control.

2.When “Yes” is selected for “Use Point on Signal Change”, the adjustment is applied to the signal you switched.

3.Select “OK” and press the ENTER button for the change to take effect.

NOTE: The Lens Memory function is not available in Link mode.

NOTE: The other optional lenses than GT10RLB, GT13ZLB, GT20ZL, GT24ZLB and GT34ZLB do not support

Lens Memory function. (On GT10RLB focus can be stored in memory)

You cannot store settings for zoom and focus on the following lenses:

GT13ZL, GT19ZL, GT24ZL and GT34ZL.

Picture Mute during Lens Shift?

To turn off the image and sound during lens shift, select "Yes".

NOTE: This option is only available when "Yes" is selected for "Use Point on Signal Change?".

4-5

5

Using the Viewer

z Making the Most out of the Viewer Function .............

5-2

x Operating the Viewer Function from the Projector



(playback) .................................................................

5-3

5-1

5. Using the Viewer

NOTE:

To use the Viewer, first you need to create presentation materials on your PC using the Dynamic Image Utility 2.0 contained on the supplied Projector User Supportware CD-ROM.For installation, see “6-b Software Installation”. For creating presentation materials, see the Slide show function on theon-linemanual of the Dynamic Image Utility 2.0.

Selecting Viewer sets the audio input for DVI input.

z Making the Most out of the Viewer Function

Features

You can view presentation data, capture (9060), and play images on the projector. A PC card is used to view presentation data prepared on the computer and to capture and play images projected with the projector.

The Viewer feature allows you to view slides stored on a PC memory card (referred to as PC card in this manual) on the projector. Even if no computer is available, presentations can be conducted simply with the projector. This feature is convenient for holding presentations at meetings and in offices, as well as for playing images taken on digital cameras.

Easy to use

Presentations can be started immediately simply by inserting a PC card (not supplied)

Easy slide switching

Remote control operation

Jumping to list of slides or any specific slide

High quality images

High resolution up to 1024 x 768 dots

24-bitfull color playback

Viewing of digital camera images

Simple utility software (for computer)

Dynamic Image Utility 2.0 operable on Windows 98/Me/XP/2000

Slides can be created by capturing the currently displayed image

Control screen for displaying lists of slides and editing

*Microsoft, Windows and PowerPoint are registered trademarks of Microsoft Corporation.

Inserting and Removing a PC Card

NOTE:

• Do not try to force the PC card into the slot.

2









































































PC CARD

1















































NOTE: When using two PC cards, do not insert both PC cards into the two PC card slots simultaneously. Doing so may cause projector malfunction such as shutting down. Each PC card must be inserted slowly one at a time.

Inserting the PC Card

Hold the PC card horizontally and insert it slowly into PC card slot 1 or 2 with its top facing up.

PC card (not supplied)

Removing the PC Card

Press the eject button slowly. The eject button card pops out a little. Press the eject button slowly again. Grasp the edges of the PC card and pull it out. Push and insert the eject button fully until it stops.

Eject button

NOTE: Do not eject the PC card while its data is being accessed.

CAUTION: Make sure that the PC card or LAN card is removed during Standby mode (NOT Idle mode)or with the main power off.Failure to do so may cause damage to the data on your PC card or LAN card,or may cause the projector to malfunction.Should a malfunction occur, turn off the main power and turn it back on.

Direction for Inserting the PC Card

The PC card has a top and bottom and must be inserted into the PC card slot in a specific direction. It cannot be inserted backwards or upside-down.Attempting to force it into the slot in the wrong direction may break the internal pin and damage the card slot. Refer to the PC card's operating instructions for the proper direction of insertion.

PC Card Type

The PC Card slot accepts PCMCIA Type II only.

5-2

5. Using the Viewer

x Operating the Viewer Function from the

Projector (playback)

This section describes the operation for showing slides of presentation documents created using the Viewer function with the projector. It is also possible to make slides directly from the images projected with the projector.

Projecting slides (Viewer)

1.Insert a PC card into the PC card slot.

Insert the PC card so that the end with the insertion direction arrow on the top goes in first.

* Press the eject button to eject the card.

2.Select the "Viewer" from the Source Select menu.

3.Project slides.

Checking "Show Folder List", means that selecting Viewer input displays a list of the folders in the PC card and if "Auto Play" is checked the projector automatically starts to play slides at the first slide of the folder you have selected.

A tool bar will appear when you press the MENU button on the remote control or the projector cabinet or clicking with the right button of a mouse.

Prev

Play

Jump

Drive

Delete

When the tool bar is not displayed:

You can use the and button on the cabinet to select folders or slides.







MENU

















3D

A





SELECT



3D REFORM AUTO ADJUST











E







L





N







E





T





C

ON/STAND BY





E

R

N







CA







LAMP 2



STATUS

POWER



Multi cursor (blue marks)

Folder

Folder

Folder

Folder

Folder







Current folder number



02 : 0001 / 0008



Current slide

Number of all slides in folder

number



Use the SELECT or button to advance to the next folder or return to the previous folder.

Next

Stop

Select

Setup

View

The tool bar includes the following buttons:

Prev ..........

Returns to the previous slide or folder. Or this lets



you play slides back in reverse.

Next ..........

Advances to the next slide or folder. Or this lets you



play slides back.

Play ..........

Plays back automatically or manually depending on



the setting on Viewer Options of the menu. This al-



lows you to move on to the next slide when "Manual



Play" is selected.

Stop ..........

This allows you to stop Auto Play while you are play-



ing back and to resume playing from the selected



slide or folder when "Auto Play" is selected.

Jump ........

Displays a list of slides while you are playing back.

Select .......

Displays a list of folders while you are playing back.

Drive .........

Switches between PC Card slot.

Setup ........

Displays the Viewer Options dialog box on Page 2 of



the Setup dialog box.

Delete .......

Deletes a captured slide(s) or all the captured slides



in the Capture - specific folder. (9060)

View .........

Hides the tool bar while you are playing back. Press-



ing the MENU button or clicking with the right button



of a mouse shows it again.

NOTE: If no memory card is inserted in the PC CARD slot, there is no signal, and a black, blue or logo background is displayed, depending on the setting.

Playback is stopped when button on the cabinet is pressed in Auto Play mode. Up to 12 indexes can be displayed on the list of folders. The folder in the right bottom is always a folder exclusively for captured images, but is only displayed when images have been captured. (9060 only)







MENU





Folder











3D





SELECT



3D REFORM













E







L





N







E





T





C

ON/STAND B





E

R

N







CA







LAMP 2



STATUS

POWER



Use the SELECT or button to advance to the next slide or return to the previous slide.

Slide(Table) cursor







(green marks)







Slide

Slide

Slide

Slide

Slide

Slide

Slide

Slide

02 : 0004 / 0008





5-3

5. Using the Viewer

Auto Play Mode

If the "Auto Play" option is selected in "Viewer Options" of the menu, any given slide will start to play automatically.

You can also specify Auto Play Interval between 5 and 300 seconds.

Switching to Slides Directly from Other Input Modes

With this function it is possible to switch directly to a slide when the picture of a VCR or computer is being projected.

Example: When conducting presentations using a combination of slides and moving pictures from a VCR, etc., it is possible to switch from a Viewer slide to the video picture then back to the Viewer slide simply by using the SELECT button.

NOTE: Even if you switch the current Viewer source to another source, the current slide is retained. When you return back to the Viewer, you will get the slide that has been retained.

The PC card editing operation cannot be performed from the projector. Do so using the Dynamic Image Utility 2.0 software.

Viewing Digital Images

Digital images can be played with the Viewer if the following conditions are met:

If the image can be stored on an MS-DOSformat PC card

If the image can be stored in a format supported by the Viewer. With the Viewer, images on the card are searched for in directories and images in JPEG or BMP format are recognized as slides. Searchable directories are directories within two steps from the root directory, and searchable images are images within the first 12 files in the directory. Only file and slide switching are possible.

NOTE: The maximum number of images recognized as slides within one directory is 128.

Storing Images Displayed on the Projector on the PC card (Capture)

The Capture features allows you to capture an image from a source that is currently being displayed. The image is saved as JPEG in the PC card. When you select Capture from the menu, you will get a tool bar. You can capture an image directly using the tool bar when the menu is not displayed.

NOTE:

*Unless a PC card is inserted into the PC Card slot of the projector, the Capture feature is not available.

*The "Card Error" display means that the free space of the PC card is insufficient for saving images. Make more space available on the card by erasing unwanted images with your PC. The number of images that can be captured depends on the size of the PC card.

CAUTION: Make sure that the PC card is removed during Standby mode (NOT Idle mode) or with the main power off.

Failure to do so may cause damage to the data on your PC card, or may cause the projector to malfunction.

Should a malfunction occur, turn off the main power and turn it back on.

Preparations:

Insert the PC card into the card slot.

Insert the PC card so that the end with the insertion direction arrow on the top goes in first.

*Press the eject button to eject the card.

1.Project the image you wish to store on the projector.

2.Select the "Capture" from the Tools menu.

3.A tool bar will appear.

Capture







Freeze



























Exit

Drive

The tool bar includes the following buttons:

Capture ....

Captures an image and save it as a JPEG file on a



PC card.

Freeze ......

Freezes and unfreezes images.

Drive .........

Switches between PC Card slot.

Exit ...........

Exits the Capture function. Another option to exit the



Capture function is to press MENU or CANCEL but-



ton on the remote control or projector cabinet.

NOTE:

You can compress a captured file (JPEG) using the Capture Options in the Setup dialog. See page 8-15.

Captured images with higher resolution than the projector's native resolution cannot be displayed correctly.

File size of the captured image varies depending on the resolution of an input signal.

An hourglass indicating that an image is being captured appears on the projector's display. Do not eject the PC card or turn off the projector's power while this icon is displayed. Doing so will damage the PC card data. If the PC card data is damaged, use a computer to repair the data.

5-4

5. Using the Viewer

Deleting Captured Images

Using the Delete button on the tool bar for Viewer can delete captured images.

Prev

Play

Jump

Drive

Delete

Next

Stop

Select

Setup

View

To delete captured images:

1.Select Viewer and display a folder list of captured images.

2.Use button to select the Capture folder “Cap” in the right bottom of the screen.

3.Press the MENU button to display the tool bar.

4.Use the or button to select the Delete icon and press the ENTER button or click with a mouse button.

Using the PC Card Files Fucntion (PC Card Files)

The PC Card Files function allows you to display a list of all the files stored in the PC card so that you can select a file you want to display. You can also sort files by file name or date, or display the file. Although a list of all the files in the PC card is displayed, you can view files in idx, text, HTML, JPEG and BMP format only. Selecting BMP and JPEG files automatically switches to the

Viewer source. See also page 5-3.

NOTE: This option is not available for selection unless a PC card is inserted properly.

Selecting "Execute" displays the file you selected.

When you select a JPEG or BMP file and press the ENTER button on the remote or the cabinet, or "Execute" on the above, you will get a toolbar. This toolbar is used to return to the PC Card

Files screen.









Close





















Return

Return .........

Returns to the PC Card Files screen.

Close ...........

Close the toolbar.

5-5

6

Using the Projector in a Network

z End User License Agreement ...................................

6-2

x Introduction ...............................................................

6-3

c Supported Projectors ................................................

6-4

v Equipment Connections and Settings ......................

6-5

b Software Installation .................................................

6-6

n Starting/Exiting the Software ....................................

6-7

m Troubleshooting ........................................................

6-8

6-1

6. Using the Projector in a Network

Be sure to read this before using the accompanying software.

z END USER LICENSE AGREEMENT

PLEASE READ THIS SOFTWARE LICENSE AGREEMENT ("LI-

CENSE") CAREFULLY BEFORE PRESSING THE "Yes" BUT-

TON BELOW. BY PRESSING "Yes", YOU ARE AGREEING TO BE BOUND BY THE TERMS OF THIS LICENSE. IF YOU DO NOT AGREE TO THE TERMS OF THIS LICENSE, PRESS "No" AND (IF APPLICABLE) RETURN THIS SOFTWARE TO THE

PLACE WHERE YOU OBTAINED IT FOR A REFUND.

NEC Viewtechnology,Ltd.("NECVT") grants you ("User") a license to use the PROJECTOR USER SUPPORTWARE ("Software") provided with this End User License Agreement ("EULA").

User assumes responsibility for the selection, adoption use and the result of use of the Software to achieve its intended result.

1.Term

1)EULA will become effective upon User's agreement to the terms of EULA and shall remain in force until User terminates it by returning or destroying the Software and its related documents.

2)Notwithstanding the foregoing NECVT may terminate EULA at any time upon User failing to abide by any terms of EULA. Upon the termination of the EULA by NECVT, the license granted to User shall be terminated automatically. User agrees to destroy the Software together with all copies of it upon such termination.

2.License

User use the Software on personal computers only for operating NECVT's projector supplied with the Software or other projector to be specified by NECVT("Projector")

3.Replication, modification and merger of the Software

1)User may make copies of the Software and related documentation to the extent necessary for using the Projector. User agrees to reproduce the NECVT's copyright notice and other notice on any such copies.

2)User may not use, copy, modify, or otherwise dispose of the Software, except as expressly permitted in EULA.

3)No provision in EULA shall be construed to assign and/or transfer any intellectual property right in the Software to User.

4.Transfer of the Software

1)User may transfer the Software to any third party, provided always that:

a)User must transfer, with the Software, to such third party EULA and all the related

documentation with all copies thereof, and must not retain any copy thereof.

b) Such third party has agreed to the terms and conditions of EULA.

2)Except as otherwise expressly permitted above, User may not sublicense, assign, transfer or otherwise dispose of the license for the Software.

5.Reverse Engineering

User may not reverse engineer, decompile, and/or disassemble the Software, except and only to the extent that such activity is expressly permitted by applicable law notwithstanding this limitation.

6.Limitations of Warranty

1)Except as expressly specified herein, the Software is provided "as is" without warranty of any kind, including but not limited to implied warranties for fitness for a particular purpose, merchantability, title and non-infringementof any third party rights.

2)If User finds a material defect, which effects to the proper operation of the Software, in the media of the Software, NECVT will replace such defective media at no charge, if such media is returned to distributor from which such User purchased it within 1 month from such purchase and if NECVT determines that such defect is due to NECVT.

7.Limitations of Liability

In no event shall NECVT be responsible for any indirect, consequential or special damages or lost profits even if NECVT has been advised of the possibility of such damages, and/or for any claim for compensation or damage by any third party to User.

8.Others

1)The validity, interpretation, construction and performance of EULA shall be governed by the laws of Japan.

2)User shall not export the Software to any country to which such export would be prohibited by any applicable laws.

6-2

6. Using the Projector in a Network

x Introduction

Thank you for your purchase of the Dukane portable projector (here-afterreferred to as "unit" or "projector").

This projector is connected to a personal computer or other equipment and clearly projects text or graphics to a screen.

This projector is supplied with convenient software that allows presentations to be made more simply and effectively. This guide gives an overview and describes the use of the accompanying software (contained in the CD-ROMthat is supplied with this projector). Look over this guide in conjunction with the Help functions of the software programs.

Contents of the Supplied CD-ROM

The supplied CD-ROMcontains the following software programs:

Dynamic Image Utility 2.0

Viewer PPT Converter 2.0

Image Express Utility 1.0

Please see the Help functions of the software programs for information about their functions and operation.

What Can Be Accomplished with the Supplied Software

Dynamic Image Utility 2.0

Converts PowerPoint files, JPEG images, and other files and creates slides that can be displayed with the viewer function of the projector.

Captures portions of the image from the screens of word processors, spreadsheets, browsers, and other programs for use in presentations.

By saving the created slides on a flash memory card (*1) and inserting the card into the PC Card slot of the projector, the slides can be projected to the screen without connecting a personal computer.

The connection of personal computers and projectors by means of a network environment (*2) or connection with USB cable (*3) or serial cable allows the following uses. (In a network environment or USB cable connection (*3) , support of multiple units is permitted.)

(1)Images and slides can be sent from the personal computer to the projector and then projected to the screen. When using Microsoft PowerPoint 2000/2002, slides can be sent synchronized with the slide show page feed.

(2)A personal computer can be used to switch the projector power on/off, control the adjustment of image quality and other settings, and to display the remaining lamp life.

Viewer PPT Converter 2.0

Converts files created with Microsoft PowerPoint 95/97/2000/2002 to an independent index format with a simple operation to enable direct playback with the viewer function of the projector.

When using Microsoft PowerPoint 2000/2002, Viewer PPT Converter 2.0 can be started from PowerPoint (by means of add-inregistration to PowerPoint).

Image Express Utility 1.0

Using a network environment (*2), this program enables the screen image displayed by the personal computer to be sent to the projector and then projected to a screen.

Two methods are available for sending the screen image to the projector. "Continuous Transmit" automatically sends the screen image of the personal computer at a fixed interval. "Single Frame Transmit" sends the screen image by clicking the screen button (or pressing a key).

*1: Please purchase a commercially available PCMCIA Type 2 (ATA specification) flash memory card.

*2: Please check the network environment on the next page.

*3: USB cable connection is not supported by the LT260/LT240/LT220.

Information about Upgrading this Software

Please see the service page for projectors (http:// www.nec-pj.com/)for information about software upgrades of

Projector User Supportware (i.e., Dynamic Image Utility, Viewer PPT Converter, and Image Express Utility).

Projector "Easy Connection" Settings

The "Easy Connection" option is a mode that can abbreviate the troublesome LAN settings when using the Image Express Utility and connecting the PC and projector via a wireless LAN.

From the Advanced menu, select [Projector Options] → [LAN Mode] → [Status] → [Advanced] → [Network Type] → [Mode] → [Easy Connection] on the projector. (No setting for IP address, SSID and channel are required.)

After you have installed the software from the supplied CD-ROMto your PC, before executing Easy Connection" using Image Express Utility, visit our website to update the information about Image Express Utility and its related software.

Software can be downloaded from our website at no charge.

Easy Connection is available on Windows 2000 Professional, Windows XP Professional and Windows XP Home Edition (not available on Windows XP Tablet PC Edition [with Image Express Utility 1.0 version 1.01.0003]).

Easy Connection is available only when both PC and projector use the NEC optional wireless cards.

Easy Connection is not available on Dynamic Image Utility included on the supplied CD-ROM.

6-3

6. Using the Projector in a Network

c Supported Projectors

Operating Environment

Supported Equipment

IBM PC/AT compatible computers





CD-ROMdrive a requirement (at time of installation)





CPU

Pentium MMX processor or higher a requirement



Pentium III 800 MHz or higher recommended

Memory

For Windows XP





• 128 MB or more a requirement





• 192 MB or more recommended



For other operating systems





• 64 MB or more a requirement





• 128 MB or more recommended



More memory may be necessary when other applications are run at the same time.

Network Environment

A LAN that supports TCP/IP or a wireless LAN environment is a requirement.

(when used)

For information on supported LAN cards, visit:





http://www.nec-pj.com/(In US: http://www.necvisualsystems.com)



For wireless LAN connection, use NEC optional wireless LAN card (SWL-2100N-N*).



*

Last digit of the model code varies depending on which country you live in. For more information,





visit the above Website.





Supported OS

Windows 98



Windows 98 Second Edition



Windows Me



Windows 2000 Professional



Windows XP Home Edition



Windows XP Professional/Windows XP Tablet PC Edition



*

Microsoft Internet Explorer 5.01 or higher is required for the aforementioned environments.



*

Does not support Windows power-savingfunction.

Resolution

1024 dots x 768 lines recommended





Screen Colors

High Color (15 bit, 16 bit)



True Color (24 bit, 32 bit)







6-4

6. Using the Projector in a Network

v Equipment Connections and Settings

When Using a Network Environment

What Can Be Accomplished

Using Image Express Utility 1.0, the screen image displayed by the personal computer can be sent to the projector and then projected to a screen.

Using Dynamic Image Utility 2.0, a picture or slide can be sent to the projector and then projected to a screen.

Using the projector control function of Dynamic Image Utility 2.0 allows operations to be performed from the personal computer which include switching the projector power on/off, signal selection, and adjustment of the picture quality.

Equipment to Be Prepared

• Projector (This unit) • Personal computer (with LAN card)

• LAN cable (not supplied) or wireless LAN card (optional)

Settings at the Projector Side

Preparation:

(1) Connect a LAN cable (not supplied) to the LAN port (RJ-45)of the projector.

(For the use of an optional wireless LAN card, insert the wireless LAN card into the PC CARD slot 1 or 2 of the projector.)

(2)Switch on the projector power and project to the screen. (chapter 3)

(3)Switch to the advanced menu.

1.Press the MENU button. The menu will be displayed.

2.Use the SELECT button to align the cursor with [Projector Options], then press the ENTER button.

The sub menu will be displayed.

3.Use the SELECT button to align the cursor with [LAN Mode], then press the ENTER button.

The LAN mode setting screen will be displayed.

4.Set the various items.

See "Setting LAN Mode" on page 8-19for information about the various items.

NOTE: When switching the power of the projector on/off with the projector control function, please set [Projector Options] [Setup][Page 4][Idle Mode] to "On".

Settings at the Personal Computer Side

Perform the regular LAN connections settings according to the instruction manual of the LAN card (adapter).

There are no special settings to be made in the connections with the projector.

When Making Connections with Serial Cable or USB Cable(*)

* USB cable connection is not supported.

What Can Be Accomplished

Using Dynamic Image Utility 2.0, a picture or slide can be sent to the projector and then projected to a screen.

Using the projector control function of Dynamic Image Utility 2.0 allows operations to be performed from the personal computer which include switching the projector power on/off, signal selection, and adjustment of the picture quality.

[For Connections with USB Cable]

Equipment to Be Prepared

Projector (This unit)

Personal computer

USB cable (included with the projector)

Connection at the Projector Side

Plug the B type connector of the USB cable to the USB port [PC]

(type B).

NOTE: When switching the power of the projector on/off with the projector control function, please set [Projector Options] [Setup][Page 4][Idle Mode] to “On”.

Connection at the Personal Computer Side

Plug the A type connector of the USB cable to the USB port [PC] (type A).

[For Connections with Serial Cable]

Equipment to Be Prepared

Projector (This unit)

Personal computer

Serial cable,

A commercially available RS-232Ccross cable for 9060

Connection at the Projector Side

Plug the serial cable into the PC CONTROL connector. (“Terminal Panel Features” and “PC Control Connector” on pages 1-9and10-10)

Connection at the Personal Computer Side

Plug the serial cable into the (RS-232C)serial connector.

6-5

6. Using the Projector in a Network

b Software Installation

NOTE

Windows 98 operations will be described in examples given here.

When using Windows 2000, please perform software installation/uninstalling with "Administrators" authority. When using Windows XP, perform with "Computer Administrator" authority.

Installation

Dynamic Image Utility 2.0, Viewer PPT Converter 2.0, and Image Express Utility 1.0 will all be installed together. The various programs cannot be installed individually.

Preparation: Start Windows.

If Windows has already been started, please exit all running application software. The installation may not be completed properly unless all software has been exited.

1.Place the supplied CD-ROMin theCD-ROMdrive. The "Welcome" screen will appear.

Reference

Should the "Welcome" screen not appear...

1)Click [Start].

2)Click [Run (R)]. The [Run] screen will appear.

3)Enter the CD-ROMdrive name (e.g., "Q: \") and then "SETUP.EXE" to [Open (O)].

4)Click [OK]. The "Welcome" screen will appear.

2.Click [Next >] at the "Welcome" screen.

The "End User License Agreement" screen will appear.

• Please carefully read the contents of the "End User License Agreement".

3.If you agree, click [Yes].

If you do not agree, please click [No] and exit the installer.

4.Now, follow the operations described in the screen messages.

Please remove the CD-ROMfrom theCD-ROMdrive when the installation is completed.

Reference

To cancel the installation of the supplied software part way through the installation, click [Cancel] and follow the instructions of the dialog box.

Uninstalling

Dynamic Image Utility 2.0, Viewer PPT Converter 2.0, and Image Express Utility 1.0 will all be uninstalled together. The various programs cannot be uninstalled individually.

1.Click [Start].

2.Click [Settings] R [Control Panel].

The "Control Panel" screen will be displayed.

3.Double click [Add/Remove Programs].

The "Add/Remove Programs Properties" screen will appear.

4.Click "NEC Projector User Supportware" from the list.

5.Click [Add/Remove. . . ].

The "Confirm File Deletion" screen will appear.

6.Check the message and click [Yes].

7.Now, follow the operations described in the screen messages.

When the uninstall procedure is completed, there will be a return to the "Add/Remove Programs Properties" screen.

8.Click [OK].

There will be a return to the "Control Panel" screen

6-6

6. Using the Projector in a Network

n Starting/Exiting the Software

Dynamic Image Utility 2.0

Start the Software

Preparation:

Install the software on the personal computer from the supplied CD-ROM.(Page6-6)

The software cannot be started from the supplied CD-ROM.

From the [Start] menu click [Program] → [NEC Projector User

Supportware] → [Dynamic Image Utility 2.0]. Dynamic Image Utility 2.0 will start.

Reference

By selecting a PowerPoint file with Dynamic Image Utility 2.0 and clicking [Tools] → [Converting PowerPoint file], the function equivalent to Viewer PPT Converter 2.0 can be executed.

Image Express Utility 1.0 can be started by clicking [Tools] → [Image Express Utility 1.0 Start] of Dynamic Image Utility 2.0.

Display Help

Preparation:

Please start Dynamic Image Utility 2.0.

1.Click [Help].

The [Help] menu will appear.

2.Click [Help].

The [Help] screen will appear.

Exit the Software

1.Click [File].

The [File] menu will appear.

2.Click [Exit].

Dynamic Image Utility 2.0 will close.

Viewer PPT Converter 2.0

Start the Software

Preparation:

(1)Check that Microsoft PowerPoint has been installed. Viewer PPT Converter 2.0 cannot be used unless PowerPoint has been installed.

(2)Install the software on the personal computer from the supplied CDROM. (Page 6-6)

The software cannot be started from the supplied CD-ROM.

1.From the [Start] menu click [Program] [NEC Projector User Supportware][Viewer PPT Converter 2.0].

Dynamic Image Utility 2.0 will start.

Reference

A function equivalent to Viewer PPT Converter 2.0 can also be executed from the Dynamic Image Utility 2.0 [Tools] [Converting PowerPoint file] menu.

Viewer PPT Converter 2.0 can also be started from the Microsoft PowerPoint 2000/2002 [Tools] [NEC Projector User Supportware][Output Viewer] menu.

Display Help

Preparation:

Please start Viewer PPT Converter 2.0.

1.Click [Help].

The [Help] menu will appear.

Exit the Software

1.Click [Exit].

Viewer PPT Converter 2.0 will close.

Image Express Utility 1.0

Start the Software

Preparation:

Install the software on the personal computer from the supplied CD-ROM.(Page6-6)

The software cannot be started from the supplied CD-ROM.

1.From the [Start] menu click [Program] [NEC Projector User Supportware][Image Express Utility 1.0].

Image Express Utility 1.0 will start.

Reference

Image Express Utility 1.0 can also be started from the [Tools] R [Image Express Utility 1.0 Start] menu of Dynamic Image Utility 2.0.

Display Help

Preparation:

Please start Image Express Utility 1.0.

1.Click the [] or [] icon of the Windows screen task tray. The main menu of Image Express Utility 1.0 will appear.

2.Click [Help] .

The Help screen will appear.

Exit the Software

1.Click the [] or [] icon of the Windows screen task tray. The main menu of Image Express Utility 1.0 will appear.

2.Click [Exit].

Image Express Utility 1.0 will close.

6-7

6. Using the Projector in a Network

m Troubleshooting

In this section, the software names have been abbreviated as follows:

Dynamic Image Utility 2.0 to DIU 2.0, Viewer PPT Converter 2.0 to PPTC 2.0, and Image Express Utility 1.0 to IEU 1.0.

<Problem> Installation does not complete normally.

Check Points

Countermeasures

When using Windows 2000, did you log on with "Administra-

When using Windows 2000 or Windows XP, log on with the

tors" authority? When using Windows XP, did you log on with

authority described at the left and then install.

"Computer Administrator" authority?







Has Microsoft PowerPoint 2000/2002 been installed on the

When the message described at the left appears part way

personal computer to which this projector software is being

through the installation, add-inregistration will not be made to

installed?

PowerPoint; however, the installation of this projector software

When this projector software is installed on a personal

will be completed normally.

computer that does not have PowerPoint 2000/2002 installed,

To have add-inregistration made to PowerPoint, please install

a message to the effect of "Error in the automatic registration of

this projector software to a personal computer on which

PPTViewer2.dll" will appear part way through the installation.

PowerPoint 2000/2002 has been installed.





<Problem> Viewer PPT Converter 2.0 does not function. (PPTC 2.0)





Check Points

Countermeasures

Has Microsoft PowerPoint been installed on the personal

Install PowerPoint on the personal computer. Or, install Viewer

computer?

PPT Converter 2.0 on a personal computer on which



PowerPoint has been installed.





<Problem> When using the projector control function, the projector power does not switch on. (DIU 2.0)

Check Points

Countermeasures





Are the personal computer and the projector connected by a

Connect the personal computer and the projector with an serial

serial cable?

cable or USB cable.

Or, are the personal computer and the projector connected by

Or, check the LAN port (RJ-45)of the projector. Purchase the

a LAN?

optional wireless LAN card for wireless LAN connection.





When the personal computer and the projector are connected

In the [Projector Options] [Setup] menu of the projector, place

with a LAN, is the projector in the idle mode?

checkmark in “Idle Mode”. Connect a power cable to the



power outlet and set the main power switch to "I (On)".





<Problem> You want to delete the PowerPointadd-inregistration. (PPTC 2.0)

Check Points

Countermeasures

Installing this projector software when Microsoft PowerPoint

Please see the PowerPoint Help function for the method of

2000/2002 has already been installed on the personal

deleting PowerPoint add-inregistrations.

computer, will result in the automatic registration of the add-in

The PowerPoint add-inregistration will not be deleted even

to PowerPoint.

when this projector software is uninstalled.





6-8

6. Using the Projector in a Network

<Problem> Projection to the screen is not possible when using the LAN environment. (DIU 2.0, IEU 1.0)

Check Points

Countermeasures

Have LAN cards (i.e., adapters) been put into both the personal

Put LAN cards (i.e., adapters) into both the personal computer

computer and the projector?

and the projector.









Have the LAN settings (for both the personal computer and the

Perform the LAN settings for both the personal computer and

projector) been completed?

the projector.









Are a wired LAN and a wireless LAN being used simultaneously

Please cancel either one of the LAN connections. When a built-

with the same personal computer?

in type is used, set it to "not used" under Properties.









Image Express Utility 1.0 does not support the following:







(1) Software using Direct X







(2) MS-DOSscreens







(3) Microsoft Office assistant







(4) IME







(5) Moving pictures











On the LT260K and LT240K, images cannot be sent from the

Quit the Continuous Transmmit in the Image Express Utility 1.0

“Dynamic Image Utility 2.0” on a PC to the projector on the

and then send the image from Dynamic Image Utility 2.0.

Continuous Transmit of the Image Express Utility 1.0.















<Problem> Operation of this projector software becomes unstable. (DIU 2.0, IEU 1.0)





Check Points

Countermeasures

When the network settings of the projector or personal

Please restart the projector and the personal computer. When

computer are changed while this projector software (i.e.,

changes are to be made to the network settings, exit the

Dynamic Image Utility 2.0 or Image Express Utility 1.0) is

projector software before making the changes.

starting or running, the operation of the projector software may







become unstable.











An application error occurs under Image Express Utility 1.0

When changes are to be made to the screen resolution, exit

when the screen resolution is changed during Continuous

Image Express Utility 1.0 before making the changes.

Transmit.











<Problem> The colors become strange when Windows is set to 256 colors. (IEU 1.0)





Check Points

Countermeasures

Image Express Utility 1.0 does not support 256 colors.

Please set the Windows number of colors setting to High Color



(15 bit) or higher.









6-9



6. Using the Projector in a Network

<Problem> The projector cannot be found with "General search". (IEU 1.0)









Check Points

Countermeasures

Are the wireless LAN settings appropriate?

Please check the access points, the personal computer setting

Are the channel numbers for the personal computer and the

values and the projector [LAN Mode] setting values.

projector set to the same number?

When using the infrastructure or 802.11 Ad Hoc, please set to

When WEP (encryption) has been set, has the same value been

the same character string since SSID distinguishes between

set for both the personal computer and the projector?

upper and lower case characters.









Are radio communication conditions satisfactory?

Check whether there are obstacles located between the



access point and the personal computer. Try moving the



personal computer closer to the access point.









Are the TCP/IP settings (e.g., IP address, sub net mask, etc.) of

Check whether the network settings are within the same

the personal computer and the projector correct?

segment.









Are more than one network interface cards (NIC) being used

Set only the network interface card (NIC) that is connected to

with the same computer?

the projector to "Valid".



For a network card that is not connected to the projector, click



the network card name under "Control Panel" "System"



"Device Manager" "Network Adapter" and then click



[Properties (R)] and set the device usage to "Not used".









<Problem> Sometimes it takes a long time for screen transmission from the personal computer to the

projector. (IEU 1.0)















Check Points

Countermeasures

• Transmission time may be long depending on the image







pattern.







• When screens are sent to multiple projectors simultaneously,







a larger number of projectors will result in longer transmission







times.







• The transmission time may vary depending on the network













environment.







• The transmission time may vary depending on the perfor-







mance of the personal computer as well as other application







software that is running at the same time.















Transmission time will be longer when the resolution of the

We recommend that the resolution of the personal computer

personal computer and that of the projector differ since there

and that of the projector be set to the same setting value

will be an increase in resolution conversion processing.

(except GT6000).









<Problem> Cannot follow the screen switching processing of the PowerPoint slide show, etc. (IEU 1.0)









Check Points

Countermeasures

Smooth screen switching processing or animation effects

Use the software with " the PowerPoint screen switching

cannot be followed because in Image Express Utility 1.0, the

effects, animation effects, and other settings set to "None".

screen condition of the personal computer is sent to the







projector at a fixed time interval.















6-10

7

Setting Up for Double Stacking in Link Mode

z Stacking and Connecting the Projectors ..................

7-2

x Adjusting and Registering Signals to Be Projected ...........

7-5

c Adjusting the Lens Shift, Zoom and Focus to Clearly

Display all projected patterns................................

7-5

v Link Mode Setting .....................................................

7-5

b List of Menu Items Available in Link Mode................

7-6

7-1

7. Setting Up for Double Stacking in Link Mode

z Stacking and Connecting the Projectors

NOTE: Up to two units can be gravity stacked without external support. In some cases, however, two images will not align on the screen correctly. This will become more apparent when displaying small text and detailed graphics.

Master projector

Slave projector

CAUTION: To prevent the projectors from falling, install them in a place and fasten them in a





way with sufficient strength to support the two projectors. The projector with a lens weighs 21



kg/46.3 lbs.

z-1.Assigning Projector IDs

You can operate multiple projectors with the same remote control.

To do so:

z-1-1.Select [Projector Options] → [Link Mode] → [Settings] →

[Projector ID] a-ndassign an ID number to each projector. See also page8-18.

z-1-3.On the remote control specify the ID number of the projector to be adjusted. Press and hold the CTL and press

MENU (ADDRESS) button to enter the ID number.

You can operate the projector assigned the same ID number as the remote control.

NOTE: Specifying "None" for projector ID allows you to operate multiple projectors concurrently. However, some projectors may not synchronize to the other projectors.

z-1-2.Select the same communication speed for both the projector.

NOTE: Do not turn on [Master] or [Slave] at this time.

7-2

7. Setting Up for Double Stacking in Link Mode

Throw Distances for Optional Lenses

Master projector

Screen center

Slave projector

Throw Distance

Recommended Throw Distances for Double Stack

Screen Size



Throw Distance (m)



(inch)

GT13ZLB

GT19ZL

GT20ZL

GT24ZLB

GT34ZLB



40

0.94

1.61

2.03

-

-

60

1.43

2.44

3.05

2.92

-

80

1.92

3.27

4.07

3.93

6.21

100

2.40

4.10

5.09

4.93

7.78

120

2.89

4.93

6.11

5.93

9.35

150

3.62

6.18

7.63

7.44

11.70

200

4.84

8.25

10.18

9.95

15.62

240

5.82

9.91

12.21

11.96

18.76

300

7.28

12.40

15.27

14.97

23.46

350

-

-

-

17.48

27.38

400

-

-

-

19.99

31.30

450

-

-

-

-

35.22

500

-

-

-

-

39.14

Screen Size



Throw Distance (inch)



(inch)

GT13ZLB

GT19ZL

GT20ZL

GT24ZLB

GT34ZLB



40

37.0

63.6

80.1

-

-

60

56.2

96.2

120.2

115.0

-

80

75.4

128.9

160.2

154.5

244.6

100

94.6

161.6

200.3

194.1

306.3

120

113.9

194.3

240.4

233.6

368.0

150

142.7

243.3

300.5

292.9

460.6

200

190.7

325.0

400.7

391.7

615.0

240

229.1

390.3

480.9

470.8

738.4

300

286.8

488.4

601.1

589.3

923.6

350

-

-

-

688.2

1078.0

400

-

-

-

787.0

1232.3

450

-

-

-

-

1386.6

500

-

-

-

-

1541.0

NOTE:

The optional lenses for 9060 have different geometrical distortions in wide zoom and tele. Select the best zoom position for stacking where the geometrical distortion is as small as possible.

The optional lens GT10RLB does not support stacking.

For double stacking, follow the instructions described below.

z-2.Stacking the Projectors

Place the projectors at the proper height for best screen to projector relationship. Make sure that all projectors have the same display orientation.

7-3

7. Setting Up for Double Stacking in Link Mode

z-3.Hookup

z-3-1.Use commercially available RGB signal cables to connect the RGB output of the master projector to the RGB input of the slave projector until all the projectors are connected.

z-3-2.Next, using a commercially available,bi-directionalRS-232Ccable connect the PC CONTROL OUT terminal of the master projector to the PC CONTROL IN terminal of the slave projector until all the projectors are connected.

z-3-3.Turn all the projectors on and roughly make some optical adjustments to each projector.

Example: Composite signal





AUDIO

DVI







AUDIO OUT

RGB 1













SLOT 1

SLOT 2

Distribution amplifer



L/MONO



L/MONO





R

AUDIO

R









S-VIDEO

RGB 2

R/Cr







S-Videocable

RGB OUT

G/Y











B/Cb







(not supplied)

VIDEO S-VIDEO













HV













H/













V









L/MONO

L/MONO









1

R

R





S-VIDEO

S-VIDEO



















INPUT

OUTPUT

2































AUDIO

DVI







AUDIO OUT

RGB 1













SLOT 1

SLOT 2







L/MONO



L/MONO









R

AUDIO

R









S-VIDEO

RGB 2

R/Cr









RGB OUT

G/Y



S-Videocable





VIDEO S-VIDEO

B/Cb



(not supplied)

















H/













HV













V









L/MONO

L/MONO











R

R





L R

VIDEO

S-VIDEO









AUDIO OUT

VIDEO OUT









Video equipment







2

PC CONTROL

USB(MOUSE/HUB) USB(PC)

PC CARD

1

OUT

PC CONTROL



LAN



IN











REMOTE 1



OUT







SC TRIGGER



REMOTE 2





IN

OUT







AC IN

PC CONTROL







IN

USB(MOUSE/HUB) USB(PC)

PC CARD





PC CONTROL



LAN









IN











REMOTE 1



OUT







SC TRIGGER



REMOTE 2





IN

OUT







AC IN

Bi-directionalRS232C cable (not supplied)

NOTE: Connect a commercially available distribution amplifier to both the master and the slave projectors to distribute signal to two outputs of the master and the slave projectors.

7-4

7.Setting Up for Double Stacking in Link Mode

xAdjusting and Registering Signals to Be c Adjusting the Lens Shift, Zoom and Fo-

Projected

cus to Clearly Display all projected patterns

x-1.Display a desired input signal on the master projector.

x-2.Make adjustment to the signal, then save (register) adjustments on the master projector by pressing and holding CTL and pressing ENTRY LIST button on the remote control.

x-3.Repeat stepsx-1andx-2for all signals you want to project. Display all the signals you registered and check.To check, select [Source Select] → [Entry List].

x-4Transferring Signal Data in the Entry List

x-4-1.Transfer the data from the master projector to the slave projector so that both the projectors have the same data in memory.

x-4-2.Select [Projector Options] → [Link Mode] on the master projector.

x-4-3.Select[Entry List Copy] and press the ENTER button. The following will be displayed.

x-4-4.Select[OK] and press the ENTER button.

The data has been transferred from the master projector to the slave projector.

x-5.MakingAdjustments to the Slave Projector

x-5-1.Display a desired input signal on the slave projector.

x-5-2.Make adjustment to the signal, then save (register) adjustments on the slave projector by pressing and holding

CTL and pressing ENTRY LIST button on the remote control.

x-5-3.Repeat stepsx-2andx-2for all signals you want to project.

Display all the signals you registered and check. To check, select [Source Select] → [Entry List].

c-1.Display the internal crosshatch test pattern.

NOTE: Use a different single color for each projector. Example: Turn on Green of master projctor, then Red of the slave projector.

c-2.Adjust the Lens Shift by pressing and holding CTL and pressing the POSITION button on the remote control.

For lens shift adjustable range, see page 2-4and2-5.Lens

Shift Adjustable Range.

c-3.Zoom the lens in and out by pressing and holding CTL and pressing the MAGNIFY(ZOOM)+/- button on the remote control.

c-4.Adjust the lens focus by pressing and holding CTL and pressing the FOCUS +/- button on the remote control.

NOTE: If the physical (vertical) alignment of the projector is not correct, adjust the height of the feet. If there is any keystone distortion, use 3D-Reform(Keystone) adjustment to correct and save the settings on each projector. See page3-4for 3DReform correction.

v Link Mode Setting

v-1.Set the Link Mode on each projector.

NOTE: Be sure to set the Link Mode on the slave projector before the master projector. If you do this first on the master projector, you will not be able to set the Link Mode on the slave projector.

v-1-1.Select [Projector Options] → [Link Mode] → [Settings].

v-1-2.First select [Slave] on the slave projector.

v-1-3.Select [Master] on the master projector.

v-2.Projecting a Source Image from both the Projectors.

v-3.Display any signal onto the screen.

v-4.Check to see if the images on the master projector are displayed in synchronization with the ones on the slave projector while the projectors are in Link Mode.

NOTE: Registering signals is not possible in the Link mode. To register a signal, first set "Link Mode" to "Standalone" on the menu and then repeat the steps from “x Adjusting and Registering Signals to Be Projected”. If you select an unregistered signal, the master projector displays the image, but the slave projector doesn't. To view the information on the currently displayed signal, select [Help][Source Information].

7-5

7. Setting Up for Double Stacking in Link Mode

b List of Menu Items Available in Link Mode

Available Menu Items



NOTE

Source Select



*1







Sound











Menu











Link Mode











On/Off Timer











Sleep Timer











Source Information











Projector Information

















Direct Button



NOTE

LENS SHIFT

Projector

*2







FOCUS

Projector

*2









Remote Control

*2

ZOOM

Projector

*2









Remote Control

*2







"MENU/SELECT/





ENTER/CANCEL"

Projector











Remote Control









POWER

Projector

*3

POWER ON

Remote Control

*3







POWER OFF

Remote Control

*3







INPUT

Remote Control

*1

MUTE(PICTURE)

Remote Control









MUTE(SOUND)

Remote Control









MUTE(OSD)

Remote Control









*1: Unregistered signal is displayed on the master projector only and the picture is muted on the slave projector.

*2: Adjustment is possible on each projector independently.

*3: You can also turn on the slave projector only.

7-6

8

Using On-ScreenMenu

z Basic Menu Operation ...............................

8-2

x List of Direct Button Combinations ............

8-3

c Menu tree ...................................................

8-4

v Menu Descriptions & Functions .................

8-7

Adjust (Source) .........................................

8-8

Picture ...................................................

8-8

Video Adjust .........................................

8-8

Picture Management ............................

8-9

Image Options .....................................

8-10

Option Adjust .....................................

8-10

Lens Memory .....................................

8-11

Signal Type ..........................................

8-11

Sound ......................................................

8-11

Ref. Adjust ...............................................

8-12

Using 3D Reform ...............................

8-12

Screen Type .......................................

8-12

Reference White Balance ...................

8-12

Reference Color Correction ...............

8-12

Reference Lens Memory .....................

8-13

Factory Default ........................................

8-13

Projector Options .....................................

8-13

Menu ...................................................

8-13

Setup ...................................................

8-15

Lamp Settings .....................................

8-18

Link Mode ..........................................

8-18

LAN Mode ..........................................

8-19

Setting a Password ............................

8-23

Security ..............................................

8-24

Tools ........................................................

8-25

Timer ...................................................

8-25

Using Capture .....................................

8-27

Using PC Card Files ..........................

8-27

Using ChalkBoard ..............................

8-27

Help ..........................................................

8-27

Contents .............................................

8-27

Source Information ..............................

8-27

Projector Information ..........................

8-28

Test Pattern .............................................

8-28

8-1

8. Using On-ScreenMenu

z Basic Menu Operation

Using the Menus

NOTE: The on-screenmenu may not be displayed correctly while interlaced motion video image is projected.

1.Press the MENU button on the remote control or projector cabinet to display the Basic, Advanced or Custom Menu.

MENU

NOTE: When using a USB mouse, click the mouse button to display the menu. For other operations, do the same way as you use your PC mouse.

2.Press the SELECT buttons on the remote control or the projector cabinet to highlight the menu for the item you want to adjust or set.

-

3.Press the SELECT button or the ENTER button on the remote control or the projector cabinet to select a submenu or item.

-+

4.Adjust the level or turn the selected item on or off by using SELECT or buttons on the remote control or the projector cabinet.

The on-screenslide bar will show you the amount of increase or decrease.

-+

5. Changes are stored until you adjust it again.

ENTER CANCEL

ENTER ........

Stores the setting or adjustments.

CANCEL ......

Return to the previous screen without storing set-



tings or adjustments.

6.Repeat steps 2-5to adjust an additional item, or press the CANCEL button on the projector cabinet or the remote control to quit the menu display.

Customizing the Menu

The Custom menu can be customized to meet your requirements. Selecting a menu item from the "Custom Menu Edit" list, allows you to custom tailor the menu items to your needs.

1.Select "Custom Menu Edit" to display the "Custom Menu Edit" screen.

2.Use the SELECT or buttons to highlight your selection and press the ENTER button to place a check mark next to an option.

This action enables that feature. Press the ENTER button again to clear the check box.

If you select an item with a solid triangle and press the ENTER button on the remote control or the projector cabinet, you can enable all the items within that submenu. Also you can turn on an item within the submenu without placing a check mark on the main menu item.

NOTE: Up to 12 main menu items (within Custom Menu Edit, not including submenu items) can be selected.

3.In order for the changes to take effect, use the SELECT or button

on the remote control or the projector cabinet to highlight "OK", then press the ENTER button. To cancel the changes, use the SELECT orbuttons to highlight "Cancel" and press the ENTER button.

To return to the factory default, select "Reset" then press the ENTER button.

NOTE: Once you have selected OK on the Custom Menu Edit screen, you cannot cancel the changes on the Menu screen. However, you can reedit the menu items over again as described in the steps above.

NOTE: If the "Advanced Menu" item has been selected on the Menu mode, you get the "Change Custom menu now?" upon completion of "Custom Menu" editing. In this case, selecting "Yes" then "ENTER" will close all the menus and apply the changes from the Advanced menu to the Custom Menu. If you select "No" then "ENTER" functions, then all menu items will return to the Advanced menu, but your changes will still be available within the "Custom Menu" selection. To display the previously tailored Custom Menu, select "Custom Menu" from the "Menu Mode".

An item "To Advanced Menu" will be added to the bottom of the Custom Menu.

Selecting this item and pressing the ENTER button will display the "Advanced Menu" features.

8-2











8. Using On-ScreenMenu

x List of Direct Button Combinations















CTL+

Input (1-10)





Switches to any selected signal found in the Entry List.











To enable this combination, you must first assign specific remote buttons











for direct input selection in the Entry Edit window.









CTL+ ENTER (While displaying Entry list)



Displays the selected signal.













CTL+

CANCEL





Returns to the previous menu without closing the slidebar or dialog.











CTL+ UNDO





Clears all menus or adjustment/setting screens. All adjustments are saved











automatically.











CTL+





Moves the slidebar or dialog box horizontally or vertically.





While using zoom on remote control:



Displays the magnifying glass icon.











CTL+ (BS)





Deletes one letter or numeral in the entry screen.









CTL+MUTE OSD





Turns off the on-screendisplay forciblly.







CTL+ MENU (ADDRESS)



Displays the remote ID entry window.







CTL+ IMAGE (PROJECTOR)



Sequentially selects the Projector Options sub menu.







CTL+ POSITION (LENS)



Displays the Lens Shift adjustment window.











CTL+

KEYSTONE

(R)



Turns on red. Available only when the projector is in the test pattern mode.











CTL+

AMPLITUDE

(G)



Turns on green. Available only when the projector is in the test pattern











mode.







CTL+ ENTRY LIST (B)



Turns on blue. Available only when the projector is in the test pattern mode.











Stores a signal in the Entry List when you are not displaying a test pattern.







CTL+ MAGNIFY (ZOOM)



Zooms the lens in and out









CTL+ (FOCUS)





Adjusts the lens focus.









CTL+ INFO.





Stores lens position settings.













8-3

8. Using On-ScreenMenu

c Menu tree

NOTE: The item appears dimmed on the menu, it is unavailable.

Advanced Menu

Source Select

Adjust (Source)

Sound

Ref. Adjust

Factory Default

Projector Options

Tools

Help

Test Pattern









1. RGB1







































2. RGB2



















3. DVI(DIGITAL)







































4. Video

























































5. S-Video

























































6. Viewer







































7. LAN



















8. Slot 1

Input Terminal 1/Input Terminal 2(available only when option board is installed)





























9. Slot 2

Input Terminal 1/Input Terminal 2(available only when option board is installed)









0. RGB1(Video)

RGB1(Video)/RGB1(S-Video)









Entry List

Load/Cut/Copy/Paste/Store/Edit/All Delete


















































Brightness/Contrast/Saturation/Color/Hue/Sharpness

















Video Adjust

Noise Reduction



Off/Low/Medium/High





















Color Matrix



HDTV/SDTV











Y/C Delay



0 to 15











YTR Adjustment



Gain/Tap











CTR Adjustment



Gain/Tap











SweetVision



Off/Low/Medium/High Split Mode (Off/On)











Deinterlace



Off/On











Telecine



Auto/Off











Black Expansion



0 to 5











Contrast Enhancement

-3to +3











3D Y/C Separation

Off/On









Picture Management

Presentation/sRGB/Graphic/Video/Movie











User

Gamma Correction

Dynamic/Natural/Black Detail































Color Correction



Red/Green/Blue/Yellow/Magenta/



















Cyan/Color Gain





























Color Temperature

6 Steps































White Balance



Brightness R/G/B, Contrast R/G/B













Base Setting



Presentation/sRGB/Graphic/Video/Movie









Image Options

Pixel Adjust

Clock/Phase











Position

Horizontal/Vertical











Aspect Ratio

1.25:1(5:4)/1.33:1(4:3)/1.78:1(16:9)/1.85:1/2.35:1











Resolution

Auto/Native











Overscan

0%/5%/10%/25%











Video Filter

Off/Less/More











Blanking

Top/Bottom/Left/Right









Option Adjust

Clamp Timing

Mode 0-4/Adjust











Sync Protection

Upper/Lower











VD Delay

Adjustment/Field Invert (On/Off)











Signal Level

Red/Green/Blue, Y/Cb/Cr, Y/Pb/Pr









Lens Memory

Set Custom Point/Use Custom Point





























Signal Type

RGB/Component



































Sound

Volume/Bass/Treble





































8-4

8. Using On-ScreenMenu

NOTE: The shaded item indicates the default setting.

Advanced Menu

Source Select

Adjust (Source)

Sound

Ref. Adjust

Factory Default

Projector Options

Tools

Help

Test Pattern

* GT5000 only

3D Reform





Conerstone





















































































Keystone









Horizontal/Vertical



Screen







Screen Type

1.25:1(5:4)/1.33:1(4:3)/1.78:1(16:9)/1.85:1/2.35:1













Position



















































Ref. White Balance



Brightness R/G/B, Contrast R/G/B



Ref. Color Correction



Red/Green/Blue/Yellow/Magenta/Cyan/Color Gain



Ref. Lens Memory



Set Reference Point/Use Reference Point/Return to Factory Default/













Use Point on Signal Change? Yes/No













Picture Mute during Lens Shift? Yes/No



Factory Default





All Data (Including Entry List)/Current Signal









Menu























English/Deutsch/Français/Italiano/Español/Svenska/





Page 1

Language















Menu Mode





















Basic/Custom/Advanced

























































































Custom Menu Edit















































































Menu Display Time







Manual/Auto 5 sec./Auto 15 sec./Auto 45 sec.







































Date Format





























MM/DD/YYYY ddd, DD/MM/YYYY,















MM/DD/YYYY,



























DD/MM/YYYY ddd, YYYY/MM/DD, YYYY/MM/DD ddd,



























Month DD, YYYY, Month DD, YYYY ddd



































Date, Time Preset







Date Month/Day/Year (Day of the week), Time (H/M)

































Page 2

Display Select







Date/Time/Input Terminal/Source Name/Projector ID/Message





































Page 3

Menu Color







Color/Monochrome



































Mouse Pointer







Pointer 1-9



Setup



Page 1

Orientation







Desktop Front/Ceiling Rear/Desktop Rear/Ceiling Front









































Background







Blue/Black/Logo









































RGBOUT Terminal







Last/RGB 1/RGB 2







































Closed Caption







Off/Caption 1-4/Text1-4









































































Sync Termination







RGB 1(Hi-Z/75Ω)



































































Page 2

Viewer Options







Show Folder List, Auto Play/Manual Play,

Interval (5-300sec)







































































Capture Options*







High Quality/Normal/High Compression



























































Mouse















Button

(Right Hand/Left Hand),































































































Sensitivity (Fast/Medium/Slow)



































































Operation Mode Select

(Auto/Projector)













































Page 3

Signal Select

RGB 1























RGB, Component, Scart







(RGB/Component,



























































RGB2

























RGB, Component, Scart)













(RGB/Component,













































Video











(Auto/NTSC3.58/NTSC4.43/PAL/PAL-M/PAL-N/PAL60/SECAM)

































































S-Video











(Auto/NTSC3.58/NTSC4.43/PAL/PAL-M/PAL-N/PAL60/SECAM)







































































RGB1















(Auto/NTSC3.58/NTSC4.43/PAL/PAL-M/PAL-N/PAL60/SECAM)













(Video)

























































RGB1(S

























(Auto/NTSC3.58/NTSC4.43/PAL/PAL-M/PAL-N/PAL60/SECAM)





















-Video)











































































Page 4

Auto Adjust (On/Off),

Auto Start (On/Off),

Power Management (On/Off),











Power Off Confirmation (On/Off),

3D Reform Save (On/Off),

Built-inSpeaker

(On/Off),









Last Memory (On/Off),









Idle Mode (On/Off),

Back Light

(On/Off), Screen Trigger (On/Off)









































Page 5

Remote Sensor



















Front/Back/Left/Right





















































S-VideoMode Select

Off/S2









































































Clear Filter Usage Meter





































Page 6

Communication Speed

4800/9600/19200/38400











































































Projector ID



















Enable (1-64)/Disable





























































Default Source Select

Last/Auto/Select







































Select: RGB1/RGB2/DVI(DIGITAL)/Video/S-Video/







































Viewer/LAN/Solt-1-1(None)/Solt-1-2(None)







































Solt-2-1(None)/Solt-2-2(None)/RGB1(Video)/







































RGB1(S-Video)





















































Control Panel Key Lock

Enable/Disable

















































































8-5

8. Using On-ScreenMenu

Advanced Menu

Source Select

Adjust (Source)

Sound

Ref. Adjust

Factory Default

Projector Options

Tools

Help

Test Pattern

*When selecting “PC Card”, the “Network Type” and the “WEP” setting screens appear.

Lamp Settings

Link Mode

LAN Mode

Password

Security

Lamp Mode

Normal/Eco







Lamp Select

Dual/Lamp 1/Lamp 2



Interval

Auto/1 week/4 weeks/1300H/1800H/3000H/4000H

Lamp Type

Lamp1, Lamp2







Settings

Mode



Standalone/Master/Slave











Communication Speed

4800/9600/19200/38400











Projector ID



Enable (1 - 64)/Disable













Entry List Copy







Status

Link Mode(Master/Slave, ID, Status, Connected PJ)



Reconnect







Status

LAN Card



Build-in/PCCard*



Projector Name









IP Address









Subnet Mask









MAC Address









Advanced









Recconect









IP Address

Automatic/Manual





IP Address







Subnet Mask







Gateway

On/Of





DNS Configuration







Domain Name





Network Type Mode

Infrastructure/802.11 Ad Hoc/







Ad Hoc/Easy Connection





SSID









Channel

1-14







TX Rate

Automatic/11M/5.5M/2M/1M/







1M-2M-Automatic



WEP

WEP

Disable/64 bit/128 bit





Key Select

Key 1-4







Key 1-4







DHCP

Host Name option

None/Request/









Discover/Request





Client-Identiferoption

None/Request/









Discover/Request

Mail

Alert Mail

On/Off





Sender's Address





SMTP Server Name

Recipient's Adderss 1-3

Test Mail

Menu, Logo

Enable/Disable, Keyword, Use Protect Key, Drive/Read/Register/Delete

Timer

On/Off Timer

Execute Switch (Active/Inactive), Edit, Delete



Sleep Timer

Preset Time



(Off/0:30/1:00/2:00/4:00/8:00/12:00/16:00)





Capture (GT5000 only), PC Card Files, ChalkBoard

Contents



















Source Information

Page 1

Source Name/Input Terminal/Entry No./Horizontal Frequency/







Vertical Frequency/Sync Polarity





Page 2

Signal Type/Video Type/Sync Type/Interlace/Direct Key

Projector Information

Page 1

Remaining Lamp 1Time/Remaining Lamp 2 Time/







Lamp 1 Hour Meter/Lamp 2 Hour Meter





Page 2

Filter Usage/Projector Usage/Projector ID





Page 3

Version (BIOS/Firmware/Data/FPGA)

Test Pattern



Cross Hatch/Gray Bars/Raster (0%)/Raster(25%)/Raster(50%)/Focus







Raster(100%)/Raster Blue/Gray Raster 10/Gray Raster 30

Red (On/Off), Green (On/Off), Blue (On/Off)

8-6

8. Using On-ScreenMenu

Entering Alphanumeric Characters by Using the Menu

Alphabet or numeric characters are used for your IP address or projector name. To enter IP Address or projector name, use the software keyboard.

For using the software keyboard, see page 10-10.

v Menu Descriptions & Functions

Source Select

Enables you to select a video source such as a VCR, DVD player, laser disc player, computer or document camera depending on what is connected to your inputs.

Press the up/down buttons on your remote control or the projector cabinet to highlight the menu for the item you want to project.

* RGB1,2

* Viewer



* DVI DIGITAL

* LAN



* Video

* RGB 1

(Video)

* S-Video

* RGB 1

(S-Video)

Entry List





Entering Alphanumeric Characters by Using the Remote Control Numeric Buttons

Input alphanumeric characters by selecting one character at a time with the numeric (Source/Input) buttons 1through 10(0) and by moving the cursor with the SELECT button. After finishing the selection of the characters, press the ENTER button.

Whenever one of the Source/Input buttons on the remote control is pressed, characters will be rotated.

For example: A → B → C → 1 → A → ...

NOTE: When holding and pressing the CTL button and pressing one of the Source/ Input buttons, another group of characters will be rotated.

For example: a b c ! a ...

The alphanumeric characters corresponding to these Source/Input buttons are as follows:

Numeric buttons

Press

Press with CTL







1

A → B → C → 1

a → b → c → !







2

D → E → F → 2

d → e → f → ”







3

G → H → I → 3

g → h → i → #







4

J → K → L → 4

j → k → l → $







5

M → N → O → 5

m → n → o → %







6

P → Q → R → 6

p → q → r → &







7

S → T → U → 7

s → t → u → '







8

V → W → X → 8

v → w → x → (







9

Y → Z → / → 9

y → z → ? → )







0

* → , → . → 0

; → : → + → -







*If you have made an error in the input of a character, use the

SELECT button and enter the correct letter or number.

NOTE: Only numbers can be entered when you use the remote control Source/ Input buttons while displaying the Software Keyboard.

Displays the list of the entry signals. Use the SELECT buttons on your remote control or the projector cabinet to select the signal and press the ENTER button on the remote control or the projector cabinet to display the Entry Edit Command screen.

Using the Entry List

Making any adjustments to the current picture will automatically register its adjustments to the Entry List. The registered signal can be loaded any time from the Entry List.

NOTE: Up to 100 presets can be registered.

Entry Edit Command

You can edit signals on the Entry List.

Load ............

Enables you to select a signal from the list.

NOTE: This can be done by pressing CTL and ENTER buttons.

Store ............

Enables you to store the currently projected sig-



nal.

NOTE: This can be done by pressing CTL and ENTRY LIST buttons.

Cut ...............

Enables you to remove a selected signal from



the list and place it on the "clipboard" in the pro-



jector.

Copy ..............

Enables you to copy a selected signal from the



list and place it on the "clipboard" in the projec-



tor.

Paste ...........

Enables you to paste the signal placed on the



"clipboard" to any other line of the list. To do this,



select "Paste" and then select the line number



you want to paste to. Last press ENTER.

8-7

8. Using On-ScreenMenu

Edit

.............. Enables you to change source names or assign



the direct key.



Source Name



Enter a signal name. Up to 18 alphanumeric char-



acters can be used.



Input Terminal



Change the input terminal. RGB1 and RGB2 are



available for RGB signal; Video and S-Videoare



available for composite signal.



Direct key



You can assign specific remote keys for direct



signal input selection.



Lock



Set so that the selected signal cannot be deleted



when "All Delete" is executed. The changes can-



not be saved.



Skip



Set so that the selected signal will be skipped



during auto search.



When complete, select OK and press ENTER.



To exit without storing setting, select Cancel.



Select "Source Name" and press ENTER to dis-



play the Source Name Edit window. You can



change source name on this window. Press [ ]



to display the software keyboard, which you can



enter alphanumeric characters. See page 10-10



for the key function of the software keyboard.

All Delete ..... This feature enables you to delete all the registered signals in the Entry List.

The following buttons are not available for the currently projecting signals:

1)The Cut and Paste buttons on the Entry Edit Command screen

2)The Input Terminal button on the Entry Edit screen

Adjust (Source)


Brightness

Adjusts the brightness level or the back raster intensity.

Contrast

Adjusts the intensity of the image according to the incoming signal.

Saturation

Adjust saturation at the white peak.

Color

Increases or decreases the color saturation level (not available for RGB).

Hue

Varies the color level from +/- green to +/-blue.The red level is used as reference. This adjustment is only valid for Video and Component inputs (not available for RGB).

Sharpness

Controls the detail of the image for Video (not available for RGB).

Video Adjust (not available for RGB)

Noise Reduction

Select one of the three levels for reducing video noise: Low, Medium or High.

NOTE: The lower the Noise Reduction level, the better the image quality by way of higher video bandwidth.

Color Matrix

Select an appropriate color matrix for your input signal, either HDTV or SDTV.

Y/C Delay

Adjusts Y/C delay level.

YTR Adjustment

Adjusts luminance transient time.

CTR Adjustment

Adjusts chroma transient time.

8-8

8. Using On-ScreenMenu

SweetVision

The SweetVision feature provides improvement of contrast using a proprietary detail enhancement technology.

NOTE: This feature is not available for 480p, 576p and HDTV signals.

Off ...............

Turns off the SweetVision feature

Low ..............

Selects low level

Medium .......

Selects medium level

High .............

Selects high level

Split Mode

This feature turns on or off to show the effect of the Sweet Vision.

NOTE: When the projector is turned off, the Split Mode will return to Off.

Deinterlace

Turns on or off the deinterlace function for a telecine signal.

On ...............

Default standard setting.

Off ...............

Select this option if there is any jitter or artifacts



in video.

NOTE: This feature is not available for 480p, 576p and HDTV signals.

Telecine

Use 3:2 pull down correction to eliminate jitter and artifacts in video.

Auto .............

For film source such as a DVD player

Off ...............

For signals other than film sources

NOTE:

This feature is not available for 480p, 576p and HDTV signals.

When “Off” is selected in Deinterlace, this feature is not available.

Black Expansion

Minimizes blacks that appear more like shades of gray to provide a true black and white image at high contrast.

NOTE: This feature is not available for 480p, 576p and HDTV signals.

Contrast Enhancement

This option allows you to provide a high contrast image in a bright scene.

NOTE: This feature is not available for 480p, 576p and HDTV signals.

3D Y/C Separation

This option turns on or off the 3 dimension separation feature.

NOTE: This feature is available for NTSC3.58 of Video signal only.

Picture Management

This option allows you to adjust neutral tint for yellow, cyan or magenta.

There are 5 factory presets optimized for various types of images, or you can set a user adjustable setting.

Presentation .. Recommended for making a presentation using a PowerPoint file.

sRGB ...........

Standard color values

Graphic ........

Recommended for graphics

Video ...........

Recommended for regular picture such as TV



program

Movie ...........

Recommended for movies

User .............

User adjustable

NOTE: When "sRGB", "Graphic", "Video" or "Movie" is selected, the brightness decreases slightly when compared to "Presentation". This is not a malfunction.

User Adjust

When selecting the user adjustable presetting (User), the submenu will be displayed. You can customize each gamma or color. To do so, first select [Setting] and press the ENTER button, and then proceed the following steps.

8-9

8. Using On-ScreenMenu

Selecting Gamma Correction Mode

Use the or buttons to choose one mode from three options. Each mode is recommended for :

Dynamic ......

For true color reproduction of natural tones

Natural .........

Normal settings

Black Detail . For dark portions of a picture

Selecting Color Correction

Adjusts red, green, blue, yellow, magenta, cyan and color gain each independently to correct the tint on whole screen.

Adjusting Color Temperature

This feature adjusts the color temperature using the slide bar.

Checking "Color Temperature" enables the color temperature slide bar.

Adjusting White Balance

Press the White Balance button to access the Contrast/Brightness adjustment for each R, G, and B.

NOTE: The White Balance is not available for Viewer and LAN.

Selecting Base Setting

This feature allows you to use color correction or gamma values as reference data to optimize for various types of images. You can select one of the following five settings.

• Presentation

• Graphic

• Movie

• sRGB

• Video



Image Options

Pixel Adjust

Displays the Clock and Phase adjustments.

Clock ........... Use this item to fine tune the computer image or to remove any vertical banding that might appear.

Phase .......... Use this item to adjust the clock phase or to reduce video noise, dot interference or cross talk.

(This is evident when part of your image appears to be shimmering.) Use the and buttons to adjust the image.

Use "Phase" only after the "Clock" is complete.

Position

Adjusts the image location horizontally and vertically using the

SELECT and buttons.

Aspect Ratio

You can select the aspect ratio for input signal.

Select the appropriate aspect ratio using the SELECT or button.

NOTE: When "Resolution" is set to "Native", this feature is not available, and the aspect ratio is set to “1.33:1 (4:3)”.

NOTE: When “S2” is selected in “S-VideoMode Select” and the S2 signal is detected, this feature is not available.

Resolution

This allows you to activate or deactivate the Advanced AccuBlend feature.

Auto .............

Turns on the Advanced AccuBlend feature. The



projector automatically reduces or enlarges the



current image to fit the full screen.

Native ..........

Turns off the Advanced AccuBlend feature. The



projector displays the current image in its true



resolution.

NOTE:

*When "Resolution" is set to "Native", "3D Reform", "Aspect Ratio", "Screen" and "Overscan" are not available.

*While you are displaying an image with higher resolution than the projector's native resolution (GT6000: SXGA+ and GT5000: XGA), "Resolution" is not available.

Overscan

Select overscan percentage (0%, 5%, 10% and 25%) for signal.

NOTE: When "Resolution" is set to "Native", this feature is not available, and the stored settings and adjustments are invalid.

NOTE: The "0%" option may not be available depending upon the input signal.

Video Filter (not available for Video, Component,Viewer and LAN)

This function reduces video noise.

Off ...............

The filter is removed.

Less .............

The low-passfilter is applied partially.

More ............

The low-passfilter is applied fully.

Blanking

This feature allows you to mask any unwanted area of the screen image.

Adjust the Top, Bottom, Left or Right blanking with the SELECTor button.

Option Adjust

Clamp Timing

According to the signal, this function sets the detection position (i.e., clamp position) of the black level reproduction of the analog input signal. Normally this is not used.

Mode 0-4 .....Select the appropriate one.

Adjust .......... This permits the video clamp position for each signal to be set. Use "Adjust" when a clamp timing error occurs at the time of special analog signal reception such as 1080P. Note that "Adjust" is not valid for doubler signals such as NTSC and PAL.

To delete the "Clamp Timing" setting screen, select the SELECT

button and press the ENTER button, or press the remote control CANCEL button.

8-10

8. Using On-ScreenMenu

Sync Protection

Lens Memory

When a VCR, DVD, or some other equipment that supports

Copyguard (a copy prevention system) is played back, the screen may be displayed in a curved manner. Adjustments are made in such circumstances. Use the SELECT or button to adjust the VD level.

VD Delay

Adjustment:

This feature is used to correct vertical jitter of a signal.

NOTE: When connecting with a scan converter:

If an image from the scan converter is not correctly displayed, adjust to select the best level point so that the image is displayed correctly.

Field Invert:

This feature is used to correct diagonal lines of a non-standardinterlaced signal when they appear jaggy.

Invert the odd or even field of a video signal.

Signal Level

R/G/B, Y/Cb/Cr or Y/Pb/Pr Gain:

Adjust RGB, Component or HDTV Gain to match multiple projector color uniformity.

This function serves to store or apply the adjusted value when using the Shift, Focus and Zoom buttons on the projector or the remote control.

Set Custom Point ...........

Store the current adjusted values in



memory.

Use Custom Point ..........

Apply the adjusted values to the cur-



rent signal.

NOTE:

To enable the Lens Memory feature, select [Ref. Adjust] [Ref. Lens Memory] and place a check mark next to “Yes” for [Use Point on Signal Change?].

The Lens Memory feature is not available in the Link Mode.

To store adjusted values common to all the input sources, use the Ref. Lens Memory. See page 8-13.

Signal Type

RGB/Component

Select either the RGB signal type or the Component signal type.

RGB ............

RGB signal

Component ..

Component signals such as Y/Cb/Cr, Y/Pb/Pr

NOTE: This feature is available on RGB 1 and 2 only. If you do not get a better picture even when you set "Signal Select" to "Component" in Setup, set this to "Component".

Sound

Volume/Bass/Treble

Controlling Volume, Bass and Treble.

Adjusts the sound, bass and treble level of the projector speaker and AUDIO OUT (RCA).

8-11

8. Using On-ScreenMenu

Ref. Adjust

Using 3D Reform

This feature corrects trapezoidal distortion so that the projected image is rectangular.

Two options are available for correcting procedures.

You can save adjustment settings by using the 3D Reform Save option on Setup (See page 8-16).

Cornerstone

See page 3-4.

* When "Resolution" is set to "Native", "Cornerstone" and "Keystone" are not available.

Keystone

Position

This feature adjusts the vertical position of the image when viewing video with an aspect ratio selected.

When some aspect ratios are selected in Image Options, the image is displayed with black borders on the top and bottom.

You can adjust the vertical position between top and bottom.

NOTE: This option is available only when "1.78:1 (16:9)", "1.85:1" and "2.35:1 " are selected in Screen Type and Aspect Ratio.

NOTE: During 3D Reform adjustment, "Screen Type" and "Screen Position" may not be available. To make available, first reset the 3D Reform data and then do settings again. Secondly repeat the 3D Reform adjustment. Changing "Screen Type" and "Screen Position" can limit 3D Reform in its adjustable range.

Reference White Balance [Ref. White Balance]

1.Press the SELECT or button to adjust the horizontal keystone.

2.Press the SELECT or button to select "Vertical".

3.Press the SELECT or button to adjust the vertical keystone.

4.After completing, press the ENTER button. This will return to the menu screen.

Screen

Screen Type

Select the correct aspect ratio for the screen to be used. See also "Aspect Ratio" on page 8-10.

NOTE: When "Resolution" is set to "Native", this selection is inactive.

Brightness R/G/B, Contrast R/G/B

This feature adjusts the white balance that is used as a reference. This adjustment affects all sources.

Reference Color Correction [Ref. Color Correction]

Red/Green/Blue/Yellow/Magenta/Cyan/Color Gain

This option allows you to adjust red, green, blue, yellow, cyan, magenta or color gain.

8-12

8. Using On-ScreenMenu

Reference Lens Memory [Ref. Lens Memmory]

This function serves to store the adjusted value common to all input sources when using the Shift, Focus, and Zoom buttons of the main unit or the remote control.

Set Reference Point .............

Stores the current adjusted val-



ues in memory as a reference.

Use Reference Point ............

Applies the adjusted values



stored in Set Reference Point to



the current signal.

Return to Factory Default .....

Returns the adjusted values to



the factory default setting.

Use Point on Signal Change? ....

For change to take effect at the



time of source selection, select



“Yes”.

Picture Mute during Lens Shift? ... To turn off the image and sound during lens shift, select "Yes".

NOTE: This option is only available when "Yes" is selected for "Use Point on Signal Change?".

Even if “CANCEL” is executed, changes to “Set Reference Point”,

“Use Reference Point” and “Return to Factory Default” will not be canceled.

* See "Tips on Adjusting Focus" on page 3-4for more information.

NOTE:

Adjusted values in Ref. Lens Memory will not be returned to default by using the Factory Default.

To store adjusted values for each input source, use the Lens Memory.

NOTE: In the Link mode the Lens Memory feature is not available.

Factory Default

All Data /Current Signal

The Factory Default feature allows you to change adjustments and setting to the factory preset for source.

All Data ........ Reset all the adjustments and settings for all the signals to the factory preset except Ref. Lens Memory, Language, Background Logo, Communication Speed, Projector ID, Lamp Settings, LAN

Mode, Password, Security, Remaining Lamp1/2

Time, Lamp 1/2 Hour Meter, Filter Usage and Projector Usage.

Including Entry List:

Also deletes all the signals in the Entry List and returns to the factory preset.

NOTE: Locked signals in Entry List cannot be deleted.

Current Signal

.................... Resets the adjustments for the current signal to the factory preset levels.

All the items in "Adjust (Source)" and "Sound" can be reset.

NOTE: Locked signals in Entry List cannot be reset.

Projector Options

Menu

[Page 1]

Selecting Menu Language [Language]

You can choose one of seven languages for on-screeninstructions.The options are: English, German, French, Italian, Spanish, Swedish and Japanese.

Selecting Menu Mode [Menu Mode]

This feature allows you to select 4 menu modes: Advanced, Custom, Basic and Service Menu.

Advanced Menu ......

This is the menu that contains all the



available menus and commands.

Basic Menu .............

This is the basic menu that contains mini-



mum essentials of menus and com-



mands.

Custom Menu ..........

This is the menu that you can customize



using the Custom Menu Edit to fit your



needs.

Service Menu ..........

For service personnel only.

Customizing the Menu [Custom Menu Edit]

See page 8-2for instructions about how to customize the Menu.

8-13

8. Using On-ScreenMenu

Selecting Menu Display Time

This option allows you to select how long the projector waits after the last touch of a button to turn off the menu.

The preset choices are "Manual", "Auto 5 sec", "Auto 15 sec", and "Auto 45 sec". The "Auto 45 sec" is the factory preset.

Manual ........

The menu can be turned off manually.

Auto 5 sec ... The menu will automatically be turned off in 5 seconds if no buttons are pressed within 5 seconds.

Auto 15 sec . The menu will automatically be turned off in 15 seconds if no buttons are pressed within 15 seconds.

Auto 45 sec . The menu will automatically be turned off in 45 seconds if no buttons are pressed within 45 seconds.

Selecting Date Format

Eight display formats can be selected. This date format sets the current date that appears on the upper left corner of the screen.

Setting the Current Date and Time [Date, Time Preset]

You can set the current time, month, date, and year.

1. Type in date.

Enter month, date and year in this order using Source/Input buttons on the remote control.

Month and date must be entered in two digits. For example, to display "February", press "0" and "2".

2. Type in time.

Time is expressed in the 24-hourformat. For example, 6:00 p.m. is entered as 18:00.

3.Select "OK" and press ENTER.

Closing the window allows the clock to start.

The current year, month, date and time are displayed on the top of the screen.

NOTE: The projector has a built-inclock. The clock will keep working for about 3 days after the main power is turned off. If the main power is off for 3 days or more, thebuilt-inclock will cease. If thebuilt-inclock ceases, set the date and time again. Thebuilt-inclock will not cease while in the standby or idle condition.

[Page 2]

Display Select

You can choose the desired status information to be displayed on the screen.

The information selections are:

Date, Time, Input Terminal, Source Name, Projector ID and

Message.

The Message selections are:

Lamp life warning, lamp error, 3-minutebefore power off time, clearn filter, lock in Security and “Wait a moment”.

[Page 3]

Selecting Menu Color [Menu Color Select]

You can choose between two color modes for menu color: color and monochrome.

Selecting Mouse Pointer Icon [Mouse Pointer]

This enables you to select from nine different mouse icons when using a USB mouse.

NOTE: There may be cases where the Pointer function is not available (ex. a noninterlace signal at 15kHz such as video game.)

8-14

8. Using On-ScreenMenu

Setup

[Page 1]

Selecting Projector Orientation [Orientation]

This reorients your image for your type of projection. The options are: desktop front projection, ceiling rear projection, desktop rear projection, and ceiling front projection.

Selecting a Color or Logo for Background [Background]

Use this feature to display a blue/ black screen or logo when no signal is available. The default background is "Blue". You can change the logo screen using the PC Card Files feature. See pages 4-4.

Setting RGB 1 or 2 for RGB OUT [RGBOUT Terminal]

This option allows you to determine which RGB source is output from the RGBOUT connector during Idle mode.

Last .............

The signal from the last RGB input will be output



to the RGBOUT connector.

RGB 1 .........

The signal from RGB1 will be output to the



RGBOUT connector.

RGB 2 .........

The signal from RGB2 will be output to the



RGBOUT connector.

NOTE:

The AUDIO OUT jack (RCA) will not output sound during the Idle mode.

The RGB signal can be output even when Video, S-Video,Viewer and LAN is selected.

When the DVI (DIGITAL) input is selected, the RGB OUTPUT terminal will not output signal.

Setting Closed Caption

This option sets several closed caption modes that allows text to be superimposed on the projected image of Video or S- Video.

CAPTION 1-4 ...Text is superimposed.

TEXT 1-4 .....Text is displayed in full screen.

OFF ............. This exits the closed caption mode.

Sync Termination (RGB1)

This function is used to select the impedance of the sync signal.

Select " 75Ω" or "Hi-Z".

NOTE: This should be "75" for normal use. Select the"Hi-Z"when inputting a TTL signal.

[Page 2]

Setting Viewer Options [Viewer Options]

Show Folder List:

If this option is checked, when the Viewer source is selected on the projector, the folder lists will be displayed and allows you to select the presentation from a PC card.

Auto Play:

If this option is checked, when the Viewer source is selected on the projector any given slide will start to play automatically.

Auto Play Interval:

You can specify interval time between 5 and 300 seconds.

NOTE: The Auto Play Interval time set on "Slide Show Settings" of the Dynamic Image Utility 2.0 overrides the one set here.

Manual Play:

Views a slide manually when the Viewer source is selected.

Selecting Capture Options [Capture Option] (GT5000 only)

(available for JPEG only)

These options are used for the Capture function that you can select from Tools. You have three options for JPEG compression quality: High quality, Normal and High Compression.

High Quality .............

Gives quality of JPEG a priority.

Normal .....................

Gives normal JPEG quality.

High Compression ... Gives compression a priority.

Setting Mouse Button and Sensitivity [Mouse]

This option lets you to change your USB mouse settings. The mouse settings feature is available for USB mouse only. Choose the settings you want:

Mouse Button ..........

"Right Hand" or "Left Hand"

Mouse Sensitivity ....

"Fast", "Medium" or "Slow"

8-15

8. Using On-ScreenMenu

Selecting Operation Mode [Operation Mode Select]

Set the operation mode of the USB mouse connected to the

USB port (MOUSE/HUB) on the projector

Auto .............

Depending on connection of the USB port (PC)



on the projector and a USB port (type A) on your



PC, the USB mouse is operated in the following



way:



* When connecting the projector to your PC



The USB mouse connected to the projector



can be used as a PC mouse.



* When not connecting the projector to your PC

The USB mouse connected to the projector can perform menu operation of the projector.

Projector ...... The USB mouse connected to the projector can perform menu operation of the projector.

[Page 3]

Selecting Signal Format [Signal Select]

RGB1/2

Allows you to choose "RGB" for an RGB source such as a computer, or "Component" for a component video source such as a DVD player.

Normally select "RGB/Component" and the projector automatically detects an either incoming signal. However there may be some component signals that the projector is unable to detect.

If this is the case, select "Component". Select "Scart" in RGB 1 or 2 for the European Scart.

VIDEO, S-VIDEOand RGB1 (Video andS-Video)

This feature enables you to select composite video standards manually.

Normally select "Auto". Select the video standard from the pulldown menu.This must be done for Video and S-Videoseparately and "VIDEO" or"S-VIDEO"for RGB1 connector.

[Page 4]

Enabling Auto Adjust [Auto Adjust]

When "Auto Adjust" is set to "On", the projector automatically determines the best resolution for the current RGB input signal to project an image using NEC's Advanced AccuBlend Intelligent Pixel Blending Technology.

The image can be automatically adjusted for position and stability; "Horizontal Position", "Vertical Position", "Clock", "Phase", and "Resolution".

On ...............

Automatically adjusts image "Horizontal Posi-



tion", "Vertical Position", "Clock", "Phase" and



"Resolution".

Off ...............

User can adjust the image display functions



("Horizontal Position", "Vertical Position", "Clock",



"Phase" and "Resolution") manually.

Enabling Auto Start [Auto Start]

Turns the projector on automatically when the power cable is inserted into an active power outlet and the main power switch is turned on.

This eliminates the need to always use the "Power" button on the remote control or projector cabinet.

Enabling Power Management [Power Management]

When this option is on and there is no input for five minutes or more, the projector will automatically turn itself off.

Enabling Power Off Confirmation [Power Off Confirmation] This option determines whether a confirmation dialog for turning off the projector will appear or not.

Enabling Horizontal and Vertical Keystone Correction Save [3D Reform Save]

This option enables you to save your current 3D Reform settings. Saving your change once affects all sources.The changes are saved when you turn off the projector.

Selecting Built-inSpeakers[Built-inSpeaker]

This option allows you to mute the built-inspeakers.

8-16

8. Using On-ScreenMenu

Enabling Last Memory [Last Memory]

The projector stores the last signal data in memory for each input (RGB1, RGB2, DVI DIGITAL, Video, S-Videoand Slot 1/

2).

This feature will reduce switching time between sources. If a commercially available switcher is connected, turning on this feature may cause the image to appear incorrectly.

Should this happen, turn this feature off to mute the screen during switching.

Enabling Idle Mode [Idle Mode]

The projector has two standby modes: Standby and Idle. Standby is the mode that allows you to put the projector in the standby condition which consumes less power than the idle mode. The projector is preset for Standby at the factory.

When this check box is turned on, you allow the RGB OUT connector to output RGB signal during Idle mode.

NOTE:

*The RGB OUT connector will not output signal during the Standby mode.

*Via the USB interface the projector can be turned on from your PC using Dynamic Image Utility 2.0 during the Standby or Idle mode. On the LAN connection the projector can be controlled or monitored from your PC using Dynamic Image Utility 2.0 only in the Idle mode.

*The HTTP server functions are not available during Standby mode. See page 1011.

Turning on or off the Back Light [Back Light]

This function turns on or off the backlight of the buttons on the cabinet.

NOTE: The Back Light feature is available in the normal operating mode or the idle mode only.

Enabling Screen Trigger [Screen Trigger]

When "Screen Trigger" is selected and the projector is powered ON, the screen trigger output sends a low voltage trigger to the screen controller and the screen will go down. When the projector is powered OFF the screen trigger stops sending a low voltage trigger to the screen controller and the screen will go up. Use a commercially available stereo mini cable.

[Page 5]

Remote Sensor

This option determines which remote sensors on the projector are enabled in wireless mode.

The options are: front, rear, right, or left. All checked boxes indicate that they can accept the infrared signal from the supplied remote control.

S-VideoMode Select:

This feature is used to select the S-Videosignal detection mode. This allows identifying of theS-Videosignals with different aspect ratio (16:9 and 4:3).

Off ...............

Does not identify any S-videosignal.

S2 ................

Identifies the 16:9 or 4:3 signal.

NOTE: The Aspect Ration is not available when S2 signal is detected.

Resetting the Filter Usage Hours [Clear Filter Usage Meter] Resets the filter usage back to zero. Pressing this button appears a confirmation dialog box.To reset the filter usage hours, press "OK".

[Page 6]

Selecting Communication Speed [Communication Speed]

This feature sets the baud rate of the PC CONTROL port (D-

Sub 9 Pin). It supports data rates from 4800 to 38400 bps. The default is 38400 bps. Select the appropriate baud rate for your equipment to be connected (depending on the equipment, a lower baud rate may be recommended for long cable runs).

Enabling and Disabling Projector ID

Each projector needs its own unique addresses when used in serial communication mode.You can choose one of 64 unique address using the spin box. First select Enable. Keep pressing

button increases the number. To make your setting available, select OK.

Selecting Default Source [Default Source Select]

You can set the projector to default to any one of its inputs each time the projector is turned on.

Last .............

Sets the projector to default to the previous or



last active input each time the projector is turned



on.

Auto .............

Searches for an active source in order of RGB1



→ RGB2 → DVI(DIGITAL) → Video → S-Video



→ Viewer → Slot 1 → Slot 2 → RGB1(Video) →



RGB1(S-Video)→ RGB1 and displays the first



found source.

Select ..........

Displays the selected source input every time the



projector is started up. Select an input from the



pull-downmenu.

8-17

8. Using On-ScreenMenu

Disabling the Cabinet Buttons [Control Panel Key Lock]

This option turns on or off the Control Panel Key Lock function.

NOTE:

*This Control Panel Key Lock does not affect the remote control functions.

*When the cabinet buttons are disabled, pressing and holding the CANCEL button for about 10 seconds will change the setting to enable.

Lamp Settings

The projector is designed to accept two lamps (dual lamp system). This dual lamp system provides prolong lamp life or high brightness or extra lamp (Extended life lamp).

NOTE: Be sure to use the same lamp type for both lamp 1 and 2.

Lamp Mode

This feature enables you to select two modes of the lamp:

Normal and Eco. The lamp life can be extended by using the Eco mode.

Normal Mode . This is the default setting (100% Brightness).

Eco Mode .... Select this mode to increase the lamp life (80% Brightness).

NOTE: When the optional Extended life lamp is used, the Lamp Mode is fixed to Eco mode.

Lamp Select

This feature allows you to select which lamp to be used.

NOTE: This option is not displayed in the Basic menu.

*Changes to these options will not take effect for 90 seconds immediately after the lamp is turned off (120 seconds for the extended life lamp).

*The lamp cannot be turned off for 60 seconds immediately after the lamp is turned on. Changes to these options cannot take effect until then.

Dual .............

Select to use the two lamps at the same time to



increase brightness.

Lamp1/2 ......

Select to use one lamp of the two lamps. (Lamp



1 on the right side and Lamp 2 on the left side



when viewed from the front)

Interval

This allows you to specify the time for switching between the two lamps alternately. This option is available only when “Lamp1” or “Lamp2” is selected. When Auto is selected and one lamp has reached the end of its usable life, the other lamp is turned on. The lamp cannot be turned off for 60 seconds immediately after the lamp is turned on.

NOTE: This option is not displayed in the Basic menu.

Lamp Type:

The lamp type you use and its information are displayed here.

The information displayed here are:

Light on or off, standard lamp or extended life lamp and remaining hours.

Link Mode

Settings

Selecting Standalone/Master/Slave

This feature is used for multiple projector connection. The master projector is set to Master. The other slave projectors are set to Slave.When not using Link mode, set to Standalone.

See page 7-5for setting up for double stacking in link mode.

Selecting Communication Speed [Communication Speed]

This feature sets the baud rate of the PC CONTROL port (D-

Sub 9 Pin).This is the same procedure as in “Page 6” of “Setup”.

Enabling and Disabling Projector ID:

Each projector needs its own unique addresses when used in serial communication mode. This is the same procedure as in “Page 6” of “Setup”.

Copying Signals in the Entry List

Press the Entry List Copy button to copy all of the signals recorded in the Entry List from one projector to another.

8-18

8. Using On-ScreenMenu

Status

Displaying Current Status of Link Mode

When selecting the tab "Status", you will get the following dialog box.

Master ID .................

Indicates the Master projector

Status ......................

Indicates the status of the master pro-



jector

Connected PJ ..........

Indicates number of connected slave



projectors

Slave No ..................

Indicates serial number of the slave pro-



jector

ID .............................

Indicates ID of a slave projector

Status ......................

Indicates the status of the slave projec-



tor

Reconnect button ....

Confirms connection of all linked projec-



tors

Status items



Running ...................

The projector is now working

Cooling Lamp ..........

The fan is now cooling the lamp

Standby ...................

The projector is in stand-byor idle.

Communication Error ...

A communication error has occurred

Connecting ..............

The projector is now verifying for con-



nection

Error Standby ..........

An error caused the projector to enter



the stand-bymode.

LAN Mode

This feature allows you to set various setting items when the projector is used on your network.

Consult with your network administrator about these settings.

NOTE:

Connect an Ethernet LAN cable to the LAN port (RJ-45)of the projector for network connection.

NEC's optional wireless LAN card is available. For more information on inserting or ejecting a LAN card, see page 5-2.

Either PC Card Slots 1 or 2 can accept LAN card. If two LAN cards are inserted into both PC card slots, the first inserted one is effective.

The standard built-inLAN feature and a commercially LAN card are available for network connection, but only one can be used at a time (mutual exclusion).

CAUTION: Make sure that the LAN card is removed during Standby mode (NOT Idle mode)or with the main power off.Failure to do so may cause damage to the LAN card,or may cause the projector to malfunction.Should a malfunction occur, turn off the main power and turn it back on.

Status

LAN Card

This option selects to use either LAN feature between the standard LAN port (RJ-45)and an optional LAN card inserted in the PC CARD slot.

Projector Name

Specify a unique projector name. Press to display the software keyboard and type in. Up to 16 alphanumeric characters can be used.

IP Address ...............

Indicates the IP address of the projec-



tor.

Subnet Mask ...........

Indicates the subnet mask of the projec-



tor.

Gateway ..................

Indicates the gateway of network con-



nected to the projector.

MAC Address ..........

Indicates the MAC address of the LAN



card.

Advanced ................

Displays the IP Address setting window.

Reconnect ...............

Use this button to connect the projector



to a network.

NOTE: Once you have selected "OK" on the Advanced screen, you cannot cancel the changes using "Cancel" on the LAN Mode screen.

8-19

8. Using On-ScreenMenu

Advanced

IP Address

An IP address can be automatically assigned to this projector by your DHCP server. If your network does not automatically assign IP address, ask your network administrator for an address, and then register it manually.

Automatic .... Automatically assigns an IP address to the projector from a DHCP server.

Manual ........ Provides a space for you to register the IP address or subnet mask number obtained from your network administrator.

IP Address ... Set your IP address. Press to display the software keyboard and type in 12 numeric characters.

Subnet Mask Set your subnet mask number. Press to display the software keyboard and type in 12 numeric characters.

Gateway ...... Set the default gateway of the network connected to the projector. Press to display the software keyboard and type in 12 numeric characters.

Checking this box will make the set default route valid.

When data is sent from the LAN card, the transfer location will be searched according to the previously set routing information; however, when the transfer location has not been found as a result of the search, the data will be sent to the device that holds the IP address set here. The IP address that is set here must be one that can be identified by a search of the routing information.

DNS Configuration

.................... Type in the IP address of DNS server on the network connected to the projector.

12 numeric characters are used.

Domain Name

.................... Type in domain name of the network connected to the projector. Up to 60 alphanumeric characters can be used.

Network Type (required for wireless only)

Mode:

Select communication method when using wireless LAN.

Infrastructure

.................... Select this option when communicating with one or more equipment connected to the wireless or wired LAN network via an access point.

802.11 Ad Hoc

....................

Select this option when using the wireless LAN



to communicate with a computer in a one-to-one



correspondence.This is a method that meets the



IEEE802.11 wireless standard.

Ad Hoc ........

Select this option when using the wireless LAN



to communicate with a computer in a one-to-one



correspondence.

Easy Connection

.................... This allows you to easily set up wireless LAN connection. See the Software Utility Installation section for more information.

See chapter 6 “Using the Projector in a Network”.

SSID (Network name):

Enter an identifier (SSID) for wireless LAN. Communication can be done only with equipment whose SSID matches SSID for your wireless LAN. Up to 32 alphanumeric characters can be used (Case sensitive).

NOTE: To disable SSID, select a space (null) or "ANY"(All caps).

Channel:

Set this option when selecting [802.11 Ad Hoc] or [Ad Hoc] in [Mode].

Select a channel number from the pull-downlist. The channel must match for all wireless devices communicating on your wireless LAN.

NOTE: Channels in the pull-downlist are different depending on which country you live in.

TX rate:

Select a wireless transmission speed. Normally leave it as Automatic.

Try another transmission speed when the connection fails.

8-20

8. Using On-ScreenMenu

WEP (for Wireless only)

Select this option whether using the WEP (Wired Equivalent Privacy) key for encryption or not. To use encryption, specify WEP key.

Disable ........

Will not turn on the encryption feature.Your com-



munications may be monitored by someone.

64bit ............

Uses 64-bitdatalength for secure transmission.

128bit ..........

Uses 128-bitdatalength for secure transmission.



This option will increase privacy and security



when compared to use of 64bit datalength en-



cryption.

NOTE: The WEP settings must be the same as communication devices such as PC or access point in your wireless network. When you use WEP, your image transmission speed will slow down.

Key Select:

Selects one key from the four keys below when selecting [64bit] or [128bit] in [WEP].

Key1-4:

Enter encryption key when selecting [64bit] or [128bit] in [WEP]. Up to 5 characters can be set in 64 bit and up to 13 characters in 128 bit. Press the “HEX” button to change to “ASCII” to set the key in ASCII digit.You can toggle this button between “ASCII” and “HEX”.

The key can also be set in hexadecimal digit.

*Hexadecimal uses 0 to 9 and A to F.

*Up to 10 characters can be set in 64 bit and up to 26 characters in 128 bit.

NOTE: Only numbers can be entered when you use the remote control Source/ Input buttons.

DHCP

Depending on your network environment, acquiring an IP address from a DHCP server may not be possible.

Should this happen, consult your network administrator to make changes to the following settings.

Host Name option

Select whether or not to add option hostname for DHCP.

None ........................

Not add

Request ...................

Add at the time of DHCP_REQUEST.

Discover/Request ....

Add at the time of DHCP_DISCOVER



and DHCP_REQUEST.

Host Name

Type in a hostname.This field is available only when “Request” or “Discover/Request.”

Client-identifieroption

Select whether or not to add option client identifier for DHCP.

None ........................

Not add

Request ...................

Add at the time of DHCP_REQUEST.

Discover/Request ....

Add at the time of DHCP_DISCOVER



and DHCP_REQUEST.

Use MAC address

Turn on to use MAC address for Client-identifier.

Client-identifier

Type in a client identifier.

8-21

Mail

NOTE: To the Mail Alert feature on wireless LAN connection, select "Infrastructure" for "Mode" in "Network Type." .

Alert Mail:

Checking this box enables Alert Mail feature.

This option notifies your computer of an error message via e- mail when using wireless or wired LAN. The error message will be notified when the projector lamp has reached the end of its usable life or an error occurs in the projector.

Sample of a message sent from the projector:

The lamp is at the end of its usable life. Please replace the lamp.

Projector Name: X X X X

Lamp 1 Hour Meter: xxxx [H]

Lamp 2 Hour Meter: xxxx [H]

Projector Usage: xxxxxx [H]

Sender's Address:

Specify the senders address. Use the Software keyboard. Up to 60 alphanumeric and symbols characters can be used. See "Using Software Keyboard" in Appendix for more details.

SMTP Server Name:

Type in the SMTP server name to be connected to the projector. Up to 60 alphanumeric characters can be used.

Recipient's Address 1 to 3:

Type in your recipient's address. Up to 60 alphanumeric and symbols characters can be used.

Test Mail:

Send a test mail to check if your settings are correct.

NOTE: If you entered an incorrect address in a test, you may not receive an Alert mail. Should this happen, check if the Recipient's Address is correctly set.

NOTE: Unless any one of the "Sender's Address", "SMTP Server's Name" or "Recipient's Address 1-3"is selected, "Test Mail" is not available.

NOTE: Be sure to highlight “OK” and press the ENTER button before executing “Test Mail”.

8-22

8. Using On-ScreenMenu

Setting a Password

A password can be set for your projector to avoid operation by an unauthorized person.

There are two password options: one for menu and the other for logo.

When a password is set, doing any one of the following four operations will display the Password input screen.

For Menu:

*Changing the menu to Advanced

*Editing the custom menu

For Logo:

*Changing the background

*Changing the logo data in PC Card Files

Procedures for Password setting apply to both Menu and Logo.

Entry

To assign your password:

NOTE: Up to 15 alphanumeric characters can be assigned.

Only numbers can be entered when you use the remote control Source/Input buttons.

1.Type a password.

Highlight "Entry" and press the ENTER button. The "Enter the Password screen" will be displayed.

Make sure that " " is highlighted and then press the ENTER button. The Software keyboard appears. Use the Software keyboard to type a password and then highlight "OK" on the “Enter the Password” screen and press the ENTER button.

The [Confirm Password] screen will be displayed.

2.Type the same password again. Highlight "OK" on the “Enter the Password” screen and press the ENTER button.

Your password will be assigned.

Delete

To delete your password:

1.Highlight [Delete] and press the ENTER button. The "Current Password" screen will be displayed.

2.Use the Software keyboard to type your password. Highlight "OK" on the “Current Password” screen and then press the ENTER button.

Your password will be deleted.

In case you forget your password, follow the steps below to delete it.

1.Select the Advanced menu from the Basic menu. The "Password" entry screen will be displayed.

2.Use the Software keyboard to type "1111".

Highlight "OK" on the “Password” entry screen and then press the ENTER button.

The "Password Warning!!" message will be displayed.

3.Use the Software keyboard to type "3333".

Highlight "OK" on the “Password” entry screen and then press the ENTER button.

The "Password Warning!!" message will be displayed.

4.Use the Software keyboard to type "5555".

Highlight "OK" on the “Password” entry screen and then press the ENTER button.

The "Delete Password. Are you sure? Yes/No" dialog box will be displayed.

5.Use the SELECT or button to highlight "Yes" and press the ENTER button.

Your password will be deleted.

8-23

8. Using On-ScreenMenu

Security

The Security function enables you to protect your projector so that the projector will not project a signal unless you enter a keyword. There is also an option to lock the projector by using a registered PC card as a protect key. Once you have registered your PC card as a protect key, you are required to insert the registered PC card into the PC card slot of the projector each time you turn on the projector. You can enable the Security function by using a keyword only.

Enable/Disable ........

This turns the Security function on or off.

Keyword ..................

Enter an appropriate keyword when you



use the Security function.



(Up to 10 characters can be used.)



The Security function is available only



when your keyword is entered.

Use Protect key .......

Check this box to lock your projector



when using a PC card. To use a key-



word without a PC card, do not check



this box.

Drive ........................

Switches between PC Card slots.

Read ........................

Reads data of a PC card.

Register ...................

Registers data of the PC card.



The Security function is not available un-



less at least one PC card is registered.



(if the “Use Protect key” check box is se-



lected)



Up to 5 PC cards can be registered.

Delete ......................

Deletes data of a registered PC card.

To set up a keyword to enable the Security function without using a registered PC card.

NOTE: Only numbers can be entered when you use the remote control Source/ Input buttons.

1.Use the SELECT button to select “Keyword” and use the software keyboard to enter a keyword.

NOTE: Please make a note of your keyword.

2.Use the SELECT button to select “Enable” and use the SELECTbutton to select “OK”, then the Security function will be enabled. An “Are you sure?” message will appear. Use the SELECT button and press the ENTER button.

The Security function takes effect.

To register a PC card as a protect key.

1.Insert a PC card into the PC card slot of the projector.

2.Use the SELECT button to select “Use Protect key” and press the ENTER button. A check mark will be placed.

3.Use the SELECT button to select "Read" and press the ENTER button.

Data of the PC card will be read into the projector.

4.Use the SELECT button to select "Register" and press the ENTER button.

Downloaded data will be registered and be displayed in the list window.

5.Use the SELECT button to select "Keyword" and use the software keyboard to enter a keyword.

NOTE: To use a PC card as a protect key, you must also set up a keyword. Please make a note of your keyword.

This completes registration of your PC card.

To enable Security, use the SELECT button to select "Enable" and use the SELECT button to select "OK" and "Security function will be enabled. An “Are you sure?" message will appear. Use the SELECT button and press the ENTER button.

The Security function takes effect.

To turn on the projector when Security is enabled (when using your keyword only).

NOTE: Only numbers can be entered when you use the remote control Source/ Input buttons.

1.Press and hold the POWER button for a minimum of two seconds.

The projector will be turned on and display a message to the effect that the projector is security-protected.

2.Select [Projector Options] [Security] from the menu and press the ENTER button.

The Release Code input screen will be displayed.

3.Enter your keyword in the Release Code input screen. You can view the projected image.

NOTE: Do not forget your keyword. However, if you forget your keyword, NEC or your dealer will provide you with your Release Code. See more information at the end of this section.

To turn on the projector when Security is enabled (when using a PC card as a protect key).

1.Insert your registered PC card into the PC card slot.

2.Press and hold the POWER button for a minimum of two seconds. The projector will turn on and then recognize the PC card. Once the image has been projected, it will stay on without the PC card.

The security disable mode is maintained until the main power is turned off (by setting the main power switch to "O" or unplugging the power cable).

In the following cases you will be asked to check the protect key or input the keyword:

(1)When "OK" is selected at an image for which security is set and the power is turned off then back on

(2)When the main power is turned off then back on while the security function is enabled

(3)When you attempt to display an image for which security is set while the security function is enabled

Blanks (spaces) cannot be used in the Keyword section.

8-24

8. Using On-ScreenMenu

To delete PC card data you registered.

1.Use the SELECT button to select "Delete" and use the SELECT button to select the list window.

2.Use the SELECT button to select the PC card data you wish to delete.

3.Press the SELECT button to select "Delete" and press the ENTER button.

The PC card data will be deleted.

If you've lost your registered PC card, proceed as follows:

NOTE: Your dealer will provide you with your Release Code in exchange for

your registered keyword and Request Code. See URLs at the end of this section.

1.Press and hold the POWER button for a minimum of two seconds.

The projector will be turned on and display a message to the effect that the projector is security-protected.

2.Select [Projector Options] [Security] from the menu and press hte ENTER button.

The Release Code input screen will be displayed as well as your Request Code (24 alphanumeric characters).

3. Enter your Release Code in the Release Code Input screen.

*If the projector is turned on by entering the Release Code, your Security will be disabled.

NOTE:

*Some types of PC cards cannot be registered as your protect key.

*It is recommended that you register two or more PC cards in case you lose or damage your registered PC card.

*Formatting your registered PC card will disable your protect key function.

NOTE:

For additional information visit:

US : http://www.necvisualsystems.com

Europe : http://www.nec-europe.com/

Global : http://www.nec-pj.com/

Tools

Provides tools for setting On/Off timer, sleep timer, capturing images, displaying files or changing your background logo in a PC Card and drawing.

Timer

Enables you to turn on or off your projector automatically at a specified time. Two timer functions are available: On/Off Timer and Sleep Timer.

NOTE: The projector has a built-inclock. The clock will keep working for about three days after the main power is turned off. If the main power is not supplied to the projector for three days or more, thebuilt-inclock stops working.

On/Off Timer

Up to 10 settings can be programmed.

Before setting On/Off Timer, make sure that Date, Time Preset feature is set.

Even after setting On/Off Timer, turning the projector on or off with the remote control is possible.

Setting the On or Off Timer

1. Open the On/Off Timer window.

2.Select a program number (No. 1 to 10) by using the SELECT or button.

8-25

8. Using On-ScreenMenu

3. Select “Edit” and press the ENTER button to open the Edit window.

4.Set the Day, Time (24 hours format), On-TimeandOff-Timeusing the SELECT buttons and the Software keyboard (1 thru 10).

5. Select On Timer or Off Timer

6.Repeat the Timer

To repeat the On Timer or Off Timer program every week, place a check mark in “Repeat”.

7.Select “OK” and press the ENTER button on the remote control to complete the setting. To cancel this and return to its previous screen, select “Cancel”.

NOTE: If there is no operation for 4 hours or more after the projector is turned on with On-Timerfunction, the projector will enter the standby or idle mode.

Enabling the On or Off Timer

1. To execute the setting, select “Active” .

2. Select “OK” and press the ENTER button.

NOTE: When one program or more are specified, all the settings are active.

NOTE: The settings will be executed in numerical order. Finished settings will be automatically deleted.

NOTE: The On/Off Timer will not work while the cooling fans are running or an error message appears. Do not turn off the main power switch in this condition.

Disabling the On or Off Timer

To disable the setting, select “Inactive”. Select “OK” and press the ENTER button.

Deleting the On or Off Timer settings

1. Select the setting you want to delete.

2. Select “Delete” and press the ENTER button.

3.Select “OK” and press the ENTER button to complete the deletion.

4.Select “Delete” again and press the ENTER button to return to the previous screen.

8-26

8. Using On-ScreenMenu

Enabling Sleep Timer

1.Select your desired time between 30 minutes and 16 hours: Off, 0:30, 1:00, 2:00, 4:00, 8:00, 12:00, 16:00.

2.Select “Set” and press the ENTER button on the remote control.

3.The remaining time starts counting down.

4.The projector will turn off after the countdown is complete.

NOTE:

To cancel the preset time, set "Off" for the preset time or turn off the power.

When the remaining time reaches 3 minutes before the projector is turned off, the "Projector will turn off in 3 minutes" message will be displayed on the bottom of the screen.

Using Capture

Allows you to capture an image from a source that is currently being displayed. The image is saved as JPEG in the PC card. When you select Capture from the menu, you will get a tool bar.

You can capture an image directly using the tool bar when the menu is not displayed. See page 5-4.

Using PC Card Files

The PC Card Files feature allows you to display a list of all the files stored in the PC card so that you can select a file you want to display. You can also sort files by file name or date, or display the file. See page 4-4.

Changing Background Logo:

You can change the default background logo using the PC Card

Files feature. See page 4-4.

NOTE: File size must be 256KB or less. Other file formats than JPEG and BMP are not available. See page 4-4.

Using ChalkBoard

The ChalkBoard feature allows you to write and draw messages on a projected image. See page 4-4.

NOTE: This feature is available only when using with USB mouse.

Help

Contents

Provides an online help about how to use the menus. An underlined link means that you can move to an adjustment item directly.

Selecting the underlined link and pressing ENTER moves to the corresponding adjustment item.

NOTE: The Help menu may not be displayed correctly when an image is overscanned.

Source Information

Information

Displays the status of the current signal. This dialog box has two pages.

Page 1

Source Name, Input Terminal, Entry No., Horizontal Frequency, Vertical Frequency, Sync Polarity

8-27

8. Using On-ScreenMenu

Page 2

Signal Type, Video Type, Sync Type, Interlace, Direct Key

Projector Information

Displays the information for your projector such as lamp usage, filter usage, version number and others.This dialog box has three pages.

Page 1

Remaining Lamp 1 Time, Remaining Lamp 2 Time, Lamp 1 Hour

Meter, Lamp 2 Hour Meter

NOTE: The progress indicator shows the percentage of remaining bulb life. The value informs you of the amount of lamp 1 and 2 respectively.

When the remaining lamp time reaches 0, the Remaining Lamp Time bar indicator changes from 0% to 100 hours and starts counting down. If the remaining lamp time reaches 0 hour, the projector will not turn on.

Type

Lamp life (H)

Model





Normal

Eco













Standard lamp

2000H

3000H

463-9060

Extended life lamp

4500H

463-9060E

NOTE: The Standard lamp life is typically 2000 hours in Normal mode (3000 hours in Eco mode).

The lamp life, however, may be decreased under certain conditions and the lamp could reach end of life within the specified time.

Page 2

Filter Usage, Projector Usage, Projector ID

Page 3

Version (BIOS/Firmware/Data/FPGA)

Test Pattern

Press to display the test pattern. Pressing this button sequentially selects 10 test patterns for each red, green and blue.

8-28

9

Maintenance

z Replacing the Lamp ..................................................

9-2

x Replacing or Cleaning the Filter ...............................

9-3

c Cleaning the Cabinet and the Lens ..........................

9-4

9. Maintenance

This chapter describes the simple maintenance procedures you should follow to replace the lamp and the filter, and to clean the filter and the cabinet.

z Replacing the Lamp

The projector has two lamps. The lamp replacement procedure applies to both lamps. After your lamp 1 and 2 has been operating for 2000 hours (Normal mode on the standard life lamp) or longer, the "Lamp" indicator in the cabinet will blink red and the message will appear. Even though the lamp may still be working, replace it as soon as possible to maintain optimal projector performance.

NOTE: Be sure to use the same lamp type for both lamp 1 and 2.

CAUTION

DO NOT TOUCH THE LAMP immediately after it has been used. It will be extremely hot. Turn the projector off, wait 90 seconds (2 minutes in the optional extended life lamp), turn off the main power

switch, and then disconnect the power cable. Allow at least one hour for the lamp to cool before handling.

DO NOT REMOVE ANY SCREWS except the lamp cover screw and

the two lamp case screws. You could receive an electric shock.

The projector will turn off and go into stand by mode after 2100 hours (Normal mode on the standard life lamp) of service. If this happens, be sure to replace the lamp. If you continue to use the lamp after 2000 hours (Normal mode on the standard life lamp) of use, the lamp bulb may shatter, and pieces of glass may be scattered in the lamp housing. Do not touch them as the pieces of glass may cause injury. If this happens, contact your dealer for lamp replacement.

When "Dual" is selected in "Lamp Select" of "Lamp Settings", replace both lamp 1 and 2 at the same time so that the projector can keep the color of projected image even.

To replace the lamp:

1.Loosen the lamp cover screw until the screwdriver goes into a freewheeling condition and remove the lamp cover. The lamp cover screw is not removable.

2.Loosen the two screws securing the lamp housing until the screwdriver goes into a freewheeling condition. The two screws are not removable. Remove the lamp housing by pulling out the handle.

NOTE: There is an interlock on this case to prevent the risk of electrical shock. Do not attempt to circumvent this interlock.

3.Insert a new lamp housing until the lamp housing is plugged into the socket.

CAUTION: Do not use a lamp other than the replacement lamp (Standard life lamp:463-9060or Extended life lamp:463-9060E).

4.Secure it in place with the two screws. Be sure to tighten the screws.

5. Reattach the lamp cover.

6. Tighten the lamp cover screw. Be sure to tighten the screw.

NOTE: Replacing a new lamp automatically clears the lamp usage hours.

NOTE: The lamp housing has an EEPROM chip memorizing its amount of usage hours. You can check the amount usage hours in Information of the menu. (The standard lamp and the optional lamp have an EEPROM chip in it so that when you remove it, your lamp usage hours are saved in its own memory. The projector reads the lamp usage hours from the EEPROM chip to display them in Information of the menu.)

9-2

9. Maintenance

x Replacing or Cleaning the Filter

To replace the filter:

Replace both filters at the same time.

Before replacing the filters, remove dust and dirt from the projector cabinet.

The projector contains high-precisionparts. Keep out dust and dirt during filter replacement.

Do not wash the filter with water. Water will damage the filter membrane.

Reattach the filter cover correctly. Failure to do so may cause projector malfunction.

Preparation: Replace the lamp before replacing the filters.

1. Pull out the filter cover by pushing up on the catch.

(This must be done to the filters on both left and right.)

1

2



Filter holding frame

Filter cover

Filter

2.Replace both filters.

1. Remove the filter and clean the filter cover.

1

2

2. Place the new filter on the filter cover in the correct direction.

3.Reinstall the filter cover. (This must be done to both left and right)

4.Plug the power cable into a wall outlet and turn on the projector.

5.Reset the filter usage hours to zero.

Select [Menu] [Projector Options][Setup][Page 5][Clear Filter Usage Meter][OK]. Press the ENTER button.

The air-filtersponge prevents dust or dirt from getting the inside of the projector and should be cleaned after every 100 hours of operation (more often in dusty conditions). If the filter is dirty or clogged, your projector may overheat.

CAUTION

Turn off the power, wait for 90 seconds (2 minutes in the optional extended life lamp GT60LPS), turn off the main power and unplug the projector before replacing the filter.

Do not attempt to operate the projector without filter.

Your projector will not operate unless the filter cover is installed correctly.

To clean the filter:

Pull out the filter by pushing up on the catch. Vacuum the filterthrough the filter.

The "Please clean the filters" message will be displayed each time the projector is turned on after it has been used in excess of 168 hours. Should this message appear, clean the filters.

NOTE:

*The message can be turned on or off using the "Message" option on the Setup menu. See page 8-14.

*After cleaning the filters and resetting the filter usage time back to zero, the message will not be displayed.

See page 8-17for resetting the filter usage time.

9-3

9. Maintenance

c Cleaning the Cabinet and the Lens

1.Turn off the projector before cleaning.

2.Clean the cabinet periodically with a damp cloth. If heavily soiled, use a mild detergent. Never use strong detergents or solvents such as alcohol or thinner.

3.Use a blower or lens paper to clean the lens, and be careful not to scratch or mar the lens.

9-4

10

Appendix

z USB Memory Device or USB Memory Card Reader Support ....

10-2

x Troubleshooting ......................................................

10-3

c Specifications .........................................................

10-5

v Cabinet Dimensions ...............................................

10-7

b Pin Assignments of D-SubRGB Input Connector ..

10-7

n Compatible Input Signal List ...................................

10-8

m REMOTE 1 Connector ............................................

10-9

, PC Control Codes and Cable Connection ............

10-10

Cable Connection ............................................................................................

10-10

PC Control Connector (D-SUB9P) .................................................................

10-10

. Using Software Keyboard .....................................

10-10

⁄0Operation Using an HTTP Browser ......................

10-11

10. Appendix

z USB Memory Device or USB Memory Card

Reader Support

The projector is compatible with either a USB memory device or USB memory card reader which supports the viewer and security features.

To use a USB memory device or USB memory card reader, connect the device to the USB port (type A).

Select one of the Drive icons in the Viewer toolbar, Capture toolbar and PC Card File setting screen. Up to four drives can be accepted.

To use a USB memory device as a Protect key for Security function, select one from the Drive icons in the Security setting screen.

NOTE:

Some USB memory devices (brands) or USB memory card readers may not work.

You cannot use a USB memory device and a USB memory card reader when connecting a USB mouse to the projector.

Using a USB HUB that allows multiple USB memory devices or card readers is not supported either.

Do not do the following while the USB memory device or USB memory card reader’s access indicator is lit or flashing (while data is being accessed.) Doing so can damage your USB memory device or USB memory card in the reader. Back up your data in case it will need to be restored.

*Pulling out the USB memory device or USB memory card reader from the USB port of the projector.

*Pulling out the memory card from the USB memory card reader

*Turning off the main power switch or unplugging the power cable.

The drive for ”USB 1-4”is displayed only when the USB memory device or USB memory card reader is connected to the projector. The drive for “USB1-4”may be displayed differently from the one in the USB memory card reader.

Some USB memory devices (brands) or USB memory cards cannot be used as Protect key for the projector’s Security function.

10-2

10. Appendix

x Troubleshooting

This section helps you resolve problems you may encounter while setting up or using the projector.

Power Indicator



Indicator Condition



Projector Condition

Note





Off



The main power is off















Blinking light



Green blinking



0.5 sec ON,

The projector is getting ready to turn on.

Wait for a moment.









0.5 sec OFF













2.5 sec ON,

Off Timer or Sleep Timer is active.









0.5 sec OFF









Orange blinking



0.5 sec ON,

The projector is cooling down.

Wait for a moment.









0.5 sec OFF













2.5 sec ON,

On Timer is active.









0.5 sec OFF





Steady light



Green



The projector is turned on.





Orange



The projector is in Standby or Idle.

Status Indicator



















Indicator Condition



Projector Condition

Note





Off



Normal













Blinking light



Red blinking



1 cycle (0.5 sec ON,

Lens hood or lamp cover error

Replace the lens hood or the lamp cover









2.5 sec OFF)



correctly.









2 cycle (0.5 sec ON,

Temperature error

The projector is overheated. Move the









0.5 sec OFF)



projector to a cooler location.























3 cycle (0.5 sec ON,

Power error

Power unit will not work correctly.









0.5 sec OFF)













4 cycle (0.5 sec ON,

Fan error

Cooling fan has stopped. Contact your









0.5 sec OFF)



dealer.

Steady light



Red (GT6000 only)



Circuit error

An error occurs in the circuit. Consult













your dealer.





Orange



Control key locked

You have pressed control panel key when













Control Key Lock is enabled.





Green



Idle condition











Lamp 1/2 Indicator



















Indicator Condition



Projector Condition

Note





Off



Light off

Blinking light



Red blinking



2.5 sec ON,

Lamp has reached its end of life. Lamp

Replace the lamp.









0.5 sec OFF

replacement message will be displayed.











1 cycle (0.5 sec ON,

No lamp

Lamp is not installed. Turn off the power









2.5 sec OFF)



and install lamp.









6 cycle (0.5 sec ON,

Lamp error

Lamp fails to light. Wait a full minute and









0.5 sec OFF)



turn on the power again. If this will not













solve the problem, consult your dealer.









7 cycle (0.5 sec ON,

Lamp data error

Fails to read lamp data.









0.5 sec OFF)



Consult your dealer.





Green blinking



Re-firingthe lamp

Wait for a moment.





Orange blinking



Switching from Lamp 1 to 2

Wait for a moment.

Steady light



Red



Lamp has been used beyond its limit. The

Replace the lamp.











projector will not turn on until the lamp













is replaced.







Green



Lamp mode is set to Normal mode

















Orange



Lamp mode is set to Eco mode.















10-3





10. Appendix

Common Problems & Solutions









Problem



Check These Items



Does not turn on

Check that the power cable is plugged in and that the main power switch on the projector is on. See pages 1-







9 and 2-11.





• Ensure that the lens hood or the lamp cover is installed correctly. See pages 1-4and9-2.





• Check to see if the projector has overheated or the lamp has reached the end of its usable life. If there is







insufficient ventilation around the projector or if the room where you’re presenting is particularly warm, move







the projector to a cooler location.











No picture

Use the menu or Source/Input button to select your source (RGB 1/2, DVI, Video, S-Video,Viewer or LAN).







See page 3-3or8-7.





• Ensure your cables are connected properly.





• Use menus to adjust the brightness and contrast. See page 8-8.





• Select correct option in the Signal Select for current signal. See page 8-16.





• Select RGB/Component when connecting DVD player to RGB connector of the projector. See page 8-11.





• Apply a standard RGB signal when using RGB connector.





• Adjust picture for RGB signal.





• Make sure each setting is correct.





• If the problem still persists, reset the settings or adjustments to factory preset levels using the Factory Default







in the Adjustment Menu. See page 8-13.





• If Security is enabled, a keyword or PC card as a protect key is required.





• Remove the lens cap.











Image isn’t square to the

Reposition the projector to improve its angle to the screen. See page 3-3.



screen

Use the 3DReform function to correct the trapezoid distortion. See page 3-4.











Picture is blurred

Adjust the focus. See page 3-4.





• Reposition the projector to improve its angle to the screen. See page 3-3.





• Ensure that the distance between the projector and screen is within the adjustment range of the lens. See page







2-2.





• Condensation may form on the lens if the projector is cold, brought into a warm place and is then turned on.







Should this happen, let the projector stand until there is no condensation on the lens.











Image is scrolling verti-

Use the menus or Source/Input button on the remote control or the cabinet to select the source you want to



cally, horizontally or



input. See page 3-3or8-7.



both















Remote control does

Install new batteries. See page 1-12.



not work

Make sure there are no obstacles between you and the projector. See page 1-12.





• Stand within 22 feet (7 m) of the projector. See page 1-12.





Check if one or more remote sensors are enabled. Select [Projector Options] → [Setup] → [Page 5] →







[Remote Sensor] from the menu. See page 8-17.





• If the remote control cable plug is inserted into the REMOTE 2 IN jack, the remote control does not function







wirelessly. See page 1-13.





• Make sure that the remote control’s ID corresponds with the projector’s ID. See page 7-2.











Indicator is lit or blink-

See the Power/Status/Lamp Indicator on page 10-3.



ing















Cross color in RGB

If Auto Adjust is off, turn it on or adjust the image manually with the Position/Clock in the Image Options. See



mode



page 8-16.











USB mouse does not

Make sure that your USB mouse is properly connected to the projector.



work



The projector may not support some brands of a USB mouse.











No on-screenmenu

Press MUTE OSD if the image is muted. Or press and hold CTL and press MUTE OSD button. See page 4-2.











10-4

10. Appendix

c Specifications

This section provides technical information about the Projector’s performance.

Optical







LCD Panel

1.4" p-SiTFTactive-matrixwith Micro Lens Array, 1024 768 (GT5000)/1400 1050(GT6000) native



resolution* up to 1600 1200 with Advanced AccuBlend Technology

Lamp

275 W DC lamp 2





Lamp Life

Eco-mode3000 hours/Normal mode 2000 hours

Lens Options

Motorized zoom and Motorized focus



GT10RLB : F2.4 f=28.9mm





GT19ZL : F2.0-2.7f=48.9-63.7mm



GT13ZLB : F2.3-2.8f=34.5-42.5mm



GT20ZL : F1.8-2.5f=57.4-74.7mm



GT24ZLB : F2.5-3.2f=64.0-93.8mm



GT34ZLB : F2.5-3.3f=93.5-140.3mm

Lens Shift

GT20ZL: Vertical +/- 0.5V, Horizontal +/- 0.32H



GT13ZLB: Vertical +/-0.32V,Horizontal+/-0.19H



GT19ZL/GT24ZLB/GT34ZLB: Vertical +/- 0.39V, Horizontal +/- 0.24H

Image Size

GT10RLB: 40-250inches(1016-6350mm)diagonal



GT20ZL/GT19ZL/GT13ZLB: 40 - 300 inches (1016 - 7620 mm) diagonal



GT24ZLB: 60 - 400 inches (1524 - 10160 mm) diagonal



GT34ZLB : 80-500inches(2032-12700mm) diagonal

Projection Distance

GT10RLB lens: 0.8 - 5.0 m

/ 31.5" - 196.9"



GT13ZLB lens: 1.0 - 9.0 m

/ 39.37"- 354.3"



GT19ZL lens: 1.4 - 13.5 m / 55.12"- 531.5"



GT20ZL lens: 1.7 - 15.8 m / 66.93"- 622"



GT24ZLB lens: 2.6 - 26.4 m / 102.4"- 1039"



GT34ZLB lens: 5.1 - 49.7 m / 200.8"- 1957"

Electrical







Input Connections

RGB/YCr/Cb/H(HV)V 5 BNC 1, Audio: RCA (L/MONO, R) 1



RGB

D-Sub15 pin 1, Audio: Stereo Mini Audio 1



DVI DIGITAL

DVI-D(Max resolution : XGA@60Hz) x 1, Audio: Stereo Mini Audio 1



Video

BNC 1, Audio: RCA (L/MONO, R) 1



S-Video

Mini DIN 4 1, Audio: RCA (L/MONO, R) 1



PC Card

Slot 2



Option Board

Slot 2

Output Connections

RGB

D-Sub15 pin 1



Audio Out

RCA (L/MONO, R) 1

Other Input/Output

Remote Control

Stereo mini jack ;IN x 1; OUT 1



PC Control

D-Sub9 pin; IN 1, OUT 1



Ex. Control

D-Sub15 Din 1



SC. TRIGGER

Stereo mini jack 1



LAN Port

RJ-451



USB Port

A Type 1, B Type 1

Input Compatibility

NTSC / PAL / PAL60 / SECAM / NTSC4.43, YCbCr Component, HDTV-1080I,1080p, 720p, 480p,



480I, VGA, SVGA, XGA, SXGA / UXGA (with Advanced AccuBlend)

Sychronization

Horizontal Frequency : 15 - 100 kHz (RGB : 24 kHz or over)

Range

Vertical Frequency : 48 - 120 Hz

Video Bandwidth

RGB: 100 MHz





Color Reproduction

Full color, 16.7 million colors simultaneously

Horizontal Resolution

550 TV lines : NTSC / PAL / NTSC4.43 / YCbCr



350 TV lines : SECAM





RGB: 1024 dots horizontal, 768 dots vertical

* Effective pixels are more than 99.99%.

10-5

10. Appendix

Built-inSpeakers

5W 2

Power Requirement

100 - 120VAC / 200 - 240 VAC, 50 / 60 Hz

Input Current

8.0 A (100 - 120 VAC) / 4.0A (200 - 240 VAC)

Power Consumption

800W (Lamp Normal mode)

(2 lamps)

660W (Lamp Eco mode)



1W on GT5000 / 1.5W on GT6000 (Standby)

Mechanical



Dimensions

20.4" (W) 9.5" (H) 21.6" (D) / 518 mm (W) 242 mm (H) 548 mm (D) (not including protrusions)

Net Weight

40.6 lbs / 18.4 kg (not including lens)

Environment

Operational Temperatures: 32° - 95°F (0° to 35°C), 20 - 80% humidity



Storage Temperatures: 14° - 122°F (-10°to 50°C), 20 - 80% humidity

Regulations

UL Approved (UL 60950, CSA 60950)



Meets DOC Canada Class B requirements



Meets FCC Class B requirements



Meets AS/NZS3548 Class B



Meets EMC Directive (EN55022, EN55024, EN61000-3-2,EN61000-3-3)



Meets Low Voltage Directive (EN60950, TUV GS Approved)

For additional information visit:

US: http://www.dukcorp.com/av

The specifications are subject to change without notice.

10-6

10. Appendix

v Cabinet Dimensions

POWER

STATUS

ON/STANDBY

CNAC

LAMP2

LAMP1

PCCARD2

PCCARD1

RE







TNE



DOWN

FOCUSZOOM

3DAUTOREFORMADJUST

SELECT

LENSSHIFTRIGHT

LEFT



A

3D





Z

F







UP









UN EM







548 (21.6)

2 (0.08)

242 (9.5)

225 (8.9)

17 (0.7)







259 (10.2)

6 (0.2)







518 (20.4)



























Lens center















DVI





1





AUDIO OUT

RGB 1















SLOT 1

SLOT 2

USB MOUSE/HUBUSB PC

PC CARD

2











PC CONTROL



LAN

Lens center

Unit = mm (inch)

RGB OUT







REMOTE 1

RGB 2



















IN















OUT









VIDEO

S-VIDEO



SC TRIGGER



REMOTE 2















IN OUT















AC IN

















135 (5.3)



b Pin Assignments ofD-SubRGB Input Connector

Mini D-Sub15 Pin Connector

5

4

3

2

1

Pin No.

RGB Signal (Analog)

YCbCr Signal

1

Red

Cr

10

9

8

7 6

15

14

13

12

11

2

Green or Sync on Green

Y











3

Blue

Cb

Signal Level



4

Ground



Video signal : 0.7Vp-p(Analog)

5

Ground



Sync signal : TTL level

6

Red Ground

Cr Ground

* RGB 2 Input only

7

Green Ground

Y Ground











8

Blue Ground

Cb Ground











9

No Connection













10

Sync Signal Ground













11

SCART Sync

Sync











12

Bi-directionalDATA (SDA)*













13

Horizontal Sync or Composite Sync













14

Vertical Sync













15

Data Clock*



10-7

10. Appendix

n Compatible Input Signal List



Signal

Resolution



Frequency H.

Refresh Rate





( Dots )





( kHz )

( Hz )





NTSC





15.734

60





















PAL





15.625

50





SECAM





15.625

50





















VESA

640



480

31.47

59.94





















IBM

640



480

31.47

60





MAC

640



480

31.47

60





















MAC

640



480

34.97

66.67





















MAC

640



480

35

66.67





VESA

640



480

37.86

72.81





















VESA

640



480

37.5

75





















IBM

640



480

39.375

75





VESA

640



480

43.269

85.01





















IBM

720



350

31.469

70.09





















VESA

720



400

37.927

85.04





IBM

720



350

39.44

87.85





















IBM

720



400

39.44

87.85





















VESA

800



600

35.16

56.25





VESA

800



600

37.879

60.32





















VESA

800



600

48.077

72.19





















VESA

800



600

46.88

75





VESA

800



600

53.674

85.06





















MAC

832



624

49.725

74.55



















VESA

1024



768

35.5

43 Interlaced



VESA

1024



768

48.363

60





















VESA

1024



768

56.476

70.07





















MAC

1024



768

60.241

74.93





VESA

1024



768

60.023

75.03





















VESA

1024



768

68.677

85



















#

VESA

1152



864

67.5

75



#

MAC

1152



870

68.681

75.06



















#

SUN

1152



900

61.796

65.95



















#

SGI

1152



900

71.736

76.05



#

VESA

1280



960

60

60



















#

VESA

1280



1024

63.981

60.02



















#

MAC

1280



1024

69.89

65.2



#

HP

1280



1024

78.125

72.01



















#

SUN

1280



1024

81.13

76.11



















#

VESA

1280



1024

79.976

75.03



#

VESA

1280



1024

91.146

85.02



















#

SXGA+

1400



1050















#

HDTV (1080p)

1920 1080

67.5

60





SDTV(576i)(625i)





15.6

50





















SDTV(576p)(625p)





31.5

50













#

HDTV (1080i)(1125i)

1920 1080

33.75

60 Interlace

#

HDTV (1080i)(1125i)

1920 1080

28.13

50 Interlace















#

HDTV (720p)(750p)

1280



720

45

60 Progressive



















SDTV (480p)(525p)





31.47

59.94

Progressive

#

VESA

1600 1200

75.0

60















#

VESA

1600 1200

81.3

65















#

VESA

1600 1200

87.5

70



#

VESA

1600 1200

93.75

75





















DVD YCbCr





15.734

59.94

Interlaced

















DVD YCbCr





15.625

50 Interlaced

#: Images in above flagged with # are compressed with Advanced AccuBlend on 9060.

NOTE: Some composite sync signals may not be displayed correctly.

Signals other than those specified in the table above may not be displayed correctly. If this should happen, change the refresh rate or resolution on your PC. Refer to Display Properties help section of your PC for procedures.

UXGA (1600 1200) is supported for separate sync signal only.

10-8

10. Appendix

m REMOTE 1 Connector

5



4

3

2

1

10

9

8

7

6

15

14

13

12

11

This connector is used for a third party external control device.

Pin No.



SHORT/OPEN



FUNCTION

14







SHORT



External control mode ON









OPEN



External control mode OFF

















5







SHORT



POWER ON









OPEN



POWER OFF

















10







SHORT



PICTURE MUTE ON









OPEN



PICTURE MUTE OFF















3







SHORT



MUTE SOUND ON









OPEN



MUTE SOUND OFF

















4,8,12,11



11pin

12pin



8pin

4pin





OPEN

OPEN



OPEN

OPEN

RGB 1











OPEN

OPEN



OPEN

SHORT

VIDEO





OPEN

OPEN



SHORT

OPEN

S-VIDEO





OPEN

SHORT



OPEN

OPEN

Slot 1-1





OPEN

SHORT



OPEN

SHORT

RGB 2





OPEN

SHORT



SHORT

OPEN

Slot 1-2





OPEN

SHORT



SHORT

SHORT

RGB1 (S-VIDEO)





SHORT

OPEN



OPEN

OPEN

DVI (DIGITAL)





SHORT

OPEN



OPEN

SHORT

VIEWER





SHORT

OPEN



SHORT

SHORT

RGB1 (VIDEO)





SHORT

SHORT



OPEN

OPEN

Slot 2-1





SHORT

SHORT



OPEN

SHORT

Slot 2-2





SHORT

SHORT



SHORT

OPEN

LAN

















*When combinations other than specified in the above table are selected or when no optional board is inserted in the Slot 1 and 2, the input will be switched to RGB 1 by default.

*The term “SHORT” means to connect with pin 15

*When in the external control mode, the POWER, Source/Input, PICTURE MUTE and SOUND MUTE buttons on the remote control will not function.

*When the External control mode is set to ON, the following settings are not effective: Source Select, Auto Start, Power Management, Power off Confirmation, Idle mode, Default Source Select, Timer and Test Pattern.

NOTE: When turning off the power to the projector using the external control, do not disconnect the plug from the power outlet. These procedures are to protect your projector and the connected equipment.

10-9

10. Appendix

, PC Control Codes and Cable Connection

PC Control Codes

Function

Code Data













POWER ON

02H

00H

00H

00H

00H

02H





POWER OFF

02H

01H

00H

00H

00H

03H





INPUT SELECT RGB 1

02H

03H

00H

00H

02H

01H

01H

09H

INPUT SELECT RGB 2

02H

03H

00H

00H

02H

01H

02H

0AH

INPUT SELECT VIDEO

02H

03H

00H

00H

02H

01H

06H

0EH

INPUT SELECT S-VIDEO

02H

03H

00H

00H

02H

01H

0BH

13H

INPUT SELECT DVI (DIGITAL)

02H

03H

00H

00H

02H

01H

1AH

22H

INPUT SELECT VIEWER

02H

03H

00H

00H

02H

01H

1FH

27H

LAN

02H

03H

00H

00H

02H

01H

20H

28H

SLOT1-1

02H

03H

00H

00H

02H

01H

24H

2CH

SLOT1-2

02H

03H

00H

00H

02H

01H

25H

2DH

SLOT2-1

02H

03H

00H

00H

02H

01H

29H

31H

SLOT2-2

02H

03H

00H

00H

02H

01H

2AH

32H

RGB1(VIDEO)

02H

03H

00H

00H

02H

01H

07H

0FH

RGB1(S-VIDEO)

02H

03H

00H

00H

02H

01H

0CH

14H

PICTURE MUTE ON

02H

10H

00H

00H

00H

12H





PICTURE MUTE OFF

02H

11H

00H

00H

00H

13H





SOUND MUTE ON

02H

12H

00H

00H

00H

14H





SOUND MUTE OFF

02H

13H

00H

00H

00H

15H





ON SCREEN MUTE ON

02H

14H

00H

00H

00H

16H





ON SCREEN MUTE OFF

02H

15H

00H

00H

00H

17H





NOTE: Contact your local dealer for a full list of PC Control Codes if needed.

Cable Connection



Communication Protocol



Baud rate ........................

38400 bps

Data length .....................

8 bits

Parity ..............................

No parity

Stop bit ...........................

One bit

X on/off ...........................

None

Communications procedure Full duplex

NOTE: Depending on the equipment, a lower baud rate may be recommended for long cable runs.

PC Control Connector (D-SUB9P)

To TxD of PC

To RxD of PC

To GND of PC

. Using Software Keyboard

1 to 0 and Characters

........................

Use to type in IP address or projector name

MODE .............

Selects one of three modes for alphabet and spe-



cial characters.

SP ...................

Inserts a space

BS ...................

Deletes one character backward

..................... Returns to the previous

..................... Advances to the next

OK ...................

Executes the selection

Cancel .............

Cancels the selection

1 2 3 4 5

6 7 8 9

To RTS of PC

To CTS of PC

NOTE: Pins 1, 4, 6 and 9 are no used.

NOTE: Jumper “Request to Send” and “Clear to Send” together on both ends of the cable to simplify cable connection.

10-10

10. Appendix

⁄0Operation Using an HTTP Browser

Overview

The use of HTTP server functions will allow control of the projector from a web browser without the installation of special software. Please be sure to use “Microsoft Internet Explorer 4.x” or a higher version for the web browser. (This device uses “JavaScript” and “Cookies” and the browser should be set to accept these functions. The setting method will vary depending on the version of browser. Please refer to the help files and the other information provided in your software.)

NOTE:

*The use of HTTP server functions is not available during Standby mode.

*The display’s or button’s response can be slowed down or operation may not be accepted depending the settings of your network. Should this happen, consult your network administrator.

*The projector may not respond if its buttons are repeatedly pressed in rapid intervals. Should this happen, wait a moment and repeat. If you still can’t get any response, pull out and then re-insertthe LAN card.

*Do not use the HTTP Server functions and the Dynamic Image Utility included on the supplied CD-ROM.Using both at the same time may result in a connection failure or slow response.

Access is gained to the HTTP server functions by specifying http:// <the projector’s IP address> /index.html

in the entry column of the URL.

Preparation Before Use

Make network connections and set up the projector and confirm that it is complete before engaging in browser operations. (See “LAN Mode” on page 8-19.)

Operation with a browser that uses a proxy server may not be possible depending on the type of proxy server and the setting method. Although the type of proxy server will be a factor, it is possible that items that have actually been set will not be displayed depending on the effectiveness of the cache, and the contents set from the browser may not be reflected in operation. It is recommended that a proxy server not be used unless it is unavoidable.

Handling of the Address for Operation via a Browser

Regarding the actual address that is entered for the address or entered to the URL column when operation of the projector is via a browser, the host name can be used as it is when the host name corresponding to the IP address of the projector has been registered to the domain name server by a network administrator, or the host name corresponding to the IP address of the projector has been set in the “HOSTS” file of the computer being used.

Example 1: When the host name of the projector has been set to “pj.nec.co.jp”, http://pj.nec.co.jp/index.html is specified for the address or the entry column of the URL.

Example 2: When the IP address of the projector is “192.168.73.1”, access is gained to the HTTP server functions by specifying

http://192.168.73.1/index.html for the address or the entry column of the URL.

Structure of the HTTP Server

Power: This controls the power of the projector.

On ...............

Power is switched on.

Off ...............

Power is switched off.

Volume: This controls the volume of the projector.

................. Increments the volume adjustment value.

................. Decrements the volume adjustment value.

Mute: This controls the mute function of the projector.

All On ..........

Mutes each of the video, audio, and on-screen



display functions.

All Off ..........

Cancels the muting of each of the video, audio,



and on-screendisplay functions.

Picture On ... Mutes the video.

Picture Off ... Cancels the video muting.

Sound On ....

Mutes the audio.

Sound Off ....

Cancels the audio muting.

OSD On .......

Mutes the on-screendisplay.

OSD Off .......

Cancels the muting of the on-screendisplay.

Picture: Controls the video adjustment of the projector. Brightness Increments the brightness adjustment value.

Brightness Decrements the brightness adjustment value.

Contrast ... Increments the contrast adjustment value.

Contrast ... Decrements the contrast adjustment value. Color ........ Increments the color adjustment value. Color ........ Decrements the color adjustment value. Hue .......... Increments the hue adjustment value.

Hue .......... Decrements the hue adjustment value.

Sharpness Increments the sharpness adjustment value. Sharpness Decrements the sharpness adjustment value.

*The functions that can be controlled will vary depending on the signal being input to the projector.

10-11

Source Select:This switches the input connector of the projector.

RGB1 ......................

Switches to the RGB 1 connector.

RGB2 ......................

Switches to the RGB 2 connector.

DVI(DIGITAL) ...........

Switches to the DVI connector.

Video .......................

Switches to the Video connector.

S-Video ...................

Switches to the S-Videoconnector.

Viewer .....................

Switches to the Viewer.

LAN .........................

Switches to a LAN signal.

Slot 1-1 ....................

Switches to input 1 of the Slot 1.

Slot 1-2 ....................

Switches to input 2 of the Slot 1.

Slot 2-1 ....................

Switches to input 1 of the Slot 2.

Slot 2-2 ....................

Switches to input 2 of the Slot 2.

RGB1 (VIDEO) ........

Switches to Video of the RGB1 connec-



tor.

RGB1 (S-VIDEO) ....

Switches to S-Videoof the RGB1 con-



nector.

Projector Status: This displays the condition of the projector.

Remaining Lamp 1/2 Time

................................

Displays the remaining life of the lamp



1/2 as a percentage.

Lamp 1/2 Hour Meter ...

Displays how many hours the lamp 1/2



has been used.

Projector Usage ......

Displays how many hours the projector



has been used.

Filter Usage .............

Displays how many hours the filter has



been used.

Error Status .............

Displays the status of errors occurring



within the projector.

Refresh ....................

Updates the display of the following con-



ditions.

10. Appendix

Ver. 3 5/03

10-12

Audio Visual Products

Dukane Corporation

Phone: (630) 762-4040



Audio Visual Products Division

Orders: (800) 676-2485



2900 Dukane Drive

Information: (800)

676-2486



St. Charles, IL 60174-3395

Fax: (630)

584-5156



E-mail:avsales@dukcorp.com

Parts & Service: (800)

676-2487

401-9060-00



Fax: (630)

584-0984
