DigiTech HOTROD User Manual

0 (0)
Warning
For your protection, please read the following:
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Do not use this apparatus near water.
6. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
7. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
8. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
9. Unplug this apparatus during lightning storms or when
unused for long periods of time.
10. No user serviceable parts inside. Refer all servicing to
qualified service personnel. Servicing is required when
the apparatus has been damaged in any way, such as
power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does
not operate normally,or has been dropped.
11.WARNING:To reduce the risk of fire or electric shock,
do not expose this apparatus to rain or moisture.
12. Refer to labels on the unit, including bottom cover, for
other markings and pertinent information.
DECLARATION OF CONFORMITY
Manufacturer’s Name: DigiTech
Manufacturer’s Address: 8760 S. Sandy Parkway
Sandy,Utah 84070, USA
declares that the product:
Product name: Hot Rod
Product option: all (requires Class II power
adapter that conforms to the
requirements of EN60065,
EN60742, or equivalent.)
conforms to the following Product Specifications:
Safety: IEC 60065 (1998)
EMC: EN 55013 (1990)
EN 55020 (1991)
Supplementary Information:
The product herewith complies with the requirements of the
Low Voltage Directive 72/23/EEC and the EMC Directive
89/336/EEC as amended by Directive 93/68/EEC.
Vice-President of Engineering
8760 S. Sandy Parkway
Sandy,Utah 84070, USA
Date: February 22,2002
European Contact: Your local DigiTech Sales and
Service Office or
Harman Music Group
8760 South Sandy Parkway
Sandy,Utah
84070 USA
Ph: (801) 566-8800
Fax: (801) 568-7583
WARRANTY: We at DigiTech are proud of our products and back-up each one with the following warranty:
1.The warranty registration card must be mailed within ten days after purchase date to validate this war-
ranty.
2. DigiTech warrants this product, when used solely within the U.S.,to be free from defects in materials
and workmanship under normal use and service.
3. DigiTech liability under this warranty is limited to repairing or replacing defective materials that show
evidence of defect, provided the product is returned to DigiTech WITH RETURN AUTHORIZATION,
where all parts and labor will be covered up to a period of one year (this warranty is extended to a
period of six years when the product has been properly registered by mail or through our website).
A Return Authorization number may be obtained from DigiTech by telephone.The company shall not
be liable for any consequential damage as a result of the product's use in any circuit or assembly.
4. Proof-of-purchase is considered to be the burden of the consumer.
5. DigiTech reserves the right to make changes in design, or make additions to, or improvements upon
this product without incurring any obligation to install the same on products previously manufactured.
6.The consumer forfeits the benefits of this warranty if the product's main assembly is opened and tam-
pered with by anyone other than a certified DigiTech technician or, if the product is used with AC volt-
ages outside of the range suggested by the manufacturer.
7.The foregoing is in lieu of all other warranties, expressed or implied,and DigiTech neither assumes nor
authorizes any person to assume any obligation or liability in connection with the sale of this product.
In no event shall DigiTech or its dealers be liable for special or consequential damages or from any
delay in the performance of this warranty due to causes beyond their control.
NOTE:The information contained in this manual is subject to change at any time without notification. Some
information contained in this manual may also be inaccurate due to undocumented changes in the product or
operating system since this version of the manual was completed.The information contained in this version
of the owner's manual supersedes all previous versions.
The Hot Rod Distortion is the world’s most advanced distortion pedal.
DigiTech’s exclusive AudioDNA™ technology is what makes the Hot
Rod much more than the standard distortion stompbox. Rather than
working from a single distortion circuit, the Hot Rod features a Morph
knob which lets you blend three independent distortion types. This
gives you a wider variety of different distortion tones that can be dialed
in quickly and easily.
1. Level Knob
Controls the effect’s output level. Turn this knob clockwise to increase
the output level, and counter-clockwise to decrease output level.
2.Tone Knob
Controls the boost or cut of high frequencies. Turn this knob clockwise
to increase the high frequency content, and counter-clockwise to
decrease the high frequency content.

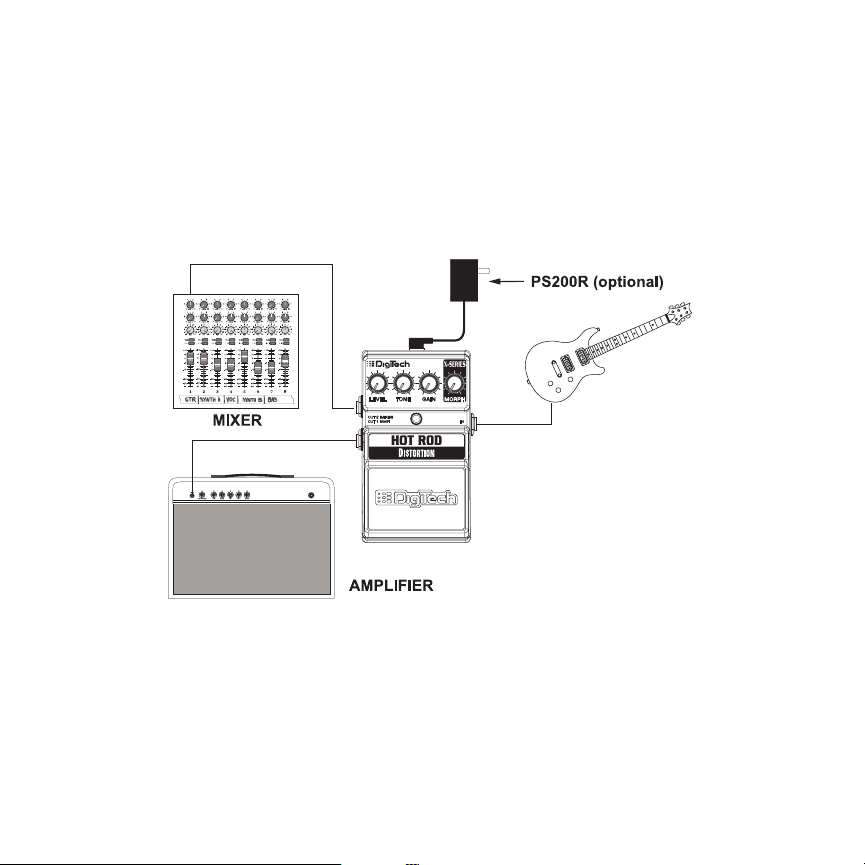

3.AC Adapter Jack
Connect a DigiTech PS200R power supply to this jack. Use the proper
supply for your area’s Mains line voltage.
