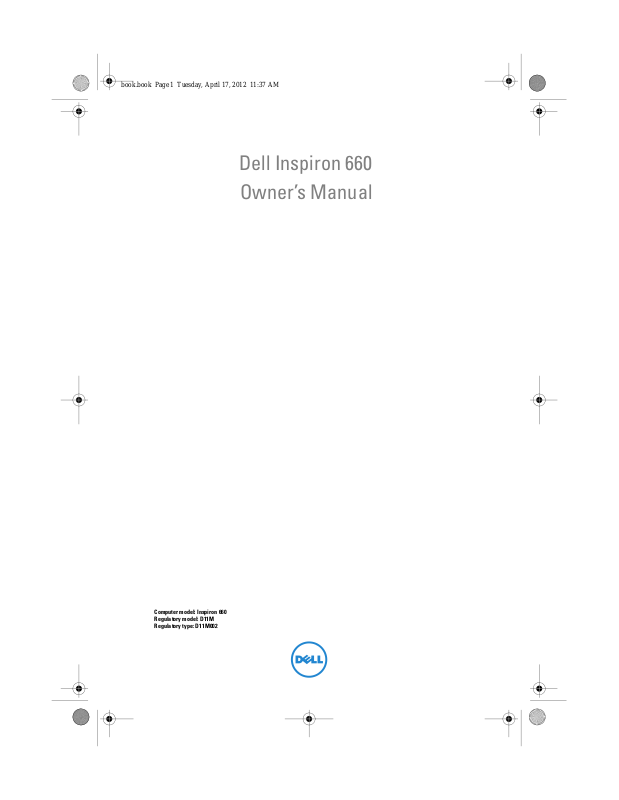

Dell Inspiron 660
Owner’s Manual
Computer model: Inspiron 660 Regulatory model: D11M Regulatory type: D11M002
Notes, Cautions, and Warnings
NOTE: A NOTE indicates important information that helps you make better use of your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss of data if instructions are not followed.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
____________________
Information in this document is subject to change without notice. © 2012 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell™, the DELL logo, and Inspiron™ are trademarks of Dell Inc.; Microsoft®, Windows®, and the Windows start button logo
are either trademarks or registered trademarks of Microsoft corporation in the United States and/or other countries; Bluetooth® is a registered trademark owned by Bluetooth SIG, Inc. and is used by Dell under license; Intel® and Intel SpeedStep® are registered trademarks of Intel Corporation in the U.S. and/or other countries.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.
2012 - 04 |
Rev. A00 |
Contents
1 Before You Begin . . . . . . . . . . . . . . . . |
. . . |
9 |
Turn Off Your Computer and Connected Devices . . |
. . . |
9 |
Safety Instructions . . . . . . . . . . . . . . . . . |
. . . |
9 |
Recommended Tools . . . . . . . . . . . . . . . . |
. . |
10 |
2After Working Inside Your Computer . . . 11
3Technical Overview . . . . . . . . . . . . . . . . . 13
|
Inside View of Your Computer . . . . . . . . . . . . . |
13 |
|
System Board Components . . . . . . . . . . . . . . . |
14 |
4 |
Computer Cover . . . . . . . . . . . . . . . . . . . |
17 |
|
Removing the Computer Cover . . . . . . . . . . . . . |
18 |
|
Replacing the Computer Cover . . . . . . . . . . . . . |
19 |
5 |
Memory Module(s) . . . . . . . . . . . . . . . . . |
21 |
|
Removing the Memory Module(s) . . . . . . . . . . . . |
21 |
|
Replacing the Memory Module(s) . . . . . . . . . . . |
22 |
Contents 3
6 |
Front Bezel . . . . . . . . . . . . . . . . . . . . . . . |
25 |
|
Removing the Front Bezel . . . . . . . . . . . . . . . . |
25 |
|
Replacing the Front Bezel . . . . . . . . . . . . . . . . |
27 |
7 |
Card Retention Bracket . . . . . . . . . . . . . . |
29 |
|
Removing the Card Retention Bracket . . . . . . . . . |
29 |
|
Replacing the Card Retention Bracket . . . . . . . . . |
31 |
8 |
PCI Express Cards . . . . . . . . . . . . . . . . . . |
33 |
|
Removing PCI Express Cards . . . . . . . . . . . . . . |
33 |
|
Replacing PCI Express Cards . . . . . . . . . . . . . . |
35 |
|
Configuring Your Computer After Removing or |
|
|
Installing the PCI Express Card . . . . . . . . . . . . . |
37 |
9 |
Mini-Card . . . . . . . . . . . . . . . . . . . . . . . . . |
39 |
|
Removing the Mini-Card . . . . . . . . . . . . . . . . . |
40 |
|
Replacing the Mini-Card . . . . . . . . . . . . . . . . |
41 |
10 |
Hard Drive(s) . . . . . . . . . . . . . . . . . . . . . . |
43 |
|
Removing the Hard Drive(s) . . . . . . . . . . . . . . . |
43 |
|
Replacing the Hard Drive(s) . . . . . . . . . . . . . . . |
48 |
4 Contents
11 |
Optical Drive(s) . . . . . . . . . . . . . . . . . . . . |
49 |
|
Removing the Optical Drive(s) . . . . . . . . . . . . . |
49 |
|
Replacing the Optical Drives(s) . . . . . . . . . . . . . |
53 |
12 |
Front I/O Panel . . . . . . . . . . . . . . . . . . . . |
57 |
|
Removing the Front I/O Panel . . . . . . . . . . . . . . |
57 |
|
Replacing the Front I/O Panel . . . . . . . . . . . . . . |
59 |
13 |
Power Button Module . . . . . . . . . . . . . . . |
61 |
|
Removing the Power Button Module . . . . . . . . . . |
61 |
|
Replacing the Power Button Module . . . . . . . . . . |
63 |
14 |
Chassis Fan . . . . . . . . . . . . . . . . . . . . . . . |
65 |
|
Removing the Chassis Fan . . . . . . . . . . . . . . . |
65 |
|
Replacing the Chassis Fan . . . . . . . . . . . . . . . |
67 |
15Processor Fan and
Heat-Sink Assembly . . . . . . . . . . . . . . . . 69
Removing the Processor Fan and |
|
Heat-Sink Assembly . . . . . . . . . . . . . . . . . . . |
69 |
Replacing the Processor Fan and |
|
Heat-Sink Assembly . . . . . . . . . . . . . . . . . . . |
71 |
Contents 5
16 |
Processor . . . . . . . . . . . . . . . . . . . . . . . . |
73 |
|
Removing the Processor . . . . . . . . . . . . . . . . . |
73 |
|
Replacing the Processor . . . . . . . . . . . . . . . . |
75 |
17 |
Coin-Cell Battery . . . . . . . . . . . . . . . . . . . |
77 |
|
Removing the Coin-Cell Battery . . . . . . . . . . . . . |
77 |
|
Replacing the Coin-Cell Battery . . . . . . . . . . . . |
79 |
18 |
Power Supply . . . . . . . . . . . . . . . . . . . . . |
81 |
|
Removing the Power Supply . . . . . . . . . . . . . . |
81 |
|
Replacing the Power Supply . . . . . . . . . . . . . . |
83 |
19 |
System Board . . . . . . . . . . . . . . . . . . . . . |
85 |
|
Removing the System Board . . . . . . . . . . . . . . . |
85 |
|
Replacing the System Board . . . . . . . . . . . . . . |
87 |
|
Entering the Service Tag in the BIOS . . . . . . . . . . |
88 |
20 |
System Setup . . . . . . . . . . . . . . . . . . . . . . |
91 |
|
Overview . . . . . . . . . . . . . . . . . . . . . . . . . |
91 |
|
Entering System Setup . . . . . . . . . . . . . . . . . . |
91 |
|
Clearing Forgotten Passwords . . . . . . . . . . . . . |
102 |
|
Clearing CMOS Passwords . . . . . . . . . . . . . . . |
104 |
6 Contents
21Flashing the BIOS . . . . . . . . . . . . . . . . . 107
22Specifications . . . . . . . . . . . . . . . . . . . . 109
Contents 7
8 Contents
Before You Begin
Turn Off Your Computer and Connected Devices
CAUTION: To avoid losing data, save and close all open files and exit all open programs before you turn off your computer.
1Save and close all open files and exit all open programs.
2Click Start
and click Shut Down.
Microsoft Windows shuts down and then the computer turns off.
NOTE: If you are using a different operating system, see the documentation of your operating system for shut-down instructions.
3Disconnect your computer and all attached devices from their electrical outlets.
4Disconnect all telephone cables, network cables, and attached devices from your computer.
5Press and hold the power button, while the computer is unplugged, to ground the system board.
Safety Instructions
Use the following safety guidelines to protect your computer from potential damage and ensure your personal safety.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best practices information, see the Regulatory Compliance Homepage at dell.com/regulatory_compliance.
WARNING: Disconnect all power sources before opening the computer cover or panels. After you finish working inside the computer, replace all covers, panels, and screws before connecting to the power source.
CAUTION: To avoid damaging the computer, ensure that the work surface is flat and clean.
CAUTION: To avoid damaging the components and cards, handle them by their edges and avoid touching pins and contacts.
Before You Begin |
|
9 |
|
CAUTION: Only a certified service technician is authorized to remove the computer cover and access any of the components inside the computer. See the safety instructions for complete information about safety precautions, working inside your computer, and protecting against electrostatic discharge.
CAUTION: Before touching anything inside your computer, ground yourself by touching an unpainted metal surface, such as the metal at the back of the computer. While you work, periodically touch an unpainted metal surface to dissipate static electricity, which could harm internal components.
CAUTION: When you disconnect a cable, pull on its connector or on its pull-tab, not on the cable itself. Some cables have connectors with locking tabs or thumb-screws that you must disengage before disconnecting the cable. When disconnecting cables, keep them evenly aligned to avoid bending any connector pins. When connecting cables, ensure that the connectors and ports are correctly oriented and aligned.
CAUTION: To disconnect a network cable, first unplug the cable from your computer and then unplug the cable from the network device.
Recommended Tools
The procedures in this document may require the following tools:
•Small flat-blade screwdriver
•Small Phillips screwdriver
•Plastic scribe
•Flash BIOS executable update program available at support.dell.com
10 |
Before You Begin |
After Working Inside Your Computer
After you complete replacement procedures, ensure the following:
•Replace all screws and ensure that no stray screws remain inside your computer
•Connect any external devices, cables, cards, and any other part you removed before working on your computer
•Connect your computer and all attached devices to their electrical outlets
CAUTION: Before turning on your computer, replace all screws and ensure that no stray screws remain in the computer. Failure to do so may damage your computer.
•Turn on your computer.
After Working Inside Your Computer |
|
11 |
|
12 |
After Working Inside Your Computer |
Technical Overview
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in "Before You Begin" on page 9. For additional safety best practices information, see the Regulatory Compliance Homepage at dell.com/regulatory_compliance.
Inside View of Your Computer
4
5
3
2
6 1
7
8
9
10
1 |
power supply |
2 |
primary optical-drive |
|
|
3 |
secondary optical-drive |
4 |
front bezel |
|
|
5 |
front I/O panel |
6 |
primary hard-drive |
|
|
7 |
secondary hard-drive |
8 |
system board |
|
|
9 |
memory modules |
10 |
card retention bracket |
|
|
|
|
|
Technical Overview |
|
13 |
|
|
|
|
System Board Components
|
1 |
|
2 |
3 |
4 |
5 |
|
|
|
|
|
|
6 |
23 |
|
|
|
|
|
|
22 |
|
|
|
|
|
|
21 |
|
|
|
|
|
7 |
20 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
8 |
19 |
|
|
|
|
|
9 |
|
|
|
|
|
|
|
18 |
|
|
|
|
|
10 |
|
|
|
|
|
|
|
17 |
16 |
15 |
14 |
13 |
12 11 |
|
14 |
Technical Overview |
1 |
power connector (ATX12V) |
2 |
processor socket |
3 |
processor fan connector (FANCPU) |
4 |
memory-module connector (DIMM1) |
5 |
memory-module connector (DIMM2) |
6 |
main power connector (ATX) |
7 |
Mini-Card slot (MINI1) |
8 |
power button connector (LEDH2) |
9 |
SATA connector (SATA 3) |
10 |
SATA connector (SATA 2) |
11 |
SATA connector (SATA 1) |
12 |
SATA connector (SATA 0) |
13 |
CMOS reset jumper (CMOSCLR1) |
14 |
front panel USB connector (USBF2) |
15 |
front panel USB connector (USBF1) |
16 |
password reset jumper (PSWDCLR1) |
17 |
front panel audio connector (AUDIOF1) |
18 |
PCI Express x1 card slot (SLOT4) |
19 |
PCI Express x1 card slot (SLOT3) |
20 |
PCI Express x1 card slot (SLOT2) |
21 |
battery socket (BT1) |
22 |
PCI Express x16 card slot (SLOT1) |
23 |
chassis fan connector (FANSYS4) |
|
|
Technical Overview |
|
15 |
|
16 |
Technical Overview |
Computer Cover
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in "Before You Begin" on page 9. For additional safety best practices information, see the Regulatory Compliance Homepage at dell.com/regulatory_compliance.
CAUTION: Ensure that sufficient space exists to support the computer with the cover removed—at least 30 cm (1 ft.) of desk top space.
Computer Cover |
|
17 |
|
Removing the Computer Cover
NOTE: Ensure that you remove the padlock from the padlock rings, if applicable.
1Lay the computer on its side with the computer cover facing up.
2Using a screwdriver, remove the screws that secure the computer cover to the chassis.
3Release the computer cover by sliding it away from the front of the computer.
4Lift the cover away from the computer and set it aside in a secure location.
1
2
1 |
screws (2) |
2 |
computer cover |
18 |
Computer Cover |
Replacing the Computer Cover
1Connect all the cables and fold the cables out of the way.
2Ensure that no tools or extra parts are left inside the computer.
3Align the tabs at the bottom of the computer cover with the slots located along the edge of the chassis.
4Press the computer cover down and slide it towards the front of the computer.
5Replace the screws that secure the computer cover to the chassis.
2
1
1 |
screws (2) |
2 |
computer cover |
6Place the computer in an upright position.
7Follow the instructions in "After Working Inside Your Computer" on page 11.
Computer Cover |
|
19 |
|
20 |
Computer Cover |
Memory Module(s)
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in "Before You Begin" on page 9. For additional safety best practices information, see the Regulatory Compliance Homepage at dell.com/regulatory_compliance.
Removing the Memory Module(s)
Prerequisites
Remove the computer cover. See "Removing the Computer Cover" on page 18.
Procedure
WARNING: The memory module(s) may become very hot during normal operation. Allow the memory module(s) to cool before touching them.
1Locate the memory-module connector on the system board. See "System Board Components" on page 14.
2Press out the securing clip at each end of the memory-module connector.
3Grasp the memory module and pull it upwards.
If the memory module is difficult to remove, gently ease the memory module back and forth to remove it from the connector.
2
1
1 memory module connector |
2 securing clips (2) |
Memory Module(s) |
|
21 |
|
Replacing the Memory Module(s)
CAUTION: If you remove the original memory module(s) from your computer during a memory upgrade, keep them separate from any new memory module(s) that you may have, even if you purchased the new memory module(s) from Dell. If possible, do not pair an original memory module with a new memory module. Otherwise, your computer may not start properly.
CAUTION: Do not install ECC or DDR3U memory modules.
Procedure
1Press out the securing clip at each end of the memory module connector.
2Align the notch on the memory module with the tab in the memory module connector.
4
3
|
|
|
2 |
|
|
|
1 |
1 |
cutouts (2) |
2 |
tab |
3 |
notch |
4 |
memory module |
22 |
Memory Module(s) |
CAUTION: To avoid damage to the memory module, press the memory module straight down into the connector while you apply equal force to each end of the memory module.
3Insert the memory module into the memory-module connector until the memory module snaps into position and the securing clip locks in place.
If you insert the memory module correctly, the securing clips snap into the cutouts at each end of the memory module.
2
1
1 |
cutouts (2) |
2 |
securing clips (2) (snapped in position) |
Postrequisites
1Replace the computer cover. See "Replacing the Computer Cover" on page 19.
2Follow the instructions in "After Working Inside Your Computer" on page 11.
3Connect your computer and devices to electrical outlets, and then turn them on.
If a message appears stating that the memory size has changed, press <F1> to continue.
Log on to your computer. To verify that the memory is installed correctly, click Start→ Control Panel→ System. Check the amount of
memory (RAM) listed.
Memory Module(s) |
|
23 |
|
24 |
Memory Module(s) |
Front Bezel
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in "Before You Begin" on page 9. For additional safety best practices information, see the Regulatory Compliance Homepage at dell.com/regulatory_compliance.
Removing the Front Bezel
Prerequisites
Remove the computer cover. See "Removing the Computer Cover" on page 18.
Front Bezel |
|
25 |
|
Procedure
1Place the computer in an upright position.
2Grasp and release the front bezel tabs sequentially, one at a time by moving them outward from the front panel.
3Rotate and pull the front bezel away from the front of the computer to release the front bezel clamps from the front panel slots.
1
2
3
4
5
1 |
front bezel |
2 |
front panel slots (4) |
3 |
front bezel tabs (4) |
4 |
front bezel clamps (4) |
5 |
front panel |
|
|
4 Set aside the front bezel in a secure location.
26 |
Front Bezel |
Replacing the Front Bezel
Procedure
1Align and insert the front bezel clamps into the front panel slots.
2Rotate the front bezel towards the computer until the front bezel tabs snap into place.
1
2
3
4
5
1 |
front bezel |
2 |
front bezel tabs (4) |
3 |
front panel slots (4) |
4 |
front bezel clamps (4) |
5 |
front panel |
|
|
Front Bezel |
|
27 |
|
Postrequisites
1Replace the computer cover. See "Replacing the Computer Cover" on page 19.
2Follow the instructions in "After Working Inside Your Computer" on page 11.
28 |
Front Bezel |
Card Retention Bracket
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in "Before You Begin" on page 9. For additional safety best practices information, see the Regulatory Compliance Homepage at dell.com/regulatory_compliance.
Removing the Card Retention Bracket
Prerequisites
Remove the computer cover. See "Removing the Computer Cover" on page 18.
Card Retention Bracket |
|
29 |
|
Procedure
Push the release tab to release the card retention bracket from the chassis.
2
1
1 release tab |
2 card retention bracket |
30 |
Card Retention Bracket |
Loading...
