Welcome...

To the happy family of satisfied CASIO electronic musical instrument owners! To get the most out of the many features and functions of the keyboard, be sure to carefully read this manual and keep it on hand for future reference.

Important!

When using batteries, be sure to replace them or shift to one of the alternate power sources whenever you notice any of the following symptoms.

Dim power supply indicator

Instrument does not turn on

Dim, difficult to read display

Abnormally low speaker/headphone volume

Distortion of sound output

Occasional interruption of sound when playing at high volumes

Sudden power failure when playing at high volumes

Dimming of the display when playing at high volume

Abnormal rhythm pattern and demo tune play

Dimming of keyboard lights when notes sound

Main Features

100 amazingly realistic tones

Enhanced auto-accompaniment function for greater versatility

100 built in auto-accompaniment patterns.

100 Built-in Song Bank tunes

A total of 100 built-in Song Bank tunes comes built in for playback enjoyment or play-along practice.

A three-step lesson function lets you develop your musical skills by following the keys as they light (Three Step Lesson System).

First you become familiar with the timing of the notes by watching the keys light as you playback one of the 100 built-in Song Bank tunes. Next, practice playing along at a pace that’s comfortable for you. Finally, try playing along at the normal tempo for the Song Bank tune.

Auto Accompaniment

Simply specify a chord and the keyboard automatically produces the matching rhythm, bass, and chord patterns. One-touch fill-ins make accompaniments sound interesting and natural.

Transpose Function

An easy operation instantly changes the key of the keyboard.

475A-E-003A

E-1

LK35_E_01-07.p65

Page 1

03.7.4, 11:40 AM Adobe PageMaker 6.5J/PPC

Safety Precautions

Symbols

Various symbols are used in this operating manual and on the product itself to ensure that the product is used safely and correctly, and to prevent injury to the user and other persons as well as damage to property. Those symbols along with their meanings are shown below.

WARNING

This indication stipulates matters that have the risk of causing death or serious injury if the product is operated incorrectly while ignoring this indication.

CAUTION

This indication stipulates matters that have the risk of causing injury as well as matters for which there is the likelihood of occurrence of physical damage only if the product is operated incorrectly while ignoring this indication.

Symbol Examples

This triangle symbol () means that the user should be careful. (The example at left indicates electrical shock caution.)

This circle with a line through it ( ) means that the indicated action must not be performed. Indications within or nearby this symbol are specifically prohibited. (The example at left indicates that disassembly is prohibited.)

The black dot () means that the indicated action must be performed. Indications within this symbol are actions that are specifically instructed to be performed. (The example at left indicates that the power plug must be unplugged from the electrical socket.)

WARNING

Please use caution regarding the handling of the AC adaptor.

Do not use a voltage other than the indicated power supply voltage. Use of a voltage other than that indicated may cause fire or electrical shock.

If the power cord should become damaged (exposed wires, disconnection, etc.), purchase a new AC adaptor. Use of a damaged power cord may cause fire or electrical shock.

Do not cut or damage the power cord. Also do not place heavy objects on top of it or subject it to excessive heat. Damage to the power cord may cause fire or electrical shock.

Do not attempt to shape the power cord or subject it to excessive bending, twisting or pulling. This may cause fire or electrical shock.

Please use the adaptor specified for this instrument. Use of another adaptor may cause fire, electrical shock, or malfunction.

Do not locate the instrument or its stand on an uneven or unstable surface.

Locating the instrument or its stand on an uneven or unstable surface can cause it to fall, creating the danger of personal injury.

E-2

475A-E-004A

LK35_E_01-07.p65

Page 2

03.7.4, 11:40 AM Adobe PageMaker 6.5J/PPC

Do not place containers containing water or other liquids on the instrument.

Do not place the following objects on the instrument. Placing such objects on the instrument may cause fire or electrical shock if they spill and get inside the instrument.

• Containers filled with water or other liquids (including vases, potted plants, cups, cosmetics and medicines)

Small metal objects (including hairpins, sewing needles and coins)

Flammable objects

In the event a foreign object should happen to get inside the instrument, please take the following actions:

1.Turn power off.

2.Unplug the AC adaptor from the wall outlet.

3. If there are any batteries loaded in the keyboard, remove them.

Do not touch the batteries directly with your hands when removing them. They may be hot or battery fluid may be leaking from them.

4.Consult with the dealer where you purchased the keyboard or with an authorized CASIO service provider.

Do not disassemble or modify the instrument.

• Never attempt of take apart or modify the instrument, its accessories, or separately sold options. Doing so may cause fire, electrical shock or malfunction. Consult your dealer concerning all inspection, adjustment or repair of internal components.

Do not use if there is an abnormality or malfunction.

Do not use the instrument if there appear to be abnormalities such as the presence of smoke or abnormal odor. Also do not use the instrument if there appear to be malfunctions such as the power not coming on or sound not being produced. Use under such conditions may cause fire or electrical shock. In such cases, take the following actions immediately. Never attempt to repair the instrument yourself.

1.Turn power off.

2.Unplug the AC adaptor from the wall outlet.

3. If there are any batteries loaded in the keyboard, remove them.

• Do not touch the batteries directly with your hands when removing them. They may be hot or battery fluid may be leaking from them.

4.Consult with the dealer where you purchased the keyboard or with an authorized CASIO service provider.

When the instrument has been dropped:

In the case the instrument has been dropped or damaged, take the following actions. Continued use may cause fire or electrical shock.

1.Turn power off.

2.Unplug the AC adaptor from the wall outlet.

3. If there are any batteries loaded in the keyboard, remove them.

• Do not touch the batteries directly with your hands when removing them. They may be hot or battery fluid may be leaking from them.

4.Consult with the dealer where you purchased the keyboard or with an authorized CASIO service provider.

Be careful of the bags around children.

Never allow anyone to place the plastic bags of the instrument, its accessories, and its separately sold options over their heads. Doing so may cause suffocation. Particular caution is required in homes with small children.

475A-E-005A

E-3

LK35_E_01-07.p65

Page 3

03.7.4, 11:40 AM Adobe PageMaker 6.5J/PPC

CAUTION

AC Adaptor

Do not locate the power cord in close proximity to heaters or other heating appliances. This may cause the cord to melt leading to possible fire or electrical shock.

When unplugging the AC adaptor from an electrical outlet, always make sure to pull on the adaptor itself and not the cord. Pulling excessively on the cord may cause it to be damaged or break leading to possible fire or electrical shock.

Do not touch the AC adaptor with wet hands when it is plugged in. This may cause electrical shock.

When not using the instrument for an extended period such as when traveling,

always make sure to unplug the AC adaptor from the electrical outlet for safety reasons.

After use turn off the power switch of the instrument and unplug the AC adaptor from the electrical outlet.

At least once a year, unplug the AC adaptor from the power outlet and clean the area around the prongs of the plug. Dust build up around the prongs can create the danger of fire.

Batteries

Improper battery use may cause batteries to rupture and leak. This may cause injury, malfunction of the instrument or discoloration of furniture and other articles that come into contact with battery fluid. Take care to observe the following.

Install batteries so their polarity (+/–) matches that indicated on the instrument.

For safety and to prevent possible leakage of battery fluid, always make sure to remove batteries from the instrument when you do not plan to use it for a long time.

Always make sure that the batteries making up a set are all of the same type.

Never combine new batteries with old ones.

Never dispose of batteries by incinerating them. Never short or disassemble batteries, and do not expose them to excessive heat.

Replace dead batteries as soon as possible.

Never attempt to recharge batteries.

Transport

• When transporting the instrument, always make sure to unplug the AC adaptor from the electrical outlet and confirm that all other external connections have been disconnected. Only then should the instrument be transported. If the above is not done, the cord may be damaged leading to possible fire or electrical shock.

Care

• Whenever caring, make sure to first unplug the AC adaptor from the electrical outlet. Also remove the instrument’s batteries if battery power is being used.

Location

Never locate the instrument in areas subject to high humidity or heavy accumulation of dust. Doing so may cause fire or electrical shock.

Never locate the instrument in areas subject to grease splatters or steam, such as in a kitchen or near a humidifier. Doing so may cause fire or electrical shock.

Do not place keyboard on lacquered furniture.

The instrument’s silicone rubber feet may eventually blacken or scar lacquered surfaces. Use felt cloth pads to insulate the feet or preferably use a CASIO musical instrument stand designed for your keyboard.

E-4

475A-E-006A

LK35_E_01-07.p65

Page 4

03.7.4, 11:40 AM Adobe PageMaker 6.5J/PPC

Do not place heavy objects on the instrument.

Do not place heavy objects on the instrument. This may cause the instrument to tip over or break resulting in injury.

Volume

Very high volume levels can damage hearing. Avoid using the instrument at very high volume settings for long periods. Consult with a physician immediately if you experience impaired hearing or ringing in the ears.

Do not get onto the instrument or stand.

Do not crawl on top of the instrument or its optional stand. Particular caution is required in homes having small children. This may cause the instrument or stand to tip over and break resulting in injury.

Optional Stand (sold separately)

Carefully assemble the stand following the assembly instructions that come with it. Securely tighten all bolts, nuts, and fasteners, and make sure that you mount the instrument correctly onto the stand. Incorrectly or insufficiently tightening screws, or incorrectly mounting the instrument onto the stand can cause the stand to tip over or the instrument to fall off the stand, possibly leading to injury.

Accessories and options

Use only accessories that come with the instrument or authorized CASIO options (sold separately). Use of non-specified accessories or options may cause fire, electrical shock, or malfunction.

You may not be able to see the keyboard keys light under direct sunlight or in other brightly lit areas.

Care of Your Keyboard

Avoid heat, humidity or direct sunlight.

Do not overexpose the instrument to direct sunlight, or place it near an air conditioner, or in any extremely hot place.

Do not use near a TV or radio.

This instrument can cause video or audio interference with TV and radio reception. If this happens, move the instrument away from the TV or radio.

Do not use lacquer, thinner or similar chemicals for cleaning.

Clean the keyboard with a soft cloth dampened in a weak solution of water and a neutral detergent. Soak the cloth in the solution and squeeze until it is almost dry.

Note

You may notice lines in the finish of the case of this keyboard. These lines are a result of the molding process used to shape the plastic of the case. They are not cracks or breaks in the plastic, and are no cause for concern.

475A-E-007A

E-5

LK35_E_01-07.p65

Page 5

03.7.4, 11:40 AM Adobe PageMaker 6.5J/PPC

Contents

Welcome..................................................................................

E-1

Main Features ..........................................................................

E-1

Safety Precautions ..................................................................

E-2

Care of Your Keyboard ..........................................................

E-5

Contents ...................................................................................

E-6

Control Locations ....................................................................

E-8

Quick Reference ...................................................................

E-10

Connections ..........................................................................

E-12

Phones/Output Jack .............................................................................

E-12

Power Supply .........................................................................

E-14

Using batteries ........................................................................................

E-14

To load batteries ............................................................................................

E-14

Important Battery Information .....................................................................

E-14

Using the AC Adaptor ...........................................................................

E-15

Auto Power Off ......................................................................................

E-16

Power On Alert .......................................................................................

E-16

To disable Auto Power Off and power on alert .................................

E-16

Basic Operations ...................................................................

E-17

To switch power on and off ..................................................................

E-17

To change tones ....................................................................................

E-17

Keyboard split tones .....................................................................................

E-18

Digital Sampling .............................................................................................

E-19

Polyphony ......................................................................................................

E-19

Other Useful Functions ..........................................................................

E-19

To change the key of the keyboard ...........................................................

E-19

To tune the keyboard ...................................................................................

E-20

E-6

475A-E-008A

LK35_E_01-07.p65

Page 6

03.7.4, 11:40 AM Adobe PageMaker 6.5J/PPC

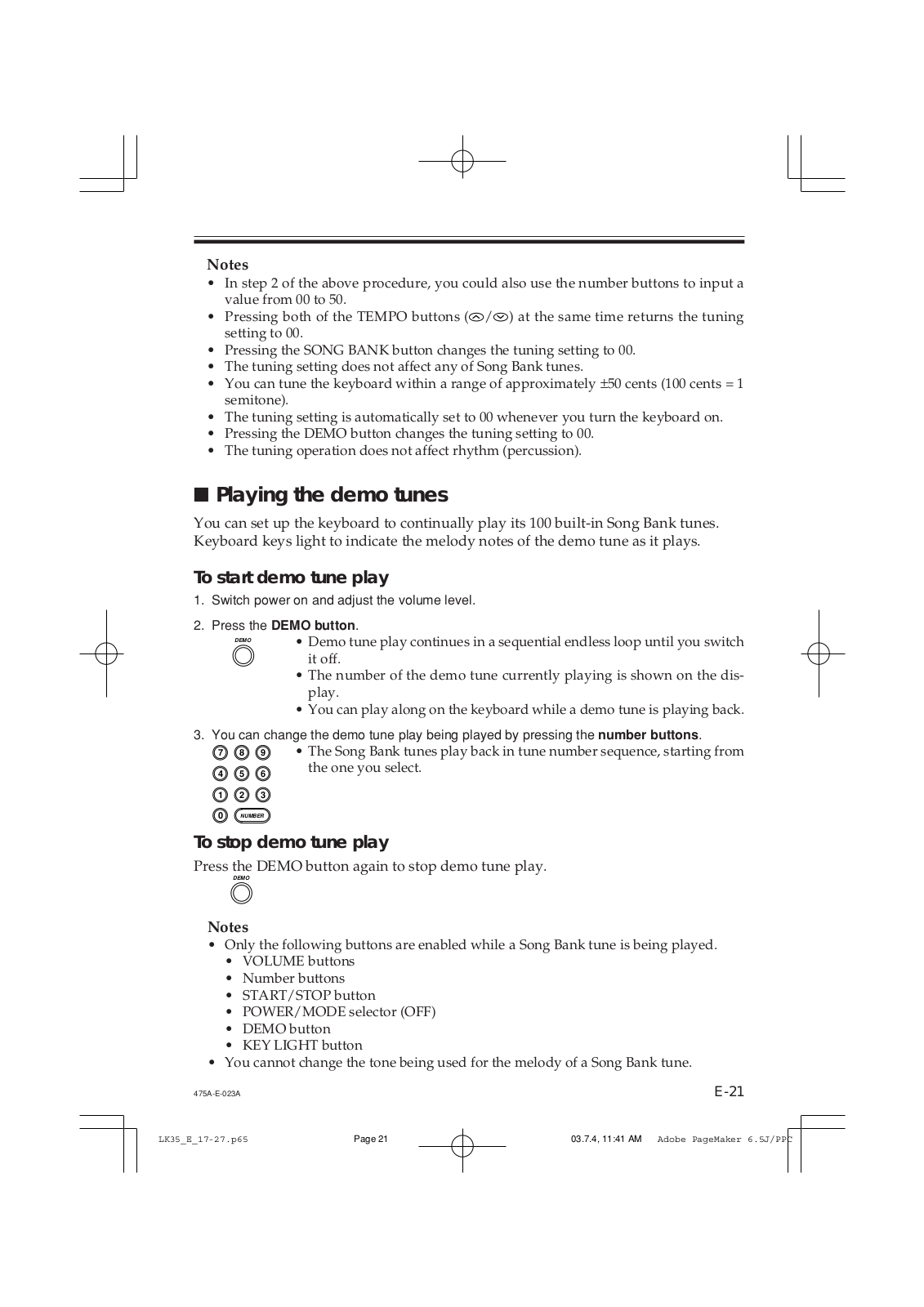

Playing the demo tunes ........................................................................

E-21

To start demo tune play ...............................................................................

E-21

To stop demo tune play ...............................................................................

E-21

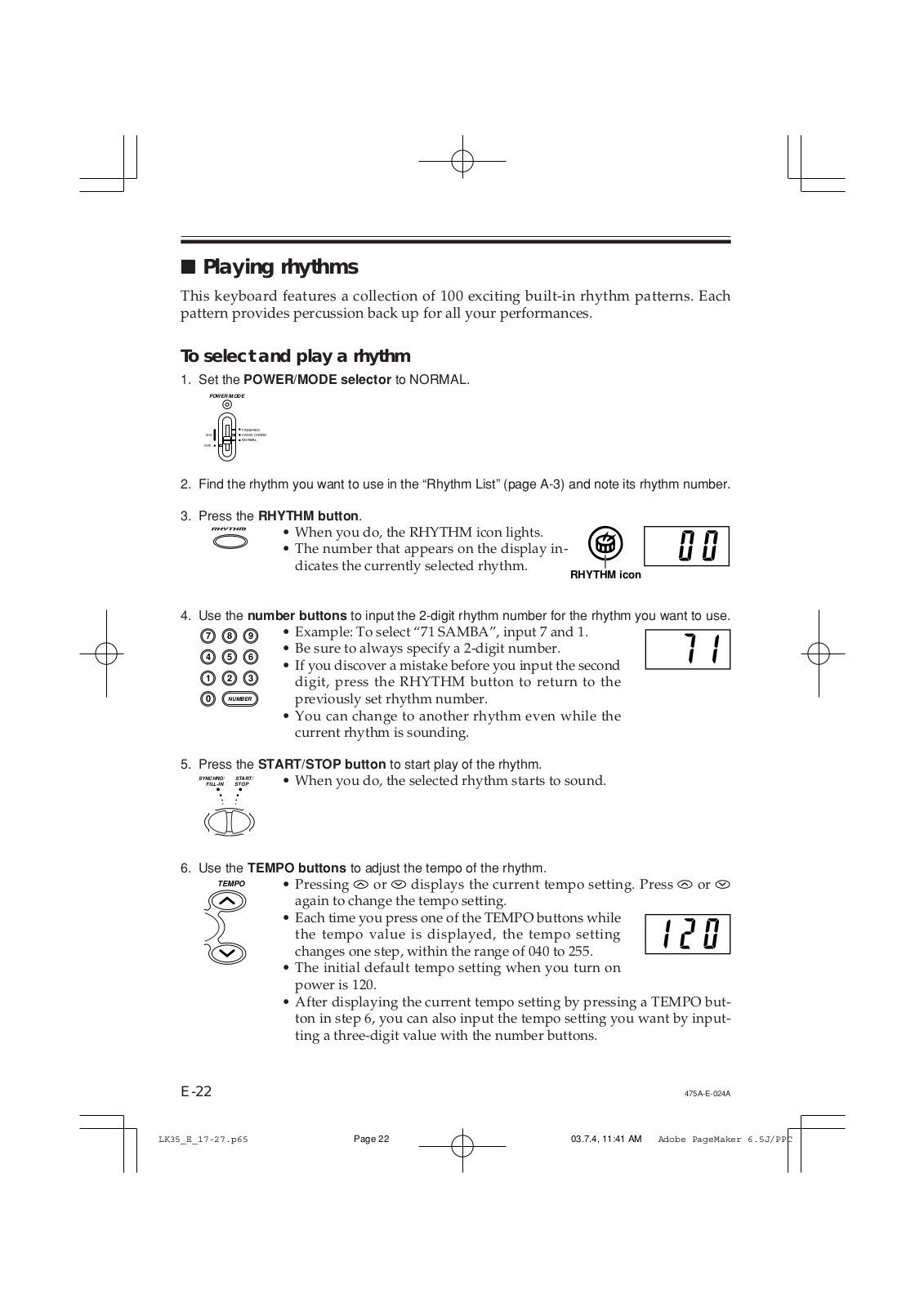

Playing rhythms ......................................................................................

E-22

To select and play a rhythm ........................................................................

E-22

Using auto-accompaniment................................................................

E-23

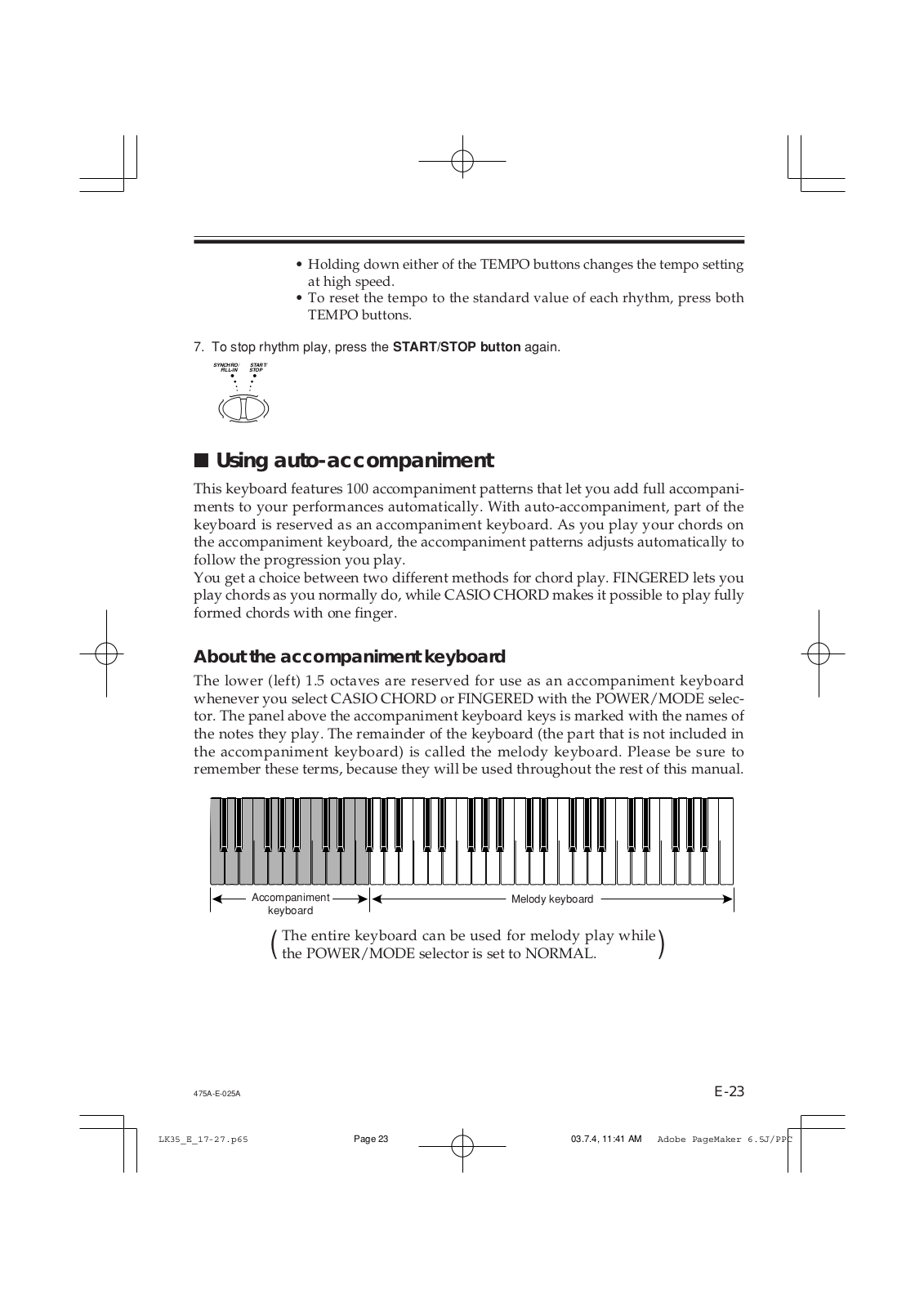

About the accompaniment keyboard ......................................................

E-23

Using the CASIO CHORD system .................................................................

E-24

To play a CASIO CHORD auto-accompaniment ......................................

E-24

Using standard fingerings .............................................................................

E-25

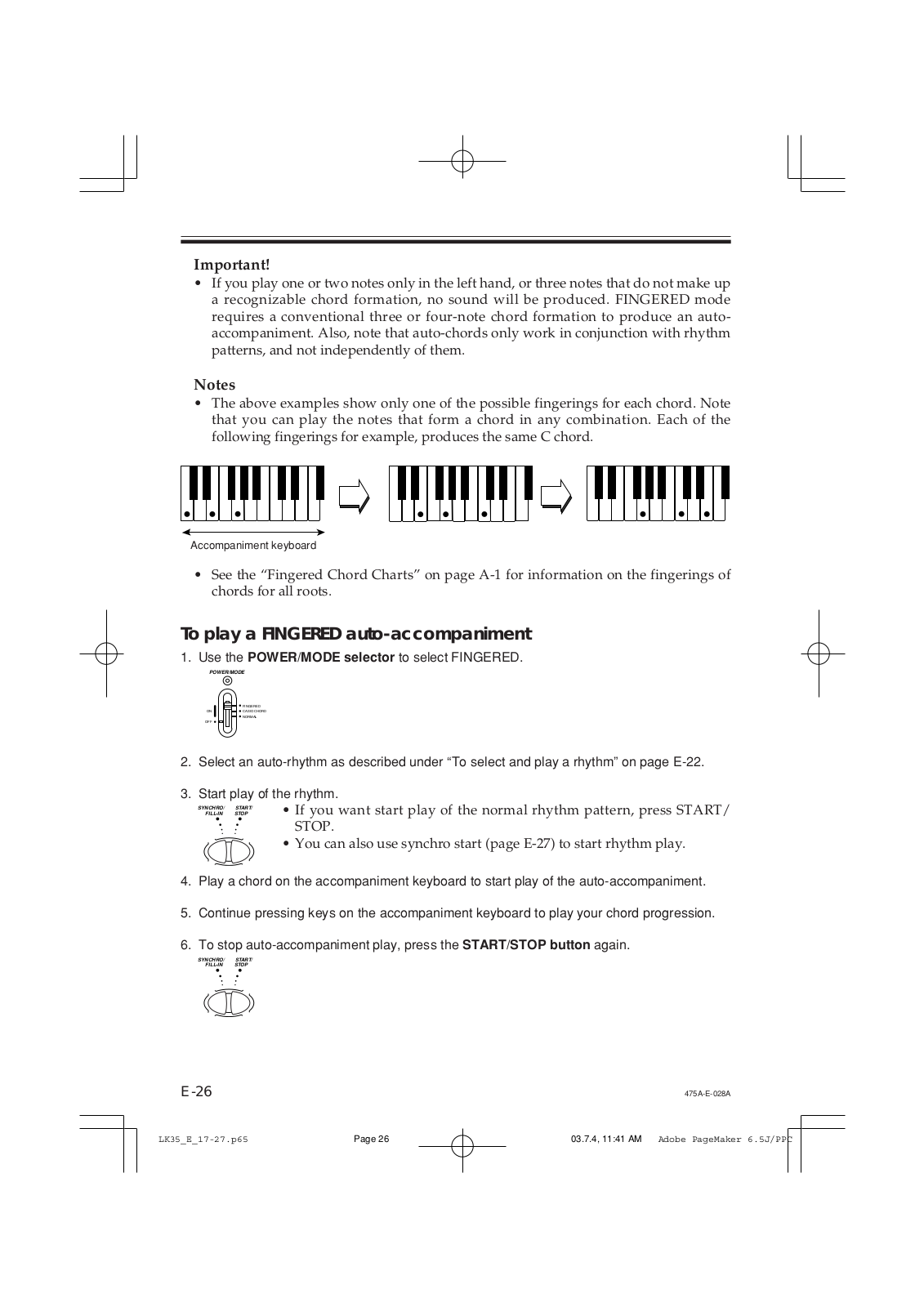

To play a FINGERED auto-accompaniment ..............................................

E-26

Improvising with the preset patterns ...................................................

E-27

Using fill-in rhythm ..................................................................................

E-27

Using Synchro start .................................................................................

E-27

Three Step Lesson System.....................................................

E-28

Using Three Step Lesson System ...........................................................

E-28

Three Step Lesson System Tempo Setting ...................................................

E-29

To play a built-in Song Bank tune ................................................................

E-29

Using the Three Step Lesson System with Song Bank Tunes ......................

E-30

How the Three Step Lesson System operates in Steps 1 through 3 ..........

E-31

Turning Off Key Lighting ................................................................................

E-32

Number of Simultaneously Lit Keys ..............................................................

E-32

To change the tone used for the melody of a Song Bank tune ..............

E-32

Step 1: Easy Play ....................................................................................

E-33

Step 2: Slow Play ....................................................................................

E-33

Step 3: Normal Play ...............................................................................

E-34

To practice the left hand part .............................................................

E-35

To check if the right hand or left hand part is currently selected ...........

E-35

Technical Reference .............................................................

E-36

Troubleshooting .....................................................................................

E-36

Specifications .........................................................................................

E-38

Appendix ................................................................................

A-1

Fingered Chord Charts ..........................................................................

A-1

Rhythm List ...............................................................................................

A-3

475A-E-009A

E-7

LK35_E_01-07.p65

Page 7

03.7.4, 11:40 AM Adobe PageMaker 6.5J/PPC

Casio LK35 User Manual

Control Locations

Rear Panel



J



K



M

T U















7

8

9

DEMO















4

5

6













3-STEP LESSON





DC 9V PHONES/

1

2

3



RHYTHM



OUTPUT









TONE

TRANSPOSE



















STEP 1

STEP 3

SONG BANK

TUNE



0







NUMBER



TEMPO

:VALUE UP









STEP 2

TEMPO

:VALUE DOWN













L

Q

N

O

*

P

Q











DEMO

POWER/MODE

SYNCHRO/

START/

7

8

9



FILL-IN

STOP

KEY LIGHT







VOLUME

TEMPO





4 5 6











3-STEP LESSON





ON

FINGERED

1

2

3





RHYTHM



CASIO CHORD





TONE

TRANSPOSE

OFF

NORMAL







STEP 1

STEP 3

TUNE



0





SONG BANK







NUMBER





TEMPO

:VALUE UP





ONE KEY PLAY







STEP 2

TEMPO

:VALUE DOWN

RS

1 2 3

6 7

8 9 B CD E FG

POWER/MODE SYNCHRO/

START/







FILL-IN

STOP

KEY LIGHT





VOLUME

TEMPO











FINGERED









ON CASIO CHORD









NORMAL









OFF

















ONE KEY PLAY

4 5



0 A

H I

E-8







475A-E-010A

LK35_E_08-16.p65

Page 8

03.7.4, 11:40 AM Adobe PageMaker 6.5J/PPC

1 POWER/MODE selector

2 Power indicator

3 VOLUME buttons

4 SYNCHRO/FILL-IN button

5 START/STOP button

6 TEMPO buttons

7 KEY LIGHT button

8 STEP 1 icon

9 STEP 2 icon

0 STEP 3 icon

A SONG BANK icon

B Display

C RHYTHM icon

D TONE icon

E PART SELECT button

F TONE button

G RHYTHM button

H ONE KEY PLAY buttons

I SONG BANK button

J Number buttons

K DEMO button

L 3-STEP LESSON buttons

MTRANSPOSE/TUNE operation guide

N100 RHYTHMS list

See “Rhythm List” on page A-3 for details.

O 100 TONES list

P 100 SONG BANK list

Q Speakers

R CHORD ROOT NAMES

S Percussion instrument list

T DC 9V jack

UPHONES/OUTPUT jack

For connection of commercially available headphones. Output from the speakers is automatically cut when headphones are connected.

* Attachment of Score Stand

Insert the score stand into the slot at the top of the keyboard as shown in the illustration.

475A-E-011A

E-9

LK35_E_08-16.p65

Page 9

03.7.4, 11:40 AM Adobe PageMaker 6.5J/PPC

Quick Reference

This section provides a quick overview of keyboard operation using steps one and two of the 3-step lesson feature. See page E-28 for detailed explanations of these steps.

1

2

3

Set the POWER/MODE

Press the SONG BANK

Find the tune y

selector to NORMAL.

button.

Song Bank list,

POWER/MODE



number butto





number.

FINGERED

ON

CASIO CHORD

NORMAL

OFF

• To select “20 A

[2] and the [0].

SONG BANK icon lights.

POWER/MODE

SYNCHRO/

START/

7

8

9





FILL-IN

STOP

KEY LIGHT







VOLUME

TEMPO

5

6









4



FINGERED





1

2

3

ON

CASIO CHORD







NORMAL











OFF











STE

0 NUMBER

ONE KEY PLAY

5

Play the melody part on the keyboard.

<If you pressed the STEP 1 button in 4 ...>

Play the notes with the ONE KEY PLAY buttons.

The accompaniment tempo automatically adjusts to play along with your melody.

ONE KEY PLAY

<If you presse Play the notes

Keep the key d

If you selected goes out as so

The key that c you need to pl

After you press accompanimen

E-10

475A-E-012A

LK35_E_08-16.p65

Page 10

03.7.4, 11:40 AM Adobe PageMaker 6.5J/PPC

3

Find the tune you want to play in the Song Bank list, and then use the number buttons to input its two-digit number.

• To select “20 AMAZING GRACE”, input

[2] and the [0].

ghts.





7

8

9

DEMO





NCHRO/

START/







FILL-IN

STOP

KEY LIGHT











E

TEMPO

5

6











4















3-STEP LESSON









1

2

3



RHYTHM









TONE

TRANSPOSE









STEP 1

STEP 3



TUNE





0



SONG BANK







NUMBER



TEMPO

:VALUE UP





ONE KEY PLAY





STEP 2

TEMPO

:VALUE DOWN

7 8 9

4 5 6

1 2 3

0 NUMBER

4

Press the STEP 1 button or STEP 2 button.

When you do, the STEP 1 icon or STEP 2 icon lights.

The keyboard sounds a count beat and waits for you to play something on the keyboard.

The keys that you need to press first flash.

3-STEP LESSON

STEP 1

STEP 3

STEP 2

ons. to play

<If you pressed the STEP 2 button in 4 ...>

Play the notes on the keyboard, pressing keys as they light.

Keep the key depressed as long as it stays lit.

If you selected any song from number 85 through 99, the lit key goes out as soon as you press it.

The key that corresponds to the next note you need to play will flash.

• After you press the correct melody key, accompaniment proceeds to the next note.

475A-E-013A

E-11

LK35_E_08-16.p65

Page 11

03.7.4, 11:40 AM Adobe PageMaker 6.5J/PPC

Connections

■ Phones/Output Jack

Before connecting headphones or other external equipment, be sure to first turn down the volume settings of the keyboard and the connected equipment. You can then adjust volume to the desired level after connections are complete.

[Rear Panel]

PHONES/OUTPUT Jack

DC 9V

PHONES/



OUTPUT

1

Stereo standard plug

3

Keyboard amp, guitar amp,etc.

White

Red PIN plug

2LEFT RIGHT

AUX IN or similar terminal of audio amplifier

Connecting Headphones (Figure 1)

Connecting headphones cuts off output from the keyboard’s built-in speakers, so you can play even late at night without disturbing anyone.

Audio Equipment (Figure 2)

Connect the keyboard to an audio equipment using a commercially available connecting cord with a standard plug on one end and two PIN plugs on the other end. Note that the standard plug you connect to the keyboard must be a stereo plug, otherwise you will be able to output only one of stereo channels. In this configuration, you normally set the input selector of the audio equipment to the terminal (usually marked AUX IN or something similar) where the cord from the keyboard is connected. See the user documentation that comes with your audio equipment for full details.

Musical Instrument Amplifier (Figure 3)

Use a commercially available connecting cord to connect the keyboard to a musical instrument amplifier.

Note

Be sure to use a connecting cord that has a stereo standard plug on the end you connect to the keyboard, and a connector that provides dual channel (left and right) input to the amplifier to which you are connecting. The wrong type of connector at either end can cause one of the stereo channels to be lost.

E-12

475A-E-014A

LK35_E_08-16.p65

Page 12

03.7.4, 11:40 AM Adobe PageMaker 6.5J/PPC

When connected to a musical instrument amplifier, set the volume of the keyboard to a relatively low level and make output volume adjustments using the amplifier’s controls.

Connection Example

PIN plug (red)

PIN jack

To keyboard’s PHONES/OUTPUT jack

Stereo standard plug

INPUT 1

INPUT 2

PIN plug (white)

Keyboard or

Standard plug

guitar amp



475A-E-015A

E-13

LK35_E_08-16.p65

Page 13

03.7.4, 11:40 AM Adobe PageMaker 6.5J/PPC

Loading...
+ 33 hidden pages
