GPS

Made Simple!

3

N E V E R G E T LO S T AG A I N

Quick Start Guide

Model #: 360100

Lit# 98-1574/04-10

Full Instruction Manual available online at:

www.bushnell.com/manuals/gps

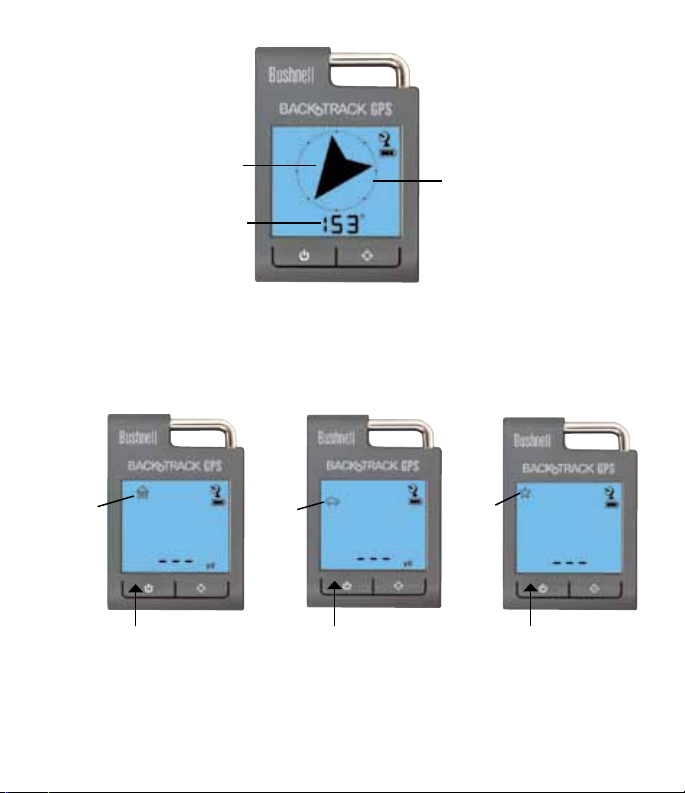

Control & Display Guide

Location Mode Icons







(Home, Car, Star)





Satellite Locked Icon







Compass Mode Indicator





Battery Indicator

(Index Ring)







Directional Arrow







Distance to Location





Distance Units











or Compass Heading







(in compass mode only)







MODE/Power

Mark/Backlight

Note: Display as shown above is for reference purposes only. All icons and data will not appear simultaneously on the BackTrack’s display during normal operation.

3

Slide, Then Lift Cover to Open

Batteries Inserted

1.Open the battery cover on the back of the BackTrack (slide it down as shown by the arrow, then lift it straight up), insert two AAA batteries (alkaline or lithium), and replace the cover. Change batteries when low power is shown by the battery indicator icon. Make sure the battery contacts are clean and replace both batteries at once. Remove the batteries when storing the unit longer than a few weeks.

Take the

BackTrack

Outdoors

HOLD Mode/PoweR Button

”Satellite” Icon Not Flashing

2.HOLD (keep pressed for 2 seconds) theMODE/Power button to turn on the BackTrack. The BackTrack is ready to use when the Satellite icon on the display stops flashing (be sure you are outdoors with a clear view of the sky).

4

Compass Mode

North Arrow











Compass Mode Indicator























Compass Degrees









(Index Ring)





















3.The BackTrack starts out in Compass Mode the first time you turn it on. An arrow points North, and the display shows the direction you’re facing in degrees (e.g. East=90 degrees). The directional arrows work best in both Compass and Location Modes with the unit held horizontally or “flat” in front of you. Return toCompass Mode anytime by briefly pushing theMODE/Power button until the Index Ring and Degree symbol are displayed again.

“Home”

“Car”

“Star”

Icon

Icon

Icon





PUSH



Mode/Power to select





PUSH



PUSH





from three Location icons





4.To mark a location you want to get back to, PUSH theMODE/Power button one or more times to select one of the three Location Mode icons (“Home”, “Car”, or “Star”).

5

Home Icon

HOLD the MARK button down to save the location of

your campsite (with the “Home” icon selected here)

HOLD

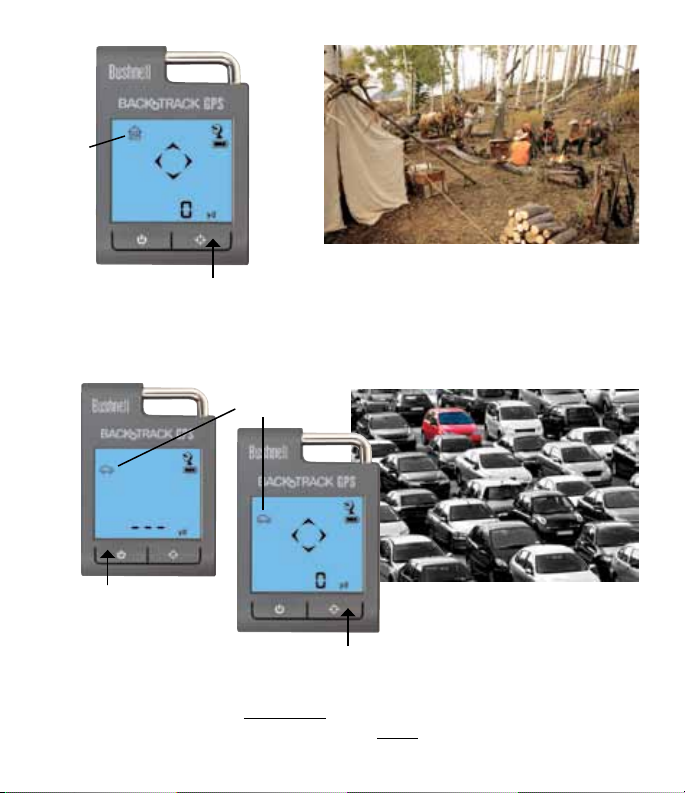

5.After selecting the icon you want, HOLD theMARK button (while you are physically at or near the location you want to save), until the distance indication changes to “0”.

Note: it does not matter which direction you face when marking the location.

Car Icon











1 PUSH





At the new location,

Marking an





1-Selectanother icon





additional location





2-MARKthe new location





2 HOLD

6. You may now turn the BackTrack’s power off by HOLDing down theMODE/Power button, or proceed to another location you want to mark. Be sure toselect a different icon before marking this new spot.If you hold down MARK

with a previously used Location icon selected , you will replace that one with your current location.

6

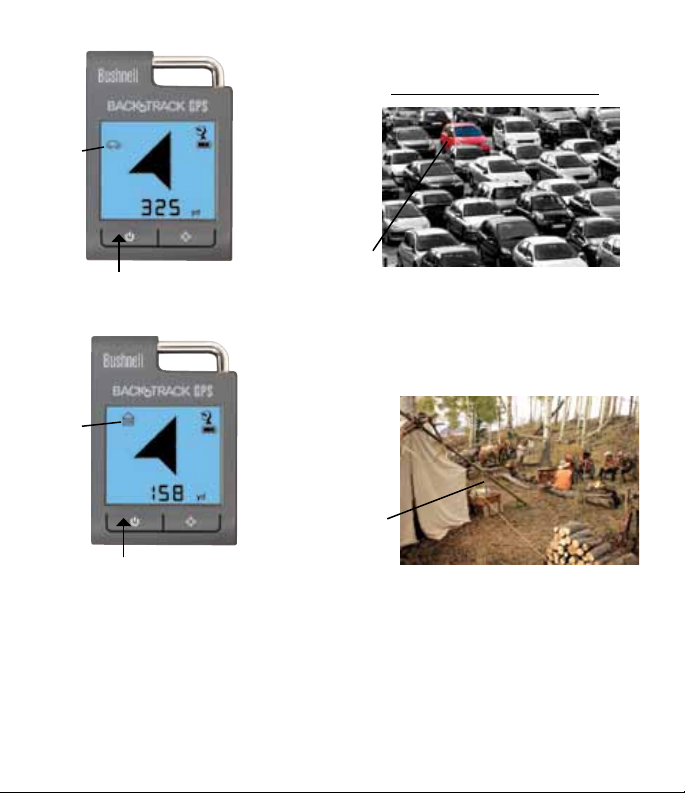

HOLD MODE/Power to turn unit back on. Display shows distance & direction to the last (most recently) marked location.

Car



Icon







325 yds distance in





the direction of the









arrow to your car in

HOLD

the parking lot



PUSH MODE/Power to select the icon you used to store another location. Distance & direction to it are now displayed.

Home

Icon

158 yds distance in the direction of the arrow to your campsite

PUSH

7.To return to one of your previously marked locations, it is easy! Simply turn the BackTrack’s power back on (HOLD theMODE/POWER button) and the BackTrack display will indicate the direction and distance back to the most recent location you marked. If you want to return to a previous location, justPUSH theMODE/Power button to select the icon you used when you marked it earlier. To find your way back to the selected location, simply move in the direction the arrow points and watch for the distance to decrease. When you reach your destination, a full circle of arrows will be seen at the outer edge of the display.

7

Returning to Compass Mode

Display indicates heading in degrees for this direction

North

Arrow

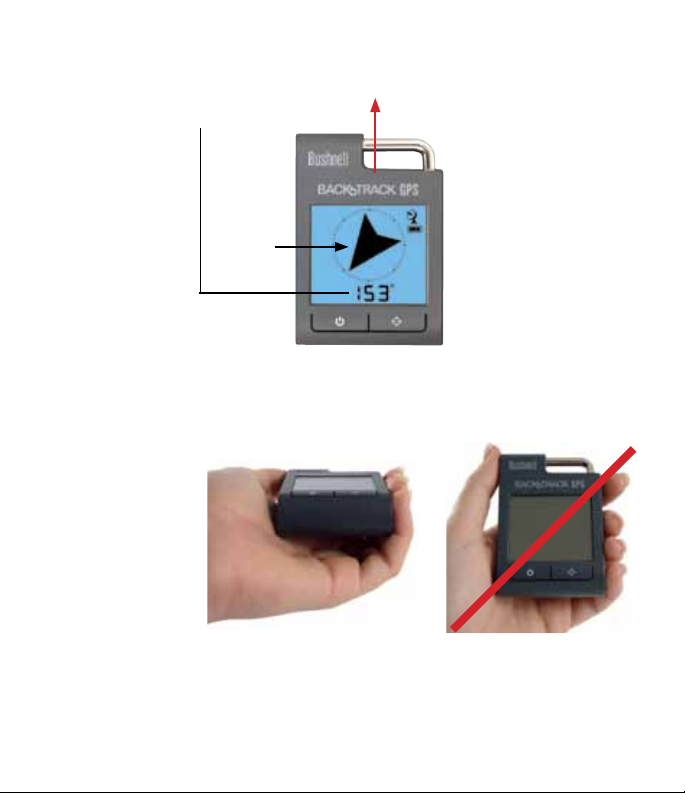

To use the BackTrack as a digital compass, simply PUSH theMODE/Power button until you see the “Compass” (Arrow)8icon, and the BackTrack will again display an arrow pointing North, and the compass degrees for the direction it’s pointed

(see red arrow above).

Correct Operating Position Incorrect Operating Position

To ensure directional accuracy, hold the BackTrack out horizontally in front of you (parallel to the ground) and move it in a “figure 8” pattern a few times to re-calibratethe compass. Your BackTrack should always be held in a horizontal position (not tilted) as shown above when operating the unit and reading the display.

8

Other Operations

Changing the Distance Units

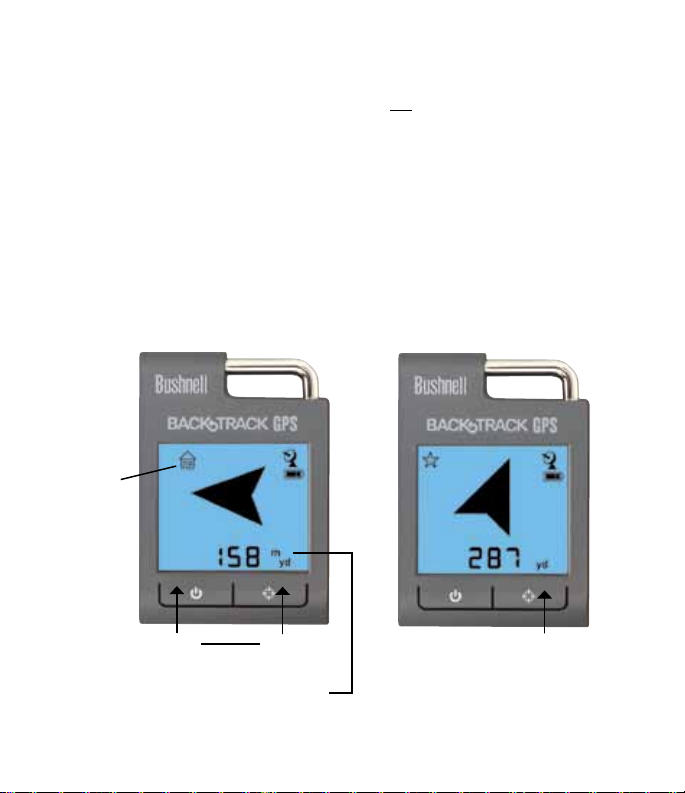

To change the units from English to Metric, QUICK PRESS ofboth theMARK andMODE/Power buttons at the same time when any of the three location icons are selected the distance units display changes from “yd” to “m”. The BackTrack will automatically switch from yards to miles (or meters to km) for longer distances. It can display up a maximum distance of 999 miles or kilometers.

Turning on the Backlight

PUSH MARK to turn on the display backlight at anytime. It will automatically turn off about 30 seconds later.

Auto Power Off

Power automatically turns off after 5 minutes if no buttons have been pressed, or HOLD downMODE/Power to turn off manually. When the BackTrack is turned back on, it returns to the last mode you selected.

In any

Location

Mode









































PUSH



PUSH

PUSH MARK to



QUICK PRESS both MODE/Power and

activate backlight





MARK to select English or Metric units for















displayed distance (yd & mi or m & km)





9

Warnings and Notices

GPS System & Location Accuracy Notice:

The Global Positioning System (GPS) is operated by the government of the United States, which is solely responsible for its accuracy and maintenance. The system is subject to changes which could affect the accuracy and performance of all GPS equipment. The inherent nature of the GPS system itself limits the accuracy of the distance indicated on the BackTrack’s display to within about ±3~5 meters (or yards) of the actual marked location.

Warning:

This device is intended as a supplemental handheld navigation aide only. The user assumes all responsibility associated with the use of this product. It must not be used for any purpose requiring precise measurement of location, direction, distance, velocity or topography. This device should not be used for any aircraft navigation applications.

Vehicular Use Notice:

Bushnell is committed to the safe and responsible enjoyment of the outdoors.

Do not use this product while driving. An accident can result in property damage, injury or death if the operator fails to practice prudent driving practices. It is the sole responsibility of the driver of any vehicle to operate the motor vehicle in a safe manner. Information from the GPS unit can distract the operator of a motor vehicle. It is unsafe to operate the controls of the GPS unit while operating a motor vehicle. If used in a motor vehicle, it must not be used by the operator of the motor vehicle. If it is used in a motor vehicle it must be mounted in a manner such that it does not distract the operator, does not interfere with the operator’s field of view, and does not block or interfere with the air bags or other safety mechanisms of the motor vehicle. Windshields and car windows with integrated metallic materials, such as defrosters, or car window tinting films, can degrade GPS reception inside a car.

Liability Notice:

In no event shall Bushnell be liable for any incidental, special, indirect or consequential damages, whether resulting from the use, misuse, or inability to use this product or from defects in the product. Some states do not allow the exclusion of incidental or consequential damages, so the above limitations may not apply to you.

FCC Note:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Shielded interface cable must be used with the equipment in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules.
