General Power Tool Safety Warnings
WARNING
!
Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
SAVE ALL WARNINGS AND INSTRUCTIONS
FOR FUTURE REFERENCE
The term “power tool” in all of the warnings listed below refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
Work area safety
Keep work area clean and well lit. Cluttered
or dark areas invite accidents.
Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.
tools create sparks which may ignite the dust or fumes.
Keep children and bystanders away while operating a power tool.
cause you to lose control.
Distractions can
Power
Electrical safety
Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools.
and matching outlets will reduce risk of electric shock.
Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators.
of electric shock if your body is earthed or grounded.
Do not expose power tools to rain or wet conditions.
increase the risk of electric shock.
Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
cords increase the risk of electric shock.
When operating a power tool outdoors, use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use
reduces the risk of electric shock.
If operating the power tool in damp locations is unavoidable use a Ground Fault Circuit Interrupter (GFCI) protected supply.
a GFCI reduce the risk of electric shock.
GFCI and personal protection devices like electrician’s rubber gloves and footwear will further enhance your personal safety.
There is an increased risk
Water entering a power tool will
Unmodified plugs
Damaged or entangled
Use
Do not use AC only rated tools with a DC power supply.
work, the electrical components of the AC rated tool are likely to fail and create a hazard to the operator.
While the tool may appear to
Personal safety
Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.
while operating power tools may result in serious personal injury.
Use personal protective equipment. Always wear eye protection.
such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and / or battery pack, picking up or carrying the tool.
power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents.
Remove any adjusting key or wrench before turning the power tool on.
key left attached to a rotating part of the power tool may result in personal injury.
Do not overreach. Keep proper footing and balance at all times.
control of the power tool in unexpected situations.
Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts.
clothes, jewelry or long hair can be caught in moving parts.
of
If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
Use of dust collection can reduce dust-
related hazards.
A moment of inattention
Protective equipment
A wrench or a
This enables better
Carrying
Loose
-2-
BM 2610956394 07-08 7/1/08 3:04 PM Page 3
Keep handles dry, clean and free from oil and grease.
control the power tool.
Slippery hands cannot safely
Power tool use and care
Do not force the power tool. Use the correct power tool for your application.
correct power tool will do the job better and safer at the rate for which it was designed.
Do not use the power tool if the switch does not turn it on and off.
cannot be controlled with the switch is dangerous and must be repaired.
Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.
preventive safety measures reduce the risk of starting the power tool accidentally.
Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
dangerous in the hands of untrained users.
Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use.
Many accidents are caused by poorly maintained power tools.
Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.
power tool for operations different from those intended could result in a hazardous situation.
Use clamps or other practical way to secure and support the workpiece to a stable platform.
Holding the work by hand or against
Any power tool that
Power tools are
The
Such
Use of the
your body is unstable and may lead to loss of control.
Battery tool use and care
Ensure the switch is in the off position before inserting battery pack.
battery pack into power tools that have the switch on invites accidents.
Recharge only with the charger specified by the manufacturer.
suitable for one type of battery pack may create a risk of fire when used with another battery pack.
Use power tools only with specifically designated battery packs.
battery packs may create a risk of injury and fire.
When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another.
Shorting the battery terminals together may cause burns or a fire.
Under abusive conditions, liquid may be ejected from the battery, avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help.
battery may cause irritation or burns.
Liquid ejected from the
Inserting the
A charger that is
Use of any other
Service
Have your power tool serviced by a qualified repair person using only identical replacement parts.
safety of the power tool is maintained.
Develop a periodic maintenance schedule for your tool. When cleaning a tool be careful not to disassemble any portion of the tool since internal wires may be misplaced or pinched or safety guard return springs may be improperly mounted.
cleaning agents such as gasoline, carbon tetrachloride, ammonia, etc. may damage plastic parts.
This will ensure that the
Certain
SAVE ALL WARNINGS AND INSTRUCTIONS
FOR FUTURE REFERENCE
-3-
BM 2610956394 07-08 7/1/08 3:04 PM Page 4
Safety Rules for Cordless Hammer Drills
Wear ear protectors with impact drills.
Exposure to noise can cause hearing loss.
Use auxiliary handles supplied with the tool.
Loss of control can cause personal injury.
Hold power tools by insulated gripping surfaces when performing an operation where the cutting tools may contact hidden wiring.
exposed metal parts of the tool “live” and shock the operator.
Use clamps or other practical way to secure and support the workpiece to a stable platform.
against your body is unstable and may lead to loss of control.
Do not drill, fasten or break into existing walls or other blind areas where electrical wiring may exist.
unavoidable, disconnect all fuses or circuit breakers feeding this worksite.
Wear ear protectors when using the tool for extended periods.
high intensity noise can cause hearing loss.
Always use auxiliary handle for maximum control over torque reaction or kick-back.
High torque 3/8" and larger chuck capacity drills are equipped with auxiliary handles.
Always wear safety goggles or eye protection when using this tool. Use a dust mask or respirator for applications which generate dust.
Use thick cushioned gloves and limit the exposure time by taking frequent rest periods.
action may be harmful to your hands and arms.
Secure the material being drilled. Never hold it in your hand or across legs.
Unstable support can cause the drill bit to bind causing loss of control and injury.
Disconnect battery pack from tool before making any assembly, adjustments or changing accessories
safety measures reduce the risk of starting the tool accidentally.
Position yourself to avoid being caught between the tool or side handle and walls or posts.
jammed in the work, the reaction torque of the tool could crush your hand or leg.
Contact with a “live” wire will make
Holding the work by hand or
If this situation is
Prolonged exposure to
Vibration caused by hammer-drill
. Such preventive
Should the bit become bound or
If the bit becomes bound in the workpiece, release the trigger immediately, reverse the direction of rotation and slowly squeeze the trigger to back out the bit.
a strong reaction torque. The drill body will tend to twist in the opposite direction as the drill bit is rotating.
Do not grasp the tool or place your hands too close to the spinning chuck or drill bit.
Your hand may be lacerated.
When installing a drill bit, insert the shank of the bit well within the jaws of the chuck.
If the bit is not inserted deep enough, the grip of the jaws over the bit is reduced and the loss of control is increased.
Do not use dull or damaged bits and accessories.
greater tendency to bind in the workpiece.
When removing the bit from the tool avoid contact with skin and use proper protective gloves when grasping the bit or accessory.
Accessories may be hot after prolonged use.
Check to see that keys and adjusting wrenches are removed from the drill before switching the tool "ON".
can fly away at high velocity striking you or a bystander.
Do not run the tool while carrying it at your side.
entangled with clothing and injury may result.
WARNING
!
grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:
• Lead from lead-based paints,
• Crystalline silica from bricks and cement and other masonry products, and
Arsenic and chromium from chemically-
• treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.
Dull or damaged bits have a
A spinning drill bit could become
Some dust created by power sanding, sawing,
Be ready for
Keys or wrenches
-4-
BM 2610956394 07-08 7/1/08 3:04 PM Page 5
Battery/Charger
Before using battery charger, read all instructions and cautionary markings on (1) battery charger, (2) battery pack, and (3) product using battery.
Use only the charger which accompanied your product or direct replacement as listed in the catalog or this manual.
substitute any other charger. Use only Bosch approved chargers with your product. See Functional Description and Specifications.
Do not disassemble charger or operate the charger if it has received a sharp blow, been dropped or otherwise damaged in any way. Replace damaged cord or plugs immediately.
may result in electric shock or fire.
Do not recharge battery in damp or wet environment. Do not expose charger to rain or snow. If battery case is cracked or otherwise damaged, do not insert into charger.
Charge only Bosch approved rechargeable batteries.
Specifications. Other types of batteries may burst causing personal injury and damage.
Charge battery pack in temperatures above +32 degrees F (0 degrees C) and below
Incorrect reassembly or damage
Battery short or fire may result.
See Functional Description and
Do not
+113 degrees F (45 degrees C). Store tool and battery pack in locations where temperatures will not exceed 120 degrees F (49 degrees C).
serious damage to the battery cells.
Battery leakage may occur under extreme usage or temperature conditions. Avoid contact with skin and eyes.
liquid is caustic and could cause chemical burns to tissues. If liquid comes in contact with skin, wash quickly with soap and water. If the liquid contacts your eyes, flush them with water for a minimum of 10 minutes and seek medical attention.
Place charger on flat non-flammable surfaces and away from flammable materials when re-charging battery pack.
The charger and battery pack heat during charging. Carpeting and other heat insulating surfaces block proper air circulation which may cause overheating of the charger and battery pack. If smoke or melting of the case are observed unplug the charger immediately and do not use the battery pack or charger.
Use of an attachment not recom­mended or sold by Bosch will result in a risk of fire, electric shock or injury to persons.
This is important to prevent
The battery
Battery Care
WARNING
!
away from metal objects.
protect terminals from shorting place batteries in a tool box or pocket with
When batteries are not in tool or charger, keep them
For example, to
DO NOT
nails, screws, keys, etc. Fire or injury may result.
DO NOT PUT BATTERIES INTO FIRE OR EXPOSE TO HIGH HEAT.
explode.
They may
-5-
BM 2610956394 07-08 7/1/08 3:04 PM Page 6
Battery Disposal
WARNING
!
remove any component projecting from the battery terminals.
P
rior to disposal, protect exposed terminals
w
ith heavy insulating tape to prevent shorting.
If equipped with a lithium-ion battery, the battery must be collected, recycled or disposed of in an environmentally sound manner.
Do not attempt to disas­semble the battery or
Fire or injury may result.
LITHIUM-ION BATTERIES
“The EPA certified RBRC Battery Recycling Seal on the lithium-ion (Li-ion) battery indicates Robert Bosch Tool Corporation is voluntarily participating in an industry
program to collect and recycle these batteries at the end of their useful life, when taken out of service in the United States or Canada. The RBRC program provides a convenient a t may be illegal in your area.
Please call 1-800-8-BATTERY for information on Li-ion battery recycling and disposal bans/restrictions in your area, or return your batteries to a Skil/Bosch/Dremel Service Center for recycling. Robert Bosch Tool Corporation’s involvement in this program is part of our commitment to preserving our environment and conserving our natural resources.”
Symbols
lterative to placing used Li-ion batteries into
he trash or the municipal waste stream, which
-6-
0
BM 2610956394 07-08 7/1/08 3:04 PM Page 7
Symbols
IMPORTANT: Some of the following symbols may be used on your tool. Please study them
and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer.

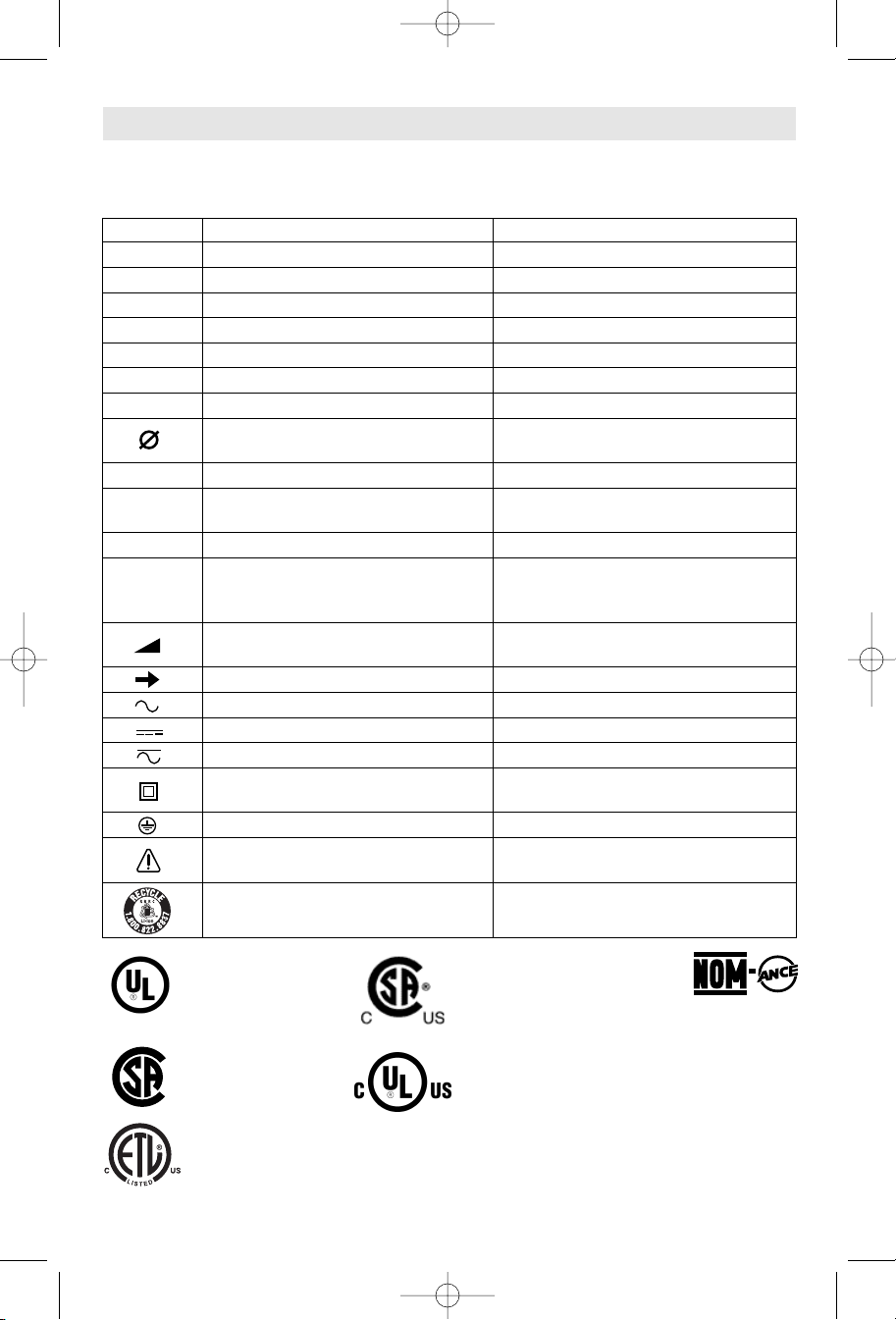

Symbol Name Designation/Explanation
V Volts Voltage (potential)
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watt Power
kg Kilograms Weight
min Minutes Time
s Seconds Time
Diameter Size of drill bits, grinding wheels, etc.
n
0
.../min
0 Off position Zero speed, zero torque...
1, 2, 3, ... Selector settings Speed, torque or position settings.
I, II, III, Higher number means greater speed
No load speed Rotational speed, at no load
Revolutions or reciprocation per minute Revolutions, strokes, surface speed,
orbits etc. per minute
Infinitely variable selector with off Speed is increasing from 0 setting
Arrow Action in the direction of arrow
Alternating current
Type or a characteristic of current
Direct current Type or a characteristic of current
Alternating or direct current Type or a characteristic of current
Class II construction Designates Double Insulated
Construction tools.
Earthing terminal Grounding terminal
Warning symbol Alerts user to warning messages
Li-ion RBRC seal Designates Li-ion battery recycling
program
This symbol designates that this tool is listed by Underwriters Laboratories.
This symbol designates that this tool is listed by the Canadian Standards Association.
This symbol designates that this tool is listed by the Intertek Testing
This symbol designates that this tool is listed by the Canadian Standards Association, to United States and Canadian Standards.
This symbol designates that this tool is listed by Underwriters Laboratories, to United States and Canadian Standards.
This symbol
designates that this tool complies to NOM Mexican Standards.
Services, to United States and Canadian Standards.
-7-
BM 2610956394 07-08 7/1/08 3:04 PM Page 8
Functional Description and Specifications
!
WARNING
Disconnect battery pack from tool before making any assembly, adjustments or changing accessories
reduce the risk of starting the tool accidentally.

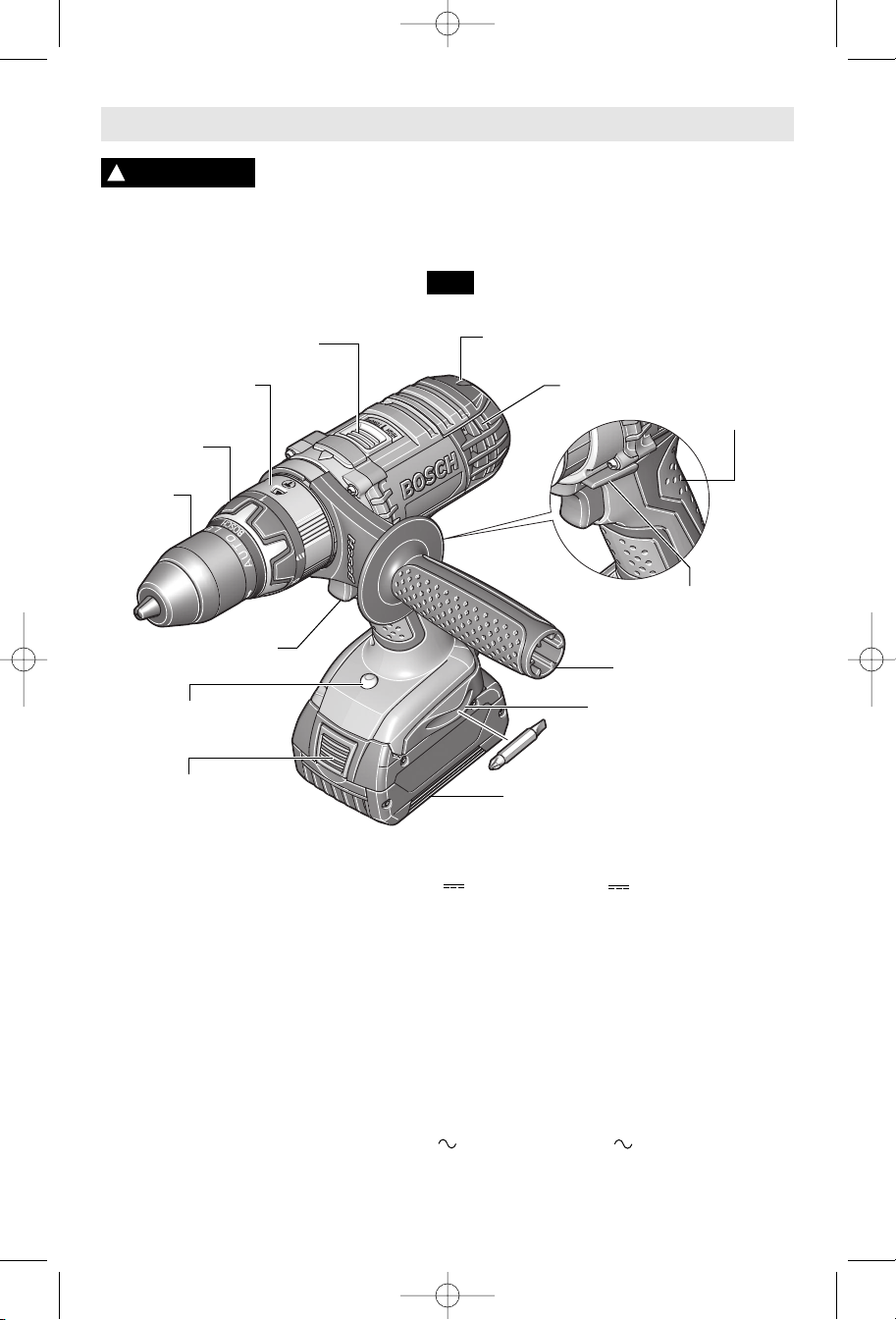

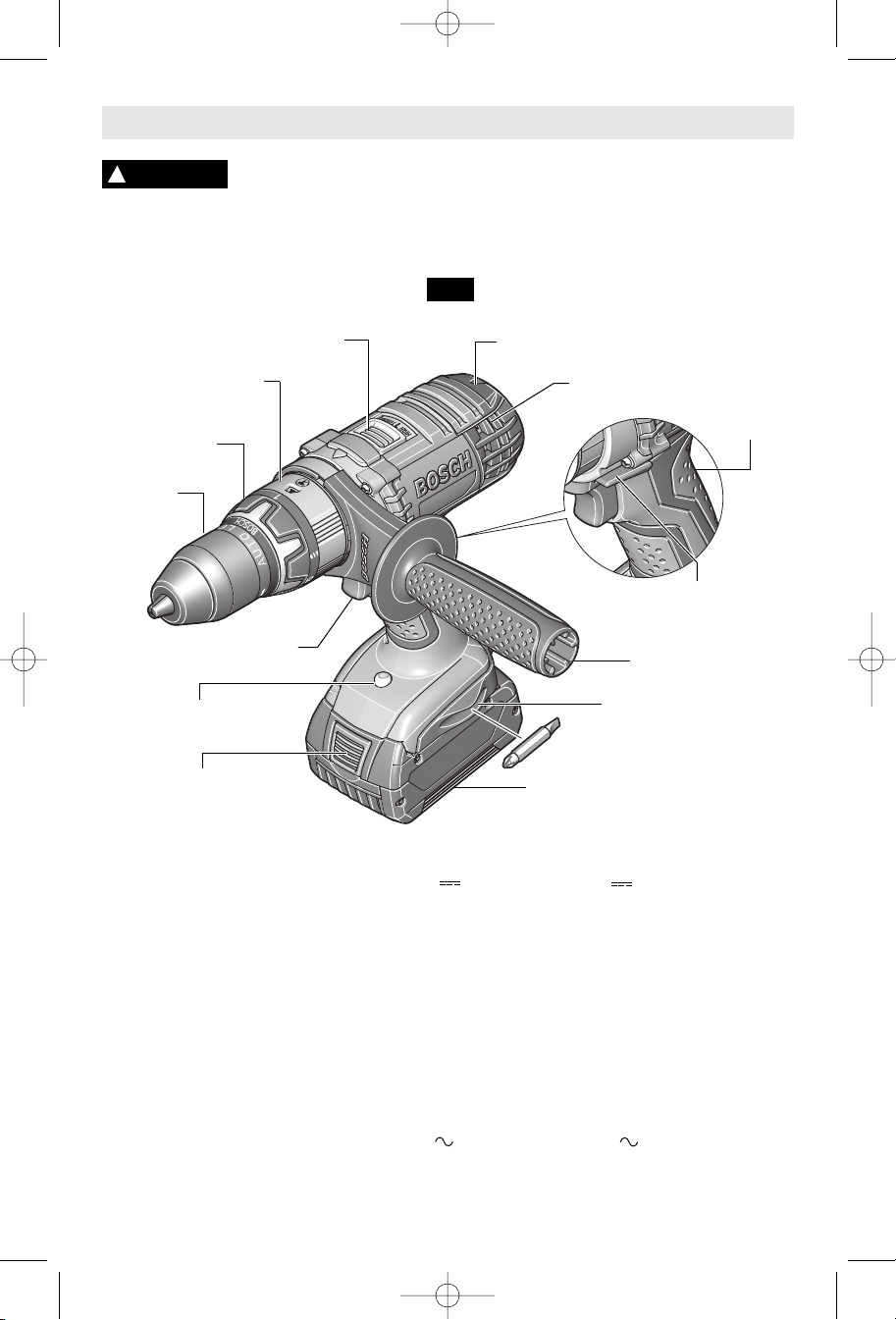

Cordless Hammer Drills
GEAR SHIFTER
MODE SELECTOR
RING
ADJUSTABLE
CLUTCH
KEYLESS
CHUCK
VARIABLE SPEED TRIGGER SWITCH
BUILT IN
WORK LIGHT
. Such preventive safety measures
FIG. 1

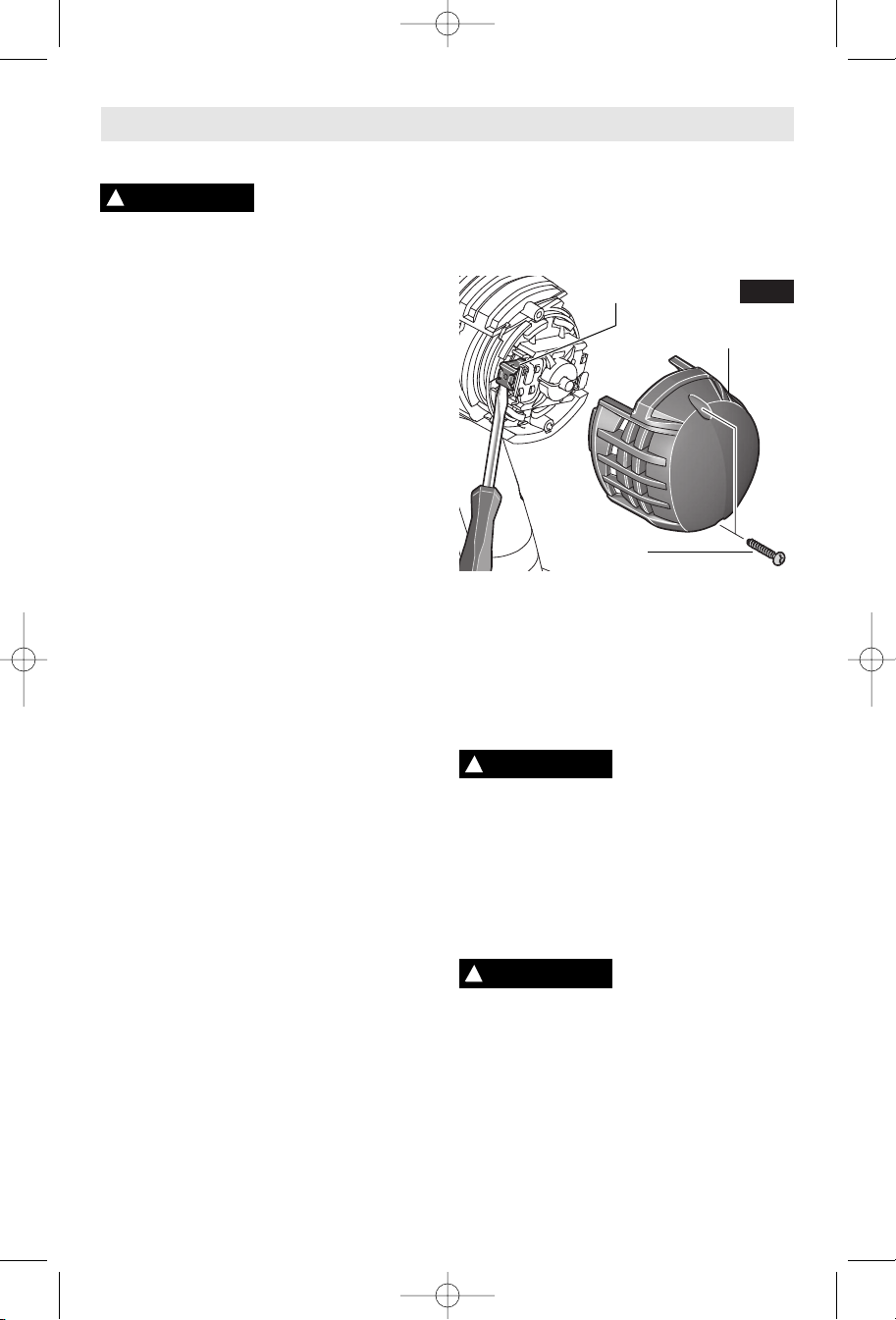

BRUSH COVER
VENTILATION OPENINGS
RUBBERIZED
GRIP
FORWARD/REVERSING
LEVER & TRIGGER LOCK
AUXILIARY HANDLE
BIT STORAGE
AREA
BATTERY PACK
RELEASE BUTTON
BATTERY PACK
Model number 17614 17618 Voltage rating No load speed 1 n No load speed 2 n Impact rate 0-25500 BPM 0-30750 BPM
14.4 V 18 V 0-375/min n00-475/min
0
0-1700/min n00-2050/min
0
Maximum Capacities
Chuck size 1/2" 1/2" Screw sizes #16 x 3" #16 x 3" Mild metal 1/2" 1/2" Hard wood 1-1/2" 1-1/2" Soft wood 2" 2"
Battery pack BAT607 & BAT614 BAT609 & BAT618
Charger BC630 & BC660
BC630 & BC660
Voltage rating 120 V 60 Hz 120 V 60 Hz
NOTE: For tool specifications refer to the nameplate on your tool.
-8-
E
BM 2610956394 07-08 7/1/08 3:04 PM Page 9
Assembly
!
WARNING
a
ny assembly, adjustments or changing
accessories
measures reduce the risk of starting the tool accidentally.
Move reverse switch lever to the center “OFF” position. Remove battery pack and rotate the clutch ring to the drill bit symbol “ ”. Rotate the chuck sleeve counter­clockwise viewing from chuck end, and open chuck to approximate drill bit diameter. Insert a clean bit up to the drill bit flutes for small bits, or as far as it will go for large bits. Close chuck by rotating the chuck sleeve clockwise and securely tighten by hand (Fig. 2).
WARNING
!
Rotate the clutch ring to the drill bit symbol “ ”. Open the chuck all the way, remove left-hand thread screw inside chuck by turning it clockwise (Fig. 3).
Insert the short arm of a 1/2" hex key wrench and close jaws on flats of wrench (Fig. 4). Strike long arm of wrench sharply
Disconnect battery pack f
rom tool before making
. Such preventive safety

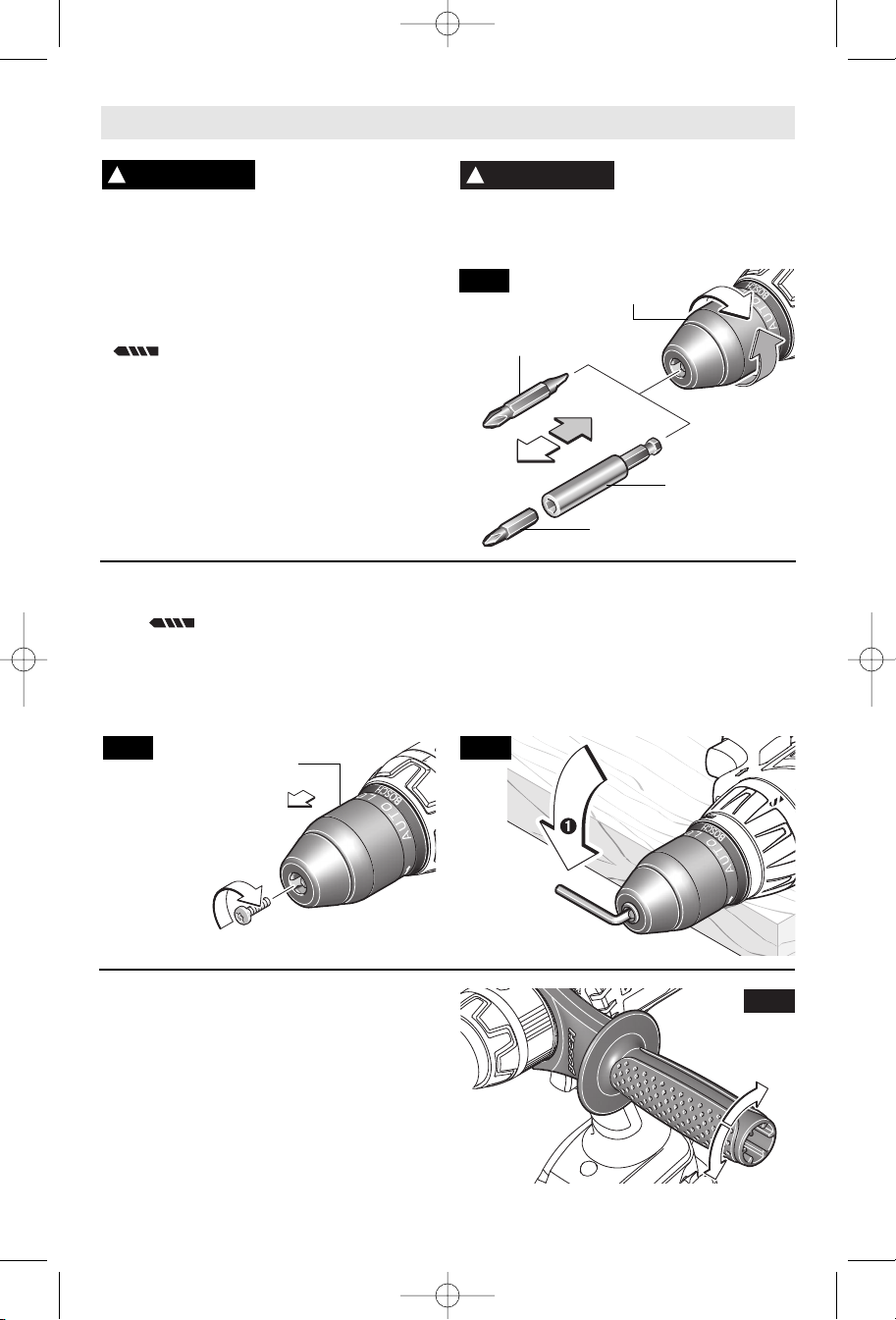

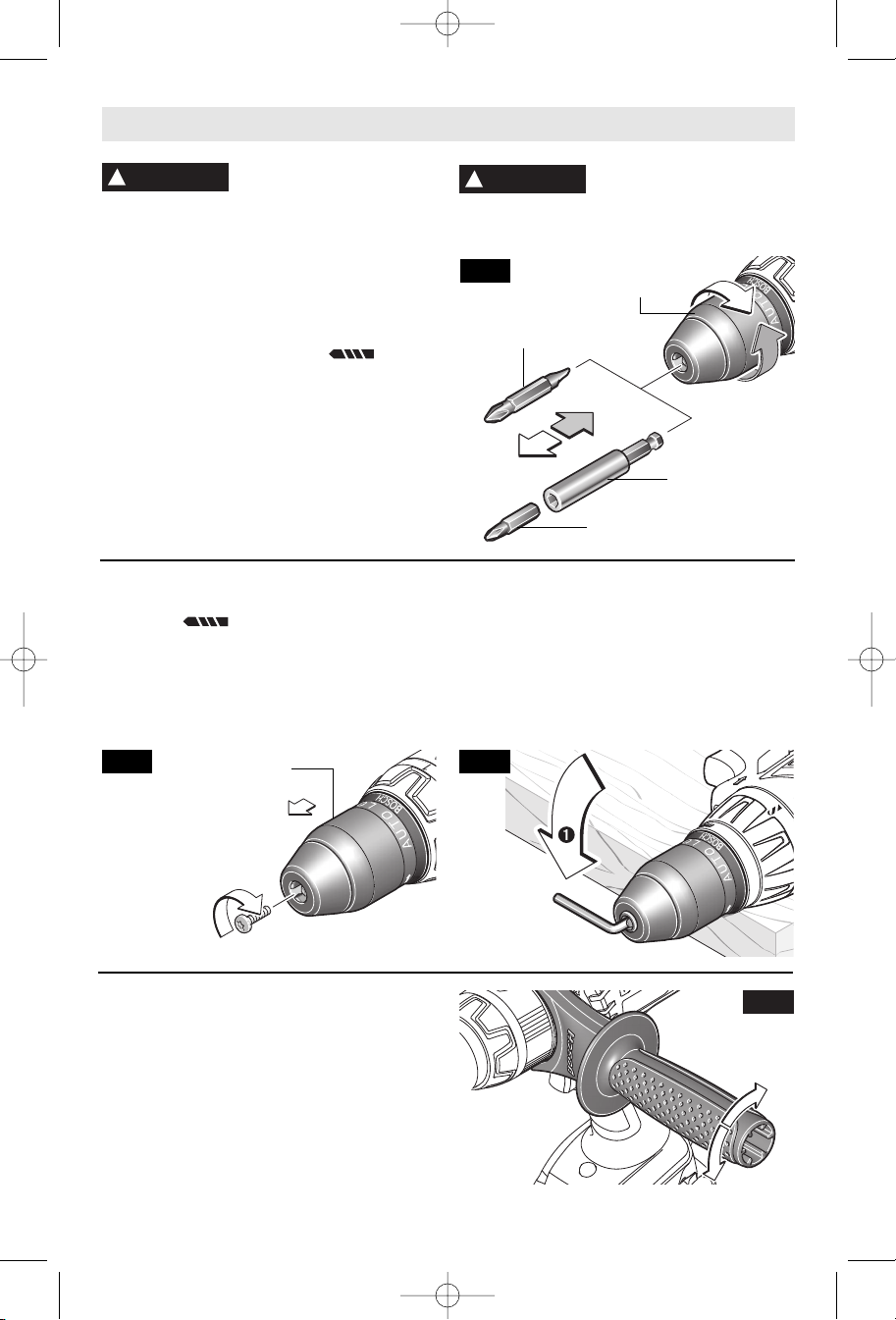

INSERTING BITS
Do not use the power of the drill while grasping chuck
REMOVING CHUCK
to loosen or tighten bit.
i
njury is possible if attempting to grasp the
s
pinning chuck.
FIG. 2
SCREWDRIVER
BIT
counterclockwise, remove wrench and unthread chuck from spindle.
Always keep the spindle threads, the threads of the chuck and securing screw free of debris. To install a chuck, reverse “removing the chuck” procedure.
CHUCK SLEEVE
INSTALLING CHUCK
Friction burn or hand
BIT HOLDER
SCREWDRIVER BIT
FIG. 3
The tool must be supported with the auxiliary handle, which can be swiveled 360˚. To reposition and/or swivel the handle, loosen the hand grip, move the handle to the desired position along the barrel and securely retighten the hand grip (Fig. 5).
CHUCK SLEEVE
AUXILIARY HANDLE
FIG. 4
FIG. 5
-9-
BM 2610956394 07-08 7/1/08 3:04 PM Page 10
Operating Instructions
VARIABLE SPEED CONTROLLED
Your tool is equipped with a variable speed trigger switch. The tool can be turned "ON" or "OFF" by squeezing or releasing the trigger. The speed can be adjusted from the minimum to maximum nameplate RPM by the pressure you apply to the trigger. Apply more pressure to increase the speed and release pressure to decrease speed (Fig. 1).
!
WARNING
accidental starts and accidental discharge.

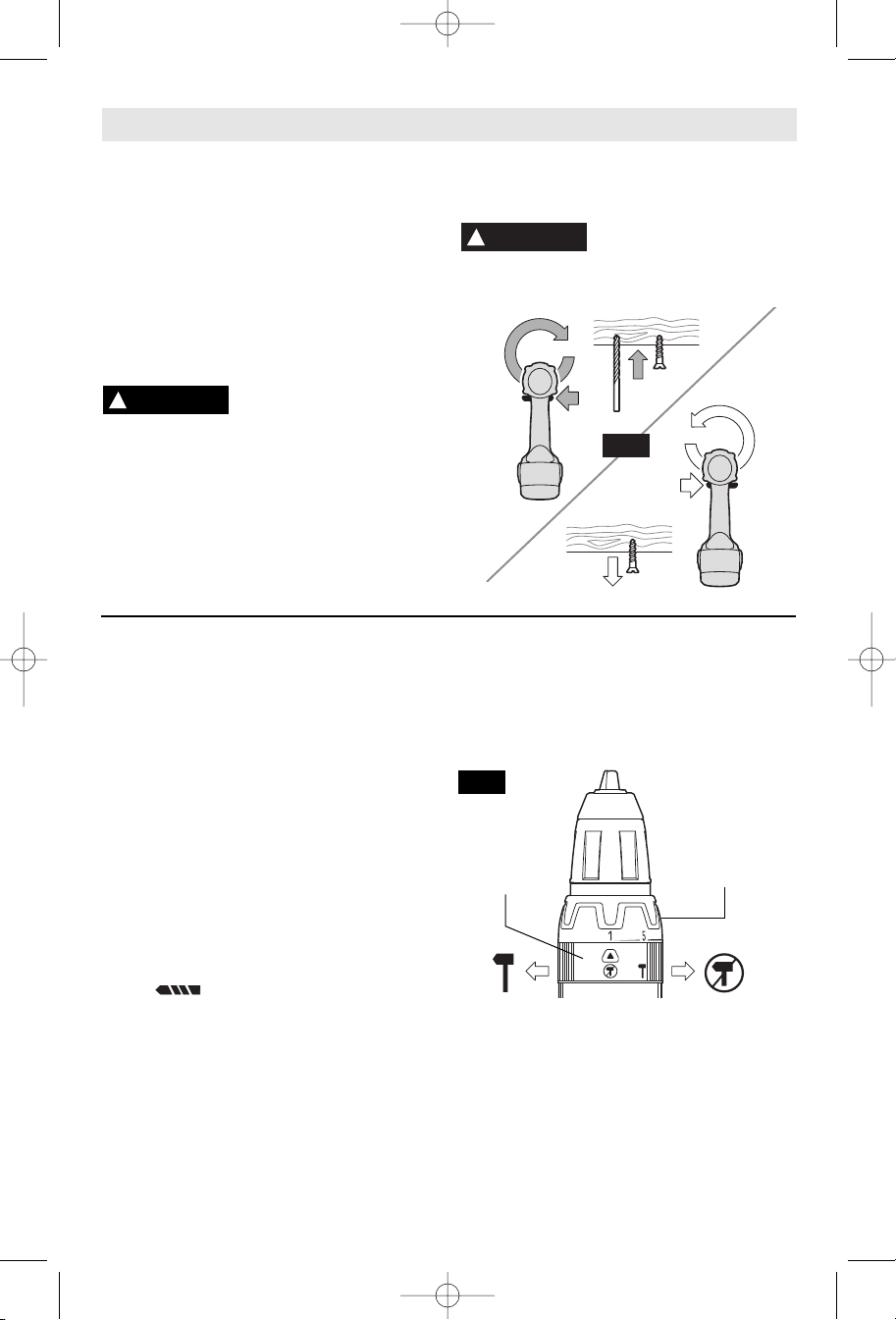

Your tool is equipped with a forward/ reversing lever and trigger lock located above the trigger (Fig. 6). This lever was designed for changing rotation of the bit, and for locking the trigger in an “OFF” position.
For forward rotation, (with chuck pointed away from you) move the lever to the far left.
Your tool is equipped with two separate gear ranges, low gear and high gear. Low gear provides high-torque and slower drilling speeds for heavy duty work or for driving screws. High gear provides faster speeds for drilling lighter work. To change speeds slide switch, to the high or low position (Fig. 1).
ATTENTION: If your tool appears to be running, but the chuck will not turn, check to make sure the gear shifting switch is pushed fully into desired setting.
Your tool features 26 clutch settings. Output torque will increase as the clutch ring, is rotated from 1 to 25. The drill “ ” position will lock up the clutch to permit drilling and driving heavyduty work, and also enables bits to be changed quickly and easily in the keyless chuck (Fig. 7).

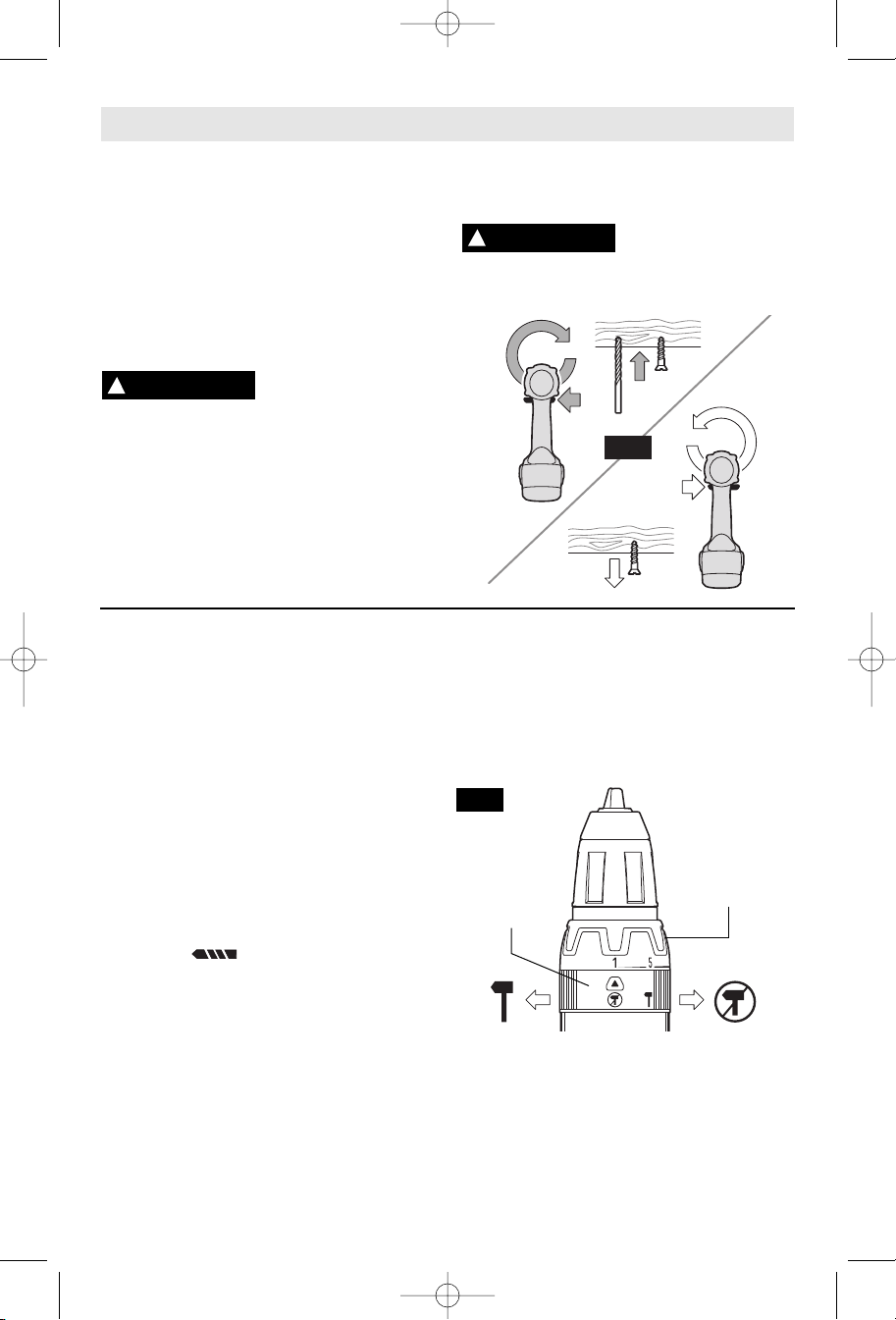

DRILL/HAMMER DRILL SELECTOR RING
The selector ring allows the tool to be set for various drilling/hammer drilling applications. Rotate the selector dial right or left depending on the below applications (Fig. 7).
Drill only action: For drilling in woods, metals, plastics or other non concrete materials.
TRIGGER SWITCH
FORWARD/REVERSING
LEVER & TRIGGER LOCK
After tool use, lock trigger in “OFF” position to help prevent
GEAR SHIFTING
ADJUSTABLE CLUTCH
For reverse rotation move the lever to the far right. To activate trigger lock move lever to the center off position.
CAUTION
!
comes to a complete stop.
rotation of the chuck can cause damage to the tool.
Do not change direction of rotation until the tool
Shifting during
FIG. 6
Drill with hammer action: For drilling in concrete, asphalt, tile or other similar hard materials. The hammer drill position overrides the clutch for hammer drilling.
FIG. 7
MODE
SELECTOR
RING
BRAKE
When the trigger switch is released it activates the brake to stop the chuck quickly. This is especially useful in the repetitive driving and removal of screws.
BUILT IN WORK LIGHT
Your tool is also equipped with a light that turns on automatically when the switch is activated, for better visibility when drilling/driving (Fig. 1).
ADJUSTABLE
CLUTCH
-10-
BM 2610956394 07-08 7/1/08 3:04 PM Page 11
Your tool is equipped with a bit and storage
BIT STORAGE AREA
area that is conveniently located in the handle

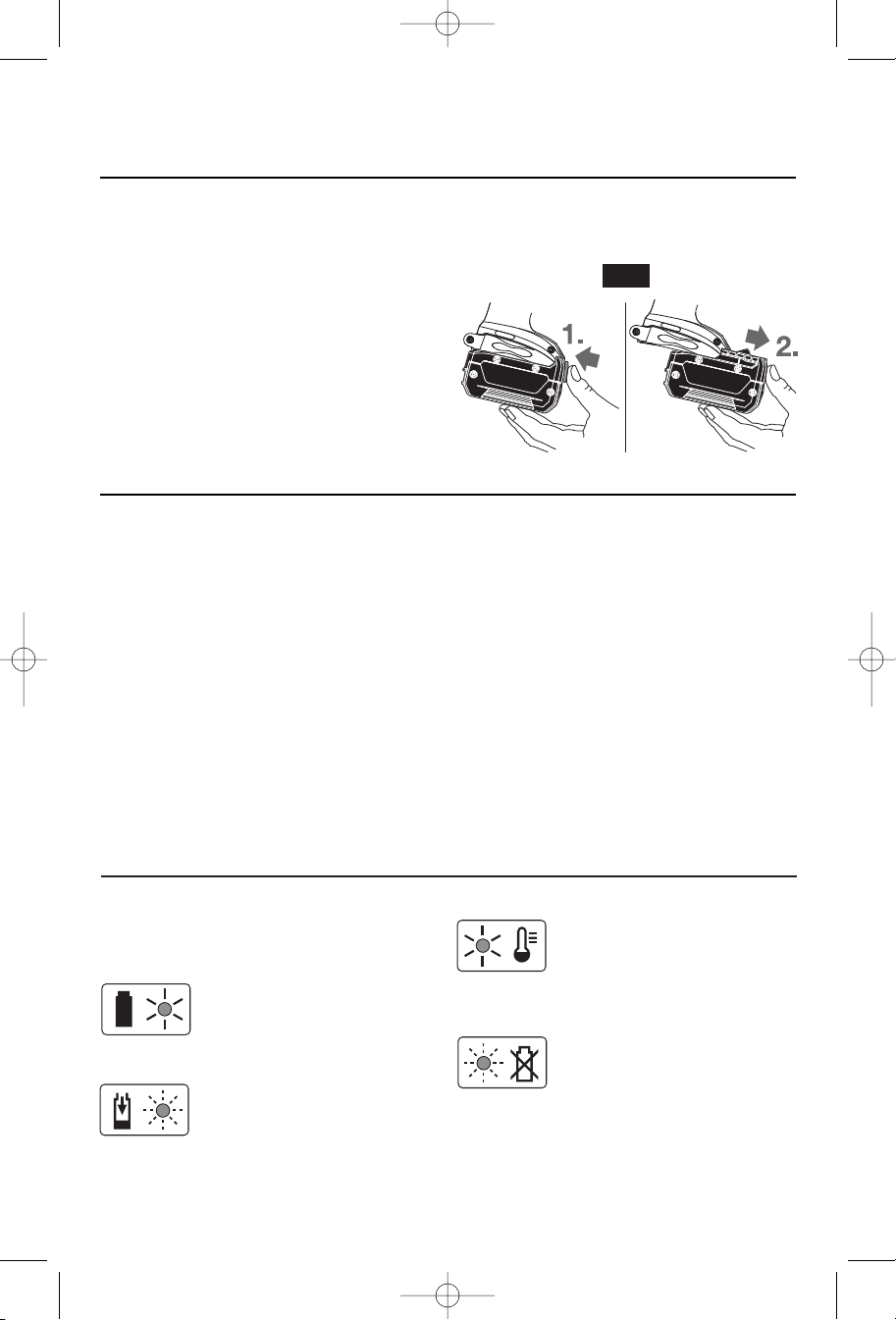

INSERTING AND RELEASING BATTERY PACK

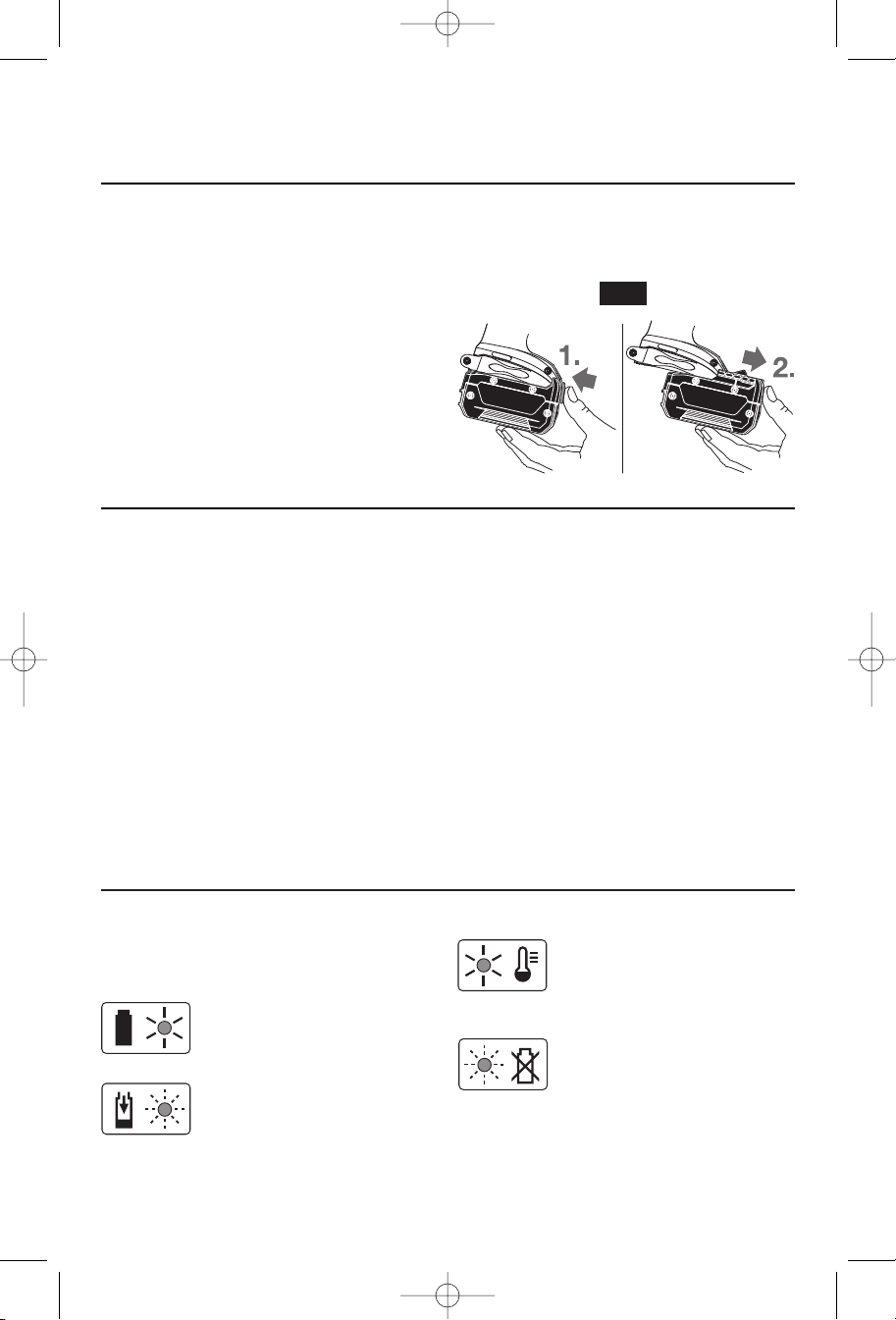

Set Forward/Reversing lever to the center (off position). Slide charged battery pack into the housing until the battery pack locks into position (Fig. 8).
Your tool is equipped with a secondary locking latch to prevent the battery pack from completely falling out of the handle, should it become loose due to vibration.
To remove the battery pack, press the battery pack release button and slide the battery pack forward.
IMPORTANT CHARGING NOTES
1. The charger was designed to fast charge the battery only when the battery temperature is between 32˚F (0˚C) and 113˚F (45˚C). If the battery pack is too hot or too cold, the charger will not fast charge the battery. (This may happen if the battery pack is hot from heavy use). When the battery temperature returns to between 32˚F (0˚C) and 113˚F (45˚C), the charger will automatically begin charging.
2. A substantial drop in operating time per charge may mean that the battery pack is nearing the end of its life and should be replaced.
3. Remember to unplug charger during storage period.
base where it is always handy and unlikely to get lost or misplaced (Fig. 1).
Press the battery pack release button again and slide the battery pack completely out of tool housing (Fig. 8).
FIG. 8
4. If battery does not charge properly:
a. Check for voltage at outlet by plugging in
some other electrical device.
b. Check to see if outlet is connected to a light switch which turns power “off” when lights are turned off.
c. Check battery pack terminals for dirt. Clean with cotton swab and alcohol if necessary.
d. If you still do not get proper charging, take or send tool, battery pack and charger to your local Bosch Service Center. See “Tools, Electric” in the Yellow Pages for names and addresses.
Note: Use of chargers or battery packs not sold by Bosch will void the warranty.
CHARGER INDICATORS, SYMBOLS AND MEANING (Model BC630)
If the indicator lights are “OFF”, the charger is not receiving power from power supply outlet.
If the green indicator light is “ON”, the charger is plugged in but the battery pack is not inserted, or
the battery pack is fully charged.
If the green indicator light is “BLINKING”, the battery pack is
being fast-charged. Fast-charging will automatically stop when the battery pack is fully charged.
If the red indicator light is “ON”, the battery pack is too hot or cold
for fast-charging. The charger will automatically switch to fast-charging once a suitable temperature is reached.
If the red indicator light is
“BLINKING”, the battery pack
cannot accept a charge or the contacts of the charger or battery pack are contaminated. Clean the contacts of the charger or battery pack only as directed in these operating instructions or those supplied with your tool or battery pack.
-11-
BM 2610956394 07-08 7/1/08 3:04 PM Page 12
CHARGING BATTERY PACK (Model BC630)
Plug charger cord into your standard power outlet.
With no battery pack inserted, the charger’s green indicator light will go ON. This indicates the charger is receiving power and the charger is ready for operation.
When you insert the battery pack into the charger. The charger’s green indicator light will begin to “BLINK”. This indicates that the battery is receiving a fast charge (Fig. 9).
When the indicator light stops “BLINKING” (and becomes a steady green light) fast charging is complete. The battery pack is fully charged and can be removed from the charger.
The battery pack may be used even though the light may still be blinking. The light may require more time to stop blinking depending on temperature.
The purpose of the green light is to indicate that the battery pack is fast-charging. It does not indicate the exact point of full charge. The light will stop blinking in less time if the battery pack was not completely discharged.
When you begin the charging process of the battery pack, a steady red light could also mean the battery pack is too hot or too cold.
Fast charging is only possible when the temperature range of the battery pack is between 32˚F (0˚C) and 113˚F (45˚C). When needed, the internal fan of the charger will turn on to aid the charging process and speed.
As soon as the battery pack reaches the correct temperature range, the battery charger will automatically switch to fast charging.
If the red indicator light is “BLINKING”, the battery pack cannot accept a charge.
• Check to make sure the battery pack is
inserted into the charger properly.
• Clean the contacts of the charger or battery
pack (e. g. by inserting and removing the battery several times) or replace the battery pack, as required.
When the battery pack is fully charged, unplug the charger (unless you're charging another battery pack) and slip the battery pack back into the tool.

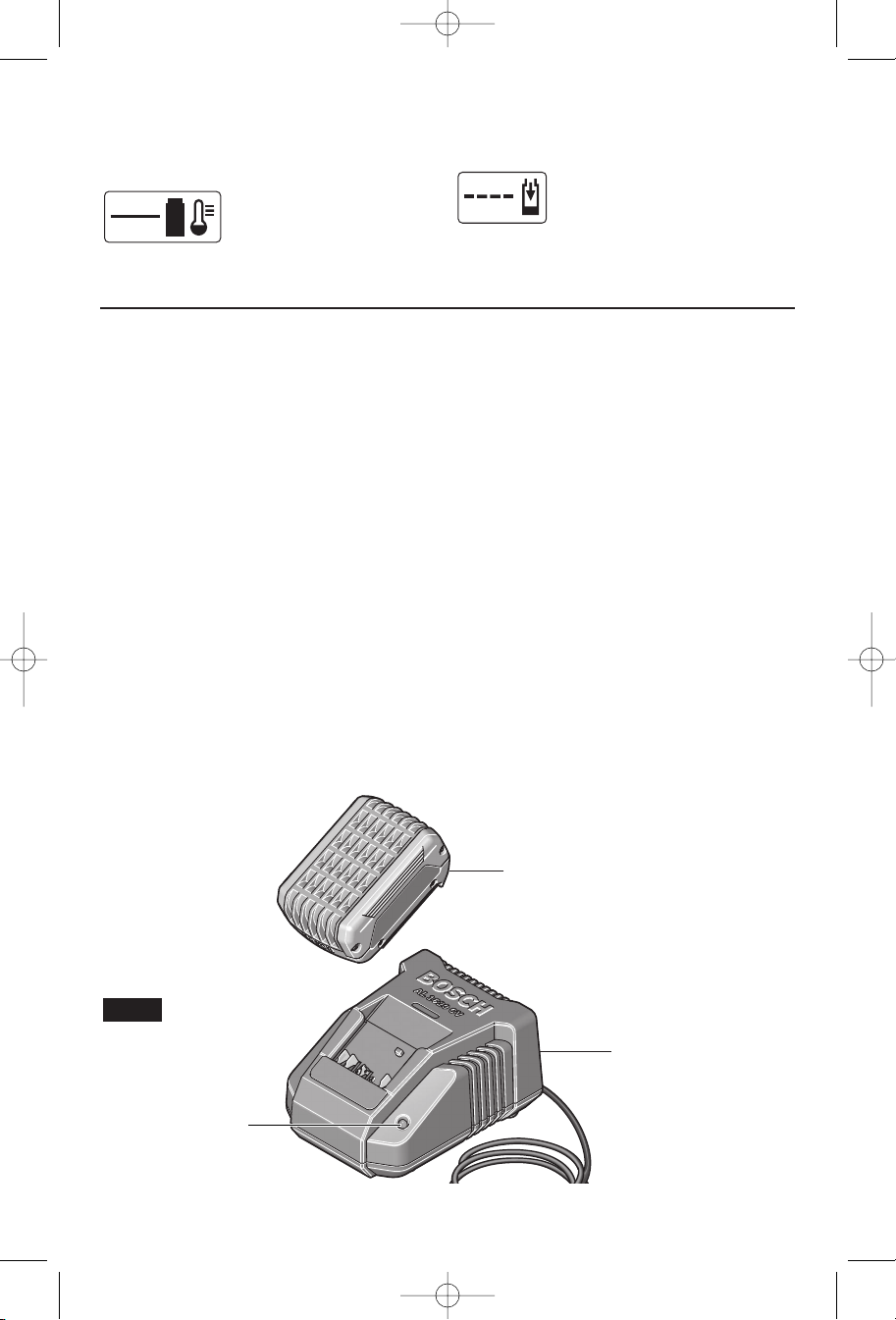

FIG. 9

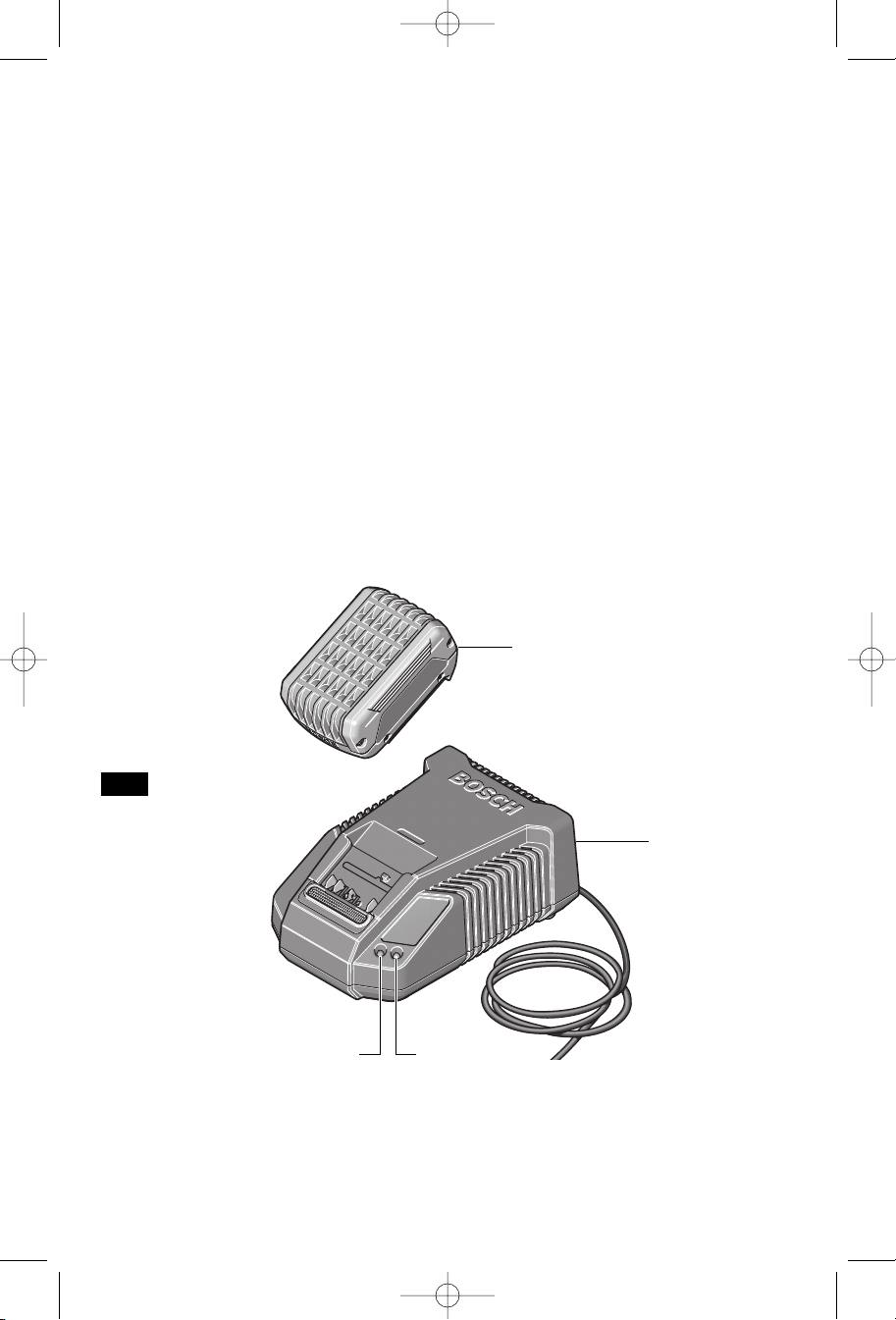

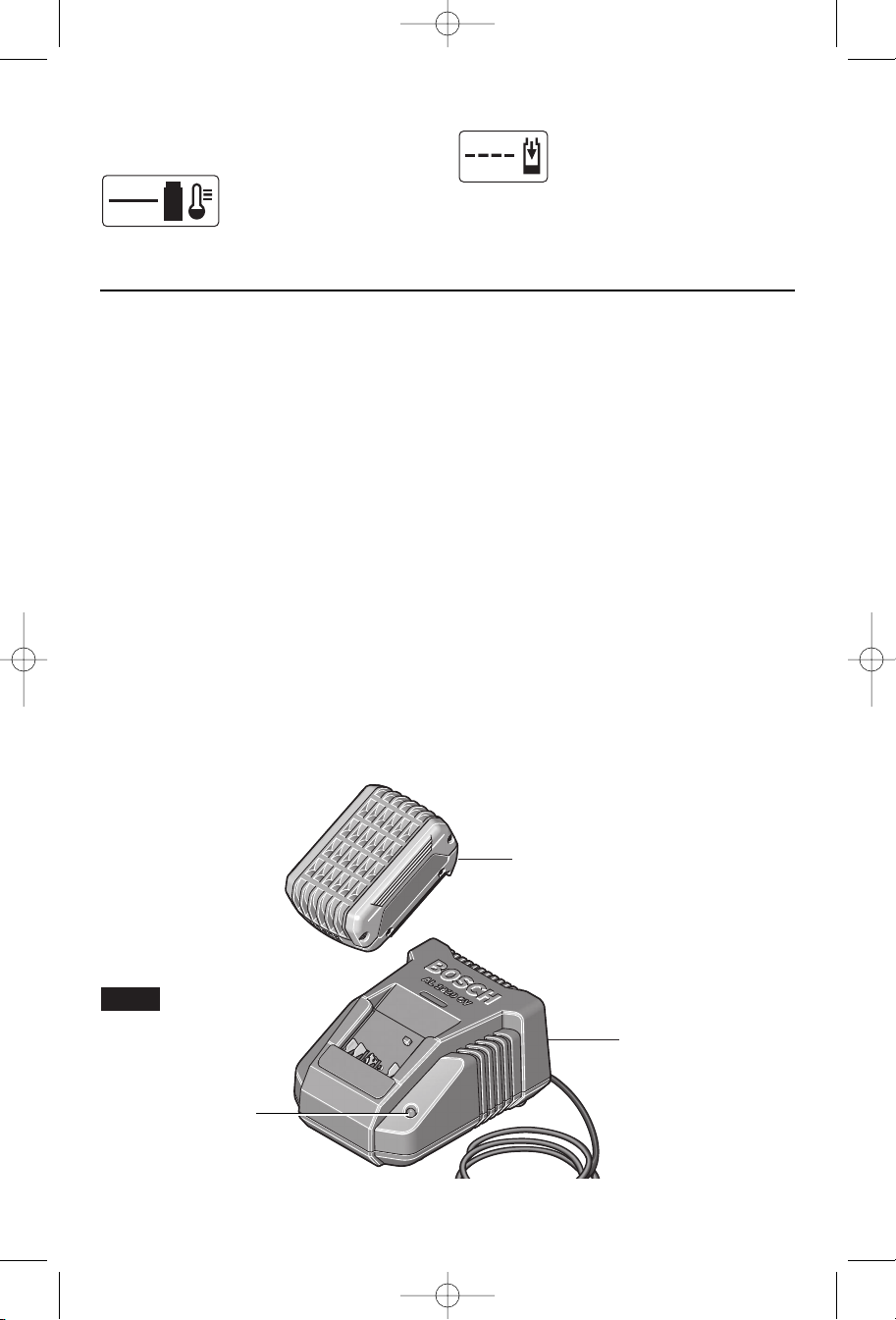

RED LIGHT

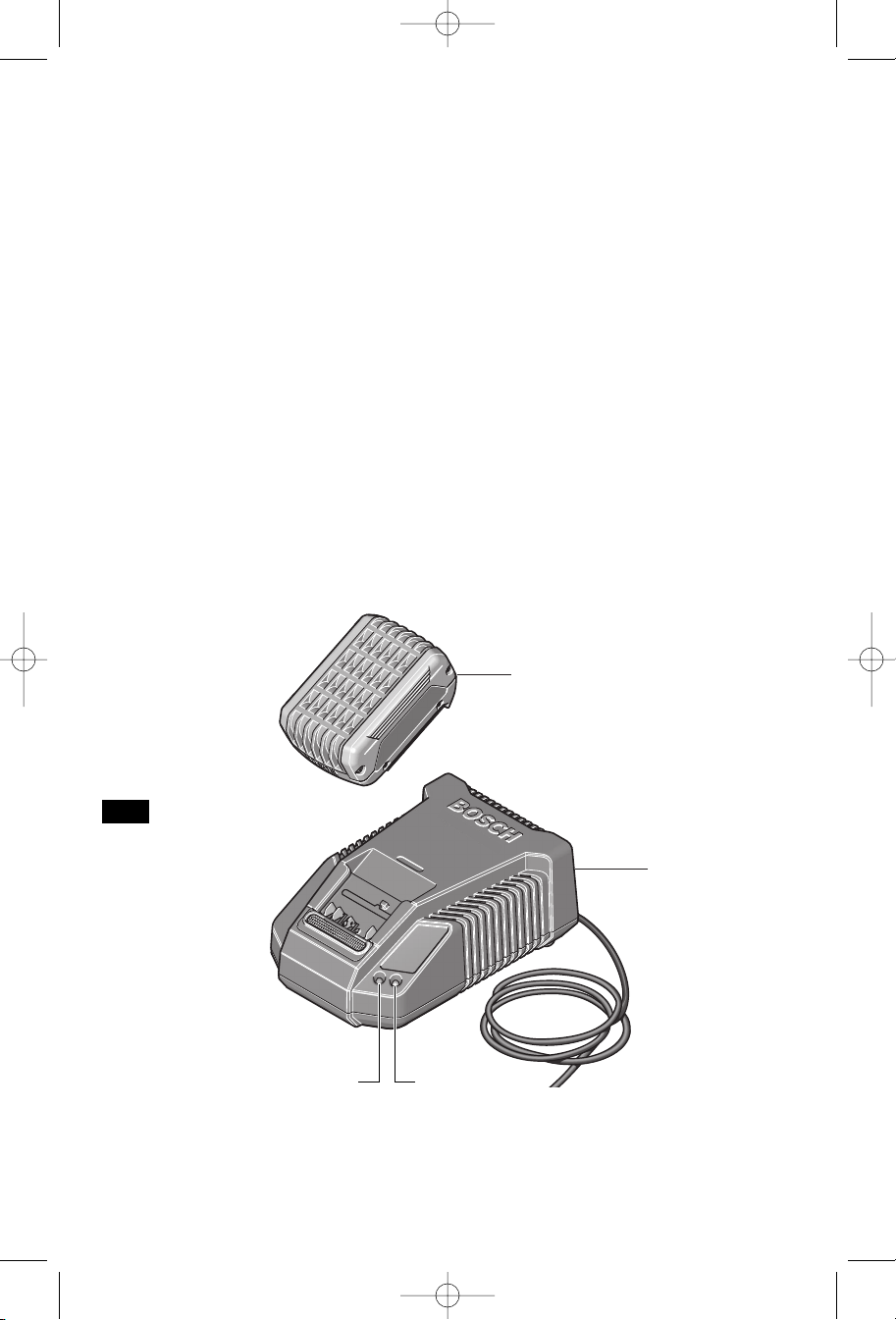

BATTERY
PACK
CHARGER
GREEN LIGHT
-12-
BM 2610956394 07-08 7/1/08 3:04 PM Page 13
CHARGER INDICATORS, SYMBOLS AND MEANING (Model BC660)
If the indicator lights are “OFF”, the charger is not receiving power from power supply outlet.
to fast-charging once a suitable temperature is reached.
If the green indicator light is “ON”, the charger is plugged
in but the battery pack is not inserted, or the battery pack is fully charged, the battery pack is too hot or cold for fast-
charging will automatically stop when the
or
battery pack is fully charged.
charging. The charger will automatically switch
If the green indicator light is “BLINKING”, the battery pack is being fast-charged. Fast-
Plug charger cord into your standard power
CHARGING BATTERY PACK (Model BC660)
outlet.
With no battery pack inserted, the charger’s green indicator light will go ON. This indicates the charger is receiving power and the charger is ready for operation.
When you insert the battery pack into the charger, the charger’s green indicator light will begin to “BLINK”. This indicates that the battery is receiving a fast charge (Fig. 10).
When the indicator light stops “BLINKING” (and becomes a steady green light) fast charging is complete. The battery pack is fully charged and can be removed from the charger.
When you begin the charging process of the battery pack, a steady green light could also mean the battery pack is too hot or too cold.
Fast charging is only possible when the temperature range of the battery pack is between 32˚F (0˚C) and 113˚F (45˚C). When needed, the internal fan of the charger will turn on to aid the charging process and speed.
As soon as the battery pack reaches the correct temperature range, the battery charger will automatically switch to fast charging.
The battery pack may be used even though the light may still be blinking. The light may require more time to stop blinking depending on temperature.
The purpose of the green light is to indicate that the battery pack is fast-charging. It does not indicate the exact point of full charge. The light will stop blinking in less time if the battery pack was not completely discharged.
If the green indicator light is “ON”, the battery pack cannot accept a charge.
• Check to make sure the battery pack is inserted into the charger properly.
• Clean the contacts of the charger or battery pack (e. g. by inserting and removing the battery several times) or replace the battery pack, as required.
When the battery pack is fully charged, unplug the charger (unless you're charging another battery pack) and slip the battery pack back into the tool.
BATTERY
PACK
FIG. 10
GREEN LIGHT
CHARGER
-
13
-
BM 2610956394 07-08 7/1/08 3:04 PM Page 14
Operating Tips
You will extend the life of your bits and do neater work if you always put the bit in contact with the work before pulling the t
rigger. During the operation, hold the tool firmly and exert light, steady pressure. Too much pressure at low speed will stall the tool. Too little pressure will keep the bit from cutting and cause excess friction by sliding over the surface. This can be damaging to both tool and bit.
DRILLING WITH VARIABLE SPEED
The trigger controlled variable speed feature will eliminate the need for center punches in hard materials. The variable speed trigger
allows you to slowly increase RPM. By using a slow starting speed, you are able to keep the bit from “wandering”. You can increase t
he speed as the bit “bites” into the work by
squeezing the trigger.
Variable speed drills will double as a power screwdriver by using a screwdriver bit in the drill mode. The technique is to start slowly, increasing the speed as the screw runs down. Set the screw snugly by slowing to a stop. Prior to driving screws, pilot and clearance holes should be drilled.
DRIVING WITH VARIABLE SPEED
FASTENING WITH SCREWS

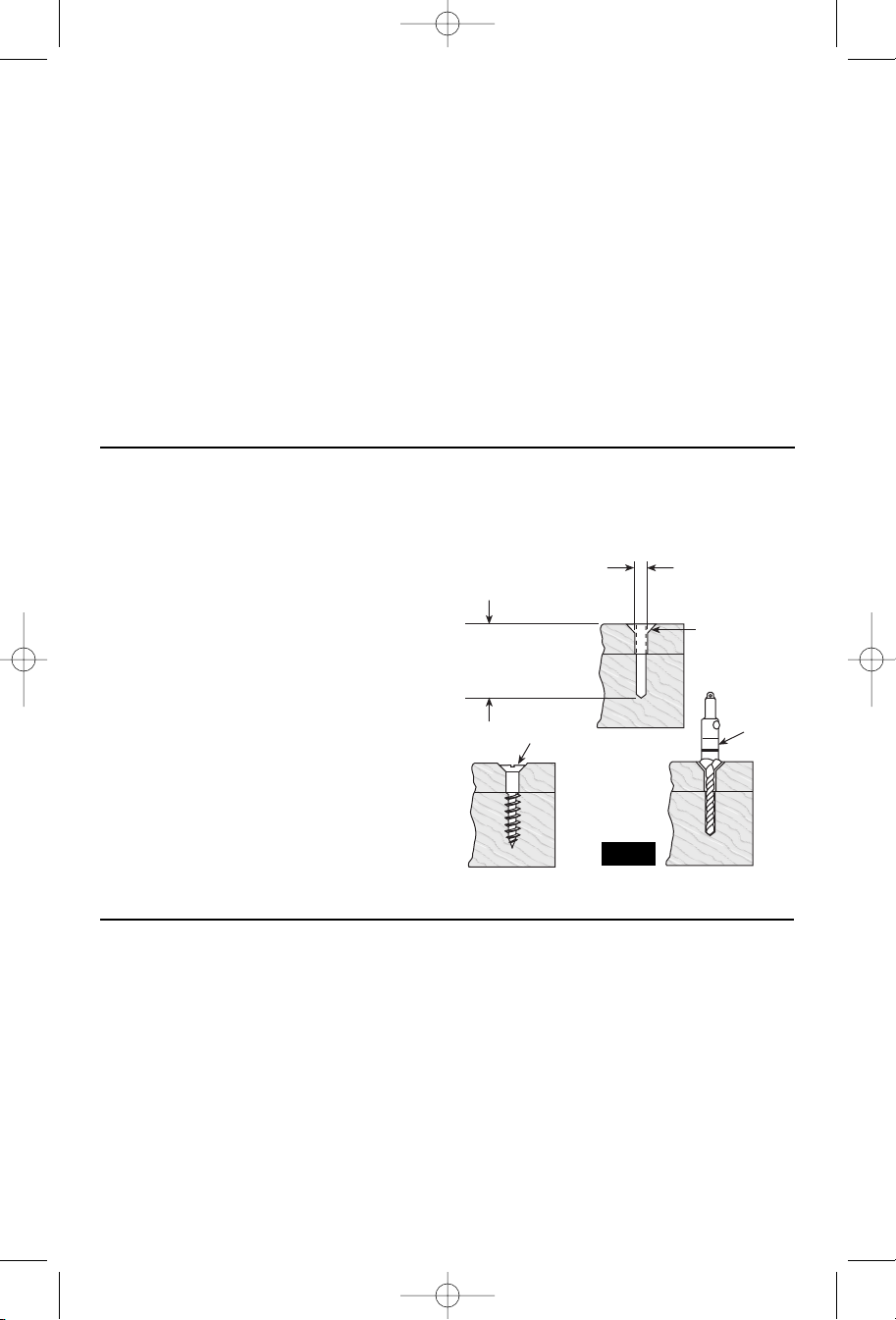

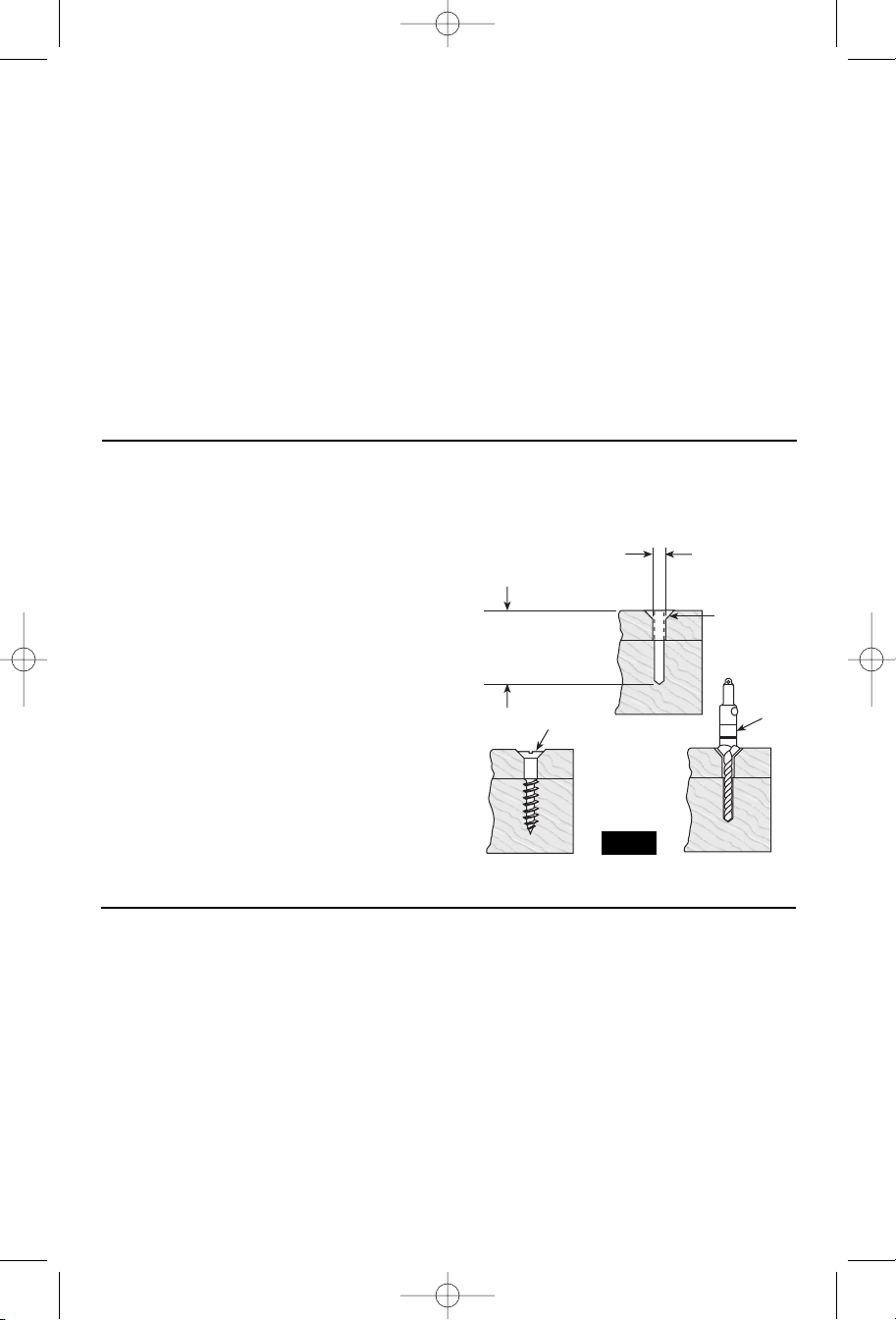

This procedure shown in (Fig. 11) will enable you to fasten materials together with your Cordless Drill/Screwdriver without stripping, splitting or separating the material.
First, clamp the pieces together and drill the first hole 2/3 the diameter of the screw. If the material is soft, drill only 2/3 the proper length. If it is hard, drill the entire length.
Second, unclamp the pieces and drill the second hole the same diameter as the screw shank in the first or top piece of wood.
Third, if flat head screw is used, countersink the hole to make the screw flush with the surface. Then, simply apply even pressure when driving the screw. The screw shank clearance hole in the first piece allows the screw head to pull the pieces tightly together.
The adjustable screw drill accessory will do all of these operations quickly and easily. Screw
DRILL BITS
Always inspect drill bits for excessive wear. Use only bits that are sharp and in good condition.
TWIST BITS: Available with straight and reduced shanks for wood and light duty metal drilling. High speed bits cut faster and last longer on hard materials.
CARBIDE TIPPED BITS: Used for drilling stone, concrete, plaster, cement and other
drills are available for screw sizes No. 6, 8, 10 and 12.
FASTENING WITH SCREWS
1. Drill 2/3 diameter and 2/3 of screw length for soft materials, full length for hard materials.
Screw
Apply a slight even pressure when driving screws.
2. Drill same diameter as screw shank.
3. Countersink same diameter as screw head.
Adjustable
Screw
Drill
FIG. 11
unusually hard nonmetals. Use continuous heavy feed pressure when employing carbide tip bits.
DRILLING WOOD
Be certain workpiece is clamped or anchored firmly. Always apply pressure in a straight line with the drill bit. Maintain enough pressure to keep the drill “biting”.
-14-
BM 2610956394 07-08 7/1/08 3:04 PM Page 15
When drilling holes in wood, twist bits can be used. Twist bits may overheat unless pulled out frequently to clear chips from flutes.
Use a “back-up” block of wood for work that is likely to splinter, such as thin materials.
You will drill a cleaner hole if you ease up on the pressure just before the bit breaks through the wood. Then complete the hole from the back side.
There are two rules for drilling hard materials. First, the harder the material, the greater the pressure you need to apply to the tool. Second, the harder the material, the slower the speed.
WARNING
!
safe operating speed is not exceeded by the nameplate speed of the tool. Do not exceed the recommended wheel diameter.
Fine sanding and polishing require “touch”. Select the most efficient speed.
When using polishing bonnets, always be sure the excess string that secures the bonnet is tucked well within the bonnet during operation.
Work with brushes requires high speeds.

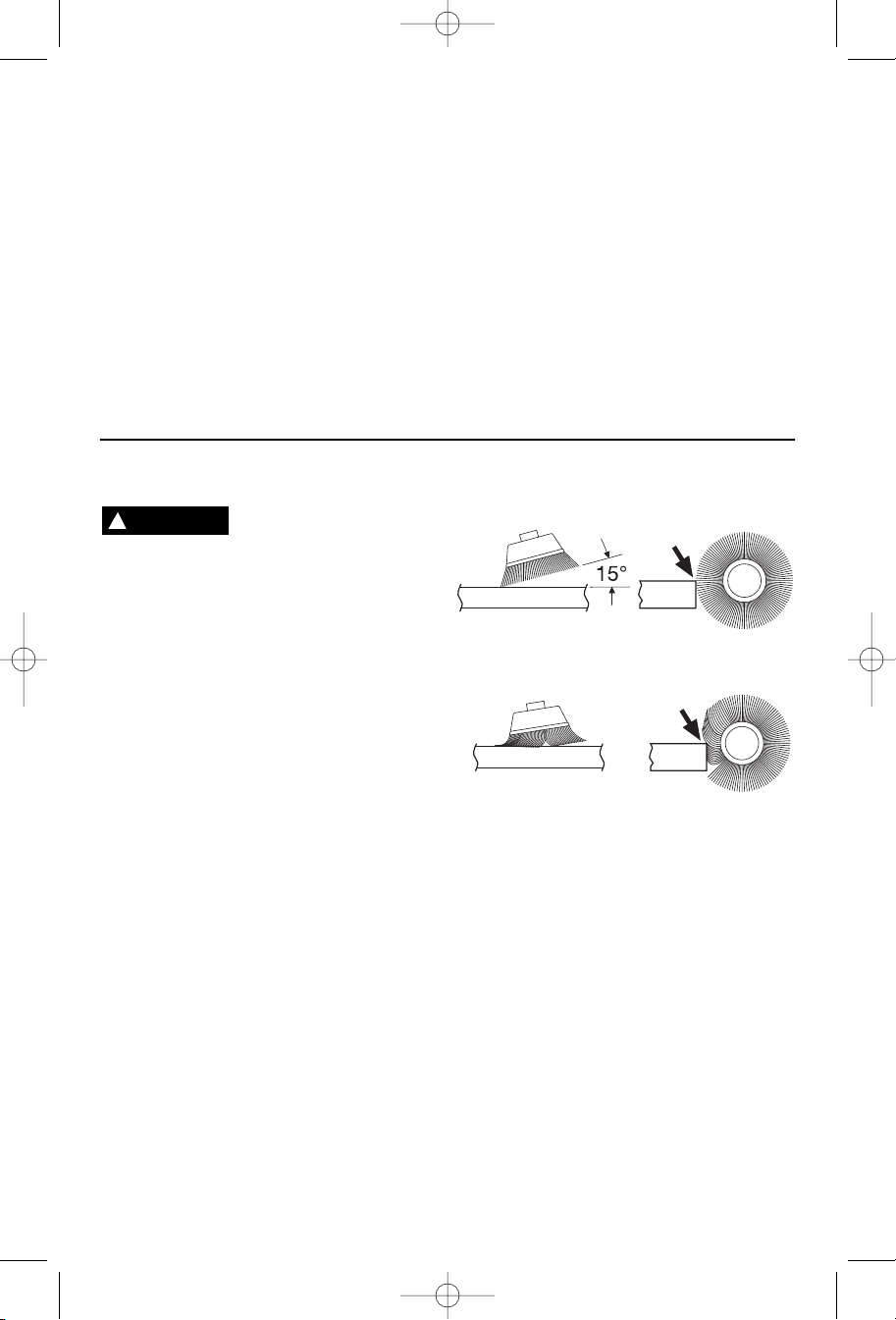

1. Remember, the tips of a wire brush do the work. Operate the brush with the lightest pressure so only the tips of the wire come in contact with the work.
2. If heavier pressures are used, the wires will be overstressed, resulting in a wiping action; and if this is continued, the life of the brush will be shortened due to wire fatigue.
3. Apply the brush to the work in such a way that as much of the brush face as possible is in full contact with the work. Applying the side or edge of the brush to the work will
DRILLING METAL
Before using an accessory, be certain that its maximum
SANDING AND POLISHING
WIRE BRUSHES
BRUSHING PRESSURE
Here are a couple of tips for drilling in metal. Lubricate the tip of the bit occasionally with cutting oil except when drilling soft metals such as aluminum, copper or cast iron. If the hole to be drilled is fairly large, drill a smaller hole first, then enlarge to the required size, it’s often faster in the long run. Maintain enough p
ressure to assure that the bit does not just spin in the hole. This will dull the bit and greatly shorten its life.
Soft materials such as brick are relatively easy to drill. Concrete however, will require much more pressure to keep the bit from spinning. Be sure to use carbide tip bits for all masonry work.
result in wire breakage and shortened brush life.

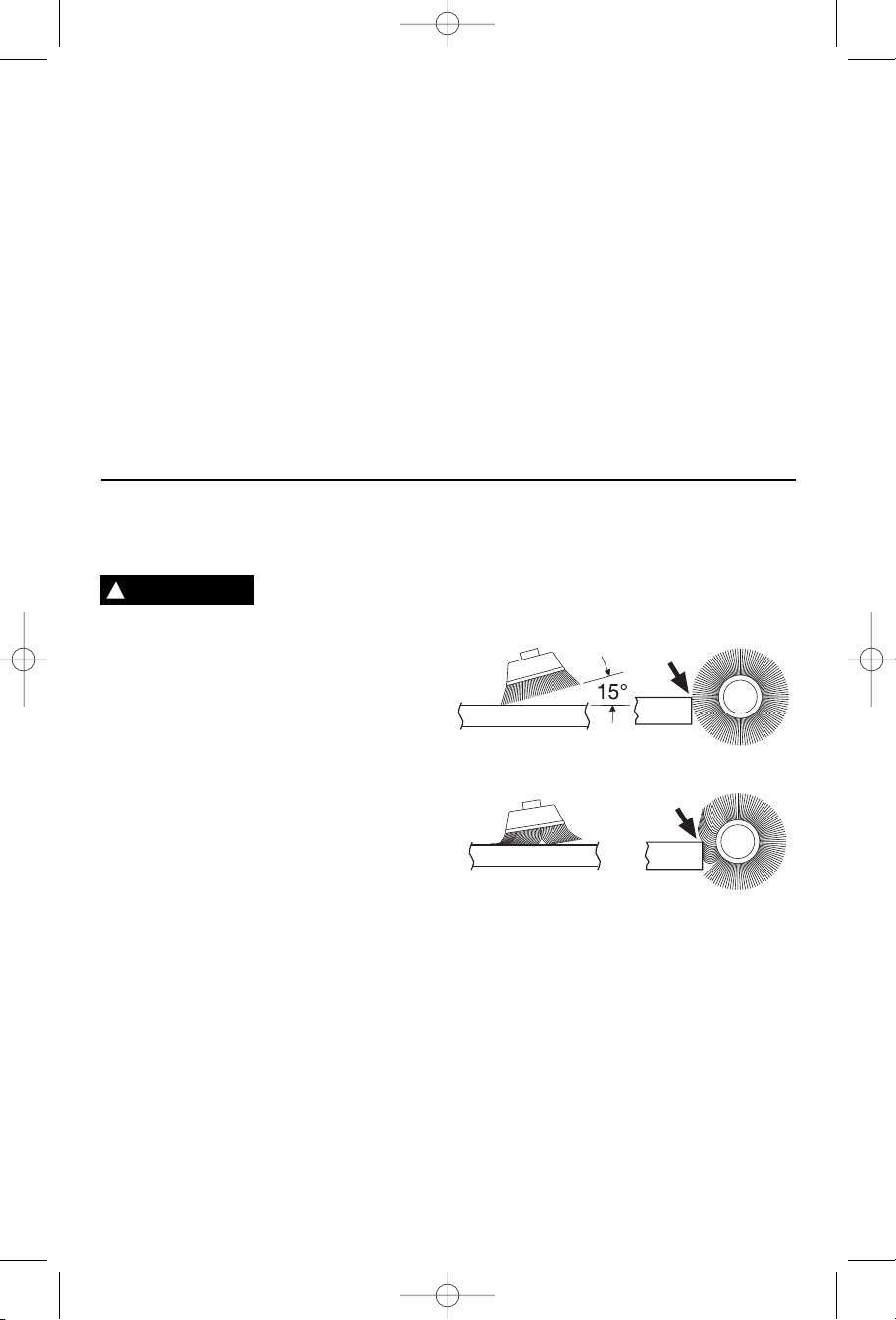

INCORRECT: Excessive pressure can cause wire breakage.
Variable speed control must be used with caution for driving nuts and bolts with socket set attachments. The technique is to start slowly, increasing speed as the nut or bolt runs down. Set the nut or bolt snugly by slowing the drill to a stop. If this procedure is not followed, the tool will have a tendency to torque or twist in your hands when the nut or bolt seats.
DRILLING MASONRY
CORRECT: Wire tips doing the work.
RUNNING NUTS AND BOLTS
-15-
BM 2610956394 07-08 7/1/08 3:04 PM Page 16
Maintenance
Service
WARNING
!
maintenance performed by unauthorized personnel may result in misplacing of internal wires and components which could cause serious hazard.
mend that all tool service be performed by a Bosch Factory Service Center or Authorized Bosch Service Station. SERVICEMEN: Disconnect tool and/or charger from power source before servicing.
Be alert for battery packs that are nearing their end of life.
tool performance or significantly shorter running time between charges then it is time to replace the battery pack. Failure to do so can cause the tool to operate improperly or damage the charger.
Your Bosch tool has been properly lubricated and is ready for use.
The motor in your tool has been engineered for many hours of dependable service. To maintain peak efficiency of the motor, we recommend it be examined every six months. Only a genuine Bosch replacement motor specially designed for your tool should be used.
The brushes and commutator in your tool have been engineered for many hours of dependable service.
If your tool runs sporadically, loses power, makes unusual noises or runs at a reduced speed, check the brushes. To continue using the tool in this condition will permanently damage your tool.
Check both brushes. Usually the brushes will not wear out simultaneously. If one brush is worn out, replace both brushes.

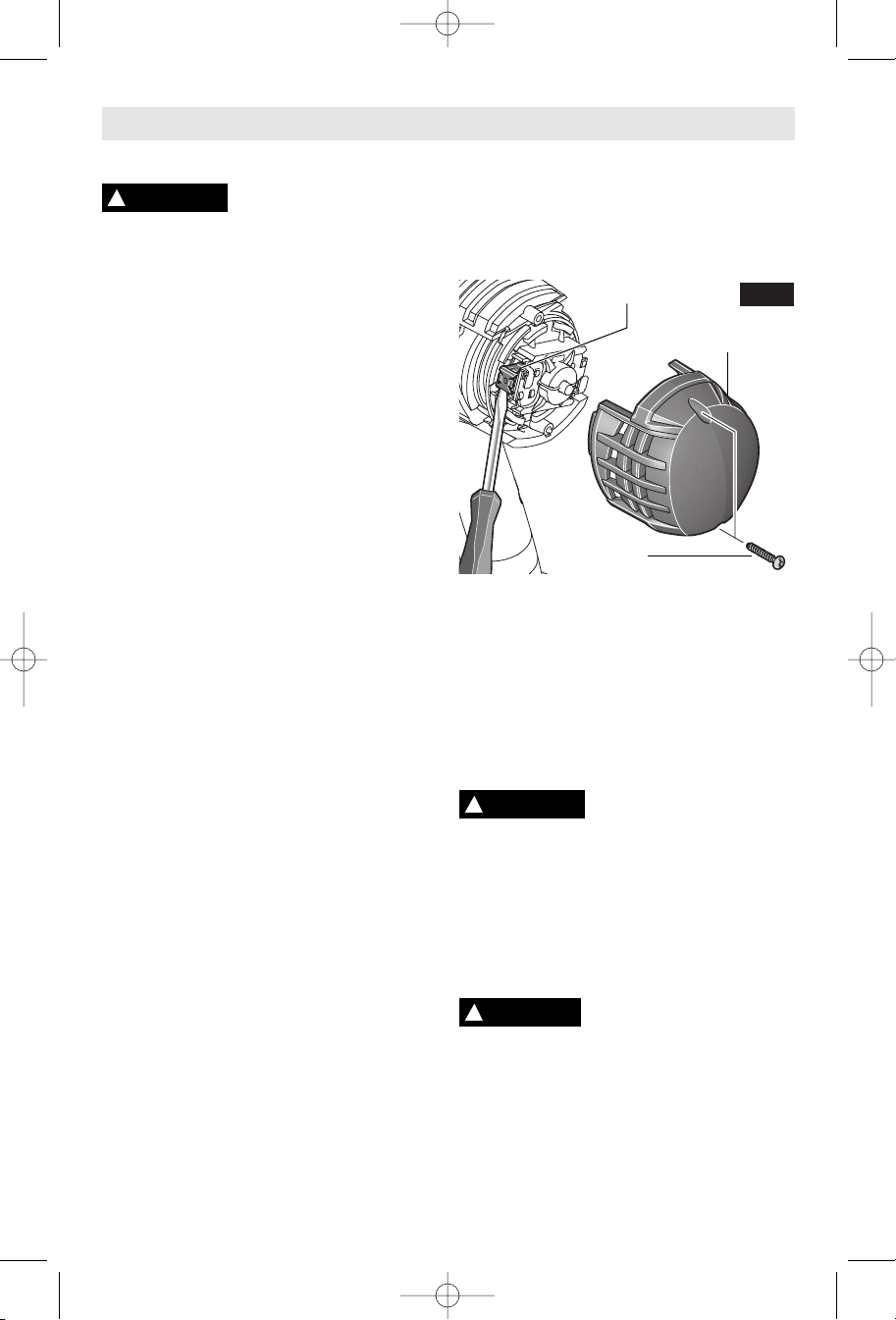

To check brushes: Disconnect battery pack from tool. Remove brush cover at the rear part of housing by loosening screws (Fig. 12).
Insert a screwdriver or similar object into the red notch of the carbon brush and lift out the
NO USER SERVICEABLE PARTS INSIDE. Preventive
We recom-
BATTERIES
If you notice decreased
TOOL LUBRICATION
D.C. MOTORS
CARBON BRUSHES
brushes; note which way they face, so that the brushes can be returned to their original position. Clean the brush holder openings with c
ompressed air or a clean cloth and replace the brushes and brush covers.
BRUSH
HOLDER
SCREW
After replacing brushes the tool should be run at no-load and run it freely at full speed for 2 minutes before using the tool. This will allow the brushes to “seat” properly and will give you more hours of life from each set of brushes.
Only genuine Bosch replacement brushes specially designed for your tool should be used.
FIG. 12
BRUSH COVER
Cleaning
!
WARNING
charger from the power supply before cleaning.
effectively with compressed dry air.
wear safety goggles when cleaning tools with compressed air.
Ventilation openings and switch levers must be kept clean and free of foreign matter. Do not attempt to clean by inserting pointed objects through opening.
!
CAUTION
plastic parts.
carbon tetrachloride, chlorinated cleaning solvents, ammonia and household detergents that contain ammonia.
To avoid accidents, always disconnect the tool and/or
The tool may be cleaned most
Always
Certain cleaning agents and solvents damage
Some of these are: gasoline,
-16-
Loading...
+ 36 hidden pages
