Power Tool Safety Rules

! WARNING Read and understand all instructions. Failure to follow all instructions listed below, may result in electric shock, fire and/or serious personal injury.

SAVE THESE INSTRUCTIONS

Work Area

Keep your work area clean and well lit.

Cluttered benches and dark areas invite accidents.

Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power

tools create sparks which may ignite the dust or fumes.

Keep by-standers, children, and visitors away while operating a power tool.

Distractions can cause you to lose control.

Electrical Safety

Double Insulated tools are equipped with a polarized plug (one blade is wider than the other.) This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install a polarized outlet. Do not change the plug in any way. Double Insulation

eliminates the need for the three wire

grounded power cord and grounded power supply system. Before plugging in the tool, be certain the outlet voltage supplied is within the voltage marked on the nameplate. Do not use ìAC onlyî rated tools with a DC power supply.

Avoid body contact with grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of

electric shock if your body is grounded. If operating the power tool in damp locations is unavoidable, a Ground Fault Circuit Interrupter must be used to supply the power to your tool. Electrician’s rubber gloves and footwear will further enhance your personal safety.

Don't expose power tools to rain or wet conditions. Water entering a power tool will

increase the risk of electric shock.

Do not abuse the cord. Never use the cord to carry the tools or pull the plug from an outlet. Keep cord away from heat, oil, sharp edges or moving parts. Replace damaged

cords immediately. Damaged cords increase the risk of electric shock.

When operating a power tool outside, use an outdoor extension cord marked "W-A" or "W." These cords are rated for outdoor use

and reduce the risk of electric shock. Refer to “Recommended sizes of Extension Cords” in the Accessory section of this manual.

Personal Safety

Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use tool while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while

operating power tools may result in serious personal injury.

Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts.

Keep handles dry, clean and free from oil and grease.

Avoid accidental starting. Be sure switch is ìOFFî before plugging in. Carrying tools with

your finger on the switch or plugging in tools that have the switch “ON” invites accidents.

Remove adjusting keys or wrenches before turning the tool ìONî. A wrench or a key that

is left attached to a rotating part of the tool may result in personal injury.

Do not overreach. Keep proper footing and balance at all times. Proper footing and

balance enables better control of the tool in unexpected situations.

Use safety equipment. Always wear eye protection. Dust mask, non-skid safety

shoes, hard hat, or hearing protection must be used for appropriate conditions.

Tool Use and Care

Use clamps or other practical way to secure and support the workpiece to a

-2-

BM 1609929F52 10/03 10/28/03 3:34 PM Page 3

stable platform. Holding the work by hand or against your body is unstable and may lead to loss of control.

Do not force tool. Use the correct tool for your application. The correct tool will do the

job better and safer at the rate for which it is designed.

Do not use tool if switch does not turn it ìONî or ìOFFî. Any tool that cannot be

controlled with the switch is dangerous and must be repaired.

Disconnect the plug from the power source before making any adjustments, changing accessories, or storing the tool. Such

preventive safety measures reduce the risk of starting the tool accidentally.

Store idle tools out of reach of children and other untrained persons. Tools are

dangerous in the hands of untrained users.

Maintain tools with care. Keep cutting tools sharp and clean. Properly maintained tools, with sharp cutting edges are less likely to bind and are easier to control. Any alteration or modification is a misuse and may result in a dangerous condition.

Check for misalignment or binding of moving parts, breakage of parts, and any

other condition that may affect the tools operation. If damaged, have the tool serviced before using. Many accidents are

caused by poorly maintained tools. Develop a periodic maintenance schedule for your tool.

Use only accessories that are recommended by the manufacturer for your model. Accessories that may be suitable for

one tool, may become hazardous when used on another tool.

Service

Tool service must be performed only by qualified repair personnel. Service or

maintenance performed by unqualified personnel could result in a risk of injury. For example: internal wires may be misplaced or pinched, safety guard return springs may be improperly mounted.

When servicing a tool, use only identical replacement parts. Follow instructions in the Maintenance section of this manual.

Use of unauthorized parts or failure to follow Maintenance Instructions may create a risk of electric shock or injury. Certain cleaning agents such as gasoline, carbon tetrachloride, ammonia, etc. may damage plastic parts.

Angle Grinder Safety Rules

Always use proper guard with grinding wheel. A guard protects operator from

broken wheel fragments. When using grinding wheel attachments, the guard must always be attached to the tool and positioned for maximum safety, so the least amount of wheel is exposed from the side the tool is being operated.

Accessories must be rated for at least the speed recommended on the tool warning

label. Wheels and other accessories running over rated speed can fly apart and cause injury. Grinding wheels or any other accessory must have a maximum safe operating speed greater than the “no load RPM” marked on the tool’s nameplate.

Hold tool by insulated gripping surfaces when performing an operation where the cutting tools may contact hidden wiring or its own cord. Contact with a “live” wire

will make exposed metal parts of the tool “live” and shock the operator.

Always use auxiliary handle for maximum control over torque reaction or kick-back.

Operation of the grinder without the side handle could cause loss of control of the grinder, resulting in possible serious personal injury.

Before using a grinder or installing a new wheel, inspect the grinding wheel for chips and cracks. Remove bad wheels immediately. Run the tool at no load for one minute, holding the tool in the direction away from people. Wheels with

flaws will normally break apart during this time.

Carefully handle both the tool and individual grinding wheels to avoid chipping or cracking. Install a new wheel if tool is dropped while grinding. Do not

-3-

! WARNING

BM 1609929F52 10/03 10/28/03 3:34 PM Page 4

use a wheel that may be damaged.

Fragments from a wheel that bursts during operation will fly away at great velocity possibly striking you or bystanders.

Do not use grinding wheel that is larger than the maximum recommended size for your tool, or worn down damaged wheels from larger grinders. Wheels intended for

large angle sander/grinders are not suitable for the high speed of a small angle sander/grinder, these wheels may easily burst and the fragments strike you or bystanders.

Do not use depressed hub grinding wheels for cut-off operations. Depressed

hub wheels or type 27 wheels are not intended for side loading and may shatter under overload.

Do not use this tool with ìWoodcarvingî blade. Such blades create frequent kick-

back and loss of control.

Wear proper apparel while using a sander/grinder. Face shield or at least

safety goggles, dust mask, leather gloves and shop apron capable of stopping small wheel or workpiece fragments.

Position the cord clear of the spinning grinding wheel or any other sanding accessory. Do not wrap the cord around your arm or wrist. If you lose control and

have the cord wrapped around your arm or wrist it may entrap you and cause injury.

Avoid bouncing and snagging the wheel, especially when working corners, sharp edges etc. This can cause loss of control

and kick-back.

Regularily clean the toolís air vents by compressed air. Excessive accumulation of

powdered metal inside the motor housing may cause electrical failures.

-4-

Do not grind or sand near flammable materials. Sparks from the wheel could

ignite these materials.

This tool can be converted to a sander. When grinding is resumed the proper guard and wheel flanges MUST be reinstalled before proceeding with grinding. The guard must always be attached to the tool and positioned for maximum safety, so the least amount of wheel is exposed from the side the tool is being operated. The grinding wheel guard

cannot be used for most sanding operations or for wire brushing.

When sanding, do not use oversized sanding disc. Larger sanding disc will

extend beyond the sanding pad causing snagging, tearing of the disc or kick-back. Extra paper extending beyond the sanding pad can also cause serious lacerations.

Some dust created by power sanding, sawing, grinding, drilling, and other construction

activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

•Lead from lead-based paints,

•Crystalline silica from bricks and cement and other masonry products, and

•Arsenic and chromium from chemicallytreated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

BM 1609929F52 10/03 10/28/03 3:34 PM Page 5

Symbols

IMPORTANT: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer.

Symbol							Name	Designation/Explanation
	V						Volts	Voltage (potential)
	A						Amperes	Current
Hz							Hertz	Frequency (cycles per second)
W							Watt	Power
kg							Kilograms	Weight
min							Minutes	Time
	s						Seconds	Time
							Diameter	Size of drill bits, grinding wheels, etc.
n0							No load speed	Rotational speed, at no load
.../min							Revolutions or reciprocation per minute	Revolutions, strokes, surface speed,
								orbits etc. per minute
0							Off position	Zero speed, zero torque...
1, 2, 3, ...							Selector settings	Speed, torque or position settings.
I, II, III,								Higher number means greater speed
0							Infinitely variable selector with off	Speed is increasing from 0 setting
							Arrow	Action in the direction of arrow
							Alternating current	Type or a characteristic of current
							Direct current	Type or a characteristic of current
							Alternating or direct current	Type or a characteristic of current
							Class II construction	Designates Double Insulated
								Construction tools.
							Earthing terminal	Grounding terminal
							Warning symbol	Alerts user to warning messages
							Ni-Cad RBRC seal	Designates Ni-Cad battery recycling
								program

This symbol designates that this tool is listed by Underwriters Laboratories.

This symbol designates that this tool is listed by the Canadian Standards Association.

This symbol designates that this tool is listed to Canadian Standards by Underwriters Laboratories.

This symbol designates that this tool is listed by Underwriters Laboratories, and listed to Canadian Standards by Underwriters Laboratories.

-5-

This symbol designates that

this tool complies to NOM Mexican Standards.

! WARNING

BM 1609929F52 10/03 10/28/03 3:34 PM Page 6

Functional Description and Specifications

Disconnect the plug from the power source before making any assembly, adjustments or changing accessories. Such preventive safety

measures reduce the risk of starting the tool accidentally.

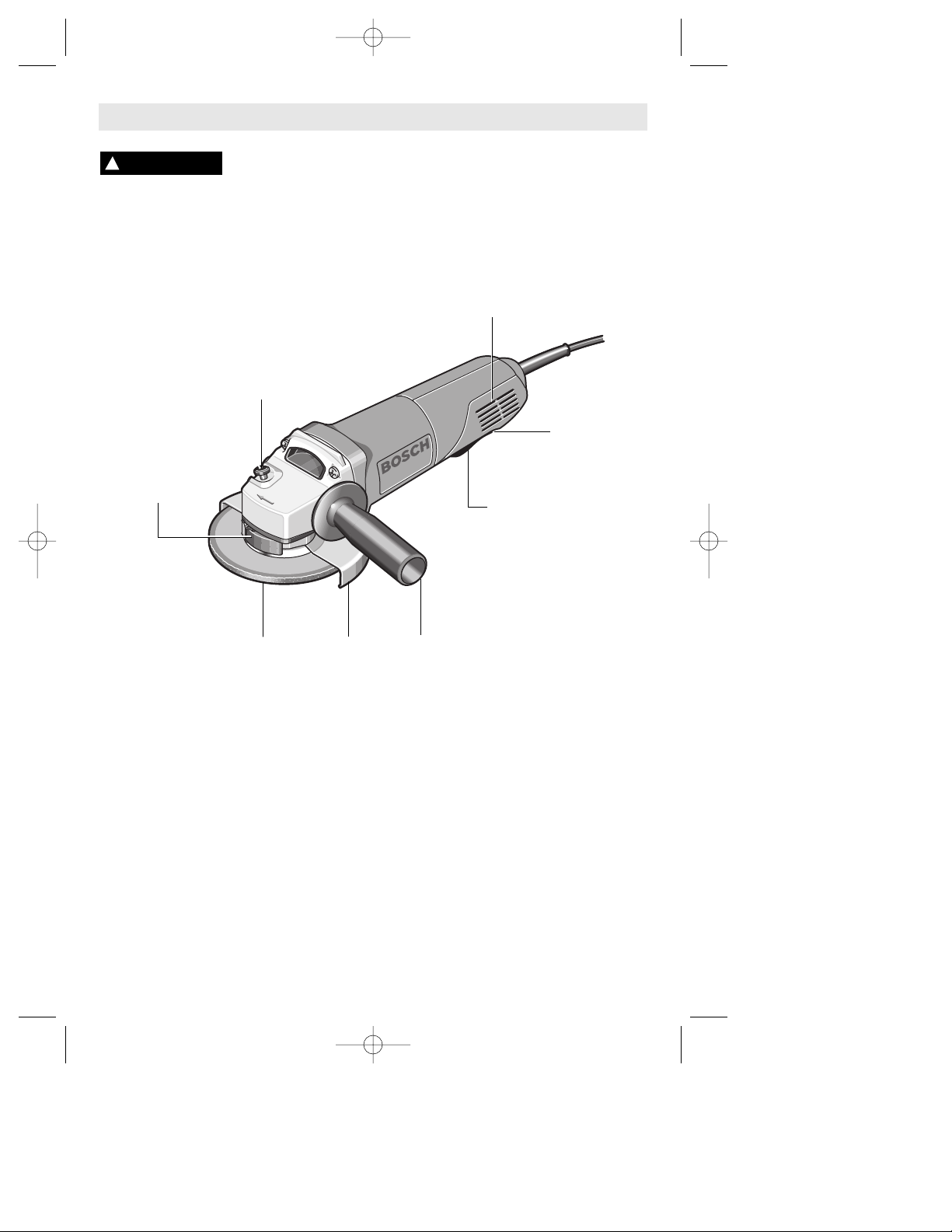

Angle Grinders

VENTILATION

OPENINGS

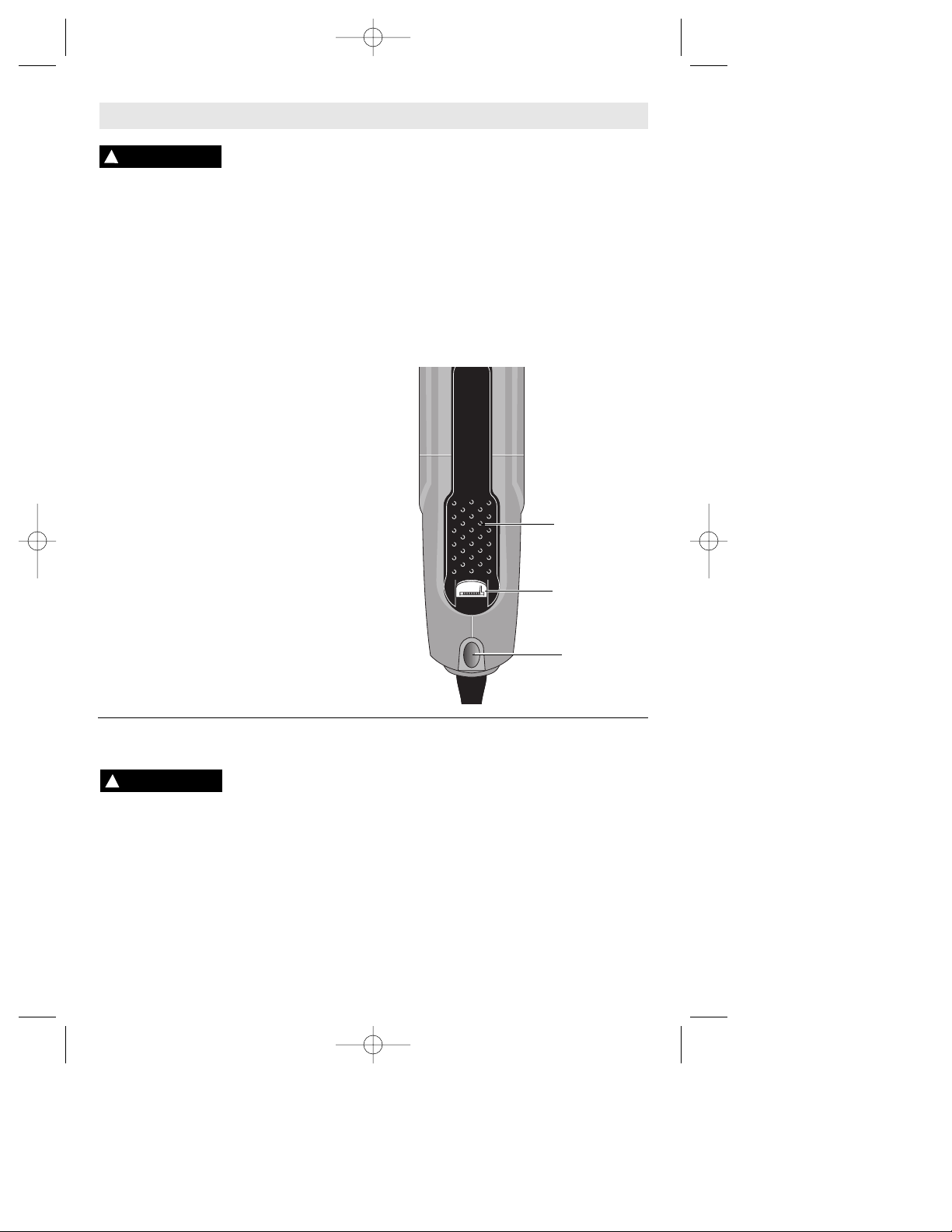

SWITCH

BUTTON

SPINDLE LOCK

"LOCK-OFF" SWITCH

RELEASE LEVER

GUARD RELEASE / LOCK

LATCH

PADDLE SWITCH

GRINDING	WHEEL	SIDE
WHEEL	GUARD	HANDLE

Model number	1710 & 1710D		1711 & 1711D
Max. wheel diameter	4	1/2" (115mm)	5" (125mm)
Spindle thread	5/8"-11 UNC		5/8"-11 UNC
Max. wire wheel	4" Dia.		4" Dia.
Max. wire cup brush	3" Dia.		3" Dia.
Max. sanding disc	4	1/2" Dia.	5" Dia.
Max. cut off wheel	4	1/2" Dia.	5" Dia.
Max. dry diamond wheel	4	1/2" Dia.	5" Dia.

NOTE: For tool specifications refer to the nameplate on your tool.

-6-

BM 1609929F52 10/03 10/28/03 3:34 PM Page 7

Assembly

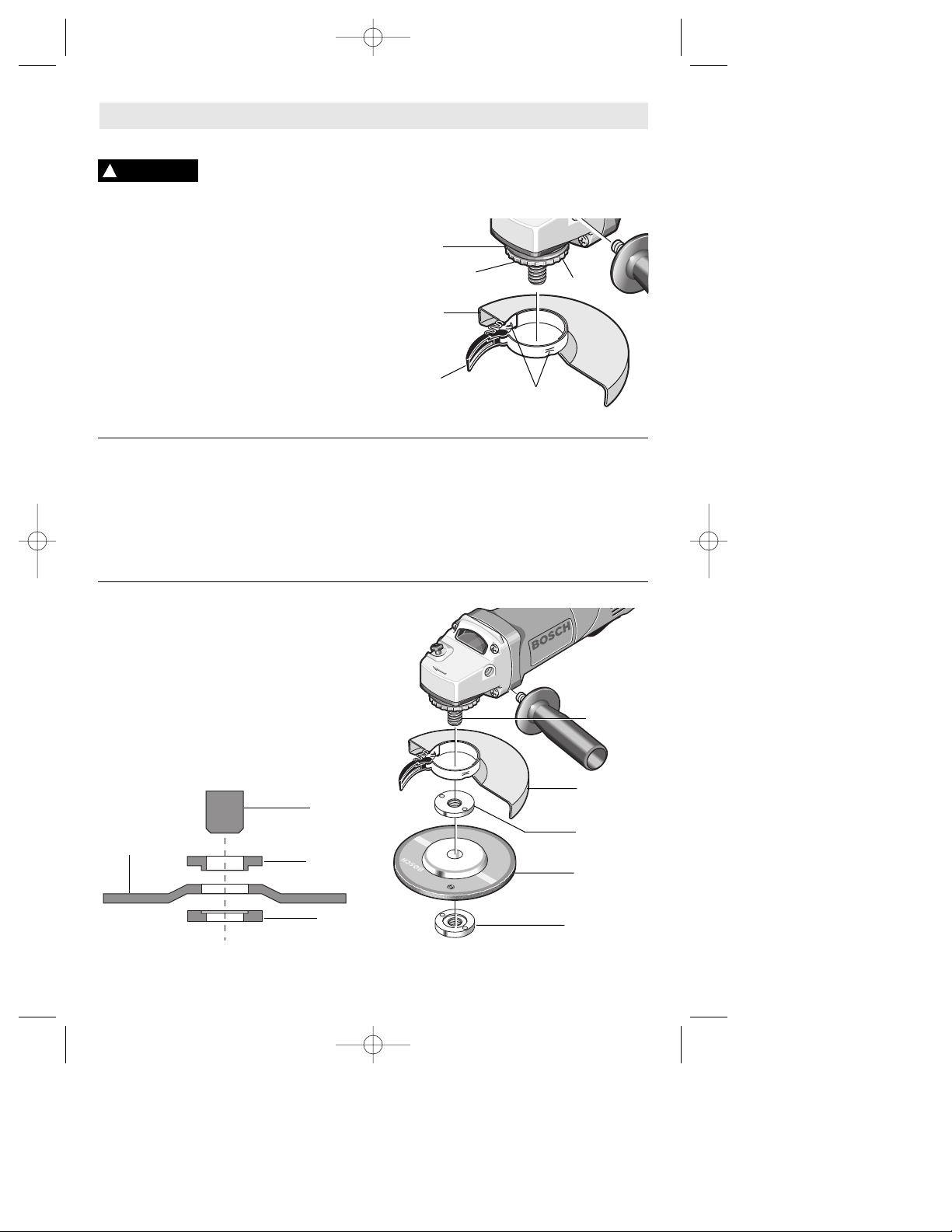

WHEEL GUARD INSTALLATION

! WARNING Use wheel guard with disc grinding wheels. Always

close the latch to secure the guard. Keep the guard between you and the wheel. Do not direct guard opening toward your body.

The position of the guard can be adjusted to accommodate the operation being performed.

To attach wheel guard DISCONNECT tool from power source.

Open guard release/lock latch and position guard on spindle neck so that the two bumps on guard, line up with the two notches on the spindle neck.

Rotate guard either direction to desired position, and close latch to secure guard in place.

TO REMOVE GUARD: Open guard release/lock latch, rotate guard until the two bumps on guard line up with the two notches on the spindle neck, and lift guard off the spindle neck.

NOTCHES

SPINDLE
NECK	NOTCHES
WHEEL
GUARD
GUARD	BUMPS
RELEASE / LOCK
LATCH

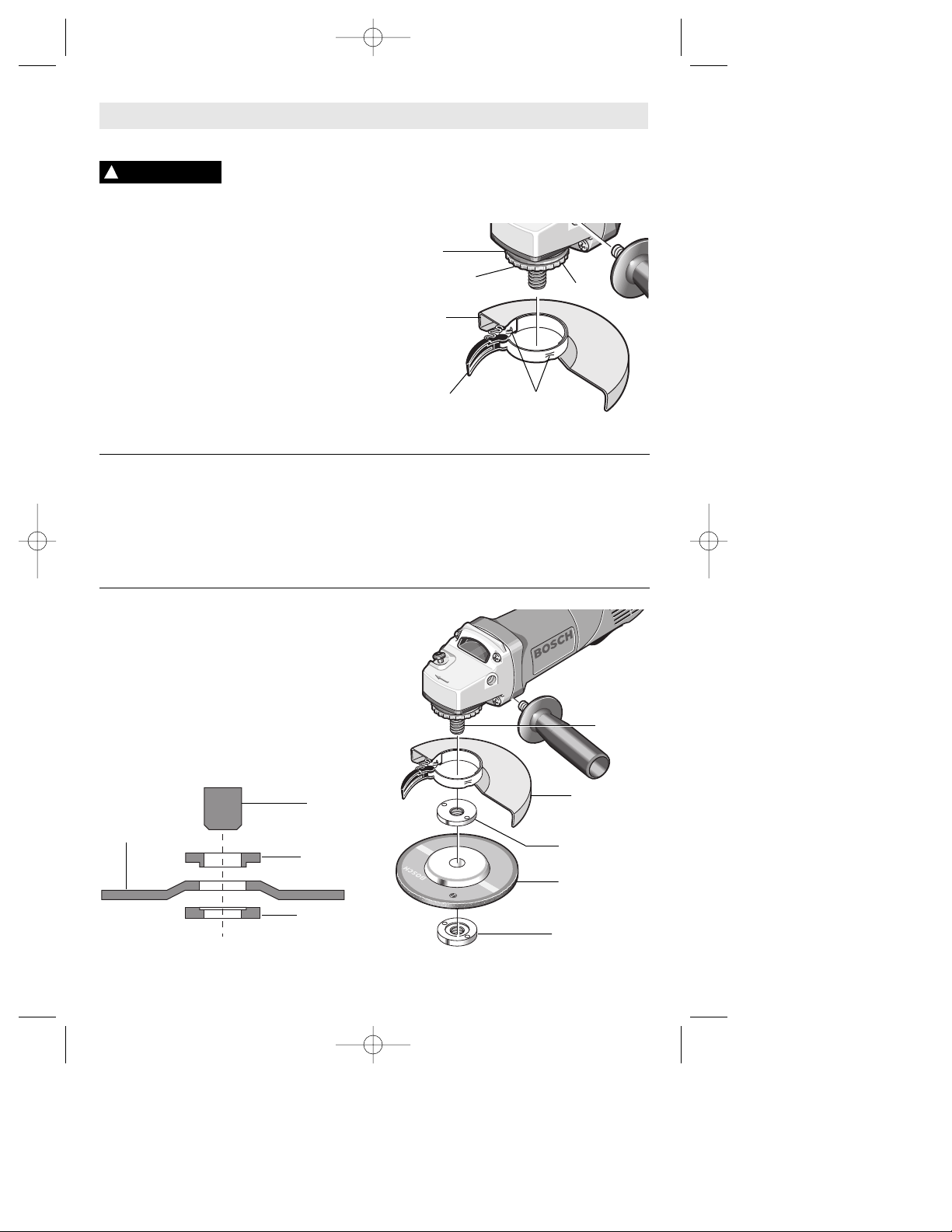

LOCK NUT AND BACKING FLANGE

Your tool is equipped with a threaded spindle for mounting accessories. Always use the supplied lock nut (and backing flange) that has same thread size as spindle.

SIDE HANDLE

The side handle used to guide and balance the tool can be threaded into the front housing on either side of the tool, depending on personal preference and comfort. Use the side handle for safe control

Disc Grinding Wheel Assembly

Disconnect tool from power source. Be sure that wheel guard is in place for grinding. Place BACKING FLANGE and GRINDING WHEEL on the spindle. Thread on the lock nut and tighten nut using the supplied lock nut wrench, while holding the spindle lock in.

TO REMOVE: Reverse procedure.

SPINDLE

GRINDING

WHEEL

BACKING

FLANGE

LOCK NUT

-7-

SPINDLE

WHEEL

GUARD

BACKING

FLANGE

GRINDING

WHEEL

LOCK NUT

BM 1609929F52 10/03 10/28/03 3:34 PM Page 8

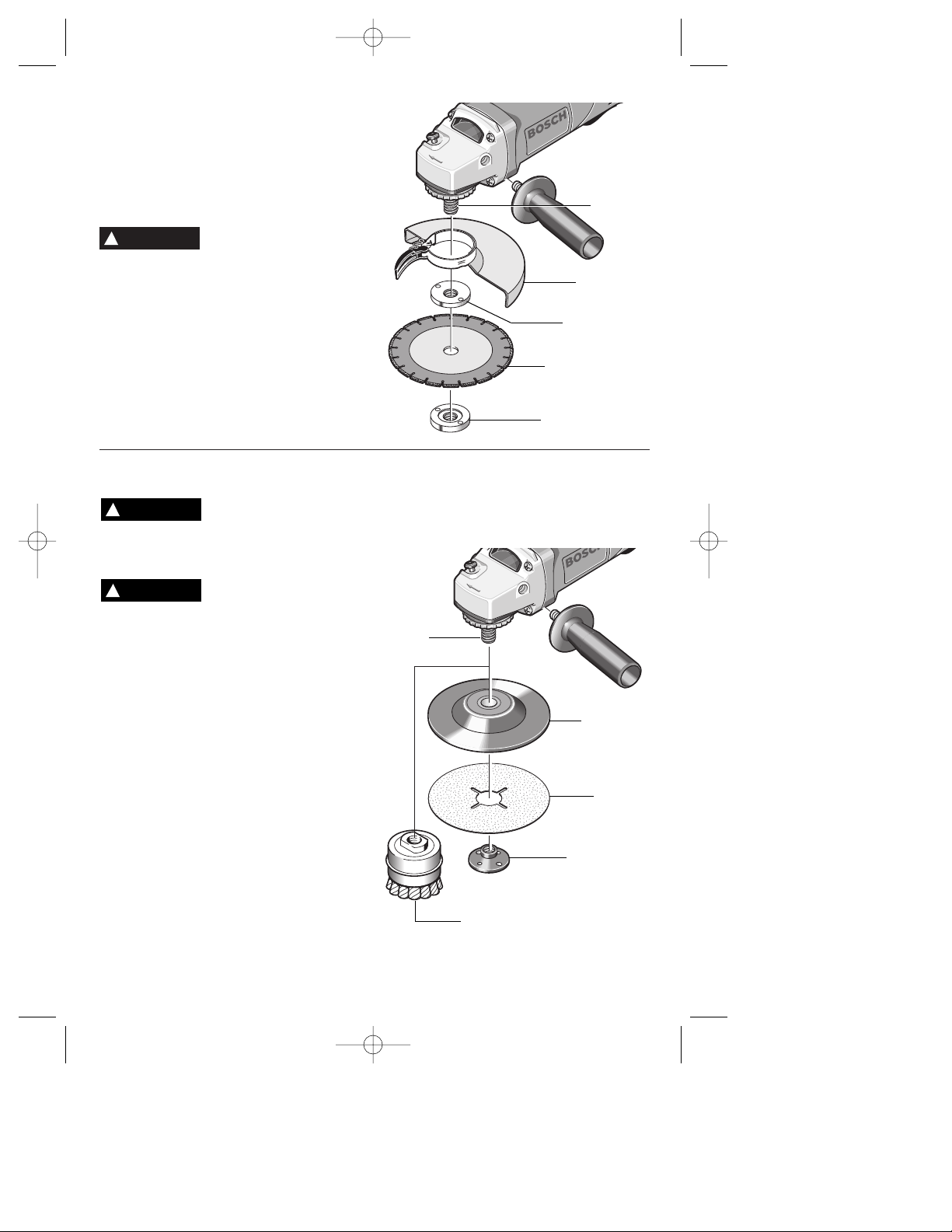

Masonry Cutting Wheel Assembly

For cutting masonry materials like brick, tile, stone, etc., it is best to use a dry diamond cutting wheel. Use only lock nut and flange with equal diameters. The wheel guard must be used with a dry diamond cutting wheel.

! WARNING Do not use water or other cooling fluid with this tool

for cutting.

Disconnect tool from power source before attaching cutting wheel. With wheel guard in place, assemble flange, cutting wheel and lock nut as illustrated on page 7.

When cutting, make only small passes through workpiece at a time. Be aware that “Kickback” can occur at any time. Keep both hands on tool for maximum control.

SPINDLE

WHEEL

GUARD

BACKING

FLANGE

DRY

DIAMOND

WHEEL

LOCK NUT

Sanding Accessories Assembly

BACKING PAD

Before attaching a backing ! WARNING pad be sure its maximum

safe operating speed is not exceeded by the nameplate speed of the tool.

! WARNING Wheel guard may not be used for most sanding

operations. Always reinstall wheel guard when converting back to grinding operations.

brushes are threaded hub, simply Be sure to seat turning tool “ON”.

SPINDLE

TO INSTALL BACKING PAD AND

SANDING DISC

Disconnect tool from power source. Set the tool on its top side (spindle up). Place the rubber backing pad onto the spindle shaft. Center the sanding disc on top of the backing pad. Insert the lock nut through the disc and thread onto the spindle as far as you can with your fingers. Press in the spindle lock, then tighten the backing pad securely with lock nut wrench.

TO REMOVE BACKING PAD AND

SANDING DISC

Disconnect tool from power source. Using the lock nut wrench unscrew the nut from the spindle, while holding spindle lock in.

WIRE BRUSH ASSEMBLY

Before assembling wire brush to this tool, disconnect from the power source. Wire

BACKING

PAD

SANDING

DISC

LOCK NUT

WIRE BRUSH

-8-

BM 1609929F52 10/03 10/28/03 3:34 PM Page 9

Operating Instructions

! WARNING Hold the tool with both hands while starting the

tool, since torque from the motor can cause the tool to twist.

Start the tool before applying to work and let the tool come to full speed before contacting the workpiece. Lift the tool from the work before releasing the switch. DO NOT turn the switch “ON” and “OFF” while the tool is under load; this will greatly decrease the switch life.

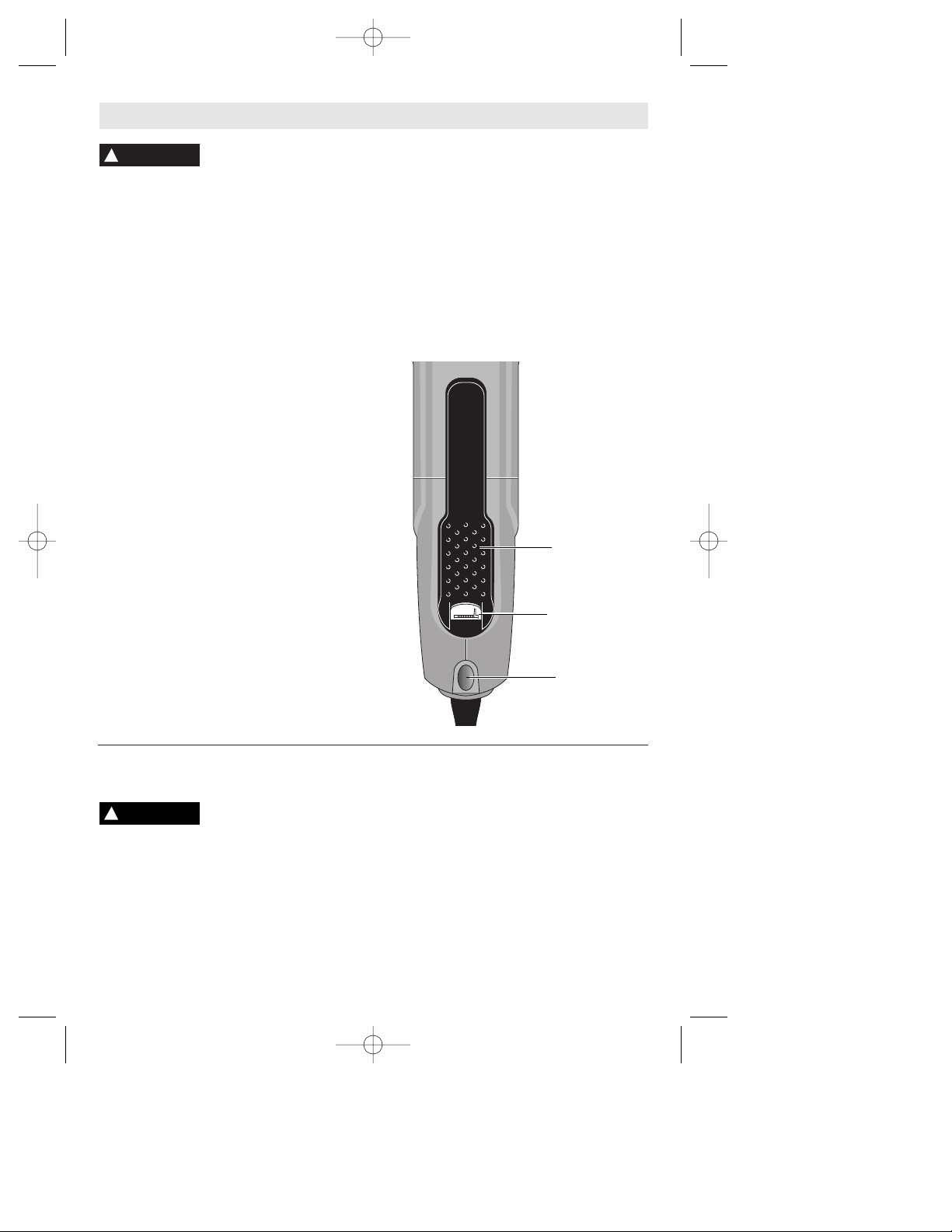

PADDLE SWITCH WITH

"LOCK-OFF"FEATURE Models 1710D & 1711D only

The Paddle switch enables the operator to control the switch functions of "Lock-OFF", and "ON/OFF".

TO UNLOCK SWITCH AND TURN TOOL "ON": Push "Lock-OFF" switch release lever backward to unlock paddle switch, then squeeze paddle switch.

TO SWITCH TOOL "OFF": Release pressure on paddle lever. The switch is spring loaded and will return to "OFF" position automatically.

PADDLE SWITCH WITH "LOCK-OFF" AND

"LOCK-ON" FEATURE (Models 1710 & 1711 only)

The Paddle switch enables the operator to control the switch functions of "Lock-OFF", "ON/OFF" and "Lock-ON".

TO UNLOCK SWITCH AND TURN TOOL "ON": Push switch release lever backward to unlock ON/OFF switch, then squeeze paddle switch.

TO SWITCH TOOL "OFF": Release pressure on paddle lever. The switch is spring loaded

and will return to "OFF" position automatically.

"LOCK-ON" BUTTON (Models 1710 & 1711 only)

The "Lock-ON" feature, incorporated into the paddle switch, is a convenience for long operations.

TO LOCK SWITCH "ON": After paddle switch has been activated push "Lock-ON" button at rear of tool completely in and release paddle switch.

TO	"OFF": Squeeze and
	.

PADDLE

SWITCH

"LOCK-OFF" SWITCH

RELEASE LEVER

"LOCK-ON" BUTTON (Models 1710 & 1711 only)

Grinding Operations

SELECTING GRINDING WHEELS

! WARNING Before using a grinding wheel, be certain that its

maximum safe operating speed is not exceeded by the nameplate speed of the grinder. Do not exceed the recommended wheel diameter.

hardness, grit size and structure. The correct type of wheel to use is determined by the job. Use disc grinding wheels for fast grinding of structural steel, heavy weld beads, steel casting, stainless steel and other ferrous metals.

GRINDING TIPS

DISC GRINDING WHEELS

Grinding wheels should be carefully selected in order to use the grinder most efficiently. Wheels vary in type of abrasive, bond,

-9-

Efficient grinding is achieved by controlling the pressure and keeping the angle between wheel and workpiece at 10° to 15°. If the wheel is flat, the tool is difficult to control. If

BM 1609929F52 10/03 10/28/03 3:34 PM Page 10

the angle is too steep, the pressure is concentrated on a small area causing burning to the work surface.

Excessive or sudden pres- ! WARNING sure on the wheel will slow

grinding action and put dangerous stresses on the wheel.

When grinding with a new wheel be certain to grind while pulling tool backwards until wheel becomes rounded on its edge. New wheels have sharp corners which tend to “bite” or cut into workpiece when pushing forward.

Sanding Operations

SELECTING SANDING DISC

Sanding discs are made of extremely hard and sharp aluminum oxide grits, phenolresin bonded to a sturdy fiber backing for fast heavy-duty service and long life. The discs vary as to size and spacing of the abrasive grits. OPEN COAT (type H) — used for soft materials and on paint or varnish. CLOSED COAT (type K) —used for metal, hardwood, stone, marble and other materials.

Sanding discs range in grit from 16 (very coarse) to 180 (very fine). To obtain best results, select sanding discs carefully. Many

jobs require the use of several grit sizes and at times both “open coat and closed coat” discs are required to get the job done faster. See chart for application examples.

Operation: Refinishing painted wood or metal surfaces.

REMARKS	GRIT
To remove paint and to smooth	Coarse
surface irregularities.	16-24-30
To smooth	Medium
the rough sanding.	36-50-80
To remove scratches left by	Fine
previous discs.	100-120
To smooth surfaces for painting,	Very Fine
polishing or waxing.	150-180

SANDING TIPS

For best results, tilt the Disc Sander at a 10° to 15° angle while sanding so that only about 1" of the surface around the edge of the disc contacts the work.

! WARNING If the disc (accessory) is held flat or the back edge of

the disc comes in contact with the work, a violent thrust to the side may result.

If sander is tilted too much, sanding action will be too great and a rough cut surface or gouging and snagging will result.

Guide the Disc Sander with crosswise strokes. Be careful not to hold the sander in one spot too long. Do not use a circular motion, as this makes swirl marks. Test before use on scrap stock.

Do not force or apply pressure when sanding. Use only the weight of the tool for pressure. Excess pressure actually slows the tool down. If faster stock removal is desired, change to a coarser grit disc.

Remove gummy paint from metal with an “open coat” disc. Sand until sparks start to

appear, then stop and change to a “closed coat” disc to remove any remaining paint.

SANDING WOOD

When sanding wood the direction of the disc motion at the contact point should parallel the grain as much as possible. The rapid cut of discs and the swirl type scratch pattern they occasionally create generally prohibit their use for producing the final finish.

Scratches and circular marks are usually the result of using too coarse a grit. When changing to a finer grit, move across the sanding lines that were made by a previous coarser disc.

SANDING METAL

When sanding automobiles or appliances, wipe the metal clean with a non-flammable solvent or commercial cleaner to remove all wax and grease. By doing this first, the sanding discs will sand better and last longer.

For heavy duty work, use a coarse grit disc first. Follow-up with a medium grit to remove scratches. To produce smooth finish, use fine grit disc.

-10-

BM 1609929F52 10/03 10/28/03 3:34 PM Page 11

Wire Brush Operations

Wire brushes are intended to “clean” structural steel, castings, sheet metal, stone and concrete. They are used to remove rust, scale and paint.

! WARNING Avoid bouncing and snagging the wire brush, especially

when working corners, sharp edges etc. This can cause loss of control and kick-back.

BRUSHING PRESSURE

1.Remember, the tips of a wire brush do the work. Operate the brush with the lightest pressure so only the tips of the wire come in contact with the work.

2.If heavier pressures are used, the wires will be overstressed, resulting in a wiping

action; and if this is continued, the life of the brush will be shortened due to wire fatigue.

3. Apply the brush to the work in such a way that as much of the brush face as possible is in full contact with the work. Applying the side or edge of the brush to the work will result in wire breakage and shortened brush life.

CORRECT:	INCORRECT:
Wire tips	Excessive
doing the	pressure can
work.	cause wire
	breakage.

15°

-11-
