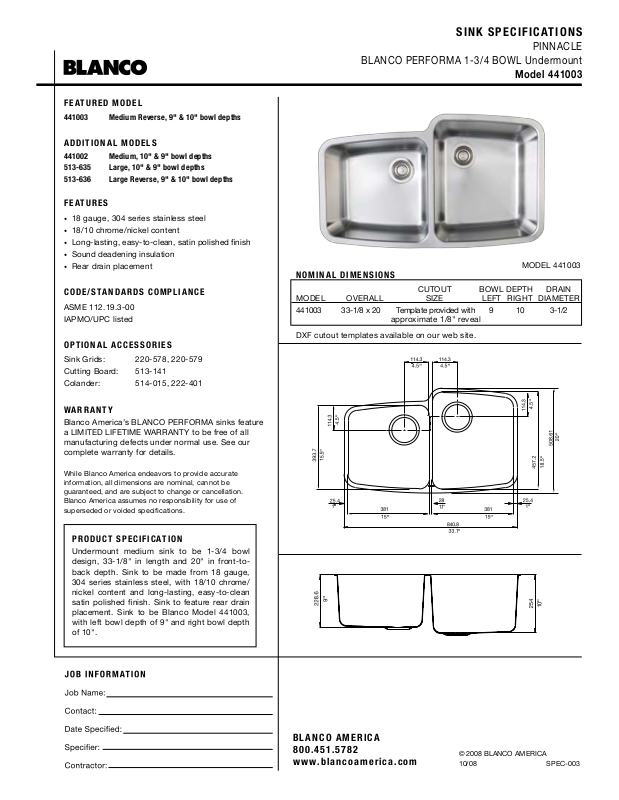

SINK SPECIFICATIONS

PINNACLE

BLANCO PERFORMA 1-3/4BOWL Undermount

Model 441003

FE AT URED MODEL

441003 Medium Reverse, 9" & 10" bowl depths

ADDITION A L MODEL S

441002 Medium, 10" & 9" bowl depths

513-635Large, 10" & 9" bowl depths513-636Large Reverse, 9" & 10" bowl depths

FE AT URE S

18 gauge, 304 series stainless steel

18/10 chrome/nickel content

Long-lasting,easy-to-clean,satin polished finish

Sound deadening insulation

Rear drain placement

CODE /STA NDA RDS COMPLIA NCE

ASME 112.19.3-00

IAPMO/UPC listed

OP TION A L ACCE S SORIE S

Sink Grids:

220-578,220-579

Cutting Board:

513-141

Colander:

514-015,222-401

WA RR A NT Y

Blanco America’s Blanco PERFORMA sinks feature a LIMITED LIFETIME WARRANTY to be free of all manufacturing defects under normal use. See our complete warranty for details.

While Blanco America endeavors to provide accurate information, all dimensions are nominal, cannot be guaranteed, and are subject to change or cancellation. Blanco America assumes no responsibility for use of superseded or voided specifications.

PRODUCT SPECIFICATION

Undermount medium sink to be 1-3/4bowl design,33-1/8"in length and 20" infront-to-back depth. Sink to be made from 18 gauge, 304 series stainless steel, with 18/10 chrome/ nickel content andlong-lasting,easy-to-cleansatin polished finish. Sink to feature rear drain placement. Sink to be Blanco Model 441003, with left bowl depth of 9" and right bowl depth of 10".

MODEL 441003

NOMIN A L DIMENSIONS





CUTOUT

BOWL DEPTH

DRAIN

MODEL

OVERALL

SIZE

LEFT

RIGHT

DIAMETER

441003

33-1/8x 20

Template provided with

9

10

3-1/2

approximate 1/8" reveal

DXF cutout templates available on our web site.

BL ANCO AMERICA 8 0 0. 4 51. 5782

w w w.blancoamerica.com

© 2008 BLANCO AMERICA



10/08

SPEC-003
