Reference 3220

Three Channel Amplifier

OWNER’S MANUAL

B & K Components Ltd.

13006 rev 0005

B&K Components, Ltd., 2100 Old Union Road, Buffalo, New York 14227

13006 rev 0005

Table of contents

Safety Precautions

Page 2

Purpose and function

Page 3

Design and construction

Page 3

Features

Page 3

Rear panel view

Page 4

Rear panel description

Page 4 - 5

Control muting

Page 5 - 6

Level controls

Page 6

Outputs

Page 7

Inputs

Page 7 - 8

System installation

Page 8

Making the connection

Page 9

Troubleshooting

Page 10

Care and cleaning

Page 10

Specifications

Page 11

Warranty

page 12

Accessories included:

Manual and Power cord

Page 1

13006 rev 0005

SAFETY PRECAUTIONS

PLEASE READ BEFORE INSTALLING

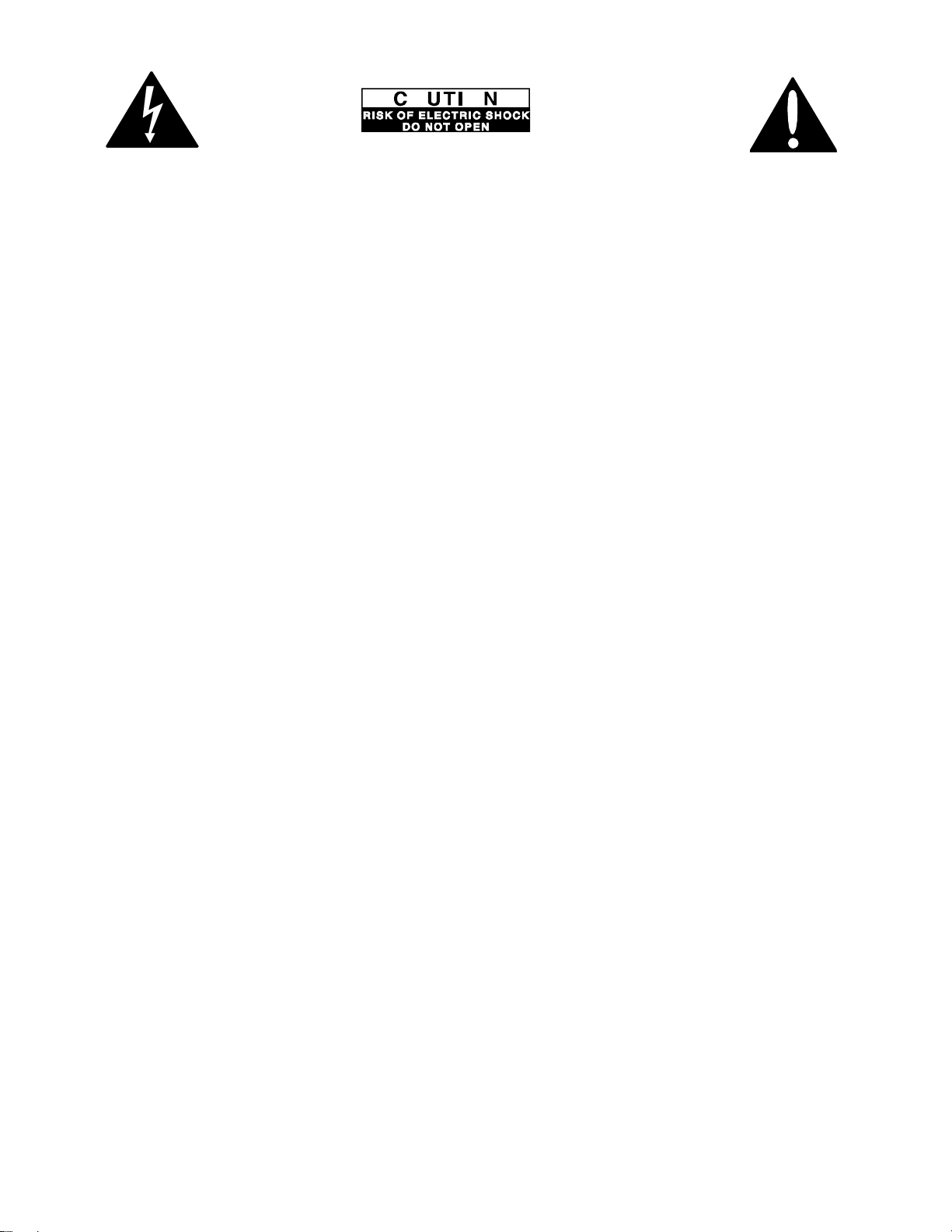

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

The lightning flash with arrowhead, within an equilateral triangle, is intended to alert the user of the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be sufficient magnitude to constitute a risk of electric shock to you.

The exclamation point within an equilateral triangle is intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the unit.

Observance of polarity is essential. Double-checkconnections before turning the amplifier on. The amplifier can be damaged if polarities are incorrect.

Damage can occur to your speakers if the power rating* of each individual driver is exceeded by the amplifier. Ensure that all the drivers in your speaker system are capable of handling not only the power being delivered by the amplifier, but the energy that is likely to be generated during strong passages.

Turn amplifier ‘off’ when plugging in or unplugging input and speaker cables!!!

The Reference 3220 is equipped with raised feet so that continuous ventilation can be maintained. They help to maintain acoustic feedback into the amplifier at a minimum. They also provide a measure of protection against scratching any surface the unit might be resting on. Do not alter or remove them.

Do not stack anything on top of the amplifier (preamplifier, processor, source...etc.).

Leave at least 2-3inches clearance from the top of the amplifier to the next shelf, component, etc., to ensure proper ventilation.

*If you are at all unsure of what the speaker ‘ratings’ are, contact your dealer.

Page 2

13006 rev 0005

The Reference 3220's purpose and function

The Reference 3220 is a compact, very efficient, three channel power amplifier. It is designed to be used in all types of audio or audio/video systems.

Design and construction

The Reference 3220 utilizes high quality electronic circuitry to achieve an environment wherein a detailed, transparent, and highly musical sound can be realized. The high quality parts complement include state-of-the-artsolid state devices, 1% metal film resistors, computer grade electrolytic power supply capacitors, and a high capacity toroidal transformer.

The Reference 3220 operates class A predriver and AB high current MOSFET power output stages. It is capable of reproducing the most demanding audio signals at rated power levels.

Features

Toroidal Transformers - Efficient high current transformer for improved dynamics.

Discrete Circuitry - More accurate and three dimensional reproduction of source material.

Class A Predriver - Improves low level detail for smoother, more musical sound.

AB MOSFET Output Stage - For efficient and linear power delivery.

Limited Protection - Provides short term protection from accidental shorting of output devices and protection from thermal overload.

Gold Plated Connectors - Improve connections for better sound and minimized signal loss and degradation.

1% Metal Film Resistors - Low noise resistors for better sound and a greater degree of repeatability.

High Current - Ability to reproduce demanding recordings.

Computer Grade Capacitors - Large capacity computer grade electrolytic capacitors for extended low frequency control and improved dynamics.

Page 3

13006 rev 0005

Rear Panel View























































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































1.

AC fuse holder

4.

Inputs

2.

AC Input receptacle

5.

Level controls

3.

Speaker outputs

6.

Amplifier control muting input/output

NOTE: THE BALANCED INPUTS ARE NOT AVAILABLE ON THE Reference 3220 AMPLIFIER





Rear panel description

1.

AC fuse holder -

Holds the AC Line fuse. This fuse is an 12 Amp / 250 Volt





Slow Blow fuse. Replace with same type and value fuse





only.

2.

AC Input receptacle - For attaching the supplied AC power cord to the





amplifier.

3.

Speaker outputs -

For connecting the speakers to the amplifier. Explained





further on page 7.

4.

Inputs -

For connecting signal patch cables (interconnects) from the





preamplifier to the amplifier to pass signal. Explained further





on page 7.

Page 4

13006 rev 0005

5. Level controls - For adjusting the input level of each channel into the amplifier. There are level controls on the back of the amplifier. One level control for each channel. Explained further on page 6.

6. Amplifier control muting input/output -

To provide remote switching of mute on/off of the amplifier. Explained further below.

Control muting

A control is provided on each Reference 3220 amplifier to allow remote switching of mute on/off. The preamplifier’s control output, such as is provided with B&K series preamplifiers, can be utilized to provide a control signal to the Reference 3220. If more than one amplifier is being controlled, the control signal can be extended to include each successive unit by simply running a 3.5mm mini-jackcable from the CTRL OUT connector of the first amplifier to the CTRL IN connector of the next unit (commonly referred to as ‘daisy chaining’). An example of how to connect two amplifiers is illustrated in figure B.

If a source other than a B&K series preamplifier is used to control multiple amplifiers, only the control output voltage from the source is critical. It must be within the range, as indicated on the rear panel, 5-24volts DC is required. The amplifier will provide each successive amplifier with a control voltage of 12 volts DC for reliable operation. The amplifiers control output may be used as a source of 12 VDC @ 125 mA for other user applications as well.DO NOT POWER MOTORS WITH THIS CIRCUIT.

































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































Page 5

















13006 rev 0005

If the control function is desired, each unit in the system must remain connected at all times and the control must be enabled. To enable the control function, the CTRL ENABLE button must be out for each controllable amplifier in the system. For more information on the amplifiers output status under various control conditions, refer to the table below.









@ CTRL IN

Button position

Output status

@ CTRL OUT









Signal

OUT

Sound

Signal









Signal

IN

Sound

Signal









No Signal

OUT

Mute

No Signal









No Signal

IN

Sound

Signal









*Note: The control voltage is for muting control only. Each amplifier must be connected to its own source of AC power in order for it to operate.

Level controls

The level controls are an option that can be added to the amplifier. If your amplifier has this option, the balanced inputs are not present. You can not have level controls and balanced inputs on an amplifier.

There are three level controls on the back of the amplifier. One level control for each channel.

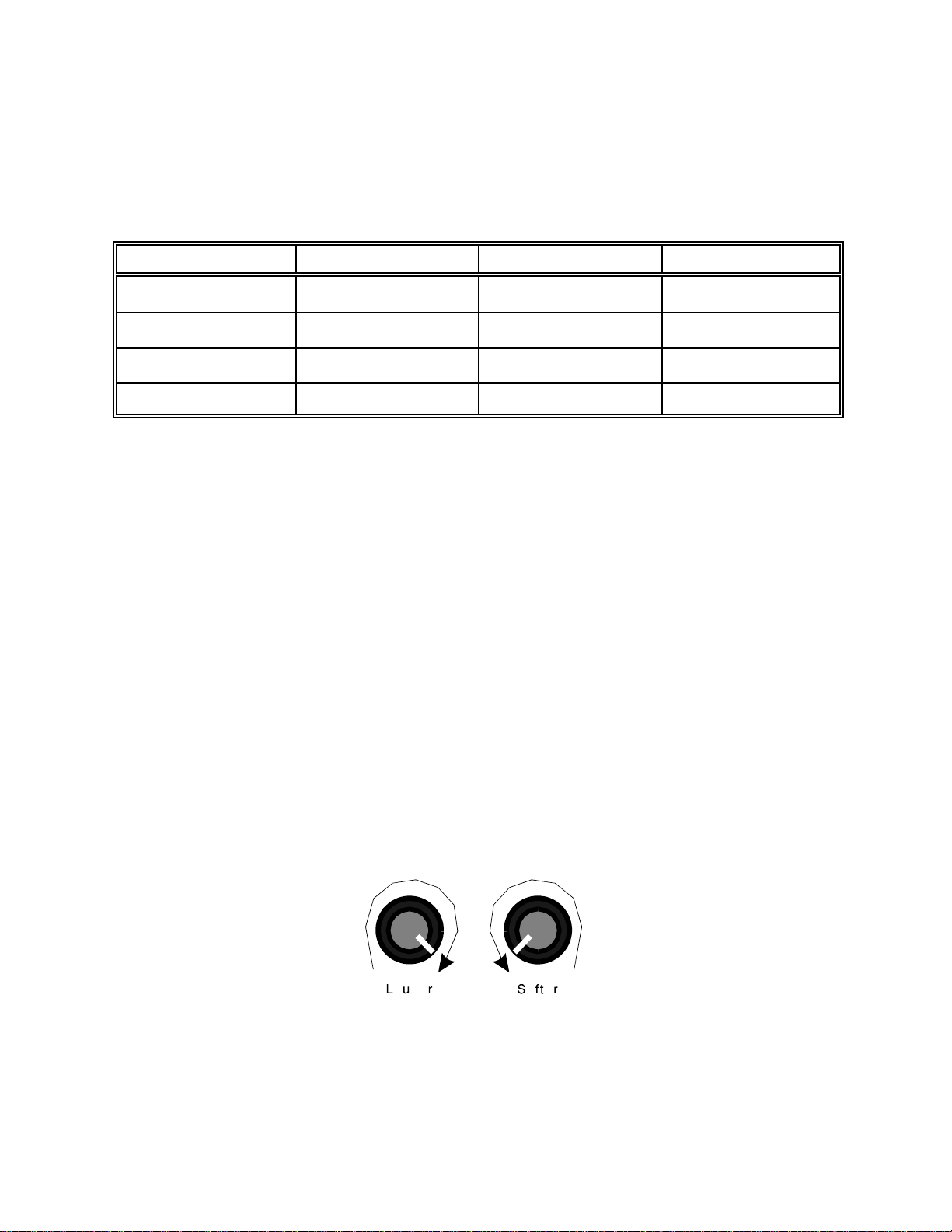

When using the level controls, first start with them turned all the way up (clockwise). Then adjust them according to your system requirements to match the sound level coming from each speaker.

)LJXUH &

Page 6

13006 rev 0005

Outputs

Five way binding posts are provided. One pair for each channel. They are designed to accept a banana-typeplug or spade lug connector (shown below) and are color coded for easy identification. The red (+) post should always be connected to the speakers (+) jack. The black(-)post should always be connected to the speakers(-)jack.

Spade connector Banana jack

Here is a typical amplifier setup:

)LJXUH '

Inputs

Unbalanced - RCA type connectors accept line input from the preamplifier’s unbalanced output connectors. There are three input connectors, one for each channel, that may be used to connect the amplifier to the preamplifier.

RCA cable connector -

Page 7

13006 rev 0005

Here is a typical input setup

System installation

There will most likely be a number of cables involved in the installation of your home entertainment system. Pre-planningis essential in order to maximize system efficiency. We recommend the following as a means of helping you reach that goal:

Make a diagram of your proposed system by laying out the relative location of each component in the system. Then lay out the proposed cable runs between them. Number each cable and record its length on the diagram for future reference.

Cable runs are critical in that they must be kept away from sources of power radiation (amplifiers, power cords, heaters, etc...). For the sake of safety, they should also be kept out of traffic areas.

The process of optimizing the system will include the type of cable, the length of the run, and the obstructions it must deal with along its run. Your dealer can advise you on the products available and their relative merits. If building custom length audio cables is not your strength, your dealer should be able to help you with that as well.

When possible, use a separate AC power line for the amplifier, one that is not shared by any other component in the system of any other house hold component.

Tip: Take a piece of stout string (longer than the longest cable run) and mark it at each foot of length. Then do a mock cable run using the string, dressing it neatly along the way. Count the divisions to the next full foot, and add one foot to allow for some movement of the components. This will provide you with the ideal cable length.

Page 8
