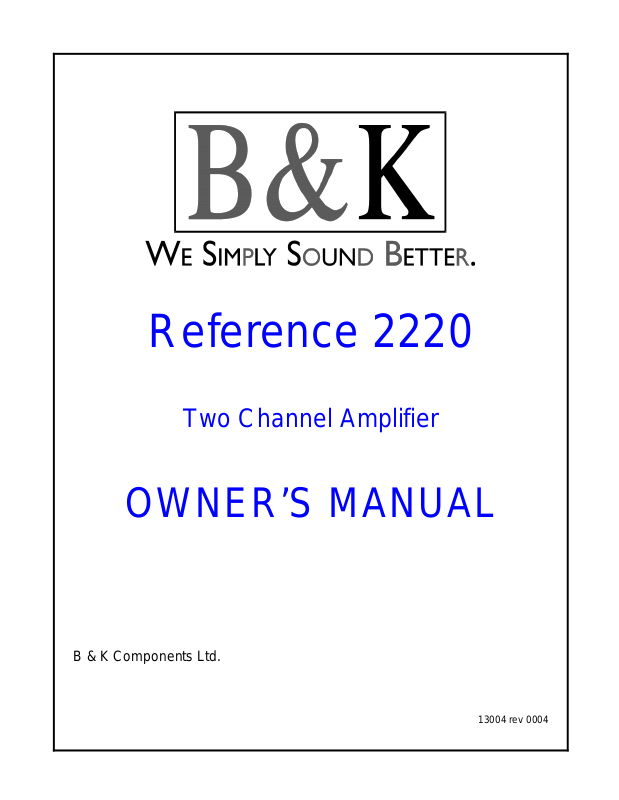

Reference 2220

Two Channel Amplifier

OWNER’S MANUAL

B & K Components Ltd.

13004 rev 0004

B&K Components, Ltd., 2100 Old Union Road, Buffalo, New York 14227

13004 rev 0004

Table of contents

Safety Precautions

Page 2

Purpose and function

Page 3

Design and construction

Page 3

Features

Page 3

Rear panel view

Page 4

Rear panel description

Page 4 - 5

Control muting

Page 5 - 6

Level controls

Page 6

Outputs

Page 7

Inputs

Page 7 - 8

System installation

Page 9

Making the connection

Page 9 - 10

Troubleshooting

Page 11

Care and cleaning

Page 11

Specifications

Page 12

Warranty

page 13

Accessories included:

Manual and Power cord

Page 1

13004 rev 0004

SAFETY PRECAUTIONS

PLEASE READ BEFORE INSTALLING

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

The lightning flash with arrowhead, within an equilateral triangle, is intended to alert the user of the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be sufficient magnitude to constitute a risk of electric shock to you.

The exclamation point within an equilateral triangle is intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the unit.

Observance of polarity is essential. Double-checkconnections before turning the amplifier on. The amplifier can be damaged if polarities are incorrect.

Damage can occur to your speakers if the power rating* of each individual driver is exceeded by the amplifier. Ensure that all the drivers in your speaker system are capable of handling not only the power being delivered by the amplifier, but the energy that is likely to be generated during strong passages.

Turn amplifier ‘off’ when plugging in or unplugging input and speaker cables!!!

The Reference 2220 is equipped with raised feet so that continuous ventilation can be maintained. They help to maintain acoustic feedback into the amplifier at a minimum. They also provide a measure of protection against scratching any surface the unit might be resting on. Do not alter or remove them.

Do not stack anything on top of the amplifier (preamplifier, processor, source...etc.).

Leave at least 2-3inches clearance from the top of the amplifier to the next shelf, component, etc., to ensure proper ventilation.

*If you are at all unsure of what the speaker ‘ratings’ are, contact your dealer.

Page 2

13004 rev 0004

The Reference 2220's purpose and function

The Reference 2220 is a compact, very efficient, two channel power amplifier. It is designed to be used in all types of audio or audio/video systems.

Design and construction

The Reference 2220 utilizes high quality electronic circuitry to achieve an environment wherein a detailed, transparent, and highly musical sound can be realized. The high quality parts complement include state-of-the-artsolid state devices, 1% metal film resistors, computer grade electrolytic power supply capacitors, and a high capacity toroidal transformer.

The Reference 2220 operates class A predriver and AB high current MOSFET power output stages. It is capable of reproducing the most demanding audio signals at rated power levels.

Features

Toroidal Transformers - Efficient high current transformer for improved dynamics.

Discrete Circuitry - More accurate and three dimensional reproduction of source material.

Class A Predriver - Improves low level detail for smoother, more musical sound.

AB MOSFET Output Stage - For efficient and linear power delivery.

Limited Protection - Provides short term protection from accidental shorting of output devices and protection from thermal overload.

Gold Plated Connectors - Improve connections for better sound and minimized signal loss and degradation.

1% Metal Film Resistors - Low noise resistors for better sound and a greater degree of repeatability.

High Current - Ability to reproduce demanding recordings.

Computer Grade Capacitors - Large capacity computer grade electrolytic capacitors for extended low frequency control and improved dynamics.

Page 3

13004 rev 0004

Rear Panel View













































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































1.

AC fuse holder

5.

RCA inputs (unbalanced)

2.

AC Input receptacle

6.

Level controls **

3.

Speaker outputs

7.

Amplifier control muting input/output

4.

Balanced inputs

















































































































** OPTIONS AVAILABLE FOR THE REFERENCE 2220 AMPLIFIER

NOTE: THE CENTER CHANNEL IS NOT AVAILABLE ON THE REFERENCE 2220 AMPLIFIER

Rear panel description

1. AC fuse holder - Holds the AC Line fuse. This fuse is an 12 Amp / 250 Volt Slow Blow fuse. Replace with same type and value fuse only.

2. AC Input receptacle - For attaching the supplied AC power cord to the amplifier.

3. Speaker outputs - For connecting the speakers to the amplifier. Explained further on page 7.

Page 4

13004 rev 0004

4.

Balanced inputs -

For connecting balanced signal patch cables (XLR).





Explained further on page 8.

5.

RCA inputs -

For connecting signal patch cables (interconnects) from the





preamplifier to the amplifier to pass signal.

6.

Level controls -

Option available for the Reference 2220 amplifier. For





adjusting the input level to the amplifier. Explained further





on page 6.

7.

Amplifier control muting input/output -





To provide remote switching of mute on/off of the amplifier.





Explained further below.

Control muting

A control is provided on each Reference 2220 amplifier to allow remote switching of mute on/off. The preamplifier’s control output, such as is provided with B&K series preamplifiers, can be utilized to provide a control signal to the Reference 2220. If more than one amplifier is being controlled, the control signal can be extended to include each successive unit by simply running a 3.5mm mini-jackcable from the CTRL OUT connector of the first amplifier to the CTRL IN connector of the next unit (commonly referred to as ‘daisy chaining’). An example of how to connect two amplifiers is illustrated in figure B.

If a source other than a B&K series preamplifier is used to control multiple amplifiers, only the control output voltage from the source is critical. It must be within the range, as indicated on the rear panel, 5-24volts DC is required. The amplifier will provide each successive amplifier with a control voltage of 12 volts DC for reliable operation. The amplifiers control output may be used as a source of 12 VDC @ 125 mA for other user applications as well.DO NOT POWER MOTORS WITH THIS CIRCUIT.





































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































Page 5

















13004 rev 0004

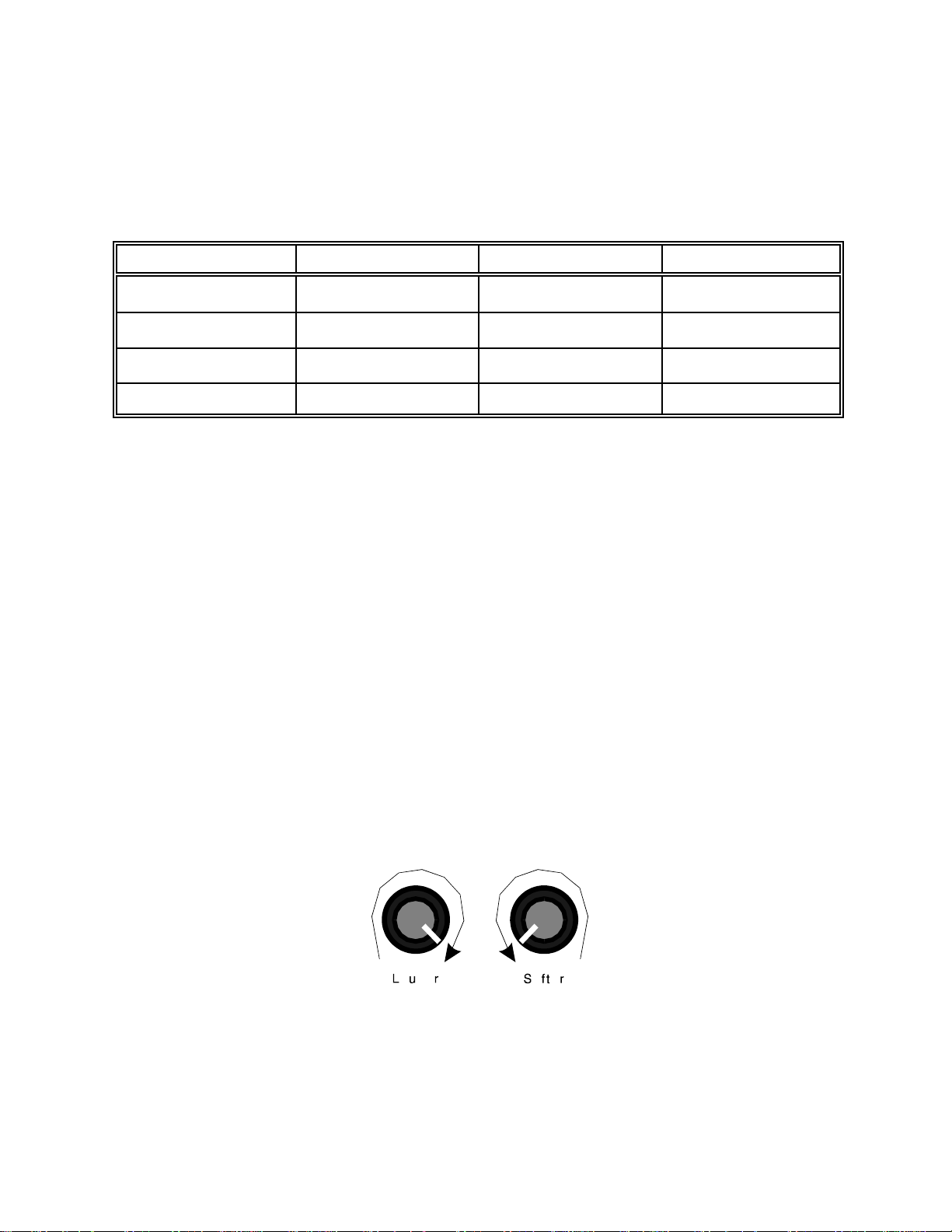

If the control function is desired, each unit in the system must remain connected at all times and the control must be enabled. To enable the control function, the CTRL ENABLE button must be out for each controllable amplifier in the system. For more information on the amplifiers output status under various control conditions, refer to the table below.









@ CTRL IN

Button position

Output status

@ CTRL OUT









Signal

OUT

Sound

Signal









Signal

IN

Sound

Signal









No Signal

OUT

Mute

No Signal









No Signal

IN

Sound

Signal









*Note: The control voltage is for muting control only. Each amplifier must be connected to its own source of AC power in order for it to operate.

Level controls

The level controls are an option that can be added to the amplifier. If your amplifier has this option, the balanced inputs are not present. You can not have level controls and balanced inputs on an amplifier.

There are two level controls on the back of the amplifier. One level control for each channel.

When using the level controls, first start with them turned all the way up (clockwise). Then adjust them according to your system requirements to match the sound level coming from each speaker.

)LJXUH &

Page 6

13004 rev 0004

Outputs

Five way binding posts are provided. One pair for each channel. They are designed to accept a banana-typeplug or spade lug connector (shown below) and are color coded for easy identification. The red (+) post should always be connected to the speakers (+) jack. The black(-)post should always be connected to the speakers(-)jack.

Spade connector Banana jack

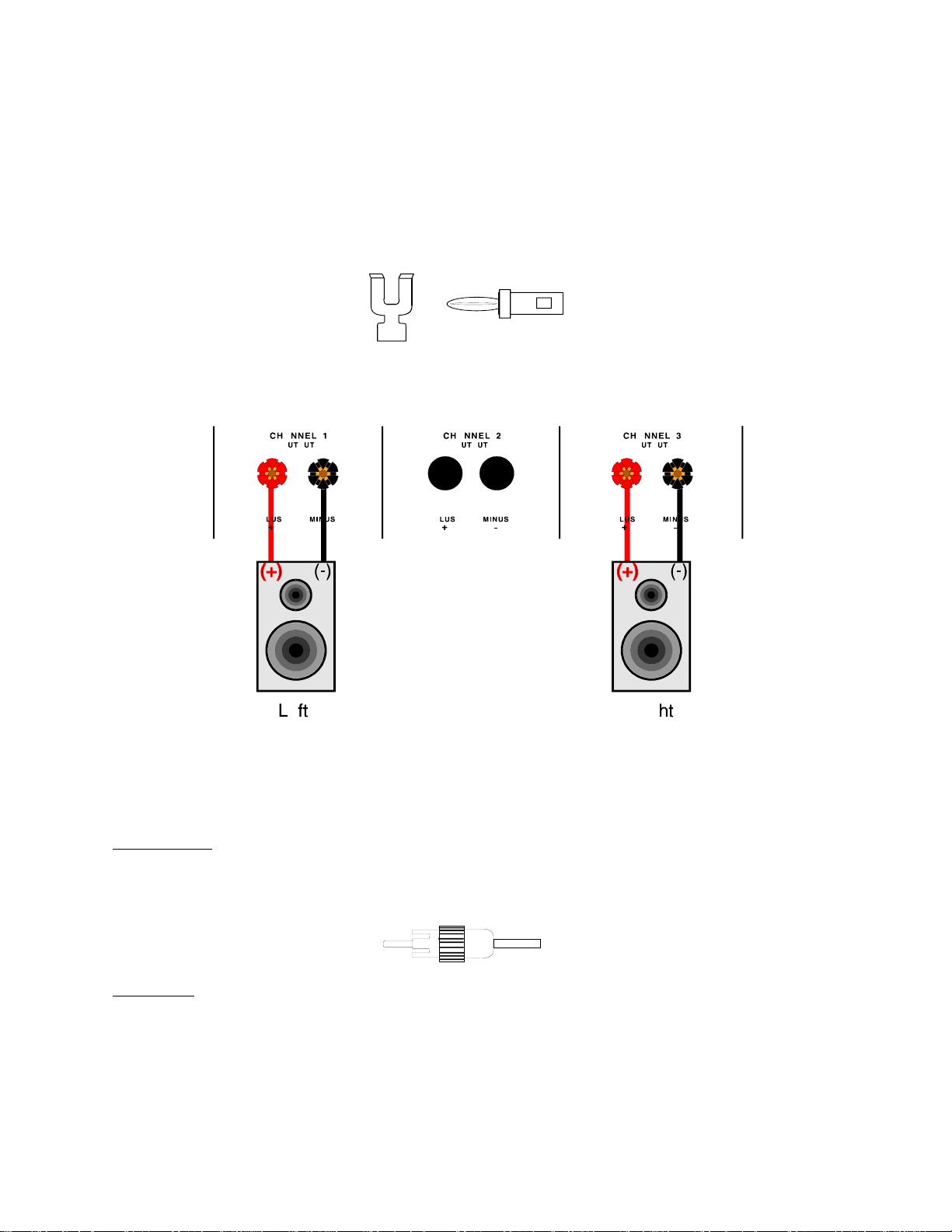

Here is a typical amplifier setup:

)LJXUH '

Inputs

Unbalanced - RCA type connectors accept line input from the preamplifier’s unbalanced output connectors. There are two input connectors, one for each channel, that may be used to connect the amplifier to the preamplifier.

RCA cable connector -

Operation - For unbalanced operation, ensure the balanced switch between the balanced inputs on the rear of the amplifier is in the ‘off’ (out) position. If the amplifier does not have balanced inputs then it is always in unbalanced mode.

Page 7

13004 rev 0004

Inputs

Balanced - XLR type connectors accept line input from the preamplifier’s balanced output connectors. There are two input connectors, one for each channel, that may be used to connect the amplifier to the preamplifier.

Balanced cable connector -

























































































Operation -

For balanced



operation, ensure the balanced switch between the balanced inputs on



the rear of the amplifier is in the ‘on’ (in) position.

NOTE: If the amplifier is equipped with level controls, the balanced inputs will not be present.

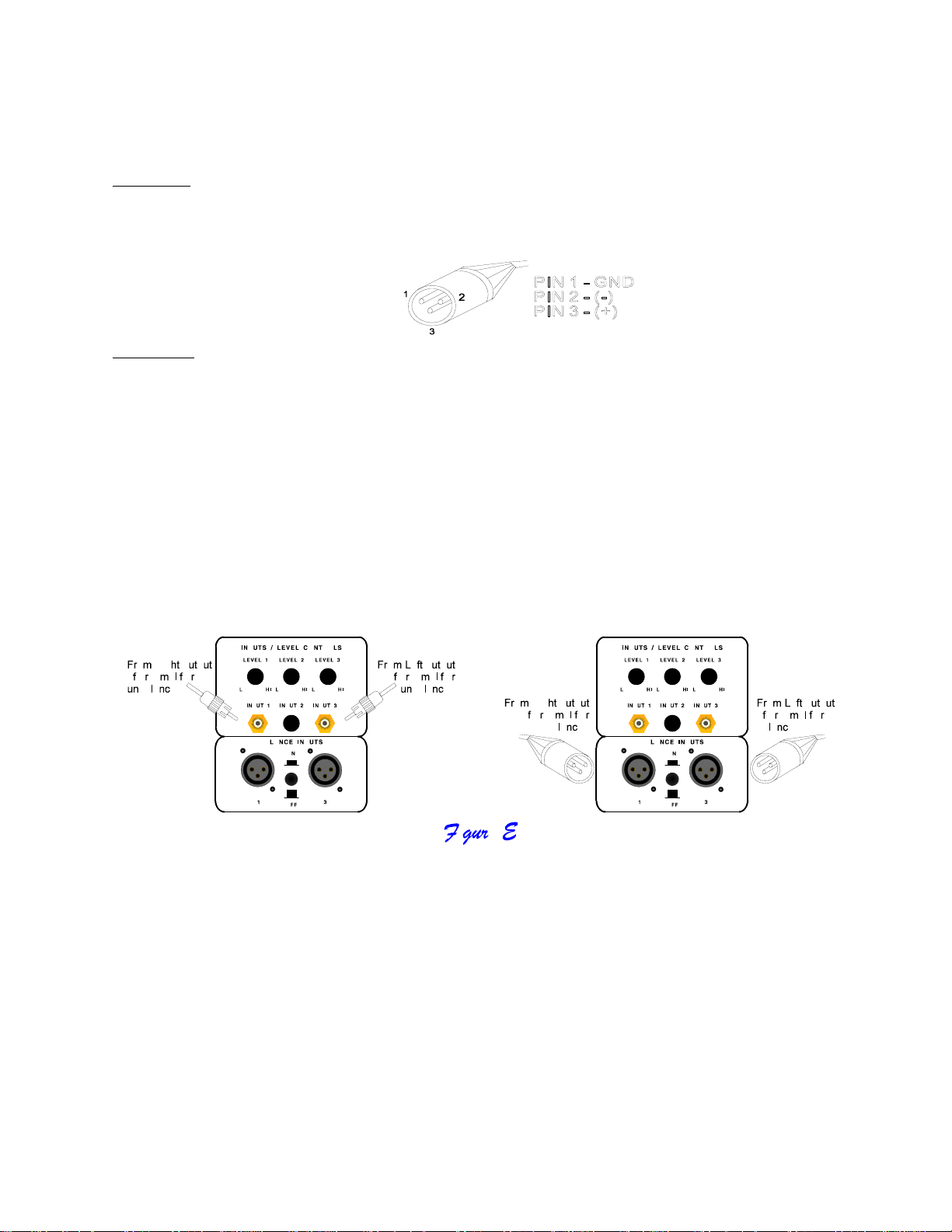

Here is a typical input setup





























































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































Page 8
