FP91GP/FP91GX

LCD Color Monitor

19.0" LCD Panel Size

User’s Manual

Welcome

i Copyright

Copyright © 2006 by BenQ Corporation. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of BenQ Corporation.

ii Disclaimer

BenQ Corporation makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Further, BenQ Corporation reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation of BenQ Corporation to notify any person of such revision or changes.

Please follow these safety instructions for best performance, and long life for your monitor

iii Power Safety

The AC plug isolates this equipment from the AC supply.

The power supply cord serves as a power disconnect device for pluggable equipment. The socket outlet should be installed near the equipment and be easily accessible.

This product should be operated from the type of power indicated on the marked label. If you are not sure of the type of power available, consult your dealer or local power company.

iv Care And Cleaning

Cleaning. Always unplug your monitor from the wall outlet before cleaning. Clean the LCD monitor surface with a lint-free,non-abrasivecloth. Avoid using any liquid, aerosol or glass cleaners.

Slots and openings on the back or top of the cabinet are for ventilation. They must not be blocked or covered. Your monitor should never be placed near or over a radiator or heat source, or in a built-ininstallation unless proper ventilation is provided.

Never push objects or spill liquid of any kind into this product.

vServicing

Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltages or other risks. If any of the above mentioned misuse or other accident such as dropping or mishandling occurs, contact qualified service personnel for servicing.

2

i Table of Contents



Getting started ......................................................................................................................

4

Getting to know your monitor ............................................................................................

5

Front View ...................................................................................................................

5

Back View .....................................................................................................................

5

How to install your monitor hardware ...............................................................................

6

How to detach the stand base ........................................

9

Getting the most from your BenQ monitor ......................................................................

10

How to install the monitor on a new computer ......................................................

11

How to upgrade the monitor on an existing computer ..........................................

12

How to install on Windows XP systems ...................................................................

13

How to install on Windows 2000, ME, & 98 systems ..............................................

15

How to complete the Windows Upgrade Device Driver Wizard ...........................

16

How to adjust the screen resolution ..................................................................................

18

How to adjust the screen refresh rate ................................................................................

19

How to set the picture optimization ..................................................................................

20

How to adjust your monitor ..............................................................................................

21

A Look at the Control Panel .....................................................................................

21

Hot Key Mode ...........................................................................................................

22

Main Menu Mode ......................................................................................................

22

Troubleshooting .................................................................................................................

30

Frequently Asked Questions (FAQ) .........................................................................

30

Need More Help? .......................................................................................................

31

Supported operating modes ...............................................................................................

32

Specifications ......................................................................................................................

33

3

11 Getting started

When unpacking please check you have the following items. If any are missing or damaged, please contact the place of purchase for a replacement.

BenQ LCD Monitor

Quick Start Guide

CD-ROM

Power Cord

Signal Cable: D-Sub

Signal Cable: DVI-D(optional)

Getting started

4

121 Getting to know your monitor

Front View

Back View





















1

2

3

1. Power AC input jack

2. DVI-DConnector

3. D-SubConnector

5 Getting to know your monitor

131 How to install your monitor hardware

If the computer is turned on you must turn it off before continuing.

Do not plug-inorturn-onthe power to the monitor until instructed to do so.

1. Attach the monitor base.

Please be careful to prevent damage to the monitor. Placing the screen surface on an object like a stapler or a mouse will crack the glass or damage the LCD substrate voiding your warranty. Sliding or scraping the monitor around on your desk will scratch or damage the monitor surround and controls.

Protect the monitor and screen by clearing a flat open area on your desk and placing a soft item like the monitor packaging bag on the desk for padding.

Lay the screen face down on a flat clean padded surface.

Whilst holding the monitor firmly against the desk, pull the monitor stand arm upwards clear of the monitor.

Orient and align the stand base socket with the end of the stand arm, then push them together until they click and lock into place.

Gently attempt to pull them back apart to check that they have properly engaged.

Carefully lift the monitor, turn it over and place it upright on its stand on a flat even surface.

You should position the monitor and angle the screen

to minimize unwanted reflections from other light sources.

-5~+20

How to install your monitor hardware

6

2. Connect the video cable.

Connect one end of the DVI-Dcable to the monitorDVI-Dsocket and the other end to theDVI-Dport on your computer. (optional)

TheDVI-Dformat is used for direct digital connection between source video and digital LCD monitors or projectors. The digital video signals produce a superior quality picture than analog video signals.

If you don’t have an appropriate DVI-Dport on your computer, you can use the standard videoD-Subcable.

Connect the plug of the D-Subcable (at the end without the ferrite filter) to the monitorD-Subsocket. Connect the other plug of theD-Subcable (at the end with the ferrite filter) to the computer videoD-Subsocket.

Tighten all finger screws to prevent the plugs from accidently falling out during use.

3. Connect the power cable to the monitor.

Plug one end of the power cord into the socket labelled ’POWER IN’ on the rear of the monitor. Do not connect the other end to a power point just yet.

7 How to install your monitor hardware

4. Route the cables via the loose bracket.

Release the cable retaining clip by squeezing the clip inwards as illustrated. Position the cables together and reinsert the clip over them to retain the cables neatly in place behind the monitor stand.

5. Connect-toandturn-onthe power.

Plug the other end of the power cord into a power point and turn it on.

Turn on the monitor by pressing the power button on the front of the monitor.

Turn on the computer too, and follow the instructions in Section 4: Getting the most from your BenQ monitor to install the monitor software.

How to install your monitor hardware

8

How to detach the stand base

1. Prepare the monitor and area.

Turn off the monitor and the power before unplugging the power cable. Turn off the computer before unplugging the monitor signal cable.

Please be careful to prevent damage to the monitor. Placing the screen surface on an object like a stapler or a mouse will crack the glass or damage the LCD substrate voiding your warranty. Sliding or scraping the monitor around on your desk will scratch or damage the monitor surround and controls.

Protect the monitor and screen by clearing a flat open area on your desk and placing a soft item like a towel on the desk for padding, before laying the screen face down on a flat clean padded surface.

2.Release the locking clip on one side of the stand base whilst pulling the edge of the base away from the stand arm.

3.Release the other locking clip to detach the stand base from the monitor stand arm.

9 How to install your monitor hardware

141 Getting the most from your BenQ monitor

How do I gain the most benefit from my new monitor?

To gain the most benefit from your new BenQ color LCD flat screen monitor, you should install the custom BenQ LCD Monitor driver software as provided on the BenQ LCD Monitor CD-ROM.

The circumstances under which you connect and install your BenQ LCD Monitor will determine which process you need to follow to successfully install the BenQ LCD Monitor driver software. These circumstances relate to which version of Microsoft Windows you are using, and whether you are connecting the monitor and installing the software onto a new computer (without existing monitor driver software), or whether you are upgrading an existing installation (which already has existing monitor driver software) with a newer monitor.

In either case however, the very next time you turn on your computer (after connecting the monitor to your computer), Windows will automatically recognise the new (or different) hardware, and will launch its Found New Hardware wizard.

Follow the wizard instructions until it asks you to select a monitor model. At that point, click the Have Disk button, insert the BenQ LCD Monitor CD-ROMand select the appropriate monitor model. Further details andstep-by-stepinstructions for both an automatic (new) or upgrade (existing) installation follow. See:

How to install the monitor on a new computer.

How to upgrade the monitor on an existing computer

If you require a User Name and Password to login to your Windows computer, you must be logged on as an Administrator or as a member of the Administrators group in order to install the monitor driver software. Furthermore, if your computer is connected to a network which has security access requirements, network policy settings may prevent you from installing software on your computer.

Getting the most from your BenQ monitor 10

How to install the monitor on a new computer

This instruction details the procedure for selecting and installing the BenQ LCD Monitor driver software on a new computer which has never had a monitor driver installed before. This instruction is only suitable for a computer which has never been used before, and for which the BenQ LCD Monitor is the first ever monitor to be connected to it.

If you are adding the BenQ LCD Monitor to an existing computer that has already had another monitor connected to it (and has monitor driver software installed), you should not be following these instructions. You should instead be following the instructions for How to upgrade the monitor on an existing computer.

1. Follow the instructions in How to install your monitor hardware.

When Windows (2000 or later) starts, it will automatically detect the new monitor and launch the Found New Hardware Wizard. Follow the prompts until it displays the option to Install Hardware Device drivers.

2.Insert the BenQ LCD Monitor CD-ROMinto a CD drive on the computer.

3.Check Search for a suitable driver for my device option, and click Next.

4.Check the option for CD-ROMdrives (uncheck all others) and click Next.

5.Look to confirm that the wizard has selected the correct name of your monitor as "BenQ FP91GP/FP91GX" and click Next.

6.Click Finish.

7.Restart the computer.

11 Getting the most from your BenQ monitor

How to upgrade the monitor on an existing computer

This instruction details the procedure for manually updating the existing monitor driver software on your Microsoft Windows computer. It is currrently tested as compatible (and recommended only) for Windows 98, Windows ME, Windows 2000, and Windows XP Operating System (OS).

The BenQ LCD Monitor driver for your model may well function perfectly with other versions of Windows, however, as at the time of writing, BenQ has done no testing of this driver on other versions of Windows and cannot guarantee its operation on those systems.

Installing monitor driver software involves selecting an appropriate information file (.inf) on the BenQ LCD Monitor CD-ROMfor the particular model monitor you have connected, and letting Windows install the corresponding driver files from the CD. You need only steer it in the right direction. Windows has an Upgrade Device Driver Wizard to automate the task and guide you through the file selection and installation process.

See:

How to install on Windows XP systems.

How to install on Windows 2000, ME, & 98 systems.

Getting the most from your BenQ monitor 12

How to install on Windows XP systems

1. Open Display Properties.

The quickest shortcut to Display Properties is through the Windows desktop. Right-clickthe desktop and select Properties from the popup menu.

Alternatively, the Windows menu to Display Properties is located in Control Panel.

In Windows XP version, Control Panel is located directly under the main Start menu item. The menu options displayed will depend upon which type of view is selected for your system.

Under the Classic view, click Start | Control Panel | Display.

Under the Category view, click Start | Control Panel | Appearance and Themes | Change the screen resolution.

The Display Properties window will display.

2.Click the Settings tab and the Advanced button.

The Advanced Display Properties window will display.

3.Click the Monitor tab and select the ‘Plug and Play Monitor’ from the list.

If there is only one monitor in the list, it will already be selected for you.

4.Click the Properties button.

The Monitor Properties window will display.

If the driver provider is listed as BenQ, and the model matches that of your new monitor, the proper drivers are already installed, and you need do nothing further. Cancel out of these property windows.

However, if BenQ is not listed as the manufacturer, or the correct model is not currently shown, you will need to continue with these instructions.

5. Click the Driver tab and the Update Driver button.

The Hardware Update Wizard will display. Follow the wizard instructions noting the steps below:

6.Insert the BenQ LCD Monitor CD-ROMinto a CD drive on the computer you attached the monitor to.

7.Check the option ‘Install from a list or specific location’ and click Next.

8.Check the option ‘Search for the best driver in these locations’ and also check ‘Search removable media’, then click Next.

Please wait while the wizard searches for drives and the BenQ LCD Monitor CD inserted in step 6. When complete, the wizard should have found and selected the BenQ driver on the CD appropriate to your monitor model, in this case ‘BenQ FP91GP/FP91GX’ in the location ‘d:\driver\fp91GP.inf/fp91GX.inf’ or similar.

The drive letter for your CD drive may differ from the example above depending upon your system – it may be ‘D:’ or ‘E:’ or ‘F:’ etc.

9.Select (single-click)the file named ‘BenQ FP91GP/FP91GX’ on the CD, and click the Next button.

This will copy and install the appropriate monitor driver files to your computer.

10. Click Finish.

This will close the wizard and return you to the Monitor Properties window, now renamed BenQ FP91GP/FP91GX Properties.

11. Click Close, OK, and OK.

13 Getting the most from your BenQ monitor

This will close the Display Properties windows. You do not need to restart Windows XP, as the BenQ LCD monitor drivers will operate immediately with no further action required by you.

Getting the most from your BenQ monitor 14

How to install on Windows 2000, ME, & 98 systems

You do not need to follow this instruction if you are installing onto a computer which has a Windows XP (or later) version system. In that case, see the instructions atHow to install on Windows XP systems.

1. Open Display Properties.

The quickest shortcut to Display Properties is through the Windows desktop. Right-clickthe desktop and select Properties from the popup menu.

Alternatively, the Windows menu to Display Properties is located in Control Panel.

In Windows 2000, ME, & 98 versions, Control Panel is located under the Settings menu item. Click Start | Settings | Control Panel | Display.

The Display Properties window will display.

2.Click the Settings tab and the Advanced button.

The Advanced Display Properties window will display.

3.In Windows 2000, click the Monitor tab and the Properties button.

The Monitor Properties window will display.

Alternatively, on Windows ME or 98, click the Monitor tab and the Change button.

This will jump you directly to the Upgrade Device Driver Wizard, skipping the next step.

4. In Windows 2000, click the Driver tab and the Update Driver button.

The Upgrade Device Driver Wizard will display.

See How to complete the Windows Upgrade Device Driver Wizard.

15 Getting the most from your BenQ monitor

How to complete the Windows Upgrade Device Driver Wizard

1.Load the BenQ LCD Monitor CD-ROMwhich came with your monitor.

Insert the CD-ROMinto a CD drive on the computer you attached the monitor to. The autorun User’s Guide language selection page will display in your web browser.

You can select a language and view the online version of this manual from the next window.

You could then print it out for reference if you wish to work off-line.When you’re ready, Cancel the browser as it is not required for the Windows Upgrade Device Driver Wizard.

2.Launch the Windows Upgrade Device Driver Wizard and click Next.

For instructions, see How to install on Windows 2000, ME, & 98 systems.

3.Check the option ‘Display a list of known drivers ...’ and click Next.

4.Click the Have Disk button.

The Install From Disk window will display.

5. Click the Browse button and navigate to the BenQ LCD Monitor CD-ROM.

This is the CD you loaded in step 1 above. The CD Drive will have a Windows designated drive letter (like D: or E: or F:). Select the drive letter corresponding to the drive you put the CD into.

6.Double-clickthe folder labelled ‘Driver’.

The contents of the ‘Driver’ folder will display.

7.Click the Open button.

This will return you to the Install from Disk window, and it will have entered the address to the BenQ LCD Monitor CD ‘Driver’ folder into the field titled ‘Copy manufacturer’s files from:’.

The field will contain something like "D:\Driver", or "E:\Driver", or "F:\Driver".

8. Click the OK button.

This will return you to the Upgrade Device Driver Wizard.

9.Select (single-click)the file named BenQ FP91GP/FP91GX, and click the Next button.

10.Click Next.

This will copy the appropriate monitor driver files to your computer.

11. Click Finish.

On Windows 2000, this will close the wizard and return you to the Monitor Properties window, now renamed ‘BenQ FP91GP/FP91GX Properties’.

Alternatively, on Windows ME and 98, this will return you to the Advanced Display Properties window, skipping the next step.

Should you wish to do so, this is where you can change the screen refresh rate and other monitor properties to suit your needs. See How to adjust the screen refresh rate for details.

12. In Windows 2000, click Close.

This will close the BenQ FP91GP/FP91GX Properties window and return you to the Advanced Display Properties window.

Should you wish to do so, this is where you can change the screen refresh rate and other monitor properties to suit your needs. See How to adjust the screen refresh rate for details.

13. In Windows 2000, click OK, or in Windows 98 or ME, click Close.

This will close the Advanced Display Properties window, and return you to the Display Properties window.

Getting the most from your BenQ monitor 16

Should you wish to do so, this is where you can change the screen resolution (area and color). See How to adjust the screen resolution for details.

14. Click OK.

This will close the Display Properties window, and if you made any changes to the screen resolution, Windows 2000 will prompt you for confirmation to effect the changes, and further confirmation to accept the changes. Click OK and Yes respectively.

Alternatively, Windows ME or 98 will ask you if want to make the changes and reboot or not reboot. You should select the reboot option as this causes Windows to load the new drivers when it next restarts.

17 Getting the most from your BenQ monitor

151 How to adjust the screen resolution

Due to the nature of liquid crystal display (LCD) technology, the picture resolution is always fixed. The best possible picture for your FP91GP/FP91GX is achieved with a resolution of 1280x1024. This is called “Native Resolution” or maximal resolution – that is, the clearest picture. Lower resolutions are displayed on a full screen through an interpolation circuit. However flaws do occur with the interpolated resolution.

To take full advantage of LCD technology you should select the native resolution setting of 1280x1024.

1. Open Display Properties and select the Settings tab.

You can open Display Properties by right-clickingon the Windows desktop and selecting Properties from thepop-upmenu.

2. Use the slider in the ‘Screen area’ section to adjust the screen resolution.

Select the recommended resolution of 1280x1024 then click Apply.

If you select some other resolution, be aware that this other resolution is interpolated and may not accurately display the screen image as well as it could do at the native resolution setting.

3.Click OK then Yes.

4.Close the Display Properties window.

How to adjust the screen resolution 18

161 How to adjust the screen refresh rate

You don’t have to choose the highest possible refresh rate on an LCD display, because it is not technically possible for an LCD display to flicker. The best results are obtained by using the factory modes already set in your computer. There is a table with the factory modes in the specification section of this User’s Manual.

You can choose 60, 70 and 75 Hertz, (but not 72Hz) for the native resolution of 1280x1024.

1.Double click the Display icon in Control Panel.

2.From the Display Properties window, select the Settings tab and click the Advanced button.

3.Select the Adapter tab, and select an appropriate refresh rate to match one of the applicable factory modes as listed in the specification table.

4.Click Change, OK, then Yes.

5.Close the Display Properties window.

19 How to adjust the screen refresh rate

171 How to set the picture optimization

The easiest way to obtain an optimal display is to use the i key function. Press thei key to optimize and adjust the screen settings automatically for you. Refer toHow to adjust your monitor for button locations and functionality.

If you wish to, you can always adjust the screen settings manually using the buttons on the monitor panel. To assist you in this endeavour, BenQ has provided a screen test image utility which you can use to check for screen color, grayscale and line gradient display.

1.Run the test program auto.exe from CD-ROM.You could also use any other image, such as the desktop of your operating system. However, we recommend that you use auto.exe. As you run auto.exe, a test pattern displays.

2.Press the Enter key to access the monitor On-ScreenDisplay (OSD) menu.

3.If you notice a vertical noise, press the WorXkeys to select Geometry and press the Enter key. Then press theWorXkeys to select Pixel Clock and press the Enter key again. Then, press theWorXkey to adjust the monitor until the noise disappears.

4.If you notice a horizontal noise, press theWorXkeys to select Geometry and press the Enter key. Then press theWorXkeys to select Phase and press the Enter key again. Then, press theWorXkeys to adjust the monitor until the noise disappears.

To make sure the i key function performs well, you have to select one of the supported modes. If thei key does not work properly and the NON PRESET MODE message is on the OSD, it means you are not using one of the supported modes. Please set your monitor to use one of the supported modes as listed at the end of this manual.

How to set the picture optimization 20

181 How to adjust your monitor

A Look at the Control Panel

There are 6 keys for user’s control including “iKey”, “Exit”, “Enter”, “<” and “>” key and a power swith. The following descriptions are the introduction of these keys & switch.

1.iKey” : Adjust vertical position, phase, horizontal position and pixel clock automatically.

2.“Exit” key: Back to previous menu or exit OSD. This key is also the hot key for Input Select.

3.W(Left) key: For Left/Decrease adjustment. Left key is the hot key for Contrast.

4.X(Right) key: For Right/Increase adjustment. Right key is the hot key for Brightness.

5.“Enter” key: Activate OSD, enter sub menu, select items, and confirm selection.

6.“Power”: Turn the power on or off.

21 How to adjust your monitor

Hot Key Mode

Brightness hot key and Contrast hot key

Press the Xkey to enter the Brightness menu. Further press theWorXkeys to adjust the degree of screen brightness and press the Exit key to exit OSD.

Press the Wkey to enter the Contrast menu. Further press theWorXkeys to adjust the degree of screen contrast and press the Exit key to exit OSD.

Input Select hot key

Press the Exit key to enter the Input Select menu.

Further press the WorXkeys to indicate the input source and press the Enter key. When done, press the Exit key to exit OSD.

Main Menu Mode

Control Functions Available in Main Menu

Main Menu

How to adjust your monitor 22

Luminance sub menu

Press the WorXkeys to adjust the degree of Brightness.

Press the Exit key to return to previous menu.

Press the WorXkeys to adjust the degree of Contrast.

Press the Exit to return to previous menu.

23 How to adjust your monitor

Geometry sub menu

Press the WorXkeys to adjust the display

Horizontal Position.

Press the Exit key to return to previous menu.

Press the WorXkeys to adjust the display

Vertical Position.

Press the Exit key to return to previous menu.

.

Press the WorXkey to adjustadjust the monitor Pixel Clock.

Press the Exit key to return to previous menu.

Press the WorX keys to adjust the degree of screen display Phase.

Press the Exit key to return to previous menu.

How to adjust your monitor 24

Color sub menu

Reddish - applies a warm tint to the image and is factory pre-setto the news print standard white color.

Bluish - applies a cool tint to the image and is factory pre-setto the PC industry standard white color.

Normal - allows video and still photographs to be viewed with natural coloring. This is the factory default color.

User Preset

User Preset is provided so you can tailor the image color tint to suit your liking. The blend of the Red, Green and Blue primary colors can be altered to change the color tint of the image. The default start setting is 50. Decreasing one or more of the colors will reduce their respective influence on the color tint of the image. e.g. if you reduce the Blue level the image will gradually take on a yellowish tint. If you reduce Green, the image will become a magenta tint.

To reset the defaults, seeRecall sub menu for details.

25 How to adjust your monitor

OSD sub menu

Press the WorXkeys to to adjust the

Horizontal Position of the OSD.

Press the Exit key to return to previous menu.

Press theWorXkeys to adjust the Vertical

Position of the OSD.

Press the Exit key to return to previous menu.

Press theWorXkeys to adjust the display time of the OSD.

Press the Exit key to return to previous menu.

How to adjust your monitor 26

Languages Sub menu

Press the WorXkeys to select a language to have the OSD display menus in that language. Press the Exit key to return to previous menu.

27 How to adjust your monitor

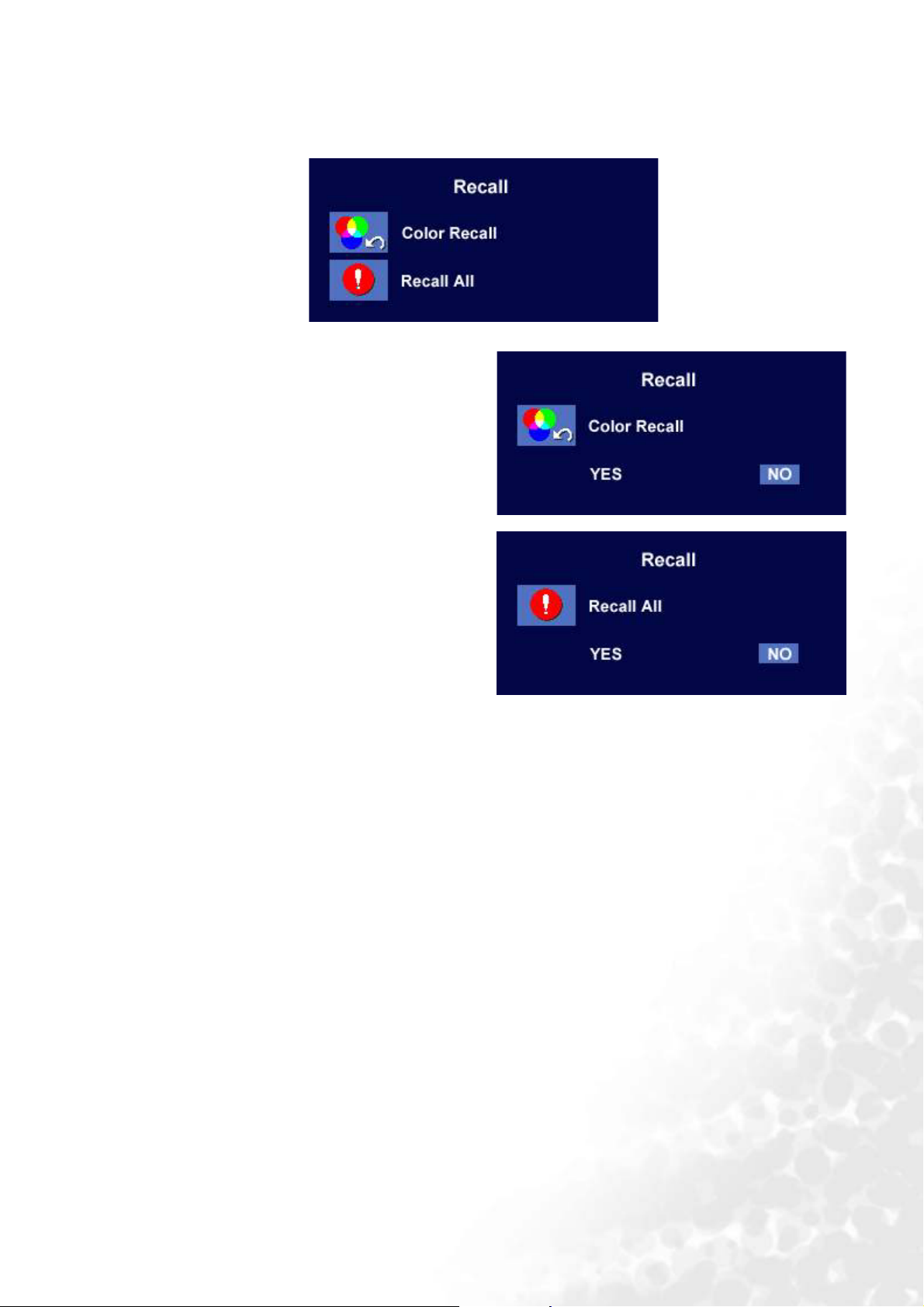

Recall sub menu

Press the WorXkeys to select Color Recall. Press the Enter key to recall color settings, or press the Exit key to return to previous menu.

Press the WorXkeys to select Recall All. Press the Enter key to recall position and color settings, or press the Exit key to return to previous menu.

How to adjust your monitor 28

Miscellaneous sub menu

Input Select:

Press the WorXkeys to selectD-sub(analog) or DVI (digital) input to activate the new settings.

Press the Exit key to return to previous menu.

Sharpness:

Press the WorXkeys to adjust the degree of Sharpness.

Press the Exit key to return to previous menu.

Display Information:

Select Display Information to display the current monitor proerty settings.

Press the Exit key to return to previous menu.

29 How to adjust your monitor

191 Troubleshooting

Frequently Asked Questions (FAQ)

The image is blurred:

Read theHow to adjust the screen resolution section, and then select the correct resolution, refresh rate and make adjustments based on these instructions.

How do you use a VGA extension cable?

Remove the extension cable for the test. Is the image now in focus? If not, optimize the image by working through the instructions in the How to adjust the screen refresh rate section It is normal for blurring to occur due to conduction losses in extension cables. You can minimize these losses by using an extension cable with better conduction quality or with abuilt-inbooster.

Does the blurring only occur at resolutions lower than the native (maximum) resolution?

Read the How to adjust the screen resolution section. Select the native resolution.

Pixel errors can be seen:

One of several pixels is permanently black, one or more pixels are permanently white, one or more pixels are permanently red, green, blue or another color.

Clean the LCD screen.

Cycle power on-off.

•These are pixels that are permanently on or off and is a natural defect that occurs in LCD technology.

The image has a faulty coloration:

It has a yellow, blue or pink appearance.

On the monitor, press “Enter” key and press WorXkey to move to the “Recall” icon and press “Enter” key to enter “Recall” sub menu. PressWorXkey to select “Color Recall” and select “Yes” in “Color Recall” sub menu, then press “Enter” key to recall to factory settings. If the image is still not correct and the OSD also has faulty coloration, this means one of the three primary colors is missing in the signal input. Now check the signal cable connectors. If any pin is bent or broken off, please contact your dealer to get necessary support.

No image can be seen:

Is the prompt on the display illuminated in green?

If the LED is illuminated in green and there is a message “Out of Range” on the screen, this means you are using a display mode that this monitor does not support, please change the setting to one of the supported mode. Please read “Supported operating modes” section.

Is the prompt on the display illuminated in orange?

If the LED is illuminated in orange, the power management mode is active. Press any button on the computer keyboard or move the mouse. If that does not help, check the signal cable connectors. If any pin is bent or broken off, please contact your dealer to get necessary support.

Is the prompt on the display not illuminated at all?

Check the power supply mains socket, the external power supply and the mains switch.

Troubleshooting 30

The image is distorted, flashes or flickers:

Read theHow to adjust the screen resolution section and then select the correct resolution, refresh rate and make adjustments based on these instructions.

The image is displaced in one direction:

Read theHow to adjust the screen resolution section and then select the correct resolution, refresh rate and make adjustments based on these instructions..

Need More Help?

If your problems remain after checking this manual, please contact your place of purchase or e-mailus at: Support@BenQ.com

31 Troubleshooting

1











10Supported operating modes





















Incoming display mode (Input timing)





Resolution

Horizontal

Vertical

Pixel

Comment





Frequency (KHz)

Frequency (Hz)

Frequency (MHz)





640x350

31.47(P)

70.08(N)

25.17

DOS



720x400

31.47(N)

70.08(P)

28.32

DOS



640x480

31.47(N)

60.00(N)

25.18

DOS



640x480

35.00(N)

67.00(N)

30.24

Macintosh



640x480

37.86(N)

72.80(N)

31.50

VESA



640x480

37.50(N)

75.00(N)

31.50

VESA



800x600

35.16(P)

56.25(P)

36.00

VESA



800x600

37.88(P)

60.32(P)

40.00

VESA



800x600

48.08(P)

72.19(P)

50.00

VESA



800x600

46.87(P)

75.00(P)

49.50

VESA



832x624

49.72(N)

74.55(N)

57.29

Macintosh



1024x768

48.36(N)

60.00(N)

65.00

VESA



1024x768

56.48(N)

70.10(N)

75.00

VESA



1024x768

60.02(P)

75.00(P)

78.75

VESA



1152x864

67.50(P)

75.00(P)

108.00

VESA



1152x870

68.68(N)

75.06(N)

100.00

Macintosh



1152x900

61.80(N)

66.00(N)

94.50

SUN 66



1152x900

71.81(N)

76.14(N)

108.00

SUN



1280x1024

64.00(P)

60.00(P)

108.00

VESA



1280x1024

75.83(N)

71.53(N)

128.00

IBMI



1280x1024

80.00(P)

75.00(P)

135.00

VESA



1280x1024

81.18(N)

76.16(N)

135.09

SPARC2

Modes not listed in the table may not be supported. For an optimal picture, we recommended you choose a mode listed in the table above.

There are 22 available modes that are compatible with Windows.

Image disruption may occur as a result of signal frequency differences from VGA cards which do not correspond with the usual standard. This is not, however, an error. You may improve this situation by altering an automatic setting or by manually changing the phase setting and the pixel frequency from the “Geometry” menu.

If you switch off the monitor, interference lines can occur on your screen. But do not be concerned about this, as it is normal.

To extend the service life of the product, we recommend that you use your computer's power management function.

Supported operating modes 32

11Specifications

BenQ FP91GP

Model

FP91GP

Display type

19.0" , active, TFT

Viewable diagonal

480 mm

Native (maximum) resolution

1,280X1,024

Colors

16.7 million

Contrast / Brightness

1000:1 / 250 cd/m2

Response time *

20 ms (Typ.)



8 ms (GTG)

Viewing angle (left/right, up/down)

170, 170 (CR=10)



178, 178 (CR=5)

Line frequency

31 - 81 kHz Multifrequency monitor

Image frequency

56 - 76 Hz modes within these parameters

Image checks

Digital, OSD Technology, iKey (automatic image



setting)

Controls

5 buttons and iKey.

Functions

Contrast, brightness, vert. & hor. image position,

phase, pixel clock, color balance, color palette,





multiple-languageOSD, OSD position, status



indicator

Power Management

VESA DPMS, EPA

Max. power consumption

40 Watt

Power saving mode

< 1 Watt, 120 V



< 2 Watt, 240 V

Input signal

































PC

RGB analog 0.7 Vpp/75 Ohm positive



Digital: DVI-D(optional)

Synchronisation

TTL separate signal connection 15-pinminiD-sub



cable

Temperature (operating)

0 °C - 40 °C

Air humidity (operating)

10% - 90%





Certifications

TCO 03/99, TÜV/Ergonomics, TÜV/ GS, FCC



Class B, ISO 13406-2,VCCI, CB Report, CE,



C-Tick,BSMI, Fimko, GOST, CSA, CCC

33 Specifications

Operating voltage

Automatic switched mode power supply,



90-264V,47-63Hz

Dimensions (H x W x D)

410.1 x 422.2 x 168 mm

Weight

5.1 kg

*Response Time: The time it takes to switch a pixel off and then on and then off again (or from black to white and back to black). A low response time is desirable for the display of moving images without ghosting. The Response Time quoted for many LCD monitors is specific to transitions from black to white and back again, it does not specify the time required to switch between the many gray levels or colors that make up an image.

Gray to Gray or GTG Response Time: “Real world” video content contains a combination of grayscale images. It generally takes longer for a pixel to transition to an intermediate level of intensity (i.e. a gray or color level) than it does for it to turn completely black or completely white. For example the "Gray to Gray response time" of an LCD panel may generally be 30 to 40 ms while the "Response Time" is 12 ms . BenQ's AMA technology greatly reduces the GTG response time so moving parts of the image are clearer, no matter what the image content is. With Advanced Motion Acceleration (AMA), the average GTG response time can be as low as 8 ms.

For a more detailed explanation, visit BenQ's AMA web page at http://www.benq.com/InfoPage/index.cfm?id=1

Specifications 34

BenQ FP91GX

Model

FP91GX

Display type

19.0" , active, TFT

Viewable diagonal

480 mm

Native (maximum) resolution

1,280X1,024

Colors

16.2 million

Contrast / Brightness

550:1 / 270 cd/m2

Response time *

8 ms (Typ.)



4 ms (GTG)

Viewing angle (left/right, up/down)

140, 135 (CR=10)



160, 160 (CR=5)

Line frequency

31 - 81 kHz Multifrequency monitor

Image frequency

56 - 76 Hz modes within these parameters

Image checks

Digital, OSD Technology, iKey (automatic image



setting)

Controls

5 buttons and iKey.

Functions

Contrast, brightness, vert. & hor. image position,

phase, pixel clock, color balance, color palette,





multiple-languageOSD, OSD position, status



indicator

Power Management

VESA DPMS, EPA

Max. power consumption

40 Watt

Power saving mode

< 1 Watt, 120 V



< 2 Watt, 240 V

Input signal

































PC

RGB analog 0.7 Vpp/75 Ohm positive



Digital: DVI-D(optional)

Synchronisation

TTL separate signal connection 15-pinminiD-sub



cable

Temperature (operating)

0 °C - 40 °C

Air humidity (operating)

10% - 90%





Certifications

TCO 03/99, TÜV/Ergonomics, TÜV/ GS, FCC



Class B, ISO 13406-2,VCCI, CB Report, CE,



C-Tick,BSMI, Fimko, GOST, CSA, CCC

35 Specifications

Operating voltage

Automatic switched mode power supply,



90-264V,47-63Hz

Dimensions (H x W x D)

410.1 x 422.2 x 168 mm

Weight

5.1 kg

*Response Time: The time it takes to switch a pixel off and then on and then off again (or from black to white and back to black). A low response time is desirable for the display of moving images without ghosting. The Response Time quoted for many LCD monitors is specific to transitions from black to white and back again, it does not specify the time required to switch between the many gray levels or colors that make up an image.

Gray to Gray or GTG Response Time: “Real world” video content contains a combination of grayscale images. It generally takes longer for a pixel to transition to an intermediate level of intensity (i.e. a gray or color level) than it does for it to turn completely black or completely white. For example the "Gray to Gray response time" of an LCD panel may generally be 30 to 40 ms while the "Response Time" is 12 ms . BenQ's AMA technology greatly reduces the GTG response time so moving parts of the image are clearer, no matter what the image content is. With Advanced Motion Acceleration (AMA), the average GTG response time can be as low as 4 ms.

For a more detailed explanation, visit BenQ's AMA web page at http://www.benq.com/InfoPage/index.cfm?id=1

Specifications 36
