AYP Y7W402A Parts List

Size:
53.48 Kb
Download

Y7W402A (1999 & Before)

Page 1 of 7

GEAR CASE



Y7W402A (1999 & Before)

Page 2 of 7

GEAR CASE













Ref # Part Number

Qty Description

1

17490416

SCREW.1/4-20



2

137055X004

BRACKET.GEARCASE

3

137053

SHIFTER

4

57072

SEAL

5

702710

PIN GROOVED 1/8X5

6

48373

KIT GEARCASE HALV

7

77881

BEARING

8

137051

SHAFT.WORM

9

137077

SHAFT.DRIVE.SD

10

57079

THRUST WASHER

11

131484

CLUTCH YOKE

12

700343

BUSHING.GEAR BOX

13

86447

PLUG PM

14

137050

GEAR.HELICAL

15

750436X

CLUTCH JAW

16

750369

SUB= 6066J

17

12000003

RING T

18

850848

HI PRO KEY

19

81585X004

SPRING BRKT

Y7W402A (1999 & Before)

Page 3 of 7

ROTARY LAWN MOWER



Y7W402A (1999 & Before)



Page 4 of 7

ROTARY LAWN MOWER















Ref # Part Number

Qty Description





1

132813X479

SUB= 151721X479



2

132001

ROPE GUIDE





3

63601

SUB= 73800400

4

131959

BOLT.HANDLE.LM

5

851660

"BAR,CONT"





6

66426

SUB= 7192J





7

144929

SCREW.HXHD.WASH.

8

700417

"CONTROL, THROTTLE"

9

850724

SUB= 155890





10

130861

"CABLE,ENG ZONE CO"

11

851841

UPPER HNDL





12

51793

HAIRPIN COTTER

13

136376

KNOB HANDLE

14

140540

SKIRT.REAR.FGD.22

15

750097

TAPPING SCREW

16

701969X479

SUB= 150959





17

701971X479

SUB= 150959





18

55187

SCREW





19

59289

STEEL WASHER

20

74760612

SUB= 74780612

21

751592

LOCKNUT PM

22

700325X007

BRACKET.ADJ.9POS.

23

84920

SUB= 146630





24

87584X004

"BRKT,DEFL

PM"

25

700331X004

SPRING SELECTOR

26

87877

KNOB PM





27

851119X004

AXLE ARM ASSY R

28

61651

WASHER





29

142748

BOLT SHLD 3/8-16

30

88017

WHEEL TIRE PM

31

57143

WAVE WASHER

32

83923

HEX FLANGE LOCKNT

33

850709

ROD SUPPORT

34

851856

SCREW





35

88348

WASHER PM





36

850998

SCREW





37

851201X004

WASHER





38

134612

SUB= 48283





39

132352X479

BAFFLE FRONT 22SD

40

702226

KIT.HSG.22SD.FWGD

41

54583

SCREW





42

87999X417

SUB= 87999X479

43

851084

SCREW





44

850263

LOCKWASHER

45

851074

"WASHER,HARDEN"

46

141114

"BLADE.MULCH.22"""

47

851514

ADAPTOR.BLADE.LM

48

851854

"ROD,HINGE

"



49

851852X004

"BRKT,HSG"





50

88001X417

SUB= 88001X479

51

851855

"SPRING,TORSION"

52

73510400

NUT





54

851750

SUB= 532851750

55

87677

HI PRO KEY PM

56

59708

SCREW





57

84596

ENGINE.PULLEY.FWG

58

213146

CABLE CLAMP

59

83816

SCREW PM





Y7W402A (1999 & Before)

Page 5 of 7

ROTARY LAWN MOWER











Ref # Part Number

Qty Description

60

82432X479

BAFFLE.MULCH.22SD



61

85463

DECAL-DANGERPM

62



REFER TO IMAGE

63

83731

PUSH ON SPEED NUT

64

851552

"SCREW,PAN HD"

65

69180

LOCKNUT

66

74961008

SCREW WS

67

74100412

SCREW



83976X479

"BAFFLE,REAR"



145658

MANUAL.GEN.SP.E.



146082

MANUAL.P.Y7W402A



702748

LOGO DECAL



GCK2200

SUB= GCK3200A

Y7W402A (1999 & Before)

Page 6 of 7

ROTARY LAWN MOWER

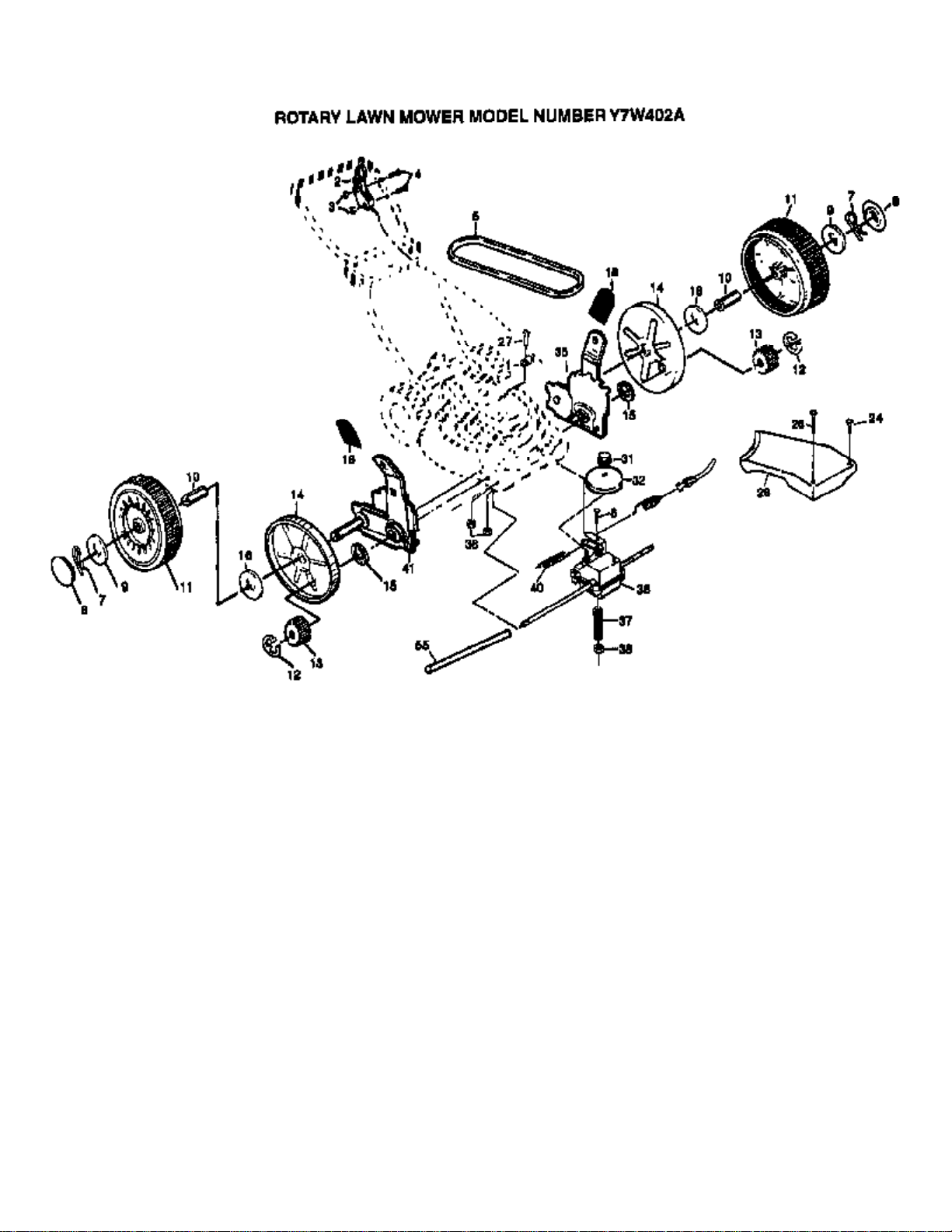

Y7W402A (1999 & Before)

Page 7 of 7

ROTARY LAWN MOWER











Ref # Part Number

Qty Description

1

87930

GUIDE CLIP PM



2

700615

CONTROL.DRIVE

3

69180

LOCKNUT

4

750029

SCREW

5

137078

SUB= 157769

6

700875

BOLT.1/4-20X2.0

7

85179

RETAINER CLIP PM

8

77400

HUB CAP

9

52160

WASHER

10

88446

BUSHING.HEX

11

88558

WHEEL.DRIVE.ASM

12

1200005

E-RING

13

137054

PINION.GEAR

14

88080

DUST SHROUD PM

15

88118

WASHER PM

16

67725

WASHER FLUT

18

87877

KNOB PM

24

136797

SUB= 149746

26

87866

SUB= 146072

27

750097

TAPPING SCREW

28

137080

COVER DRIVE BLK

31

132010

LOCKNUT

32

137052

PULLEY.DRIVEN

35

700339

SUB= 151228

36

702510

SUB= 48366

37

137090

SPRING.TENSION

38

63601

SUB= 73800400

40

75192

SPRING

41

700340

SUB= 151226

55

86012

DRV SHAFT TUBE PM



702746

DECAL.DRIVE.COVER
