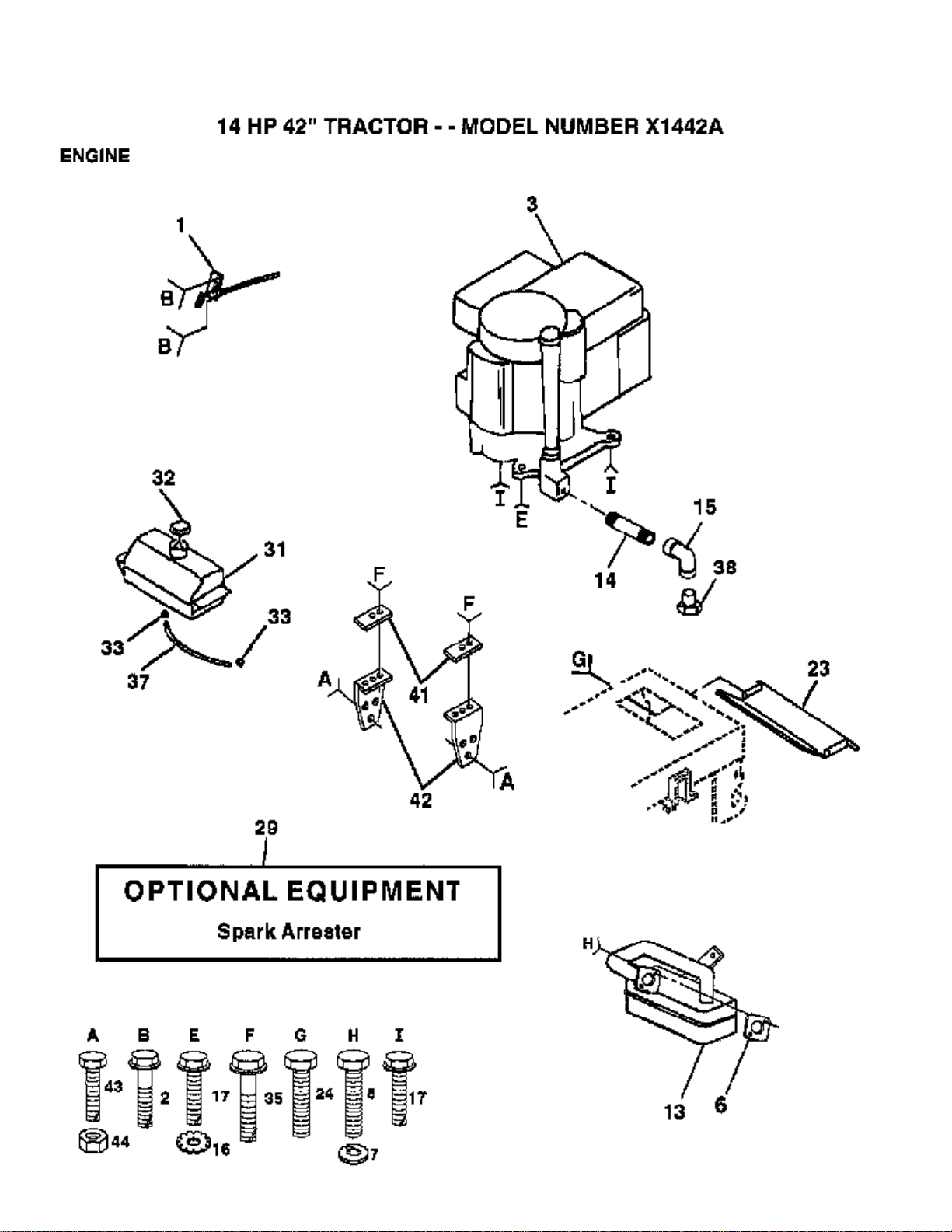

AYP X1442A Parts List

Size:
191.17 Kb
Download

X1442A (1993)

Page 1 of 28

CHASSIS AND ENCLOSURES



X1442A (1993)





Page 2 of 28

CHASSIS AND ENCLOSURES











Ref # Part Number

Qty Description



1

135034

SUB= 145501



2

137275

SUB= 145009



3

17490612

SCREW



4

10040400

LOCKWASHER



6

131343X037

SADDLE. 6SP



7

17490608

SCREW LT



9

124252X

SUB= 140398



10

5479J

PLUG BUTTON T

11

132178

DASH PANEL LH

13

132069

SUB= 532132069

14

17490612

SCREW



15

135138X014

PLATE.SLKSCR

16

132177

LOWER DASH



17

132635X475

HOOD



18

74180512

SCREW



19

19111116

WASHER



20

73510500

NUT



21

74760620

SUB= 74780620



22

19131312

WASHER



23

73680600

SUB= 73690600



24

124130X

SUPPORT ASS'Y

26

73200400

NUT, HEX 1/4-20UNC

27

74180512

SCREW



28

131716

SUB= 532131716

30

109872X475

FENDER



31

136619

BRKT FENDER



32

17490612

SCREW



33

105465X475

SUB= 145244X475

34

105464X475

SUB= 145243X475

35

72110606

BOLT



36

73680600

SUB= 73690600



37

136619

BRKT FENDER



38

105419X475

"STRAP,GRILL

"

39

73510500

NUT



41

106784X

SUB= 155013



42

104618X

SUB= 155013



43

73510400

NUT



44

109808X

HOOD LATCH

T

45

74191008

SCREW



46

10071000

LOCKWASHER



47

2029J

WELDNUT



48

123481X

SUB= 7605J



48

73680400

SUB= 73690400



53

137655X475

PANEL.SIDE.RH

54

132637X475

PANEL.SIDE.LH

55

19091216

WASHER PM



56

73220400

SUB= 50675



57

7206J

SPACER LT



58

19070818

WASHER



59

73731000

NUT



60

74981020

SCREW



61

74760614

SUB= 74760616



66

123198X

SUB= 146525



71

124392X417

SUB= 147717



72

106395X

LENS LT



73

17211010

SCREW LT



74

137654

SUB= 140181



75

104755X

"""J"" FASTENER LT"

X1442A (1993)



Page 3 of 28

CHASSIS AND ENCLOSURES











Ref # Part Number

Qty Description

76

17490512

SCREW



77

19131210

WASHER

78

132644

SUB= 532132644

79

17490412

SCREW HEX CRT

80

19091016

WASHER

85

74760512

BOLT

87

73680500

SUB= 73690500

91

74760612

SUB= 74780612

92

73680600

SUB= 73690600

93

11050600

LOCKWASHER

94

74760612

SUB= 74780612

95

19131312

WASHER

96

73680600

SUB= 73690600

101

2751R

CLIP T

103

134774

PIVOT BRKT LH

104

134775

PIVOT BRKT RH

105

72140608

SUB= 72110608

110

110436X

SUB= 9151R

112

73800600

NUT

X1442A (1993)

Page 4 of 28

DECALS



X1442A (1993)



Page 5 of 28

DECALS













Ref # Part Number

Qty Description

1

136795

SUB= 138956



2

128007

"DECAL,GRILL "

3

128015

"DECAL,HOOD RH "

4

138654

DECAL.ENG.272613

5

134544

DECAL.CHASS.6SP

6

133795

DECAL CAUTION

7

101892X

DECAL T

8

128018

NLA

9

135013

NLA

10

136832

DECAL

11

137259

"DECAL, WARNING"

13

128008

"DECAL,STR WHL "

16

128006

"DECAL,LOGO"



138311

DECAL HANDLE LIFT



139674

MANUAL.P.X1442A



137372

MANUAL



BD20

42" SNOW BLOWER



C42

GRASS CATCHER



LC05

WHEEL WTS.



SB20

40" SNOW THROWER

X1442A (1993)

Page 6 of 28

DRIVE



X1442A (1993)



Page 7 of 28

DRIVE













Ref # Part Number

Qty Description

1

137369

SUB= 137367



2

110422X

SUB= 146682

3

123667X

"PULLEY,TRANSAXLE"

4

12000028

SUB= 2267J

5

121520X

STRAP TORQUE

6

17490512

SCREW

7

130802

SUB= 162240

8

131679

SHIFT ROD

9

19151216

WASHER

10

76020416

PIN COTTER 1/8

11

105701X

WASH-SHFTPLT LT

12

19091210

WASHER LT

13

71040412

SUB= 74550412

14

10040400

LOCKWASHER

15

74760540

BOLT

16

73680500

SUB= 73690500

17

121520X

STRAP TORQUE

18

74760612

SUB= 74780612

19

73680600

SUB= 73690600

20

17490512

SCREW

21

106933X

KNOB T (1/2-HOLE)

22

130804

BRAKE ROD

23

73800600

NUT

24

73350600

NUT

25

106888X

SPRING ROD LT

26

19131316

WASHER

27

76020412

COTTER PIN

28

133261

BRAKE PARK ROD

29

71673

PLUNGER CAP T

30

130807

TRANSAXLE MTG BKT

31

127289

"KEEPER,BELT LH"

32

74760512

BOLT

33

73680500

SUB= 73690500

34

122424X

SUB= 149001

35

120183X

NYLON BEARING

36

19211616

WASHER LT

37

1572H

SUB= 2882J

38

123674X

PULLEY.IDLER.FLAT

39

74760644

BOLT

40

4470J

SPACER T

41

109070X

BELT KEEPER LT

42

19131312

WASHER

43

73680600

SUB= 73690600

44

105706X

"LY, BEARING"

45

110812X

WASHER LT

46

12000039

KLIP RING

47

127783

SUB= 139245

48

123789X

ARM IDLER

49

123205X

RETAIN BELT

50

74760624

SUB= 74930624

51

73680600

SUB= 73690600

52

19131316

WASHER

53

105710X

"LINK, CLUTCH T"

54

76020412

COTTER PIN

55

105709X

"SPRING, RETURN LT"

56

76020412

COTTER PIN

57

131006

BELT-V

58

127290

"KEEPER,BELT RH"

X1442A (1993)



Page 8 of 28

DRIVE













Ref # Part Number

Qty Description

59

136715

SUB= 140312



60

19131312

WASHER

61

17490612

SCREW

62

8883R

PEDAL COVER T

63

134825

SUB= 136004

64

71170764

BOLT

65

10040700

LOCKWASHER

66

129921

KEEPER.BELT.ENG.L

67

74760616

BOLT

68

19131312

WASHER

69

73680600

SUB= 73690600

70

134683

KEEPER BELT ENG

71

74760616

BOLT

72

19132012

WASHER

73

73680600

SUB= 73690600

74

109502X

SPACER LT

75

121749X

WASHER

76

12000001

E-RINGLT

77

123583X

SQUARE KEY

78

121748X

WASHER

83

17490612

SCREW

X1442A (1993)

Page 9 of 28

ELECTRICAL



X1442A (1993)



Page 10 of 28

ELECTRICAL













Ref # Part Number

Qty Description

1

121265X

SUB= 123899X



2

102972X

SUB= 918102972X

3

124211X

NUT IGNITION

4

139723

HARNESS.IGN.B&S

5

4207J

CABLE T

6

132202

SUB= 146147

7

4206J

CABLE-BATTERYT

8

133753

BTRY CASE W/O LID

9

109596X

HOSE CLAMP T

10

138406

SUB= 146154

11

10090400

SUB= 10040400

12

73350400

NUT

13

74780408

BOLT

14

11050400

LOCKWASHER

15

73510400

NUT

16

131563

SUB= 154336

17

109553X

SWITCH INTERLOCKT

19

104445X

SWITCH-INTER.GT

20

17021008

SCREW

21

121305X

SWITCH SEAT

22

121264X

"CAP,BATTERY "

23

74760412

BOLT LT

24

19091016

WASHER

25

10040400

LOCKWASHER

26

73220400

SUB= 50675

27

122147X

KEY

28

108824X

FUSE HYT

29

109238X

TUBE T

30

123620X

SUB= 141226

31

110712X

SWITCH LT

32

136849

SUB= 136850

33

7662J

SUB= 4152J

34

108236X

BRACKET LT

35

17021008

SCREW

36

130890

SWITCH BRACKET

37

17021008

SCREW

38

11150400

LOCKWASHER

39

7192J

WIRE TIE

40

719J

SUB= 154336
