AYP WE1236B Parts List

Size:
230.92 Kb
Download

WE1236B (1994)

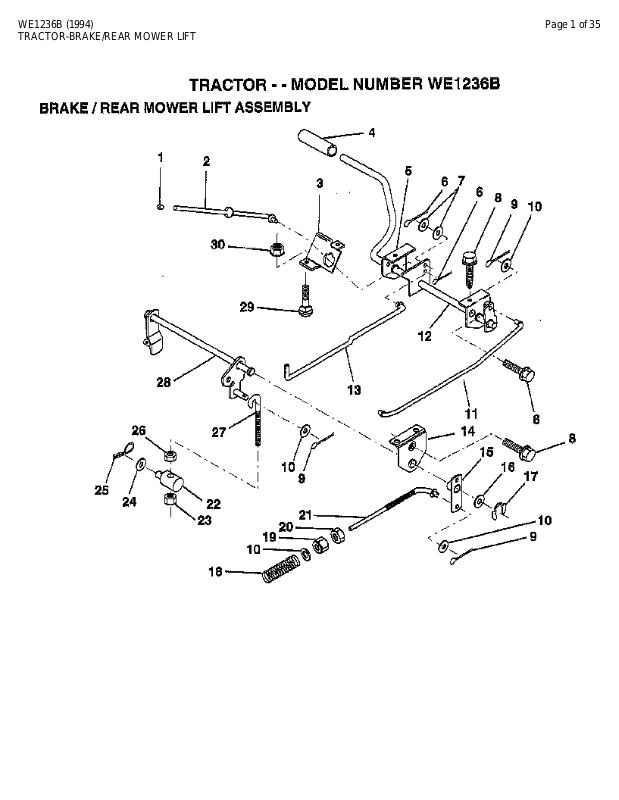

Page 1 of 35

TRACTOR-BRAKE/REARMOWER LIFT



WE1236B (1994)



Page 2 of 35

TRACTOR-BRAKE/REARMOWER LIFT











Ref # Part Number

Qty Description

1

71673

PLUNGER CAP T



2

123436X

"ROD,PARK BRAKE"

3

123437X

"BRKT,PARK BRAKE"

4

8156H

FOOT PEDAL COVER

5

122504X

"BRKT,CLU PEDAL LH"

6

76020312

SUB= 3145

7

19131016

WASHER

8

17490508

SCREW LT

9

76020412

COTTER PIN

10

19131316

WASHER

11

123543X

"ROD,FRT BRAKE"

12

139933

PEDAL ASM CL/BK36

13

123394X

"ROD,CLUTCH"

14

121978X

"BRKT,LIFT SHAFT"

15

133332

PVT BRAKE ARM ASM

16

19251816

WASHER T

17

12000034

KLIP RING

18

106888X

SPRING ROD LT

19

73680600

SUB= 73690600

20

73350600

NUT

21

131460

SUB= 532131460

22

144585

TRUNNION.LIFT.

23

73680600

SUB= 73690600

24

19132012

WASHER

25

4921H

SPRING.RETAINER

26

73930600

LOCKNUT

27

127369

"LINK, MOWER REAR"

28

140776

LIFT ASM MOW REAR

29

72110506

SUB= 72270506

30

73510500

NUT

WE1236B (1994)

Page 3 of 35

TRACTOR-DANATRANSAXLE



WE1236B (1994)



Page 4 of 35

TRACTOR-DANATRANSAXLE











Ref # Part Number

Qty Description

1

142671

HOUSING UPPER TRN



2

2274J

SUB= 74760412

3

134400

SUB= 68003

4

105904X

"SPRING, DETENT LT"

5

105905X

"SCREW, SET LT"

6

138235

KIT SHIFTER ASM

7

134399

SHIFTER BOOT

8

134791

SCREW TAP W/SEAL

9

138241

SQUARE RING

10

142672

SUB= 2225J

11

134793

ASM KIT SHIM 4689

12

142673

BEARING FLAN-DANA

13

120415X

WASHER T

14

142674

KEY WOODRUFF-DANA

15

138234

AS KIT INPUT SHFT

16

110078X

PINION 14T T

17

105909X

"RING,RETAINING LT"

18

105910X

"CHAIN,24 PTCH LT"

19

105911X

BEARING.FLNG.5510

20

142675

GEAR SPUR 14 TTH

21

138246

COLLAR CLUTCH

22

138236

ASM KIT CLTCH KEY

23

73810500

NUT.LOCK.5/16-24

24

142676

SHAFT INTERM DANA

25

2244J

WOODRUFF KEY

26

105916X

"RING,RETAINING LT"

27

120470X

SPROCKET 18T T

28

110070X

SPACER YT

29

142677

GEAR SPUR 37 TTH

30

142681

GEAR SPUR 35 TTH

31

120405X

SUB= 124644X

32

108980X

GEAR 25T LT

33

120406X

GEAR SPUR 22 TT

34

134796

SPUR GEAR 19T

35

105925X

"WASHER, PLAIN LT"

36

2232J

WASHER 025

37

108978X

SPACER

38

110079X

ASSM GEAR COMB

39

124639X

SHAFT IDLER

40

120472X

SPACER T

41

105928X

SPROCKET 9T LT

42

110084X

SUB= 167148

43

134394

ASM KIT SHIM

44

120473X

SHAFT T

45

142678

GEAR SPUR 12 TTH

46

142679

GEAR SPUR 15 TTH

47

120407X

SUB= 124641X

48

106589X

"GEAR, SPUR 25T LT"

49

120408X

GEAR 28T T

50

105937X

"GEAR, SPUR 31T LT"

51

2226J

WASHER 060

52

134401

NEOPRENE WASHER

53

2264J

WASHER 031

54

120474X

SUB= 154658

55

110081X

GEAR 15T T

56

105941X

"RING,RETAINING LT"

57

110071X

SUB= 120478X

58

120952X

SHAFT T

WE1236B (1994)



Page 5 of 35

TRACTOR-DANATRANSAXLE











Ref # Part Number

Qty Description

59

110082X

GEAR 1ST T



60

120475X

SUB= 154659

61

142680

HOUSING LOWER TNS

62

120961X

PUCK T

63

7294J

BRAKE DISC. T

64

108989X

SPACER LT

65

120953X

SUB= 918120953X

66

120954X

PIN T

67

134799

TAP SCREW

68

138244

SUB= 108992X

69

108996X

WASHER LT

70

120956X

NLA

71

106596X

"SCREW, TAPPING LT"

72

120951X

PUCK T

73

120416X

SUB= 126976X

WE1236B (1994)

Page 6 of 35

TRACTOR-DASH



WE1236B (1994)



Page 7 of 35

TRACTOR-DASH













Ref # Part Number

Qty Description

1

141523

CAP BLK FUEL LR



2

138393

TANK.ASM.DASH.LR

3

123487X

HOSE CLAMP

4

8544R

SUB= 295J

5

8548R

FUEL LINE T

6

73510400

NUT

7

2751R

CLIP T

8

19091216

WASHER PM

9

74760428

BOLT

10

19091413

WASHER

11

121249X

SPACER SPLIT

12

3720R

SPRING M

13

126450X

"KNOB,HGT RETAINER"

14

126115X

KNOB

15

122023X {15}





16

124346X

NUT

17

72110404

BOLT

18

130745

SUPT ASSY DASH

19

134744

CROSS BRACE

20

17060408

SCREW.1/4-20X1/2

21

134014

PLUG DOME

WE1236B (1994)

Page 8 of 35

TRACTOR-DECALS



WE1236B (1994)



Page 9 of 35

TRACTOR-DECALS













Ref # Part Number

Qty Description





REFER TO IMAGE



1

139376

DECAL.MOWER

2

143319

DECAL STRIP HD LH

3

143318

DECAL STRIP HD RH

5

143320

DECAL PNL SIDE RH

6

137043

DECAL.FENDER

7

141898

DECAL CAUT FEND

8

137259

"DECAL, WARNING"

10

137042

DECAL.WHL.STRG.

11

141903

DECAL OP INST E/S

12

138804

DECAL.FEND.QUICKS

13

136830

DECAL.V.BELT



145333

MANUAL.OP.GEN.36



147088

MANUAL.P.WE1236B



146252

MANUAL.OP.36LR.SP



C36

REAR BAGGER

WE1236B (1994)

Page 10 of 35

TRACTOR-ELECTRICAL
