T103E (1995)

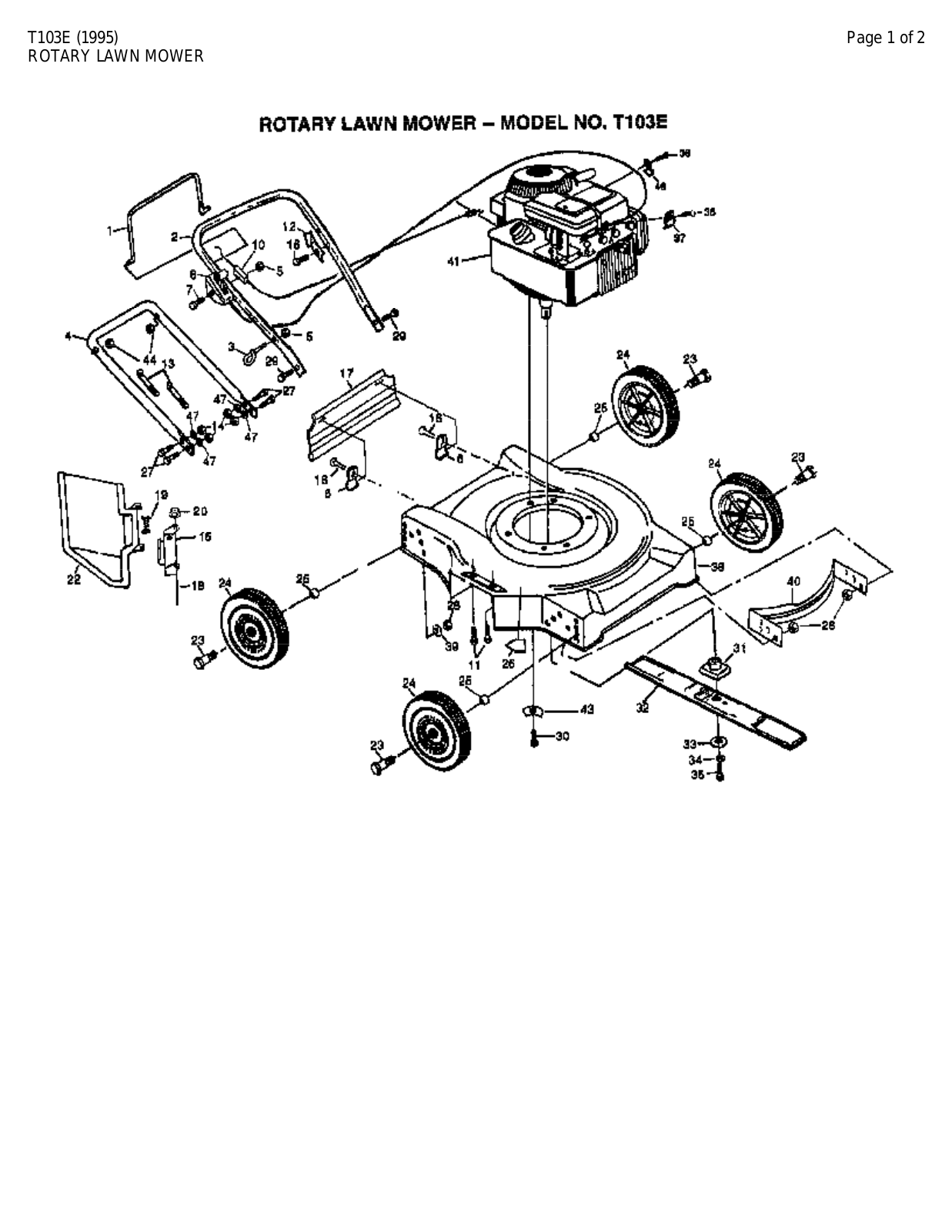

Page 1 of 2

ROTARY LAWN MOWER



T103E (1995)

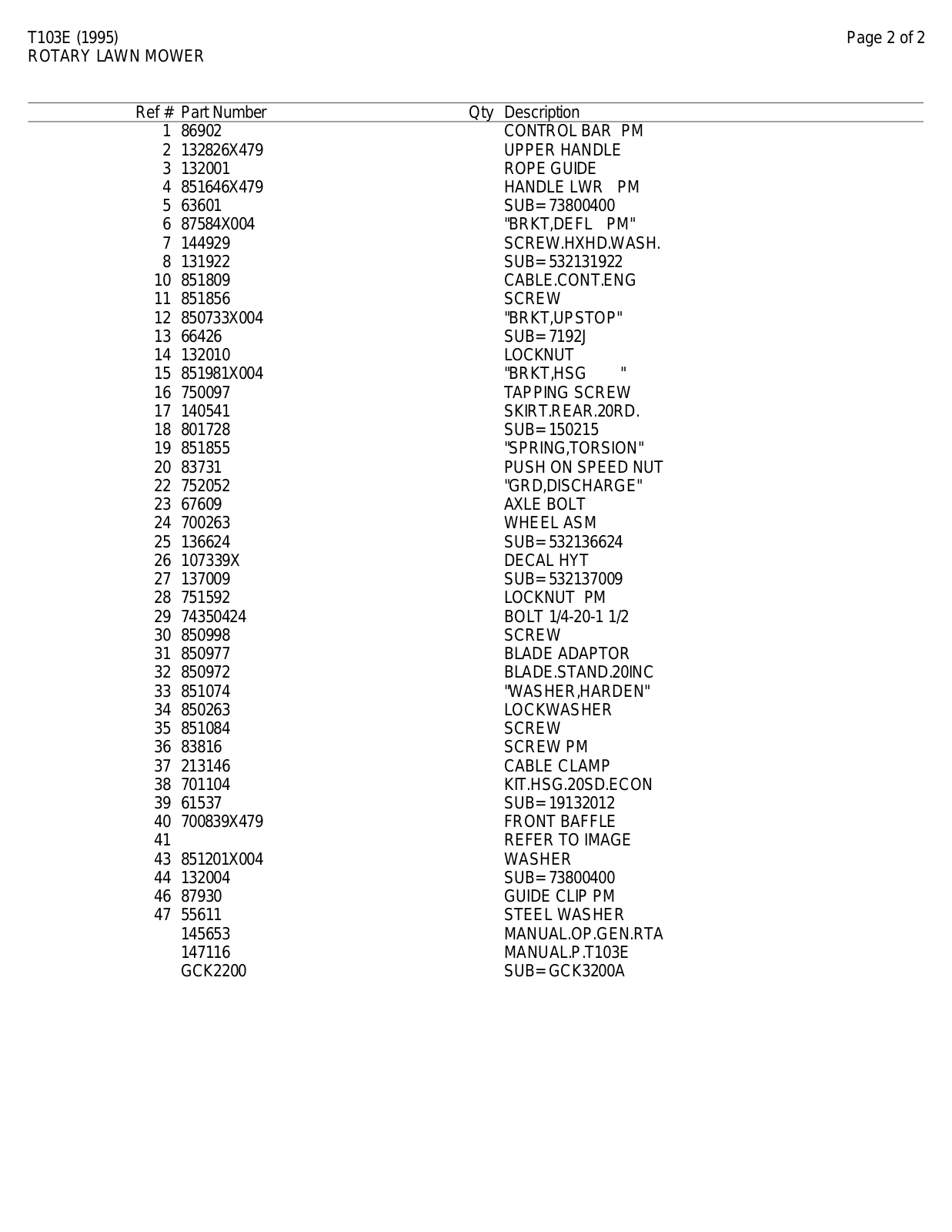

Page 2 of 2

ROTARY LAWN MOWER















Ref # Part Number

Qty Description





1

86902

CONTROL BAR PM



2

132826X479

UPPER HANDLE

3

132001

ROPE GUIDE





4

851646X479

HANDLE LWR

PM

5

63601

SUB= 73800400

6

87584X004

"BRKT,DEFL

PM"

7

144929

SCREW.HXHD.WASH.

8

131922

SUB= 532131922

10

851809

CABLE.CONT.ENG

11

851856

SCREW





12

850733X004

"BRKT,UPSTOP"

13

66426

SUB= 7192J





14

132010

LOCKNUT





15

851981X004

"BRKT,HSG

"



16

750097

TAPPING SCREW

17

140541

SKIRT.REAR.20RD.

18

801728

SUB= 150215





19

851855

"SPRING,TORSION"

20

83731

PUSH ON SPEED NUT

22

752052

"GRD,DISCHARGE"

23

67609

AXLE BOLT





24

700263

WHEEL ASM





25

136624

SUB= 532136624

26

107339X

DECAL HYT





27

137009

SUB= 532137009

28

751592

LOCKNUT PM

29

74350424

BOLT 1/4-20-11/2

30

850998

SCREW





31

850977

BLADE ADAPTOR

32

850972

BLADE.STAND.20INC

33

851074

"WASHER,HARDEN"

34

850263

LOCKWASHER

35

851084

SCREW





36

83816

SCREW PM





37

213146

CABLE CLAMP

38

701104

KIT.HSG.20SD.ECON

39

61537

SUB= 19132012

40

700839X479

FRONT BAFFLE

41



REFER TO IMAGE

43

851201X004

WASHER





44

132004

SUB= 73800400

46

87930

GUIDE CLIP PM

47

55611

STEEL WASHER



145653

MANUAL.OP.GEN.RTA



147116

MANUAL.P.T103E



GCK2200

SUB= GCK3200A
