AYP S200BR Parts List

Size:
52.92 Kb
Download

S200BR (1999 & Before)

Page 1 of 5

GEAR CASE/22" POWER PROPELLED



S200BR (1999 & Before)

Page 2 of 5

GEAR CASE/22" POWER PROPELLED











Ref # Part Number

Qty Description



85315

SUB= 48282



1

83488

SUB= 88389

2

81337

SEAL

3

79899

NLA

4

81377

MACHINE SCREW

5

81203

NLA

6

57072

SEAL

7

77881

BEARING

8

53838

SUB= 73510400

9

57388

DRIVE LOK PIN

10

83680

WORM

11

77039

SUB= 81585X004

12

75144

NLA

13

53912

DRIVE LOK PIN

14

57079

THRUST WASHER

15

83659

SUB= 133804

16

75424

SUB= 750436X

17

53753

E-RING

18

58354

SUB= 6066J

19

79947

SUB= 48280

20

83684

SQUARE KEY

21

85178

SUB= 85177X004

22

50950

SUB= 2276J

23

83720

WORM SHAFT

24

65692

WOODRUFF KEY

25

81220

SHOULDER NUT

26

81612

LOCKWASHER

27

75192

SPRING

28

54562

SCREW

29

83700

CABLE CLAMP

30

54338

SUB= 74760444

31

83632

SUB= 137090

32

63601

SUB= 73800400

33

57076

WOODRUFF KEY

34

83681

PULLEY.DRIVE.LM

35

74976

RETAINER RING

36

103498X

GEAR CASE SLEEVE

S200BR (1999 & Before)

Page 3 of 5

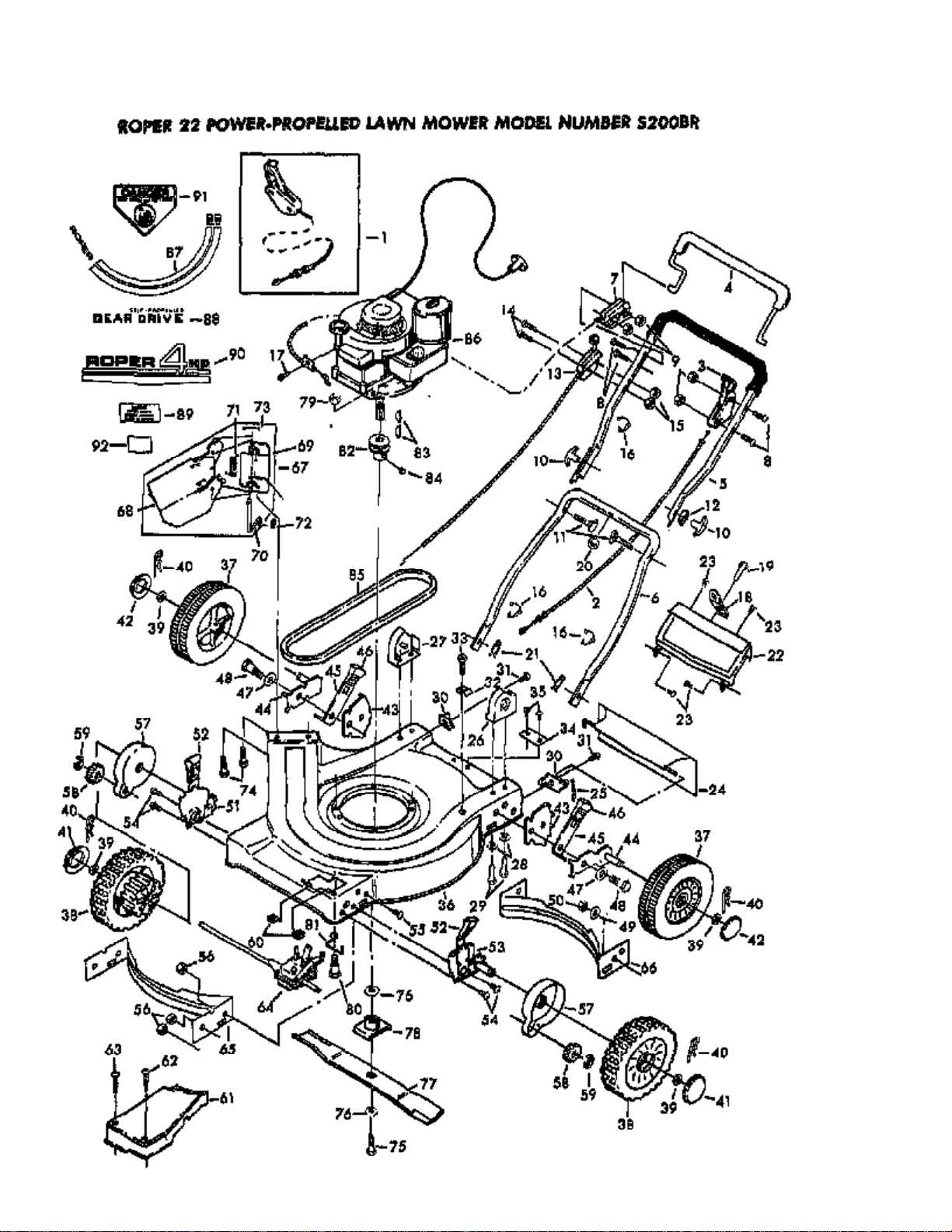

LAWN MOWER COMPLETE



S200BR (1999 & Before)

Page 4 of 5

LAWN MOWER COMPLETE











Ref # Part Number

Qty Description

1

85547

CONTROL DRIVE PM



2

79953

HEAD KIT DRIVE PM

3

79957

CBL KIT DRIVE P

4

85512

CONTROL BAIL

5

84605

UPPER HANDLE

6

84683

SUB= 84684X479

7

103815X

NLA

8

78186

SCREW

9

74189

NUT

10

8141J

SUB= 136376

11

58714

SUB= 131959

12

57734

WASHER

13

84587

NLA

14

69411

SCREW

15

69180

LOCKNUT

16

85827

CABLE CLIP PM

17

85724

SCREW PM

18

84651

ROPE GUIDE

19

85436

SCREW

20

74218

NUTLOCK1/4-20

21

51793

HAIRPIN COTTER

22

103268X

TRIM PLATE ASY

23

36953

SCREW SELF TAP

24

75442

REAR DEFLECTOR

25

63640

COTTER PIN

26

103510X

SUB= 150959

27

103511X

SUB= 150959

28

59289

STEEL WASHER

29

55187

SCREW

30

75430

SUB= 75430X004

31

75680

SUB= 88145

32

70385

CABLE CLIP

33

81276

SCREW

34

103770X

MODEL PLATE

35

54562

SCREW

36

103505X

MOWER - HOUSING

37

103863X

NLA

38

103273X

WHEEL.TIRE.ASM.PM

39

52160

WASHER

40

55015

CLIP.RETAINER

41

77400

HUB CAP

42

67360

SUB= STD380239

43

69478

SUB= 750085X007

44

69474

SUB= 82986X004

45

77884

SELEC SPRING

46

77865

SUB= 532132800

47

62335

"WASHER, BELLEVIL."

48

64763

SHOULDER BOLT

49

62333

WASHER

50

74400

SUB= 73800600

51

78684

SUB= 48174

52

77865

SUB= 532132800

53

78683

SUB= 48175

54

61528

SUB= 74100412

55

64920

SCREW

56

74218

NUTLOCK1/4-20

57

76401

DUST COVER

58

74507

PINION.10.TEETH

S200BR (1999 & Before)

Page 5 of 5

LAWN MOWER COMPLETE











Ref # Part Number

Qty Description

59

53753

E-RING



60

75449

SPEED NUT

61

75448

SUB= 137080

62

69411

SCREW

63

75725

SCREW

64

79948

SUB= 48282

65

85285

SUB= 132352X479

66

85284

REAR BAFFLE PM

67

79902

NLA

68

84668

SUB= 83963X479

69

83962

NLA

70

77636

SUB= 73687

71

84060

NLA

72

73844

NLA

73

2653

SUB= 76020216

74

54583

SCREW

75

69194

SCREW

76

84942

WASHER.FLAT.3/8

77

103256X

SUB= 103524X

78

103005X

SUB= 851026

79

63124

SUB= 73690500

80

76125

HEX BOLT

81

83629

BELT SNUBBER

82

84596

ENGINE.PULLEY.FWG

83

65053

WOODRUFF KEY

84

59708

SCREW

85

83691

V-BELT.LM.DRIVE

86



CHECK WITH SUPPLIER

87

103778X

HOUSING STRIPE DECAL

88

103777X

NLA

89

103375X

DISCHARGE WARNING DECAL

90

103772X

NLA

91

85463

DECAL-DANGERPM

92

103206X

PATENT NO. DECAL



103780X

OWNERS MANUAL
