AYP RET202A Parts List

Size:
38.69 Kb
Download

RET202A (1999 & Before)

Page 1 of 4

REAR BAGGER ROTARY MOWER



RET202A (1999 & Before)

Page 2 of 4

REAR BAGGER ROTARY MOWER











Ref # Part Number

Qty Description

1

145793

BAIL.CNTRL.STD.BL



2

145646X479

SUB= 165451X479

3

157081X479

HANDLE LOWER

4

132001

ROPE GUIDE

5

63601

SUB= 73800400

6

131959

BOLT.HANDLE.LM

8

144929

SCREW.HXHD.WASH.

9

700892

"CABLE.MZR.47"""

12

157551

"CONTROL-DRIVE,STD"

14

128638

"NUT,WING PM"

15

51793

HAIRPIN COTTER

19

145854X479

PLATE.BACK.PNT.

20

700363X479

BAFFLE.SIDE

21

146143X479

GUARD.FOOT.REAR.

22

85768

"SCREW, HEX PM"

23

147613

KIT.DOOR.RR.20STL

24

751592

LOCKNUT PM

25

151589X479

BRACKET.HDL.LH.

26

151588X479

BRACKET.HDL.RH.

27

150078

SCREW.HXWS.5/16

29

750085X007

BRKT.WHL.ADJ

30

146630

SPACER.HEIGHT.ADJ

32

700331X004

SPRING SELECTOR

33

87877

KNOB PM

34

145935X004

ARM.AXLE.ASM.BZP.

35

62335

"WASHER, BELLEVIL."

36

142748

BOLT SHLD 3/8-16

37

148438

WHEEL.8X1.75.WHT

38

83923

HEX FLANGE LOCKNT

40

77400

HUB CAP

41

88652

HINGE SCREW

42

53998

SUB= 19131216

43

54583

SCREW

45

850999

SCREW

46

145494

DECAL.DANGER.CUTF

47

88615

BRKT DRV COV

48

850988

ENGINE SPACER

51

701640X479

BAFFLE.FRONT

52

157214

KIT HOUSING MOWER

53

851084

SCREW

54

850263

LOCKWASHER

55

851074

"WASHER,HARDEN"

56

850972

BLADE.STAND.20INC

57

851514

ADAPTOR.BLADE.LM

67

147270

GRASSBAG.170A1.GE

68

750532

FRAME.CATCHER.ASM

70

TVS90-46097D

ENGINE

72

128415

BLIND RIVET

73

700063X479

REAR BAFFLE

78

145669

GUIDE.CABLE.FWBD

79

146694

SCREW.1/4-20.38

81

151517

SUB= 7192J

82

158063

CONTROL THROTTLE



149506

MANUAL.RE2D779B



159403

MANUAL.P.RET202A



133414

HOUSING DECAL



145495

DECAL.INTERN.4SYM

RET202A (1999 & Before)

Page 3 of 4

REAR BAGGER ROTARY MOWER

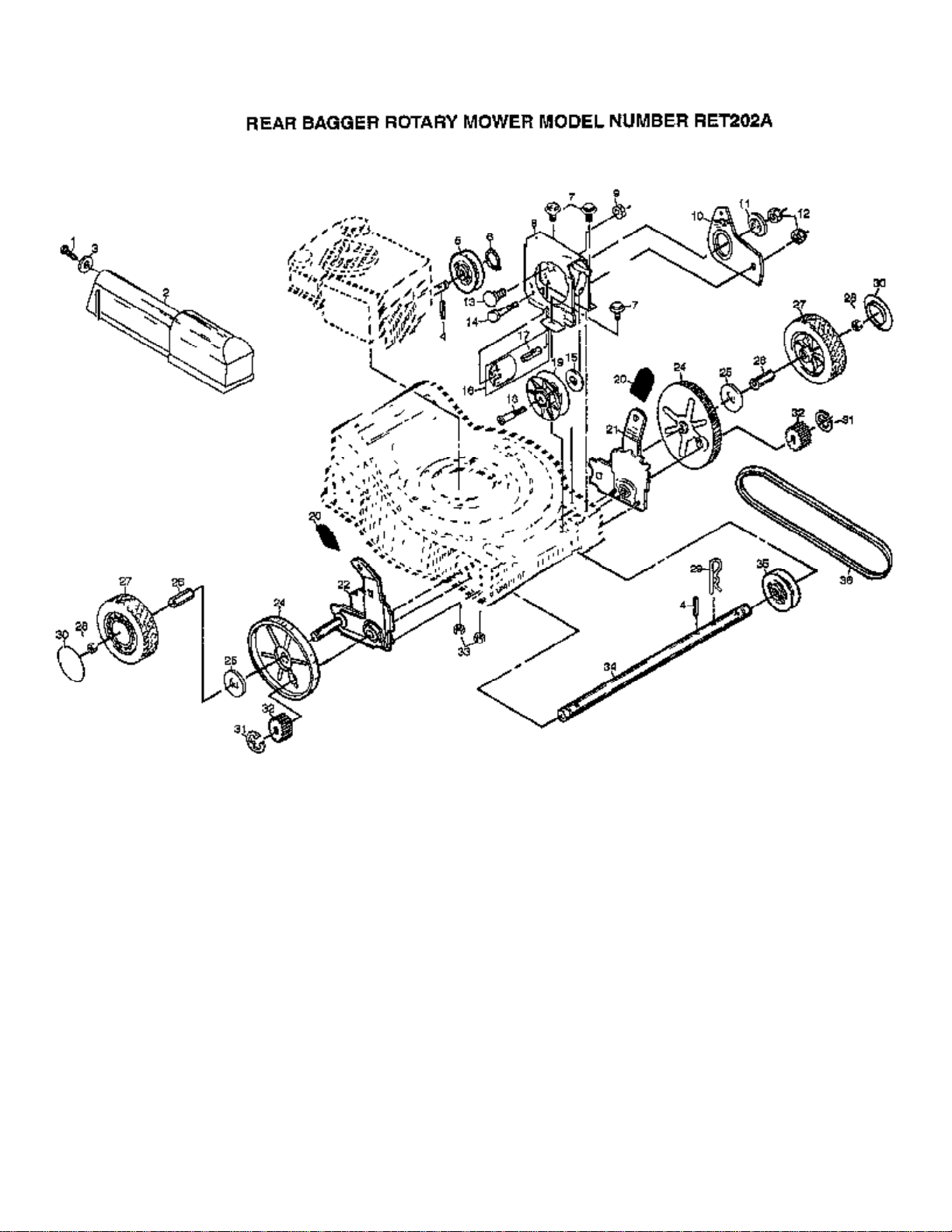

RET202A (1999 & Before)

Page 4 of 4

REAR BAGGER ROTARY MOWER











Ref # Part Number

Qty Description

1

750097

TAPPING SCREW



2

750727

DRIVE CVR

3

4802

SUB= 19070818

4

851980

DRIVE PAWL

5

88043

PULLEY PM

6

12000030

RETAINING RING ST

7

54583

SCREW

8

851947X004

"CLUTCH,FRAME"

9

50962

LOCKNUT

10

702631X004

LEVER.CLUTCH

11

88067

SPACER PM

12

750253

LOCKNUT

13

72070504

CARRIAGE BOLT

14

74350424

BOLT 1/4-20-11/2

15

88069

SPACER PM

16

48160

IDLER ASSY

17

88576

IDLER SPACER

18

88517

SHOULDER BOLT

19

88516

IDLER PULLEY

20

87877

KNOB PM

21

152018

WHEEL ADJ ASSY LH

22

152019

WHEEL ADJ ASSY RH

24

88080

DUST SHROUD PM

25

67725

WASHER FLUT

26

88446

BUSHING.HEX

27

750124

DRIVE WHL ASM

28

145212

NUT.HXFLG.LOCK.

29

85179

RETAINER CLIP PM

30

77400

HUB CAP

31

12000058

E-RING.7/16.RE.

32

137054

PINION.GEAR

33

63601

SUB= 73800400

34

700537

SHAFT.DRIVE.17.81

35

88082

DRIVE PULLEY PM

36

850053

"DRIVE, BELT"
