AYP RD300C Parts List

Size:
72.1 Kb
Download

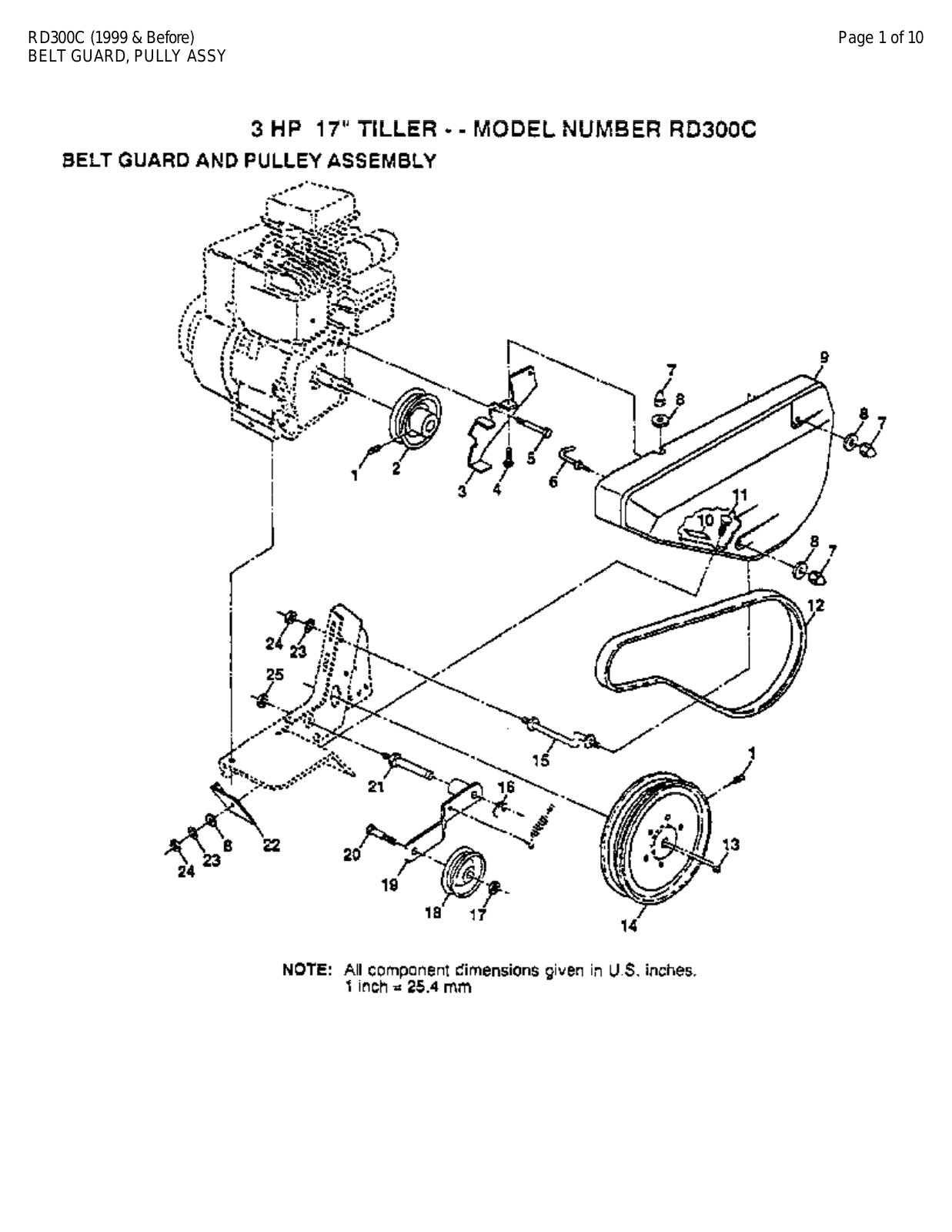

RD300C (1999 & Before)

Page 1 of 10

BELT GUARD, PULLY ASSY

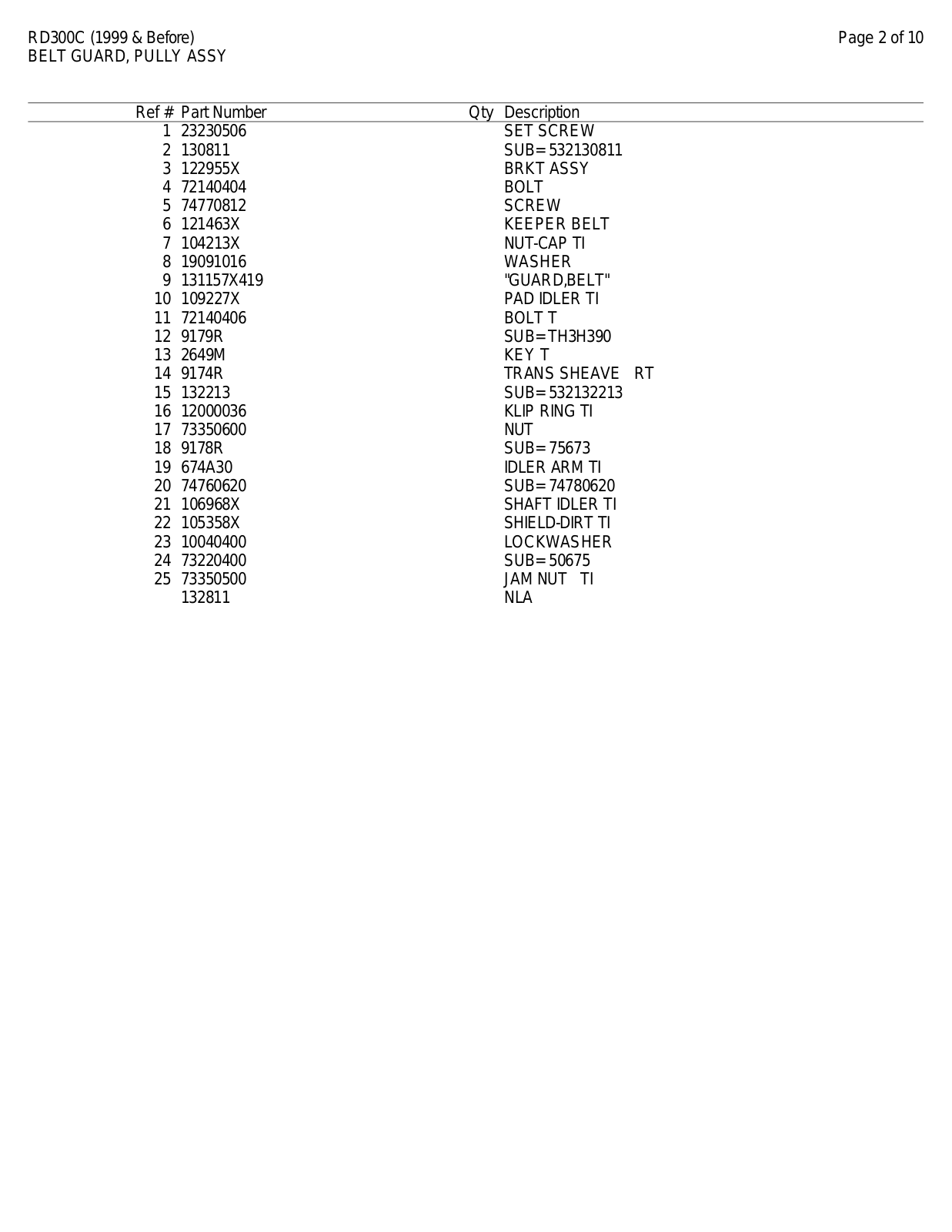

RD300C (1999 & Before)

Page 2 of 10

BELT GUARD, PULLY ASSY











Ref # Part Number

Qty Description

1

23230506

SET SCREW



2

130811

SUB= 532130811

3

122955X

BRKT ASSY

4

72140404

BOLT

5

74770812

SCREW

6

121463X

KEEPER BELT

7

104213X

NUT-CAPTI

8

19091016

WASHER

9

131157X419

"GUARD,BELT"

10

109227X

PAD IDLER TI

11

72140406

BOLT T

12

9179R

SUB= TH3H390

13

2649M

KEY T

14

9174R

TRANS SHEAVE RT

15

132213

SUB= 532132213

16

12000036

KLIP RING TI

17

73350600

NUT

18

9178R

SUB= 75673

19

674A30

IDLER ARM TI

20

74760620

SUB= 74780620

21

106968X

SHAFT IDLER TI

22

105358X

SHIELD-DIRTTI

23

10040400

LOCKWASHER

24

73220400

SUB= 50675

25

73350500

JAM NUT TI



132811

NLA

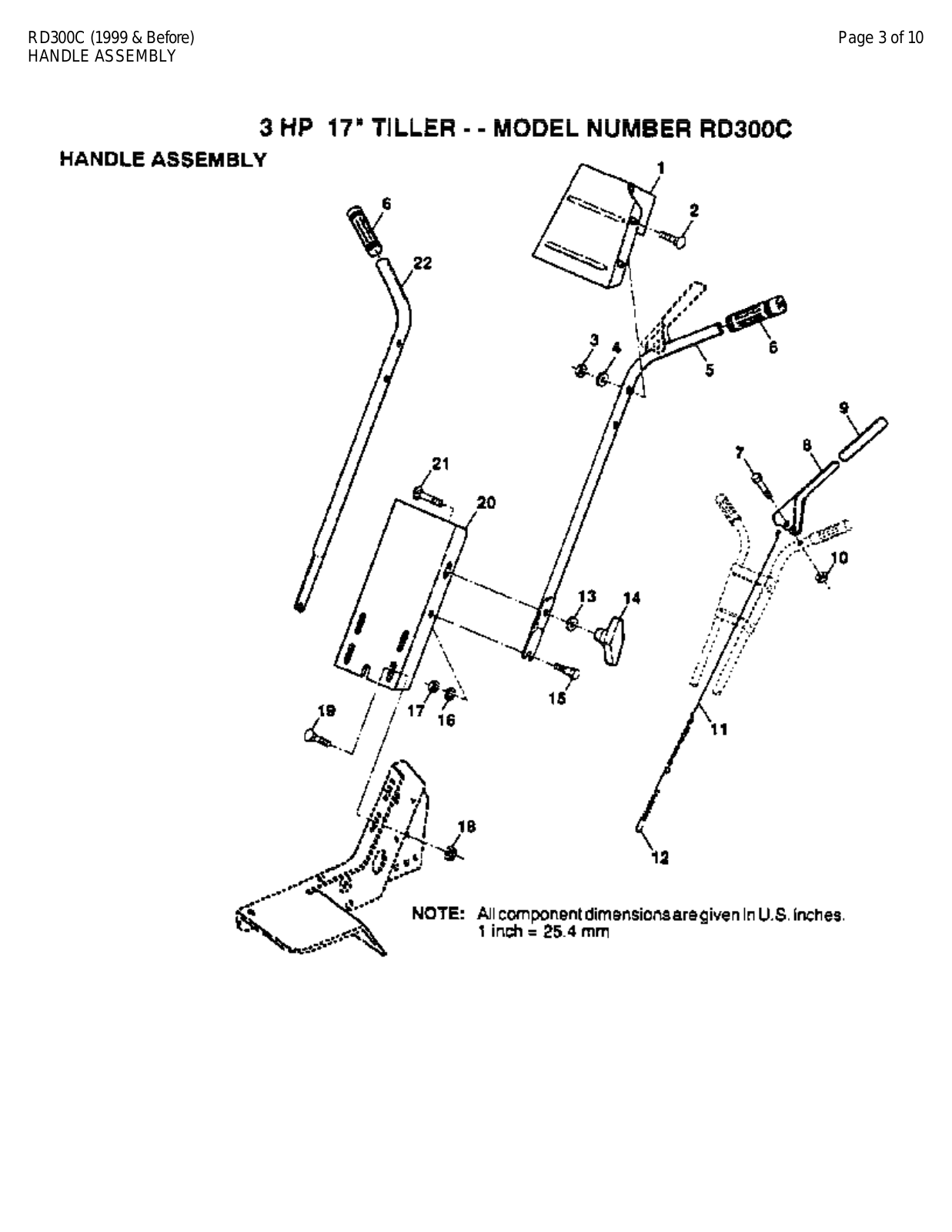

RD300C (1999 & Before)

Page 3 of 10

HANDLE ASSEMBLY

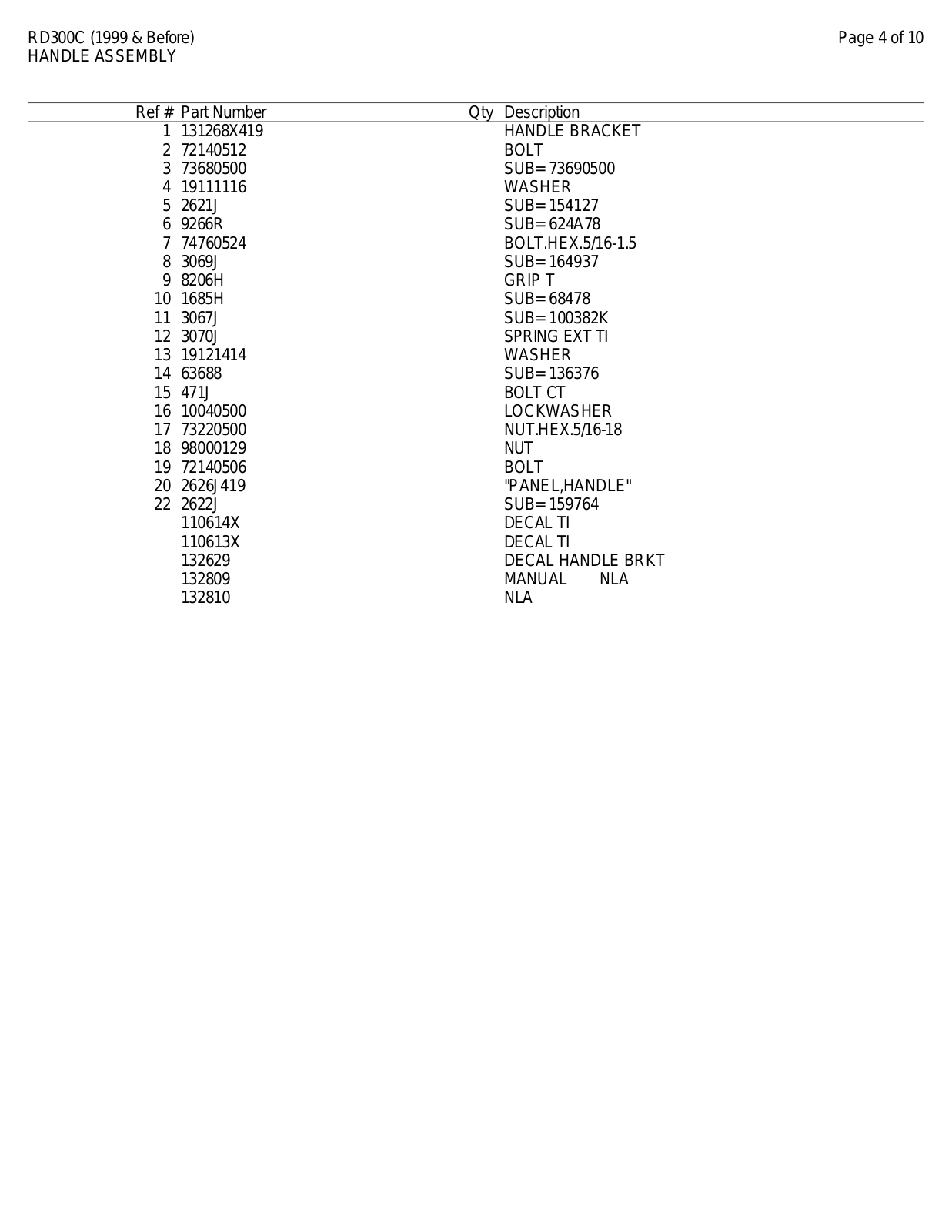

RD300C (1999 & Before)



Page 4 of 10

HANDLE ASSEMBLY

















Ref # Part Number

Qty Description





1

131268X419

HANDLE BRACKET



2

72140512

BOLT





3

73680500

SUB= 73690500

4

19111116

WASHER





5

2621J

SUB= 154127





6

9266R

SUB= 624A78

7

74760524

BOLT.HEX.5/16-1.5

8

3069J

SUB= 164937





9

8206H

GRIP T





10

1685H

SUB= 68478





11

3067J

SUB= 100382K

12

3070J

SPRING EXT TI

13

19121414

WASHER





14

63688

SUB= 136376





15

471J

BOLT CT





16

10040500

LOCKWASHER

17

73220500

NUT.HEX.5/16-18

18

98000129

NUT





19

72140506

BOLT





20

2626J419

"PANEL,HANDLE"

22

2622J

SUB= 159764







110614X

DECAL TI







110613X

DECAL TI







132629

DECAL HANDLE BRKT



132809

MANUAL

NLA



132810

NLA

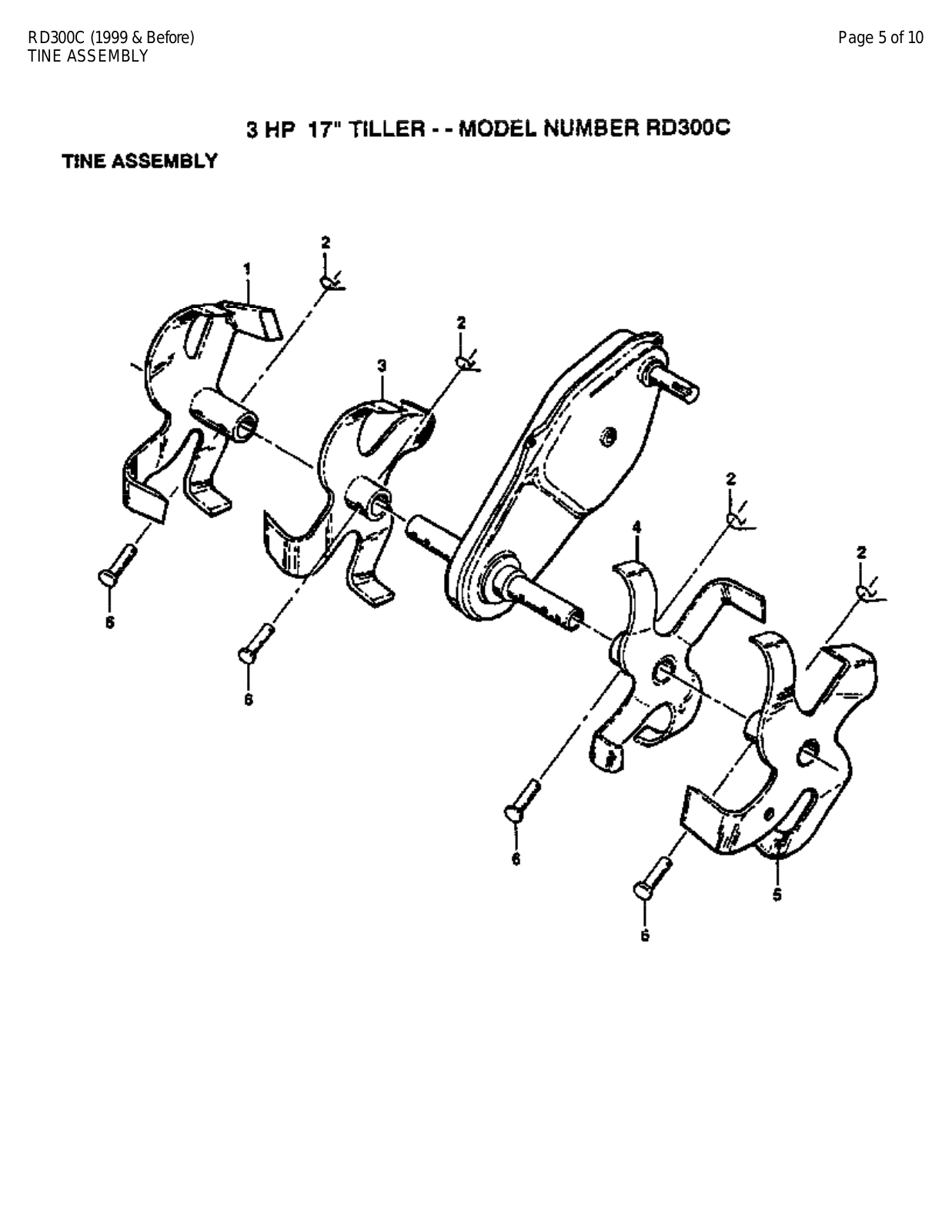

RD300C (1999 & Before)

Page 5 of 10

TINE ASSEMBLY

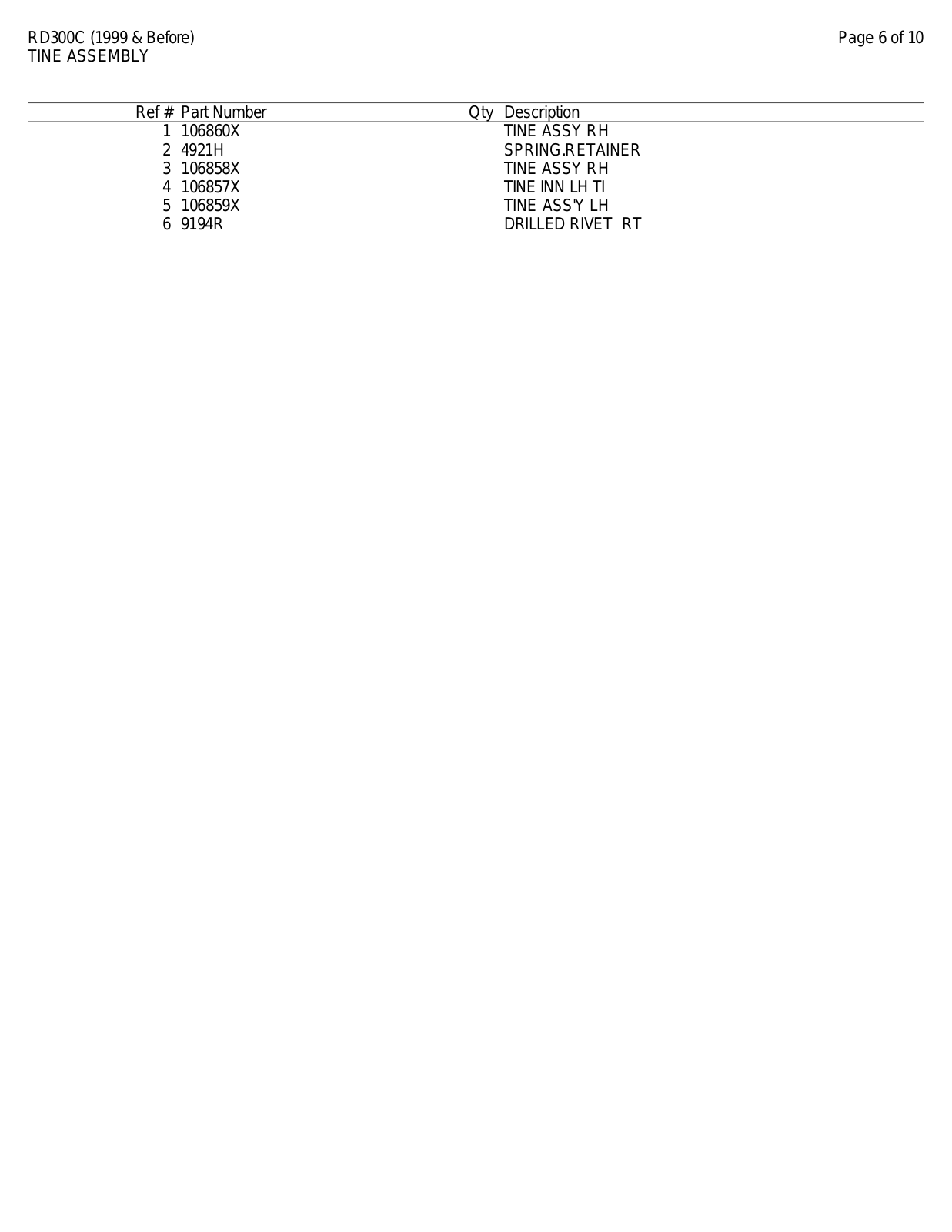

RD300C (1999 & Before)

Page 6 of 10

TINE ASSEMBLY













Ref # Part Number

Qty Description

1

106860X

TINE ASSY RH



2

4921H

SPRING.RETAINER

3

106858X

TINE ASSY RH

4

106857X

TINE INN LH TI

5

106859X

TINE ASS'Y LH

6

9194R

DRILLED RIVET RT

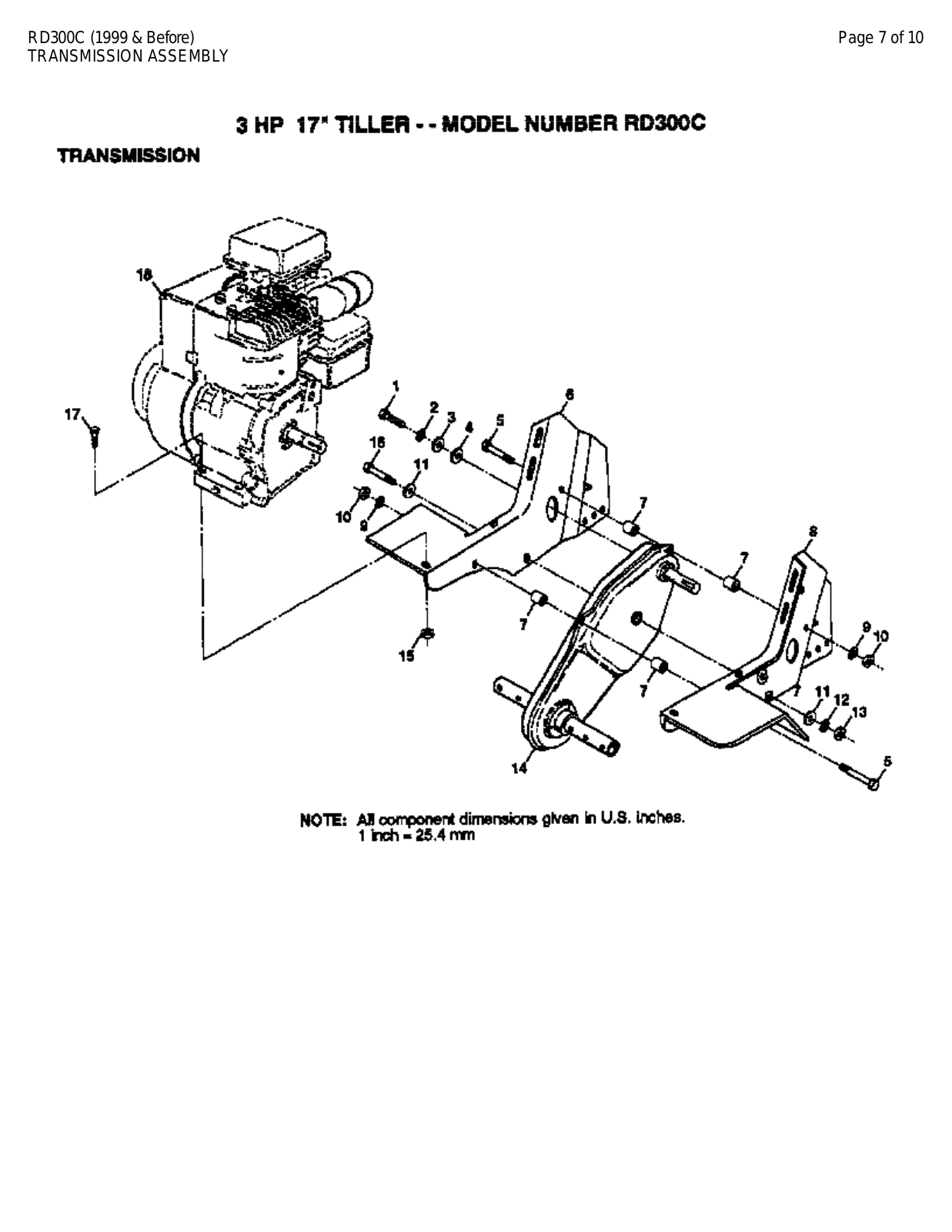

RD300C (1999 & Before)

Page 7 of 10

TRANSMISSION ASSEMBLY

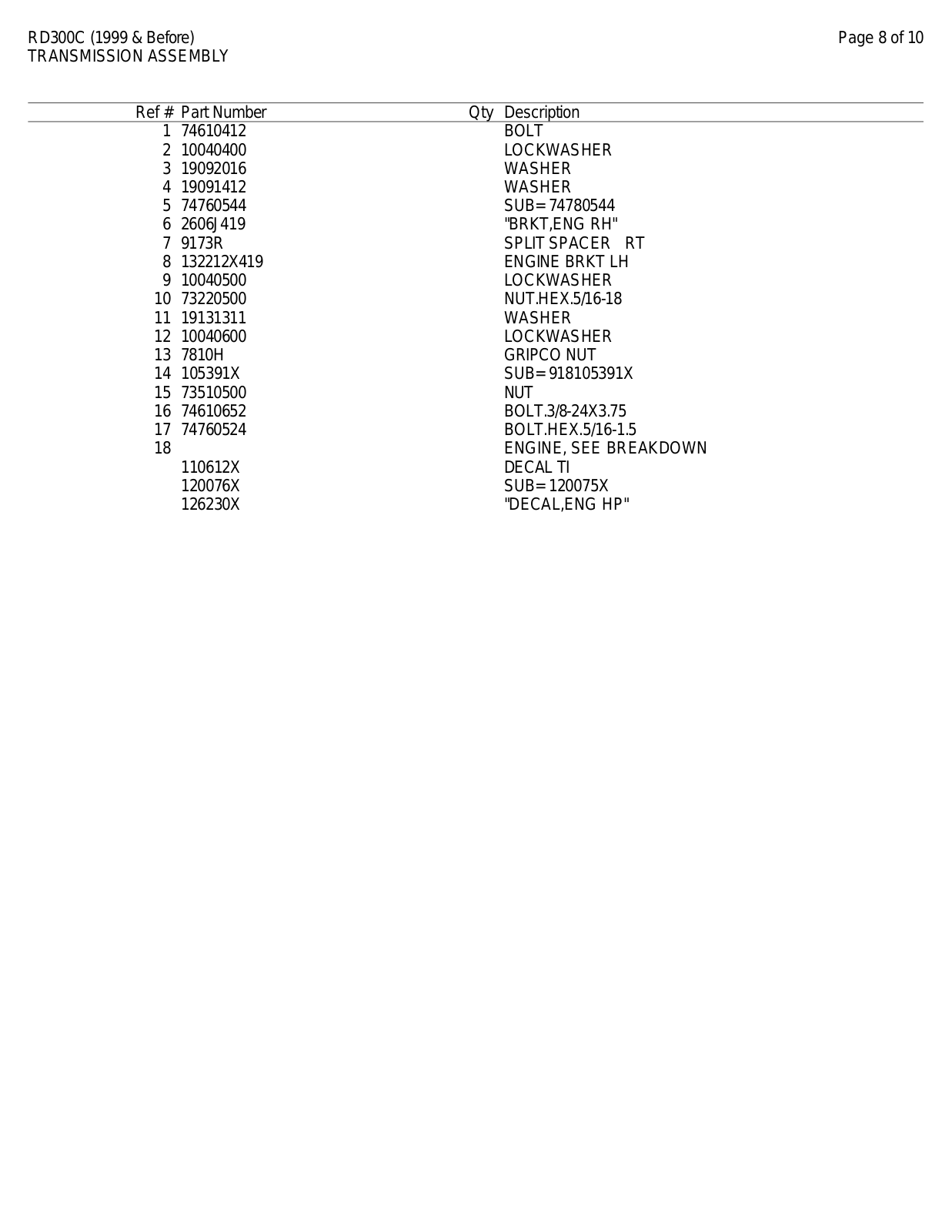

RD300C (1999 & Before)

Page 8 of 10

TRANSMISSION ASSEMBLY











Ref # Part Number

Qty Description

1

74610412

BOLT



2

10040400

LOCKWASHER

3

19092016

WASHER

4

19091412

WASHER

5

74760544

SUB= 74780544

6

2606J419

"BRKT,ENG RH"

7

9173R

SPLIT SPACER RT

8

132212X419

ENGINE BRKT LH

9

10040500

LOCKWASHER

10

73220500

NUT.HEX.5/16-18

11

19131311

WASHER

12

10040600

LOCKWASHER

13

7810H

GRIPCO NUT

14

105391X

SUB= 918105391X

15

73510500

NUT

16

74610652

BOLT.3/8-24X3.75

17

74760524

BOLT.HEX.5/16-1.5

18



ENGINE, SEE BREAKDOWN



110612X

DECAL TI



120076X

SUB= 120075X



126230X

"DECAL,ENG HP"

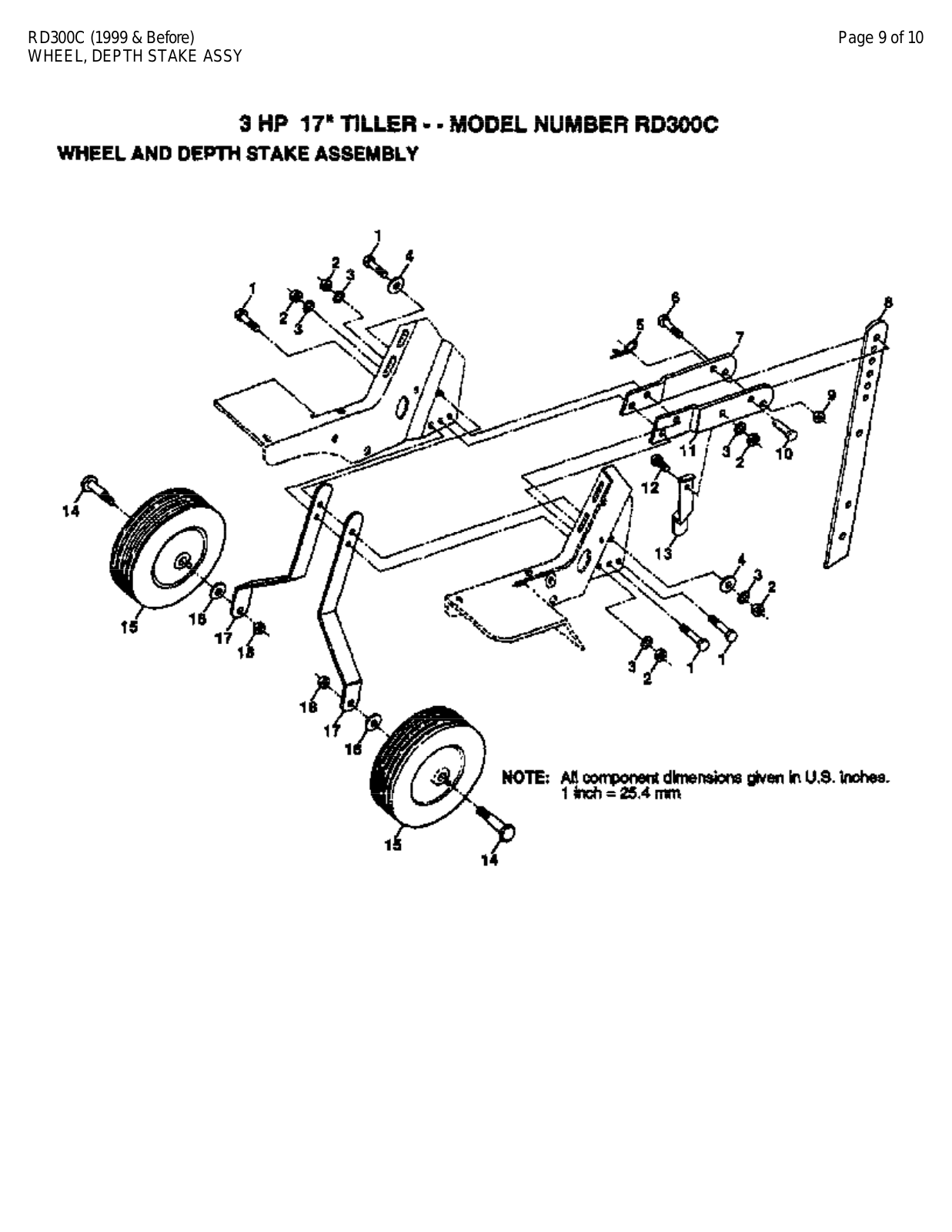

RD300C (1999 & Before)

Page 9 of 10

WHEEL, DEPTH STAKE ASSY

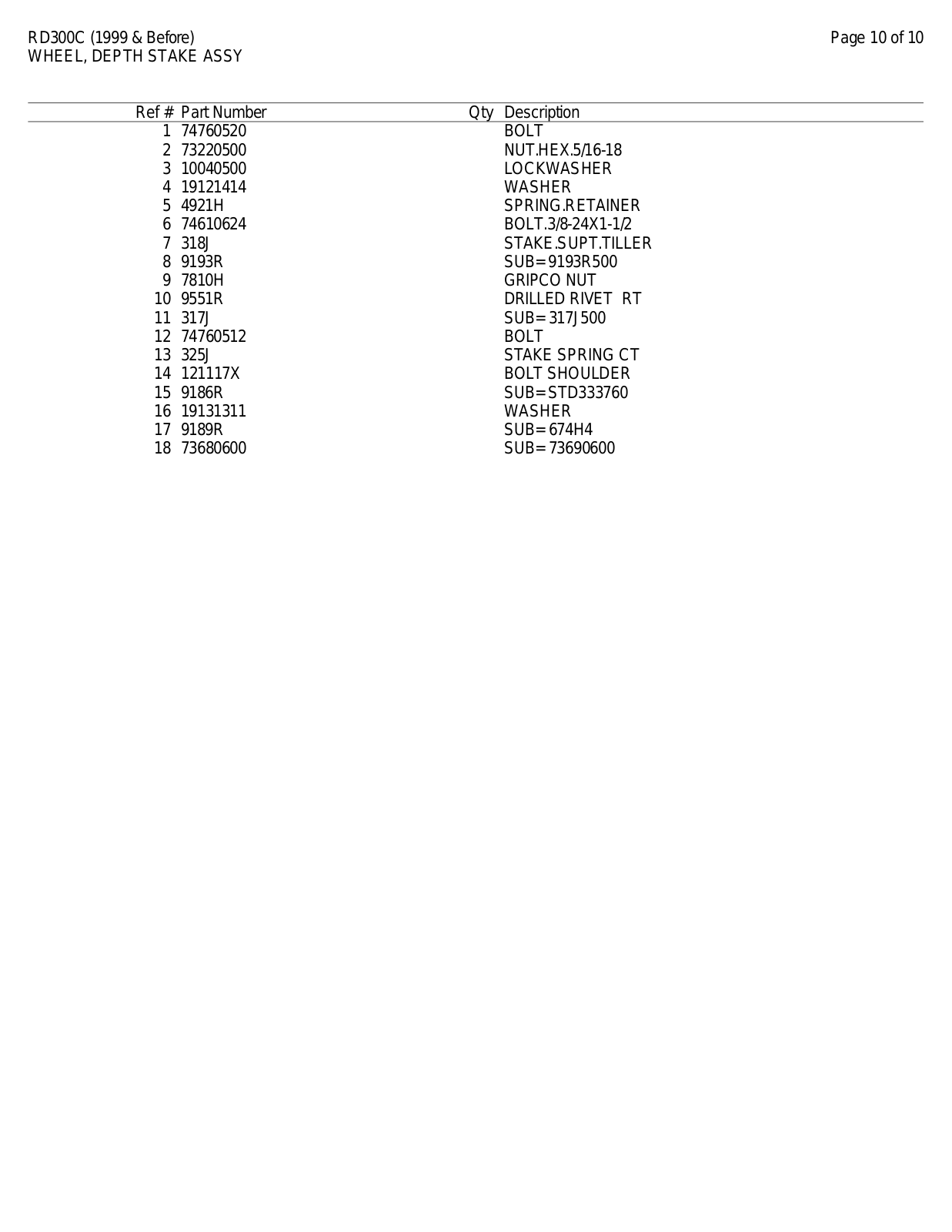

RD300C (1999 & Before)

Page 10 of 10

WHEEL, DEPTH STAKE ASSY











Ref # Part Number

Qty Description

1

74760520

BOLT



2

73220500

NUT.HEX.5/16-18

3

10040500

LOCKWASHER

4

19121414

WASHER

5

4921H

SPRING.RETAINER

6

74610624

BOLT.3/8-24X1-1/2

7

318J

STAKE.SUPT.TILLER

8

9193R

SUB= 9193R500

9

7810H

GRIPCO NUT

10

9551R

DRILLED RIVET RT

11

317J

SUB= 317J500

12

74760512

BOLT

13

325J

STAKE SPRING CT

14

121117X

BOLT SHOULDER

15

9186R

SUB= STD333760

16

19131311

WASHER

17

9189R

SUB= 674H4

18

73680600

SUB= 73690600
