AYP NCFC300A Parts List

Size:
66.07 Kb
Download

NCFC300A (1999 & Before)

Page 1 of 10

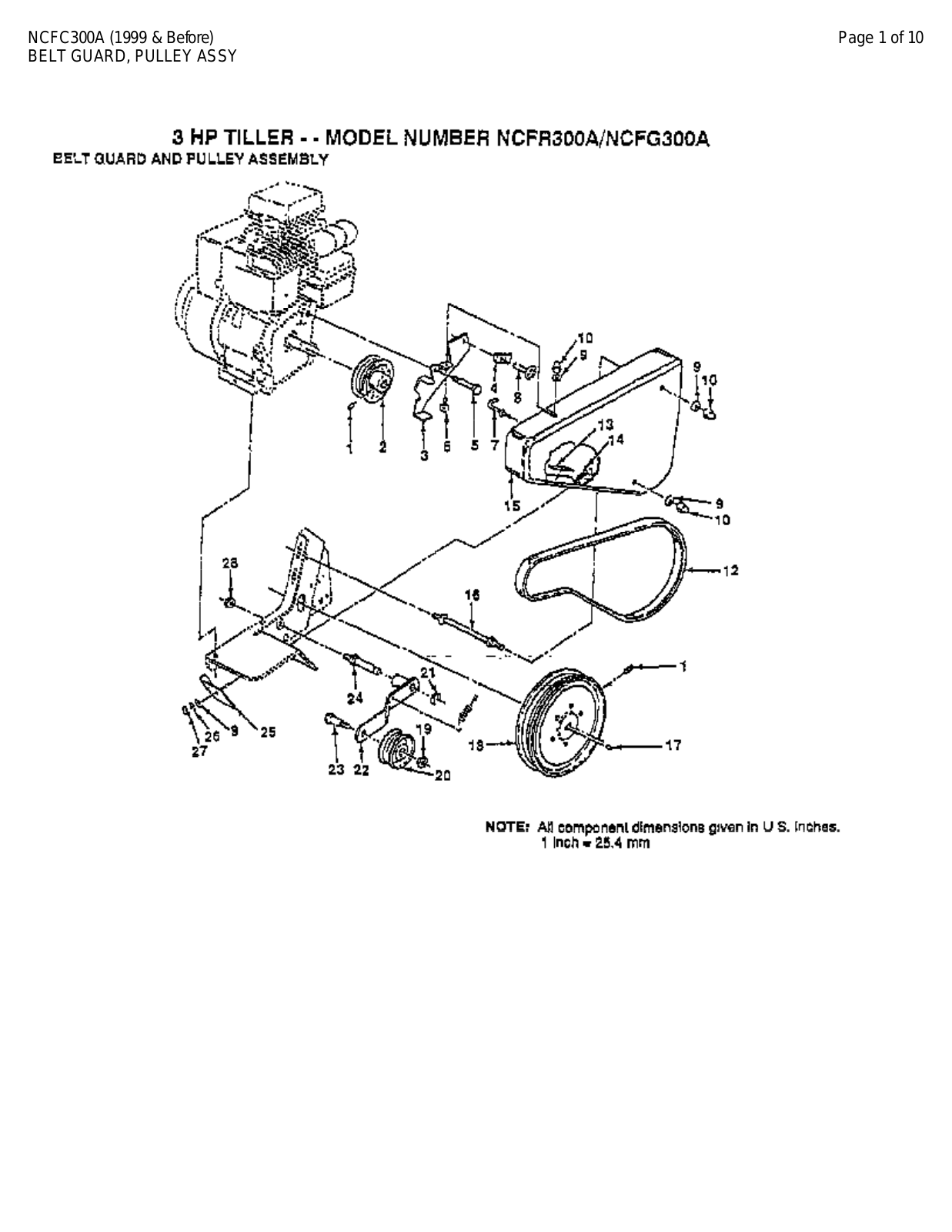

BELT GUARD, PULLEY ASSY



NCFC300A (1999 & Before)

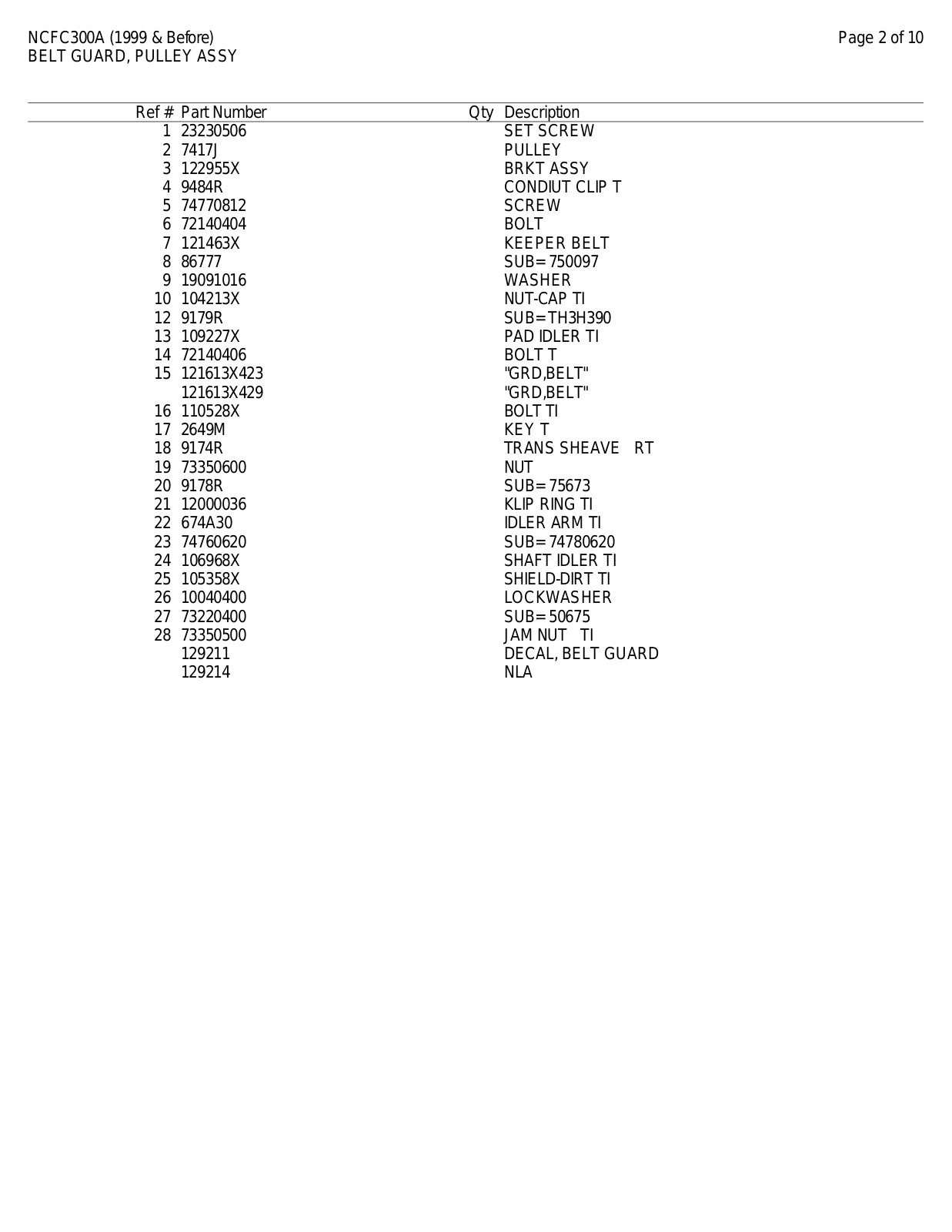

Page 2 of 10

BELT GUARD, PULLEY ASSY











Ref # Part Number

Qty Description

1

23230506

SET SCREW



2

7417J

PULLEY

3

122955X

BRKT ASSY

4

9484R

CONDIUT CLIP T

5

74770812

SCREW

6

72140404

BOLT

7

121463X

KEEPER BELT

8

86777

SUB= 750097

9

19091016

WASHER

10

104213X

NUT-CAPTI

12

9179R

SUB= TH3H390

13

109227X

PAD IDLER TI

14

72140406

BOLT T

15

121613X423

"GRD,BELT"



121613X429

"GRD,BELT"

16

110528X

BOLT TI

17

2649M

KEY T

18

9174R

TRANS SHEAVE RT

19

73350600

NUT

20

9178R

SUB= 75673

21

12000036

KLIP RING TI

22

674A30

IDLER ARM TI

23

74760620

SUB= 74780620

24

106968X

SHAFT IDLER TI

25

105358X

SHIELD-DIRTTI

26

10040400

LOCKWASHER

27

73220400

SUB= 50675

28

73350500

JAM NUT TI



129211

DECAL, BELT GUARD



129214

NLA

NCFC300A (1999 & Before)

Page 3 of 10

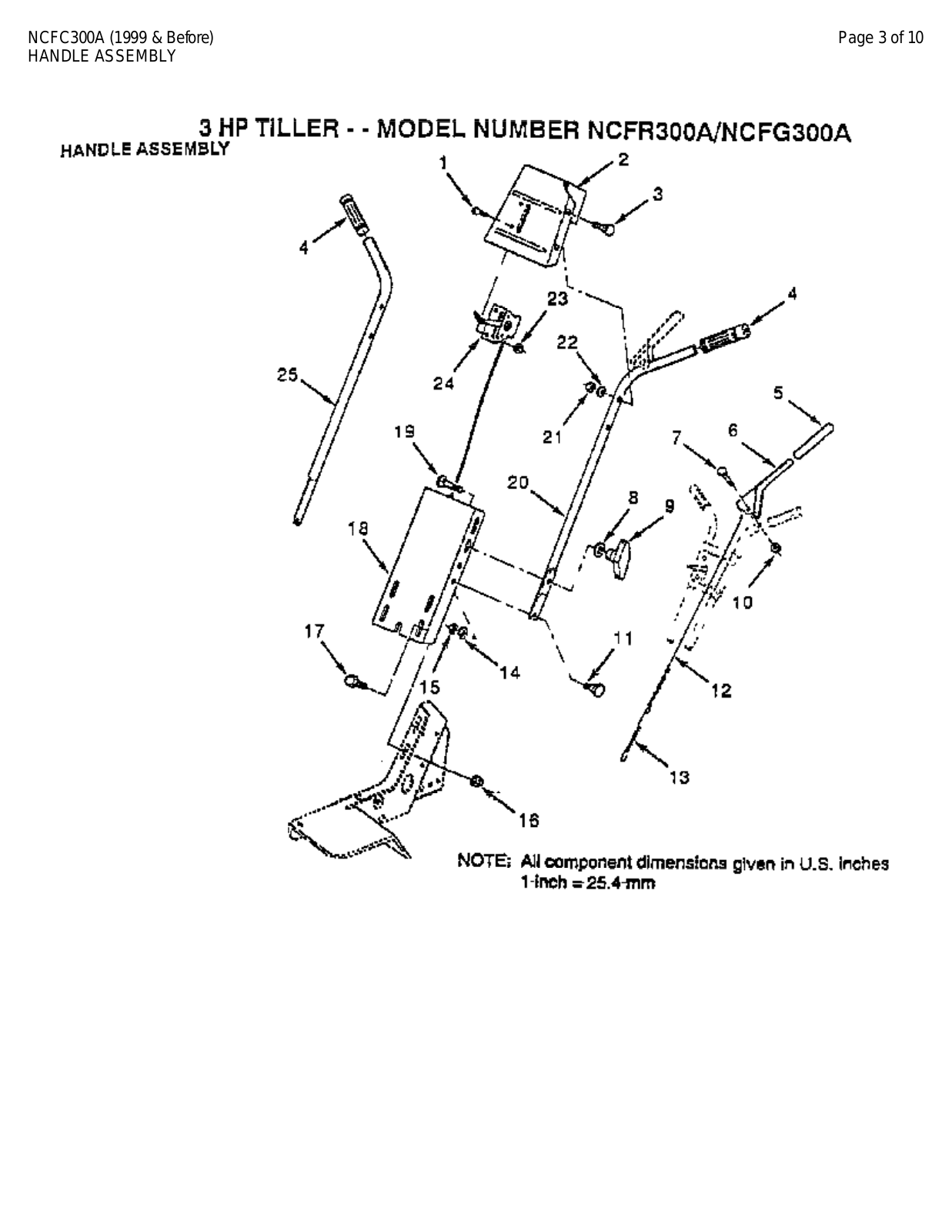

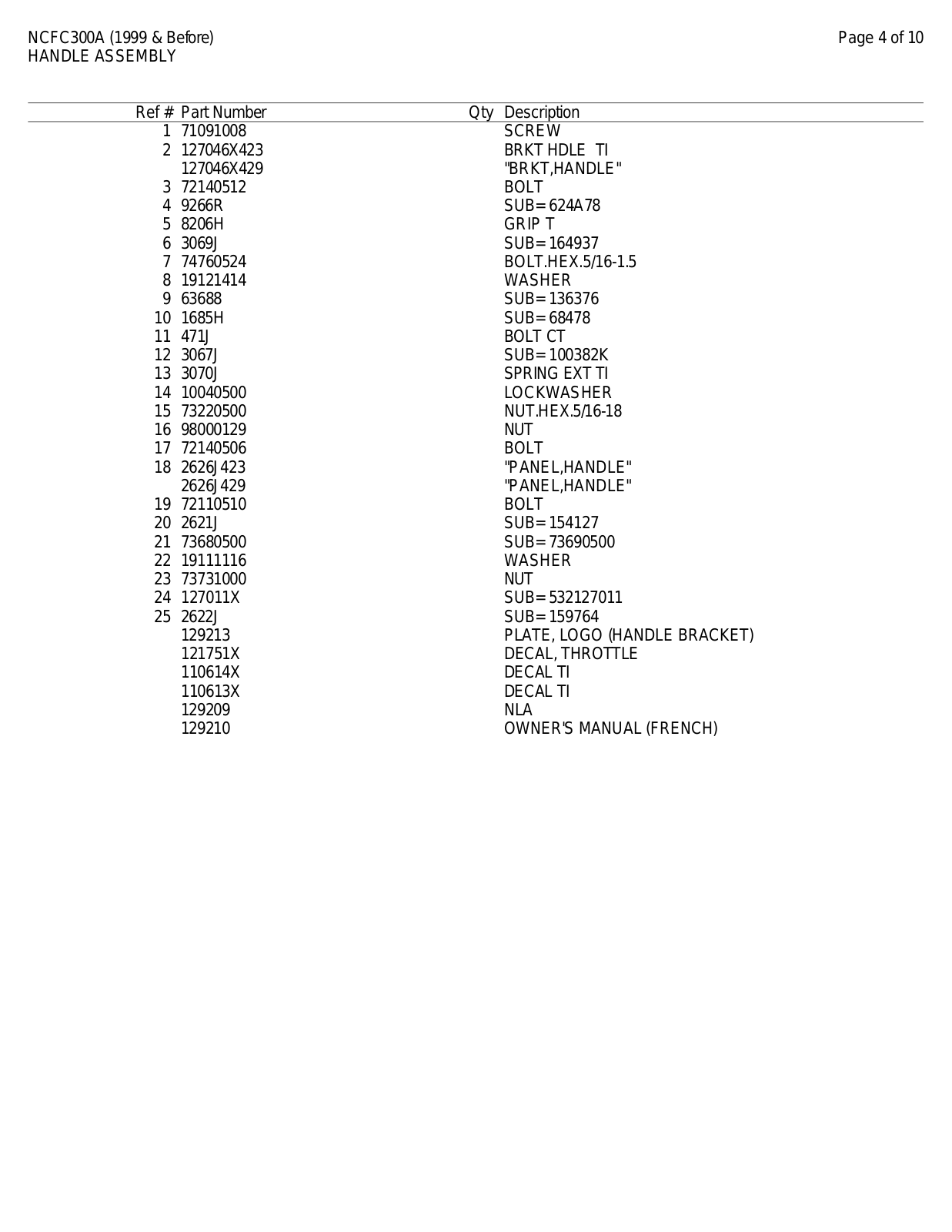

HANDLE ASSEMBLY



NCFC300A (1999 & Before)

Page 4 of 10

HANDLE ASSEMBLY













Ref # Part Number

Qty Description

1

71091008

SCREW



2

127046X423

BRKT HDLE TI



127046X429

"BRKT,HANDLE"

3

72140512

BOLT

4

9266R

SUB= 624A78

5

8206H

GRIP T

6

3069J

SUB= 164937

7

74760524

BOLT.HEX.5/16-1.5

8

19121414

WASHER

9

63688

SUB= 136376

10

1685H

SUB= 68478

11

471J

BOLT CT

12

3067J

SUB= 100382K

13

3070J

SPRING EXT TI

14

10040500

LOCKWASHER

15

73220500

NUT.HEX.5/16-18

16

98000129

NUT

17

72140506

BOLT

18

2626J423

"PANEL,HANDLE"



2626J429

"PANEL,HANDLE"

19

72110510

BOLT

20

2621J

SUB= 154127

21

73680500

SUB= 73690500

22

19111116

WASHER

23

73731000

NUT

24

127011X

SUB= 532127011

25

2622J

SUB= 159764



129213

PLATE, LOGO (HANDLE BRACKET)



121751X

DECAL, THROTTLE



110614X

DECAL TI



110613X

DECAL TI



129209

NLA



129210

OWNER'S MANUAL (FRENCH)

NCFC300A (1999 & Before)

Page 5 of 10

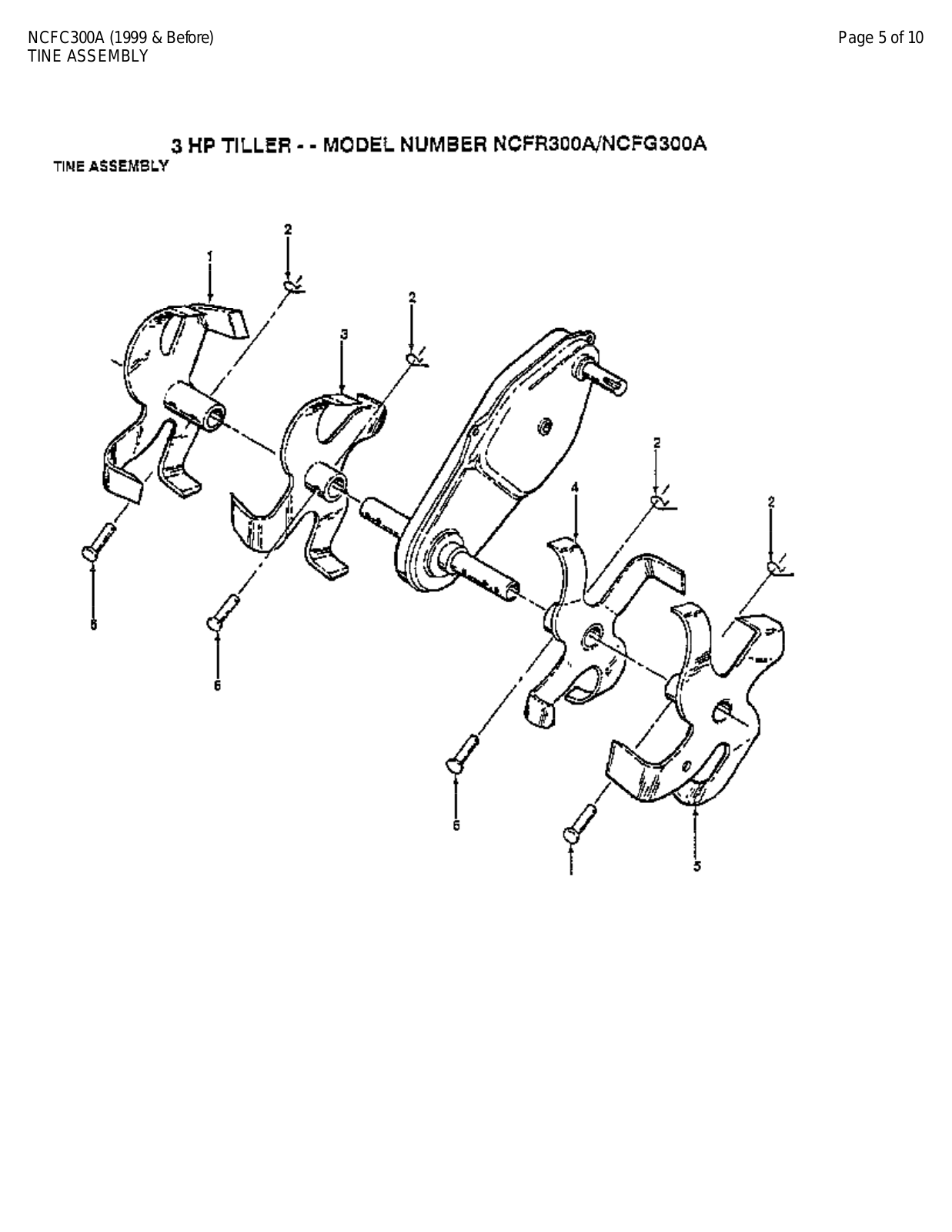

TINE ASSEMBLY



NCFC300A (1999 & Before)

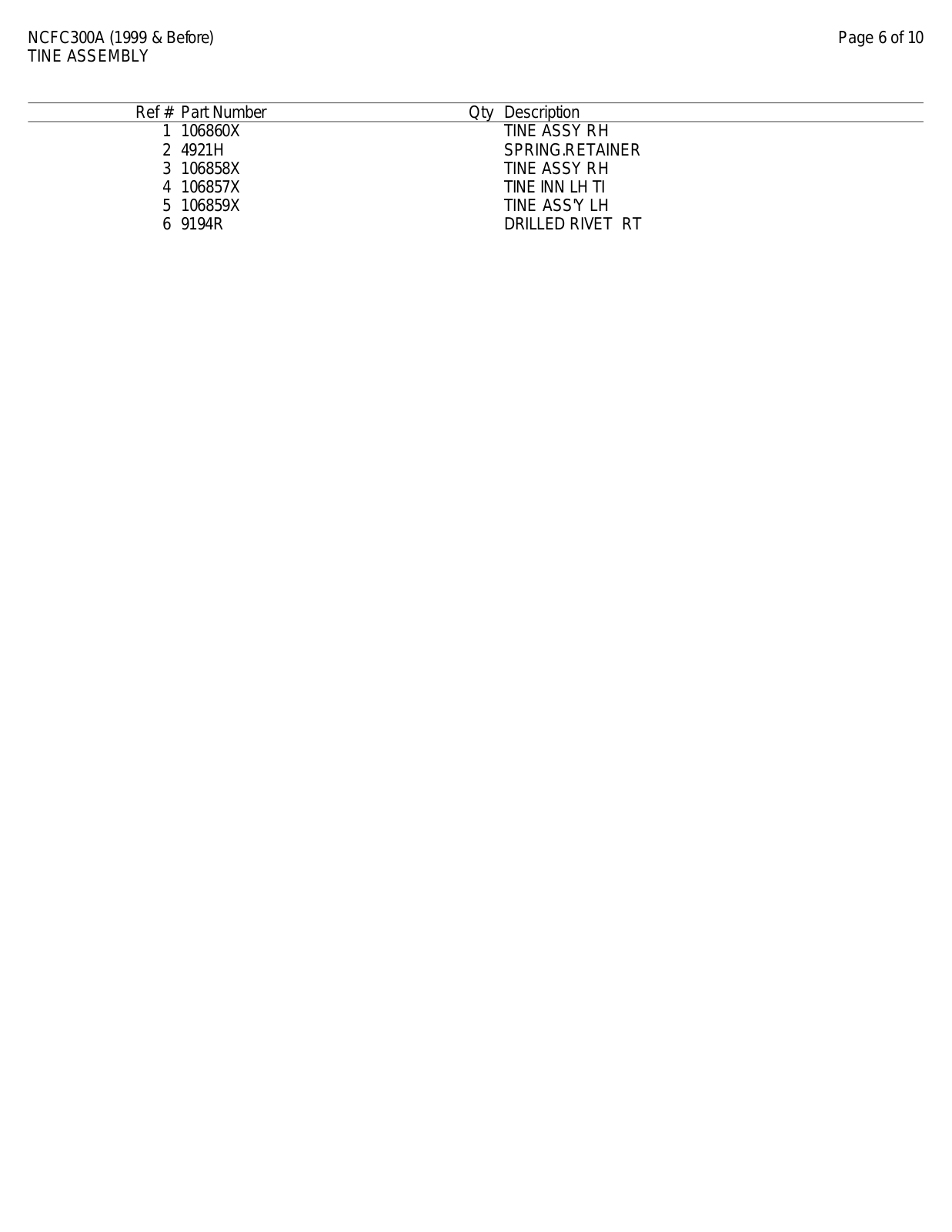

Page 6 of 10

TINE ASSEMBLY













Ref # Part Number

Qty Description

1

106860X

TINE ASSY RH



2

4921H

SPRING.RETAINER

3

106858X

TINE ASSY RH

4

106857X

TINE INN LH TI

5

106859X

TINE ASS'Y LH

6

9194R

DRILLED RIVET RT

NCFC300A (1999 & Before)

Page 7 of 10

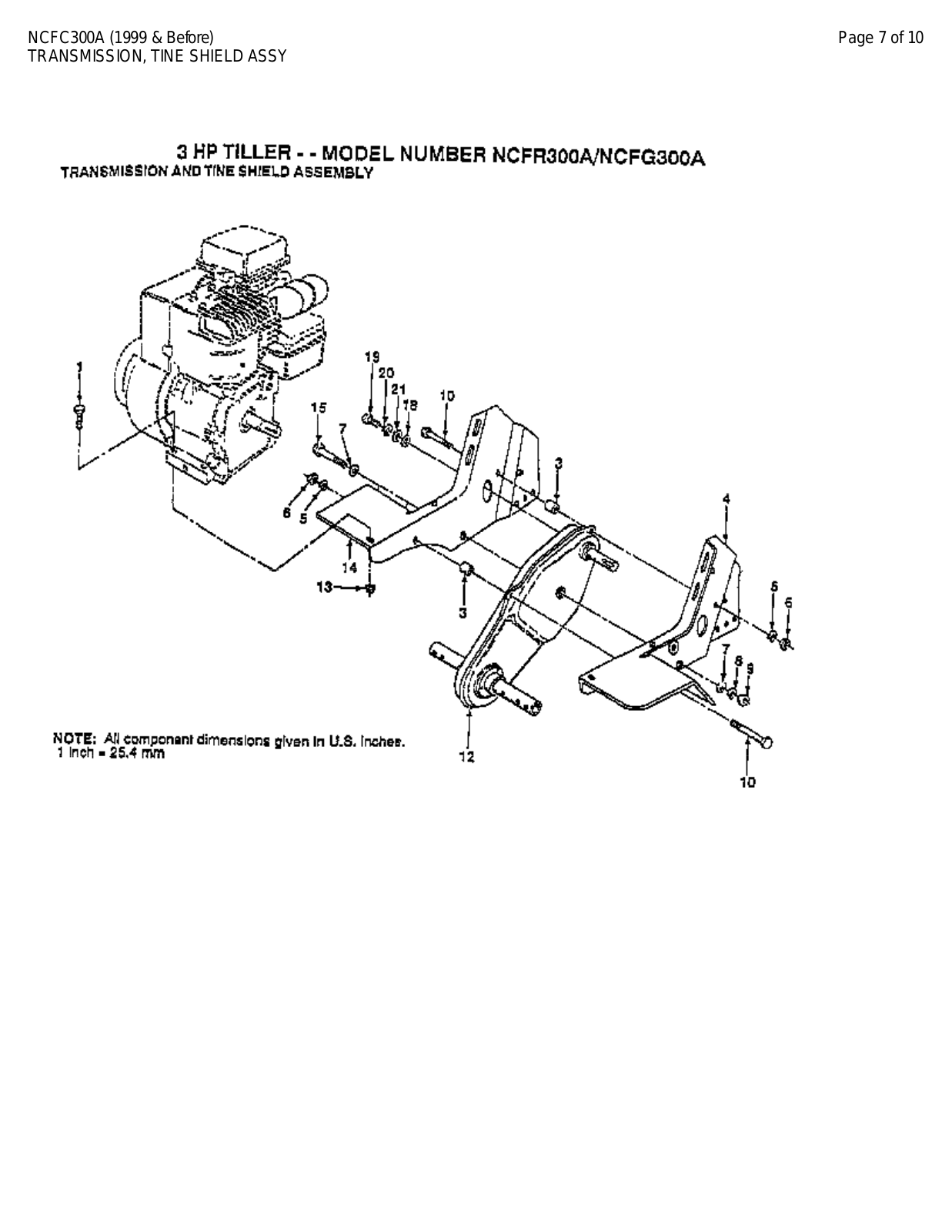

TRANSMISSION, TINE SHIELD ASSY



NCFC300A (1999 & Before)

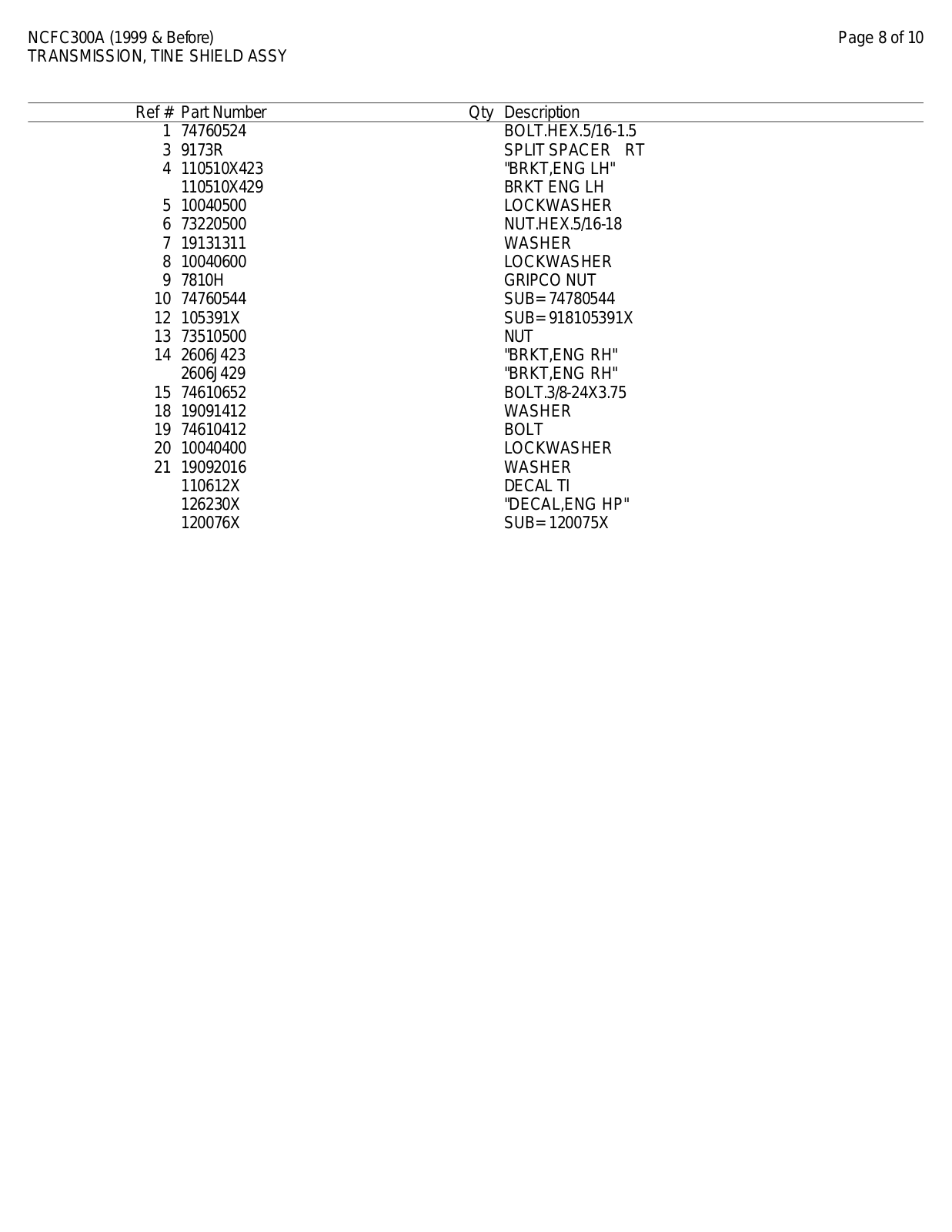

Page 8 of 10

TRANSMISSION, TINE SHIELD ASSY











Ref # Part Number

Qty Description

1

74760524

BOLT.HEX.5/16-1.5



3

9173R

SPLIT SPACER RT

4

110510X423

"BRKT,ENG LH"



110510X429

BRKT ENG LH

5

10040500

LOCKWASHER

6

73220500

NUT.HEX.5/16-18

7

19131311

WASHER

8

10040600

LOCKWASHER

9

7810H

GRIPCO NUT

10

74760544

SUB= 74780544

12

105391X

SUB= 918105391X

13

73510500

NUT

14

2606J423

"BRKT,ENG RH"



2606J429

"BRKT,ENG RH"

15

74610652

BOLT.3/8-24X3.75

18

19091412

WASHER

19

74610412

BOLT

20

10040400

LOCKWASHER

21

19092016

WASHER



110612X

DECAL TI



126230X

"DECAL,ENG HP"



120076X

SUB= 120075X

NCFC300A (1999 & Before)

Page 9 of 10

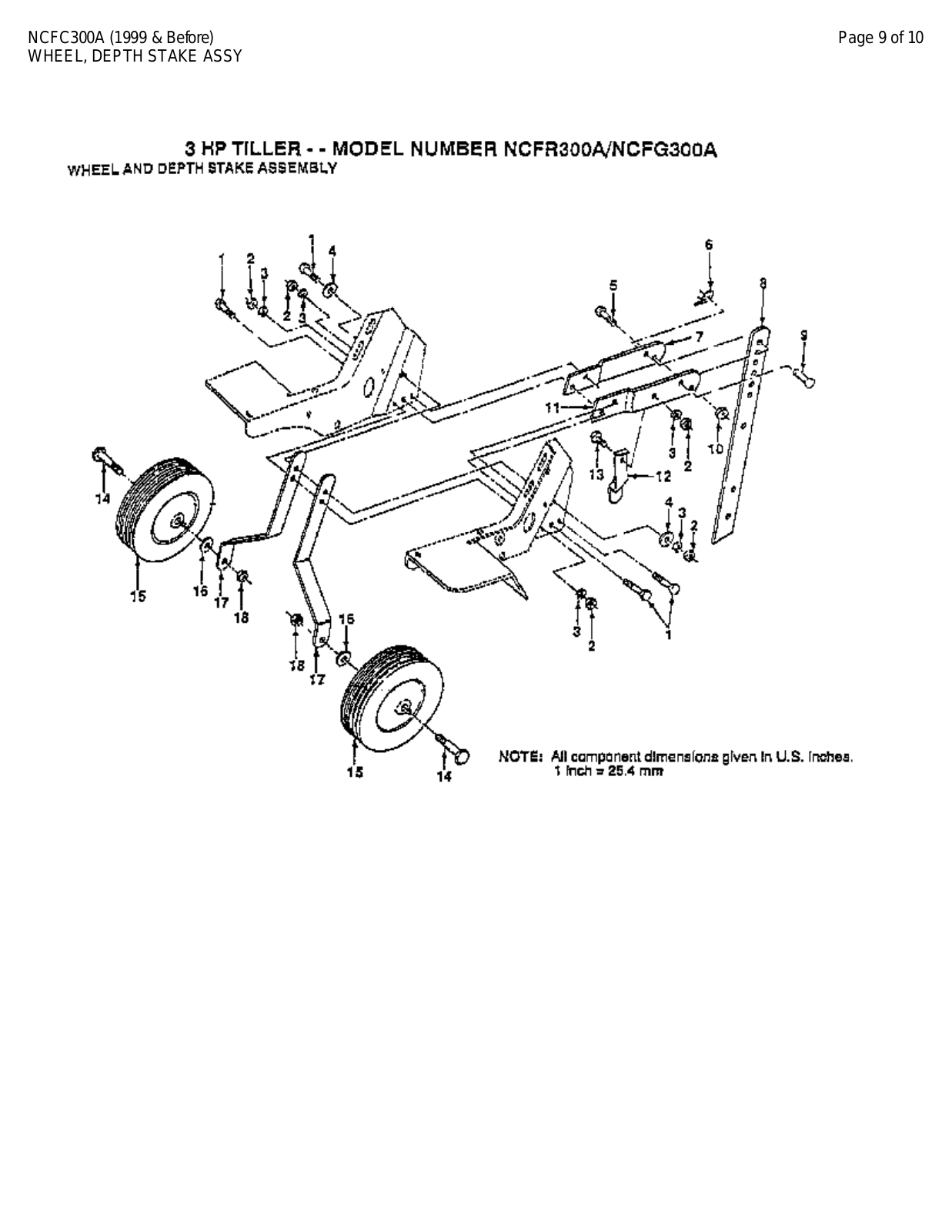

WHEEL, DEPTH STAKE ASSY



NCFC300A (1999 & Before)

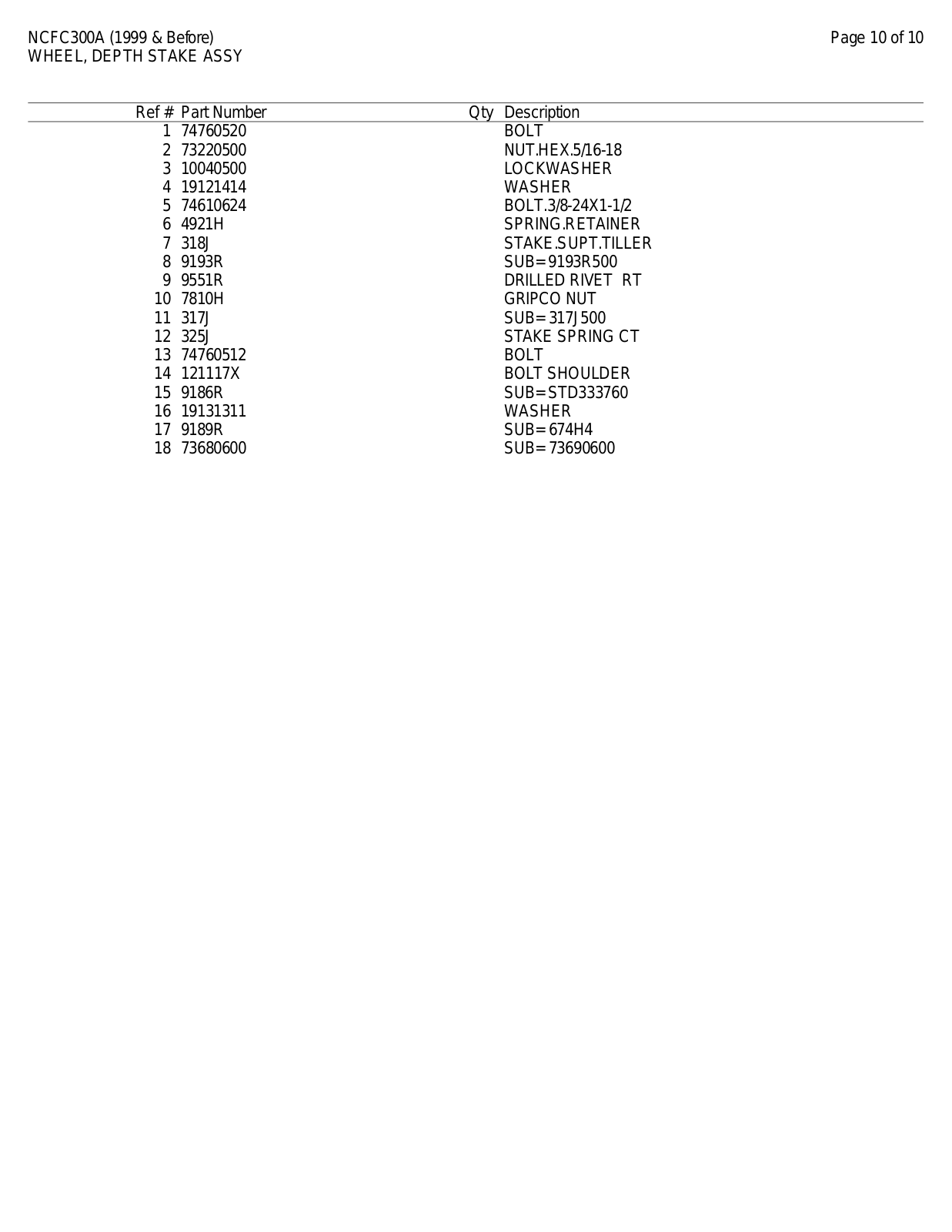

Page 10 of 10

WHEEL, DEPTH STAKE ASSY











Ref # Part Number

Qty Description

1

74760520

BOLT



2

73220500

NUT.HEX.5/16-18

3

10040500

LOCKWASHER

4

19121414

WASHER

5

74610624

BOLT.3/8-24X1-1/2

6

4921H

SPRING.RETAINER

7

318J

STAKE.SUPT.TILLER

8

9193R

SUB= 9193R500

9

9551R

DRILLED RIVET RT

10

7810H

GRIPCO NUT

11

317J

SUB= 317J500

12

325J

STAKE SPRING CT

13

74760512

BOLT

14

121117X

BOLT SHOULDER

15

9186R

SUB= STD333760

16

19131311

WASHER

17

9189R

SUB= 674H4

18

73680600

SUB= 73690600
