LTT120AR (1999 & Before)

Page 1 of 32

36" MOWER DECK, BELT, BLADES



LTT120AR (1999 & Before)

Page 2 of 32

36" MOWER DECK, BELT, BLADES











Ref # Part Number

Qty Description

1

106085X

BELT-V.79.1.MWR



2

121259X

SUB= 144725

3

8417J

SUB= 128772

4

73680600

SUB= 73690600

7

105896X

SUB= 137607

8

110452X

NUT PUSH M

9

106734X

SUB= 123713X

10

106735X

ROD-HINGET

11

106736X

DEFLECTOR-SHLDT

12

105814X

DECAL.LT

13

105304X

CAP-SLEEVELT

14

105662X

LINK.PARALLEL

15

105744X

"ROD, FRT. PARAL T"

16

4921H

SPRING.RETAINER

17

105872X

LINK STOP

18

109835X

HINGE PIN T

21

109598X

BRACKET RH LT

22

109597X

BRACKET LH T

24

109820X

DECAL YT

25

109503X

SUPPORT ARM T

26

109504X

STOP T

28

121317X

SUB= 126756X

29

74760632

SUB= 74930632

30

108832X

SUB= 127163X

31

106902X

SPACER RETAINER

32

121316X

PULLEY IDLER

33

106513X

"WASHER, WEAR LT"

34

102669X

BELT KEEPER LT

35

121687X

"JACKSHAFT.38""LT"

36

100668L

SUPPORT PLATE LT

39

121263X

"BLADE.38"" HI-LI"

40

19132012

WASHER

41

10030600

SUB= 10040600

42

74610624

BOLT.3/8-24X1-1/2

43

108250X

SPRING LT

44

108235X

ROD LT

45

4921H

SPRING.RETAINER

46

76020312

SUB= 3145

47

109892X

ROCKSHAFT T

48

76020616

SUB= 76020624

49

108247X

ROD BRAKE LT

52

108243X

BRACKET LT

53

108241X

BRACKET LT

54

105857X

"BRKT,SUSP RH T"

55

108673X

"BRKT,SUSP REAR LH"

56

106578X

BRAKE LT

57

106463X

"ROD, BRAKE LH LT"

58

108249X

ROD BRAKE LT

59

106456X

"BRK,BRAKE,PVT LT"

60

100672K

SPACER BRAKE LTV

61

100673L

BRACKET SUPT LTV

63

19111016

WASHER

65

7631J

RUNNER-LHM

66

19131614

WASHER

68

121349X

DECAL WARNING

70

122314X

SPACER

75

76020308

SUB= 3145

80

110445X

SUPPORT T

LTT120AR (1999 & Before)

Page 3 of 32

36" MOWER DECK, BELT, BLADES











Ref # Part Number

Qty Description

81 19131316

WASHER



LTT120AR (1999 & Before)

Page 4 of 32

DRIVE GROUP



LTT120AR (1999 & Before)

Page 5 of 32

DRIVE GROUP













Ref # Part Number

Qty Description

1

109070X

BELT KEEPER LT



2

108236X

BRACKET LT

4

105730X

"KEEPER,BLT ENG LT"

5

120302X

SUB= 125907X

6

19131312

WASHER

7

105864X

"BRACKET, SUSPE T"

8

106444X

"BRKT,BELLCRAN T"

9

108451X

ROD ASSEM YT

11

109728X

"T, BELLCRANK"

14

19171516

WASHER T

15

121599X

LH SUSP ARM ASM

16

9135R

SPRING H

17

4859J

SUB= 123674X

18

73220800

NUT

19

106308X

SUB= 130171

20

121598X

RH SUSP ARM ASM

22

105731X

SUB= 137326

23

74770720

SUB= 71130720

24

10040700

LOCKWASHER

25

74760644

BOLT

26

4470J

SPACER T

27

106190X

CLAMP LT

28

109370X

SUB= 123770X

29

109368X

SUB= 123662X

30

109369X

SUB= 123663X

31

4921H

SPRING.RETAINER

35

76020412

COTTER PIN

36

19131410

WASHER

37

5320R

INSUL CLIP T

LTT120AR (1999 & Before)

Page 6 of 32

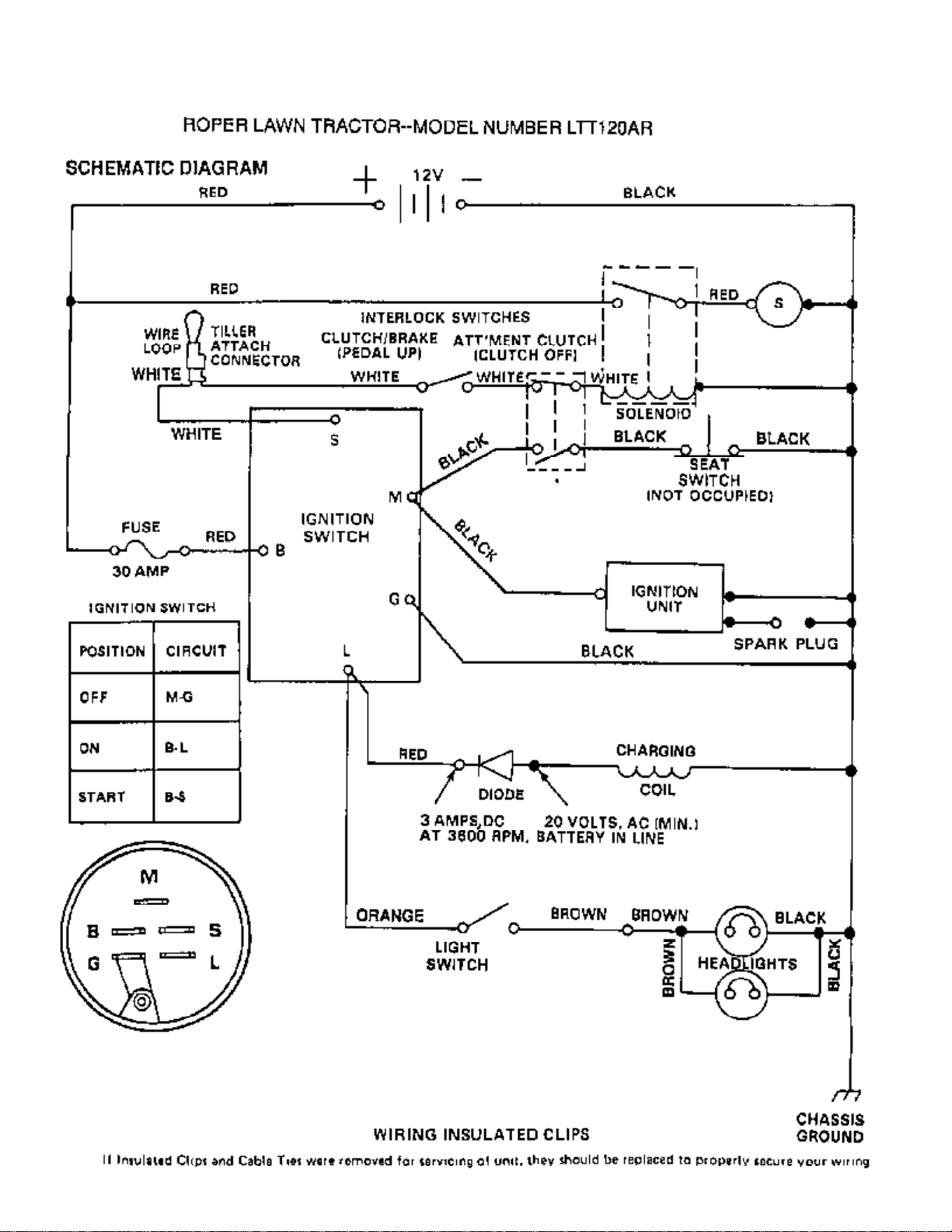

ELECTRICAL



LTT120AR (1999 & Before)



Page 7 of 32

ELECTRICAL













Ref # Part Number

Qty Description



1

73490400

SUB= 146525



3

102476X

SUB= 150109



4

72240460

BOLT



5

121265X

SUB= 123899X



6

7603J

"TRAY T, BATTERY"

7

122135X

IGNITION HARNES

8

110859X

HARNESS T



9

7662J

SUB= 4152J



10

7604J

SUB= 7697J



11

7192J

WIRE TIE



12

109553X

SWITCH INTERLOCKT

13

4206J

CABLE-BATTERYT

14

4406R

SUB= STD365402

15

109788X

SUB= 124211X



16

109434X

KEY MOLDED



17

109081X

SUB= 146154



18

110712X

SWITCH LT



21

109670X

CABLE LT



22

719J

SUB= 154336



23

4207J

CABLE T



25

109596X

HOSE CLAMP T



33

108824X

FUSE HYT



34

9433R

AMMETER

T

35

6009J

SUB= 532131708

36

10101000

SUB= 10071000



37

73911000

NUT



38

19070818

WASHER



39

102501X

SUB= 141940



40

235R

CLIPT



41

11030400

LOCKWASHER GT

42

104445X

SWITCH-INTER.GT

45

109787X

SUB= 147626



46

121305X

SWITCH SEAT



48

121264X

"CAP,BATTERY

"

49

121549X

DECAL





121256XOE

OWNER'S MANUAL - ENGLISH



121257XOF

OWNER'S MANUAL - FRENCH



101539X

SHEET INSTR LT



101572X

SHEET-INSTRUCTION(FRENCH)

LTT120AR (1999 & Before)

Page 8 of 32

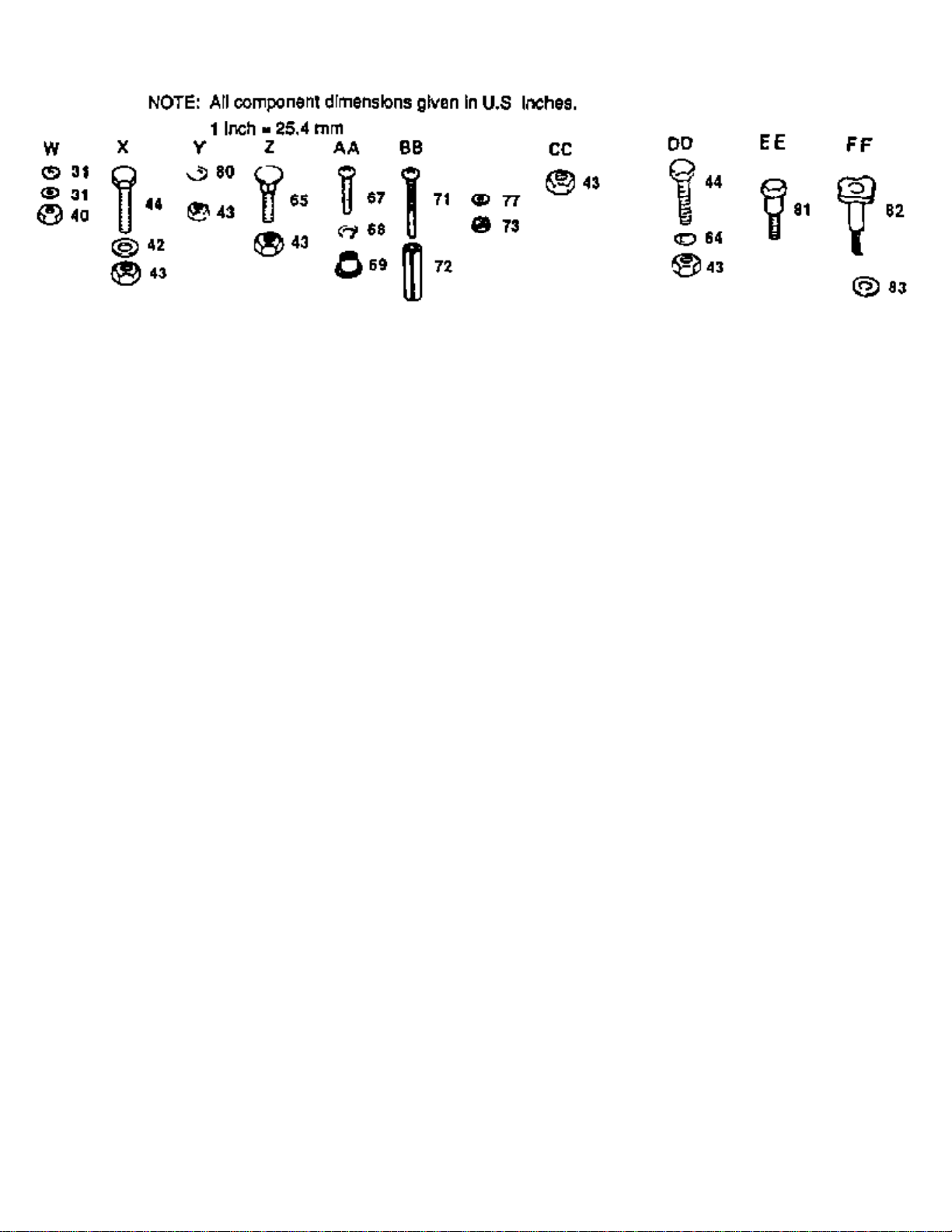

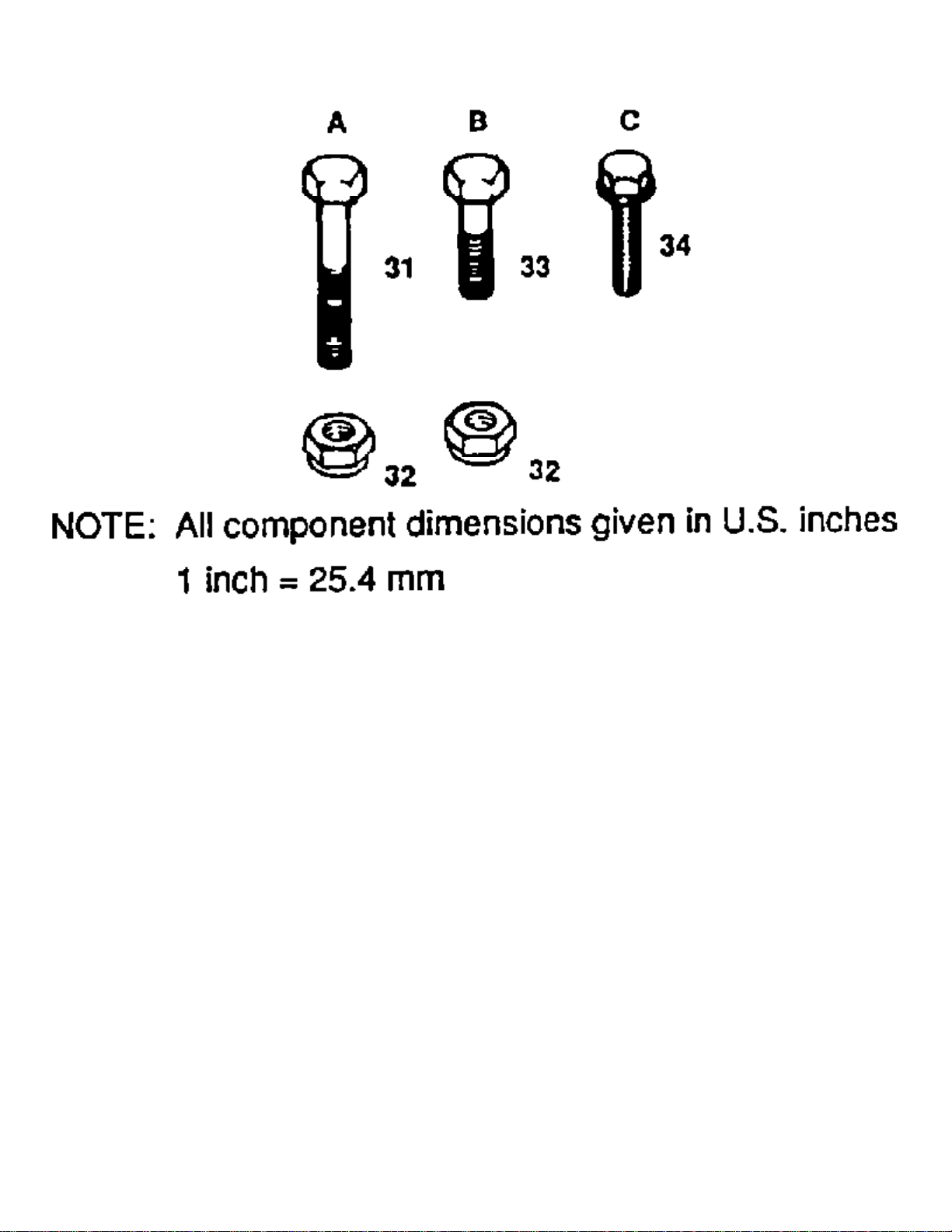

HARDWARE



LTT120AR (1999 & Before)

Page 9 of 32

HARDWARE













Ref # Part Number

Qty Description

4

73680600

SUB= 73690600



5

19111216

WASHER M

6

72140505

BOLT

19

74760612

SUB= 74780612

20

73680500

SUB= 73690500

23

72140506

BOLT

37

17490612

SCREW

38

17490620

SCREW

50

72140606

BOLT

64

74760688

BOLT

67

72140610

BOLT.3/8-14X1.25

76

72110506

SUB= 72270506

77

74760412

BOLT LT

78

109893X

WASHER T

79

73680400

SUB= 73690400

LTT120AR (1999 & Before)

Page 10 of 32

HARDWARE
