AYP LT120BR Parts List

Size:
15.61 Kb
Download

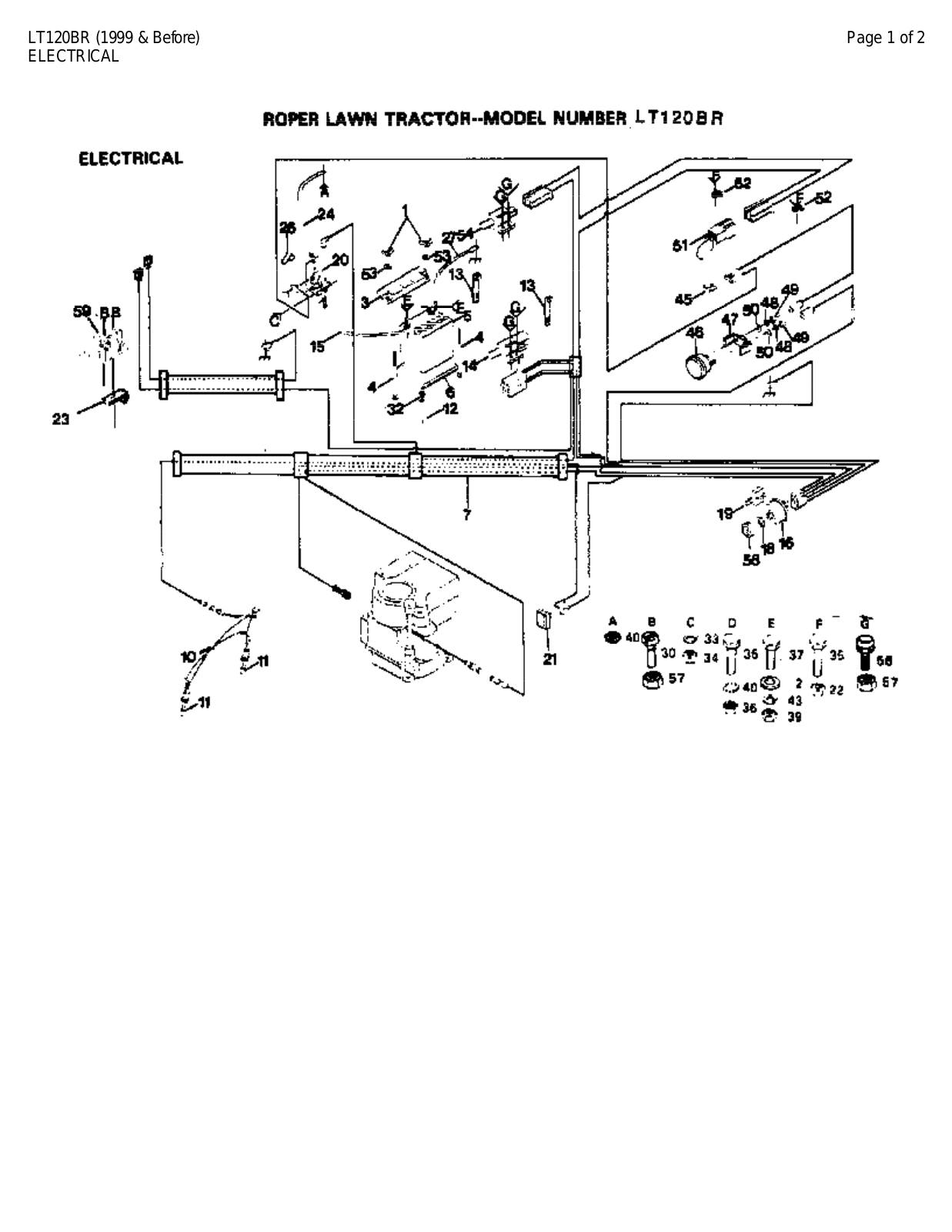

LT120BR (1999 & Before)

Page 1 of 2

ELECTRICAL

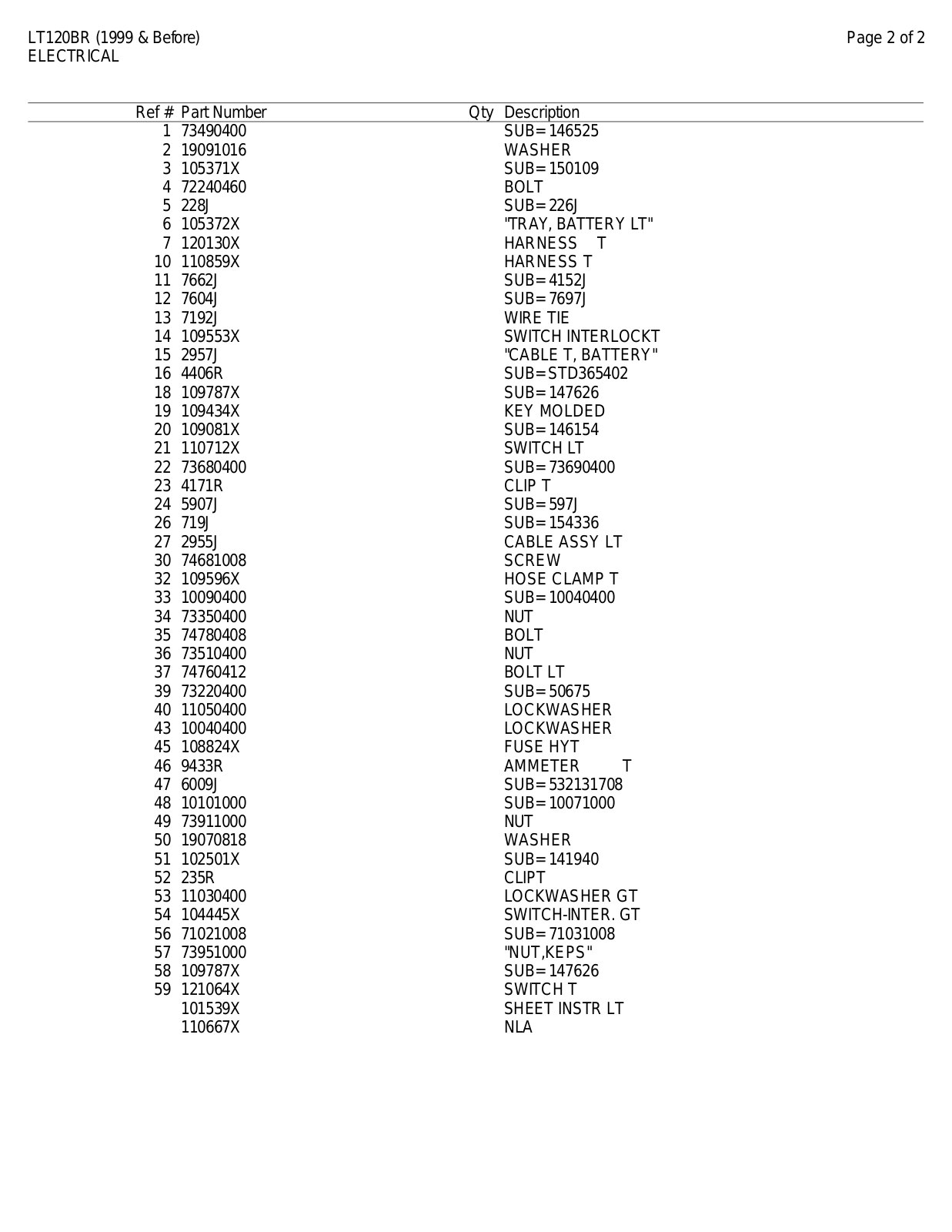

LT120BR (1999 & Before)



Page 2 of 2

ELECTRICAL

















Ref # Part Number

Qty Description





1

73490400

SUB= 146525



2

19091016

WASHER





3

105371X

SUB= 150109

4

72240460

BOLT





5

228J

SUB= 226J





6

105372X

"TRAY, BATTERY LT"

7

120130X

HARNESS

T

10

110859X

HARNESS T





11

7662J

SUB= 4152J





12

7604J

SUB= 7697J





13

7192J

WIRE TIE





14

109553X

SWITCH INTERLOCKT

15

2957J

"CABLE T, BATTERY"

16

4406R

SUB= STD365402

18

109787X

SUB= 147626

19

109434X

KEY MOLDED

20

109081X

SUB= 146154

21

110712X

SWITCH LT





22

73680400

SUB= 73690400

23

4171R

CLIP T





24

5907J

SUB= 597J





26

719J

SUB= 154336

27

2955J

CABLE ASSY LT

30

74681008

SCREW





32

109596X

HOSE CLAMP T

33

10090400

SUB= 10040400

34

73350400

NUT





35

74780408

BOLT





36

73510400

NUT





37

74760412

BOLT LT





39

73220400

SUB= 50675





40

11050400

LOCKWASHER

43

10040400

LOCKWASHER

45

108824X

FUSE HYT





46

9433R

AMMETER

T

47

6009J

SUB= 532131708

48

10101000

SUB= 10071000

49

73911000

NUT





50

19070818

WASHER





51

102501X

SUB= 141940

52

235R

CLIPT





53

11030400

LOCKWASHER GT

54

104445X

SWITCH-INTER.GT

56

71021008

SUB= 71031008

57

73951000

"NUT,KEPS"





58

109787X

SUB= 147626

59

121064X

SWITCH T







101539X

SHEET INSTR LT



110667X

NLA
